TECHNICAL DATA SHEET
PART NUMBER: DH-84WECASKPA

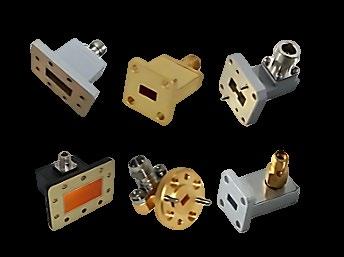

Waveguide-Coaxial Adaptor
PRODUCT
DESCRIPTION
Waveguide to Coax Adaptor, WR112, UBR-84 – SMA Female
This waveguide to coaxial adaptor offers a reliable transition from WR112 waveguide to an SMA female connector, ideal for X-band applications operating in the 7.05 GHz to 10 GHz range. Designed for test environments and system integration, it features a compact, precision-tuned construction to ensure minimal VSWR and high-power handling.
From DC-Light, Your Best Connection
PRODUCT APPLICATION
• Satcom and Radar Systems
• Test & Measurement
• Laboratory use
• Microwave communication equipment
KEY BENEFITS
• Suitable for space constrained installations
• Low VSWR
• 100W average power for demanding applications
TECHNICAL DATA SPECIFICATION
Waveguide Type WR112
Flange Type
Connector
Material
Inside Finish
Outside Finish
Size
UBR84 (Cover)

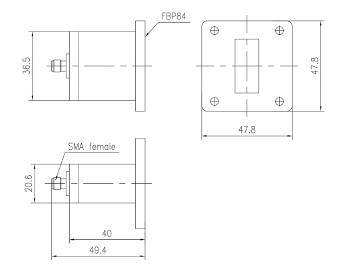

UBR-84 to SMA Female Endlaunch
Aluminium/Copper
Silver plating
Anticorrosion Grey Paint
40 x 48 x 48 mm
