TECHNICAL DATA SHEET
PART NUMBER:
DH-70WCANKPA
Waveguide to Coaxial Adaptor
PRODUCT
DESCRIPTION
Waveguide to Coax Adaptor
WR137 to N Female
This right-angle waveguide to coaxial adaptor offers a reliable transition from WR137 to an N female connector, ideal for Xband applications operating in the 5.38–8.17 GHz range. Designed for test environments and system integration, it features a compact, precision-tuned construction to ensure minimal VSWR and high-power handling.
From DC-Light, Your Best Connection
PRODUCT APPLICATION
• Satcom and Radar Systems
• Test & Measurement
• Laboratory use
• Microwave communication equipment
KEY BENEFITS
• Suitable for space constrained installations
• Low VSWR
• 100W average power for demanding applications
TECHNICAL DATA SPECIFICATION
Specifications
Frequency Range 5.38 GHz to 8.17 GHz
Body Type Right Angle VSWR
Average Power
Waveguide Type
Flange Type
Connector
Material
Inside Finish
Outside Finish
UDR70 to N Female Right Angle
Aluminium/Copper
Chromate Conversion/Silver Plating
Anticorrosion Grey Paint

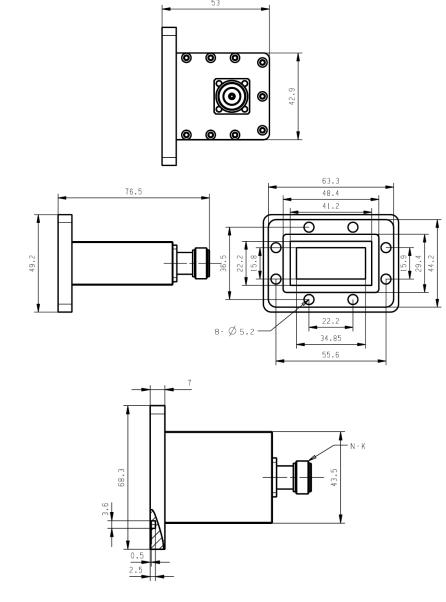

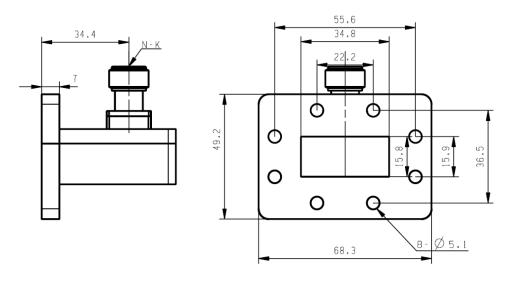

Size 53 x 42 x 54mm
