Introduction Rojone Pty Ltd is proud to be the Australian representative for Cooper Antennas Ltd. Cooper Antennas Ltd (CAL) is a U.K. company that brings together an exceptional team of internationally respected professionals with a combined experience of over 100 years in the design, development and manufacture of standard and custom antennas for predominately the Aerospace and Defence Industry. Over the years, the management team at Cooper Antennas Ltd has been responsible for providing hundreds of thousands of antennas for the world market.

Cooper Antennas Ltd is led by Geoff Cooper, former Managing Director and co-founder of Chelton (a Cobham plc company), which he developed, through internal growth and acquisition, into one of the world's largest and most successful Antenna companies.

Leaving Chelton after 37 years, he formed Cooper Antennas Ltd in 2005 with a senior management team of former colleagues. Collectively, the team bring strong contracting, program management and support skills to Governments, OEMs, Integrators and Operators alike.

The Cooper Antenna Ltd team of dedicated professionals aims to provide innovative, reliable, and designed-to-cost antenna solutions for today's increasingly networkenabled defence forces.

Cooper Antennas Ltd is an approved supplier to a growing number of major OEMs; during the last few years, it has become a significant antenna supplier to the U.S. Air Force, Army and Marine Corps. Recent successes include separate NATO, Canadian and Norwegian competitions for UHF Satcom On-The-Move Antennas, lo-profile loband VHF Antennas for the UK Royal Navy, VOR/ILS Antennas for a Mach 2+ aircraft platform and Static Dischargers for the Lockheed Martin F-16.

Land

Air

Sea

3 P: +61 2 9829 1555 E: sales@rojone.com.au W: www.rojone.com.au

44 Aero Road Ingleburn, NSW, 2565 Australia

Contact Us Sydney Office: 44 Aero Road, Ingleburn, NSW, 2565 Sydney, Australia Email: sales@rojone.com.au Phone: +61 2 9829 1555 Perth Office: Contact: Warren Boucaut Email: warren@rojone.com.au Phone: 0407 426 233 Cairns Office: Contact: Robert Grabowski Email: robert@rojone.com.au Phone: +61 2 9829 1555

4 P: +61 2 9829 1555 E: sales@rojone.com.au W: www.rojone.com.au

44 Aero Road Ingleburn, NSW, 2565 Australia

AIRBORNE PRODUCTS Blade/Semi-Conformal/Conformal •

2-30MHz

•

30-512MHz

•

30-941MHz

•

30-2500MHz o JTRS Compatible

o Link-16, WNW, SRW, TTNT, ANW2 •

2-18GHz o ISR EW

•

UHF Satcom o MUOS Compatible o LOS Compatible

5 P: +61 2 9829 1555 E: sales@rojone.com.au W: www.rojone.com.au

44 Aero Road Ingleburn, NSW, 2565 Australia

AIRBORNE PRODUCTS Whip/Rigid/Spring Mount/Magnetic Mount •

30-88MHz o Exceptional gain enhances any radio's BER (Bit Error Rate)

•

30-512MHz o EPLRS Compatible

•

30-2500MHz o JTRS Compatible

o Link-16, WNW, SRW, TTNT, ANW2 •

UHF Satcom o MUOS Compatible o LOS Compatible o “On-The-Move”

6 P: +61 2 9829 1555 E: sales@rojone.com.au W: www.rojone.com.au

44 Aero Road Ingleburn, NSW, 2565 Australia

MULTIPLEXERS/FILTERS •

Diplexers

•

Triplexers

•

High-Pass

•

Low-Pass

STATIC DISCHARGERS • • • • •

Trailing Type Tip Type Supersonic Transport Helicopter

7 P: +61 2 9829 1555 E: sales@rojone.com.au W: www.rojone.com.au

44 Aero Road Ingleburn, NSW, 2565 Australia

TUNEABLE ANTENNAS The tuneable Antenna Is a benefit to any aircraft that: 1. Requires broadband communications a. 30-512MHz b. 30-941MHz c. 30-2000MHz 2. It has multiple systems on board the aircraft that can cause interference with each other.

Tuneable antennas follow the radio and "tune" to the same frequency as the radio.

Unlike passive antennas that listen to everything over the frequency spectrum, tuneable antennas only operate at the tuned frequency, offering increased R.F. performance.

CAL tuning is radio silent and instantaneous (≤60 µsec) •

Compatible with waveforms such as: o SINCGARS

o HAVEQUICK

o HAVEQUICK IIA o SATURN

o Etc.

8 P: +61 2 9829 1555 E: sales@rojone.com.au W: www.rojone.com.au

44 Aero Road Ingleburn, NSW, 2565 Australia

TUNEABLE ANTENNAS CONTINUED

6.5" ARC231

Integral Logic Unit Version

12" Tuneable 30-600MHz

9" Tuneable 30-600MHz

9 P: +61 2 9829 1555 E: sales@rojone.com.au W: www.rojone.com.au

44 Aero Road Ingleburn, NSW, 2565 Australia

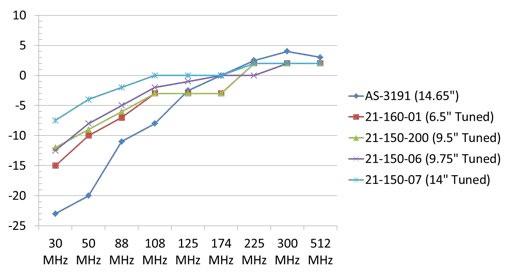

TUNEABLE VS PASSIVE GAIN VS FREQUENCY

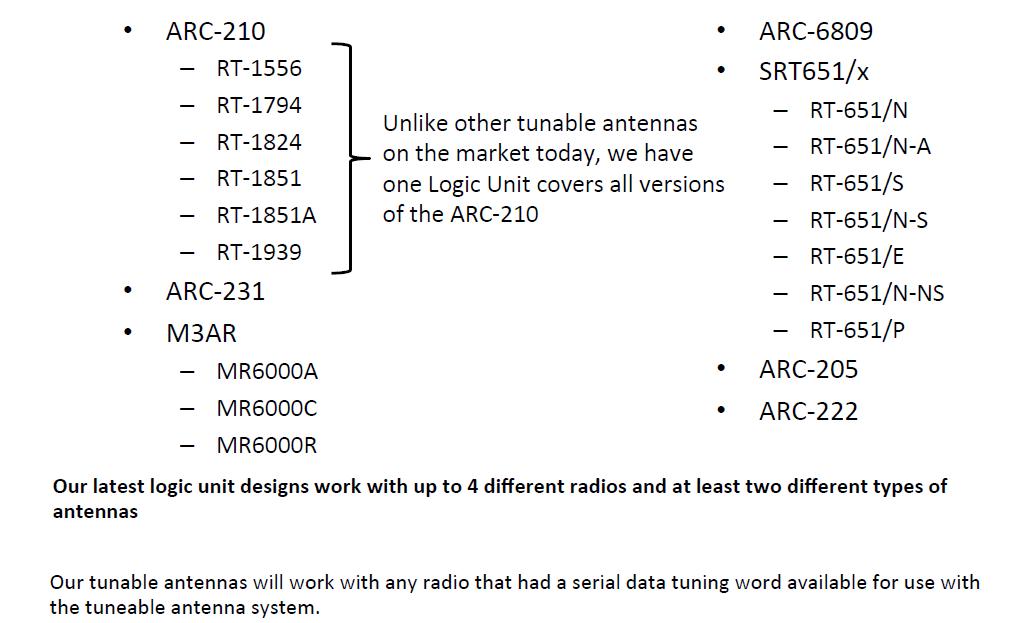

RADIO COMPATIBILITY

10 P: +61 2 9829 1555 E: sales@rojone.com.au W: www.rojone.com.au

44 Aero Road Ingleburn, NSW, 2565 Australia

TUNEABLE ANTENNA 21-160-01 21-160-01 Antenna and 21-151 Series Logic Unit Features: •

30-512MHz

•

6.5 inches

•

Meets Mil Std 810 Environmental conditions

•

Designed to be integrated with all modern digital transceivers

TUNEABLE ANTENNA AND LCU 21-150-202 or 21-190-06 Antenna with 21-171 Series Logic Unit Features: •

30-512MHz (the 21-190-06 includes the L Band)

•

9.5 inches

•

Meets Mil Std 810 Environmental conditions

•

Designed to be integrated with all modern digital transceivers

11 P: +61 2 9829 1555 E: sales@rojone.com.au W: www.rojone.com.au

44 Aero Road Ingleburn, NSW, 2565 Australia

MUOS (MOBILE USER OBJECTIVE SYSTEMS) ANTENNAS CAL has an extensive line of UHF SATCOM antennas that are already MUOS capable.

CAL off-the-shelf antennas cover: •

Up Link o MUOS 300-320MHz

•

o Legacy 292-318MHz

Down Link

o MUOS 360-380MHz

o Legacy 240-270MHz CAL antennas are qualified for Fixed-Wing, Helicopter, and Tactical Ground Vehicle environments. With over 4,000 in service, they are battle-tested and reliable.

UHF/MUOS SATCOM Antenna 240-385MHZ

Multi-Function UHF/UHF,

Broadband Blade Antenna

Link 16 & SATCOM 240-400, 30-512MHz 30-512 & 900-2000MHz

VOR/ILS Antenna

V/UHF Direction Finding

Airborne Stub Antenna

System 108-118 & 328-

(D.F.) Antenna 118-40MHz

30-512MHz

336MHz

12 P: +61 2 9829 1555 E: sales@rojone.com.au W: www.rojone.com.au

44 Aero Road Ingleburn, NSW, 2565 Australia

PASSIVE ANTENNAS

VHF/UHF/C/D Band 21-50-56

V/UHF 30-512MHz 21-50-83 UHF 225-512MHz 21-30-17

ATC/TACAN/IFF 21-40-06

High Gain 30-512MHz 21-50-32

13 P: +61 2 9829 1555 E: sales@rojone.com.au W: www.rojone.com.au

44 Aero Road Ingleburn, NSW, 2565 Australia

CONFORMAL ANTENNAS

F-16 LOS/BLOS

UHF SATCOM

C/D Band

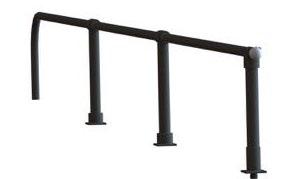

HF ARRAYS

21-100-400

21-10-410

21-10-420

21-10-450

Sliding Mast

HN Connector

Clamp Mast

Switching Mast

Lead In Mast

14 P: +61 2 9829 1555 E: sales@rojone.com.au W: www.rojone.com.au

44 Aero Road Ingleburn, NSW, 2565 Australia

HF ARRAYS DESIGNED FOR HELICOPTERS

HF ARRAYS FOR EXTERNAL ATU

Half Loop H.F. Array Designed for Vehicles

15 P: +61 2 9829 1555 E: sales@rojone.com.au W: www.rojone.com.au

44 Aero Road Ingleburn, NSW, 2565 Australia

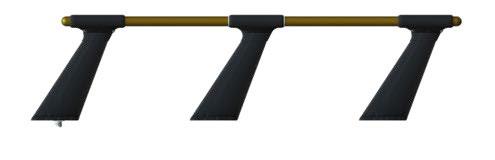

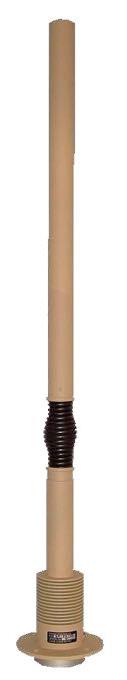

LIGHTWEIGHT WHIP ANTENNAS

30-88MHz 21-20-36

30-88MHz 21-20-38

110-512MHz 21-50-36

ELT 21-20-40

30-512MHz 21-50-30

135-175MHz 21-20-38/03

118-137MHz 21-20-41

16 P: +61 2 9829 1555 E: sales@rojone.com.au W: www.rojone.com.au

44 Aero Road Ingleburn, NSW, 2565 Australia

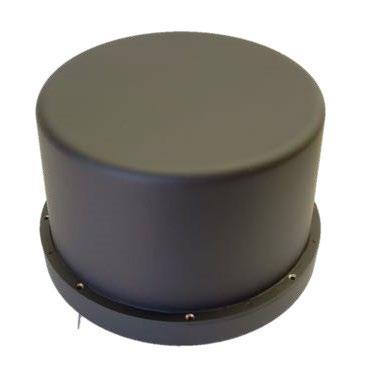

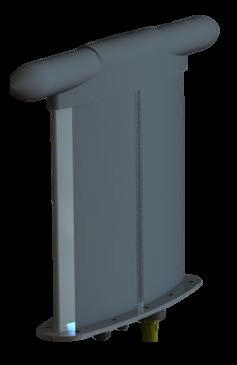

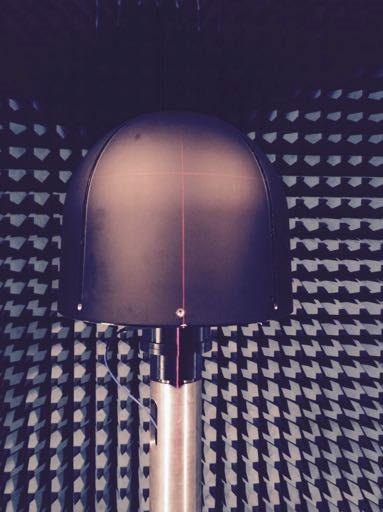

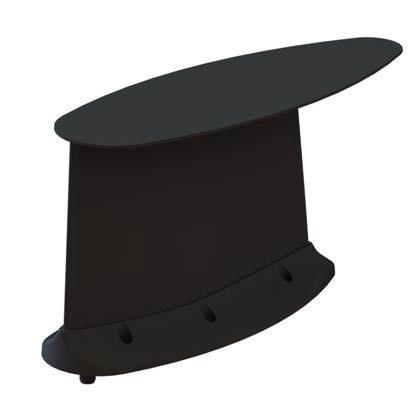

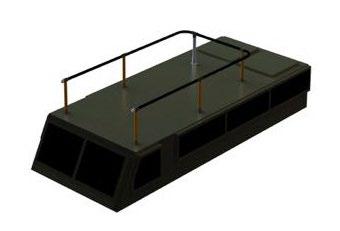

RADOME DESIGN, MANUFACTURE & TESTING

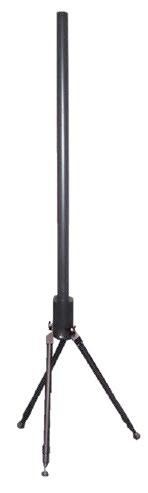

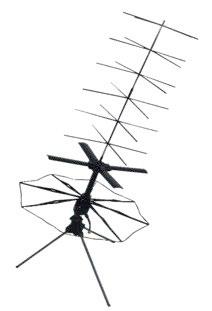

DF & HOMING ANTENNAS Developed in collaboration with Cubic Defence

17 P: +61 2 9829 1555 E: sales@rojone.com.au W: www.rojone.com.au

44 Aero Road Ingleburn, NSW, 2565 Australia

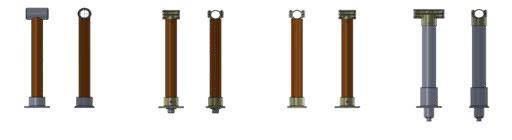

STATIC DISCHARGERS

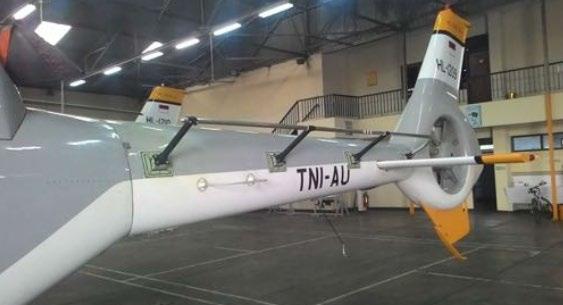

21-90-06 Flexible Typical Helicopter Application •

Exceeds Mil-D-9129D Noise Quieting Requirements (>50dB)

•

Advanced Silicon Carbide technology for Stable Resistance over extremes of environmental conditions

•

Direct replacement for dischargers from other manufacturers

•

Integrated retainer

•

NSN: 5920-01-434-8504

21-90-33 Supersonic Aircraft (F-16) •

Exceeds Mil-D-9129D Noise Quieting Requirements (>50dB)

•

High Strength/Weight ratio

•

Low profile

•

Long life in highly stressed conditions

•

Advanced Silicon Carbide technology for stable resistance over extremes of environmental conditions

•

Low initial life-cycle costs

•

Direct replacement for dischargers from other manufacturers

•

NSN: 5920-01-434-8504
