SMART STEERED BEAM ANTENNAS PRODUCT PROFILE

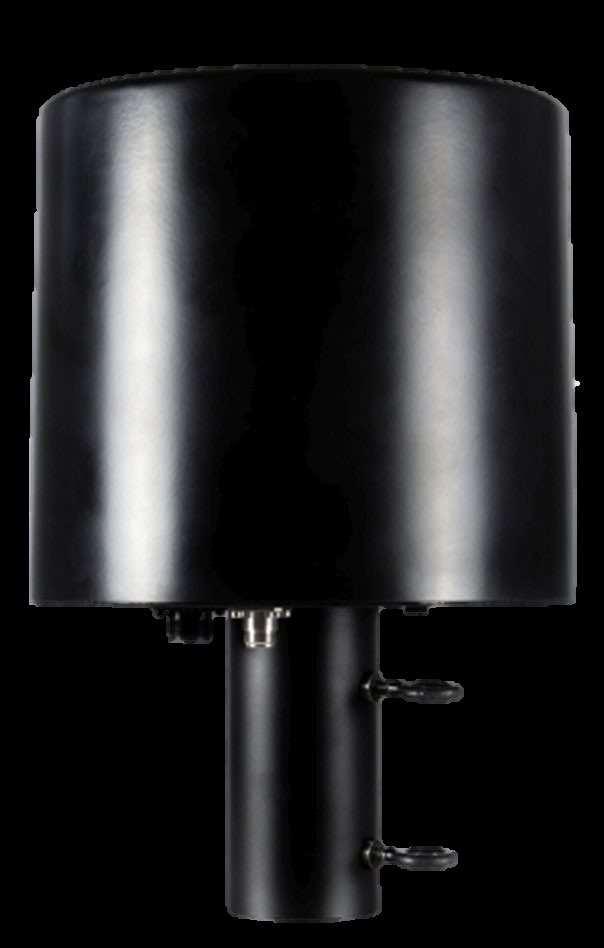

High Power Dual Band SBA for 2.4 and 5 GHz SBA2456XDB
The SBA2456XDB is high power dual band steerable beam antenna covering the full 2.4 and 5 GHz frequency bands (WiFi). The antenna beam can be steered to achieve optimal gain to the desired direction and to avoid interference from unwanted directions. The antenna provides up to 24 sharp beams with a minimum of 20-degree beamwidth to cover the full 360degree horizontal area. Its extremely fast beam switching ability makes the antenna suitable for UAV/drone detection and counter measures.
ï High power rating ñ 100 W CW
ï Sharp and omni beam modes available
ï Fast beam switching by using RS-485 or Ethernet based communication
V1.1w
Date17.05.2024
Productdetails*
Frequencyrange 2400-2500MHzand5000ñ6000MHz
Polarization
Antennatype
Nominallyvertical
Steerablebeamantenna
Radiationpattern Directionalandomni(Sharpandomnibeammodes)
Gain(typical) 10-11dBi@2.4-2.5GHz 12-14dBi@5.0-5.9GHz
3dBbeamwidth (typical) 2.45GHz:45(H-plane),30(E-plane) 5.8GHz:25(H-plane),13(E-plane)
Sidelobelevel(typical) -12dB(H-plane)
VSWR ≤ 2.5
NominalImpedance
Powerrating**
50 Ω
100W(CW&Peak)
Powersupply 19ñ32VDC(<200mA),MIL-STD-1275E
Beamswitchingspeed <1µs
Standardcolor Black
Radiator
Selectablepatcharrayelement,24elements
Height 435mm(includingthemastmountadapter)
Diameter 320mm
Weight 5.3kg
** Coldswitching
RFconnection
Installation*
FemaleN-typeconnector
Mounting Mastmountadapterfor40-60mmmastsincluded
*Moreinformationonrequest
Ordernumber
SBA2456XDB Antennaasdescribedabove

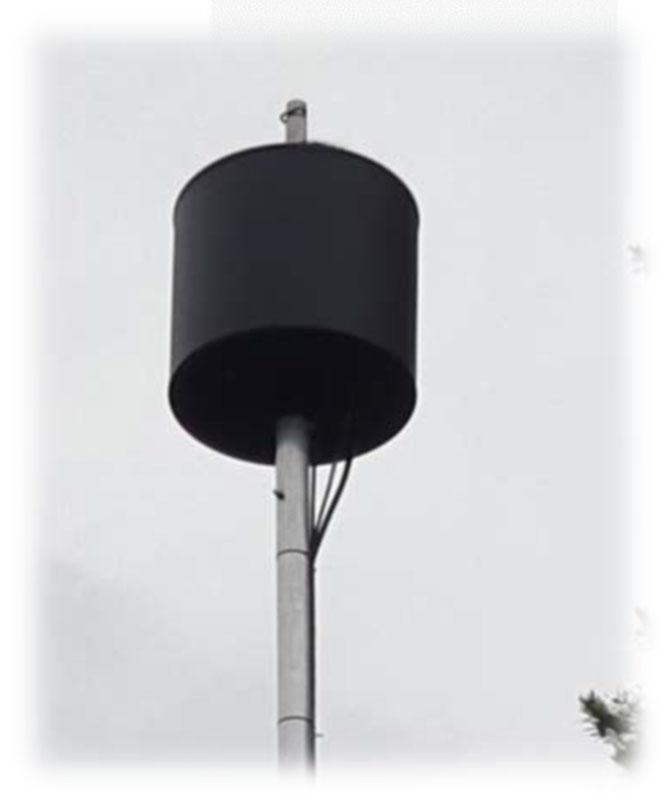

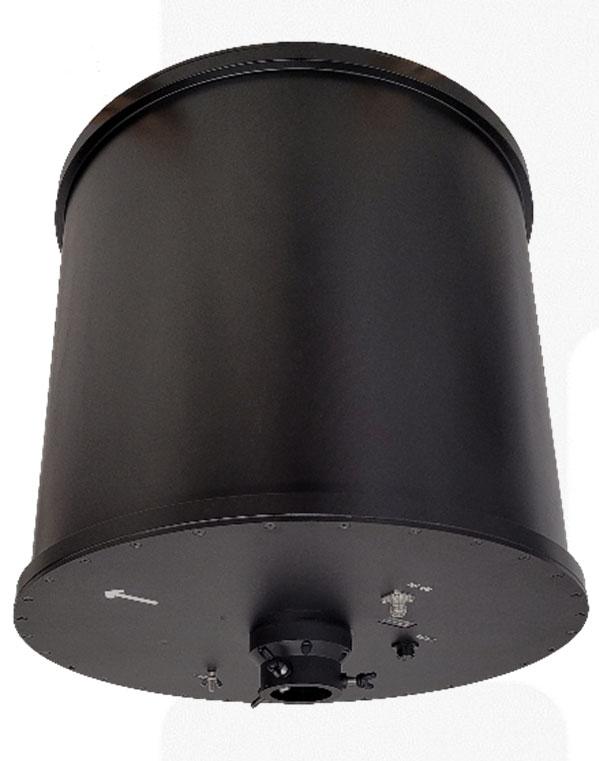

Switched Beam Antenna for UHF III+ SBA1327B
The SBA1327B is a switched beam antenna covering the UHF/NATO band III+ (1350 to 2700 MHz). The antenna beam can be switched by remote control to achieve optimal gain to the desired direction and to avoid interference from unwanted directions. The antenna provides 20 beams with a minimum of 28 degree beamwidth to cover the full 360 degree horizontal area. In addition to these narrow beams the antenna can also provide other beams. Its extremely fast beam switching ability makes the antenna suitable for complex node network in tactical communication.
ï Great directivity with low side lobe levels to undesired direction.
ï Fast beam switching by using RS-485 or Ethernet based communication
ï Mast though antenna mounting with easy to use mast mount adapters
Productdetails*
Frequencyrange 1350-2700MHz
Polarization
Nominallyvertical
Antennatype Switchedbeamantenna
Radiationpattern Directional Gain 13-16dBi(typical)
3dBbeamwidth,Elevation 15(typical)
3dBbeamwidth,Azimuth 35(typical)
Sidelobelevel -12dB(typical) VSWR ≤ 2.5
NominalImpedance 50 Ω
Powerrating** 10W(CW&Peak) Powersupply 19ñ32VDC(<200mA),MIL-STD-1275E
Beamswitchingspeed <2µs
Standardcolor Black
Radiator Selectablepatcharrayelement,20elements
Height 675mmincludingthemastmounts
Diameter 590mm
Weight 20kg
** Coldswitching
RFconnection
Installation*
FemaleN-typeconnector
Mounting Mastmountadaptersfor40-60mmmastsincluded
*Moreinformationonrequest
Ordernumber
V1.0w
Date17.05.2024 Page1/1
Steerable Beam Antenna for S-Band SBA2025B
The SBA2025B is a small sized steerable beam antenna optimized for 2000-2500 MHz. The antenna beams can be steered for optimal gain to the desired direction and to avoid interference from unwanted directions (LPI/LPD). The antenna provides up to 20 beams with a minimum of 20-degree beamwidth to cover the full 360-degree horizontal area. In addition to these narrow beams the antenna can also provide omni directional beam. The antenna contains integrated 3D sensors. It’s extremely fast beam switching ability makes the antenna suitable for complex node network in tactical communication.
• Excellent performance in a small form factor
• Great directivity with very low side lobe levels to undesired direction (LPI/LPD)
• Integrated 3D sensors: accelerometer, gyroscope and magnetometer
Product details*
Frequency range
Polarization
Antenna type
Radiation pattern
Gain
3 dB beamwidth, Elevation
3 dB beamwidth, Azimuth
2000 - 2500 MHz
Nominally vertical
Steerable beam antenna
Directional and omni (Sharp and omni beam modes)
Up to 13 dBi (Sharp beam mode)
25° (typical)
30° (typical)
Sidelobe level -12 dB (typical)
VSWR ≤ 2.5
Nominal Impedance 50 Ω
Power rating
10 W (CW)
Power supply 19 – 32 VDC (<200 mA), MIL-STD-1275E
Beam switching speed < 1 µs*
Standard color
Black
Radiator Selectable patch array element, 20 elements
Height 420 mm including the mast mount element
Diameter 420 mm
Weight 8.0 kg
V0.1w
Date 30.03.2023 Page 1/1 Order number
* more information on request

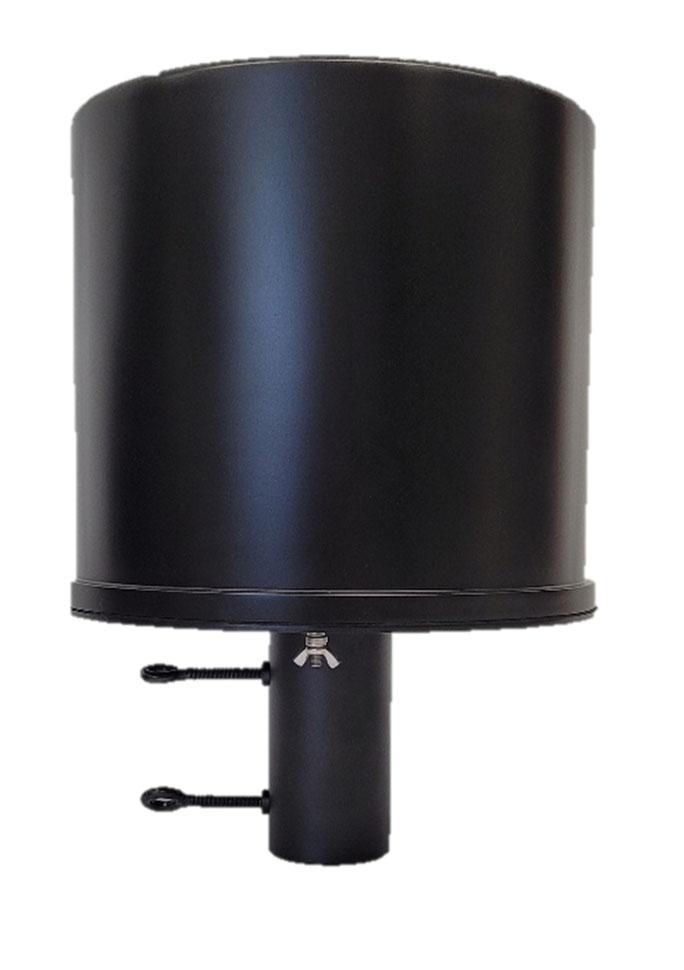

Dual Band Switched Beam Antenna for 2.4 and 5GHz SBA2456DB
The SBA2456DB is a dual band switched beam antenna covering the full 2.4 and 5 GHz frequency bands (WiFi). The antenna beam can be steered to achieve optimal gain to the desired direction and to avoid interference from unwanted directions. The antenna provides 24 sharp beams with a minimum of 20-degree beamwidth to cover the full 360-degree horizontal area. The antenna provides superior gain performance with low side lobe levels. Its extremely fast beam switching ability makes the antenna suitable for UAV/drone detection and counter measures.
• Great directivity with very low side lobe levels
• Sharp and omni beam modes available
• Fast beam switching by using RS-485 or Ethernet based communication
Antennatype Switchedbeamantenna
Radiationpattern Directionalandomni(Sharpandomnibeammodes) Gain(typical) 10-12dBi@2.4-2.5GHz 12-15dBi@5.0-5.9GHz
3dBbeamwidth (typical) 2.45GHz:45(H-plane),30(E-plane) 5.8GHz:25(H-plane),13(E-plane)
Sidelobelevel(typical) -12dB(H-plane)
VSWR ≤ 2.5
NominalImpedance 50 Ω
Powerrating** 10W(CW&Peak)
Powersupply 19ñ32VDC(<200mA),MIL-STD-1275E
Beamswitchingspeed <1µs
Standardcolor Black
Radiator Selectablepatcharrayelement,24elements Height 405mm(includingthemastmountadapter)

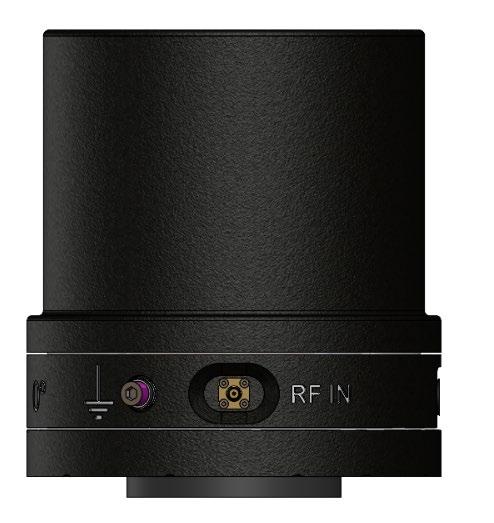

Small Dual Band SBA for 2.4 and 5GHz SBA2456DB-S
The SBA2456DB-S is a small dual band steerable beam antenna covering the full 2.4 and 5 GHz frequency bands (WiFi). The antenna beam can be steered to achieve optimal gain to the desired direction and to avoid interference from unwanted directions. The antenna provides 10 sharp beams with a minimum of 40-degree beamwidth to cover the full 360-degree horizontal area. The antenna provides superior gain performance with low side lobe levels. Its extremely fast beam switching ability makes the antenna suitable for UAV/drone detection and counter measures.
• Beam steering in a compact form factor
• 10 sharp beams available
• Fast beam switching by using RS-422 based communication
Polarization Nominally vertical
Antenna type Switched beam antenna
Radiation pattern Directional (Sharp beam mode)
Gain (typical)
dBi @ 2.45 GHz
dBi @ 5.5 GHz
3 dB beamwidth (typical) 2.45 GHz: 70° (H-plane), 40° (E-plane) 5.5 GHz: 45° (H-plane), 20° (E-plane)
Sidelobe level (typical) -12 dB (H-plane)
VSWR ≤ 2.5
Nominal Impedance 50 Ω
Power rating 10 W (CW)
Power supply 19 – 32 VDC (<200 mA), MIL-STD-1275E
Beam switching speed < 1 µs
Standard color Black
Radiator
Selectable patch array element, 10 elements
mm
Installation*
RF connection Female N-type connector
Power and control 10 PIN MIL-DTL-26482, Shell size 12
Mounting 4 bolt mounting to bottom plate
NOTE: The above dimensions and weight do not take into account the magnets. Order number
SBA2456DB-S Antenna as described above
SBA2456DB-S-W Antenna with a mounting magnet **
** The above dimensions and weight do not take into account the magnet.

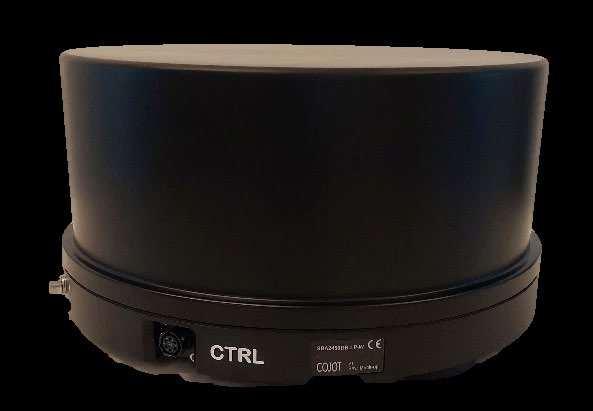

Low Profile Dual Band SBA for 2.4 and 5GHz SBA2456DB-LP
The SBA2456DB-LP is a dual band steerable beam antenna covering the full 2.4 and 5 GHz frequency bands (WiFi). The antenna beam can be steered to achieve optimal gain to the desired direction and to avoid interference from unwanted directions. The antenna provides up to 24 sharp beams with a minimum of 20degree beamwidth to cover the full 360-degree horizontal area. The antenna provides superior gain performance with low side lobe levels. Its extremely fast beam switching ability makes the antenna suitable for UAV/drone detection and counter measures.
• Great directivity with very low side lobe levels
• Sharp and omni beam modes available
• Fast beam switching by using Ethernet based communication
beam antenna Radiation pattern
and omni (Sharp and omni beam modes) Gain (typical)
3 dB beamwidth (typical) 2.45 GHz: 43° (H-plane), 46° (E-plane) 5.8 GHz: 25° (H-plane), 25° (E-plane)
Sidelobe level (typical) -12 dB (H-plane) VSWR ≤ 2.5
Nominal Impedance
Ω Power rating 10 W (CW)
Power supply 19 – 32 VDC (<200 mA), MIL-STD-1275E
Beam switching speed < 1 µs
Standard color Black
Radiator Selectable patch array element, 24 elements
Installation*
RF connection Female SMA-type connector
Power and control 6 PIN MIL-DTL-26482, Shell size 8
Mounting 4 bolt mounting to bottom plate
* More information on request
Order number
above dimensions and weight do not take into account the magnets.

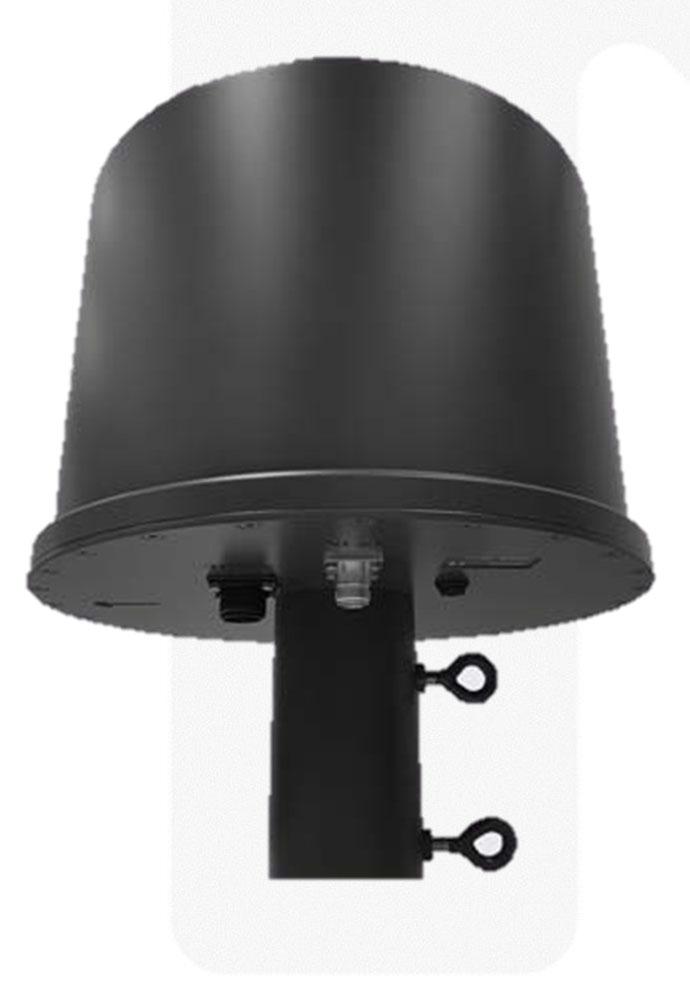

Dual Polarized Switched Beam MIMO Antenna for 5G SBA3438B-DP
The SBA3438B-DP is a switched beam antenna for the 5G 3.4 to 3.8 GHz frequency band providing output for dual ±45° slant polarizations to support MIMO usage. The antenna offers extremely fast beam steering capability to achieve optimal gain to the desired direction and avoid interference from and to unwanted directions (LPI/LPD). The antenna provides up to 20 sharp beams with a minimum of 18 degree beamwidth to cover the full 360 degree horizontal area. On top of sharp beam mode the antenna supports also wide and quasi-omni modes
• Dual ±45° slant polarizations to support MIMO usage
• Extremely fast beam steering to support 5G complex node and Mesh networks
• Optimized spectrum efficiency: antenna gain steered to the desired directions and interference minimized to and from unwanted directions
Product details*
Frequency range 3400 - 3800 MHz
Polarization
V0.3w
±45° slant polarizations
Antenna type Switched beam antenna
Radiation pattern Directional (see typical patterns on Page 2)
Gain (typical) 14 dBi
3 dB beamwidth, VP & HP E-plane 15°, H-plane 25° (typical)
Sidelobe level (typical) -12 dB
VSWR ≤ 2.5
Nominal Impedance 50 Ω
Power rating 10 W (CW)
Power supply 12 VDC (< 200 mA)
Beam switching speed < 1 µs
Standard color Black
Radiator 20 x selectable dual polarized patch array element
Height 390 mm (including the mast mount adapter)
Diameter 370 mm
Weight 4.5 kg
Installation
RF connection 2 x Female N-type connector
Power and control See information on Page 3
Mounting Mast mount adapters for 40-60 mm masts included
* More information on request
Order number
Date 11.10.2021 Page 1/1
