Alaris Cojot Full Catalogue

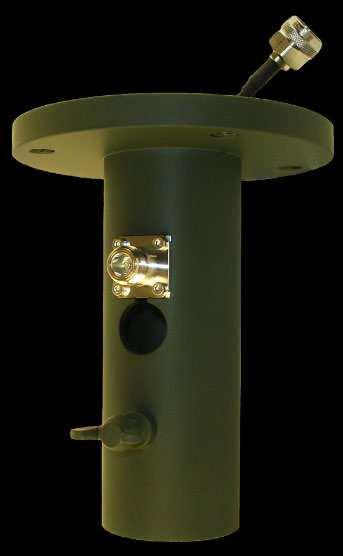

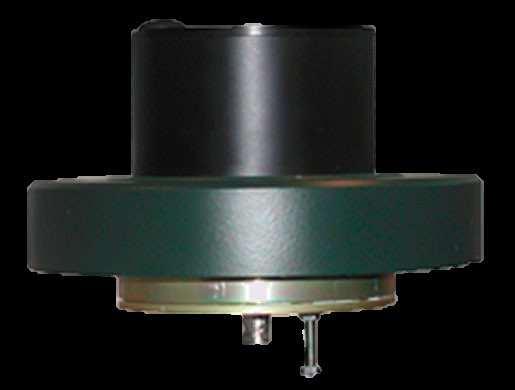

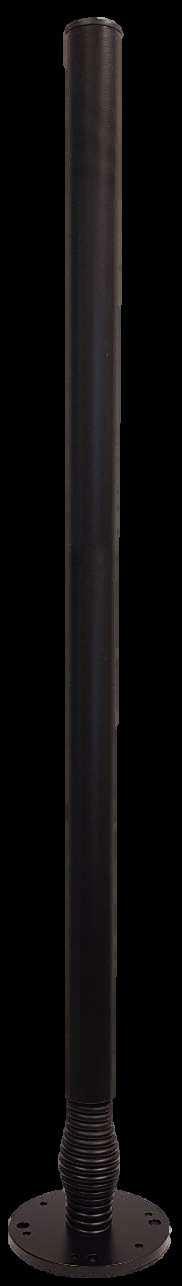

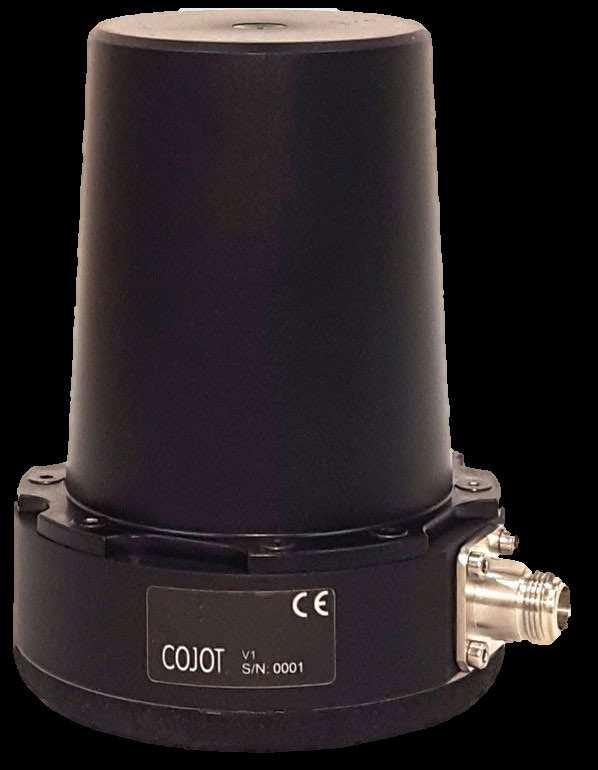

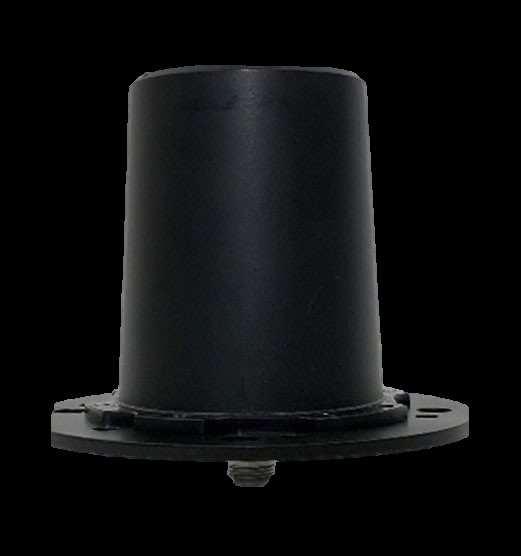

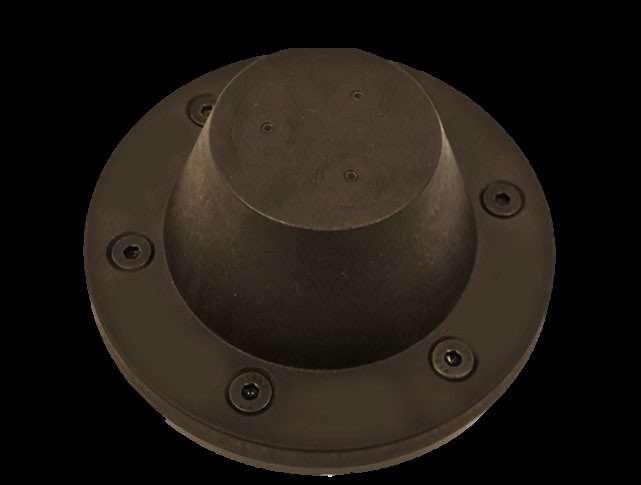

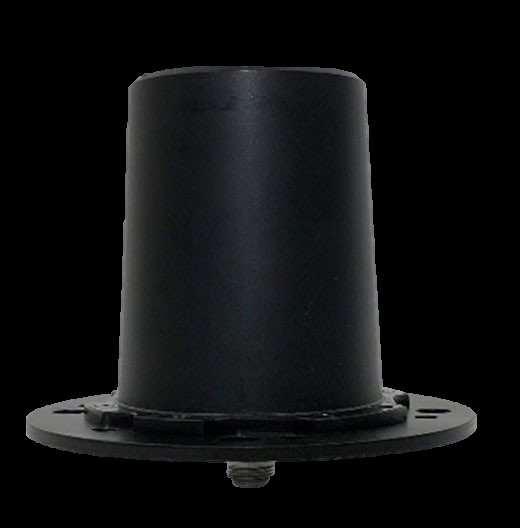

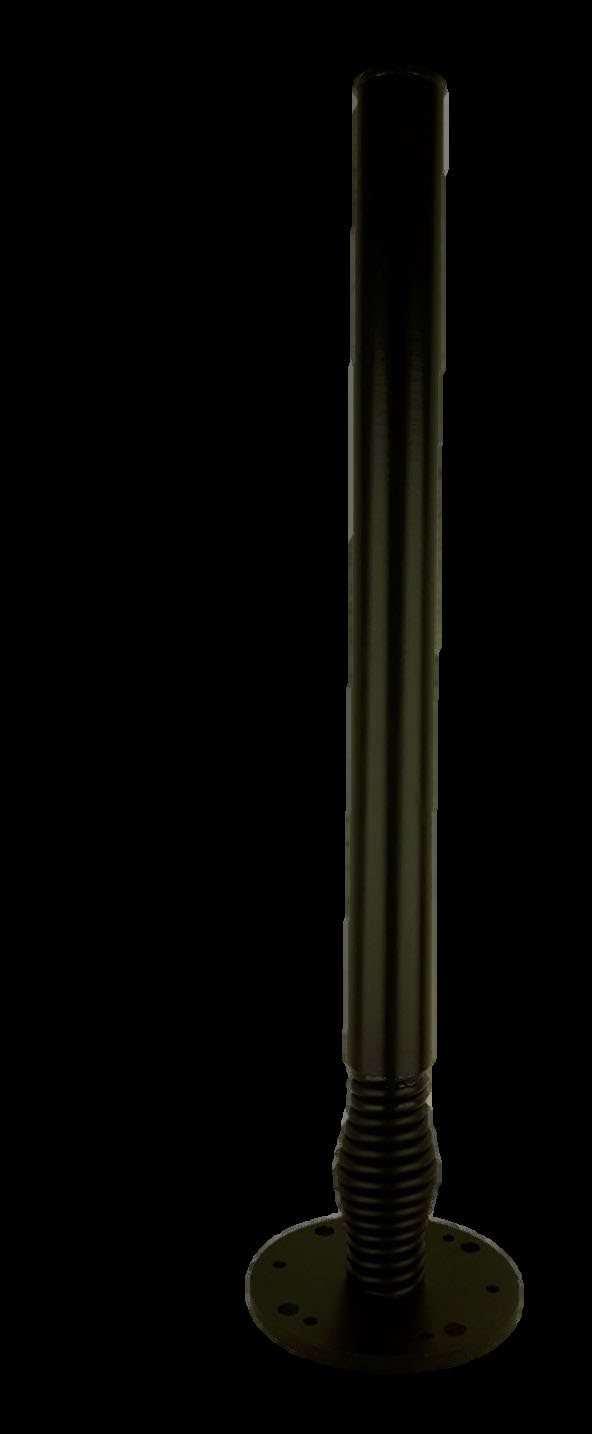

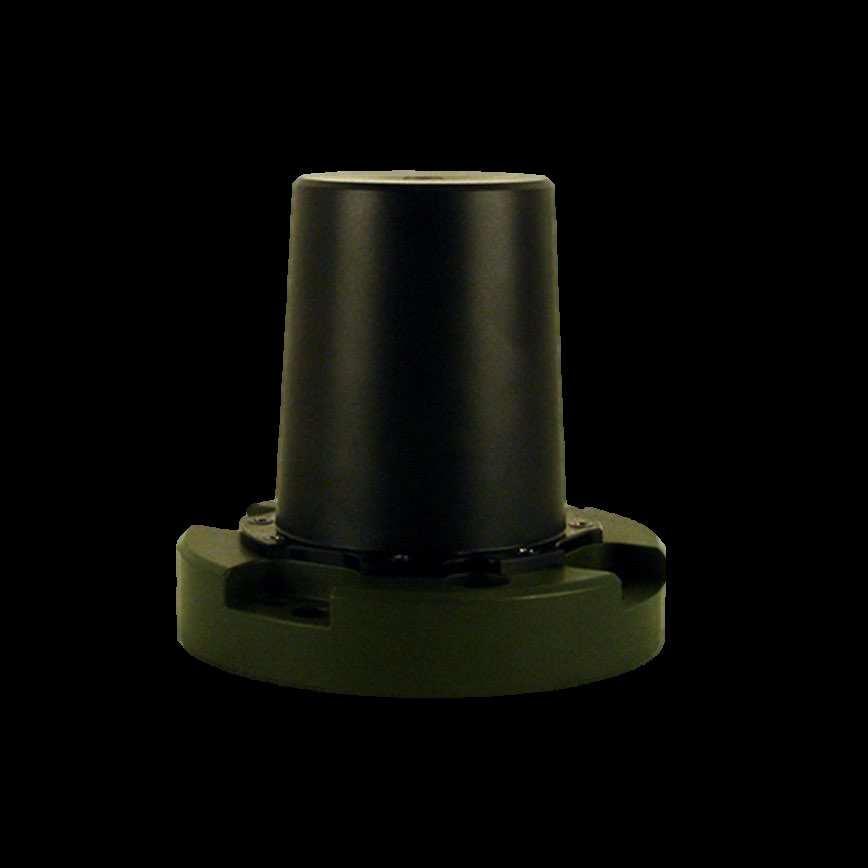

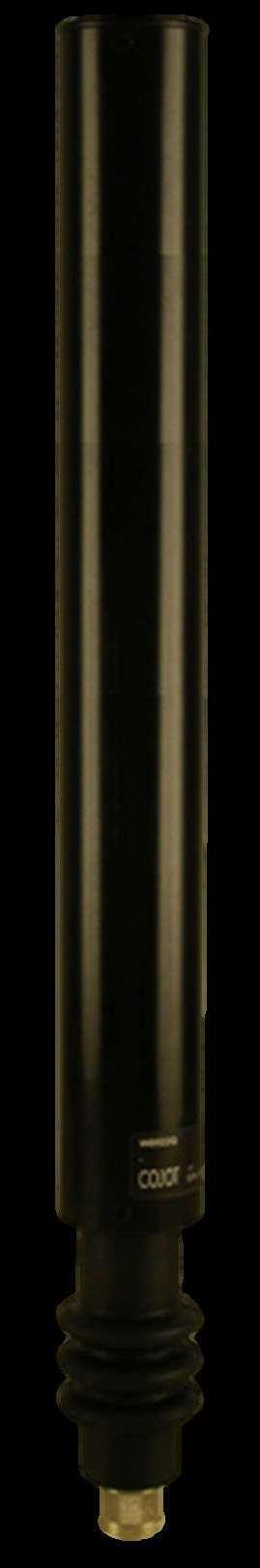

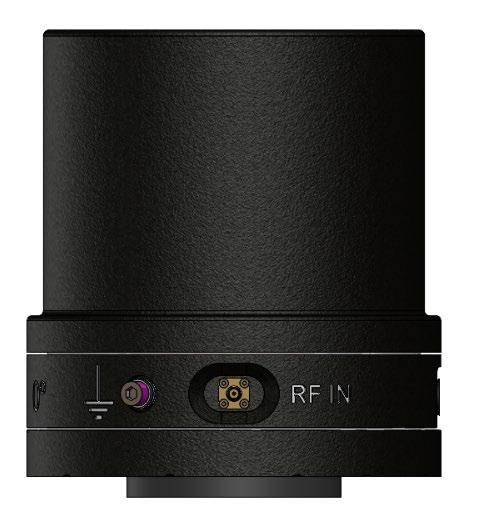

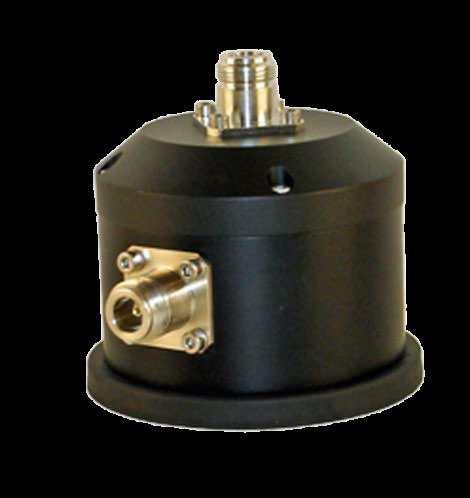

Active Wideband VHF/UHF/SHF Monitoring Antenna WBM5600M

The WBM5600M is an active wideband antenna with high input power tolerance for receive only applications such as spectrum monitoring within the 50 – 6000 MHz frequency range.

• High input power tolerance

• Built-in Low Noise Amplifier (LNA) with low noise figure

• Small size and robust mechanical design

Product details*

Frequency range 50 – 6000 MHz (on a ground plane ≥ 1 x 1 m2)

Polarization

Nominally vertical

Radiation pattern

Omnidirectional Gain -4 to 24 dB (Measured patterns on request)

Noise Figure (typical) 1.0 to 3.4 dB

Nominal Impedance

P1dB (typical)

OIP3 (typical)

Max. Input Power 2W (33 dBm)

LNA power supply (fed through signal cable) 12-24 VDC, 70 mA

Standard color

mm

V2.2w

Date 15.05.2024

Installation*

RF connection Female N-type

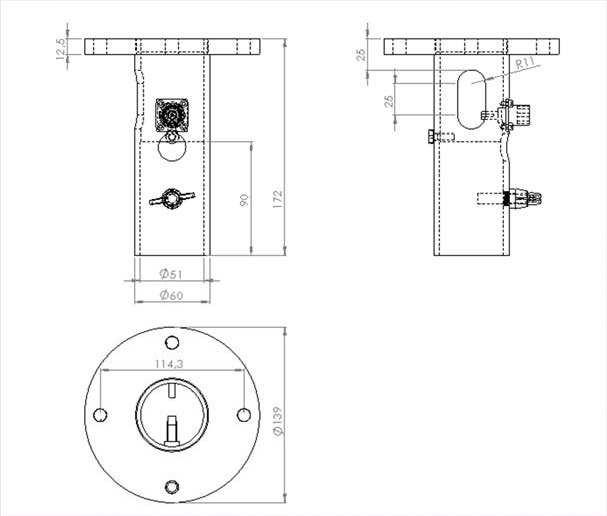

Mounting 4 x M10 female threads in a 114.3 mm diameter circular pattern on the bottom side of the antenna

*Specific adjustments on request

as described above WBM5600M-B

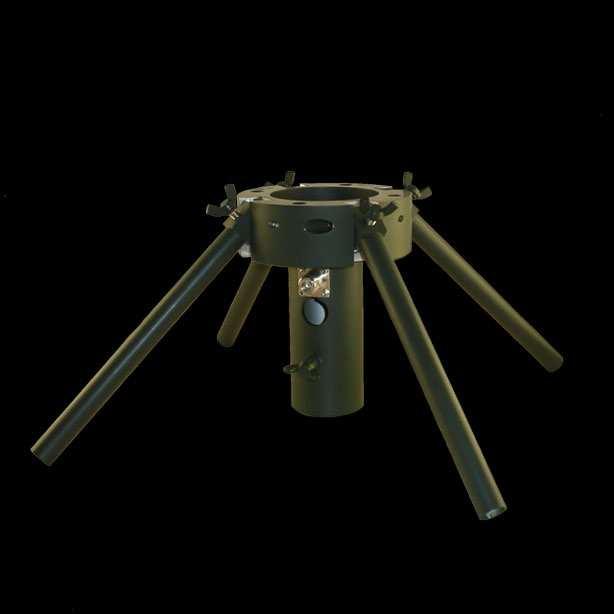

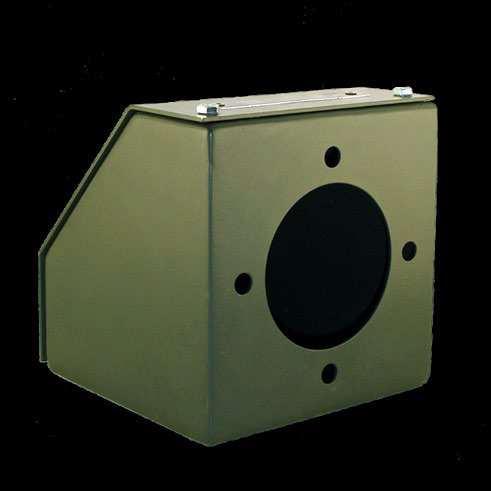

Antenna as described above, suitable with MS256-NT mast mount WB225M 5985 - 58 - 000 - 5333 Antenna without LNA module (passive). See monitoring performance on Page 2 and other details from the WB225M data sheet.

Page 1/1

ANTENNAS

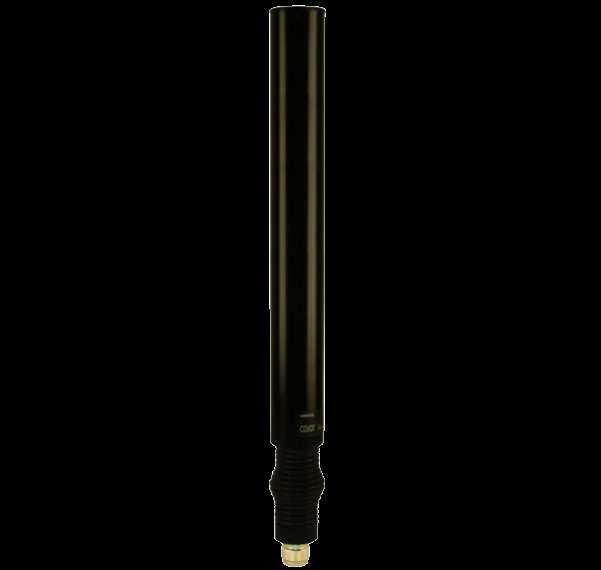

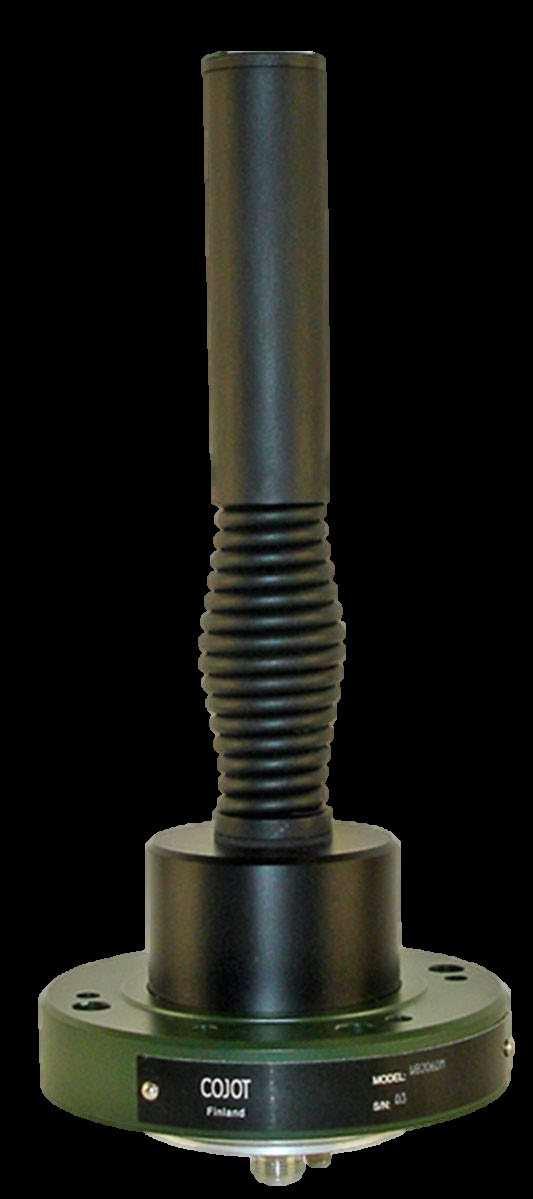

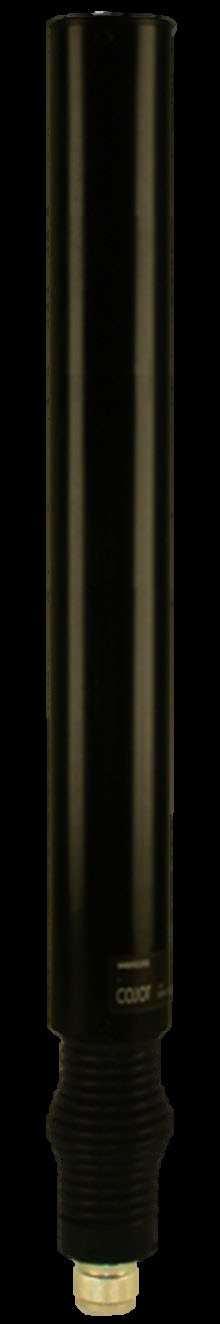

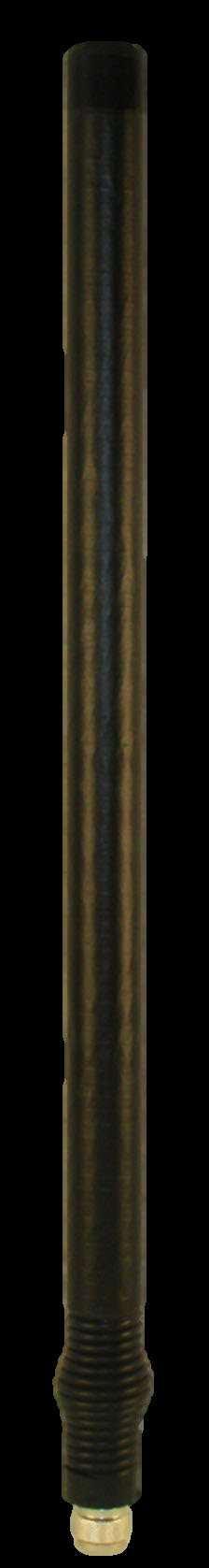

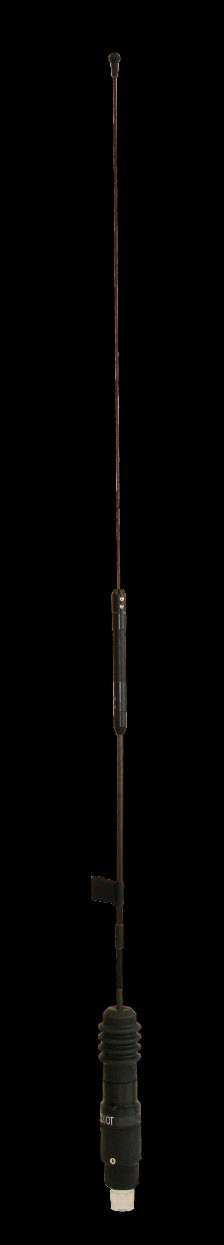

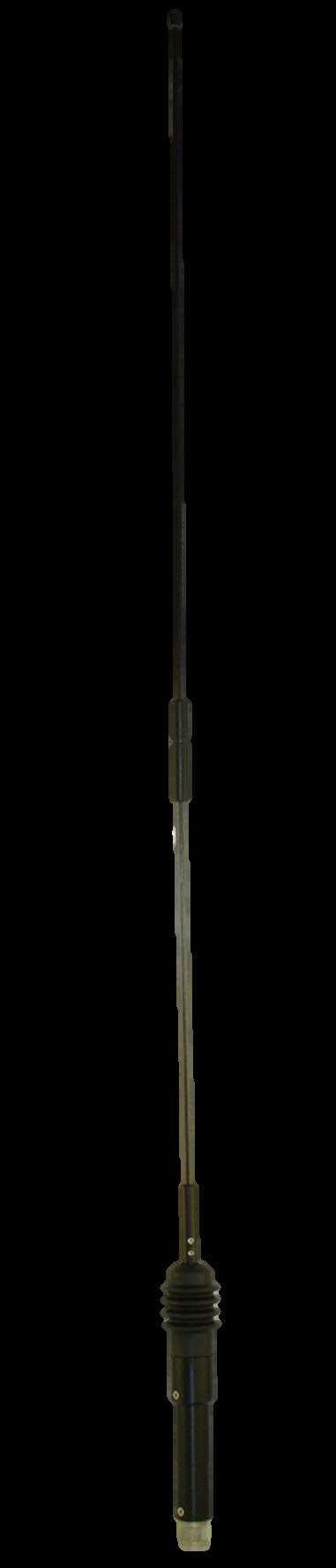

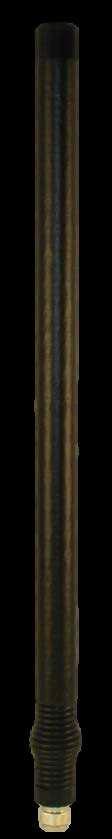

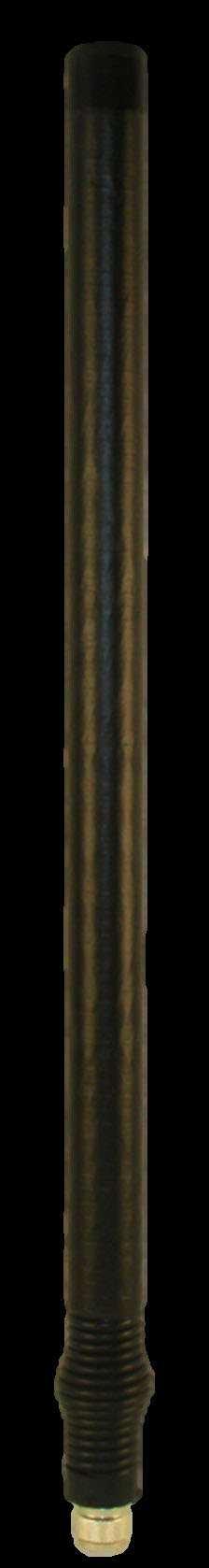

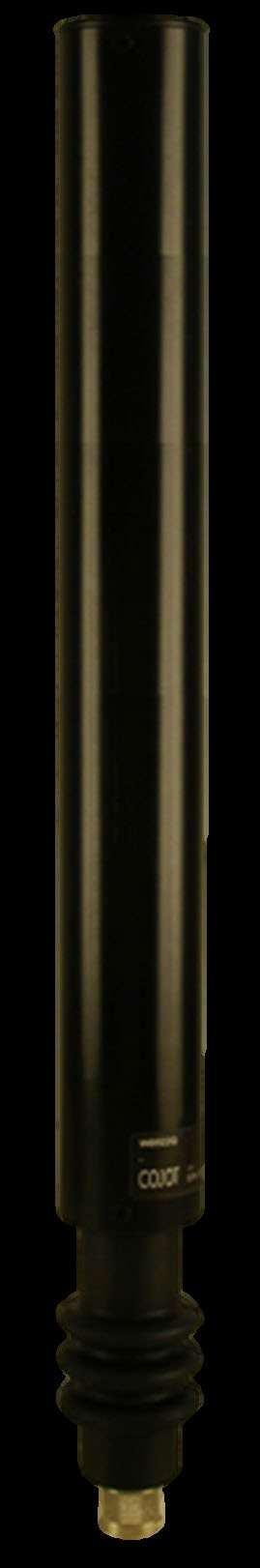

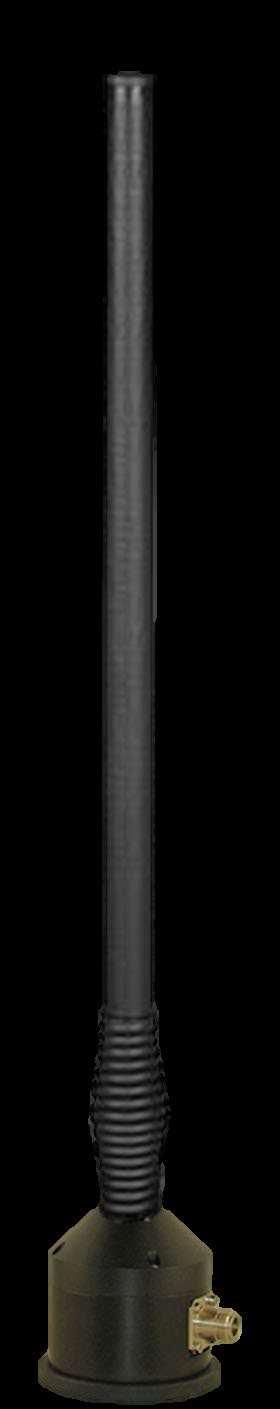

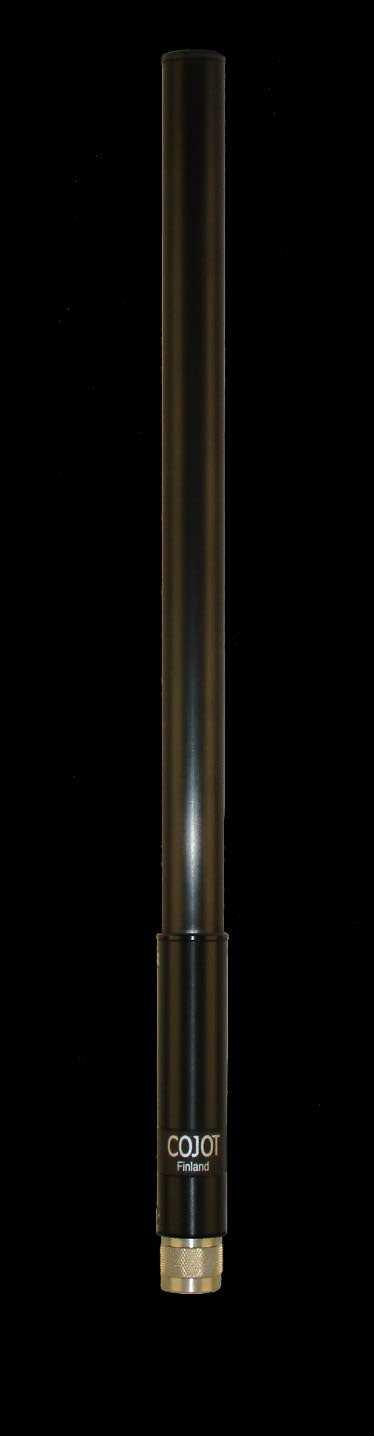

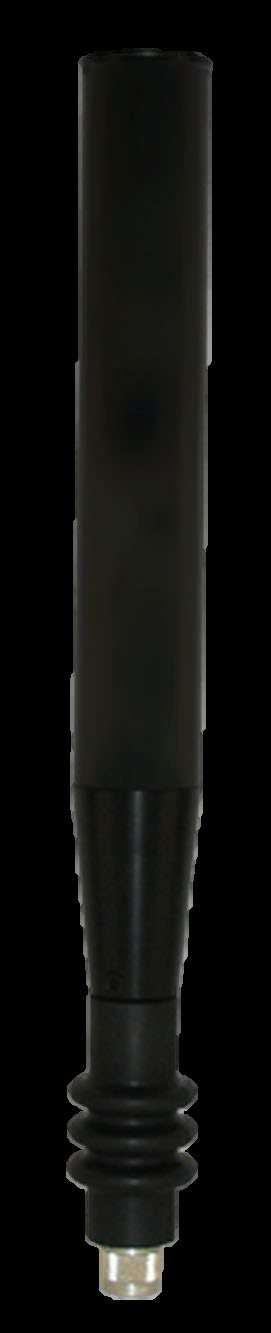

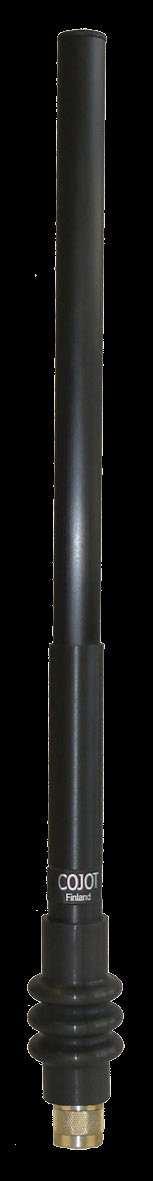

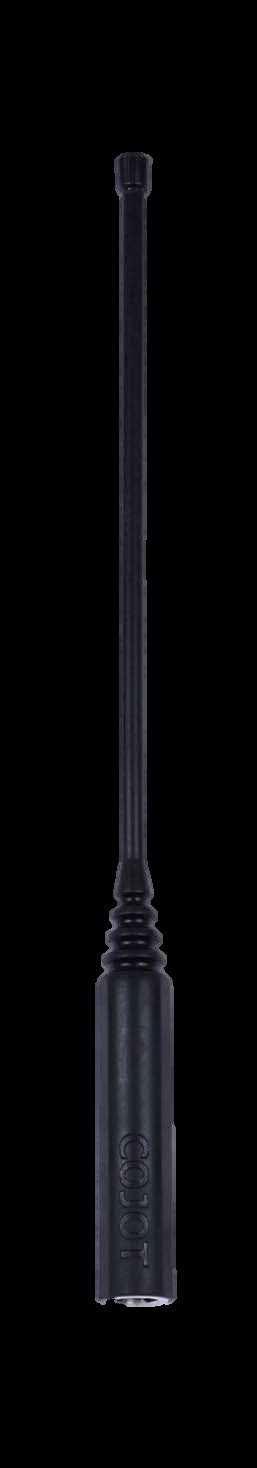

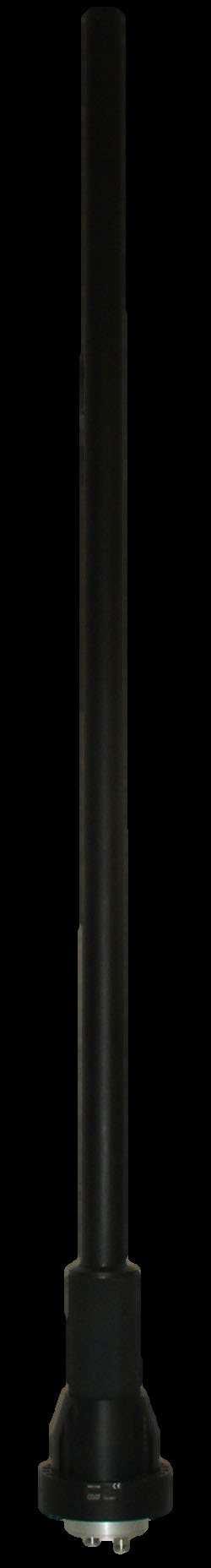

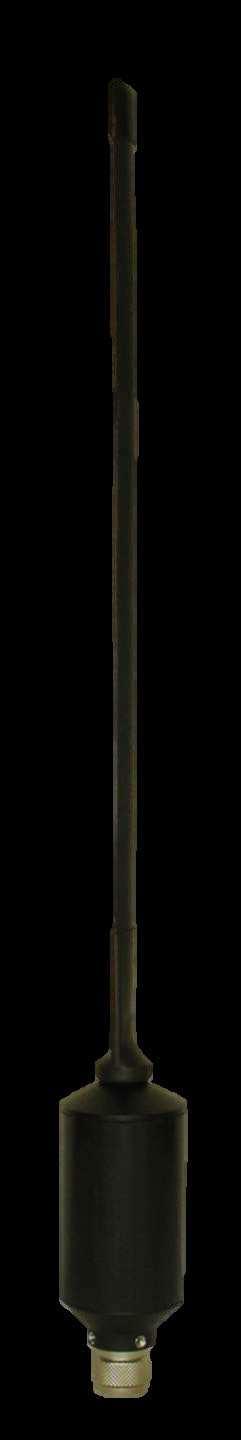

Wideband UHF Manpack Antenna WD528Q

The WD528Q is a compact manpack antenna that provides ideal performance over the entire frequency band. The antenna comes with a steel shock absorption spring by default, but is also optionally available with a flexible gooseneck, lightweight rubber spring or without a spring. High power handling capabilities make the WD528Q well suited for Counter-RCIED and jamming applications.

• Excellent performance over the entire 480 - 2800 MHz frequency range

• Low weight and small visual signature

• Rugged antenna construction with shock absorption spring Product

Polarization

Antenna type Wideband dipole

Radiation pattern Omnidirectional

Gain

VSWR

Nominal Impedance

Measured patterns on request

≤ 3.5

50 Ω

Power rating 50 W (RMS)

Standard color

(Ø 28 mm)

*Specific adjustments on request

WD528Q

WD528RQ

WD528G

WD528

V1.5w

Date 03.05.2021

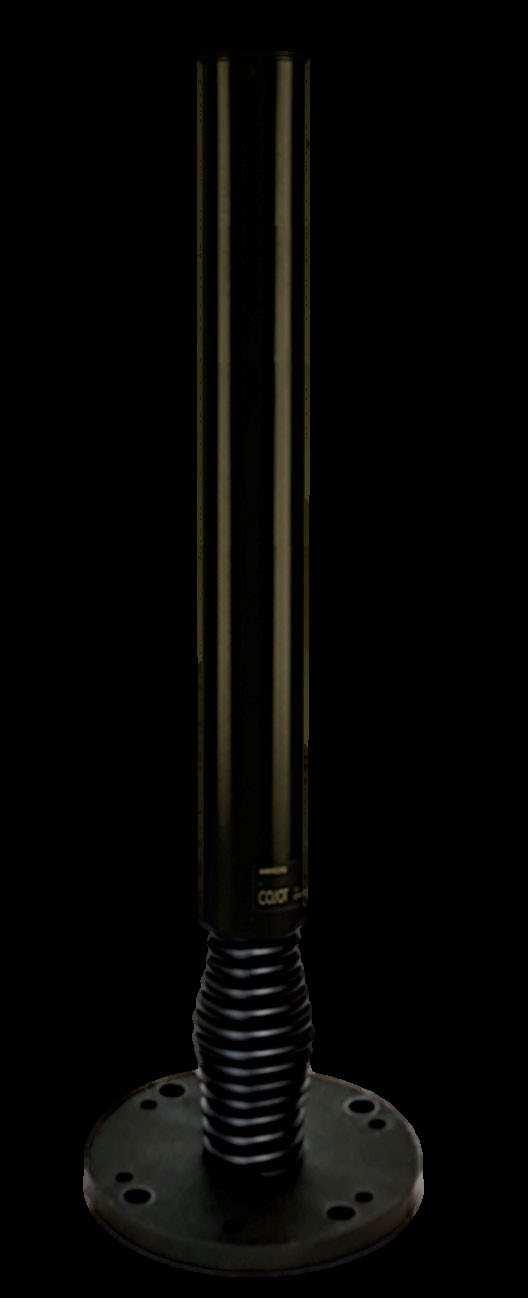

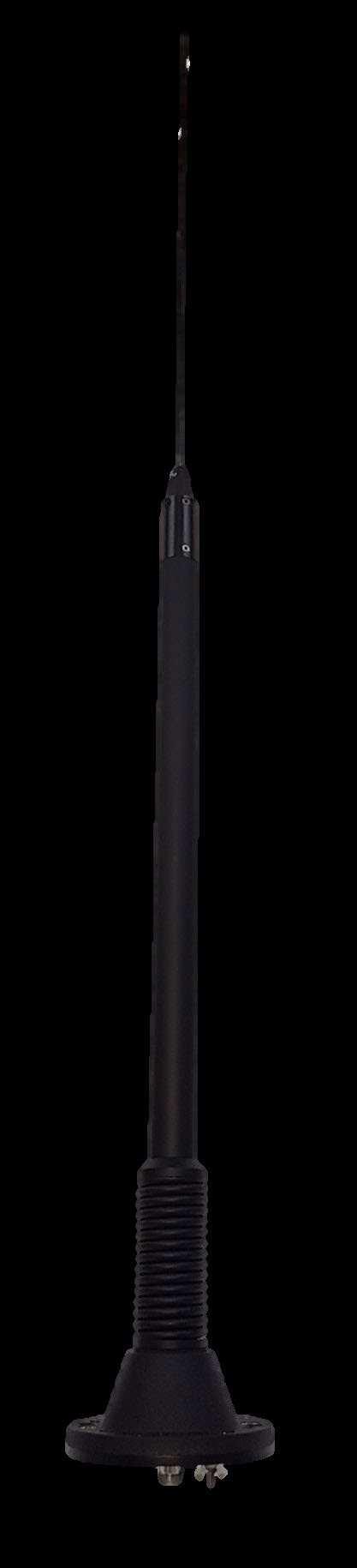

Antenna as described above (with Ø 36 mm steel spring)

Antenna with rubber spring (Height: 410 mm / Weight: 270 g)

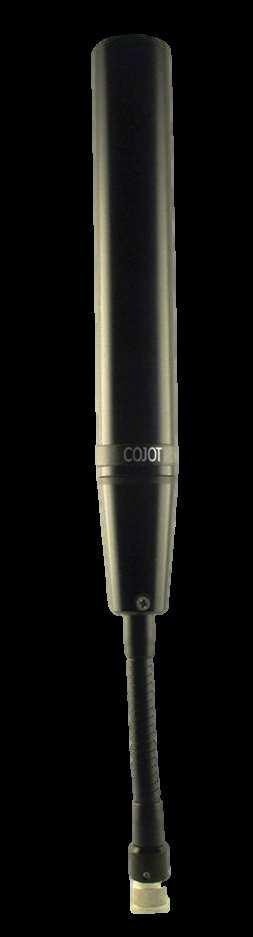

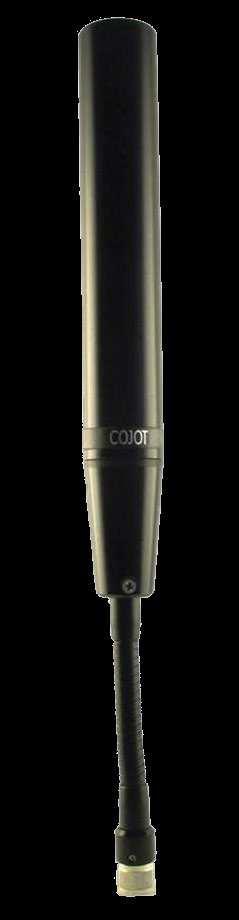

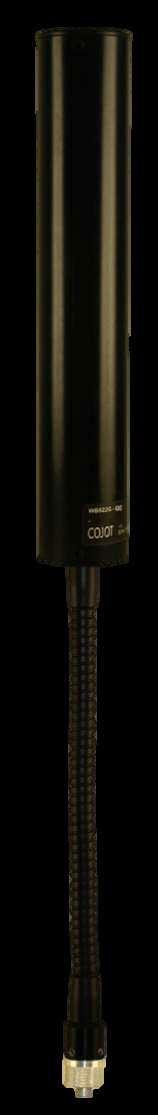

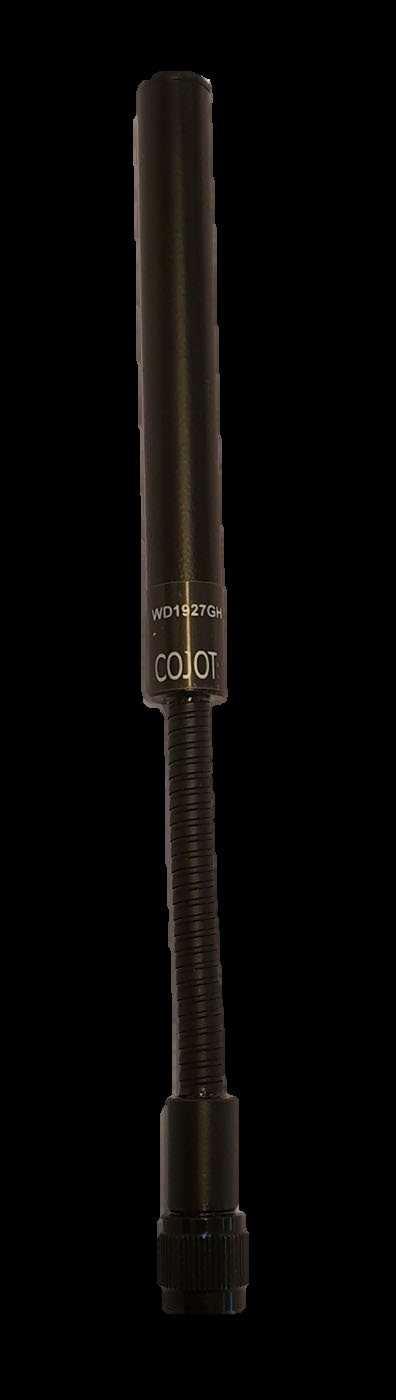

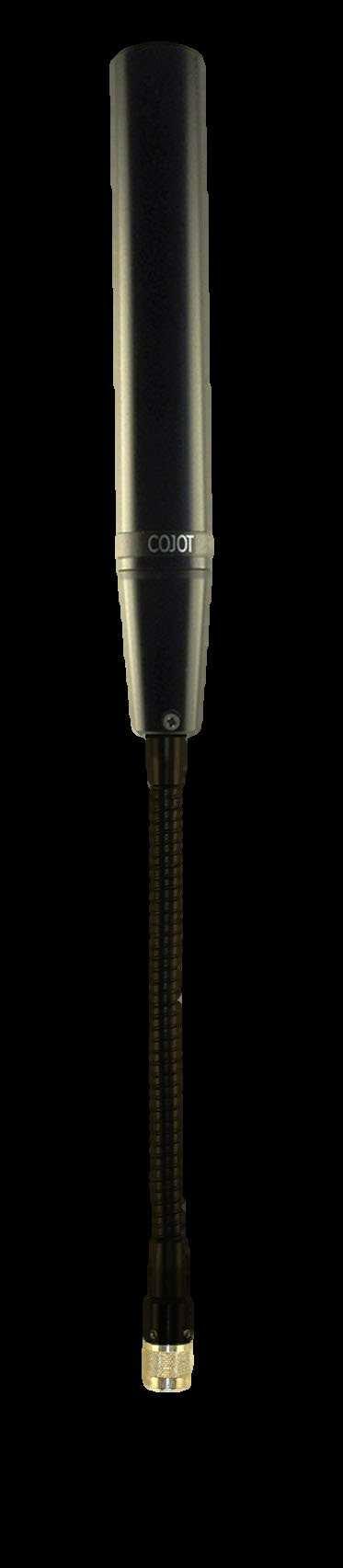

Antenna with 12 cm gooseneck (Height: 460 mm / Weight: 340 g)

Antenna without a spring (Height: 345 mm / Weight: 260 g)

1/1

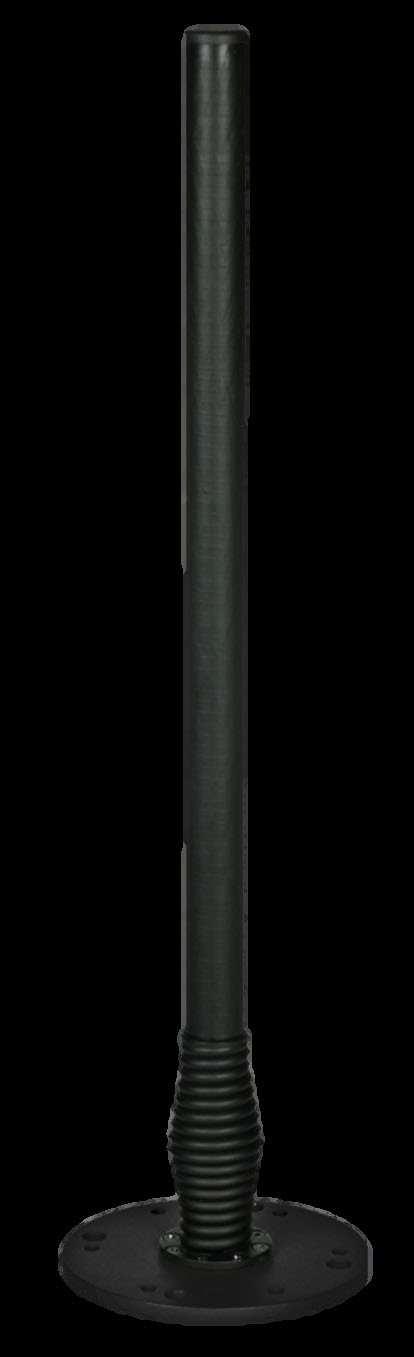

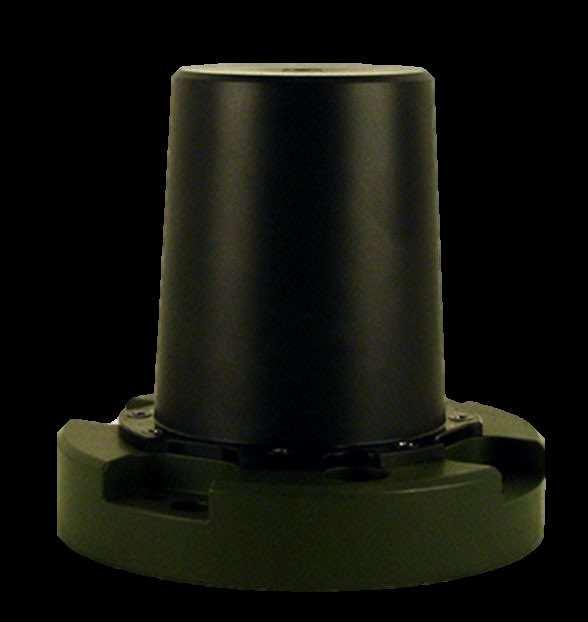

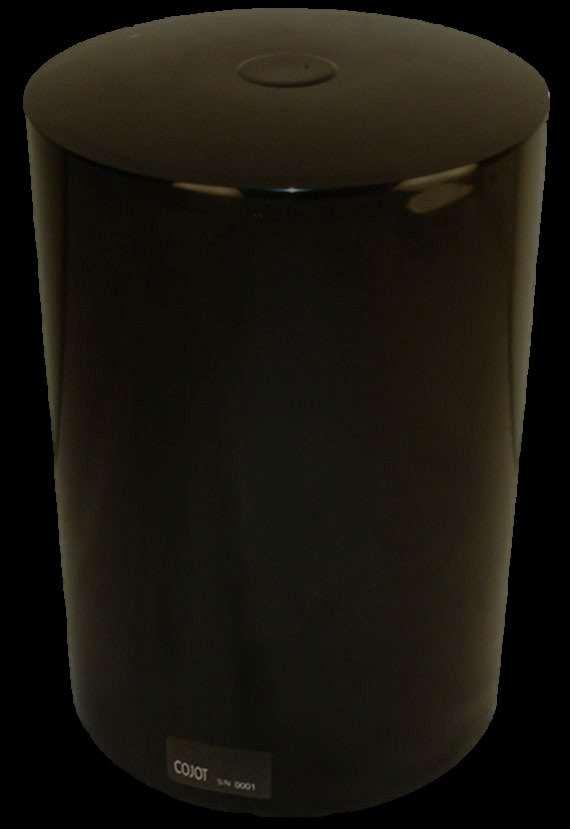

Active Wideband VHF/UHF/SHF Monitoring Antenna WBM5600M

The WBM5600M is an active wideband antenna with high input power tolerance for receive only applications such as spectrum monitoring within the 50 – 6000 MHz frequency range.

• High input power tolerance

• Built-in Low Noise Amplifier (LNA) with low noise figure

• Small size and robust mechanical design

Product details*

Frequency range 50 – 6000 MHz (on a ground plane ≥ 1 x 1 m2)

Polarization

Nominally vertical

Radiation pattern

Omnidirectional Gain -4 to 24 dB (Measured patterns on request)

Noise Figure (typical) 1.0 to 3.4 dB

Nominal Impedance

P1dB (typical)

OIP3 (typical)

Max. Input Power

V2.2w

Date 15.05.2024

(33 dBm)

LNA power supply (fed through signal cable) 12-24 VDC, 70 mA

Standard color

mm

Installation*

RF connection Female N-type

Mounting 4 x M10 female threads in a 114.3 mm diameter circular pattern on the bottom side of the antenna

*Specific adjustments on request

as described above WBM5600M-B

Antenna as described above, suitable with MS256-NT mast mount WB225M 5985 - 58 - 000 - 5333 Antenna without LNA module (passive). See monitoring performance on Page 2 and other details from the WB225M data sheet.

Page 1/1

DIRECTIONAL ANTENNAS

PROFILE

High Gain Directional UHF Antenna DA4348B

The DA4348B is a high gain directive loop antenna that does not require a ground plane for proper operation. Its ideal performance in the 430 – 480 MHz frequency range makes it very well suited for RCIED, drone or communication jamming applications.

• High performance in the 430 – 480 MHz frequency range

• Easily installed onto vehicles, shelters and masts

• Compact and robust antenna design for rough environmental conditions

• No ground plane nor additional tuning required

Product

Frequency range 430 – 480 MHz

Polarization

Nominally vertical

Antenna type Loop with reflector, no ground plane required

Nominal Impedance

*Specific adjustments on request

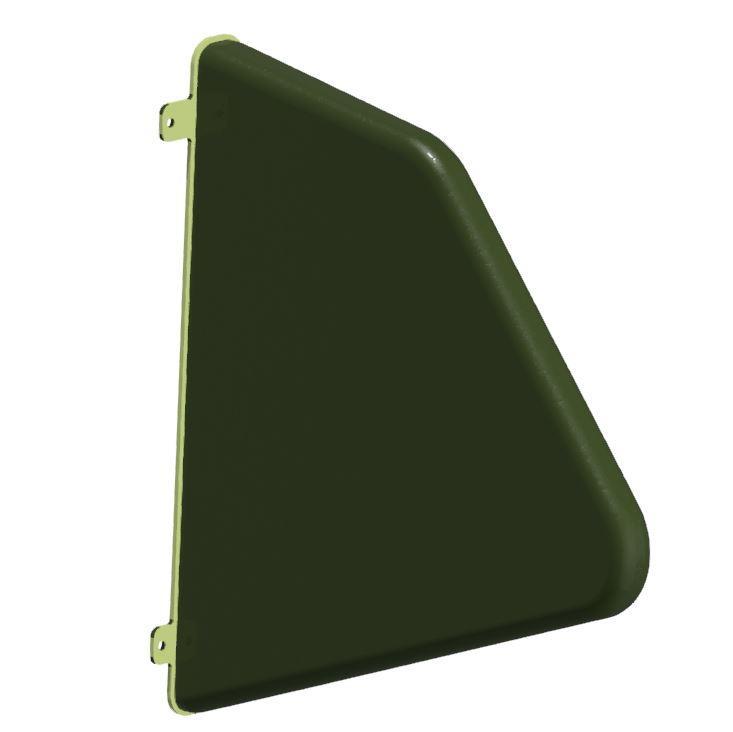

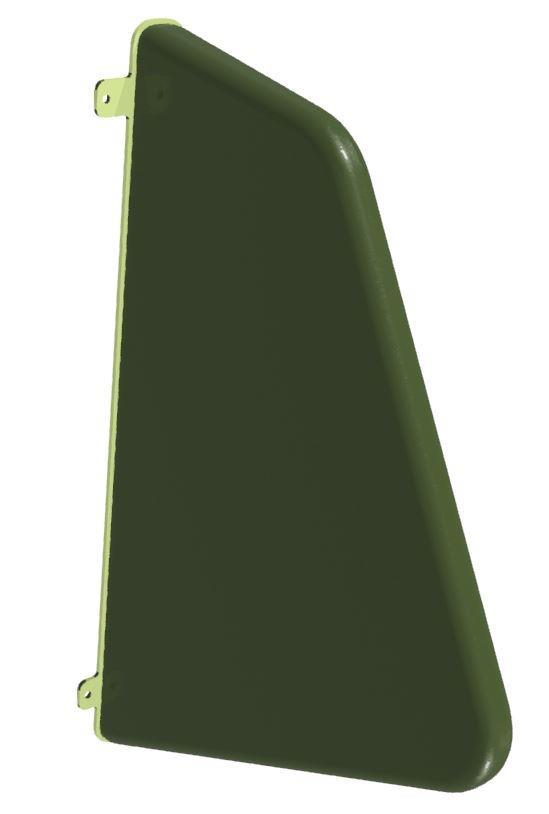

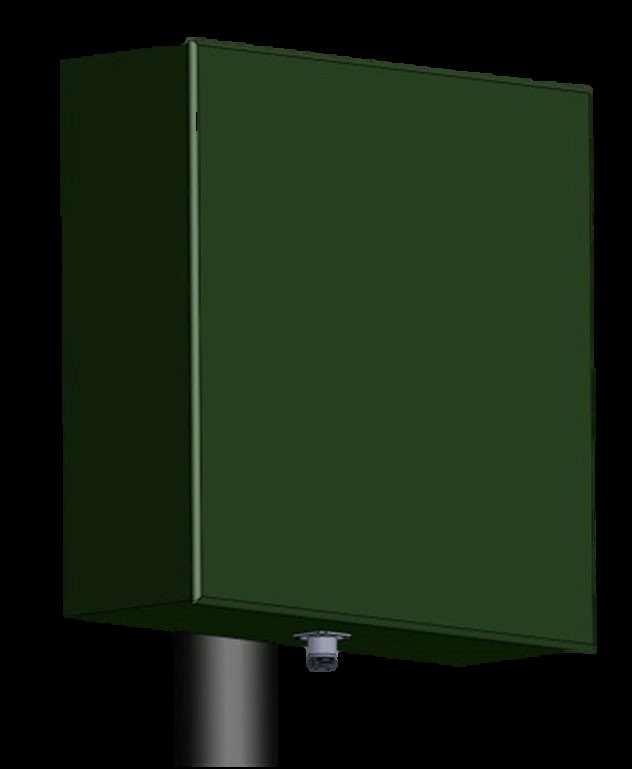

Directional Jamming Antenna DA36B

The DA36B is a high gain antenna that does not require a ground plane for proper operation. It’s ideal performance in the 3000 – 6000 MHz frequency range and compact size makes it very well suited for applications like drone or communication jamming.

• High performance in the 3000 – 6000 MHz frequency range

• Easily installed onto various platforms

• Compact and robust antenna design for rough environmental conditions

Frequency range

Product details*

3000 – 6000 MHz

Polarization Can be deployed for vertical or horizontal polarization

Antenna type Directional antenna, no ground plane required

Radiation pattern Directional

Gain 8.5 dBi (Measured patterns on request)

VSWR < 2.5

Nominal Impedance

50 Ω

Power rating 20 W (RMS)

Standard color Black

Radiator

Radome protected

Dimensions H: 300 mm W: 80 mm L: 360 mm Weight 1.5 kg

Installation*

RF connection

Mounting

*Specific adjustments on request

N-type

mount

V0.1w

Date 11.04.2022 Page 1/1

VERSION: 1.7

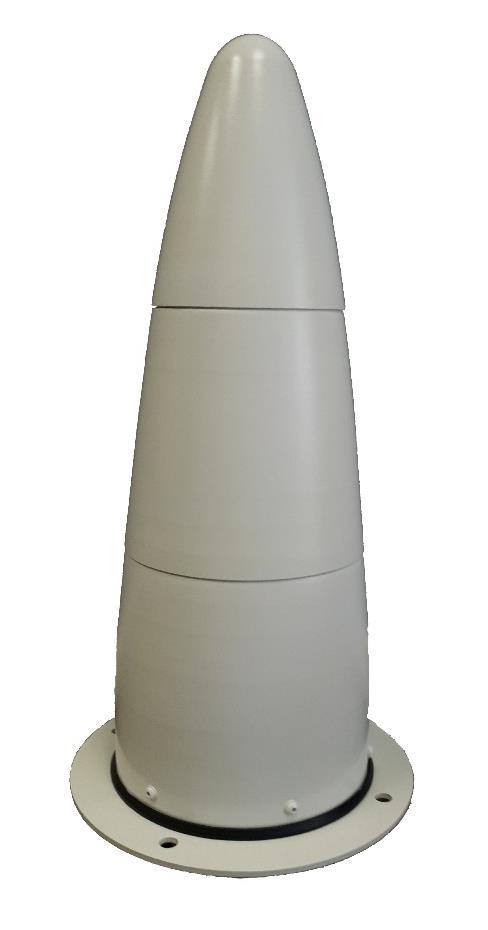

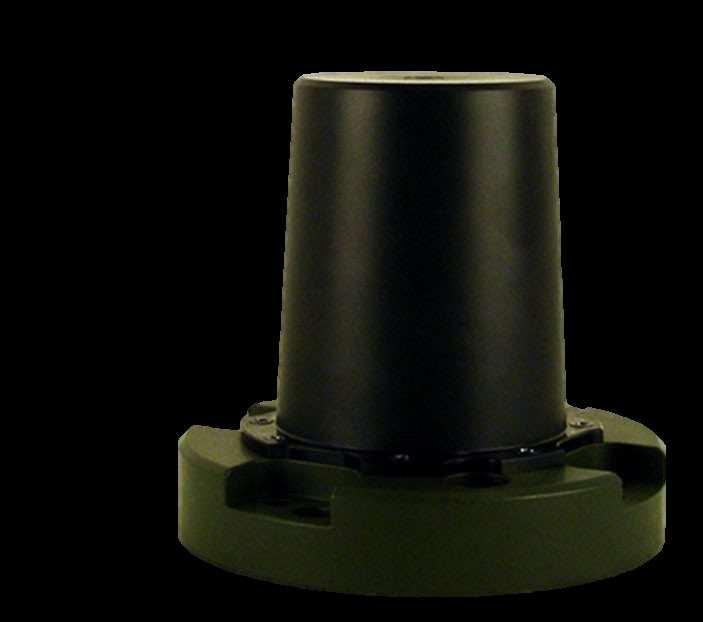

Dual port Circular Polarised Antenna

900 – 6000 MHz

Product Code: SPRL-A0010

SPECIFICATIONS:

Product Codes:

SPRL-A0010-01

SPRL-A0010-02

Electrical:

Frequency range:

Band A

RHCP (Band A) and LHCP (Band B) antenna

LHCP (Band A) and RHCP (Band B) antenna

Band B 900 – 2500 MHz 2500 – 6000 MHz

Gain: >6 dBic (typical)

Beamwidth: 55° (typical)

Feed power handling:

Band A

Band B 100 W CW 50 W CW

SPRL-A0010-01

SPRL-A0010-02

Polarisation:

Band A Band B RHCP LHCP LHCP RHCP

Nominal impedance: 50 Ω VSWR: < 2.0:1

Connector: 2 x N-type female

Mechanical:

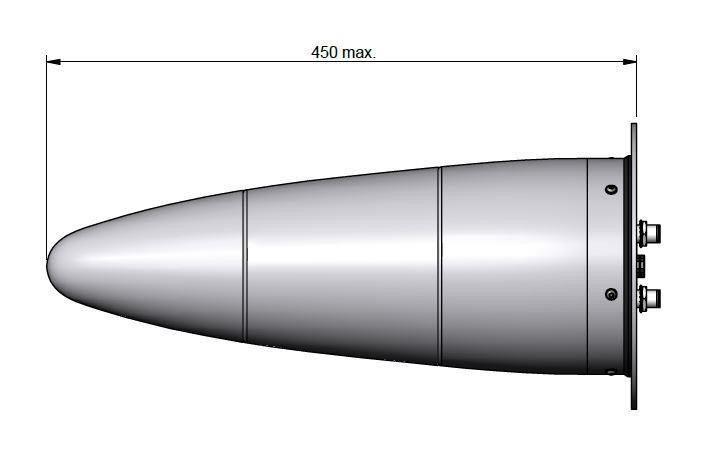

Overall height: 450 mm

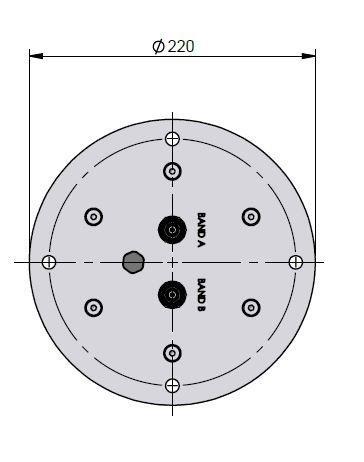

Diameter: 165 mm (Radome) 220 mm (Mounting flange)

Weight: < 2 kg including bracket

Material: Aluminium, Stainless steel, Acetal, PTFE, Nylon, ABS, copper, brass

Colour Painted on request

Environmental: designed to meet the following specifications

Temperature range

Storage: -41 °C to +71 °C.

Operation -31 °C to +55 °C

Weatherproofing IP 66

PRODUCT OVERVIEW:

SPRL-A0010 is a dual port conical spiral, right-hand circularly polarised antenna designed to operate in the 900 to 2500 MHz and 2500 to 6000 MHz bands. The antenna provides broad beam coverage without nulls or reduction in performance.

The antenna features a low VSWR and high gain over the both operating bands with a light weight, yet robust radome to protect the radiator.

PRODUCT FEATURES:

• LHCP and RHCP antenna

• High gain

• High power

• Low VSWR

Dual port Circular Polarised Antenna

900 – 6000 MHz

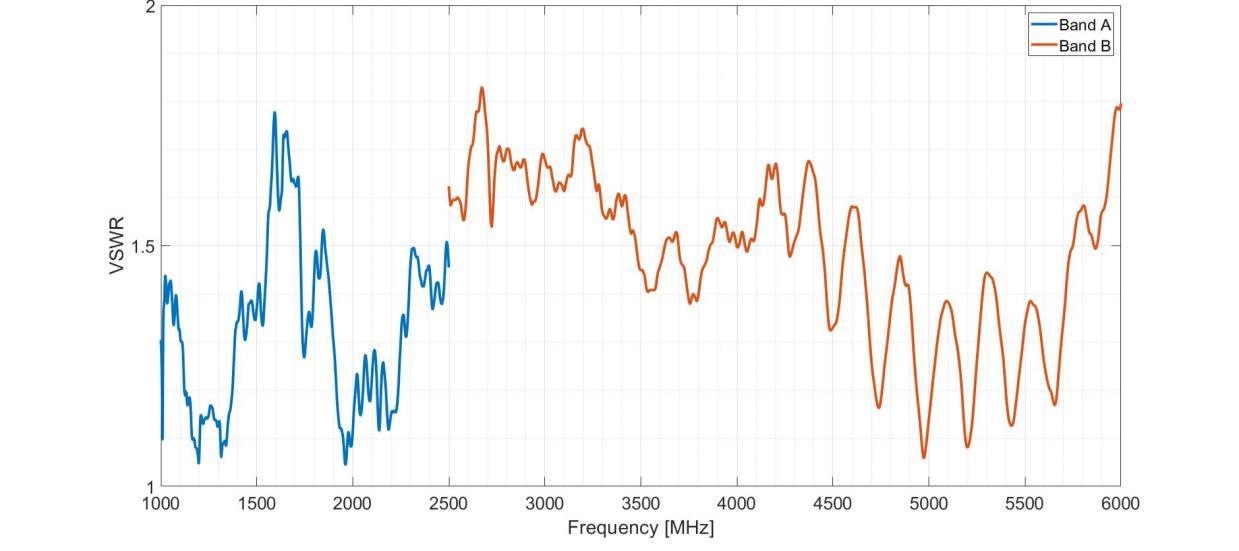

Typical VSWR of the SPRL-A0010

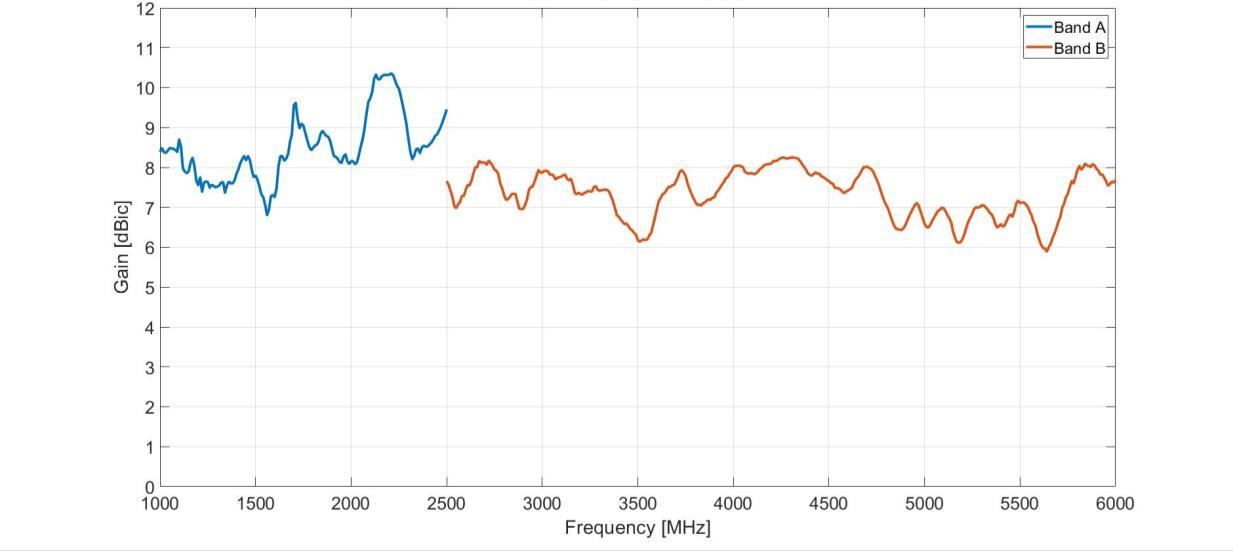

Typical Gain of the SPRL-A0010

Dual port Circular Polarised Antenna

900 – 6000 MHz Product Code: SPRL-A0010 VERSION: 1 7

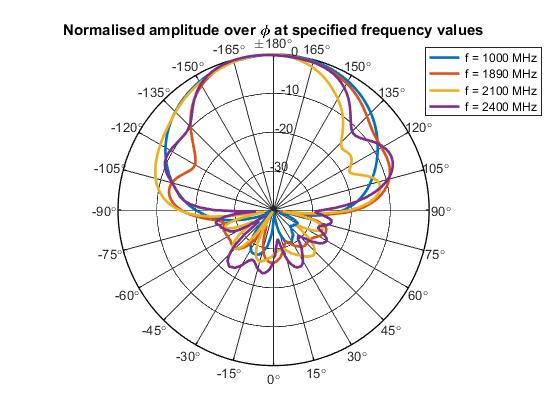

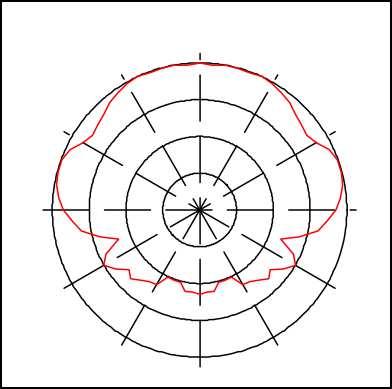

Normalised band A radiation patterns of the SPRL-A0010

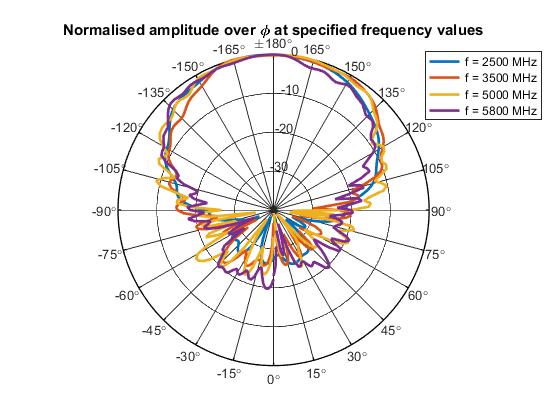

Normalised band B radiation patterns of the SPRL-A0010

VERSION: 1.0

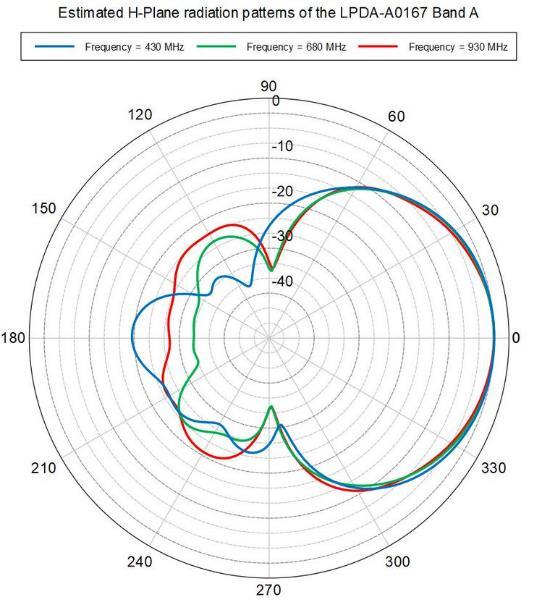

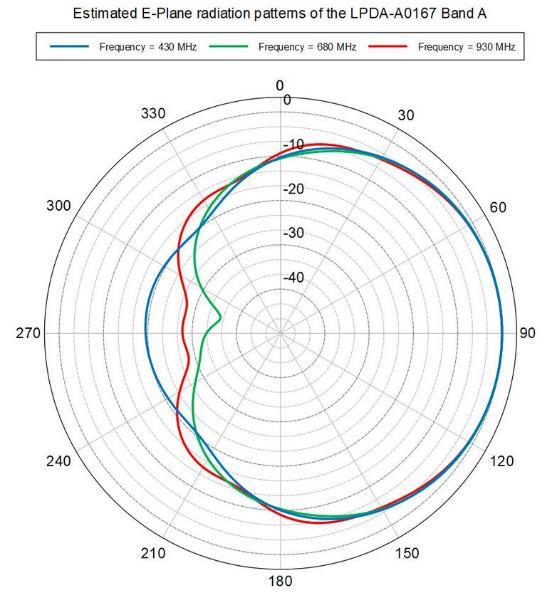

Tri Port High-Power LPDA Antenna

400 – 6000 MHz Product Code: LPDA-A0167

SPECIFICATIONS:

Electrical:

Frequency range

Band A

400 – 6000 MHz

400 – 930 MHz

Band B 1160 – 1610 MHz

Band C

2400 – 6000 MHz

VSWR < 2.0:1

Nominal input impedance 50 Ω

Connector 3x N-type female

Feed power handling 100W CW

Gain (typical) See graph below

E-plane 3 dB beamwidth

Band A

Band B

Band C

H-plane 3 dB beamwidth

Band A

Band B

Band C

PRODUCT FEATURES:

• Wideband frequency 400 to 6000 MHz

• VSWR < 2.0:1

• High gain: > 7 dBi

• Rugged construction

• Ice resistant

PRODUCT APPLICATIONS:

• Wideband

• High-Power

95º - 105°

65° - 75°

65° - 75°

55º - 65°

45° - 55°

45° - 55°

Polarisation Linear

Front-to-back ratio ≥ 19 dB

Mechanical: Dimensions (l x h x w)

600 mm x 880 mm x 160 mm (incl. bracket)

Material Aluminium, stainless steel, fibreglass

Total mass < 6 kg (incl. mounting bracket)

Mounting method 4 x M8 Bolts

MTBF 500,000 h

Environmental: designed to meet the following specifications Wind survival 160 km/h calculated

Operating Temperature -30ºC to +65º (no icing)

Storage Temperature -40ºC to +85º

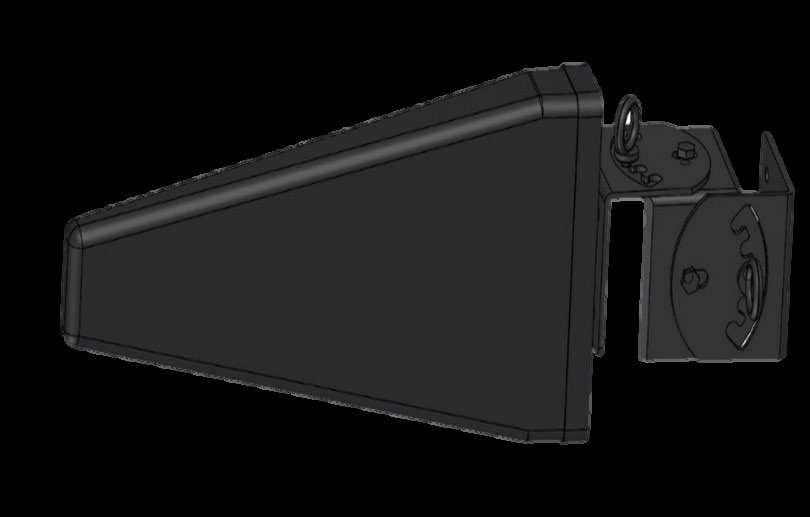

PRODUCT DESCRIPTION:

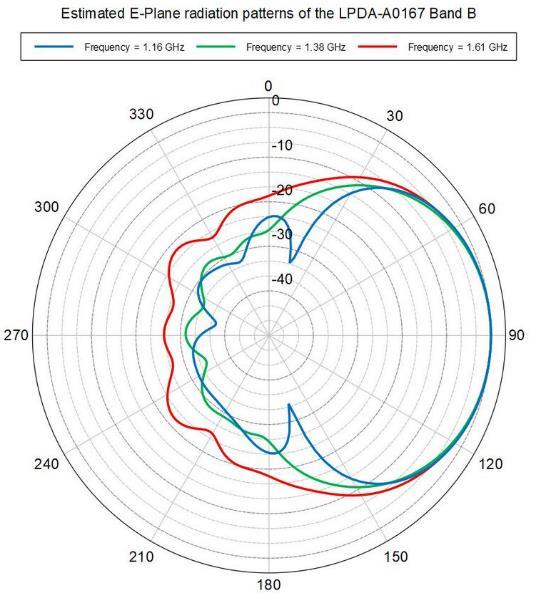

The LPDA-A0167 tri port directional log-periodic dipole array (LPDA) is primarily designed for high-power applications. It covers a frequency band of 400 to 6000 MHz with a gain of greater than 7 dBi.

The antenna provides three separate ports for simultaneous transmission in all bands with good isolation between bands.

The antenna is completely encapsulated in a radome. The antenna is provided with a mounting bracket.

Tri Port High-Power LPDA Antenna

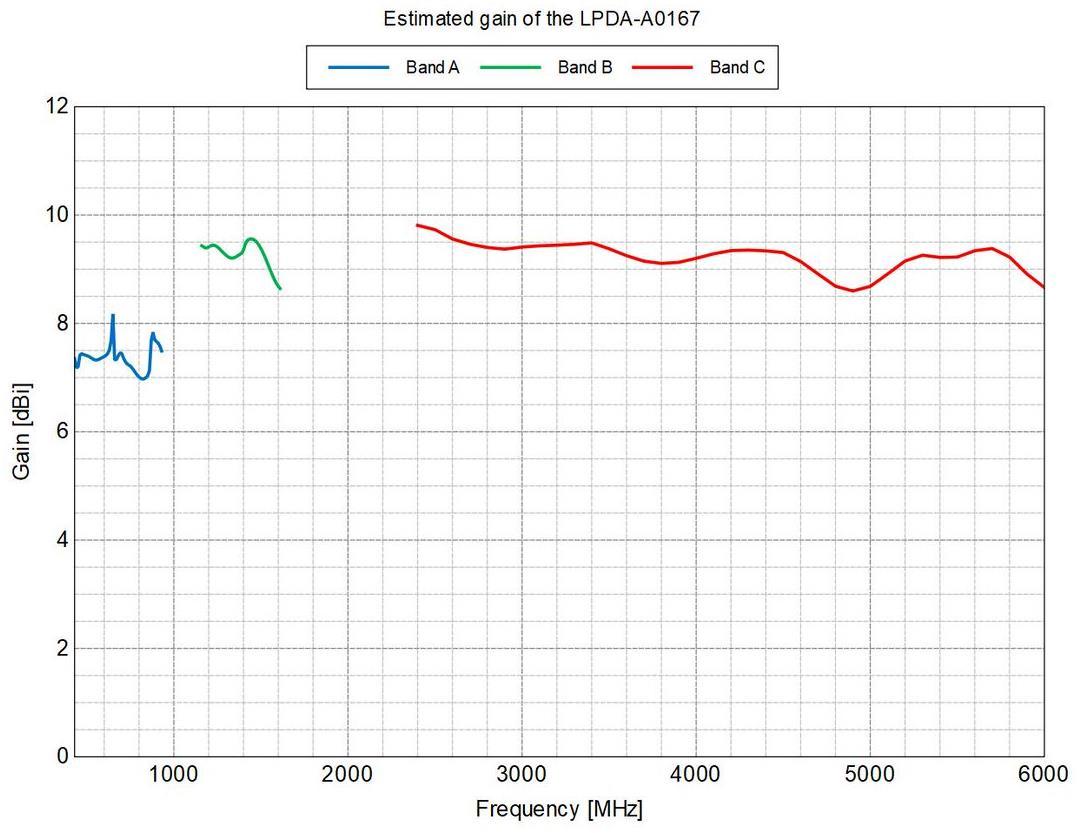

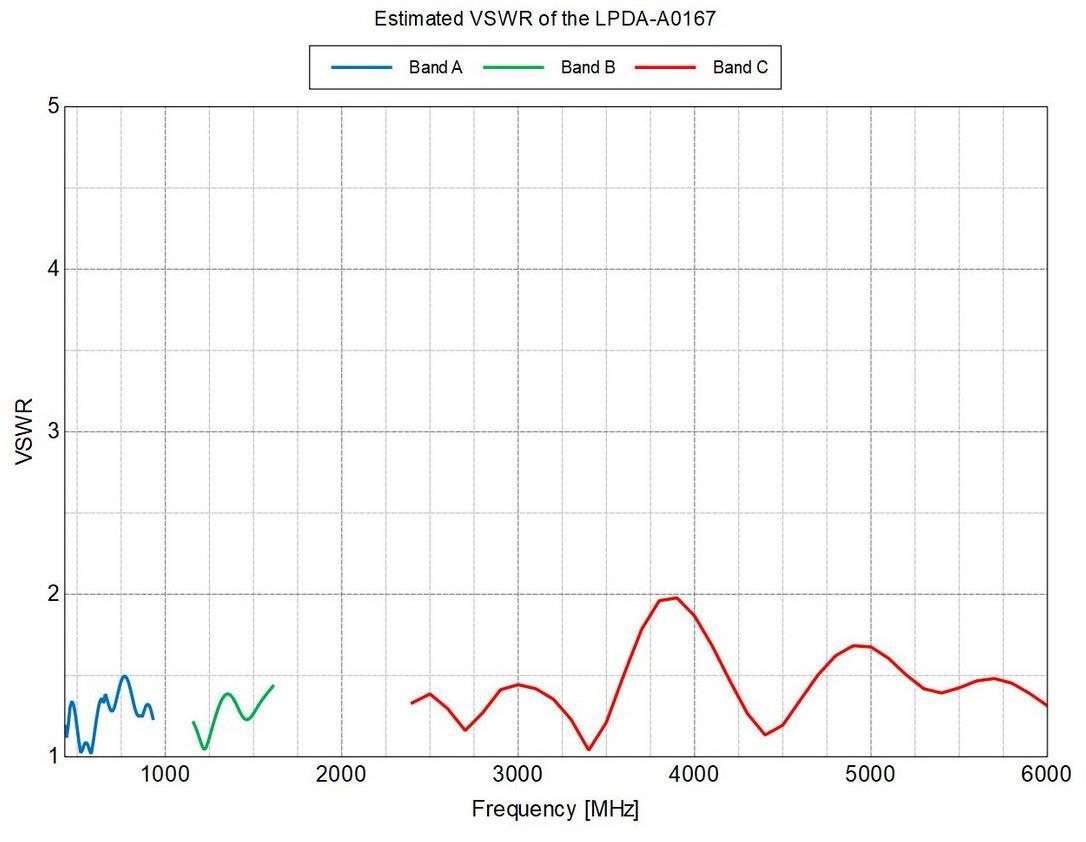

VSWR AND GAIN GRAPHS:

Typical VSWR: GAIN:

Tri Port High-Power LPDA Antenna

VERSION: 1.0

Dual Port High-Power LPDA Antenna

400 – 6000 MHz

Product Code: LPDA-A0162

SPECIFICATIONS:

Electrical:

Frequency range 400 – 6000 MHz

Band A 400 – 1600 MHz

Band B 2400 – 6000 MHz

VSWR < 2.0:1

Nominal input impedance 50 Ω

Connector 2x N-type female

Feed power handling 100W CW

Gain (typical) See graph below

E-plane 3 dB beamwidth

Band A

Band B 70º - 100° 90° - 105°

H-plane 3 dB beamwidth

Band A

Band B

PRODUCT FEATURES:

• Wideband frequency 400 to 6000 MHz

• VSWR < 2.0:1

• High gain: > 7 dBi

• Rugged construction

• Ice resistant

PRODUCT APPLICATIONS:

• Wideband

• High-Power

45º - 60° 50° - 60°

Polarisation Linear

Front-to-back ratio ≥ 22 dB

Mechanical:

Dimensions (l x h x w) 625 mm x 710 mm x 160 mm (incl. bracket)

Material Aluminium, stainless steel, fibreglass

Total mass < 5 kg (incl. mounting bracket)

Mounting method 4 x M8 Bolts

MTBF 500,000 h

Environmental: designed to meet the following specifications Wind survival 160 km/h calculated

Operating Temperature -30ºC to +65º (no icing)

Storage Temperature -40ºC to +85º

PRODUCT DESCRIPTION:

The LPDA-A0162 dual port directional log-periodic dipole array (LPDA) is primarily designed for high-power applications. It covers a frequency band of 400 to 6000 MHz with a gain of greater than 7 dBi.

The antenna provides two separate ports for simultaneous transmission in both bands with good isolation between bands.

The antenna is completely encapsulated in a radome. The antenna is provided with a mounting bracket.

Dual Port High-Power LPDA

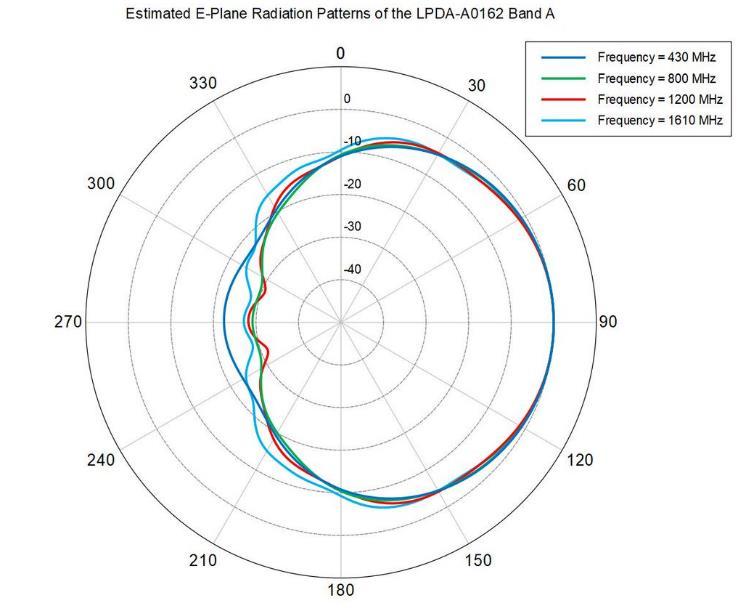

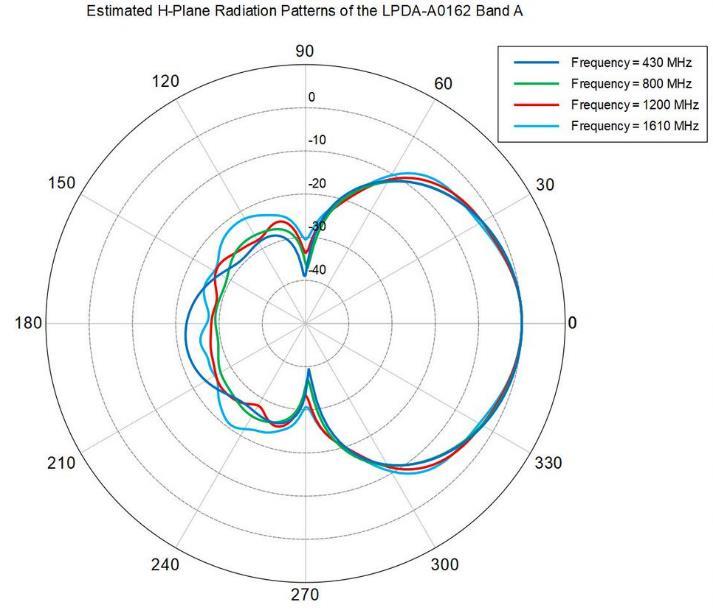

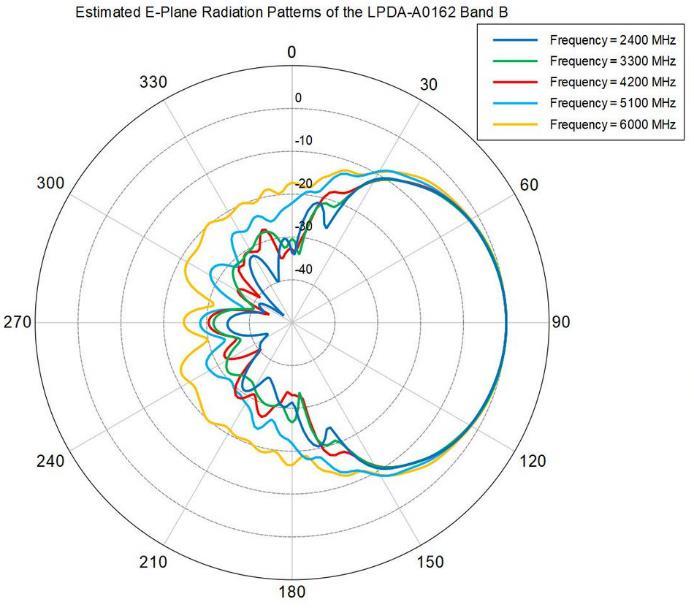

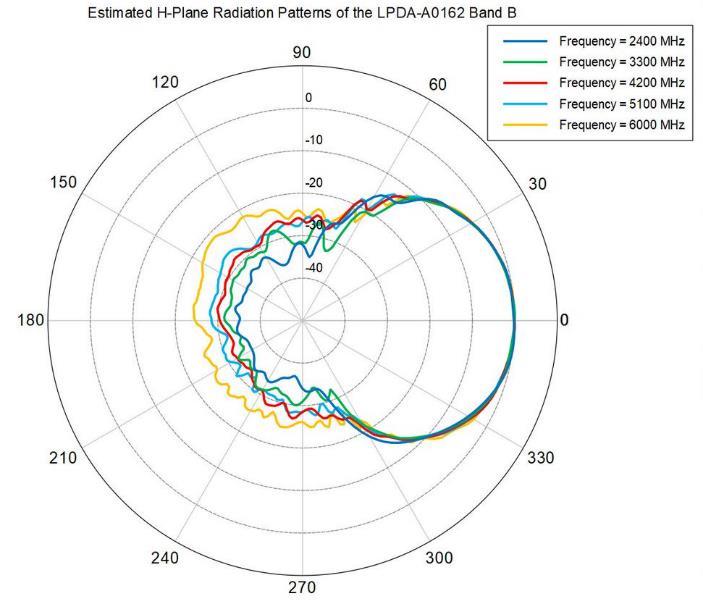

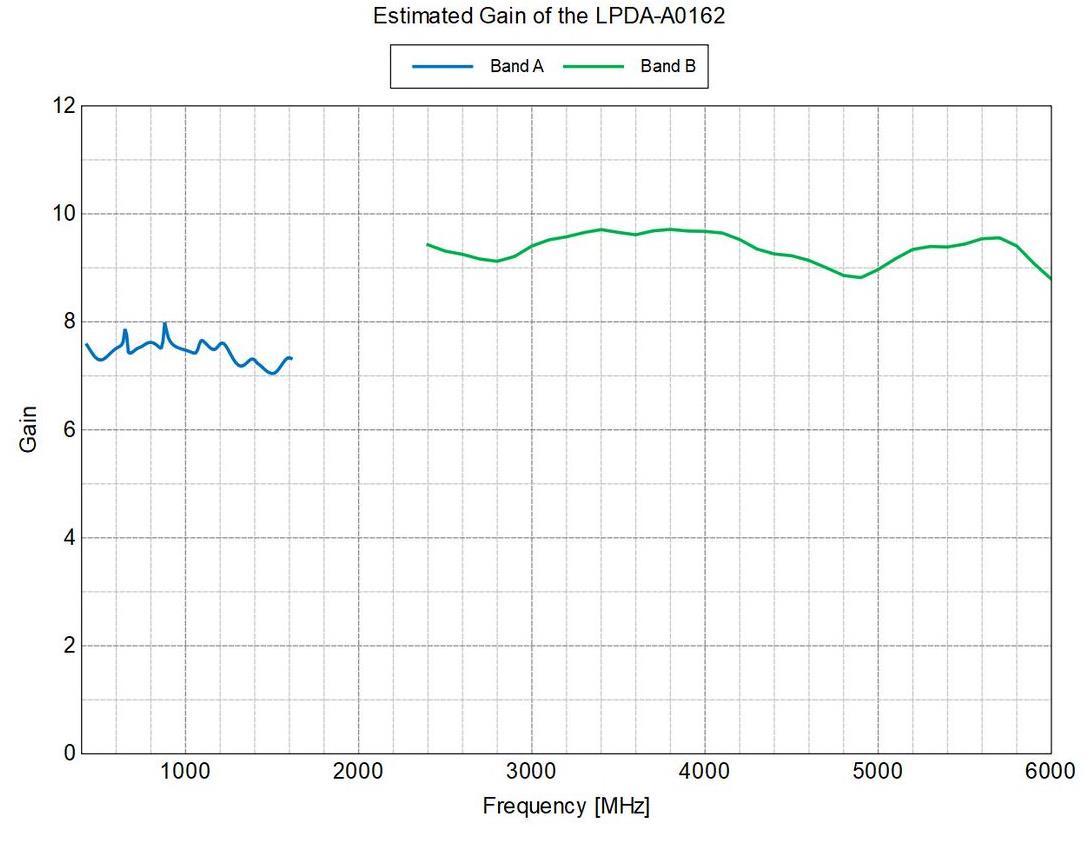

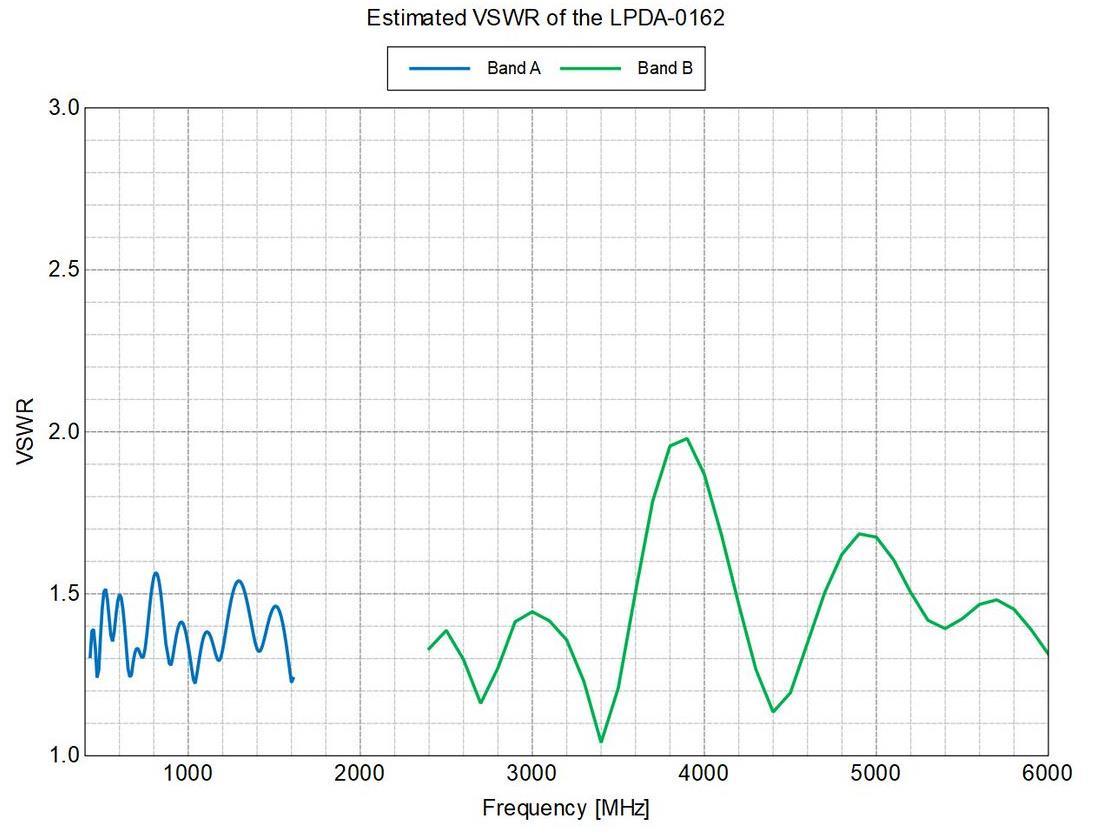

VSWR AND GAIN GRAPHS:

Dual Port High-Power LPDA Antenna

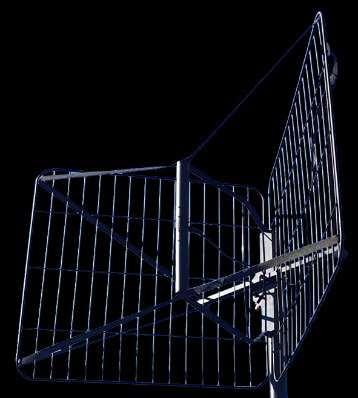

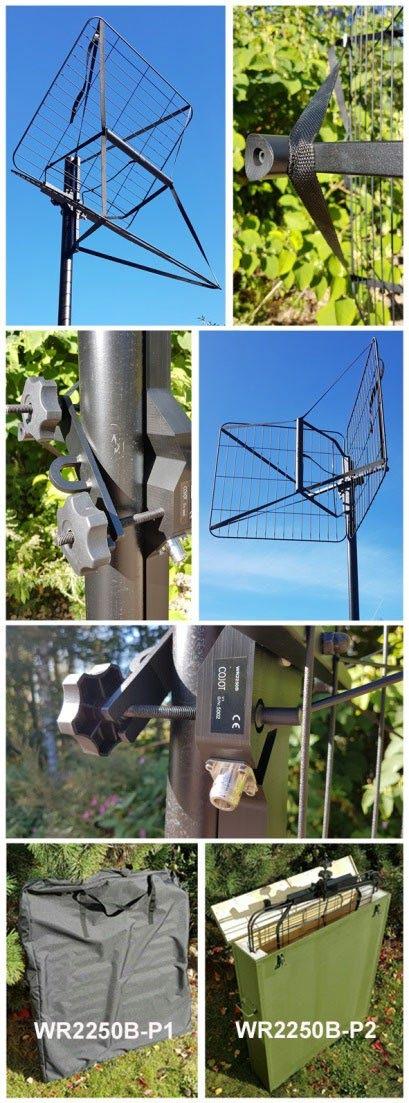

Directional VHF / UHF Antenna WR2250B

The WR2250B is a wideband corner reflector antenna for mast mounting. Its lightweight mechanical design allows fast and easy deployment as well as space-saving storage. This highly efficient antenna is very well suited for use with modern SDRs, providing excellent performance for a range of voice and data communication systems.

• Excellent performance over the entire 225 – 512 MHz frequency range

• Easy and quick setup for mast mounting – no tools required

• The antenna is foldable for compact storage

• The antenna can be deployed for vertical or horizontal polarization

Product details*

Frequency range

Polarization

Antenna type

Radiation pattern

Gain

E-plane 3 dB beamwidth

V1.6w

225 – 512 MHz

Can be deployed for vertical or horizontal polarization

Corner reflector

Directional (see azimuth and elevation patterns on Page 2)

10 dBi (Measured gain on request)

30° to 70° (E- and H-plane)

VSWR < 2.5

Nominal Impedance

Power rating

50 Ω

100 W (RMS)

Standard color Black

Dimensions (incl.mounting)

H: 1180 mm W: 810 mm L: 690 mm

Packed dimensions (-P1) H: 160 mm W: 810 mm L: 930 mm

Packed dimensions (-P2) H: 190 mm W: 890 mm L: 970 mm

Weight

RF connection

Mounting

*Specific adjustments on request

6.0 kg (Packed weight (-P2): 23 kg)

Installation*

Female N-type

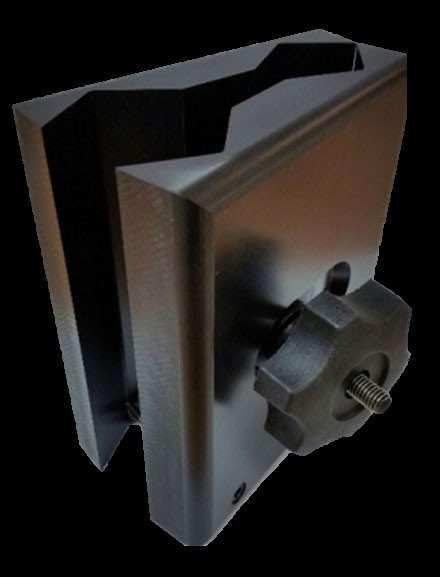

Mast mount adapter for ø 50-60 mm masts**

**No mast included. Refer to Page 3 for information about optionally available masts

Order

Date 16.04.2024 Page 1/1

DIRECTION

VERSION: 1.2

FEATURES:

• Highly versatile

• Accurate DF applications

• Vertical polarization

• Rugged construction

APPLICATIONS:

• Mobile and fixed DF applications

• Ideal for C-UAS applications

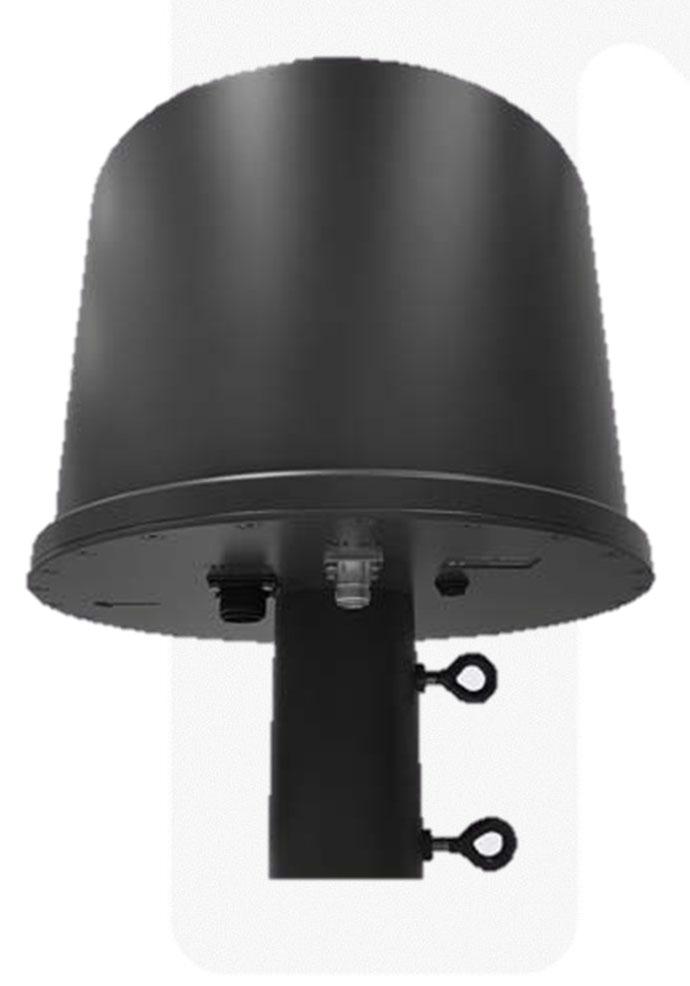

Compact Dual Band Direction Finding Antenna

400 – 6000 MHz

Product Code: DF-A0121

SPECIFICATIONS:

Electrical:

Frequency range

400 – 6000 MHz

Polarisation Vertical

DF:

DF frequency range

Band C: 400 – 3000 MHz; Band D: 3000 – 6000 MHz

Nominal input impedance 50 Ω

Antenna type

5-element DF array (From 5- to 2-channel receiver compatible)

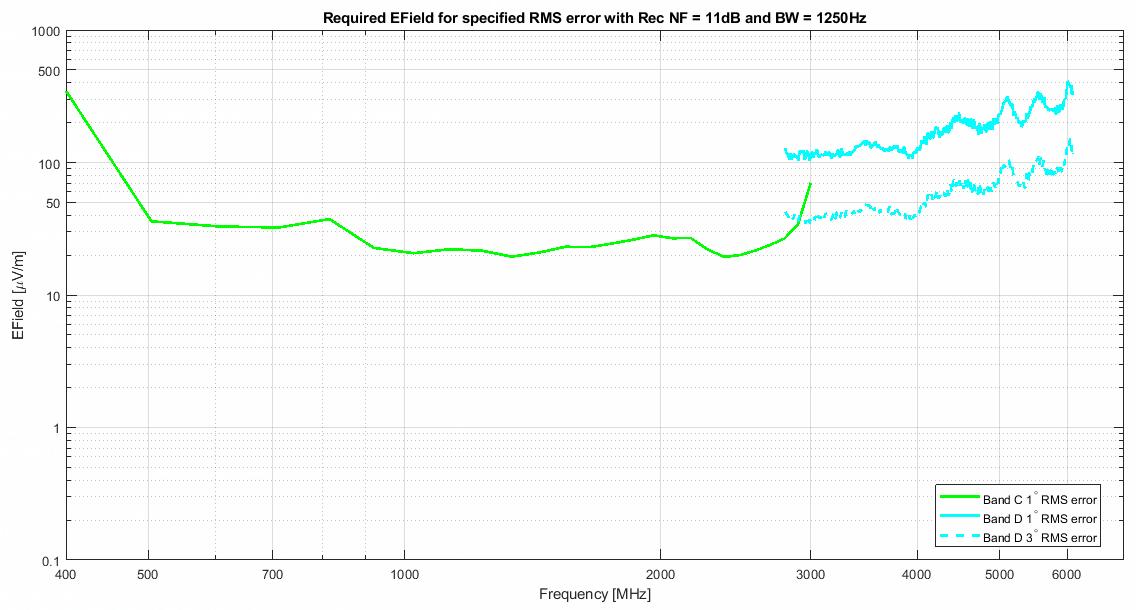

Strong signal DF accuracy < 1º RMS

Monitoring:

Frequency Range

RF Interface:

400 – 6000 MHz

Connectors 11 x TNC female

Mechanical:

Height

Diameter

Mounting method

720 mm

304 mm

Fixed mounting flange for mast or mobile mounting

Material Aluminium, fibreglass

Weight <12 kg

Environmental: designed to meet the following specifications

Wind survival 160 km/h

Temperature (operational) - 31 ºC to +70 ºC

Water ingress rating IP65

PRODUCT DESCRIPTION:

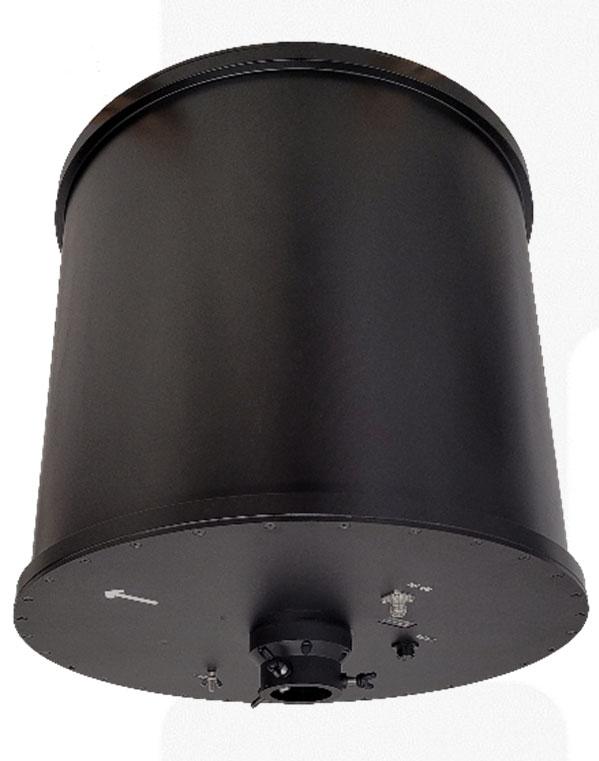

The DF-A0121 direction finding antenna from Alaris Antennas originates from the well-established DF-A0062 wideband DF antenna. This antenna is the highest-frequency set, which works well from 400 to 6000 MHz. It is suitable for quick deployment as well as fixed applications.

The 5-element DF array is located inside a radome with the electrical connections for the ten channels being available near the base, via the enclosure at the base of the antenna.

The antenna also includes a dedicated Monitoring channel.

Compact Dual Band Direction Finding Antenna

400 – 6000 MHz

Product Code: DF-A0121

DF SENSITIVITY GRAPH:

VERSION: 1.2

The graph illustrates the direction finding sensitivity of a typical system, modelled using a phase and amplitude correlative DF algorithm The sensitivity is measured using an IF bandwidth of 1.25 kHz and without averaging. The graph shows the minimum signal required to obtain a bearing fluctuation of less than 1º for the frequency range 400 to 3000 MHz, less than 3º for the frequency range 3000 to 6000 MHz. The values should be adapted for the system in question if it uses a different bandwidth and receiver noise figure, or if considering a different required accuracy.

INTEROPERABILITY WITH DF RECEIVERS:

The DF sensitivity of the full system is highly dependent on the receivers, processing and algorithm used, as well as the characterization table density. The graph above assumes a 5-channel, low noise receiver and correlative algorithm. The sensitivity will be between 1 and 10 dB worse with a 2-channel receiver system.

Special attention has been paid to the nulls which usually occur in this band due to the large diameter mast. Receiver systems with two channels, commutated to measure five antennas, are sensitive to nulls in the element patterns. Depending on the receiver and algorithm, reducing the null depth leads to a more reliable system.

C-BAND ANTENNAS PRODUCT PROFILE

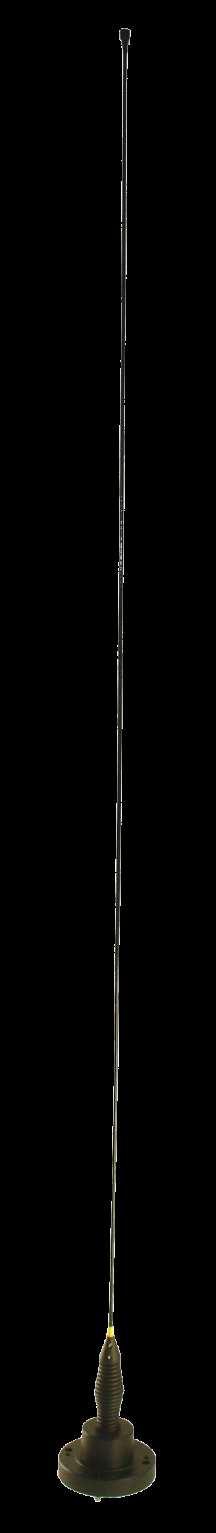

Wideband UHF/SHF Magnetic Mount Antenna WB480W

The WB480W is an extremely wideband and compact magnetic mount antenna of low profile that supports multiple applications. The antenna is ideally suited for applications where a quick setup and removal is required or where a permanent installation of the antenna on a vehicle is not possible.

• Ideal operation in the UHF/SHF bands up to 8 GHz

• High performance, 200 W at 100% duty cycle

• Compact magnetic mount for easy-to-setup temporary installations

MHz: 160 W

MHz: 130 W

MHz: 60 W Standard color

Safety Warning: Great care should be taken when handling strong magnetic products. Magnetic mounts may cause painful pinching injuries. When using a magnetically mounted device on a moving vehicle the device may lift off from the vehicle even at moderate speeds in case of collision. Therefore a secondary retention system should always be used to prevent unintentional detachment or loss of the device (the properly tightened feeder cable could possibly be used for this purpose). For maximum grip the surface of the vehicle and the bottom of the magnet should be dry and clean of dirt, snow and ice prior to attaching the device.

V0.1w

Date 05.04.2023

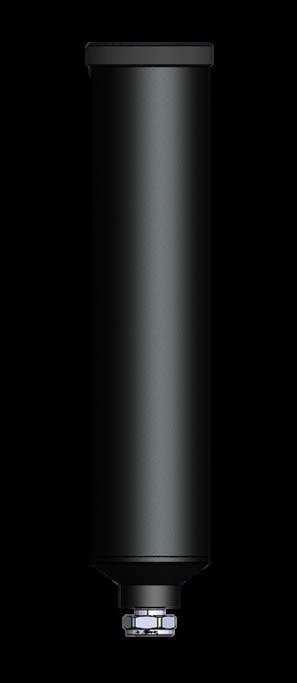

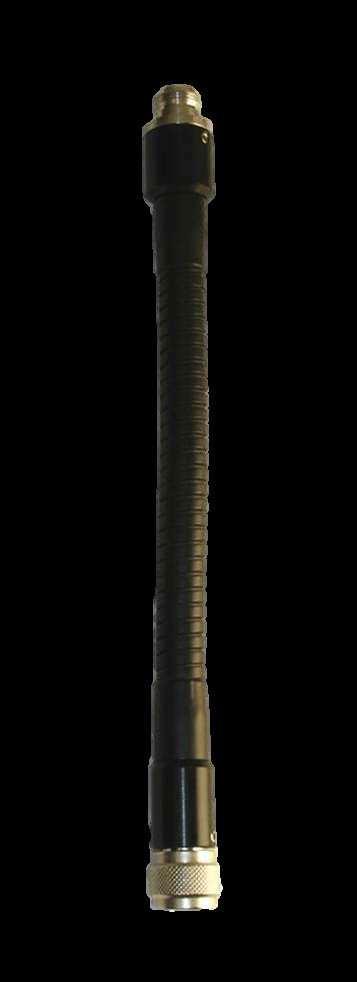

Wideband UHF/SHF Portable Antenna WD28P

The WD28P is a high performance omnidirectional portable antenna which provides excellent performance over the entire 2 – 8 GHz frequency range. The antenna is particularly suited for tactical communication applications.

• Effective omnidirectional radiation over the entire frequency range

• Rugged radome protected construction

• No ground plane required

dipole

pattern

Gain (Measured patterns on request) VSWR

Nominal Impedance

Standard color

RF connection

N-type connector Mounting Directly to a matching connector

*Specific adjustments on request

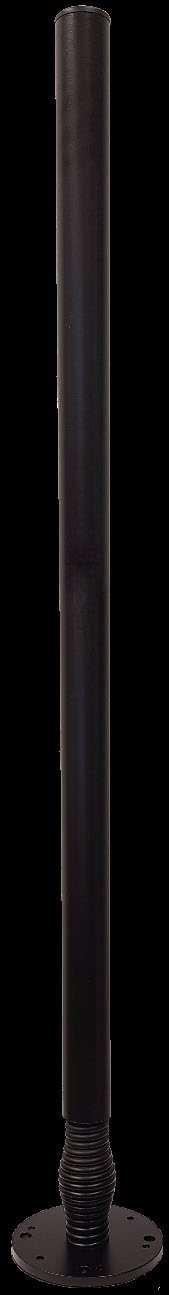

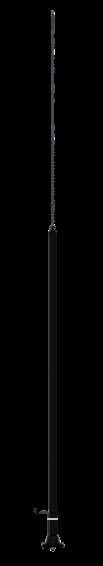

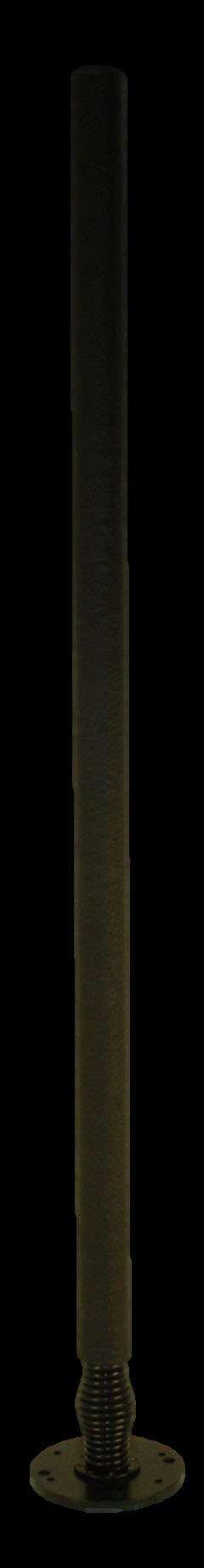

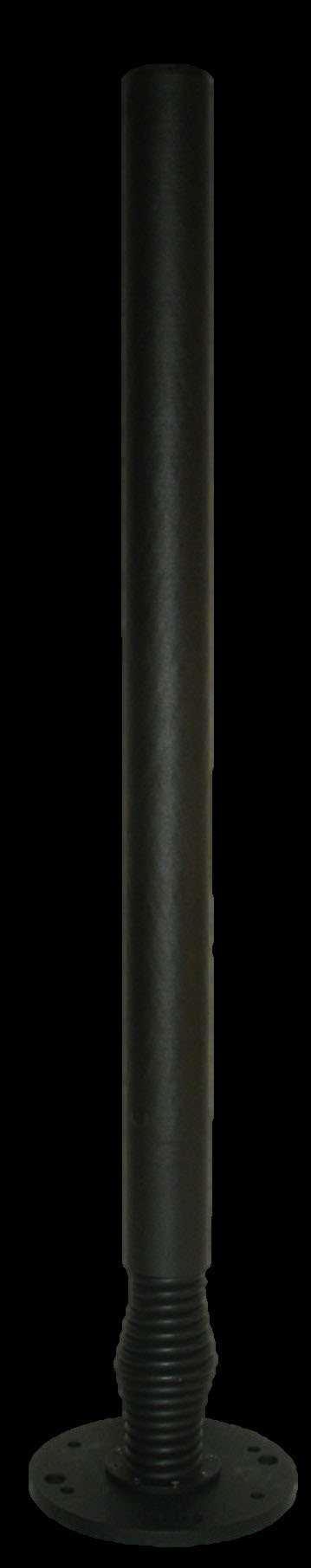

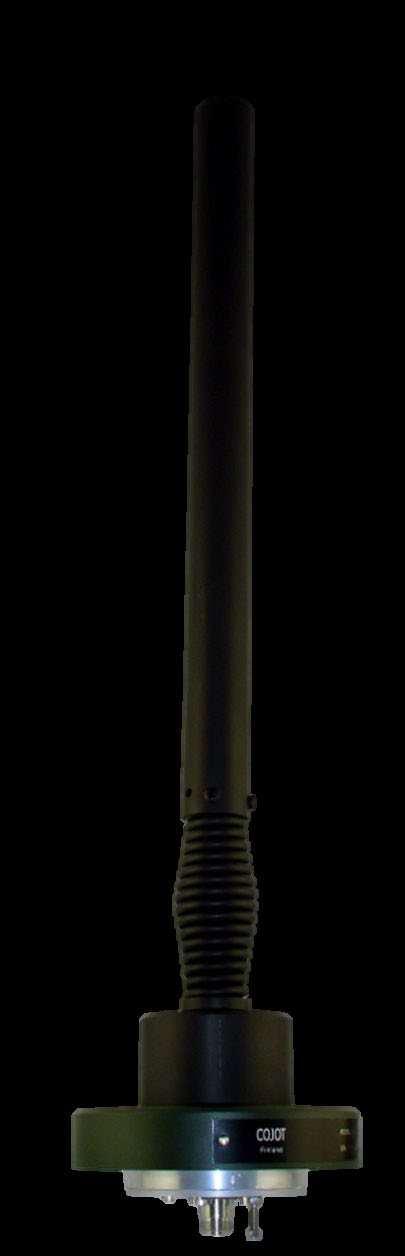

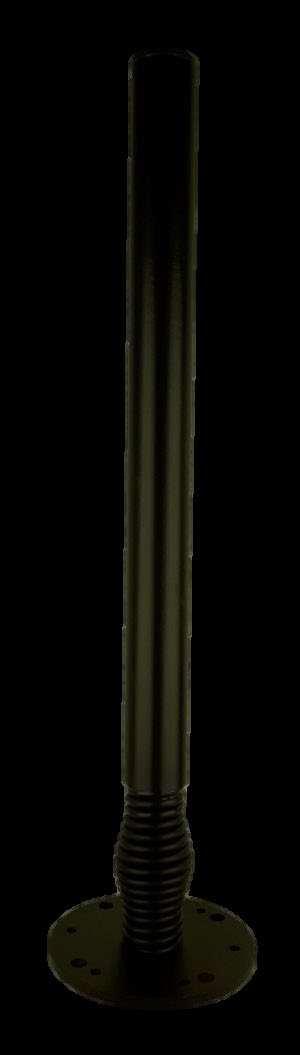

Ultra-Wideband Dual Port Vehicular Antenna WBC2800M

The WBC2800M is a robust ultra-wideband dual port antenna effectively covering the VHF, UHF and SHF bands. It is well suited for high power ECM and tactical communication applications, especially where a multiple antenna set-up is not possible, or antenna co-location problems may occur.

V0.1w

Date 12.06.2023

• Two antennas integrated in the same mechanics, combining the advantage of a low visual signature with the capability for an extended frequency range

• High band, ground plane independent antenna positioned at the top for optimum coverage

• High power rating, more than 300 W in total

Product details*

Frequency range

Polarization

Radiation pattern

Gain

VSWR

Nominal Impedance

Power rating (RMS)

Port 1: 20 – 512 MHz

Port 2: 500 – 7500 MHz

Nominally vertical

Omnidirectional (typ. ± 1.5 dB)

Measured patterns on request

Port 1: ≤ 3.5 / Port 2: < 3.5

50 Ω

Port 1: 140 W

Port 2: 500-1000 MHz: 200 W

1000-2000 MHz: 150 W

2000-4000 MHz: 100 W

4000-6000 MHz: 80 W

6000-7500 MHz: 40 W

Standard color Black

Radiator

Aluminium enclosed in fibreglass radome with rubber coated shock absorption spring

Height 1750 mm

Weight 6.1 kg

Installation*

RF connection Two Female N-type connectors

Mounting 4-hole US pattern mount

*Specific adjustments on request

Order number

WBC2800M Antenna as described above

Page 1/1

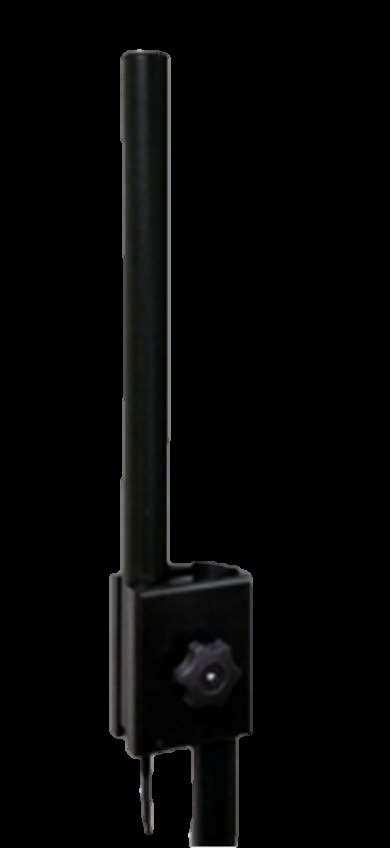

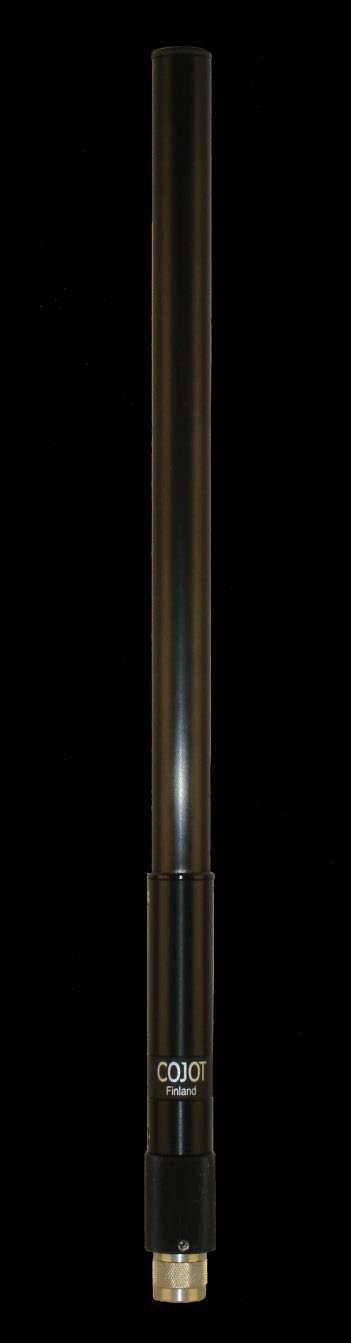

Wideband UHF/SHF Portable Antenna

WD560P

The WD560P is a lightweight wideband portable antenna that does not require a ground plane for proper operation. It is well suited for communication, Counter-RCIED and jamming applications within the 500 – 6000 MHz frequency range.

• Effective operation in the UHF/SHF bands up to 6 GHz

• Ideal radiation performance for jamming applications

• High power rating, up to 250 W

• No ground plane required

Product details*

Frequency range

Polarization

Radiation pattern

Gain

VSWR

Nominal Impedance

Power rating (RMS)

500 – 6000 MHz

Nominally vertical

Omnidirectional

Measured patterns on request

≤ 3.0

50 Ω

500-1000 MHz: 250 W

1000-2700 MHz: 170 W

2700-4000 MHz: 130 W

4000-6000 MHz: 100 W

Standard color Black

Radiator

Radome protected (diameter 80 mm)

Height (above mounting surface) 380 mm

Weight 0.9 kg

Installation*

RF connection 7/16 Male

*Specific adjustments on request

Order number

Product

Antenna as described above

V1.1w

Date 25.01.2021

Page 1/1

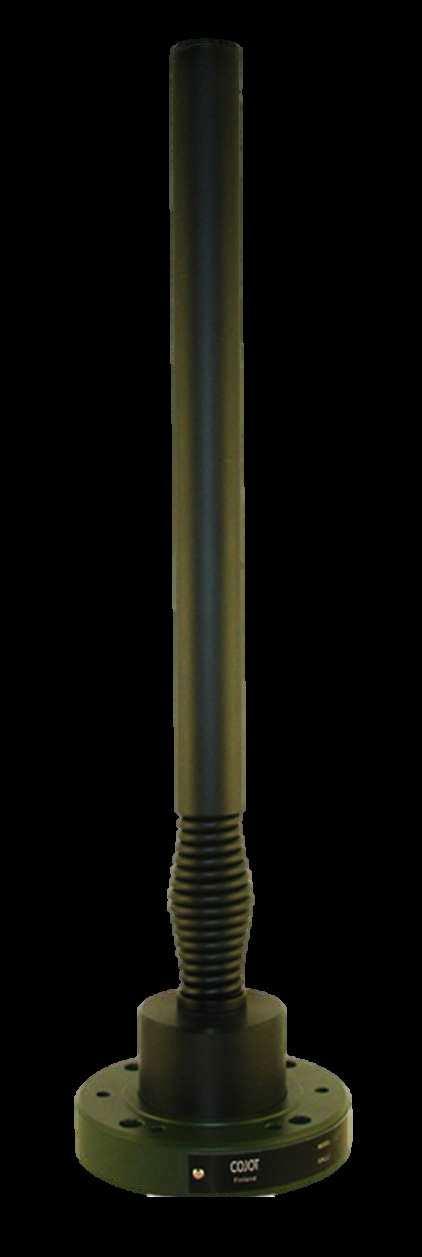

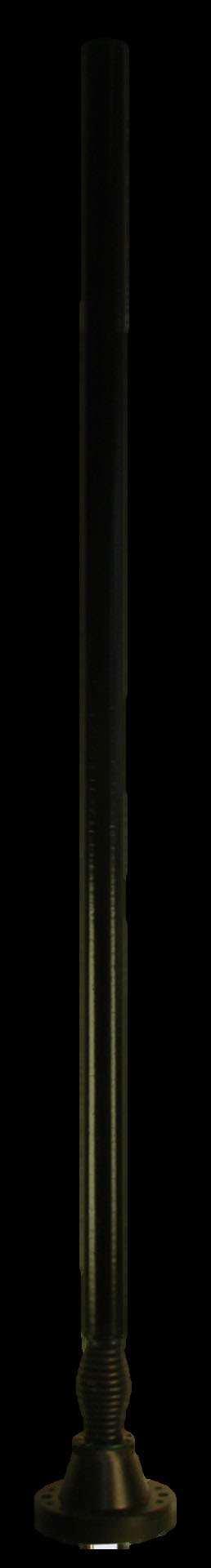

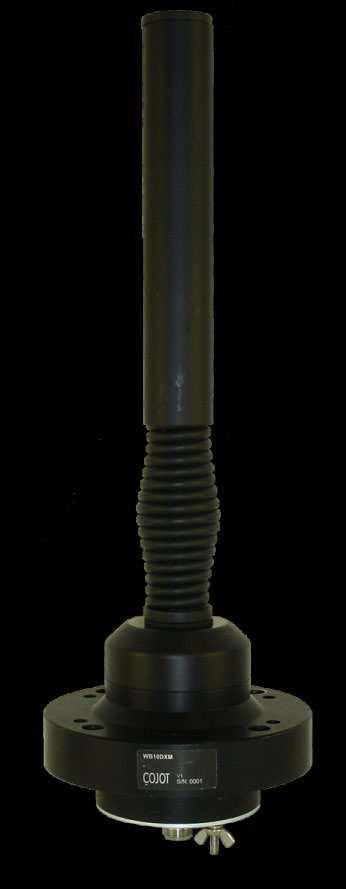

Wideband UHF/SHF Vehicle Antenna WD560M

The WD560M is a light weight wideband vehicle antenna that does not require a ground plane for proper operation. It is well suited for communication, counter-RCIED and jamming applications within the 500 – 6000 MHz frequency range.

• Effective operation in the UHF/SHF bands up to 6 GHz

• Ideal radiation performance for jamming applications

• High power rating, up to 250 W

• No ground plane required

Frequency range

Polarization

Radiation pattern

Gain

VSWR

Product details*

500 – 6000 MHz

Nominally vertical

Omnidirectional

Patterns available on request

≤ 3.0

Nominal Impedance 50 Ω

Power rating (RMS)

500-1000 MHz: 250 W

1000-2700 MHz: 170 W

2700-4000 MHz: 130 W

4000-6000 MHz: 100 W

Standard color Black

Radiator Radome protected (diameter 80 mm)

Height (above mounting surface)

Weight

RF connection

400 mm

1.0 kg

Installation*

Female N-type

Mounting 4-hole US and 3/6-hole NATO pattern mount

*Specific adjustments on request

Order number

Product

described above

V1.1w

Date 01.07.2020 Page 1/1

GNSS ANTENNAS

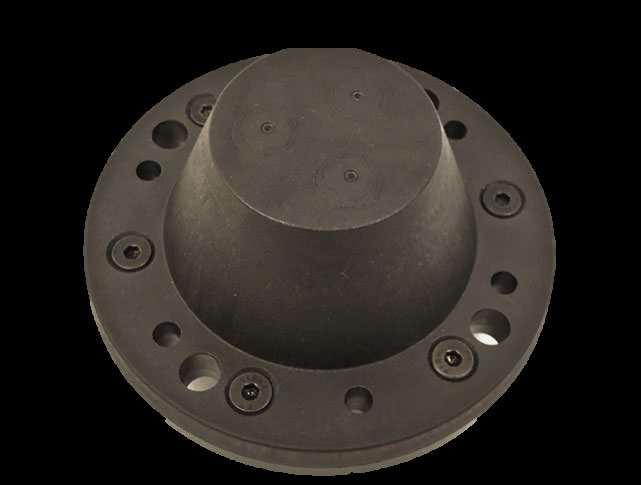

Heavy Duty Navigation Antenna E1215

The E1215 is a heavy-duty vehicle antenna for applications where optimal L1/L2 GPS signal reception is required.

• Rugged, low-profile antenna construction

• Built-in low noise amplifier to enable long cable connection to receiver

• High outer band attenuation with integrated filtering

Product details*

Frequency band

Polarization

Antenna type

Gain (typical)

Noise Figure (typical)

L1 : 1575.42 MHz ± 12 MHz

L2 : 1227.60 MHz ± 12 MHz

RHC (Right Hand Circular)

Active ceramic patch antenna

L1 : 21 dB ± 1.5dB L2 : 20 dB ± 1.5dB

Pout 1dB gain Compression point (typical) +2dBm (1575.42MHz) -2dBm (1226.7MHz)

Nominal Impedance

Outer Band Attenuation

Power supply (fed through signal cable)

50 Ω

100MHz~1180MHz 40dB

1280MHz~1520MHz 30dB

1620MHz~6000MHz 45dB

1.8 - 5.5 V (16 mA typical) Standard color

adjustments

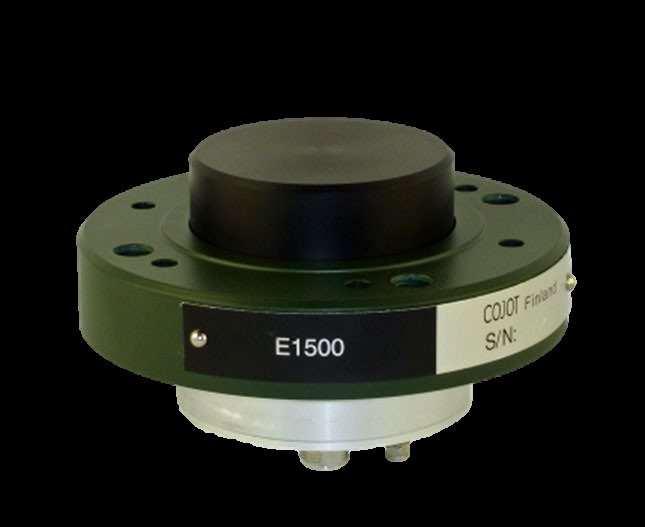

Heavy Duty GPS Antenna E1500

The E1500 is a heavy-duty vehicle antenna for applications where optimal GPS signal reception is required.

• Rugged, low-profile antenna construction

• In-built low noise amplifier to enable long cable connection to receiver.

Antenna type

Impedance

ceramic patch antenna

Heavy Duty Navigation Antenna E1215W

The E1215W is a heavy-duty magnet mount vehicle antenna for applications where fast and robust temporary installation of antenna is required still providing optimal L1/L2 GPS signal reception.

• Rugged, low-profile antenna construction

• Built-in low noise amplifier to enable long cable connection to receiver

• High outer band attenuation with integrated filtering

Frequency band

Polarization

Antenna type

Gain (typical)

L1 : 1575.42 MHz ± 12 MHz

L2 : 1227.60 MHz ± 12 MHz

RHC (Right Hand Circular)

Active ceramic patch antenna

Noise Figure (typical) L1 : 2.6 dB L2 : 3.0 dB

Pout 1dB gain Compression point (typical)

+2dBm (1575.42MHz) -2dBm (1226.7MHz)

Nominal Impedance 50 Ω

Outer Band Attenuation

Power supply (fed through signal cable)

100MHz~1180MHz 40dB

1280MHz~1520MHz 30dB

1620MHz~6000MHz 45dB

- 5.5 V (16 mA typical) Standard color

Heavy Duty Navigation Antenna E1516

The E1516 is a heavy duty vehicular navigation antenna supporting GLONASS, GPS, Galileo and BeiDou satellite systems. The antenna is optimal for applications where support for multiple navigation systems is required

• Supports multiple GNSS systems

• In-built low noise amplifier to enable long cable connection to receiver

• Rugged, low-profile antenna construction

Antenna type

LNA Gain

Nominal Impedance

Power supply (fed through signal cable)

adjustments on request

(Right Hand Circular)

L-BAND ANTENNAS

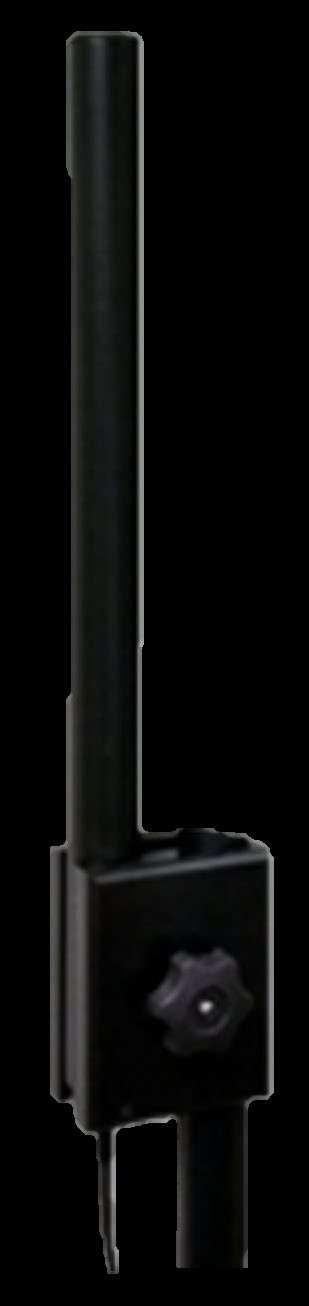

Wideband UHF/SHF Portable Antenna

WD560P

The WD560P is a lightweight wideband portable antenna that does not require a ground plane for proper operation. It is well suited for communication, Counter-RCIED and jamming applications within the 500 – 6000 MHz frequency range.

• Effective operation in the UHF/SHF bands up to 6 GHz

• Ideal radiation performance for jamming applications

• High power rating, up to 250 W

• No ground plane required

Product details*

Frequency range

Polarization

Radiation pattern

Gain

VSWR

Nominal Impedance

Power rating (RMS)

500 – 6000 MHz

Nominally vertical

Omnidirectional

Measured patterns on request

≤ 3.0

50 Ω

500-1000 MHz: 250 W

1000-2700 MHz: 170 W

2700-4000 MHz: 130 W

4000-6000 MHz: 100 W

Standard color Black

Radiator

Radome protected (diameter 80 mm)

Height (above mounting surface) 380 mm

Weight 0.9 kg

Installation*

RF connection 7/16 Male

*Specific adjustments on request

Order number

Product

Antenna as described above

V1.1w

Date 25.01.2021

Page 1/1

Wideband UHF/SHF Vehicle Antenna WD560M

The WD560M is a light weight wideband vehicle antenna that does not require a ground plane for proper operation. It is well suited for communication, counter-RCIED and jamming applications within the 500 – 6000 MHz frequency range.

• Effective operation in the UHF/SHF bands up to 6 GHz

• Ideal radiation performance for jamming applications

• High power rating, up to 250 W

• No ground plane required

Frequency range

Polarization

Radiation pattern

Gain

VSWR

Product details*

500 – 6000 MHz

Nominally vertical

Omnidirectional

Patterns available on request

≤ 3.0

Nominal Impedance 50 Ω

Power rating (RMS)

500-1000 MHz: 250 W

1000-2700 MHz: 170 W

2700-4000 MHz: 130 W

4000-6000 MHz: 100 W

Standard color Black

Radiator Radome protected (diameter 80 mm)

Height (above mounting surface)

Weight

RF connection

400 mm

1.0 kg

Installation*

Female N-type

Mounting 4-hole US and 3/6-hole NATO pattern mount

*Specific adjustments on request

Order number

Product

described above

V1.1w

Date 01.07.2020 Page 1/1

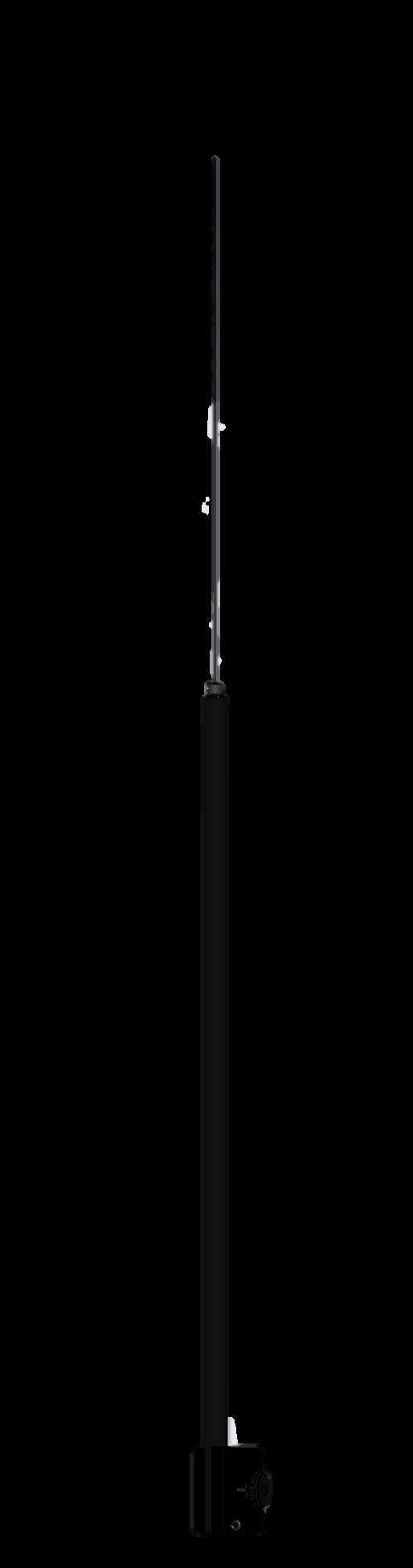

Wideband UHF Manpack Antenna WD460Q

The WD460Q is an extremely wideband, rugged and high performance manpack antenna that does not require a ground plane for proper operation. The antenna is particularly suited for portable communication and jamming applications.

• Effective coverage of the entire 420 – 6000 MHz frequency range

• Rugged antenna construction with shock absorption spring

• No ground plane nor additional tuning required

Nominally vertical Wideband dipole Omnidirectional Measured patterns on request

≤ 3.5

50 Ω

W (RMS)

SMART STEERED BEAM ANTENNAS PRODUCT PROFILE

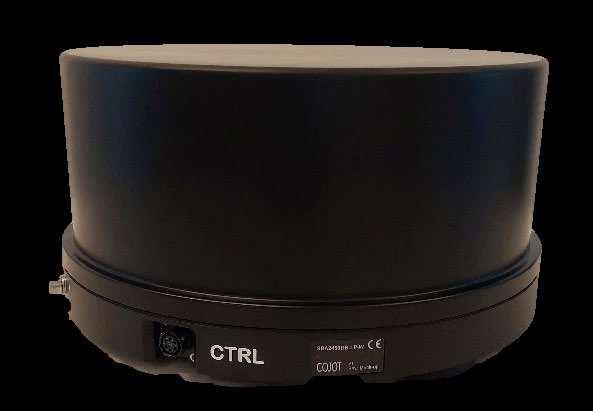

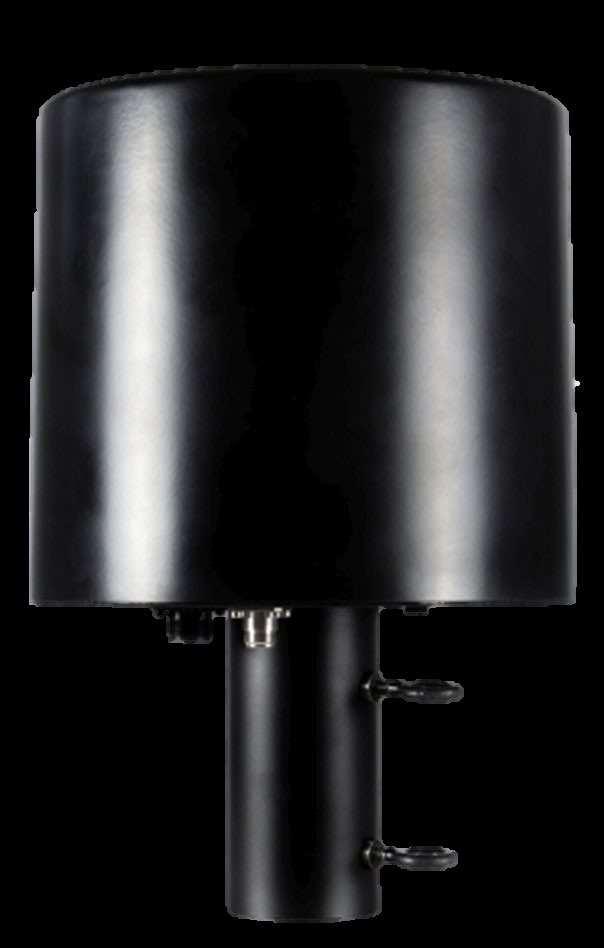

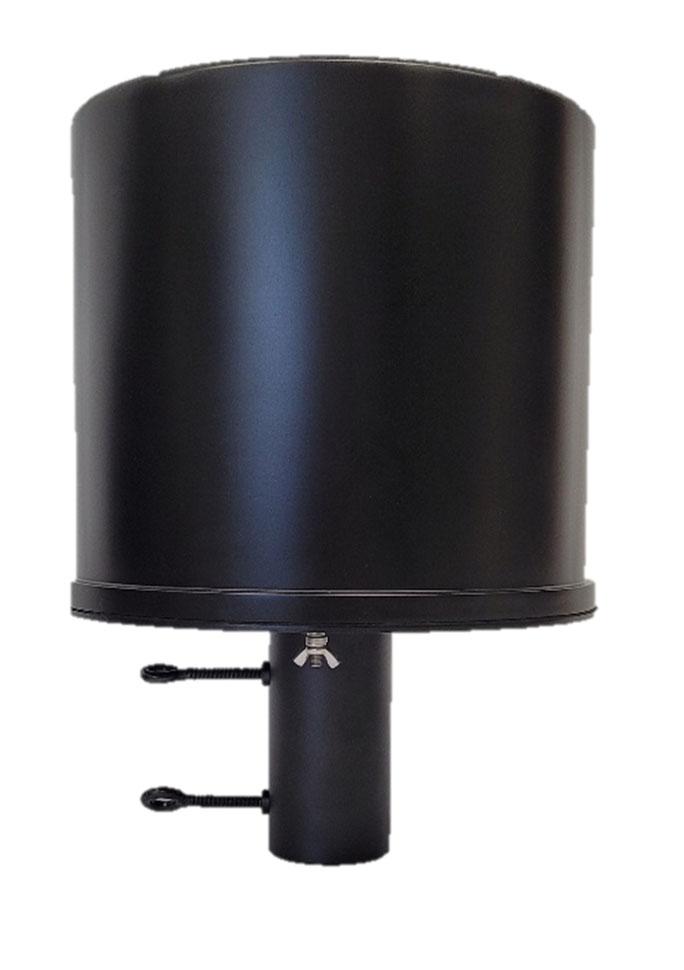

High Power Dual Band SBA for 2.4 and 5 GHz SBA2456XDB

The SBA2456XDB is high power dual band steerable beam antenna covering the full 2.4 and 5 GHz frequency bands (WiFi). The antenna beam can be steered to achieve optimal gain to the desired direction and to avoid interference from unwanted directions. The antenna provides up to 24 sharp beams with a minimum of 20-degree beamwidth to cover the full 360degree horizontal area. Its extremely fast beam switching ability makes the antenna suitable for UAV/drone detection and counter measures.

ï High power rating ñ 100 W CW

ï Sharp and omni beam modes available

ï Fast beam switching by using RS-485 or Ethernet based communication

V1.1w

Date17.05.2024

Productdetails*

Frequencyrange 2400-2500MHzand5000ñ6000MHz

Polarization

Antennatype

Nominallyvertical

Steerablebeamantenna

Radiationpattern Directionalandomni(Sharpandomnibeammodes)

Gain(typical) 10-11dBi@2.4-2.5GHz 12-14dBi@5.0-5.9GHz

3dBbeamwidth (typical) 2.45GHz:45(H-plane),30(E-plane) 5.8GHz:25(H-plane),13(E-plane)

Sidelobelevel(typical) -12dB(H-plane)

VSWR ≤ 2.5

NominalImpedance

Powerrating**

50 Ω

100W(CW&Peak)

Powersupply 19ñ32VDC(<200mA),MIL-STD-1275E

Beamswitchingspeed <1µs

Standardcolor Black

Radiator

Selectablepatcharrayelement,24elements

Height 435mm(includingthemastmountadapter)

Diameter 320mm

Weight 5.3kg

** Coldswitching

RFconnection

Installation*

FemaleN-typeconnector

Mounting Mastmountadapterfor40-60mmmastsincluded

*Moreinformationonrequest

Ordernumber

SBA2456XDB Antennaasdescribedabove

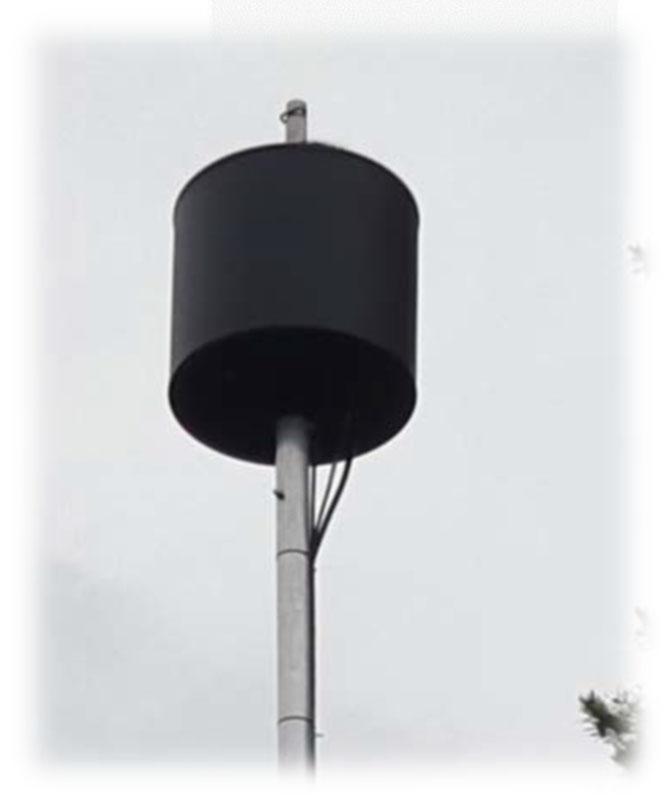

Switched Beam Antenna for UHF III+ SBA1327B

The SBA1327B is a switched beam antenna covering the UHF/NATO band III+ (1350 to 2700 MHz). The antenna beam can be switched by remote control to achieve optimal gain to the desired direction and to avoid interference from unwanted directions. The antenna provides 20 beams with a minimum of 28 degree beamwidth to cover the full 360 degree horizontal area. In addition to these narrow beams the antenna can also provide other beams. Its extremely fast beam switching ability makes the antenna suitable for complex node network in tactical communication.

ï Great directivity with low side lobe levels to undesired direction.

ï Fast beam switching by using RS-485 or Ethernet based communication

ï Mast though antenna mounting with easy to use mast mount adapters

Productdetails*

Frequencyrange 1350-2700MHz

Polarization

Nominallyvertical

Antennatype Switchedbeamantenna

Radiationpattern Directional Gain 13-16dBi(typical)

3dBbeamwidth,Elevation 15(typical)

3dBbeamwidth,Azimuth 35(typical)

Sidelobelevel -12dB(typical) VSWR ≤ 2.5

NominalImpedance 50 Ω

Powerrating** 10W(CW&Peak) Powersupply 19ñ32VDC(<200mA),MIL-STD-1275E

Beamswitchingspeed <2µs

Standardcolor Black

Radiator Selectablepatcharrayelement,20elements

Height 675mmincludingthemastmounts

Diameter 590mm

Weight 20kg

** Coldswitching

RFconnection

Installation*

FemaleN-typeconnector

Mounting Mastmountadaptersfor40-60mmmastsincluded

*Moreinformationonrequest

Ordernumber

V1.0w

Date17.05.2024 Page1/1

Steerable Beam Antenna for S-Band SBA2025B

The SBA2025B is a small sized steerable beam antenna optimized for 2000-2500 MHz. The antenna beams can be steered for optimal gain to the desired direction and to avoid interference from unwanted directions (LPI/LPD). The antenna provides up to 20 beams with a minimum of 20-degree beamwidth to cover the full 360-degree horizontal area. In addition to these narrow beams the antenna can also provide omni directional beam. The antenna contains integrated 3D sensors. It’s extremely fast beam switching ability makes the antenna suitable for complex node network in tactical communication.

• Excellent performance in a small form factor

• Great directivity with very low side lobe levels to undesired direction (LPI/LPD)

• Integrated 3D sensors: accelerometer, gyroscope and magnetometer

Product details*

Frequency range

Polarization

Antenna type

Radiation pattern

Gain

3 dB beamwidth, Elevation

3 dB beamwidth, Azimuth

2000 - 2500 MHz

Nominally vertical

Steerable beam antenna

Directional and omni (Sharp and omni beam modes)

Up to 13 dBi (Sharp beam mode)

25° (typical)

30° (typical)

Sidelobe level -12 dB (typical)

VSWR ≤ 2.5

Nominal Impedance 50 Ω

Power rating

10 W (CW)

Power supply 19 – 32 VDC (<200 mA), MIL-STD-1275E

Beam switching speed < 1 µs*

Standard color

Black

Radiator Selectable patch array element, 20 elements

Height 420 mm including the mast mount element

Diameter 420 mm

Weight 8.0 kg

V0.1w

Date 30.03.2023 Page 1/1 Order number

* more information on request

Dual Band Switched Beam Antenna for 2.4 and 5GHz SBA2456DB

The SBA2456DB is a dual band switched beam antenna covering the full 2.4 and 5 GHz frequency bands (WiFi). The antenna beam can be steered to achieve optimal gain to the desired direction and to avoid interference from unwanted directions. The antenna provides 24 sharp beams with a minimum of 20-degree beamwidth to cover the full 360-degree horizontal area. The antenna provides superior gain performance with low side lobe levels. Its extremely fast beam switching ability makes the antenna suitable for UAV/drone detection and counter measures.

• Great directivity with very low side lobe levels

• Sharp and omni beam modes available

• Fast beam switching by using RS-485 or Ethernet based communication

Antennatype Switchedbeamantenna

Radiationpattern Directionalandomni(Sharpandomnibeammodes) Gain(typical) 10-12dBi@2.4-2.5GHz 12-15dBi@5.0-5.9GHz

3dBbeamwidth (typical) 2.45GHz:45(H-plane),30(E-plane) 5.8GHz:25(H-plane),13(E-plane)

Sidelobelevel(typical) -12dB(H-plane)

VSWR ≤ 2.5

NominalImpedance 50 Ω

Powerrating** 10W(CW&Peak)

Powersupply 19ñ32VDC(<200mA),MIL-STD-1275E

Beamswitchingspeed <1µs

Standardcolor Black

Radiator Selectablepatcharrayelement,24elements Height 405mm(includingthemastmountadapter)

Small Dual Band SBA for 2.4 and 5GHz SBA2456DB-S

The SBA2456DB-S is a small dual band steerable beam antenna covering the full 2.4 and 5 GHz frequency bands (WiFi). The antenna beam can be steered to achieve optimal gain to the desired direction and to avoid interference from unwanted directions. The antenna provides 10 sharp beams with a minimum of 40-degree beamwidth to cover the full 360-degree horizontal area. The antenna provides superior gain performance with low side lobe levels. Its extremely fast beam switching ability makes the antenna suitable for UAV/drone detection and counter measures.

• Beam steering in a compact form factor

• 10 sharp beams available

• Fast beam switching by using RS-422 based communication

Polarization Nominally vertical

Antenna type Switched beam antenna

Radiation pattern Directional (Sharp beam mode)

Gain (typical)

dBi @ 2.45 GHz

dBi @ 5.5 GHz

3 dB beamwidth (typical) 2.45 GHz: 70° (H-plane), 40° (E-plane) 5.5 GHz: 45° (H-plane), 20° (E-plane)

Sidelobe level (typical) -12 dB (H-plane)

VSWR ≤ 2.5

Nominal Impedance 50 Ω

Power rating 10 W (CW)

Power supply 19 – 32 VDC (<200 mA), MIL-STD-1275E

Beam switching speed < 1 µs

Standard color Black

Radiator

Selectable patch array element, 10 elements

mm

Installation*

RF connection Female N-type connector

Power and control 10 PIN MIL-DTL-26482, Shell size 12

Mounting 4 bolt mounting to bottom plate

NOTE: The above dimensions and weight do not take into account the magnets. Order number

SBA2456DB-S Antenna as described above

SBA2456DB-S-W Antenna with a mounting magnet **

** The above dimensions and weight do not take into account the magnet.

Low Profile Dual Band SBA for 2.4 and 5GHz SBA2456DB-LP

The SBA2456DB-LP is a dual band steerable beam antenna covering the full 2.4 and 5 GHz frequency bands (WiFi). The antenna beam can be steered to achieve optimal gain to the desired direction and to avoid interference from unwanted directions. The antenna provides up to 24 sharp beams with a minimum of 20degree beamwidth to cover the full 360-degree horizontal area. The antenna provides superior gain performance with low side lobe levels. Its extremely fast beam switching ability makes the antenna suitable for UAV/drone detection and counter measures.

• Great directivity with very low side lobe levels

• Sharp and omni beam modes available

• Fast beam switching by using Ethernet based communication

beam antenna Radiation pattern

and omni (Sharp and omni beam modes) Gain (typical)

3 dB beamwidth (typical) 2.45 GHz: 43° (H-plane), 46° (E-plane) 5.8 GHz: 25° (H-plane), 25° (E-plane)

Sidelobe level (typical) -12 dB (H-plane) VSWR ≤ 2.5

Nominal Impedance

Ω Power rating 10 W (CW)

Power supply 19 – 32 VDC (<200 mA), MIL-STD-1275E

Beam switching speed < 1 µs

Standard color Black

Radiator Selectable patch array element, 24 elements

Installation*

RF connection Female SMA-type connector

Power and control 6 PIN MIL-DTL-26482, Shell size 8

Mounting 4 bolt mounting to bottom plate

* More information on request

Order number

above dimensions and weight do not take into account the magnets.

Dual Polarized Switched Beam MIMO Antenna for 5G SBA3438B-DP

The SBA3438B-DP is a switched beam antenna for the 5G 3.4 to 3.8 GHz frequency band providing output for dual ±45° slant polarizations to support MIMO usage. The antenna offers extremely fast beam steering capability to achieve optimal gain to the desired direction and avoid interference from and to unwanted directions (LPI/LPD). The antenna provides up to 20 sharp beams with a minimum of 18 degree beamwidth to cover the full 360 degree horizontal area. On top of sharp beam mode the antenna supports also wide and quasi-omni modes

• Dual ±45° slant polarizations to support MIMO usage

• Extremely fast beam steering to support 5G complex node and Mesh networks

• Optimized spectrum efficiency: antenna gain steered to the desired directions and interference minimized to and from unwanted directions

Product details*

Frequency range 3400 - 3800 MHz

Polarization

V0.3w

±45° slant polarizations

Antenna type Switched beam antenna

Radiation pattern Directional (see typical patterns on Page 2)

Gain (typical) 14 dBi

3 dB beamwidth, VP & HP E-plane 15°, H-plane 25° (typical)

Sidelobe level (typical) -12 dB

VSWR ≤ 2.5

Nominal Impedance 50 Ω

Power rating 10 W (CW)

Power supply 12 VDC (< 200 mA)

Beam switching speed < 1 µs

Standard color Black

Radiator 20 x selectable dual polarized patch array element

Height 390 mm (including the mast mount adapter)

Diameter 370 mm

Weight 4.5 kg

Installation

RF connection 2 x Female N-type connector

Power and control See information on Page 3

Mounting Mast mount adapters for 40-60 mm masts included

* More information on request

Order number

Date 11.10.2021 Page 1/1

W-BAND ANTENNAS PRODUCT PROFILE

Wideband SHF Vehicle Antenna WD460M

The WD460M is an extremely wideband, rugged and high performance vehicle antenna that does not require a ground plane for proper operation. The antenna is particularly suited for communication and jamming applications like counter-UAS.

• Effective coverage of the entire 420 – 6000 MHz frequency range

• Highly robust antenna design, ideally suited for vehicle applications

• No ground plane required

Polarization

Antenna type Wideband dipole

Radiation pattern

Gain

Omnidirectional

Measured patterns on request VSWR

Nominal Impedance

3.5

Ω

Power rating 40 W (RMS)

Standard colour Black

Radiator Radome

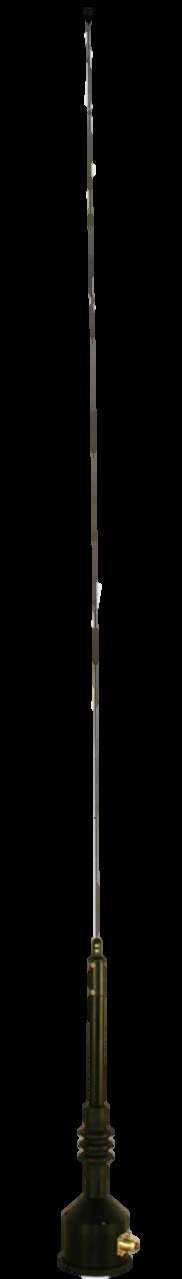

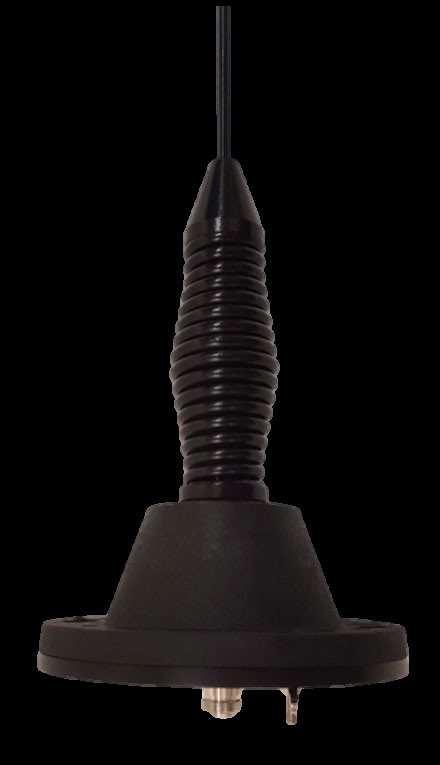

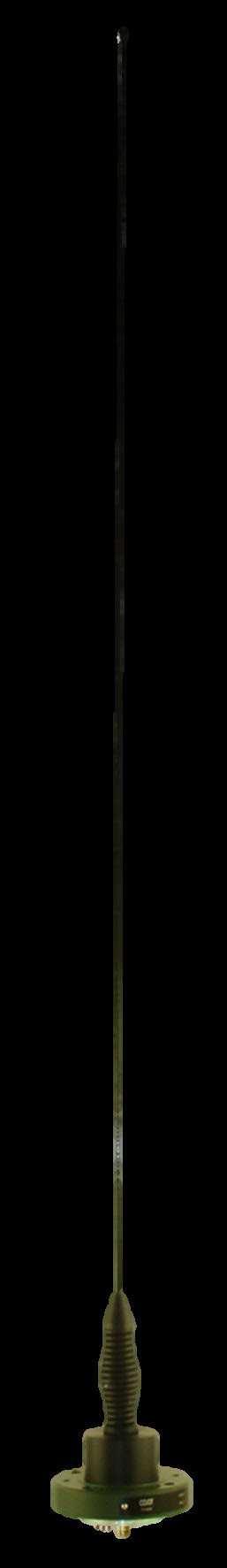

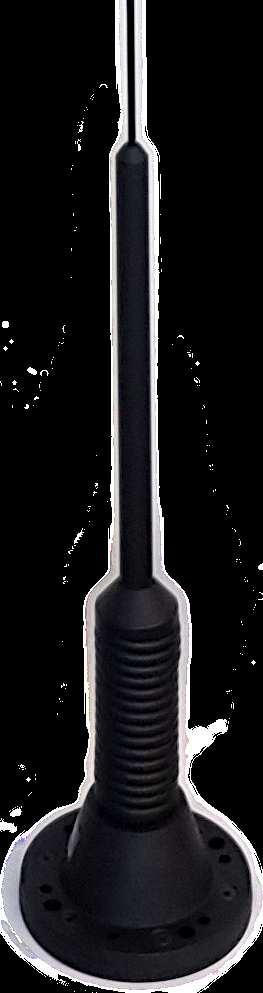

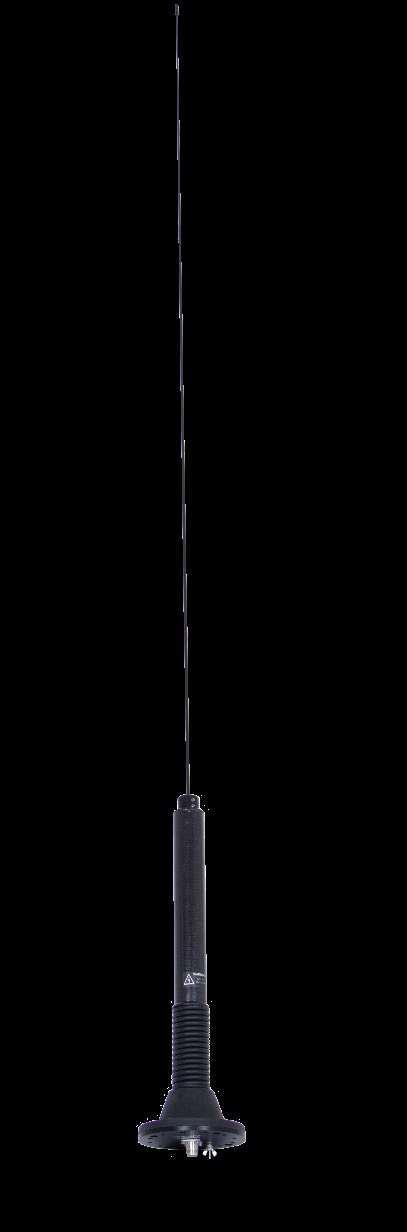

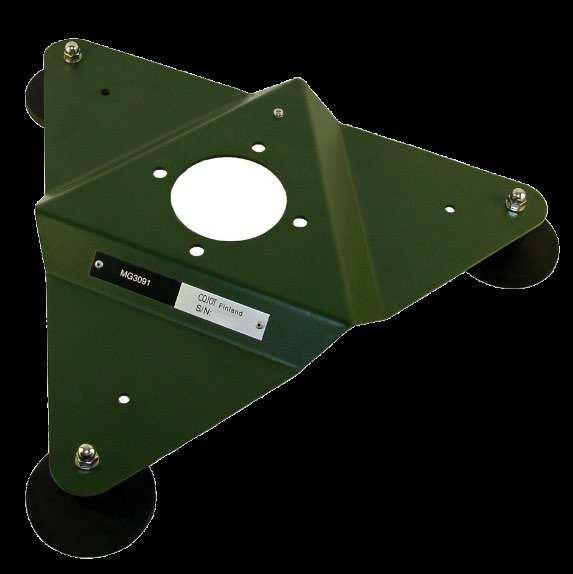

Tactical VHF Vehicle Antenna WB3090M

The WB3090M is a rugged, low profile vehicle antenna that is ideally suited for mobile C3i applications in the 30 – 110 MHz frequency range – to be used on numerous kinds of vehicles. The radiator of the antenna can be easily detached temporarily by rotating it at its spring and the whip part separately using the thumb screw.

• Low profile whip antenna

• Optimized horizontal radiation

• Complete radiator and whip separately detachable without tools

Product details*

Frequency range

Matching

Polarization

Antenna type

Radiation pattern

Gain

30 – 110 MHz

Passive

Nominally vertical

Monopole, ground plane required

Omnidirectional

Measured patterns on request

VSWR < 3.5

Nominal Impedance

Power rating

50 Ω

75 W (RMS)

Standard color Black

Radiator

Steel whip with shock absorption spring

Height 1980 mm

Weight 1.4 kg

Installation*

RF connection

Female BNC-type

Mounting 4-hole US and 3/6-hole NATO pattern mount

*Specific adjustments on request

Order number

NSN

WB3090M 5985-58-000-1002

WB3090M-C0

Product

Antenna as described above

- Antenna with female N -type connector

WB3090M-GPS - Antenna with active L1 GPS antenna inside the antenna base **

** Contact COJOT for details

V3.0w

Date 15.07.2021

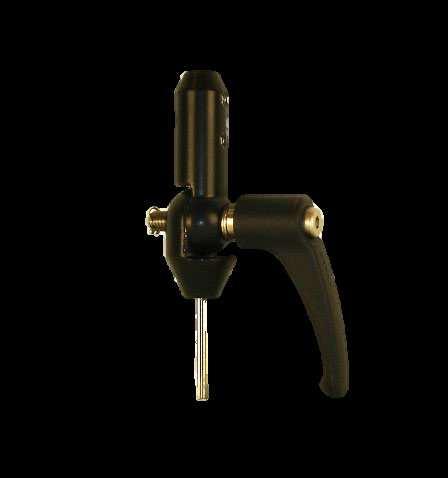

Accessory: The optional available FJ5 is a handy tilting mechanism for vehicle whip antennas that enables the user to conveniently tilt down the whip, for instance when having to drive into halls and garages.

Page 1/1

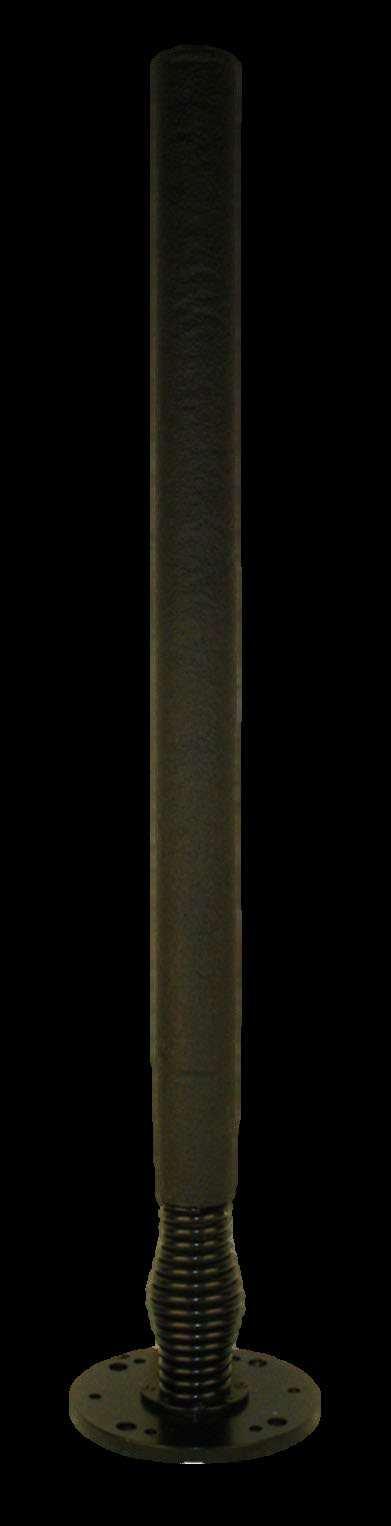

Wideband VHF Manpack Antenna WB25175E

The WB25175E is a remarkably lightweight and handy wideband antenna which is particularly suited for portable radio and jamming applications in the 25 – 175 MHz frequency range.

• Lightweight carbon fibre whip antenna

• Foldable radiator for handy transportation and easy installation

• Short height antenna construction

Frequency range

Matching Passive

Polarization

Nominally vertical

Antenna type Monopole (ground plane required)

Radiation pattern

Gain

Omnidirectional

Measured patterns on request VSWR

3.5 Nominal Impedance

Standard color

Radiator

Carbon fibre whip with shock absorption spring

Wideband VHF Manpack Antenna WB20220A

The WB20220A is a short and lightweight wideband antenna for portable radio and jamming applications in the 20 – 220 MHz frequency range.

• Foldable radiator for handy transportation and easy installation

• Short height and lightweight antenna construction

Product details*

Frequency range

Matching

Polarization

20-220 MHz

Passive

Nominally vertical

Antenna type Monopole (ground plane required)

Radiation pattern Omnidirectional

Gain Measured patterns on request

VSWR

Nominal Impedance

20-27 MHz: ≤ 3.8

28-220 MHz: ≤ 3.5

50 Ω

Power rating 20 W (RMS)

Standard color Black

Radiator

Steel whip with shock absorption spring

Base Ø 36 mm max

Height

1000 mm (operational), 520 mm (folded)

Weight 335 g

Installation*

RF connection

Mounting

*Specific adjustments on request

Male N-type

Directly to a matching connector

as described above

V1.1w

Date 05.05.2021

Page 1/1

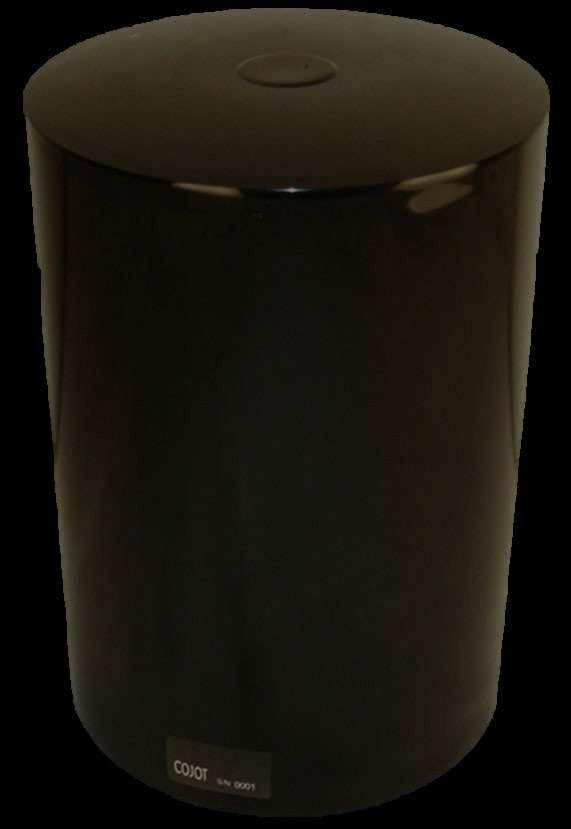

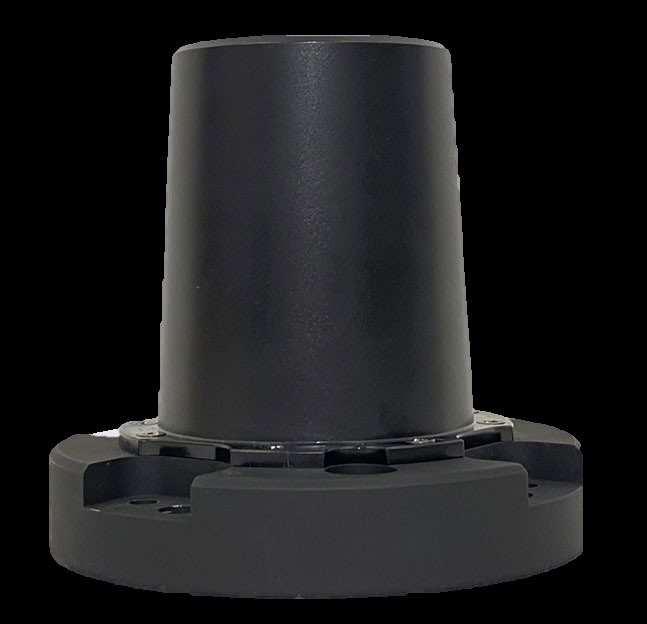

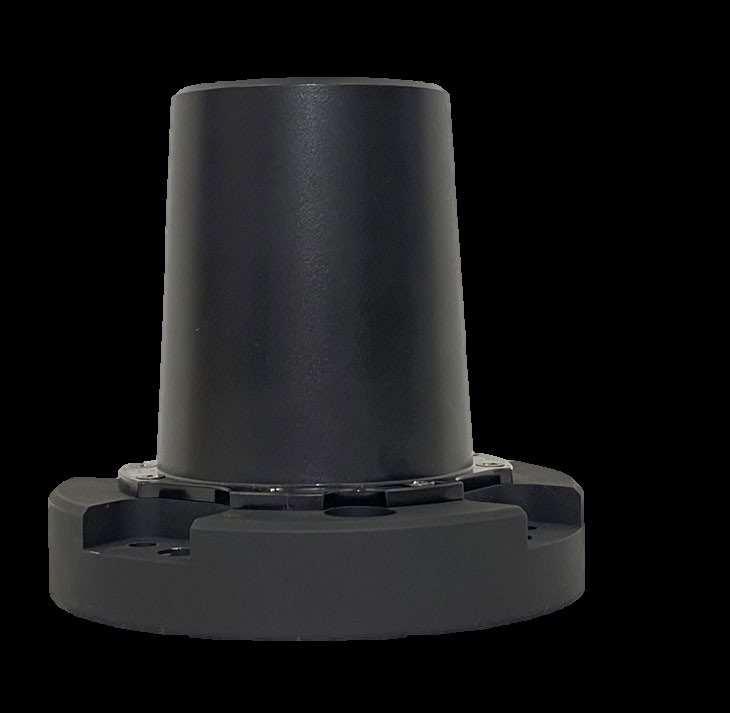

Wideband High-Power Vehicle Antenna WB425XM

The WB425XM is a high power, ultra wideband, compact and low-profile vehicle antenna that is well suited for communication, monitoring and jamming applications within the 400 – 6000 MHz frequency range.

Frequency range

Polarization

Radiation pattern

Gain

• Excellent performance over the entire frequency range

• High power rating, 400 W at 100% duty cycle

Product details*

800 - 6000 MHz (without a ground plane)

400 – 6000 MHz on a ground plane (≥ 0.5 x 0.5 m2)

Nominally vertical

Omnidirectional (max. ± 1.5 dB ripple)

Measured patterns on request VSWR ≤ 3.0

Nominal Impedance 50 Ω

Power rating 400 W (RMS)

Standard color Black

Radiator

Radome protected

Height 130 mm

Weight 1.0 kg

Installation*

RF connection

Mounting

*Specific adjustments on request

Female 7/16 -type

4 -hole US and 3/6 -hole NATO pattern mount

Order number

V1.2w

Date 11.01.2023

Page 1/1

WB425XM Antenna as described above

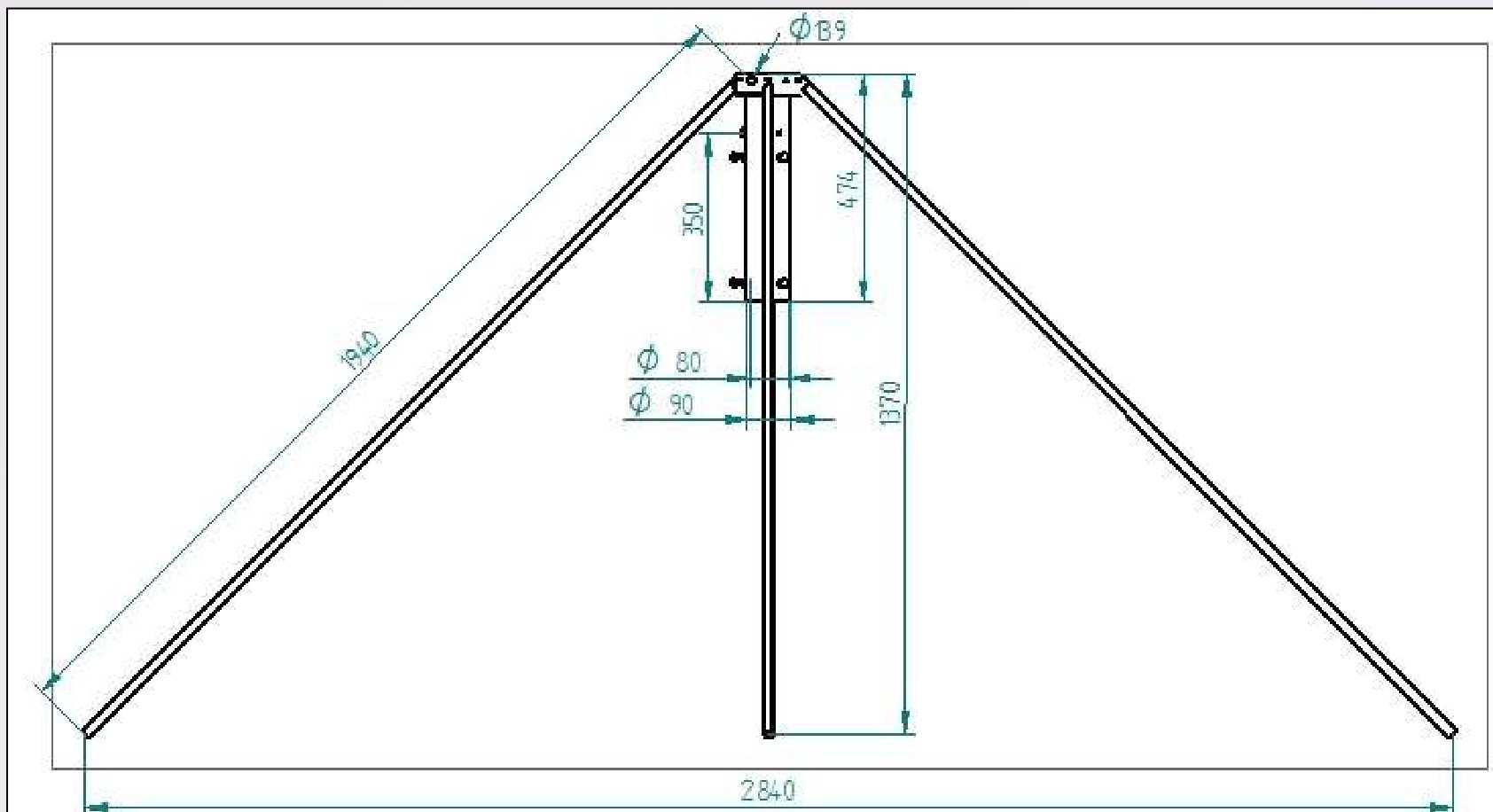

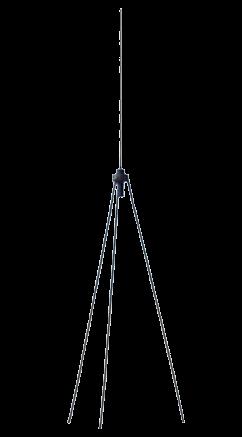

Stationary Tactical VHF Antenna WB3090B

The WB3090B is a highly efficient tactical VHF antenna that can be mounted onto a mast or be used as a self-standing antenna on the ground or on fixed installations like containers or shelters. Its excellent performance in the 30 – 110 MHz frequency range makes it ideally suited for use with the latest tactical radios.

• High performance, 75W at 100% duty-cycle and typical gain of 0 dBi

• Multiple mounting options

Product details*

Frequency range

30 - 110 MHz

Matching Passive

Polarization

Antenna type

Radiation pattern

Gain

VSWR

Nominal Impedance

Power rating

Standard color

V1.2w

Nominally vertical

Ground plane antenna

Omnidirectional

Measured patterns on request

≤ 3.0

50 Ω

75 W (RMS)

Black/olive green Radiator and ground plane radials

Height

Aluminium alloy

4000 mm (operational), 2600 mm (disassembled in carry-on bag)

Weight 4.0 kg

Installation*

RF connection

Female BNC-type connector

Mounting Self-standing or mast top mounting on ø 40 –50 mm tubular mast

*Specific adjustments on request Order number

Antenna as described above

WB3090B-C0 - Same antenna with female Ntype connector

Date 30.04.2021 Page 1/1

Wideband UHF/SHF Manpack Antenna WB26-QE

The WB26-QE is a high performance manpack antenna featuring a shock absorption spring and an extension to raise the antenna radiation point thus allowing better coverage. The antenna is particularly suited for jamming-applications in the 1.8 – 6 GHz frequency range.

• Effective omnidirectional radiation over the entire frequency range

• Dipole antenna type - no ground plane required

• Rugged radome protected construction, also available as a compact version without extension and shock absorption spring.

Antenna type Wideband dipole

Radiation pattern

Gain

Nominal Impedance

Standard colour

adjustments on request

Omnidirectional

Wideband UHF Manpack Antenna WB922G-GE

The WB922G-GE is a rugged, high performance manpack antenna featuring an extra long gooseneck. The antenna is well suited for portable communication and jamming applications where a quick adjustment of the antenna’s angle is needed.

• Effective coverage of the entire 800 – 2500 MHz frequency range

• Optimized performance for the GSM, 3G and WLAN bands

• Extra long gooseneck (220 mm)

• Rugged antenna construction with flexible gooseneck or shock absorption spring

Radiation pattern

Nominal Impedance 50 Ω Power rating 50 W (RMS)

Standard color

Radiator Radome protected

mm (incl. 220 mm gooseneck)

*Specific adjustments on request

a matching connector

Antenna as described above

with 12 cm gooseneck (Height: 400 mm / Weight: 350 g)

with shock absorption spring (Height: 340 mm / Weight: 370 g)

Instructions for use: To avoid the connector from being damaged, do not rotate the antenna when the gooseneck is in a bent position. Always straighten the gooseneck first, before changing the bending direction. The maximum bending angle of 60⁰ shall not be exceeded.

V2.1w

Date 13.03.2019 Page 1/1

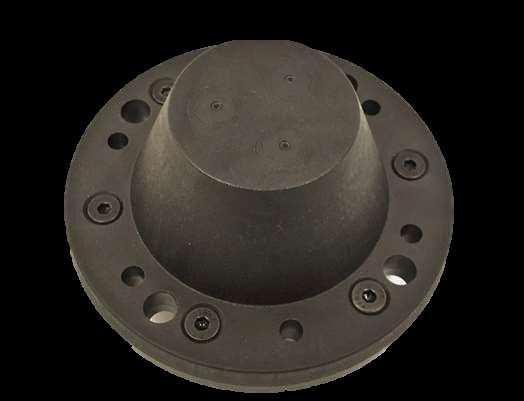

Ultra Wideband VHF/UHF/SHF Vehicle Antenna WB280M

The WB280M is a rugged, high power vehicle antenna that is effectively covering the 200 – 8000 MHz frequency range. The antenna is highly suited for modern and upcoming SDRs and can be ideally used in multiple applications like mobile communication, countermeasure and monitoring.

• Ideal operation over a very wide bandwidth including WiFi 6E band

• High power rating, 200W at 200–6000 MHz and 100W at 6000– 8000 MHz with 100% duty cycle

• Easy to install to different kind of environments

Polarization

500 – 8000 MHz (without a ground plane)

Nominally vertical

Radiation pattern Omnidirectional (typ. ± 2.0dB)

Gain

Measured patterns on request

VSWR ≤ 3.0

Nominal Impedance 50 Ω

Power rating

200 – 6000 MHz 200 W (RMS)

6000 – 8000 MHz 100 W (RMS)

Standard color Black

Radiator Radome protected

Height 220 mm

Width 150 mm

Weight 2.3 kg

Installation*

RF connection

Female N-type

Mounting 4 x M10 female threads in a 114.3 mm diameter circular pattern on the bottom side of the antenna

*Specific adjustments on request

Order

V0.2w

Date 16.06.2023

Ultra Wideband VHF/UHF/SHF Vehicle Antenna WB225XM

The WB225XM is a rugged vehicle antenna with extremely high-power rating covering the 200 –6000 MHz frequency range. The antenna is highly suited for electronic countermeasure applications like high power RCIED jamming.

• Extremely high-power rating, 400 W at 100% duty cycle

• Ideal operation over a very wide bandwidth

• Good horizontal gain starting from 200 MHz onwards

• Easy to install to different kind of environments

Frequency range

Polarization

Product details*

200 – 6000 MHz (on a ground plane ≥ 1 x 1 m2)

500 – 6000 MHz (without a ground plane)

Nominally vertical

Radiation pattern Omnidirectional

Gain Measured patterns on request

VSWR

≤ 2.5

Nominal Impedance 50 Ω

Power rating

400 W (RMS)

Standard color Black

Radiator Radome protected Height

mm

RF connection

Installation*

Female 7/16 -type

Mounting 4-hole US and 3/6-hole NATO pattern mount

*Specific adjustments on request

Order number

Product WB225XM Antenna as described above

V1.1w

Date 21.04.2021

Page 1/1

Wideband VHF Vehicle Antenna WB13CCM

The WB13CCM is a highly effective vehicle antenna that is especially suited for jamming applications in the 130 - 180 MHz frequency range.

• High performance, 200 W at 100% duty-cycle

• Specifically optimized for the 130 – 180 MHz frequency range

• Rugged antenna construction with shock absorption spring

Product details*

Frequency range

Matching

Polarization

Antenna type

130 - 180 MHz

Passive

Nominally vertical

Monopole, ground plane required

Radiation pattern Omnidirectional

Gain

Measured patterns on request

VSWR < 2.5

Nominal Impedance

Power rating

50 Ω

200 W (RMS)

Standard color Black/olive green

Radiator Aluminium alloy with shock absorption spring

Height 475 mm

Weight 2.1 kg

Installation*

RF connection

Female N-type connector

Mounting 4-hole US and 3/6-hole NATO pattern mount

*Specific adjustments on request

Order number

NSN

WB13CCM 5985 - 58 - 000 - 3360

Product

Antenna as described above

V1.4w

Date 30.09.2021

Page 1/1

Wideband UHF/SHF Vehicle Antenna WB425M

The WB425M is an ultra wideband, compact and low-profile vehicle antenna that is well suited for communication, monitoring and jamming applications within the 400 – 6000 MHz frequency range.

Frequency range

Polarization

• Excellent performance over the entire frequency range

• High power rating, 200 W at 100% duty cycle

Product details*

800 - 6000 MHz (without a ground plane)

400 – 6000 MHz on a ground plane (≥ 0.5 x 0.5 m2)

Nominally vertical Radiation pattern Omnidirectional (max. ± 1.5 dB ripple) Gain

*Specific adjustments on request

WB425M-F6 Antenna with sand yellow color (RAL 1002)

WB425M-F11

Antenna with olive drab camo color FS33070 (FED-STD-595)

WB425M-F12 Antenna with sand camo color FS33303 (FED-STD-595)

WB425M-F16 Antenna with olive drab camo color tone FS33070, MIPA paint

V1.6w Date 16.04.2024 Page 1/1

Wideband VHF Vehicular Antenna WB20200M

The WB20200M is a rugged, high-performance vehicle antenna for use in communications and jamming applications within the 20 - 200 MHz frequency range.

• Optimized for the frequency bands 25 – 30 MHz and 130 – 180 MHz

• Excellent horizontal radiation in those frequency bands

Polarization

Antenna type

Radiation pattern

Gain

Nominally vertical

Monopole, ground plane required

Omnidirectional

Measured patterns on request

VSWR ≤ 3.5 **

Nominal Impedance 50 Ω

Power rating

100 W (RMS)

Standard color Black

Radiator Steel whip upper section, aluminium / synthetic lower section and shock absorption spring

Height 2270 mm

Weight

** Subject to size and shape of ground plane

adjustments on request

2.8 kg

High Gain Vehicle Antenna HD4050M

The HD4050M is a high gain dipole antenna that does not require a ground plane for proper operation. Its ideal performance in the 400 – 500 MHz frequency range and high power rating make it very well suited for jamming applications.

• High performance in the 400 – 500 MHz frequency range

• Easily installed onto vehicles, shelters and masts

• Compact and robust antenna design for rough environmental conditions

• No ground plane nor additional tuning required

Product

adjustments on request

Stationary Tactical VHF Antenna WB3090B-S

The WB3090B-S is a shorter version of the WB3090B – a highly efficient tactical VHF antenna. The antenna can be mounted onto a mast or be used as a self-standing antenna on the ground or on fixed installations like containers or shelters. Its excellent performance in the 30 – 110 MHz frequency range makes it ideally suited for use with the latest tactical radios.

• High performance, 75W at 100% duty-cycle and typical gain of 0 dBi

• Multiple mounting options

V1.2w Date 28.05.2020

Frequency range

Matching

Polarization

Antenna type

Radiation pattern

Gain

VSWR

Nominal Impedance

Power rating

Standard color

Radiator and ground plane radials

Product details*

30 - 110 MHz

Passive

Nominally vertical

Ground plane antenna

Omnidirectional

Measured patterns on request

≤ 3.0

50 Ω

75 W (RMS)

Black/olive green

Aluminium alloy

Height 3500 mm (operational), 2000 mm (disassembled in carry-on bag)

Weight

RF connection

Mounting

*Specific adjustments on request

WB3090B-S

WB3090B-S-C0

4.0 kg

Installation*

Female BNC-type connector

Self-standing or mast top mounting on ø 40 –50 mm tubular mast

Order number

Antenna as described above

Same antenna with female N-type connector

Wideband UHF Vehicle Antenna WB922M

The WB922M is a low-profile vehicle antenna that is particularly suited for communication and jamming applications within the 500 – 2500 MHz frequency range.

• High performance, 200 W at 100% duty-cycle

• Compact, low-profile vehicle antenna

Frequency range

Polarization

Radiation pattern

Gain

VSWR

Product details*

870 - 2500 MHz (without a ground plane)

500 – 2500 MHz on a ground plane (≥ 0.5 x 0.5 m2)

Nominally vertical

Omnidirectional

Measured patterns on request

≤ 2.5 (870-2500 MHz); ≤ 3.0 (500-870 MHz)

Nominal Impedance 50 Ω

Power rating

Standard color

Radiator

200 W (RMS)

Black/olive green

Radome protected

Height 130 mm

Weight 1.0 kg

Installation*

RF connection

Mounting

*Specific adjustments on request

Female N-type

4-hole US and 3/6-hole NATO pattern mount

V2.1w

Date 04.05.2021 Page 1/1

Extended VHF Band Vehicular Antenna WB25C0M

The WB25C0M is a rugged wideband antenna for high-performance communication and jamming applications in the 25 – 175 MHz frequency range.

• Superior performance starting from as low as 25 MHz

• High power rating, 100 W at 100 % duty-cycle

Frequency range 25 – 175 MHz

Matching

Polarization

Antenna type

Radiation pattern

Gain

VSWR

Nominal Impedance

Power rating

V2.0w

Passive

Nominally vertical

Monopole, ground plane required

Omnidirectional

Measured patterns on request

≤ 3.5

50 Ω

100 W (RMS)

Standard color Black/olive green

Radiator

Steel whip with shock absorption spring

Height 2240 mm

Weight 2.75 kg

Installation*

RF connection

Mounting

*Specific adjustments on request

Female N-Type connector

US and 3/6-hole NATO pattern mount

Date 08.07.2021 Page 1/1

Wideband VHF Vehicle Antenna WB20140M

The WB20140M is a rugged low-profile wideband antenna for communication and jamming applications in the 20 – 140 MHz frequency range – to be used on numerous kinds of vehicles. The radiator of the antenna can be easily detached temporarily by rotating it at its spring and the whip part separately using the thumb screw.

Date 20.07.2021

• High power rating, 100 W at 100 % duty-cycle

• Rugged and low-profile antenna construction

• Superior performance starting from as low as 20 MHz

• Complete radiator and whip separately detachable without tools

Frequency

Matching

Polarization

Passive

Nominally vertical

Antenna type Monopole, ground plane required

Radiation pattern Omnidirectional

Gain

VSWR

Nominal Impedance

Power rating

Measured patterns on request

≤ 3.8

50 Ω

100 W (RMS)

Standard color Black/olive green

Radiator Steel whip with shock absorption spring

Height 1980 mm

Weight 2.2 kg

*Specific adjustments on request

1/1

Wideband VHF/UHF Vehicle Antenna WB1048M

The WB1048M is a rugged VHF/UHF vehicle antenna that is ideally suited for mobile applications in the 100 - 520 MHz frequency range – to be used on numerous kinds of vehicles.

• Rugged antenna construction with shock absorption spring

• High performance, 100 W at 100% duty cycle Product

Frequency range

Matching Passive

Polarization

Antenna type

Radiation pattern

Gain

Nominally vertical

Monopole, ground plane required

Omnidirectional

Measured patterns on request

VSWR < 3.5

Nominal Impedance

Power rating

50 Ω

100 W (RMS)

Standard color Black/olive green

Radiator Aluminium alloy with shock absorption spring

Height 600 mm

Weight

RF

Mounting

*Specific adjustments on request

Installation*

V2.4w

Date 10.05.2021 Page 1/1

High Gain GSM/3G/LTE Vehicle Antenna HD827W

The HD827W is a high gain magnet mount omni antenna covering the GSM, 3G and 4G LTE bands. The antenna is particularly suited for communication and jamming applications.

• Highly compact and unique electrical design

• Optimised performance for GSM, 3G and 4G LTE frequency bands

• Rugged antenna construction with shock absorption spring

• No ground plane required Product

Frequency range

Matching

Polarization

Antenna type

Radiation pattern

Gain (typical)

790 - 2700 MHz

Passive

Nominally vertical

Wideband dipole array

Omnidirectional

Measured patterns on request

VSWR ≤ 3.0

Nominal Impedance

Power rating (RMS)**

Standard color

Radiator

50 Ω

790 - 1000 MHz : 85 W (Pmax1)

1000 - 1700 MHz: 65 W (Pmax2)

1700 - 2200 MHz: 60 W (Pmax3)

2200 - 2700 MHz: 55 W (Pmax4)

Black

Radome protected (radome diameter 28 mm, spring 43 mm)

Installation*

RF connection

V0.3w

Date 29.09.2022

Female N-type

Mounting Ø 88 mm magnet (vertical holding force typically 280 N when mounted on 0.8 mm steel sheet)

*Specific adjustments on request

** Sum of input powers (P) should not exceed the limit

Order number

HD827W

Product

Antenna as described above

Page 1/1

VERSION: 1.0

Tri Port High-Power LPDA Antenna

400 – 6000 MHz Product Code: LPDA-A0167

SPECIFICATIONS:

Electrical:

Frequency range

Band A

400 – 6000 MHz

400 – 930 MHz

Band B 1160 – 1610 MHz

Band C

2400 – 6000 MHz

VSWR < 2.0:1

Nominal input impedance 50 Ω

Connector 3x N-type female

Feed power handling 100W CW

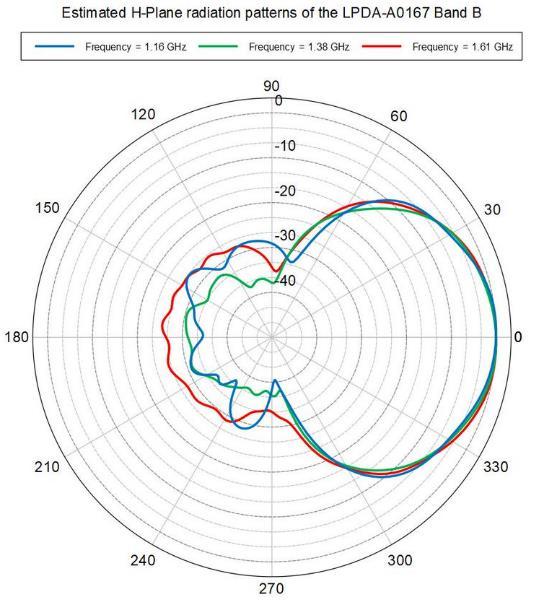

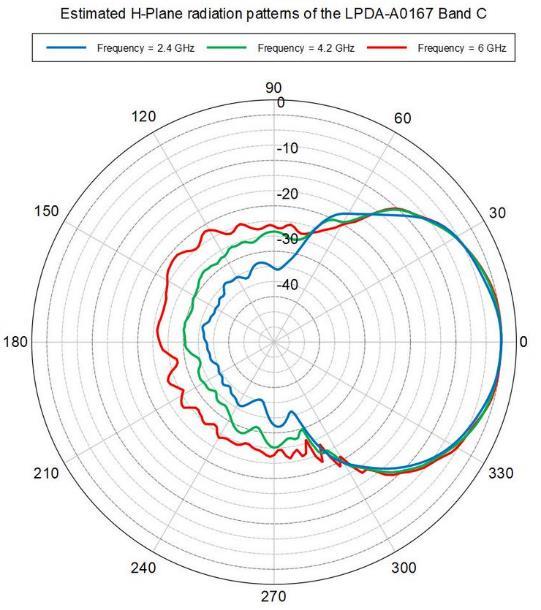

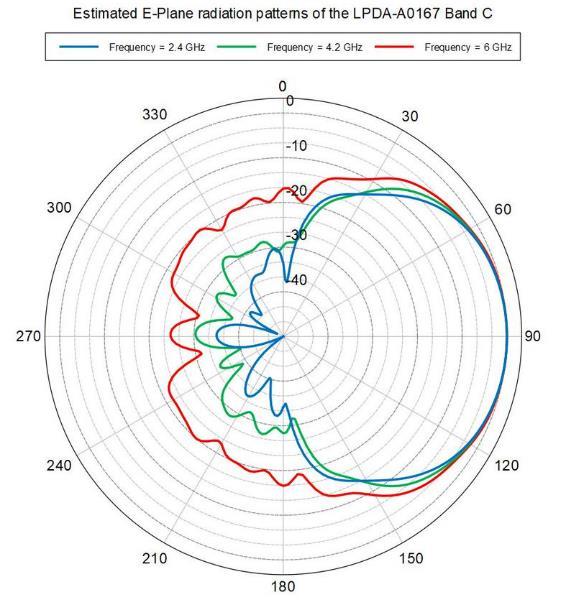

Gain (typical) See graph below

E-plane 3 dB beamwidth

Band A

Band B

Band C

H-plane 3 dB beamwidth

Band A

Band B

Band C

PRODUCT FEATURES:

• Wideband frequency 400 to 6000 MHz

• VSWR < 2.0:1

• High gain: > 7 dBi

• Rugged construction

• Ice resistant

PRODUCT APPLICATIONS:

• Wideband

• High-Power

95º - 105°

65° - 75°

65° - 75°

55º - 65°

45° - 55°

45° - 55°

Polarisation Linear

Front-to-back ratio ≥ 19 dB

Mechanical: Dimensions (l x h x w)

600 mm x 880 mm x 160 mm (incl. bracket)

Material Aluminium, stainless steel, fibreglass

Total mass < 6 kg (incl. mounting bracket)

Mounting method 4 x M8 Bolts

MTBF 500,000 h

Environmental: designed to meet the following specifications Wind survival 160 km/h calculated

Operating Temperature -30ºC to +65º (no icing)

Storage Temperature -40ºC to +85º

PRODUCT DESCRIPTION:

The LPDA-A0167 tri port directional log-periodic dipole array (LPDA) is primarily designed for high-power applications. It covers a frequency band of 400 to 6000 MHz with a gain of greater than 7 dBi.

The antenna provides three separate ports for simultaneous transmission in all bands with good isolation between bands.

The antenna is completely encapsulated in a radome. The antenna is provided with a mounting bracket.

Tri Port High-Power LPDA Antenna

VSWR AND GAIN GRAPHS:

Typical VSWR: GAIN:

Tri Port High-Power LPDA Antenna

Ultra Wideband VHF/UHF/SHF Vehicle Antenna WB225M

The WB225M is a rugged, high power vehicle antenna that is effectively covering the 200 – 6000 MHz frequency range. The antenna is highly suited for modern and upcoming SDRs and can be ideally used in multiple applications like mobile communication, countermeasure and monitoring.

• Ideal operation over a very wide bandwidth

• Good horizontal gain starting from 200 MHz onwards

• High performance, 200 W at 100% duty cycle

• Easy to install to different kind of environments

Product details*

Frequency range 200 – 6000 MHz (on a ground plane ≥ 1 x 1 m2) 500 – 6000 MHz (without a ground plane)

Polarization

Radiation pattern

Nominally vertical

Omnidirectional Gain

Typical Horizontal Gain -1 ... +3 dBi

Measured patterns on request

Nominal Impedance 50 Ω Power rating 200 W (RMS)

Standard color Black Radiator Radome protected

RF connection

Installation*

Female N-type

Mounting 4 x M10 female threads in a 114.3 mm diameter circular pattern on the bottom side of the antenna

*Specific adjustments on request

V2.3w

Date 10.05.2021

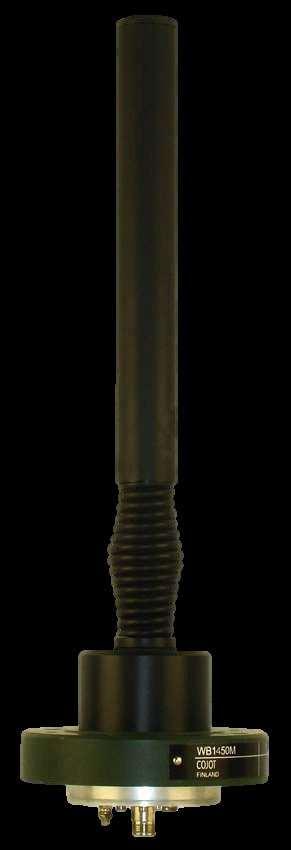

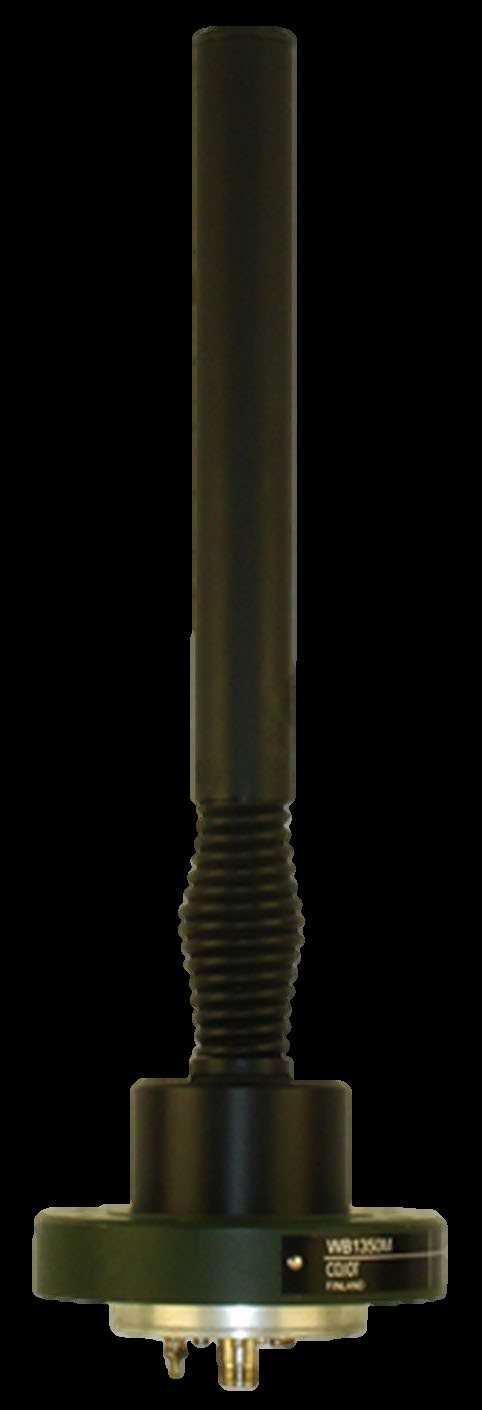

Wideband VHF/UHF Vehicle Antenna WB1350M

The WB1350M is a rugged VHF/UHF vehicle antenna that is ideally suited for mobile applications in the 135 – 512 MHz frequency range – to be used on numerous kinds of vehicles

• Rugged antenna construction with shock absorption spring

• High performance, 100 W at 100 % duty cycle

Polarization

range

Nominally vertical

Antenna type Monopole, ground plane required

Radiation pattern

Gain

VSWR

Nominal Impedance

Omnidirectional

Available on request

3.5

Ω

Power rating 100 W (RMS)

Standard color Black

Radiator Aluminium alloy with shock absorption spring

Height (above mounting surface)

adjustments on request

High Gain GSM/3G/LTE Vehicle Antenna HD827M

The HD827M is a high gain omni antenna covering the GSM, 3G and 4G LTE bands. The antenna is particularly suited for communication and jamming applications.

• Highly compact and unique electrical design

• Optimised performance for GSM, 3G and 4G LTE frequency bands

• Rugged antenna construction with shock absorption spring

• No ground plane required

Frequency range

790 - 2700 MHz

Matching Passive

Polarization

Antenna type

Radiation pattern

Nominally vertical

Wideband dipole array

Omnidirectional

Gain (typical) 4dBi(Measured patterns on request) VSWR ≤ 3.0

Nominal Impedance 50 Ω

Power rating (RMS)**

790 - 1000 MHz : 85 W (Pmax1)

1000 - 1700 MHz: 65 W (Pmax2)

1700 - 2200 MHz: 60 W (Pmax3)

2200 - 2700 MHz: 55 W (Pmax4)

Standard color Black

Radiator

Radome protected (radome diameter 28 mm, spring 43 mm) Height 560 mm

Installation*

RF connection

Female N-type

Mounting 4 hole US and 3/6 hole NATO pattern mount

*Specific adjustments on request

** Sum of input powers (P) should not exceed the limit of 1 ≥ P1/Pmax1+P2/Pmax2.....

V2.1w

Date 12.05.2021

HD827M 59855-80-00-8338 Antenna as described above

Accessory: In combination with the MS1 (antenna mast mount) the antenna can also be used for mast mounting and other fixed installations.

Page 1/1

Product details*

Wideband VHF Band Vehicular Antenna WB20CM

The WB20CM is a low-profile wideband antenna for communication and jamming applications in the 20 – 140 MHz frequency range. The radiator of the antenna can be easily detached temporarily by rotating it at its spring and the whip part separately using the thumb screw.

V3.1w

• Maximum performance out of low height radiator

• High power rating, 100 W at 100 % duty-cycle

• Complete radiator and whip separately detachable without tools

Product details*

Frequency range

Matching

Polarization

Antenna type

Radiation pattern

Gain

VSWR

Nominal Impedance

Power rating

20 – 140 MHz

Passive

Nominally vertical

Monopole, ground plane required

Omnidirectional

Measured patterns on request

≤ 3.8

50 Ω

100 W (RMS)

Standard color Black

Radiator

Glass fibre coated steel whip with shock absorption spring

Height 1620 mm

Weight

RF connection

1.5 kg

Installation*

Female N-Type connector

Mounting 4-hole US and 3/6-hole NATO pattern mount

*Specific adjustments on request

Order number NSN

Product

WB20CM 5985 - 58 - 000 - 1021 Antenna as described above

WB20CM-R1 - WB20CM with a steel whip radiator without glass fiber coating

Date 18.08.2022 Page 1/1

VERSION: 1.7

Dual port Circular Polarised Antenna

900 – 6000 MHz

Product Code: SPRL-A0010

SPECIFICATIONS:

Product Codes:

SPRL-A0010-01

SPRL-A0010-02

Electrical:

Frequency range:

Band A

RHCP (Band A) and LHCP (Band B) antenna

LHCP (Band A) and RHCP (Band B) antenna

Band B 900 – 2500 MHz 2500 – 6000 MHz

Gain: >6 dBic (typical)

Beamwidth: 55° (typical)

Feed power handling:

Band A

Band B 100 W CW 50 W CW

SPRL-A0010-01

SPRL-A0010-02

Polarisation:

Band A Band B RHCP LHCP LHCP RHCP

Nominal impedance: 50 Ω VSWR: < 2.0:1

Connector: 2 x N-type female

Mechanical:

Overall height: 450 mm

Diameter: 165 mm (Radome) 220 mm (Mounting flange)

Weight: < 2 kg including bracket

Material: Aluminium, Stainless steel, Acetal, PTFE, Nylon, ABS, copper, brass

Colour Painted on request

Environmental: designed to meet the following specifications

Temperature range

Storage: -41 °C to +71 °C.

Operation -31 °C to +55 °C

Weatherproofing IP 66

PRODUCT OVERVIEW:

SPRL-A0010 is a dual port conical spiral, right-hand circularly polarised antenna designed to operate in the 900 to 2500 MHz and 2500 to 6000 MHz bands. The antenna provides broad beam coverage without nulls or reduction in performance.

The antenna features a low VSWR and high gain over the both operating bands with a light weight, yet robust radome to protect the radiator.

PRODUCT FEATURES:

• LHCP and RHCP antenna

• High gain

• High power

• Low VSWR

Dual port Circular Polarised Antenna

900 – 6000 MHz

Typical VSWR of the SPRL-A0010

Typical Gain of the SPRL-A0010

Dual port Circular Polarised Antenna

900 – 6000 MHz Product Code: SPRL-A0010 VERSION: 1 7

Normalised band A radiation patterns of the SPRL-A0010

Normalised band B radiation patterns of the SPRL-A0010

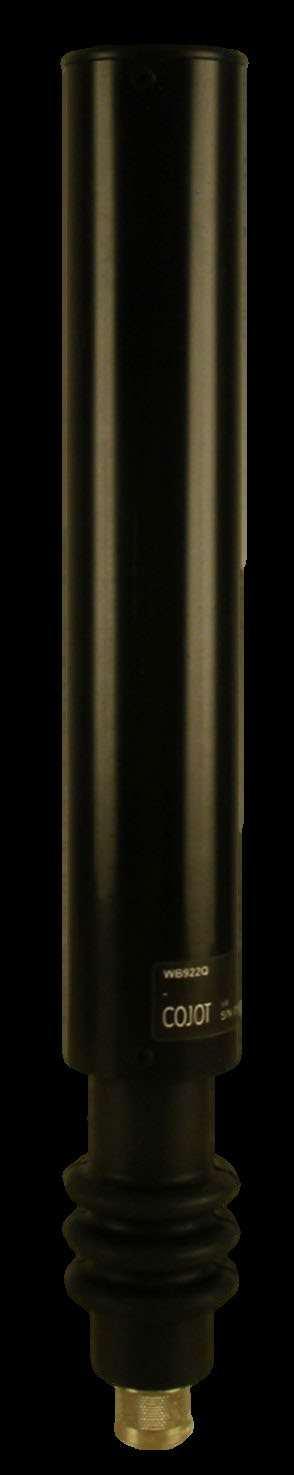

Wideband UHF Manpack Antenna WB922Q

The WB922Q is a rugged, high performance manpack antenna that is particularly suited for portable communication and jamming applications.

• Effective coverage of the entire 800 – 2500 MHz frequency range

• Optimized performance for GSM, 3G and WLAN frequency bands

• Rugged antenna construction with shock absorption spring or flexible gooseneck

Product details*

Frequency range

Matching

Polarization

Antenna type

Radiation pattern

Gain

VSWR

Nominal Impedance

Power rating

Standard color

Radiator

Height

Weight

800 - 2500 MHz

Passive

Nominally vertical

Wideband dipole

Omnidirectional

Measured patterns on request

< 3.0

50 Ω

50 W (RMS)

Black

Radome protected

RF connection Male N-type connector

Mounting

*Specific adjustments on request

Directly to a matching connector

WB922Q 5985 - 58 - 000 - 1012

WB922G 5985 - 58 - 000 – 3112

Antenna with shock absorption spring, as described above

Antenna with 12 cm gooseneck (Height: 400 mm / Weight: 350 g)

WB922G-GE - Antenna with 22 cm gooseneck (Height: 500 mm / Weight: 470 g)

V4.4w

Date 04.05.2021 Page 1/1

Wideband UHF/SHF Manpack Antenna WB26

The WB26 is a high performance omnidirectional manpack antenna which provides excellent performance over the entire 2 – 6 GHz frequency range. The antenna is particularly suited for jamming and high power communication applications

• Effective omnidirectional radiation over the entire frequency range

• Rugged radome protected construction

• High power rating

Polarization

Antenna type

Radiation pattern

Gain

Nominally vertical

Wideband dipole

Omnidirectional

Measured patterns on request

VSWR < 3.0

Nominal Impedance

50 Ω

Power rating 50 W (RMS)

Standard color Black

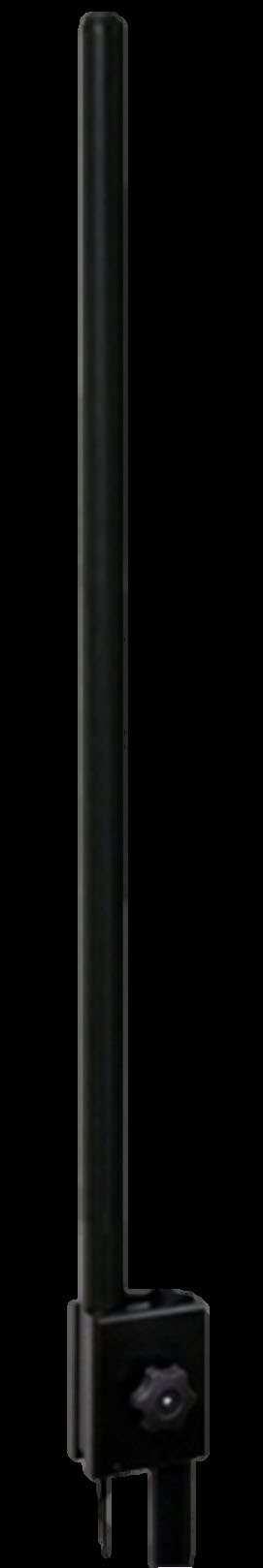

Wideband VHF/UHF Dipole Antenna for Mast Mount WD1350M-B

The WD1350M-B is a wideband dipole antenna for fixed radio systems working in the 118 - 512 MHz frequency range. This easy to use set consists of a dipole radiator and a mast mount device (MASTMO) that can be quickly fitted to masts of 50 - 60 mm diameter. Its field proven rugged composite construction in combination with a high power handling makes the antenna well suited for electronic warfare and high power communication applications.

V1.0w

• Quick and easy installation to mast environments – no additional tools required

• Compact and robust antenna design for rough environmental conditions

Product

Polarization

Nominally vertical

Radiation pattern Omnidirectional

Nominal Impedance

Standard color

*Specific adjustments on request

WD1350M-B Antenna as described above WD1350M Vehicular antenna. See separate data sheet for more details.

Accessory: The mast mount module MASTMO is also available as a stand- alone unit

Wideband UHF/SHF Vehicle Antenna WB860M

The WB860M is a compact, light and low-profile vehicle antenna that is ideally suited for various applications within the 870 – 6000 MHz frequency range. The radiation performance is especially optimal for ground to air applications such as LINK-16.

Frequency range

Polarization

• Ideal operation in the UHF / SHF bands up to 6 GHz

• Suitable for applications such as: LINK-16, GSM / PCS, 3G, Soldier Radio Waveform, WLAN & ISM 2.4 & 5 GHz, WiMAX

• No ground plane required

Product details*

870 - 6000 MHz

Nominally vertical

Radiation pattern Omnidirectional (max. ± 1.5 dB ripple)

Gain Measured patterns on request

VSWR < 2.5

Nominal Impedance

Power rating

50 Ω

100 W (RMS)

Standard color Black

Radiator Radome protected

Height

110 mm

Weight 0.4 kg Installation*

Mounting

*Specific adjustments on request

V1.4w

Date 11.01.2023

4-hole US and 3/6-hole NATO pattern mount

5985-58-000-5332 Antenna as described above

In combination with a mounting accessory the antenna can be easily used for mast mounting and other fixed installations.

Page 1/1

Wideband Manpack VHF Antenna WB25175C

The WB25175C is a high performance manpack antenna which is particularly suited for portable radio and jamming applications in the 25 – 175 MHz frequency range.

• Rugged antenna construction with shock absorption spring and lightweight carbon fibre whip or robust aluminium / steel whip

• High power, 20 W at 100% duty-cycle

• Foldable radiator for handy transportation and easy installation

Product details*

Frequency range 25 – 175 MHz

Matching Passive

Polarization

Nominally vertical

Antenna type Monopole (ground plane required)

Radiation pattern

Omnidirectional

Gain Measured patterns on request

VSWR < 3.5

Nominal Impedance 50 Ω

Power rating 20 W (RMS)

Standard color Black

Radiator

Foldable carbon fibre whip with shock absorption spring Or alternatively: Foldable aluminium / steel whip with shock absorption spring (use –R2 option when ordering)

Base Ø 36 mm

Height 1610 mm (operational), 820 mm (folded)

Weight 340 g (antenna with carbon fibre whip) 460 g (antenna with aluminium / steel whip)

Installation* RF connection Male N-type

Mounting Directly to a matching connector

*Specific adjustments on request

High Gain Tactical UHF III+ Vehicle Antenna HD1327M

The HD1327M is a high gain omni antenna for mobile tactical applications working in the frequency range from 1300 – 2700 MHz. Its compact dipole design provides an ideal coverage across the UHF band III+ and offers an ideal solution for use with all kind of vehicles.

• Highly compact and unique electrical design

• Optimised performance for the UHF band III+

• Rugged antenna construction with shock absorption spring

• No ground plane required

Product details*

Frequency range

1300 - 2700 MHz

Matching Passive

Polarization

Antenna type

Nominally vertical

Wideband dipole array

Nominal Impedance 50 Ω

Power rating (RMS)**

1300 - 1700 MHz: 65 W (Pmax1)

1700 - 2200 MHz: 60 W (Pmax2)

2200 - 2700 MHz: 55 W (Pmax3)

Standard color Black

Radiator

Height

Radome protected (radome diameter 28 mm, spring 43 mm)

560 mm

Weight 1.1 kg

Mounting 4 hole US and 3/6 hole NATO pattern mount

*Specific adjustments on request

**Sum of input powers (P) should not exceed the limit of 1 ≥ P1/Pmax1+P2/Pmax2

V1.1w

Date 26.04.2021

Accessory: In combination with the MS1 (antenna mast mount) the antenna can also be used for mast mounting and other fixed installations.

Page 1/1

Wideband VHF/UHF Magnetic Mount Antenna WB25512W

The WB25512W is a magnetic mount antenna for applications where a quick setup and removal of the antenna is required or where a permanent installation of the antenna on a vehicle is not possible.

Safety Warning:

• Effective coverage of the complete 25 - 512 MHz range

• Compact magnetic mount for easy-to-setup temporary installations

Product

Frequency range 25 – 512 MHz

Matching Passive

Polarization

Antenna type

Radiation pattern

Gain

VSWR

Nominal Impedance

Nominally vertical

Monopole, ground plane required

Omnidirectional

Measured patterns on request

3.5

Ω

Power rating 50 W (RMS)

Standard color Black

Radiator Steel whip with shock absorption spring

Footprint Ø 88 mm

Height

*Specific adjustments on request

as described above

Additional wire loop (Ø ~5 cm) attached to antenna base for safety tether connection

Great care should be taken when handling strong magnetic products. Magnetic mounts may cause painful pinching injuries. When using a magnetically mounted device on a moving vehicle the device may lift off from the vehicle even at moderate speeds in case of collision. Therefore a secondary retention system should always be used to prevent unintentional detachment or loss of the device (the properly tightened feeder cable could possibly be used for this purpose).

For maximum grip the surface of the vehicle and the bottom of the magnet should be dry and clean of dirt, snow and ice prior to attaching the device. V1.2w

Date 05.08.2013

Tunable Vehicular VHF/UHF Antenna TA3925M

The TA3925M is a tunable antenna with a steel whip radiator for the 30 to 512 MHz frequency band with optimized performance for the 30-90 MHz and 225-450 MHz bands. This low-profile antenna can be tuned by remote control to use the optimum matching circuitry at the required frequency. It thus provides superior gain performance over traditionally matched wideband antennas. The extremely fast tuning ability (based on PIN diode switching technology) makes the antenna suitable for most of the conventional modulation types.

• Low profile steel whip antenna with superior gain performance - optimized for the 30-90 MHz and 225-450 MHz bands

• Fast tuning to a new frequency band allows the antenna to be used in different kind of applications

• Supports also very wide transmission bandwidths

Product details*

Frequency range

Matching

Polarization

Antenna type

Radiation pattern

Gain

VSWR

Nominal Impedance

Power rating

Power supply

30 - 512 MHz

PIN diode based active matching

Nominally vertical

Monopole (ground plane required)

Omnidirectional

Available on request

≤ 3.5 (on optimized bands)

50 Ω

50 W (RMS)

24 VDC, 5 W average

Tuning speed < 30 µs

Standard color

Radiator

Black

Upper part: Steel whip (1500 mm)

Lower part: Aluminium alloy with shock absorption spring

Height 1930 mm

Weight 3.3 kg

Installation*

RF connection

Power and control

Female N-type connector

Circular MIL connector

Mounting 4-hole US pattern mount

* Specific adjustments on request

Order number

TA3925M Antenna as described above

V1.0w

Date18.04.2019 Page 1/1

Wideband UHF Manpack Antenna WB525G-E

The WB525G-E is a high performance manpack antenna that has been designed to cover an extended frequency range of up to 6 GHz. The antenna is particularly suited for applications where a quick adjustment of the antenna’s angle is needed.

• Effective coverage of the complete 480 - 6000 MHz frequency range

• Flexible gooseneck for perfect operation, even in extreme positions

Frequency range

Matching

Polarization

Antenna type

Radiation pattern

Gain

Product details*

480 - 6000 MHz

Passive

Nominally vertical

Wideband dipole

Omnidirectional

Measured patterns on request

VSWR ≤ 3.0 (except ≤ 3.7 at 930-1070 MHz)

Nominal Impedance

Power rating

Standard color

50 Ω

35 W (RMS)

Black

Radiator Radome protected

Height

Weight

RF connection

Mounting

*Specific adjustments on request

Order number

WB525G-E

465 mm

540 g (incl. 12 cm gooseneck)

Installation*

Male N-type connector

Directly to a matching connector

Product

Antenna as described above

Instructions for use: To avoid the connector from being damaged, do not rotate the antenna when the gooseneck is in a bent position. Always straighten the gooseneck first, before changing the bending direction. The maximum bending angle of 60⁰ shall not be exceeded.

V2.0w

Date 29.03.2017

1/1

High Gain Vehicle Antenna HD2400M

The HD2400M is a rugged, high gain vehicle antenna that is particularly suited for communication and jamming applications in the UMTS and WLAN frequency bands.

• Effective coverage of the entire 2000 – 2500 MHz frequency range

• Optimized performance for UMTS and WLAN frequency bands

• Rugged antenna construction with shock absorption spring

Polarization Nominally vertical Antenna type Wideband dipole array

Radiation pattern Omnidirectional, (typ.±1.5dB ripple) Gain

to +8 dBi (Measured patterns on request)

adjustments on request

Accessory: In combination with the MS1 (antenna mast mount) the antenna can also be used for mast mounting and other fixed installations.

High Gain Triband Manpack Antenna HD921Q

The HD921Q is a high gain triband GSM/3G manpack antenna that is particularly suited for portable communication and jamming applications.

Date 12.05.2021

• Unique electrical design

• Optimized performance for GSM and 3G frequency bands

• Rugged antenna construction with shock absorption spring

Product details*

Frequency range

Matching

Polarization

Antenna type

Radiation pattern

Gain (typical)

870 - 960 MHz 1710 - 1990 MHz 2110 - 2170 MHz

Passive

Nominally vertical

Wideband dipole array

Omnidirectional (± 1.5 dB)

3 dBi @ 870 - 960 MHz

4 dBi @ 1710 - 1990 MHz

4 dBi @ 2110 - 2170 MHz

(More details on request)

VSWR ≤ 2.5

Nominal Impedance 50 Ω

Power rating (RMS)**

90 W @ 870 - 960 MHz (Pmax1)

65 W @ 1710 - 1990 MHz (Pmax2)

60 W @ 2110 - 2170 MHz (Pmax3)

Standard color Black

Radiator

Radome protected Height 540 mm

Weight 440 g

Installation*

RF connection Male N-type connector

Mounting

*Specific adjustments on request ** Sum of input powers (P)

Directly to a matching connector

VHF/UHF High Gain Dipole Antenna for Mast Mount HD2245M-B

The HD2245M-B is a high gain dipole antenna for fixed radio communication systems working in the 225 - 512 MHz frequency range. This easy to use set consists of a dipole radiator and a mast mount device (MASTMO) that can be quickly fitted to masts of 50 - 60 mm diameter.

• High performance in the 225 – 512 MHz frequency range

V3.0w

Date 30.05.2023

• Quick and easy installation to mast environments – no additional tools required

• Compact and robust antenna design for rough environmental conditions

Product

Frequency

Polarization

Antenna type

Radiation pattern

Gain

Nominally vertical

Dipole, no ground plane required

Omnidirectional

Measured patterns on request

VSWR < 3.0

Nominal Impedance 50 Ω Power rating 75 W

Standard color Black

Radiator Radome protected

Height, Width & Depth 1260 x 120 x 150 mm

Weight 2.4 kg

*Specific adjustments on request

HD2245M-B Antenna as described above

HD2245XM-B Antenna as described above with 100 W power rating

HD2245M Vehicular antenna. See separate data sheet for more details.

Accessory: The mast mount module MASTMO is also available as a stand- alone unit.

1/1

Wideband High-power Manpack VHF Antenna WB25175XT

The WB25175XT is a high performance manpack antenna supporting high-power transmission. The antenna is particularly suited for portable jamming applications in the 25 – 175 MHz frequency range.

• High power rating, 50 W at 100% duty-cycle

• Rugged antenna construction with shock absorption spring and lightweight carbon fibre whip or robust aluminium / steel whip

• Foldable radiator for handy transportation and easy installation

Product details*

Frequency range

Matching

Polarization

Antenna type

Radiation pattern

Gain

VSWR

Nominal Impedance

Power rating

25 – 175 MHz

Passive

Nominally vertical

Monopole (ground plane required)

Omnidirectional

Available on request

≤ 3.5

50 Ω

50 W (RMS)

Standard color Black

Radiator

Foldable carbon fibre whip with shock absorption spring

Or alternatively: Foldable aluminium / steel whip with shock absorption spring (use –R2 option when ordering)

Base Ø 60 mm

Height

Weight

RF connection

Mounting

*Specific adjustments on request Order

1620 mm (operational), 830 mm (folded)

510 g (antenna with carbon fibre whip)

630 g (antenna with aluminium / steel whip)

Installation*

Male N-type

Directly to a matching connector

15.11.2018

1/1

VERSION: 1.0

Dual Port High-Power LPDA Antenna

400 – 6000 MHz

Product Code: LPDA-A0162

SPECIFICATIONS:

Electrical:

Frequency range 400 – 6000 MHz

Band A 400 – 1600 MHz

Band B 2400 – 6000 MHz

VSWR < 2.0:1

Nominal input impedance 50 Ω

Connector 2x N-type female

Feed power handling 100W CW

Gain (typical) See graph below

E-plane 3 dB beamwidth

Band A

Band B 70º - 100° 90° - 105°

H-plane 3 dB beamwidth

Band A

Band B

PRODUCT FEATURES:

• Wideband frequency 400 to 6000 MHz

• VSWR < 2.0:1

• High gain: > 7 dBi

• Rugged construction

• Ice resistant

PRODUCT APPLICATIONS:

• Wideband

• High-Power

45º - 60° 50° - 60°

Polarisation Linear

Front-to-back ratio ≥ 22 dB

Mechanical:

Dimensions (l x h x w) 625 mm x 710 mm x 160 mm (incl. bracket)

Material Aluminium, stainless steel, fibreglass

Total mass < 5 kg (incl. mounting bracket)

Mounting method 4 x M8 Bolts

MTBF 500,000 h

Environmental: designed to meet the following specifications Wind survival 160 km/h calculated

Operating Temperature -30ºC to +65º (no icing)

Storage Temperature -40ºC to +85º

PRODUCT DESCRIPTION:

The LPDA-A0162 dual port directional log-periodic dipole array (LPDA) is primarily designed for high-power applications. It covers a frequency band of 400 to 6000 MHz with a gain of greater than 7 dBi.

The antenna provides two separate ports for simultaneous transmission in both bands with good isolation between bands.

The antenna is completely encapsulated in a radome. The antenna is provided with a mounting bracket.

Dual Port High-Power LPDA

VSWR AND GAIN GRAPHS:

Dual Port High-Power LPDA Antenna

High Gain 4G LTE Manpack Antenna HD730Q

The HD730Q is a high gain manpack antenna covering the 4G LTE bands and the 5G lowband. The antenna is particularly suited for portable communication and jamming applications. Its centre fed design minimizes interference of the human body on the radiation performance of the antenna.

V1.1w

• Compact and unique electrical design

• Optimised performance for 4G LTE and 5G low-band

• Rugged antenna construction with shock absorption spring

Product details*

Frequency range

Matching

Polarization

Antenna type

Radiation pattern

690 - 3000 MHz

Passive

Nominally vertical

Wideband dipole array

Omnidirectional

Gain (typical) 4 dBi (Measured patterns on request)

VSWR ≤ 3.5

Nominal Impedance

Power rating (RMS)**

50 Ω

690 - 1000 MHz : 75 W (Pmax1)

1000 - 1700 MHz: 65 W (Pmax2)

1700 - 2200 MHz: 60 W (Pmax3)

2200 - 3000 MHz: 50 W (Pmax4)

Standard color Black

Radiator

Radome protected (diameter 30 mm)

Height 545 mm

Weight 430 g

Installation*

RF connection

Mounting

*Specific adjustments on request

Male N-type connector

Directly to a matching connector

** Sum of input powers (P) should not exceed the limit of 1 ≥ P1/Pmax1+P2/Pmax2

Order number

HD730Q

Product

Antenna as described above

Date 11.03.2022 Page 1/1

High Gain VHF/UHF Vehicle Antenna HD2245M

The HD2245M is a high gain dipole antenna that does not require a ground plane for proper operation. Its ideal performance in the 225 – 450 MHz frequency range makes it very well suited for use with modern SDRs, providing an excellent coverage for a range of voice and data communications including Have Quick II and SATURN.

V3.0w

Date 18.05.2021

• High performance in the 225 – 450 MHz frequency range

• Easily installed onto vehicles, shelters and masts

•No ground plane nor additional tuning required

Product details*

Frequency range

Polarization

Antenna type

Radiation pattern

Gain

225 – 512 MHz

Nominally vertical

Dipole, no ground plane required

Omnidirectional

Measured patterns on request

VSWR < 3.0

Nominal Impedance

Power rating

50 Ω

75 W or 100 W (RMS) See order number below

Standard color Black

Radiator Radome protected

Height 1365 mm

Weight 2.2 kg

Installation*

RF connection

Female N-type

Mounting 4-hole US and 3/6-hole NATO pattern mount

*Specific adjustments on request Order number NSN Product

as described above with 75 W power

HD2245XM - Antenna as described above with 100 W power rating

HD2245M-C1 - Antenna with Female BNC connector

HD2245M-R - Antenna with removable radiator

HD2245M-B - Antenna radiator with mast mount adapter (MASTMO). See separate data sheet for more details

Accessory: In combination with the MASTMO (mast mount for dipole radiator) the antenna radiator (HD2245M-R model) can also be used for mast mounting.

Page 1/1

Wideband VHF Vehicle Antenna WB10CCM

The WB10CCM is a compact and effective vehicle antenna for communication and countermeasure applications in the 110 - 200 MHz frequency range.

V1.1w

Date 15.10.2018

• High power rating (up to 250 W)

• Rugged antenna construction with shock absorption spring

Product details*

Frequency range

Matching

Polarization

Antenna type

Radiation pattern

Gain

110 - 200 MHz

Passive

Nominally vertical

Monopole, ground plane required

Omnidirectional

Available on request

VSWR < 3.0

Nominal Impedance

Power rating

Standard color

50 Ω

250 W (RMS)

Black/olive green

Radiator Aluminium alloy with shock absorption spring

Height

RF connection

Installation*

Female N-type connector

Mounting 4 hole US and 3/6 hole NATO pattern mount

*Specific adjustments on request

Order number

WB10CCM

Antenna as described above

Page 1/1

Wideband UHF/SHF Vehicle Antenna WB525M

profile vehicle antenna that is well suited for and jamming applications within the 500 – 6000 MHz frequency range.

Frequency range

Polarization

Radiation pattern

Gain

Ideal operation in the UHF/SHF bands up to 6 GHz

High performance, 200 W at 100% duty cycle

Product details*

800 - 6000 MHz (without a ground plane)

500 – 6000 MHz on a ground plane (≥ 0.5 x 0.5 m2)

Nominally vertical

Omnidirectional (max. ± 1.5 dB ripple)

Measured patterns on request

VSWR ≤ 3.0

Nominal Impedance 50 Ω

Power rating

Standard color

Radiator

200 W (RMS)

Black/olive green

Radome protected

Height 130 mm

Weight 1.0 kg

Installation*

RF connection

Mounting

*Specific adjustments on request

Female N-type

4-hole US and 3/6-hole NATO pattern mount

V2.4w

Date 11.01.2023

Page 1/1

High Gain GSM/3G/LTE Manpack Antenna HD827XQ

The HD827XQ is a high gain omni antenna covering the GSM, 3G and 4G LTE bands. The antenna is particularly suited for high power jamming applications.

• High power rating

• Optimised performance for GSM, 3G and 4G LTE frequency bands

• Rugged antenna construction with shock absorption spring

• No ground plane required

Frequency range

Matching

Polarization

Antenna type

790 - 2700 MHz

Passive

Nominally vertical

Wideband dipole array

Radiation pattern Omnidirectional

Gain (typical) 3 dBi VSWR

Nominal Impedance 50 Ω

Power rating (RMS)**

790 - 1000 MHz : 175 W (Pmax1)

1000 - 2200 MHz: 135 W (Pmax2)

2200 - 2400 MHz: 100 W (Pmax3)

2400 - 2700 MHz: 80 W (Pmax4)

Standard color Black

Radiator Radome protected

Height 565 mm

Weight 620 g

Installation*

RF connection

Mounting

*Specific adjustments on request

Male N-type connector

Directly to a matching connector

** Sum of input powers (P) should not exceed the limit of 1

V1.1w

Date 03.05.2021 Page 1/1

Product details*

Wideband VHF/UHF Manpack Antenna WB25512R

The WB25512R is a high performance manpack antenna for use in portable communications and jamming applications within the complete 25 – 512 MHz frequency range.

• Adequate horizontal radiation performance over the complete frequency range

• Foldable radiator for handy transportation and easy installation

• Rugged antenna construction with shock absorption spring

available on request

Standard

Specific adjustments on request

Ground

as described above

with 50 W power rating (see seperate data sheet)

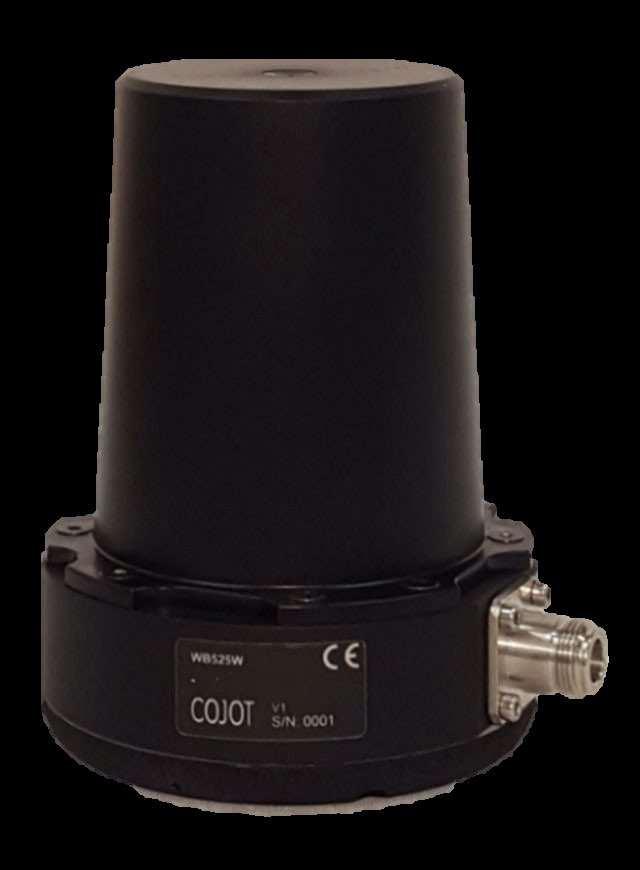

Wideband UHF/SHF Magnetic Mount Antenna WB525W

The WB525W is a a compact, low-profile magnetic mount antenna for applications where a quick setup and removal of the antenna is required or where a permanent installation of the antenna on a vehicle is not possible.

• Ideal operation in the UHF/SHF bands up to 6 GHz

• High performance, 200 W at 100% duty cycle

• Compact magnetic mount for easy-to-setup temporary installations

Gain Measured patterns on request

Nominal Impedance

Ω

Power rating (CW) 500-2500 MHz: 200 W

2500-4000 MHz: 160 W 4000-6000 MHz: 130 W

Standard color Black

Radiator Radome protected Footprint Ø 88 mm

kg

RF connection

Installation*

Female N-type

Mounting Ø 88 mm magnet (vertical holding force typically 280 N when mounted on 0.8 mm steel sheet)

Surface protection

*Specific adjustments on request

WB525W

Rubber coating

Order number

Antenna as described above

Safety Warning: Great care should be taken when handling strong magnetic products. Magnetic mounts may cause painful pinching injuries. When using a magnetically mounted device on a moving vehicle the device may lift off from the vehicle even at moderate speeds in case of collision. Therefore a secondary retention system should always be used to prevent unintentional detachment or loss of the device (the properly tightened feeder cable could possibly be used for this purpose). For maximum grip the surface of the vehicle and the bottom of the magnet should be dry and clean of dirt, snow and ice prior to attaching the device.

V2.1w

Date 11.01.2023 Page 1/1

Wideband UHF Manpack Antenna WB525G-GE

The WB525G-GE is a high performance manpack antenna that is particularly suited for applications where a quick adjustment of the antenna’s angle is needed.

• Effective coverage of the complete 480 - 2800 MHz frequency range

• Flexible gooseneck for perfect operation, even in extreme positions Product

Frequency range

Matching Passive

Polarization

Antenna type

Radiation pattern

Gain

Nominally vertical

Wideband dipole

Omnidirectional

Measured patterns on request

VSWR < 3.0

Nominal Impedance

Power rating

50 Ω

40 W (RMS)

Standard color Black

Radiator

Radome protected

Height 570 mm

Weight

RF connection

Mounting

*Specific adjustments on request

620 g (incl. 220 mm gooseneck)

Installation*

Male N-type connector

Directly to a matching connector

as described above

Instructions for use: To avoid the connector from being damaged, do not rotate the antenna when the gooseneck is in a bent position. Always straighten the gooseneck first, before changing the bending direction. The maximum bending angle of 90⁰ shall not be exceeded.

V1.0w

Date 27.01.2023 Page 1/1

High Gain Manpack Antenna HD2400Q

The HD2400Q is a high performance manpack antenna that is particularly suited for portable communication and jamming systems used in the S-band. It provides high gain over the entire 2100 – 2500 MHz frequency range.

V1.2w

Date 31.05.2023

• High performance, typical gain of +6 dBi

• Rugged antenna construction with shock absorption spring

• Effective coverage over the 2100 – 2500 MHz frequency range

Product details*

Frequency range

Matching

Polarization

Antenna type

Radiation pattern

2100 - 2500 MHz

Passive

Nominally vertical

Dipole array

Omnidirectional (typ.±1.5dB ripple)

Gain +3 to +8 dBi (Measured patterns on request)

VSWR

Nominal Impedance

Power rating

< 2.5

50 Ω

20 W (RMS)

Standard color Black

Radiator

Height

Weight

RF connection

Mounting

*Specific adjustments on request

Order number

Radome protected

545 mm

460 g

Installation*

Male N-type connector

Directly to a matching connector

Product

HD2400Q Antenna as described above

Page 1/1

Extended VHF Band Vehicular Antenna WB25C0M

The WB25C0M is a rugged wideband antenna for high-performance communication and jamming applications in the 25 – 175 MHz frequency range.

• Superior performance starting from as low as 25 MHz

• High power rating, 100 W at 100 % duty-cycle

Frequency range 25 – 175 MHz

Matching

Polarization

Antenna type

Radiation pattern

Gain

VSWR

Nominal Impedance

Power rating

V2.0w

Passive

Nominally vertical

Monopole, ground plane required

Omnidirectional

Measured patterns on request

≤ 3.5

50 Ω

100 W (RMS)

Standard color Black/olive green

Radiator

Steel whip with shock absorption spring

Height 2240 mm

Weight 2.75 kg

Installation*

RF connection

Mounting

*Specific adjustments on request

Female N-Type connector

US and 3/6-hole NATO pattern mount

Date 08.07.2021 Page 1/1

Wideband VHF/UHF Manpack Blade Antenna WB25512B

The WB25512B is an all-round manpack antenna with a flexible tape radiator and a gooseneck that provides an effective coverage of the 25 – 512 MHz frequency range. Its ideal radiation performance in combination with a versatile mechanical design makes it especially suited for use with the latest portable tactical communication and software defined radio systems (SDRs).

• Flexible gooseneck allows quick adjustment of the antenna’s angle

• Robust and flexible tape radiator for fast deployment and handy transportation

• High power rating, 30 W at 100 % duty-cycle

Product details*

Frequency range

Matching

Polarization

Antenna type

Radiation pattern

Gain

VSWR

Nominal Impedance

Power rating

Standard color

V1.1w

Date 25.03.2015

25 - 512 MHz

Passive

Nominally vertical

Monopole **

Omnidirectional

Measured patterns on request

≤ 3.5

50 Ω

30 W (RMS) **

Black

Radiator Foldable tape radiator with gooseneck

Base Ø 36 mm

Height

Weight

RF connection

Mounting

* Specific adjustments on request

** Ground plane required (see Page 2)

WB25512B

WB25512B-E

Installation*

1520 mm

500 g

Male N-type

Directly to a matching connector

Order number

Antenna as described above

Antenna as described above with 20 W power rating

1/1

Autonomous Tunable Vehicular VHF Antenna ATA3090M

The ATA3090M is an autonomous tunable antenna for the 30 to 90 MHz frequency band that does not require any external control. It therefore offers a perfect solution to easily enhance existing radio systems. This low profile antenna tunes automatically to use the optimum matching circuitry at the required frequency. The ATA3090M provides superior gain performance over traditional wideband antennas.

• No external control required - Easy upgrade for current radio systems

• Low profile antenna with superior gain performance - Gives up to 6dB better gain compared to a traditional passively matched antenna of same size

• Easy installation – Mechanically compatible with NATO / US pattern mounts

• Link budget improvement – Better gain and signal-to-noise ratio

Frequency range 30 - 90 MHz

Matching PIN diode based active matching

Polarization

Antenna type

Radiation pattern

Nominally vertical

Monopole (ground plane required)

Omnidirectional

Gain Measured patterns on request

VSWR ≤ 3.5 (on tuned band)

Nominal Impedance

Power rating

50 Ω

50 W

Power supply 24 VDC, 5 W (average)

Tuning speed Max. < 150 µs, average < 50 µs (more details on request)

Standard color Black

Radiator Steel whip with shock absorption spring Height 2000 mm

Weight

Installation*

RF connection Female N-type connector

Power supply Via 2-pin DC connector (C90-3102R10SL-4P)

Mounting 4 hole NATO / US pattern mount

* Specific adjustments on request Order number ATA3090M

with external control (see separate data sheet) V0.3w

Date 29.03.2017

1/1

Wideband VHF/UHF Vehicle Antenna WB2060M

The WB2060M is a highly compact and effective vehicle antenna that is ideally suited for communication and countermeasure applications in the 200 - 600 MHz frequency range.

• Ideal coverage of the entire 200 – 600 MHz range

• Short-height and rugged antenna construction

Product details*

Frequency range

200 - 600 MHz

Matching Passive Polarization

Nominally vertical

Antenna type Monopole, ground plane required Radiation pattern Omnidirectional Gain

VSWR

Measured patterns on request

< 3.0

Nominal Impedance 50 Ω Power rating 100 W (RMS)

Standard color Black/olive green Radiator Aluminium alloy with shock absorption spring Height

Installation*

RF connection

Female N-type connector

Mounting 4-hole US and 3/6-hole NATO pattern mount

*Specific adjustments on request

Order number NSN

Product WB2060M 5985 - 58 - 000 - 1025 Antenna as described above

V1.3w

Date 10.05.2021

Page 1/1

Wideband UHF Manpack Antenna WB922G

The WB922G is a rugged, high performance manpack antenna that is well suited for portable communication and jamming applications where a quick adjustment of the antenna’s angle is needed.

• Effective coverage of the entire 800 – 2500 MHz frequency range

• Optimized performance for the GSM, 3G and WLAN bands

• Rugged antenna construction with flexible gooseneck or shock absorption spring

Frequency range

Matching

Polarization

Antenna type

Radiation pattern

Gain

Product details*

800 - 2500 MHz

Passive

Nominally vertical

Wideband dipole

Omnidirectional

Available on request

VSWR < 3.0

Nominal Impedance

Power rating

50 Ω

50 W (RMS)

Standard color Black

Radiator

Height

Weight

RF connection

Mounting

*Specific adjustments on request Order

Radome protected

400 mm (incl. 120 mm gooseneck)

350 g

Installation*

Male N-type connector

Directly to a matching connector

WB922G 5985 – 58 – 000 – 3112

Antenna as described above

WB922G-GE - Antenna with 22 cm gooseneck (Height: 500 mm / Weight: 470 g)

WB922Q 5985 - 58 - 000 - 1012

Antenna with shock absorption spring (Height: 340 mm / Weight: 370 g)

Instructions for use: To avoid the connector from being damaged, do not rotate the antenna when the gooseneck is in a bent position. Always straighten the gooseneck first, before changing the bending direction. The maximum bending angle of 60⁰ shall not be exceeded.

V2.1

Date 15.10.2018

1/1

Wideband UHF/SHF Vehicle Antenna WB460M

The WB460M is a compact, light and low-profile vehicle antenna that is ideally suited for various applications within the 430 – 6000 MHz frequency range. The radiation performance is especially optimal for ground to air applications such as LINK-16.

Frequency range

Polarization

Radiation pattern

• Ideal operation in the UHF / SHF bands up to 6 GHz

• Suitable for applications such as: 5G, LTE, LINK-16, Soldier Radio Waveform, WLAN & ISM 2.4 & 5 GHz, WiMAX

Product details*

430 – 6000 MHz on a ground plane (≥ 0.5 x 0.5 m2)

800 - 6000 MHz (without a ground plane)

Nominally vertical

Omnidirectional (max. ± 1.5 dB ripple)

Gain Measured patterns on request VSWR

Nominal Impedance

Power rating

≤ 3.0

50 Ω

100 W (RMS)

Standard color Black

Radiator Radome protected

Height 110 mm

Weight 0.4 kg Installation* RF

Mounting

*Specific adjustments on request

V1.3w

Date 11.01.2023

4-hole US and 3/6-hole NATO pattern mount

as described above, color desert tan FS33446

In combination with a mounting accessory the antenna can be easily used for mast mounting and other fixed installations.

Page 1/1

High Gain GSM/3G/LTE Vehicle Antenna HD827XM

The HD827XM is a high gain omni antenna covering the GSM, 3G and 4G LTE bands. The antenna is particularly suited for high power jamming applications.

• High power rating

• Optimised performance for GSM, 3G and 4G LTE frequency bands

• Rugged antenna construction with shock absorption spring

• No ground plane required

Frequency range

Product details*

790 - 2700 MHz

Matching Passive

Polarization

Antenna type

Radiation pattern

V2.1w

Date 27.09.2021

Nominally vertical

Wideband dipole array

Omnidirectional

Gain 3 dBi (Measured patterns on request)

VSWR ≤ 3.5

Nominal Impedance 50 Ω

Power rating (RMS)**

790 - 1000 MHz : 175 W (Pmax1)

1000 - 2200 MHz: 135 W (Pmax2)

2200 - 2400 MHz: 100 W (Pmax3)

2400 - 2700 MHz: 80 W (Pmax4)

Standard color Black

Radiator Radome protected Height 605 mm

kg

Mounting 4-hole US and 3/6-hole NATO pattern mount

*Specific adjustments on request

** Sum of input powers (P) should not exceed the limit of 1 ≥ P1/Pmax1+P2/Pmax2

HD827XM 5985-58-001-4292

HD827XM-F13 5985-58-001-4292

Antenna as described above

Antenna as described above, color RAL6003

Accessory: In combination with the MS1 (antenna mast mount) the antenna can also be used for mast mounting and other fixed installations.

Page 1/1

Low Profile Vehicular TETRA Antenna MB400

The MB400 is a very low-profile TETRA antenna for vehicular applications. The antenna provides excellent performance in the 385-420 MHz frequency range while featuring a height of less than 10 cm.

• Ideal operation in the 385 – 420 MHz frequency range

• Especially designed for applications where low antenna height is of utmost importance

• Easily installed onto vehicles and shelters

Product details*

Frequency range

Polarization

Antenna type

Radiation pattern

Gain

VSWR

Nominal Impedance

385 – 420 MHz

Nominally vertical

Monopole, ground plane required

Omnidirectional

Available on request

≤ 3.0

50 Ω

Power rating 10 W (RMS)

Standard color

Radiator

Height

Weight

Mounting

*Specific adjustments on request

Black/Olive green

Radome protected

Wideband UHF/SHF Magnetic Mount Antenna WB460W

The WB460W is an extremely wideband and compact magnetic mount antenna of low profile that supports multiple applications. The antenna is ideally suited for applications where a quick setup and removal is required or where a permanent installation of the antenna on a vehicle is not possible.

• Ideal operation in the UHF/SHF bands up to 6 GHz

• High performance, 200 W at 100% duty cycle

• Compact magnetic mount for easy-to-setup temporary installations Product

Impedance

rating (CW)

MHz: 200 W

MHz: 160 W

MHz: 130 W

Standard color Black Radiator Radome protected Footprint

88 mm

N-type Mounting Ø

(vertical holding force typically 280 N when mounted on 0.8 mm steel sheet) Surface protection

*Specific adjustments on request Order

Antenna as described above

Safety Warning: Great care should be taken when handling strong magnetic products. Magnetic mounts may cause painful pinching injuries. When using a magnetically mounted device on a moving vehicle the device may lift off from the vehicle even at moderate speeds in case of collision. Therefore a secondary retention system should always be used to prevent unintentional detachment or loss of the device (the properly tightened feeder cable could possibly be used for this purpose). For maximum grip the surface of the vehicle and the bottom of the magnet should be dry and clean of dirt, snow and ice prior to attaching the device.

V1.3w

Date 11.01.2023 Page 1/1

Wideband VHF/UHF Handheld Monopole Antenna WB2250H

The WB2250H is an extremely lightweight wideband monopole antenna with a small visual signature for handheld applications. The antenna provides ideal performance in the 225512 MHz NATO I frequency band which makes it very well suited for use with modern SDRs, providing effective coverage for a range of voice and data communications.

• Excellent performance over the entire 225 – 512 MHz frequency range

• Extremely low weight antenna

• The antenna is available with TNC or SMA connectors

Product details*

Frequency range

Matching

Polarization

225 - 512 MHz

Passive

Nominally vertical

Antenna type Wideband monopole

Radiation pattern Omnidirectional

Gain (typical)

VSWR

Nominal Impedance

Power rating

Standard color

-1 to +1 dBi (Measured patterns on request)

≤ 3.0

50 Ω

10 W (RMS)

Black

Radiator Flexible tape radiator

Diameter (max.) Ø 18 mm

Height

Weight

RF connection

Mounting

*Specific adjustments on request

Order number

WB2250H-C3

280 mm

70 g

Installation*

Male TNC -type connector

Directly to a matching connector

Product

Antenna as described above

WB2250H-C2 Antenna with female SMA -type connector with shroud (details on request)

V1.0w

Date 25.08.2017

1/1

High-power VHF/UHF Manpack Antenna WB25512XR

The WB25512XR is a high-power manpack antenna for use in portable jamming applications within the complete 25 – 512 MHz frequency range.

• High power rating, 50 W at 100% duty-cycle

• Foldable radiator for handy transportation and easy installation

• Rugged antenna construction with shock absorption spring

Standard

Specific adjustments

High Gain Tactical UHF III+ Manpack Antenna HD1327Q

The HD1327Q is a high gain manpack antenna effectively covering the UHF III+ band. The antenna is particularly suited for portable tactical communication applications. Its centre fed design minimises interference of the human body on the radiation performance of the antenna.

V1.0w

• Compact and unique electrical design

• Excellent performance over the entire UHF III+ band

• Rugged antenna construction with shock absorption spring (also available as lightweight version without a spring or with a rubber spring)

Product details*

Frequency range

Matching

Polarization

Antenna type

Radiation pattern

Gain (typical)

VSWR

Nominal Impedance

Power rating (RMS)**

1300 - 2700 MHz

Passive

Nominally vertical

Wideband dipole array

Omnidirectional

4 dBi

≤ 3.0

50 Ω

1300 - 1700 MHz: 65 W (Pmax1)

1700 - 2200 MHz: 60 W (Pmax2)

2200 - 2700 MHz: 55 W (Pmax3)

Standard color Black

Radiator

Height

Weight

RF connection

Mounting

*Specific adjustments on request

Radome protected (diameter 30 mm)

535 mm

410 g

Installation*

Male N-type connector

Directly to a matching connector

** Sum of input powers (P) should not exceed the limit of 1 ≥ P1/Pmax1+P2/Pmax2.....

HD1327Q

HD1327RQ

HD1327P

Product

Antenna as described above

Antenna with rubber spring (Height: 545 mm / Weight: 310 g)

Antenna without a spring (Height: 475 mm / Weight: 290 g)

Date 26.03.2020 Page 1/1

Adaptive Handheld VHF/UHF Antenna TA30512H

The TA30512H is an active wideband handheld antenna for the 30 to 520 MHz frequency band. This lowprofile antenna can be tuned via RF connector to use the optimum matching circuitry at the required frequency. It thus provides superior gain performance over traditionally matched wideband antennas. Its extremely fast tuning ability and high power rating makes the antenna suitable for most of the modern SDRs.

• Low profile antenna with superior gain performance

• Fast tuning with high power rating supports modern waveforms

• Supports also very wide transmission bandwidths

• Control integrated to the TNC-type connector

Product

Frequency

Matching

Polarization

Antenna type

Radiation pattern

Gain

VSWR

Nominal Impedance

Power rating

Supply voltage & current

Active matching

Nominally vertical

Flexible whip monopole (ground plane required)

Omnidirectional

Up to 10 dB better than similar passive antenna*

≤ 3.5 (on tuned band)*

50 Ω

5 W

3.3 VDC (max 3.6V)

0.5 mA (maximum <2.5 mA during antenna control)

Tuning speed <50 µs (including control, ACK and switching)*

Standard color Black

Radiator

Wideband VHF/UHF Vehicular C3I Antenna WD30512M

The C30512M is a rugged, low profile and high-performance vehicle antenna providing maximum performance for today’s tactical radios. Its effective coverage over the complete 30 – 512 MHz frequency range makes it the ideal choice for latest JTRS and modern SDRs. The radiator of the antenna can be easily detached temporarily by rotating it at its spring and the whip part separately using the thumb screw.

• Unique electrical design enables optimal performance over the entire 30 - 512 MHz frequency range

• Covert and rugged mechanical design with flexible steel whip

• Complete radiator and whip separately detachable without tools

V3.0w

Date 08.10.2021

Frequency range

Matching

Polarization

Antenna type

Radiation pattern

Gain

VSWR

Nominal Impedance

Power rating

Standard color

Radiator

Height

Weight

RF connection

Product details*

30 - 512 MHz

Passive

Nominally vertical

Monopole, ground plane required

Omnidirectional

Radiation patterns on request

≤ 3.5 (for 95% of the specified frequency range)

50 Ω

75 W (RMS)

Black

Steel whip with shock absorption spring

1920 mm

2.5 kg

Installation*

Female N -type connector

Mounting 4-hole US and 3/6 hole NATO pattern mount

*Specific adjustments on request

Order number

C30512M

C30512M-C1

Product

Antenna as described above

Antenna with BNC (f) -type connector

C30512M-GPS Antenna with integrated L1 GPS antenna (SMA (f)).

Power rating: 50W (RMS.)

The optional available antenna whip tilt adapter FJ5 allows the user to conveniently tilt down the antenna’s whip in 45 degree angles, for instance when having to drive into halls and garages.

Page 1/1

Tunable Vehicular VHF/UHF Antenna TA30512M

The TA30512M is a tunable antenna for the 30 to 520 MHz frequency band. This low profile antenna can be tuned by remote control to use the optimum matching circuitry and electrical length at the required frequency. It thus provides superior gain performance over traditionally matched wideband antennas. The extremely fast tuning ability (based on PIN diode switching technology) makes the antenna suitable for most of the conventional modulation types.

• Low profile antenna with superior gain performance

• Fast tuning to a new frequency band allows the antenna to be used in different kind of applications

• Supports also very wide transmission bandwidths

• Electrical length tuning allows selecting the most suitable elevation pattern for a particular situation

Frequency range

Matching

Polarization

Antenna type

Radiation pattern

Gain

VSWR

Nominal Impedance

Power rating

Power supply

Tuning speed

Standard color

Radiator

Product details*

30 - 520 MHz

PIN diode based active matching

Nominally vertical

Monopole (ground plane required)

Omnidirectional

Measured patterns on request

≤ 3.5 (on tuned band)

50 Ω

50 W (RMS)

24 VDC, 5 W average

< 30 µs (see Page 3)

Black

Upper part: Glass fiber coated whip

Lower part: Aluminium alloy with shock absorption spring

Height 1920 mm

Weight

RF connection

Power and control

Mounting

* Specific adjustments on request

3.0 kg

Installation*

Female N-type connector

Circular MIL connector (See Page 3)

4 hole US pattern mount, see diagram on Page 3

Order number

TA30512M Antenna as described above

V2.1w

Date 21.01.2015

Page 1/1

Wideband VHF/UHF Vehicle Antenna WB10DXM

The WB10DXM is a compact VHF/UHF vehicle antenna that is ideally suited for high-power mobile applications in the 100 – 520 MHz frequency range – to be used on numerous kinds of vehicles.

• High performance, 200 W at 100% duty cycle

• Rugged antenna construction with shock absorption spring

Polarization

Antenna type

Radiation pattern

Gain

VSWR

Nominal Impedance

Power

Nominally vertical

Monopole, ground plane required

Omnidirectional

Measured patterns on request

Standard color Black

Radiator Aluminium alloy with shock absorption spring

High Gain Triband Vehicle Antenna HD921M

The HD921M is a high gain triband vehicle antenna that is particularly suited for communication and jamming applications in the GSM and 3G frequency bands.

• Unique electrical design

• Optimized performance for GSM and 3G frequency bands

• Rugged antenna construction with shock absorption spring

Product details*

Frequency range

Matching

Polarization

Antenna type

Radiation pattern

Gain (typical)

800 - 960 MHz 1710 - 1990 MHz 2110 - 2170 MHz

Passive

Nominally vertical

Wideband dipole array

Omnidirectional (± 1.5 dB)

3 dBi @ 800 - 960 MHz

4 dBi @ 1710 - 1990 MHz

4 dBi @ 2110 - 2170 MHz

VSWR ≤ 2.5

Nominal Impedance

Power rating (RMS) **

50 Ω

115 W @ 800 - 960 MHz (Pmax1)

80 W @ 1710 - 1990 MHz (Pmax2)

75 W @ 2110 - 2170 MHz (Pmax3)

Standard color Black

Radiator

Radome protected

Height 605 mm

Weight 1.8 kg

Installation*

RF connection

Female N-type

Mounting 4 hole US and 3/6 hole NATO pattern mount

* Specific adjustments on request

** Sum of input powers (P) should not exceed the limit of 1 ≥ P1/Pmax1+P2/Pmax2+P3/Pmax3

Order number NSN

Product

HD921M 5985 - 58 - 000 - 8334 Antenna as described above

V5.0w

Date 24.08.2021

Accessory: In combination with the MS1 (antenna mast mount) the antenna can also be used for mast mounting and other fixed installations.

Page 1/1

Stationary Tactical VHF Antenna WB30108BS

The WB30108BS is a highly efficient tactical VHF antenna. The antenna can be quickly and easily mounted onto a mast with out any additional tools. Its excellent performance in the 30 – 108 MHz frequency range makes it ideally suited for use with the latest tactical radios.

• High performance, 80W at 100% duty-cycle and typical gain of 0 dBi

• Quick and easy installation – no additional tools required

Product details*

Frequency range 30 - 108 MHz

Matching Passive

Polarization

Nominally vertical

Antenna type Monopole

Radiation pattern

Gain

Omnidirectional

Measured patterns on request

VSWR ≤ 3.0

Nominal Impedance

Power rating

50 Ω

80 W (RMS)

Standard color Black

Radiator and ground plane radials

Stainless steel/ aluminium alloy

Height 2750 mm (operational), 1600 mm (disassembled in carry-on bag) Weight

*Specific adjustments on request

High Gain GSM/3G/LTE Vehicle Antenna HD727XM

The HD727XM is a high gain omni antenna covering GSM, 3G, 4G LTE and 5G bands. The antenna is particularly suited for high power jamming applications.

• High power rating

• Optimised performance for GSM, 3G , 4G and 5G frequency bands

• Rugged antenna construction with shock absorption spring

• No ground plane required

Frequency range

Matching

Polarization

Antenna type

Radiation pattern

Gain (typical)

VSWR

Nominal Impedance

Power rating (RMS)**

Product details*

700 - 2700 MHz

Passive

Nominally vertical

Wideband dipole array

Omnidirectional

Measured patterns on request

≤ 3.5

50 Ω

700 - 1000 MHz : 175 W (Pmax1)

1000 - 2200 MHz: 135 W (Pmax2)

2200 - 2400 MHz: 100 W (Pmax3)

2400 - 2700 MHz: 80 W (Pmax4)

Standard color Black

Radiator

Radome protected

Height 605 mm

Weight 1.8 kg

Installation*

RF connection

Mounting

*Specific adjustments on request

Female N-type

4-hole US and 3/6-hole NATO pattern mount

** Sum of input powers (P) should not exceed the limit of 1 ≥ P1/Pmax1+P2/Pmax2

Order number

Product HD727XM

Antenna as described above

V1.0w

Date 16.09.2022

Accessory: In combination with the MS1 (antenna mast mount) the antenna can also be used for mast mounting and other fixed installations.

Page 1/1

Wideband UHF Manpack Antenna WB525Q

The WB525Q is a rugged, high performance manpack antenna that is particularly suited for portable communication and jamming applications.

• Effective coverage of the complete 480 - 2800 MHz frequency range

• Rugged antenna construction with shock absorption spring

vertical

type

pattern

on request VSWR

Nominal Impedance

3.0

Ω

(RMS)

Adaptive Manpack VHF / UHF Antenna TA30512B

The TA30512B is an active wideband manportable antenna for the 30 to 520 MHz frequency band. This low profile antenna can be tuned via RF connector to use the optimum matching circuitry at the required frequency. It thus provides superior gain performance over traditionally matched wideband antennas. Its extremely fast tuning ability (based on PIN diode switching technology) makes the antenna suitable for most of the modern SDRs.

V0.3w

Date 06.09.2016

• Low profile antenna with superior gain performance - Gives up to 10dB better gain compared to a traditional passively matched antenna of same size

• Fast tuning to a new frequency band allows the antenna to be used in different kind of applications

• Supports also very wide transmission bandwidths

• Control integrated to the N-type connector

Product details*

Frequency range

Matching

Polarization

Antenna type

Radiation pattern

Gain

VSWR

Nominal Impedance

30 - 520 MHz

PIN diode based active matching

Nominally vertical

Monopole (ground plane required)

Omnidirectional

Measured patterns on request

≤ 3.5 (on tuned band)

50 Ω

Power rating 10 W (RMS)

Power supply 10-12 VDC

Maximum <1W (transmit mode), <<0.1W (receiving mode)

Tuning speed < 30 µs

Standard color

Radiator

Height

Weight

RF connection

Power and control

* More information on request

TA30512B

Black

Upper part: Foldable tape

Lower part: Aluminium alloy with fibre glass

450 mm

200g

Installation*

Male N-type connector

Via N-type connector*

Order number

Antenna as described above

TA30512B-CE Antenna with external control interface (see separate data sheet)

Page 1/1

High Gain Directional UHF Antenna DA4348B

The DA4348B is a high gain directive loop antenna that does not require a ground plane for proper operation. Its ideal performance in the 430 – 480 MHz frequency range makes it very well suited for RCIED, drone or communication jamming applications.

• High performance in the 430 – 480 MHz frequency range

• Easily installed onto vehicles, shelters and masts

• Compact and robust antenna design for rough environmental conditions

• No ground plane nor additional tuning required

Product

Frequency range 430 – 480 MHz

Polarization

Nominally vertical

Antenna type Loop with reflector, no ground plane required

Nominal Impedance

*Specific adjustments on request

High-Power UHF/SHF Vehicle Antenna WB525XM

The WB525XM is a compact, high-power and low-profile vehicle antenna that is well suited for communication and jamming applications within the 500 – 6000 MHz frequency range.

Frequency range

Polarization

• Ideal operation in the UHF/SHF bands up to 6 GHz

• High performance, 400 W at 100% duty cycle

Product details*

800 - 6000 MHz (without a ground plane)

500 – 6000 MHz on a ground plane (≥ 0.5 x 0.5 m2)

Nominally vertical

Radiation pattern Omnidirectional (max. ± 1.5 dB ripple)

Gain Measured patterns on request

VSWR ≤ 3.0

Nominal Impedance

Power rating

50 Ω

400 W (RMS)

Standard color Black

Radiator Radome protected

Height 130 mm

Weight 1.0 kg

Installation*

RF connection

Female 7/16 -type

Mounting 4-hole US and 3/6-hole NATO pattern mount

*Specific adjustments on request

Order number

Product

WB525XM Antenna as described above

V1.2w

Date 11.01.2023

Page 1/1

Wideband VHF/UHF Vehicle Antenna WB1450M

The WB1450M is a compact VHF/UHF vehicle antenna that is ideally suited for mobile applications in the 140 - 512 MHz frequency range – to be used on numerous kinds of vehicles

• Rugged antenna construction with shock absorption spring

• High performance, 100 W at 100% duty cycle

Polarization

Nominally vertical

Antenna type Monopole, ground plane required

Radiation pattern

Gain

Omnidirectional

Available on request

VSWR ≤ 3.5

Nominal Impedance 50 Ω

Power rating 100 W (RMS)

Standard color

Black/olive green

Radiator Aluminium alloy with shock absorption spring

*Specific adjustments on request

High Gain GSM/3G/LTE Manpack Antenna HD827Q

The HD827Q is a high gain manpack antenna covering the GSM, 3G and 4G LTE bands. The antenna is particularly suited for portable communication and jamming applications. Its centre fed design minimises interference of the human body on the radiation performance of the antenna.

V1.4w

Date 01.11.2021

• Compact and unique electrical design

• Optimised performance for GSM, 3G and 4G LTE frequency bands

• Rugged antenna construction with shock absorption spring (also available as lightweight version with rubber spring)

Product details*

Frequency range

Matching

Polarization

Antenna type

Radiation pattern

790 - 2700 MHz

Passive

Nominally vertical

Wideband dipole array

Omnidirectional

Gain (typical) +2 to +5 dBi (Measured patterns on request)

VSWR ≤ 3.0

Nominal Impedance

Power rating (RMS)**

50 Ω

790 - 1000 MHz : 85 W (Pmax1)

1000 - 1700 MHz: 65 W (Pmax2)

1700 - 2200 MHz: 60 W (Pmax3)

2200 - 2700 MHz: 55 W (Pmax4)

Standard color Black

Radiator

Radome protected (diameter 30 mm)

Height 535 mm

Weight 410 g Installation*

Mounting

*Specific adjustments on request

Directly to a matching connector

** Sum of input powers (P) should not exceed the limit of 1 ≥ P1/Pmax1+P2/Pmax2

HD827Q 5985-58-000-8339

HD827RQ 5985-58-000-9607

Antenna as described above

Antenna with rubber spring (Height: 545 mm / Weight: 310 g)

HD827 - Antenna without a spring (Height: 475 mm / Weight: 290 g)

HD827Q-F8 5985-58-000-8339

Antenna as described above, color desert tan FS33446

1/1

Wideband UHF Manpack Antenna WB525G

The WB525G is a high performance manpack antenna that is particularly suited for applications where a quick adjustment of the antenna’s angle is needed.

• Effective coverage of the complete 480 - 2800 MHz frequency range

• Flexible gooseneck for perfect operation, even in extreme positions

Frequency range

Polarization

Antenna type

Radiation pattern

Gain

Nominally vertical

Wideband dipole

Omnidirectional

Measured patterns on request

VSWR < 3.0

Nominal Impedance

Power rating

50 Ω

40 W (RMS)

Standard color Black

Radiator

Height

Weight

Mounting

*Specific adjustments on request

Radome protected

465 mm

500 g (incl. 12 cm gooseneck)

Installation*

Directly to a matching connector

- 58 - 000 - 1015

as described above

Instructions for use: To avoid the connector from being damaged, do not rotate the antenna when the gooseneck is in a bent position. Always straighten the gooseneck first, before changing the bending direction. The maximum bending angle of 60⁰ shall not be exceeded.

V2.1w

Date 22.05.2019

1/1

High Gain VHF/UHF Vehicle Antenna HD2245XM

The HD2245XM is a high gain dipole antenna that does not require a ground plane for proper operation. Its ideal performance and high-power rating in the 225 – 450 MHz frequency range makes it very well suited for applications such as jamming and high-power communication.

• Excellent gain and high-power rating

• Easily installed onto vehicles, shelters and masts

• Compact and robust antenna design for rough environmental conditions

• No ground plane nor additional tuning required

adjustments on request

Accessory: In combination with the MS1 (antenna mast mount) the antenna can also be used for mast mounting and other fixed installations.

Tunable Vehicular VHF Antenna TA3090M

The TA3090M is a tunable antenna for the 30 to 90 MHz frequency band. This low-profile antenna can be tuned by remote control to use the optimum matching circuitry at the required frequency. It thus provides superior gain performance over traditionally matched wideband antennas. Its extremely fast tuning ability (based on PIN diode switching technology) makes the antenna suitable for most of the conventional modulation types.

• Low profile antenna with superior gain performance. Gives up to 6 dB better gain compared to a traditional passively matched antenna of same size

• Fast tuning to a new frequency band allows the antenna to be used in different kind of applications

• Supports also wide transmission bandwidths

Frequency range

Matching

Polarization

Antenna type

Radiation pattern

Gain

VSWR

Nominal Impedance

Power rating

Power supply

Product details*

30 - 90 MHz

PIN diode based active matching

Nominally vertical

Monopole (ground plane required)

Omnidirectional

Measured patterns on request

≤ 3.5 (on tuned band)

50 Ω

50 W

24 VDC, 5 W (average)

Tuning speed < 30 µs (more details on request)

Standard color Black

Radiator

Steel whip with shock absorption spring

Height 2000 mm

Weight 3.0 kg

Installation*

RF connection

Power and control

Mounting

* Specific adjustments on request

Female N-type connector

Circular MIL connector (more details on request)

3/6-hole mounting pattern (more details on request)

Order

with autonomous tuning (see separate data sheet)

V1.1w

Date 10.05.2021

Page 1/1

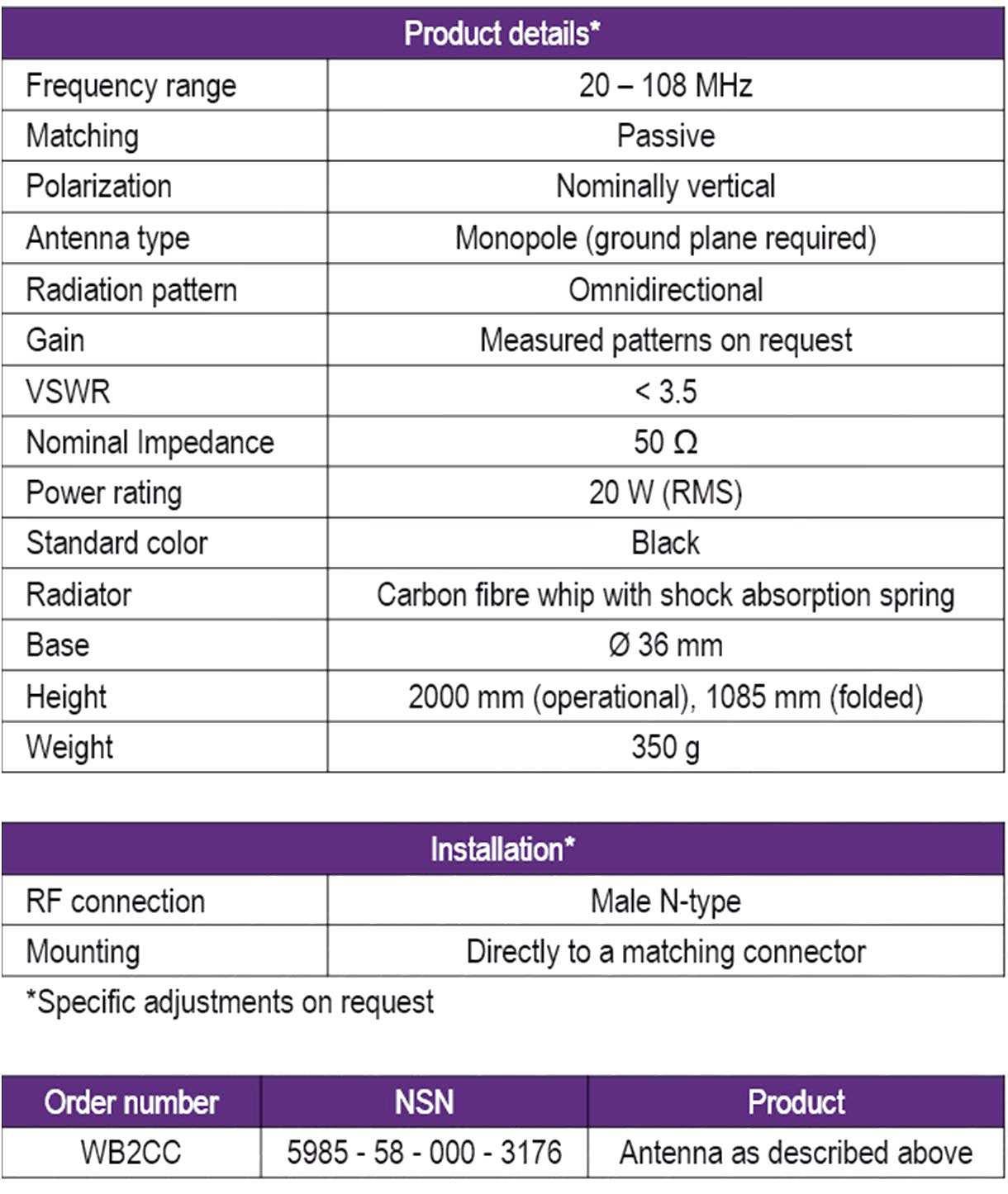

Wideband Manpack VHF Antenna WB2CC

The WB2CC is a high performance manpack antenna which is particularly suited for portable radio and jamming applications in the 20 – 108 MHz frequency range.

• Lightweight carbon fibre whip antenna

• Power rating 20 W at 100% duty-cycle

• Foldable radiator for handy transportation and easy installation

V1.3w

Date 04.05.2021

Page 1/1

Extended VHF Band Vehicular Antenna WB25175M

The WB25175M is a rugged wideband antenna for high-performance communication and jamming applications in the 25 – 175 MHz frequency range.

Safety advice:

• Effective coverage of the entire 25 - 175 MHz frequency range

• High power rating, 100 W at 100 % duty-cycle

Product

Frequency range

Matching

Polarization

25 – 175 MHz

Passive

Nominally vertical

Antenna type Monopole, ground plane required Radiation pattern

Gain

VSWR

Nominal Impedance

Omnidirectional

Available on request

≤ 3.5

50 Ω Power rating

100 W (RMS)

Standard color Black/olive green Radiator Steel whip with shock absorption spring

Height 2250 mm

Weight

RF connection

3.3 kg

Installation*

Female BNC-Type connector

Mounting 4-hole US and 3/6 hole NATO pattern mount

*Specific adjustments on request

V1.3w

Date 15.03.2019 Page 1/1

Wideband VHF/UHF Vehicular C3I Antenna WD30512XM

The WD30512XM is a rugged and high-performance dipole antenna supporting vehicle mountings. Its effective coverage over the complete 30 – 512 MHz frequency range makes it the ideal choice for latest JTRS and modern SDRs. The steel whip is glass fibre insulated to provide protection against high voltage overhead transmission lines. The radiator and the whip can be easily detached temporarily without any tools.

• Excellent performance with center fed design

• Covert and rugged mechanical design with flexible steel whip

• Radiator and whip detachable without any tools

Product details*

Frequency range

Matching

Polarization

Antenna type

Radiation pattern

Gain

30 - 512 MHz

Passive

Nominally vertical

Dipole

Omnidirectional

Measured radiation patterns on request

VSWR ≤ 3.5 (for 95% of the specified frequency range)

Nominal Impedance

Power rating

Standard color

Radiator

Height

Weight

RF connection

Mounting

50 Ω

80 W

Black

Glass fibre insulated steel whip with shock absorption spring

2970 mm

3.7 kg

Installation*

Female N -type connector

4-hole US and 3/6-hole NATO pattern mount

*Specific adjustments on request

Date 10.05.2024

Wideband VHF Vehicle Antenna

The WB30150M1 is a rugged VHF vehicle antenna that is particularly suited for communication and jamming applications in the 30 – 150 MHz range – to be used on numerous kinds of vehicles.

V1.6w

Date 05.05.2021

• Excellent performance starting from 30 MHz onwards

• High performance, 100 W at 100% duty cycle

Product details*

Frequency range

Matching

Polarization

Antenna type

Radiation pattern

Gain

30 - 150 MHz

Passive

Nominally vertical

Monopole, ground plane required

Omnidirectional

Measured patterns on request

VSWR < 3.5

Nominal Impedance

Power rating

50 Ω

100 W (RMS)

Standard color Black/olive green

Radiator Steel whip with shock absorption spring

Height 1990 mm

Weight 2.1 kg

Installation*

RF connection

Female N-type connector

Mounting 4-hole US and 3/6-hole NATO pattern mount

*Specific adjustments on request

Order

WB30150M1 5985 - 58 - 000 - 1009 Antenna as described above

WB30150M 5985 - 58 - 000 - 1004

Same antenna with female BNCtype connector

WB30150M11 5985 - 58 - 000 - 1010 Same antenna with glass fibre insulated whip

Page 1/1

VHF Band Magnetic Mount Antenna WB30108W

The WB30108W is a magnetic mount antenna for applications where a quick setup and removal of the antenna is required or where a permanent installation of the antenna on a vehicle is not possible.

• Excellent performance over wide bandwidth

• Compact magnetic mount for easy-to-setup temporary installations

Frequency range

– 108 MHz

Matching Passive

Polarization

Nominally vertical Antenna type

Monopole, ground plane required

Radiation pattern

(See typical patterns on Page 2) VSWR

3.5 Nominal Impedance

Standard color

Radiator

Footprint

adjustments on request Safety Warning:

described above

Additional wire loop (Ø ~5 cm) attached to

base for safety tether connection

care should be taken when handling strong magnetic products. Magnetic mounts may cause painful pinching injuries. When using a magnetically mounted device on a moving vehicle the device may lift off from the vehicle even at moderate speeds in case of collision. Therefore a secondary retention system should always be used to prevent unintentional detachment or loss of the device (the properly tightened feeder cable could possibly be used for this purpose). For maximum grip the surface of the vehicle and the bottom of the magnet should be dry and clean of dirt, snow and ice prior to attaching the device.

Wideband Manpack Antenna WBCX512Q

The WBCX512Q is a rugged manpack antenna which is particularly suited for portable communication and jamming applications within the 118 - 512 MHz frequency range.

• Effective horizontal coverage over the entire frequency range

• Rugged antenna construction with shock absorption spring

Antenna type Monopole (ground plane required)

Radiation pattern Omnidirectional

Gain Measured patterns on request

VSWR ≤ 3.0

Nominal Impedance 50 Ω

Power rating 15 W (RMS)

Standard color Black

Wideband VHF/UHF Vehicle Antenna WD2245M

The WD2245M is a wideband dipole antenna that does not require a ground plane for proper operation. Its ideal performance in the 225 – 450 MHz frequency range makes it very well suited for use with modern SDRs, providing an effective coverage for a range of voice and data communications including Have Quick II and SATURN.

V2.0w

Date 03.05.2021

• Ideal operation in the 225 – 450 MHz frequency range

• Easily installed onto vehicles, shelters and masts

• Compact and robust antenna design for rough environmental conditions

• No ground plane nor additional tuning required

Product details*

Frequency range

Polarization

Antenna type

Radiation pattern

Gain

VSWR

Nominal Impedance

Power rating

225 – 500 MHz

Nominally vertical

Dipole, no ground plane required

Omnidirectional

Measured patterns on request

< 3.0

50 Ω

100 W (RMS)

Standard color Black

Radiator Fiberglass radome coated with protective film

Height 720 mm

Weight 2.4 kg

Installation*

RF connection

Female N-type

Mounting 4 hole US and 3/6 hole NATO pattern mount

*Specific adjustments on request

Order number

NSN

Product

WD2245M 5985 - 58 - 000 - 5330 Antenna as described above

Accessory: In combination with the MS1 (antenna mast mount) the antenna can also be used for mast mounting and other fixed installations.

Page 1/1

Dual Port VHF/UHF Vehicle Antenna WBC3924

The WBC3924 is a tactical dual port antenna effectively covering the VHF and UHF bands. It is ideally suited for mobile C3I applications, especially where a multiple antenna set-up is not possible or antenna co-location problems may occur.

V1.2w Date 04.05.2021

• Two antennas integrated into the same mechanics:

• Ideal operation in the 30 - 108 and 225 – 512 MHz frequency ranges

• High band, ground plane independent antenna positioned at the top for optimum coverage

• Easily installed onto vehicles or shelters

Product details*

Frequency range

Polarization

Antenna type

Radiation pattern

Gain

VSWR

Nominal Impedance

Power rating

Port to port isolation (typical)

Standard color

Radiator

Port 1: 30 – 108 MHz

Port 2: 225 – 512 MHz

Nominally vertical

VHF: Monopole

UHF: Dipole

Omnidirectional

Measured patterns on request

Port 1: ≤ 3.5

Port 2: < 2.5

50 Ω

Port 1: 50 W

Port 2: 50 W

20 dB

Black

Radome protected, diameter 44 mm

Height 1540 mm

Weight 4.5 kg Installation*

*Specific adjustments on request

1/1

Wideband VHF/UHF Dipole Manpack Antenna WD1350Q

The WD1350Q is a rugged, high performance manpack antenna that is particularly suited for jamming applications. Due to its centre-fed design the antenna does not require a ground plane for proper operation.

• Effective coverage of the complete 118 - 512 MHz frequency range

• Rugged antenna construction with shock absorption spring

• No ground plane required Product

Frequency range 118 - 512 MHz

Polarization

Antenna type

Radiation pattern

Nominally vertical

Wideband dipole

Omnidirectional Gain

Measured patterns on request VSWR

Nominal Impedance

Power rating

Standard color

Radiator

VHF/UHF Dipole Antenna for Mast Mount WD30512M-B

The WD30512M-B is a rugged and high-performance dipole antenna with an easy to use mast mount adapter. Its effective coverage over the complete 30 – 512 MHz frequency range makes it the ideal choice for latest JTRS and modern SDRs. The antenna supports COJOT multiuse concept: the same radiator can be used for vehicle and mast mounting. The steel whip can be easily detached temporarily without any tools.

V1.4w

Date 04 03.2024

• Excellent performance with center fed design

• Covert and rugged mechanical design

• Quick and easy installation - no additional tools required

Product details*

Frequency range

Matching

Polarization

Antenna type

Radiation pattern

Gain

30 - 512 MHz

Passive

Nominally vertical

Dipole

Omnidirectional

Measured patterns on request

VSWR ≤ 3.5 (for 95% of the specified frequency range)

Nominal Impedance

Power rating

Standard color

Radiator

Height

Weight

RF connection

Mounting

*Specific adjustments on request

Order number

WD30512M-B

WD30512M

50 Ω

50 W

Black

Upper part: Steel whip

Lower part: Radome protected

2990 mm

3.7 kg

Installation*

Female N -type connector

Onto a ∅ 40 - 60 mm mast

Product

Antenna as described above

Antenna for vehicle mounting (see separate data sheet)

1/1

VHF/UHF Dipole Antenna for Mast Mount WD2250M-B

The WD2250M-B is a highly efficient antenna with an easy to use mast mount adapter. It is very well suited for use with modern SDRs, providing an effective coverage for a range of voice and data communication systems including Have Quick II and SATURN.

• Excellent performance over the entire 225 – 512 MHz frequency range

• Quick and easy installation to mast environments – no additional tools required

• Compact and robust antenna design for rough environmental conditions

Frequency range

Polarization

Antenna type

Radiation pattern

Gain

225 – 512 MHz

Nominally vertical

Dipole, no ground plane required

Omnidirectional

Measured patterns on request

VSWR < 3.0

Nominal Impedance

Power rating

50 Ω

100 W (RMS)

Standard color Black

Radiator

Height, Width & Depth

Radome protected

x 120 x 150 mm Weight

adjustments on request

Accessory: Mast mount module MASTMO available also as a

Wideband Manpack Antenna WBCX512P

The WBCX512P is a rugged and lightweight manpack antenna which is particularly suited for portable communication and jamming applications within the 118 - 512 MHz frequency range.

V2.2w

• Small sized and lightweight antenna design

• Rugged antenna construction

Product details*

Frequency range

Matching

Polarization

Antenna type

118 – 512 MHz

Passive

Nominally vertical

Monopole (ground plane required)

Radiation pattern Omnidirectional

Gain

Measured patterns on request

VSWR ≤ 3.0

Nominal Impedance

50 Ω

Power rating 16 W (RMS)

Standard color Black

Radiator Radome protected

Weight

Mounting

*Specific adjustments on request

Installation*

Directly to a matching

Date 03.05.2021 Page 1/1

Wideband Manpack Antenna WBCX512RP

The WBCX512RP is a compact and lightweight manpack antenna with a 20 W power rating. The antenna is particularly suited for portable jamming applications within the 100512 MHz frequency range.

• Small sized and lightweight antenna design

• Rugged antenna construction

Frequency range

Polarization

Nominally vertical

Antenna type Monopole (ground plane required)

Radiation pattern Omnidirectional

Gain

VSWR

Nominal Impedance

Available on request

3.5

Ω Power rating

W (RMS)

Standard color

Wideband VHF/UHF Handheld Dipole Antenna WD2250GH

The WD2250GH is an extremely lightweight wideband dipole antenna with a small visual signature. Its center fed antenna design combined with a flexible mechanical structure make the antenna well suited for vest mounting. The antenna provides effective coverage for a range of voice and data communications used in modern SDRs.

• Excellent performance over the entire 225 – 512 MHz frequency range

• Extremely low weight antenna with flexible gooseneck and tape radiator allowing easy vest integration

• Available also with other connector options like TNC

Product details*

Frequency range

Matching

Polarization

225 - 512 MHz

Passive

Nominally vertical

Antenna type Wideband dipole

Radiation pattern Omnidirectional

Gain

VSWR

Nominal Impedance

Power rating

Standard color

Radiator

Height

Weight

RF connection

Mounting

Measured patterns on request

≤ 3.0

50 Ω

10 W (RMS)

Black

Flexible gooseneck and tape radiator (Ø 18 mm)

640 mm

150 g

Installation*

Female SMA-type connector

Directly to a matching connector

*Specific adjustments on request

Order number

WD2250GH

Product

Antenna as described above

WD2250G Antenna with 20W power rating and male TNC-type connector

V0.4w

Date 11.09.2020 Page 1/1

Wideband Handheld Dipole Antenna WD1927GH

The WD1927GH is an extremely lightweight wideband dipole antenna with a small visual signature for the L and S bands. Its center fed antenna design combined with a flexible mechanical structure make the antenna well suited for vest mounting. The antenna provides effective coverage for a range of voice and data communications used in modern SDRs.

• Excellent performance over the entire frequency range

• Extremely low weight antenna with flexible gooseneck allowing easy vest integration and support for polarization diversity for MIMO usage

• Non-Rotating RF connector (TNC) allowing easy usage

Polarization Nominally vertical Antenna type Wideband dipole – no ground plane required Radiation pattern

dBi (More details on request)

2.0 Nominal Impedance

Ω Power rating 24 W (RMS)

Standard color Black

Radiator

Flexible gooseneck and fiberglass radome protected radiator (Ø 15 mm)

ACCESSORIES PRODUCT PROFILE

Antenna Mounting Bracket AB3090

The AB3090 antenna bracket is a professional mounting solution for installations where a direct mounting of the antenna onto the vehicle is not possible.

• Rugged and compact bracket construction

• Easy installation through removable front panel

Product details* Standard

Installation*

RF cable routing holes 1 (through the back panel) Antenna mount 4-bolt US pattern

Front panel of the bracket removable *Specific adjustments on request

Drilling diagram of the back panel of the bracket:

Heavy Duty Magnetic Mount MG3091

The MG3091 is a heavy-duty magnetic mount solution which is ideally suited for applications where a permanent installation of the antenna on a vehicle is not possible.

• Solid painted steel construction for temporary installations

• To be used on all kind of magnetic surfaces

Product details*

Standard color

Olive green Material Painted steel, thickness 3 mm

Magnets 3 x ø 88mm, each tilts up to 25 degrees to any direction

Surface protection Rubber

Magnetic grip force 3 x 280N (approx.)

Mounting height 80 mm ± 5 mm

Max width 480 mm

Weight

3.2 kg (without antenna)

Installation*

Antenna mount

*Specific adjustments on request

V1.2

4-bolt US pattern

Safety Warning: Great care should be taken when handling strong magnetic products. Magnetic mounts may cause painful pinching injuries. When using a magnetically mounted device on a moving vehicle the device may lift off from the vehicle even at moderate speeds in case of collision. Therefore a secondary retention system should always be used to prevent unintentional detachment or loss of the device.

For maximum grip the surface of the vehicle and the bottom of the magnet should be dry and clean of dirt, snow and ice prior to attaching the device.

Date 13.03.2019 Page 1/1

Antenna mast mount MS1

The MS1 antenna mast mount is a professional installation solution for mounting a vehicle antenna onto a ∅ 50 mm mast. The MS1 contains a jumper cable to connect the feeder cable and antenna. Alternatively, the feeder cable can be fed through the MS1 and connected straight to the antenna.

• Rugged and compact construction

• Quick and easy to set up

Product details*

Suitable COJOT antennas Contact us for more information

Standard color Olive green

Material Aluminium alloy

Height & Width

See Page 2 for dimensions

Weight 0.9 kg

Jumper cable operating frequency

Max. 1 GHz

Jumper cable power rating 200 W @ 0 – 100 MHz 100 W @

* Specific adjustments on request

* Specific adjustments on request

MS1 without the jumper cable

Note: The maximum diameter for the feeder cable going through the MS1 is 20 mm (similar to male N-type connector). See Page 2 for details. V1.2w Date

1/2

Environmental specifications MS1

Temperature range (operating)

Environmental specifications

-40 ... +55 ºC

Temperature range (storage) -40 +85 ºC

Humidity

Shock

Random Vibration

Blowing Rain

Water Immersion

MIL-STD-810E Method 507.3 Procedure III (cycle with extreme at 95 % RH, +60 ºC)

MIL-STD-810F, Method 516.5 Procedure l (terminal peak sawtooth shock pulse, peak 40 g, duration 11 ms, three shocks in each of three orthogonal axes in both positive and negative direction)

MIL-STD-810F, Method 514.5 Category 24 – All material –minimum integrity test, exposure levels according to Figure 514.5C-17

MIL-STD-810F, Method 506.4 Procedure l (rainfall rate 150 mm/h, wind speed 30 m/s)

MIL-STD-810F, Method 512.4 Procedure l (depth 1 m)

Wind Speed 200 km/h

Main dimensions

Main dimensions of the MS1

V1.2w

Date 05.06.2020 Page 2/2

Antenna Radiator

Mast Mount for Dipole Radiator MASTMO

MASTMO is a smart installation solution for mounting a COJOT dipole antenna radiator onto a ∅ 50 - 60 mm mast.

cable

V1.1w

Date 10.05.2021

• Rugged and compact construction

• Quick and easy to use

• No tools required for installation

Standard color Black Material Main

*Specific adjustments on request

Order number

Product as described above

Mast Mast Mount Adapter (MASTMO)

Page 1/1

Coaxial

Antenna mast mount MS300

The MS300 antenna mast mount is a professional installation solution for mounting a monopole 50 mm mast. The MS300 provides, in addition to the necessary interfaces, a suitable ground plane for the antenna. The MS300 contains to connect the feeder cable and antenna. Alternatively, the feeder cable can be fed through the MS300 and connected straight to the antenna.

• Rugged foldable construction

• Quick and easy to set up

• Provides alternative solutions for feeder cable

Product details*

Standard color Olive green

Material

Height & Width

Aluminium alloy

See Page 2 for dimensions

Weight 2 kg

Jumper cable operating frequency

Jumper cable power rating

Optimized for antennas operating within the frequency range

*Specific adjustments on request

RF connector for antenna

RF connector for feeder cable

Antenna mount

Installation*

Max. 1 GHz

200 W @ 0 – 100 MHz

100 W @ 100 – 600 MHz

70 W @ 600 – 1000 MHz

200 – 600 MHz e.g. WB2060M

Male N-type

Female N-type

4-bolt US pattern (containing M10 threads)

Mast interface ∅ 50 mm, length 90 mm

*Specific adjustments on request

Order number

MS300 5985-58-000-8340

Product as described above

MS300-NT - No M10 threads and no jumper cable in antenna mount – suitable e.g. for COJOT model WB225M.

Note: The maximum diameter for the feeder cable going through the MS300 is 20 mm (similar to male N- type connector). See Page 2 for details.

V1.3w

Date 17.03.2020

Page 1/1

Magnetic antenna mount MG512R

The MG512R is a magnetic antenna mount which is ideally suited for applications where a quick removal of the antenna may be needed or a permanent installation on a vehicle is not possible.

• To be used on all kind of magnetic surfaces

• Compact magnetic mount for easy-to-setup temporary installations Product

Frequency range

6000 MHz VSWR

1.5

Insertion loss < 0.5 dB

Power rating (RMS)*

Safety Warning:

0-1000 MHz: 200 W

1000-2000 MHz: 150 W

2000-4000 MHz: 100 W

4000-6000 MHz: 80 W

Base material Aluminium alloy

Standard color Black Footprint

88 mm

Surface protection Rubber coating

Height (excluding connector)

* VSWR of the attached antenna must be ≤ 3.5

*Specific adjustments on request

cable connector: Female N-type

88 mm magnet (vertical holding force typically 280 N when mounted on 0.8 mm steel sheet)

5985-58-000-3177 Product as described above

Additional wire loop (Ø ~5 cm) attached to mount for safety tether connection

Great care should be taken when handling strong magnetic products. Magnetic mounts may cause painful pinching injuries. When using a magnetically mounted device on a moving vehicle the device may lift off from the vehicle even at moderate speeds in case of collision. Therefore a secondary retention system should always be used to prevent unintentional detachment or loss of the device (the properly tightened feeder cable could possibly be used for this purpose).

For maximum grip the surface of the vehicle and the bottom of the magnet should be dry and clean of dirt, snow and ice prior to attaching the device.

V1.4w

Date 10.05.2021 Page 1/1

Antenna whip tilt adapter FJ5

The FJ5 is a handy tilting mechanism for vehicle whip antennas that can be easily and quickly fitted to deployed antenna installations. It allows the user to conveniently tilt the antenna’s whip in 45 degree angles, for instance when having to drive into halls and garages.

• Easy to assemble and use. Perfect fit to existing installations

• No tools required during use

• Tilt steps: 0, 45 and 90 degrees

• Compatible with all COJOT vehicular whip antennas

• Robust construction – tolerates strong impacts

• Handle can be positioned freely

Note: It is recommended to keep the whip in the upright

Antenna Mast Mount MS256

The MS256 antenna mast mount is a professional installation solution for mounting a monopole antenna onto a mast. The MS256 provides, in addition to the necessary mechanical interface, a suitable ground plane for the antenna with four radials.

• Rugged and compact construction

• Quick and easy to set up

Product details*

Standard color Black

Material Aluminium alloy

Height & Width

See Page 2 for dimensions

Weight 4.1 kg

Optimized for antennas operating within the frequency range 20 – 520 MHz e.g. WBC256B, WB30512M

*Specific adjustments on request

Antenna mount

Mast interface

*Specific adjustments on request

Order

MS256 5985-58000-9236

Installation*

4-bolt US pattern

Mast top mounting on a Ø 64-79 mm tubular mast

Product as described above

MS256-NT - Product as described above, no mounting threads, suitable with products WB225M and WBM5600M

MS256-F2 - Product as described above, but in olive green (Teknos AN11/AN100) color

MS256-F3 - Product as described above, but in pure white (RAL9010) color

V1.3w

Date 10.05.2024 Page 1/2

Antenna Mast Mount MS256

The main nominal dimensions of the MS256:

V1.3w Date 10 05.2024

2/2

Flexible Antenna Extender GN25N

The GN25N is a flexible antenna extender, also known as gooseneck, which is particularly suited for situations where a flexible adjustment of the antenna’s angle is required.

• Compact design for handy operation and simple installation

• Flexible gooseneck for quick and easy adjustments

Mounting

*Specific adjustments on request

Directly to matching connectors

Instructions for use: To avoid the connector from being damaged, do not rotate the antenna when the gooseneck is in a bent position. Always straighten the gooseneck first, before changing the bending direction. The maximum bending angle of 90⁰ shall not be exceeded.
