DIRECTIONAL ANTENNAS
PROFILE
High Gain Directional UHF Antenna DA4348B
The DA4348B is a high gain directive loop antenna that does not require a ground plane for proper operation. Its ideal performance in the 430 – 480 MHz frequency range makes it very well suited for RCIED, drone or communication jamming applications.
• High performance in the 430 – 480 MHz frequency range
• Easily installed onto vehicles, shelters and masts
• Compact and robust antenna design for rough environmental conditions
• No ground plane nor additional tuning required
Product
Frequency range 430 – 480 MHz
Polarization
Nominally vertical
Antenna type Loop with reflector, no ground plane required
Nominal Impedance
*Specific adjustments on request

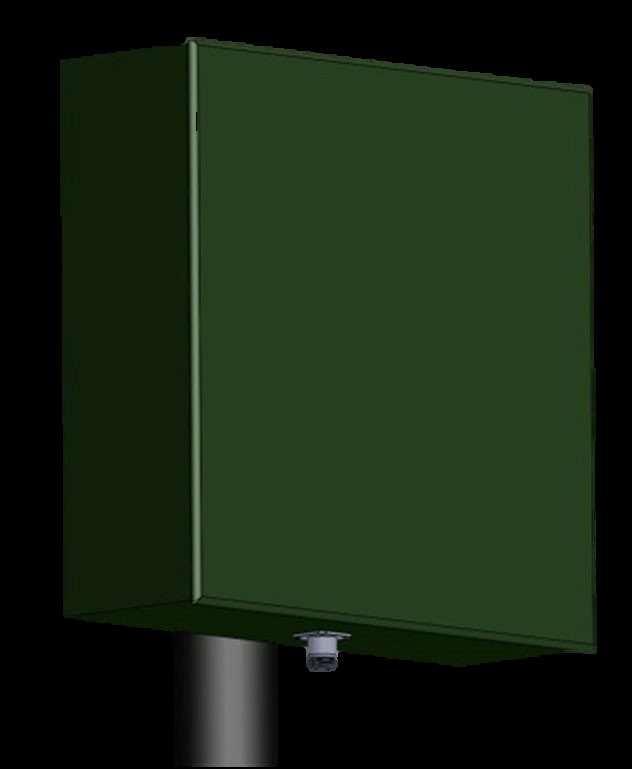

Directional Jamming Antenna DA36B
The DA36B is a high gain antenna that does not require a ground plane for proper operation. It’s ideal performance in the 3000 – 6000 MHz frequency range and compact size makes it very well suited for applications like drone or communication jamming.
• High performance in the 3000 – 6000 MHz frequency range
• Easily installed onto various platforms
• Compact and robust antenna design for rough environmental conditions
Frequency range
Product details*
3000 – 6000 MHz
Polarization Can be deployed for vertical or horizontal polarization
Antenna type Directional antenna, no ground plane required
Radiation pattern Directional
Gain 8.5 dBi (Measured patterns on request)
VSWR < 2.5
Nominal Impedance
50 Ω
Power rating 20 W (RMS)
Standard color Black
Radiator
Radome protected
Dimensions H: 300 mm W: 80 mm L: 360 mm Weight 1.5 kg
Installation*
RF connection
Mounting
*Specific adjustments on request
N-type
mount
V0.1w
Date 11.04.2022 Page 1/1
VERSION: 1.7
Dual port Circular Polarised Antenna
900 – 6000 MHz
Product Code: SPRL-A0010
SPECIFICATIONS:
Product Codes:
SPRL-A0010-01
SPRL-A0010-02
Electrical:
Frequency range:
Band A
RHCP (Band A) and LHCP (Band B) antenna
LHCP (Band A) and RHCP (Band B) antenna
Band B 900 – 2500 MHz 2500 – 6000 MHz
Gain: >6 dBic (typical)
Beamwidth: 55° (typical)
Feed power handling:
Band A
Band B 100 W CW 50 W CW
SPRL-A0010-01
SPRL-A0010-02
Polarisation:
Band A Band B RHCP LHCP LHCP RHCP
Nominal impedance: 50 Ω VSWR: < 2.0:1
Connector: 2 x N-type female
Mechanical:
Overall height: 450 mm

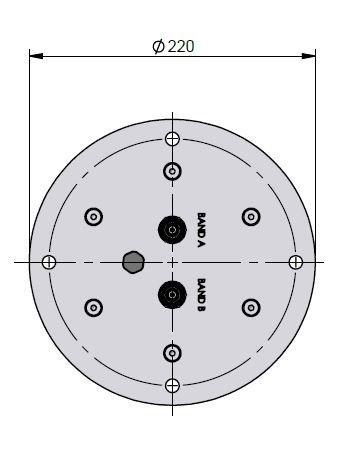

Diameter: 165 mm (Radome) 220 mm (Mounting flange)
Weight: < 2 kg including bracket
Material: Aluminium, Stainless steel, Acetal, PTFE, Nylon, ABS, copper, brass
Colour Painted on request
Environmental: designed to meet the following specifications
Temperature range
Storage: -41 °C to +71 °C.
Operation -31 °C to +55 °C
Weatherproofing IP 66
PRODUCT OVERVIEW:
SPRL-A0010 is a dual port conical spiral, right-hand circularly polarised antenna designed to operate in the 900 to 2500 MHz and 2500 to 6000 MHz bands. The antenna provides broad beam coverage without nulls or reduction in performance.
The antenna features a low VSWR and high gain over the both operating bands with a light weight, yet robust radome to protect the radiator.
PRODUCT FEATURES:
• LHCP and RHCP antenna
• High gain
• High power
• Low VSWR
Dual port Circular Polarised Antenna
900 – 6000 MHz
Typical VSWR of the SPRL-A0010
Typical Gain of the SPRL-A0010
Dual port Circular Polarised Antenna
900 – 6000 MHz Product Code: SPRL-A0010 VERSION: 1 7
Normalised band A radiation patterns of the SPRL-A0010
Normalised band B radiation patterns of the SPRL-A0010
VERSION: 1.0
Tri Port High-Power LPDA Antenna
400 – 6000 MHz Product Code: LPDA-A0167
SPECIFICATIONS:
Electrical:
Frequency range
Band A
400 – 6000 MHz
400 – 930 MHz
Band B 1160 – 1610 MHz
Band C
2400 – 6000 MHz
VSWR < 2.0:1
Nominal input impedance 50 Ω
Connector 3x N-type female
Feed power handling 100W CW
Gain (typical) See graph below

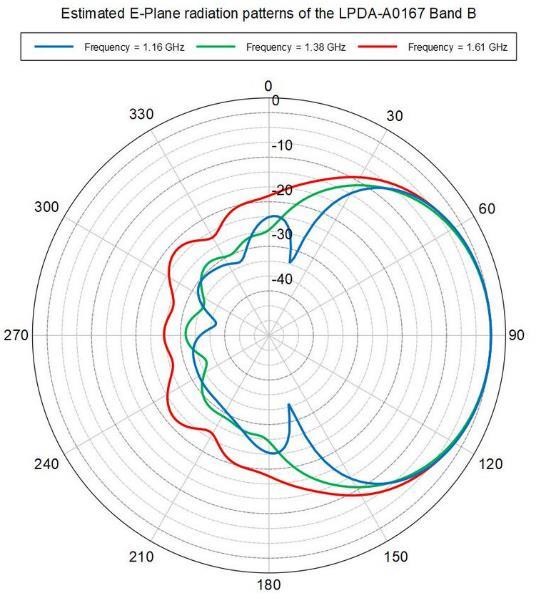

E-plane 3 dB beamwidth
Band A
Band B
Band C
H-plane 3 dB beamwidth
Band A
Band B
Band C
PRODUCT FEATURES:
• Wideband frequency 400 to 6000 MHz
• VSWR < 2.0:1
• High gain: > 7 dBi
• Rugged construction
• Ice resistant
PRODUCT APPLICATIONS:
• Wideband
• High-Power
95º - 105°
65° - 75°
65° - 75°
55º - 65°
45° - 55°
45° - 55°
Polarisation Linear
Front-to-back ratio ≥ 19 dB
Mechanical: Dimensions (l x h x w)
600 mm x 880 mm x 160 mm (incl. bracket)
Material Aluminium, stainless steel, fibreglass
Total mass < 6 kg (incl. mounting bracket)
Mounting method 4 x M8 Bolts
MTBF 500,000 h
Environmental: designed to meet the following specifications Wind survival 160 km/h calculated
Operating Temperature -30ºC to +65º (no icing)
Storage Temperature -40ºC to +85º
PRODUCT DESCRIPTION:
The LPDA-A0167 tri port directional log-periodic dipole array (LPDA) is primarily designed for high-power applications. It covers a frequency band of 400 to 6000 MHz with a gain of greater than 7 dBi.
The antenna provides three separate ports for simultaneous transmission in all bands with good isolation between bands.
The antenna is completely encapsulated in a radome. The antenna is provided with a mounting bracket.
Tri Port High-Power LPDA Antenna

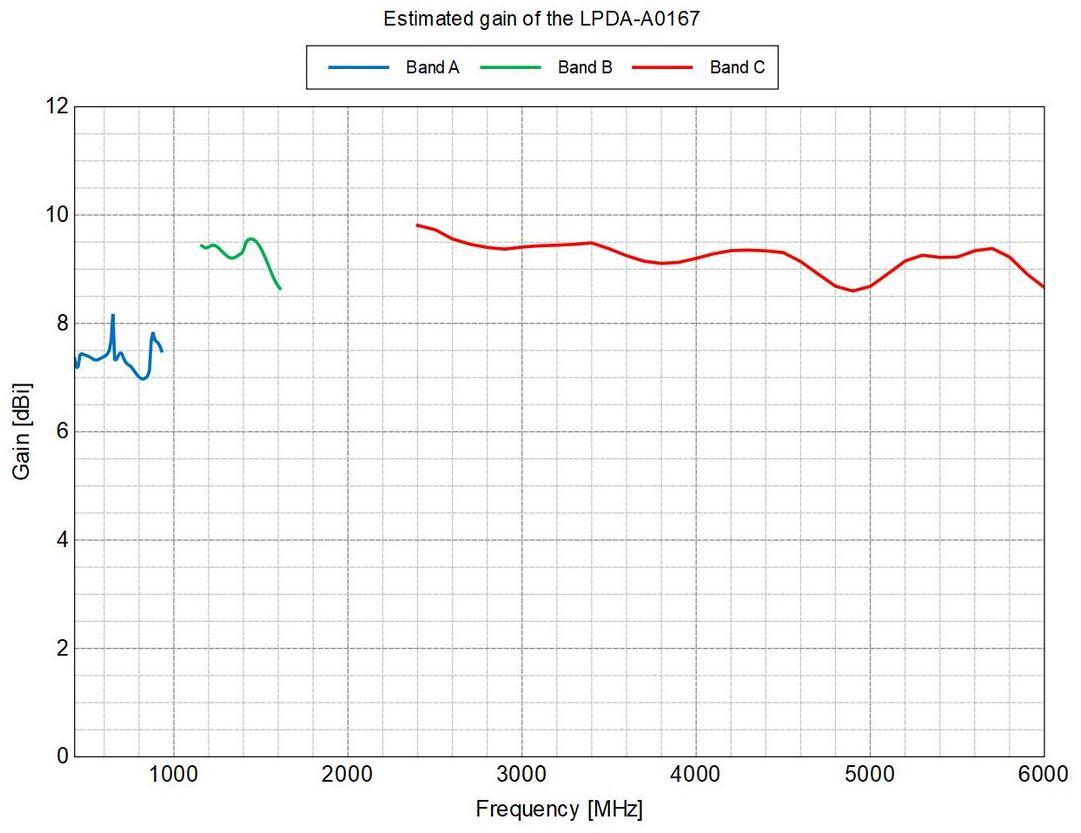

VSWR AND GAIN GRAPHS:
Typical VSWR: GAIN:
Tri Port High-Power LPDA Antenna
VERSION: 1.0

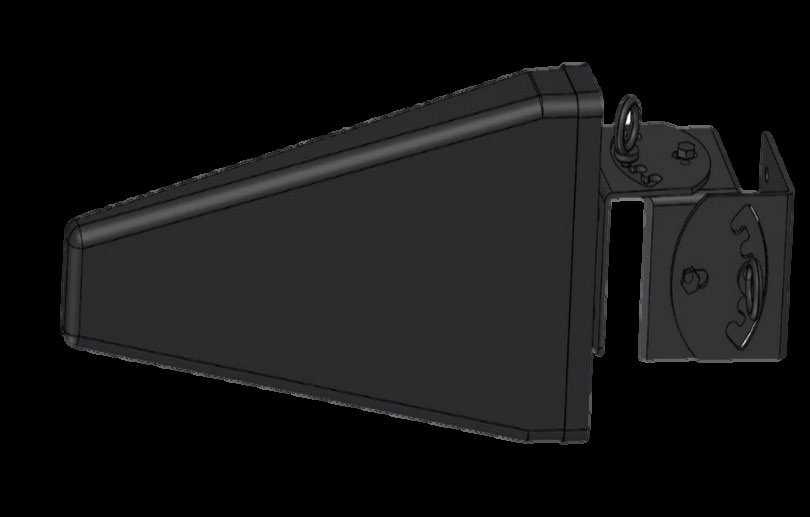

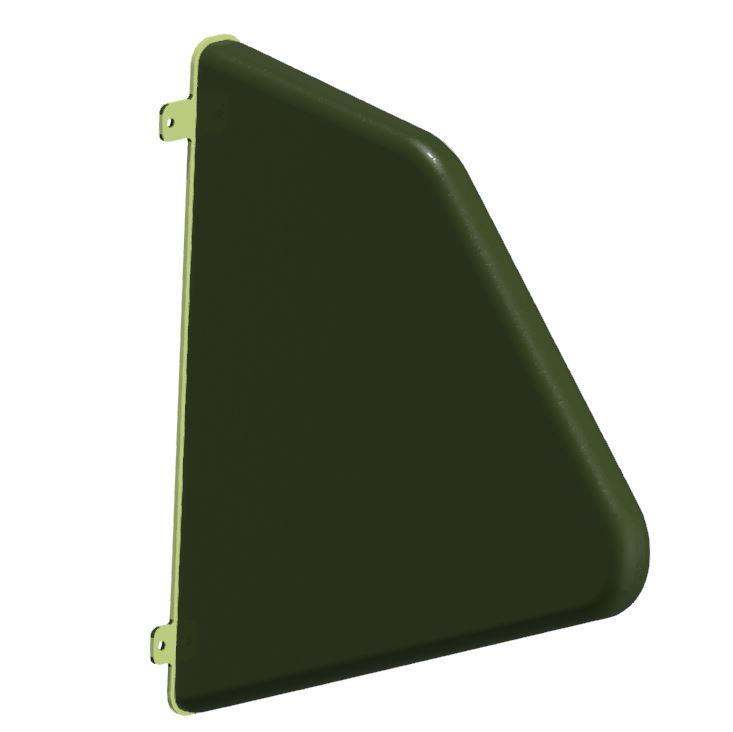

Dual Port High-Power LPDA Antenna
400 – 6000 MHz
Product Code: LPDA-A0162
SPECIFICATIONS:
Electrical:
Frequency range 400 – 6000 MHz
Band A 400 – 1600 MHz
Band B 2400 – 6000 MHz
VSWR < 2.0:1
Nominal input impedance 50 Ω
Connector 2x N-type female
Feed power handling 100W CW
Gain (typical) See graph below

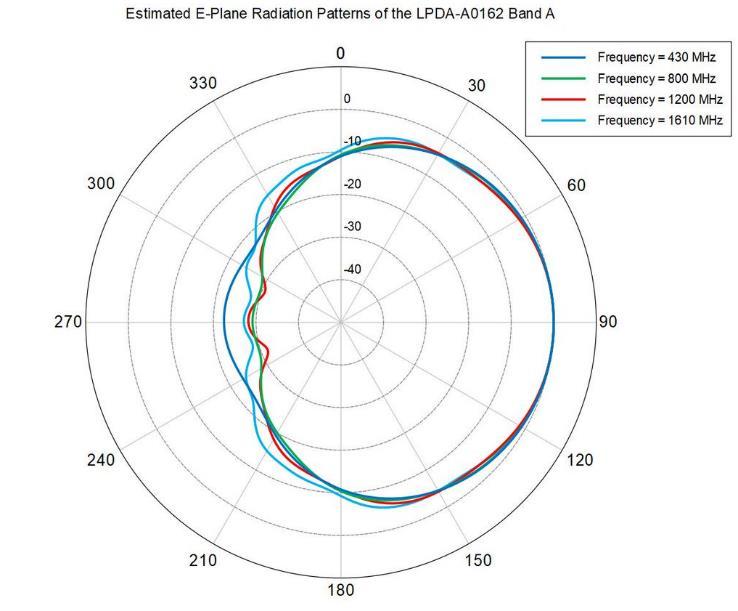

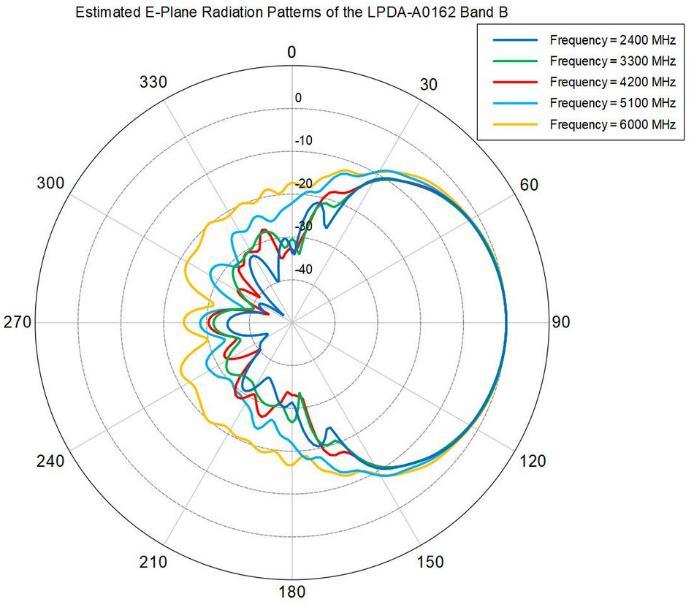

E-plane 3 dB beamwidth
Band A
Band B 70º - 100° 90° - 105°

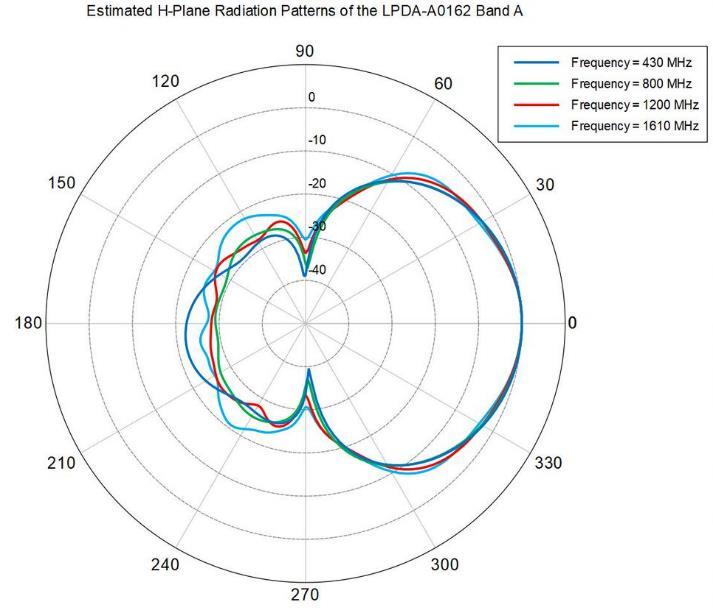

H-plane 3 dB beamwidth
Band A
Band B
PRODUCT FEATURES:
• Wideband frequency 400 to 6000 MHz
• VSWR < 2.0:1
• High gain: > 7 dBi
• Rugged construction
• Ice resistant
PRODUCT APPLICATIONS:
• Wideband
• High-Power
45º - 60° 50° - 60°
Polarisation Linear
Front-to-back ratio ≥ 22 dB
Mechanical:
Dimensions (l x h x w) 625 mm x 710 mm x 160 mm (incl. bracket)
Material Aluminium, stainless steel, fibreglass
Total mass < 5 kg (incl. mounting bracket)
Mounting method 4 x M8 Bolts
MTBF 500,000 h
Environmental: designed to meet the following specifications Wind survival 160 km/h calculated
Operating Temperature -30ºC to +65º (no icing)
Storage Temperature -40ºC to +85º
PRODUCT DESCRIPTION:
The LPDA-A0162 dual port directional log-periodic dipole array (LPDA) is primarily designed for high-power applications. It covers a frequency band of 400 to 6000 MHz with a gain of greater than 7 dBi.
The antenna provides two separate ports for simultaneous transmission in both bands with good isolation between bands.
The antenna is completely encapsulated in a radome. The antenna is provided with a mounting bracket.
Dual Port High-Power LPDA

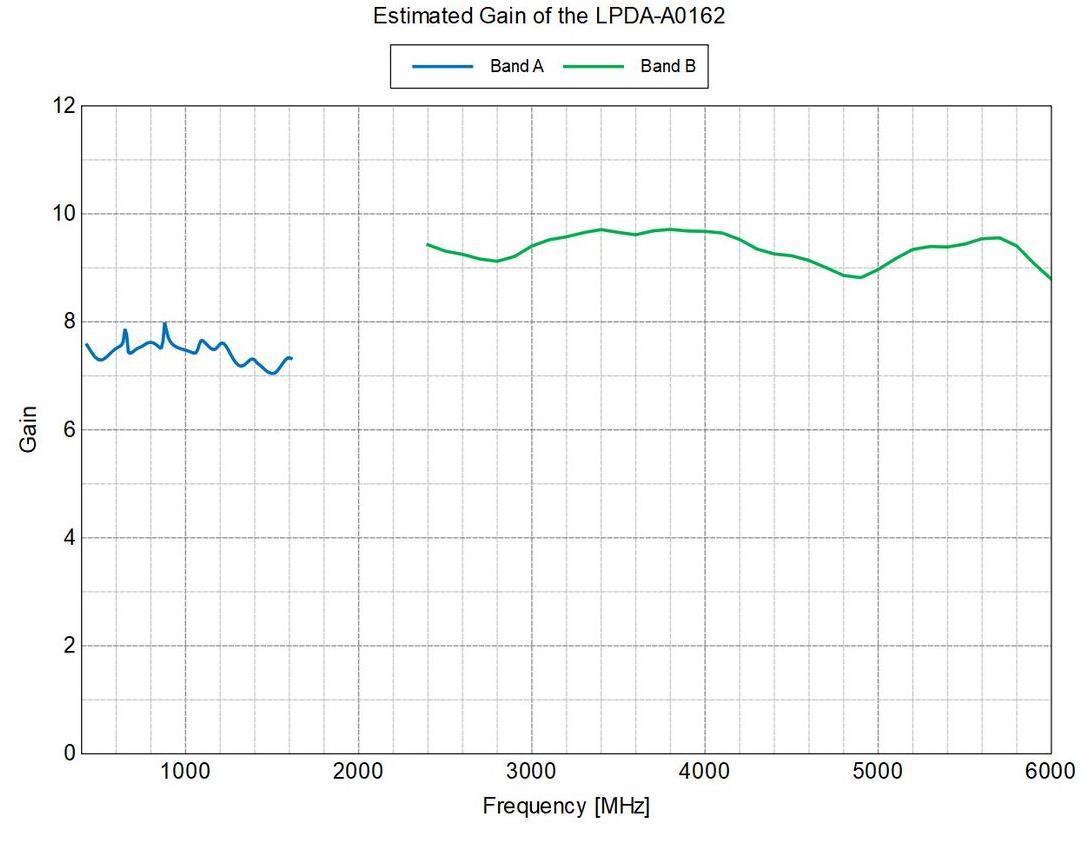

VSWR AND GAIN GRAPHS:
Dual Port High-Power LPDA Antenna
Directional VHF / UHF Antenna WR2250B
The WR2250B is a wideband corner reflector antenna for mast mounting. Its lightweight mechanical design allows fast and easy deployment as well as space-saving storage. This highly efficient antenna is very well suited for use with modern SDRs, providing excellent performance for a range of voice and data communication systems.
• Excellent performance over the entire 225 – 512 MHz frequency range
• Easy and quick setup for mast mounting – no tools required
• The antenna is foldable for compact storage
• The antenna can be deployed for vertical or horizontal polarization
Product details*
Frequency range
Polarization
Antenna type
Radiation pattern
Gain
E-plane 3 dB beamwidth
V1.6w
225 – 512 MHz
Can be deployed for vertical or horizontal polarization
Corner reflector
Directional (see azimuth and elevation patterns on Page 2)
10 dBi (Measured gain on request)
30° to 70° (E- and H-plane)
VSWR < 2.5
Nominal Impedance
Power rating
50 Ω
100 W (RMS)
Standard color Black
Dimensions (incl.mounting)
H: 1180 mm W: 810 mm L: 690 mm
Packed dimensions (-P1) H: 160 mm W: 810 mm L: 930 mm
Packed dimensions (-P2) H: 190 mm W: 890 mm L: 970 mm
Weight
RF connection
Mounting
*Specific adjustments on request
6.0 kg (Packed weight (-P2): 23 kg)
Installation*
Female N-type
Mast mount adapter for ø 50-60 mm masts**
**No mast included. Refer to Page 3 for information about optionally available masts
Order
Date 16.04.2024 Page 1/1
