ACCESSORIES PRODUCT PROFILE
Antenna Mounting Bracket AB3090

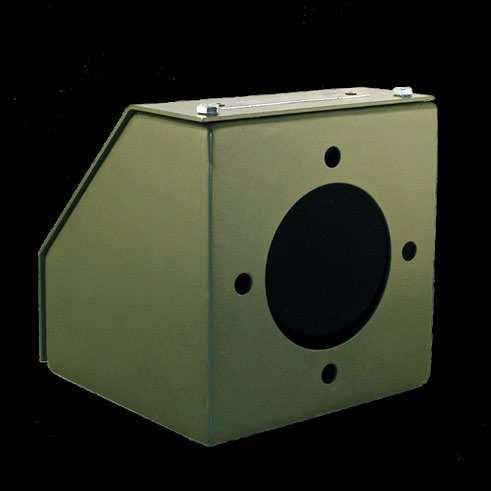

The AB3090 antenna bracket is a professional mounting solution for installations where a direct mounting of the antenna onto the vehicle is not possible.
• Rugged and compact bracket construction
• Easy installation through removable front panel
Product details* Standard
Installation*
RF cable routing holes 1 (through the back panel) Antenna mount 4-bolt US pattern
Front panel of the bracket removable *Specific adjustments on request
Drilling diagram of the back panel of the bracket:
Heavy Duty Magnetic Mount MG3091

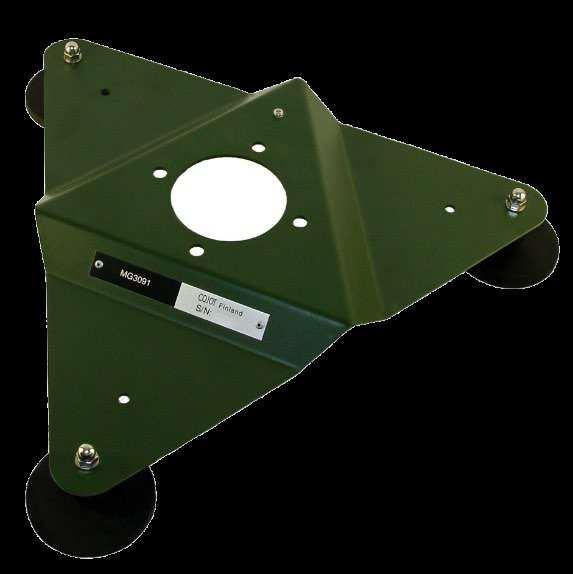

The MG3091 is a heavy-duty magnetic mount solution which is ideally suited for applications where a permanent installation of the antenna on a vehicle is not possible.
• Solid painted steel construction for temporary installations
• To be used on all kind of magnetic surfaces
Product details*
Standard color
Olive green Material Painted steel, thickness 3 mm
Magnets 3 x ø 88mm, each tilts up to 25 degrees to any direction
Surface protection Rubber
Magnetic grip force 3 x 280N (approx.)
Mounting height 80 mm ± 5 mm
Max width 480 mm
Weight
3.2 kg (without antenna)
Installation*
Antenna mount
*Specific adjustments on request
V1.2
4-bolt US pattern
Safety Warning: Great care should be taken when handling strong magnetic products. Magnetic mounts may cause painful pinching injuries. When using a magnetically mounted device on a moving vehicle the device may lift off from the vehicle even at moderate speeds in case of collision. Therefore a secondary retention system should always be used to prevent unintentional detachment or loss of the device.
For maximum grip the surface of the vehicle and the bottom of the magnet should be dry and clean of dirt, snow and ice prior to attaching the device.
Date 13.03.2019 Page 1/1
Antenna mast mount MS1
The MS1 antenna mast mount is a professional installation solution for mounting a vehicle antenna onto a ∅ 50 mm mast. The MS1 contains a jumper cable to connect the feeder cable and antenna. Alternatively, the feeder cable can be fed through the MS1 and connected straight to the antenna.
• Rugged and compact construction
• Quick and easy to set up
Product details*
Suitable COJOT antennas Contact us for more information
Standard color Olive green
Material Aluminium alloy
Height & Width
See Page 2 for dimensions
Weight 0.9 kg
Jumper cable operating frequency
Max. 1 GHz
Jumper cable power rating 200 W @ 0 – 100 MHz 100 W @
* Specific adjustments on request
* Specific adjustments on request
MS1 without the jumper cable
Note: The maximum diameter for the feeder cable going through the MS1 is 20 mm (similar to male N-type connector). See Page 2 for details. V1.2w Date
1/2
Environmental specifications MS1
Temperature range (operating)
Environmental specifications
-40 ... +55 ºC
Temperature range (storage) -40 +85 ºC
Humidity
Shock
Random Vibration
Blowing Rain
Water Immersion
MIL-STD-810E Method 507.3 Procedure III (cycle with extreme at 95 % RH, +60 ºC)
MIL-STD-810F, Method 516.5 Procedure l (terminal peak sawtooth shock pulse, peak 40 g, duration 11 ms, three shocks in each of three orthogonal axes in both positive and negative direction)
MIL-STD-810F, Method 514.5 Category 24 – All material –minimum integrity test, exposure levels according to Figure 514.5C-17
MIL-STD-810F, Method 506.4 Procedure l (rainfall rate 150 mm/h, wind speed 30 m/s)
MIL-STD-810F, Method 512.4 Procedure l (depth 1 m)
Wind Speed 200 km/h

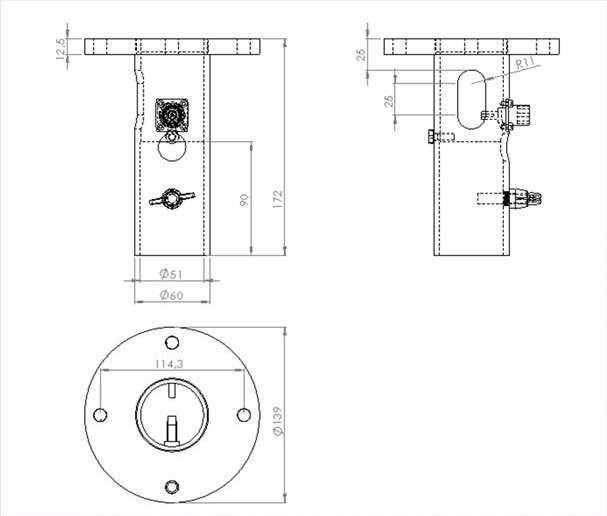

Main dimensions
Main dimensions of the MS1
V1.2w
Date 05.06.2020 Page 2/2

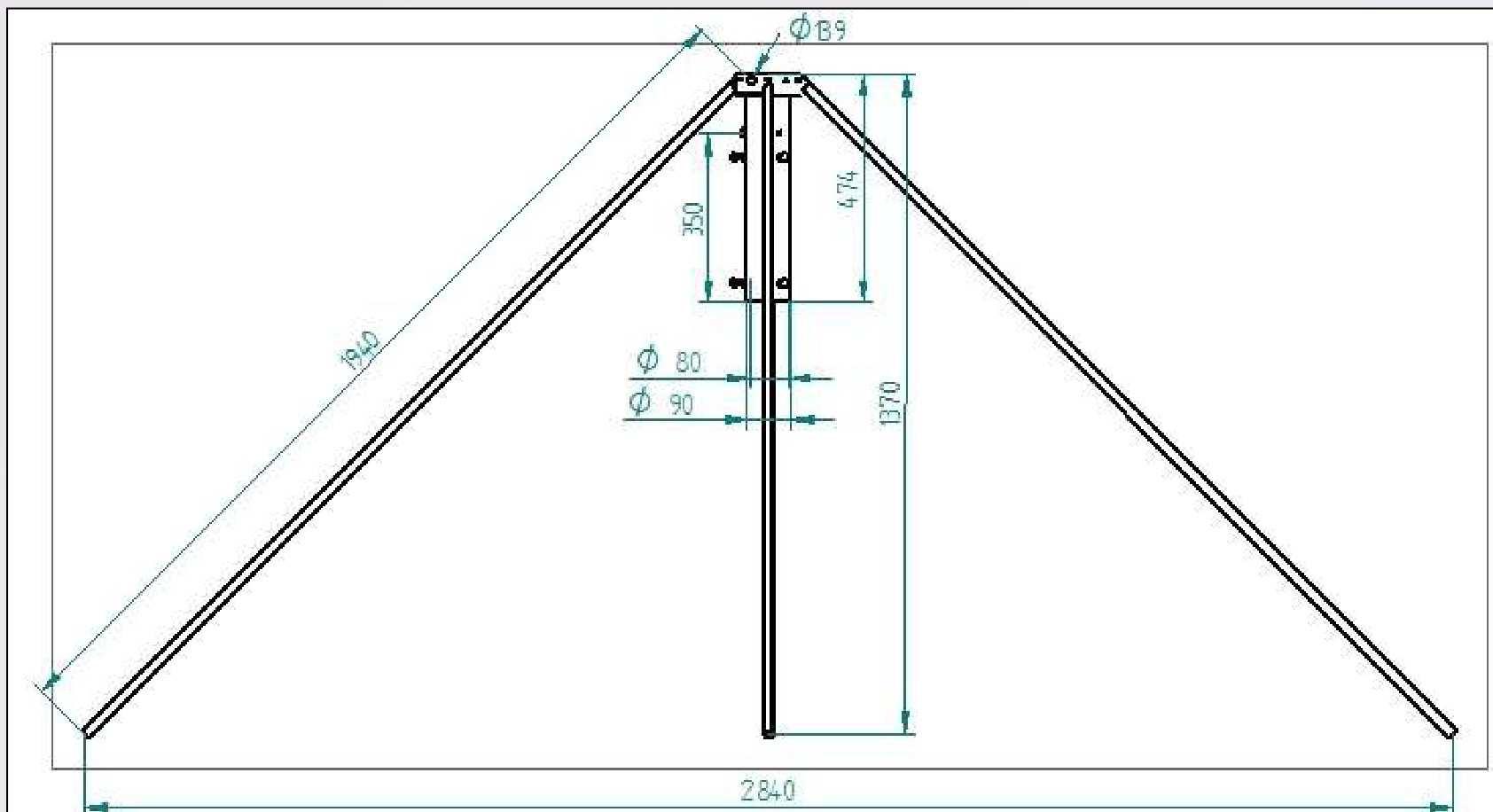

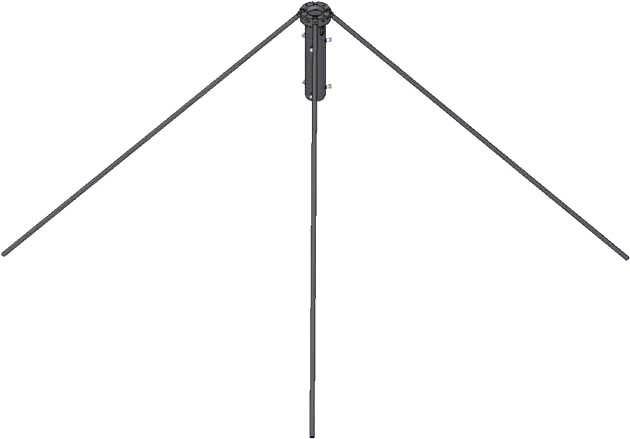

Antenna Radiator

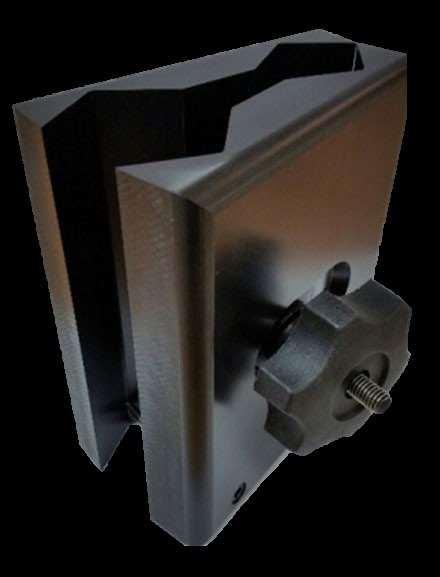

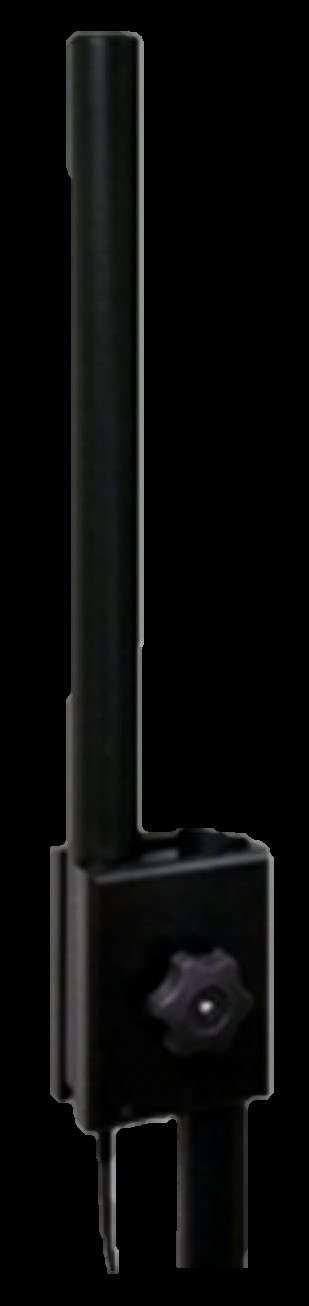

Mast Mount for Dipole Radiator MASTMO
MASTMO is a smart installation solution for mounting a COJOT dipole antenna radiator onto a ∅ 50 - 60 mm mast.
cable
V1.1w
Date 10.05.2021
• Rugged and compact construction
• Quick and easy to use
• No tools required for installation
Standard color Black Material Main
*Specific adjustments on request
Order number
Product as described above
Mast Mast Mount Adapter (MASTMO)
Page 1/1
Coaxial

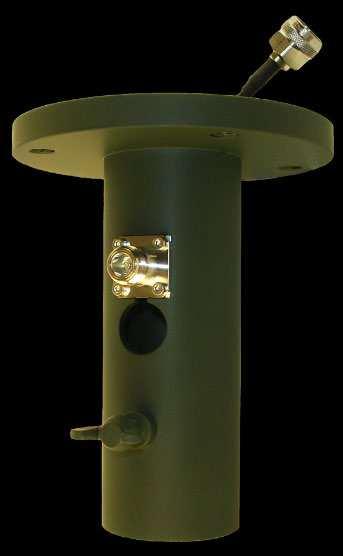

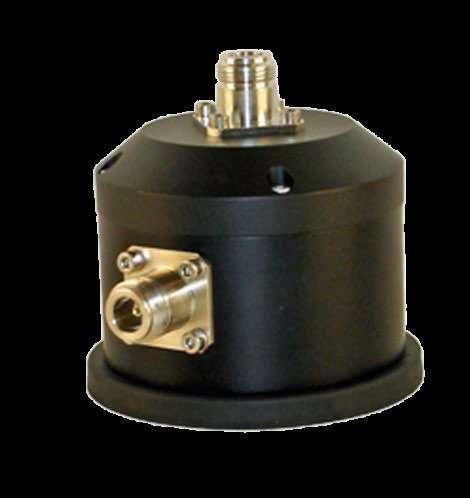

Antenna mast mount MS300
The MS300 antenna mast mount is a professional installation solution for mounting a monopole 50 mm mast. The MS300 provides, in addition to the necessary interfaces, a suitable ground plane for the antenna. The MS300 contains to connect the feeder cable and antenna. Alternatively, the feeder cable can be fed through the MS300 and connected straight to the antenna.
• Rugged foldable construction
• Quick and easy to set up
• Provides alternative solutions for feeder cable
Product details*
Standard color Olive green
Material
Height & Width
Aluminium alloy
See Page 2 for dimensions
Weight 2 kg
Jumper cable operating frequency
Jumper cable power rating
Optimized for antennas operating within the frequency range
*Specific adjustments on request
RF connector for antenna
RF connector for feeder cable
Antenna mount
Installation*
Max. 1 GHz
200 W @ 0 – 100 MHz
100 W @ 100 – 600 MHz
70 W @ 600 – 1000 MHz
200 – 600 MHz e.g. WB2060M
Male N-type
Female N-type
4-bolt US pattern (containing M10 threads)
Mast interface ∅ 50 mm, length 90 mm
*Specific adjustments on request
Order number
MS300 5985-58-000-8340
Product as described above
MS300-NT - No M10 threads and no jumper cable in antenna mount – suitable e.g. for COJOT model WB225M.
Note: The maximum diameter for the feeder cable going through the MS300 is 20 mm (similar to male N- type connector). See Page 2 for details.
V1.3w
Date 17.03.2020
Page 1/1
Magnetic antenna mount MG512R
The MG512R is a magnetic antenna mount which is ideally suited for applications where a quick removal of the antenna may be needed or a permanent installation on a vehicle is not possible.
• To be used on all kind of magnetic surfaces
• Compact magnetic mount for easy-to-setup temporary installations Product
Frequency range
6000 MHz VSWR
1.5
Insertion loss < 0.5 dB
Power rating (RMS)*
Safety Warning:
0-1000 MHz: 200 W
1000-2000 MHz: 150 W
2000-4000 MHz: 100 W
4000-6000 MHz: 80 W
Base material Aluminium alloy
Standard color Black Footprint
88 mm
Surface protection Rubber coating
Height (excluding connector)
* VSWR of the attached antenna must be ≤ 3.5
*Specific adjustments on request
cable connector: Female N-type
88 mm magnet (vertical holding force typically 280 N when mounted on 0.8 mm steel sheet)
5985-58-000-3177 Product as described above
Additional wire loop (Ø ~5 cm) attached to mount for safety tether connection
Great care should be taken when handling strong magnetic products. Magnetic mounts may cause painful pinching injuries. When using a magnetically mounted device on a moving vehicle the device may lift off from the vehicle even at moderate speeds in case of collision. Therefore a secondary retention system should always be used to prevent unintentional detachment or loss of the device (the properly tightened feeder cable could possibly be used for this purpose).
For maximum grip the surface of the vehicle and the bottom of the magnet should be dry and clean of dirt, snow and ice prior to attaching the device.
V1.4w
Date 10.05.2021 Page 1/1

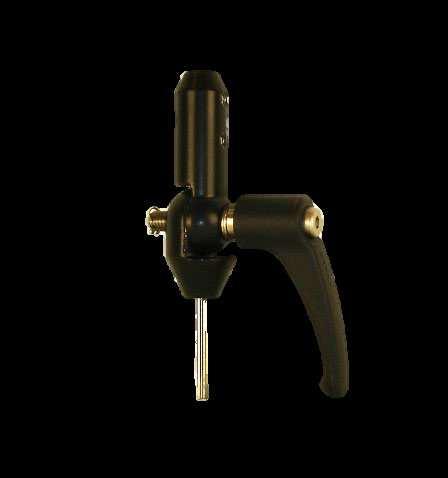

Antenna whip tilt adapter FJ5

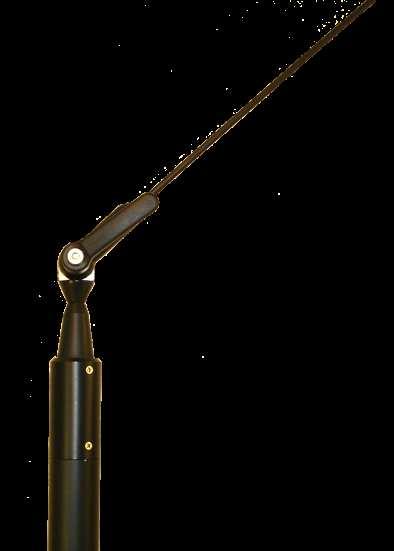

The FJ5 is a handy tilting mechanism for vehicle whip antennas that can be easily and quickly fitted to deployed antenna installations. It allows the user to conveniently tilt the antenna’s whip in 45 degree angles, for instance when having to drive into halls and garages.
• Easy to assemble and use. Perfect fit to existing installations
• No tools required during use
• Tilt steps: 0, 45 and 90 degrees
• Compatible with all COJOT vehicular whip antennas
• Robust construction – tolerates strong impacts
• Handle can be positioned freely
Note: It is recommended to keep the whip in the upright

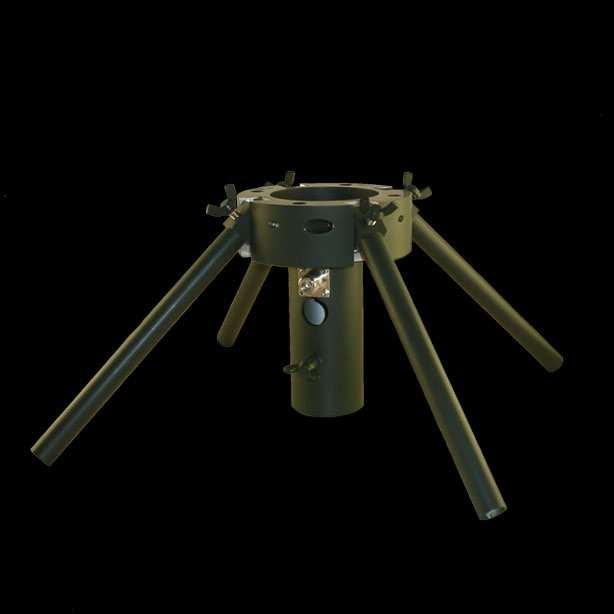

Antenna Mast Mount MS256
The MS256 antenna mast mount is a professional installation solution for mounting a monopole antenna onto a mast. The MS256 provides, in addition to the necessary mechanical interface, a suitable ground plane for the antenna with four radials.
• Rugged and compact construction
• Quick and easy to set up
Product details*
Standard color Black
Material Aluminium alloy
Height & Width
See Page 2 for dimensions
Weight 4.1 kg
Optimized for antennas operating within the frequency range 20 – 520 MHz e.g. WBC256B, WB30512M
*Specific adjustments on request
Antenna mount
Mast interface
*Specific adjustments on request
Order
MS256 5985-58000-9236
Installation*
4-bolt US pattern
Mast top mounting on a Ø 64-79 mm tubular mast
Product as described above
MS256-NT - Product as described above, no mounting threads, suitable with products WB225M and WBM5600M
MS256-F2 - Product as described above, but in olive green (Teknos AN11/AN100) color
MS256-F3 - Product as described above, but in pure white (RAL9010) color
V1.3w
Date 10.05.2024 Page 1/2
Antenna Mast Mount MS256
The main nominal dimensions of the MS256:
V1.3w Date 10 05.2024
2/2
Flexible Antenna Extender GN25N

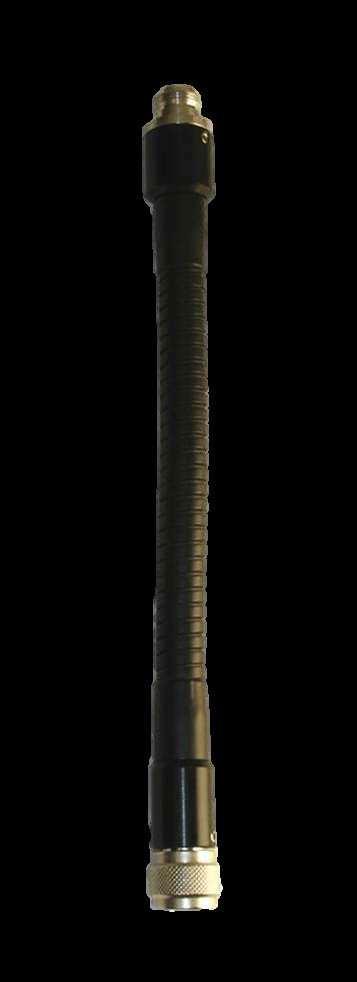

The GN25N is a flexible antenna extender, also known as gooseneck, which is particularly suited for situations where a flexible adjustment of the antenna’s angle is required.
• Compact design for handy operation and simple installation
• Flexible gooseneck for quick and easy adjustments
Mounting
*Specific adjustments on request
Directly to matching connectors
Instructions for use: To avoid the connector from being damaged, do not rotate the antenna when the gooseneck is in a bent position. Always straighten the gooseneck first, before changing the bending direction. The maximum bending angle of 90⁰ shall not be exceeded.
