PRODUCT DATASHEET
158EIA-78EIA

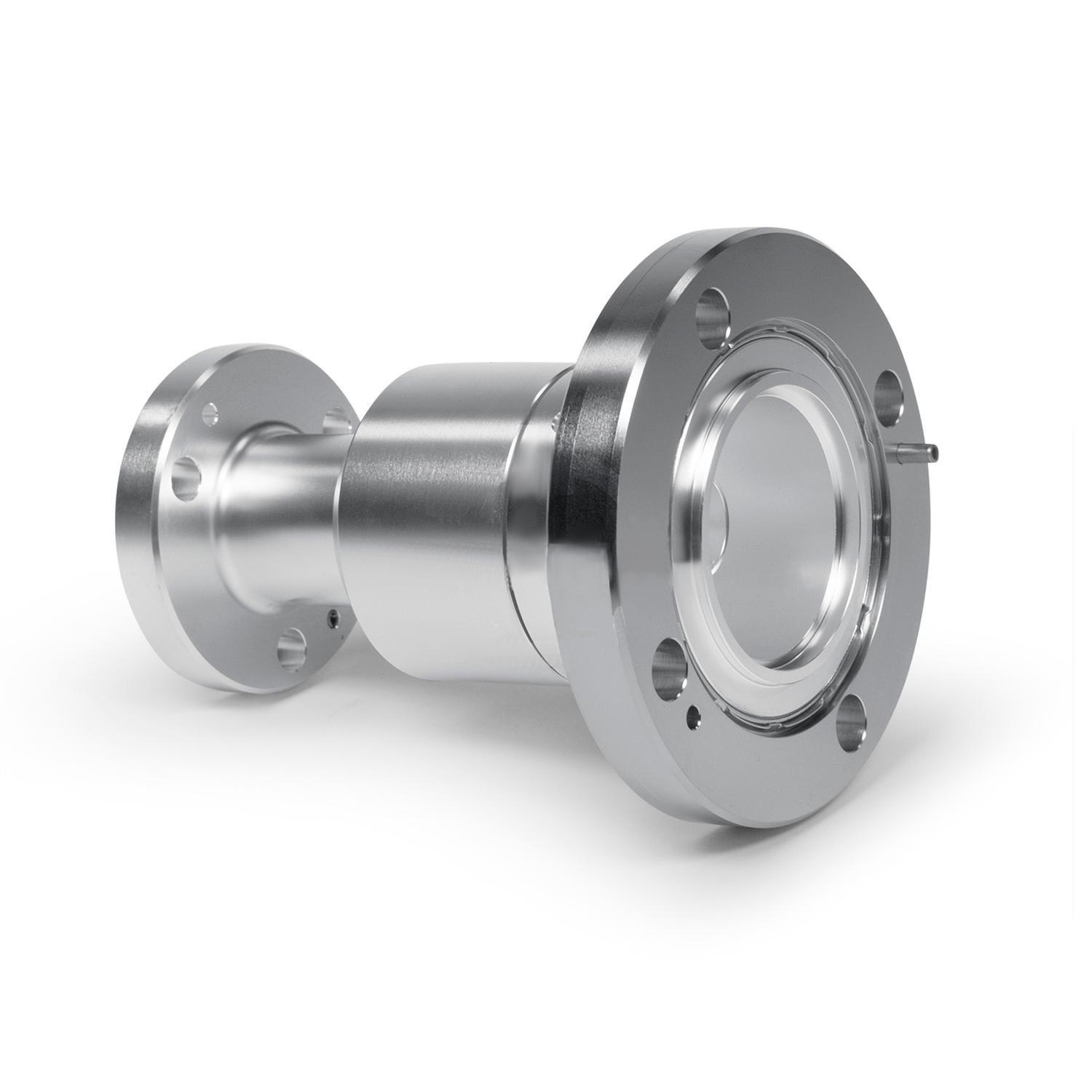

Coaxial Adapter 1 5/8" EIA - 7/8" EIA female
Coaxial Adapter, 1 5/8" EIA / 7/8" Female FEATURES / BENEFITS
Technical features STRUCTURE Product Line
Coaxial Cable Components
Product Type
Coaxial Adapter
MECHANICAL SPECIFICATIONS Connector A
1 5/8" EIA (50 Ω) according IEC 60339-2
Center Contact Connector A
copper-alloy, silver plated
Outer Contact Connector A
copper-alloy, silver plated
Connector B
7/8" EIA (50 Ω) according IEC 60339-2
Center Contact Connector B
copper-alloy, silver plated
Outer Contact Connector B
copper-alloy, silver plated
Dielectric
PTFE
Sealing class
IP68, connected
ELECTRICAL SPECIFICATIONS Frequency Range - MHz VSWR, Return Loss
DC - 2700 VSWR (dB)
0-2000 MHz: 1.02 (40.09) 2000-3000 MHz: 1.03 (36.61)
°C (°F)
-45 to 85 (-49 to 185)
TEMPERATURE SPECIFICATIONS Operation Temperature PACKAGING INFORMATION Package Quantity Weight
158EIA-78EIA
1 kg (lb)
1.13 (2.49)
REV : A
REV DATE : 03 Aug 2023
All values nominal unless tolerances provided; information contained in the present datasheet is subject to confirmation at time of ordering
