Draw attention with Dori Pole’s exciting & carefree colors! People love ‘em...birds don’t
For more information contact our sales team at: 1 (800) 525-6424 info@consort com • www doripole.com
®
pennant system
EYE-CATCHING!
• INSTANTLY INVITING, FLOATING COLOR IN MOTION
• DRAMATIC EFFEC T WITH LIT TLE EFFORT
• FLEXIBLE FIBERGLASS POLES BEND
• SWIVELING YOKE ENSURES TANGLE-FREE AC TION
• DURABLE, BRIGHT SOLARMAX NYLON PENNANTS
• CAN BE PERMANENTLY INSTALLED
• EASY TO INSTALL AND TAKE DOWN
• TRANSPORT MADE EASY WITH TELESCOPING POLE
• WHEEL STAND - PERFEC T FOR TAILGATING!
• SHIP VIA FedEx AND UPS
• DETERS GEESE, GULLS AND OTHER WILDLIFE
• AIDS IN REDUCING WASTE ON DOCKS AND DECKS
• PEOPLE LOVE ‘ EM; BIRDS DON’T!
www.doripole com/product-category/outlet
DON’T FORGET TO CHECK OUT OUR OUTLET STORE FOR FUN T WO AND THREE COLOR PENNANT OPTIONS AT A MA JOR DISCOUNT!
2129 Portage Street • Kalamazoo, MI 49001
Phone: (269) 388-4532 • Fax: (269) 388-2018 Made in U.S.A.
®

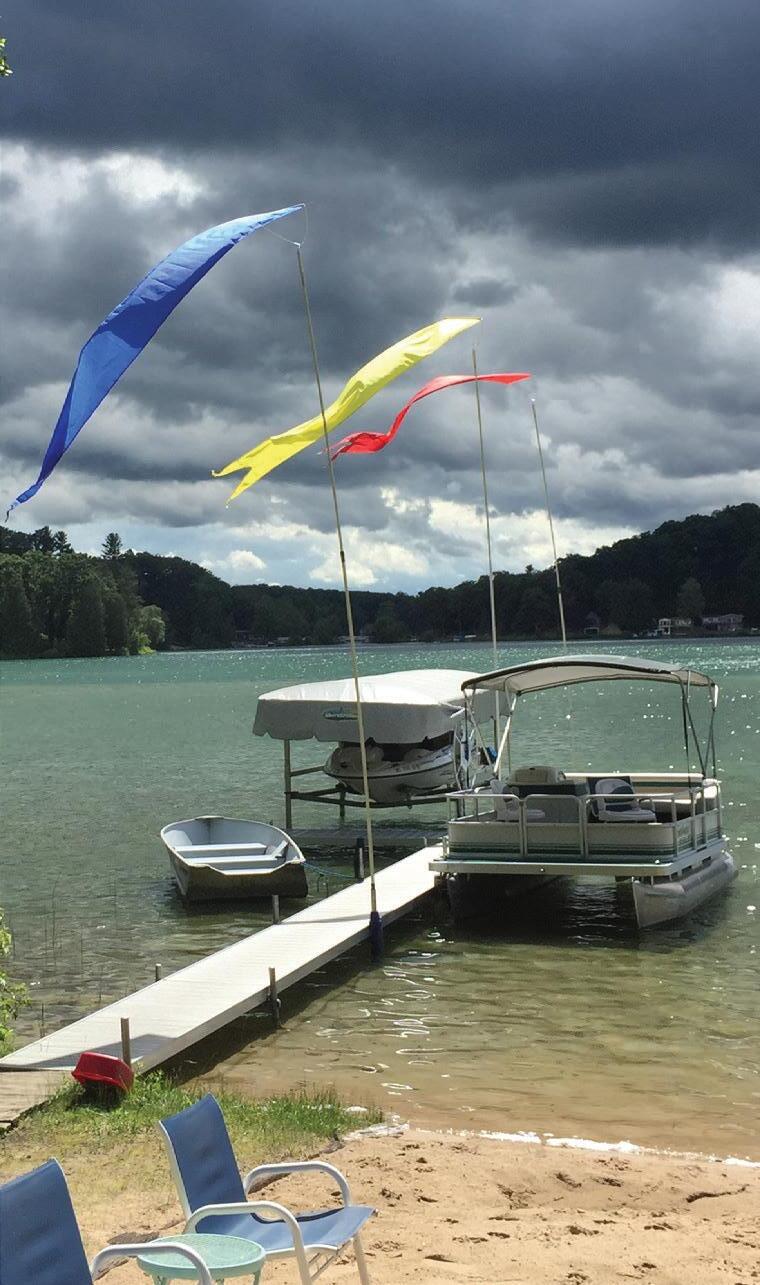

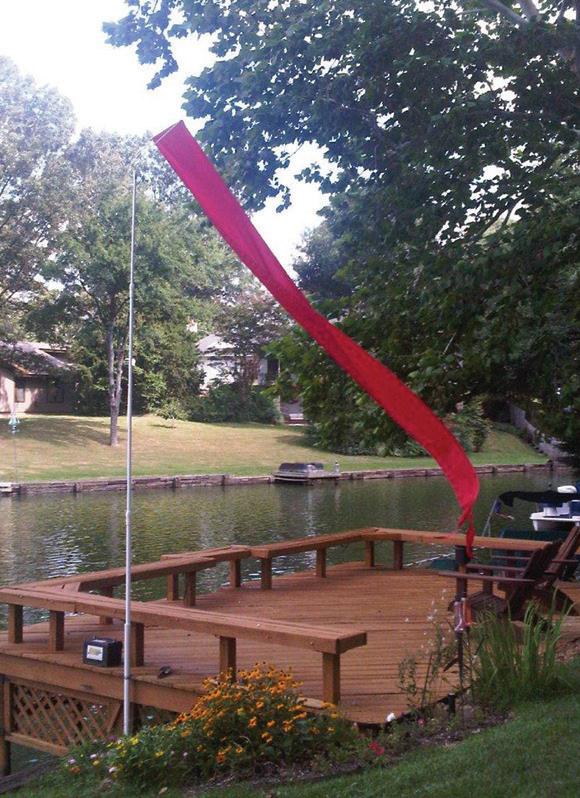

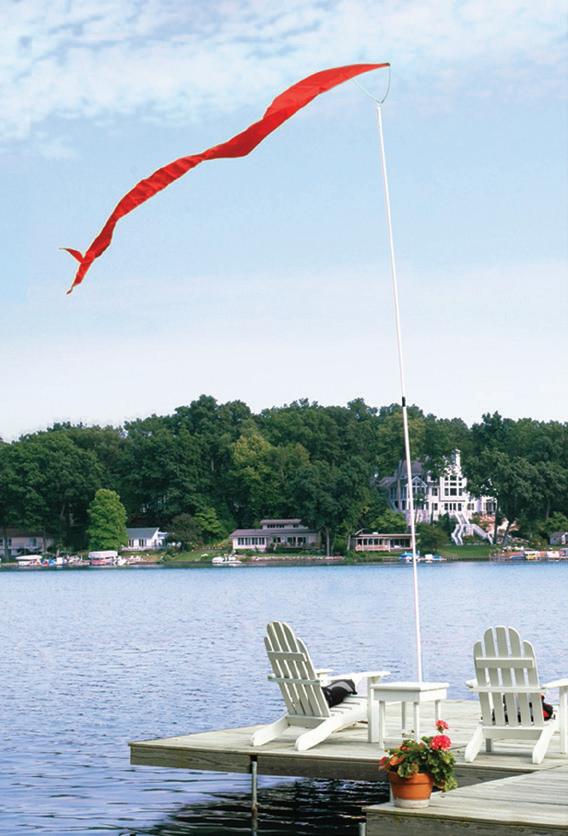

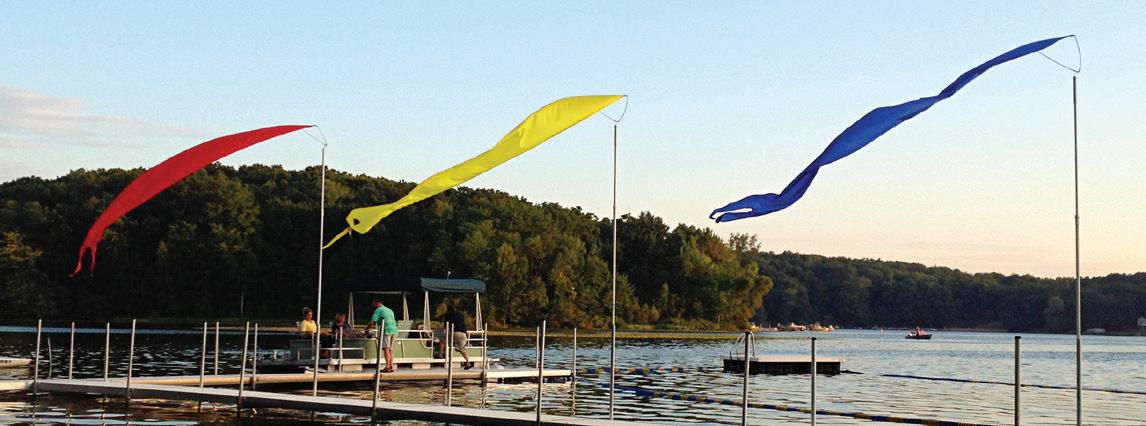

FOR WATERSIDE APPLICATIONS WHERE THE BIRD DETERRENT AFFECT IS AS IMPORTANT AS THE ATTENTION- GETTING COLOR AND FLUTTER OF DORI POLE
Note: The 19’ telescoping poles with the 14’ long by 24” pennants are most effective These three-piece poles are ideal where port abilit y and storage are a priorit y May be transported in most cars
PATRIOTIC BIRD DETERRENT
DOCK
MOUNT KIT
Includes 14’x24” Patriotic Pennant, 19’ Fiberglass Pole and Dock Mount Kit $284.85
The three-piece fiberglass pole extends from 7-1/2’ to 19’, with rot ating yoke, 14’ long Patriotic pennant and heav y-dut y Dock Mount Kit.
Ships via standard ground.
SOLID
COLOR BIRD DETERRENT DOCK MOUNT KIT
Includes Solid Color 14’ long Pennant, 19’ Fiberglass Pole and Dock Mount Kit $263.85
The three-piece fiberglass pole extends from 7-1/2’ to 19’, with rot ating yoke, 14’ long solid color pennant and heav y-dut y Dock Mount Kit
Ships via standard ground.
TWO-COLOR
BIRD DETERRENT DOCK MOUNT KIT
Includes Two-Color 14’ long Pennant, 19’ Fiberglass Pole and Dock Mount Kit $273.85
The three-piece fiberglass pole extends from 7-1/2’ to 19’, with rot ating yoke, 14’ long t wo-color pennant and heav y-dut y Dock Mount Kit Ships via standard ground.
SEE THE WEBSITE FOR OTHER KIT COMBINATIONS AND FOR SHORE AND GROUND MOUNT HARDWARE, AS WELL AS OTHER SIZE POLES AND THE 8’ LONG BY 18” WIDE PENNANTS
DORI POLE PENNANT COLORS
Solarmax® Nylon Colors
Solid Colors (available in 14’ x 24” and 8’ x 18”)
Collegiate Color Combinations (available in 14' x 24" ONLY) • *Also available in 8’ x 18”
(available in 14' x 24" and 8'
Custom colors
Please contact a sales representative to discuss custom color options. Please note, custom colors require a minimum quantity order.
Lavender
Pansy
D M Green
Golden Poppy
Crocus
Turquoise
Mint Green
Nickel
Stock
White
FM Yellow
Spanish Yellow
Gold Orange
Irish Green
Canada Red
Ruby
Spice Brown
Magenta
French Blue
Royal Blue
O G. Blue (Navy)
Black
White & Canada Red *
White & Irish Green
White & Ruby
* White & French Blue
French Blue & FM Yellow *
White & Royal Blue
O G. Blue & Orange & Spanish Yellow
Canada Red
Ruby & Gold
Spice Brown & Gold Pansy & Spanish Yellow Orange & Black Gold & Black
Black & Spanish Yellow
O G. Blue (Navy) & White
* Irish Green & Spanish Yellow
* Canada Red & Nickel
Irish Green & Canada Red
O G. Blue (Navy) & Gold *
O G. Blue (Navy) & Daffodil (Maize) *
x 18")
Patriotic
Dori Pole 19’, Th r ee-Piece, Telescoping Height
Pole 13.5’, Mid-Rise Two-Piece, Telescoping Height
Inst allation Instructions & Ideas
For Dori Pole & Dori Pole Jr
Mounting Dori Poles into the ground
Use of the DP Ground Stakes – temporary installations
All Dori Poles versions can be installed into earth using the Ground Stake Options. The JR uses a smaller model. This is considered “temporary” mounting because repositioning may be necessary occasionally due to prevailing winds potentially allowing the stake to eventually tilt a bit, requiring re-staking.
1. When pounding the Ground Stakes into earth protect the top with a wood block to absorb some of the force to prevent the metal stake top from disfiguring.
2. Stake should be driven deeply enough so the round metal stop is flush with the ground (see illustration).
3. Next, for the taller poles, slip the 1” aluminum bushing tube over the exposed Ground Stake. This tube insures a straight, vertical installation and prevents the top of the Ground Stake from rubbing against the inside of the Dori Pole and eventually damaging it. The JR does not have this tube.
4. Raise the Dori Pole to vertical and slip over the Ground Stake. For the JR, slip into the Stake.
Use of the DP Ground Sleeves – permanent installations
The DP Ground Sleeves are meant to be encased in concrete in a hole. The taller Dori Poles use a 2” PVC pipe especially configured for this. The DP Junior uses the Ground Stake, noted above, for this purpose and would be encased in concrete.
1. The hole for the taller poles should be at least 8” in diameter and deep enough for Sleeve to protrude about 1” above the ground surface. For the DP Junior, 6” diameter is sufficient. Provide gravel or stone drainage under the Sleeve, as shown on illustration.
2. Place 2” or more loose gravel into hole for drainage, insert the Ground Sleeve and backfill with quick-setting post hole concrete, with the top surface sloping down from Sleeve for drainage.

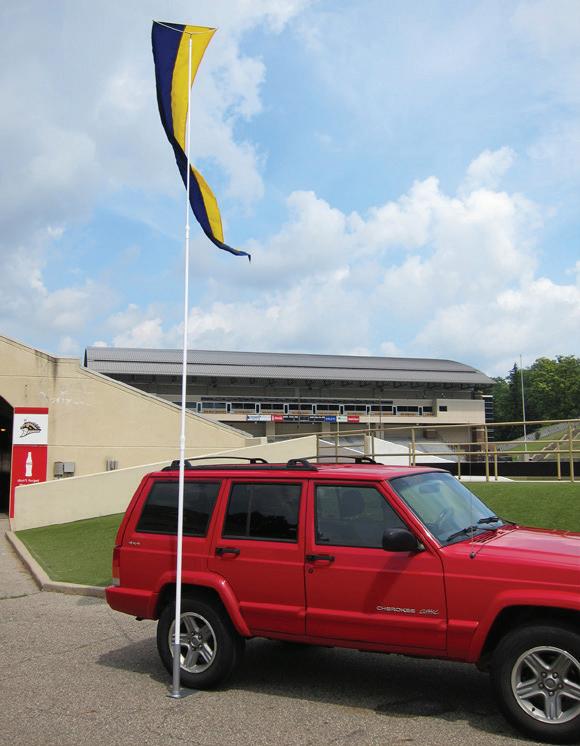

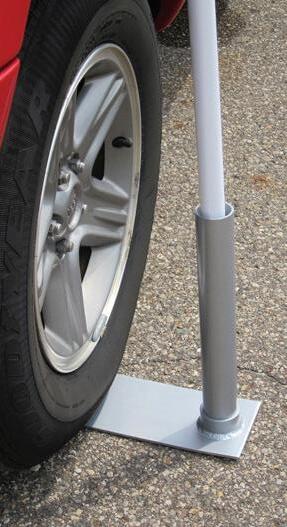

The Dori Pole Wheel Stand for mounting next to vehicles (not for DP Junior)

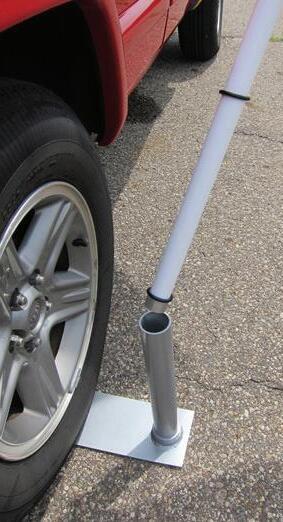

Position DP Wheel Stand under tire before inserting the Dori Pole. Be sure to slip the two DP O-Rings onto the bottom of the pole, as shown, before inserting pole into Wheel Stand.
*Note: gravel at bottom of hole prior to concrete for drainage.
DORI POLE • LAKE DOCK MOUNTING OPTIONS...

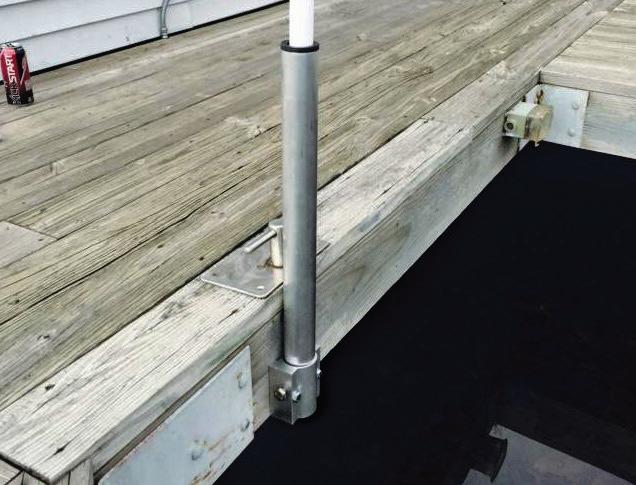

Option A - Dori Pole Dock Mount Kit

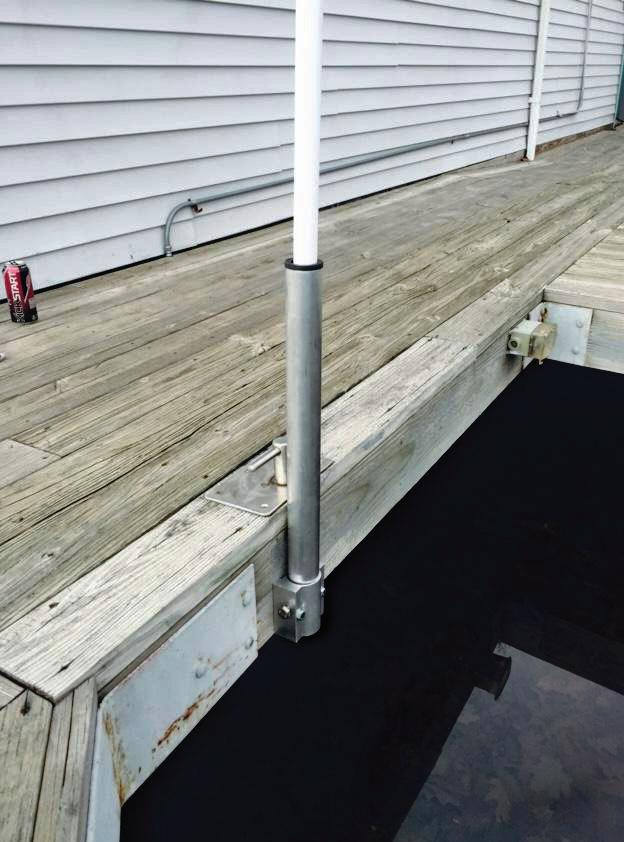

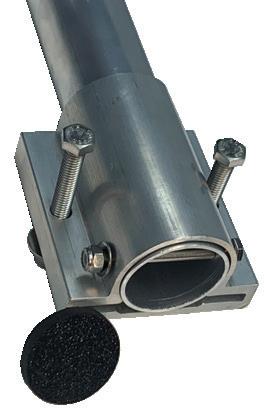

This Kit makes mounting a Dori Pole to your dock or other similar surface snap The Dock Mount Kit is recommended for use with the 13.5’ Mid-Rise and the 19’ Three-Piece telescoping Dori Poles. The Kit includes two 3” long x 3/8” stainless steel horizontal bolts, washers and two lock nuts to mount to standard aluminum dock or “2X” wood stringers. This Kit is a durable, heavy duty product.
• Durable 24”long x 2” O.D. aluminum pipe and heavy-duty aluminum mounting bracket & bolts.
• All metal components are aluminum and stainless steel.
• Includes the Dock Pole Bushing and a 1-3/4” plastic pad to protect Dori Pole bottom from damage by the through-bolt.
Option B - If you have dock posts into which a Dori Pole will fit
If your post has an interior diameter of 1-7/16” or more you can slip the Dori Pole into the post. The Dori Pole should go down into the post at least 18” and we suggest that a hole be drilled at that 18” mark through the post and a horizontal bolt be placed through the post for the Dori Pole to rest on. Or, you can put a filler of some sort, such as a wood stick or plastic pipe, etc. to take up the space between the lake bottom and up to 18” from the top of the post.

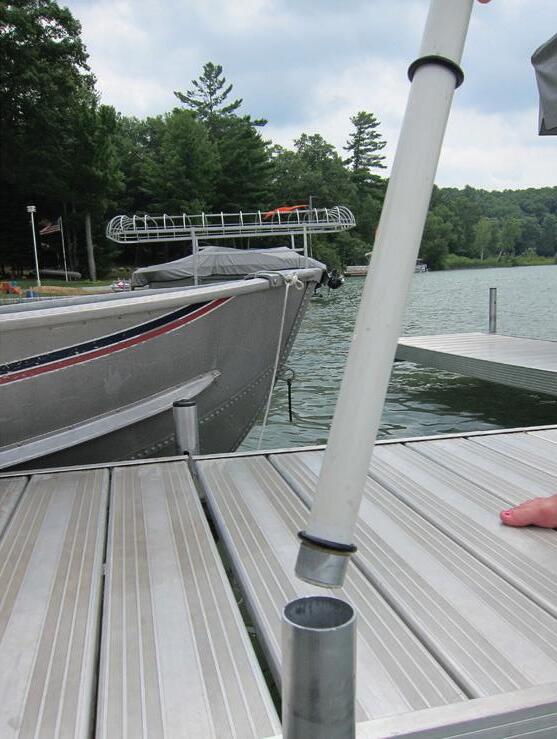

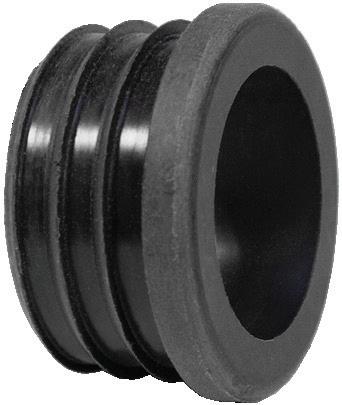

If there is more than 1/8” total “play” in the dock post after the Dori Pole is installed we suggest that the fiberglass pole be protected from damage from the metal post top edges with our DP O-Rings, placed onto the Dori Pole as shown in the photos. Or you can also use our Dock Pole Bushing* or several wraps of electrical tape and so on. Place the top O-Ring or the top wrap of tape very close to the top of the dock post so the Dori Pole does not rub against the dock post.
See our Dock Pole Bushing* (on page 7) if you have a 2” post.
Option C – The Dori Pole Dock Mount DIY Bracket
If you want to add a single 2” post to your dock just to hold Dori Pole

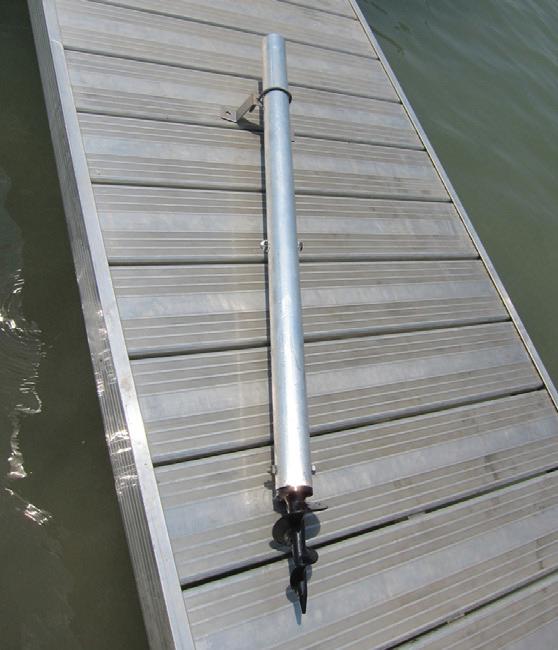

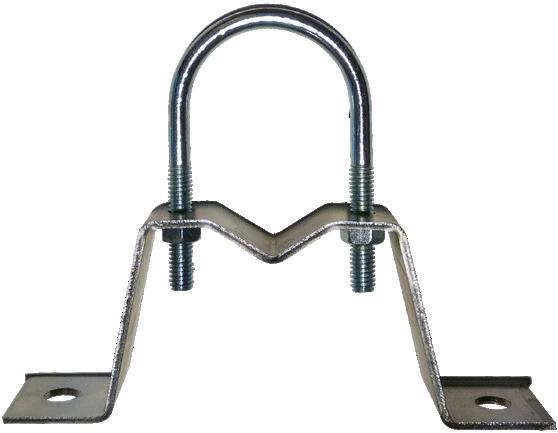

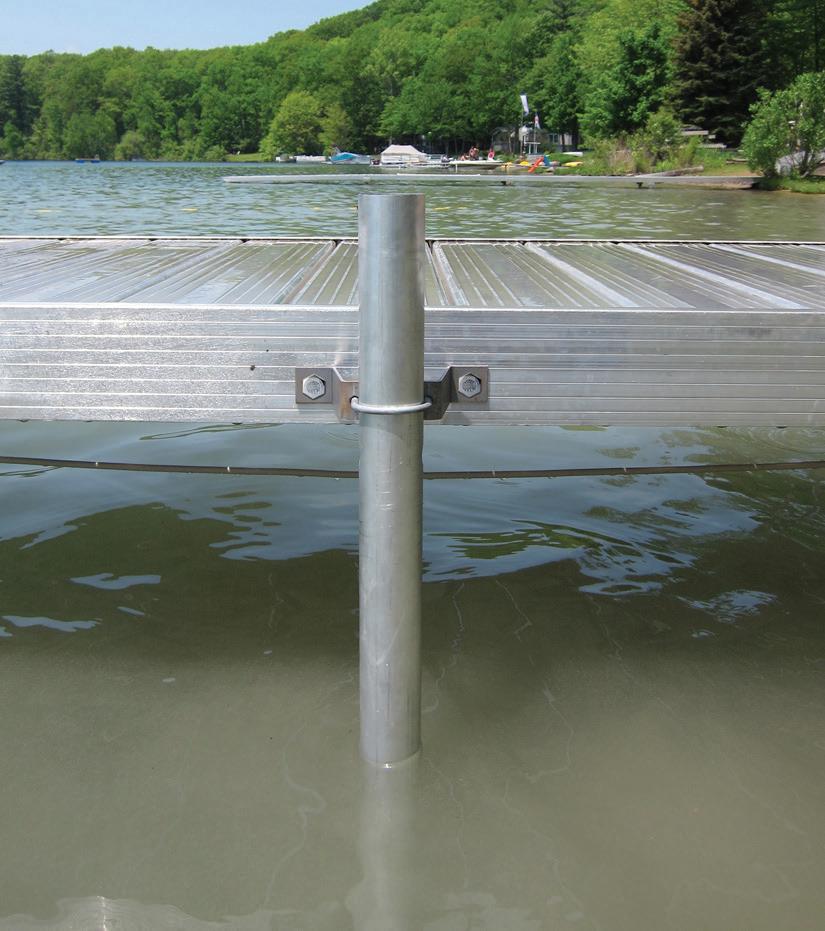

If you don’t have dock posts, we manufacture a bracket that includes a U-bolt. This is a perfect way to mount a 2” O.D. aluminum dock post (tube) next to your dock. This would be a post that you would source from a marine or hardware store that might be 4 feet to 8 feet tall depending on how deep your lake is at the point of installation, as illustrated in the photos. You would simply measure from where you want the top of the pipe down to the lake bottom and purchase that length of pipe along with either an “auger” screw bottom or a flat plate bottom –both of which are available in cast aluminum or injected plastic. This bracket with U-bolt, would secure your post to your dock. See Option B above, to learn about the horizontal bolt you would need to put about 18” down, as well as the O-Rings or dock pole bushing. (continued on page 7 )
DORI POLE • LAKE DOCK MOUNTING OPTIONS
Option C. (continued)
Sourced from Your Local Marine or Hardware Store:
1 - 2” O D. aluminum dock post - length needed determined by your lake depth
1 - Auger or bottom plate for the 2” post
1 - 2.5” bolt (1/4 x 20) w/nut - for horizontal “stop”
2 - Bolts to fasten Bracket to dock
Available from Dori Pole by Consort:
1 - Dori Pole Dock Mounting Bracket
Other mounting ideas on or near the dock:
There are many ways to secure a Dori Pole for display. If you have a boat lift, you can secure the Dori Pole to an upright with worm-gear banding , available at any hardware store. You can also display it on the shore line with one of our Ground St akes In this case, you may need to reposition it occasionally as shoreline ground tends to be softer, causing the Dori Pole to lean a bit after a while. Or, for a more permanent ground mount use our Ground Sleeve and permanently sink it into a concrete foundation.
INSTALLING THE DORI POLE PENNANT
Affixing the springs to pennant and ¼” rods to yoke:

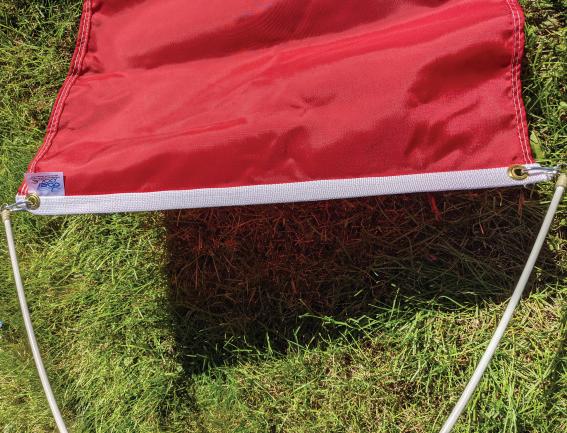

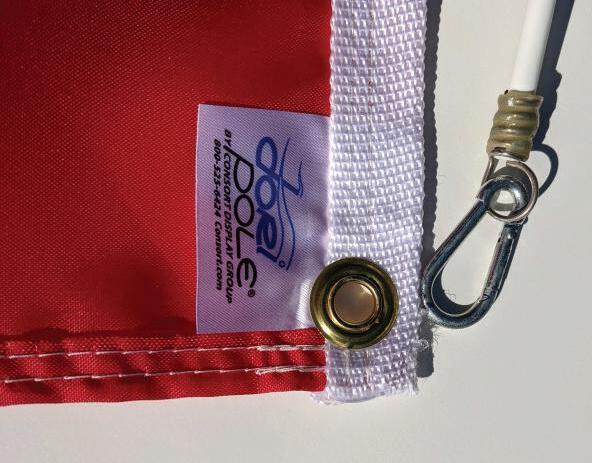

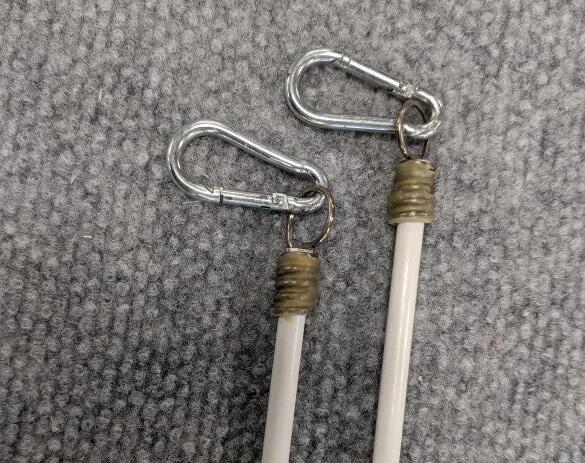

Attach one fiberglass Ring Top Arm with carabiner to one of the two pennant grommets (your pennant may have arrived with the carabiners already attached). Next, attach the other carabiner to the other grommet (keeping that carabiner unattached from the Ring Top Arm. Then, put arms all the way into the Yoke tubes and bend the un-attached Arm toward the pennant and snap the carabiner onto the Ring Top.
See pennant installation video at: www.doripole.com/instructional-videos
Dori Pole JR - Raft Mounting Plate

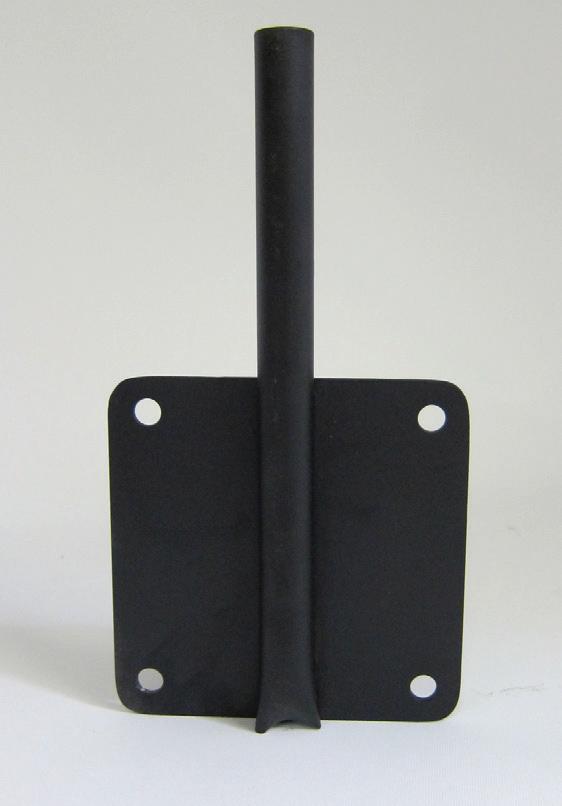

This black coated steel plate measures 5” x 5” and intended to be bolted or lag bolted to the side of rafts to display the Dori Pole JR. Fasteners not included
