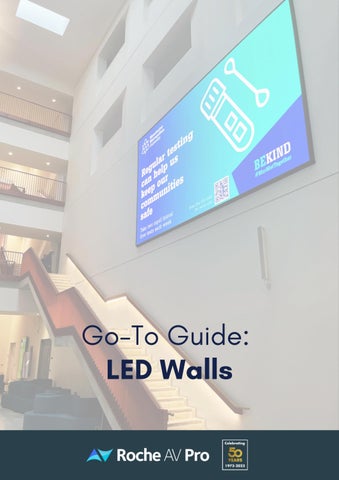

Go-To Guide: LED Walls Celebrating

1973-2023

Unrivalled Experience

52+

400+

Years Industry Experience

Years Staff Experience

Proven Track Record

12K+

65K+

Clients across all sectors

Installations

Industry Connections

2K+

We work with over 2000 partners & brands offering tens of thousands of products...

Partners & Brands

Professional Development

5K+

Staff Enrolments in Industry and accredited training courses, certifications & workshops

Contents Multi-Award-Winning experts in LED What is pixel pitch?

LED Technology Types Custom LED Displays LED displays components All-in-One LED Displays AIO vs Custom LED LED vs LCD vs Projection LED for sustainability

Contents | consult@rocheav.co.uk | 01422 310 193

Multi-Award-Winning LED Experts Global Education Case

SMART CLASSROOM PIONEER AWARD 2025 SHAPING INTELLIGENCE Education Summit, Singapore

We are a multi‑award‑winning specialists in LED installations. Our projects at MK College, South Central Institute of Technology and the University of Bradford have been celebrated both in the UK and internationally, including AV News Winner 2024, CPC Supplier Excellence Award Winner 2024 and the Smart Classroom Pioneer Award 2025, presented at a global education summit in Singapore.

Browse our latest LED wall projects here.

Multi-Award-Winning LED Experts | consult@rocheav.co.uk | 01422 310 193

What is Pixel Pitch?

The spacing between the pixels.

This determines how densely the pixels are packed, which affects image resolution and viewing distance.

Optimal Viewing Distances 12m . .. . ..

10m . .. . ..

8m . .. . ..

7m . .. . ..

6m . .. . ..

4m . .. . ..

3m . .. . ..

1.5m . .. . ..

12mm P12

10mm P10

8mm P8

7mm P7

6mm P6

4mm P4

3mm P3

1.5mm P1.5

Fine Pixel Pitch (FPP) <2mm

(LED Pixel Pitch in mm) The LED screen resolution is opposite proportional to the Pixel Pitch

Minimum viewing distance general rule: the pixel pitch x1000 Optimum viewing distance general rule: the displays width or height. Eg 10m wide screen should be viewed from 10m back for the eye to take in all the information on the screen.

What is Pixel Pitch? | consult@rocheav.co.uk | 01422 310 193

LED Technology Types Understanding LED technology types is key to selecting the right solution for your environment.

Different manufacturing methods impact durability, image quality, viewing distance, and long-term reliability. We design solutions using the most appropriate technology for the application—whether that’s a high-impact reception display, lecture theatre, or high-traffic public space.

SMD (Surface-mounted device)

COB (Chip-on-Board)

Forms the back-bone of most modern LED walls. Each pixel is made up of red, green & blue diodes mounted directly onto the surface of the panel.

Mounts multiple LED chips directly onto the board and covers them with a protective layer, creating a smoother, more durable surface.

Proven, cost-effective solution Excellent brightness and colour performance For meeting rooms, classrooms & auditoriums Available across a wide range of pixel pitches

Improved durability and impact resistance Reduced risk of LED damage or failure Better heat dissipation for longer lifespan Ideal for high-use environments

GOB (Glue-on-Board)

HOB (Hybrid-on-Board)

Adds a transparent protective coating over traditional SMD LEDs, enhancing durability without significantly impacting image quality.

Combines the benefits of SMD and COB, offering improved protection while maintaining high brightness and colour performance.

Protection against dust, moisture & damage Easy to clean and maintain Suitable for public & high-touch environments More robust than standard SMD

Enhanced durability, no compromise on clarity Improved viewing angles Balanced performance for mixed-use environments Increasingly popular in education & corporate

MIP (Micro-LED-in-Package)

An emerging technology that packages extremely small LED chips into compact modules, delivering exceptional image quality.

Ultra-fine pixel pitch for close viewing distances High contrast and colour accuracy Future-proof, premium solution Ideal for flagship spaces & high-end applications LED Technology Types | consult@rocheav.co.uk | 01422 310 193

In summary While SMD remains the most common & cost-effective option, newer technologies such as COB, HOB and MIP are rapidly gaining traction — particularly where durability, image quality, and longevity are key considerations.

Custom LED Displays

Customisable LED displays provide the ultimate level of flexibility, enabling fully bespoke solutions tailored to your space, application & visual requirements. Unlike All-in-One LED, which is delivered in fixed sizes & formats, custom LED walls are built from individual cabinets, allowing complete freedom over size, shape, resolution & performance. We design and deliver fully bespoke LED solutions that align precisely with the environment - whether that’s a large lecture theatre, immersive teaching space, reception feature wall, or high-impact corporate installation.

Key Benefits of Custom LED Custom LED solutions are designed for projects where standard display sizes or formats are not sufficient, offering complete control over both performance and aesthetics.

Bespoke Sizing: can be built to virtually any size or aspect ratio, ensuring it fits the space perfectly.

Flexible Resolution & Pixel Pitch: Choose the ideal pixel pitch based on viewing distance & content.

Choice of LED Technology: Select from SMD, COB, HOB, or emerging technologies.

Creative Designs: concave/convex curved installs, ultra-wide formats & non-standard shapes.

Internal & External Use: High-brightness / weatherproof for external facades, signage & displays.

Scalable Performance: Brightness, refresh rate & processing can be specified to suit the use case.

Seamless Visual Experience: No bezels / visible joins, delivering an immersive, uninterrupted image.

Future-Proof: Modular design allows for component-level maintenance, upgrades and expansion.

Why Choose Custom LED? The ideal solution where impact, flexibility & precision matter most. It allows organisations to design a display around their exact requirements rather than adapting their space to fit a fixed-size LED. From flat walls to fully curved installs & from internal spaces to external high-brightness signage, custom LED provides a scalable, future-ready platform that can evolve alongside your needs.

Custom LED Displays | consult@rocheav.co.uk | 01422 310 193

LED Display Components I Module

Cabinet

HDMI

Media Player

CAT 5/6

Sending Box Rear View

1 Controller / Processor 2 Receiver Card 3 Cabinets 4 Modules 5 Framework

1

2

4

5

LED Display Components | consult@rocheav.co.uk | 01422 310 193

3

All-in-One LED Displays

All-in-One (AIO) LED displays represent the next evolution of LED technology, combining performance, simplicity, and speed of installation into a single, integrated solution. Unlike traditional modular LED walls, All-in-One systems are pre-configured and designed for rapid deployment with minimal infrastructure requirements. As highlighted across our LED installations, LED technology already offers seamless visuals, high brightness, and long-term reliability—All-in-One builds on this by simplifying the entire deployment process.

Key Benefits of All-in-One LED Designed to remove the complexity traditionally associated with LED installations, making them ideal for education, corporate, and public sector environments.

Lightweight Design: Slimline, pre-built cabinets significantly reduce wall loading requirements.

Single Power Source: Typically powered from a standard socket, no complex electrical infrastructure.

Rapid Installation: Delivered as a complete system, allowing installation in hours rather than days.

Integrated System Components: Built-in controller/audio/OPS reduces need for additional hardware.

Clean, Minimal Aesthetic: Designed to look like a large format display rather than a traditional video wall.

Front Maintenance Access: Modules can be serviced from the front, reducing downtime.

Scalable & Future Ready: Offering flexibility while maintaining a simplified deployment model.

Flexibility for a wide range of spaces: Common sizes include 108”, 136”, 163”, 180”, 217” and 220”.

Why Choose All-in-One LED? Provides the visual impact of a traditional LED wall, without the complexity. It bridges the gap between large format displays & fully bespoke LED builds - delivering a premium solution that is faster to deploy, easier to maintain & more accessible from a budget & infrastructure perspective.

All-n-One LED Displays | consult@rocheav.co.uk | 01422 310 193

AIO vs Custom: Which LED is right for you?

LED technology offers two primary approaches: All-in-One LED and Custom LED solutions. Both deliver the core benefits of LED: seamless visuals, high brightness & long-term reliability - but are designed for different applications and project requirements.

All-in-One LED: A pre-configured, integrated solution, designed for simplicity & speed of deployment.

Fixed, proven size range (108–220”)

Fast installation with minimal infrastructure

Integrated components (power, control, audio)

Replaces projection or large format displays

Custom LED: A fully bespoke solution, built from modular panels to meet exact requirements.

For Large or nonstandard spaces

Ideal for feature walls & high-impact environments

Curved, ultra-wide, indoor & outdoor applications

Projects requiring specific resolution or pixel pitch

Which Should You Choose?

If your requirement is a standard-sized display with fast deployment and controlled costs, All-in-One LED is typically the ideal solution.If your project requires maximum impact, flexibility, or a tailored design, Custom LED provides the freedom to create a solution that fits your space exactly.

AIO vs Custom: Which LED is right for you? | consult@rocheav.co.uk | 01422 310 193

LED vs LCD vs Projection NEW LED

OLD LCD

Case Study - University of Sunderland swapped LCD video walls for LED walls When selecting a large format display solution, organisations typically choose between LED, LCD video walls & projection systems. Each technology has traditionally been associated with different price points & performance levels. However, with the evolution of All-in-One LED solutions, this landscape has changed significantly. LED is no longer a premium-only option - it is a commercially viable alternative that often aligns closely with the cost of high-performance projection & video wall systems. At Roche AV, we support customers in selecting the right solution based not only on upfront cost, but on long-term value, usability, and performance.

LED Displays: now widely considered the most future-ready display technology.

Seamless image: no bezels or joins High brightness: consistent in all lighting conditions Long lifespan with minimal maintenance requirements All-in-One solutions reduce install/infrastructure costs Now cost-comparable to high-end projection systems With the introduction of All-in-One LED, organisations can achieve large-format displays without the complexity or historic cost barriers traditionally associated with LED. LCD Video Walls: use multiple LCD panels tiled together to create a larger display surface.

Moderate upfront cost Good image quality suitable for standard applications Visible bezels between panels can interrupt the image Requires precise installation and alignment Ongoing maintenance and panel replacement over time While cost-effective initially, video walls can become less attractive when considering long-term maintenance and visual limitations.

LED vs LCD vs Projection | consult@rocheav.co.uk | 01422 310 193

Projection Systems: historically the go-to solution for large image sizes in large venues.

Traditionally perceived as the lowest cost for large displays Suitable for controlled or low-light environments Simple concept, but very complex at higher performance levels

For large, high-brightness applications, costs increase significantly. For example: A large venue projector capable of producing a 4.8m wide image at 25,000 ANSI lumens can typically cost in the region of £30,000 (excluding full installation and infrastructure) This compares to a 217” All-in-One LED, which delivers superior brightness, clarity & reliability Additional considerations include: Image quality impacted by ambient light, Ongoing maintenance (laser/lamp servicing, filter cleaning), Alignment and calibration requirements and Ceiling mounting and line-of-sight constraints

Feature

LED

Video Wall

Projection

Image Quality

Excellent

Good

Moderate

Brightness

Very High

Medium

Low–Very High*

Seamless Display

Yes

No (bezels visible)

Yes

Maintenance

Low

Medium

High

Lifespan

Long

Medium

Short–Medium

Best Environment

Any

Controlled spaces

Low-light / specialist

Flexibility

Very High

Medium

Low

Cost Position

Now Comparable

Moderate

High at scale

*High brightness projection significantly increases cost

Which Should You Choose?

While projection and video walls still have their place, the gap between technologies has narrowed significantly. As a result, many organisations are now choosing LED not as a premium upgrade—but as a like-for-like alternative that delivers greater long-term value.

With the introduction of All-in-One LED, organisations can now achieve: Comparable upfront cost to high-end projection Superior image quality in all lighting conditions Reduced maintenance and operational overhead A more flexible, future-proof display solution

LED vs LCD vs Projection | consult@rocheav.co.uk | 01422 310 193

LED for Sustainability

LED walls are generally more eco-friendly than traditional LCD video walls Superior energy efficiency Longer lifespan Reduced use of hazardous materials Less power consumption & longer lasting - results in fewer replacements and lower electronic waste Contains fewer toxic substances such as mercury making them easier and safer to recycle Traditional LCD displays use more energy, have shorter lifespans and are more challenging to recycle

LED for Sustainability | consult@rocheav.co.uk | 01422 310 193
