PUFH-10016MLCP [PUFH] 100m 16x2mm MLCP Pipe PUFH-20016MLCP [PUFH] 200m 16x2mm MLCP Pipe
Information
Manifolds
Information
16mm PERT EVOH Pipe
PUFH-100EVOH16 [PUFH] 100m 16x2mm EVOH Pipe
PUFH-240EVOH16 [PUFH] 240m 16x2mm EVOH Pipe
[PUFH]

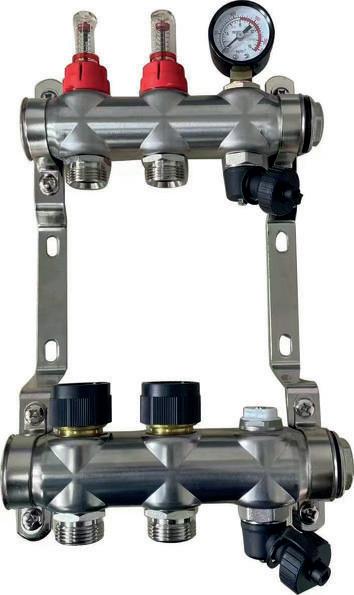

[PUFH] 9 Port Manifold Including
[PUFH] 10 Port Manifold
[PUFH] 11 Port Manifold Including
Manifolds
Manifold Accessories

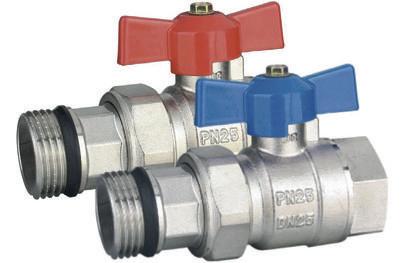

Isolation Valves
Product Code Description
PUFH-34INBALLVAL [PUFH] 3/4" Ball Valve (Red/Blue) Pair
PUFH-1INBALLVAL [PUFH] 1" Ball Valve (Red/Blue) Pair
Manifold Controls

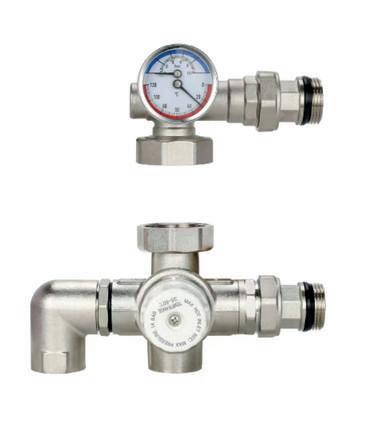

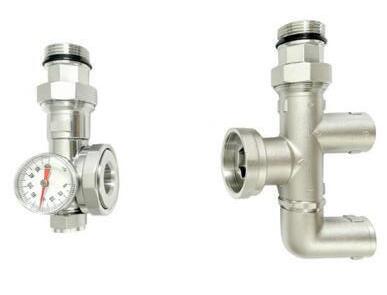

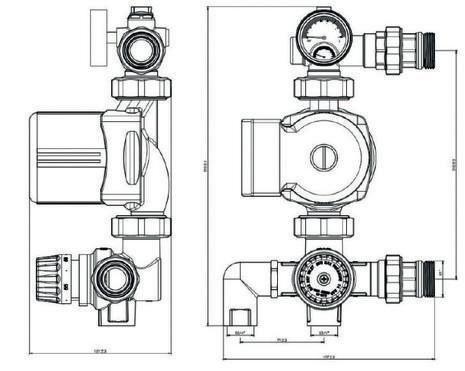

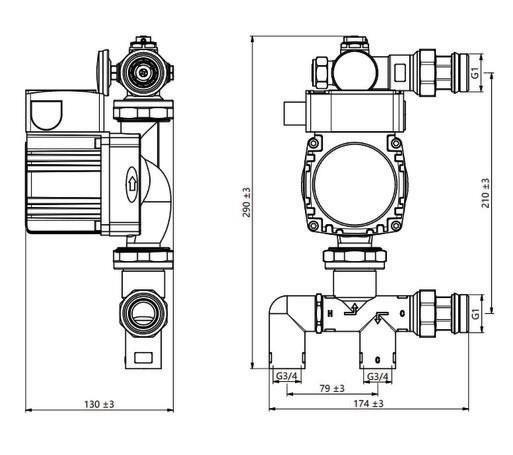

Mixing Valve
Product Code Description
PUFH-MIXINGVALVE [PUFH] UFH Mixing Valve
Key Information
Temperature Control: 35-60oC
Manifold Connection Thread: Male 1” BSP
Inlet Thread: Female: ¾” BSP

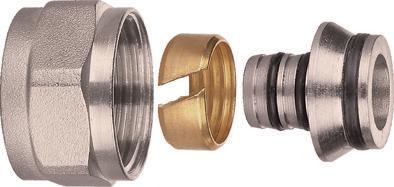

Manifold Pipe Connectors
Product Code Description
PUFH-16CON [PUFH] 16mm x 2mm Pipe Connectors (Single)
Pump Connections: 1 ½” BSP
Manifold Bar Centre: 210mm
Product Code Description
PUFH-BENDGUIDE [PUFH] 16mm Pipe Bend Guide

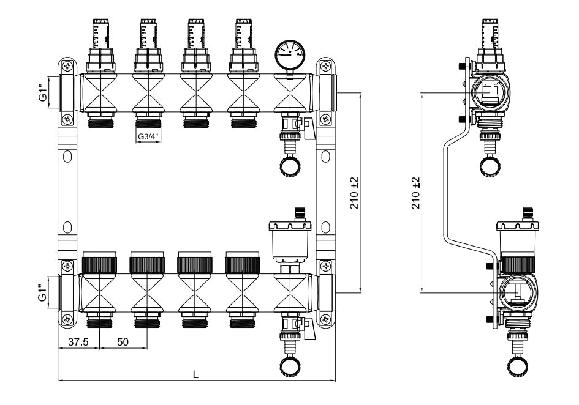

Manifold

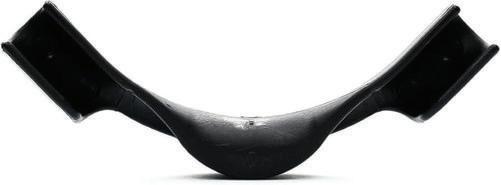

Manifold Pipe Bend Guide
Manifold Controls Manifold Controls
Key Information
Manifold Connection Thread: Male 1” BSP
Inlet Thread: Female ¾” BSP
Pump Connections: 1 ½” BSP
Manifold Bar Centre: 210mm
Key Information
Protection Class: IP44
Supply Voltage: 230v
Connection: DN25
Pump Centre: 130mm
Max Head: 6m

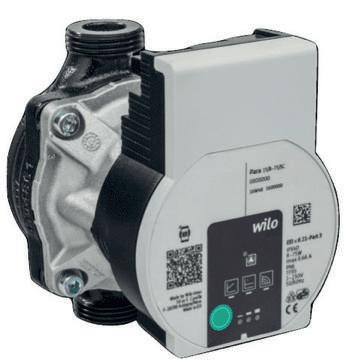

PUFH-PUMP-WILO [PUFH] Wilo UFH Pump 25-60/130
Key Information
Protection Class: IP44
Supply Voltage: 230v
Pump Centre: 130mm Max Head: 6m Wilo UFH Pump Product Code
Connection: DN25

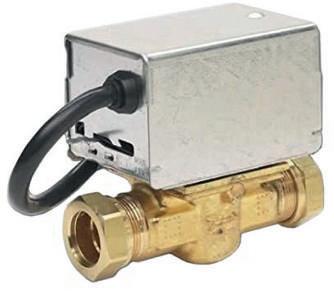

2-Port Valve Product Code Description
PUFH-2PORTVAL [PUFH] 22mm Motorised Valve
Key Information
Type: Synchronous Motor Drive/Spring Return Action
Cable: 1m 5-Core Flex
Switch Rating: 3A
Supply: 230v / 50Hz

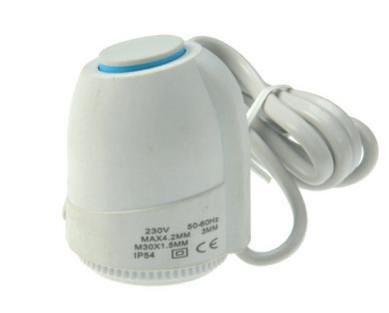

Actuator Head
Product Code Description
PUFH-230VACT [PUFH] 230v 2-Wire NC Actuator Head
Key Information
Model: Normally Closed
Safety Class: IP54
Cable Length 75cm
Connection: M30 x 1.5mm
Stroke Depth: 3.5mm
Running time: 180 Secs
Supply Voltage: 230v
230v Controls Wireless Controls
230v Wiring Centres
Product Code Description

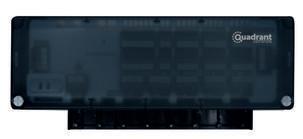

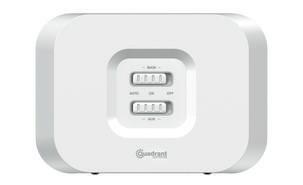

PUFH-NANO5ZONE [PUFH] Quadrant 230v 5-Zone Wiring Centre
PUFH-NANOEXTENSION [PUFH] Quadrant 230v 5-Zone Extension Module
230v Thermostats
Product Code Description

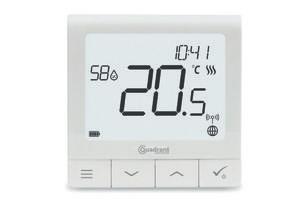

PUFH-NANO-STAT [PUFH] Quadrant 230v NANO Programmable Thermostat
Wireless Wiring Centres
Product Code Description

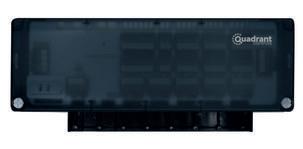

PUFH-NANO-RF [PUFH] Quadrant Wireless 10-Zone Wiring Centre
PUFH-NANOSWITCH [PUFH] Quadrant Wireless 2 Channel Receiver
Wireless Thermostats
Product Code Description

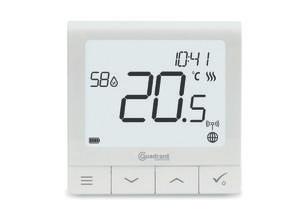

PUFH-NANO-AIR [PUFH] Quadrant Wireless NANO Programmable Thermostat
230V Accessories
Product Code Description
PUFH-NANOHUB [PUFH] Quadrant WI-FI NANO Hub
PUFH-NANOFLOORSENS [PUFH] Quadrant Air/Floor Sensor
PUFH-NANOCASE [PUFH] Quadrant Thimble Case
Wireless Accessories
Product Code Description
PUFH-NANOHUB [PUFH] Quadrant WI-FI NANO Hub
PUFH-NANOFLOORSENS Quadrant Air/Floor Sensor
PUFH-NANOCASE [PUFH] Quadrant Thimble Case
Fixing Systems
Pipe Conduit

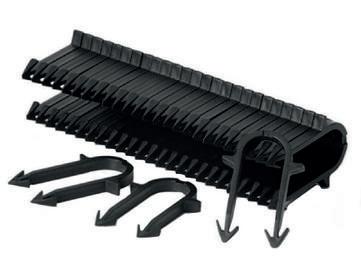

Pipe Staples
Fixing Systems

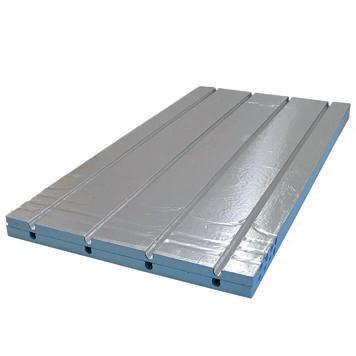

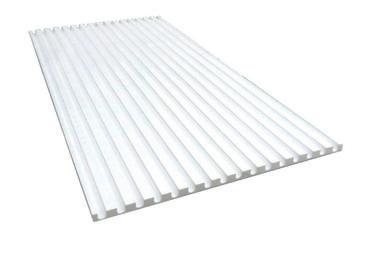

20mm XPS Foil Panel
Product Code Description
PUFH-XPSFOIL-200 [PUFH] 20mm XPS Foiled & Grooved Panel 1200 x 600mm @ 200mm Centres
PUFH-XPSFOIL-150 [PUFH] 20mm XPS Foiled & Grooved Panel 1200 x 600mm @ 150mm Centres
Fixing Systems

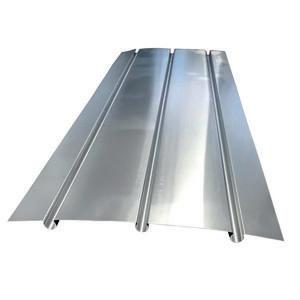

Joists Plates (From Above)
Product Code Description
PUFH-PLATE-200 [PUFH] Aluminium Joist Plate 390 x 1000mm @ 200mm Centres
PUFH-PLATE-150 [PUFH] Aluminium Joist Plate 390 x 1000mm @ 150mm Centres
20mm XPS Backer Board
Product Code Description
PUFH-XPS
BACKER-200
PUFH-XPS BACKER-150
[PUFH] 20mm XPS Cement Coated & Grooved Panel 1200 x 600mm @ 200mm Centres
[PUFH] 20mm XPS Cement Coated & Grooved Panel 1200 x 600mm @ 150mm Centres
Transition Panels
Product Code Description
PUFH20MMTRANS [PUFH] 20mm XPS Transition Panel 1200 x 600mm @ 30mm Centres
Joist Plates (from below)
Product Code Description
PUFH-SINGLEDIFF [PUFH] Aluminium Joist Plate 120 x 1000mm - Single Groove
22mm T&G Chipboard
Product Code Description
PUFH22MMCHIP200 [PUFH] 22mm Chipboard Foiled & Grooved 2400 x 600 @ 200mm Centres
PUFH22MMCHIP150 [PUFH] 22mm Chipboard Foiled & Grooved 2400 x 600 @ 150mm Centres
Tools

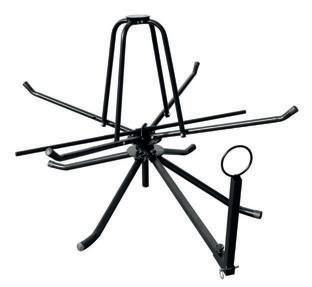

UFH Pipe Decoiler
[PUFH] UFH Pipe Decoiler
Manifold Spares
Compression Repair Coupling
Product Code Description
PUFH-COUPLING [PUFH] 16mm Compression Repair Coupling
Manifold Replacement Flow Meter
Product Code Description
PUFH-FLOWMETER [PUFH] Replacement Flow Metre [1/2” Male BSP]

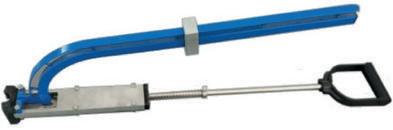

UFH Pipe Staple Gun Product Code Description PUFH-STAPLEGUN [PUFH] UFH Pipe Staple Gun
Replacement Actuator Valve Pin
Product Code Description
PUFH-ACTVALPIN [PUFH] Replacement Actuator Valve Pin [M30 x 1.5mm]

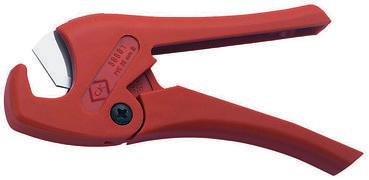

Pipe Cutter
PUFH-CUTTER [PUFH] UFH Pipe Cutter

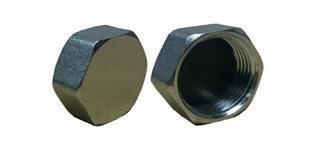

Blanking Cap
Product Code Description
PUFH-BLANKCAP [PUFH] Manifold Blanking Cap [3/4” Female BSP]
Straight Connector
Product Code Description
PUFH-1INSWIVEL [PUFH] Manifold Straight Connector [1” Male Swivel]
UFH
Underfloor Heating Pipes Underfloor Heating Pipes

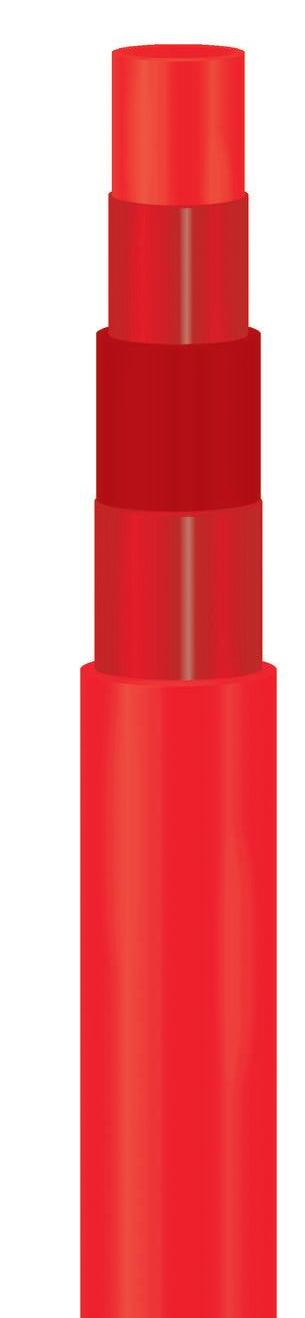

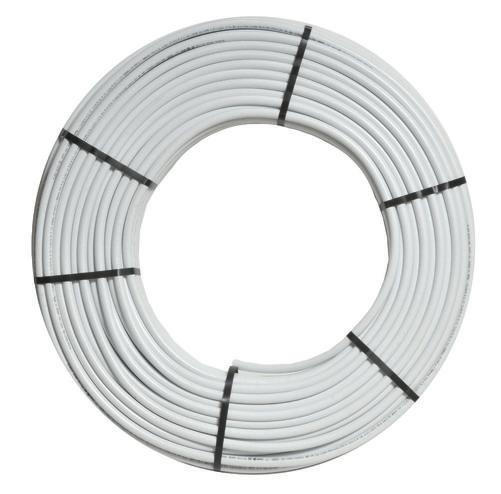

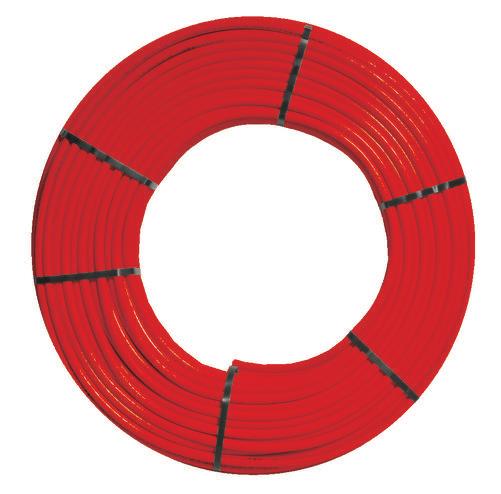

16mm x 2mm
PERT EVOH
Oxygen Barrier Pipe
The pipe is made of flexible and durable raised temperature polyethylene material (PERT). The pipe is additionally protected by the EVOH anti-diffusion barrier, which prevents oxygen from entering the interior of the installation, protecting the other components, such as radiators and valves, against corrosion.
Benefits
• 50 Year Warranty
• Max Temperature: 60oC
• Max Pressure: 6 Bar
• External Diameter: 16mm
• Internal Diameter: 12mm
• Maximum Pipe Length: 110m per loop
• Available Lengths: 100m, 240m & 500m
PERT - Raised Temperature Polyethylene
Bonding LayerAdhesive
EVOH - EthyleneVinyl Alcohol Copolymer - Antidiffusion Layer
Bonding LayerAdhesive
PERT - Raised Temperature Polyethylene
16mm x 2mm

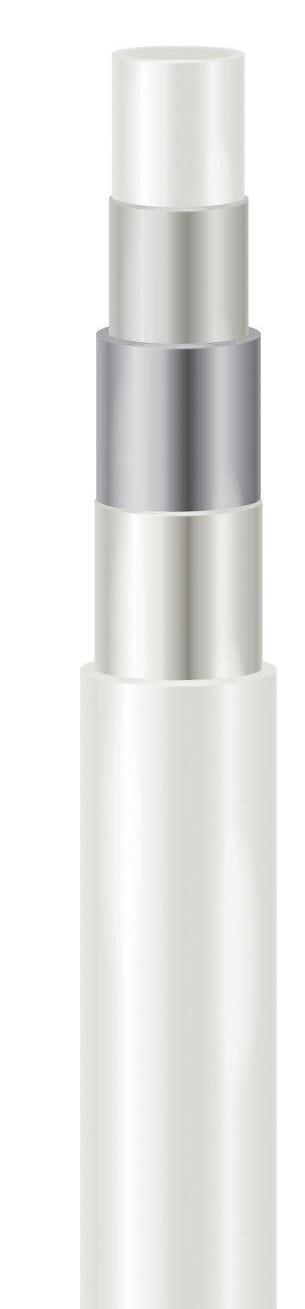

Multi-Layer PERT/AL/PERT Pipe
The pipes have a multi-layer construction. Their core is an ultrasonically welded aluminium tube. After adding layers of plastic (PERT II) to the outside and inside of the aluminium pipe, they obtain a pipe that can work under the simultaneous influence of pressure and temperature of 10 bar and 95°C.
Benefits
• 50 Year Warranty
• Max Temperature: 95oC
• Max Pressure: 10 Bar
• External Diameter: 16mm
• Internal Diameter: 12mm
• Maximum Pipe Length: 110m per loop
• Available Lengths: 100m, 200m & 500m PERT -
PERT - Raised
-
Floor Sections - Screed

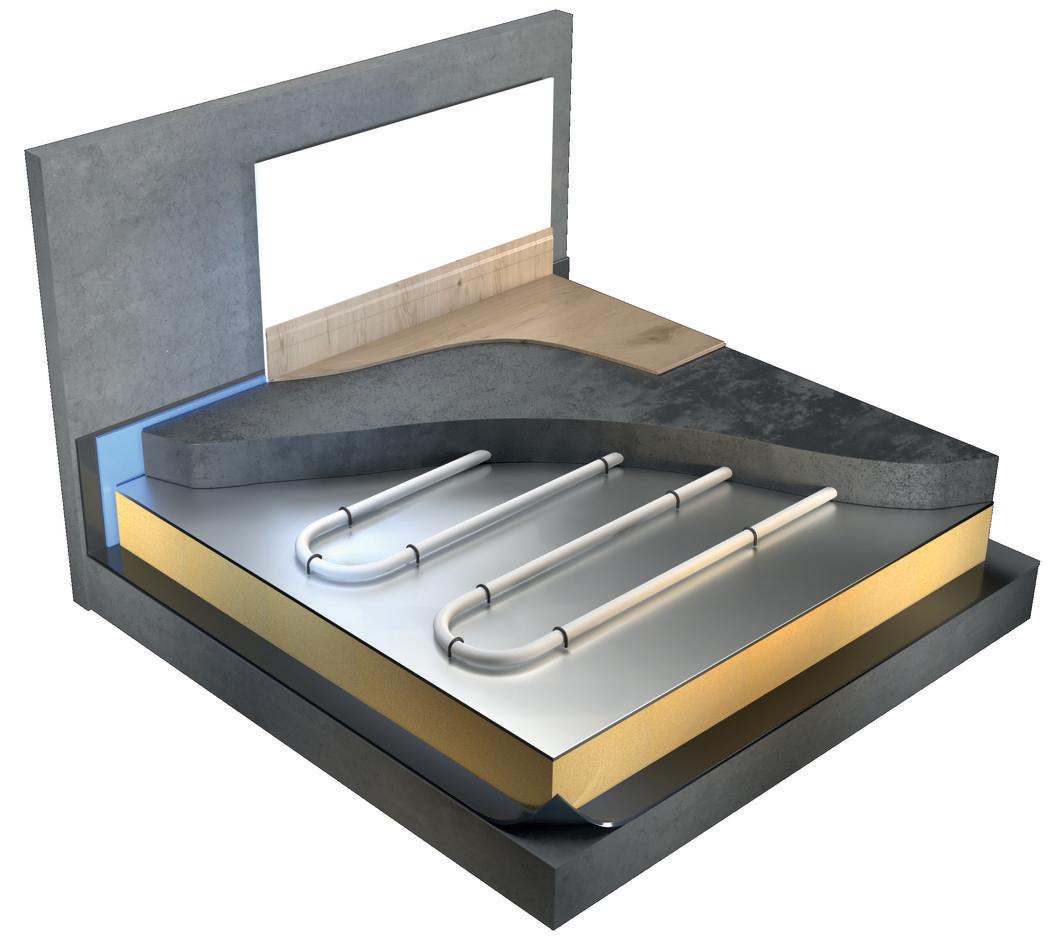

Staple System

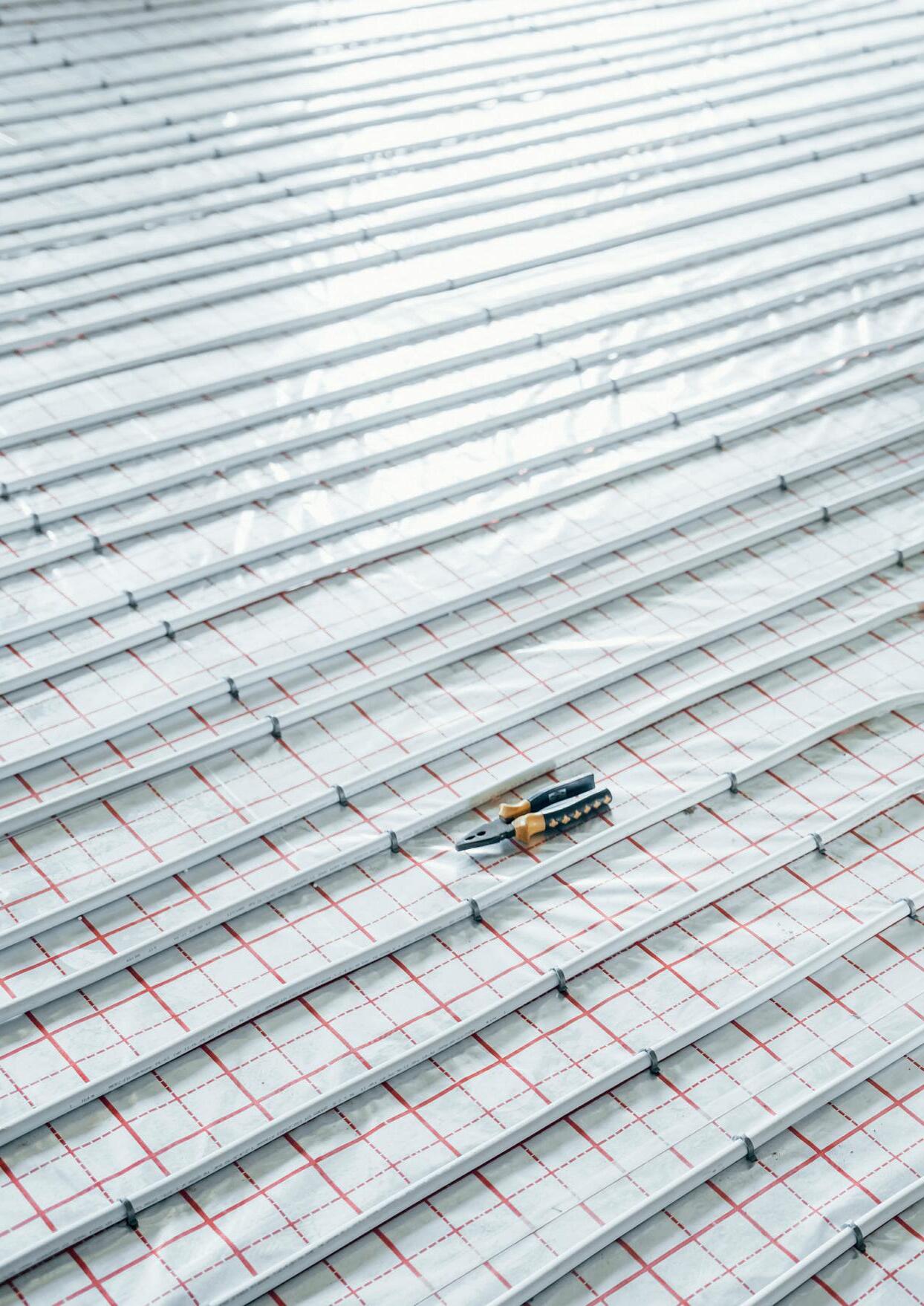

The Staple system is the most traditional way of installing underfloor heating in a screeded floor. Using a plastic barbed staple every 500mm to hold the pipe in place, this system provides a quick, flexible and simple install method. Using a pipe staple gun makes the install quicker and easier.
Key
Points
• Traditional installation method
• Cost effective solution
• Minimal fixing materials required
• Suitable with low temperature heat sources
• Quick & easy installation
Specifications
Pipe Diameter: 16mm x 2mm
Pipe Centres: 150mm / 200mm
Staples: 60mm / 40mm
*Based on a tog rating of 1 with a room temperature of 21 degrees.
Heating Performance
output in W/m2 at a flow water temperature at 45 degrees*
Floor Sections - Screed

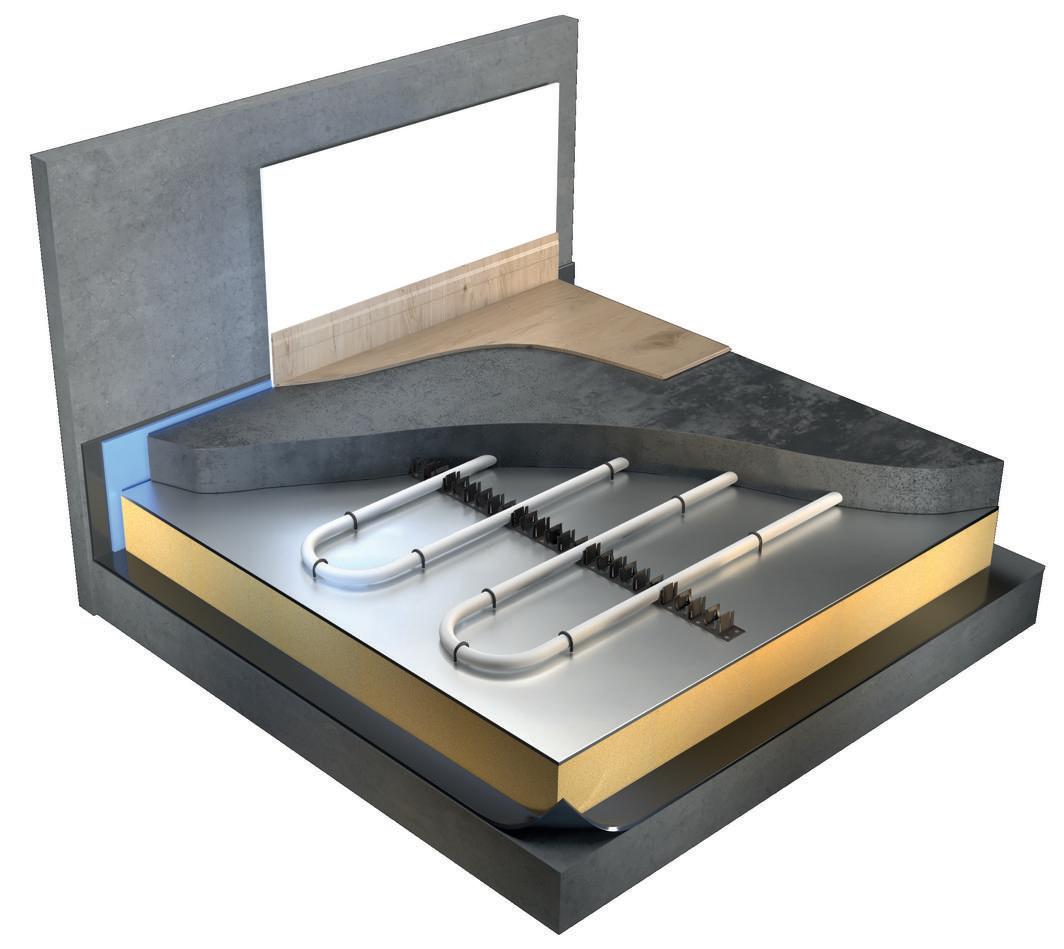

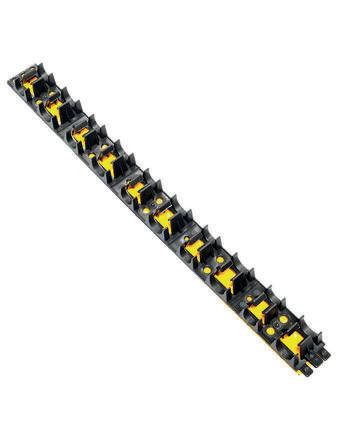

Clip & Rail System
The Clip & Rail system is a quick and simple way to hold pipes in a precise position ready for a screeded floor. The rails interlock to span the width of the room. They also have an adhesive strip to secure to the insulation.
Rails are set 1000mm apart from each other with the pipe clipping into the rail. A staple is used every 500mm to further secure the pipe to the insulation. The rail allows the pipe to be positioned at 150mm or 200mm apart.
Key Points
• Traditional installation method
• Cost effective solution
• Even heat distribution
• Suitable with low temperature heat sources
• Quick & easy installation
Heat Output
Specifications
Pipe Diameter: 16mm x 2mm Pipe Centres: 150mm / 200mm
Staples: 1000mm / 40mm
*Based on a tog rating of 1 with a room temperature of 21 degrees.
Heating Performance
W/m2 W/m2 Heat output in W/m2 at a flow water temperature at 45 degrees*
Floor Sections - Screed

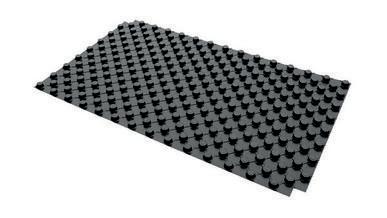

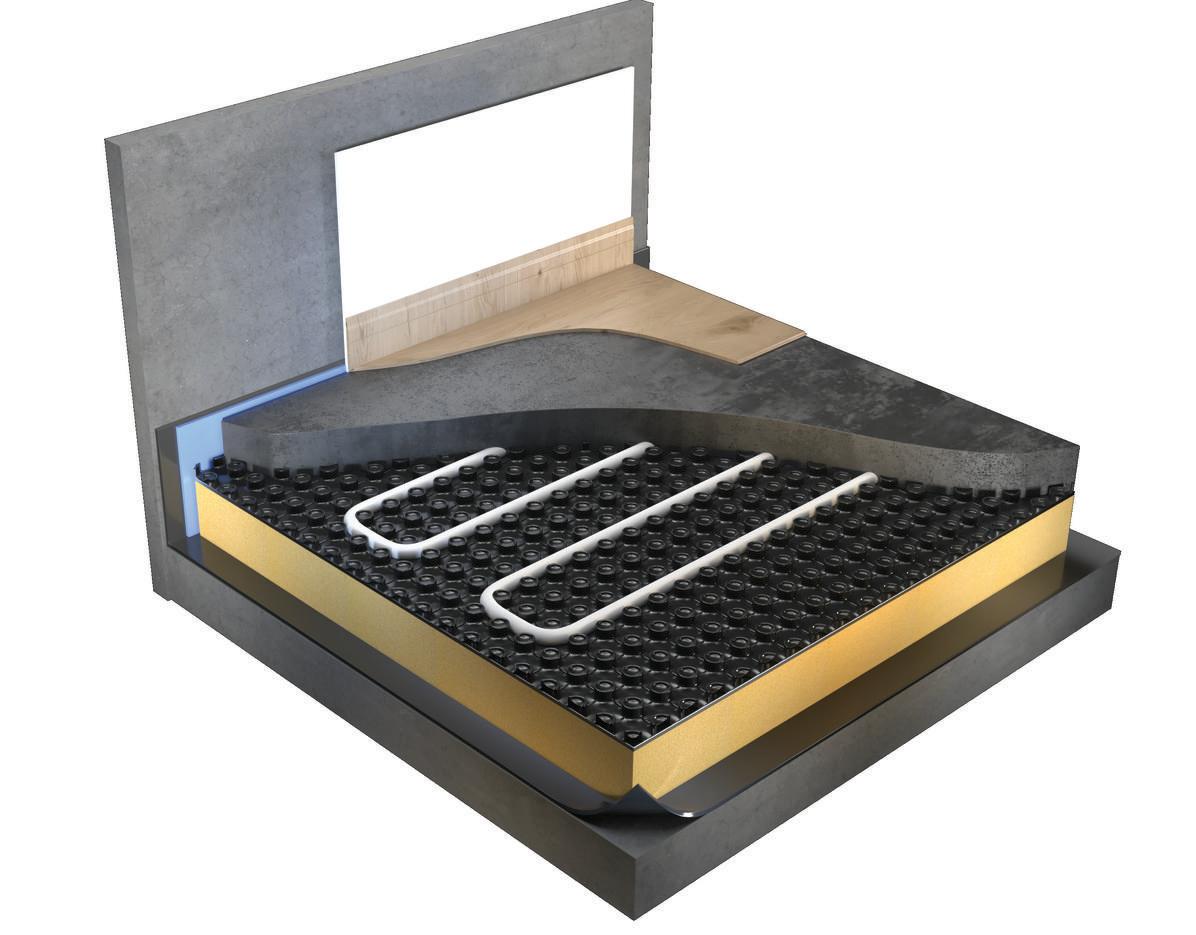

Screed-Crate System
The Screed-Crate is a lightweight, castellated panel system which is laid on top of insulation, ready for pipe to be laid in between the castellations and then screeded over. The castellations are 50mm apart, meaning the Tacker Panel pipe centres can be at 150mm or 200mm, suitable for both heat pumps, and boilers.
Using the Screed-Crate ensures equal pipe centres, giving a precise even heat spread across the room. Quick and easy to cut to size.
Key Points
• Each tray covers a nominal 1m2 (0.96m2 once interlocked).
• If required, trays can be fixed down, particularly along the perimeter of the installation using adhesive, screws, clips or where practical by using high strength double sided adhesive tape.
• Dry or wet screed can be used.
Heat Output
• When using wet screed, it is recommended to start the screeding at the center of the installation and not at the edges.
• It may be beneficial to load the pipes prior to screeding. Standard checks should be carried out prior to screeding.
Specifications
Pipe Diameter: 16mm x 2mm
Length: 1220mm
Width: 820mm
Thickness: 20mm
Groove Distance: 50mm
1170g Material: ABS Plastic
Waste Disposal: Recyclable
*Based on a tog rating of 1 with a room temperature of 21 degrees.
Heating Performance
Floor Sections - Joisted

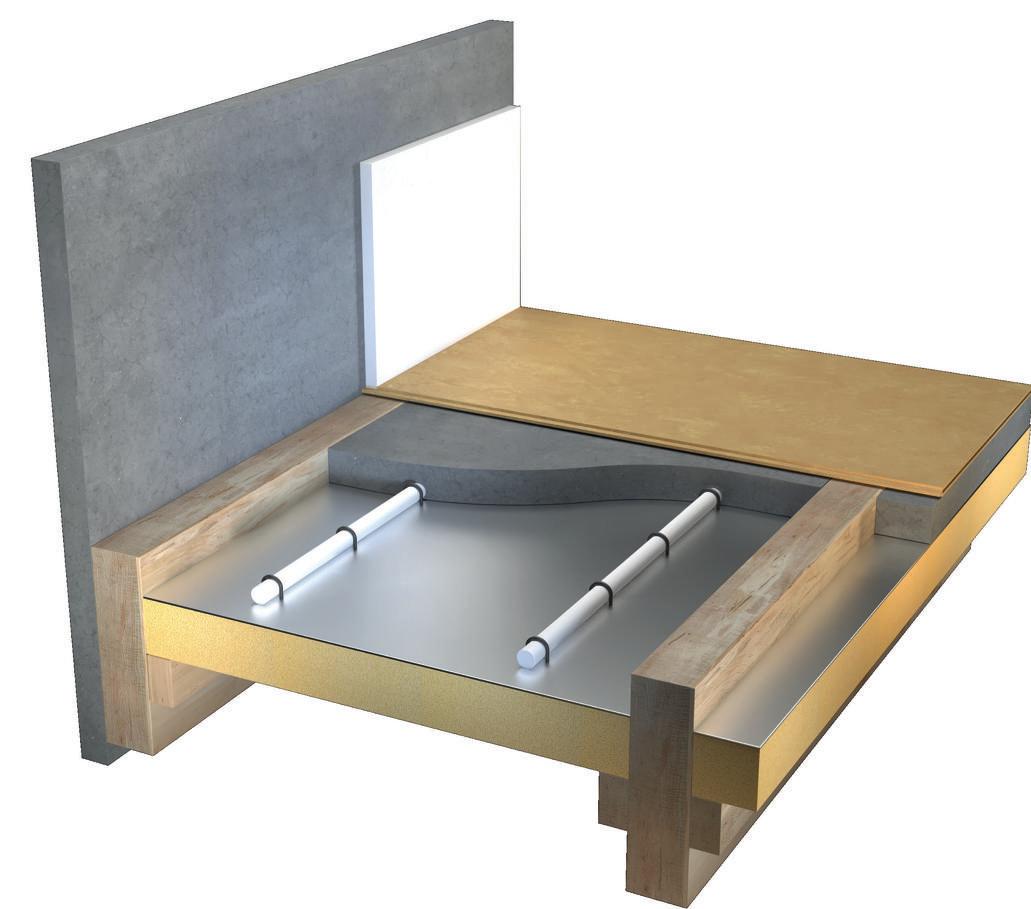

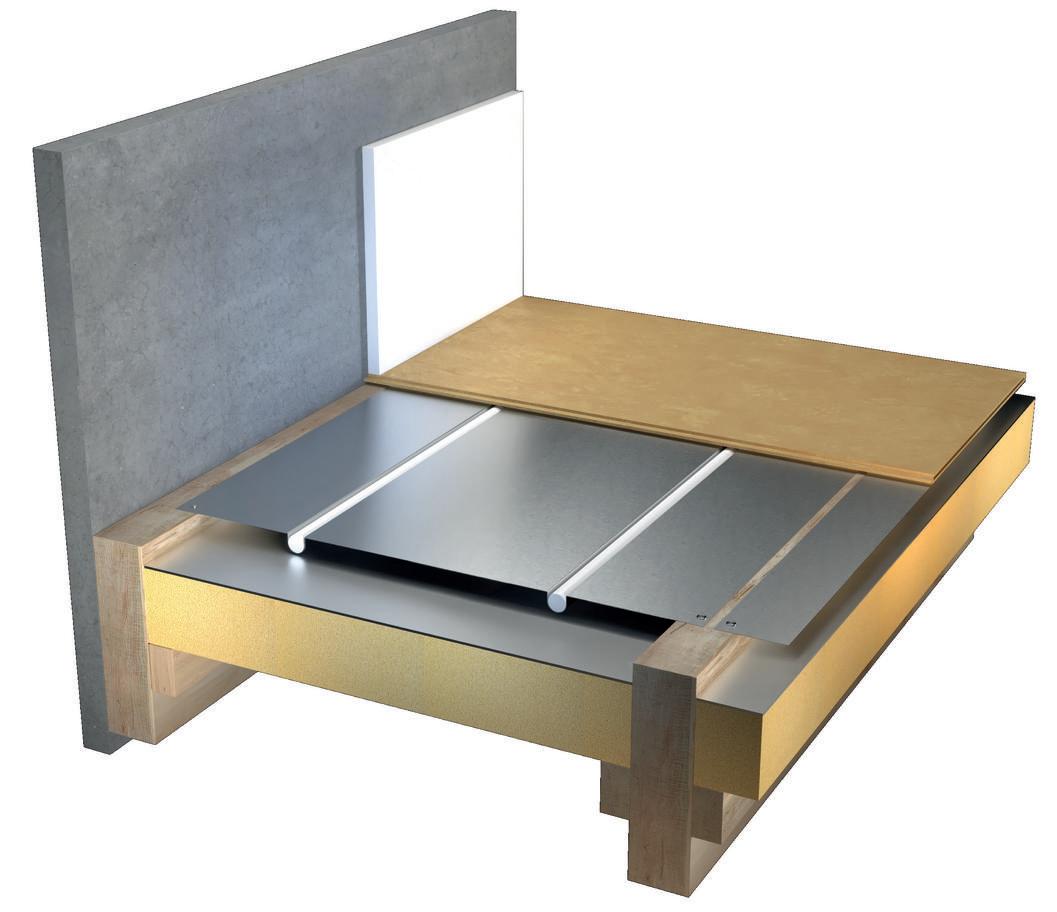

Plate System
The Plate system is a grooved aluminium spreader plate which is suitable for traditional wooden joist only, fixed to the top of a 400mm width joist and sits in between the joist with insulation below, flush with the underneath of a floor deck. Available in 150mm and 200mm pipe centres.
When the pipe warms up, the heat spreads evenly across the plate, through the structural floor deck into the room.
Key Points
• All suspended floors should be fully exposed from above.
• Minimum of 25mm insulation is to be laid between the joists. This should be offset 17mm from the top the top of the joist. Allowing minimal air gap between the bottom of the plate and the top of the insulation.
Heat Output
• The Plate should be secured to the top of the joist. There should be no element of contact between the joists plates.
• A 20mm square should be notched from the top of the joist to allow pipework to pass through.
Specifications
Pipe Diameter: 16mm x 2mm
Length: 1000mm
Width: 390mm
Thickness: 0.5mm
Groove Distance: 200mm, 150mm
Weight: 0.9kg
Material: Aluminium
*Based on a tog rating of 1 with a room temperature of 21 degrees.
Heating Performance
W/m2 W/m2 Heat output in W/m2 at a flow water temperature at 45 degrees*
Floor Sections - Joisted
Dry Screed Mix System
The Dry Screed Mix system is to be used in between the joists. Battens are fixed to the side of the joists and then boarded with a minimum of 50mm insulation above leaving a gap of 25mm. The pipe is stapled to the insulation, then covered with 25mm of dry screed mix, eliminating any air gaps in between the dry screed mix and underneath of the structural floor deck.
Benefiting from thermal mass, when the pipe heats up, the heat spreads across the dry screed mix and retains the heat for longer, giving an even heat distribution.
Key Points
• Cost effective solution
• No increase in floor height as in between joists
• Flexible with uneven joist centres
• Benefit from thermal mass
Specifications
Pipe Diameter: 16mm x 2mm
Pipe Centres: 150mm / 200mm
Staples: 60mm / 40mm Mix Ratio: 3:1 Sand / Cement
Floor Sections - Retro-Fit

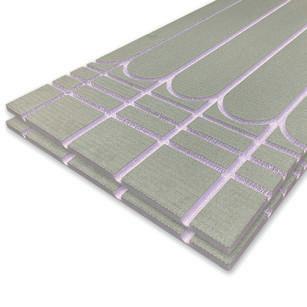

20mm Slim Board System

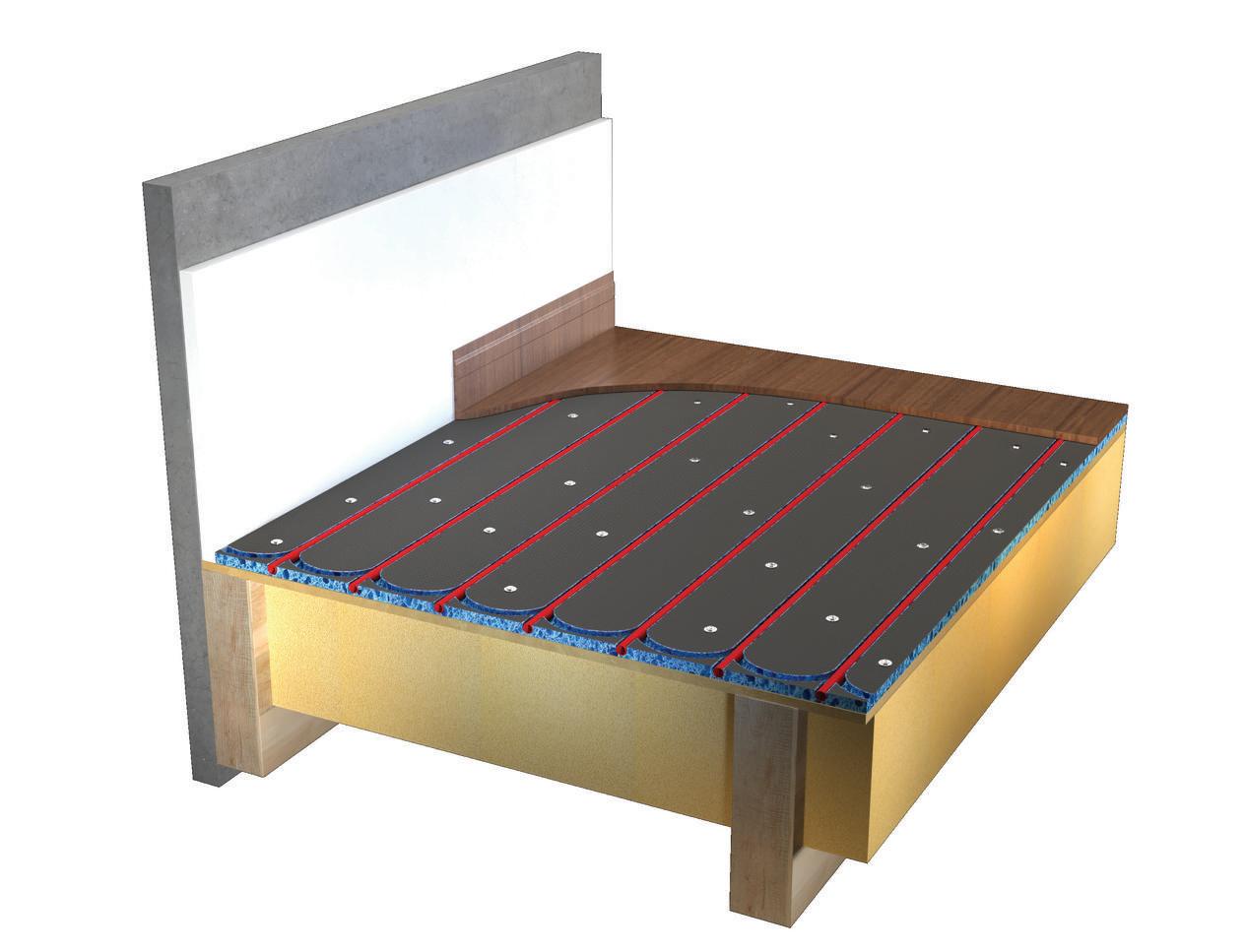

The 20mm Slim Board system is a low profile over the floor system, at only 20mm in height, perfect for renovations and keeping the floor height to a minimum. The cement reinforced XPS insulation panel is designed to be fixed to a structural floor and at 150mm or 200mm pipe centres, it’s compatible with heat pumps and boilers. Lightweight and easy to cut, with the end returns built into the panel allows for a quicker install. Pipe distribution panels are available to provide a simple method of installation where the pipe approaches the manifold.
Key Points
• Fixed down with either flexible tile adhesive or screwed down using a minimum of 9 screws and 9 washers per board.
• 20mm total floor height
• Either a tile or an interlocking wood floor finish can be applied directly to
the 15mm Slim Board. Other floor finishes will require a minimum of 3mm self levelling compound to be applied on top of the 15mm Slim Board.
• Quick and easy to install
• Lightweight XPS insulation panel with webbed polymer cement based finish.
*Please consult with your flooring contractor the exact thickness of self-levelling compound required. This may vary dependant on floor finish.
Heat Output
Specifications
Pipe Diameter: 16mm x 2mm
Length: 1200mm
Width: 600mm
Thickness: 20mm
Groove Distance: 150mm, 200mm
Material: Cement Reinforced XPS
Water Absorption: 6%
*Based on a tog rating of 1 with a room temperature of 21 degrees.
Heating Performance
Floor Sections - Retro-Fit

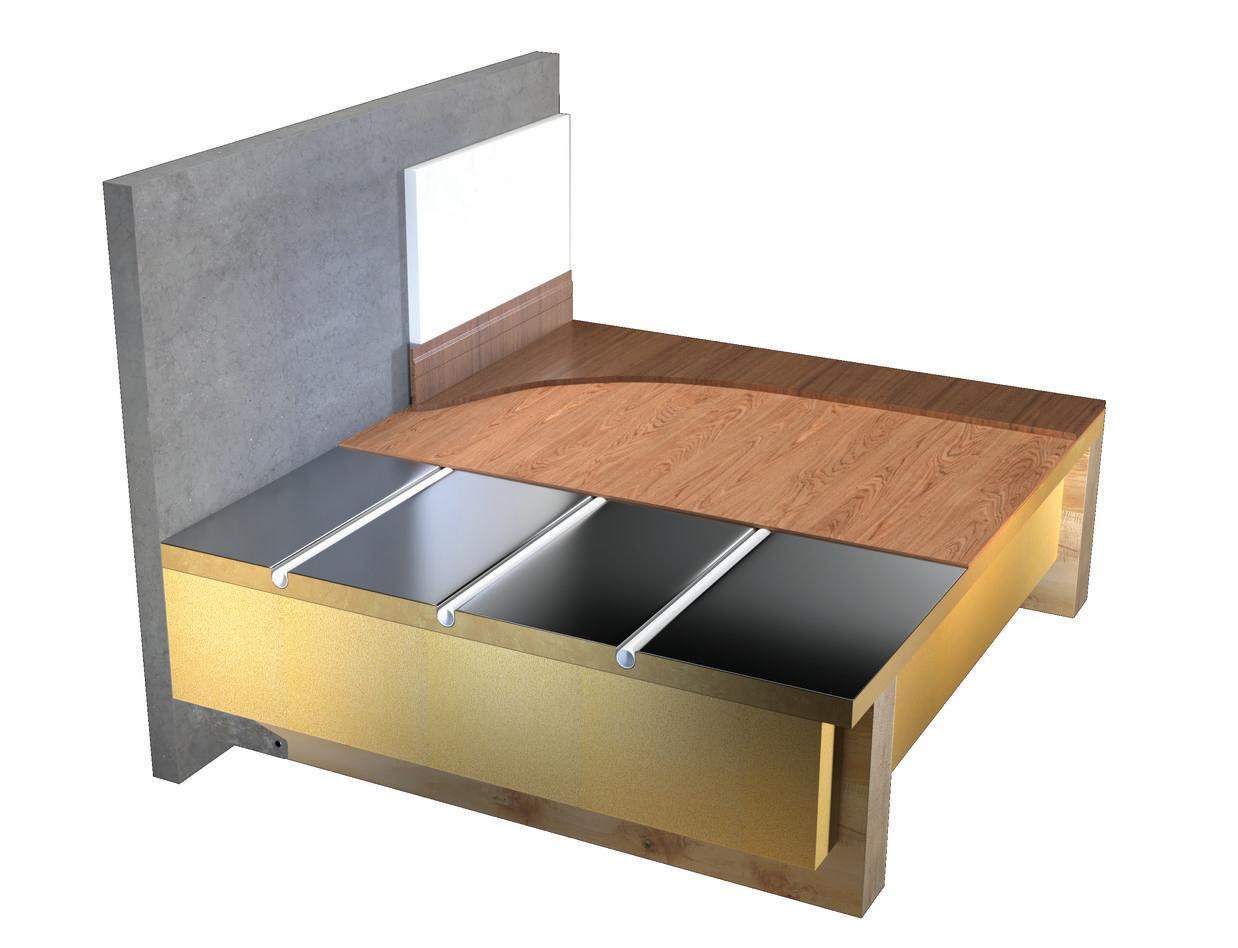

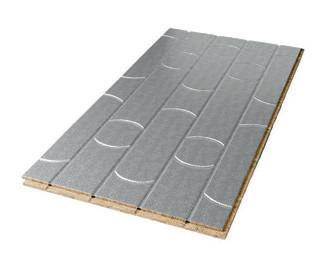

22mm T&G Foiled Chipboard System
The 22mm T&G Foiled Chipboard system is a grooved structural floor deck designed to be fixed directly onto 400mm or 600mm joists. The pipe sits in the multi-directional grooves, a 6mm ply is fixed down for the floor covering. Engineered wood or laminate can sit directly on top of the chipboard without the need for 6mm ply. The multi-directional panel is covered with foil to increase the systems heat output. The multi-directional panel is a single panel eliminating the need for separate end returns.
Key Points
• High thermal performance with foil covered chipboard
• Good heat retention (low thermal conductivity)
• Can be used on an acoustic system on separating floors
• Separation layer of 6mm ply is recommended before applying floor finish
• Insulation required between the joists to current building regulations
Output
Specifications
Pipe Diameter: 16mm x 2mm
Length: 1200mm
Width: 600mm
Thickness: 22mm
Groove Distance: 150mm, 200mm
*Based on a tog rating of 1 with a room temperature of 21 degrees.
