PLUMBING & HEATING COLLECTION 2027 Edition | www.instinctproducts.co.uk

Welcome to Our Instinct Pro Plumbing & Heating Collection 2027 Edition

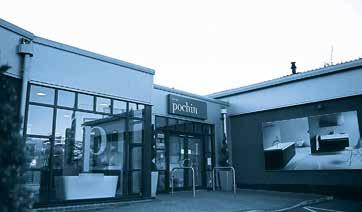

Pochin is an established plumbing and heating supplies distributor with branches and bathroom showrooms across the Midlands. It has been over 160 years since we opened our first branch in Leicester (the American Civil War was happening at the time!). Our Plumbing & Heating collection contains a full range of plumbing and heating products for you to browse and find what you need for your jobs. You will find sections including heating, water treatment, controls, consumables and renewables. Our branches usually display a limited amount of Instinct products as well (but please contact before visiting to avoid disappointment).

Get all our latest branch information at pochin.com/branches or scan the QR code for branch details

Contents

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Contents

What’s New...

Renewables

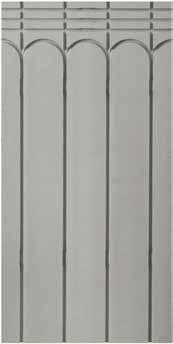

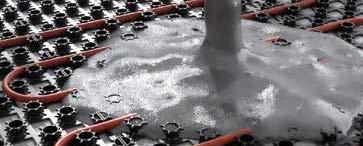

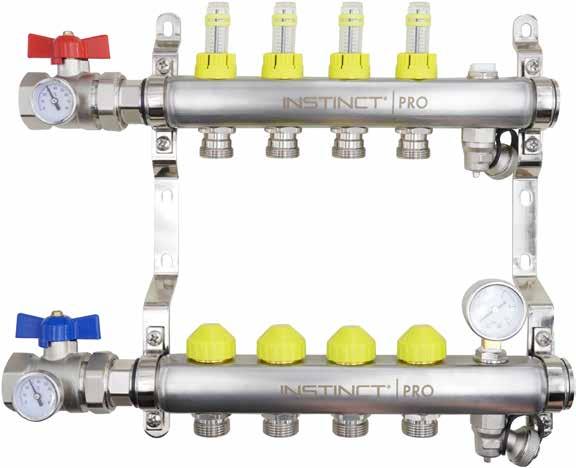

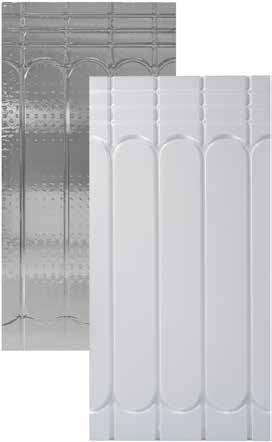

Hydronic UFH

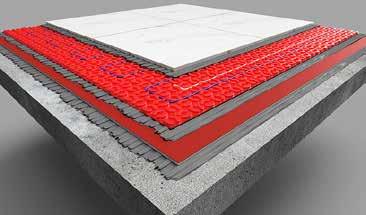

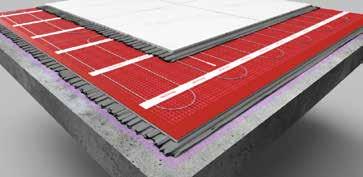

Electric UFH

Heating

Controls

Water Treatment

Consumables

Discover our latest plumbing + heating additions for 2026/27. NEW

NEW Fast Pressing

Longer Runtime

Twin Batteries

Ideal Instinct Logic Air Heat Pump

NEW Easy to Install

Differential Pressure

Low Noise

101

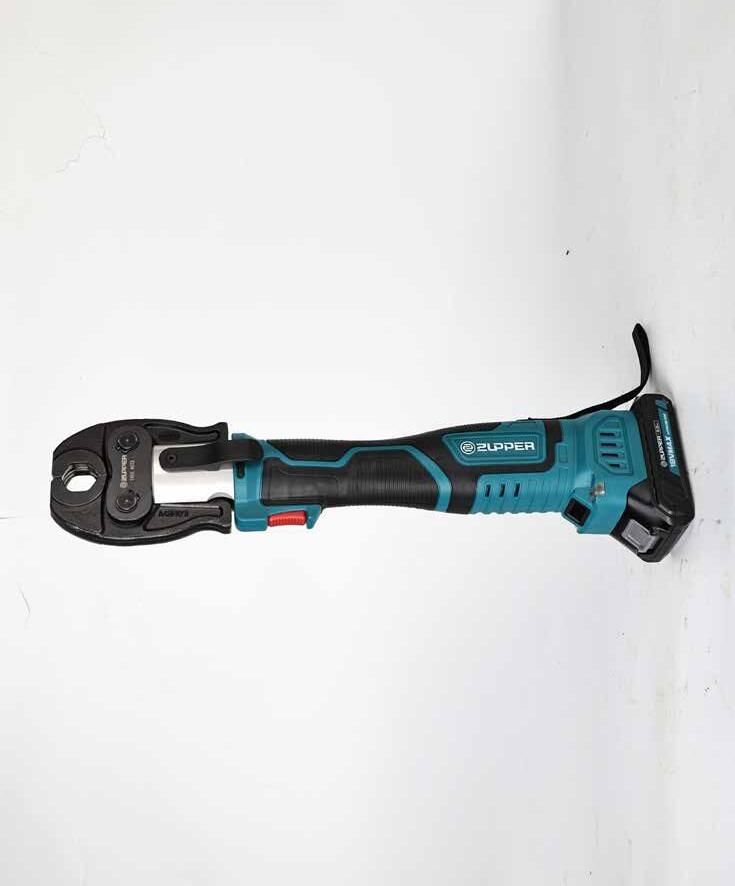

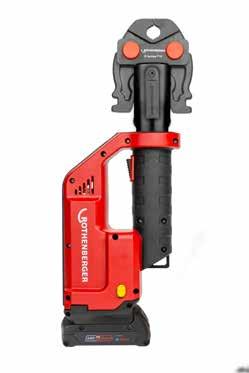

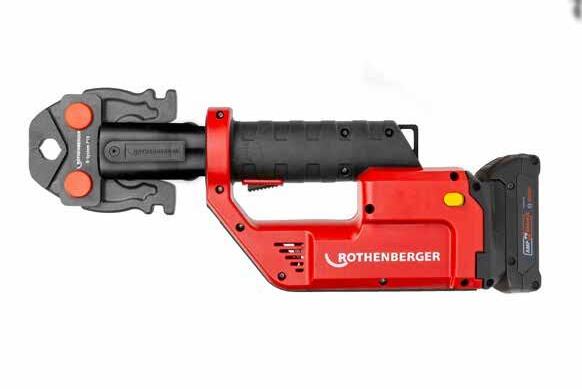

ZUPPER® PZ-1550 Battery Powered Press Tool

NEW

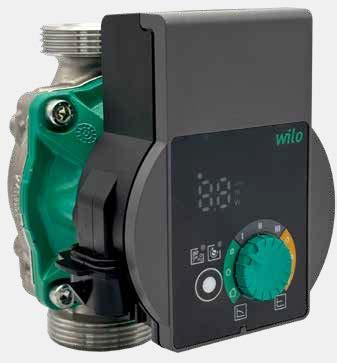

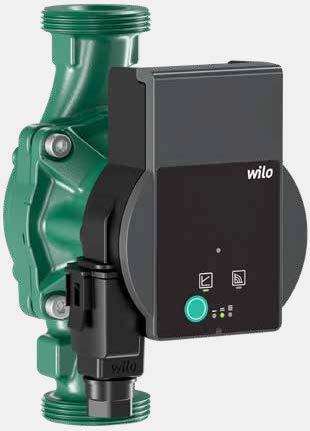

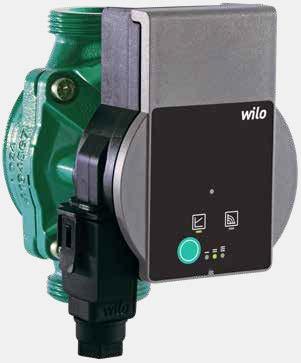

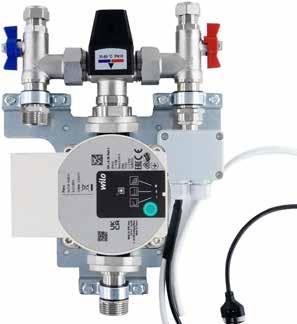

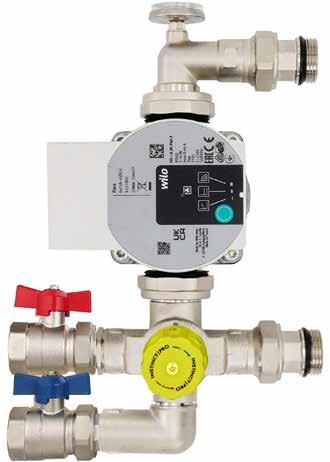

Wilo Yonos PICO-Z Circulating Pump

NEW Prevents Fouling

Instinct Pro Biocide Treatment (Heat Pumps + UFH)

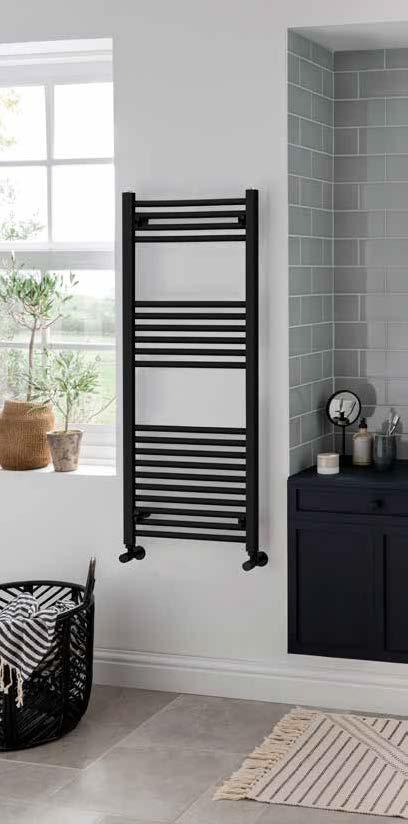

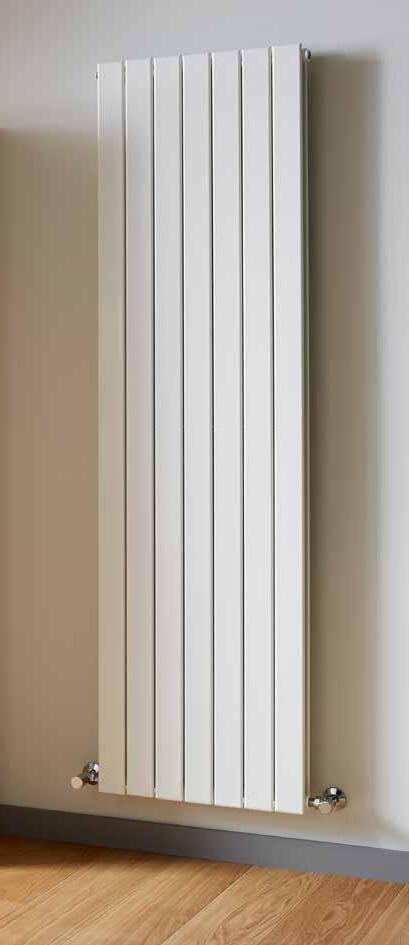

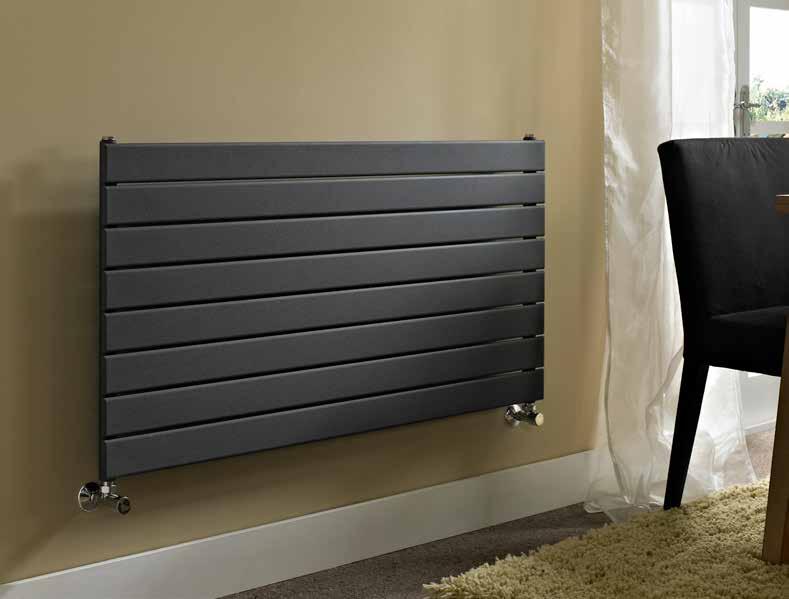

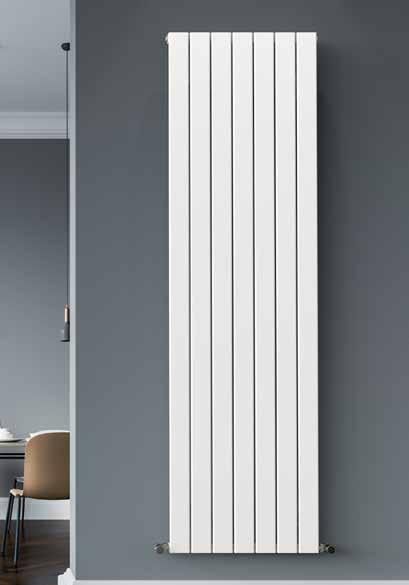

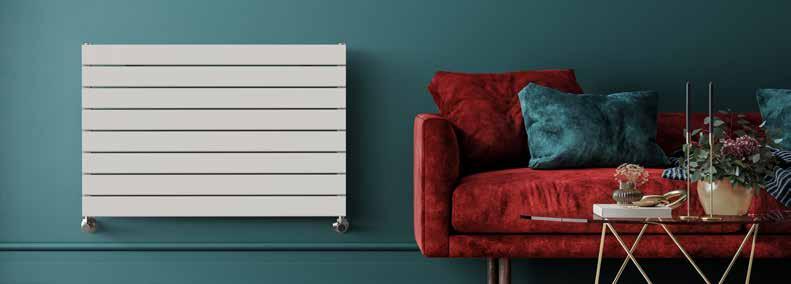

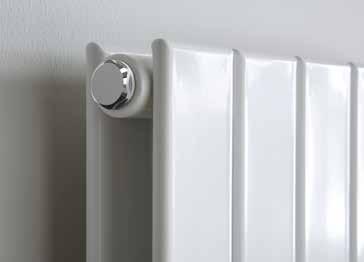

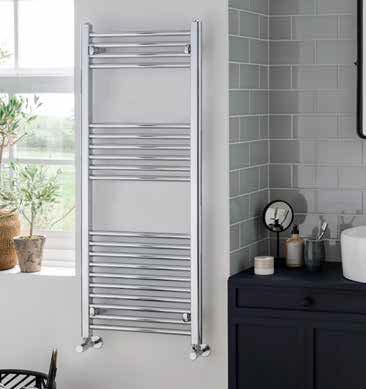

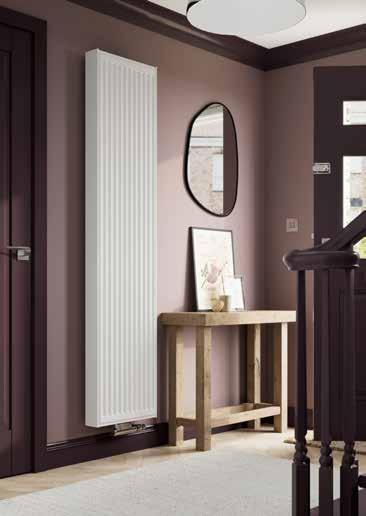

Stelrad 25mm + 22mm Straight Towel Rails

For further technical information please visit www.instinctproducts.co.uk

2026/27 3

Renewables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Renewables Page No.

Section

Heat Pumps NEW Ideal Instinct Logic Air Heat Pump System

IntaKlean 28mm + 35mm HP Filters

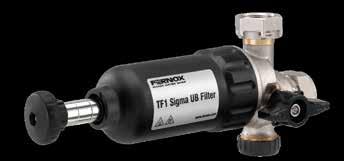

Fernox TF1 Sigma HP Filter 22mm + 28mm

Our frequently ordered Renewable products...

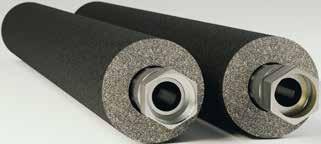

Anti-Freeze Valves NEW Inta Zero+ Anti-Freeze Valves, Valve Protector + Insulation

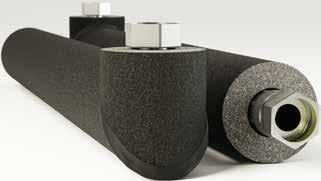

Inta Zero Anti-Freeze Valves, Valve Protector + Insulation

Fernox Anti-Freeze Valves + Thermal Covers

Bastion Anti-Freeze Valves

Ball Valves

NEW

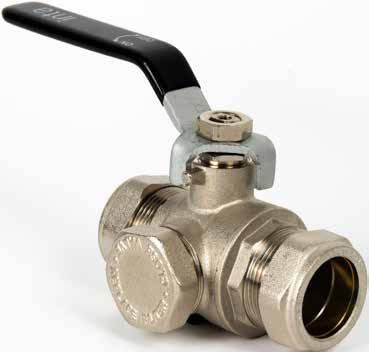

Inta K-Type Extended External Ball Valves, Ball Valves (with Filter) + Insulation

16 UK Climate Ready

Ancillaries Valves

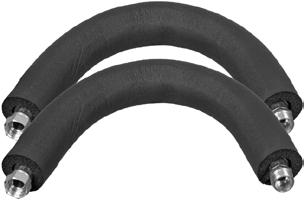

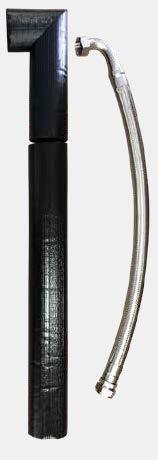

Hoses

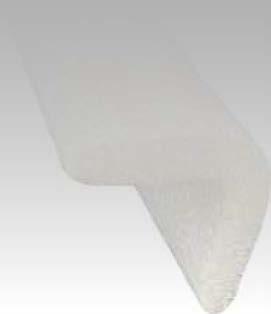

Insulation

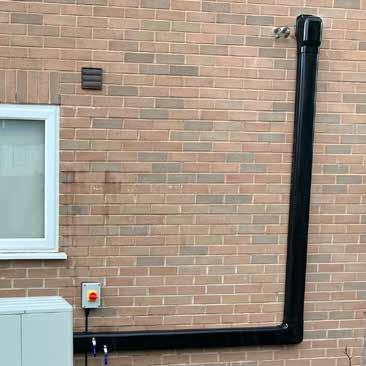

Trunking

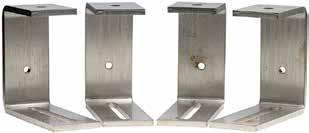

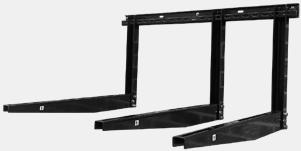

Mounting Brackets + Condensate Trays

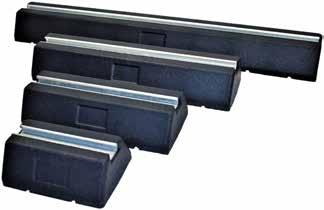

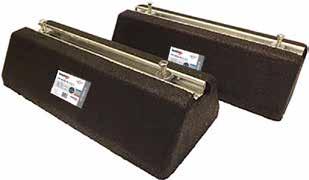

Feet

Buffers + Vessels Inta Zil-B Buffer Vessels + Inta Zilmet Volumiser Vessels

Heat Pump Installer Packs Inta 28mm + 35mm Heat Pump Installer Packs

NEW Inta 28 + 35mm Swivel Heat Pump Installer Pack

High Efficiency

Ideal Instinct Logic Air Heat Pump

NEW

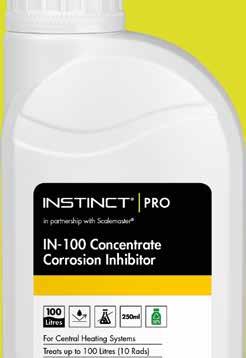

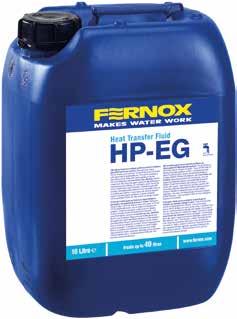

Water Treatment (for Heat Pumps) NEW Chemicals

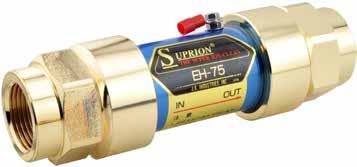

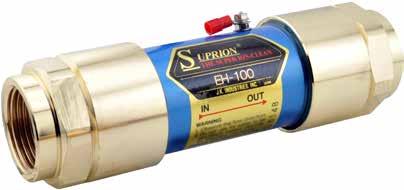

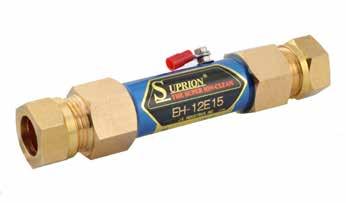

Scalemaster Suprion Scale Inhibitors

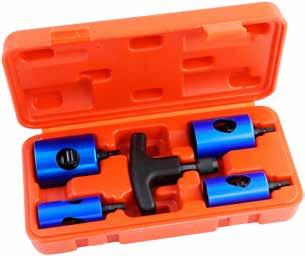

Air Conditioning NEW ROTHENBERGER + Hinton Air Con Tools

Icon Key

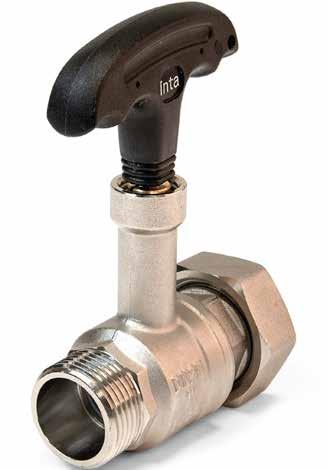

Inta Zero+ Anti-Freeze Valves

Our handy icon key helps you quickly recognise key product features and choose the product that suits you best.

519%

SCOP

NEW

Customer Support

Quiet Operation

Intuitive Controls

Frost Protection

SCOP Rating

Prevents Fouling

UK Manufactured

Fast Reheat

Removes Debris Prevents Bacterial Suspended in Water + Fungal Growth

Pre-Plumbed + Wired Load Control

Heat Pump Comp.

Prevents Limescale + Corrosion

Anti-Freeze

Non-Hazardous Formulation

8 Dosing Amount – Up to 100 Litres

4 2026/27

Dosing Amount – Bottle Made from Up to 10 Radiators Recycled Plastic

Manufactured in Great Britain

Easy to Install and Maintain

Ideal Instinct Heat Pump Cylinders

Instinct Pro Biocide Treatment (Heat Pumps)

For further technical information please visit www.instinctproducts.co.uk

Your Home for Renewable Products Heat Pump Installer Packs

Everything you need to complete the job

Heat Pump Filters

Improve efficiency, safeguard heat pumps and low-temperature systems, and prolong their lifespan

Anti-Freeze Valves

Keep the system running smoothly in cold weather

Ancillaries

Boost performance and simplify installation with key supporting products

SCAN ME TO FIND YOUR NEAREST STOCKIST

Renewables

All dimensions in mm. All measurements are approximate and subject to standard tolerances. HEATING

HEATING

L O G I C

A I R

4kW 5kW 8kW 10kW Heat Pump System

Fully Pre-Plumbed + Pre-Wired

Fast Reheat Time

All Weather Performance

6 2026/27

Guarantees

Heat Pump

Years

on Ideal Instinct Logic Air Heat Pump

Renewables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

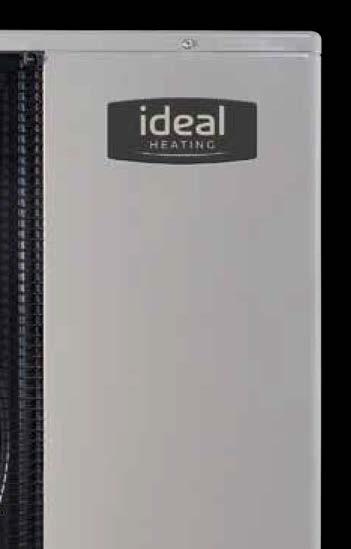

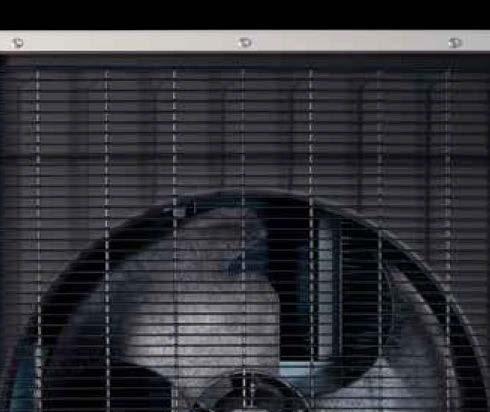

Ideal Instinct Logic Air Heat Pump

NEW

Heat pump range from 4-10kW designed to deliver efficient, simple and reliable low carbon heating. Integrates seamlessly with Instinct heat pump cylinder and Halo Logic Air room thermostat. All supported by industry leading customer service based in the UK and open 365 days a year.

UK Climate Ready

Reliable heating and hot water performance, designed specifically for UK conditions

High Efficiency

SCOP up to 5.19 for efficient seasonal performance Low-noise operation for greater comfort around the home

Quiet Operation

Reliable hot water performance in sunshine, rain, ice and snow

Heating System Compatible

Compatible with radiator and underfloor heating systems Automatically adapts heating output to outdoor conditions for efficient, comfortable heating

Solar PV Ready

Designed to work alongside solar PV to help maximise renewable energy use

Customer Support

Refrigeration components are contained within the outdoor unit for straightforward installation and servicing Compatible with Ideal Instinct heat pump cylinders for efficient, rapid domestic hot water re-heating Extended lifetime warranty available Expert support available 365 days a year Finish – Grey Dimensions – See table below 519%

SCOP

NEW 255221

Ideal Instinct Logic Air 4kW

NEW 255222

Ideal Instinct Logic Air 5kW

NEW 255223

Ideal Instinct Logic Air 8kW

NEW 255224

Ideal Instinct Logic Air 10kW

PROTECT YOUR HEAT PUMP SYSTEM

Ideal Instinct Logic Air 4kW

Page 29

Instinct Pro chemicals help maintain a healthy heating system. Ideal Instinct Logic Air 8kW

Specification

Unit

Instinct Logic Air 4kW

Instinct Logic Air 5kW

Instinct Logic Air 8kW

Instinct Logic Air 10kW

Heat Pump Space Heating [35°C]*

SCOP (EN14825)

4.96

5.07

5.16

5.19

Heat Pump Space Heating [55°C]*

SCOP (EN14825)

3.48

3.65

3.7

3.73

Heating [A 7°C / W 35°C]*

COP

5.34

5.15

5.19

4.9

Heating [A 7°C / W 55°C]*

COP

3.04

3.07

3.01

Sound Power Level (EN 12102 - 1)

db(A)

Pipework Connection Sizes

Heating F/R (mm)

Dimensions Outdoor Unit

H x W x D (mm)

798 x 1095 x 518

1008 x 1095 x 518

Refrigerant Charge (kg)*

R32

0.88

1.47

*Performance data in accordance with EN 14825: 2016, EN 12102-1: 2022, EN 14511: 2018. The energy efficiency provided may not correspond to the actual energy once installed in a building, as the efficiency is influenced by other factors such as heat loss in the distribution system and the capacity of the products in relation to building size and characteristics.

For further technical information please visit www.instinctproducts.co.uk

2026/27 7

Renewables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Guarantees

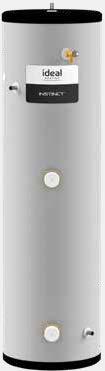

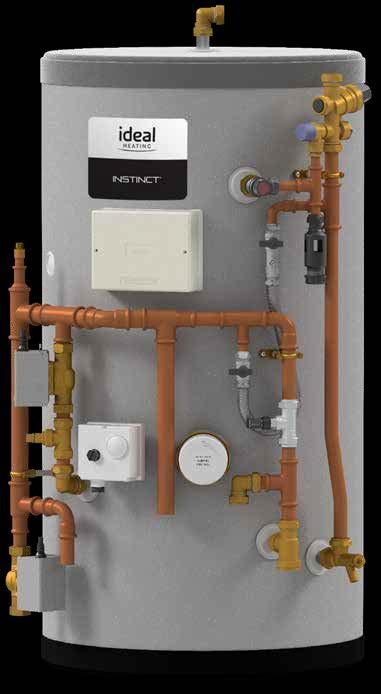

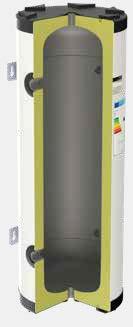

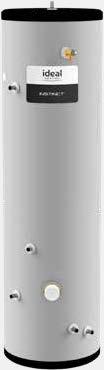

Heat Pump Pre-Plumbed Cylinder Ideal Instinct Pre Plumbed + Wired Heat Pump Cylinders The Instinct heat pump stainless steel cylinders are designed and manufactured in the UK. A separate buffer tank is housed in same case as a DHW cylinder and all models come pre-wired plumbed. Cylinders also de-couple the heating system from the heat pump protecting flow rates and enabling two zone control. Designed and manufactured in the UK for the demands of UK homes Fast hot water recovery helps ensure hot water is available when needed Key components are factory-fitted to simplify installation, saving time and reducing installation complexity

Years

on Ideal Instinct Heat Pump Pre Plumbed Cylinder

NEW UK Made

Fast Reheat

Fully PrePlumbed

Fully PreWired

Sensors and controls are factory-fitted to optimise installation and improve system reliability Combined DHW and buffer cylinders provide a complete solution in a single unit

Integrated Buffer

Combines the DHW cylinder, buffer tank and key system components within one cabinet 180–300L capacity cylinder sizes provides options to suit different household requirements

Compact Design

Supplied with the control box for a more complete installation package Designed specifically to efficiently store and generate hot water using a heat pump Supplied with key components including circulation pump, expansion vessel, valves, sensors and 3kW immersion Finish – White Dimensions – See table below

NEW 254873

180 Litre Pre-plumbed Cylinder

NEW 254874

250 Litre Pre-plumbed Cylinder

NEW 254875

300 Litre Pre-plumbed Cylinder

Includes High temp pump cut out

Pressure gauge

Flow and return thermistors 3kW immersion P&T valve

DHW thermistor

Wiring centre

Automatic air vent(s)

Controller

Isolation valves

Expansion vessel

Outdoor sensor

Heat pump filter

Circulation pump(s) 180 Litre Pre-plumbed Cylinder

DHW 3-port valve

Specification

Unit

Instinct DHW CYL PP 180 CBOX BUFF 1Z

Instinct DHW CYL PP 250 CBOX BUFF 1Z

Instinct DHW CYL PP 300 CBOX BUFF 1Z

Energy Efficiency Class

–

Heat Loss

Watts/h

Capacity (DHW content)

Litres

171

239

287

Volume of Integrated Buffer

Litres

63.5

Weight Full

305.6

379

437.5

2.5

Primary Heat Exchanger Surface Area m2 Heat Up Time from 10°C to 50°C*

Min

22.17

26.56

44.09

Cylinder Diameter

550

630

Cylinder Height

1829

2049

Overall Dimensions

1907(h) x 644(w) x 702(d)

1908(h) x 705(w) x 780(d)

2128(h) x 705(w) x 780(d)

Second Zone Kit Code

–

245625

*Heat Up Time, HWA Heat Pump Test 002:2020 (flow rate 0.42I/s and flow temperature of 55°C)

8 2026/27

For further technical information please visit www.instinctproducts.co.uk

Guarantees

Heat Pump Controls

Years

on Ideal Heat Pump Controls

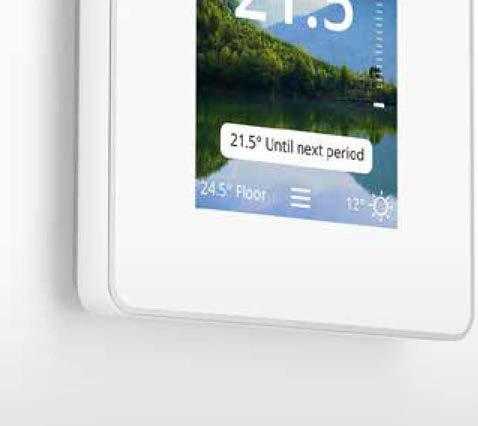

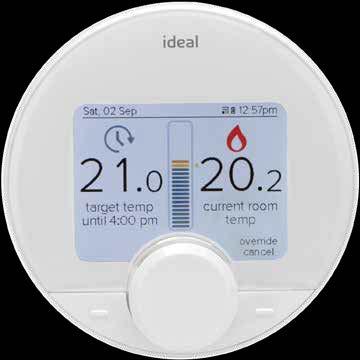

Ideal Halo Air Thermostat Halo Air is a programmable room thermostat, designed to work seamlessly with the Logic Air monobloc heat pump.

NEW

Easy to Install

Smart Home Compatible

Added reassurance with a two-year warranty

Easy App Setup

Instinct Logic Air ompatible Compatible

Customer Support

Connects with compatible smart home systems for convenient heating control

Renewables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Load Control

Control your heating and hot water from anywhere using the app Simple setup gets you connected quickly and easily Access support from Ideal customer service for help with your smart heating system Automatically adjusts heat pump output to help maintain comfort and improve efficiency Designed to work seamlessly with Instinct Logic Air heat pumps Straightforward wiring connections to the heat pump control box make installation easier Intuitive dial and button interface makes everyday operation easy Finish – White

Ideal Halo Programmable Room Thermostats (WiFi) NEW 234790

Halo Air Single Zone WiFi

NEW 234792

Halo Air 2-Zone WiFi

Ideal Halo Programmable Room Thermostats (RF) NEW 234819

Halo Air Single Zone RF

NEW 234791

Halo Air 2-Zone RF

Ideal Halo Air Single Zone WiFi

NEW

Easy to Install

Instinct Logic Air Compatible

Simple Controls

Load Control

Specification Power Source (Single Zone)

4 x AA alkaline batteries or USB

Power Source (2-Zone)

8 x AA alkaline batteries or USB

Heat Pump Connection Protocol BSB Install Location

Wall mounted or desk mounted

Desk Stand Supplied

Yes

ERP Class

Class VI

TTZC Yes – Time + (Time, Temperature + Zone Control) temperature control Certification

UKCA CE

*2 year parts and labour warranty available when registered within 30 days of installation. Terms and conditions apply.

Ideal Halo Air Single Zone RF

Ideal Service + Support Installers

Warranty Ideal Support Our Expert Academy offers various training courses and support for installers wanting to develop their expertise.

One simple plan helps keep your heat pump system protected year after year, with annual servicing, ongoing warranty and expert support. T&Cs Apply, lifetime warranty is a subscription service, additional charges will apply.

For further technical information please visit www.instinctproducts.co.uk

Ideal Customer Support

Ideal Resource Centre

Available 365 days a year, we believe in providing outstanding service and technical support for all customers.

Have confidence from day one with direct access to our latest assisted commissioning and installation resources.

2026/27 9

Renewables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Heat Pump Filters

Guarantees Years

Years

on IntaKlean Heat Pump Filter

on IntaKlean HP Insulation Cover

Heat Pump Ready

Dual Filtration 11,000 Gauss Magnet 300μm Fine Filtration

IntaKlean HP 28mm Insulation Cover

Easy to Service

Glycol Compatible

IntaKlean 28mm Filter Data Sheets, Installation Instructions + Maintenance

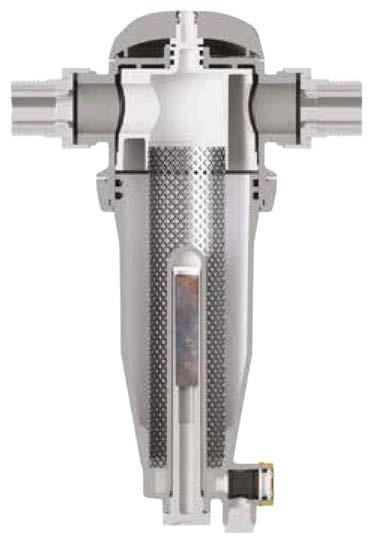

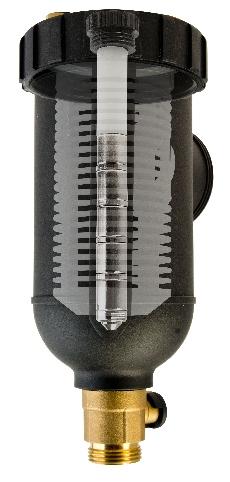

IntaKlean 28mm Magnetic Air Source Heat Pump Filter

1 Manual air vent

The IntaKlean HP Magnetic air source heat pump filter, featuring Inta’s unique direct multi-layered non-ferrous fine filter.

2 Filtering cartridge

This is the ideal solution to prevent costly and unnecessary system breakdowns caused by both magnetic and non-ferrous particulates in air source heat pump systems.

4 Neodymium magnet

3 Protection conduit for magnet cleaning 5 Filtration chamber

As well as separating magnetic debris and trapped air in circulating system fluid, IntaKlean HP also includes a completely unique direct filter which contains a multilayered stainless steel 300-micron fine gauze.

6 Drain plug

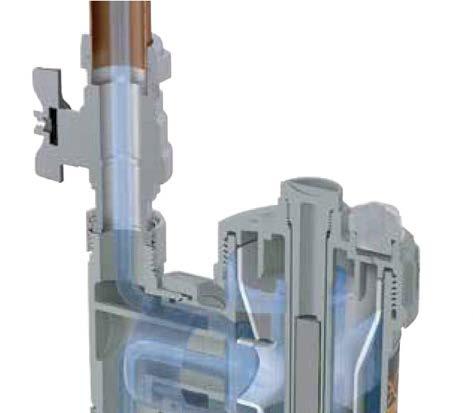

The system debris is forced directly into the filter, breaking down the debris, which then precipitates to the base of the pot. The remaining magnetic debris is drawn to the centre of the filter and captured by 11,000-gauss rare earth neodymium magnet.

Actively filters magnetite and non-ferrous system debris Low-profile drain valve 360° rotation for ease of servicing

Suitable for water or water + glycol (Maximum 50% glycol) 90°C maximum temperature 3

4 Bar maximum working pressure 300μm + 800μm degree of filtration 11,000 Gauss magnet strength Kv Value (35mm Only) – 8.27 m³/h

Finish – Grey Dimensions – 271(h) x 90(w) x 182(d) mm

IKHPMF28 NEW IK28INSU

10 2026/27

IntaKlean HP 28mm Magnetic Heat Pump Filter IntaKlean HP 28mm Insulation Cover

For further technical information please visit www.intatec.co.uk

Guarantees

Heat Pump Filters

Years

on Fernox Heat Pump Filter

Renewables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Heat Pump Ready

High Flow Filtration

COP Protection

Full Bore Valves

80 L/Min Flow Rate

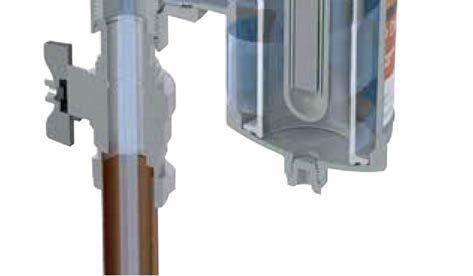

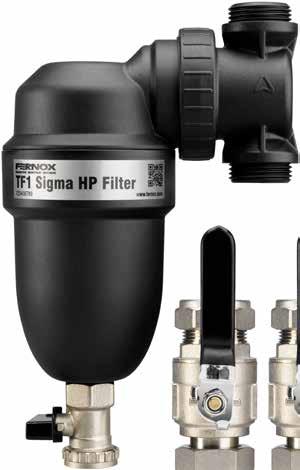

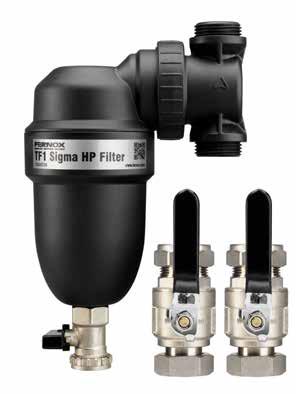

Take a closer look at the Fernox TF1 Sigma HP Filter feature video Fernox TF1 Sigma HP Filter The TF1 Sigma HP Filter efficiently removes all types of debris from renewable heating systems using patent pending technology. The innovative TF1 Sigma HP Filter does not restrict flow, even at high flow rates, and will not block, ensuring the COP (co-efficient of performance) of the system is maintained thereby reducing energy consumption and fuel wastage. Simple and fast to install, the TF1 Sigma HP Filter is supplied with full bore valves as standard, which results in improved system performance, and greater energy efficiency. Specifically designed for Air and Ground Source Heat Pump systems Filter is extremely effective at high flow rates and across a range of debris types to ensure the system remains free of contaminants Constructed from a high-quality glass reinforced engineering polymer with brass full bore valves as standard Suitable for water or water + glycol (Maximum 50% glycol) 100°C maximum working temperature 5 Bar maximum working pressure 80 L/min maximum flow rate Finish – Black Dimensions – 346(h) x 90(w) x 179(d) mm

62614

Fernox Sigma HP Filter 22mm

62615

Fernox Sigma HP Filter 28mm

For further technical information please visit www.fernox.com

Premium brass, full bore isolation valves supplied as standard – allows high flow rates

2026/27 11

Renewables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Guarantees

Anti-Freeze Valves

Years

on Inta Zero+ Anti-Freeze Valves

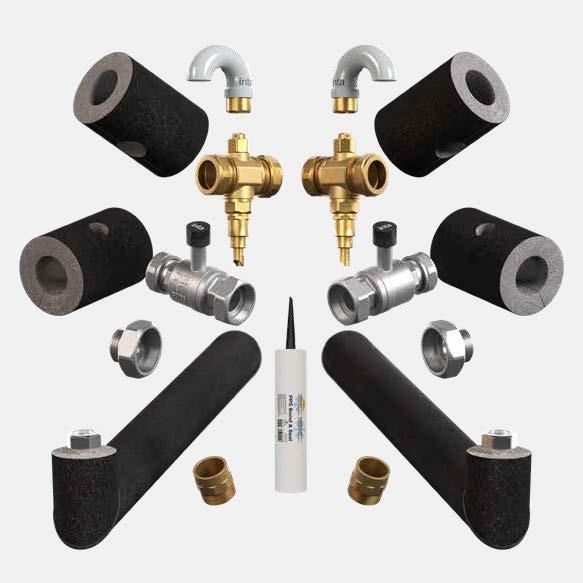

INTA ZERO+ ANTI-FREEZE VALVES Includes ZERO GUARD Anti-vacuum Valve Protector

NEW

12 2026/27

Integrated Isolation

Easy to Maintain

Faster Installation

Space Saving

For further technical information please visit www.intatec.co.uk

Guarantees

Anti-Freeze Valves

Years

on Inta Zero+ Anti-Freeze Valves

NEW

Inta Zero+ – Anti-Freeze Valve 28mm

NEW

Inta Zero+ – 1˝ Swivel x 28mm

Renewables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

NEW

Inta Zero+ – Anti-Freeze Valve 35mm

Inta Zero+ – 1¼˝ Swivel x 35mm

Inta Zero+ Anti-Freeze Valves – The most reliable anti-freeze valve Introducing the patent-pending Inta Zero+ anti-freeze valve. An innovative solution that combines the trusted performance of the Inta Zero anti-freeze valve with a fully integrated isolation valve. By eliminating the need for separate isolation valves, the Inta Zero+ helps reduce installation time, saves space, lowers costs, and minimises potential leak points. It retains the same accurate, reliable, and dependable technology that has made the Inta Zero a trusted choice across the industry, while delivering enhanced convenience through its integrated design.

Scan for further information

Reduced installation space A single compact component replaces two separate valves, simplifying the system layout and enabling installation even in tight technical spaces. Shorter installation time Fewer connections to make and fewer components to install mean the system can be completed more efficiently, with a lower risk of assembly errors. Simplified maintenance The anti-vacuum or temperature sensing valve can be inspected or replaced without draining the system, drastically reducing downtime and avoiding invasive service operations. Lower overall costs Fewer components, less time and reduced risk lead to lower material, labour and maintenance costs throughout the entire life cycle of the system. 10 Bar maximum inlet pressure (Static) Suitable for water ±1°C Sensitivity +3°C opening temperature, +4°C closing temperature 0°C to +80°C working temperature range -30°C to +60°C ambient temperature range 1.5 L/H max discharge Flow Rate @ 3 Bar Kv Value – 64m³/h (ZP028), 70m³/h (ZP035), 33m³/h (ZP00128SW), 52m³/h (ZP11435SW)

NEW ZP028

Inta Zero+ Anti-Freeze Valve 28mm

NEW ZP035

Inta Zero+ Anti-Freeze Valve 35mm

NEW ZP00128SW

Inta Zero+ 1˝ Swivel x 28mm

NEW ZP11435SW

Inta Zero+ 1¼˝ Swivel x 35mm

NEW INSULPLUS28SW

Insulation for 1" + 28mm Inta Zero+

NEW INSULPLUS35SW

Insulation for 1¼" + 35mm Inta Zero+

For further technical information please visit www.intatec.co.uk

The Inta Zero + is supplied complete with Inta’s patent-pending Zero Guard anti-vacuum valve protector. Also available as an accessory is a purpose designed insulation jacket to support compliance with the Building Regulations Part L.

2026/27 13

Renewables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Guarantees

Anti-Freeze Valves Inta Zero Videos, Data Sheets, Installation Instructions + Maintenance

Direct Sensing

±1°C Accuracy

Debris Protected

Reliable Operation

Years

on Inta Zero Anti-Freeze Valves

Inta Zero – The most reliable anti-freeze valve Inta Zero Anti-Freeze Valves have been specifically designed to quickly and accurately react to the water temperature in the heat pump circuit and do not need the influence of the ambient temperature to operate. Preventing the influence of ambient temperatures The Inta Zero has been designed and engineered to avoid negative influences from low ambient temperatures by directly positioning the element in the system water flow, permitting accurate system discharge only when it is truly needed. Protection from system debris A protective ring has been included in the construction to prevent system debris from clogging the operation of the valve. Operating when needed Double O-rings and reduced surface friction treatment on the operating member also ensure correct operation and reliability even after years of non-movement. 10 Bar maximum inlet pressure (Static) Suitable for water ±1°C Sensitivity +3°C opening temperature, +4°C closing temperature 0°C to +80°C working temperature range -30°C to +60°C ambient temperature range 1.5 L/H max discharge Flow Rate @ 3 Bar Kv Value – 55m³/h (ZERO001), 70m³/h (ZERO114), 64m³/h (ZERO28), 70m³/h (ZERO35), 33m³/h (ZERO1SW), 52m³/h (ZERO14SW)

Inta Zero – Anti-Freeze Valve 1” Male x 1” Female Swivel

Valve Protection

Inline Fitting

Filter Access

ZERO28

Inta Zero Anti-Freeze Valve 28mm

ZERO35

Inta Zero Anti-Freeze Valve 35mm

ZERO001

Inta Zero Anti-Freeze Valve 1” Male

ZERO114

Inta Zero Anti-Freeze Valve 1¼" Male

ZERO1SW

Inta Zero Anti-Freeze Valve 1” Male x 1” Female Swivel

ZERO14SW

Inta Zero Anti-Freeze Valve 1¼” Male x 1¼” Female Swivel

ZEROGUARD

Anti-Freeze Valve Protector

INSULZERO28SW

Insulation for 1" + 28mm Zero Valve

INSULZERO35SW

Insulation for 1¼" + 35mm Zero Valve

Anti-Freeze Valve Protector

Building Regulations Part L Compliance Building regulations Part L states that all external pipework on an Air Source Heat Pump System should be fully insulated to reduce heat loss and maintain system efficiency. Inta Zero Anti-Freeze Valves will maintain correct operation and discharge the water at the same temperature even when a system is correctly insulated.

Fully Insulated The Inta Zero’s thermostatic element sits directly in the system’s water flow, allowing it to accurately react to the temperature of the system, regardless of ambient temperature. This means the Inta Zero can be fully insulated to help maintain the COP and SCOP of your system without affecting the operation.

14 2026/27

For further technical information please visit www.intatec.co.uk

Guarantees Years

on Fernox Anti-Freeze Valves

Anti-Freeze Valves

Years

on Bastion Anti-Freeze Valves

Take a closer look at the Fernox Anti-Freeze Valve feature video

Easy to Install

Freeze Protection

Automatic Operation

Heat Pump Specific

Cooling Compatible

±1°C Accuracy

Renewables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

55 m³/h Flow Rate

Fernox Anti-Freeze Valve 1¼”

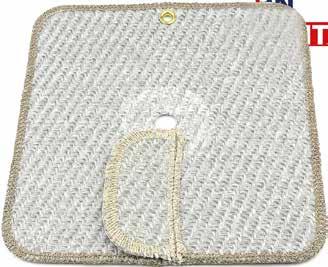

Fernox Anti-Freeze Valve Thermal Cover

Bastion Anti-Freeze Valve 1¼’’ (Male to Female Swivel)

Fernox Anti-Freeze Valves

Bastion Anti-Freeze Valves

The Fernox Anti-Freeze Valve is specifically designed to protect water-based air source Heat Pump heating systems. In cold weather when temperatures drop, systems that are not treated with a glycol-based fluid can freeze within the heat pump circuit potentially causing harmful and costly damage to vulnerable heat pump components and system pipework; eventually causing premature breakdown and repair.

The Anti-Freeze valve allows the circuit medium to be drained when its temperature reaches an average value of 3°C. This prevents ice forming in the circuit of a system, generally with a heat pump, avoiding potential damage to the machine and to the pipes. The version with the air sensor allows the system to work in cooling mode, even when the water temperature is approaching 3°C. In these conditions the air sensor cuts in to prevent water drainage.

The Fernox Anti-Freeze Valve is an essential, simple to install component developed to prevent frozen systems by detecting when the fluid in the circuit is close to freezing point i.e., when the circuit temperature reaches below 3°C. The Anti-Freeze Valve will automatically open and release system water, preventing ice from forming within the Heat Pump system and safeguarding the operation of the system. 10 Bar maximum inlet pressure (Static)

10 Bar maximum inlet pressure (Static) Suitable for water ±1°C Sensitivity +3°C opening temperature, +4°C closing temperature

Suitable for water

0°C to +65°C working temperature range

±1°C Sensitivity

-30°C to +60°C ambient temperature range

+3°C opening temperature, +4°C closing temperature

Kv Value – 55 m³/h

0°C to +75°C working temperature range -30°C to +60°C ambient temperature range Kv Value – 23.1 m³/h

ZL-7201-1M ZL-7201-11/2M

Bastion Anti-Freeze Valve 1” Bastion Anti-Freeze Valve 1½”

62664

Fernox Anti-Freeze Valve 28mm

ZL-7201-11/4M

Bastion Anti-Freeze Valve 1¼”

62665

Fernox Anti-Freeze Valve 1¼”

ZL-7201-11/4MF

Bastion Anti-Freeze Valve 1¼’’ (Male to Female Swivel)

62691

Fernox Anti-Freeze Valve Thermal Cover 1¼”

62690

Fernox Anti-Freeze Valve Thermal Cover 28mm/1”

ZL-7201-1MF ZL-7201-28MM

For further technical information please visit www.fernox.com or www.bastionindustry.co.uk

Bastion Anti-Freeze Valve 1’’ (Male to Female Swivel) Bastion Anti-Freeze Valve 28mm 2026/27 15

Renewables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Guarantees

Ball Valves

Years

on Inta Ball Valves

Inta K-Type Extended External Ball Valves The Inta extended external ball valve provides easy connections between the heat pump, flexible hose, Anti-Freeze valve (if fitted) and the heating system. The extended stem allows the insulation to be sealed, which will not be broken when operating the valve.

Inta K-Type 1” Female Swivel x 1” Male Flat Face Extended Ball Valve

Rotation of stem limited to 90˚ (open to closed), supplied individually to suit the flow or return of the heat pump system. It is recommended that a valve is installed on both flow and return pipework. Solid brass construction Pressure rating of PN25 Variety of connections to suit all installations Fixed key type adjuster allows the ball valve to be fully insulated without affecting its operation Supplied with an adjustment tool and a dust cover to protect the adjuster ISO228 threads

Supplied with a dust cover to protect the adjuster + adjustment tool

25 Bar maximum inlet pressure (Static) -10°C to +90°C operating temperature -20°C to +120°C temperature range Kv Value – 66m³/h (HPBV11, HPBV114, HPBV28), 80m³/h (HPBV114X2, HBPV35)

Inta K-Type Ball Valve Data Sheets, Installation Instructions + Maintenance

HPBV11

Inta K-Type1” Female Swivel x 1” Male Flat Face Extended Ball Valve

HPBV114

Inta K-Type1¼” Female Swivel x 1” Male Flat Face Extended Ball Valve

HPBV114X2 Inta K-Type 1¼” Female Swivel x 1¼” Male Flat Face Extended Ball Valve HPBV28

Inta K-Type 1” Female Swivel x 28mm Extended Ball Valve

HPBV35

Inta K-Type 1¼” Female Swivel x 35mm Extended Ball Valve

Inta Heat Pump Ball Valves (with Filter) Solid brass construction Lever ball valve handle Pressure rating of PN25 25 Bar maximum inlet pressure (Static) -10°C to +90°C operating temperature Inta K-Type Ball Valves Insulation

-20°C to +120°C temperature range Includes a 500μm mesh filter Kv Value – 66m³/h (BVF28), 80m³/h (BVF35)

BVF28

Inta 28mm Ball Valve (with 500 Micron Filter Cartridge)

BVF35

Inta 35mm Ball Valve (with 500 Micron Filter Cartridge)

Inta K-Type Ball Valves Insulation Insulation cover to increase system efficiency Pre-Cut to fit extended ball valves Treated closed cell polyethylene -45°C to +105°C operating temperature 0.034 W/mk thermal conductivity μ ≥ 39,300 water vapour resistance

Inta Ball Valve Data Sheets, Installation Instructions + Maintenance

16 2026/27

For external use only

INSUL28BALLVALVE

Inta Insulation (for 28mm / 1˝ Ball Valve)

INSUL35BALLVALVE

Inta Insulation (for 35mm / 1¼˝ Ball Valve)

For further technical information please visit www.intatec.co.uk

Guarantees

Valves

Years

on Inta Valves

Renewables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Easily Adjustable

Inta Fill + Flush Valves

Inta By-Pass Valves

Inta-Vent Deaerator

Solid brass construction

Automatically stabilises flow

Automatically removes trapped air

Allows simple and easy filling & flushing in one convenient fitting

Protects the pump from pumping against closed head

Reduces wear on system components

10 Bar maximum inlet pressure (Dynamic)

Water + Glycol up to 30%

100°C maximum inlet temperature

10 Bar maximum pressure (Static)

1 to 5m³/hour flow capacity

100°C maximum operating temperature

0.1 to 0.5 Bar differential pressure range

-10°C minimum inlet temperature

Complete with end caps Water + Glycol up to 50% 16 Bar maximum inlet pressure (Static) -5°C to +99°C working temperature

INFAF22

Inta 22mm Fill + Flush Valve

ABPA28CP

Inta 28mm Angled By-Pass Valves

IV22

22mm Inta-Vent Auto Air Eliminator

INFAF28

Inta 28mm Fill + Flush Valve

ABPS28CP

Inta 28mm Straight By-Pass Valves

IV28

28mm Inta-Vent Auto Air Eliminator

Inta Flow Balancing Valves

Inta Flow Balancing Valves (with Fill + Flush)

Inta Y-Pattern Strainers

Regulates the flow of fluid

Passively filters debris and particles in the system

Maximises heat collection in cylinders

Convenient in-line design

Water + Glycol up to 50%

Easily accessible filter makes servicing quick and simple

10 Bar maximum pressure (Static)

16 Bar maximum pressure (Static)

110°C maximum operating temperature

-20°C to 110°C maximum operating temperature

100°C maximum inlet temperature

INFBV28

28mm Flow Balancing Valve (with Fill + Flush 5-40 Litre)

YPS085828800

28mm Y-Pattern Strainer (800 Micron)

INFBV2850

28mm Flow Balancing Valve (with Fill + Flush 10-50 Litre)

YPS0858125800

1¼˝ F x F Y-Pattern Strainer (800 Micron)

-20°C minimum operating temperature

INFSV2840

28mm Flow Balancing Valve (5-40 L/min)

INFSV2850 28mm Flow Balancing Valve (10-50 L/min)

For further technical information please visit www.intatec.co.uk

2026/27 17

Renewables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Guarantees

Hoses

Years

on Inta Hoses

Inta Flexible Connection Hoses Building regulations Part L states that all external pipework on an air source heat pump system should be fully insulated to reduce heat loss and maintain system efficiency. In systems where every watt counts, Inta’s pre-insulated hoses have been designed for external use to prevent heat losses and to help maintain the COP and SCOP of the system, preventing losses of energy, contributing to an efficient system and preventing higher costs to run than expected. Available in 300mm, 500mm and 750mm lengths Pre-insulated to reduce system heat loss preserving system efficiency Can be fit directly to the heat pump Available in different sizes and styles to suit a variety of heat pump installations Supplied in pairs to suit the flow and return Supplied with an additional piece of insulation to cover connections The Primary Pro insulation is waterproof and UV resistant, making it suitable for all weather conditions For external use only Hose HPHOSE300 Straight Hose

Suitable for Water, Water + Glycol up to 50% Stainless steel braided inner hoses 10 Bar maximum inlet pressure (Static)

HPHOSE300B Angled Hose

90°C maximum inlet temperature Insulation 19mm wall thickness with Primary Pro’s water and UV resistant insulation Insulation material – Treated Closed Cell Polyethylene Additional piece of insulation provided to insulate the connectors -45°C to +105°C insulation temperature range 0.034 W/mk insulation thermal conductivity μ ≥ 39,300 water vapour resistance Kit 2 x Stainless Steel Braided Flexible Hoses 2 x Pre-fit Hose Insulation

Inta Flexible Hoses Data Sheets, Installation Instructions + Maintenance

2 x Rubber Washer 1 x Additional Piece Insulation

Length

Connection

HPHOSE300

Pre Insulated Straight Flexi Hose Pair

300mm

28mm x 1" Fem

HPHOSE300B

Pre Insulated Angled Flexi Hose Pair

300mm

28mm x 1" Fem

HPHOSE500

Pre Insulated Straight Flexi Hose Pair

500mm

28mm x 1" Fem

HPHOSE500B

Pre Insulated Angled Flexi Hose Pair

500mm

28mm x 1" Fem

HPHOSE50035

Pre Insulated Straight Flexi Hose Pair

500mm

35mm x 1¼" Fem

HPHOSE50035B

Pre Insulated Angled Flexi Hose Pair

500mm

35mm x 1¼" Fem

HPHOSE750

Pre Insulated Straight Flexi Hose Pair

750mm

28mm x 1" Fem

HPHOSE750B

Pre Insulated Angled Flexi Hose Pair

750mm

28mm x 1" Fem

18 2026/27

For further technical information please visit www.intatec.co.uk

Guarantees

Hoses

Year

on Altecnic Hoses

Renewables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Altecnic Flexible Connection Hoses Available in 300mm, 500mm and 750mm lengths Hose Suitable for Water, Water + Glycol up to 40% 28mm bore stainless steel braided inner hoses For easy connection one end has female BSP thread whilst other end has 28mm or 35mm compression fitting 10 Bar maximum inlet pressure (Static) 90°C maximum inlet temperature Insulation 19mm wall thickness insulation that resists weather and is UV resistant Insulation material – Aeroflex HF Additional piece of insulation provided to insulate the connectors -50°C to +125°C insulation temperature range 0.04 W/mk insulation thermal conductivity 128-3601 Straight Hose

μ ≥ 3000 water vapour resistance Kit

128-3602 Angled Hose

2 x Aeroflex pre insulated hoses 2 x Fibre washers

128-3601

Pre Insulated Straight Flexi Hose Pair

Length

Connection

750mm

28mm x 1" Fem

128-3602

Pre Insulated Angled Flexi Hose Pair

750mm

28mm x 1" Fem

128-3603

Pre Insulated Straight Flexi Hose Pair

500mm

28mm x 1" Fem

128-3604

Pre Insulated Angled Flexi Hose Pair

500mm

28mm x 1" Fem

128-3605

Pre Insulated Straight Flexi Hose Pair

300mm

28mm x 1" Fem

128-3606

Pre Insulated Angled Flexi Hose Pair

300mm

28mm x 1" Fem

128-3607

Pre Insulated Straight Flexi Hose Pair

750mm

35mm x 1¼" Fem

128-3608

Pre Insulated Angled Flexi Hose Pair

750mm

35mm x 1¼" Fem

128-3609

Pre Insulated Straight Flexi Hose Pair

500mm

35mm x 1¼" Fem

128-3610

Pre Insulated Angled Flexi Hose Pair

500mm

35mm x 1¼" Fem

128-3611

Pre Insulated Straight Flexi Hose Pair

300mm

35mm x 1¼" Fem

128-3612

Pre Insulated Angled Flexi Hose Pair

300mm

35mm x 1¼" Fem

For further technical information please visit www.altecnic.co.uk

2026/27 19

Renewables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Guarantees

Hoses / Insulation

Year

on DiversiTech Hoses + Insulation

DiversiTech Flexible Connection Hoses Pre insulated with external grade PVC coated 19mm thick insulation these flexible hoses help to avoid transmission of vibration in the pipe work and allow for a smooth bend when connecting the flow and return pipe to the heat pump. Available in 300mm, 500mm and 750mm lengths Hose Suitable for Water + Glycol up to 60% 20mm bore stainless steel braided inner hoses One end has 28mm compression fitting, the other end BSP female threaded 10 Bar maximum inlet pressure (Static) 85°C maximum inlet temperature Insulation 19mm wall thickness PVC coated insulation that resists weather and UV resistant Additional 80mm of insulation to cover the connectors -50°C to +110°C insulation temperature range 0.036 W/mk insulation thermal conductivity μ ≥ 10,000 water vapour resistance Kit 2 x PVC coated flexi hoses 2 x Insulation

FH-500-28-F Straight Hose

FH-300-28-F-ELBOW

FH-300-28-F-ELBOW Elbow Hose

PVC Coated Pre Insulated Elbow Flexi Hose Pair

Length

Connection

300mm

28mm x 1" Fem

FH-500-28-1-1/4-F

PVC Coated Pre Insulated Straight Flexi Hose Pair

500mm

28mm x 1" Fem

FH-750-28-F

PVC Coated Pre Insulated Straight Flexi Hose Pair

750mm

28mm x 1" Fem

FH-750-28-1-1/4F

PVC Coated Pre Insulated Straight Flexi Hose Pair

750mm

28mm x 1¼" Fem

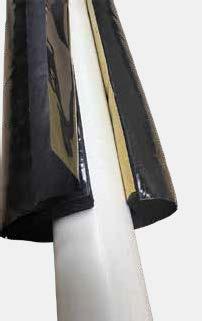

DiversiTech Pre Slit + Seal Insulation Outstanding protection against the elements on external pipework with weatherproof and UV stable PVC coating

Quick to Install

Design offers a quick and secure ‘tape free’ installation with its peel and seal join and self adhesive wrap over flap

PVC Coated

FH-I-1000-28-SLIT

Pre Slit + Seal Insulation

Length

Diameter

1000mm

19mm

28mm

FH-I-1000-35-SLIT

Pre Slit + Seal Insulation

1000mm

19mm

35mm

INS-TAPE-10-PK

PVC Coated Weather + Waterproof Tape

250mm

1mm

35 Pack

DiversiTech Through The Wall Insulation Kit Avoids heat loss and improves efficiency of the installed air source heat pump

PVC Coated

Sleeved PVC coated insulation kit containing 2 x straight lengths (320mm) and 2 x elbows 19mm wall insulation with a tough PVC coating Suitable for both 22mm and 28mm pipe work Provides both thermal insulation within the wall, and comes complete with an elbow section to cover the external copper pipe connection

TW-KIT

20 2026/27

Through Wall Insulation Kit 22-28mm Pipe 19mm Wall External Grade Insulation

For further technical information please visit diversitech.global

Guarantees Years

on Primary Pro Insulation

Take a closer look at the Primary Pro product and demo videos

Insulation

Renewables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Primary Pro External Heating Insulation Protected with unique weather and UV protective coating allowing you to cut/mitre to the required size Insulation should go through fabric of wall then sealed to be fully insulated

AS045

Primary Pro 22mm x 25mm Insulation

Length

Diameter

Thickness

1000mm

65mm

25mm

AS022

Primary Pro 28mm x 19mm Insulation

1000mm

78mm

19mm

AS033

Primary Pro 35mm x 19mm Insulation

1000mm

83mm

19mm

AS042

Primary Pro 42mm x 19mm Insulation

1000mm

85mm

19mm

PPE028

28mm Pre Made Elbows

120mm

60mm

19mm

PPE035

35mm Pre Made Elbows

130mm

75mm

19mm

Primary Pro Wall Sleeve Protects insulated pipework through wall for 22mm, 28mm and 35mm Primary Pro Sleeves can be fitted and sealed using Bond & Seal to prevent heat loss and moisture ingress

Length

Diameter

Thickness

PS028

Primary Pro 22/28mm Sleeve

1000mm

72mm

25mm

22/25

PS035

Primary Pro 35mm Sleeve

1000mm

87mm

19mm

NEW

Primary Pro Bond + Seal

Primary Pro Sealing Rings

Primary Pro Rubberlined Clip

Aids installers to seal joints, provides perfect seal for the insulation through the wall

Sealing ring that makes sealing external walls simple

Rubber lining grips within the steel bracket to prevent movement or sliding

AS35

Primary Pro 22 + 28mm Sealing Ring (10 Pack)

NEW AS008 Rubberlined Clip for 22 + 28mm Insulation

AS36

Primary Pro 35mm Sealing Ring (10 Pack)

NEW AS018 Rubberlined Clip for 35 + 40mm Insulation

AS001

Primary Pro Bond + Seal (290ml)

NEW

Primary Pro Joint Covers Primary Pro Easy Fix Backplate

Primary Pro Male M10 BZP Back Plate

Designed for speed and efficiency, allowing you to attach clips to the wall at least five times faster

Designed for secure wall mounting, the back plate provides a strong and reliable fixing solution for insulated pipework installations

AS050

Primary Pro Easy Fix Back Plate

NEW AS009

For further technical information please visit www.primarypro.co.uk

Primary Pro Male M10 BZP Back Plate

Provides enhanced durability on straight or elbow joints JC28

Primary Pro 28mm Straight Joint Cover (10 Pack)

JC35

Primary Pro 35mm Straight Joint Cover (10 Pack)

EJC28

Primary Pro 28mm Elbow Joint Cover (10 Pack)

EJC35

Primary Pro 35mm Elbow Joint Cover (10 Pack)

2026/27 21

Renewables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Guarantees

Trunking

Year

on DiversiTech Trunking

Inaba Denko 140mm External Trunking 140mm width accommodates both the insulated flow and return pipe work and other associated cabling.

Easy to Install

Made from high grade resistant PVC UV Stable

Protection from the elements, accidental damage and pest damage

SpeediDuct® 150mm External Trunking Made of high quality, rigid, shockproof, UV-stable fire resistant PVC B Usable from -20°C to +60°C in a static position Inside fixation rail (SpinFix) enables use of cable ties to strap and keep the linesets in place – contributing to the duct rigidity Quick and easy to install

DiversiTech Duct

DiversiTech Connection Piece

DiversiTech Flat Bend

140mm or 150mm width, 2000mm length

140mm or 150mm width

Available in black or white finish

NEW TR-D-140-B

140mm Trunking (Black)

NEW TR-CP-140-B

140mm Connection Piece (Black)

NEW TR-FB-140-B

140mm Flat Bend (Black)

TR-D-150-B

SpeediDuct Trunking (Black)

TR-CP-150-B

SpeediDuct Connection Piece (Black)

TR-FB-150-B

SpeediDuct Flat Bend (Black)

TR-D-150-W

SpeediDuct Trunking (White)

TR-CP-150-W

SpeediDuct Connection Piece (White)

TR-FB-150-W

SpeediDuct Flat Bend (White)

DiversiTech Wall Cover

DiversiTech 90° External Bend

DiversiTech 90° Internal Bend

140mm or 150mm width

Available in black or white finish

NEW TR-WC-140-B

140mm Wall Cover (Black)

NEW TR-EC-140-B

140mm External Bend (Black)

NEW TR-IC-140-B

140mm Internal Bend (Black)

TR-WC-150-B

SpeediDuct Wall Cover (Black)

TR-EC-150-B

SpeediDuct 90° External Bend (Black)

TR-IC-150-B

SpeediDuct 90° Internal Bend (Black)

TR-WC-150-W

SpeediDuct Wall Cover (White)

TR-EC-150-W

SpeediDuct 90° External Bend (White)

TR-IC-150-W

SpeediDuct 90° Internal Bend (White)

22 2026/27

For further technical information please visit diversitech.global

Guarantees Year

on DiversiTech Mounting Brackets + Condensate Trays

Mounting Brackets + Condensate Trays

Renewables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

DiversiTech Wall Mounting Brackets These flat-packed, self assembly brackets provide a professional finish to the installation of wall mounted outdoor condensing units and air source heat pumps. Integral spirit level for easier, correct installation Uprights mount anywhere on the crossbar which enables the arm span to be adjusted easily Adjustable wall spacers to level the arms Safe working load up to 250kg Suitable to match most brands of condensing units and domestic air source heat pumps All brackets are tested to 2 x safe working load and go through a 4 stage anti corrosion coating process

Finish

Safe Working Load*

Crossbar

Upright

Support Arm

Weight

CBR2-M

Type 2 Bracket – Medium

Ivory (RAL 7032)

90kg

900mm

500mm

4.6kg

CBR2-XL

Type 2 Bracket – XL

Ivory (RAL 7032)

250kg

1040mm

550mm

660mm

16.2kg

CBR2-XL-BL

Type 2 Bracket – XL

Black

250kg

1040mm

550mm

660mm

16.2kg

CBR2-XXL-3A-BL-DA

Type 2 Bracket – XXL (3 Arms)

Black

250kg

1120mm

550mm

780mm

17.3kg

AVMB-1

AV Mounting Bolts (Pack of 4)

–

*All brackets are tested to twice the safe working loads at an independent UK facility

DiversiTech Easy-Fit Condensate Collection Trays Efficient Drainage

These metal trays have a convex profile and a recessed surface flush, drain hose adaptor, minimising the amount of standing water left in the tray. 25mm height trays with concave profile for efficient drainage Supplied with fixing arms to mount to brackets (wall brackets not included) All trays go through a 4-stage anti-corrosion process Concave profile ensures effective water drainage Recessed, surface-flush drain pipe adaptor minimises standing water in the tray ½” BSP mail thread on drain outlet

Finish

Depth

Width

Weight

CCTM-1100

Metal Tray – Medium

Ivory (RAL 7032)

400mm

1100mm

6.9kg

CCTM01420-BL

Metal Tray

Black

500mm

1420mm

8.5kg

DiversiTech Floor Tray Mounting Bracket Kit When units are mounted at floor level, condensate discharge needs to be directed towards a drain or soak-away to avoid condensate causing a slip hazard. This floor bracket kit allows the metal tray to be mounted onto a flexi foot kit Bracket kit allows a condensate tray to be mounted on to flexi foot kit. The ASHP can then be mounted on to the bracket Includes all necessary fixings for quick and easy installation

Quick to Install

Qty

For Use With

CCTM-FLOOR-BRKT-KIT

Stainless Steel Brackets (with fixings)

Flexi Feet / Trays

CCTM-FLOOR-BRKT-KIT-3

Stainless Steel Brackets (with fixing – 3ft version)

Flexi Feet / Trays

For further technical information please visit diversitech.global

2026/27 23

Renewables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Guarantees

Feet

Year

on DiversiTech Feet

Year

on Rob Pond Feet

DiversiTech Flexi Foot

NEW SIZES

Flexi Foot can support air source heat pumps, and be used in single form as a flexi foot with strut on a variety of outdoor equipment such as cable trays and pipework etc. Made from heavy-duty recycled rubber

Quick to Install

21 x 41mm galvanized steel strut is supplied bonded to the rubber Drain slots moulded to the underside of the foot Foot material density 1.0kg/cm Fast and simple installation 480 hour salt spray tested for durability against the elements

Safe Working Load

Length

Width

Height

Weight

NEW FF-600-S-P

1 x Flexi Foot 600mm (with strut)

420kg

600mm

185mm

100mm

7.6kg

NEW FF-600-S-150

1 x Flexi Foot 600 x 150mm high x 162mm Base

420kg

600mm

162mm

150mm

7.2kg

FF-600-S-KIT

2 x Flexi Foot 600mm (with fixings)

840kg

600mm

185mm

100mm

12.5kg

FF-600-S-150-KIT

2 x Flexi Foot 600mm (with fixings)

–

600mm

130mm

150mm

–

DiversiTech Baby Sumo Adjustable Rubber Support Foot These mini adjustable feet are perfect as ground supports for AC and ASHP units. They are made from reprocessing discarded tyres where 70-95% of the rubber can be recovered. These feet are made of a blend of SBR vulcanised UV-stable rubber with internal glass fibre-reinforced polypropylene.

Anti Vibration

Adjustable Height

Anti-vibration mount made of UV-stabilised rubber compound Suitable for supporting units on uneven or sloping surfaces 160-210mm adjustable height NBR rubber washer at the fixing point to further reduce vibration Support surface features a substantial contact area offering a stable and secure base Solid structure prevents water stagnation and seepage -30ºC to +75ºC working temperature Includes integral M10 bolt nut & washer, NBR rubber anti vibration washer and integrated spirit level

Safe Working Load

Height

Width

Depth

Fixing

Qty

SUMO-FT

Mini Adjustable Foot

150kg (per foot)

160-210mm

160mm

M10

Pack of 4

SUMO-FT-6

Mini Adjustable Foot

150kg (per foot)

160-210mm

160mm

M10

Pack of 6

Rob Pond Anti Vibration Rubber Feet These anti-vibration feet are designed to provide superior stability and noise reduction for various types of equipment and appliances. These sturdy feet effectively minimise movement and absorb vibrations, ensuring smoother operation and prolonging the life of your machinery.

Anti Vibration

Quick to Install

Anti-vibration and noise absorption Includes all necessary fixings for quick and easy installation Produced from recycled rubber with 41mm x 21mm bonded channel -40ºC to +80ºC working temperature

Safe Working Load

Length

Width

Height 95mm

AVFR400

Anti Vibration Rubber Foot 400mm + Fixing Kit

240kg

400mm

130mm

AVFR600

Anti Vibration Rubber Foot 600mm + Fixing Kit

450kg

600mm

130mm

95mm

AVFR6150

Anti Vibration Rubber Foot Hi-Block 600mm + Fixing Kit

450kg

600mm

130mm

150mm

24 2026/27

For further technical information please visit diversitech.global or www.robpond.com

Guarantees

Buffers + Vessels

Years

on Inta Buffers + Volumiser Vessels

NEW SIZES

Renewables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

NEW SIZES

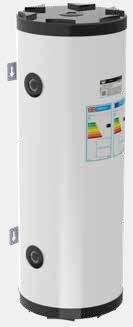

Inta Zil-B Buffer Vessel Data Sheets, Installation Instructions + Maintenance

18 Litre Wall Mounted Buffer Vessel

Volumiser Vessels Data Sheets, Installation Instructions + Maintenance

Inta Zil-B Buffer Vessels

Inta Zilmet Volumiser Vessels

Inta Zil-B buffer vessels are designed to store thermal energy generated by a heat pump system for later use when required. Manufactured to the highest standards, to ensure optimum system performance, helping to enhance the heat pumps overall efficiency.

Provides a bypass route to maintain the minimum flow rate through the heat pump.

Note: Buffer vessels are supplied with 2 x wall/floor mounting brackets. The 12L version is supplied with 1 x bracket and is top & bottom connection only. Acts as a buffer storing additional volume and also as a hydraulic separator, separating the primary and secondary circuits

Promotes energy efficiency Prevents short cycling Can be used as an intermediate vessel to protect the expansion vessel membrane from excess temperatures on a solar system Suitable for heat pump and solar systems

Eliminates compressor pump short cycling

Equipped with entry and exit connections

Heat efficient for the heat pump defrost cycle

Complies with PED 2014/68/EU

Adjustable wall bracket to assist in the event of an uneven install surface

Suitable for solar systems in accordance with EN12977

41mm premium polyurethane foam insulation with minimal heat loss

10 Bar maximum pressure

Improves the operating efficiency of heat pumps

-10°C to 110°C operating temperature

Additional connections for venting and drainage 4 Bar maximum inlet pressure (Static) 95°C maximum inlet temperature Suitable for Water + Glycol up to 50%

NEW BUFF12

12 Litre Wall Mounted Buffer Vessel

NEW BUFF18

18 Litre Wall Mounted Buffer Vessel

BUFF25

25 Litre Wall / Floor Buffer Vessel

BUFF50

50 Litre Wall / Floor Mounted Buffer Vessel

NEW Z1-11A0001255

12 Litre Volumiser Vessel (1" Connections)

BUFF80

80 Litre Floor Mounted Buffer Vessel

NEW Z1-11A0001867

18 Litre Volumiser Vessel (1" Connections)

BUFF100

100 Litre Floor Mounted Buffer Vessel

NEW Z1-11A0002467

24 Litre Volumiser Vessel (1" Connections)

For further technical information please visit www.intatec.co.uk

2026/27 25

Renewables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Guarantees

Heat Pump Installer Packs GREAT VALUE

Years

on Inta Heat Pump Installer Packs

Inta Heat Pump Installer Pack Data Sheets, Installation Instructions + Maintenance

All-in-One Pack

Freeze Protection

Energy Efficient UV + Water Resistant

Inta 28 + 35mm Heat Pump Installer Pack The pack contains everything an engineer needs to complete the external installation. Inta Zero Ant-Freeze Valve (Page 14) Inta Flexible Connection Hoses (Page 18) Inta K-Type Extended External Ball Valves (Page 16) Inta K-Type Ball Valves Insulation (Page 16)

28mm Kit Includes

35mm Kit Includes

2 x Heat Pump Ball Valve 28mm

2 x Heat Pump Ball Valve 35mm

2 x Ball Valve Insulation

2 x Zero Anti-Freeze Valve 28mm

2 x Zero Anti-Freeze Valve 35mm

2 x Anti-Freeze Insulation

2 x Anti-Vacuum Guard

1 x Heat Pump Hose with Elbow 500mm (Pack of 2)

2 x 28mm x 1” Adaptor

2 x 35mm x 1¼” Adaptor 1 x Bond + Seal

INHPKIT1

Inta 28mm Heat Pump Installer Pack

2 x 1¼” Female x 1” Male Adaptor

INHPKIT114

Inta 35mm Heat Pump Installer Pack

1 x Bond + Seal

26 2026/27

For further technical information please visit www.intatec.co.uk

Guarantees

Heat Pump Installer Packs

Years

on Inta Heat Pump Installer Packs

Renewables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

GREAT VALUE NEW All-in-One Pack

Freeze Protection

Energy Efficient UV + Water Resistant

Inta 28 + 35mm Swivel Heat Pump Installer Pack

28mm x 1" Swivel Kit Includes

35mm x 1¼" Swivel Kit Includes

2 x Heat Pump Ball Valve 28mm

2 x Heat Pump Ball Valve 35mm

2 x Ball Valve Insulation

Inta Zero+ Ant-Freeze Valve (Page 12)

2 x Zero Anti-Freeze Valve G1"

2 x Zero Anti-Freeze Valve G1¼"

Inta Flexible Connection Hoses (Page 18)

2 x Anti-Freeze Insulation

Inta K-Type Extended External Ball Valves (Page 16)

2 x Anti-Vacuum Guard

Inta K-Type Ball Valves Insulation (Page 16)

1 x Heat Pump Hose with Elbow 500mm (Pack of 2)

2 x 28mm x 1” Adaptor

2 x 35mm x 1¼” Adaptor

2 x 1¼” Female x 1” Male Adaptor

1 x Bond + Seal

The pack contains everything an engineer needs to complete the external installation.

NEW INHPKIT2

28mmx1" Swivel Heat Pump Installer Pack

NEW INHPKIT3 35mmx1¼" Swivel Heat Pump Installer Pack

1 x Bond + Seal

For further technical information please visit www.intatec.co.uk

2026/27 27

Renewables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Chemicals Fernox Heat Transfer Fluid HP-EG AntiFreeze

Energy Efficient

A concentrated heat transfer fluid for Air and Ground Source Heat Pumps based on ethylene glycol. This high performance product is designed to protect against corrosion and limescale, as well as frost protection from -10 to -33°C. High performance heat transfer fluid for maximum protection against corrosion and scale, to extend system longevity Higher efficiency and lower viscosity than propyleneglycol based products

Corrosion Protection

Lower viscosity means less energy is used to pump the heat transfer fluid around the system Excellent pH buffering to maintain optimum system pH for a mixed-metal system Cost effective solution where thermal efficiency is a key requirement Compatible with all metals and materials in heat pump systems Concentration 25%, 30%, 35%, 40%, 45%, 50% Frost Protection -10°C, -14°C, -18°C, -22°C, -28°C, -33°C

62644

Fernox Heat Transfer Fluid HP-EG (10 Litres)

62595

Fernox Heat Transfer Fluid HP-EG (20 Litres)

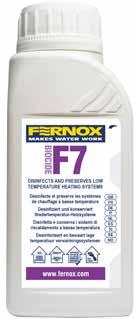

Fernox Biocide F7 Dual Action Biocide Fast Acting

Prevents Fouling

Biocide F7 prevents bacterial contamination and fungal growth within underfloor, low temperature heating systems and chilled systems. Biocide F7 should be used in conjunction with Fernox Protector F1 or Anti-Freeze Protector Alphi-11 to offer full system protection against corrosion and scale, and to maintain energy efficiency levels. Biocide F7 is also used to clean and prevent the reoccurrence of microbiological fouling producing jelly-like deposits (fungal growths) in feed and expansion cisterns. Gas produced by fermentation within systems will also be eliminated by the addition of Biocide F7. Prevents the reoccurrence of jelly-like deposits in low temperature heating systems such as underfloor systems and to clean feed and expansions cisterns Fast, effective action – starts to work within 24 hours Simple application, add via a radiator, towel rail, filling loop or inline system filter Compatible with all Fernox Protectors High performance, dual action biocide – disinfectant and preservation agent provides short term and long term protection A single 200ml bottle of Biocide F7 treats up to 250m2 of underfloor systems and 150 litres of system volume

62393

28 2026/27

Fernox Biocide F7 (200ml)

For further technical information please visit www.fernox.com

Chemicals

Renewables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Instinct Pro Heat Transfer Fluid (Heat Pumps + UFH)

NEW

Concentrate working fluid for air/ground source heat pumps and underfloor heating systems. Inhibited monopropylene glycol (MPG) based Anti-Freeze formulation with added biocide, providing scale, corrosion and bacterial growth protection

AntiFreeze

Prevents limescale formation, corrosion and bacterial growth in low temperature heating systems

Prevents Limescale

-14ºC frost protection, providing a wider operating range than water alone Compatible with all materials commonly found in heat-pump and underfloor heating systems

Prevents Corrosion

Convenient application, mix at site with mains tap water

Instinct Pro Sanitising Fluid (Inc. Test Strips)

NEW

A highly effective sanitising/disinfectant fluid for the treatment of waterborne bacteria and biofilms in low temperature domestic heat pump and underfloor heating systems, and in general storage tanks and pipework.

Prevents Fouling

NEW 504865

Instinct Pro Heat Transfer Fluid for Heat Pumps (5 Litre)

NEW 504872

Instinct Pro Heat Transfer Fluid for Heat Pumps (10 Litre)

NEW 504889

Instinct Pro Heat Transfer Fluid for Heat Pumps (20 Litre)

NEW

Prevents Fouling

Instinct Pro Biocide Treatment (Heat Pumps + UFH) Use Instinct Pro Biocide Treatment annually to provide ongoing protection against the growth of bacteria in air/ground source heat pumps and underfloor heating systems. A 250ml bottle is sufficient to treat 100 litres of water at zero current concentration levels.

Effective Against Bacteria, Viruses, Micro-organisms + Mould, Biofilms + Slime

Delivers a stronger, more persistent (longer lasting) treatment for low temperature systems

Includes test strips to measure diluted solution concentration

Compatible with all materials commonly found in heat-pump and underfloor heating systems

NEW 504797

Prevents Limescale

Prevents Corrosion

NonHazardous

Instinct Pro IN-100 Corrosion Inhibitor Provides top-up treatment for air/ground source heat pumps & underfloor heating systems preventing corrosion and hard water limescale precipitation, and is essential for maintaining operational efficiency of low temperature heat pump and underfloor heating systems. Compatible with all materials commonly found in heat-pump and underfloor heating systems A 250ml bottle is sufficient to treat 100 litres of system water

504223

NEW 504896

Instinct Pro Sanitising Fluid (1 Litre)

Instinct Pro IN-100 Corrosion Inhibitor (250ml)

For further technical information please visit www.instinctproducts.co.uk

Removes Debris

NonHazardous

Instinct Pro Biocide Treatment (250ml)

Instinct Pro IN-300 System Cleaner For pre-commissioning of low temperature heat pump and underfloor heating systems. Removes installation foulants, flux, grease and debris suspended in water by flushing Ideal for treating new systems prior to adding Heat Transfer Fluid Compatible with all materials commonly found in heat-pump and underfloor heating systems

504247

Instinct Pro IN-300 System Cleaner (250ml) 2026/27 29

Renewables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Guarantees

Chemicals

Years

on Scalemaster® Suprion Scale Inhibitors

Suprion – Technologically Advanced Physical Water Treatment

950211 EH-12E 15

Easy to Install

Easy to Maintain

Removes Limescale

No Power Required

Heat Pump Compatible

Long Lasting

950228 EH-75

950235 EH-100

Scalemaster® Suprion Scale Inhibitors Suprion EH models provide a technologically advanced, effective solution to hard water scale problems over a wide range of water applications for an extended period of time. Prevent limescale buildup in traditionally hard to treat environments which occur in electric pump/immersion heater systems. Effective solution in preventing hard water limescale buildup and gently removing existing limescale

Hot Water

Heat Pump Unit

Hot Water Outlet

Protecting the mains water circuit of electric domestic heating & hot water immersion systems, including those with heat pumps (JS versions available for non-electric / general use)

Storage Tank

Temp. 65-90°C

Proven longevity with no decline in performance Requires no electrical power and maintenance free with no filters or chemicals to replenish

Pump

Cold Mains Inlet EH-Inhibitor

Made in Japan

Domestic water heater with heat pump system

Connectable Pipe

Diameter

Length

Fittings Supplied

Fittings Required

Max. Flow Rate

950211

EH-12E 15mm

15mm

29mm

132mm

15mm Compression

–

36 l/min

950228

EH-75

22mm

44mm

142mm

–

¾" BSPT

65.9 l/min

950235

EH-100

28mm

50mm

165mm

–

1" BSPT

108 l/min

30 2026/27

For further technical information please visit www.scalemaster.co.uk

el ectri c ve hicl e cha rge r Reliable, intelligent EV charging for home or the workplace. Available tethered or untethered, EVone combines fast, reliable charging with smart control through the ESi GO app.

Smart. Safe. Simple. Powering the future.

UNTETHERED EVONE-S

Use your own charging cable

TETHERED EVONE-P

Charging cable included

Why EVone? • 7.4kW fast charging • Built-in protection – no earth rod required • WiFi or Ethernet connectivity

Scan to explore EVone www.esicontrols.co.uk

ESi GO APP Smart charging. Complete control.

Monitor and manage your EVone remotely, schedule charging from your phone and stay in control wherever you are.

Patrick Macdonald +44

• Dynamic load balancing

FIND OUT MORE

7500 234 359

***************** I agree to the Terms of Service

• Free ESi GO app – no subscription fees • 3-year warranty*

Terms and condition apply. See website for more details.

Free to use. No subscription fees.

Already have an account? LOG IN

www.esicontrols.co.uk

Renewables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Guarantees

Air Con Tools

Year

on Rothenberger Air Con Tools

ROTHENBERGER Air Con Tools

NEW

Two-Stage Vacuum Pump

Circuit Protection

Heat Pump Compatible

Reduce Moisture

Overheat Protection

Multiple Connectors

ROTHENBERGER 2-Stage Vacuum Pump ROAIRVAC 6.0

Easy Oil Check Level

The ROTHENBERGER ROAIRVAC 6.0 is suited for the evacuation of all refrigeration circuits according to DIN 8975. The two-stage rotary vane pump achieves a vacuum of less than 25 micron. As a result, air conditioning systems, refrigeration systems and heat pumps can be freed of residual moisture. Achieves a vacuum of less than 25 micron for thorough refrigeration circuit evacuation Solenoid check valve helps prevent oil contamination if power is interrupted Integrated vacuum gauge with drag indicator provides quick, clear progress checks Gas ballast valve helps remove water vapour from the oil Thermal switch protects the motor from overheating 1/4" SAE connection with 5/16" and 3/8" SAE adaptors included Sight glass allows quick visual inspection of oil level Finish – Grey / Black / Red Dimensions – 250(h) x 155(w) x 335(d) mm NEW 170063

NEW

120kg Capacity

NEW

2-Stage Vacuum Pump ROAIRVAC 6.0

Universal Pipe Compatible

R32 + R410A Compatible

ROTHENBERGER Assembly Aid Set 4-way II Plus, R410A and R32

ROTHENBERGER ROSCALE 120 Digital Scale

ROTHENBERGER Universal Flange Device, 4-16mm / 3/16–5/8"

The ROTHENBERGER manifold PLUS sets are used for the installation and maintenance of refrigeration and air conditioning systems as well as heat pumps. Through the 4-way valve block including 3/8" vacuum connection, a rapid evacuation of systems is possible. This set is designed for R32 and R410A and their connectors.

The ROTHENBERGER Roscale 120 refrigerant scale, is used for filling and evacuating of refrigerants. It is suitable for all common refrigerant bottles due to its large weighing capacity of 120kg. Precise filling is easily possible with the 5g scale.

The ROTHENBERGER Universal Flaring tool enables installers in the refrigeration and air-conditioning sector to flare pipes with Ø up to 16 mm/ 5/8" in order to case an air conditioning unit.

4-way manifold with 3/8" vacuum connection enables rapid evacuation Pressure gauge rated up to 60 Bar for demanding applications Large 80mm gauges provide easy-to-read system pressure readings Class 1.6 pressure gauges provide reliable measurement Supplied in a sturdy plastic case for protection and easy transportation

Suitable for all commonly used refrigerant bottles and cylinders 5g increments enable accurate refrigerant filling Bottle adapter included for 1L and 2L refrigerant bottles Large LCD makes readings easy to see during use Provides ample space for refrigerant bottles of all sizes Finish – Black / Red Dimensions – 385(h) x 140(w) x 385(d) mm

32 2026/27

Assembly Aid Set 4-Way II Plus

Self-centring pipe clamp ensures accurate, consistent flares across all diameters Specially designed flaring cone produces smooth, controlled flares without cracking Precision forming creates a clean, high-quality flare surface Simple hand-operated design for refrigeration and air-conditioning installation work Finish – Metal Dimensions – 120(h) x 110(w) x 25(d) mm

Finish – Blue / Red Dimensions – 290(h) x 325(w) x 40(d) mm NEW 170608

Flares copper pipes from 6 mm to 16 mm (3/16"–5/8")

NEW R17300416

ROSCALE 120 Digital Scale

NEW 222601

Universal Flange Device

For further technical information please visit www.rothenberger.com

Guarantees

Air Con Tools

Years

on Hinton Air Con Tools

Renewables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Hinton Air Con Tools

NEW

Fast Nitrogen Purging

NEW

High Inlet Pressure

NEW Secure Cylinder Support Solid Rubber Wheels Retractable Handle One Cylinder Capacity 200kg Load Bearing

Hinton Nitrogen Purge Flow Controller The Hinton Nitrogen Purge Flow Controller is a quick and easy way to purge copper pipes with nitrogen. Then, with a turn of the dial, quickly switch to a very low flow of nitrogen to properly braze the copper. It has a durable aluminium design so you can just throw it into your tool bag when you are done. Quickly purges copper pipework before brazing Easily switch between TST, Purge, Braze and Off settings for controlled nitrogen flow Provides a low, steady nitrogen flow during brazing to help protect the pipework Connects directly to a standard nitrogen regulator using ¼" refrigerant hoses Robust design built to withstand everyday use in a tool bag

Hinton Nitrogen Regulator 50 Bar (T-Bar Handle) Single-stage nitrogen regulator precision built to the latest BS EN ISO 2503 standards to provide maximum accuracy and safety. Handles inlet pressures up to 300 Bar 0–50 Bar (0–750 psi) outlet range for controlled system testing 0–70 Bar (0–1,000 psi) gauge provides clear, precise pressure readings Designed for testing refrigeration systems using R410A in accordance with BS EN 378 ¼" SAE flare outlet enables quick connection to standard refrigeration hoses Finish – Metal / Black

Finish – Red / Black NEW PU111

Nitrogen Purge Flow Controller

NEW

Complete Welding Kit

Enhanced Safety

Portable Design

Secure Storage

Carry Handle

NEW BR159 Nitrogen Regulator 50 Bar (T-Bar Handle)

Hinton Oxyturbo 110 Portable Kit (Map/Oxy Kit) A small lightweight welding and brazing kit in a compact metal carrier. Ideal for Plumbing, Air Conditioning and refrigeration system repairs. Also ideal for heating applications. Includes mini regulators, blowpipe, microneedle and hoses Four built-in flame arrestors help provide added protection during use Compact kit with carry handle for easy transportation Two blocking devices help keep components safely in place Practical design makes it easy to carry between jobs Finish – Red

Hinton Nitrogen Cylinder Trolley (Retractable) Designed for the secure and controlled movement of nitrogen cylinders around the workplace. Durable yet lightweight design makes the trolley easy to handle and manoeuvre Security chain helps keep the cylinder firmly in place during transportation Solid rubber wheels provide smooth, stable movement across the work area Handle folds away for convenient storage and easier transportation Designed to safely accommodate one nitrogen cylinder

NEW BR110K Oxyturbo 110 Portable Kit (Map/Oxy Kit) NEW BR147

For further technical information please visit www.cwbwholesale.com

Disposable Replacement Oxygen Cylinder (Oxyturbo)

Finish – Aluminium Weight – 1.6kg NEW NIT24

Nitrogen Cylinder Trolley (Retractable)

2026/27 33

Hydronic UFH

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Hydronic UFH Section

Page No.

Manifold Instinct Pro Stainless Steel Manifold (Hydronic Balancing)

Instinct Pro 230V UFH Actuator

Our frequently ordered Hydronic UFH products...

Blending Valve + Pump Pack Instinct Pro Blending Valve + Pump Pack

Single Room Control Pump Pack Instinct Pro Single Room Control Pump Pack

Replacement Bastion Pump

Replacement Wilo Pump

Hydronic Balancing

Circuit Control

Flow + Pressure Gauges

Pre-Fitted Bracket

Water + Glycol Ready

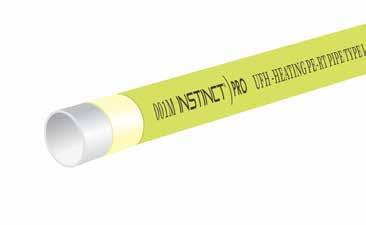

Pipes Instinct Pro 3-Layer PE-RT EVOH Pipe (12mm x 1.6mm)

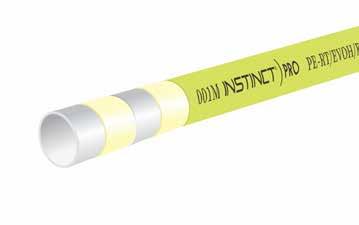

Instinct Pro 5-Layer PE-RT EVOH Pipe (16mm x 2mm)

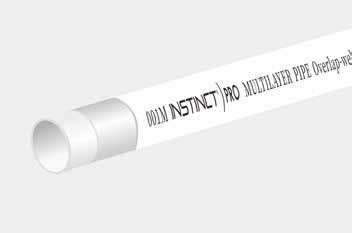

Instinct Pro 5-Layer PERT-AL-PERT Pipe (12mm x 1.6mm)

Instinct Pro 5-Layer PERT-AL-PERT MLCP Pipe (16mm x 2mm)

Accessories + Ancillaries Standard Clip Gun + Tracker Clips

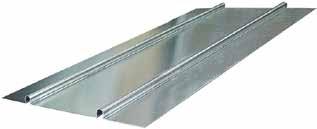

Aluminium Spreader Plate

Premier Uncoiler

Pressure Test Pump

Plastic Star Reamer (12mm, 16mm, 20mm)

Eurocone Fittings

Plastic Elbow

Track Rail Universal 14-16mm (With Tape)

Tools + Spares MLCP Calibration Beveling Set

Pipe Cutter

Flow Meter Spare

1” Ball Valve (with Temp Gauge Set Red + Blue – Pair)

¾” Ball Valve Set (for Blending Valve Red + Blue – Pair)

Instinct Pro Stainless Steel Manifold (Hydronic Balancing)

A-Rated Pump

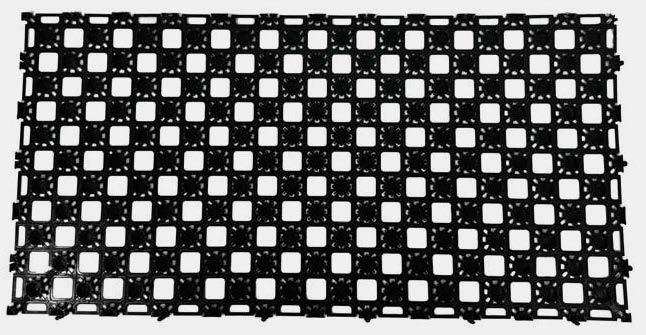

Panels SpiderFix Panels

Quick to Install

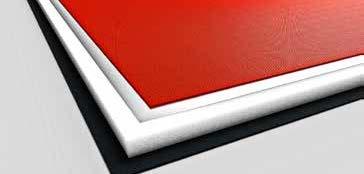

Floor Boards ResoThermchip High Performance Chipboard

ResoBacker Boards

HEATBACKER CEM XPS Board

HEATDECK Fibre Reinforced Gypsum Board

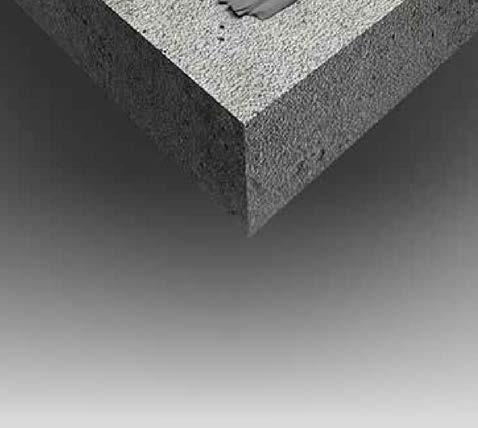

ResoThermXPS 300 + 400 Extruded Polystyrene Board

NEW Gypdeck 18

Thermal Perimeter Edge Strips

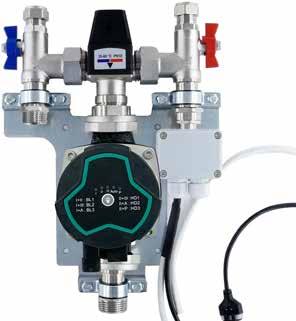

Instinct Pro Blending Valve + Pump Pack (Bastion Pump) 34 2026/27

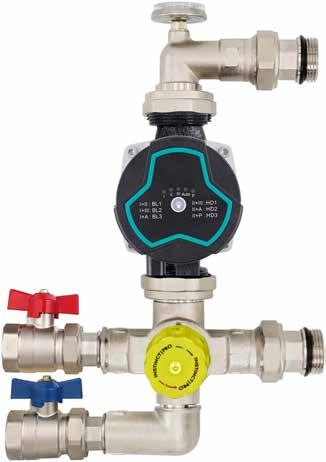

Instinct Pro Single Room Control Pump Pack (Wilo Pump)

For further technical information please visit www.instinctproducts.co.uk

Underfloor Heating Designs Made Simple All-in-one tool for calculating, designing, specifying and drawings. Heat Load Calculations

Simplify your heat load calculations in alignment with industry standards

System Sizing

Automatically generate loop layouts with required pipe spacings

Reports + Client Drawings

Generate branded drawings and reports including system performance, energy usage and more

Bill of Materials

Download the automatically generated, detailed Bill of Materials with product specification

Get your free 2-week trial and/or book a free demo today at www.h2xengineering.com

Hydronic UFH

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Guarantees

Manifold Hydronic Balancing

Circuit Control

Years

on Instinct Pro Stainless Steel Manifold

Flow + Pressure Gauges

Pre-Fitted Bracket

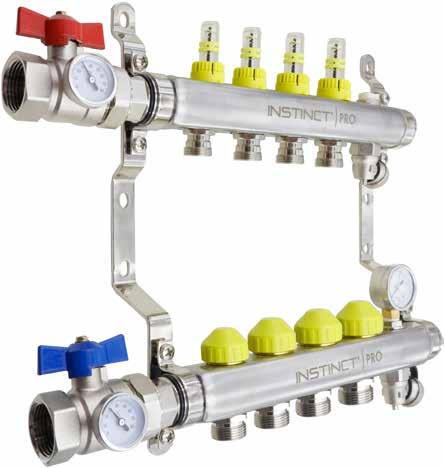

Instinct Pro Stainless Steel Manifold in 2 to 12 Ports (Hydronic Balancing)

Water + Glycol Ready

Stainless Steel manifold for HVAC systems with Hydronic Balancing and independent setting from each individual circuit. Pre-fitted mounting bracket 1” isolation ball valve with temperature gauge (flow and return) Built-in pressure gauge Balancing valve on each return point Flow meter on each flow point with shut-off function Fill and drain point on flow and return Manual air vent Independent setting for each circuit Suitable for water or glycol (Maximum 30% glycol) 6 Bar maximum working pressure 5°C to 70°C working temperature range ¾” flow/return connections (12 mm and 16 mm Euro cone pipe connections sold separately) 50mm centres on flow/return connections Left or Right Inlet/Outlet 0–5L/min flow meter scale G1”F (ISO 228-1) main connections G¾”M (ISO 228-1) outlets Finish – Stainless Steel Seals – EPDM Handle – ABS Springs – Stainless Steel Brackets – Chrome plated steel Adaptors – Brass

IN-116602-AB-BV

Instinct Pro Manifold (2 Port)

IN-116603-AB-BV

Instinct Pro Manifold (3 Port)

IN-116604-AB-BV

Instinct Pro Manifold (4 Port)

IN-116605-AB-BV

Instinct Pro Manifold (5 Port)

IN-116606-AB-BV

Instinct Pro Manifold (6 Port)

IN-116607-AB-BV

Instinct Pro Manifold (7 Port)

IN-116608-AB-BV

Instinct Pro Manifold (8 Port)

IN-116609-AB-BV

Instinct Pro Manifold (9 Port)

IN-116610-AB-BV

Instinct Pro Manifold (10 Port)

IN-116611-AB-BV

Instinct Pro Manifold (11 Port)

IN-116612-AB-BV

Instinct Pro Manifold (12 Port)

No. of Outlets

Manifold width / mm

126

176

226

276

326

376

426

476

526

576

626

Turns

1.25

1.5

1.75

2.5

3.5

F.O.

0.12

0.33

0.47

0.57

0.77

0.88

0.95

1.02

No. of Outlets

1.02

1.65

2.23

2.55

2.81

2.97

3.13

3.26

3.34

3.38

3.42

3.50

36 2026/27

For further technical information please visit www.instinctproducts.co.uk

Guarantees Years

on Instinct Pro Stainless Steel Manifold

Manifold

Years

on Instinct Pro 230V UFH Actuator

Hydronic UFH

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Instinct Pro Hydronic Balancing Manifold and Gauges – Makes for Easy Installation, Commissioning and On-Site Testing

5 8

1 Bright coloured caps and flow meters for enhanced visibility

2 Manual air vent 3 Left and right outlets 4 Universal inlets and outlets to adapt various pipe types and sizes (Union nut + ring supplied separately) 5 Built in pressure gauge 6 Balancing valves (Comes with key for setting) 7 Swivel hose connections to help with easier filling, testing and servicing 8 Flow and return isolation valves (comes with temperature gauge as standard)

Instinct Pro 230V UFH Actuator The valve actuator helps improve the energy efficiency of the system by allowing individual room temperature control.

Specification Operating Voltage

24V/230V AC (+/-15%) 50/60Hz

Normal Closed (NC)

Maximum Inrush Current < 200mA during 100ms max

Complete compatibility to valve adapter system

Operating Power

Simple snap-on installation

Stroke (Actuator Travel)

3mm

360° installation position

Actuating Force

100 N +10%

Patented 100% protection against leaky valves

Storage Temperature

-25°C to +60°C

First open function (NC type only)

Degree of Protection

Adaptation check on valve

Type of Protection

IP54

Alignment aid on the valve

CE Conformity

EN 60730 EN 61000

Surge protection

Connecting Cable/Colour 2 x 0.5mm2 PVC / Light Grey

Certified by LL-C Finish – Yellow Dimensions – 62(h) x 42(w) x 42(d) mm Stroke – 3mm Power Consumption – 2W

IN-2033-230V

Cable Length

Surge Protection 2.5 kV According to EN60335-1

Instinct Pro 230V UFH Actuator

For further technical information please visit www.instinctproducts.co.uk

2026/27 37

Hydronic UFH

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Guarantees

Blending Valve + Pump Pack

Years

on Instinct Pro Blending Valve

A-Rated Pump

Quick to Install

Adjustable Temp.

Reversible Design

Heat Pump Ready

Years

on Bastion Pump

Years

on Wilo Pump

Instinct Pro Blending Valve + Pump Pack (Bastion Pump)

Instinct Pro Blending Valve + Pump Pack (Wilo Pump)

Designed to work with manifolds of all types, on 210mm centres. The thermostatic blending valve is a bolt on unit providing a quick and simple system to install.

Supplied with A-rated 6m Bastion Pump and ¾” ball valves

Supplied with A-rated 6m Wilo Pump and ¾” ball valves

The water supply temperature can be adjusted according to the structure of the floor

Designed for heat pump and low temperature systems that do require a thermostatic control valve

Left or right connections (Reversible)

Suitable for water or glycol (Maximum 30% glycol)

35°C to 60°C temperature range

6 Bar maximum working pressure

≤ 0.20 energy efficiency index (EEI)

6m maximum delivery head

6.3m maximum delivery head

3.0m /h maximum volume flow

2.6m3/h maximum volume flow

Dimensions – 300(h) x 196(w) x 128(d) mm Weight – 3.7kg

Dimensions – 302(h) x 230(w) x 122(d) mm Weight – 1.87kg

IN-2536J+BAS-PUMP

IN-2536J+WILO-PUMP

38 2026/27

Instinct Pro UFH Blending Valve + Pump Pack (Bastion Pump)

Instinct Pro UFH Blending Valve + Pump Pack (Wilo Pump)

For further technical information please visit www.instinctproducts.co.uk

Guarantees Years

on Instinct Pro Single Room Control Pump

Years

on Bastion Pump

Years

on Wilo Pump

Single Room Control Pump Pack

A-Rated Pump

Silent Operation

Instinct Pro Single Room Control Pump Pack (Bastion Pump)

Instinct Pro Single Room Control Pump Pack (Wilo Pump)

UFH control pack for providing temperature controlled mixed water in single room applications to an underfloor heating system with a heat output up to 3Kw.

Pre-wired A-rated 6m Bastion Pump

Pre-wired A-rated 6m Wilo Pump

Flow Temperature Thermostat

Integral ball valves for connecting/isolating the primary heating system

Adjustable thermostatic blending valve

Includes ½” to ¾” fittings excluding euro cones

Fixing bracket with anti-vibration mountings for silent operation

35°C to 60°C temperature range

10 Bar maximum working pressure

≤ 0.20 energy efficiency index (EEI)

6m maximum delivery head

6.3m maximum delivery head

3.0m3/h maximum volume flow

2.6m3/h maximum volume flow

Dimensions – 302(h) x 230(w) x 132(d) mm Weight – 4.265kg

Dimensions – 302(h) x 230(w) x 132(d) mm Weight – 2.43kg

IN-2532J+BAS-PUMP Instinct Pro UFH Single Room Control Pump Pack (Bastion Pump)

IN-2532J+WILO-PUMP Instinct Pro UFH Single Room Control Pump Pack (Wilo Pump)

Hydronic UFH

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Replacement Pumps A-Rated Pump

A-Rated Pump

Bastion Pump

Wilo Pump

Dimensions – 130(h) x 90(w) x 127(d) mm

Dimensions – 139(h) x 93.5(w) x 123(d) mm

For further technical information please visit www.instinctproducts.co.uk

2026/27 39

Hydronic UFH

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Guarantees

Pipes

Years

on Instinct Pro UFH Pipes

Instinct Pro PE-RT EVOH Lightweight + Ultra-Flexible Pipe

Instinct Pro 3-Layer PE-RT EVOH Pipe (12mm x 1.6mm)

Instinct Pro 5-Layer PE-RT EVOH Pipe (16mm x 2mm)

The Instinct Pro 12mm 3-layer pipe is made up of an oxygen barrier, a layer of adhesive, and a layer of PERT pipe.

The Instinct Pro 16mm 5-layer pipe is made up of an oxygen barrier, 2 layers of adhesive, and 2 layers of PERT pipe.

Available in Yellow

Lightweight and ultra-flexible, easy to bend, the ideal choice for hassle-free routing and reduced installation time

Pipe Dimensions – 12mm x 1.6mm, 3 Layers

Pipe Dimensions – 16mm x 2mm, 5 Layers

IN-PE16120

Instinct Pro 16mm x 120m Coil (Weight – 10.4kg)

IN-PE16240

Instinct Pro 16mm x 240m Coil (Weight – 20.7kg)

IN-PE12080

Instinct Pro 12mm x 80m Coil (Weight – 4.3kg)

IN-PE16300

Instinct Pro 16mm x 300m Coil (Weight – 25.8kg)

IN-PE12320

Instinct Pro 12mm x 320m Coil (Weight – 17.0kg)

IN-PE16500

Instinct Pro 16mm x 500m Coil (Weight – 43.0kg)

PERT-AL-PERT (MLCP) Aluminium Lined Pipe

Instinct Pro 5-Layer PERT-AL-PERT Pipe (12mm x 1.6mm)

Instinct Pro 5-Layer PERT-AL-PERT Pipe (16mm x 2mm)

A flexible yet durable solution, the aluminium layer provides strength and also an oxygen barrier. made up of 2 layers of PERT pipe, 2 layers of adhesive, and 1 layer of aluminium.

A flexible yet durable solution, the aluminium layer provides strength and also an oxygen barrier, made up of 2 layers of PERT pipe, 2 layers of adhesive, and 1 layer of aluminium.

Available in White

The perfect choice for underfloor heating installations, offering the benefits of both plastic and metal

Pipe Dimensions – 12mm x 1.6mm, 5 Layers

Pipe Dimensions – 16mm x 2mm, 5 Layers

IN-PAP12080

Instinct Pro 12mm x 80m Coil (Weight – 5.2kg)

IN-PAP16120

Instinct Pro 16mm x 120m Coil (Weight – 12.6kg)

IN-PAP12160

Instinct Pro 12mm x 160m Coil (Weight – 10.3kg)

IN-PAP16240

Instinct Pro 16mm x 240m Coil (Weight – 25.2kg)

IN-PAP12240

Instinct Pro 12mm x 240m Coil (Weight – 15.4kg)

IN-PAP16500

Instinct Pro 16mm x 500m Coil (Weight – 52.5kg)

40 2026/27

For further technical information please visit www.instinctproducts.co.uk

Guarantees

Accessories + Ancillaries

Years

on UFH Accessories + Ancillaries

Hydronic UFH

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Standard Clip Gun + Tracker Clips After laying the insulating panel, proceed to lay the pipes with the tracker clips using the clip gun tool. The clips, provided in rows of 25 clips each, must be loaded in the tool, the panels are secured by pressing the handle down. For use with 16mm pipe Quantity – 1 (Clip Gun) 300 Pack (Tracker Clips) Dimensions – 900(h) x 320(w) x 110(d) mm (IN-CLG01) 41.6(h) x 37.5(w) x 6(d) mm (Zl-CL01) 56.5(h) x 36.4(w) x 6.2(d) mm (Zl-CL02)

IN-CLG01

Standard Clip Gun

ZL-CL01

40mm Tracker Clips

ZL-CL02

60mm Tracker Clips

Aluminium Spreader Plate Quantity – 1 Dimensions – 390(h) x 1000(w) x 0.45(d) mm Pipe Centres – IN-AP2 – 200mm IN-AP3 – 133mm

IN-AP2

Double Groove Aluminium Plate (fit 16mm)

IN-AP3

Triple Groove Aluminium Plate (fit 16mm)

Premier Uncoiler

Pressure Test Pump

Plastic Star Reamer (12mm, 16mm, 20mm)

Quantity – 1 Dimensions – 887(h) x 1416(w) x 1416(d) mm Max. Coil Size – 1.3m Max. Weight – 200kg

Quantity – 1 Dimensions – 160(h) x 490(w) x 160(d) mm

Quantity – 1 Dimensions – 90(h) x 90(w) x 26(d) mm

IN-1235E

IN-RP-50

ZL-RE01

Plastic Elbow

Track Rail Universal 14-16mm (with Tape) Quantity – 1 Dimensions – 1000(h) x 45(w) x 24(d) mm IN-CR02

Eurocone Fittings Quantity – 1 Dimensions – 31.6(h) x 31.6(w) x 18(d) mm (ZL-1036/12/1.6) 32(h) x 32(w) x 17.5(d) mm (ZL-1039/16) IN-ZL-1039/12/1.6

12 x 1.6 For Multi/Pex (2 Pack)

Quantity – 1 Dimensions – 165(h) x 75(w) x 24.5(d) mm To Fit Pipe Size – 16mm

IN-ZL-1039/16

16 x 2.0 For Multi/Pex (2 Pack)

ZL-PE01

For further technical information please visit www.instinctproducts.co.uk

2026/27 41

Hydronic UFH

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Guarantees

Tools + Spares

Years

on UFH Tools + Spares

MLCP Calibration Beveling Set For multilayer composite and Pex pipe up to Ø32mm. Cutting device made of steel for long lifetime and with sharp cutting edge Large opening for removing pipe chips Anodic oxidation aluminium alloy sleeve is light and wear-resisting Hexagonal connector for changing different sizes easily, for handle, standard bit connectors or cordless screw driver Ø16, 20, 25, 32mm deburring range Quantity – 1 Dimensions – 227(h) x 110(w) x 60(d) mm

ZL-1236

Pipe Cutter

Flow Meter Spare

This pipe cutter is ideal for effectively cutting multilayer underfloor heating pipe. Quick and simple to use and designed to ensure a smooth clean cut that will not damage the pipe.

This flow meter is uniquely designed to work with Instinct Pro manifolds, providing accurate and reliable flow readings.

Quantity – 1 Dimensions – 248(h) x 38(w) x 39(d) mm

Quantity – 1 Dimensions – 30.5(h) x 36.5(w) x 101(d) mm

IN-PA01

IN-1211

1” Ball Valve (with Temp Gauge Set Red + Blue – Pair)

¾” Ball Valve Set (for Blending Valve Red + Blue – Pair)

The 1” Ball Valve and Temperature Gauge Set delivers precision, durability, and ease of use, making it an essential component for any manifold system.

These ¾” Isolation Ball Valves (supplied as a red/blue pair) are for isolating the underfloor heating manifold and pump set from the heating system.

Quantity – 1 Dimensions – 103(h) x 70(w) x 74(d) mm

Quantity – 1 Dimensions – 82(h) x 40(w) x 65(d) mm

ZL-4012

ZL-4130B

42 2026/27

For further technical information please visit www.instinctproducts.co.uk

Guarantees

Panels

Years

on SpiderFix Panels

Hydronic UFH

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

SpiderFix Panel – A low-profile design maximises floor-to-ceiling height and speeds up heat response Easy to Install

Durable Material

Versatile Panel

SpiderFix Panel The SpiderFix Panel is a robust injection-molded board made from 100% recycled plastic, designed to hold 12–16mm underfloor heating pipes securely in place. Its low-profile build makes it suitable for both retrofit and new-build projects. With self-adhesive backing, interlocking connectors, and easy cutting grooves, the panels are quick to install and adaptable to different room layouts. Once laid, they provide a stable base for floor finishes and help ensure an accurate pipe layout with consistent heat distribution. Self-adhesive panels with interlocking edges and trimming lines for quick, accurate fitting

With Flowing Screed Recommended overall screed/ levelling compound + floor covering thickness (domestic use, normal foot traffic) Direct on subfloor – Tiles/Wood 20–25 mm, LVT/Linoleum/Carpet 25–30mm Over Insulation Boards – Tiles/Wood/LVT/Linoleum/Carpet 30–35 mm

Works with wood, interlocking boards, LVT, linoleum, carpet and tiles Ensures even heat distribution, stable pipe fixing and improved system response High-strength injection-molded plastic designed to resist wear and deformation Snap-clips connect panels securely for a continuous surface Cutting grooves at 50mm intervals for easy trimming and adjustments Low-profile design maximises floor-to-ceiling height and speeds up heat response 1200 x 600 x 16.5mm, routed to accept 12mm pipe (SP-12)

Ensures even heat distribution and faster system response

1200 x 600 x 20mm, routed to accept 16mm pipe (SP-16) Adjustable pipe spacing accommodates 50mm, 100 mm and 150–300mm centres for flexible pipe layouts

1200mm 1200mm 1200mm

12/16mm O.D.pipe 12/16mm O.D.pipe 12/16mm O.D.Pipe

16.5/20mm

SP-12 SP-16

SpiderFix Panel (for 12mm Pipe) SpiderFix Panel (for 16mm Pipe)

For further technical information please visit www.instinctproducts.co.uk

50mm

100mm

150mm to 300mm(typical)

150mm to 300mm (typical)

2026/27 43

Hydronic UFH

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Floor Boards

Fast Heat Transfer

Even Heat Transfer

Foil Faced

Water Resistant

Easy Retrofit

Tile Ready

UK Made

Chipoboard Faced

Foil Faced

Plain Cement Board

Printed with Pipe Layout Design Board

ResoThermchip High Performance Chipboard

ResoBacker Boards

High performance chipboard available in 1200mm and 2400mm lengths, with a foil face for even heat transfer. Boards provide extremely efficient and high performance underfloor heating for building occupants. They are ideal for all types of developments including residential, care homes and offices.

High strength, water resistant cement fibre boards used as the covering layer over our routed UFH board systems. The board strengthens the surface of the routed carrier board, whilst also offering excellent and even heat transfer to the surfaces above. Ceramic and porcelain tiles can be laid directly over the surface after installation. Available plain or with pipe layout printed.

This system is ideal for replacing existing floor boarding on timber joisted floors as it has minimal impact on floor heights.

Even and efficient heat distribution

High heat output, with foil facing and pipe centre options

Excellent resistance to water and moisture

Panels manufactured using FSC certified P5 chipboard

High compressive strength and impact resistance

Suitable for all types of 12 and 16mm pipework

Protects against mould growth in damp environments

Faster response times – UFH pipes are closer to surface finish than traditional FFB (fit from below) installation

Suitable for ceramic and porcelain tiles Available plain or with printed pipe layouts

Structurally tested to comply with BS:EN1195 & BS EN 12871 0.6% moisture absorption Pipe centres on the board are 150mm

Fibre Cement Cover Boards (Printed with Pipe Layout Design) INBACKER0061200900PRINT

Plain Faced UFH Chipboard

1200 x 900 x 6mm

Fibre Cement Cover Boards (Plain Cement Board)

INCHIP0226001200R-12/150

1200 x 600 x 22mm for 12mm Pipes

INCHIP0226001200R-16/150

1200 x 600 x 22mm for 16mm Pipes

INCHIP0226002400R-12/150

2400 x 600 x 22mm for 12mm Pipes

Installation Accessories

INCHIP0226002400R-16/150

2400 x 600 x 22mm for 16mm Pipes

INABONDD3PVA1KG

INCHIP0226001200R-FF-12/150

1200 x 600 x 22mm for 12mm Pipes

INMSP290ML

MS Polymer Adhesive cartridge 290ml (2m2 coverage)

INCHIP0226001200R-FF-16/150

1200 x 600 x 22mm for 16mm Pipes

INSCREW5X80

INCHIP0226002400R-FF-12/150

2400 x 600 x 22mm for 12mm Pipes

5mm x 80mm Screws for fixing Routed Chipboard to floor joists (Box of 200)

INCHIP0226002400R-FF-16/150

2400 x 600 x 22mm for 16mm Pipes

INSCREW5X25

5mm x 25mm Screws for fixing ResoBacker boards to Routed Chipboard (Box of 200)

50mu Foil Faced UFH Chipboard

44 2026/27

INBACKER0061200900

1200 x 900 x 6mm

Wood glue for chipboard T&G joints 1kg (30m2 approx.)

For further specification options please see technical data sheet at www.instinctproducts.co.uk

Floor Boards

Hydronic UFH

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Fast Heat Transfer

High Strength

Tile Ready

90° Turn Grooved Flow + Return Highway Panel

UK Made

Grooved Heating Panel (with Serpentine Loops + 3 Cross Runs)

HEATBACKER CEM XPS Board These boards are the ideal solution when looking for a low profile overlay board for tiled floor applications. The light weight extruded polystyrene (XPS) core panels are faced on both sides with a glass fibre reinforcement mesh and cementitious coating. Efficient and fast transfer of heat Suitable for all types 12 and 16mm pipework High compressive strength Ideal for tiled flooring to be laid directly over Straights, radius returns and universal CNC routing options 0.033 Wmk thermal conductivity

Straight Grooved Flow + Return Highway PanelReturn Highway Panel

Grooved + Straight Heating Panel INHEATBB206001200(20-S)16/150

INHEATBB206001200(20-SR)16/150

Pipe centres on the board are 150mm / 60mm

1200 x 600 x 20mm for 16mm Pipes

Grooved Heating Panel (with Serpentine Loops + 3 Cross Runs) INHEATBB206001200(20-U)16/150

1200 x 600 x 20mm for 16mm Pipes

Straight Grooved Flow + Return Highway Panel INHEATBB206001200(20-H)16/60

1200 x 600 x 20mm for 16mm Pipes

Fully Circled Bi-Directional + Triangle Fix Board INHEATBB206001200(20-C)16/150

300kPa compressive strength

1200 x 600 x 20mm for 16mm Pipes

Grooved Heating Panel (with Serpentine Looped Returns)

1200 x 600 x 20mm for 16mm Pipes

Half Circled + Triangle Fix Board INHEATBB206001200(20-R)16/150

1200 x 600 x 20mm for 16mm Pipes

Grooved Half Circled, Triangular Fix Board + 6 Cross Runs INHEATBB206001200(20-IN)16/150

1200 x 600 x 20mm for 16mm Pipes

90° Turn Grooved Flow + Return Highway Panel INHEATBB020600600(20-90T)16/60

Installation Accessories INMID35

600 x 600 x 20mm for 16mm Pipes

Box of 100 – 35mm Fixing Disc’s (12 per board)

INSCREWT

Box of 200 – 5 x 60 CSK POZI screw (for Timber Subfloor)

INSCREWC

Box of 100 – 6 x 57 CSK TAPCON screw (for Concrete Subfloor)

For further specification options please see technical data sheet at www.instinctproducts.co.uk

2026/27 45

Hydronic UFH

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Floor Boards

Efficient Heat Transfer

Dry Install

High Strength

Pipework Compatible

Moisture Resistant

UK Made

HEATDECK Fibre Board

Foil Faced Board

Plain Faced Board

HEATDECK Fibre Reinforced Gypsum Board

ResoTherm XPS300 + 400 Extruded Polystyrene Board

Low profile high performance underfloor heating board. Manufactured from reinforced gypsum, the CNC routed panels are engineered to provide optimum underfloor heating conditions in new build and refurbishment developments.

A range of high quality underfloor heating insulation boards provide extremely high compressive strength, from 18mm thickness offered as standard.

100% dry system that is able to accept various floor finishes (carpets, wood floors, ceramic tiles etc) with 24 hours of installation. A significant time saving benefit over wet system alternatives. Efficient and fast transfer of heat

These high performance underfloor heating panels are ideal for new build and refurbishment projects, and are ideal for all types of developments including offsite, residential and commercial applications. High thermal performance, with an option of foil facing Suitable for all types of 12 and 16mm UFH pipes, multiple thickness’ available

Suitable for all types of 12 and 16mm pipework

Ultra high compressive strength and high heat transfer

High heat retention Can be installed as an acoustic system on separating floors Straights, circles, radius returns and universal CNC routing options 0.32 Wmk thermal conductivity

Can be used as part of an acoustic system on separating floors 0.034 Wmk thermal conductivity XPS300 – 300kPa, XPS400 – 400kPa compressive strength <0.7% (EN 12087) moisture absorption

Pipe centres on the board are 150mm

T+G Board (Grooved + Straight) INHEATS0181200T&G

1200 x 600 x 18mm for 12mm Pipes

T+G Board (with Serpentine Looped Returns) INHEATSR0181200T&G

1200 x 600 x 18mm for 12mm Pipes

T+G Board (with Serpentine Loops + 3 Cross Runs) INHEATRU0181200T&G

1200 x 600 x 18mm for 12mm Pipes

XPS300 Plain Faced UFH Heating Panel (with Serpentine Loops + 3 Cross Runs) INXPS0186001200(300)R-12/150

1200 x 600 x 18mm for 12mm Pipes

XPS300 50mu Foil Faced UFH Panel (with Serpentine Loops + 3 Cross Runs)

Grooved + Straight UFH Board (with Serpentine Looped Returns)

INXPS0186001200(300)12/150-FF

INHEATS018800

800 x 600 x 18mm for 12mm Pipes

XPS400 Plain Faced UFH Panel (with Serpentine Loops + 3 Cross Runs)

INHEATS0251000

1000 x 500 x 25mm for 16mm Pipes

NEW INXPS0206001200(400)R-16/150

1200 x 600 x 20mm for 16mm Pipes 1200 x 600 x 20mm for 16mm Pipes

1200 x 600 x 18mm for 12mm Pipes

Grooved UFH Board (with Serpentine Looped Returns)

NEW INXPS0206001200(400)R-16/200

INHEATSR0181200

1200 x 600 x 18mm for 12mm Pipes

XPS400 50mu Foil Faced UFH Panel (with Serpentine Loops + 3 Cross Runs)

INHEATSR0251000

1200 x 500 x 25mm for 16mm Pipes

NEW INXPS0206001200(400)16/150-FF

1200 x 600 x 20mm for 16mm Pipes

NEW INXPS0206001200(400)16/200-FF

1200 x 600 x 20mm for 16mm Pipes

Grooved UFH Board (with Serpentine Loops + 3 Cross Runs) INHEATRU0181200

1200 x 600 x 18mm for 12mm Pipes

XPS400 Plain Faced UFH Panel (Highway/Transition)

INHEATRU0251000

1000 x 600 x 25mm for 16mm Pipes

NEW INXPS0206001200(400)R-16/60

INHEATC018600

46 2026/27

1200 x 600 x 20mm for 16mm Pipes

XPS400 50mu Foil Faced UFH Panel (Highway/Transition)

Fully Circled End Return UFH Board 600 x 600 x 18mm for 12mm Pipes

NEW INXPS0206001200(400)16/60-FF

1200 x 600 x 20mm for 16mm Pipes

For further technical information please visit www.instinctproducts.co.uk

Floor Boards

Hydronic UFH

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Quick to Install

Easy to Handle

100% Recyclable

NEW 1 Sound Reduction Efficient Heat Transfer

Fire Resistant

3 1 Gypdeck 18

UK Made

2 Insulation 3 ResoFleece

Gypdeck 18 Fibre Board

Gypdeck 18

Thermal Perimeter Edge Strips

Gypdeck 18 is a high density dry screed T&G panel that can be installed in conjuction with insulation boards* plus Resofleece* to create a high performance acoustic and underfloor heating system.

A range of high performance perimeter edge strips, offering a thermal break on the perimeter of each heated floor and also allowing for contraction and expansion of all types of screeded floor finishes.

Panels are ideal for residential properties, student accomodation, care homes and facilities.

The closed cell polyethylene foam rolls are available with options of bonded PVC apron and self adhesive backing.

Excellent impact and airbourne sound reduction

Successful installation of perimeter edge strips will also help with the overall thermal performance to achieve specific U-valve and general part L regulations.

Low thermal resistance for optimim floor heating conditions. High density boards accept ceramin and porcelain floots directly without a decoupling mat Does not burn when exposed to fire EN 13501-1, A2-s1,do

Lightweight, easy to handle and quick to install 100% recyclable (Zero VOC’s, Zero CFC’s, Zero ODPs, GWP <5) Available in multiple widths and lengths Will improve the overall thermal performance and efficiency of floors -40°C to +60°C working temperature 0.02 - 0.03 mg/cm² water absorption Extruded closed cell polylene foam material Finish – Blue and Grey Quantity – 1

Bond PVC Apron INDGET0510050

Gypdeck 18 NEW INGYP18

18mm Gypsum Fibre Board with T&G Edge Profile

ResoFleece NEW INFLEECE10

Polyester Fleece Resilient Layer – 10mm x 1200mm x 600mm

*Purchased as seperate items For further technical information please visit www.instinctproducts.co.uk

5mm x 100mm x 50m rolls

Bond PVC Apron + Self Adhesive Backing INDGET0815025ADH

8mm x 150mm x 25m rolls

Bond PVC Apron + Self Adhesive Backing – Low Profile Edge Strip INDGET0510025SA

5mm x 100mm x 25m rolls

2026/27 47

Electric UFH

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Electric UFH Section

Page No.

Materials Warmup DCM-PROTM System

Warmup StickyMatTM System

Warmup Ultralight Underfloor Heating Board

Our frequently ordered Electric UFH products...

Thermostats Warmup 7iE™ Smart Thermostat with Matter and SmartcareTM

Warmup Element™ Smart Thermostat with Smartcare

Warmup Tempo™ Programmable Thermostat

Warmup 7iE™ Smart Thermostat with Matter and SmartcareTM

Warmup Element™ Smart Thermostat with SmartcareTM 48 2026/27

For further technical information please visit www.warmup.co.uk

Electric UFH

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Thermostats Display

Page No.

Range

Touch Control

Customise Display

Colour Display

Connectivity

Mono Display

WiFi Control

App Control

Compatible with Smart Devices

Safety

IP20 Rated

IP33 Rated

Warmup 7iE™ Smart Thermostat with Matter and SmartcareTM 54 Warmup Element™ Smart Thermostat with SmartcareTM

Warmup Tempo™ Programmable Thermostat

Icon Key Our handy icon key helps you quickly recognise key product features and choose the product that suits you best.

Touch Controls

Customise Display

Colour Display

Mono Display

WiFi Control

For further technical information please visit www.warmup.co.uk

Compatible with Smart Devices

App Control

IP20 Rated

IP33 Rated

2026/27 49

Electric UFH

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Materials DCM-PROTM Protects Floor from Damage Rated as high performance, DCM-PROTM is proven to protect tiled floors from cracking (ANSI 118.12.5.4). The self-healing decoupling layer contracts and expands to ideal with seasonal changes, preventing damage occurring from gaps and cracks in the subfloor. (Patent No. GB2548319B).

Protects floor surface from damage caused by subfloor movement.

Adhesive layer contracts and self-heals if gap shrinks due to seasonal changes (typical for wood subfloors).

Patented adhesive layer slides and stretches with expansion.

Typical Floor Build-Up - Peel & Stick (Also available with Fleece Backing)

3 5 6 4

8 9

Take a closer look at the DCM-PROTM features video, scan to find out more

1 Tile Floor Finish 2 Flexible Tile Adhesive

DCM-PRO

– Heated Decoupling System

Warmup DCM-PRO is an electric underfloor heating system that provides anti-fracture protection to tiled floor finishes. There are two alternative decoupling membranes within the range; one is backed with a standard non-woven fleece, the other a peel and stick adhesive, which provides the fastest solution for installing electric underfloor heating. TM

The patented membranes provide a versatile solution for any heated floor, with the peel and stick version being ideal for rapid installation over Warmup™ insulation or smooth subfloors, while the fleece backed version is better suited to coarse and/or damp surfaces.

3 Floor Sensor 4 DCM-PROTM Peel & Stick Mat 5 Heating Cable 6 Warmup Ultralight (optional) 7 Flexible Tile Adhesive (optional). Required if installing Warmup Ultralight 8 Warmup Primer 9 Pre-Insulated Subfloor (with a surface regularity of SR1)* *If installing the optional Warmup Ultralight, refer to its installation manual for its subfloor requirements.

Anti-Fracture Protection DCM-PRO™ Peel & Stick uses a viscous adhesive that absorbs the strain created as the subfloor grows and shrinks with the seasons, protecting the floor finish from excessive stress that would otherwise cause cracks. DCM-PRO™ Fleece uses a traditional decoupling fleece layer, perfect for use with levellers or for installation on damp or coarse subfloors. For a Variety of Floor Finishes Designed for use under tile and stone floor, the DCM-PRO™ can also be installed under other flooring types including vinyl, carpet and timber by adding a 10 mm layer of levelling compound to the membrane first. Fastest to Install DCM-PRO™ Peel & Stick with it’s self-adhesive underside can be affixed directly to the subfloor, eliminating the need to use tile adhesive below, significantly reducing installation time.

50 2026/27

DCM-PROTM Mat V3 – Specification Product Code

DCM-PS (Peel & Stick) DCM-F (Fleece)

Colour

Red

Dimensions

DCM-#-0.73 – 0.73m² Sheet (985mm x 741mm) DCM-#-14 – 14m² Roll (985mm x 14.3m)

Composition

Polypropylene mat with peel and stick or fleece backing

For further technical information please visit www.warmup.co.uk

Materials

Electric UFH

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

DCM-PROTM DCM-PROTM Cables – Specification

Low Wattage Cable – Convenient Sizing

Product Code

DCM-C-#

Connection

3m long coldtail Flat 2 core cable with earth braid

The standard cable spacing is 3 castellations (90mm), but the system is designed to have the cable spacing adjusted to match both power and area requirements:

Operating Voltage

230 V AC: 50 Hz

Output Rating

(3 castellations – 90 mm) DCM-C: 150 W/m²

Heating Cores

Dual core, multi-strand heating element

ASTM C627

Light Commercial Use

Cable Sheath

Blue

IP Rating

Inner / Outer Insulation

ETFE / PVC

Earth Protection

Metal braiding surrounding heating cores

Min. Install Temp.

-10 °C

Spacing

60 mm / 90 mm / 120mm

DCM-PRO™ 82.5 W/m² – based on 2 castellations DCM-PRO™ 55 W/m² – based on 3 castellations (standard) DCM-PRO™ 41.3 W/m² – based on 4 castellations Heated area at different spacings, m² Castellations 2

60mm

90mm*

120mm

82.5 W/m²

55 W/m²

41.3 W/m²

NEW DCM-C-LW-1

0.7

1.0

1.3

NEW DCM-C-LW-1.5

1.0

1.5

2.0

NEW DCM-C-LW-2

1.3

2.0

2.7

NEW DCM-C-LW-2.5

1.7

2.5

3.3

NEW DCM-C-LW-3

2.0

3.0

4.0

NEW DCM-C-LW-3.5

2.3

3.5

4.7

NEW DCM-C-LW-4

2.7

4.0

5.3

NEW DCM-C-LW-4.5

3.0

4.5

5.8

NEW DCM-C-LW-5

3.3

5.0

7.0

NEW DCM-C-LW-6

4.0

6.0

8.2

Heated area at different spacings, m²

NEW DCM-C-LW-7

4.7

7.0

9.3

Castellations

NEW DCM-C-LW-8

5.3

8.0

10.7

NEW DCM-C-LW-9

6.0

9.0

12.0

6.7

10.0

13.3

Convenient Sizing The standard cable spacing is 3 castellations (90mm), but the system is designed to have the cable spacing adjusted to match both power and area requirements: DCM-PROTM 225 W/m² – based on 2 castellations DCM-PROTM 150 W/m² – based on 3 castellations (standard) DCM-PROTM 112.5 W/m² – based on 4 castellations

60mm

90mm*

120mm

NEW DCM-C-LW-10

225 W/m²

150 W/m²

112.5 W/m²

NEW DCM-C-LW-12

8.0

12.0

16.0

9.3

14.0

18.7

10.7

16.0

21.3

DCM-C-1

0.7

1.0

1.3

NEW DCM-C-LW-14

DCM-C-1.5

1.0

1.5

2.0

NEW DCM-C-LW-16

DCM-C-2

1.3

2.0

2.7

DCM-C-2.5

1.7

2.5

3.3

DCM-C-3

2.0

3.0

4.0

DCM-C-3.5

2.3

3.5

4.7

DCM-C-4

2.7

4.0

5.3

DCM-C-4.5

3.0

4.5

DCM-PROTM Mat V3 – Product Format DCM-PS-0.73 DCM-PRO

Length

Width

Peel & Stick V3 Mat - 0.73m² Sheet 741mm

985mm

DCM-PS-14

DCM-PROTM Peel & Stick V3 Mat - 14m² Roll

6.0

DCM-F-0.73

DCM-PROTM Fleece V3 Mat – 0.73m² Sheet

741mm

DCM-F-14

DCM-PROTM Fleece V3 Mat – 14m² Roll

14,252mm 985mm

DCM-C-5

3.3

5.0

6.7

DCM-C-6

4.0

6.0

8.0

DCM-C-7

4.7

7.0

9.3

DCM-C-8

5.3

8.0

10.7

DCM-C-9

6.0

9.0

12.0

DCM-C-10

6.7

10.0

13.3

DCM-C-12

8.0

12.0

16.0

DCM-C-14

9.3

14.0

18.7

DCM-C-16

10.7

16.0

21.3

14,252mm 985mm 985mm

DCM-PROTM Cables – Ancillaries Format

Length

Height

Width

Thickness

DCM-E-25

Perimeter Edge Strip

25m

–

30mm

10mm

DCM-T-10

Waterproofing Tape

10m

–

120mm

1mm

DCM-R-I

Internal Corner

120mm

60mm

120mm

1mm

DCM-R-E

External Corner

120mm

60mm

120mm

1mm

Cable Section 1 PVC outer insulation 2 Earth braiding surrounding heating cores 3 ETFE inner insulation

4 Dual core, multi-strand

Peel + Stick Mat

Fleece Mat

Perimeter Edge Strip

Waterproofing Tape

Waterproofing Tape Internal

Waterproofing Tape External

heating element

2 4

For further technical information please visit www.warmup.co.uk

2026/27 51

Electric UFH

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Materials StickyMatTM Ultralight™ Board Build-Up

1 2 3

6 7

5 8

1 Floor Finish 2 Flexible Adhesive 3 Floor Sensor 4 Fibreglass Mesh (with pressure sensitive adhesive) 5 Heating Cable 6 Warmup Ultralight™ (optional) 7 Flexible Tile Adhesive (optional)

Take a closer look at the StickyMatTM installation video, scan to find out more

8 Warmup Primer 9 Pre-insulated Subfloor (with a surface regularity of SR1*) *If installing the optional Warmup Ultralight™, refer to its installation manual for its sub floor requirements

StickyMatTM – 150W/m2 System

StickyMatTM – Heated Mat System The Warmup StickyMat™ System is designed for use within the adhesive layer under tiles or within a levelling compound under other floor finishes. The fixed spacing and self-adhesive mat makes installation of regularly shaped rooms quick and easy whilst ensuring precision is maintained. The pressure sensitive adhesive securely binds the mats to the floor, keeping them flat and ensuring the application of tile adhesive is snag free whilst allowing the mats to be easily repositioned as needed. Quick + Easy Installation Sturdy glass fibre mesh with pressure sensitive adhesive, for the fastest and most secure installation of electric underfloor heating No Increase In Floor Levels With an ultra-thin, dual fluoropolymer coated heating wire Suitable For All Builds StickyMat™ underfloor heating system is suitable for all building projects; retrofits, new builds and refurbishments

StickyMatTM – Specification

StickyMatTM – 200W/m2 System

Area Heated Wattage Amps

SPM1

1m²

150W

0.65A

2SPM0.5 0.5m²

100W

0.44A

SPM1.5

1.5m²

225W

0.98A

2SPM1

200W

0.87A

1m²

SPM2

2m²

300W

1.30A

2SPM1.5 1.5m²

300W

1.30A

SPM2.5

2.5m²

375W

1.63A

2SPM2

400W

1.74A

2m²

SPM3

3m²

450W

1.96A

2SPM2.5 2.5m²

500W

2.17A

SPM3.5

3.5m²

525W

2.28A

2SPM3

600W

2.61A

3m²

SPM4

4m²

600W

2.61A

2SPM3.5 3.5m²

700W

3.04A

SPM4.5

4.5m²

675W

2.93A

2SPM4

800W

3.48A 3.91A

4m²

SPM5

5m²

750W

3.26A

2SPM4.5 4.5m²

900W

SPM6

6m²

900W

3.91A

2SPM5

5m²

1000W 4.35A

SPM7

7m²

1050W 4.57A

2SPM6

6m²

1200W 5.22A

SPM8

8m²

1200W 5.22A

2SPM7

7m²

1400W 6.09A

SPM9

9m²

1350W 5.87A

2SPM8

8m²

1600W 6.96A

SPM10

10m²

1500W 6.52A

2SPM9

9m²

1800W 7.83A

SPM11

11m²

1650W 7.17A

2SPM10

10m²

2000W 8.70A

SPM12

12m²

1800W 7.83A

2SPM15

15m²

3000W 13.04A

SPM15

15m²

2250W 9.78A

Product Code

SPM / 2SPM

Connection

3m long coldtail, Flat 2 core cable with earth braid

Operating Voltage

230 V AC: 50 Hz

Output Rating

150 W/m² (SPM) / 200 W/m² (2SPM)

Heating Cores

Dual core, multi-strand heating element

Thread Connections

BS EN ISO 228-1

IP Rating

Cable Sheath

Translucent

Cable Spacing

80 mm (+/- 3mm)

3 ETFE inner insulation

Mesh

Sticky pressure sensitive fibreglass mesh

4 Dual core, multi-strand heating element

Inner / Outer Insulation

ETFE

Earth Protection

Metal braiding surrounding heating cores

Min. Install Temp

-10 °C

Cable Section 1 ETFE outer insulation 2 Earth braiding surrounding heating cores

52 2026/27

For further technical information please visit www.warmup.co.uk

Materials

Electric UFH

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Warmup UltralightTM Typical Floor Build-Up

3 4

1 Non-Woven Fleece 2 Heat Spreading Aluminium 3 220kPa Insulation 4 Decoupling Non-Woven Fleece

Electric Systems – Compatibility

YEAR LIMITED WARRANTY

StickyMatTM

EA 10 Y R WAR

Y NT RA

Take a closer look at the UltralightTM features video, scan to find out more

WA RM

DCM-PROTM

YEA R W

Warmup UltralightTM 4-in-1 (Insulating, Heat Spreading, Decoupling, Sound Reducing) Ultralight™ is a specialised composite board designed for floor heating applications. Manufactured as flat, flexible sheets they are water and mould-resistant. The top surface incorporates a heat spreading aluminium layer combined with non-woven fleece. The core PEF insulation provides thermal separation from the floor beneath, ensuring a rapid thermal response of a heated layer of tiles or levelling compound above. Improves Comfort and Reduces Running Costs The heat spreading aluminium layer improves comfort and reduces running costs by providing a 50 % more even heat spread. This enables the floor to achieve the same comfort temperature whilst using 12% less energy. See Fig 1 Reduces eUFH Heat Up Times 30% faster heat up times than standard insulation boards Protection Against Tiles Cracking Decoupling fleece layer provides high performance protection against tiles cracking due to lateral subfloor movement in accordance with ANSI A118.12 standard

Warmup UltralightTM Insulation – Specification Product Code

WCI-X

Pack Size

1, 6,16,170 Boards

Thickness

6 mm ±0.3mm

Dimensions

800mm (W) x1200mm (L) ±6mm

Area

0.96m²

Weight of Board

1.1kg

Thermal Resistance EN 12667

0.111m² K/W

Thermal Conductivity EN 12667

0.054 W/mK

Reaction To Fire, EN 13501-1EN ISO 11952-2

Euroclass E

Release of Dangerous Substances, REACH

SVHC ≤ 0.1% w/w

Compressive Strength, 10% Compression, EN 826

220 kPa

Point Loading, Tiled ANSI A118.12

≥ 2.2 kN

Robinson Test, 100 - 199 mm Tiles, ASTM C627

Domestic

Robinson Test, 200 - 599 mm Tiles ASTM C627 Light Commercial Robinson Test, ≥ 600 mm Tiles ASTM C627

Heavy Commercial

7 Day Shear Strength, ANSI A118.12

113 psi (780 kPa)

Crack Resistance (Anti-Fracture / Decoupling), ≥ 1/8” => High Performance ANSI A118.12

Heat Spread 29°C

Long Term Water Absorption, EN 12087

0.052% w/w

28.4°C

Water Vapour Permeability, EN 12086

9.12 mg/m²h

27.8°C

Mould Growth, ANSI A118.12

Does not support mould growth

26°C

Warmup UltralightTM Insulation – Product

26.8°C

6 mm Ultralight™ Insulation – 29°C Surface Limit

6 mm Traditional Insulation – 29°C Surface Limit

Fig. 1 – Improved Heat Spread of Ultralight™ Vs Traditional Insulation When operating at a 29°C maximum surface temperature, traditional insulation would result in a minimum surface temperature just below 26°C. By comparison, Ultralight™ increases this to 27.5°C resulting in increased comfort and a 10.5% increase in heat output.

For further technical information please visit www.warmup.co.uk

WCI-01

UltralightTM Insulation Board 6mm x 800mm x 1,200mm

WCI-06

UltralighTM Insulation Board 6mm x 800mm x 1,200mm (Pack of 6 / 5.76m²)

WCI-16

UltralightTM Insulation Board 6mm x 800mm x 1,200mm (Pack of 16 / 15.36m²)

WCI-170

UltralightTM Insulation Board 6mm x 800mm x 1,200mm (Pallet of 170 / 163.20m²)

2026/27 53

Electric UFH

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Thermostats Warmup 7iE™ Smart Thermostat with Matter and Smartcare™

Warmup 7iE Smart Thermostat with Matter and Smartcare™ – Onyx Black

Warmup 7iE Smart Thermostat with Matter and Smartcare™ – Bright Porcelain

Available in Onyx Black or Bright Porcelain The 7iE™ Smart Matter WiFi Thermostat’s ultra-slim design sits just 16mm from wall The 7iE™ Smart Matter WiFi Thermostat helps find the most efficient heat settings for a property Quick to install, the 7iE™ Smart Matter WiFi Thermostat can be set up in minutes using the QR code The 7iE™ Smart WiFi Thermostat provides flexible multi-zone control for water and electric UFH systems The 7iE™ Smart Matter WiFi Thermostat helps reduce energy usage by up to 25% Dimensions – 115(h) x 90(w) x 39(d) mm

7IE-01-OB-DC

Onyx Black with Dark Chrome Surround

7IE-01-BP-LC

Bright Porcelain with Light Chrome Surround

Take a closer look at the 7iETM features video, scan to find out more Warmup 7iE™ Smart Thermostat with Matter and Smartcare™ World’s first UFH controller with a Smartphone touchscreen. The 7i™ uses advanced technology to maximise on the efficiency of a Warmup heating system. With Matter compatibility and Smartcare support included, the 7iE™ effortlessly integrates your heating within your Smart home ecosystem - including Apple Home, Google Home, and Amazon Alexa. Provides Smarter Energy Savings The 7iE™ Smart Matter WiFi Thermostat automatically adjusts your heating to maximise comfort and efficiency, with up to 25% energy saving Effortless Smart Home Integration The 7iE™ Smart Matter WiFi Thermostat is compatible with Apple, Google and Amazon devices through its Matter technology 24/7/365 Expert Heating Support Includes expert heating support through its access to Smartcare, which provides proactive system monitoring and market-leading support for life

54 2026/27

Warmup 7iE Smart Thermostat with Matter and Smartcare™ Max. Load

16A (3680W)

Max. Ambient Temperature

40°C

Operating Frequency

2401 - 2484MHz

Sensors

Air & Floor (Ambient)

Sensor Type

NTC10K 3m Long (Can Be Extended to 50m)

Installation Depth

Recommended – 50mm Back Box Minimum – 35mm Back Box

IP Rating

IP33

Compliance

CE & UKCA Marked

Compatibility

Electric Underfloor Heating, Hydronic Underfloor Heating, Central Heating Systems (Combi & system boilers with switch live, 230V AC input)

Warranty

12 Years when installed with a Warmup Heater 3 Years when installed without a Warmup Heater

Er-P Class

Approvals

BEAB

For further technical information please visit www.warmup.co.uk

Thermostats

Electric UFH

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Warmup Element™ Smart Thermostat with Smartcare™

Available in Black with Dark Chrome Surround, White with Light Rose Gold Surround, White with White Surround and White with Light Chrome Surround Simple touch buttons for accurate control of your underfloor heating system. Its sleek, unobtrusive design will suit any home décor Easy to setup. Simply scan the QR code on the Element™ thermostat using the MyHeating app and it will automatically connect to your WiFi network Reduce energy use by up to 25% with energy efficient MyHeating™ app technology Compatible with all Warmup Underfloor Heating Systems Automatic control of your heating. SmartGeo™ learns your routines and location through background communication with your smartphone and lowers temperatures when you are away, only rising them up to your ideal comfort temperature in time for your arrival home saving you money and energy Helps find the most efficient heat settings for your home Dimensions – 86(h) x 86(w) x 16(d) mm

Take a closer look at the ElementTM features video, scan to find out more

ELM-01-OB-DC

Black with Dark Chrome Surround

NEW ELM-01-WH-LC

White with Light Chrome Surround

ELM-01-WH-RG

White with Rose Gold Surround

NEW ELM-01-WH-WH

White with White Surround

Warmup Tempo™ Programmable Thermostat

Tempo™ PB Digital Thermostat – Piano Black

Tempo™ PW Digital Thermostat – Porcelain White

Available in Piano Black or Porcelain White Stylish and contemporary design with an easily controlled dial and sliders Clear screen displaying program details Suitable with all Warmup electric and water underfloor heating systems Available in Porcelain White and Piano Black Perfect for the whole house with the exception of the bathroom Dimensions – 90(h) x 113(w) x 23(d) mm (flush fit)

For further technical information please visit www.warmup.co.uk

ELT-PB

Piano Black

ELT-PW

Porcelain White 2026/27 55

HOT WATER PERFORMANCE. BUILT TO LAST. Ideal Instinct Hot Water Cylinders up to 300 Litres

25 Year Vessel Warranty

Long-term reassurance for your customers

Duplex Stainless Steel

Durable construction for long-term performance

Corrugated Heating Coil

Designed to support efficient heat transfer

Up to 300 Litre Capacity

Larger hot water capacity to suit higher household demand

Less Space Required

No need for a water storage tank in the loft

SCAN ME TO FIND YOUR NEAREST STOCKIST

Heating

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Heating Section

Page No.

Boilers Ideal Instinct2 Combi Boiler

Ideal Halo Lite RF Thermostat

Flue + Accessories

Our frequently ordered Heating products...

Pumps Instinct Pro Condensate Removal Pump

Instinct Pro Condensate Removal Pump Accessories

Wilo Atmos PICO Circulating Pump

Wilo Yonos PICO-Z Circulating Pump

Cylinders

Easy to Install

Ideal Instinct Indirect Pre Plumbed System Ready Cylinders

Ideal Instinct Standard Cylinders

Ideal Instinct Slimline Cylinders

Compact Design

Easy Access

Radiators Henrad Compact Radiators

Henrad Compact K3 Radiators

Towel Rails NEW Stelrad 25mm Straight Towel Rails

NEW Stelrad 22mm Straight Towel Rails

Icon Key Our handy icon key helps you quickly recognise key product features and choose the product that suits you best.

Manufactured in the UK

Compact Fit Design

Low Fit Weight

OpenTherm Ready

Easy Read Improved Pressure Gauge Digital Display

Ideal Instinct2 Combi Boiler

NEW Dial + Button Design

Backlit Display

Mechanical Timer

Frost Protection

Service Timer Function

Wireless

NOx Class 6

Boiler Plus Compliant

Wired – No Batteries

IP44 Rated

Thermal Protection

Proven Technologies

66-67

Ideal Instinct Standard + Slimline Cylinders

NEW

Wilo Yonos PICO-Z Circulating Pump Mains Pressure Hot Water

Compression Fittings Used

Standard High Corrosion Built-in & Slimline Resistant Duplex 40mm Cylinder Models Stainless Steel Insulation

ErP Rating

Slim Design

Manufactured from Steel

Tested to 10 Bar Pressure

Easy Installation

Reduced Diameter Cylinder

Multiple Sizes

Next Day Delivery

68 Vertical Hanging

For further technical information please visit www.instinctproducts.co.uk

Henrad Compact Radiators

Stelrad Towel Rails 2026/27 57

Heating

All dimensions in mm. All measurements are approximate and subject to standard tolerances. HEATING

HEATING

24 30 35 Combi Boilers

Compact cupboard fit

kg YEAR WARRANTY* Low lift weight

NOx class 6

INCLUDES OpenTherm ready

Easy to read pressure gauge

58 2026/27

Frost protection

Improved digital display

Heating

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Guarantees

Boilers

Years

on Ideal Instinct2 Combi Boilers

Ideal Instinct2 Combi Boiler The Instinct2 combination boiler is available in outputs of 24, 30 and 35 kW providing a cost effective heating solution for a range of domestic installations.

Easy to Install

Complete with domestic hot water temperature controls including a switched preheat function, mechanical built-in timer and a digital operating status & diagnostic display, the Instinct2 provides reliable control of the homes heating and hot water performance.

Low Lift Weight

Compact Design

Quick and easy to install Low lift weight

Easy Access

Compact cupboard fit design Easy access to all components for smooth maintenance Tried and tested technology (inc. Grundfos pump)

Boiler Plus Compliant

Fast Fix flue turret connections Ideal OpenTherm wired room thermostat available for Boiler Plus compliance 221527

Filling Loop Included

Fully supported by Ideal Service Division Finish – White Dimensions – 700(h) x 395(w) x 285(d) mm

UK Made

220481

Ideal Instinct2 24 Combi Boiler

220482

Ideal Instinct2 30 Combi Boiler

220483

Ideal Instinct2 35 Combi Boiler

PROTECT YOUR HEATING SYSTEM

Pages 92-93

Help maintain a healthy heating system with Instinct Pro chemicals. Ideal Instinct2 35 Combi Boiler

Specification

Instinct2 24

Instinct2 30

Instinct2 35

Weight (packaged) (kg)

33.9

34.0

Max installation weight (kg)

29.9

30.0

CH output (kW) min/max mean 70°C

4.8 – 24.2

6.1 – 24.2

7.1 – 24.2

CH output (kW) min/max mean 40°C

5.1 – 25.6

6.4 – 25.6

7.5 – 25.6

DHW output (kW) max

24.2

30.3

35.3

DHW flow rate l/min. 35°C rise

9.9

12.4

14.5

SEDBUK rating (2005) %

91.0

91.1

91.0

SEDBUK rating (2009/2012) %

89.0

88.9

NOx classification

Class 6

Water heating efficiency class

Max horizontal flue (m)

Max vertical flue (m)

7.5

Seasonal space heating efficiency class

Seasonal space heating energy efficiency (ηs) %

Sound power level, indoors (LWA dB)

For further technical information please visit www.instinctproducts.co.uk

2026/27 59

Heating

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Guarantees

Boilers

Years

on Ideal Hale Lite RF Thermostat

Ideal Halo Lite RF Thermostat

Easy to Install

The Ideal Halo Lite RF is a single zone combi programmable room thermostat designed to benefit both installers and homeowners. Boasting a large colour screen and easy to use button and dial interface. It has been tested to ensure it is intuitive and easy to understand. Specifically designed to work with the Instinct2 by providing temperature control and Boiler Plus compliance in one simple device.

Frost Protection

Simple dial and button design

Backlit colour screen with large text and icons

Designed specifically to work with Instinct2 Boilers Wireless control with robust signal Maintain boiler health with on screen service and fault notifications Fast and simple to install with out of the box pairing Advanced settings to tailor controls to tenant and landlord needs Easy to set heating schedules with up to 6 events per day Load compensation provides easy Boiler Plus compliance Frost protection for winter boiler and system protection Compact and contemporary design with large, clear colour screen Finish – White Dimensions – 96(h) x 96(w) x 35(d) mm (PRT) 112(h) x 108(w) x 32(d) mm (Receiver)

237423

Ideal Halo Lite RF Thermostat

Specification

Service timer function

Boiler plus compliant

Communication Protocol 868 Mhz (Receiver & Room Thermostat), OpenTherm (Boiler & Receiver)

Wireless

Power Source

4x AA Batteries (PRT), 240 Vac (Receiver)

Voltage

240 Vac

Install Location

Wall or desk mounted

ERP Class

Boiler Plus

Yes

WEEE

Yes

Flue + Accessories

Instinct2 Weather Compensation Kit

Horizontal Flue Terminal (for Instinct2 Combi)

Instinct2 Stand Off Kit

Finish – White Dimensions – 100(h) x 60(w) x 20(d) mm

Dimensions – 135(h) x 116(w) x 852(l) mm

Dimensions – 700(h) x 395(w) x 50(d) mm

216119

208173

207668

60 2026/27

For further technical information please visit www.idealheating.com

in partnership with Sauermann

Guarantees

Pumps

Years

on Instinct Pro Condensate Removal Pump

Easy to Install

Easy to Maintain

Durable + Reliable

Heating

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Instinct Pro Condensate Removal Pump One-piece centrifugal pump with tank. Centrifugal pump for heavy and contaminated condensates. Suitable for gas condensing boilers producing acid (pH > 2.5) and hot condensates (65°C max, 80°C in short peaks). Normally closed alarm contact that automatically cuts off the air conditioning system compressor or a solenoid valve. Exceptional durability and reliability Quick and easy installation in any place Quick and easy maintenance Easily removable tank and reversible pump Reinforced mechanical structure improving shocks resistance IP20 regular duty (2 Litre tank capacity) 500 l/h max flow rate 5.0m max discharge head 5.4m max pressure (flow rate 0) ≤ 45 dBA sound level in application at 1m 65°C, 80°C in short peaks max condensate temperature pH > 2.5 (Gas condensing boilers) max condensate acidity 105°C thermal protection (auto reset) Oil and acid resistant float Finish – Grey + Black Dimensions – 183(h) x 136(w) x 293(l) mm

Instinct Pro Condensate Removal Pump

SI1802INAN23 Instinct Pro Condensate Removal Pump Kit Contents Integrated tank pump of 2 Litre Integrated check valve Power cable – 2m bare ends Alarm wires – 1m Tubing Adapter – 10 mm (3/8”) to 6 mm (1/4”) 2 screws + plug

Condensate Removal Pump Accessories

Diffuser (PRV compatible)

0.5 Litre Tank Pump (With Accessories) NEW SI1830

0.5 Litre Tank Pump (with Accessories)

NEW SI61

0.5 Litre Tank Pump (with Accessories)

NEW PS1800

Pressure Safe System

For further technical information please visit www.instinctproducts.co.uk

Clear Hose

Pressure Safe System

NEW ACC001800

Diffuser (PRV compatible)

NEW ACC00125

Clear Hose (25m x 10mm)

NEW ACC00801

10mm Non-Return Valve

NEW ACC00901

10mm Straight Connector (Pack 5)

NEW ACC00920

10mm Self Seal Fitting (Pack 5)

NEW ACC00908

21.5mm – 10mm Reducer (Pack 5)

NEW ACC00922

10mm Drain Safe Device / Anti-siphoning (Pack 5) 2026/27 61

Heating

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Guarantees

Pumps

Years

on Wilo Atmos PICO Circulating Pump

Easy to Install

Easy to Use

UFH Compatible

Wilo Atmos PICO 130 (6m)

Wilo Atmos PICO 180 (8m)

Wilo Atmos PICO Circulating Pump The Wilo Atmos PICO is the ideal entry-level pump with a simple user interface and standard design. Equipped with the most essential settings and functions, it can be put into operation for heating, UFH, air conditioning and cooling applications extremely quickly and easily. New and redesigned small circulator pump Variable differential pressure, allowing the pump to modulate to the requirements of the system, supporting efficient operation and reduced energy consumption Ease of installation with the compact design, Wilo connector at the side and front access to motor screws Easy to use settings, with a push button for selection, two operating modes and six curves identified by 5 LEDs Finish – Green / Black / Grey Dimensions – 130(h) x 102(w) x 127(d) mm (4232693) 180(h) x 102(w) x 139(d) mm (4232696) Weight – 1.9kg (4232693), 2.3kg (4232696)

4232693

Wilo Atmos PICO 130 (6m)

4232696

Wilo Atmos PICO 180 (8m)

62 2026/27

Wilo Atmos PICO 130 (6m)

Wilo Atmos PICO 180 (8m)

Operating Specification Field of Application

Operating Specification Heating / Floor heating / Air conditioning

Max. Operating Pressure 10 Bar Performance Range

Field of Application

Heating / Floor heating / Air conditioning

Max. Operating Pressure 10 Bar

6m to 3.5 m /h 3

Performance Range

8m to 4.3 m³/h

Water Temp at Max -10°C/95°C Ambient Temp of +40°C

Protection Class

IPX2D

Protection Class

IPX2D

Min/Max Power Consumption

4-40W

Min/Max Power Consumption

4-75W

Display

7 LEDs

Display

7 LEDs

Operation

Push button

Operation

Push button

Setting (nb curves)

6 curves

Setting (nb curves)

6 curves

Regulation Modes

Δp-v, Δp-c, 3 speeds

Regulation Modes

Δp-v, Δp-c, 3 speeds

Faults Management

LED with blinking code

Faults Management

LED with blinking code

Quick Connection

Yes

Quick Connection

Yes

Dejamming

Automatic

Dejamming

Automatic

Compactness (L2 dimension)

94.1

Compactness (L2 dimension)

94.1

EEI

≤0.23

EEI

≤0.23

For further technical information please visit www.wilo.co.uk

Heating

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Guarantees

Pumps

Years

on Wilo Yonos PICO-Z Circulating Pump

Easy to Install

NEW

Differential Pressure

Easy to Install

Low Noise

Differential essure Pressure

Low Noise

Wilo Yonos PICO-Z 130 (6m)

Wilo Yonos PICO-Z 180 (8m)

Wilo Yonos PICO-Z Circulating Pump The compact Wilo Yonos PICO-Z is an easy to install pump for domestic hot water circulation applications in residential and light commercial applications. The high-efficiency pump equipped with a thermal insulation shell offers a high-degree of hygienic safety due to its stainless-steel housing. The Wilo-Connector enables quick electrical installation. With the automatic and manual restart as well as the pump venting function, the Wilo-Yonos PICO-Z offers all the standard functions required for reliable operation. Stainless steel pump housing provides hygienic safety EC motor enables energy-saving supply Green Button Technology, intuitive user interface with LED display and continuous control functions offer ease of use

Wilo Yonos PICO-Z 130 (6m) Operating Specification Field of Application

Wilo Yonos PICO-Z 180 (8m) Operating Specification

Heating / Floor heating / Air conditioning

Field of Application

Heating / Floor heating / Air conditioning

Max. Operating Pressure 10 Bar

Fluid Temperature Range 2°C to 95°C

Ambient Temperature Range

-10°C to 40°C

Ambient Temperature Range

-10°C to 40°C

Temperature Range at 40°C Ambient

2°C to 70°C

Temperature Range at 40°C Ambient

2°C to 70°C

Maximum Total Water Hardness

3.57 mmol/l (20°dH)

Maximum Total Water Hardness

3.57 mmol/l (20°dH)

Mains Connection

1~230 V, 50/60 Hz

Mains Connection

1~230 V, 50/60 Hz

Simple electrical installation with the Wilo-Connector

Rated Power P2

30 W

Rated Power P2

58 W

Finish – Green / Black / Grey Dimensions – 130(h) x 114(w) x 152(d) mm (4255416) 180(h) x 115(w) x 165(d) mm (4265692) Weight – 1.7kg (4255416), 2kg (4265692)

Rated Current

0.44 A

Rated Current

0.70 A

Speed Range

700-4200 rpm

Speed Range

500-4800 rpm

Power Consumption P1

4-40 W

Power Consumption P1

4-75 W

Motor Protection Class

IPX4D

Motor Protection Class

IPX4D

Control Modes

Δp-c; constant speed; 3 speed stages

Control Modes

Δp-c; constant speed; 3 speed stages

4255416

Wilo Yonos PICO-Z 130 (6m)

NEW 4265692

Wilo Yonos PICO-Z 180 (8m)

For further technical information please visit www.wilo.co.uk

2026/27 63

Heating

All dimensions in mm. All measurements are approximate and subject to standard tolerances. HEATING

HE HAETAI TNI G NG

120 150 170 200 250 + 300 Indirect Pre Plumbed System Ready Cylinders

Mains pressure hot water

Year Guarantee† Manufactured in the UK

Next day delivery available

Proven technologies and quality manufacturing at a competitive price

High corrosion resistant duplex stainless steel

64 2026/27

High quality fittings

Straight pipework for easy installation

B ErP rating up to 170L model

Heating

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Guarantees

†

Years

on Vessel

Cylinders

Years on Parts

Ideal Instinct Indirect Pre Plumbed System Ready Cylinders

Designed exclusively, maintaining the aesthetics and architecture of the current Instinct indirect range of cylinders

Finish – Grey Dimensions – See table below Weight – See table below Material – Highly corrosion resistant duplex stainless steel Fittings – Compression fittings included as standard Heating Element – Corrugated heating coil Cylinder Diameter – 530mm Capacity – Available in sizes up to 300 Litres

Pipe layout to suit smaller diameter cylinder to enable continuity of branding compared to PRO with wider diameter Designed with standard plumbing parts for improved ease of installation, and installer familiarity, ensures easy on site installation Specific designed System Ready for retrofit installations Straight pipework to assist with insulating and simplicity Consistent quality fittings with press fittings

Potable Expansion Vessel

Domestic Hot Water

Primary Expansion Vessel, Gauge and Safety Valve (Heating Expansion Kit)

Mains Cold Water

Sealed System Boiler

Central Heating Supplied by Boiler Balanced Pressure Cold Water

Central Heating Supplied by Boiler

Indirect Pre Plumbed System Ready ErP Rating

Heat Loss

Capacity

Height

Diameter

IDEINSIN120PPSR

43 Watts

1.03 kWh/24h

118 Litres

832mm

530mm

IDEINSIN150PPSR

52 Watts

1.24 kWh/24h

149 Litres

1012mm

530mm

IDEINSIN170PPSR

57 Watts

1.37 kWh/24h

169 Litres

1131mm

530mm

IDEINSIN200PPSR

65 Watts

1.56 kWh/24h

198 Litres

1305mm

530mm

IDEINSIN250PPSR

79 Watts

1.89 kWh/24h

248 Litres

1603mm

530mm

IDEINSIN300PPSR

92 Watts

2.20 kWh/24h

295 Litres

1895mm

530mm

For further technical information please visit www.instinctproducts.co.uk

2026/27 65

Heating

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Guarantees

Cylinders

Years

on Vessel

on Parts

Ideal Instinct Standard Cylinders Long-term reassurance with a 25-year vessel warranty Durable, corrosion resistant duplex stainless steel for long-term performance

UK Made

Standard Indirect

Standard Direct

Corrugated heating coil designed to support efficient heat transfer Available in sizes up to 300 Litres hot water capacity to suit higher household demand Less space required with no need for a water storage tank in the loft UK manufacturing with quality at its core Compression fittings included as standard Finish – Grey Dimensions – See table below Weight – See table below

Standard Cylinders Direct Cylinders IDEINSDR120

120 Litre Unvented Cylinder

IDEINSDR150

150 Litre Unvented Cylinder

IDEINSDR170

170 Litre Unvented Cylinder

IDEINSDR200

200 Litre Unvented Cylinder

IDEINSDR250

250 Litre Unvented Cylinder

IDEINSDR300

300 Litre Unvented Cylinder

Hot Outlet

Indirect Cylinders IDEINSIN120

120 Litre Unvented Cylinder

IDEINSIN150

150 Litre Unvented Cylinder

IDEINSIN170

170 Litre Unvented Cylinder

IDEINSIN200

200 Litre Unvented Cylinder

IDEINSIN250

250 Litre Unvented Cylinder

IDEINSIN300

300 Litre Unvented Cylinder

Off-Peak Controller

Central Heating Supplied by Boiler

Isolator Switch Sealed System Boiler

Central Heating Supplied by Boiler

Cold Inlet

Standard Direct Cylinders ErP Rating

Heat Loss

Capacity

Height

Diameter

Weight

IDEINSDR120

43 Watts

1.03 kWh/24h

118 Litres

832mm

530mm

19kg

IDEINSDR150

52 Watts

1.24 kWh/24h

149 Litres

1012mm

530mm

22kg

IDEINSDR170

57 Watts

1.37 kWh/24h

169 Litres

1131mm

530mm

24.3kg

IDEINSDR200

65 Watts

1.56 kWh/24h

198 Litres

1305mm

530mm

27kg

IDEINSDR250

79 Watts

1.89 kWh/24h

248 Litres

1603mm

530mm

33.3kg

IDEINSDR300

86 Watts

2.06 kWh/24h

287 Litres

1895mm

530mm

41kg

Standard Indirect Cylinders ErP Rating

Heat Loss

Capacity

Height

Diameter

Weight

IDEINSIN120

43 Watts

1.03 kWh/24h

118 Litres

832mm

530mm

19.5kg

IDEINSIN150

52 Watts

1.24 kWh/24h

149 Litres

1012mm

530mm

23.3kg

IDEINSIN170

57 Watts

1.37 kWh/24h

169 Litres

1131mm

530mm

26kg

IDEINSIN200

65 Watts

1.56 kWh/24h

198 Litres

1305mm

530mm

28.5kg

IDEINSIN250

79 Watts

1.89 kWh/24h

248 Litres

1603mm

530mm

35kg

IDEINSIN300

92 Watts

2.20 kWh/24h

295 Litres

1895mm

530mm

41kg

66 2026/27

For further technical information please visit www.instinctproducts.co.uk

Heating

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Guarantees Years

Cylinders

Years

on Vessel

on Parts

Ideal Instinct Slimline Cylinders Compact Design

Compact Design

Long-term reassurance with a 25-year vessel warranty

UK Made

Corrugated heating coil designed to support efficient heat transfer

Durable, corrosion resistant duplex stainless steel for long-term performance

Available in sizes up to 210 Litres Reduced diameter of 475mm for smaller properties and space limitations UK manufacturing with quality at its core Compression fittings included as standard Finish – Grey Dimensions – See table below Weight – See table below

Slimline Indirect

Slimline Direct

Hot Outlet

Slimline Cylinders Off-Peak Controller

Direct Cylinders

Central Heating Supplied by Boiler

Isolator Switch Sealed System Boiler

Central Heating Supplied by Boiler

120 Litre Slimline Unvented Cylinder

IDEINSDR150SL

150 Litre Slimline Unvented Cylinder

IDEINSDR180SL

180 Litre Slimline Unvented Cylinder

IDEINSDR210SL

210 Litre Slimline Unvented Cylinder

Indirect Cylinders

Cold Inlet

IDEINSDR120SL

IDEINSIN120SL

120 Litre Slimline Unvented Cylinder

IDEINSIN150SL

150 Litre Slimline Unvented Cylinder

IDEINSIN180SL

180 Litre Slimline Unvented Cylinder

IDEINSIN210SL

210 Litre Slimline Unvented Cylinder

Slimline Direct ErP Rating

Heat Loss

Capacity

Height

Diameter

Weight

IDEINSDR120SL

47 Watts

1.13 kWh/24h

120 Litres

1248mm

475mm

23.2kg

IDEINSDR150SL

56 Watts

1.37 kWh/24h

149 Litres

1519mm

475mm

27kg

IDEINSDR180SL

67 Watts

1.61 kWh/24h

181 Litres

1791mm

475mm

31kg

IDEINSDR210SL

74 Watts

1.77 kWh/24h

197 Litres

1963mm

475mm

34.4kg

ErP Rating

Heat Loss

Capacity

Height

Diameter

Weight

Slimline Indirect IDEINSIN120SL

47 Watts

1.13 kWh/24h

120 Litres

1248mm

475mm

24kg

IDEINSIN150SL

56 Watts

1.37 kWh/24h

149 Litres

1519mm

475mm

28kg

IDEINSIN180SL

67 Watts

1.61 kWh/24h

181 Litres

1791mm

475mm

32kg

IDEINSIN210SL

74 Watts

1.77 kWh/24h

197 Litres

1963mm

475mm

34.8kg

For further technical information please visit www.instinctproducts.co.uk

2026/27 67

Heating

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Guarantees

Radiators

Years

on Henrad Compact Radiators

Henrad Compact Radiators With a slim profile and smooth, white finish, Henrad Compact radiators will blend into any room in the house, to provide guaranteed heating performance. Henrad Compact Range has been independently tested to ensure these radiators perform to a maximum working pressure of 10 Bar. Each Henrad radiator is subjected to a multi-stage cleaning and paint process. The final powder coat is Traffic white (RAL 9016) which is stoved and cooled to give a perfect finish Henrad Compact has 4 x ½” BSP connections as standard, system should be properly flushed and fitted in accordance with the British Code of Practice for the Treatment of Water in Domestic Hot Water Central Heating Systems Finish – White Dimensions – See page opposite

Single Convector Type 11 Single Convector Type 21 Double Convector Type 22

Single Convector Type 11

Single Convector Type 21

Double Convector Type 22

68 2026/27

For further technical information please visit www.henrad.co.uk

Heating

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Guarantees

Radiators

Years

on Henrad Compact Radiators

Compact Radiators

Single Convector Type 11

Single Convector Type 21

Heat Emissions Height

300

450

600

700

Double Convector Type 22

Heat Emissions

Length

Henrad Code Watts

Btu/hr

Henrad Code Watts

Btu/hr

Henrad Code Watts

Btu/hr

500

2031105

868

2032105

1271

2032205

1675

255

373

491

1000

2031110

509

1737

2032110

745

2542

2032210

982

3351

1500

2031115

764

2605

2032115

1118

3813

2032215

1473

5026

1600

–

2032216

1571

5362

2000

2031120

1018

3473

2032120

1490

5084

2032220

1964

6701

400

2011104

302

1032

2012104

422

1440

2012204

548

1871

500

2011105

378

1290

2012105

528

1800

2012205

686

2339

600

2011106

454

1548

2012106

633

2160

2012206

823

2807

700

2011107

529

1806

2012107

739

2520

2012207

960

3274

800

2011108

605

2064

2012108

844

2880

2012208

1097

3742

900

2011109

680

2322

2012109

950

3240

2012209

1234

4210

1000

2011110

756

2579

2012110

1055

3600

2012210

1371

4678

1100

2011111

832

2837

2012111

1161

3960

2012211

1508

5146

1200

2011112

907

3095

2012112

1266

4320

2012212

1645

5613

1400

2011114

1058

3611

2012114

1477

5040

2012214

1919

6549

1600

2011116

1210

4127

2012116

1688

5759

2012216

2194

7485

1800

2011118

1361

4643

2012118

1899

6479

2012218

2468

8420

2000

2011120

1512

5159

2012120

2110

7199

2012220

2742

9356

2200

2011122

1663

5675

–

2012222

3016

10291

2400

2011124

1814

6191

–

2012224

3290

11227

300

2061103

294

1003

–

400

2061104

392

1338

2062104

538

1836

2062204

693

2364

500

2061105

490

1672

2062105

673

2295

2062205

866

2955

600

2061106

588

2006

2062106

807

2753

2062206

1039

3546

700

2061107

686

2341

2062107

942

3212

2062207

1212

4137

800

2061108

784

2675

2062108

1076

3671

2062208

1386

4728

900

2061109

882

3009

2062109

1211

4130

2062209

1559

5319

1000

2061110

980

3344

2062110

1345

4589

2062210

1732

5910

1100

2061111

1078

3678

2062111

1480

5048

2062211

1905

6501

1200

2061112

1176

4013

2062112

1614

5507

2062212

2078

7092

1400

2061114

1372

4681

2062114

1883

6425

2062214

2425

8273

1600

2061116

1568

5350

2062116

2152

7343

2062216

2771

9455

1800

2061118

1764

6019

2062118

2421

8260

2062218

3118

10637

2000

2061120

1960

6688

2062120

2690

9178

2062220

3464

11819

2200

2061122

2156

7356

–

2062222

3810

13001

2400

2061124

2352

8025

–

2062224

4157

14183

400

2071104

447

1527

2072104

612

2088

2072204

784

2676

500

2071105

559

1906

2072105

765

2610

2072205

981

3345

600

2071106

670

2287

2072106

918

3132

2072206

1177

4015

700

2071107

782

2668

2072107

1071

3654

2072207

1373

4684

800

2071108

894

3049

2072108

1224

4176

2072208

1569

5353

900

2071109

1005

3430

2072109

1377

4698

2072209

1765

6022

1000

2071110

1117

3811

2072110

1530

5220

2072210

1961

6691

1100

2071111

1229

4192

2072111

1683

5742

2072211

2157

7360

1200

2071112

1340

4573

2072112

1836

6264

2072212

2353

8029

1400

2071114

1564

5336

2072114

2142

7309

2072214

2745

9367

1600

2071116

1787

6098

2072116

2448

8353

2072216

3138

10705

1800

2071118

2011

6860

2072118

2754

9397

2072218

3530

12044

2000

2071120

2234

7622

2072120

3060

10441

2072220

3922

13382

Btu/hr @ Δt50°C

For further technical information please visit www.henrad.co.uk

2026/27 69

Heating

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Guarantees

Radiators

Years

on Henrad Compact Radiators

Henrad Compact Radiators Compact Radiators

Single Convector Type 11

Double Convector Type 22

Heat Emissions Height

900

1800

Length

Henrad Code

Watts

Btu/hr

Heat Emissions Henrad Code

Watts

Btu/hr

400

2091104 544

1856

2092204 958

3269

500

2091105 680

2320

2092205 1198

4088

600

2091106 816

2784

2092206 1437

4903

700

2091107 952

3248

2092207 1677

5722

800

2091108 1088

3712

2092208 1916

6537

900

2091109 1224

4176

2092209 2156

7356

1000

2091110 1360

4640

2092210 2395

8172

400

–

2182204 1584

5405

–

500

–

2182205 1980

6756

600

–

2182206 2376

8107

Single Convector Type 11

Double Convector Type 22

Henrad Column or Verona ranges now available in 55 RAL colours and ﬁnishes.

70 2026/27

For further technical information please visit www.henrad.co.uk

Heating

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Guarantees

Radiators

Years

on Henrad Compact K3 Radiators

Henrad Compact K3 Radiators The ideal choice for low energy systems, providing outstanding heat output from a smaller footprint Henrad Compact K3 has 4 x ½” BSP connections as standard Safety tested to withstand 10 Bar Finish – Traffic white (RAL9016) Dimensions – See below

Compact K3 Radiators Heat Emissions Height

300

500

600

700

Triple Convector Type 33 For further technical information please visit www.henrad.co.uk

Length

Henrad Code

1000

2033310 1349

4603

2000

2033320 2698

9206

600

2053306 1234

4210

Watts

Btu/hr

700

2053307 1439

4910

800

2053308 1645

5613

900

2053309 1850

6312

1000

2053310 2056

7015

1100

2053311 2262

7718

1200

2053312 2467

8417

1400

2053314 2878

9820

1600

2053316 3290

11225

1800

2053318 3701

12628

2000

2053320 4112

14030

2400

2053324 4934

16835

400

2063304 956

3262

500

2063305 1195

4077

600

2063306 1433

4889

700

2063307 1672

5705

800

2063308 1911

6520

900

2063309 2150

7336

1000

2063310 2389

8151

1100

2063311 2628

8967

1200

2063312 2867

9782

1400

2063314 3345

11413

1600

2063316 3822

13041

1800

2063318 4300

14672

2000

2063320 4778

16303

2400

2063324 5734

19564

500

2073305 1356

4627

600

2073306 1627

5551

700

2073307 1898

6476

800

2073308 2170

7404

900

2073309 2441

8329

1000

2073310 2712

9253

1100

2073311 2983

10178

1200

2073312 3254

11103

1400

2073314 3797

12955

1600

2073316 4339

14805

1800

2073318 4882

16657

2000

2073320 5424

18507

Btu/hr @ Δt50°C 2026/27 71

Heating

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Guarantees

Towel Rails

Years

on Stelrad Straight Towel Rails

Stelrad 25mm Straight Towel Rails

NEW

25mm round tubes for a higher heat output for effective bathroom heating A choice of classic chrome or contemporary white, versatile finishes Flexible sizing for different bathroom spaces Ideal For Bathrooms and Kitchens, practical heating and towel drying in one Safety tested to withstand 8 Bar Material – Mild Steel Finish – Chrome or White Dimensions – See table below, all sizes options have a depth of 100mm All heat outputs are shown at 50°C ΔT in compliance with BSEN442

25mm Height

800

1000

1200

1500

1800

Chrome Finish Instinct Code Watts

Btu/hr

Instinct Code Watts

Btu/hr

300

NEW 610027

167

570

NEW 610042 245

836

400

NEW 610028 206

703

NEW 610043 305

1041

500

NEW 610029

244

833

NEW 610044 365

1245

600

NEW 610030

283

966

NEW 610045 426

1454

500

NEW 610031

304

1037

NEW 610046 459

1566

600

NEW 610032

355

1211

NEW 610047 535

1825

300

NEW 610033

232

792

NEW 610048 362

1235

400

NEW 610034

296

1010

NEW 610049 454

1549

500

NEW 610035

359

1225

NEW 610050 546

1863

600

NEW 610036

423

1443

NEW 610051 638

2177

500

NEW 610037

453

1546

NEW 610052 692

2361

600

NEW 610038

532

1815

NEW 610053 808

2757

400

NEW 610039

453

1546

NEW 610054 695

2371

500

NEW 610040

547

1866

NEW 610055 836

2852

600

NEW 610041

641

2187

NEW 610056 977

3334

NEW

1200 x 500mm, White 25mm Straight Towel Rails

72 2026/27

White Finish

Width

1800 x 500mm, Chrome 25mm Straight Towel Rails

NEW

1800 x 500mm, White 25mm Straight Towel Rails For further technical information please visit www.stelrad.co.uk

Heating

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Guarantees

Towel Rails

Years

on Stelrad Straight Towel Rails

NEW

Stelrad 22mm Straight Towel Rails 22mm round tubes for a slimline design with excellent heat distribution Clean, contemporary style for any bathroom Seven flexible height choices for different spaces Effective warmth for bathrooms and ensuites Safety tested to withstand 8 Bar Material – Mild Steel Finish – Chrome Dimensions – See table below, all sizes options have a depth of 100mm All heat outputs are shown at 50°C ΔT in compliance with BSEN442

1200 x 500mm, Chrome 22mm Straight Towel Rails

22mm Height

NEW

600

800

1000

1200

1400

1600

1800 1200 x 500mm, Chrome 22mm Straight Towel Rails For further technical information please visit www.stelrad.co.uk

Chrome Finish Width

Instinct Code Watts

Btu/hr

400

NEW 610001

158

539

500

NEW 610002

190

648

600

NEW 610003

223

761

300

NEW 610004

149

508

400

NEW 610005

187

638

500

NEW 610006

225

768

600

NEW 610007

264

901

750

NEW 610008

321

1095

300

NEW 610009

186

635

400

NEW 610010

233

795

500

NEW 610011

280

955

600

NEW 610012

327

1116

300

NEW 610013

224

764

400

NEW 610014

283

966

500

NEW 610015

342

1167

600

NEW 610016

401

1368

750

NEW 610017

490

1672

500

NEW 610018

389

1327

600

NEW 610019

457

1559

400

NEW 610020

374

1276

500

NEW 610021

453

1546

600

NEW 610022

532

1815

400

NEW 610023

427

1457

500

NEW 610024

516

1761

600

NEW 610025

605

2064

750

NEW 610026

739

2521 2026/27 73

Controls

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Controls Section

Page No.

Thermostatic Radiator Valves (TRVs) Modern Thermostatic Radiator Valves

15mm Thermostatic Radiator Valves

15mm Pipe Connection Tubes

Angled Valves

Straight Valves

One Piece Reducing Bullet

Our frequently ordered Controls products...

Designer Radiator Valves Contemporary / Traditional Radiator Valves

Coloured Valves

Elements

BEST SELLER

Manual Radiator Valves Angled Manual Radiator Valves

Straight Manual Radiator Valves

Ancillaries

Thermostatic Mixing Valves (TMVs) 15mm TMV2 / 3 Thermostatic Mixing Valve

22mm TMV2 / 3 Thermostatic Mixing Valve

15mm TMV2 / 3 Thermostatic Mixing Valve (Isolators)

22mm TMV2 / 3 Thermostatic Mixing Valve (Isolators)

15mm Angled TRV (Twin Pack)

15mm Angled TRV (Brushed Brass)

15mm Angled TRV (Matt Black)

15mm Angled TRV (Polished Chrome)

Icon Key Our handy icon key helps you quickly recognise key product features and choose the product that suits you best.

Temperature Adjustment

74 2026/27

Max Flow Temperature

Min. Operating Pressure

Max. Operating Pressure

Anti Scald

Contemporary 15mm Valve (Polished Chrome)

15mm Pipe Connection Tubes (Chrome)

For further technical information please visit www.instinctproducts.co.uk

Controls

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Guarantees

Thermostatic Radiator Valves (TRVs)

Year

on Thermostatic Radiator Valves (TRVs)

Modern Thermostatic Radiator Valves (TRVs)

Chrome (½” x 15mm)

Matt Black (½” x 15mm)

Anthracite (½” x 15mm)

Dimensions – 136(h) x 68(w) x 40(d) mm (Angled) 84(h) x 118(w) x 40(d) mm (Straight) 78(h) x 115(w) x 65(d) mm (Corner)

INCNT004AP-CP

Angled Valve

INCNT004AP-BL

Angled Valve

INCNT004AP-AT

Angled Valve

INCNT004ST-CP

Straight Valve

INCNT004ST-BL

Straight Valve

INCNT004ST-AT

Straight Valve

INCNT024

Corner Valve

INCNT024-BL

Corner Valve

INCNT024-AT

Corner Valve

15mm Thermostatic Radiator Valves (TRVs)

Chrome (Twin Pack)

Classic Polished Chrome (Twin Pack)

Brushed Brass (½” x 15mm)

Dimensions – 130(h) x 42(w) x 65(d) mm (Angled) 120(h) x 47(w) x 86(d) mm (Straight)

Dimensions – 139(h) x 56(w) x 55(d) mm

Dimensions – 136(h) x 68(w) x 40(d) mm

15PACKACP.1

Angled Valve

15PACKSCP.1

Straight Valve

INST-AL055LC

Angled Valve

INCNT004AP-ZBBS

Angled Valve

15mm Pipe Connection Tubes (Pair)

Chrome

Matt Black

Anthracite

Gloss White

Dimensions – 150(h) x 15(w) x 15(d) mm

INCNT005-C

INCNT005-MB

INCNT005-AT

INCNT005-GW

76 2026/27

For further technical information please visit www.instinctproducts.co.uk

Guarantees

Thermostatic Radiator Valves (TRVs)

Year

on Thermostatic Radiator Valves (TRVs)

Angled (TRVs)

Controls

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Straight (TRVs)

BEST SELLER

White (15mm – Twin Pack)

White (10mm – Twin Pack)

White (15mm – Twin Pack)

Dimensions – 140(h) x 76(w) x 48(d) mm

Dimensions – 124(h) x 85(w) x 48(d) mm

15PACKAWHCP.1

Angled Valve

10PACKAWHCP

Angled Valve

15PACKSWHCP.1

Straight Valve

One Piece Reducing Bullet

White (15mm)

White (10mm)

Brass (15 x 10mm)

Dimensions – 140(h) x 76(w) x 48(d) mm

Dimensions – 30(h) x 50(w) x 60(d) mm

15TRVAWHCP

Angled Valve

10TRVAWHCP

Angled Valve

1510RED

LIGHT TO LIFT. COMPACT TO FIT. SIMPLE TO INSTALL. Ideal Instinct2 Combi Boiler 24, 30 + 35kW INSTINCT Ideal Combi Boiler Strip Advert (189x78mm)_V1.indd 1

For further technical information please visit www.instinctproducts.co.uk

INCLUDES

SCAN ME TO FIND YOUR NEAREST STOCKIST 13/10/2026 12:44

2026/27 77

Controls

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Guarantees

Designer Radiator Valves

Year

on Designer Radiator Valves

Contemporary / Traditional Radiator Valves

BEST SELLER

Contemporary, Polished Chrome (15mm – Pair)

Square, Polished Chrome (15mm – Pair)

Traditional, Polished Chrome (½” x 15mm – Pair)

Dimensions – 90.5(h) x 75(w) x 32(d) mm (Angled) 75(h) x 87.5(w) x 32(d) mm (Straight) 75(h) x 60(w) x 75(d) mm (Corner)

Dimensions – 82(h) x 76(w) x 30(d) mm (Angled) 64(h) x 95(w) x 30(d) mm (Straight)

Dimensions – 110(h) x 115(w) x 46(d) mm

INST-AL025LC

Angled Valve

INST-AL024LC

Straight Valve

INST-AL030LC

Angled Valve

INST-AL029LC

Corner Valve

INST-AL031LC

Straight Valve

INST-AL034LC

Angled Valve

Coloured Valves

Matt Black (½” x 15mm)

Anthracite (½” x 15mm)

Gloss White (½” x 15mm)

Dimensions – 83(h) x 75(w) x 30(d) mm (Angled) 78(h) x 75(w) x 30(d) mm (Straight) 73(h) x 70(w) x 70(d) mm (Corner)

Dimensions – 83(h) x 75(w) x 30(d) mm (Angled) 78(h) x 75(w) x 30(d) mm (Straight)

INCNT003AP-ZMB

Angled Valve

INCNT003AP-ZAT

Angled Valve

INCNT003ST-ZMB

Straight Valve

INCNT003ST-ZAT

Straight Valve

INCNT003AP-GW

Angled Valve

INCNT023-MB

Corner Valve

INCNT023-AT

Corner Valve

INCNT003ST-GW

Straight Valve

Elements

RELIABLE HEAT. CLEAN DESIGN.

15mm Dual Fuel Corner Radiator Valves (Pair) Finish – Polished Chrome Dimensions – 71.8(h) x 64.3(w) x 68.5/48.3(d) mm INST-AL049LC ½” M & F Dual Fuel Elbow Finish – Chrome DFE12

78 2026/27

Towel Rail Element (Inc. Tee Piece + ½” Plug)

Henrad Compact and Compact K3 radiators combine a slim profile with a smooth white finish.

Pages 68-71

Multiple Sizes

Suitable for both dual-fuel and electric only Maintains liquid temperature between 40-54°C TRE150 150W

TRE600 600W

TRE250 250W

TRE800 800W

TRE400 400W

For further technical information please visit www.instinctproducts.co.uk

Guarantees

Manual Radiator Valves

Year

on Manual Radiator Valves

Controls

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Angled Manual Radiator Valves

15 + 10mm Angled Manual Radiator Valve

15 + 10mm Angled Manual Radiator Valve (Drain Off)

Finish – Chrome / White Dimensions – 31(h) x 72(w) x 70(d) mm (ER-15MMVAL) 31(h) x 70(w) x 73(d) mm (ER-10MMVAL)

Finish – Chrome / White Dimensions – 31(h) x 75(w) x 88(d) mm (ER-15MMDOVAL) 32(h) x 82(w) x 82(d) mm (ER-10MMDOVAL)

ER-15MMVAL

15mm Angled Manual Valve

ER-15MMDOVAL

15mm Angled Manual Valve (Drain Off)

ER-10MMVAL

10mm Angled Manual Valve

ER-10MMDOVAL

10mm Angled Manual Valve (Drain Off)

GREAT VALUE

15 + 10/8mm Angled Lockshield Manual Radiator Valve

15 + 10/8mm Angled Lockshield Manual Radiator Valve (Drain Off)

Finish – Chrome / White Dimensions – 35(h) x 78(w) x 75(d) mm (CEMMRV15) 35(h) x 78(w) x 69(d) mm (CEMMRV10-8)

Finish – Chrome / White Dimensions – 29(h) x 85(w) x 91(d) mm (CEMDRN15) 29(h) x 85(w) x 91(d) mm (CEMDRN10-8)

CEMMRV15

15mm Angled Lockshield Manual Valve

CEMDRN15

15mm Angled Lockshield Manual Valve (Drain Off)

CEMMRV10-8

10/8mm Angled Lockshield Manual Valve

CEMDRN10-8

10/8mm Angled Lockshield Manual Valve (Drain Off)

Straight Manual Radiator Valves

Ancillaries

15mm Straight Manual Radiator Valve

Radiator Drain Off Tail Piece

Demountable 10mm Push Fit Elbow (Pair)

Finish – Chrome / White Dimensions – 33(h) x 63(w) x 89(d) mm

Finish – Chrome Dimensions – 32(h) x 54(w) x 41(d) mm

Finish – Chrome Dimensions – 22(h) x 47(w) x 65(d) mm

YU-JQAL213HC

459004

ER-15MMSVAL

15mm Straight Manual Valve

For further technical information please visit www.instinctproducts.co.uk

2026/27 79

Controls

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Guarantees

Thermostatic Mixing Valves (TMVs) Anti-Scald

Anti-Scald

WRAS Approved

Year

on Thermostatic Mixing Valves (TMVs)

15mm TMV2 / 3 Thermostatic Mixing Valve

22mm TMV2 / 3 Thermostatic Mixing Valve

Finish – Chrome Dimensions – 98(h) x 140(w) mm

Finish – Chrome Dimensions – 98(h) x 146(w) mm

40015CBA

40022CBA

Anti-Scald

WRAS Approved

15mm TMV2 / 3 Thermostatic Mixing Valve (Isolators)

22mm TMV2 / 3 Thermostatic Mixing Valve (Isolators)

Finish – Chrome Dimensions – 98(h) x 132(w) mm

400MX15CBA

400MX22CBA

80 2026/27

For further technical information please visit www.instinctproducts.co.uk

BUILD WITH CONFIDENCE. CHOOSE INSTINCT. Thousands of Products Online

Explore plumbing and heating solutions for every project

Technical Information on Hand

Access essential product details to support your next installation

Product Documents at Your Fingertips

Find product literature, technical documents and the latest launches

Find Your Nearest Branch

Connect with your local Instinct stockist for expert support

SCAN TO EXPLORE

Water Treatment

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Water Treatment Section

Page No.

Scale Inhibitors Instinct Pro Magnetic Scale Inhibitor

Instinct Pro Electrolytic Scale Inhibitor

Water Softeners BWT Water Softeners (Electric)

Scalemaster® Water Softeners (Non-Electric)

Our frequently ordered Water Treatment products...

Chemicals Instinct Pro Heating System Chemicals

Instinct Pro Miscellaneous Chemicals

BWT Powder Chemicals

BEST Prevents SELLER Limescale

Prevents Corrosion

Removes Debris

NonHazardous

Magnetic Filters Instinct 22mm + 28mm Magnetic Filter (with Isolation Valves)

Fernox TF1 Sigma UB Filter 22mm

Fernox TF1 Sigma Mini 22mm

Instinct Pro IN-100 Concentrate Corrosion Inhibitor Icon Key Our handy icon key helps you quickly recognise key product features and choose the product that suits you best.

Instinct Pro IN-300 Concentrate System Cleaner

Triple Filtration 12000 Gauss Magnet

Manufactured in Great Britain

Manufactured Using Patented Technologies

Easy to Install and Maintain

Cost Saving Product

Dosing Amount – Up to 100 Litres

Easy Dosing

Full Flow

Dosing Amount – Prevents Limescale Up to 10 Radiators + Corrosion

Dissolves Limescale

Improves Heat Transfer

Use with Power Non-Hazardous Flushing Machines Formulation

Prevents Bacterial + Fungal Growth

Removes Debris Suspended in Water

Seals Leaks + Weeping Joints

Bottle Made from 50% Recycled Plastic

Min 90°C App Control via Mobile Device

82 2026/27

Min. Operating Pressure

Max. Operating Pressure

Min. Operating Temperature

92 Max. Operating Temperature

Instinct 22mm + 28mm Magnetic Filter (with Isolation Valves) For further technical information please visit www.instinctproducts.co.uk

Guarantees

Scale Inhibitors

Years

on Instinct Pro Scale Inhibitors

Easy to Install

Chemical Free

Power Free

WRAS Approved

Easy to Install

Instinct Pro 15mm Magnetic Scale Inhibitor

Easy to Install

Single Protection

UK Made

Chemical Free

Power Free

Water Treatment

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

WRAS Approved

Instinct Pro 15mm Electrolytic Scale Inhibitor

WRAS Approved

Easy to Install

Instinct Pro 22mm Magnetic Scale Inhibitor

Home Protection

UK Made

WRAS Approved

Instinct Pro 22mm Electrolytic Scale Inhibitor

Instinct Pro Magnetic Scale Inhibitors

Instinct Pro Electrolytic Scale Inhibitors

The range of Instinct Pro Scale Inhibitors are manufactured by Scalemaster® in the UK and incorporate the original Scalemaster® patented technology.

Copper Mesh Enhances Limescale Inhibitor Performance Instinct Pro and Scalemaster® in-line limescale inhibitors incorporate an active element (magnet or zinc anode) encased in pure copper mesh. The mesh increases the surface area of copper in contact with the water passing through the unit which enhances the electrochemical effect (removal of dissolved oxygen and treatment to prevent limescale precipitation). Only Scalemaster® products use this technology (Patent No. 2285936) which has been proven in independent tests (by British Gas R&D) to extend boiler life typically by 50% by preventing scale build up in hard water areas.

The copper mesh – zinc/magnet anode pair reduces the water flow rate through the unit by less than 1%.

Easily installed, slip couplings for easy fit

No moving parts, no maintenance required

Needs no chemicals or power, earth bonding not required

Made in the UK with Scalemaster® patented technology

Single appliance protection

Whole house protection

Saves on energy costs

Finish – Green Dimensions – 130(l) x 28(d) mm (403328) 136(l) x 35(d) mm (403335)

Finish – Blue Dimensions – 130(l) x 28(d) mm (403342) 136(l) x 32(d) mm (403359)

403328

Instinct Pro 15mm Magnetic Scale Inhibitor

403342

Instinct Pro 15mm Electrolytic Scale Inhibitor

403335

Instinct Pro 22mm Magnetic Scale Inhibitor

403359

Instinct Pro 22mm Electrolytic Scale Inhibitor

For further technical information please visit www.instinctproducts.co.uk

2026/27 83

Water Treatment

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Water Softeners (Electric)

Guarantees Years

Parts

BWT Softlux Water Softeners WRAS Approved

Years

Labour on BWT Softlux Water Softeners

Year

on BWT Bon Aqua Water Softeners

BWT Bon Aqua Water Softeners WRAS Approved

BWT Softlux 10 Litre Water Softener

BWT Softlux 14 Litre Water Softener

BWT Bon Aqua 10 Litre Water Softener

For homes up to 4 people where space is at a premium

For homes up to 6 people with multiple bathrooms

For homes up to 4 people with multiple bathrooms

Electronic control system, softener adapts to your Lifestyle, Tablet or Block Salt* can be used (*SL10P only)

Electronic control system, softener adapts to your Lifestyle, Tablet or Block Salt* can be used (*SL14P only)

Meter controlled, Tablet Salt can be used

Low voltage control system for safety and ease of installation

Finish – White Dimensions – 532(h) x 270(w) x 480(d) mm Water used per regeneration – <75Litres

Finish – White Dimensions – 602(h) x 270(w) x 480(d) mm Water used per regeneration – <80Litres

SL10

SL14

With 15mm Install Kit

SL10P With 22mm Install Kit (with 22mm Hi-Flow Hoses)

WRAS Approved

With 15mm Install Kit

SL14P With 22mm Install Kit (with 22mm Hi-Flow Hoses)

Finish – Orange + Black Dimensions – 532(h) x 270(w) x 480(d) mm Water used per regeneration – <75Litres

CILSOFT45 CILSOFT45-NK

With 15mm Install Kit Without 15mm Install Kit

WRAS Approved

BWT Softlux 20 Litre Water Softener

BWT Softlux 25 Litre Water Softener

BWT Bon Aqua 15 Litre Water Softener

For larger homes up to 8 people with multiple bathrooms

For larger homes up to 10 people with multiple bathrooms

For homes up to 6 people with multiple bathrooms

Electronic control system, softener adapts to your Lifestyle, Tablet Salt can be used

Low voltage control system for safety and ease of installation

Finish – White Dimensions – 804(h) x 270(w) x 480(d) mm Water used per regeneration – <125Litres

Finish – White Dimensions – 804(h) x 270(w) x 480(d) mm Water used per regeneration – <145Litres

SL20

SL25

Meter controlled, Tablet Salt can be used Finish – Orange + Black Dimensions – 602(h) x 270(w) x 480(d) mm Water used per regeneration – <80Litres

CILSOFT55

84 2026/27

With 15mm Install Kit

CILSOFT55-NK

With 15mm Install Kit Without 15mm Install Kit

For further technical information please visit www.bwt.com

Guarantees

Water Softeners (Non-Electric)

Years

on Scalemaster® Water Softeners

Water Treatment

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Scalemaster® Water Softeners Easy to Install

Easy to Install

WRAS Approved

Compact Design

Scalemaster® Softline SL-S Water Softener

Scalemaster® Softline SL-150 Water Softener

For homes up to 2 bathrooms

Low salt and water usage

Tablet or Block Salt can be used

No Electricity Required

No electricity or separate installation kit required

Finish – Black + Blue Dimensions – 492(h) x 235(w) x 425(d) mm Water used per regeneration – <25Litres

Finish – Black + Blue Dimensions – 470(h) x 240(w) x 483(d) mm Water used per regeneration – <18Litres

900292

Single Tank

Softline SL-150 Single Tank

WRAS Approved

900100

Single Tank (15mm Standard)

900131

Single Tank (22mm Hi-Flow)

Easy to Install

WRAS Approved

Scalemaster® 15mm Standard Installation Kit Finish – White + Black WRAS Approval – Hoses only Dimensions – 323(h) x 137(w) x 315(d) mm

900803

15mm Standard Installation Kit

WRAS Approved

Scalemaster® Softline SL-Twin Water Softener

Scalemaster® Softline SL-X Water Softener

Twin Tank design gives continuous, uninterrupted soft water

For homes up to 4 bathrooms

For homes up to 3 bathrooms with pressurised systems Low salt and water usage

Tablet or Block Salt can be used No Electricity Required

Tablet or Block Salt can be used

Finish – Black + Blue Dimensions – 576(h) x 343(w) x 547(d) mm Water used per regeneration – <25Litres

No Electricity Required Finish – Grey + Black Dimensions – 495(h) x 205(w) x 475(d) mm Water used per regeneration – <23Litres

900322

Low salt and water usage

Scalemaster® 22mm Hi-Flow Installation Kit Finish – Stainless Steel + Black WRAS Approval – Hoses only Dimensions – 323(h) x 137(w) x 315(d) mm

Twin Tank

900308

For further technical information please visit www.scalemastersofteners.co.uk

Single Tank

900810

22mm Hi-Flow Installation Kit 2026/27 85

in partnership with Scalemaster®

The perfect concentration for reliable results

SCAN ME TO FIND YOUR NEAREST STOCKIST

Complete Range Available

Benchmark is going digital. Instinct Pro is Ready. Benchmark’s new Portal and App create a single digital record for installation, commissioning and maintenance, supporting Building Regulations and MCS compliance. Test

Verify inhibitor levels with Instinct Pro Rapid Test Strips or Scalemaster i-test

Record

Save test results in the Scalemaster i-test App

Upload

Upload results directly to the Benchmark Portal

Report

Select Instinct Pro Chemicals within Benchmark when recording products used

Are you ready for the digital future of heating? scan to find out more

Water Treatment

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Chemicals Instinct Pro Heating System Chemicals Instinct Pro IN-100 Corrosion Inhibitor Prevents corrosion and hard water limescale precipitation Essential for protecting hot water heating systems and maintaining operational efficiency Treats 100 Litres/10 radiators per 250ml. 250ml – 100 Litres/10 radiator 300ml – 120 Litres/12 radiator 5 Litre – 2000 Litres/200 radiator

scan me

Dimensions – 250(h) x 55(w) x 55(d) mm (504513) 137(h) x 72(w) x 49(d) mm (504223) 275(h) x 175(w) x 125(d) mm (504582)

Cert No. 2101/0219

504513

300ml Aerosol

504223

250ml Bottle

504582

5 Litre Bottle (Concentrated)

A MORE Fully Recyclable CONSIDERED APPROACH TO THE ENVIRONMENT Instinct Pro Heating System Chemicals are manufactured in the UK by Scalemaster® in concentrated form, helping to minimise shipping.

Scalemaster® i-Test Inhibitor Tester Provides full annual testing compliance with BS7593:2019 in under 5 minutes. Works with all chemical inhibitors

Instinct Pro Rapid Inhibitor Test Strips Rapid testing of central heating inhibitor concentration

Dimensions – 108(h) x 145(w) x 50(d) mm

Works with Instinct inhibitors and all other Nitrate based inhibitors

506104

Scalemaster® i-Test Inhibitor Tester

506111

10 Replacement Probes

Dimensions – 85(h) x 45(w) x 40(d) mm

506128

50 Replacement Probes

504803

All 250ml bottles are made from 50% recycled high-density polyethylene (HDPE) and are fully recyclable, including the white caps and security rings.

50 Test Strips

Instinct Pro IN-300 System Cleaner For commissioning new heating systems Removes installation foulants, flux, grease and debris suspended in water by flushing. Should be left in system minimum 2 hours, maximum 2 weeks

scan me

Treats 100 Litres/10 radiators per 250ml. 250ml – 100 Litres/10 radiator 300ml – 120 Litres/12 radiator 5 Litre – 2000 Litres/200 radiator Dimensions – 250(h) x 55(w) x 55(d) mm (504520) 137(h) x 72(w) x 49(d) mm (504247) 275(h) x 175(w) x 125(d) mm (504599)

504520

300ml Aerosol

504247

250ml Bottle

504599

5 Litre Bottle (Concentrated)

88 2026/27

For further technical information please visit www.instinctproducts.co.uk

Chemicals

Water Treatment

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Instinct Pro Heating System Chemicals Instinct Pro IN-500 Leak Sealer For the internal sealing of inaccessible leaks and weeping joints Forms a soft seal within 24 hours

scan me

Will not cause blockages in circulatory pumps or air vents Dimensions – 250(h) x 55(w) x 55(d) mm (504537) 137(h) x 72(w) x 49(d) mm (504261)

250ml Bottle

Instinct Pro Leak Sealer Paste 504537

300ml Aerosol

504261

250ml Bottle

Dimensions – 140(h) x 35(w) x 25(d) mm 504384

scan me

50g

scan me

Instinct Pro IN-200 Boiler Noise Silencer

Instinct Pro IN-400 Sludge Remover

Instinct Pro IN-600 Heat Optimiser

Dimensions – 137(h) x 72(w) x 49(d) mm

504230

250ml Bottle

504254

250ml Bottle

504278

250ml Bottle

scan me scan me

scan me

Instinct Pro Chemical Filling Kit Instinct Pro IN-700 System Biocide

Instinct Pro IN-800 Power Cleaner

Dimensions – 137(h) x 72(w) x 49(d) mm

For use with 250mm + 5 litre bottles, fits all 38mm (38/23) neck bottles Allows visual checks on flow of liquid Acute tube bend radius prevents kinks and allows use in tight spaces Dimensions – 144(h) x 42(w) x 42(d) mm

504285

250ml Bottle

504292

For further technical information please visit www.instinctproducts.co.uk

250ml Bottle

701332 2026/27 89

Water Treatment

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Chemicals Instinct Pro Miscellaneous Chemicals Rapid Action

Enzyme Based

Effective Cleaning

Odour Control

Drain Unblocker

NonAcidic

NonCaustic

Instinct Pro Heavy Duty Drain Cleaner

Instinct Pro Drain + Toilet Cleaner (Enzyme Based)

Instinct Pro Sink + Drain Unblocker (Enzyme Based)

Can be used in domestic and commercial applications

Effective enzyme-based treatment to clean and eliminate unwanted odours

Effective enzyme-based treatment for unblocking sinks and drains

Dimensions – 248(h) x 84(w) x 84(d) mm

Non-acidic, non-caustic, non-bleach and biodegradable

Dimensions – 261(h) x 95(w) x 60(d) mm

Dimensions – 248(h) x 84(w) x 84(d) mm

Strong solution which clears drains of grease, oils, fat and hair rapidly

504780

1 Litre Bottle

504636

750ml Bottle

504629

Rapid Action

Corrosion Protection

PreMixed

Multiple Purpose

Freeze Protection

1 Litre Bottle

System Protection

Instinct Pro Inhibited Antifreeze (Concentrated) Instinct Pro General Purpose Descaler Multi-purpose, biodegradable, phosphate-free, rapid action de-scaler, no nasty odours Saves energy Dimensions – 143(h) x 55(w) x 55(d) mm

504612

90 2026/27

250ml Bottle

Long term protection against corrosion and limescale Use in central heating systems, underfloor heating, heat pumps and solar panels Dimensions – 275(h) x 175(w) x 125(d) mm (504711) 440(h) x 275(w) x 235(d) mm (504728)

Instinct Pro Towel Rail Antifreeze (Pre-Mixed) Protects against burst pipes down to -29°C Includes added corrosion and limescale inhibitors Dimensions – 248(h) x 84(w) x 84(d) mm

504711

5 Litre Bottle

504728

25 Litre Bottle

504773

1 Litre Bottle

For further technical information please visit www.instinctproducts.co.uk

Guarantees

Chemicals

Year

on BWT Powder Chemicals

Water Treatment

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

BWT Powder Chemicals BWT Power Crystals Cleaner 50% More Capacity

150 Litre Treatment

BWT Power Crystals are a quick and effective cleaner for all types of wet central heating systems. They offer the power of a liquid in an easy to carry sachet of crystals. Their powerful formula make them ideal for quick and more intensive cleaning when required. They have been developed to remove all debris, sludge, and scale from new and existing closed loop systems. A cleaner system will help restore your heating systems efficiency and reduce boiler noise. Suitable for closed loop, wet central heating systems

Deep Cleaning

Reduced Handling

Reduced risk from manual handling and reduced risk of contamination from spills (compared to similar liquid products) Resistant to high and low temperatures 1 dose treats heating systems up to 150 litres Descales, deoxidises and removes sludge

3 Sachets = 1 Dose

Fast, clean and convenient to use Easy to transport, carry, and store Perfect for new and existing systems Less plastic, packaging and carbon foot print (per treatment) Up to 50% more cleaning capacity per pack* Slow and fast clean in one

POWERCRYSTALSCLEANER

BWT Power Crystals Cleaner (3 Sachets Per Pack)

*Based on the size of system to be treated when compared to similar products

50% More Protection

System Protection

Prevents Limescale

Reduced Handling

BWT Power Crystals Protector BWT Power Crystals are a quick and effective inhibitor and system protector suitable for all types of wet central heating systems. They offer the protection power of a liquid in an easy to carry sachet of crystals. Their powerful formula make them ideal for systems up to 150 litres from a single dose. They have been developed to protect new and existing closed loop systems from scale and corrosion. A cleaner system will help maintain your heating systems efficiency and reduce system noise giving you peace of mind and a warmer home. Suitable for closed loop, wet central heating systems Reduced risk from manual handling and reduced risk of contamination from spills (compared to similar liquid products) Helps prevent limescale, corrosion and sludge Fast, clean and convenient to use

Easy Storage

Easy to transport, carry, and store Perfect for new and existing systems Less plastic, packaging and carbon foot print (per treatment) Up to 50% more volume protection per pack* No risk of messy spills

POWERCRYSTALPROTECTOR

BWT Power Crystals Protector

*Based on the size of system to be treated when compared to similar products

For further technical information please visit www.bwtshop.co.uk

2026/27 91

Water Treatment

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Guarantees

Magnetic Filters

Years

on Instinct Magnetic Filters

Triple Filtration 12000 Gauss Magnet Easy Dosing

Full Flow

Flexible Installation

Never Blocks

Spare Seals

Instinct 22mm Magnetic Filter

Instinct 22mm + 28mm Magnetic Filter (with Isolation Valves) The Instinct ECO-Mag magnetic central heating filter is the ideal solution to help combat against costly and unnecessary system breakdowns caused by both magnetic and non ferrous particulate in fluid based systems. The Instinct ECO-Mag can be used on all types of central heating systems and it is recommended, for maximum effect, that the filter be fitted on the return leg of the system, between the last radiator and the boiler. Magnetic filter, non ferrous filter and manual air separator actively filters magnetite and non ferrous debris

1 Manual air vent 2 Date wheel

Filtered Water

3 Filtered cartridge 4 Neodymium magnet 5 Filtration chamber 6 Protection conduit for magnetic cleaning 7 Drain Cap 1

12000 gauss removable magnet 500ml large dosing pot capacity enables installers to quickly dose without having to drain down the whole system Manual air bleed, even if the filter isn’t serviced, it will never inhibit system performance as its unique connection, aided by full bore isolation valves, means that it will never block

Supplied with a full set of spare sealing washers and O-rings Full bore isolating ball valves on inlet and outlet connections ensures that full flow is always achieved to maintain system performance Can be installed anywhere, in any orientation on the pipework saving the installer time and money Finish – Black Dimensions – 242(h) x 232(w) x 157(d) mm (INMAG22) 242(h) x 245(w) x 157(d) mm (INMAG28)

Instinct 22mm Magnetic Filter (with Isolation Valves)

INMAG28

Instinct 28mm Magnetic Filter (with Isolation Valves)

92 2026/27

INMAG22 MAGFILTOOL

Spanner for INMAG Magnetic Filters

Dirty Water 7

For further technical information please visit www.instinctproducts.co.uk

REVOLUTIONISES

SEALED SYSTEM KITS 360° ROTATABLE DRAIN VALVE

FILL, DRAIN, DONE.

ANTI-TAMPER LOCKABLE HANDLE

OPTIONAL SRV 1/2˝ CONNECTION FILLING LOOP WITH PRESSURE GAUGE

22MM CENTRAL HEATING CONNECTION

With the NEW Intafil Combi, there’s no need to drain down a central heating system to replace an expansion vessel. This saves you time, saves money and saves you carrying a vessel full of dirty water through your customer’s home.

INTATEC.CO.UK

SEE IT IN ACTION

intatec.co.uk/intafil-combi

Water Treatment

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Guarantees

Magnetic Filters

Years

on Fernox Magnetic Filters

Take a closer look at the Fernox TF1 Sigma UB Filter features video

Compact Design

Space Saving

3-Way Valve

Robust Build

Full Flow

Easy to Maintain

Fernox TF1 Sigma UB Filter (Suitable with Ideal Instinct2 Combi Boilers) Composite under boiler system filter with a brass manifold designed for easy installation in small, restricted areas and with concealed pipework. This high-performance filter can be installed directly under the boiler or in restricted spaces due to the compact, versatile design. The TF1 Sigma UB Filter offers the ultimate in installer choice and provides high efficiency protection against the build-up of system debris. The Filter has been designed to ensure there is minimal pressure loss in addition to maintaining a high collection efficiency. The filter has been designed to capture a range of system contaminates, whilst also ensuring it cannot block, reduce flow through pipework or impact the performance of the heating system. The TF1 Sigma UB Filter utilises a range of high-quality component parts that ensure the filter offers optimum performance. The three-way ball valve has been designed to allow users to easily operate by hand, whilst also providing a reliable serving procedure. The filter manifold includes a secure connection to the system and a robust service point allowing the filter to be drained and cleaned. The magnet is made using premium grade neodymium, enabling a high efficiency capture rate, as well as a robust filtration medium that will ensure a continued and consistent level of collection. A high capacity, compact design Ideal for use in restricted spaces

Easy to Install

Compact Design

scan me Fernox TF1 Sigma Mini Filter (Suitable with Ideal Instinct2 Combi Boilers) The TF1 Sigma Mini is a compact high-performance system filter that utilises a powerful neodymium magnet to protect your system against the damaging effects of corrosion. The TF1 Sigma Mini has one of the smallest footprints of any filter in the marketplace, which means it can be easily installed directly below a boiler or in restricted spaces on horizontal or vertical pipework.

Integrated three way valve with filter isolation and cleaning functionality

One of the most compact filters in the market, specifically designed for restricted spaces with as little as 105mm clearance

Durable and robust construction, made from a high-quality glass reinforced engineering polymer, and non-porous forged brass

Easy and quick to install

Will not block or restrict flow Can replace return valve if required for ease of maintenance Finish – Black Dimensions – 88(h) x 189(w) x 73(d) mm

62631

94 2026/27

Designed to ensure there is minimal pressure head loss in addition to maintaining a high collection efficiency, whilst ensuring the filter cannot block Mess-free, fast and easy servicing via the filter drain point, without the need to dismantle component parts Finish – Black Dimensions – 75(h) x 173(w) x 128(d) mm

Fernox TF1 Sigma UB Filter 22mm

62708

Fernox TF1 Sigma Mini 22mm

For further technical information please visit www.fernox.com

Consumables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Consumables Section

Page No.

Press Tools ROTHENBERGER Rothenberger ROMAX Compact III

NEW ROTHENBERGER MaxiPro Compact Press Jaws Set 1/4”–1.1/8”

NEW ROTHENBERGER MaxiPro Compact Press Jaws Set 1/4”–5/8”

ZUPPER® Battery Powered Mechanical Press Tool

100

NEW ZUPPER® PZ-1550 Battery Powered Press Tool

101

Our frequently ordered Consumable products...

Plumbing Tools Soldering + Brazing

102

Monument Masters + Bending

103

Copper Pipe Cutting

104

Copper Pipe Cutting, Deburring + Olive Tools

105

Plastic Pipe Cutting

106

Sawing + Cutting

107

Radiators

108

Boilers, Flues, System Testing + Maintenance

109

Taps + Stopcocks

110

Compression Fittings + Immersion Heaters

111

NEW Arctic Hayes Pipe Freeze

112

Arctic Hayes Detection

114

Arctic Hayes Servicing Essentials

115

Arctic Hayes Aerosol, Grease + Solutions

116

Arctic Hayes PPE + Cleaning

117

NEW Hinton Plumbing Tools

118

BEST SELLER Secure Guide

Light + Easy

103

Instinct Pro 15mm Pipe Bender (with INST1715 15mm Copper Pipe Cutter)

NEW Pre-Packed Fittings Pre-Packed Fittings

Flame Free

119

Electrical Fittings NEW Hinton Electrical Fittings

126

Pipe Clips + Trunking Pipe Clips

128

Trunking Accessories

129

ROTHENBERGER ROMAX Compact III Press Tool

ROTHENBERGER MaxiPro Compact Press Jaws Set

NEW

Icon Key Our handy icon key helps you quickly recognise key product features and choose the product that suits you best.

App Control

96 2026/27

2 Second Press Cycle Time

3 Second Press Cycle Time

Service Interval

2 Years

40K

101

ZUPPER® PZ-1550 Battery Powered Press Tool

113

Arctic Hayes 15+22mm SMART Solo Freeze Kit

For further technical information please visit www.instinctproducts.co.uk

Flexible Pipe. Faster Installation. Instinct Pro Polybutylene Barrier Pipe is built for easy handling, fast installation and long-term performance. Ultra-Flexible

Makes routing and installation fast and simple

Fewer Fittings

Reduces joints, labour and installation costs

Lays Flat

Stays flat after uncoiling for easier installation

Lightweight + Easy to Handle

Makes carrying and installation effortless

Oxygen Barrier

Helps prevent air ingress and protect system components

SCAN ME TO FIND YOUR NEAREST STOCKIST

Consumables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Use bonus points that are packaged with the Compact III at www.rothenberger.com/gb-en/bonus-programme/ to claim a new battery FOC

Press Tools

Guarantees Years

on Rothenberger Press Tool

App Connected

3 Second Pressing

Powerful Pressing

Gain access to your COMPACT III and read out relevant Tool & Press Data via Smartphone in Real-Time

Balanced Design

Free First Service

Perfectly balanced centre of gravity allows for comfortable work

With just 2.5kg of weight, overhead jobs will be effortless even over an extended period of time

Take a closer look at the ROMAX Compact lll features video, scan to find out more

1000004333

ROTHENBERGER ROMAX Compact III Smart Electro-Hydraulic Press Tool (battery-operated) for pressing of fittings up to 35mm (Metal) and / or 40mm (Plastic / Multilayer) with 19kN. The ROMAX Compact III is 3 seconds fast, 2.5kg light and 19kN strong. Through the perfect handling, the machine is particularly suitable for domestic installations, high volume pressings or service installations. Connected – Real-Time Data Gathering of Pressing Data and Creation of Job Reports via ROTHENBERGER App. Remote locking Fast – thanks to turbo pressure a pressing takes only 3 seconds Strong – presses metal fittings up to Ø35mm and multilayer up to Ø40mm Handy – perfectly balanced, the centre of gravity is where the user holds the tool Small + lightweight – with 34cm in length, the ROMAX Compact lll weighs just 2.5kg Tool Servicing – The first service is free!

1000004333

Finish – Black / Red Dimensions – 140(h) x 390(w) x 390(d) mm

40K 2 Years

1000004333 1000004285

ROTHENBERGER ROMAX Compact 3 Press Crimping Tool + M Profile Jaw Set 15-22-28mm ROTHENBERGER ROMAX Compact 3 Press Crimping Tool + U Profile Jaw Set 16-20-25mm

NEW 1000002267

ROTHENBERGER Press Jaw Compact, M35

NEW 1000005055

ROTHENBERGER Press Ring Set M15-22-28 + ZBR COMPACT

98 2026/27

Specification Voltage

18 V

Working Area Diameter

12 – 40mm

Working Area Temperature

-10°C up to 60°C

Battery System

Li-Ion / Li-Po battery (rechargeable)

Press Jaw System

Press Jaw Compact

Piston Force

19kN

Time Press Cycle with Unit of Measurement 3 Seconds Capacity Battery with Unit of Measurement 2Ah

For further technical information please visit www.rothenberger.com

Guarantees

Press Tools

Years

on Rothenberger Press Tool

Consumables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

ROTHENBERGER MaxiPro Compact Press Jaws Set 1/4”–1.1/8”

NEW

The >B< MaxiPro system is an innovative press system for the refrigeration industry. Refrigeration systems and heat pumps can be installed quickly, safely and inexpensively instead of connecting the copper pipes by brazing. Without the use of an open flame or the consideration of other precautions. In addition, the 3-point compression of the fitting ensures a secure and permanently tight connection to the pipe.

Flame Free

Flame Free – No open flame required for safer, simpler installation

Secure Seal

Secure Seal – 3-point compression delivers a reliable, durable connection Fast Installation – Quick, simple and cost-effective fitting Finish – Black / Red

Quick to Install

NEW 1000001989 ROTHENBERGER MaxiPro Compact Press Jaws Set 1/4”–1.1/8”

Kit Includes 7 × COMPACT MaxiPro Press Jaws for ¼”, 3/8”, ½”, 5/8”, ¾”, 1” and 11/8” pipe sizes Inside + Outside Deburrer for 6–35mm pipe Tube Cutter for 6–35mm pipe Unigrat with HSS deburring blade ROVLIES – 10 pieces MaxiPro Marking Tool for marking the correct insertion depth on the pipe 1000001989

ROCASE 4414 – the storage/carry case for the complete kit

ROTHENBERGER MaxiPro Compact Press Jaws Set 1/4”–5/8”

NEW

Flame Free

Flame Free – No open flame required for installation Secure Seal – 3-point compression provides a reliable, durable connection

Secure Seal

Fast Installation – Quick, simple and cost-effective fitting Finish – Black / Red

Quick to Install

NEW 1000003580

ROTHENBERGER MaxiPro Compact Press Jaws Set 1/4”–5/8”

Kit Includes 4 × MaxiPro Press Jaws – ¼”, 3/8”, ½” and 5/8” sizes. Protective Case – Supplied in a ROCASE 4414 for convenient storage and transport 1000003580

Operating Instructions – Included for straightforward setup and use

ROTHENBERGER >B< MaxiPro Compact Press Jaws Compatibility Compatibility Table Manufacturer

Model

ROTHENBERGER

Compact TT / Compact 3.0

Compatible Yes

NOVOPRESS

ACO102 / ACO103

Yes

MILWAUKEE

M12 Force Logic

Yes

KLAUKE

MAP219

Yes

RIDGID

RP 219

Yes

HILTI

NPR 19-A

Yes

For further technical information please visit www.rothenberger.com

Take a closer look at the ROTHENBERGER MaxiPro Compact Press Jaws, scan to find out more

2026/27 99

Consumables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Guarantees

Press Tools Easy to Maintain

One-Key Control

Dust Protection

Press Indicator

Longer Runtime

OLED Display

Fast Pressing

Wide Capacity

Ergonomic Design

40 Min. Charge Time

Years

on ZUPPER® Press Tool

Take a closer look at the ZUPPER® MP-1930 features video, scan to find out more

ZUPPER® Battery Powered Mechanical Press Tool

Specification

Works with copper, stainless steel, PEX and multi-layer composite pipe and fittings. Kit includes hard outer case with strap.

Output

19kN

The tool is easier to do maintenance

Stroke

30mm

Enclosed screw structure prevents sand and dust

Press Cycle Time

2 Seconds

Brushless motor with longer motor life and more run-time

Battery

18V Li-Ion 2.0Ah

High efficiency screw drive, faster pressing time

Battery Charger

AC 100V-240V 50-60Hz

Ergonomic design, comfortable operation

Charging Time

Approx. 40mins

ONE-KEY control switch, automatically completes press cycles

Weight

Approx. 2.4kg (tool with battery)

Indicator light, with green indicating completion of press cycle, and red indicating press error or tool malfunction OLED display shows battery percentage, press cycles, fault code, maintenance note Capacity – Up to 35mm Stainless Steel pipe, Copper pipe. Up to 40mm Plastic pipe, Multi-layer composite pipe Finish – Black / Blue Dimensions – 530(h) x 380(w) x 130(d) mm

MLPM-1930 40K 2 Years NEW MLMP1962U

M Profile Kit U Profile Kit

Kit Includes Outer Case, Crimp Tool, Jaws 15mm, 22mm + 28mm Charger, Two Batteries + Strap

100 2026/27

ZUPPER® 180° Jaw Adaptor Kit Angled Jaws kit including carry case containing 180˚ Adaptor with 15mm, 22mm & 28mm M Profile Jaws to suit press tool MLPM-1930 only. Offers installers a versatile solution for installations in confined spaces via the angled adaptor and jaws allowing for a press restricted areas where a normal jaw cannot press properly decreasing the requirement to preset pipe runs and increases the flexibility of press tool to be used in all situations.

NEW PFJAW180KIT

For further technical information please visit www.zpress.co.uk

Guarantees

Press Tools

Years

on ZUPPER® Press Tool

Consumables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

NEW 20% Faster

Fast Pressing

Longer Runtime

Twin Batteries

OLED Display

ZUPPER® PZ-1550 Battery Powered Press Tool

Specification

PZ-1550 is the medium sized crimping tool with an impressive 32kN of force making it more than capable of use in mid sized commercial installations.

Output

32kN

Up to 20% faster pressing than the previous model

Stroke

40mm

Completes each press cycle in just 3–4.5 seconds

Press Cycle Time

Approx. 3-4.5 Seconds

Over 350 press cycles per charge

Battery

18V Li-Ion 4.0Ah

Supplied with two 18V 4.0Ah Li-ion batteries and charger

Battery Charger

AC 100V-240V

OLED display with microcomputer control and double-valve hydraulic system

Charging Time

Approx. 80mins

Capacity – 12–54mm (½”–2”) for stainless steel pipe 12–108mm (½”–4”) for PEX, Multi-layer and copper pipe

Weight

Approx. 3.9kg (tool with battery) Approx. 6.1kg (tool with battery + jaw)

Finish – Black / Blue Dimensions – 640(h) x 460(w) x 140(d) mm

Kit Includes Z-Press Tool – Battery-powered press tool for professional use M-Profile Jaws – 15–54mm M-Profile press jaws adaptor for 42mm and 54mm sling jaws included Twin Batteries – Supplied with two batteries for extended use Charger – Battery charger included NEW PZ1550

For further technical information please visit www.zpress.co.uk

M Profile Kit

Carry Case – Convenient storage and transport 2026/27 101

Consumables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Guarantees

Plumbing Tools Soldering + Brazing

Year

on Plumbing Tools

MONUMENT TOOLS

Monument SweatBOX®

Monument Masters SweatBOX® The SweatBOX® is the ultimate plumbers soldering tray. The SweatBOX® features a flame retardant engineering grade plastic with a patented clamp for holding different sizing of copper pipe up to 22mm or ¾”. There is a silicone strip edge to the SweatBOX® ensuring heat is not conducted from the hot copper pipe to the plastic of the SweatBOX® or the clients property. Adhesive rubber feet are included, helping to prevent scratches to surfaces. The sealed compartments are ideal for holding a gas bottle, separated blowtorch and all the essentials needed for soldering or sweating a joint. There’s even a compartment for flux brushes.

MON

Monument SweatBOX®

The SweatBOX® is the ultimate plumbers soldering tray. The Sweatbox features a flame retardant engineering grade plastic with a patented clamp for holding different sizing of copper pipe up to 22mm or 3/4in.. There is a silicone strip edge to the Sweatbox ensuring heat is not conducted from the hot copper pipe to the plastic of the Sweatbox or the clients property. Adhesive rubber feet are included, helping to prevent scratches to surfaces. The sealed compartments are ideal for holding a gas bottle, separated blowtorch and all the essentials needed for soldering or sweating a joint. There’s even a compartment for flux brushes.

Further information at : https://youtu.be/bvcxTFP8gr8

Finish – Yellow Dimensions – 435(h) x 330(w) x 240(d) mm

MONUMENT TOOLS

Code MAST20201L

https://bit.ly/3q36GgS

Short Desc. Monument Masters SweatBOX

Long Description

EAN

Monument Masters SweatBOX Ultimate Plumbers Soldering Tray

COO

Pack Dims

Pallet

5015375202015 #MadeInBritain 445 is 340 18 plumbers soldering The SweatBOX® the250 ultimate

The Sweatbox features a flame retardant enginee 6 Ti

Further information at : https://youtu.be/bvcxTFP8gr8

MAST20201L

MONUMENT TOOLS

Code

Omat® Soldering + Brazing Pad

MAST20201L

Designed to protect walls, cables, carpets and other flammable material surrounding a pipe being soldered/brazed. The slot in the Monument 2363L Micro Omat® has an overlap at the back which enables the protective mat to go either side of the tube or pipe being soldered/brazed so as to protect the surrounding area from burning or scorching, as well as reducing the risk of fire. It is particularly useful under kitchen units and on pipes perpendicular to the wall where the use of a non-slotted mat would provide inadequate cover of the area to prevent damage.

holding3 different sizing of cop Hi Take a patented closerclamp lookfor at the 3/4in.. 1.2m There is®a silicone strip edge to the Sweatbox ens SweatBOX features from the hot copper pipevideo to the plastic of the Swe

https://bit.ly/3q36GgS

Short Desc.

Adhesive rubber feet are included, helping to pre The sealed compartments are ideal for holding a g blowtorch and all the essentials needed for solder There’s even a compartment for flux brushes.

Long Description

Monument Masters SweatBOX

Monument Masters SweatBOX Ultimate Plumbers Soldering Tray

EAN

Quantity – 1 Dimensions – 240(h) x 240(w) x 5(d) mm (INST2361) 155(h) x 155(w) x 5(d) mm (INST2363)

INST2361 Omat® 250mm (10”) Soldering + Brazing Pad INST2363

Omat® 150mm (6”) Soldering + Brazing Pad

300mm (12”) Soldering + Brazing Pad Quantity – 1 of Each Dimensions – 310(h) x 310(w) x 10(d) mm INST2350

102 2026/27

Flux Brushes

Flux Soldering Paste

Quantity – Pack of 5 or 10 Dimensions – 200(h) x 10(w) x 10(d) mm

Dimensions – 66(h) x 100(w) x 100(d) mm

INST3015-1

Pack of 5

INST3015-10

Pack of 10

701103

COO

5015375202015 #MadeInBri

250g

For further technical information please visit www.instinctproducts.co.uk

Guarantees

Plumbing Tools

Year

on Plumbing Tools

Consumables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Monument Masters + Bending Instinct Pro 15mm Pipe Bender (with INST1715 15mm Copper Pipe Cutter) The Pipe Bender is a single sized pipe bender for 15mm copper pipe (0.7mm wall).

BEST SELLER

Less fiddly – with the integrated hook and nylon guide, the integrated hook stop won’t flop from side to side and the guide(s) won’t fall out

Secure Guide

Lighter in the hand than a combi – the pipe bender weighs 1.9kg

Light + Easy

Less cumbersome – you are only using a bender for the size of pipe being bent Better sight lines – as the bend is in the same plane as the arms of the bender it is easier to line up by eye Smaller than a combi – the pipe bender has an arm length of 40cm approx. (a combi arm length is 65cm). It even fits in a tool bag Quantity – 1 Dimensions – 470(h) x 190(w) x 65(d) mm

INST1215AV 1322EXTENDED

Less Bulky

Better Visibility

Compact Design

Instinct Pro 15mm Pipe Bender Monument Masters XXII Extended 22mm Bender

15mm Copper Pipe Bender Guide Quantity – 1 Dimensions – 165(h) x 20(w) x 15(d) mm INST2601

15mm + 22mm Copper Pipe Bender (Guides) The INST2600 15mm and 22mm Copper Pipe Bender is designed to professionally bend BSEN1057 15mm and 22mm copper pipe and 15mm stainless steel tube. The aluminium formers are marked with bending angles of 30, 45 and 90 degree offsets allowing for accurate bending. The Instinct Pro Pipe Bender is supplied with replaceable 15mm and 22mm aluminium bending guides. Quantity – 1 Dimensions – 700(h) x 135(w) x 155(d) mm

22mm Copper Pipe Bender Guide

INST2600

INST2603

For further technical information please visit www.instinctproducts.co.uk

Quantity – 1 Dimensions – 230(h) x 22(w) x 25(d) mm

2026/27 103

Consumables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Guarantees

Plumbing Tools

Year

on Plumbing Tools

Copper Pipe Cutting Autocut® Copper Pipe Cutter Quantity – 1 Dimensions – 45(h) x 45(w) x 30(d) mm (INST1810N) 50(h) x 50(w) x 30(d) mm (INST1715) 58(h) x 58(w) x 30(d) mm (INST1722) 65(h) x 65(w) x 30(d) mm (INST1728)

15mm + 22mm Autocut® Copper Pipe Cutter

INST1810N

10mm Autocut® Copper Pipe Cutter

INST1715

15mm Autocut® Copper Pipe Cutter

INST1722

22mm Autocut® Copper Pipe Cutter

Quantity – 1 Dimensions – 55(h) x 55(w) x 40(d) mm

INST1728

28mm Autocut® Copper Pipe Cutter

INST17151722

15mm + 22mm Autocut® Copper Pipe Cutters (Restricted Access Handles) The Restricted Access Handles are designed as an aid for rotating the INST1715 + INST1722 in confined spaces where the users’ hands will not fit. Made from bright zinc plated steel the handles engage in the outer casing of the INST1715 + INST1722. They are designed to be easily slipped on and off of the cutter body from either side of the pipe cutter, even when it is engaged on the pipe to be cut. Quantity – Pack of 2 Dimensions – 170(h) x 70(w) x 30(d) mm

Spare Wheels (Autocut® + Pipeslice®) Quantity – Pack of 2 Dimensions – 35(h) x 40(w) x 40(d) mm INST1739

INST0269

Size 4–28mm Copper Pipe Cutter + Size2A 12mm–43mm Copper Pipe Cutter Size 3–22mm Copper Pipe Cutter Quantity – 1 Dimensions – 45(h) x 70(w) x 30(d) mm INST0264

104 2026/27

Quantity – 1 Dimensions – 185(h) x 55(w) x 30(d) mm (INST0265) 220(h) x 65(w) x 40(d) mm (INST0266)

Spare Wheel (Size 0-1-2A Copper Pipe Cutters)

INST0265

Size 4–28mm Copper Pipe Cutter

INST0266

Size2A 12–43mm Copper Pipe Cutter

Quantity – Pack of 2 Dimensions – 40(h) x 55(w) x 55(d) mm INST0273

For further technical information please visit www.instinctproducts.co.uk

Guarantees

Plumbing Tools

Year

on Plumbing Tools

Consumables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Copper Pipe Cutting, Deburring + Olive Tools

35mm Internal + External Pipe Deburrer

12–54mm Inside/Outside Deburrer

Quantity – 1 Dimensions – 75(h) x 45(w) x 45(d) mm

Quantity – 1 Dimensions – 85(h) x 65(w) x 65(d) mm

INST0365

INST0374

15mm + 22mm Copper Pipe + Fitting Brush Quantity – 1 Dimensions – 195(h) x 45(w) x 30(d) mm INST3033

Compression Fitting Olive Cutter The INST2030 15mm and INST2031 22mm are designed to remove an olive from copper pipe without damage to the pipe and without producing swarf. The latest version includes replaceable, interchangeable and reversible tungsten carbide blades. Please note – Not for use on steel olives. Quantity – 1 Dimensions – 195(h) x 55(w) x 20(d) mm (INST2030) 192(h) x 55(w) x 25(d) mm (INST2031)

Cleaning Abrasive Strips Quantity – 10 Pack (INST3024), Twinpack (INST3024-6) Dimensions – 255(h) x 40(w) x 10(d) mm (INST3024) 140(h) x 60(w) x 40(d) mm (INST3024-6) INST3024 INST3024-6

Cleaning Abrasive Strips

INST2030

15mm Compression Fitting Olive Cutter

3m Rolls of Cleaning Abrasive Strips

INST2031

22mm Compression Fitting Olive Cutter

15mm + 22mm Compression Fitting Olive Puller The INST2036 works by engaging the tool in the end of the copper pipe and then winding the appropriate bush - 15mm and 22mm included - counter clockwise until it stops at the olive to be removed. The threaded bush is then screwed into the compression nut which is held captive on the pipe on the other side of the olive. Then by rotating the handle clockwise the compression fitting nut is drawn up the pipe and pulls the olive off the pipe without damaging it. Quantity – 1 Dimensions – 150(h) x 60(w) x 40(d) mm

Additionally there is a power tool drive to make this indispensable tool even more useful! Just remember to have your drill set to drive not reverse.

For further technical information please visit www.instinctproducts.co.uk

INST2036 2026/27 105

Consumables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Guarantees

Plumbing Tools

Year

on Plumbing Tools

Plastic Pipe Cutting

6–28mm Plastic Pipe Cutter

Burrfect Square Plastic Waste Pipe Deburrer

20–42mm Plastic Pipe Cutter

Quantity – 1 Dimensions – 195(h) x 70(w) x 20(d) mm

Quantity – 1 Dimensions – 80(h) x 80(w) x 3(d) mm

Quantity – 1 Dimensions – 220(h) x 125(w) x 25(d) mm

INST2644

INST2116

INST2645

15mm + 22mm Autocut® (Plastic Pipe Cutter)

1¼” + 1½” Autocut® (Plastic Waste Pipe Cutter)

Quantity – 1 Dimensions – 75(h) x 75(w) x 40(d) mm (INST0115) 70(h) x 70(w) x 40(d) mm (INST0122)

Quantity – 1 Dimensions – 70(h) x 70(w) x 50(d) mm (INST1114) 70(h) x 70(w) x 55(d) mm (INST1112)

Spare Blades for Autocut® (Plastic Pipe Cutter)

INST0115

15mm

INST1114

1¼”

Quantity – Pack of 5 Dimensions – 50(h) x 50(w) x 5(d) mm

INST0122

22mm

INST1112

1½”

INST0100

Take a closer look at the Autocuts tool in action!

106 2026/27

For further technical information please visit www.instinctproducts.co.uk

Guarantees

Plumbing Tools

Year

on Plumbing Tools

Consumables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Sawing + Cutting 300mm (12”) Hacksaw The INST1921D 300mm (12”) Hacksaw has a die-cast aluminium handle and square section tubular steel frame,which combine to give a lightweight hacksaw with great tensile strength. Adjusts to give 45° angle for flush cutting. Quantity – 1 Dimensions – 440(h) x 140(w) x 20(d) mm

Junior Hacksaw Quantity – 1 Dimensions – 245(h) x 75(w) x 10(d) mm INST2000

INST1921D

Folding Knife

300mm (12”) Hacksaw Blades

Spare Blade (Junior Hacksaw)

Quantity – 1 Dimensions – 75(h) x 55(w) x 10(d) mm

Quantity – Pack of 3 Dimensions – 310(h) x 40(w) x 3(d) mm

Quantity – Pack of 10 Dimensions – 160(h) x 35(w) x 10(d) mm

INST1023

INST1923

INST1120

Standard Trapezoidal Knife Blades The INST1024 Pack of Ten Standard Trapezoidal Knife Blades. Trimming knife blades are suitable for the trade trimming knife. Supplied in a dispenser. Quantity – Pack of 10 Dimensions – 65(h) x 65(w) x 20(d) mm

Tape Measure (Backing Card) Quantity – 1 Dimensions – 150(h) x 85(w) x 35(d) mm INST1024 For further technical information please visit www.instinctproducts.co.uk

INST1961S5

INST1962S8

8m 2026/27 107

Consumables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Guarantees

Plumbing Tools

Year

on Plumbing Tools

Radiators

Universal Radiator Valve Spanner

Radiator Step Wrench + Ratchet

½, ¾ + 1” Lockshield Radiator Valve Key

Quantity – 1 Dimensions – 110(h) x 40(w) x 20(d) mm

Quantity – 1 Dimensions – 275(h) x 45(w) x 30(d) mm

Quantity – 1 Dimensions – 85(h) x 85(w) x 20(d) mm

INST2052

INST2048

INST2056

Four-Way Multipurpose Key

TRV Tail Driver

Radiator Bleed Keys

Quantity – 1 Dimensions – 75(h) x 75(w) x 20(d) mm

Quantity – 1 Dimensions – 60(h) x 30(w) x 30(d) mm

Quantity – Pack of 3 Dimensions – 35(h) x 68(w) x 5(d) mm

INST2059

INST2166

INST2058-1

RELIABLE HEAT. CLEAN DESIGN. Henrad Compact and Compact K3 radiators combine a slim profile with a smooth white finish.

108 2026/27

3-in-1 and 4-in-1 Radiator Valve Spanners Pages 68-71

Quantity – Pack of 1 (INST2053 + INST2054) Pack of 2 (INST2055) Dimensions – 135(h) x 60(w) x 20(d) mm

Multiple Sizes

INST2053

Radiator Valve Spanner 10mm Square + 5mm Balancing Tool

INST2054

Radiator Valve Spanner 12mm Hex., Air Release + 4mm Balancing Tool

INST2055

Twinpack

For further technical information please visit www.instinctproducts.co.uk

Guarantees

Plumbing Tools

Year

on Plumbing Tools

Consumables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Boilers, Flues, System Testing + Maintenance 30mb Gas Test Gauge The INST0257 30mb Gas Test Gauge is Made in Britain and is made from tough plastic. It is used both for testing pipework installations with air for leaks before the introduction of gas and for checking and setting correct gas pressures on domestic and commercial appliances. Extruded cover slides off and may be clipped over the base for standing the tool vertically during use. Hanging tab permits vertical hanging from suitable protrusions. Marked in millibars, the scale adjusts for zeroing the water level. Quantity – 1 Dimensions – 550(h) x 75(w) x 30(d) mm

Mains Water Pressure Test Gauge 11 Bar x ¾” BSP Quantity – 1 Dimensions – 285(h) x 55(w) x 40(d) mm INST1510

INST0257

Dry Test Kit 15mm x 4 Bar The INST1512 Pipe Dry Testing Kit is ideal for dry testing pipe work during and after installation. It has an easy to read triple scale bar, psi and kPa and is suitable for water, air, gas and petroleum oil pipes up to 4 bar, and for testing combi systems. Can be left on test, while flooring is laid to reveal any nail damage also test hot and cold supplies separately to ensure pipes are not crossed. Fitted with a Schrader Valve and 15 mm push fit fitting for quick and easy assembly and has a rubber boot for added protection. Quantity – 1 Dimensions – 130(h) x 55(w) x 30(d) mm

Flue Brushes Quantity – Pack of 3 Dimensions – 500(h) x 120(w) x 55(d) mm INST1512

INST3014

D-End Manhole Lifting Keys

15m Drain Down Hose

2m Spare Gas Test Gauge Hose (LPG)

Quantity – 1 x Set of Keys Dimensions – 105(h) x 125(w) x 30(d) mm

Quantity – 1 Dimensions – 280(h) x 240(w) x 175(d) mm

Quantity – 1 Dimensions – 260(h) x 40(w) x 30(d) mm

INST1010

INST2404

INST1731

For further technical information please visit www.instinctproducts.co.uk

2026/27 109

Consumables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Guarantees

Plumbing Tools

Year

on Plumbing Tools

Taps + Stopcocks

Contractors Telescopic Back Nut Wrench Quantity – 1 Dimensions – 280(h) x 150(w) x 30(d) mm

Pro Adjustable Basin Wrench (Two Jaws) Quantity – 1 Dimensions – 255(h) x 90(w) x 80(d) mm

Malleable Cast Basin Back Nut Wrench Quantity – 1 Dimensions – 260(h) x 27(w) x 45(d) mm

INST0781

INST0345

INST0327

1050mm (42”) Mains Water Tapered ½” + ¾” Stopcock Key

8–13mm Monobloc Box Spanners

27 x 32mm Tap Back Nut Box Spanner

Quantity – Set of 3 Dimensions – 185(h) x 45(w) x 20(d) mm

Quantity – 1 Dimensions – 157(h) x 40(w) x 40(d) mm

INST0339

INST3240

INST0319

45 x 50mm Waste Nut Box Spanner

Parallel Bush Tap Reseater (Three Cutters)

Screwdriver

Quantity – 1 Dimensions – 1060(h) x 160(w) x 20(d) mm

Quantity – 1 Dimensions – 200(h) x 60(w) x 50(d) mm INST0308

110 2026/27

Quantity – 1 Dimensions – 135(h) x 40(w) x 50(d) mm INST0450

Quantity – 1 Dimensions – 410(h) x 30(w) x 40(d) mm INST1518

450mm (18”) Flat Head Screwdriver

INST1517

300mm (12”) No.2 Phillips Screwdriver

For further technical information please visit www.instinctproducts.co.uk

Guarantees

Plumbing Tools

Year

on Plumbing Tools

Consumables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Compression Fittings + Immersion Heaters

Compression Fitting Nut Spanners

Box Ring Immersion Heater Spanner

Quantity – Pack of 2 Dimensions – 160(h) x 55(w) x 10(d) mm

Quantity – 1 Dimensions – 295(h) x 50(w) x 30(d) mm

Pro Cast Immersion Heater Spanner 86mm A/F

INST2042

INST0358

INST0361

Wide Jaw Adjustable Wrench

Thin Jaw Adjustable Wrench

Mongoose One Handed Slip Joint Pliers

Quantity – 1

Quantity – 1 Dimensions – 250(h) x 110(w) x 50(d) mm

Quantity – 1

INST3140

150mm (6”) 34mm Cap

INST4140

150mm (6”)

INST2071

175mm (7”)

INST3141

200mm (8”) 38mm Cap

INST4141

200mm (8”)

INST2072

250mm (10”)

INST3143

250mm (10”) 50mm Cap

INST41499

150mm (6”) + 200mm (8”) Twinpack

INST2073

300mm (12”)

20ft Drain Cleaner

Handy Plunger

Toilet Plunger

Quantity – 1 Dimensions – 285(h) x 285(w) x 185(d) mm

Quantity – 1 Dimensions – 320(h) x 125(w) x 90(d) mm

Quantity – 1 Dimensions – 620(h) x 125(w) x 130(d) mm

INST3310

INST1460

INSTM1600

For further technical information please visit www.instinctproducts.co.uk

2026/27 111

Consumables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Plumbing Tools Pipe Freeze

NEW

NEW scan me

scan me

Arctic Hayes Arctic Spray ZE Pipe Freeze + Pro Pipe Freeze

Arctic Hayes Arctic Spray ZE Pipe Freeze Kit (Large) Quantity – 1 Dimensions – 238(h) x 63(w) x 152(d) mm NEW ZEK2

Arctic Hayes 8–28mm 230V Electric Freeze Machine The compact is the smallest and most easily portable of the electric freeze kits. Compact Design – Smallest and most portable electric freeze kit in the range Wide Application – Suitable for domestic and commercial jobs on pipes up to 28mm Easy Carrying – Integral lay-flat handle for easy transport to and from the work area Built-In Storage – Keeps 8–22mm reducers organised and readily accessible

Quantity – 1 Dimensions – 253(h) x 67(w) x 30(d) mm (ZEP1) 204(h) x 64(w) x 62(d) mm (ZE2) NEW ZEP1

Arctic Spray ZE Pro Pipe Freeze

NEW ZE2

Arctic Spray ZE Pipe Freeze (Large)

NEW Compact Design

scan me

Wide Application

Easy Carrying

Versatile Freezing – Freeze 28mm pipes directly, or use reducers for 8–22mm pipes Quantity – 1 Dimensions – 400(h) x 330(w) x 430(d) mm NEW AH28

112 2026/27

For further technical information please visit www.arctic-hayes.com

Plumbing Tools

Consumables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Pipe Freeze Arctic Hayes 15mm + 22mm SMART Freeze Kit

NEW Freeze Alerts

scan me

Advanced Sensors

SMART Pipe Freeze Clamp takes the guesswork out of pipe freezing, providing real-time monitoring and alerts via a smartphone app so you know exactly when the pipe is ready for repair. Real-Time Monitoring – Monitor freeze and melt status via app Freeze Alerts – Know when the pipe is ready to work on Advanced Sensors – Accurate temperature monitoring during freezing

60-Hour Battery

60-Hour Battery – Batteries included IP65 Rated – Dust-proof and water-resistant for reliable use in demanding environments

60-Hour Battery

Quantity – 1 Dimensions – 255(h) x 355(w) x 90(d) mm NEW SMARTSOLO15/22

SMART FREEZE Solo Kit (1x15mm + 1x22mm Clamp)

NEW SMARTPRO15/22 SMART FREEZE Professional Kit

(2x15mm + 2x22mm Clamps)

Kit Includes SMART Freeze Clamps 1 x 600g Pro Pipe Freeze Can 1 x Regulator Valve 1m 4mm Nylon Tubes Digital Scale Freeze Gel Foam Spares Pro Kit includes Y-Piece for Dual Freezing

Arctic Hayes 15mm + 22mm SMART Pipe Freeze Clamp The SMART Pipe Freeze Clamp removes the guesswork from pipe freezing, providing real-time monitoring through a dedicated smartphone app. Monitor freezing and thawing status, receive live alerts and know when the pipe is ready for repair, all from your smartphone. Real-Time Monitoring – Monitor freeze and melt status via app Freeze Alerts – Know when the pipe is ready to work on Advanced Sensors – Accurate temperature monitoring during freezing 60-Hour Battery – Powered by 2 × AAA batteries Bluetooth 5.1 – Up to 10m wireless range

NEW Freeze Alerts

Advanced Sensors

60-Hour Battery

IP65 Rated – Dust-proof and water-resistant for reliable use in demanding environments Extreme Temperature Range – Operates from -50°C to +60°C iOS & Android Compatible – Seamless smartphone connectivity Quantity – 1 Dimensions – 231(h) x 140(w) x 110(d) mm NEW SMART15

SMART FREEZE 15mm Clamp

NEW SMART22

SMART FREEZE 22mm Clamp

NEW SMART15/22-DUAL

SMART FREEZE 15mm + 22mm Clamps

For further technical information please visit www.arctic-hayes.com

2026/27 113

Consumables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Plumbing Tools Detection 10 Year Sealed Battery

Arctic Hayes SleepSafe Photoelectric Smoke Alarm

Arctic Hayes SleepSafe Carbon Monoxide Alarm (10 Year)

Quantity – 1 Dimensions – 110(h) x 110(w) x 50(d) mm

Quantity – 1 Dimensions – 110(h) x 115(w) x 35(d) mm

SA1

COA10

Servicing Essentials

NEW

Arctic Hayes Collapsible Bucket (20L + Tap)

Arctic Hayes Easi-Seal Insert (10 Pack)

Quantity – 1 Dimensions – 300(h) x 160(w) x 80(d) mm

Quantity – 1 Dimensions – 10(h) x 115(w) x 165(d) mm

NEW CWB20L-TAP

NEW AHES10

Arctic Hayes Arctic Access Panel

Arctic Hayes Collapsible Bucket (20 Litre)

Arctic Hayes Steel Wool

Quantity – 1 Dimensions – 30(h) x 310(w) x 150(d) mm

Quantity – Pack of 8 Dimensions – 53(h) x 140(w) x 210(d) mm

CWB20L

WB8

114 2026/27

Quantity – 1 Panels to fit following opening dimensions – 150(h) x 230(w) mm (APS150) 200(h) x 200(w) mm (APS200) 300(h) x 300(w) mm (APS300) APS150

Arctic Access Panel 150 – 230mm

APS200

Arctic Access Panel 200 – 200mm

APS300

Arctic Access Panel 300 – 300mm

For further technical information please visit www.arctic-hayes.com

Plumbing Tools

Consumables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Servicing Essentials

Anti-Slip

Arctic Hayes Cotton Dust Sheet (12’ x 9’)

Arctic Hayes Laminated Dust Sheet (12’ x 9’)

Quantity – 1 Dimensions – 545(h) x 464(w) x 28(d) mm

Quantity – 1 Dimensions – 430(h) x 520(w) x 20(d) mm

AD62822

A666013

Arctic Hayes Blue Hard Floor Protector

Arctic Hayes Carpet Protector

Quantity – 1 Dimensions – 600(h) x 67(w) x 67(d) mm (HFP1) 600(h) x 105(w) x 105(d) mm (HFP1-50M)

Quantity – 1 Dimensions – 600(h) x 70(w) x 70(d) mm (CP1) 600(h) x 105(w) x 105(d) mm (CP1-50M)

HFP1

600mm x 25m

CP1

600mm x 25m

HFP1-50M

600mm x 50m

CP1-50M

600mm x 50m

Water Resistant

Arctic Hayes Work Mat Quantity – 1 Dimensions – 180(h) x 70(w) x 114(d) mm (WM1) 240(h) x 80(w) x 150(d) mm (WM2) 300(h) x 70(w) x 225(d) mm (WM3)

Arctic Hayes Aluminium Foil Tape (50mm x 45m)

Arctic Hayes General Purpose Cloth Tape (50mm x 50m)

WM1

1200 x 750mm

WM2

1800 x 850mm

Quantity – 1 Dimensions – 122(h) x 122(w) x 48(d) mm

Quantity – 1 Dimensions – 132(h) x 132(w) x 50(d) mm

WM3

1800 x 1500mm

A662021

A662020

For further technical information please visit www.arctic-hayes.com

2026/27 115

Consumables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Plumbing Tools Aerosol, Grease + Solutions

Arctic Hayes Silicone Grease + Spray Quantity – 1 Dimensions – 157(h) x 57(w) x 57(d) mm (A665016) 48(h) x 70(w) x 70(d) mm (A665016-TUB)

Arctic Hayes Pipe Cement (125ml + 250ml) Quantity – 1 Dimensions – 75(h) x 55(w) x 55(d) mm (PVCC125) 88(h) x 75(w) x 75(d) mm (PVCC250)

Dimensions – 110(h) x 103(w) x 103(d) mm (A665017) 183(h) x 60(w) x 60(d) mm (PH040)

A665016

100g Tube

A665017

665016-TUB

100g Tub

PH040

500g Tub

PVCC125

125ml

400ml Silicone Spray

PVCC250

250ml

NEW

Arctic Hayes PTFE Thread Sealing Cord (Nylon 160m) Quantity – 1 Dimensions – 95(h) x 45(w) x 45(d) mm NEW AHTSC160

116 2026/27

Arctic Hayes Leak Detector Fluid (250ml)

Arctic Hayes Leak Detector Spray (400ml)

Quantity – 1 Dimensions – 130(h) x 60(w) x 60(d) mm (PH026) 160(h) x 60(w) x 60(d) mm (PH026A)

Quantity – 1 Dimensions – 238(h) x 65(w) x 65(d) mm

PH026

250ml (Brush On)

PH026A

250ml (Atomiser)

PH020

For further technical information please visit www.arctic-hayes.com

Plumbing Tools

Consumables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

PPE + Cleaning

NEW

Reusable Overshoe

Machine Washable

Non-Slip Abrasive Sole

Arctic Hayes 21” x 29” Black Rubble Sacks (10 Roll)

Arctic Hayes Blue Paper Roll (3Ply) Quantity – 1 Dimensions – 253(h) x 125(w) x 125(d) mm

Quantity – 1 Dimensions – 275(h) x 60(w) x 60(d) mm BRS1

A445031

Ultimate Grip

Arctic Hayes Dirty Slippers

Arctic Hayes Puggy Work Gloves

Arctic Hayes Diamond Grip Gloves (8g)

Quantity – 1 Dimensions – 362(h) x 136(w) x 33(d) mm

Quantity – Box of 50 Dimensions – 235(h) x 126(w) x 65(d) mm

445036M

Quantity – 1 Dimensions – 290(h) x 40(w) x 200(d) mm (AHDS5-7) 300(h) x 40(w) x 200(d) mm (AHDS7-8) 310(h) x 40(w) x 200(d) mm (AHDS8-10) 320(h) x 40(w) x 200(d) mm (AHDS10-12) NEW AHDS5-7

Small 5-7

Medium

NEW AHDS7-8

Medium 7-8

AHDGG8GL

Large

NEW AHDS8-10

Large 8-10

AHDGG8GXL

XLarge

NEW AHDS10-12

Extra Large 10-12

Medium

AHDGG8GM

A445036

Large

445036XL

XLarge

Arctic Hayes Microfibre Cloth Range Our multi-purpose cleaning cloths are highly absorbent, lint-free, and perfect for any surface—metal, plastic, wood, ceramics, glass, and more. Dimensions – 145(h) x 55(w) x 205(d) mm (MFCBOX5) 150(h) x 45(w) x 300(d) mm (MFCBOX12) 300(h) x 100(w) x 100(d) mm (MFCROLL30) 145(h) x 155(w) x 310(d) mm (MFCBOX50)

For further technical information please visit www.arctic-hayes.com

MFCBOX5

Box of 5

MFCBOX12

Box of 12

MFCROLL30

Roll of 30

MFCBOX50

Box of 50

2026/27 117

Consumables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Guarantees

Plumbing Tools

Years

on Hinton Plumbing Tools

Hinton Plumbing Tools

NEW

HD Inspection

Flexible Access

Adjustable Waterproof Lighting Design

NEW

Time Saving

15mm + 22mm Fit

Air Lock Prevention

Turbo Airflow

Multi-Use

Built-In Light

USB Charging

Hinton Turbo Duster

Hinton Inspection Camera Kit + Accessories

Hinton Rad Valve Change Kit

Powerful concentrated airflow quickly removes dust, shavings and debris

2MP camera captures clear photos and video for detailed inspection

Saves hours by avoiding system draining and refilling

Suitable for machinery, workbenches, vehicles, tools and equipment

5.5mm probe with 1m semi-rigid cable reaches confined spaces

Integrated lighting improves visibility in use

Integrated LED brightness control provides clear visibility

Cordless operation with USB charging

IP67 rating for reliable inspection in wet environments

Supplied with USB charging cable & nozzle attachments

Compatible with Android, iOS and Micro system via app or 3-in-1 USB connection

Robust metal construction for demanding professional use Quantity – 1

NEW

Mess-Free Draining

Confined Spaces

Hands Free Use

Controlled Flow

Hinton Fluid Caddy Kit

Helps prevent air locks during maintenance Quantity – 1

Quantity – 1 NEW RVCK1

NEW HCAM

NEW HDUST

Suitable for 15mm and 22mm pipework

NEW

Mess-Free Draining

Flexible Fit

Multi-Pipe Fit

Secure Connection

NEW

No-kink Hose

Clean Draining

Secure Storage

Universal Fit

Hinton Drain Tub (Square)

Hinton Drain Down Hose Kit (15m)

Collects radiator water cleanly without spills

High quality, no kink natural soft rubber hose

Compressible design fits under low-hung radiators and in tight spaces

Ideal for clean, dry draining of heating systems before repair or maintenance

Helps protect surfaces from water damage

Suitable for 10, 12, 15 and 22mm copper or plastic pipework

Vinyl-dipped hose clip for connection

Includes fluid caddy, funnel, pipe wrap and carry bag

Snap-clip and flexible sealing flanges provide a secure fit

Quantity – 1 Dimensions – 400(h) x 300(w) x 150(d) mm (Fluid Caddy) 495(h) x 420-190(w) mm (Funnel) 250(h) x 250(w) mm (Pipe Wrap)

Built-in pouring spout makes emptying quick and mess-free

NEW FCADKIT

NEW PTUB8

Collects and directs escaping water with minimal splashes and spills Designed for tight and awkward spaces where standard buckets cannot fit Can be secured in position while you work

118 2026/27

Two hook-and-loop ties for easy storage and transport Compatible with most radiators Quantity – 1

Quantity – 1 Dimensions – 255(h) x 255(w) x 75(d) mm NEW DDH15 For further technical information please visit www.cwbwholesale.com

Guarantees

Pre-Packed Fittings

Year

on Pre-Packed Fittings

12” Basin Ball Chain (Chrome) (Metal Stay CP)

18” Bath Ball Chain (Chrome) (S Hook CP)

Brass Basin Plug (Chrome) 12” Ball Chain + Stay

Brass Bath Plug (Chrome) 18” Ball Chain + S Hook

Quantity – 1 Dimensions – 300(h) x 2(w) x 23(d) mm

Quantity – 1 Dimensions – 458(h) x 3(w) x 3(d) mm

Quantity – 1 Dimensions – 15(h) x 80(w) x 120(d) mm

Quantity – 1 Dimensions – 16(h) x 80(w) x 120(d) mm

200147-INS

200111-INS

201924-INS

201925-INS

Brass Basin Plug (Chrome) (Triangle)

Brass Bath Plug (Chrome) (Triangle)

Basin Poly Plug (Black) (12” Ball Chain + Stay)

Bath Poly Plug (Black) (18” Ball Chain)

Quantity – 1 Dimensions – 13(h) x 38(w) x 38(d) mm

Quantity – 1 Dimensions – 14(h) x 43(w) x 43(d) mm

Quantity – 1 Dimensions – 80(h) x 60(w) x 14(d) mm

Quantity – 1 Dimensions – 15(h) x 60(w) x 80(d) mm

200716-INS

200739-INS

200764-INS

202255-INS

1½” Pop Up Plug Only (Chrome)

Tap Hole Stopper Abs (Chrome)

Tap Hole Stopper (White)

Domed Chain Hole Stopper (Chrome)

Quantity – 1 Dimensions – 72(h) x 40(w) x 40(d) mm

Quantity – 1 Dimensions – 32(h) x 50(w) x 50(d) mm

200867-INS

201051-INS

202118-INS

201052-INS

O Rings (Basin + Bath Plugs)

O Ring (Basin Mushroom Clicker Waste 201314)

½” BS5412 Brass Headwork (Pair)

½” Ceramic Disc Headwork (Pair)

Quantity – 1 (5 x Basin + 5 x Bath) Dimensions – 325(h) x 2(w) x 2(d) mm

Quantity – 2 Dimensions – 4(h) x 40(w) x 40(d) mm

Quantity – 1 Dimensions – 150(h) x 150(w) x 24(d) mm

200666-INS

202515-INS

330135-INS

330180-INS

For further technical information please visit www.instinctproducts.co.uk

Quantity – 1 Dimensions – 32(h) x 50(w) x 50(d) mm

Consumables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Quantity – 1 Dimensions – 41(h) x 13(w) x 13(d) mm

2026/27 119

Consumables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Guarantees

Pre-Packed Fittings

Year

on Pre-Packed Fittings

Rubber Washer (Sink Waste)

Rubber Washer (Basin Waste)

Rubber Washer (Bath Waste)

Seal Kit (Basin Waste)

Quantity – 5 Dimensions – 1.5(h) x 84(w) x 84(d) mm

Quantity – 5 Dimensions – 1.5(h) x 60(w) x 60(d) mm

Quantity – 5 Dimensions – 3(h) x 62(w) x 62(d) mm

Quantity – 1 Dimensions – 22(h) x 68(w) x 68(d) mm

201230-INS

201231-INS

201233-INS

201686-INS

Tap Washers

Seal (Clicker Waste 201753 201773)

/8” Flat Tap Washer

Quantity – 2 Dimensions – 4(h) x 37(w) x 37(d) mm 202510-INS

Quantity – 2 Dimensions – 5(h) x 22(w) x 22(d) mm 306880-INS

Quantity – 4 Dimensions – 4(h) x 16(w) x 16(d) mm (330910-INS) 5(h) x 19(w) x 19(d) mm (330915-INS) 5(h) x 25(w) x 25(d) mm (330920-INS)

Delta Tap Washers

330910-INS

/8”

Quantity – 5 Dimensions – 5(h) x 16(w) x 16(d) mm (306886-INS) 5(h) x 18(w) x 18(d) mm (306888-INS)

330915-INS

½”

306886-INS

½”

330920-INS

¾”

306888-INS

¾”

Vacca Washer Flat Quantity – 10 Dimensions – 5(h) x 16(w) x 16(d) mm (306940-INS) 5(h) x 19(w) x 19(d) mm (306942-INS) 5(h) x 22(w) x 22(d) mm (306944-INS) 5(h) x 25(w) x 25(d) mm (306946-INS)

Pegler Washer Flat 306940-INS

306942-INS

½”

306944-INS

306946-INS

¾”

Pillar Tap Washer

/8”

Quantity – 10 Dimensions – 1.5(h) x 44(w) x 44(d) mm

/8”

306924-INS

Quantity – 5 Dimensions – 4(h) x 16(w) x 16(d) mm (306950-INS) 4(h) x 18(w) x 18(d) mm (306952-INS) 306950-INS

½”

306952-INS

¾”

Flexible Tap Fibre Washer Shower Hose Washers

1¼” Plastic Sink Washer

Quantity – 5 Dimensions – 2(h) x 18(w) x 18(d) mm

Quantity – 5 Dimensions – 1.5(h) x 57(w) x 57(d) mm

344405-INS

120 2026/27

394045-INS

Quantity – 2 Dimensions – 2(h) x 20(w) x 20(d) mm (324790-INS) 2(h) x 24(w) x 24(d) mm (324795-INS)

Universal Top Hat Washer ½” + ¾”

324790-INS

½”

Quantity – 2 Dimensions – 12(h) x 50(w) x 50(d) mm

324795-INS

¾”

330950-INS

For further technical information please visit www.instinctproducts.co.uk

Guarantees

Pre-Packed Fittings

Year

on Pre-Packed Fittings

Cistern Handle Ceramic (Chrome)

Metal Cistern Lever Kit (Chrome)

Chrome Lever Kit 160mm Spindle

E Type Finger Tip Front Cistern Lever

Quantity – 1 Dimensions – 160(h) x 108(w) x 40(d) mm

Quantity – 1 Dimensions – 150(h) x 170(w) x 37(d) mm

Quantity – 1 Dimensions – 150(h) x 250(w) x 41(d) mm

Quantity – 1 Dimensions – 180(h) x 150(w) x 40(d) mm

345617-INS

345620-INS

345630-INS

345635-INS

Contract Cistern Lever

Close Couple Cistern Kit

Donut Washer

Toilet Pan Screw Set

Quantity – 1 Dimensions – 150(h) x 34(w) x 119(d) mm

Quantity – 1 Dimensions – 240(h) x 150(w) x 22(d) mm

Quantity – 1 Dimensions – 20(h) x 100(w) x 100(d) mm

Quantity – 1 Dimensions – 120(h) x 180(w) x 31(d) mm

202298-INS

345750-INS

345805-INS

345550-INS

Consumables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Cistern C Link Brass Adjustable Cistern Lift Arm

Plastic Adjustable Cistern Lift Arm

C Link Pack (Small and Large Bag)

Quantity – 1 Dimensions – 102(h) x 29(w) x 15(d) mm

Quantity – 1 Dimensions – 106(h) x 16(w) x 18(d) mm

Quantity – 1 of Each Dimensions – 180(h) x 105(w) x 3(d) mm

345605-INS

345610-INS

345670-INS

Conical Trap Washers

Flat Trap Washers

Quantity – 5 Dimensions – 8(h) x 44(w) x 44(d) mm (344260-INS) 10(h) x 49(w) x 49(d) mm (340297-INS)

Quantity – 5 Dimensions – 2(h) x 39(w) x 39(d) mm (344215-INS) 2(h) x 42(w) x 42(d) mm (344255-INS)

344260-INS

1.¼”

344215-INS

1.¼”

340297-INS

1.½”

344255-INS

1.½”

Cistern Overflow Stopper (Chrome) Quantity – 1 Dimensions – 40(h) x 37(w) x 34(d) mm 344325-INS

For further technical information please visit www.instinctproducts.co.uk

Quantity – 2 Dimensions – 60(h) x 20(w) x 3(d) mm (345650-INS) 110(h) x 20(w) x 3(d) mm (345660-INS) 345650-INS

Small

345660-INS

Large

Sanitary Fixing Kit 10 x 120 Quantity – 1 Dimensions – 120(h) x 180(w) x 31(d) mm 345560-INS 2026/27 121

Consumables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Guarantees

Pre-Packed Fittings

Year

on Pre-Packed Fittings

Round Syphon Washer 1½” Compression Syphon Nut

Oblong Syphon Washer

Quantity – 1 Dimensions – 17(h) x 57(w) x 57(d) mm

Quantity – 5 Dimensions – 1(h) x 86(w) x 86(d) mm

345420-INS

345430-INS

NEW

Quantity – 5 Dimensions – 1(h) x 114(w) x 114(d) mm (345433-INS) 1(h) x 127(w) x 124(d) mm (345435-INS) 345433-INS

4.½”

345435-INS

5”

Syphon Bolt Kit Long + Washer Quantity – 1 Dimensions – Please request 345505-INS

NEW

Float Valve HP Part 1 BS1212 ½” (8.¾” Arm, Nylon Seat)

Float Valve HP Part 2 BS1212 ½” (Nylon Seat)

½” Red Fibre Seating Washer (Float Valve)

DELCHEM Ball Valve Part 3 BS1212 Bottom Inlet Adjustable

Quantity – 1 Dimensions – 110(h) x 55(w) x 350(d) mm

Quantity – 1 Dimensions – 78(h) x 41(w) x 310(d) mm

Quantity – 5 Dimensions – 1.5(h) x 22(w) x 22(d) mm

Quantity – 1 Dimensions – 100(h) x 125(w) x 2(d) mm

NEW 306206-INS

NEW 306224-INS

306832-INS

NEW 306405-INS

Cone Washer (Bottom Entry Float Valve)

Torbeck Valve Washers

HydroFlo Black Rubber Diaphragm Washer

Part 2 Ball Valve Washer

Quantity – 2 Dimensions – 6(h) x 38(w) x 38(d) mm

Quantity – 1 Dimensions – 17(h) x 30(w) x 30(d) mm

Quantity – 1 Dimensions – 14.5(h) x 28(w) x 28(d) mm

Quantity – 5 Dimensions – 6(h) x 32(w) x 32(d) mm

306290-INS

306492-INS

345366-INS

306730-INS

½” Diaphragm Washer (Siamp)

Plastic Internal Flush Cone

Universal Flush Pipe Connector External

Rubber Internal Flush Cone

Quantity – 1 Dimensions – 15(h) x 27(w) x 27(d) mm 345365-INS

122 2026/27

Quantity – 1 Dimensions – 27(h) x 70(w) x 70(d) mm 345400-INS

Quantity – 1 Dimensions – 55(h) x 73(w) x 73(d) mm 345405-INS

Quantity – 1 Dimensions – 26(h) x 53(w) x 59(d) mm 345410-INS

For further technical information please visit www.instinctproducts.co.uk

Guarantees

Pre-Packed Fittings

Year

on Pre-Packed Fittings

15mm (Chrome) Snappit Cover 200mm

Chrome Pipe Covers + Floor Plate

½” Directional Air Vent + ½” Plug Kit (Chrome)

Quantity – 10 Dimensions – 30(h) x 15(w) x 19(d) mm

Quantity – 2 of Each Dimensions – Please request

Quantity – 1 of Each Dimensions – 19(h) x 24(w) x 24(d) mm

317274-INS

317290-INS

313580-INS

Brass Backnut Heavy

Blanking Nut + Washer

Brass Cap

Quantity – 2 Dimensions – 11(h) x 38(w) x 38(d) mm (348910-INS) 11(h) x 44(w) x 44(d) mm (348917-INS)

Quantity – 1 Dimensions – 120(h) x 88(w) x 14(d) mm (348985-INS) 120(h) x 88(w) x 14(d) mm (348987-INS)

Quantity – 2 Dimensions – 13(h) x 26(w) x 26(d) mm (348616-INS) 14(h) x 32(w) x 32(d) mm (348620-INS)

348910-INS

½”

348985-INS

½”

348616-INS

½”

348917-INS

¾”

348987-INS

¾”

348620-INS

¾”

Consumables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Brass Clock Radiator Key Quantity – 1 Dimensions – 34(h) x 39(w) x 9(d) mm 313713-INS

WRAS Approved

/8” Test Nipples

Quantity – 1 Dimensions – 16(h) x 10(w) x 10(d) mm 352505-INS

WRAS Approved

Copper Saddle Clips Quantity – 2 Dimensions – 10(h) x 41(w) x 16(d) mm (390710-INS) 10(h) x 49(w) x 24(d) mm (390715-INS) 390710-INS

15mm

390715-INS

22mm

1½” Rubber Pump Gaskets Quantity – 2 Dimensions – 3(h) x 43(w) x 43(d) mm 305431-INS

PTFE Tape 12mm x 12m Reel (WRAS)

PTFE Tape 12mm x 5m Reel (Gas)

Quantity – 1 Dimensions – 20(h) x 57(w) x 57(d) mm

INST61427N

INST61425T

Plastic Washers Quantity – 10 (394030-INS, 394035-INS) 5 (394040-INS) 2 (394050-INS) Dimensions – 1.5(h) x 38(w) x 38(d) mm (394030-INS) 1.5(h) x 44(w) x 44(d) mm (394035-INS) 1.5(h) x 59(w) x 59(d) mm (394040-INS) 1.5(h) x 86(w) x 86(d) mm (394050-INS)

Fibre Cap + Lining Washer 1½” Flush Pipe Sealing Ring Quantity – 3 Dimensions – 9(h) x 47(w) x 47(d) mm 344335-INS

Quantity – 10 Dimensions – 1.5(h) x 19(w) x 19(d) mm (394005-INS) 1.5(h) x 24(w) x 24(d) mm (394010-INS)

394030-INS

½”

394035-INS

¾”

394005-INS

½”

394040-INS

1”

394010-INS

¾”

394050-INS

1½”

For further technical information please visit www.instinctproducts.co.uk

2026/27 123

Consumables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Guarantees

Pre-Packed Fittings

4’ Bayonet Cooker Hose Quantity – 1 Dimensions – 1122(h) x 34(w) x 34(d) mm

Year

on Pre-Packed Fittings

½” Bayonet Socket (Angled) Quantity – 1 Dimensions – 35(h) x 25(w) x 25(d) mm 352144-INS

352121-INS

3’ 6” Micropoint Hose

½” Micropoint Socket Straight

Quantity – 1 Dimensions – 1066(h) x 36(w) x 25(d) mm

Quantity – 1 Dimensions – 35(h) x 25(w) x 25(d) mm

352020-INS

352070-INS

Hose Clips Quantity – 2 Dimensions – 12(h) x 33(w) x 23(d) mm (390620-INS) 15(h) x 36(w) x 28(d) mm (390622-INS) 15(h) x 39(w) x 31(d) mm (390624-INS) 15(h) x 49(w) x 40(d) mm (390626-INS)

Cooker Rest Chain – 16” (BS6172 Kit)

Cooker Safety Chain – 1m

Quantity – 1 Dimensions – 120(h) x 80(w) x 15(d) mm 352615-INS

Quantity – 1 Dimensions – 100(h) x 1120(w) x 4(d) mm 352600-INS

390620-INS

Size 00 14mm-20mm

390622-INS

Size 0 16mm-22mm

390624-INS

Size 0X 18mm-25mm

390626-INS

Size 1 25mm-35mm

Appliance Outlet Hose (Grey)

NEW

Quantity – 1 Dimensions – 1500(h) x 45(w) x 45(d) mm (392465-INS) 2500(h) x 34(w) x 34(d) mm (392475-INS)

Washing Machine Hose (Red)

Washing Machine Hose (Blue)

Quantity – 1 Dimensions – 1500(h) x 32(w) x 32(d) mm (392442-INS) 2500(h) x 32(w) x 32(d) mm (392451-INS)

Quantity – 1 Dimensions – 1500(h) x 32(w) x 32(d) mm (392446-INS) 2500(h) x 32(w) x 32(d) mm (392455-INS)

392442-INS

1.5m

392446-INS

1.5m

NEW 392465-INS

1.5m

392451-INS

2.5m

392455-INS

2.5m

392475-INS

2.5m

Washing Machine Y Piece Quantity – 1 Dimensions – 80(h) x 69(w) x 32(d) mm 392490-INS

124 2026/27

Washing Machine Hose Washer Quantity – 5 Dimensions – 2(h) x 24(w) x 24(d) mm 392495-INS

Plumbing Out Kit Quantity – 1 Dimensions – Please request 392528-INS

17mm Washing Machine Outlet Hose Joiner Quantity – 1 Dimensions – 67(h) x 28(w) x 28(d) mm 392530-INS

For further technical information please visit www.instinctproducts.co.uk

Guarantees

Pre-Packed Fittings

Year

on Pre-Packed Fittings

Consumables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Filling Loop Straight (Part L Approved) 15mm Quantity – 1 Dimensions – 500(h) x 45(w) x 25(d) mm 307425-INS

Filling Loop Straight with Gauge (Part L Approved) 15mm Quantity – 1 Dimensions – 580(h) x 65(w) x 40(d) mm 307430-INS

Brass Olives

Copper Olives

Flexible Tap Connector

Quantity – 5 (324015-INS, 324019-INS, 324024-INS, 324032-INS, 324037-INS) 10 (324028-INS) Dimensions – 6(h) x 10(w) x 10(d) mm (324015-INS) 6(h) x 12(w) x 12(d) mm (324019-INS) 6(h) x 14(w) x 14(d) mm (324024-INS) 6(h) x 17(w) x 17(d) mm (324028-INS) 7(h) x 24(w) x 24(d) mm (324032-INS) 8(h) x 30(w) x 30(d) mm (324037-INS)

Quantity – 5 (324122-INS, 324154-INS) 10 (324118-INS, 324122-INS10) Dimensions – 6(h) x 17(w) x 17(d) mm (324118-INS) 7(h) x 24(w) x 24(d) mm (324122-INS) 7(h) x 24(w) x 24(d) mm (324122-INS10) 6(h) x 24(w) x 24(d) mm (324154-INS)

Quantity – 1 (324636-INS) 2 (324634-INS, 324643-INS, 324645-INS) Dimensions – 317(h) x 26(w) x 26(d) mm (324634-INS) 516(h) x 25(w) x 25(d) mm (324636-INS) 315(h) x 29(w) x 29(d) mm (324643-INS) 323(h) x 29(w) x 29(d) mm (324645-INS)

324015-INS

8mm

324019-INS

10mm

324024-INS

12mm

324118-INS

15mm

324028-INS

15mm

324122-INS

22mm

324032-INS

22mm

324122-INS10

22mm

324037-INS

28mm

324154-INS

¾”

324634-INS

15mm x ½” Flexible Tap Connector – 30cm

324636-INS

15mm x ½” Flexible Tap Connector – 50cm

324643-INS

15mm x ¾” Flexible Tap Connector – 30cm

324645-INS

22mm x ¾” Flexible Tap Connector – 30cm

Flexible Tap Connector with Iso Valve – 30cm Straight Boiler Filling Loop Quantity – 1 Dimensions – 500(h) x 39(w) x 24(d) mm

Quantity – 2 Dimensions – 315(h) x 26(w) x 26(d) mm (324652-INS) 318(h) x 35(w) x 35(d) mm (324656-INS)

15mm Flexible Tap Connector – 30cm

Flexible Tap Connector – 30cm

Quantity – 2 Dimensions – 400(h) x 75(w) x 24(d) mm

324652-INS

15mm x ½”

Quantity – 2 Dimensions – 327(h) x 26(w) x 26(d) mm

324675-INS

15mm x 10mm

307413-INS

324656-INS

22mm x ¾”

324665-INS

324679-INS

15mm x 12mm

15mm Pushfit x ½” Flexible Tap Connector – 30cm

15mm Pushfit x ¾” Flexible Tap Connector – 30cm

15mm Pushfit Flexible Connector – 30cm

15mm Pushfit x ½” Flexible Tap Connector with Iso Valve – 30cm

Quantity – 2 Dimensions – 302(h) x 28(w) x 28(d) mm

Quantity – 2 Dimensions – 300(h) x 36(w) x 36(d) mm

Quantity – 2 Dimensions – 340(h) x 28(w) x 28(d) mm

Quantity – 2 Dimensions – 130(h) x 42(w) x 32(d) mm

324705-INS

324714-INS

324740-INS

324720-INS

For further technical information please visit www.instinctproducts.co.uk

2026/27 125

Consumables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Electrical Fittings

Electrical 20 Amp Plate Switch + Neon

Electrical 13 Amp Switched Fused Spur

Electrical 13 Amp Fused Switched + Neon

Quantity – 1

NEW CO353

NEW CO355

NEW CO356

NEW CO386

Electrical Socket Outlet 1 Gang Switched

Electrical Socket Outlet 2 Gang Switched

Electrical 45mm Single Insert Back Box

Electrical 45mm Double Insert Back Box

Quantity – 1

NEW CO372

NEW CO373

NEW CO0357

NEW CO358

Electrical 25mm Single Surface Mounted Back Box

Electrical 25mm Double Surface Mounted Back Box

Electrical 25mm Single Insert Metal Back Box

Electrical 25mm Double Insert Metal Back Box

Quantity – 1

NEW CO440

NEW CO450

NEW CO359

NEW CO360

Electrical Junction Box 30 Amp 3 Terminal

Electrical Junction Box 20 Amp 4 Terminal

Electrical 13 Amp Plug

Electrical Fuses 3 Amp (Pack 10)

Quantity – 1

NEW CO377

NEW CO376

126 2026/27

Quantity – 1

Electrical Earth Clamp (Each) Quantity – 1

Quantity – 1 NEW CO371

NEW CO362

For further technical information please visit www.cwbwholesale.com

Electrical Fittings

Wago 221-2411 Inline Lever Connector (10 Pack)

Wago 2 Pole Terminal Block (100 Pack)

Wago 3 Pole Terminal Block (50 Pack)

Wago 5 Pole Terminal Block (25 Pack)

Quantity – 1

NEW WA2411

NEW 221-412

NEW 221-413

NEW 221-415

Wago L32 Wiring Centre

Consumables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Wago Mini Lever Connector Box

Quantity – 1

NEW WL32

NEW WAGOBOX

Electrical PVC Insulation Tape (19mm x 20m)

Black Cable Ties (100 Pack)

Quantity – 1

NEW CO365

Black

NEW CO365A

Yellow

NEW CO365B

Brown

NEW CO367

Blue

NEW CT20048

200mm x 4.8mm

NEW CO368

Red

NEW CT30048

300mm x 4.8mm

NEW CO369

Green + Yellow

NEW CT30078

370mm x 4.8mm

HOT WATER PERFORMACE. BUILT TO LAST. Ideal Instinct Hot Water Cylinders up to 300 Litres For INSTINCT further technical please www.cwbwholesale.com Ideal Hotinformation Water Cylinders Stripvisit Advert (189x78mm)_V1.indd 1

SCAN ME TO FIND YOUR NEAREST STOCKIST 2026/27 13/10/2026 13:10

127

Consumables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Pipe Clips

16, 22mm Masonry Nail Pipe Clip

15, 22mm Clip Link Pipe Clip

15, 22mm Clip Lock

Colour – Red, Blue, Black, Grey or Yellow Quantity – 100 Pack

Colour – Red, Blue, Black, Yellow or Black Quantity – 100 Pack, 50 Pack (P629)

Colour – HOT Red, COLD Blue, GAS Yellow Quantity – 100 Pack

Red

HOT Red

M200

16mm

P620

15mm

P500

15mm

M201

22mm

P621

22mm

P501

22mm

M202

16mm

P622

15mm

P502

15mm

M203

22mm

P623

22mm

P503

22mm

M204

16mm

P624

15mm

P504

15mm

M206

22mm

P625

22mm

P505

22mm

M207

16mm

P627

15mm

M208

22mm

P628

22mm

P629

28mm

Blue

Black

COLD Blue

Yellow

Grey

GAS Yellow

Black

Yellow M209

16mm

M210

22mm

15, 22, 28mm Clip Lock Pipe Clip Colour – White Quantity – 100 Pack (Single), 50 Pack (Double) Single

16, 20, 25, 32mm MDPE Clip Link Colour – Translucent, Blue or Black Quantity – 50 Pack (P682, P683, P685, P686, P688, P689) 100 Pack (P680, P681, P684, P687)

11, 16, 22, 28mm Nail Clip Colour – White Quantity – 100 Pack (INSTC207, INSTM100, INSTM102) 50 Pack (INSTM103)

15mm P103

15mm

P101

22mm P104

22mm

P102

28mm

Translucent

INSTC207

11mm

INSTM100

16mm

INSTM102

22mm

INSTM103

28mm

P680

16mm

P681

20mm

P682

25mm

P683

32mm

Blue P684

20mm

P685

25mm

P686

32mm

Black

10, 15, 22, 28mm Clip Link Trunking Colour – White Quantity – 12 Pack

P687

20mm

P688

25mm

P689

32mm

10, 15, 22, 28mm Hinged Clip Colour – Translucent Quantity – 100 Pack (P616, INSTP610, INSTP611, INSTP615) 50 Pack (INSTP612, P617, INSTP613, INSTP614) Single P616

10mm

INSTP610

15mm

INSTP611

22mm

INSTP612

28mm

Double INSTP613

Double INSTT604

15mm

INSTT605

22mm

128 2026/27

Double

P100

15mm

INSTP614

22mm

INSTP615

Spacer Blocker

For further technical information please visit www.instinctproducts.co.uk

Trunking Accessories

10, 15, 22, 28, 35, 42, 110mm Collar Clip

15, 22mm T Connectors

Colour – White or Chrome Quantity – 25 Pack (P330, P331, P332, P333, P334, P335, P322) 5 Pack (P316, P317, P319, P320) 1 Pack (P318, P321)

Colour – White Quantity – 1 Pack T634

15mm

T635

22mm

White

15, 22mm Access Clips

P330

10mm

P331

15mm

P332

22mm

Top Access

P322

28mm

T628

15mm

P319

35mm

T629

22mm

P320

42mm

P321

110mm

Chrome

Consumables

All dimensions in mm. All measurements are approximate and subject to standard tolerances.

Colour – White Quantity – 10 Pack

Side Access

10, 15, 22mm Straight Connector Clips

T630

15mm

T631

22mm

P333

10mm

P334

15mm

Colour – White Quantity – 10 Pack (T620, T621) 2 Pack (T619)

P335

22mm

T619

10mm

P316

35mm

T620

15mm

P317

42mm

T621

22mm

P318

110mm

20, 70mm Vent Plugs 10, 15, 22, 28mm Stop End Clips

10, 15, 22mm Corner Clips

Colour – White Quantity – 10 Pack

Colour – White Quantity – 10 Pack (T622, T623, T624, T626, T627) 2 Pack (T625)

Colour – White Quantity – 10 Pack (T611, T612, T614, T615, T617, T618) 2 Pack (T610, T613, T616)

T632

20mm

T633

70mm

Single

Inner Corner

T622

15mm

T610

10mm

T623

22mm

T611

15mm

T624

28mm

T612

22mm Double

Outer Corner

T625

10mm

T613

10mm

T626

15mm

T614

15mm

T627

22mm

T615

22mm

Flat Corner

10mm Swept Bend

T616

10mm

T617

15mm

Colour – White Quantity – 1 Pack

T618

22mm

T636

For further technical information please visit www.instinctproducts.co.uk

10mm 2026/27 129

BATHROOM ESSENTIALS, MADE SIMPLE. Quality You Can Trust

Reliable products for everyday bathroom installations

Contemporary Styling

Modern designs to complement a variety of interiors

Choice of Styles and Finishes

Options to suit different tastes and project requirements

Designed for Every Space

Practical solutions for bathrooms large and small

Value for Every Project

Affordable options for a range of budgets

SCAN TO EXPLORE

EARN POCHIN POINTS On All Instinct Products

SPEND

EARN

ENJOY

For every £100 spent you’ll

Choose from a selection

by visiting your local

receive 10 points, with no

of brands, retailers and

branch and your spend

cap on the amount you can

experiences to spend your

on qualifying products

earn. Points will be updated

points on. You will be able

will automatically start

each calendar month.

to view all these through

earning you points.

your Pochin Points account.

Ask in branch to sign up or find out more on

POCHINPOINTS.COM

Find your nearest Pochin branch at pochin.com/branches or scan the QR code

Plumbing & Heating Supplies
