LEGEND
KEY IMPROVEMENTS
01
Proposed trees
Activation Zones at key locations with feature brick pavement, custom furniture, additional lighting and plantings
PLANTING PALETTE
IMPROVING SYDENHAM ROAD
SHOWCASED ACTIVATION ZONES
PROPOSED - Reliable and resilient plant species were selected for nature strips and as additional trees
LIGHTING

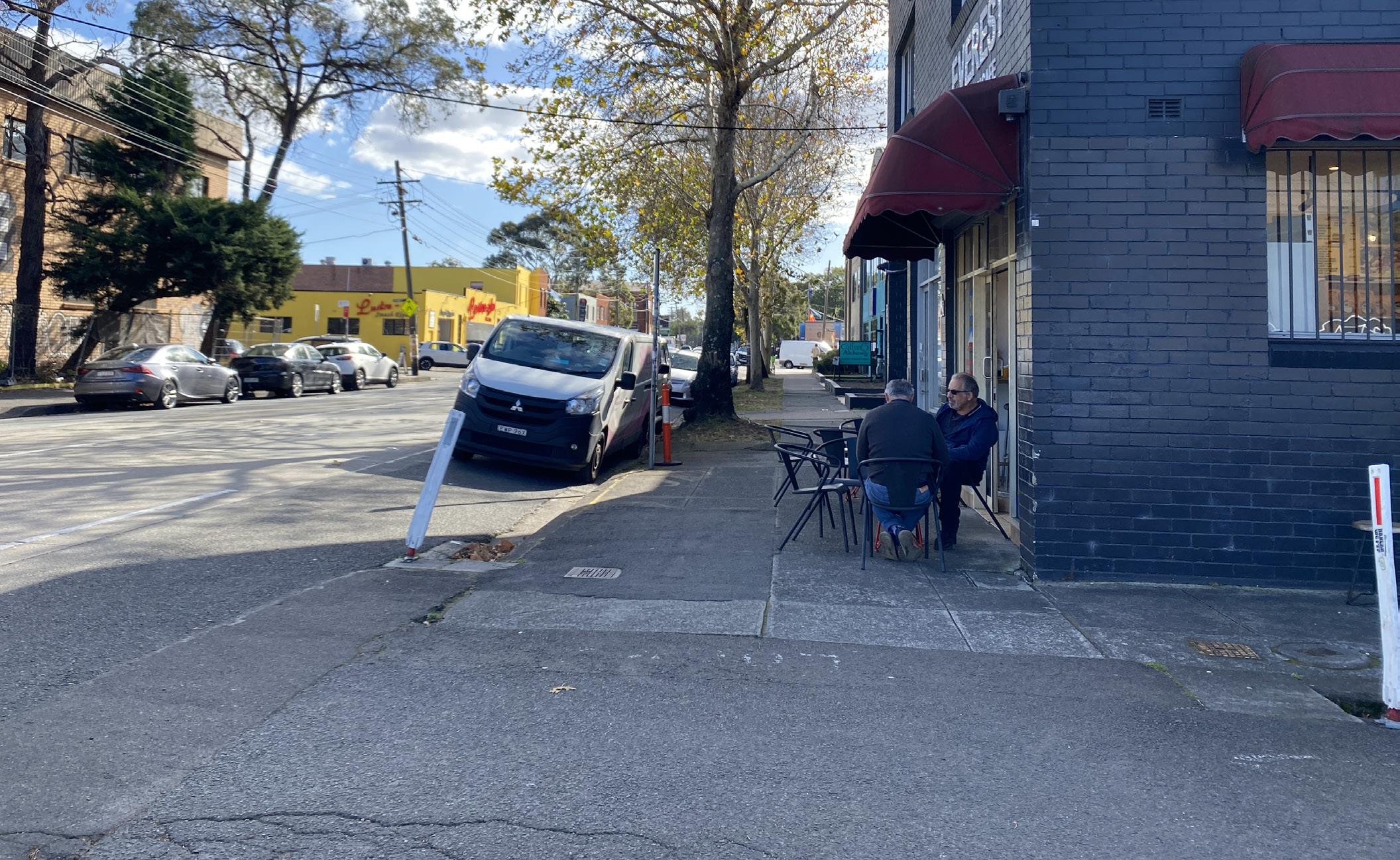

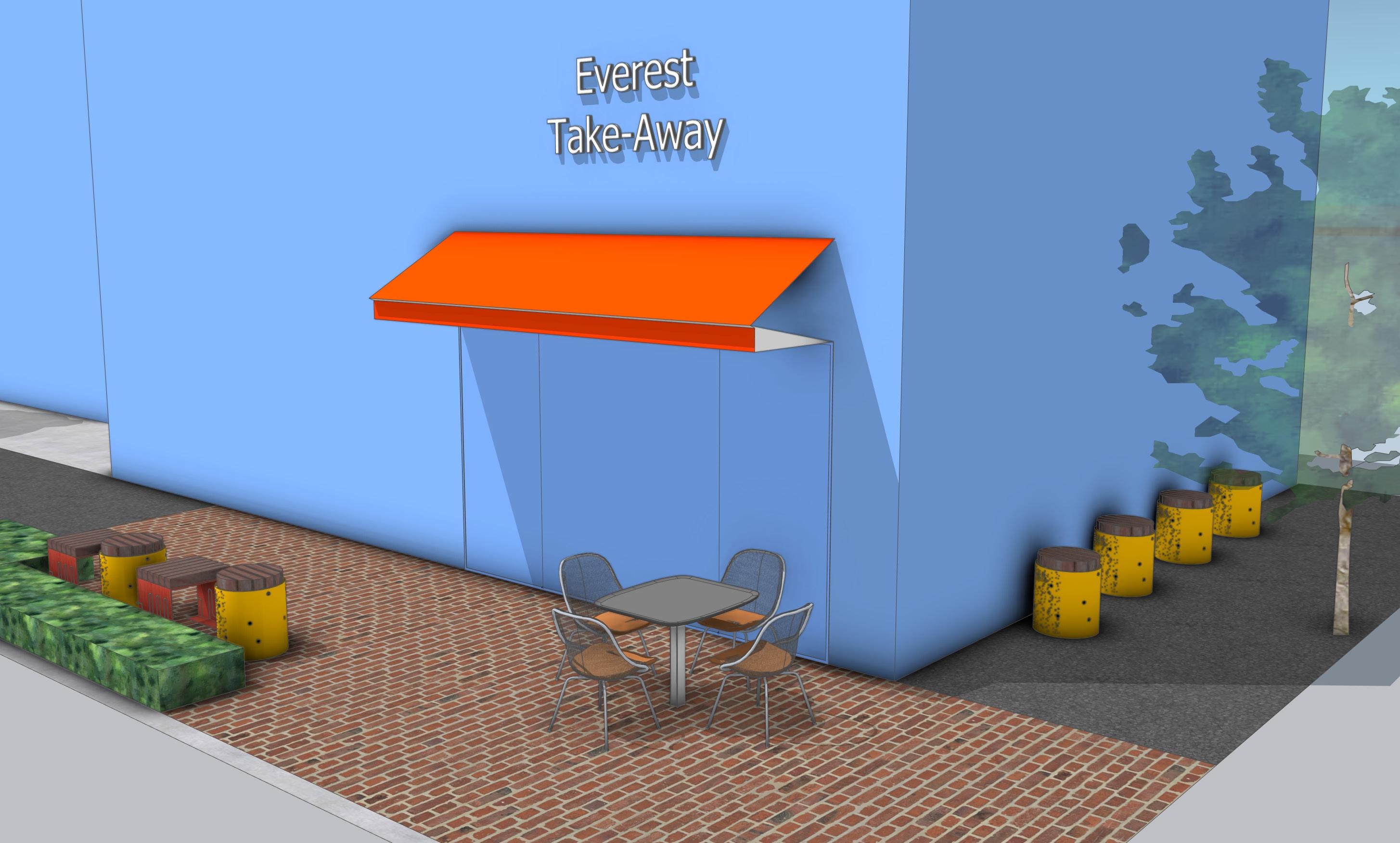

Everest takeaway Cafe - Currently with small outdoor dining space
PROPOSED STREETSCAPE ELEMENTS TO ACTIVATION ZONES

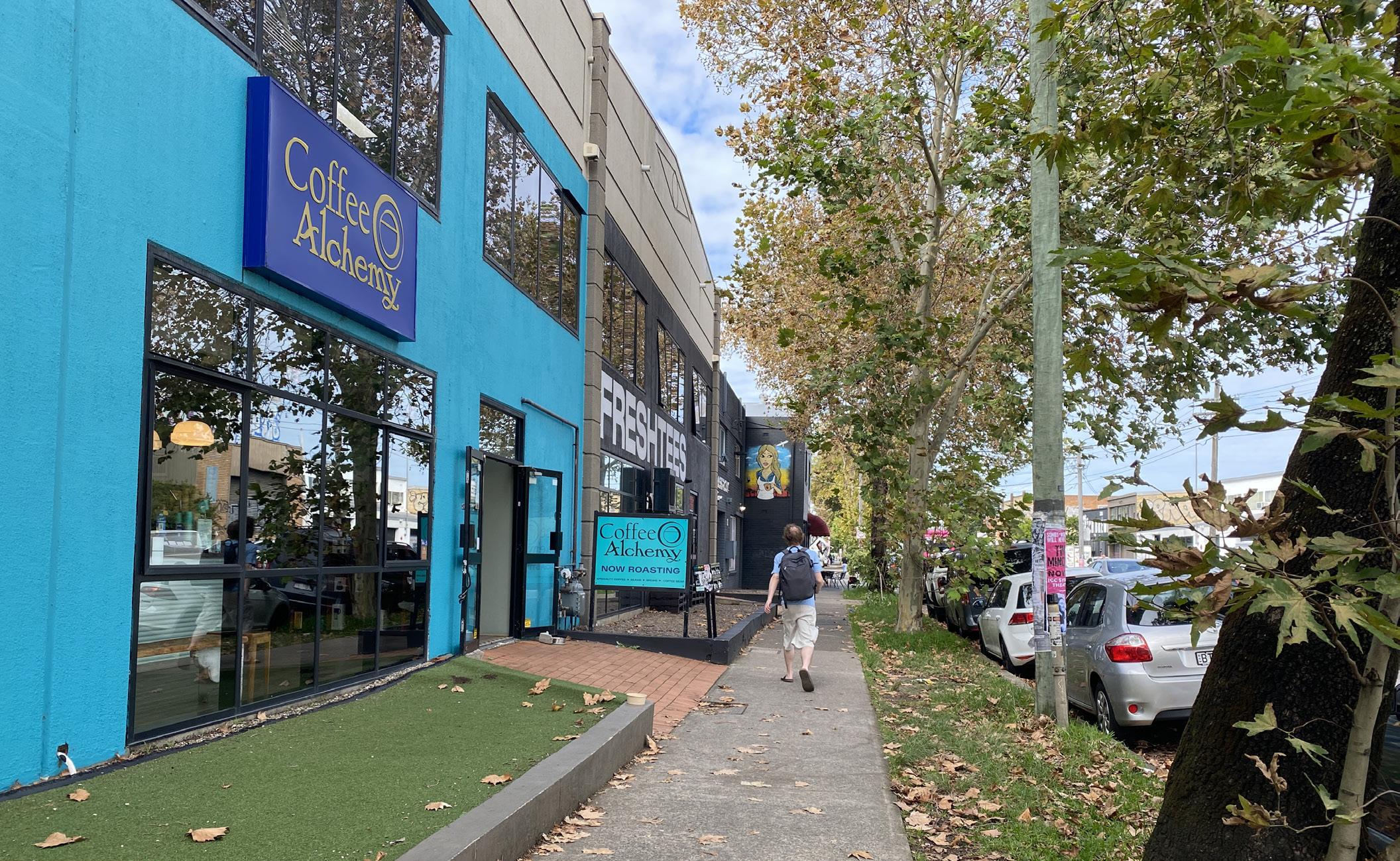

CHARACTER CONTEXT Coffee Alchemy - Currently an unutilised nature strip and frontage
PEDESTRIAN MATERIALS

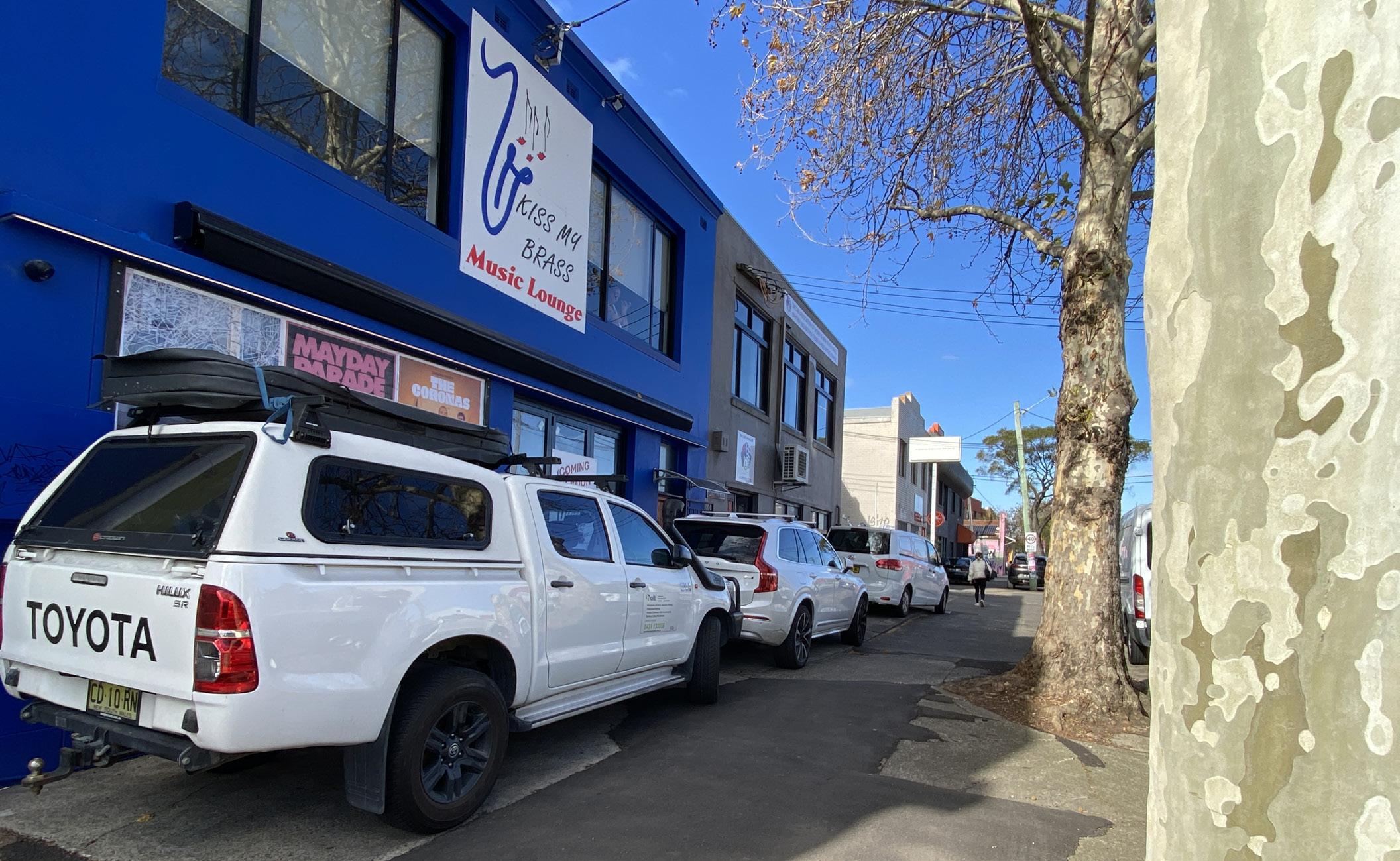

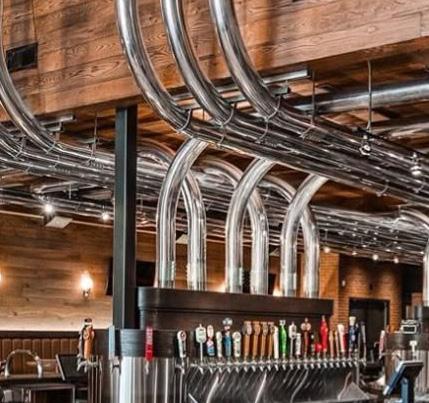

Kiss My Brass - Currently a concrete pathway MATERIAL REFERENCE Brewery pipping style - inspiration for paving artwork and ornamentation on furniture framework; easily prefabricated and powdercoated in bright colours
Existing trees

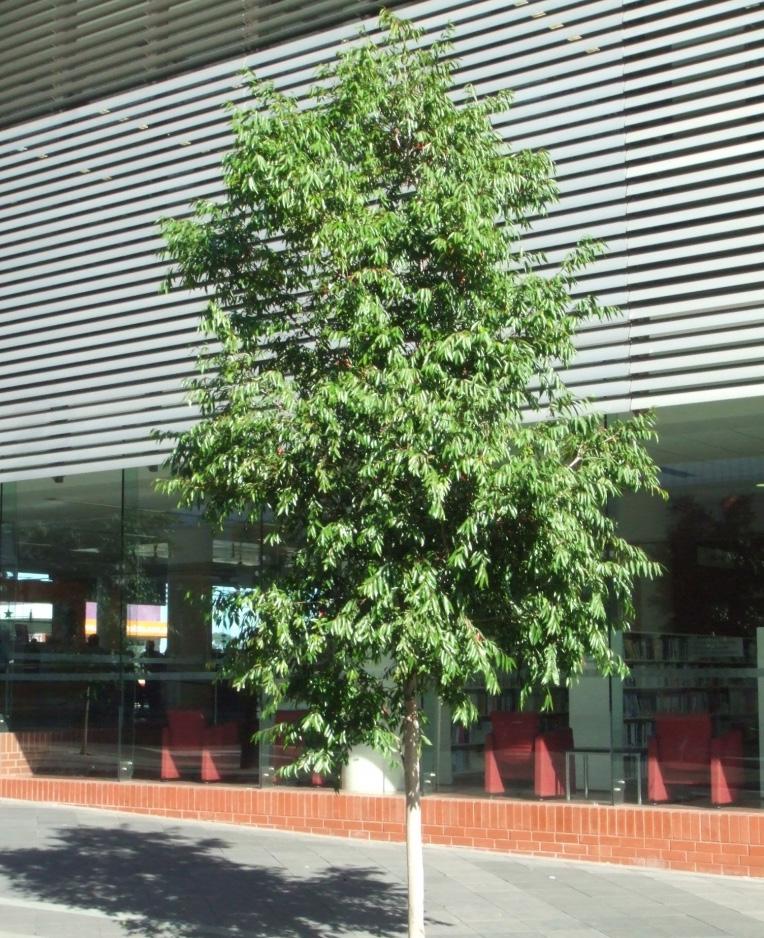

Victoria Road Waterhousia Floribunda

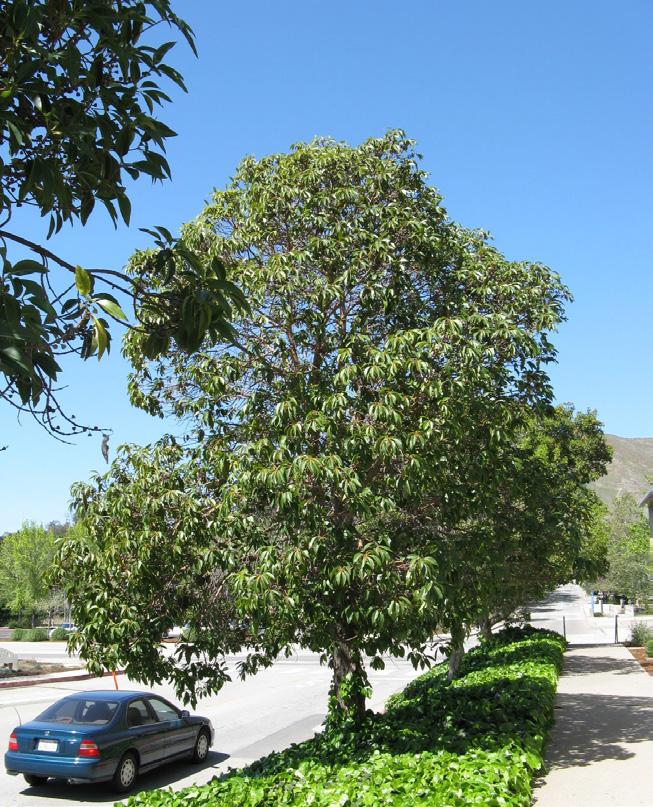

Lophostemon confertus

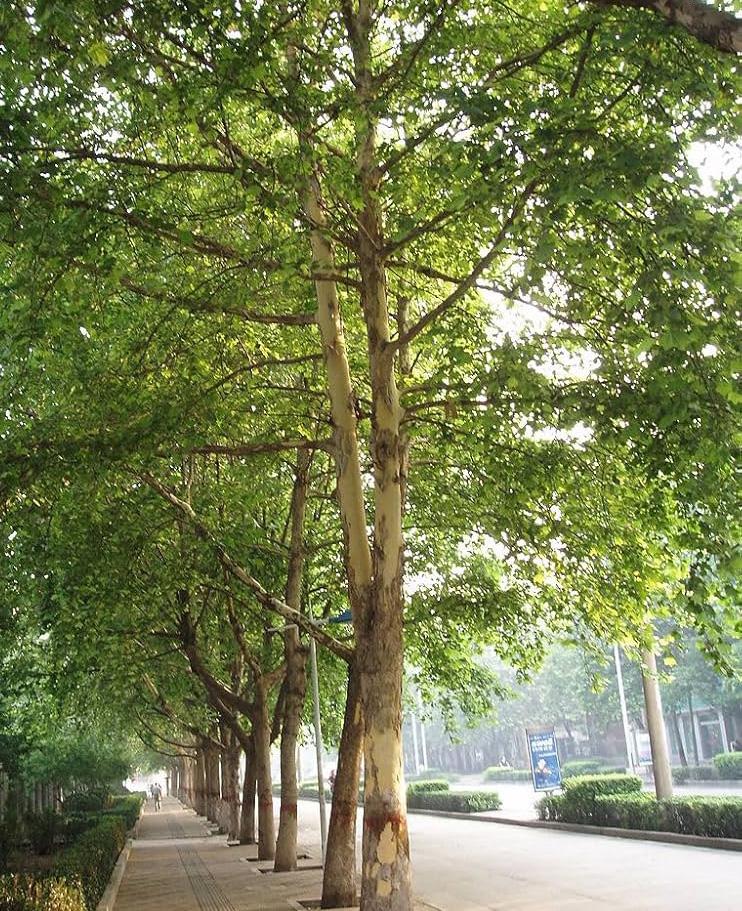

Platanus x acerifolia

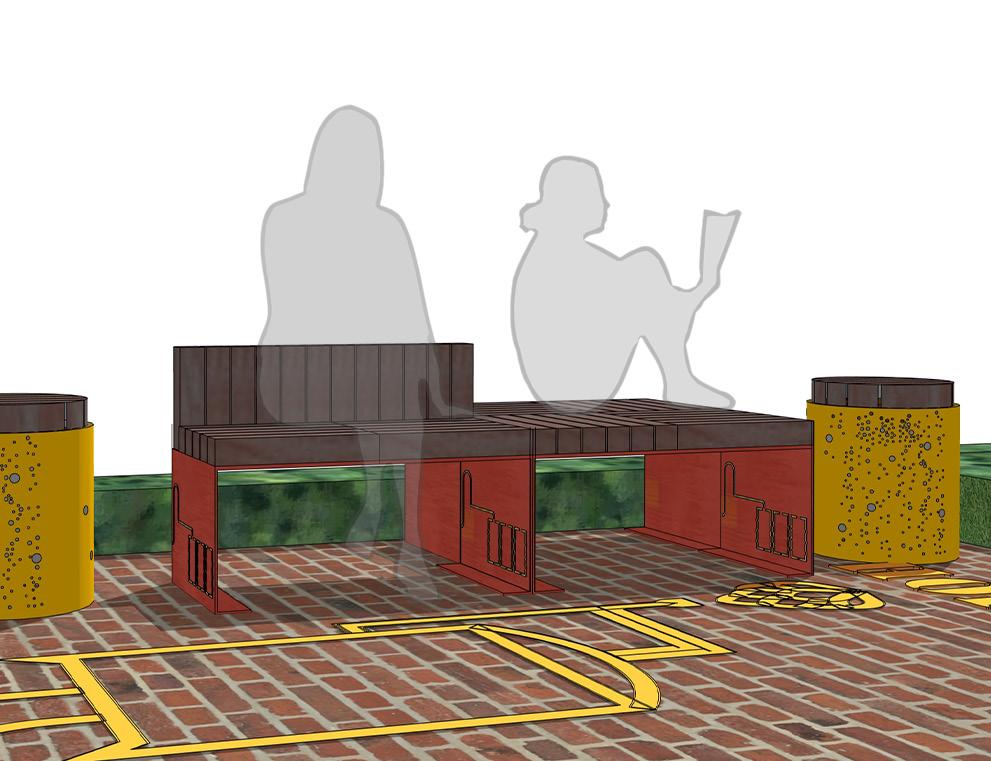

Brewery inspired Lounge H 470x W 450 x L450mm Hardwood Battens: H 70 x W 70
Sydenham Station
Singular stool with ‘piping’ patterns H 470x W 450 x L450mm
ADDITIONAL GREENING
Bench 1.35 m long
Proposed furniture / Activation zone

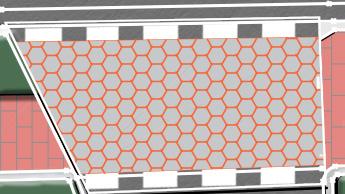

FOOTPATH PALETTE - BRICK Continuous footpath treatment
Trachelospermum ‘Tri Colour’

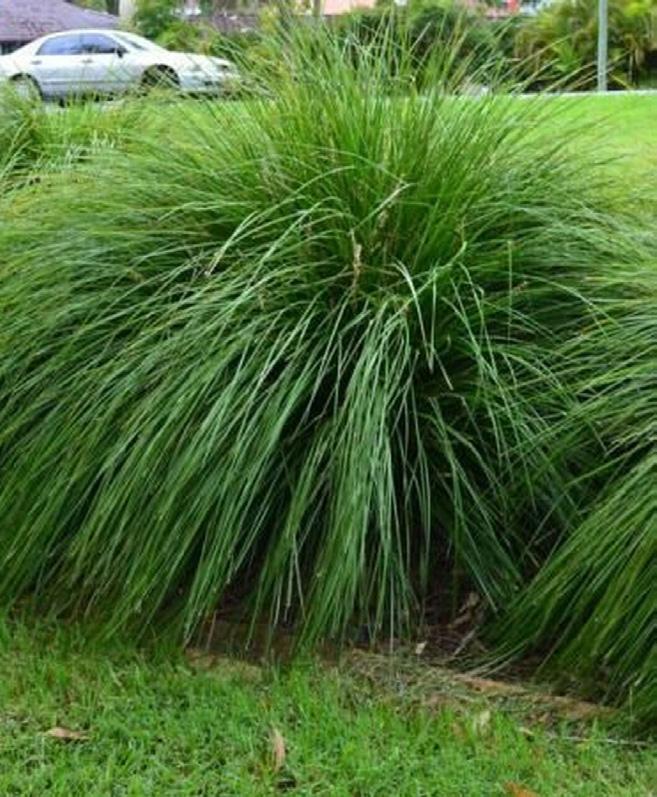

Lomandra Longifolia Liriope Tanika
Myoporum Parvifolium ‘Yareena’
Victoria Road
Sydenham Station
ADDITIONAL ACTIVATION ZONES

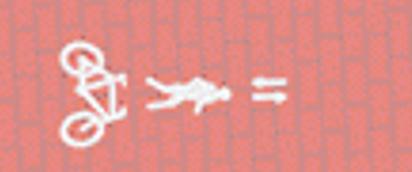

Zebra Crossings with new pole lighting Shared pathway for cyclists and pedestrians Victoria Road Philodendron Xanadu Clivea miniata
Sydenham Station
Nature strip planting will be added to front of ‘No stopping zone’ with additional seating and custom ‘beer bubble stools’ to extend current outdoor dining.
Dianella Cearulea
The shared pathway will be widened to 2m. This activation area is the most extensive utilising a wide frontage of Coffee Alchemy. It will be identified with new brick paving, custom designed furniture and lighting. A strip of planting will be added to this particular area.

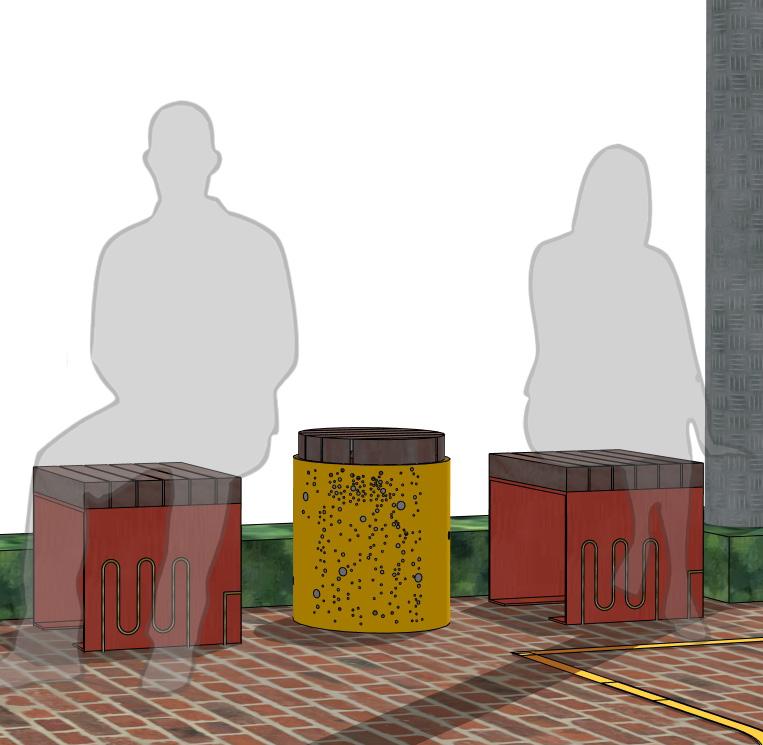

BEER BUBBLE COFFEE TABLE / STOOL
London Bowral Brick

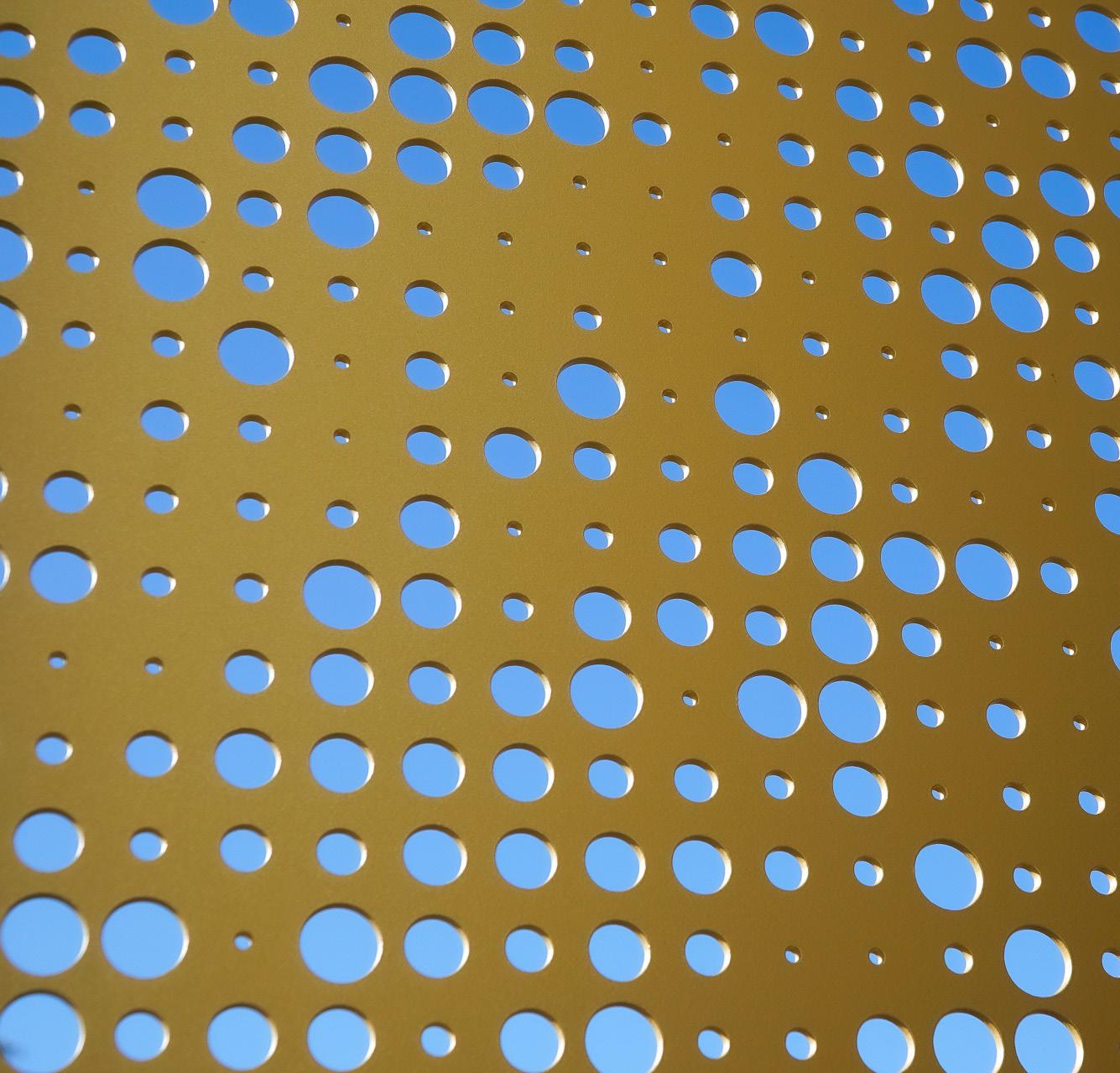

Beer bubbles are recognisable symbol of beer and its representation can be used to brand furniture - in particular lasercut steel components. Seating pods with beer bubbles pattern perforated into the powdercoated steel. LED lighting can be placed inside for informal ambient lighting

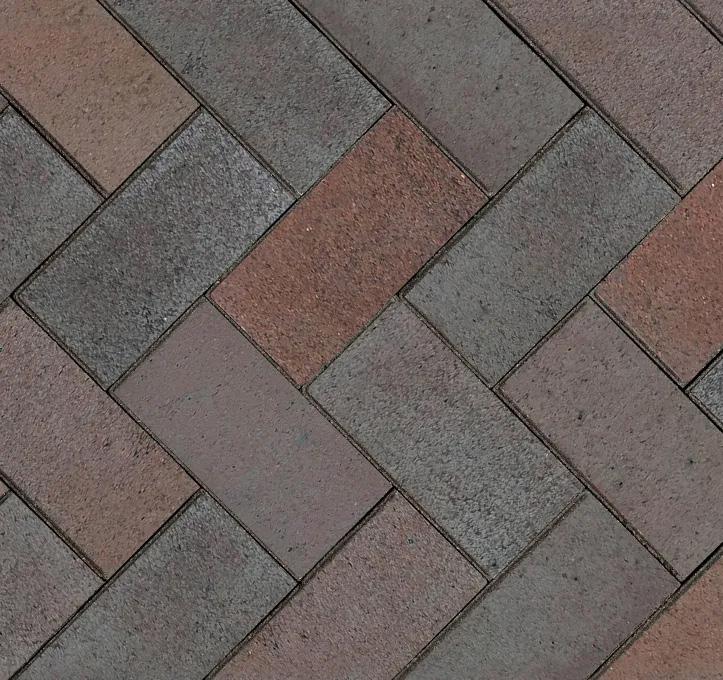

This warm ‘domestic’ type of brick paver was selected to personalise the activation zones, currently paved in grey concrete.
The shared pathway will be widened to 2m. A suite of custom furniture with lighting will be added to nature strip area with feature brick paving and Filtapave surface surrounds to existing trees. The extensive tree roots of existing trees may not allow for a strip of aditional planting as elsewhere.
Proposed - Bench
Proposed - Stools with Beer bubbles table
Proposed - Lounge
STREET TREE PLANTING IN SIDE STREETS MAY NEED TO BE LOCATED IN THE PARKING LANE DUE TO EXISTING UTILITY SERVICE CONSTRAINTS OR NARROW FOOTPATHS.
01
01
01
4

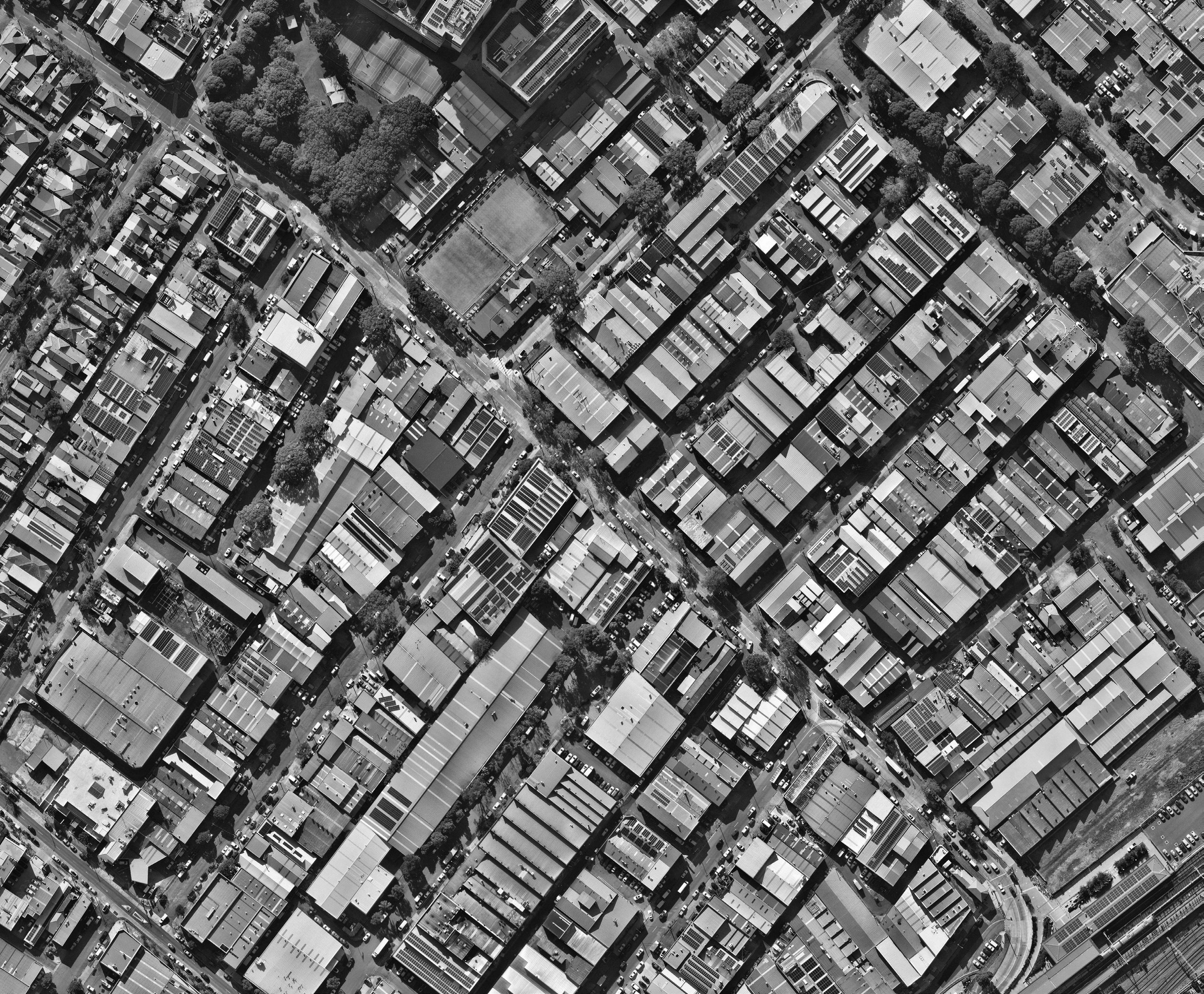

reVITALise Sydenham Road Sydenham, NSW
SCALE 1:300
SYDENHAM ROAD STRATEGY - SHORT TERM GRANT FUNDED WORKS
2
2A HASU SUSHI
SYDENHA M STATION
01
01
DRAWING NO.
ISSUE
DATE
SHORT TERM MASTERPLAN
C
13.10.2025
SCALE 1:300 @ A1 0
5m
10m
20m
N
LEGEND
KEY IMPROVEMENTS
01
Proposed trees
Activation Zones at key locations with feature brick pavement, custom furniture, additional lighting and plantings
02
Dedicated Kiss & Ride zone to support pick up and drop off at the Station
03
Continuous footpath treatement at select locations with textured and colourfull pavements
PLANTING PALETTE
IMPROVING SYDENHAM ROAD
SHOWCASED ACTIVATION ZONES
PROPOSED - Reliable and resilient plant species were selected for nature strips and as additional trees
LIGHTING

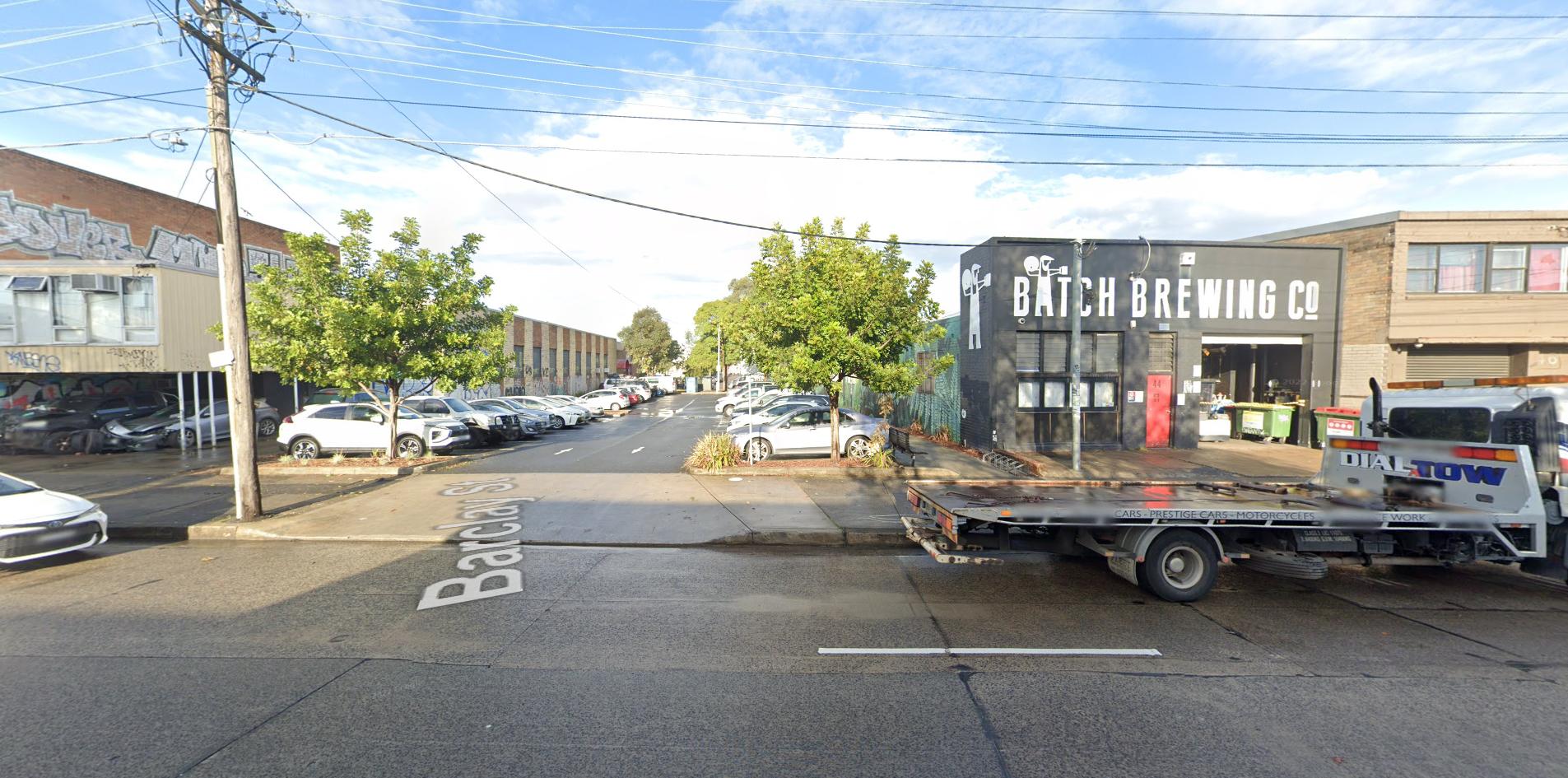

Barclay Street - Currently a Carpark
Existing trees
Proposed furniture / Activation zone
04
Additional pedestrian crossings with new pole lighting
05
Proposed Parklet and EV vehicle charging at Barclay Street carpark
Continuous footpath treatment
Victoria Road Waterhousia Floribunda
Shared pathway for cyclists and pedestrians
Platanus x acerifolia
Marrickville Yoga Centre - Currently a large concrete surface
EV CHARGING
PEDESTRIAN MATERIALS

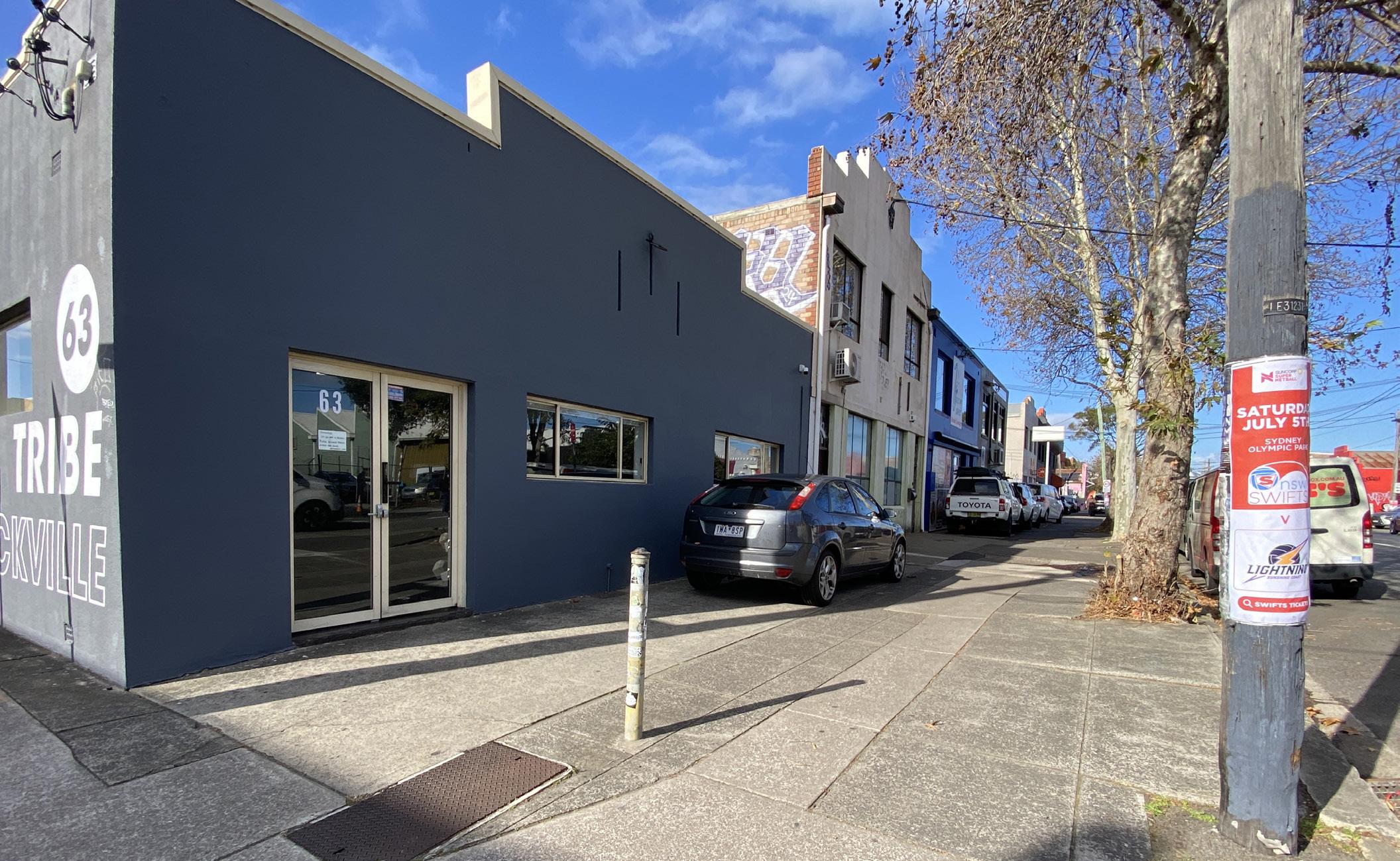

Tribe Gym - Currently a concrete surface up to the road MATERIAL REFERENCE
FOOTPATH PALETTE - BRICK
Brewery pipping style - inspiration for paving artwork and ornamentation on furniture framework; easily prefabricated and powdercoated in bright colours
London Bowral Brick This warm ‘domestic’ type of brick paver was selected to personalise the activation zones, currently paved in grey concrete.
Brewery inspired Lounge H 470x W 450 x L450mm Hardwood Battens: H 70 x W 70
Sydenham Station
Singular stool with ‘piping’ patterns H 470x W 450 x L450mm
ADDITIONAL GREENING
Bench 1.35 m long
Trachelospermum ‘Tri Colour’
Zebra Crossings with new pole lighting
Lophostemon confertus
PROPOSED STREETSCAPE ELEMENTS TO ACTIVATION ZONES
CHARACTER CONTEXT
Lomandra Longifolia Liriope Tanika
Myoporum Parvifolium ‘Yareena’
Victoria Road
Sydenham Station
ADDITIONAL ACTIVATION ZONES

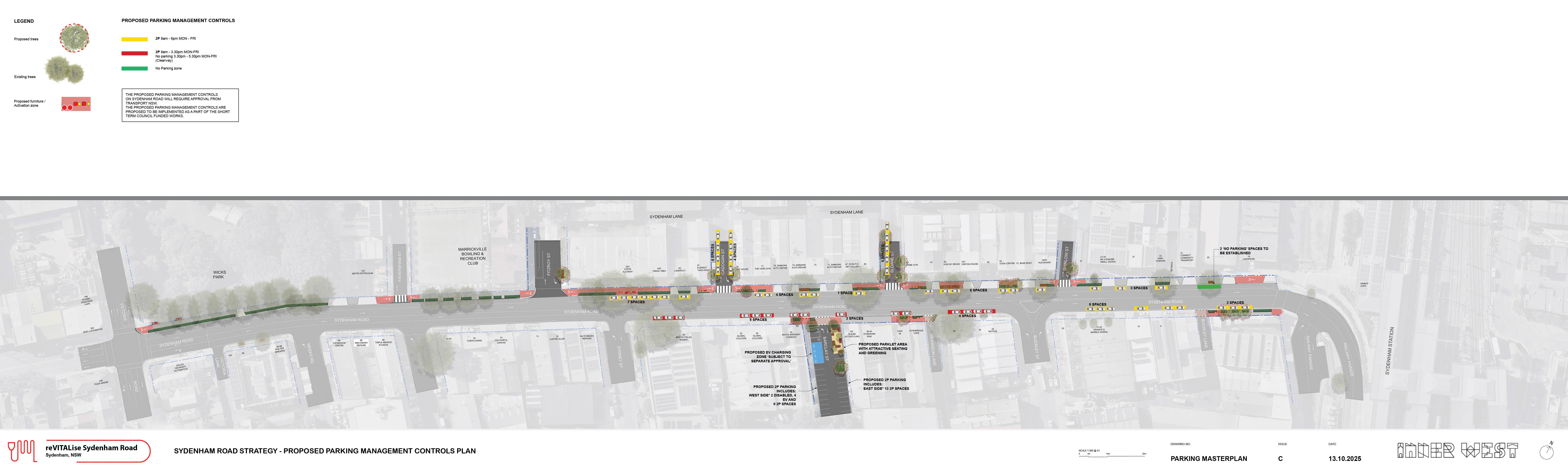

PEDESTRIAN (ZEBRA) CROSSINGS, CONTINUOUS PEDESTRIAN CROSSINGS AND CHANGES TO PARKING MANAGEMENT CONTROLS WILL REQUIRE APPROVAL FROM TRANSPORT FOR NSW. REFER TO SEPARATE PARKING MANAGEMENT PLAN FOR THE DETAILS AND EXTENT OF PROPOSED TIME LIMITED AND NO PARKING ZONES ALONG SYDENHAM ROAD AND ADJACENT SIDE STREETS

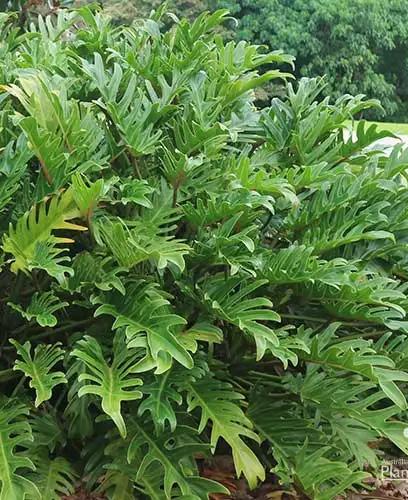

Victoria Road Philodendron Xanadu Clivea miniata
Sydenham Station
A proposed ‘Parklet’ for community engagment with dedicated seating and greening will be added, replacing 5 parking spaces - opposite proposed EV charging
The shared pathway will be widened to 2m. The activation area will be identified with new brick paving, lighting and custom furniture elements with a strip of planting.
Electric Vehicle Charging bays
RAISED CROSSINGS PALETTE
BEER BUBBLE COFFEE TABLE / STOOL
Blue Painted concrete
Beer bubbles are recognisable symbol of beer and its representation can be used to brand furniture - in particular lasercut steel components. Seating pods with beer bubbles pattern perforated into the powdercoated steel. LED lighting can be placed inside for informal ambient lighting
This colour choice was selected to personalise the activation zones, as well as idenfying EV spots for the community.

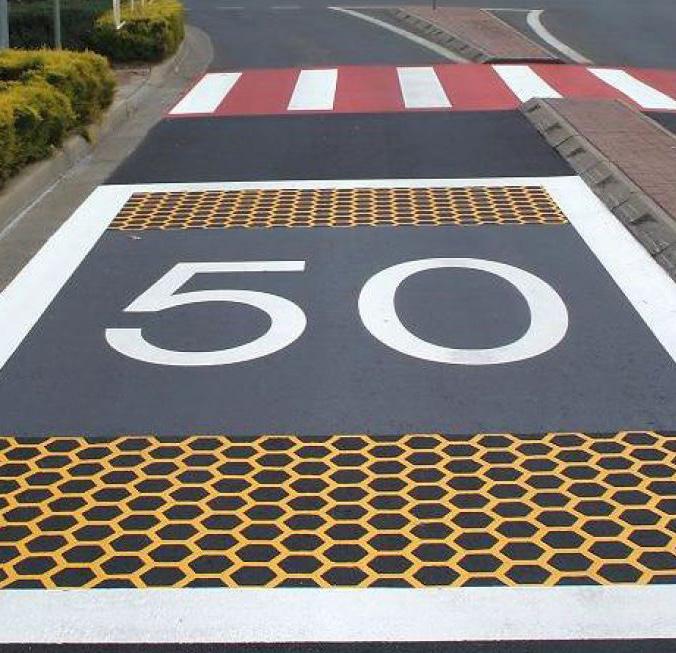

Continuous footpath treatment will provide safer pedestrian crossings and will add vibrancy with its colours and textural character.
The shared pathway will be widened to 2m. This smaller activation area will be identified with new brick paving, lighting and custom furniture elements. A strip of planting will be added to this particular area.
Proposed - Bench
Proposed - Stools with Beer bubbles table
Proposed - Lounge
Dianella Cearulea

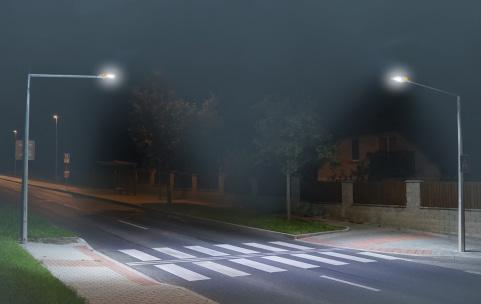

LIGHTING IMPROVEMENTS LIGHTING TO PEDESTRIAN CROSSINGS Where new pedestrian (Zebra) crossings are proposed, lighting will be upgraded to meet relevant lighting standards
04
01
04
04
01
01
01
01
04 02 03
03
01
03
4
2
2A HASU SUSHI
01 SYDENHA M STATION
01
05
reVITALise Sydenham Road Sydenham, NSW
SCALE 1:300
SYDENHAM ROAD STRATEGY - SHORT TERM COUNCIL FUNDED WORKS
DRAWING NO.
ISSUE
DATE
STAGE 01 MASTERPLAN
C
13.10.2025
SCALE 1:300 @ A1 0
5m
10m
20m
STREET TREE PLANTING IN SIDE STREETS MAY NEED TO BE LOCATED IN THE PARKING LANE DUE TO EXISTING UTILITY SERVICE CONSTRAINTS OR NARROW FOOTPATHS.
N
LEGEND
KEY IMPROVEMENTS
01
Proposed trees
Activation Zones at key locations with feature brick pavement, custom furniture, additional lighting and plantings
02
Dedicated Kiss & Ride zone to support pick up and drop off at the Station
03
Continuous footpath treatement at select locations with textured and colourfull pavements
PLANTING PALETTE
IMPROVING SYDENHAM ROAD
SHOWCASED ACTIVATION ZONES
PROPOSED - Reliable and resilient plant species were selected for nature strips and as additional trees
LIGHTING

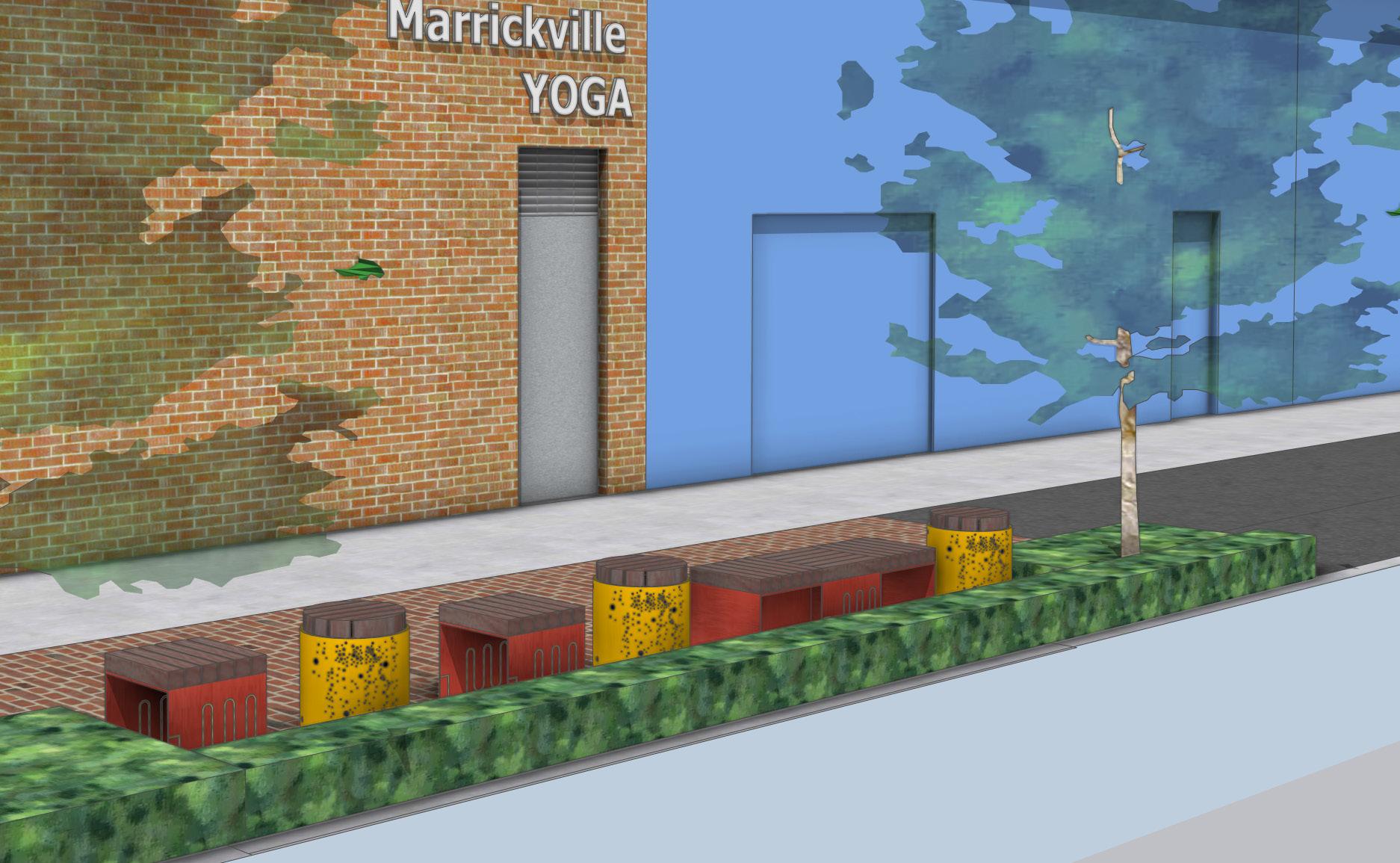

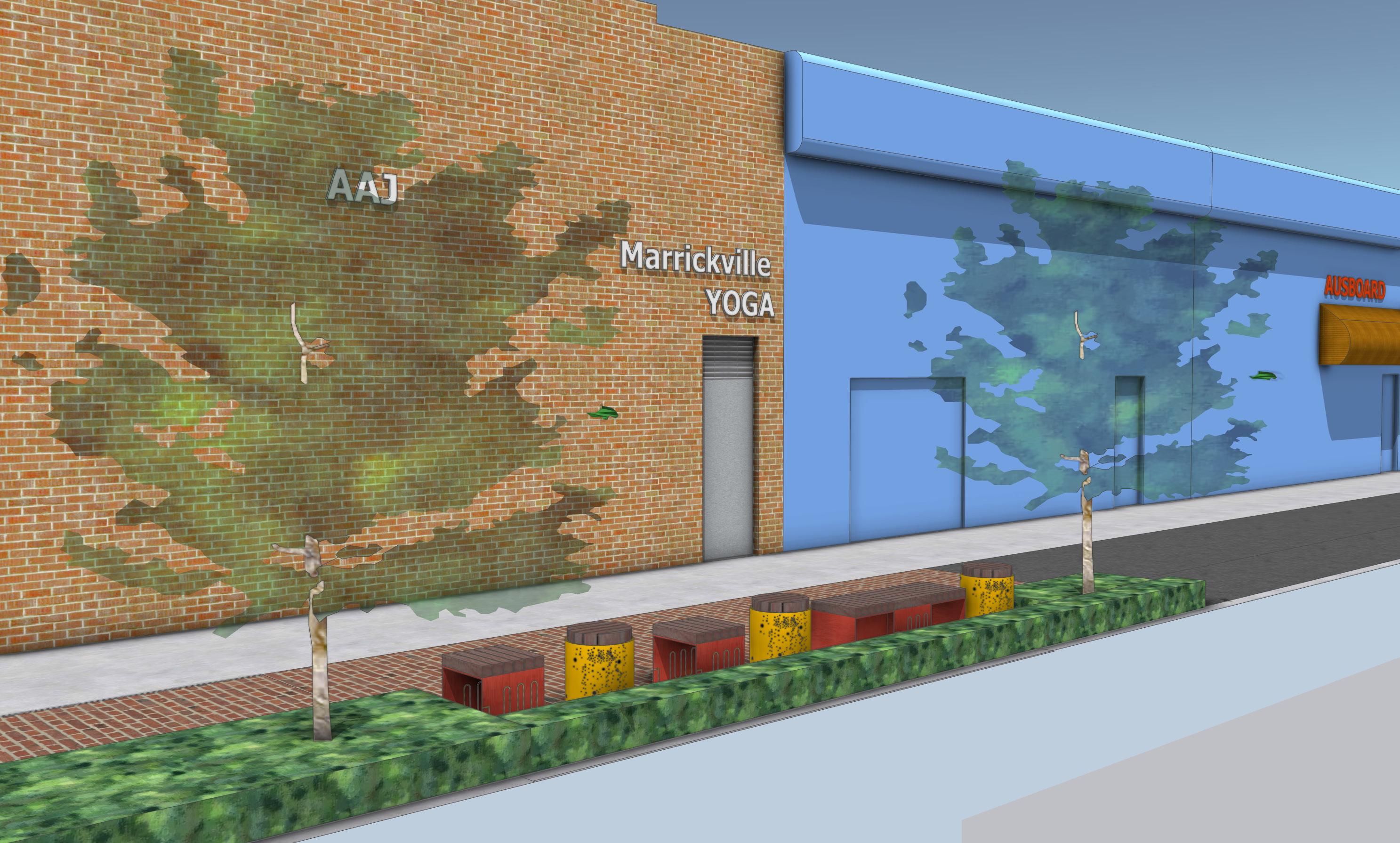

Conceptual Perspective - Marrickville Yoga
Existing trees
Proposed furniture / Activation zone
Continuous footpath treatment
04
Additional pedestrian crossings with new pole lighting
05
Proposed Parklet and EV vehicle charging at Barclay Street carpark
06
Proposed two way cycleway transitionong to ‘shared pathway’ past Sloane Street subject to Transport for NSW approval
07
Zebra Crossings with new pole lighting
Victoria Road
08
Traffic signalisation of Fitzroy St, Sydenham Road, and Sydney Street are subject to Transport for NSW approval
Waterhousia Floribunda
Lophostemon confertus
Platanus x acerifolia

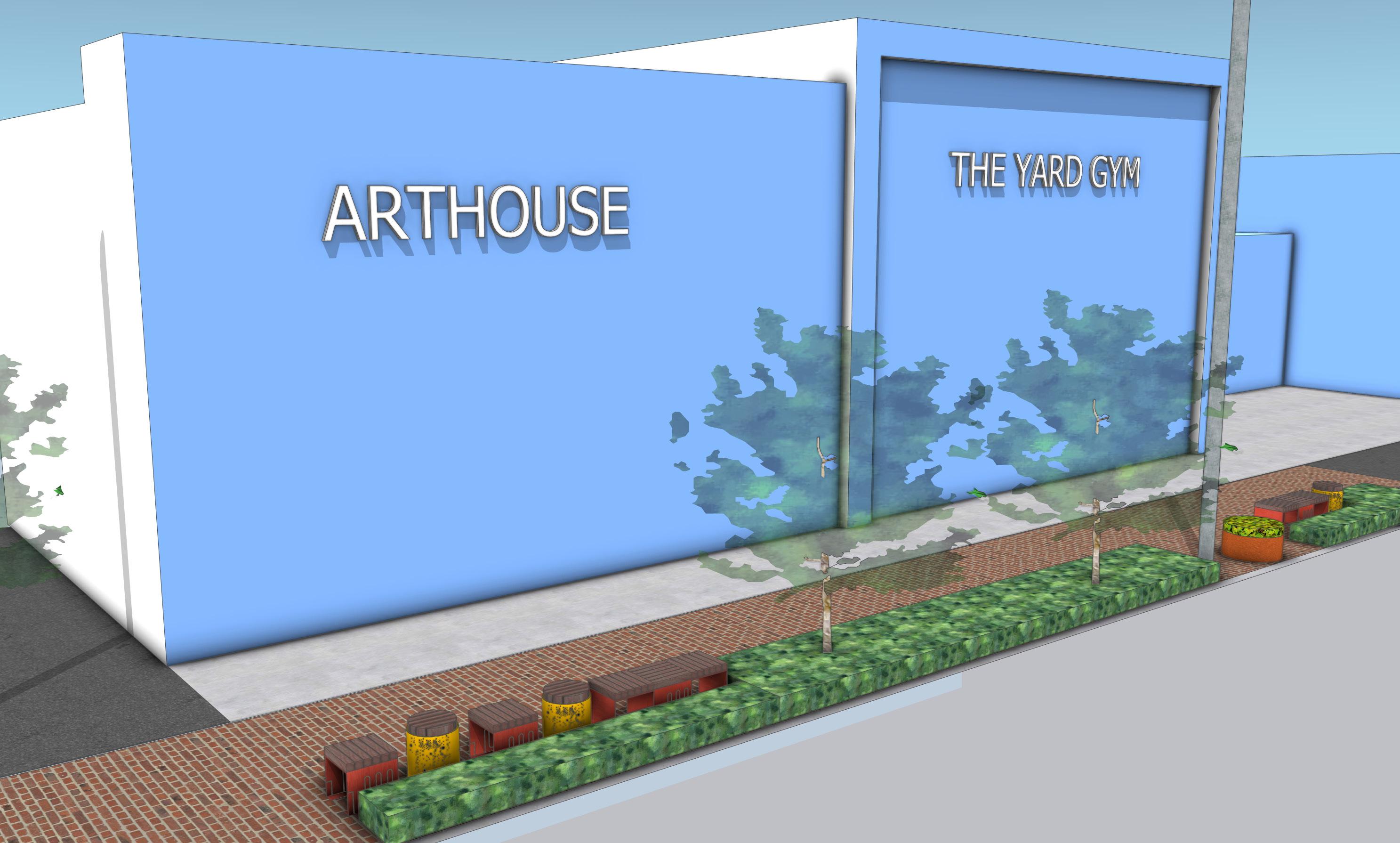

Conceptual Perspective - Arthouse and The Yard Gym
EV CHARGING
PEDESTRIAN MATERIALS

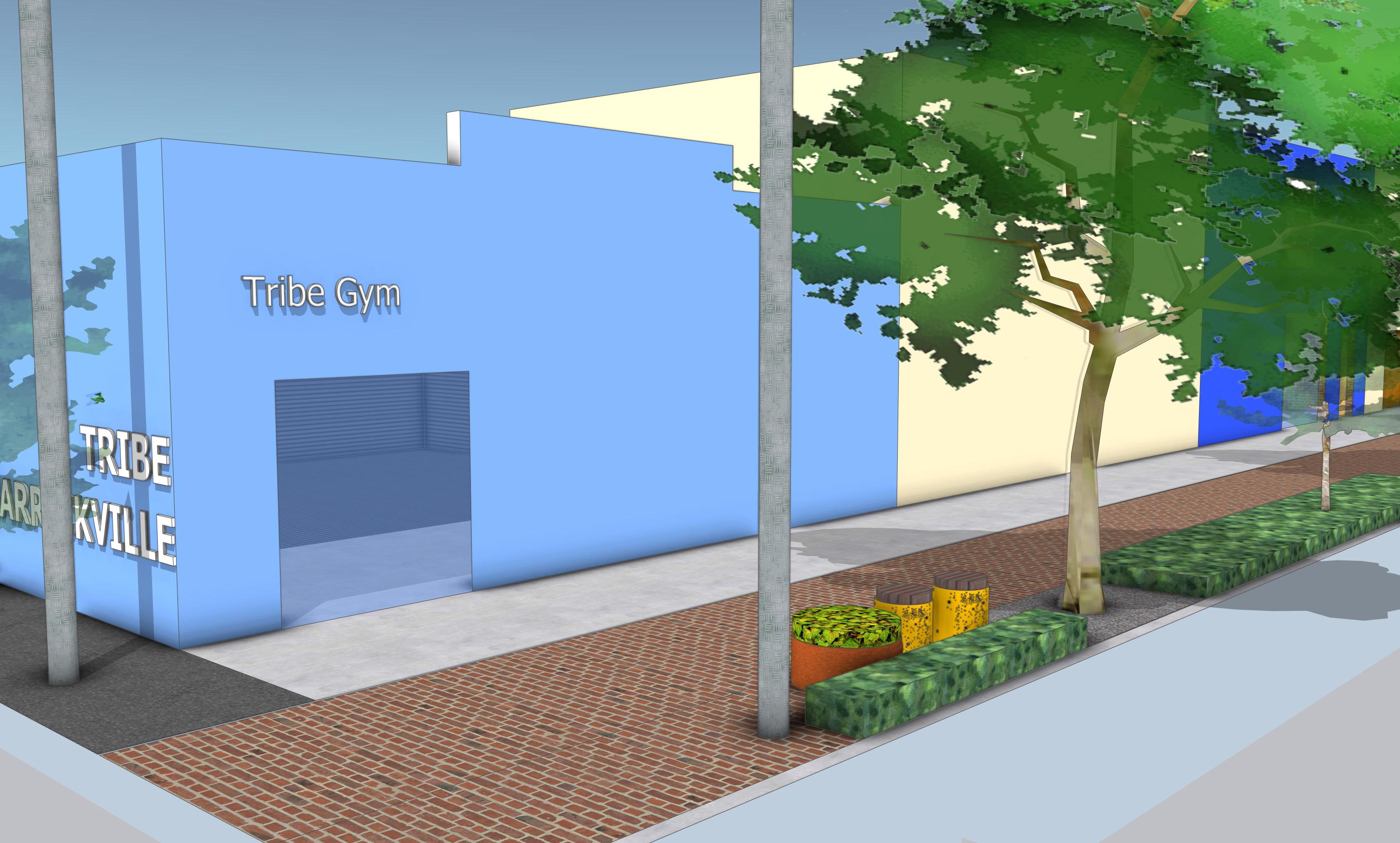

Conceptual Perspective - Tribe Gym MATERIAL REFERENCE
FOOTPATH PALETTE - BRICK
Brewery pipping style - inspiration for paving artwork and ornamentation on furniture framework; easily prefabricated and powdercoated in bright colours
London Bowral Brick This warm ‘domestic’ type of brick paver was selected to personalise the activation zones, currently paved in grey concrete.
Brewery inspired Lounge H 470x W 450 x L450mm Hardwood Battens: H 70 x W 70 Singular stool with ‘piping’ patterns H 470x W 450 x L450mm
ADDITIONAL GREENING
Bench 1.35 m long
Trachelospermum ‘Tri Colour’
Lomandra Longifolia Liriope Tanika
Myoporum Parvifolium ‘Yareena’
Victoria Road
Sydenham Station
ADDITIONAL ACTIVATION ZONES
Pedestrian (Zebra) crossing here subject to Transport for NSW approval
THE PROPOSED TWO WAY CYCLEWAY WILL REQUIRE REMOVAL OF ON STREET PARKING
PROPOSED STREETSCAPE ELEMENTS TO ACTIVATION ZONES
Sydenham Station
THE PEDESTRIAN (ZEBRA) CROSSINGS, TRAFFIC SIGNALS, CYCLE PATH INDICATED ON THIS PLAN WILL REQUIRE APPROVAL FROM TRANSPORT FOR NSW
Shared pathway for cyclists and pedestrians
CHARACTER CONTEXT

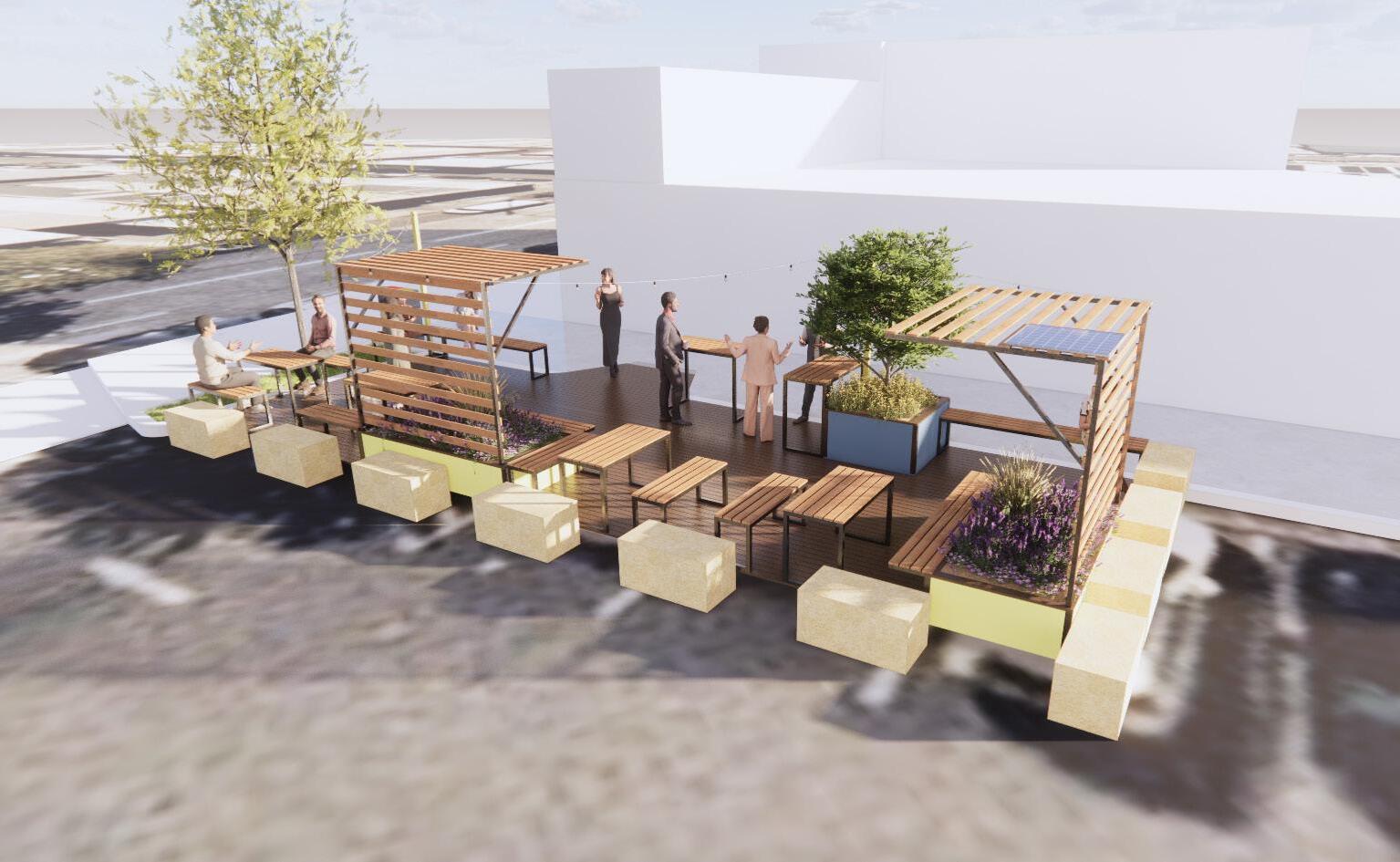

Conceptual Perspective - Barclay Street parklet Victoria Road Philodendron Xanadu Clivea miniata

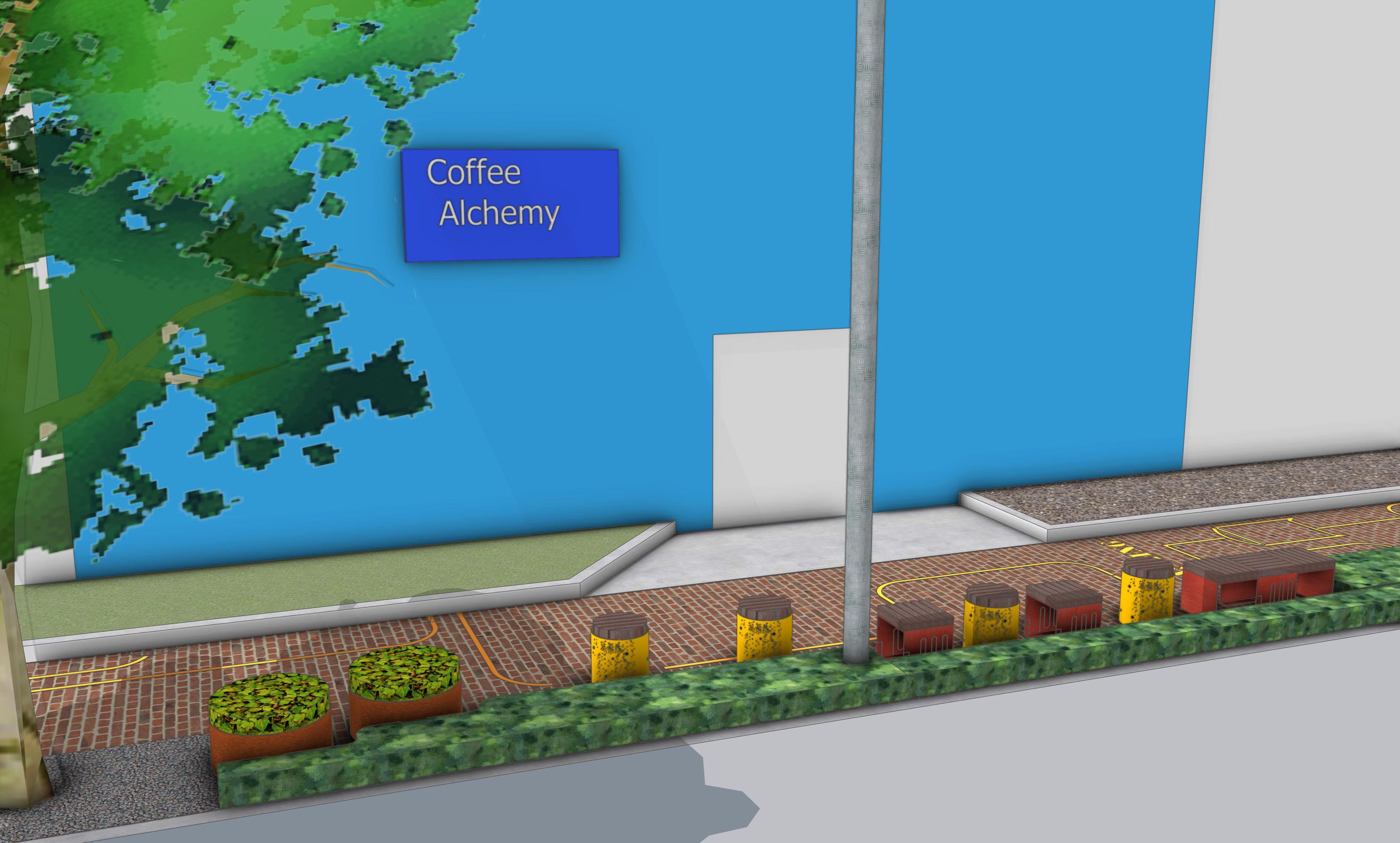

Conceptual Perspective - Coffee Alchemy
Electric Vehicle Charging bays
RAISED CROSSINGS PALETTE
BEER BUBBLE COFFEE TABLE / STOOL
Blue Painted concrete
Beer bubbles are recognisable symbol of beer and its representation can be used to brand furniture - in particular lasercut steel components. Seating pods with beer bubbles pattern perforated into the powdercoated steel. LED lighting can be placed inside for informal ambient lighting
This colour choice was selected to personalise the activation zones, as well as idenfying EV spots for the community.
Continuous footpath treatment will provide safer pedestrian crossings and will add vibrancy with its colours and textural character.

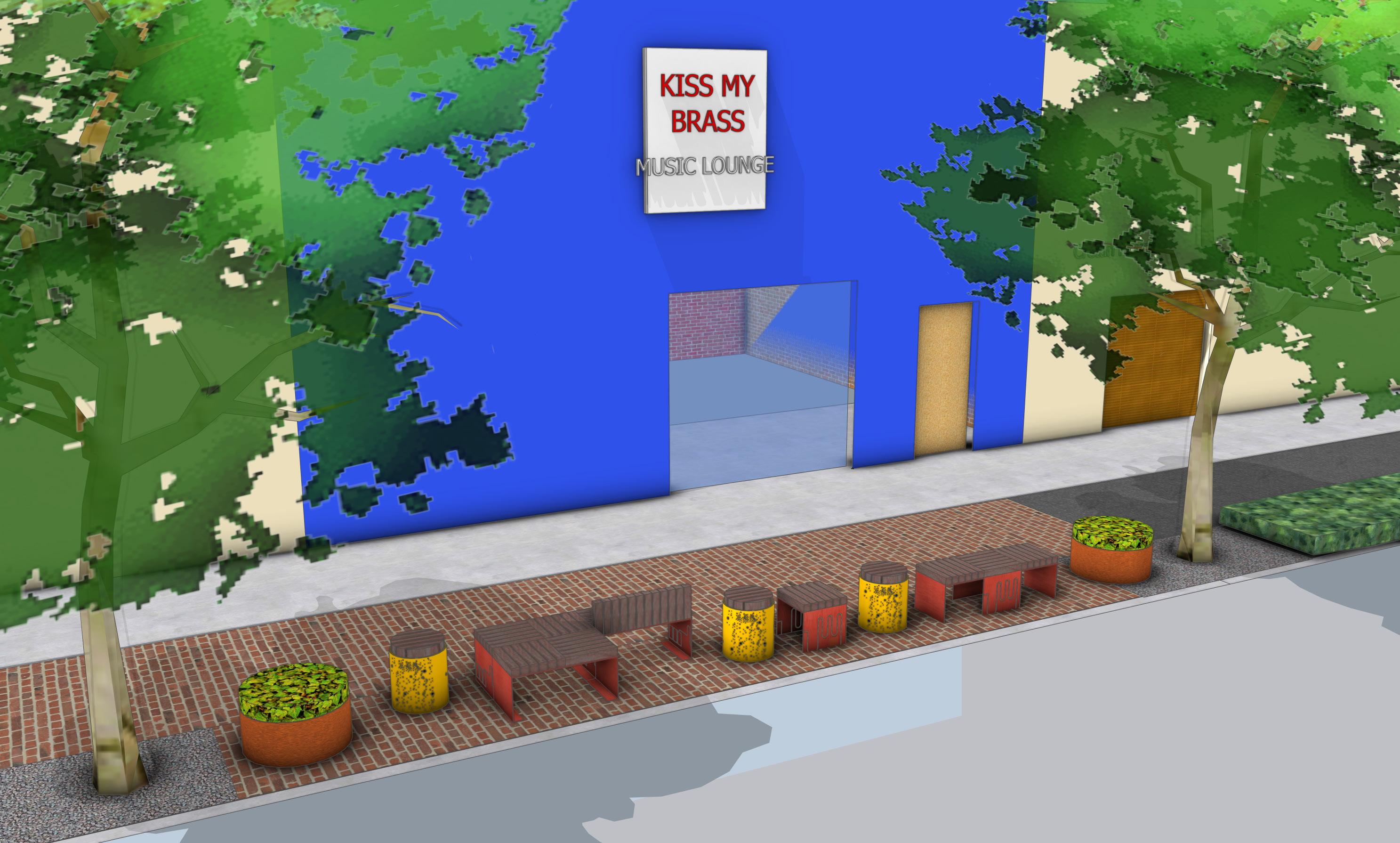

Conceptual Perspective - Kiss My Brass
Sydenham Station
Proposed - Bench
Proposed - Stools with Beer bubbles table
Proposed - Lounge
Dianella Cearulea
LIGHTING IMPROVEMENTS LIGHTING TO PEDESTRIAN CROSSINGS Where new pedestrian (Zebra) crossings are proposed, lighting will be upgraded to meet relevant lighting standards
04
04
01 06
01
08 03
01
04 02
07
03
01
01
03
03
4
2
2A HASU SUSHI
01 SYDENHA M STATION
01
04
01
01
03
05
reVITALise Sydenham Road Sydenham, NSW
SCALE 1:300
SYDENHAM ROAD STRATEGY - LONG TERM VISION PLAN
DRAWING NO.
ISSUE
DATE
STAGE 02 MASTERPLAN
C
13.10.2025
SCALE 1:300 @ A1 0
5m
10m
20m
STREET TREE PLANTING IN SIDE STREETS MAY NEED TO BE LOCATED IN THE PARKING LANE DUE TO EXISTING UTILITY SERVICE CONSTRAINTS OR NARROW FOOTPATHS.
N
