RITWIK HALDER ARCHITECTURE PORTFOLIO SELECTED WORKS I 2019-2022 I

P NO. 1

HELLO, I AM RITWIK HALDER AND THIS IS MY ARCHITECTURAL PORTFOLIO. AS AN INTRODUCTION, I AM A 21-YEAR-OLD ARCHITECTURE STUDENT OF FOURTH YEAR, SEEKING TO LEARN AND EXPAND MY REFERENCES IN ARCHITECCTURAL AND DESIGN FIELD. I AM PASSIONATE ABOUT THE ARCHITECTURAL VALUES AND THE PROFESSIONAL PRACTICES THAT IT INVOLVES. I HAVE A STRONG INTEREST IN DESIGN DEVELOPMENT , SKETCHING, GRAPHICS, VISUALISATION. I AM A FAST LEARNER ALWAYS SEEKING THE BEST SOLUTION FOR THE PROJECT. GLAD TO SHARE MY SELECTED WORKS WITH YOU.

P NO. 2 | INTRODUCTION

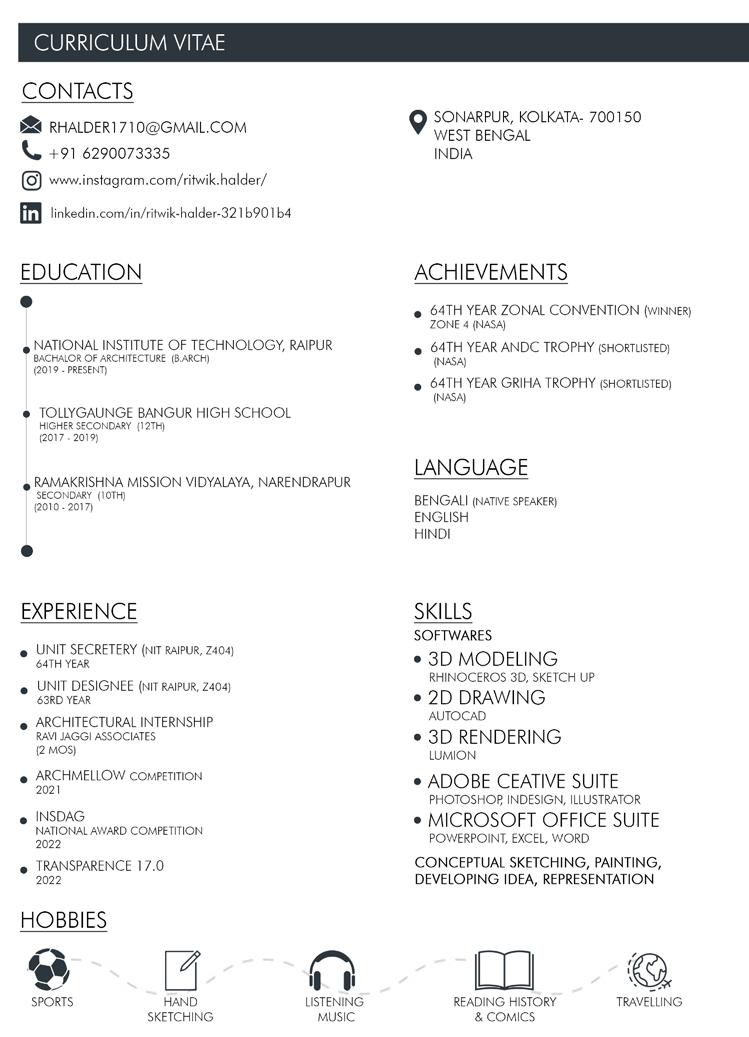

CURRICULUM VITAE I P NO. 3

P NO. 4 | INTRODUCTION

CONTENTS PAGE 7| UTKARSH BHAWAN (64TH YEAR GRIHA TROPHY) PAGE 15| CHITTA- VRITTI INSCAPE (ARCHMELLOW COMPETITION) PAGE 21| SHRAMALAYA (64TH YEAR ANDC TROPHY) PAGE 27| INCARE (ACADEMIC PROJECT- 6TH SEM) PAGE 35| CUBE 3 (ACADEMIC PROJECT- 6TH SEM) PAGE 43| MISCELLANEOUS WORKS

CONTENTS I P NO. 5

P NO. 6

UTKARSH BHAWAN

UTKARSH BHAWAN GST BUILDING

LOCATION: GHAZIABAD (UTTAR PRADESH), INDIA YEAR: 2022 64TH GRIHA COMPETITION, NASA

UTKARSH BHAWAN IS A CULMINATION OF A FORMAL OFFICE BUILDING EXPERIENCE WITH A HOLISTICALLY GREEN APPROACH. IT IS STRATEGICALLY PERCHED BETWEEN GREEN POCKETS TO REJUVINATE THE EXPERIENCE FOR BOTH REGULER OCCUPANTS AND VISITORS. THIS BUILDING IS THREE STORIED AND THE GROUND FLOOR IS MOSTLY HAVING OPEN FOR CIRCULATION SPACES AND CONNECTS THE BUILDING AND THE SITE GREENERY. ELEVATIONS IN THIS BUILDING ARE CREATED USING INTERESTING COMBINATIONS OF LARGER FACADES WITH TIMBER LOUVRES, AND SMALLER FACADES WITH CLAY TILES. THE WEST FACADE, OR THE ENTRANCE FACADE GETS VIEW OF PARAMETRIC TREE STRUCTURES, WHICH ENHANCES THE AESTHETICS. LOUVRES ARE A COMMON ELEMENT IN GHAZIBAD’S ARCHITECTURE INSPIRED BY TRADITIONAL JAALIS.THE MAIN MATERIALS USED IN THE BUILDIG ARE TIMBER LOUVRES CLAY TILES AND AAC BLOCK.THIS FACADE WHICH CAN BE VIEWED FROM THE ABUTTING ROAD, PROMOTES THE VALUE OF RECYCLING RESOURCES AVAILABLE, THE ARTIFICIAL TREES ON SITE VIEWED FROM THEABUTTING ROAD, PROMOTES THE VALUE OF RECYCLING RESOURCES AVAILABLE

UTKARSH BHAWAN I P NO. 7

FORM EVOLUTION:

1. BASIC DESIGN

5. FINAL FORM P NO. 8 | UTKARSH BHAWAN

2. STREAMLINING WIND FLOW

3. PROVIDING FUNCTIONS

4. TO LET IN SUNLIGHT & VENTILATION

•THE CONCEPT POINTS OUT THE TINY, YET SO EFFECTIVE WORK OF GRASSROOTS. GRASSROOTS ABSORB NUTRIENTS FROM ITS ENVIRONMENT AND CONVERT IT INTO USABLE ENERGY FOR ITS PLANT. •THROUGH BIOMIMICRY, OUR INTEGRAL PARAMETRIC SHADING STRUCTURES WORK IN A SIMILAR MANNER. THESE ARE 2 MODULES; SOLAR TOWER AND WATER CATCHMENT TOWER .

•THESE ABSORB RAW ENERGY LIKE SOLAR RADIATION AND WATER VAPOURS FROM THE ENVIRONMENT, AND CONVERT THEM INTO USABLE SOURCE OF ENERGY. THIS ENERGY IS THEN UTILIZED BY THE BUILDING IN THE FORM OF ELECTRICITY AND WATER. UTKARSH BHAWAN I P NO. 9

EXCAVATION PLAN

FIRE SAFETY PLAN

ATM

PLUMBING AND IRRIGATION PLAN

ENTRANCE

SITE PLAN

P NO. 10 I UTKARSH BHAWAN

SERVICE AREA

PARKING AREA

ARTIFICIAL TREES INFORMAL SITTING

PAVEMENT AREA WATER BODY

THE SITE PLANNING IS DONE KEEPING IN MIND THE SETBACKS AND AREA STATEMENT. ENTRANCE TO THE SITE IS THROUGH WEST. THE PARKING IS SEGREGATED AT THE NORTH SIDE AND LAND SCAPING AT THE SOUTH. LANDSCAPING AND RECREATIONAL SPACES ARE STRATEGICALLY PLACED AT SOUTH, SO THAT PARAMETRIC SOLAR STRUCTURES CAN TAP MAXIMUM HEAT, WHICH WAS INFERRED FROM THE SOLAR RADIATION ANALYSIS. CIRCULATION IS FAIRLY DISTRIBUTED, AS ON GROUND FLOOR, THE BUILDING IS PARTIALLY OPEN. DUE TO LOW PROXIMITY OF SITE FEATURES REQUIRED, ATM, INFIRMARY, POST OFFICE, A CANTEEN AND EV CHARGING PONTS ARE PROVIDED ON SITE.

LANDSCAPE FOR SITTING INTERNAL COURTYARD

FRONT GARDEN

AREA STATEMENT SITE AREA - 8959.1 SQ M PERMISSIBLE F.A.R - 1.50 PROPOSED F.A.R - 1.22 PERMISSIBLE GROUND COVERAGE-4479. 5 SQ M PROPOSED GROUND COVERAGE- 3657 SQ M TOTAL BUILT UP AREA- 10971 SQ M MAXIMUM HEIGHT- 12.5 M PROPOSED HEIGHT- 12.45 M FRONT SET BACK- 9M REAR SET BACK- 6M OTHER SIDE SET BACK- 4.5 M

EXIT LEGEND GREYWATER PIPE WATER SUPPLY TO O.H.T WATER SUPPLY FROM O.H.T RAINWATER SUPPLY IRRIGATION WATER SUPPLY

UTKARSH BHAWAN I P NO. 11

OVER HEAD WATER TANK

SOLAR PANEL

TIMBER FACADE

INTERNAL COURTYARD

CLAY TILES

WOODEN LOUVERS

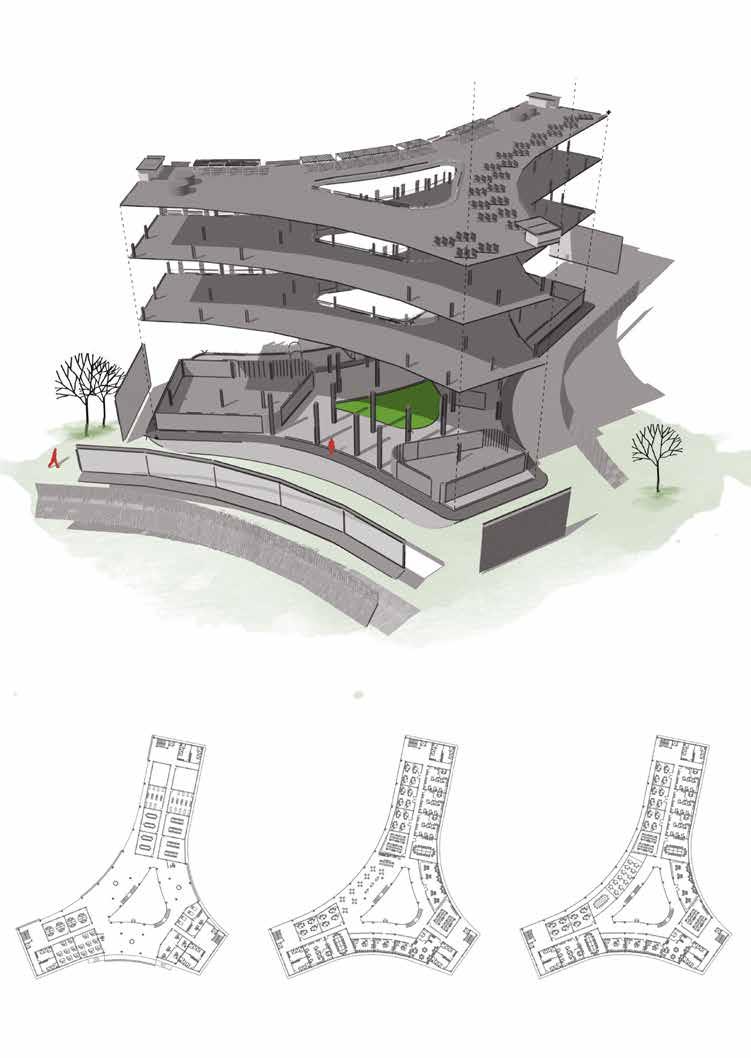

FLOOR PLANS:

GROUND FLOOR PLAN P NO. 12 I UTKARSH BHAWAN

FIRST FLOOR PLAN

SECOND FLOOR PLAN

GREEN TECHNIQUES: TEMPERATURE REDUCTION- EXTERIOR FINISHES ARE EITHER NATURAL (LIKE THE TIMBER ON FACADE), OR COATED WITH REFLECTIVE MATERIAL LIKE WHITE PAINTS FROM GRIHA CATALOGUE. THE HEAVY LANDSCAPING HELPS TO REDUCE THE HEAT GAIN THROUGH SHADING AND INCREASE VAPOUR COOLING THROUGH TRANSPIRATION.​ THE ORIENTATION OF BUILDING ( LONGER AXIS ALONG EAST-WEST) ALSO HELPS IN TEMPERATURE REDUCTION.

WING WALL- IT PROJECTS OUTWARD NEXT TO A WINDOW, THIS CREATES A HIGH PRESSURE ZONE IN ONE SIDE AND LOW PRESSURE ZONE ON OTHER SIDE OF WINDOW. WING WALLS ARE EFFECTIVE ON SITES WITH LOW OUTDOOR WIND VELOCITY AND VARIABLE WIND DIRECTIONS. IN THE DESIGN, F ​ ACADES THEMSELVES ACT AS WING WALLS.

COURTYARD- COURTYARD IS A PASSIVE COOLING TECHNIQUE.​DUE TO SOLAR RADIATION , AIR BECOMES HOT AND RISES. DUE TO LOW AIR PRESSURE CREATED IN THIS SPACE, COOL AIR RUSHES TO FILL THE VOID. BIO RETENTION- THE PROCESS OF REMOVING POLLUTANTS AND SEDIMENTS FROM STORMWATER RUNOFF IS KNOWN AS BIO-RETENTION. THE BIO-RETENTION’S PRIMARY GOAL IS TO REDUCE PEAK RUNOFF WHILE ALSO REMOVING CONTAMINANTS FROM STORMWATER RUNOFF.

UTKARSH BHAWAN I P NO. 13

P NO. 14

CHITTA-VRITTI INSCAPE

CHITTA-VRITTI INSCAPE

MEDITATION & YOGA RETREAT CENTERE LOCATION: ALAPPUZHA (KERALA), INDIA YEAR: 2021 ARCHMELLO COMPETITION

CONCEPT OF YOGA THE ANCIENT RISHIS OF INDIA VERY WELL UNDERSTOOD THE LIMITATIONS OF THE PSYCHO – PHYSICAL BODY OF HUMANS. IN THEIR SEARCH FOR THE TRUTH “WHO AM I ?” THEY ATTAINED A STATE OF MIND IN WHICH THEY TRANSCENDED THESE LIMITATIONS AND SUFFERING AND ENCOUNTERED THEIR TRUE “SELF” FACE TO FACE. THE PROCESS BY WHICH ONE ATTAINS SUCH A BLISSFUL STATE OF UNION WITH ONE’S OWN HIGHER “SELF” IS CALLED YOGA. YOGA LITERALLY MEANS TO YOKE.THERE ARE “FIVE STATES OF MIND”THE MIND OF A YOGA ASPIRANT PASSES THROUGH 5 DIFFERENT STATES BEFORE ENLIGHTENMENT/YOGA.– KSHIPTA (SCATTERED) MUDHA (STUPID & CONFUSED) VIKSHIPTA (SOMETIMES ACTIVE, SOMETIMES DULL) EKAGRA (ONE-POINTED) – CONCENTRATED MIND. NIRUDDHA (WELL CONTROLLED CONCENTRATION) – IT IS THE SUPERCONSCIOUS STATE OF “SAMADHI”.

THE 5 STATES OF MIND PAVILION HERE WE SEE THE TANGIBLE FORM OF THE 5 STATES OF MIND MANIFESTED ACCORDING TO THE NATURE OF MIND IN EACH STATE.THE ASPIRANT WHEN WALKS THROUGH THESE SPACES, HE/SHE EXPERIENCES THAT STATE OF MIND.AS IT IS SAID, YOGA IS POSSIBLE IN ONLY THE LATER 2 STATES OF MIND, HENCE THEIR STRUCTURE IS SO DESIGNED, THAT THERE IS A VISUAL CONNECTION WITH THE SCULPTURE OF A YOGI IN THE LAST 2 PAVILIONS. THE RIPPLES ON THE WATERBODY REPRESENT THE THOUGHT WAVES (VRITTIS) OF THE MIND.

CHITTA-VRITTI INSCAPE I P NO. 15

THE MEDITATION HALL – THIS HALL IS DESIGNED BY MAPPING THE FREQUENCY OF THE SACRED WORD “OM”, WHICH ACCORDING TO THE YOGIS IS ALSO THE SOUND OF THE UNIVERSE – THE ANAHATA – MEANING THE UNSTRUCK SOUND, CONSTANTLY VIBRATING, MAPPING WHICH BY THE PROCESS OF CYMATICS WE DERIVE THE FORM OF THE MEDITATION HALL. THE FORM IS ACOUSTICALLY PERFECT FOR ONE DESIRING A CALM SPACE FOR MEDITATION – THE MODERN CAVE.

P NO. 16 I CHITTA-VRITTI INSCAPE

AMPHITHEATRE TEMPLE MEDITATION HALLL

5 MIND STATES PAVILLION

YOGA SPACE YOGA SPACE SUB-SURFACE YOGA SPACE RECEPTION MAIN ENTRANCE LIBRARY PARKING

EXHIBITION SPACE WORKSHOP DINNING & KITCHEN

THE SITE

FORM EVOLUTION OF MEDITATION HALL: HEALING FREQUENCY OF “OM”

1 & 2- CYMATICS DIAGRAM OF 432 HZ FREQUENCY

3- FINAL FORM

SECTION

(HYPER-REVERBRATING SRTUCTURE)

CHITTA-VRITTI INSCAPE I P NO. 17

P NO. 18 I CHITTA-VRITTI INSCAPE

CHITTA-VRITTI INSCAPE I P NO. 19

P NO. 20

SHRAMALAYA

SHRAMALAYA

UNITS FOR CONSTRUCTION LABOURS

LOCATION: 1117, SHIMULTALA, SONARPUR STATION ROAD,S 24 PARGANA WESTBENGAL, INDIA YEAR: 2021 64TH ANNUAL NASA DESIGN COMPETITION SHRAMALAYA IS A LIVING UNIT DESIGN FOR THE CONSTRUCTION LABOURS. ACCORDING TO THE BRIEF THIS IS A DESIGN OF MOBILE SETTLEMENT TO SHELTER THESE CONSRUCTION LABOURS OF THE MEDIUM SCALE PROJECT. THE SHELTER IS COLLAPSIBLE AND EASILY EMPLOYED OVER A VARIETY OF TERRAIN, STAGES OF CONSTRUCTION AND WEATHER CONDITIONS. THE DESIGN IS ADDRESSING THE THE CORE PROBLEMS CONCERNING SAFETY, SECURITY, PRIVACY AND RIGHT TO DIGNIFIED LIVES FOR THE LABOURS. IN THIS DESIGN THERE ARE TWO TYPES OF UNITS FOR LIVING ANF TOILET UNIT, WHICH ARE MADE UP OF LOCALLY AVAILABLE MATERIALS.

SHRAMALAYA I P NO. 21

P NO. 22 I SHRAMALAYA

SHRAMALAYA I P NO. 23

P NO. 24 I SHRAMALAYA

SHRAMALAYA I P NO. 25

P NO. 26

INCARE

INCARE

CARDIAC HOSPITAL

LOCATION: ATAL NAGAR, NAYA RAIPUR (CHHATTISGARH), INDIA YEAR: 2022 ACADEMIC STUDIO PROJECT, 6TH SEMESTER INCARE IS A CARDIAC HOSPITAL BUILDING WHICH IS MOSTLY DESIGNED BY FOLLOWING THE FUNCTION AND EASY CIRCULATION. IT IS STRATEGICALLY DIVIDED INTO TWO PARTS WHERE ONE PART HAVING OUTER PATIENT DEPARTMENT (OPD) AND OTHER PART HAVING IPD AND OTHER AREAS.

BY THIS DIVISION IT BECOME EASILY ACCESSABLE . BUILDING HAS SEPARATE ENTRANCES FOR DIFFERENT PURPOSES LIKE EMERGENCY, MAINENTRANCE, OPD ENTRANCE ETC. FIRST FLOOR HAVING OPEN TERRACE AT THE FRONT SIDE WHICH IS VISIBLE FROM EACH FLOOR’S BALCONY. WITH IPD AND OPD, IT ALSO HAVE OTHER VARIOUS DEPARTMENTS LIKE, OPERATION THEATRE, CATH LAB, CATH REHAB, PEDRIATIC, GENERAL WARDS, DIAGNOSIS AREA ETC. AS BUILDING’S MATERIAL MAINLY CONCREATE AND GLASS. BUT AT THE EXTERIOR FACADE IT HAVING WOODEN PANEL WHICH ENHANCE THE VIEW FROMMTHE OUT SIDE AND ALSO CONNECT THE BUILDING WITH SITE’S GREENARY. THE SITE HAVING OTHER BUILDINGS ALSO LIKE DOCTOR’S AND NURSE’S RESIDENT BLOCK, INSTITUTE BUILDING.

INCARE I P NO. 27

P NO. 28 I INSCARE

SITE PLAN

INSCARE I P NO. 29

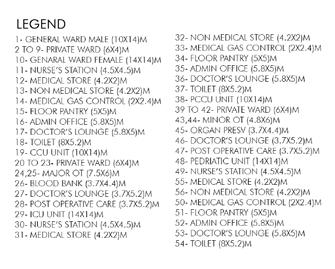

FLOOR PLANS

P NO. 30 I INSCARE

FLOOR PLANS

INSCARE I P NO. 31

P NO. 32 I INSCARE

INSCARE I P NO. 33

P NO. 34

CUBE 3

CUBE3

MOTEL DESIGN

LOCATION: MUMBAI-KOLKATA HIGHWAY (NH6) AH45, DEBRA, WEST MIDNAPUR -721126 WEST BENGAL, INDIA YEAR: 2021 ACADEMIC STUDIO PROJECT, 6TH SEMESTER MOTEL IS BASICALLY A PROVISION OF LODGING, PARKING BESIDE ROAD COMPERITIVELY SMALLER THAN HOTEL, ALSO KNOWN AS ‘MOTOR HOTEL’.

CUBE 3 IS A MOTEL DESIGN WHERE THE CONCEPT IS MINIMALISM, MOTEL’S AMBIENCE WILL BE CALM. THE SIMPLE DESIGN WILL BE HAVING SIMPLE GEOMETRIC FORMS WITH LIMITED AND PLAIN MATERIALS. NEAT AND STRAIGHT COMPONENTS WILL BE IN REPETITION TO GIVE A SENSE OF ORDER AND UNIFICATION. ONE OF THE MAJOR ACCPECTS TO ARRANGE THE BLOCKS THAT IT CAN CREATE A HOMELY INTERRACTIVE AMBIENCE WITHOUT COMPROMISING THE PRIVACY OF THE USERS. ACCORDING TO THE BRIEF THIS MOTEL HAVE CAPACITY OF TEN SUITES EXCLUDING SEPARATE DRIVER’S RESTING PLACE AND ACCOMODATION OF DINING AREA WITH BOTH INDOOR AND OUT DOOR SITTING.

CUBE 3 I P NO. 35

P NO. 36 I CUBE 3

CUBE 3 I P NO. 37

P NO. 38 I CUBE 3

CUBE 3 I P NO. 39

P NO. 40 I CUBE 3

CUBE 3 I P NO. 41

P NO. 42

MISCELLANEOUS

WORKING DRAWING SHOPPING MALL

WORKING DRAWING I P NO. 43

INTERIOR DESIGN CAFE

P NO. 44 I INTERIOR DESIGN

INTERIOR DESIGN I P NO. 45

P NO. 46 I ART WORK

PHOTOGRAPHY I P NO. 47

P NO. 48

THANK YOU +91 6290073335 rhalder1710@gmail.com
