R O O F T O P
L U G G A G E
B O X E S

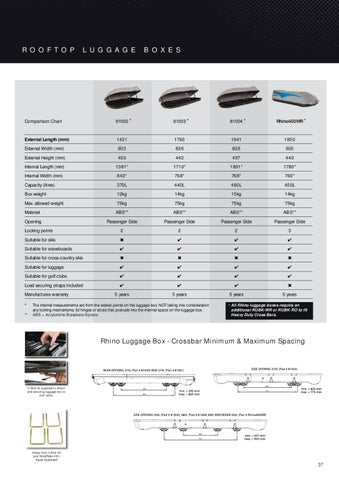

Comparison Chart
81002
81003
81004
Rhino450WR
External Length (mm)
1431
1760
1941
1850
External Width (mm)
903
828
828
800
External Height (mm)
403
442
457
440
Internal Length (mm)
1381*
1710*
1891*
1780*
Internal Width (mm)
843*
768*
768*
760*
Capacity (litres)
370L
440L
480L
450L
Box weight
12kg
14kg
15kg
14kg
Max. allowed weight
75kg
75kg
75kg
75kg
Material
ABS**
ABS**
ABS**
ABS**
Opening
Passenger Side
Passenger Side
Passenger Side
Passenger Side
Locking points
2
2
2
3
Suitable for skis
✖
✔
✔
✔
Suitable for snowboards
✔
✔
✔
✔
Suitable for cross-country skis
✖
✖
✖
✖
Suitable for luggage
✔
✔
✔
✔
Suitable for golf clubs
✔
✔
✔
✔
Load securing straps included
✔
✔
✔
✖
5 years
5 years
5 years
5 years
Manufactures warranty * **
The internal measurements are from the widest points on the luggage box, NOT taking into consideration any locking mechanisms, lid hinges or struts that protrude into the internal space on the luggage box. ABS = Acrylonitrile Butadiene Styrene
All Rhino luggage boxes require an additional RUBK-WR or RUBK-RO to fit Heavy Duty Cross Bars.
Rhino Luggage Box - Crossbar Minimum & Maximum Spacing
U-Bolt kit supplied to attach and securing luggage box to roof racks.
Heavy Duty U-Bolt Kit (suit WindRider 450) Part# RUBKWR
37
