The German-built NG/G13 ceased work in South Africa in 1973 and was purchased by Swiss enthusiasts in 1986. It returned to steam in 1998 and ran on the 60cm gauge Schinznacher Baumschulbahn line in Switzerland until changes to the track layout rendered it unable to traverse the full circuit at the site. The name Drakensberg was applied in Switzerland, a reference to the area in central Southern Africa named Drakensbergen (Dragons’ Mountains) by early Dutch settlers, now known as Drakensberge in Afrikaans. The red dragon is an iconic Welsh symbol and Vale of Rheidol Railway runs from the sea into the mountains of Mid-Wales, the name is therefore highly appropriate and will be retained. A successful conclusion to three years of negotiations by Vale of Rheidol management resulted in the locomotive being transported across Europe to Vale of Rheidol Railway where it arrived on 17 July 2017. Although in generally excellent condition and certified to operate in Switzerland, UK regulations required a fresh boiler test. The decision was made to undertake a full overhaul at VoR’s Aberystwyth workshops. This has progressed between other work, including contract overhauls for other customers, and the suspension of engineering

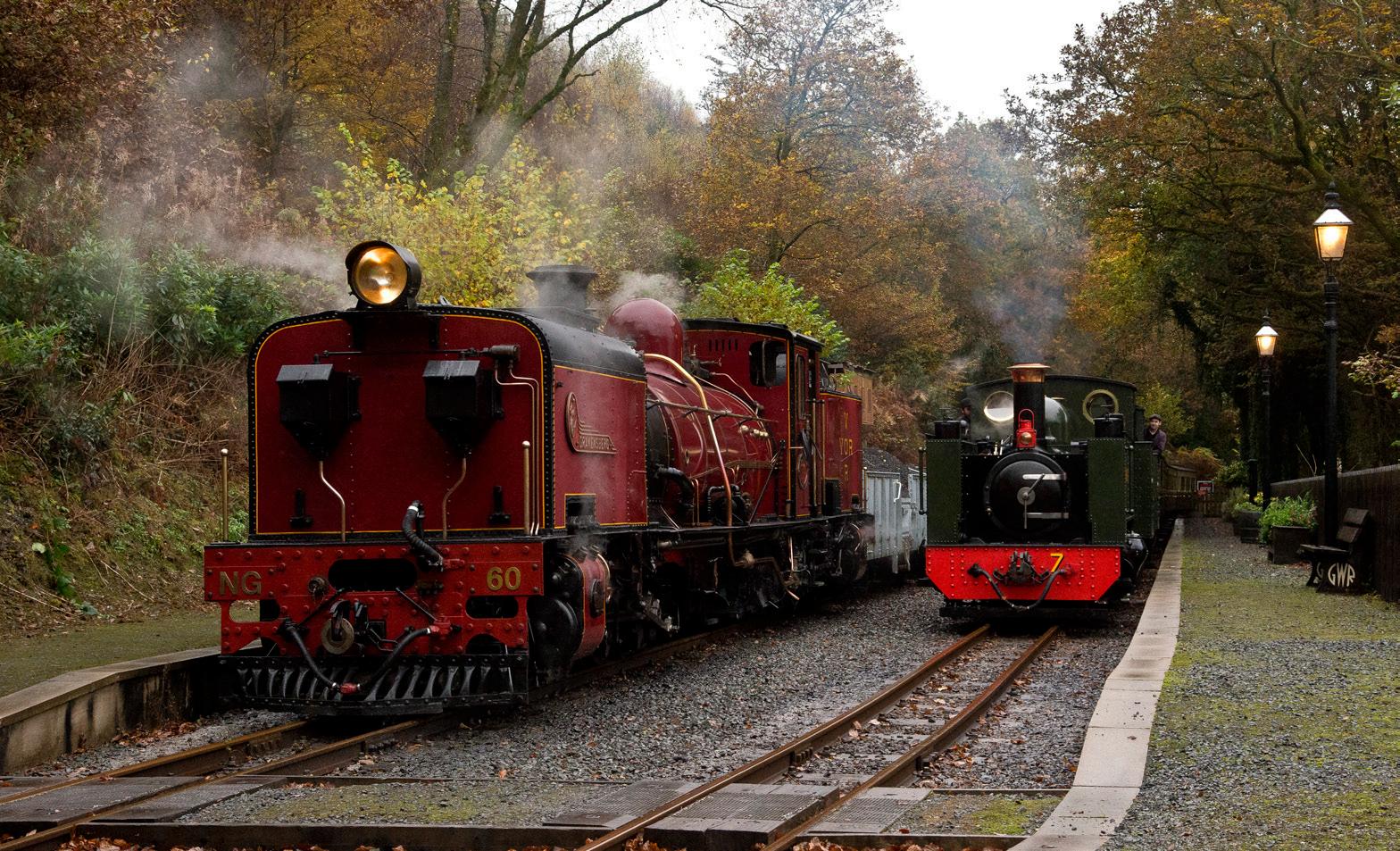

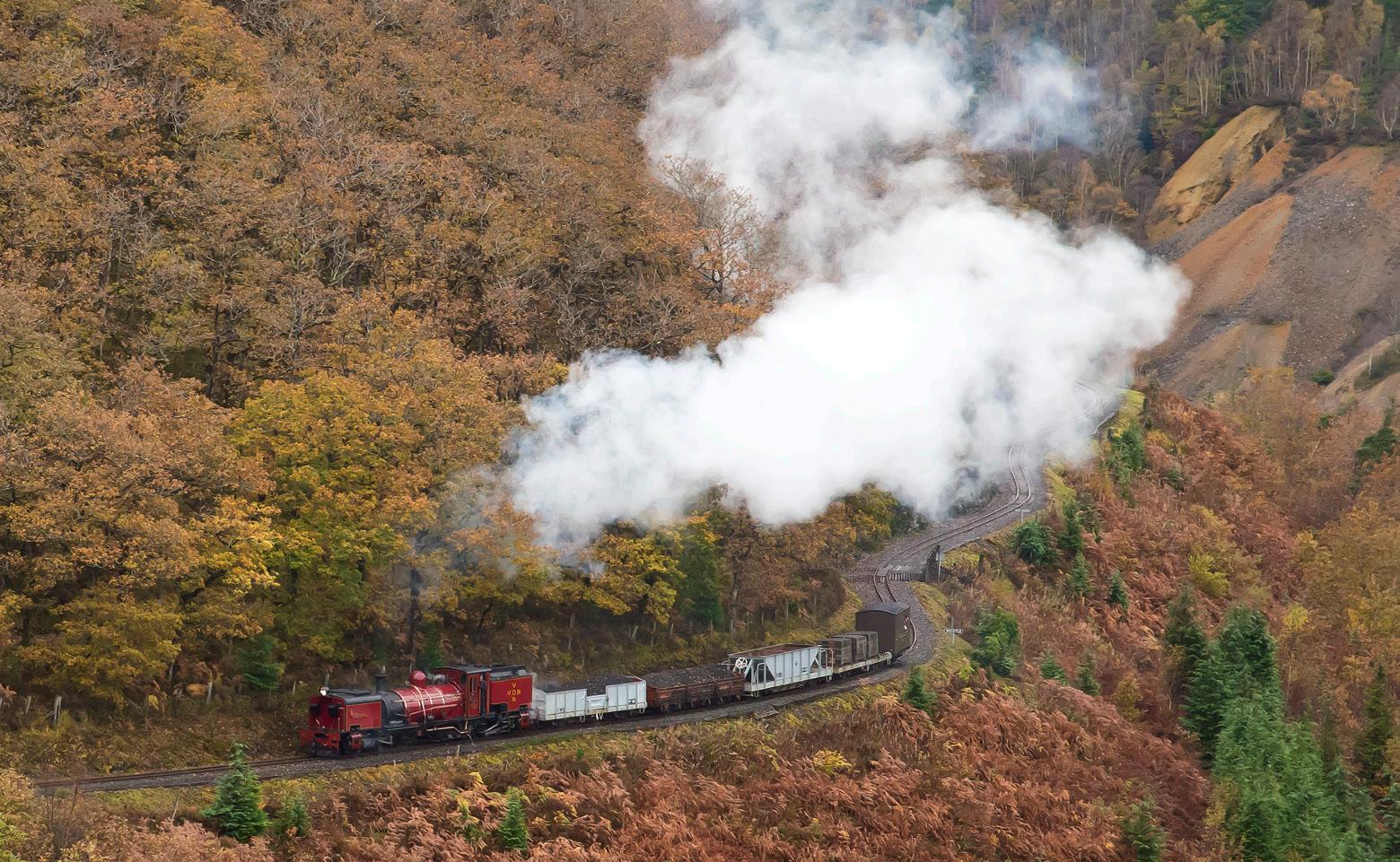

work for periods during 2020 due to the coronavirus pandemic. The locomotive undertook a successful light engine test and gauging operation over the full length of the Vale of Rheidol Railway from Aberystwyth to Devil’s Bridge on 16 October 2021. A loaded test hauling seven carriages to Devil’s Bridge followed on 18 October. The locomotive subsequently hauled a second test train with Directors and Trustees aboard and worked a demonstration freight train on 9 November for a photo charter.

Boiler – stripped and found to be in good condition. The boiler fittings were overhauled, new tubes fitted and a new boiler certificate secured. Power Bogies – stripped, wheels turned, axleboxes inspected, the motion overhauled, new piston and valves rings fitted and accurate setting of the valves. Brake gear – removed, checked and refitted with the addition of full VoR specification air braking including steam operated air pump. Although no longer functional the original vacuum train braking and locomotive steam brake equipment has been retained in the cab to conserve its original appearance. Other equipment – a correct early NG/G13 pattern chimney has been fitted and the loco equipped with VoR couplings and safety chains. The original crossed SAR/SAS (South African Railways/Suid-Afrikaanse Spoorweë) lettering on the bunker has been replaced by crossed VOR/VOR lettering in the same format.

During May, June and July there was a big push within our workshop to get the engine completed. The loco has had new springs fitted but first all the spring hangers and anchor points were built up and machined. This was so that the springs could move freely and reduce the chance of them breaking. The large rods on the motion were white metaled and machined and other parts of the valve gear were re-bushed. The motion was then finally reassembled. The valve timing was then set using our workshop winches. Once this was completed, the boiler could be re-fitted. The boiler had a hydraulic test before installation and two stays replaced. A new stainless steel smokebox and ashpan were then fabricated and fitted to the boiler. The boiler was then had the cladding re-fitted and was painted. The boiler was then finally placed in the frames. The tanks and new bunker were fitted and new fire iron hooks, to the original pattern, manufactured and fitted to the rear of the bunker. The cab was then fitted and a lot of the plumbing replaced with new copper pipes. All the fittings had previously been serviced and repaired and they were fitted back on to the boiler. The cab windows were refitted including a new one manufactured in the workshop. The loco was then finally painted and sign written before a final steam test in the workshop. The loco was then transported back to the WLLR and tested and commissioned over the next few days. A few minor isuues were sorted out and very soon the loco was out pulling trains for the rest of the season.

Production Team left to right: ˆ Llyr ap Iolo - VoR Chief Engineer/Director Robert Gambrill - VoR CEO Robert Bance - VoR Archivist Stephen Phillips - Design, Illustration and research
