HEAT & FANS

BROAN Ventilation Fans ULTRA Pro Bath Fans 2 80 1 HEAT & FANS Kitchen Ventilation Heat Recovery Ventilators CARRO SMART FANS AND LIGHTING 170 176 84 Smart Fans Industrial 286 177
Index

BROAN

1

VENTILATION FANS

2

Ventilation Fans

Broan-NuTone®canimproveindoorairqualityineveryroom of the home. From clearing humidity in the bathroom to removing steam and other airborne effluents in the kitchen, no company knows residential and light commercial ventilation like Broan-NuTone. After countless innovations and a commitment to indoor air quality, trust Broan-NuTone toclearupeveryconcern.

3
When your home breathes, you breathe easier, too.
4
Ventilation Fans

When your home breathes, you breathe easier too.

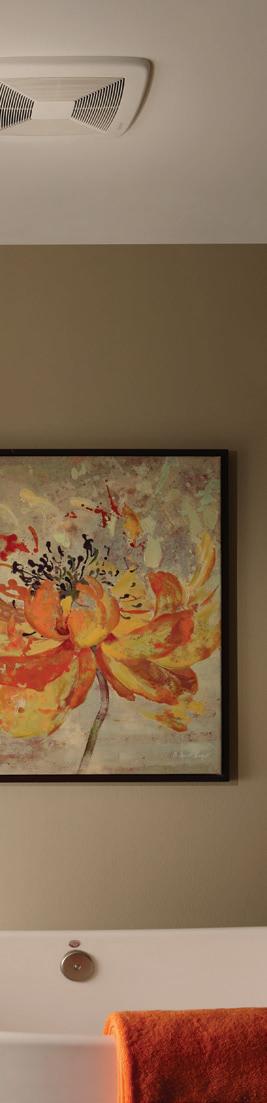

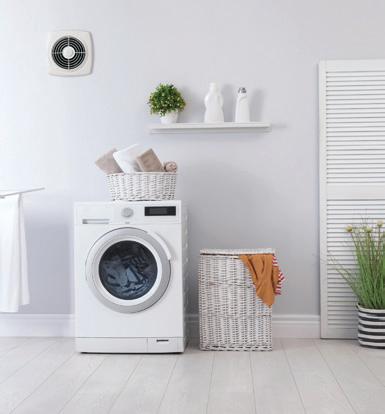

Exhaust Ventilation

removes excess moisture and odor from any room in the home, and can also provide continuous, whole-house ventilation.

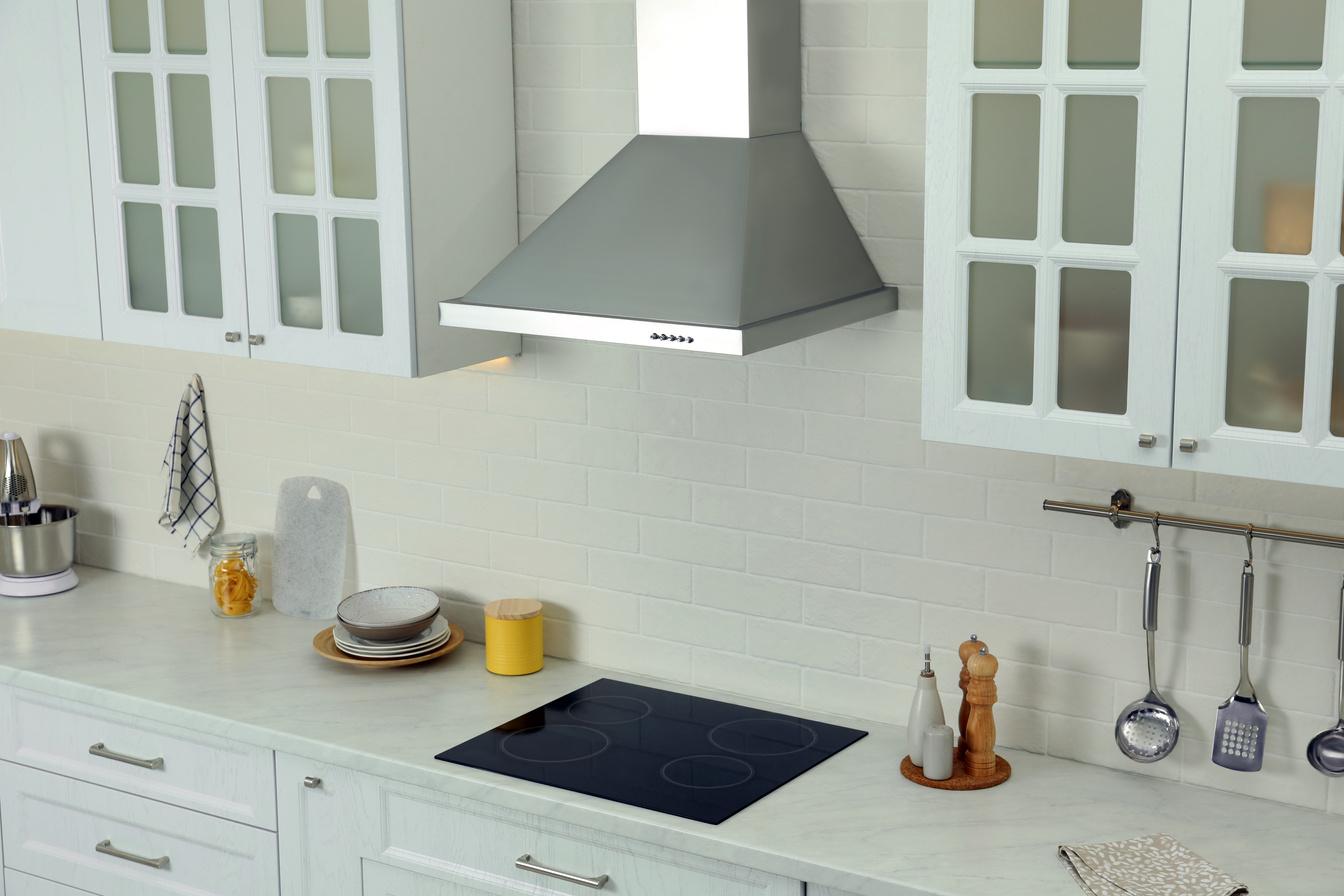

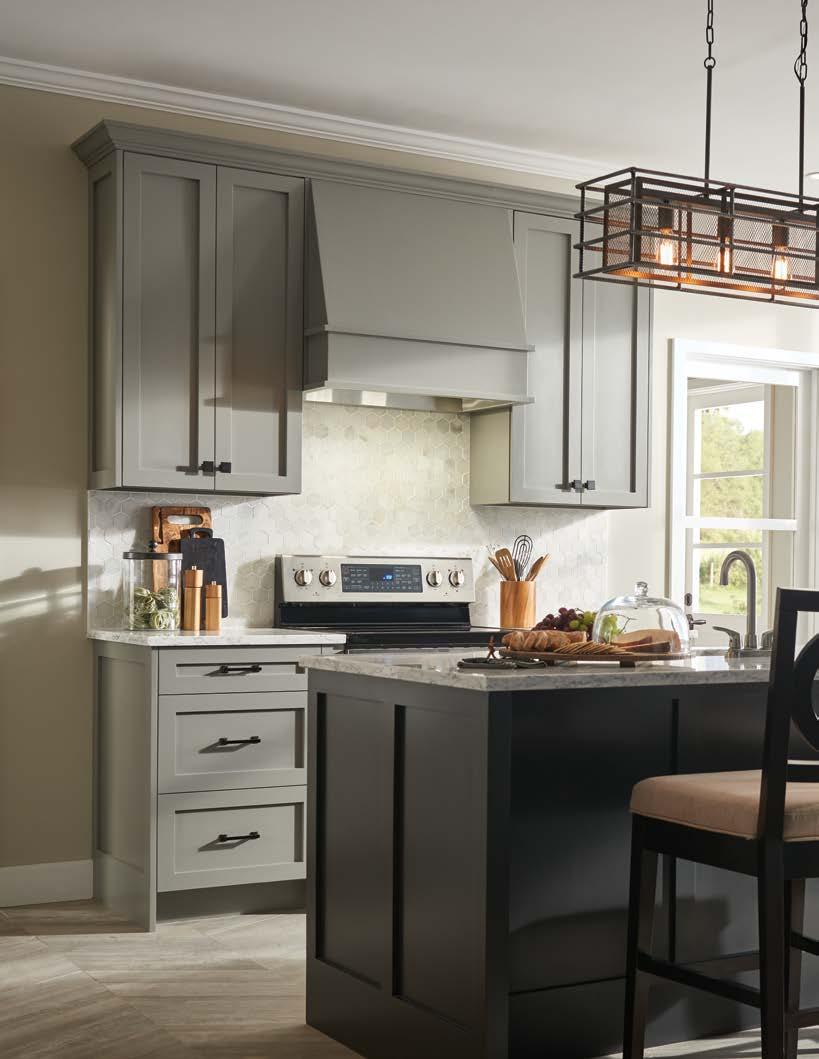

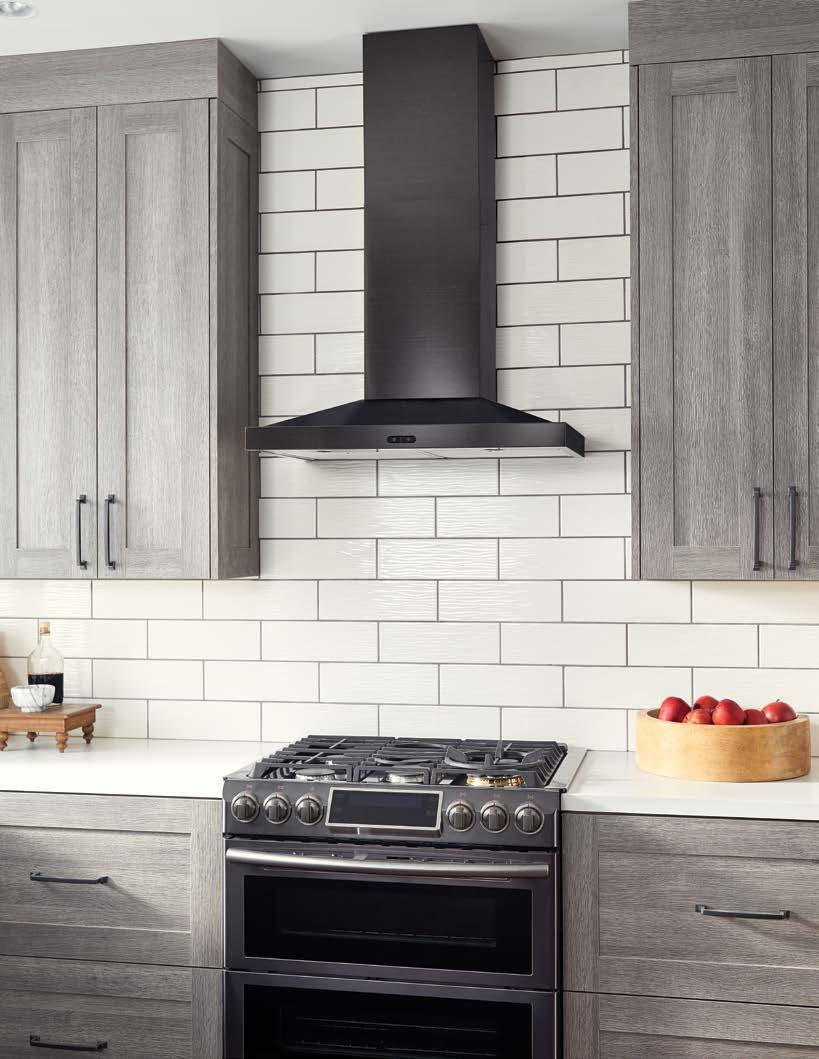

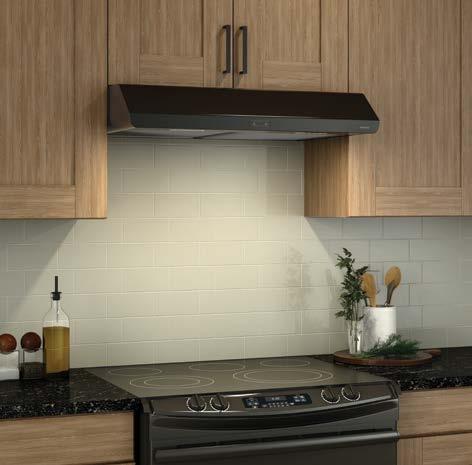

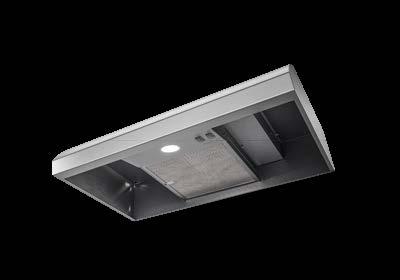

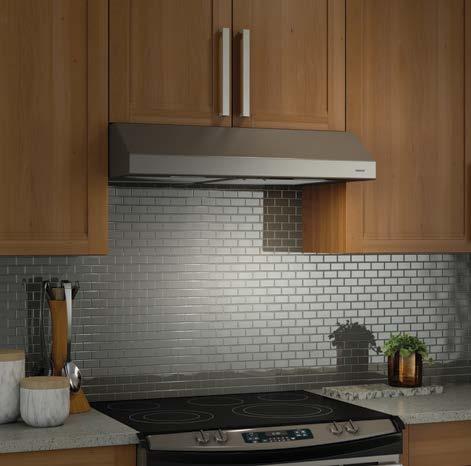

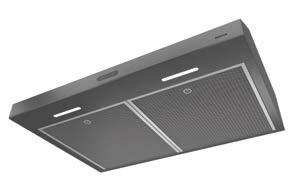

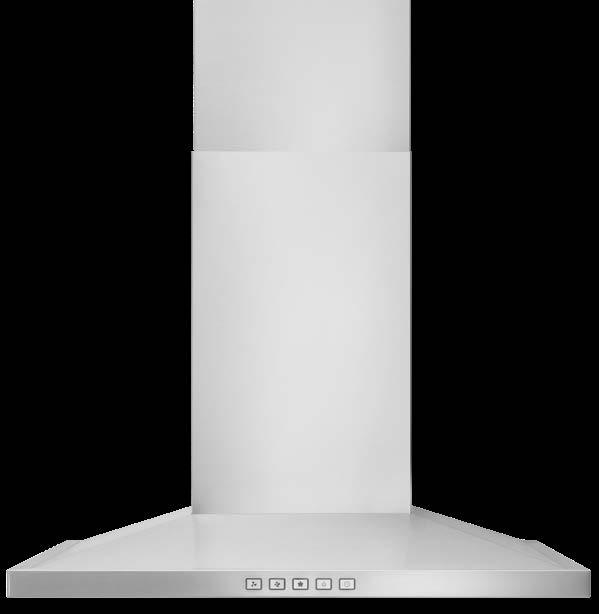

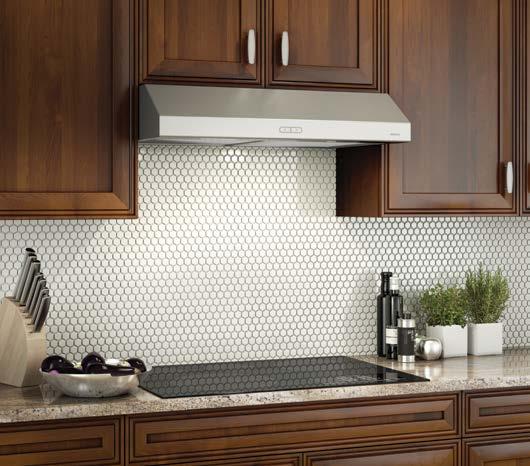

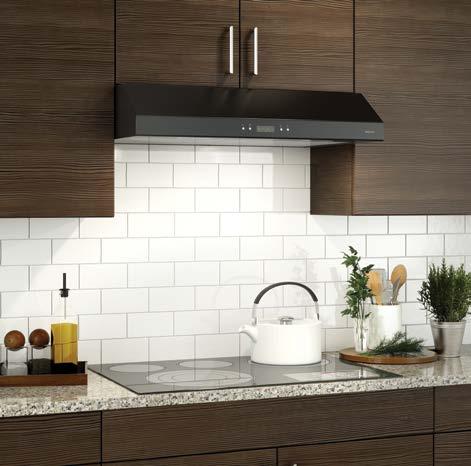

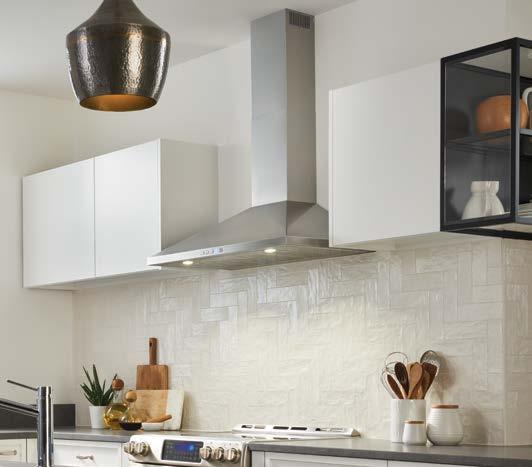

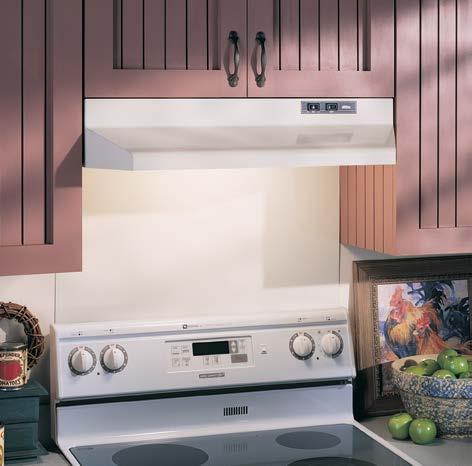

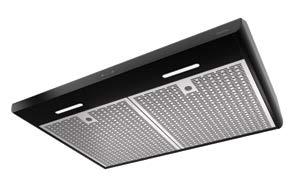

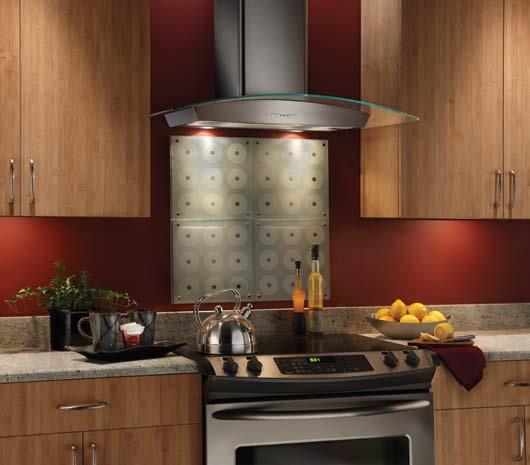

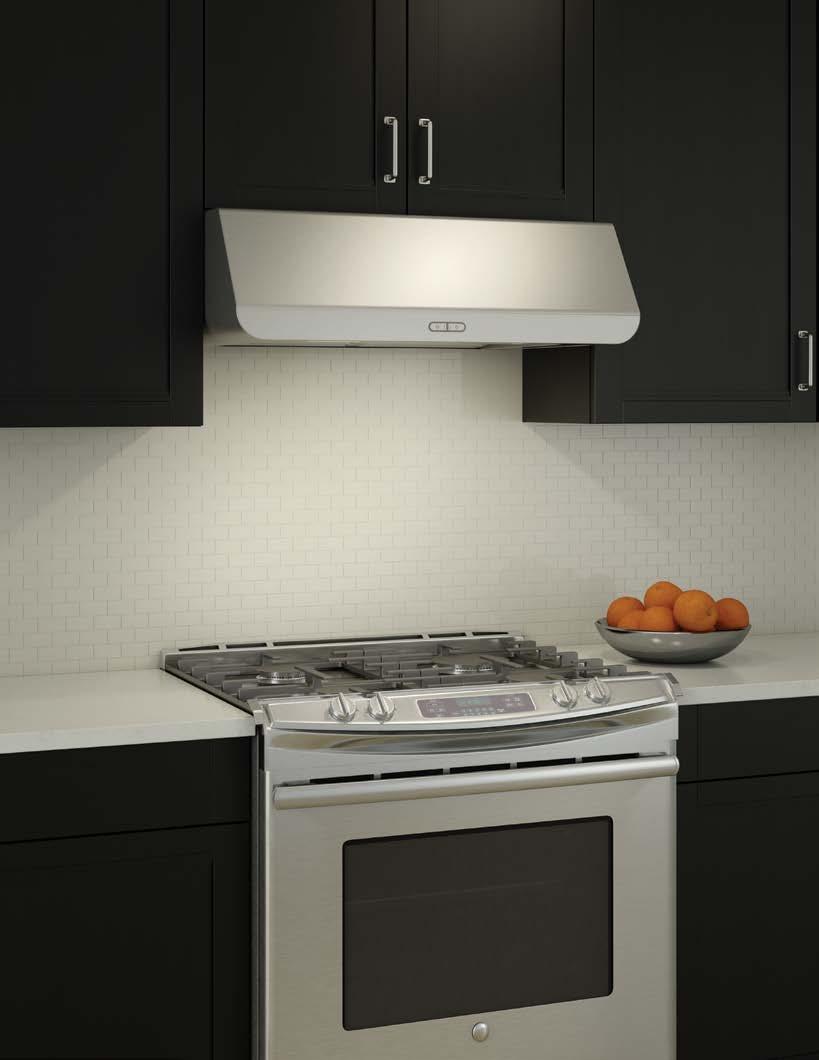

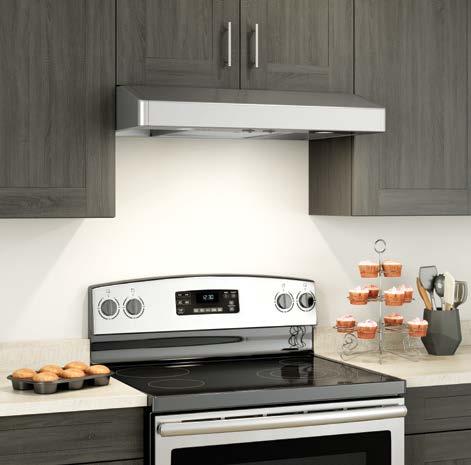

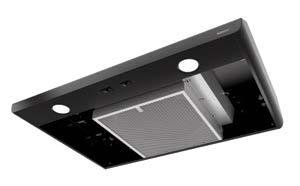

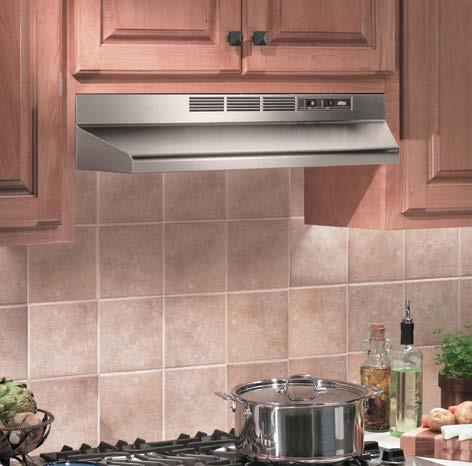

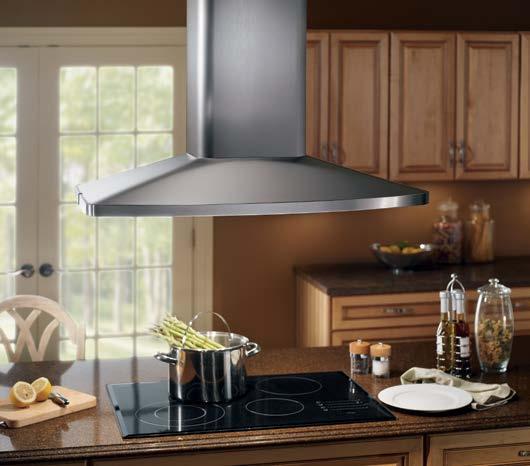

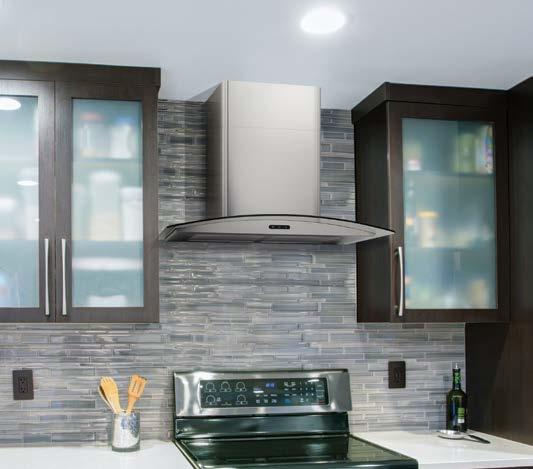

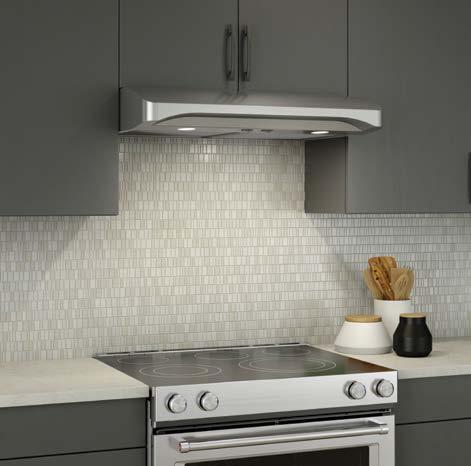

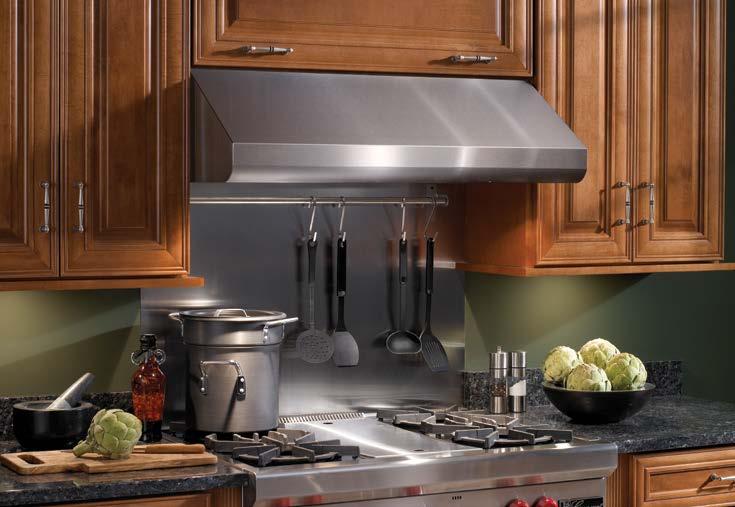

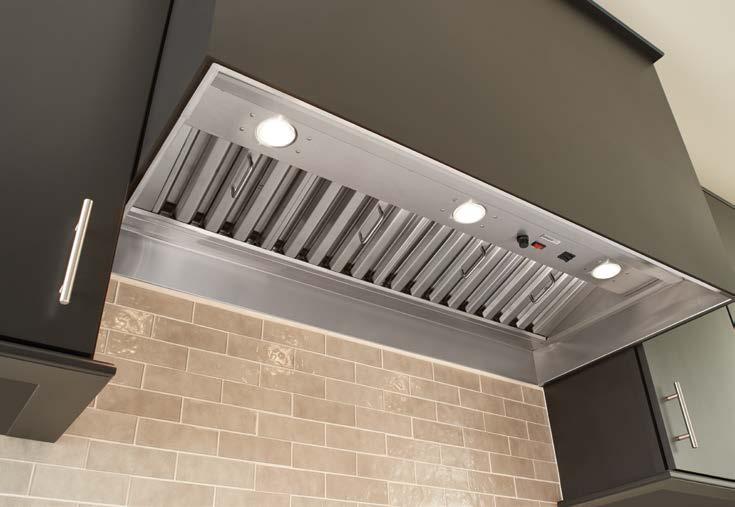

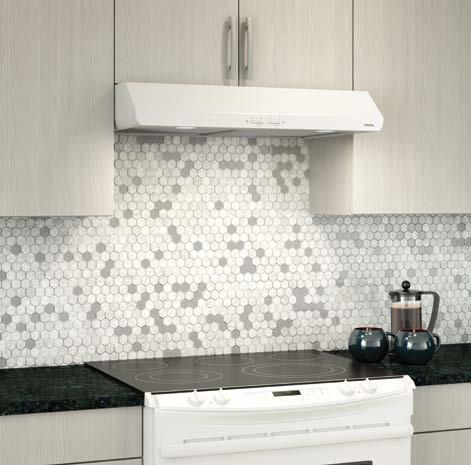

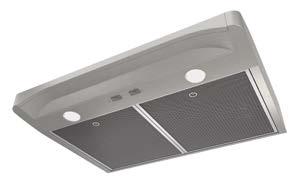

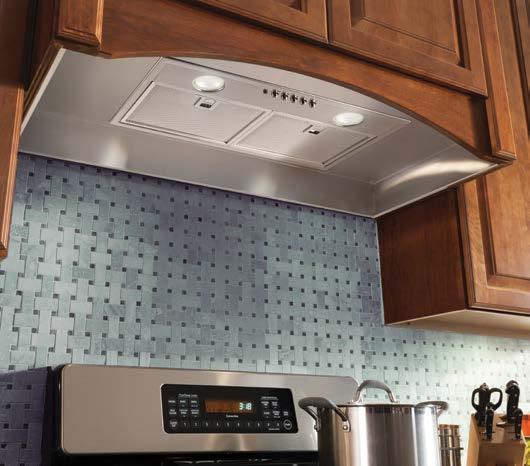

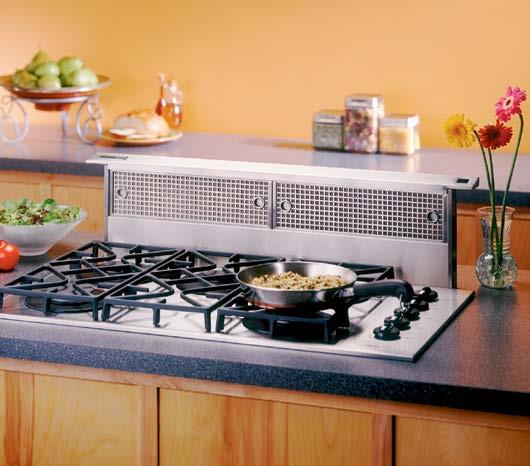

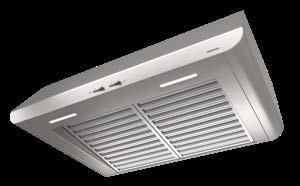

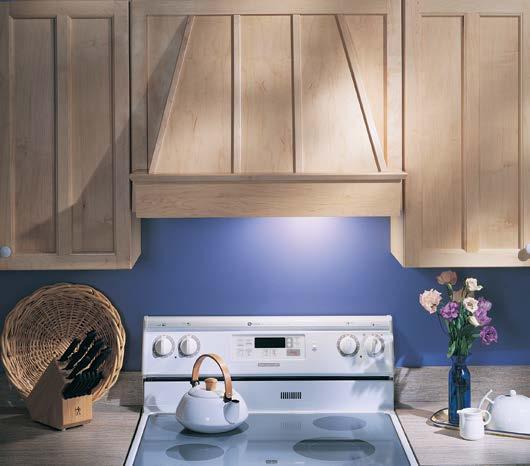

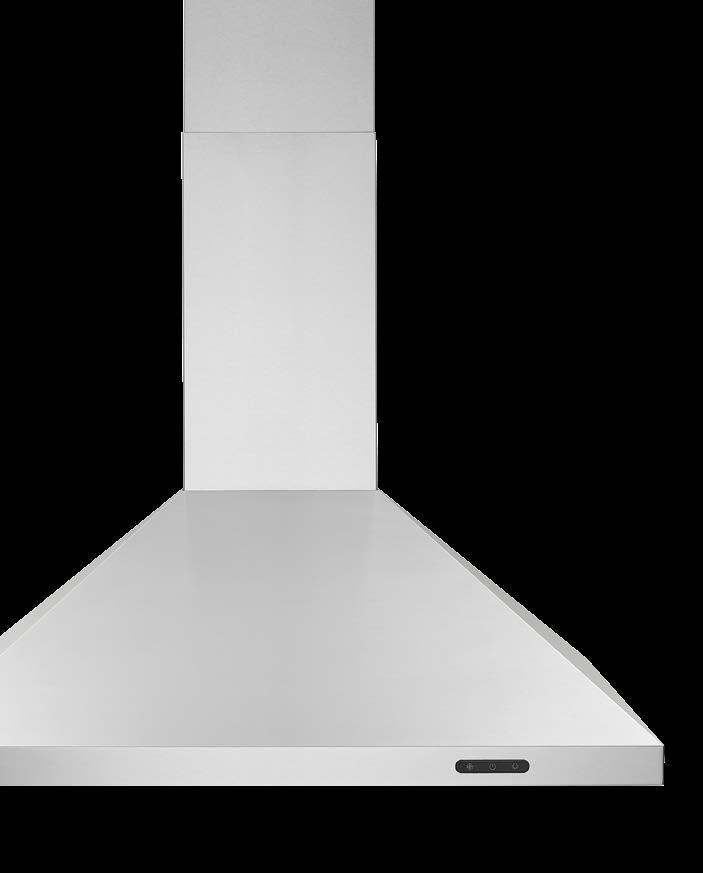

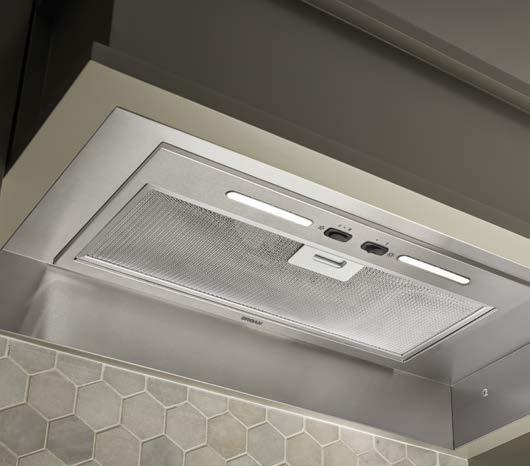

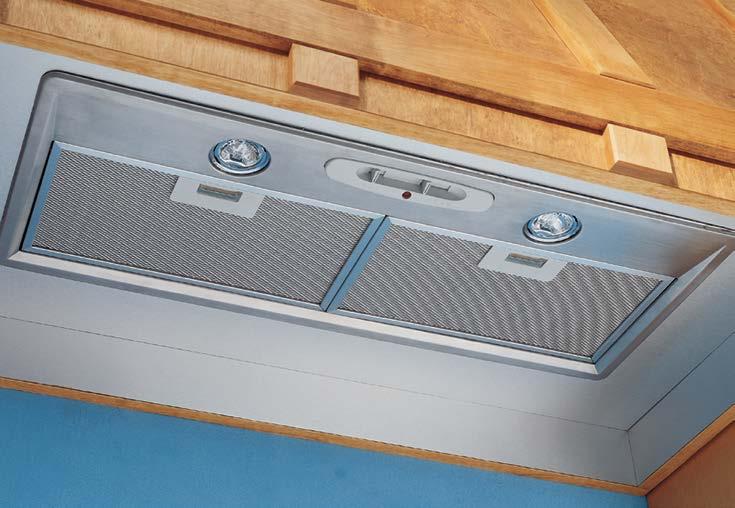

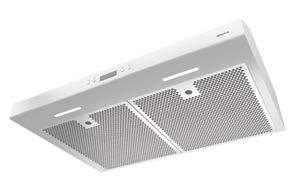

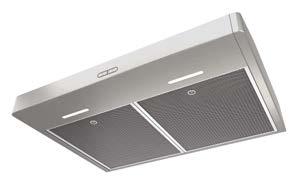

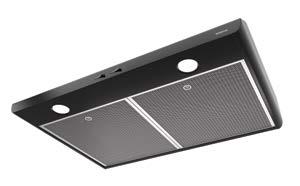

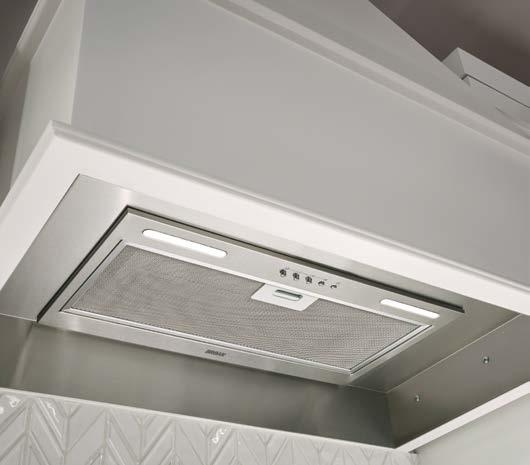

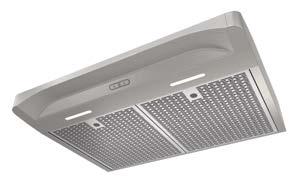

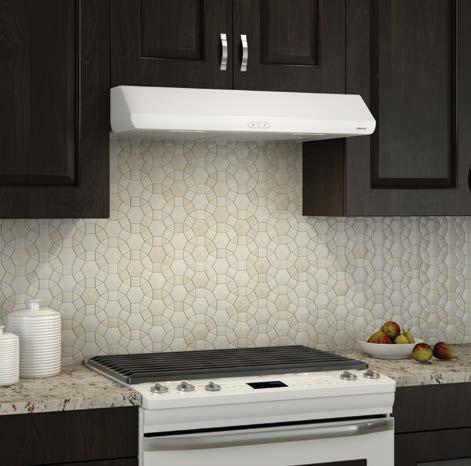

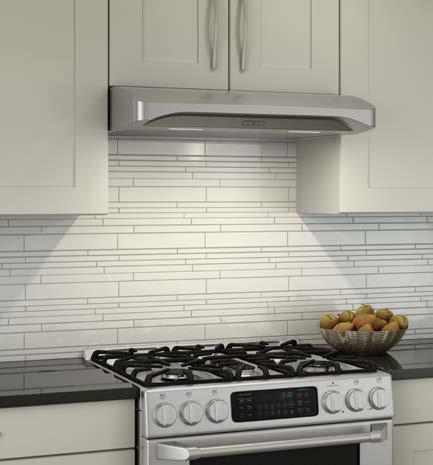

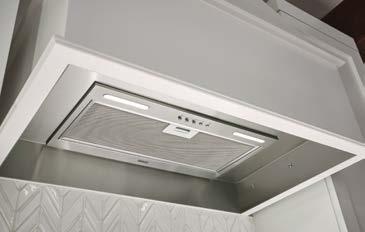

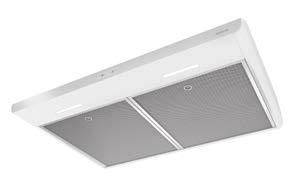

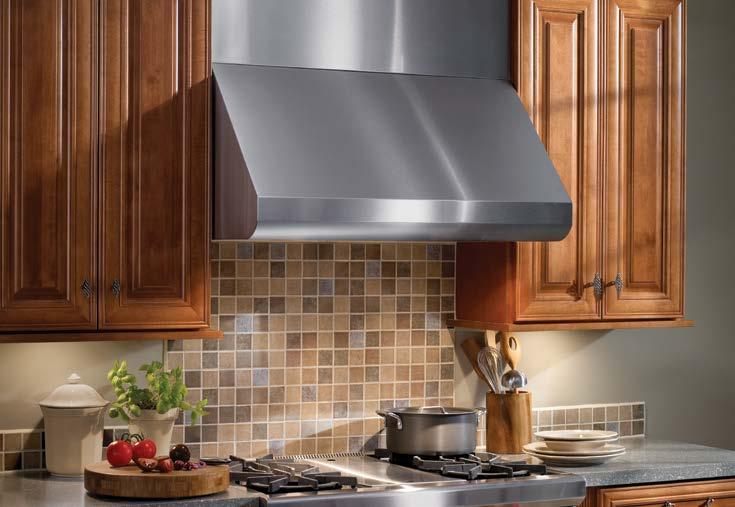

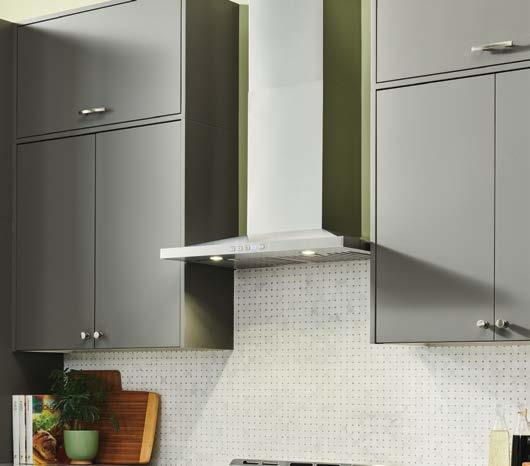

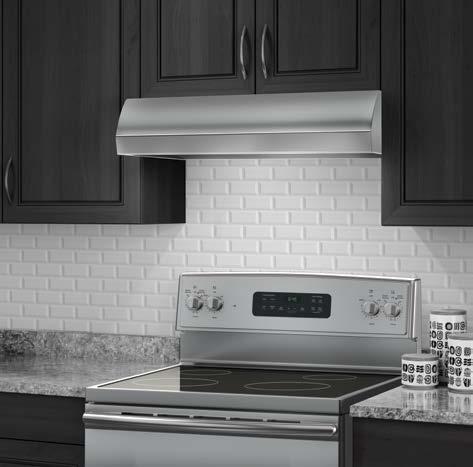

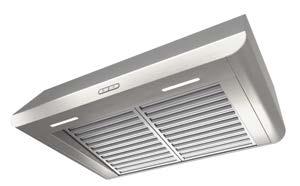

Kitchen Ventilation

expels cooking effluents from food preparation to eliminate airborne pollutants from spreading through the entire house.

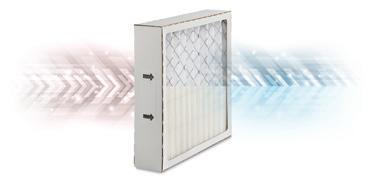

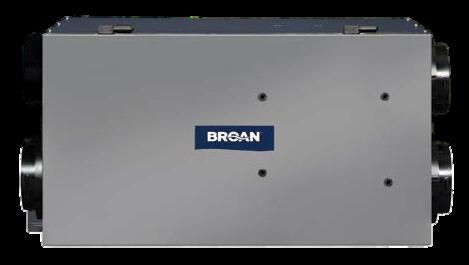

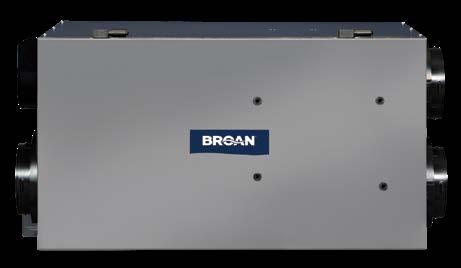

Fresh Air Systems

efficiently exchange inside air with fresh outside air, and remove airborne particulates with HEPA filtration.

Overturetm System

is a fully automated fresh air solution that monitors and manages indoor air quality to eliminate pollutants and bring in fresh, clean air from the outside. See page 9 to learn more.

Broan-NuTone® can improve indoor air quality in every room of the home. From clearing humidity in the bathroom to removing steam and other airborne effluents in the kitchen, no company knows residential and light commercial ventilation like Broan-NuTone. After countless innovations and a commitment to indoor air quality, trust Broan-NuTone to clear up every concern.

2
5

Why indoor air quality is important to you.

Not all homeowners recognize what contributes to poor indoor air quality, the potential effects and harm, and how to address these problems. Broan-NuTone® is here to help. For 90 years, Broan-NuTone has led the industry with residential ventilation solutions that improve indoor air quality and provide healthier home environments.

Moisture that is not properly ventilated can cause mildew and mold formation, potentially leading to structural and health problems.

Exhaust ventilation solutions from Broan-NuTone remove humidity at the source to help maintain the optimal humidity balance of 40–60%.

Off-gassing from construction materials, carpeting, adhesives and synthetic materials—as well as solvents from common household cleaners—can accumulate in tightly built homes. Look to Broan-NuTone for continuous ventilation solutions that meet ASHRAE 62.2.

Particulates

from dust, allergens, pet dander, and more can contribute to poor indoor air quality up to 100 times more polluted than outside air.

A properly ventilated home creates a more enjoyable, comfortable and healthier environment.

Cooking byproducts can infiltrate the whole house in minutes. Grease, oils and aromas settle permanently into carpets, furniture, clothing and other surfaces. Kitchen ventilation solutions help eliminate cooking effluents for a cleaner, more comfortable and healthier environment.

America’s most used and trusted residential ventilation company. Broan-NuTone® is proud to have our American-made ventilation and home comfort and convenience products installed in 90 million homes across the country.

5 Codes 6 Flex Series™ 8 Flex DC Series™ 12 QT® Series Fans 16 ULTRA Pro ® / ULTRA Green® 20 SurfaceShield™ 22 ChromaComfort ® 24 Sensonic ® 28 Decorative / Recessed 30 LoProfile 32 Heater Fan/Lights 38 Economy Fan/Lights 42 Upgrade Kits/Covers 48 Wall Controls 52 Fresh In™ 54 Utility Fans 58 Light Commercial 64 Attic Ventilation 66 Parts & Accessories 68 Specifications 72 Performance Curves
3 6

Industry leadership can’t be claimed.

It’s earned

through innovation.

Nine decades ago, an engineer in Southeastern Wisconsin named Henry Broan had a revelation: wouldn’t a built-in mechanical ventilation solution help to provide better indoor air quality in the kitchen? And so, Motordor ® was conceived—the first kitchen ventilator—and a company was born. The invention of the bath fan soon followed, as the passion for improving indoor air quality continued.

Throughout the years, Broan-NuTone® has led the industry with countless innovations. From the first energy-efficient certified fans and range hoods, to quiet ventilation solutions that are easier than ever to install. It’s because Mr. Broan knew leadership is earned and proven through a passion and commitment to finding novel solutions to real problems time and time again. This is why Broan-NuTone has taken the job of improving air quality in our homes very seriously for 90 years.

4
7

To build a code-compliant home, understand today’s ventilation requirements.

The American Society of Heating, Refrigeration and Air Conditioning Engineers set the ventilation standard for low-rise residential buildings with ASHRAE 62.2. It established the minimum standard for spot ventilation of bathrooms at 50 CFM delivered airflow at 3.0 sones or less, and specifies requirements for whole-house ventilation at a max sound rating of 1.0 sone for ventilation fans.

Use these tables to find whole-house solutions that help meet ASHRAE 62.2.

ENERGY STAR® fans use 70% less energy, on average, than standard models and may qualify for local utility rebates

*With 6" duct (0.3 sones with 4" duct)

Saving energy saves tomorrow by protecting our resources. We are honored to have received the ENERGY STAR® Sustained Excellence Award.

With CODE-KEY, select compliant ventilation solutions with confidence.

• Choose state, home size facts and user preferences

• Get recommended ventilation products instantly

• Change parameters to see a range of options

• Open a browser on any device and go—it’s easy

5
Fan/Light Series Model CFM Sones Page No. ULTRA Green® Multi Speed ZB80L1 80 <0.3* 18 ZB80ML1 80 <0.3* 17 ZB110L1 110 <0.3 18 ZB110HL1 110 <0.3 17 ZB110ML1 110 <0.3 17 ULTRA Green ® Single Speed XB50L1 50 <0.3 18 XB80L1 80 <0.3* 18 XB110L1 110 <0.3 18 XB110HL1 110 <0.3 17 ULTRA Pro ® RB80L1 80 <0.3 19 RB110L1 110 0.8 19 Flex Series™ AE80LK 80 0.7 10 AE110LK 110 1.0 10 Fan Series Model CFM Sones Page No. ULTRA Green ® Multi Speed ZB80 80 <0.3* 18 ZB80M 80 <0.3* 17 ZB110 110 <0.3 18 ZB110H 110 <0.3 17 ULTRA Green ® Single Speed XB50 50 <0.3 18 XB80 80 <0.3* 18 XB110 110 <0.3 18 XB110H 110 <0.3 17 ULTRA Pro ® RB80 80 <0.3 19 RB110 110 0.6 19 QTXE™ QTXE080 80 0.3 14 QTXE110 110 0.7 14 LoProfile LP80 80 1.0 31 Flex Series™ AE50 50 0.5 11 AE80K 80 0.7 11 AE110 110 1.0 11 AE110K 110 1.0 11
8

Flex Series.™ Take the aggravation out of installation.

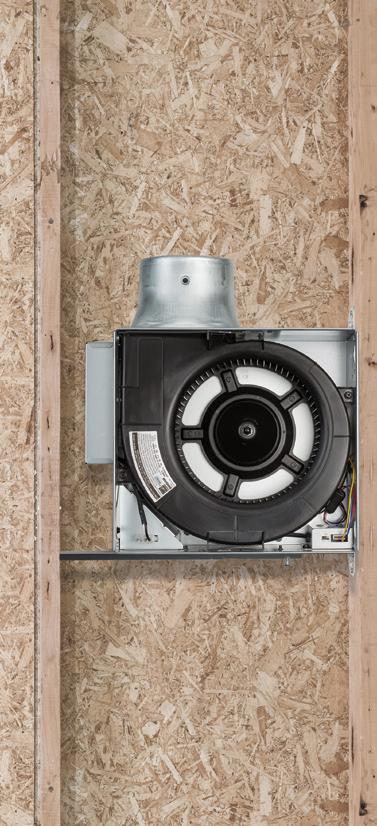

Flex Series™ is about time-saving, flexible solutions for new construction or roomside retrofit. Innovative features simplify roomside installation and improve building airtightness like never before. With fresh cover designs and a full range of fans, fan/lights and sensing models, there’s a Flex Series™ solution for every installation.

9

Easy roomside installation. Airtight performance. LED lighting.

FoldAway ® mounting ears simplify new construction and fold flat for roomside retrofits.

TrueSeal® damper technology reduces air leakage up to 50%, and saves up to 1 HERS point and $9 per year in operating costs.*

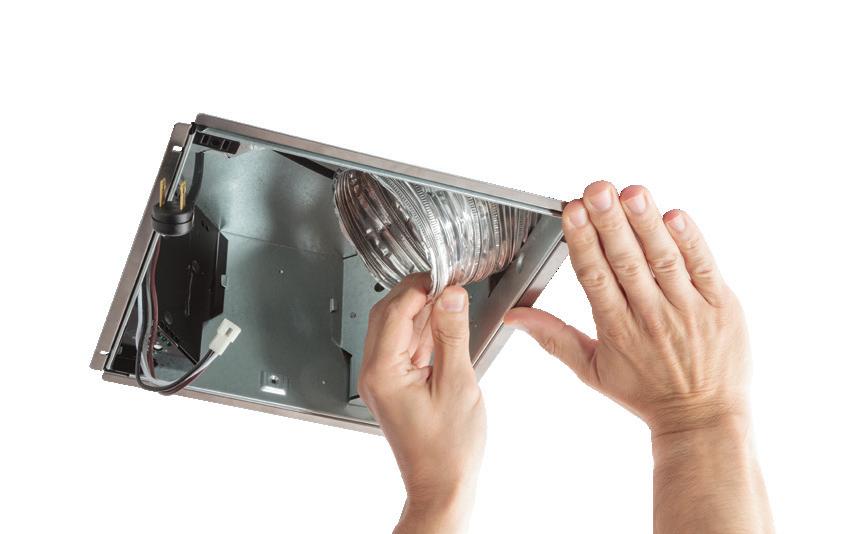

EzDuct™ connector enables roomside installation without attic access. Pull the 4" duct through, attach the EzDuct™ connector and set it with one screw.

LED lighting offers energy efficiency and longevity. The 11-watt, 800 lumen integrated module lasts up to 25,000 hours.

Flex DC Series.™ We took Flex even further. Flex DC Series ventilation fans provide three CFM settings accessible at the touch of a switch. You have the best solution for any installation. An energy-efficient DC motor makes it possible, all while running at less than 1.0 sone at all fan speeds.

Available on select models

Features

Scan or tap the code to see how Flex Series™ fans simplify installation.

• 50% more airtight

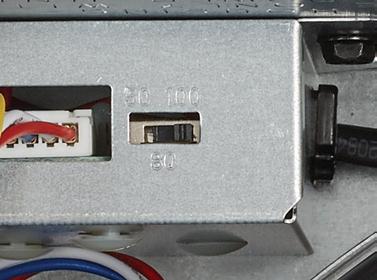

• Select 50, 80 or 110 CFM with a switch

• Dimmable LED fan/lights

• Humidity sensing models

• Quiet operation as low as <0.3 sones

• Flange kit for a leak-free seal (sold separately)

• Enhanced energy efficiency—up to 14.7 CFM/watt

Hanger Bars | Humidity Sensing | LED Lighting

7 FLEX SERIES™
*Compared to competitive fans; based on software calculations and analysis conducted by Broan. Testing reflects total fan housing air tightness.
10

Flex DC Series.™ Simplify installation with three-way selectable CFM.

The Flex DC Series™ was built to give you what matters most. With a selectable DC motor, you can switch between 50, 80 or 110 CFM to meet any room ventilation requirement as well as ASHRAE 62.2 for spot and dwelling unit ventilation. The brushless DC motor lasts longer than standard motors and achieves 90% efficiency, saving money long after installation.

General Features & Benefits

• Selectable DC motor enables right-sized ventilation for any room

• Quiet operation at less than 1.0 sone at all CFM speeds

• TrueSeal® damper technology creates an airtight seal from inside the housing

• 4" round duct connector compatible with any Broan duct increaser

• UL Listed for use over tub and shower when connected to a GFCI protected branch circuit

• Type IC, fits 2" x 6" and larger construction

AE50110DC

Snap-fit Flange Kit

Installation and retrofit upgrades just got easier. Go flangeless or add the flange by simply snapping it on the side of the fan housing for a professional finish and tighter, leak-free seal. UP

AE50110DCS

• Sensaire™ Sense on Rise technology

AE50110DCSL, AE50110DCL

• Dimmable, Title 24 compliant LED lighting

• Sensaire™ Sense on Rise technology on model AE50110DCSL

• Grille pictured is AE50110DCSL

8 FLEX DC SERIES™
TO 50%
DAMPER
Broan Model CFM Sones Light Sensing Duct ENERGY STAR® Overture® Compatible Cover Size AE50110DC 50-80-110 <0.3-0.4-0.9 4 Yes Yes 121⁄2 x 113⁄4 AE50110DCL 50-80-110 <0.3-0.4-0.9 11W LED 4 Yes Yes 121⁄2 x 113⁄4 AE50110DCS 50-80-110 <0.3-0.4-0.9 Humidity 4 Yes Yes 121⁄2 x 113⁄4 AE50110DCSL 50-80-110 <0.3-0.4-0.9 11W LED Humidity 4 Yes Yes 121⁄2 x 113⁄4 ENERGY STAR® fans use 70% less energy, on average, than standard models and may qualify for local utility rebates 9-1/4" 10" 4" 5-3/4" 11
LESS AIR LEAKAGE WITH TRUESEAL®
TECHNOLOGY

General Features & Benefits

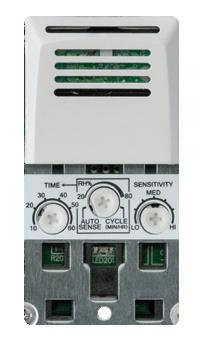

• Detects a rapid rise in humidity

• User adjustable sensitivity control

• Easy-to-set shut-off timer: 5–60 minutes

• UL Listed for use over tub and shower when connected to a GFCI protected branch circuit

AE80S, AE110S

• FoldAway® mounting ears enable easy roomside installation

• Fits in 2x6 ceiling construction

• ENERGY STAR® certified

• HVI Certified

AE80SL, AE110SL

• FoldAway® mounting ears enable easy roomside installation

• Bright, energy efficient LED Lighting

• Fits in 2x6 ceiling construction

• RD2 radiation damper accessory for Flex Series (see page 61) Broan Model CFM Sones

Monitor, measure and manage your indoor air quality with Overture.™

Today’s tightly built homes are models of energy efficiency. But sometimes, what you can’t see requires the most attention. The Overture™ system monitors, measures and manages indoor air quality at the room level. When high levels of humidity, TVOCs, CO2 and temperature are detected, Overture™ automatically starts ventilation devices to exhaust bad air and introduce fresh air.

DID YOU KNOW?

Contractors recognize the Broan-NuTone® ventilation brand above all others.

9 FLEX SERIES™ SENSING FANS & FAN/LIGHTS
Smart Room Sensor Model BIAQRS1 Smart Wall Control Model BIAQWC1 Smart Plug Model BIAQSP1
STAR®
Cover Size AE80S 80 0.7 Humidity 4 Yes Yes 12 x 111
AE110S 110 1.0 Humidity 4 Yes Yes 12 x 111⁄2 AE80SL 80 0.7 11W LED Humidity 4 Yes Yes 121⁄2 x 113⁄4 AE110SL 110 1.0 11W LED Humidity 4 Yes Yes 121⁄2 x 113⁄4 ENERGY STAR® fans use 70% less energy, on average, than standard
and may qualify for local utility rebates 9-1/4" 10" 4" 5-3/4"
Light Sensing Duct ENERGY
Overture® Compatible
⁄2
models
Scan to learn more about Overture™
Look for the Overture™ Badges throughout the catalog to find compatible products.
12

See how SurfaceShield™ kills bacteria and viruses at the touch of a switch.

Scan or tap the code to learn more.

General Features & Benefits

• FoldAway® mounting ears enable easy new construction and roomside replacement installations

• TrueSeal® damper technology forms a tight seal to reduce backdrafts

• EzDuct™ connector creates an air-tight seal inside the housing and enables roomside installation without attic access

• Effective ventilation clears humidity and odors

• UL Listed for use over tub and shower when connected to a GFCI protected branch circuit

• All models starting with AE are ENERGY STAR® certified

A70L, A110L

• Fan/Light with Incandescent E26 Base (bulb not included)

VVLED

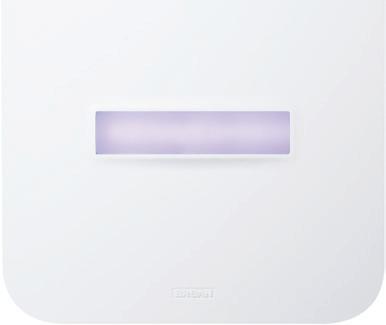

Convert your ventilation fan to a SurfaceShield™ bacteria- and virusfighting solution. The VVLED upgrade light is compatible with the following models: AE50110DCL, AE50110DCSL, AE80BL, AE80SL, AE110L, AEN80BL, AEN110L, AE80LK and AE110LK. See page 21 to learn more.

AE80LK, AE110LK

• CleanCover design stays cleaner longer

• LED Fan/Light with 11 watt, 800 Lumens, 3500K integrated module

• 25,000-hour LED for maintenance-free convenience

AE80BL, AE110L

• LED Fan/Light with 11 watt, 800 Lumens, 3000K, 80 CRI integrated module

• 25,000-hour LED for maintenance-free convenience

AER80CCTK, AER110CCTK

• CleanCover design stays cleaner longer

• Features integrated dimmable LED with color adjustable CCT lighting, warm (3000K), bright (3500K), cool (4000K) and daylight (5000K)

• 25,000 hour LED for maintenance-free convenience

ENERGY STAR® fans use 70% less energy, on average, than standard models and may qualify for local utility rebates

*Bulb not included

10 FLEX SERIES™ FAN/LIGHTS
Broan Model CFM Sones Light Duct ENERGY STAR® Overture® Compatible Cover Size A70L* 70 2.0 E26 Base 4 No Yes 121⁄8 x 111⁄2 A110L* 110 1.3 E26 Base 4 No Yes 121⁄8 x 111⁄2 AE80BL 80 1.2 11W LED 4 Yes Yes 121⁄2 x 113⁄4 AE80LK 80 0.7 11W LED 4 Yes Yes 121⁄4 x 121⁄4 AE110L 110 1.0 11W LED 4 Yes Yes 121⁄2 x 113⁄4 AE110LK 110 1.0 11W LED 4 Yes No 121⁄4 x 121⁄4 AER80CCTK 80 0.7 11W LED 4 Yes Yes 121⁄4 x 121⁄4 AER110CCTK 110 1.0 11W LED 4 Yes Yes 121⁄4 x 121⁄4
9-1/4" 10" 4" 5-3/4"
13

General Features & Benefits

• FoldAway® mounting ears enable easy new construction and roomside replacement installations

• TrueSeal® damper technology forms a tight seal to reduce backdrafts

• EzDuct™ connector creates an air-tight seal inside the housing and enables roomside installation without attic access

• Effective ventilation clears humidity and odors

• UL Listed for use over tub and shower when connected to a GFCI protected branch circuit

• All models starting with AE are ENERGY STAR® certified

A80, A110, AE50, AE80B, AE110

STAR® fans use 70% less energy, on average, than standard models and may qualify for local utility rebates 9-1/4" 10"

Better Life. For Our Veterans.

AE80K, AE110K

We believe that Veterans, particularly those who returned wounded, deserve a better life. So we're proud to support the Homes For Our Troops foundation by donating products to help Veterans breathe fresh, clean air at home.

Broan-NuTone.com

11 FLEX SERIES™ FANS
Model CFM Sones Duct ENERGY STAR® Overture® Compatible Cover Size A80 80 2.0 4 No Yes 12 x 111⁄2 A110 110 3.0 4 No Yes 12 x 111⁄2 AE50 50 0.5 4 Yes Yes 12 x 111⁄2 AE80K 80 0.7 4 Yes Yes 121⁄4 x 121⁄4 AE80B 80 1.2 4 Yes Yes 12 x 111⁄2 AE110 110 1.0 4 Yes Yes 12 x 111⁄2 AE110K 110 1.0 4 Yes No 121⁄4 x 121
4 ENERGY
4"
Broan
5-3/4"
14

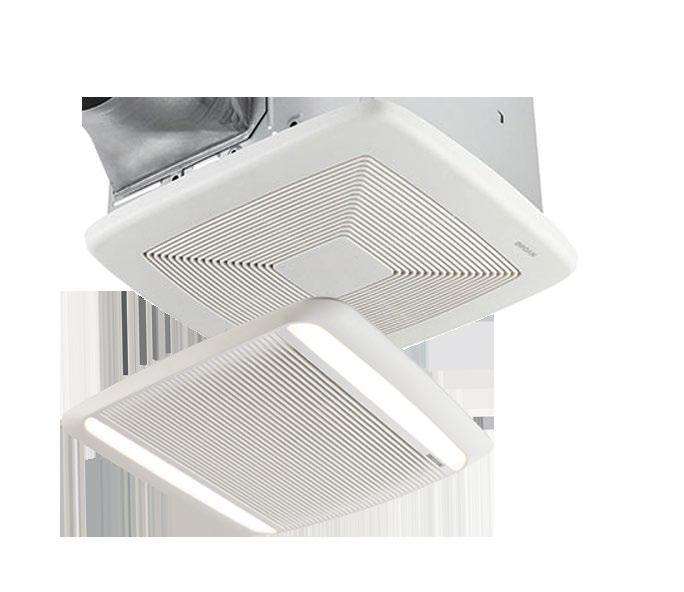

QT® Series. Peaceful moments can be enjoyed even more.

The very quiet Broan-NuTone QT® Series is the ideal solution for any room that benefits from ventilation. Most QT® models operate at less than one sone—the sound of a quiet running refrigerator. But quiet operation doesn’t mean less power. Installed properly, the QT® Series maintains full-rated airflow in real-world installations.

12
15

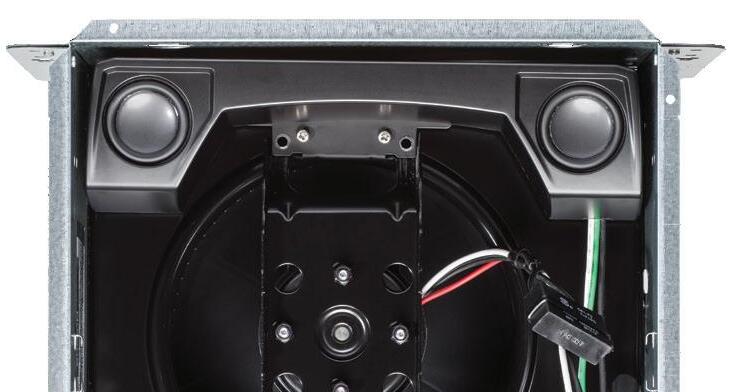

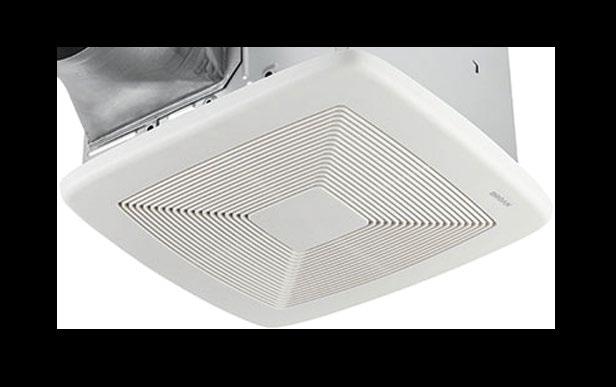

General Features & Benefits

• Selectable DC motor enables right-sized ventilation for any room

• 30% tighter housing than competitive models*

• Flangeless housing facilitates a seamless installation

• Quiet operation at less than or equal to 0.7 sones at all CFM speeds

• TrueSeal® damper technology creates an airtight seal from inside the housing

• 6" round duct connector to reduce static pressure in ducting

• UL Listed for use over tub and shower when connected to a GFCI protected branch circuit

• Type IC, fits 2" x 8" and larger construction

QTXE110150DC

Sensaire™ Humidity Sensing

• Detects a rapid rise in humidity

• User adjustable sensitivity control

• Easy-to-set shut-off timer: 5–60 minutes

QTXE110150DCS

• Fan cover-mounted humidity sensor for fast reaction time

• Sensaire™ Sense on Rise technology

• RDFU1 radiation damper available while supplies last with RDJUMPQ accessory

• Hanger bar system up to 24" for flexible installation in all types of construction

QTXE110150DCL

• Bright, energy-efficient LED lighting

• UL Listed for use over tub and shower when connected to a GFCI protected branch circuit

• ENERGY STAR® certified

• HVI Certified

QTXE110150DCSL

• Bright, energy-efficient LED lighting

• Fan cover-mounted humidity sensor for fast reaction time

• Sensaire™ Sense on Rise technology

• RDFU1 radiation damper available while supplies last with RDJUMPQ accessory

• Hanger bar system up to 24" for flexible installation in all types of construction

*Compared to competitive fans; based on software calculations and analysis conducted by Broan.

Testing reflects total fan housing air tightness.

13 QTDC® SERIES
Broan Model CFM Sones Light Sensing Duct ENERGY STAR® Overture® Compatible Cover Size QTXE110150DC 110-130-150 <0.3-0.4-0.7 6 Yes No 133⁄4 x 13 QTXE110150DCL 110-130-150 <0.3-0.4-0.7 18W LED 6 Yes Yes 133⁄4 x 13 QTXE110150DCS 110-130-150 <0.3-0.4-0.7 Humidity 6 Yes Yes 133⁄4 x 13 QTXE110150DCSL 110-130-150 <0.3-0.4-0.7 18W LED Humidity 6 Yes Yes 133⁄4 x 13 ENERGY STAR® fans use 70% less energy, on average, than standard models and may qualify for local utility rebates
10-1/2" 11-3/8" 6" 7-5/8" 10-1/2" 11-3/8" 6" 7-5/8" 16

QTXEDCH

Simplify Installation with Project Packs. Project packs are ideal for contractors and builders who have yet to pick out the final product. With the housing for the fan sold separately from the cover and motor, contractors are able to continue with construction and not have to worry about damaging, losing or storing the product. Once all construction is complete, the purchase of a finish pack, 4 covers and 4 motor/blower wheels, can be made to add the finishing touches to the room.

RDFQF

Premium Radiation Damper.

When the air temperature passing through the damper exceeds 165°F the fusible link melts, triggering the thermal fabric to automatically close across the damper. Airflow is interrupted by a flame and heat barrier, preventing the rapid spread of fire to other areas. Scan or tap the code to learn more.

General Features & Benefits

• Very quiet operation 0.3 to 1.4 sones

• 80 CFM to 150 CFM

• 6" ducting for superior performance

• Hanger bar system up to 24" for flexible installation in all types of construction

• Motor engineered for continuous operation

QTXE110S

• Fan cover-mounted humidity sensor for fast reaction time

• Sensaire™ Sense on Rise technology

• Hanger bar system up to 24" for flexible installation in all types of construction

• UL Listed for use over tub and shower when connected to a GFCI protected branch circuit

• Fits 2x8 ceiling construction

• ENERGY STAR® certified

• HVI Certified

• Radiation damper RDFQF available separately

QTXE080, QTXE110, QTXE150

14 QT® SERIES FANS
Broan Model CFM Sones Duct Sensing ENERGY STAR® Overture® Compatible Broan Cover Size QTXE110S 110 0.7 6 Humidity Yes Yes 133⁄4 x 127⁄8 QTXE080 80 0.3 6 Yes Yes 133⁄4 x 13 QTXE110 110 0.7 6 Yes Yes 133⁄4 x 13 QTXE150 150 1.4 6 Yes Yes 133⁄4 x 13 ENERGY
10-1/2" 11-3/8" 6" 7-5/8"
STAR® fans use 70% less energy, on average, than standard models and may qualify for local utility rebates
17
15 18
We didn’t just change one thing to make installation faster. We changed everything.

ULTRA Green® . The perfect solution to meet today’s continuous ventilation requirements. Built for easy installation in either new construction or retrofit applications, the ULTRA Green® Series makes it simple to ventilate any room in the house. Exclusive ULTRA Smart™ DC Motor and Control Technology enables fans to maintain their powerful operation—even at high static pressures—and provide required air movement levels for whole-house ventilation, all while meeting spot ventilation needs on-demand. Continuous CFM levels can be precisely adjusted to meet the specific needs of each home.

For the fastest, easiest, most universal solution for any installation, think ULTRA® Series. With a unique telescoping mounting frame that installs roomside on retro-fits and an easy-to-insert housing and blower that snap into place, you’ll never have another difficult installation—no matter what’s behind the drywall.

16
19

General Features & Benefits

• HVI Certified at <0.3 sones, ULTRA Silent™ sound technology provides the quietest sound rating obtainable

• 80 or 110 CFM

• Intermittent and continuous ventilation

• ULTRA Smart™ DC Motor and Control Technology monitors CFM output and adjusts motor speed to ensure rated air movement ULTRAQuick® installation technology enables fast, easy, universal installation

• XB and ZB models feature 6" ducting 80 CFM models include an optional 6" to 4" duct reducer

• UL Listed for use over tub and shower when connected to a GFCI protected branch circuit

• Type IC

• Fits 2x8 ceiling construction

• Optional RDFU premium radiation damper kit available

ENERGY STAR® fans use 70% less energy, on average, than standard models and may qualify for local utility rebates

*With 6" duct (with 4" duct 0.3)

Scan the code to see how ULTRA® Series fans simplify installation.

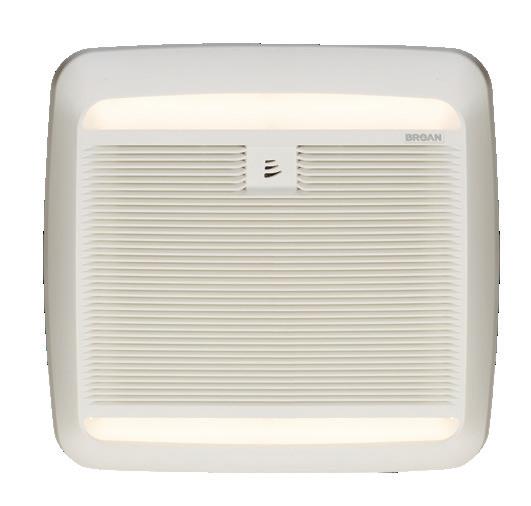

17 ULTRA GREEN® SENSING FANS & FAN/LIGHTS
ZB80ML1, ZB110ML1 ZB80M XB110HL1, ZB110HL1
Broan Model CFM Sones Light Sensing Duct ENERGY STAR® Overture® Compatible Cover Size XB110H 110 <0.3 Humidity 6 Yes Yes 14 x 131⁄8 XB110HL1 110 <0.3 LED Humidity 6 Yes Yes 133⁄4 x 141⁄4 ZB110H 110 <0.3 Humidity 6 Yes Yes 14 x 131⁄8 ZB110HL1 110 <0.3 LED Humidity 6 Yes Yes 133⁄4 x 141⁄4 ZB80ML1 80 <0.3* LED Motion 6 Round + 6 to 4 Reducer Yes Yes 133⁄4 x 141⁄4 ZB110ML1 110 <0.3 LED Motion 6 Yes Yes 133⁄4 x 141
4 ZB80M 80 <0.3* Motion 6 Round + 6 to 4 Reducer Yes Yes 14 x 131
8
XB110H, ZB110H
6" 7-5/8"
10-1/2" 11-3/8"
20

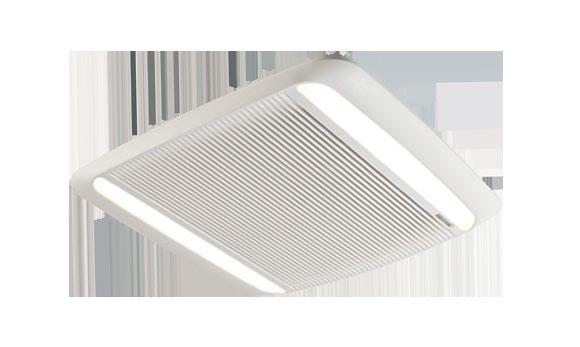

General Features & Benefits

HVI Certified at <0.3 sones, ULTRA Silent™ sound technology provides the quietest sound rating obtainable

50, 80 or 110 CFM

Intermittent and continuous ventilation

• ULTRA Smart™ DC Motor and Control technology monitors CFM output and adjusts motor speed to ensure rated air movement ULTRAQuick® installation technology enables fast, easy, universal installation

XB50L1, XB80L1, XB110L1, ZB80L1, ZB110L1

• Bright, energy-efficient LED lighting

• XB and ZB models feature 6" ducting—50 and 80 CFM models include an optional 6" to 4" duct reducer

• UL Listed for use over tub and shower when connected to a GFCI protected branch circuit

• Type IC

• Fits 2x8 ceiling construction

• Optional RDFU Premium Radiation Damper Kit available

XB50, XB80, XB110, ZB80, ZB110

STAR® fans use 70% less energy, on average, than standard models and may qualify for local utility rebates

*With 6" duct (with 4" duct 0.3)

With CODE-KEY, select compliant ventilation solutions with confidence.

• Choose state, home size facts and user preferences

• Get recommended ventilation products instantly

• Change parameters to see a range of options

• Open a browser on any device and go—it’s easy

18

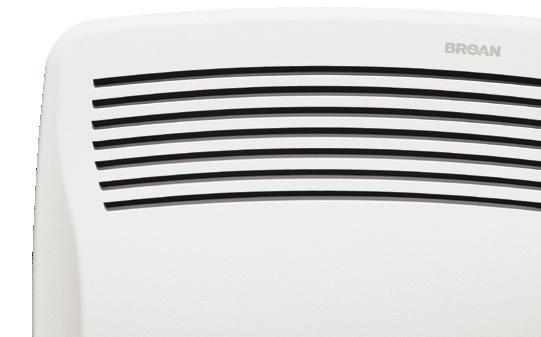

ULTRA GREEN® FANS & FAN/LIGHTS Broan Model CFM Sones Light Duct ENERGY STAR® Overture® Compatible Cover Size XB50L1 50 <0.3 LED 6 Round + 6 to 4 Reducer Yes Yes 133⁄4 x 141⁄4 XB80L1 80 <0.3* LED 6 Round + 6 to 4 Reducer Yes Yes 133⁄4 x 141⁄4 XB110L1 110 <0.3 LED 6 Yes Yes 133⁄4 x 141⁄4 ZB80L1 80 <0.3* LED 6 Round + 6 to 4 Reducer Yes Yes 133⁄4 x 141⁄4 ZB110L1 110 <0.3 LED 6 Yes Yes 133⁄4 x 141⁄4 XB50 50 <0.3 6 Round + 6 to 4 Reducer Yes Yes 133⁄4 x 13 XB80 80 <0.3* 6 Round + 6 to 4 Reducer Yes Yes 133⁄4 x 13 XB110 110 <0.3 6 Yes Yes 133⁄4 x 13 ZB80 80 <0.3* 6 Round + 6 to 4 Reducer Yes Yes 133⁄4 x 13 ZB110 110 <0.3 6 Yes Yes 133⁄4 x 13 ENERGY
10-1/2" 11-3/8" 6"
7-5/8"
21

General Features & Benefits

• Extremely quiet operation with innovative sound reduction technologies

• QStream™ technology features airflow-smoothing baffles to reduce turbulence

• Optional RDFU Premium Radiation Damper Kit available for RB models

RB80L1, RB110L1

RB80, RB110

Broan Model CFM Sones Light Duct ENERGY STAR® Overture® Compatible Cover Size RB80L1

ENERGY STAR® fans use 70% less energy, on average, than standard models and may qualify for local utility rebates

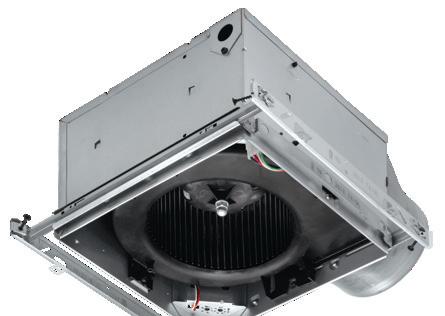

ULTRAQUICK® INSTALLATION TECHNOLOGY

ULTRA® Ventilation Fans are engineered to be the fastest, easiest, most universal installation in remodel, retrofit or new construction—in any type of joist or truss system. Exclusive features simplify installation to save valuable time and money.

Inside/outside wiring capability provides flexible new or retrofit installation

Pre-installed screws in the mounting frame enable quick installation

Vertical positioning tabs ensure the housing is in the right place

The expandable mounting frame adjusts from 14"–24" and fits any type of joist, I-Joist or truss construction

19 ULTRA PRO® FANS & FAN/LIGHTS
80
LED 4 Yes Yes 133⁄
141
4 RB110L1 110 0.8 LED 4 Yes Yes 133⁄4 x 141⁄4 RB80 80 <0.3 4 Yes Yes 133⁄4 x 13 RB110 110 0.6 4 Yes Yes 133⁄
13
<0.3
4 x
4 x
10-1/2" 11-3/8" 4" 7-5/8"
22
You wipe

down

every surface. Now shield them all day long.

SurfaceShield™ with Vyv™ antimicrobial light technology is helping keep your spaces cleaner. SurfaceShield quietly removes excess humidity while killing* viruses and fighting bacteria, mold, and fungi growth in your bathroom or other humidity prone environments. With the flip of a switch you’ll spend less time cleaning and more time with the ones you love.

Shower curtains, shower walls, toilet seats, door handles, faucets and sinks are all places viruses, odor and illness causing bacteria, mold, and mildew accumulate. By preventing microbes from lingering, BroanNuTone’s SurfaceShield™ technology works doubly hard by removing airborne pollutants from the room and reducing microbial buildup.

That technology is coupled with the powerful and quiet 110 CFM Roomside™ series bathroom ventilation fan to remove humidity and pollutants from the air in the room.

*Testing on a non-enveloped virus (MS2 bacteriophage) showed a 99.985% reduction in controlled laboratory testing in 6 hours on hard surfaces. MRSA and E. coli showed 90%+ reduction in controlled laboratory testing in 24 hours on hard surfaces. Results may vary depending on the amount of light that is reaching the surfaces in the space where the product is installed and the length of time of exposure. Use of Vyv antimicrobial light is not intended to replace manual cleaning. Get more info at vyv.tech/virus

20
SurfaceShield Purple Light Everyday White LED Light 23

SurfaceShield™ Anti-bacterial Fan/Light AR110LKVV, ARN110LKVV

• EzDuct™ connector enables easy roomside installation

• TrueSeal® damper technology reduces air leakage up to 50%

• SnapFit Flange Kit offers flexible installation for new construction or retrofit upgrades

• Foldable mounting ears allow for easy installation in both new construction and room-side replacement applications

• Powerful enough for rooms up to 105 sq. ft.

• Brighter white covers blend in to match most common ceiling paint

• Corrosion resistant galvanized steel housing stands up to moisture

• Permanently lubricated AC motor engineered for continuous operation

Turn your existing fan/ light into a SurfaceShield™ anti-bacterial solution and virus-killing solution. With an upgrade kit or LED module, many Broan-NuTone® fan/lights can be converted into a SurfaceShield™ solution in a matter of minutes. Both are compatible with certain legacy Broan® or NuTone InVent ®, Flex Series™ , or Roomside Series fan/light.

Upgrade Fan Cover FG1000VV

• CleanCover® stays cleaner longer with less louvers to trap dust and dirt

• Two lighting modes: an everyday LED white light perfect for task lighting and the SurfaceShield™ continuous antibacterial mode

• Compatible with existing ventilation fan housing dimensions of 91⁄4" x 10" (lighted fans only) Broan

• No drywall or additional wiring work required. Plugs directly into existing lighting connection

LED Module VVLED

• Replace the LED lighting module in your existing fan/light

• Two lighting modes: an everyday LED white light perfect for task lighting and the SurfaceShield™ continuous antibacterial mode

21 SurfaceShield™
Model NuTone Model CFM Sones Light Duct Overture® Compatible Cover Size AR110LKVV ARN110LKVV 110 1.0 LED 4 Yes 121⁄4 x 121⁄4 FG1000VV LED 121⁄4 x 121⁄4 VVLED LED Gram Positive Bacteria Yeast Virus Gram Negative Bacteria Fungi
9-1/4" 10" 4" 5-3/4"
24
Petri dish without and with SurfaceShield™ protection.

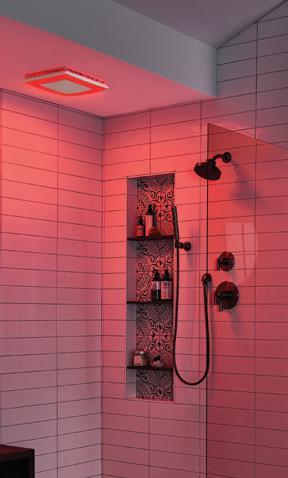

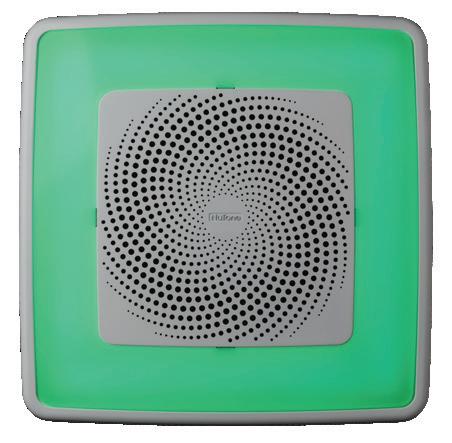

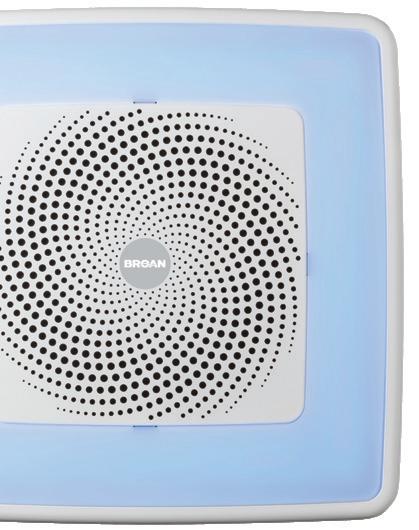

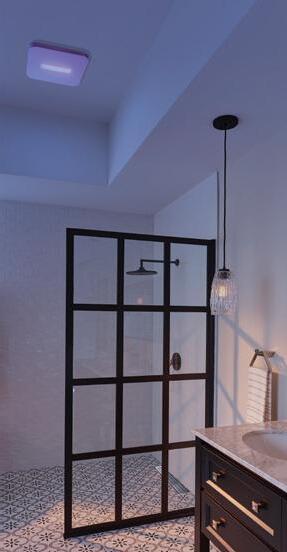

ChromaComfort. ® Color the way you live.

Experience greater ambience in your home. The ChromaComfort ® fan combines colorful LED lighting options, superior ventilation, and quiet operation to create a colorful experience for any room of your house. Control light settings, brightness, timers, and fan speed all at the touch of a button.

22
25

Choose from 24 different hues to fit your aesthetic mood.

The uniquely-designed, multi-color LED chroma light features dimmable LEDs so you can create any color ambience and adjust brightness levels.

SPK110RGBL, SPKN110RGBL

• Enjoy crisp, bold sound with a built-in Sensonic™ Stereo Bluetooth® speaker

• Create your own personal experience with 24 selectable colors via the included wall control or over 16 million choices on the free smartphone app

• Brilliant lighting controlled with included wireless wall control or app

• Continuous color transitions

• Bluetooth® wireless technology for app connection

• Room-side installation means no attic access required

Remote control with the ChromaComfort™ app

Use the included multi-function wall control or download the free ChromaComfort™ app and connect to Bluetooth® wireless technology to easily adjust light settings, set timers, control the fan, and customize colors.

23 CHROMACOMFORT®
APPLE® is a registered trademark of Apple Inc. Google Play and the Google Play logo are trademarks of Google LLC.
CFM Sones Light Duct ENERGY STAR® Overture® Compatible Cover Size Sensonic™ Speaker
Broan Model NuTone Model
LED
10"
5-3/4" 26
SPK110RGBL SPKN110RGBL 110 1.5 Integrated RGBL
4 No Yes 131⁄4 x 131⁄4 Yes 9-1/4"
4"

Your music, out of sight.

Ventilation for the music fan.

Unlike wireless speakers that require counter space, Sensonic ® speakers with Bluetooth® wireless technology fill your room with rich sound from above. From hard rock to news talk, play any audio through the dual high-fidelity speakers and enjoy entertainment and privacy at the touch of a button.

24 27

SPK110

• Dual high-fidelity Sensonic® speakers

• Brilliant audio performance concealed behind your fan cover

• Play any audio through most Bluetooth® enabled devices

• Effective, extremely quiet ventilation clears humidity and odors quickly

• UL Listed for use over tub and shower when connected to a GFCI protected branch circuit

• Type IC for use in direct contact with thermal insulation

• Fits 2x8 ceiling construction

• Includes unique spacer for easy I-joist mounting

• ENERGY STAR® certified

SPK80L

• High-fidelity Sensonic® speaker

• 80 CFM

• 2.5 sones

• Bright, energy-efficient LED light

• Most common bath fan size—easy DIY project

• Tapered, polymeric 4 in. round duct fitting for easy, positive duct connection and no metallic clatter

• UL Listed for use over a bathtub or shower when connected to a GFCIprotected branch circuit to provide more direct ventilation (ceiling mount only)

• Bright white covers match most common ceiling paint

• Corrosion-resistant galvanized steel housing stands up to moisture

• Permanently lubricated AC motor engineered for continuous operation

cover)

4-pack)

ENERGY STAR® fans use 70% less energy, on average, than standard models and may qualify for local utility rebates

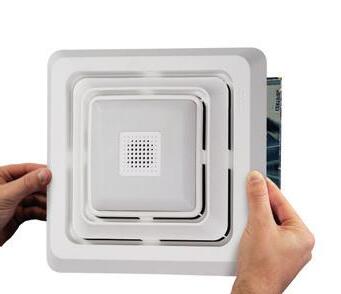

Upgrade Fan Covers

FG800SPKS | FG800SPKNS**

In just minutes, upgrade your classic or legacy bath fan models with Bluetooth® wireless speaker capability and bright, energyefficient LED lighting.

Visit Broan-NuTone.com for the list of compatible models.

**While supplies last

Scan or tap the code to see installation. No drywall work or extra wiring required. See page 45 for more information.

SENSONIC®
Broan Model NuTone Model CFM Sones Light Duct ENERGY STAR® Overture® Compatible Broan Cover Size NuTone Cover Size SPK110 110 1.0 4 Yes Yes 14 x 13 SPK80L SPK80NL 80 2.5 LED 4 No Yes 93⁄4 x 101⁄4 93⁄4 x 11 FG800SPKS (upgrade
FG800SPKNS
LED 93⁄4 x 101⁄4 93⁄4 x 11
FG800SPKN
LED 93⁄4 x 101⁄4 93⁄4 x 11
SPK80NL
(upgrade cover)
FG800SPK (upgrade cover
(upgrade cover 4-pack)
25 8" 8-1/4" 4" 5-3/4"
28

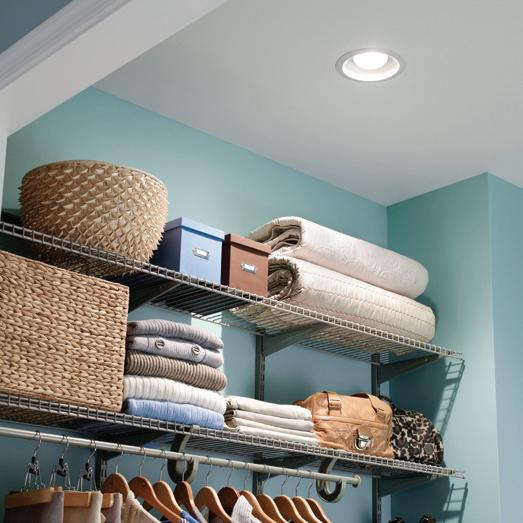

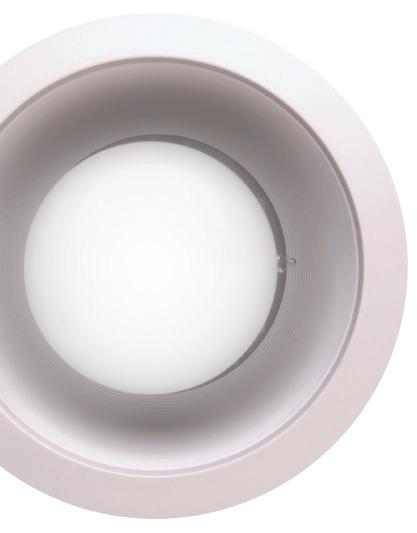

Decorative ventilation.

Draw fresh air into any room in the home—beautifully.

Imagine a fan/light combination fixture that unobtrusively blends into the ceiling. Or a statement fan/light with a stunning LED perimeter glow that showcases your unique décor. Our decorative series provides the necessary ventilation, all while meeting your decorating challenges without compromising your style.

26
29

General Features & Benefits

• High efficiency centrifugal fan

• 70 CFM or 50–80 CFM, see table below

• Trim matches designs of major recessed light manufacturers

• Put multiple units in larger rooms

• All models UL Listed for use over tub and shower when connected to a GFCI protected branch circuit

744, 744NT, 744LED

• 744LED includes 9.5 watt, GU24 based LED bulb

• 744 and 744NT require PAR30L or PAR30LN type bulbs (not included). Both products use a standard E26 base (R30 or BR30 for standard applications)

• 67⁄8" high housing appropriate for new construction and 2" x 8" ceiling joists

• 4" round duct connector

• Wall control switches available, see pages 48–51

• Type IC, sealed housing

• Not for use over cooking surfaces

744RNL

• Selectable speeds of 50–80 CFM

• Quiet operation of 0.3 and 2.0 sones

• E26 LED bulb included

• Adjustable brackets to make installation easier

• ENERGY STAR® certified

• Choose bronze, nickel or white trim rings

744L

• White trim ring included

• Selectable CFM with speeds of 50 or 80 CFM

• Quiet operation of 0.3 sones and 2.0 sones

• Matches most recessed lights to blend in seamlessly

• Plug-in permanently lubricated motor

• Rugged galvanized steel construction

• Adjustable mounting brackets for ease of installation

• UL listed for use over bathtubs and showers when connected to a GFCI protected branch circuit

• UL listed for use in insulated ceilings (Type IC)

Scan or tap the code to see the 744RNL installation video.

27
RECESSED FANS & FAN/LIGHTS
DECORATIVE &
Broan Model NuTone Model CFM Sones Light Duct ENERGY STAR® Overture® Compatible Cover Size 744 744NT 70 1.5 75W 4 No Yes 73⁄8 Dia 744LED 70 1.5 9.5W LED 4 Yes Yes 73⁄8 Dia 744L 50–80 0.3–2.0 75W 4 No Yes 73⁄8 Dia 744RNL 50–80 0.3–2.0 75W 4 Yes Yes 73⁄8 Dia ENERGY STAR® fans use 70% less energy, on average, than standard models and may qualify for local utility rebates 8-1/4" 12-3/4" 4" 6-7/8"
30
Ventilation can be beautiful, as well as functional.

It might look like an attractive lighting fixture, but a decorative solution from Broan-NuTone brings powerful ventilation into any room—beautifully. Choose from styles and finishes that complement fixtures, finishes and hardware while delivering the ventilation power you need. It really is a breath of fresh air.

28
31

General Features & Benefits

• Dimmable integrated LED module (except on 770RLTK/770RNLTK)

• Sturdy, easy, four-point mounting directly to the joist

AER110SLW, AERN110SLW, AER80LWH, AERN80LWH

• Low-profile designer style fan cover

• AER110SLW and AERN110SLW have humidity sensing capabilities to rapidly remove moisture

• AER110SLW and AERN110SLW are UL listed for use in insulated ceilings (Type IC)

• All models except AR80LWH are ENERGY STAR® Certified

• Motor engineered for continuous operation

• Rugged, galvanized steel construction

AER110LBN

• White fan covers complements any décor

• Fits in 2x6 ceiling construction

• 4" duct / E26 base lighting

• Designed to fit the space of a heater/fan/light

• UL listed for use over tub and shower when installed in a GFCI protected circuit

AR80MB

• Matte black decorative luminaire provides a distinctive accent

• Room-side retrofit install with EzDuct™ connector—no attic access required

• TrueSeal™ Damper reduces air leakage up to 50%

• Foldable mounting ears enable easy installation—new construction or retrofit

• AC motor engineered for continuous operation

STAR® fans use 70% less energy, on average, than standard models and may qualify for local utility rebates

770RLTK, 770RNLTK

• Includes two easy to change trim kits to match any décor, brushed nickel or brushed bronze

• Drywall cut completely covered with included adaptor plate

• Rugged, 26-gage galvanized steel construction

• Sturdy key-holed mounting brackets for quick and accurate installation

• 60 watt maximum, A19 type, E26 bulb or energy efficient equivalent (bulb not included)

• Not to be installed over a bathtub or shower enclosure

• UL listed for use in insulated ceilings (Type IC) Broan

AER110LTK, AERN110LTK

• Low-profile designer style fan cover

• Includes three easy-to-change trim kits to match any décor: white, brushed nickel or brushed bronze

• Dimmable integrated LED module

• Sturdy, easy, four-point mounting directly to the joist

• Motor engineered for continuous operation

• Rugged, galvanized steel construction

• ENERGY STAR® Certified

• UL listed for use in insulated ceilings (Type IC)

STAR® fans use 70% less energy, on average, than standard models and may qualify for local utility rebates

29
Model NuTone Model CFM Sones Light Duct ENERGY STAR® Overture® Compatible Cover Size AER110LTK AERN110LTK 110 1.5 16W LED 4 Yes Yes 12 x 12 770RLTK 770RNLTK 80 2.5 E26 Base 4 No Yes 133⁄4 Dia ENERGY
DECORATIVE 9-1/4" 10" 4" 5-3/4"
Broan Model NuTone Model CFM Sones Light Humidity Sensing Duct ENERGY STAR® Overture® Compatible Cover Size AER110SLW AERN110SLW 110 1.5 16W LED Yes 4 Yes Yes 15 Dia AER80LWH AERN80LWH 80 0.8 16W LED No 4 Yes Yes 15 Dia AER110LBN 110 1.5 16W LED No 4 Yes Yes 15 Dia AR80MB 80 1.0 16W LED No 4 No No 15 Dia
ENERGY
32

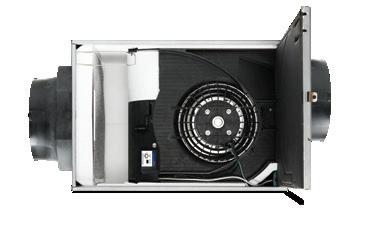

Whether wall or ceiling mount, LoProfile is the right fan for a tight fit.

For some installations, conventional ventilation simply won’t fit. Where multi-family applications require it, the LoProfile fan is narrow enough to be installed in a wall between 2x4 studs. If plumbing or electrical obstructions are found behind the drywall in ceiling remodel applications, the fan still fits without having to move anything. That way, any room can have powerful, quiet, efficient ventilation.

30
LP50100DC. Selectable CFM with speeds of 50-80-100.
33
Narrow enough to be installed in a wall between 2x4 studs

General Features (LP80, LP110, LP50100DC)

• Fits in 2x4 ceiling or wall construction

• >50 CFM at 0.25" static pressure meets ASHRAE 62.2 local ventilation requirements (with 4" oval duct or 3" round duct)

• Efficient operation lowers utility bills

• Ideal for multi-family applications

• Compatible with RDF1 Premium Radiation Damper (LP50100DC compatible with RDF2 Premium Radiation Damper)

• Project packs available

• 80 CFM with 4" duct ensures ample air movement; 70 CFM with 3" duct reducer

• 4" oval or 3" round duct connection for installation flexibility (LP110 and LP50100DC come with 4" duct only)

LP80, LP110, LP50100DC

• Selectable CFM (LP50100DC only)

• May be used in compliance with Title 24

• TrueSeal® damper technology creates an airtight seal from inside the housing

• Maintains constant CFM to higher static pressure over the competition (LP50100DC only)

LP50100DCF Fan Finish Pack

Broan ® LoProfile series housing pack, 50-80-100 Selectable CFM, ENERGY STAR ®

• UL Listed for use over tub or shower when connected to a GFCI protected branch circuit

• May be used with a radiation damper in multi-family homes

• Fits 2x4 wall or ceiling installation

LPDCH Housing Pack

Broan ® LoProfile Series Housing Pack, 50-80-100 Selectable CFM, ENERGY STAR ®

31 LOPROFILE
Broan Model CFM Sones Duct ENERGY STAR® Overture® Compatible Broan Cover Size LP80 80 1.0 4 Oval or 3 Round Yes Yes 14 x 13 LP110 110 1.5 4 Oval Yes No 14 x 13 LP50100DC 50-80-100 <0.3-0.7-1.2 4 Oval Yes No 14 x 13 ENERGY STAR® fans use 70% less energy, on average, than standard models and may qualify for local utility rebates 10-1/2" 11-3/8" 4" 4" 34

Heater/Fan Solutions.

Get instant heat, right when you need it.
Exactly where you want it.

No matter where you live, there’s certainly one room you never want to be chilly—the bathroom. Whether it’s taking a morning shower, or relaxing in a whirlpool at the end of a long day, your family appreciates a warm, comfortable bathroom. Instead of waiting for the whole house to heat, get powerful heating, light and ventilation at the touch of a switch. Our heater fan/lights provide instant heat to quickly warm up the room, quiet ventilation to remove excess humidity, and convenient light. Operate each feature separately or simultaneously—no furnace required.

32
35

General Features & Benefitss

• Dimmable LED lighting with adjustable color temperature on FLED models

• Bright white fan cover matches any decor

• Quiet operation

• Quick and flexible installation for all types of construction 10-1/4" 16" 5-7/8"

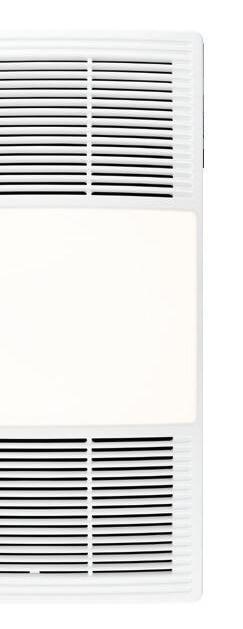

PowerHeat™ Series BHFLED80, BHFLED110

• Heater/Fan/Light Heater/Fan, 14-amp circuit acceptable

• Features integrated dimmable LED with color adjustable CCT lighting; warm (2700K), bright (3500K), and daylight (5000K)

• LED dimmable lighting may be used as a nightlight (dimmer switch is not included)

PowerHeat™ Series BHF80, BHF110

• Heater/Fan 14-amp circuit acceptable

BHFLED80F Finish Pack

• Features integrated dimmable LED with color adjustable CCT lighting; warm (2700K), bright (3500K), and daylight (5000K)

• LED dimmable lighting may be used as a nightlight (dimmer switch is not included) Broan

BHFLED80H Housing Pack

• Broan PowerHeat Series Housing pack, 80 CFM

ENERGY STAR® fans use 70% less energy, on average, than standard models and may qualify for local utility rebates

Scan or tap to learn more about the Broan® PowerHeat™ LED Heater Exhaust Fan with CCT LED Lighting.

33
Model CFM Sones Light Heater Watts Duct ENERGY STAR® Cover Size BHFLED110 110 2.0 Dimmable CCT LED 1500 4 No 113⁄4 x 173⁄4 BHFLED80 80 1.5 Dimmable CCT LED 1300 4 No 93⁄4 x 161
4 BHFLED80H 80 1.5 Dimmable CCT LED 1300 4 No BHFLED80F 80 Dimmable CCT LED 1300 4 No 161⁄4 x 93⁄4 BHF110 110 2.0 1500 4 No 113⁄4 x 173⁄4 BHF80 80 1.5 1300 4 No 93⁄4 x 161
4
4"
4" 14-1/4" 8-1/4" BHFLED80
BHFLED110
HEATER FAN/LIGHTS
5-3/4"
BHF80
BHF110
36

General Features & Benefits

• Bright white fan cover matches any decor

• 1300-watt heater for instant heat when you want it

• Rugged galvanized steel housing stands up to moisture

• Automatic-reset thermal protection

• Fan, light and heater can operate independently

• Type IC

• Fits in 2x6 ceiling construction

• Two- or three-function wall controls are available separately (see guide on pages 48–51)

• Motor engineered for continuous operation

General Features & Benefits

• Powerful ventilation

• Extra-quiet operation

• Bright ceiling light

• Convenient night light

• White fan cover

• 1500 watts of powerful heat

• Includes a four-function wall switch

• Fits 2x8 ceiling construction

34
HEATER FAN/LIGHTS
Model CFM Sones Light/Night Light Heater Watts Duct Cover Size 765H80L 80 2.0 14W LED 1300 4 105⁄8 x 163⁄4 QT9093WH 110 4.0 100W/7W 1500 4 153⁄8 Dia 9093WH 70 3.5 100W/7W 1500 4 153⁄8 Dia
QT9093WH 9093WH
NuTone
5-3/4" 4" 8-1/4" 14-1/4"
765H80L
37

General Features

• Efficient PowerHeat™ heater design

• Choose standard E26 base (2, 60 watt) lighting (bulbs not included) or energy-efficient 36 watt GU24 fluorescent (bulbs included)

• Fan motor is engineered for continuous operation

• HVI Certified

• Type IC

• Requires a dedicated 20 amp circuit

• Switches sold separately (see guide on pages 48–51)

• 7 watt night-light (bulb not included)

765H110L

• 1500-watt heater with 360° directionally-adjustable design so heat ends up exactly where you want it

• Bright white fan cover matches any decor

• Select-your-bulb capacity and type (bulb not included)

• Fits in 2x6 ceiling construction

• Rugged galvanized steel housing stands up to moisture

• Motor engineered for continuous operation

Tired of your dirty, discolored old fan cover?

Upgrade your look in 5 minutes.

Broan-NuTone® made upgrading your bath ventilation fan easier than ever. Our convenient upgrades enable you to put a fresh face on an old fan.

See pages 42–47.

Is your fan ready for a new look?

Scan or tap the code to see the complete compatibility cross-reference guide at Broan-NuTone.com

35
Broan Model NuTone Model CFM Sones Light/Night Light Heater Watts Duct Cover Size QTX110HL 110 0.9 120W/7W 1500 6 15 x 20 765H110L 110 2.0 100W 1500 4 111⁄2 x 171⁄2
QTX110HL
7-5/8" 4–6" 11-3/8" 17-5/8"
HEATER FAN/LIGHTS
38

General Features & Benefits

• Quiet, highly efficient blower wheels

• Dampers prevent backdrafts and eliminate mechanical noise

• 4" round duct connectors with tapered sleeves simplify ducting

• Fan and heater can operate independently

• Attractive white fan covers

• Compact steel housings with adjustable mounting brackets with keyhole slots that span up to 24"

• 250 watt R40 or BR40 size infrared bulbs (not included)

• Type IC, UL Listed for 60°C wiring (retrofits)

162, 9417DN While supplies last

• One-Bulb Heater/Fan

General Features & Benefits

• Infrared bulbs deliver energy-saving warmth

• Get instant comfort in the bathroom without turning up the central thermostat

• 250 watt R40/BR40 size infrared bulbs (not included)

164, 9427P While supplies last

• Two-Bulb Heater/Fan, Two-function control

• Attractive, white fan covers

• Compact steel housings

• Adjustable mounting brackets with keyhole slots span up to 24"

161, 9412D While supplies last

• One-Bulb Heater, UL Listed for 75°C wiring

163, 9422P While supplies last

• Two-Bulb Heater, Type IC

*Ventilation Fan/Bulb Heater versions

**While supplies last

36 HEATER FAN/LIGHTS
14-1/4" 8-3/8" 4" 6-3/8"
Broan Model NuTone Model CFM Sones Light Heater Watts Duct Cover Size 162* 9417DN** 70 4.0 250W Infrared 250* 4 101⁄4 x 101⁄4 161** 9412D** 250W Infrared 250 101⁄4 x 101⁄4 164* 9427P** 70 4.0 500W Infrared 500* 4 101⁄4 x 155⁄8 163** 9422P** 500W Infrared 500 101⁄4 x 155⁄8
39
37 40

Economy Fan/Lights.

A well ventilated room is a healthier room.

Keeping every room in your home fresh is easy and economical. That’s why Broan-NuTone® engineers a ventilation solution to fit every room and budget. Consider a style, finish or shape that complements your room décor. Rest assured, if you’re concerned about saving money and energy, our bath fans are the perfect fit for your room.

38
41

678, 679, HD80L

• White, fan cover complements any décor

• Fits in 2x6 ceiling construction

• 4" duct / E26 base lighting

• HD80L is designed for continuous operation

• Project packs available for some models

• UL listed for use over tub and shower when installed in a GFCI protected circuit

• HVI Certified

763, 763N, HB80RL

• White, fan cover complements any décor

• Fits in 2x6 ceiling construction

• 4" duct / E26 base lighting

• HB80RL is designed for continuous operation

• Project packs available for some models

• UL listed for use over tub and shower when installed in a GFCI protected circuit

• HVI Certified

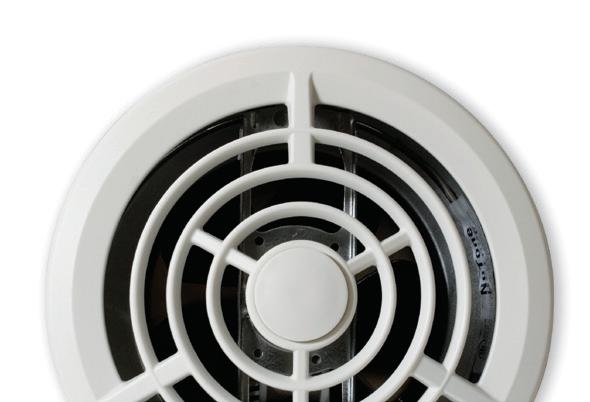

750, 8664RP

• Round design eliminates squaring with walls

• Fits in 2x6 ceiling construction

• 4" duct / E26 base lighting

• 750 feature a regular light and nightlight

• UL listed for use over tub and shower when installed in a GFCI protected circuit

• HVI Certified

696 While supplies last

• White fan covers complements any décor

• Fits in 2x6 ceiling construction

• 4" duct / E26 base lighting

• Designed to fit the space of a heater/fan/light

• UL listed for use over tub and shower when installed in a GFCI protected circuit

**While supplies last

39 ECONOMY FAN/LIGHTS
8" 8-1/4" 4" 5-3/4" 8" 8-1/4" 4" 5-3/4"
668RP Broan Model NuTone Model CFM Sones Light/Night Light Duct Overture® Compatible Broan Cover Size NuTone Cover Size 668RP 70 4.0 E26 Base 4 Yes 97⁄8 x 161⁄4 696** 100 4.5 E26 Base 4 Yes 105⁄8 x 163⁄4 750 100 5.0 100W / 7W Nightlight 4 Yes 15 Dia 8664RP 100 5.0 100W 4 Yes 15 Dia 15 Dia 678 763, 763N 50 2.5 E26 Base 4 Yes 105⁄8 x 111⁄8 103⁄4 x 12 HD80L HB80RL 80 2.5 100W Incandescent 4 Yes 105⁄8 x 111⁄8 103⁄4 x 12 679 70 3.5 100W incandescent 4 No 105⁄8 x 111⁄8
9" 9" 4" 6" 14-1/4" 8-1/4" 4" 5-3/4" 42

6884H

New housing pack for 688.

The 6884H housing pack consists of 18 housings with 4" duct connectors attached.

Project packs are ideal for contractors and builders who have yet to pick out the final product.

671, 688

• White fan cover complements any décor

• Fits 2x4 ceiling construction

• 3" duct

• Metal fan cover kits available (sold separately)

• Project packs available for most models

• UL listed for use over tub and shower when installed in a GFCI protected circuit

• HVI Certified

E050, E070

• White fan cover complements any décor

• Fits 2x4 ceiling construction

• 3" duct

• Metal fan cover kits available (sold separately)

• Project packs available

• UL listed for use over tub and shower when installed in a GFCI protected circuit

• HVI Certified

696N

• White fan cover complements any décor

• Fits 2x4 ceiling construction

• 3" duct

• Metal fan cover kits available (sold separately)

• Project packs available for most models

• UL listed for use over tub and shower when installed in a GFCI protected circuit

• HVI Certified

40
ECONOMY FANS
Broan Model NuTone Model CFM Sones Duct Overture® Compatible Broan Cover Size NuTone Cover Size 671 70 6.0 3 No 91⁄4 x 9 688 696N 50 4.0 3 Yes 91⁄4 x 9 91⁄2 x 811⁄16 E050 50 2.5 3 Yes 93⁄4 x 91⁄4 E070 70 4.0 3 Yes 93⁄4 x 91⁄4 7-1/4" 7-1/2" 3" 3-5/8" 43

Ductless ventilation made simple

Ductless Bathroom Exhaust Fan with snap-in mounting and replaceable charcoal filter processes air to eliminate odors where ductwork is impossible or impractical. It is an easy to install solution for half baths or where humidity isn’t a concern. Included is a long lasting, easy to replace charcoal filter. The easy snap-in mounting makes for a fast and simple installation.

682

Broan Model Duct Cover Size

682 Duct-free 81⁄2 x 81⁄2

Duct Free 3-3/4"

7-1/8" 7-1/8"

Scan to join Broan-NuTone in supporting severely wounded veterans and their families.

Better Life. For Our Veterans.

We believe that Veterans who have risked their lives daily and return from service severely wounded deserve a better life and a home that meets their physical needs. As a result, we are pleased to support the Gary Sinise Foundation and their R.I.S.E. Program, which builds specially adapted smart homes that serve to restore independence and support the empowerment of these Veterans and their families. At Broan-NuTone, we are proud to donate our products to help improve the air for Veterans so they breathe fresh, clean air in their new forever home. Broan-NuTone.com

41 DUCT FREE
97009563 filter for 682, S97009563 filter for 682NT
44

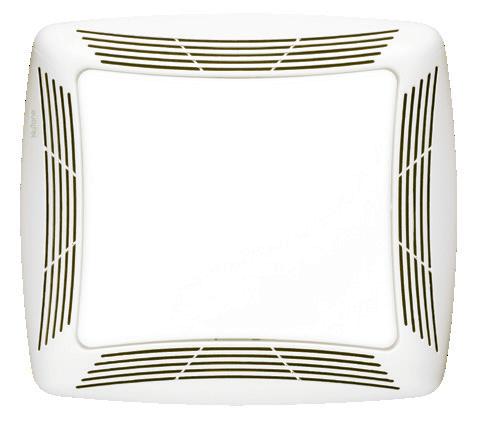

Fan upgrade

kits.

If you have 5 minutes, it’s easy to make a tired old fan new again.

Broan-NuTone® made upgrading your bath ventilation fan easier than ever. In a matter of minutes, our convenient kits enable you to put a fresh face on a reliable fan, add lighting, a Bluetooth® wireless speaker, or even a performance kit to reduce sound by up to 50%. Upgrade fan covers don’t require any tools for installation. For performance kits, all you need is a flat head screwdriver. It’s another fresh idea for fresher air.

42 OLD NEW
No drywall cutting No drywall patching Plug-in upgrade No wiring No tools 45

SURFACESHIELD™ FG1000VV

• SurfaceShield™ LED light powered by Vyv™ prevents bacteria, mold, and fungi growth within your room

• SurfaceShield™ technology combined with Broan’s powerful ventilation is an effective one, two punch to kill* viruses and prevent the growth of bacteria, mold, and fungi within your room

• Bright white finish matches most white ceiling paint

• Quickly and easily installs in under 5 minutes

• No cutting required—covers existing drywall cuts

• No additional wiring needed, plugs directly into existing lighting connection

• Compatible with existing ventilation fan housing dimensions of 91⁄4" x 10" (lighted fans only)

• Works with certain legacy Broan or NuTone InVent® , Flex Series™, or Roomside Series lighted exhaust fans

• NOTE: Due to certain State regulations this product is not available in Indiana and Hawaii.

• Fan cover dimensions: 121⁄4" x 121⁄4 "

CHROMACOMFORT™ FG600RGB

• Quickly and easily installs in under 5 minutes

• Customizable, color changing LED lighting and Bluetooth® wireless speaker to play your favorite music, podcast or news

• No additional wiring needed. Quick-connect plug allows you to upgrade without new wiring, even if the existing cover doesn’t have a light

• Fan cover dimensions: 101⁄4" x 9 3⁄4 "

SURFACESHIELD™ LED MODULE VVLED

• The VVLED upgrade light module is compatible with the following fan models: AE80BL, AEN80BL, AEN80L, AE110L, AEN110L, AE80LK, AE110LK, AE50110DCL, AE50110DCSL

• SurfaceShield™ technology combined with Broan’s powerful ventilation is an effective one, two punch to kill* viruses and prevent the growth of bacteria, mold, and fungi within your room

• Quickly and easily installs in under 5 minutes

For a full list of SurfaceShield™ compatible models scan or tap the code.

FG600RGB*

*4-pack

43
Model Light Install Time FG1000VV* + FG1000VVS SurfaceShield™ LED < 5 min VVLED SurfaceShield™ LED < 5 min
Broan
+ FG600RGBS ChromaComfort™ LED < 5 min
UPGRADE KITS/BATH FAN COVERS 46

SENSONIC® FG800SPK

• Quickly and easily installs in under 5 minutes

• Brilliant LED lighting and Bluetooth® wireless speaker to play your favorite music, podcast or news

• No additional wiring needed. Quick-connect plug allows you to upgrade without new wiring, even if the existing cover doesn’t have a light

• Soft LED lighting illuminates darker areas of the bathroom; 600 lumens; 3000K color temperature; rated life of 25,000 hours

• Fan cover dimensions: 101⁄4" x 9 3⁄4 "

SENSONIC® FG800SPKN

While supplies last

• Includes 2 sets of fan cover springs for use with multiple ventilation fan models

• Compatible with existing ventilation fan housing dimensions of 7½" x 7¼" and 8¼" x 8"

• Fan cover dimensions: 11" x 9 3⁄4 "

Upgrade your fan, and bring in some music.

Sensonic ® speakers with Bluetooth® wireless technology fill your room with rich sound from above. Connect to your phone and bring music, talk or your favorite podcast through the dual high-fidelity speakers at the touch of a button.

CHROMACOMFORT™ SENSONIC® FG800RGB

• Quickly and easily installs in under 5 minutes

• Customizable, color changing LED lighting and Bluetooth® wireless speaker to play your favorite music, podcast or news

• No additional wiring needed. Quick-connect plug allows you to upgrade without new wiring, even if the existing cover doesn’t have a light

• Fan cover dimensions: 101⁄4" x 9 3⁄4 "

Broan Model

FG800SPK* + FG800SPKS

FG800RGB* + FG800RGBS

*4-pack

**While supplies last

NuTone Model Light Speaker Install Time

FG800SPKN* + FG800SPKNS** LED Bluetooth® Speaker < 5 min

ChromaComfort™ LED Bluetooth® Speaker < 5 min

44
UPGRADE KITS/BATH FAN COVERS
47

Quick and easy installation in five simple steps.

Step 1

Remove the old grille.

Step 2

Match the spring size to your current fan.

Step 3

Snap the springs into the cooresponding clips.

Step 4

Squeeze and insert into the slots.

Step 5

Push it up tight and you're done.

45
cutting No drywall
Plug-in upgrade No wiring No tools 48
No drywall
patching

LED LIGHT FG600

• Quickly and easily installs in under 5 minutes

• Brilliant LED lighting illuminates darker areas of the bathroom; 750 lumens; 3000K color temperature; rated life of 25,000 hours

• No wiring needed; quick-connect plug allows you to easily connect the LED light

• No drywall cutting or patching required

• Bright white finish matches most white ceiling paint

• Compatible with existing fan housing dimensions

71⁄4" x 71⁄2" and 81⁄4" x 8"

• Fan cover dimensions: 101⁄4" x 93⁄4 "

QUICKIT® QK60, QKN60

• Reduces sound by up to 50% while improving air movement by up to 20%

• 60 CFM adequately ventilates smaller baths and powder rooms

• 2.5 sones provides quiet performance

• White fan cover blends well with any décor

• Fan cover stays cleaner longer with fewer vent slots to clean

• Motor plate accommodates a variety of economy fan models

• Air and sound ratings are HVI Certified

• UL Listed

*

LED LIGHT FG500N

• Quickly and easily installs in under 5 minutes

• Brilliant LED lighting illuminates darker areas of the bathroom; rated life of 25,000 hours

• No wiring needed; quick-connect plug allows you to easily connect the LED light

• No drywall cutting or patching required

• Bright white finish matches most white ceiling paint

• Compatible with existing fan housing dimensions

71⁄4" x 71⁄2" and 81⁄4" x 8"

• Fan cover dimensions: 11" x 93⁄4 "

UNIVERSAL CLEANCOVER™ FG701

• Fresh, stylish design to easily revitalize an existing fan cover

• Quickly installs in under 5 minutes

• No drywall cutting or patching required

• Universal Fit for compatibility with small, medium and large size Broan and NuTone ventilation fans

• Bright white finish matches most white ceiling paint

• Low profile seamlessly blends into the ceiling

• Fan cover dimensions: 131⁄8" x 131⁄8 "

46
Broan Model NuTone Model CFM Sones Light Install Time QK60* + QK60S QKN60* + QKN60S 60 2.5 < 10 min FG600* + FG600S FG500N* + FG500NS LED < 5 min FG701* + FG701S < 5 min
4-pack UPGRADE KITS/BATH FAN COVERS
49
Scan or tap the code to see the FG701 installation video.

INVENT® FGR300

• Retrofits InVent® ventilation fan installations

• No drywall cutting or patching

• Hides existing dry wall cuts

• Instant upgrade blends with any décor

• Bright white finish matches most white ceiling paint

• Compatible with existing fan housing dimension of 91⁄4" x 10"

• Fan cover dimension: 111⁄2" x 12"

• Fits Broan® and NuTone® Roomside, Flex Series™ and InVent® Series fans without a light

ECONOMY FGR101

• Retrofits Economy Series ventilation fan installations

• No drywall cutting or patching

• Hides existing dry wall cuts

• Instant upgrade blends with any décor

• Bright white finish coordinates with most white ceiling paint

• Compatible with existing fan housing dimension of 7½" x 7¼"

• Fan cover dimension: 9¼" x 9¾"

• Fits Broan® and NuTone® Economy Series fans

FG80HBS

• Heater exhaust fan light upgrade

• Features integrated dimmable LED with color adjustable CCT lighting; warm (2700K), bright (3500K), and daylight (5000K)

• LED dimmable lighting may be used as a nightlight (dimmer switch is not included)

• Bright white finish matches most white ceiling paint

• Compatible with: Broan 655 revision C (units manufactured after the year 2001), NuTone 665RP, Broan 656, Broan 659, Broan 657, Broan 696, NuTone 668RP, NuTone 765H80L, & Broan 765H80LB.

• Fan cover dimensions: 93⁄4" x 161⁄4 "

FG110HBS

• Heater exhaust fan light upgrade

• Features integrated dimmable LED with color adjustable CCT lighting; warm (2700K), bright (3500K), and daylight (5000K)

• LED dimmable lighting may be used as a nightlight (dimmer switch is not included)

• Bright white finish matches most white ceiling paint

• Compatible with: Broan 100HL, Broan 100HFL, NuTone 765HL, Nutone 765HFL, NuTone 765H110L, and Broan 765H110LB

• Fan cover dimensions: 113⁄4" x 173⁄4 "

47 Broan Model Heater Watts Light Install Time FGR300* + FGR300S < 10 min FGR101** + FGR101S < 5 min FG80HBS 1300 Dimmable CCT LED < 10 min FG110HBS 1300 Dimmable CCT LED < 10 min *4-pack **6-pack UPGRADE KITS/BATH FAN COVERS
50

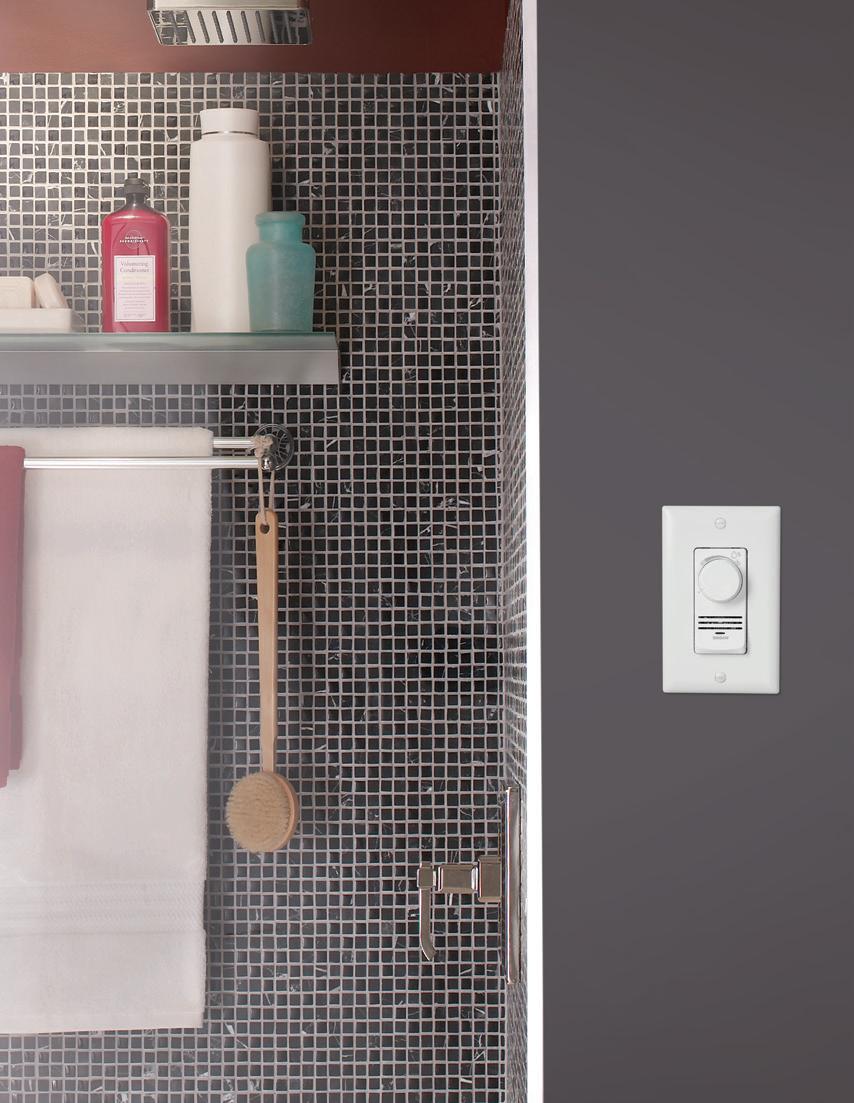

The control your fan needs to ventilate smarter.

The perfect control switch is a beautiful finishing touch, and our attractive options provide the speed, sensing and control needed for any spot ventilation solution. Sleek styles in bright white complement all designs and color palettes. All you need is the faceplate to match your décor. Installation is simple, and the results will help you breathe easy.

Humidity Sensing Controls

Sensaire™ Humidity Sensing Switch Models 82W*

• Turn any ventilation fan into a humidity-sensing solution

• Up to 4X faster humidity sensing than the competition

• Helps reduce mold and mildew to improve indoor air quality

• Three easy-to-program modes: Auto Sense Mode, Duty Cycle Mode & RH% Humidistat mode

• Rated 120V at 60Hz, max total of 9 amps/switch

• Available in Ivory (V) or White (W)

Digital Dehumidistat Model DD500W*

• Turn any ventilation fan into a humidity-sensing solution

• Reduce mold and mildew to improve indoor air quality

• Precision control enables desired humidity level to start the fan

• LED indicates fan on/off status

• Rated 120V at 60Hz, max total of 9 amps/switch

• Replaces obsolete model DH100W

48 WALL CONTROLS
51

Two-Function Control

Model P2RW*

• Two rocker switches control any two functions: fan, light, heater or nightlight

• Save space, conveniently fitting in a single gang box

• Simple installation saves time and money

• Rated 120V at 60Hz, max total of 15 amps/switch

• Replaces obsolete models: 269VL, 269WL, 68V, 68W, P68W, P68WN

Three-Function Control

Model P3RW*

• Control multiple applications from a single, central location

• Control any exhaust fan, fan/light or heater/fan/light

• Save space, conveniently fitting in a single gang box

• Simple installation saves time and money

• Rated 120V at 60Hz, max total of 15 amps/switch

• Replaces obsolete models: 66V, 66W, P66V, P66W, P66WN

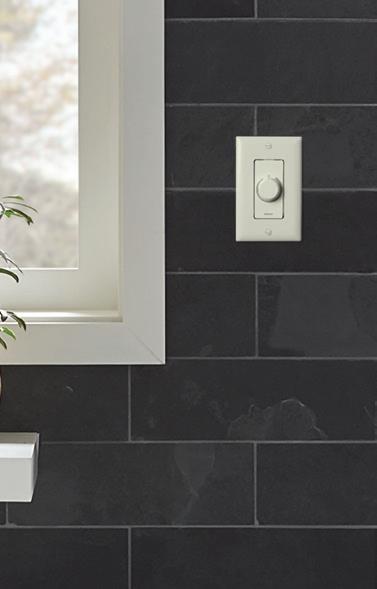

Speed Control

Model SC100W*

• Turns any PSC or AC fan into an adjustablespeed fan

• Control sound levels by adjusting fan speed and CFM power

• Adjust fan speed precisely to bathroom ventilation needs to save energy

• Rated 120V at 60Hz, max total of 3 amps/switch

• Replaces obsolete models: 277V, 57V, 57W, 75V, P57W, P57WN

Occupancy Sensor

Model MS100W

• Turn fan on/off when motion is sensed or stops

• Set fan/light runtime after motion stops

• Detect motion in rooms up to 900 square feet

• Sense motion up to 35 feet away

• Save energy by operating the fan/light only when motion is detected

• Rated 120V at 60Hz, max total of ½ HP, 300W LED/ CFL, 600W incandescent

60 Minute Countdown Timer

Model CD60W*

• Set countdown timer to 20, 40 or 60 minutes

• Can also be set to run continuously

• Save energy—countdown timer ensures the fan always turns off

• LED indicates run-time remaining

• Rated 120V at 60Hz, max total of 9 amps/switch

• Replaces obsolete models: 59V, 59W, 61V, 61W, 62W, 63V, 63W, 71V, CFT12WH, P59V, P59W, P59WN, P61WN, VS63WH, VS66WH, VS67WH, VS68WH, VS69WH

Delay Off Timer

Models DT100W*

• Use the ‘delay’ setting under the switch plate to ensure proper bathroom ventilation by keeping the fan running for 5 to 60 minutes after you leave

• Use the ‘ventilation’ setting to meet code requirements by ventilating the bathroom for a predetermined amount of time every hour

• User adjustable settings can be changed as much as desired until the perfect setting is found

• Designed to meet ASHRAE 62.2 and CalGreen Title 24 codes for continuous ventilation

• Rated 120V at 60Hz, max total of 6 amps/switch

• Replaces obsolete models: 64V, 64W

Precisely control the ventilation in your bathroom or indoor environment to mitigate mold and moisture issues from improper use of exhaust fans. Make Sensaire™ your first choice in smart ventilation.

49
*Faceplate not included
WALL CONTROLS 52

670, 671, 688, 689

Ventilation Fans

Ventilation Fan/Lights

E050, E070

LP80, LP110

LP50100DC

AE50, A80, A80HD, AE80, AE80B, A110, AE110, AE80K, AE110K

AE80S, AE110S

AE50110DC

AE50110DCS

QTXE080, QTXE110, QTXE150

QTXE110S

QTXE110150DC

QTXE110150DCS

RB80, RB110

XB50, XB80, XB110

XB110H

ZB80, ZB110

ZB80M, ZB110M

657, 678, 679, 696, 751, HD80L

744, 744LED, 744L, 744RL

A50L, A70L, A80L, AE80L, AE80BL, A110L, AE110L, AE80LK, AE110LK

AE80CCTK, AER110CCTK

AE80SL, AE110SL

AE50110DCL

AE50110DCSL

770RLTK, AR80LWH, AER80LWH, AER110LTK, AER110LBN

AER110SLW

AR80MB

QTXE080FLT, QTXE110FLT, QTXE150FLT

QTXE110150DCL

QTXE110150DCSL

RB80L1, RB110L1

XB50L1, XB80L1, XB110L1

ZB80L1, ZB110L1

ZB80ML1, ZB110ML1

Heater/Fan/ Lights 765H80LB, 765H110LB

100HL, 100HFL

BHFLED80, BHFLED110, BHF80, BHF110

QTX110HL, QTX110HFLT

Products in red have been discontinued.

*The CD60W will work with these heater/fan/lights if the heater is wired to a separate rocker switch

50 WALL CONTROLS
P2RW P3RW
DD500W
CD60W
Broan 69W
77DV, 77DW 82A, 82W
MS100W SC100W
DT100W
• • • • • • •
• • • • • • •
• • • • • • •
• • • • • •
• • • • • • •
• • • • • •
• • • • • •
• • • • •
• • • • • • •
• • • • • •
• • • • • •
• • • • •
• • • • • • •
• • • • • •
• • • • •
• • • • • •
• • • • • •
• • • • •
ZB110H
• • • • • • • • 750 • • • • • • • •
• • • • • • • •
• • • • • • • •
• • • • • •
• • • • • • •
• • • • •
• • • • • • • •
• • • • • •
• • • • • • • •
• • • • • • •
• • • • •
• • • • • • • •
• • • • • • •
• • • • •
• • • • • • •
• • • • • •
• • • • •
XB110HL1
ZB110HL1
• • • • • • • *
• • • • • • • * 161 • • • 162 • • • • • • • 163 • • • 164 • • • • • • 655 • • • • • • • * 656 • • • * 658 • • • • • • *
• • • • • • • *
• • • *
659
• • • • • • • *
53

Ventilation Fans

Ventilation Fan/Lights

695, 696N

EZ80N, LPN80

AEN50, AEN80, AEN80B, AN110, AEN110, AERN80K, AERN110K

QTXEN080, QTXEN110, QTXEN150

RN80, RN110

668RP, 763, 763N, 8664RP, HB80RL

8663RP

744NT, 744LEDNT, 744RNL

AN70L, AN80L, AEN80L, AEN80BL, AN110L, AEN110L, AERN80LK, AERN110LK

AERN110DCSL

770RNLTK, AERN80LWH, AERN110LTK

AERN110SLW

QTXEN080FLT, QTXEN110FLT, QTXEN150FLT

QTNLEDA, QTNLEDB

RN80L, RN110L

765H80L, 765H110L

Heater/Fan/ Lights

765HL, 765HFL

9093WH, QT9093WH

QTXN110HL, QTXN110HFL

Products in red have been discontinued.

*The CD60W will work with these heater/fan/lights if the heater is wired to a separate rocker switch

51 WALL CONTROLS
69W P2RW P3RW 77DV, 77DW 82A, 82W DD500W MS100W SC100W CD60W DT100W
NuTone
• • • • • • •
• • • • • • •
• • • • • • •
• • • • • • •
• • • • • • •
• • • • • • • •
• • • • • • • •
• • • • • • • •
• • • • • • • •
• • • • •
• • • • • • • •
• • • • • •
• • • • • • • •
• • • • • • • •
• • • • • • • •
• • • • • • • *
• • • • • • • * 605RP • • • • • • * 665RP • • • • • • • * 9412D • • • 9417DN • • • • • • • 9422P • • •
• • • • • •
• • • • • • • *
9427P
54

MERV Filtration

An energy-efficient, reliable way to bring fresh air inside.

In today’s tightly built homes, bringing fresh air inside makes perfect sense, whether it’s done to meet code requirements or for personal comfort preferences.

That’s why Broan offers Basic and Premium solutions to residential ventilation. Both models have variable speeds and an ultra-efficient Electronically Commutated Motor (ECM) to maintain a constant airflow. The Basic model is a single-mode solution that delivers continuous airflow. The Premium model utilizes an algorithm that satisfies three ventilation codes and offers five comfort modes to suit different climatic environments. Built-in intelligence delivers airflow without losing efficiency when installed according to industry best practices.

An open window doesn’t mean fresh air. The moment you open a window, fine dust and other allergy aggravating particles settle onto every surface. Optional MERV 8 or MERV 13 rated filters remove particulates before air enters the dwelling.

52
MOLD SPORES FINE DUST MOLD SPORES FINE DUST BACTERIA SMOKE MERV 8 FIN-MERV8 MERV 13 FIN-MERV13 CLEANER AIR CLEAN AIR 55

FIN-180B, FIN-180P

• High efficiency ECM motor lowers energy consumption for more savings

• Blower efficiency as high as 8.4 CFM/W

• Constant airflow maintains the selected airflow under any conditions (up to 0.55 in. w.g.)

• Small and lightweight for easy installation and service

• Super silent ventilation with a sound level of 0.65 @ 130CFM

• High density EPS insulated housing avoids condensation and air leakage

• 5-year parts warranty

Broan Fresh In™ fits in, anywhere. Install in any location or orientation—from the attic to the basement.

Optional VT11W Wall Control for Fresh In™ Premium features a filter clean indicator light.

Comfort modes

**The intelligent Fresh In™ algorithm is patent pending.

53
Fresh In™ Series Model number BASIC FIN-180B PREMIUM FIN-180P Constant Airflow Yes Yes Unit Intelligence No Learning mode: AHU running time, outdoor temperature and humidity Blower CFM Selectable CFM: 30–180 CFM, 10 CFM increments Intermittent (% running time) for unit intelligence: 130 and 180 CFM time-based adjustment Static pressure* Up to 0.4 in. w.g.—does not influence selected CFM level Power consumption (watts) 10.8 at 90 CFM 0.2 in. w.g. 18.2 at 130 CFM 0.2 in. w.g. Fan efficiency 8.3 at 90 CFM 0.2 in. w.g. 7.1 at 130 CFM 0.2 in. w.g. Noise level 0.65 sones at 130 CFM Filter Washable aluminum filter—optional MERV 8 and 13 filters Motor ECM, constant airflow Damper Spring loaded with magnet Motorized Operating range of temperature & humidity Continuous ventilation 3 codes compliant modes 5 comfort modes Dimensions less ports 10-1/4" W x 14-3/4" D x 10" H Warranty on parts 5 years Optional wall control No VT11W Optional finishing ring FIN-R1015 Product recommended for Hot & Dry Mixed & Hot, Dry & Humid HVI Listed Yes Yes ENERGY STAR® Certified Yes Yes Overture® Compatible Yes No *Specifications subject to change. See specifications sheet at Broan-NuTone.com. Fresh In™ Premium** No Thermostat Call Thermostat Heating Call Thermostat Cooling Call Code Compliant Climate Zone Lower limit Higher limit Lower limit Higher limit Temp (F) Dew point (F) Temp (F) Dew point (F) Temp (F) Dew point (F) Temp (F) Dew point (F) 1-ASHRAE 2016 14 Code compliant— no limits 14 Code compliant— no limits 2-ASHRAE 2010 14 14 3-IRC / IMC 2012–2015 14 14
A-Hot / Humid #1 2A, 1 40 23 88 73 32 14 96 78 B-Hot / Humid #2 1, 2A 40 23 90 75 32 14 98 80 C-Hot / Dry 2B 40 23 95 75 32 14 102 85 D-Mixed / Humid 3A, 4A, 3C, 4C 40 23 85 75 32 14 90 80 E-Mixed / Dry 3B, 4B 40 23 86 75 32 14 95 80
FRESH IN™ 56

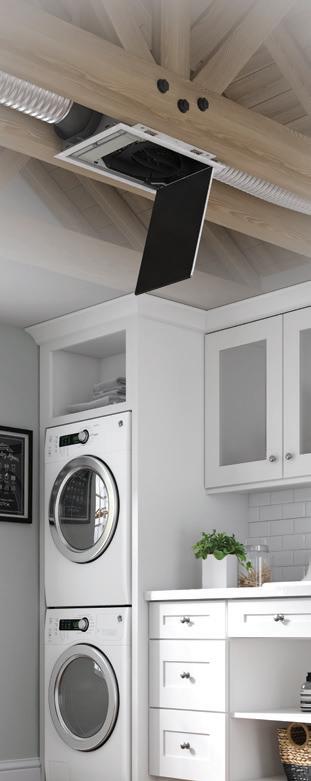

Utility fans. Every room can be more comfortable.

Every room needs ventilation. That’s why we thought of every solution. Our utility fans deliver clean, fresh air wherever you need it—a bathroom, laundry room, recreation room, workshop or nursery. Look to our room-to-room, wall/ceiling mount, through-wall or vertical discharge utility fans for powerful spot ventilation. Simple, practical and powerful—our fans provide the quality you expect and the comfort you deserve.

54
57

General features for chain-operated utility fans

• Pull-chain opens the door and starts fan

• Housing adjusts to fit walls from 4½"–9½" thick

• Specially designed fan blade

• Housing features foam insulated door for energy efficiency

• Use for a garage, kitchen, laundry room, rec room, and more

506 507

• 10" fan (103⁄8" diameter sleeve)

• 430 CFM, designed for use in a garage, kitchen, laundry room, rec room, and more

• 7.5 Sones

While supplies last

• 8" fan (83⁄8" diameter sleeve)

• 250 CFM

• 7.0 Sones

502 While supplies last, 503

• Installs easily between ceiling joists or wall studs

• Built-in damper prevents backdrafts

• Fits 31⁄4" x 10" duct

• 502 is 300 CFM and 503 is 160 CFM

• 502 is 9.0 Sones and 503 is 5.0 Sones

General features for room-to-room fans

• Adjustable mounting brackets span up to 24 in.

• Installs easily between ceiling joists or wall studs

• Built-in damper prevents backdrafts

• Bright white fan cover matches most white ceiling paint

• Permanently lubricated, thermally protected motor

• UL listed and HVI-2100 certified for safety

510

While supplies last

• 370 CFM, Whole home or Commercial Ventilation

• 8.5 Sones

511

• 180 CFM, powerful ventilation designed for larger rooms or master baths, eliminates moisture, pollutants, and odors from larger rooms

• 4.5 Sones

508 (10"), 509/509S (8")

• 509S: features an integral ON/OFF rotary switch–no wall switch to wire

• 509S: use in a garage, kitchen, laundry room, rec room, and more

• 508 is 290 CFM and 7.5 Sones

• 509/509S is 200 CFM and 8.5 Sones

**While supplies last

55 UTILITY FANS
Broan Model CFM Sones Sizing Specifications Overture® Compatible Cover Size 506 430 7.5 Fits 41⁄2"–91⁄2" thick walls Yes 131⁄2 x 131⁄2 507** 250 7.0 Fits 41⁄2"–91⁄2" thick walls Yes 111⁄2 x 111⁄2 510** 370 8.5 Fits 3"–51⁄2" thick walls Yes 131⁄2 x 131⁄2 511 180 4.5 Fits 3"–51⁄2" thick walls Yes 131⁄2 x 131⁄2 502** 300 9.0 Fits 31⁄4" x 10" duct Yes 131⁄2 x 131⁄2 503 160 5.0 Fits 31⁄4" x 10" duct Yes 111⁄2 x 111⁄2 508 290 7.5 Fits 41⁄2"–91⁄2" thick walls Yes 131⁄2 x 131⁄2 509 200 8.5 Fits 41⁄2"–91⁄2" thick walls Yes 111⁄2 x 111⁄2 509S 200 8.5 Integral ON/OFF Rotary Switch Yes 111⁄2 x 111⁄2
58

512 While supplies last

• 90 CFM, Powerful ventilation to remove moisture and reduce the risk of mold or mildew

• 4.0 Sones

• Built-in variable speed control

• Easy interior wall installation

• Galvanized steel housing stands up to moisture

• Permanently lubricated motor

• 6" room to room

• Use SC100W speed control separately

General Features & Benefits

• Galvanized steel housing installs easily between ceiling joists

• Steel mounting brackets with keyhole slots for fast installation

504

While supplies last

• 10" vertical discharge

• Fits 10" round duct–use Model 472 transition/ damper (available separately) for 8" round duct (performance will be reduced)

• 330 CFM and 8.0 Sones

505

• 8" vertical discharge with built-in damper

• 8" fan, 8¼" diameter housing

• 200 CFM and 8.5 Sones

512M

• 6" Through-Wall

• Louvered exterior wall cap with built-in bird screen

• 6" diameter flexible aluminum duct included

• 70 CFM and 6.0 Sones 673

While supplies last

• 6" vertical discharge with built-in damper

• 6" paintable fan, spin-on, white fan cover

• 60 CFM and 4.5 Sones

**While supplies last

56 UTILITY FANS
Broan Model CFM Sones Sizing Specifications Overture® Compatible 512** 90 4.0 Fits up to 51⁄8" thick walls Yes 512M 70 6.0 Fits up to 51⁄4"–10" thick walls Yes 504** 330 8.0 Fits 10" round duct Yes 505 200 8.5 Fits 8" round duct Yes 673** 60 4.5 Fits 6" round duct Yes
59

8210 Ceiling Mount, Vertical Discharge

While supplies last

• Ventilates directly through the roof with round ducting

• 210 CFM, Whole home or Commercial Ventilation

• 6.5 Sones

• Surface-mount fan installs on interior walls with ease

• Room-to-room wall fan

• Two attractive white fan covers can be painted to match decor

• High-strength, reinforced fan blade

• Permanently lubricated motor for a long life

• Specially designed housing reduces diameter of discharge opening to fit 7" round duct; no reducer needed

• UL Listed for use in cooking areas

8310 Wall/Ceiling Mount, Side discharge only

While supplies last

• 160 CFM, powerful ventilation designed for larger rooms or master baths, eliminates moisture, pollutants, and odors form larger rooms

• 5.0 Sones

• Steel mounting brackets with keyhole slots for fast installation

• Duct size 8" diameter

• 3¼" x 10" duct, side discharge

• Installs easily in walls or ceiling

• Built-in backdraft damper

• UL Listed for use in cooking areas

**While

BUILDING THE AMERICAN DREAM

Broan-NuTone® is America’s most trusted residential ventilation company. We’re proud to bring better air quality to more than 90 million homes nationwide.

57 UTILITY FANS
NuTone Model CFM Sones Duct Overture® Compatible 8210** 210 6.5 Room-to-room Yes 8310** 160 5.0 8 Yes
supplies last 12" 14" 3-1/4" 7-7/8" dia
60

High-traffic environments need high performance ventilation.

Need an exceptionally quiet solution to light commercial ventilation? With their heavy-duty motors, Broan-NuTone High Capacity Ventilation Fans are the perfect answer for ventilating conference rooms, dining areas, public restrooms and other heavily-trafficked spaces.

Low-vibration and low-profile, these discrete products work quietly and powerfully behind the scenes to remove odor, humidity and air-borne particulates that affect indoor air quality.

L100E, L150E, L200E, L250E, L300E

Available end of 2022

• Ceiling mounted

• 8" round metal duct connector

• 20 gauge galvanized steel housing

• Duct horizontally or vertically

• Low profile, white plastic fan cover

• Model MG1 metal fan cover sold separately

• Models L100E, L150E, L200E, L250E and L300E are cULus listed for use over tubs and showers when connected to a GFCI branch circuit

• Model 80L Variable Speed Control adjusts blower speed and sound level (available separately)

L100EL, L150EL, L200EL, L250EL, L300EL

Available end of 2022

• Inline mounted

• Removable access panel, no insulation

• Two 8" round duct connectors

• No fan cover

• Suitable for kitchen installations

11-3/4"

12-1/4"

12-1/4"

58
61

L100, L150 L200, L250, L300

• 6" round metal duct connector

• Single, impact-resistant centrifugal blower wheel housing

• 20 gauge galvanized steel housing

• Duct horizontally, vertically, or in-line with a separate adapter

• Low profile, white or painted white enamel metal fan cover

• Models L100L and L150L are UL Listed for use over tubs and showers when connected to a GFCI branch circuit

• Model 80L Variable Speed Control adjusts blower speed and sound level (available separately)

• 8" round metal duct connector

• Single, impact-resistant centrifugal blower wheel (Model L300KMG has a metal wheel)

• 20 gauge galvanized steel housing

• Duct horizontally, vertically, or in-line with a separate adapter

• Models L200L, L250L and L300L are UL Listed for use over tubs and showers when connected to a GFCI branch circuit

• Model 80L Variable Speed Control adjusts blower speed and sound level (available separately)

L400, L500, L700

• Quiet automatic backdraft dampers

L100L, L150L L200L, L250L, L300L

• Removable access panel, no insulation

• Two 6" round duct connectors

• No fan cover

• Suitable for kitchen installations

• Removable access panel, no insulation

• Two 8" round duct connectors

Model MG1 Metal Fan Cover Upgrade

Compatible with L100, L150, L200, L250 and L300 series ventilation fans. Installation can be completed in 5 minutes or less

Model 80L Variable Speed Control

Specially designed for use with Broan LoSone Select ® ventilators rated at 3 Amps or less

Model RD1

Radiation Damper

Prevents the rapid spread of fire to other areas of a home during a fire

59
LIGHT COMMERCIAL

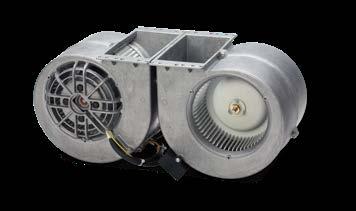

41⁄2" x 181⁄2" duct connector
Two impact-resistant centrifugal blower wheels
Duct horizontally or vertically—In-line available with separate adapter
12-1/4" 11-3/4" 21-1/2" 12-1/4" 12-1/4" 11-3/4"
Model CFM Sones Duct Overture® Compatible L100 109 0.9 6 Yes L150 157 1.5 6 Yes L200 210 1.7 8 Yes L250 259 2.2 8 Yes L300 308 2.9 8 Yes L100L 106 0.7 6 Yes L150L 147 1.1 6 Yes L200L 195 1.9 8 Yes L250L 245 2.3 8 Yes L300L 293 3.1 8 Yes L400 434 2.3 41⁄2 x 181⁄2 Yes L500 514 3.3 41⁄2 x 181⁄2 Yes L700 701 4.7 41⁄2 x 181⁄2 Yes
Broan
62

VENTILATION IN COMMON AREAS WHEN YOU NEED IT

L400L, L500L, L700L

• Removable access panel; no insulation

L900L, L1500L

• Removable access panel; no insulation

• Can use the 80L variable speed blower control (sold separately)

L900, L1500

• L900 can use the 80L variable speed blower control (sold separately)

L2000L

• 38"L x 145⁄8"W x 145⁄8"H

• Fits 73⁄4" x 333⁄4" duct

• Optional metal fan cover (Model G102) and damper kit (Model D100)

60
Broan Model CFM Sones Duct Overture® Compatible L400L 406 1.6 41⁄2 x 181⁄2 Yes L500L 519 3.4 41⁄2 x 181⁄2 Yes L700L 681 3.7 41⁄2 x 181⁄2 Yes L900 901 4.1 8 x 12 Yes L900L 894 3.8 8 x 12 Yes L1500L 1214 6.7 8 x 12 Yes L2000L 1791 9.4 73⁄4 x 333⁄4 Yes LIGHT COMMERCIAL
63

ROOF CAPS

Model S437

• High-capacity design up to 1200 CFM

• Built-in bird screen

• Steel housing, black electrically bonded epoxy finish

Model 611**

• For flat roof installation

GREASE FILTERS

Model SLAF1

• Aluminum mesh filter traps grease and protects motor

• Dishwasher safe

• Aluminum natural finish

• For up to 8" round duct

Model 611CM**

• For curb mount installation

• Other features same as Model 611

Model 612**

• For flat roof installation

• Aluminum natural finish

• For up to 12" round duct

Model 612CM

• For curb mount installation

• Other features same as Model 612

Model 634

• For 31⁄4" x 10" or up to 8" round duct

• Built-in backdraft damper and bird screen

• Steel housing, black electrically bonded epoxy finish

Model 634M

• Same as Model 634, except for 6" round duct

Model 644**

• Same as Model 634, except aluminum natural finish

• SLAF1 (12" x 12") for L100/150/200/250/300 Series

• SLAF1 for use with metal covers

WALL CAPS

Model 441

• For 10" round duct

• Steel with aluminum louvers

Model 613**

• For 12" round duct

• Built-in backdraft damper and bird screen

• Aluminum natural finish

Model 641

• Same as Model 613, except for 6" round duct

Model 643

• For 8" round duct

• Built-in backdraft damper

• Aluminum natural finish

Model 843BL

• For 6" round duct

• Built-in backdraft damper and bird screen

• Black finish

IN-LINE ADAPTERS

Model 961L**

• For L100/L150 Series

• Galvanized steel

• 6" round duct intake

Model 981L**

• For L200/L250/L300 Series

• Galvanized steel

• 8" round duct intake

Model 982L**

• For L400/L500/L700 Series

• Galvanized steel

• 41⁄2" x 181⁄2" duct intake

Model 983L**

• For L900/L1500 Series

• Galvanized steel

• 8" x 12" duct intake

DUCT TRANSITIONS

Models S423 & ST81212

• Galvanized steel

• S423: (41⁄2" x 181⁄2" to 10" round)

• ST81212: (8" x 12" to 12" round)

VIBRATION DAMPENING HANGERS

Model V104** (not shown)

• For Model L2000L

• Heavy gauge steel construction

• Neoprene vibration dampening cushion

• Maximum load 75 lbs (each)

• For 3⁄8" diameter threaded rod (available separately from others)

• Set of four required for each ventilator

METAL GRILLE KIT

Model MG1

• For L100/150/200/ 250/300 Series

• White enamel painted steel

• Mounting screws included

RADIATION DAMPERS

When excessive heat is detected, the breakaway fusible link triggers the closing of the radiation damper’s fire resistant screen to prevent smoke and fire from traveling through ductwork.

Features

• 165° fusible link

• Galvanized steel frame

• Stainless steel negator-type closure spring

High Capacity Models RD1, RD2, RD3 (not shown)

• UL rated 3-hour ceiling radiation dampers

• High temperature, non-asbestos, reinforced fiber thermal fabric

• RD1 (121⁄2" x 121⁄2") for L100/150/200/250/300 Series

• RD2 (213⁄4" x 121⁄2") for L400/500/700 Series

• RD3 (221⁄4" x 181⁄4") for L900/1500 Series

**While supplies last 61 LIGHT COMMERCIAL ACCESSORIES
64

Digital Dehumidistat

Model DD500W*

• Turn any ventilation fan into a humidity-sensing solution

• Reduce mold and mildew to improve indoor air quality

• Precision control enables desired humidity level to start the fan

• LED indicates fan on/off status

• Rated 120V at 60Hz, max total of 9 amps/switch

• Replaces obsolete model DH100W

Two-Function Control

Model P2RW*

• Two rocker switches control any two functions: fan, light, heater or nightlight

• Save space, conveniently fitting in a single gang box

• Simple installation saves time and money

• Rated 120V at 60Hz, max total of 15 amps/switch

• Replaces obsolete models: 269VL, 269WL, 68V, 68W, P68W, P68WN

Variable Speed Control

Model 80L

• Adjust ventilation easily in any room

• Variable Speed Control mounts inside the fan housing and enables blower speed adjustment

• For Broan High Capacity Fans L100–L900

• Speed control with metal housing

• Perforated fan insulation for easy installation

• 120V, 3 amps, 60 Hz

*Faceplate not included

60 Minute Countdown Timer

Model CD60W*

• Set countdown timer to 20, 40 or 60 minutes

• Can also be set to run continuously

• Save energy—countdown timer ensures the fan always turns off

• LED indicates run-time remaining

• Rated 120V at 60Hz, max total of 9 amps/switch

• Replaces obsolete models: 59V, 59W, 61V, 61W, 62W, 63V, 63W, 71V, CFT12WH, P59V, P59W, P59WN, P61WN, VS63WH, VS66WH, VS67WH, VS68WH, VS69WH

Delay Off Timer

Model DT100W*

• Use the ‘delay’ setting under the switch plate to ensure proper bathroom ventilation by keeping the fan running for 5 to 60 minutes after you leave

• Use the ‘ventilation’ setting to meet code requirements by ventilating the bathroom for a predetermined amount of time every hour

• User adjustable settings can be changed as much as desired until the perfect setting is found

• Designed to meet ASHRAE 62.2 and CalGreen Title 24 codes for continuous ventilation

• Rated 120V at 60Hz, max total of 6 amps/switch

• Replaces obsolete models: 64V, 64W

62 LIGHT COMMERCIAL WALL CONTROLS
Model L100–L700 Series L900 Series L1500 Series L2000L HD50L HD80L CD60W* • • • • DT100W* • • P2RW* • 80L • • DD500W* • • • •
65
66

Prevent heat and moisture build-up. Attics can reach over 150°F in summer, warming your living area, increasing the air-conditioning load and your energy bill. In winter, ice dams can form, and moist air can condense causing mildew, rotting wood and wet insulation. Year-round attic ventilation ensures a cooler, drier attic which can extend the life of your roof and air conditioner, while lowering air conditioning expense.

Attic Ventilation Calculator
much attic ventilation do you need? Scan this QR code and you’ll know what you need in a few minutes. 64
How
Attic ventilation. Push the heat out. Put money back in your wallet.
67

General Features & Benefits

• Reduces moisture in attic

• Lowers temperature of home in summer

• Metal flashing allows for nailing and hot tar application

• Mesh bird screen

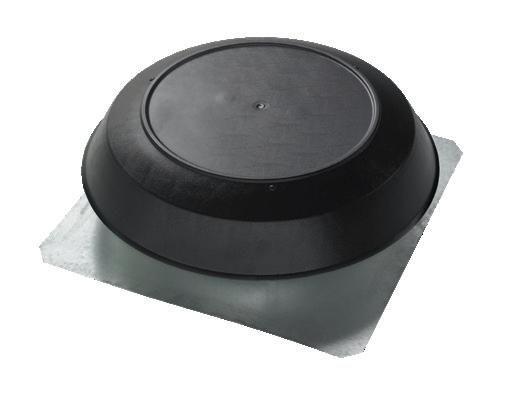

356BK

• Built-in adjustable thermostat for automatic operation at your chosen temperature

• Mounts easily between rafters, installation template included

353, 35316 While supplies last

• Galvanized steel housing for added strength

Powered Attic Ventilation Specifications

• Combine with automatic shutter (model 433) to get optimum efficiency and performance

DD500W

Remote In-Line Ventilator

Turn any ventilation fan into a humidity-sensing solution. Reduce mold and mildew to improve indoor air quality. Precision control enables desired humidity level to start the fan.

**While supplies last

Surface mount solar ventilation

For most roofs, our onepiece solar-powered attic ventilator (SPAV) is the perfect solution. Because our solar cells are highly efficient at capturing the sun’s energy, there is no need for unsightly raised panels or tracking systems. Instead, what you see is a low profile ventilator in a contoured design that integrates well with the roof.

433

Automatic Shutter for Gable Mount

Attic Ventilators

While supplies last

Feature counter-balanced aluminum vanes that automatically open and close when the ventilator turns on and off

Better air flow than stationary attic louvers

Extruded aluminum frame fits flush with outside wall

Weather-tight closure

Easy to install

For use with Broan Models 353 and 35316.

**While supplies last

65
Model Attic Sq Ft AMPs CFM* RPM Height Diameter Dome Material Color Roof Mount 356BK Up to 2285 8.0 1600 1500 8 231⁄4 PVC Brown/Black Gable Mount 353† Up to 1460 3.4 1020 / 760** 1030 35316†** Up to 2285 3.9 1600 / 1160** 1420
ATTIC VENTILATION 345SOBK 345SOWW While
29.875" 25.5" 9" 25.5" 26.625" Dome Base
Broan Model NuTone Model CFM Attic Max Cubic Ft. ws Color 345SOBK 537 3200 28 Black 345SOWW** 537 3200 28 Weathered Wood
supplies last
Solar-powered Attic Ventilators—Surface, Curb, Remote and Gable
19"
⁄4 11⁄2 "
19"
161
68

DUCTING

Model 406 Round Duct**

• 6" round duct

• 2' galvanized section

Model 407 Round Duct**

• 7" round duct

• 2' galvanized section

Model 410 Round Duct

• 10" round duct

• 2' galvanized section

DUCTING KITS

Model RVK1A†

Flexible Roof Ducting Kit

• Includes Model 636 Roof Cap

• 4" diameter metal duct connector

• 2 duct clamps

• 4" to 3" reducer

• 8' of 4" flexible aluminum ducting

Model WVK2A†

Flexible Wall Ducting Kit

• Includes white polymeric wall cap

• 4" diameter metal duct connector

• 2 duct clamps

• 4" to 3" reducer

• 5' of 4" flexible aluminum ducting

ELBOWS

Model 418

Adjustable Elbow

• Fits 10" round duct

FILTERS

Model 99010042 Aluminum Filter

• Fits Utility Ventilator

Models 503, 503MG, 505, 505MG, 509, 509MG, 509S and 509SMG

Model 99010271 Aluminum Filter

• Fits Utility Ventilator

Models 12C, 12CMG, 502, 502MG, 504, 504MG, 508, 508MG, 510, 510MG, 511 and 511MG

ROOF CAPS

Model S437 10" Round†

• High-capacity design up to 1200 CFM

• Backdraft damper and built-in bird screen

• Welded steel construction

• Black powder coat finish

Model 611 Roof Cap†**

• For flat roof installation

• Aluminum natural finish

• For up to 8" round duct

Model 611CM Roof Cap†**

• For curb mount installation

• Other features same as Model 611

Model 612 Roof Cap†**

• For flat roof installation

• Aluminum natural finish

• For up to 12" round duct

Model 612CM Roof Cap†**

• For curb mount installation

• Other features same as Model 612

Model 634 Roof Cap†

• For 31⁄4" x 10" or up to 8" round duct

• Black powder coat finish

• Backdraft damper and bird screen

• Welded steel construction

†Not for use with dryers

**While Supplies last

66 ACCESSORIES
69

ROOF CAPS CONTINUED

Model 634M Roof Cap†

• Same as Model 634 except for 6" round duct

Model 636 Roof Cap†

• For 3" or 4" round duct

• Built-in backdraft damper and bird screen

• Black powder coat finish

• Welded steel construction

Model 636AL Roof Cap†**

• Same as Model 636, except aluminum natural finish

TRANSITIONS

Model S413 Transition

• Converts 31⁄4" x 10" duct to 8" round duct

Model 463B Transition**

• 3–4" duct expander

Model 465B Transition**

• 4–5" duct expander

WALL CAPS

Model 613 Wall Cap†**

• For 12" round duct

• Built-in backdraft damper and bird screen

• Aluminum natural finish

Model 639 Wall Cap†

• For 31⁄4" x 10" duct

• Spring-loaded backdraft damper

• Built-in bird screen

• Black powder coat finish

• Welded steel construction

Model 641 Wall Cap†

• For 6" round duct

• Spring-loaded backdraft damper

• Built-in bird screen

• Aluminum natural finish

• Model 647 for 7" Round duct

Model S647 Wall Cap†

• For 7" round duct

• Other features same as Model 641

Model 649 Wall Cap†**

• Same as Model 639, except aluminum natural finish

Model 843BL Wall Cap†

• For 6" round duct

• Built-in backdraft damper and bird screen

• Black powder coat finish

• Welded steel construction

WALL CAPS CONTINUED

Model 885BL Wall Cap†

• For 3" or 4" round duct

• 4" to 3" transition included

• Black powder coat finish

• Standard package—6 to a carton

• Spring-loaded backdraft damper

• Built-in, welded bird screen

• Welded steel construction

Model 885AL Wall Cap†**

• Same as model 885BL except aluminum natural finish

Model 642

• For 4" round duct

• Aluminum natural finish

• 4 to a carton

Model 643 Wall Cap†

• For 8" round duct

• Aluminum natural finish

• Backdraft damper, no bird screen

Model 646 Louvered Wall†** Cap for 6" Round Duct

• Single pack

• White polymeric

Model WC650 Wall Cap†**

• For 4" round duct

• White polymeric

• 4 to a carton

†Not for use with dryers

**While supplies last

67 ACCESSORIES
70

*Bulb not included.

Radiation Dampers can be found on pages 14 and 61. *With 6" duct (with 4" duct 0.3).

68 SPECIFICATIONS FANS Broan Model NuTone Model Page CFM Sones, HVICertified Baths up to ( ) Sq Ft ENERGY STAR® Duct Size" Housing Size Cover Size Cover Finish Amps L" W" H" L" W" E050 40 50 2.5 45 No 3 71⁄4 71⁄2 3 5 8 91⁄4 93⁄4 WP 1.1 E070 40 70 4.0 65 No 3 71⁄4 71⁄2 3 5 8 91⁄4 93⁄4 WP 1.5 671 40 70 6.0 65 No 3 71⁄4 71⁄2 3 5 8 9 91⁄4 WP 1.2 682 41 No Duct-free 71⁄8 71⁄8 3 3 4 81⁄2 81⁄2 WP 1 688 696N 40 50 4.0 45 No 3 71⁄4 71⁄2 3 5 8 9 91⁄4 WP 0.9 LP80 31 80 1.0 75 Yes 4" Oval or 3" Round 113⁄8 101⁄2 4 13 14 WP 0.3 LP110 31 110 1.5 105 Yes 4" Oval 113⁄8 101⁄2 4 13 14 WP 0.3 LP50100DC 31 50-80-100 <0.3-0.7-1.2 90 Yes 4" Oval 113⁄8 101⁄2 4 13 14 WP 0.4 SPK110 25 110 1.0 105 Yes 4 113⁄8 101⁄2 75 8 13 14 WP 0.9 QTXE080 14 80 0.3 75 Yes 6 113⁄8 101⁄2 75 8 13 133⁄4 WP 0.2 QTXE110 14 110 0.7 105 Yes 6 113⁄8 101⁄2 75 8 13 133⁄4 WP 0.3 QTXE110S 14 110 0.7 105 Yes 6 113⁄8 101⁄2 75 8 12 7⁄8 133⁄4 WP 0.3 QTXE150 14 150 1.4 140 Yes 6 113⁄8 101⁄2 75 8 13 133⁄4 WP 0.5 QTXE110150DC 13 110-130-150 <0.3-0.4-0.7 140 Yes 6 113⁄8 101⁄2 75 8 13 133⁄4 WP 0.4 QTXE110150DCS 13 110-130-150 <0.3-0.4-0.7 140 Yes 6 113⁄8 101⁄2 75 8 13 133⁄4 WP 0.5 RB80 19 80 <0.3 75 Yes 4 113⁄8 101⁄2 75 8 13 133⁄4 WP 0.3 RB110 19 110 0.6 105 Yes 4 113⁄8 101⁄2 75 8 13 133⁄4 WP 0.3 XB50 18 50 <0.3 45 Yes 6" Round + 6" to 4" Reducer 101⁄2 113⁄8 75 8 13 133⁄4 WP 0.1 XB80 18 80 <0.3* 75 Yes 6" Round + 6" to 4" Reducer 101⁄2 113⁄8 75 8 13 133⁄4 WP 0.1 XB110 18 110 <0.3 105 Yes 6 101⁄2 113⁄8 75 8 13 133⁄4 WP 0.2 XB110H 17 110 <0.3 105 Yes 6 101⁄2 113⁄8 75 8 131⁄8 14 WP 0.2 ZB80 18 80 <0.3* 75 Yes 6" Round + 6" to 4" Reducer 101⁄2 113⁄8 75 8 13 133⁄4 WP 0.1 ZB80M 17 80 <0.3* 75 Yes 6" Round + 6" to 4" Reducer 101⁄2 113⁄8 75 8 131⁄8 14 WP 0.1 ZB110 18 110 <0.3 105 Yes 6 101⁄2 113⁄8 75 8 13 133⁄4 WP 0.2 ZB110H 17 110 <0.3 105 Yes 6 101⁄2 113⁄8 75 8 131⁄8 14 WP 0.2
Broan Model NuTone Model Page CFM Sones, HVICertified Baths up to ( ) Sq Ft Lighting Watts Main/ Night Light ENERGY STAR® Lighting Type Duct Size" Housing Size Cover Size Cover Finish Amps L" W" H" L" W" AE50110DC 8 50-80-110 <0.3-0.4-0.9 105 Yes 4 91⁄4 10 53 4 113⁄4 121⁄2 WP 0.3 AE50110DCL 8 50-80-110 <0.3-0.4-0.9 105 11W LED Yes LED 4 91⁄4 10 53 4 113⁄4 121⁄2 WP 0.4 AE50110DCS 8 50-80-110 <0.3-0.4-0.9 105 Yes 4 91⁄4 10 53 4 113⁄4 121⁄2 WP 0.3 AE50110DCSL 8 50-80-110 <0.3-0.4-0.9 105 11W LED Yes LED 4 91⁄4 10 53 4 113⁄4 121⁄2 WP 0.4 AE80K 11 80 0.7 75 Yes 4 91⁄4 10 53 4 121⁄4 121⁄4 WP 0.3 AE110 11 110 1.0 105 Yes 4 91⁄4 10 53 4 111⁄2 12 WP 0.3 AE80B 11 80 1.2 75 Yes 4 91⁄4 10 53 4 111⁄2 12 WP 0.3 AE50 11 50 0.5 45 Yes 4 91⁄4 10 53 4 111⁄2 12 WP 0.2 A80 11 80 2.0 75 No 4 91⁄4 10 53 4 111⁄2 12 WP 0.37 AE80S 9 80 0.7 75 Yes 4 91⁄4 10 53 4 111⁄2 12 WP 0.3 AE110K 11 110 1.0 105 Yes 4 91⁄4 10 53 4 121⁄4 121⁄4 WP 0.3 A110 11 110 3.0 105 No 4 91⁄4 10 53 4 111⁄2 12 WP 0.4 AE110S 9 110 1.0 105 Yes 4 91⁄4 10 53 4 111⁄2 12 WP 0.3 A110L* 10 110 1.3 105 E26 Base No 4 91⁄4 10 53 4 111⁄2 121⁄8 WP 1.2 A70L* 10 70 2.0 65 E26 Base No 4 91⁄4 10 53 4 111⁄2 121⁄8 WP 1.2 AE80BL 10 80 1.2 75 11W LED Yes LED 4 91⁄4 10 53 4 113⁄4 121⁄2 WP 0.3 AE80LK 10 80 0.7 75 11W LED Yes LED 4 91⁄4 10 53 4 121⁄4 121⁄4 WP 0.3 AER80CCTK 10 80 0.7 75 11W LED Yes LED 4 91⁄4 10 53 4 121⁄4 121⁄4 WP 0.3 AE80SL 9 80 0.7 75 11W LED Yes LED 4 91⁄4 10 53 4 113⁄4 121⁄2 WP 1.2 AE110LK 10 110 1.0 105 11W LED Yes LED 4 91⁄4 10 53 4 121⁄4 121⁄4 WP 0.3 AER110CCTK 10 110 1.0 105 11W LED Yes LED 4 91⁄4 10 53 4 121⁄4 121⁄4 WP 0.3 AE110L 10 110 1.0 105 11W LED Yes LED 4 91⁄4 10 53 4 113⁄4 121⁄2 WP 0.3 AE110SL 9 110 1.0 105 11W LED Yes LED 4 91⁄4 10 53 4 113⁄4 121⁄2 WP 1.2 AR110LKVV ARN110LKVV 21 110 1.0 105 11W LED No LED 4 91⁄4 10 53 4 121⁄4 121⁄4 WP 0.3
FLEX SERIES™ FANS & FAN/LIGHTS
71

See models 162 and 164 above for Ventilation Fan/Bulb Heater versions

**While supplies last

69 SPECIFICATIONS
Broan Model NuTone Model Page CFM Sones, HVI-Certified Baths up to ( ) Sq Ft Lighting Watts Main/ Night Light ENERGY STAR® Lighting Type Duct Size" Housing Size Cover Size Cover Finish Amps L" W" H" L" W" 668RP 39 70 4.0 65 E26 Base No 4 141⁄4 81⁄4 5 3⁄4 163⁄4 105⁄8 WP 2 678 763, 763N 39 50 2.5 45 E26 Base No 4 81⁄4 8 5 3⁄4 111⁄8 105⁄8 WP 1.6 679 39 70 3.5 65 A19 No 4 8 81⁄4 5 3⁄4 105⁄8 111⁄8 WP 2 696 39 100 4.5 90 E26 Base No 4 141⁄4 81⁄4 5 3⁄4 163⁄4 105⁄8 WP 2 744 744NT 27 70 1.5 65 75W No 4 81⁄4 12 3⁄4 67⁄8 73⁄8 Dia MW 1.2 744L 27 50–80 0.3–2.0 75 75W No 4 81⁄4 12 3⁄4 67⁄8 73⁄8 Dia MW 1.3 744RNL 27 50–80 0.3–2.0 75 75W Yes LED 4 81⁄4 12 3⁄4 67⁄8 73⁄8 Dia MW 0.4 AER110SLW AERN110SLW 29 110 1.5 105 16W LED Yes LED 4 9 1⁄4 10 5 3⁄4 15 Dia White 0.6 AER80LWH AERN80LWH 29 80 0.8 75 16W LED Yes LED 4 9 1⁄4 10 5 3⁄4 15 Dia White 0.5 AER110LBN 29 110 1.5 105 16W LED Yes LED 4 9 1⁄4 10 5 3⁄4 15 Dia Bright Nickel 0.6 770RLTK 770RNLTK 29 80 2.5 75 E26 Base No 4 8 81⁄4 5 3⁄4 133 4 Dia White 1.5 AER110LTK AERN110LTK 29 110 1.5 105 16W LED Yes LED 4 9 1⁄4 10 5 3⁄4 12 12 Multiple 0.6 AR80MB 29 80 1.0 75 50W LED No LED 4 9 1⁄4 10 5 3⁄4 15 51 4 MB 0.7 744LED 27 70 1.5 65 9.5W LED Yes GU24 Base 4 81⁄4 12 3⁄4 67⁄8 73⁄8 Dia MW 0.55 750 39 100 5.0 90 100W / 7W Nightlight No 4 9 9 6 15 Dia WP 1.9 8664RP 39 100 5.0 90 100W No 4 9 9 6 15 Dia WP 1.9 HD80L HB80RL 39 80 2.5 75 100W Incandescent No 4 81⁄4 8 5 3⁄4 111⁄8 105⁄8 WP 1.5 QTXE110150DCL 13 110-130-150 <0.3-0.4-0.7 140 Integrated LED Yes LED 6 113⁄8 101 2 75⁄8 13 133⁄4 WP 0.5 QTXE110150DCSL 13 110-130-150 <0.3-0.4-0.7 140 Integrated LED Yes LED 6 113⁄8 101 2 75⁄8 13 133⁄4 WP 0.5 RB80L1 19 80 <0.3 75 LED Yes LED 4 113⁄8 101 2 75⁄8 141⁄4 133⁄4 WP 1 RB110L1 19 110 0.8 105 LED Yes LED 4 113⁄8 101 2 75⁄8 141⁄4 133⁄4 WP 1 SPK80L SPK80NL 25 80 2.5 75 LED No LED 4 81⁄4 8 5 3⁄4 101⁄4 9 3 4 WP 0.5 SPK110RGBL SPKN110RGBL 23 110 1.5 105 Integrated RGBL LED No LED 4 91⁄4 10 53⁄4 131⁄4 131⁄4 WP 0.7 XB50L1 18 50 <0.3 45 LED Yes LED 6" Round + 6" to 4" Reducer 101⁄2 113 8 75⁄8 141⁄4 133⁄4 WP 0.7 XB80L1 18 80 <0.3* 75 LED Yes LED 6" Round + 6" to 4" Reducer 101⁄2 113 8 75⁄8 141⁄4 133⁄4 WP 0.7 XB110L1 18 110 <0.3 105 LED Yes LED 6 101⁄2 113 8 75⁄8 141⁄4 133⁄4 WP 0.9 XB110HL1 17 110 <0.3 105 LED Yes LED 6 101⁄2 113 8 75⁄8 141⁄4 133⁄4 WP 0.9 ZB80L1 18 80 <0.3* 75 LED Yes LED 6" Round + 6" to 4" Reducer 101⁄2 113 8 75⁄8 141⁄4 133⁄4 WP 0.8 ZB80ML1 17 80 <0.3* 75 LED Yes LED 6" Round + 6" to 4" Reducer 101⁄2 113 8 75⁄8 141⁄4 133⁄4 WP 0.8 ZB110L1 18 110 <0.3 105 LED Yes LED 6 101⁄2 113 8 75⁄8 141⁄4 133⁄4 WP 0.9 ZB110HL1 17 110 <0.3 105 LED Yes LED 6 101⁄2 113 8 75⁄8 141⁄4 133⁄4 WP 0.9 ZB110ML1 17 110 <0.3 105 LED Yes LED 6 101⁄2 113 8 75⁄8 141⁄4 133⁄4 WP 0.9
(with
duct 0.3)
FAN/LIGHTS
*With 6" duct
4"
Broan Model NuTone Model Page CFM Sones, HVICertified Lighting Watts Main/ Night Light Housing Size Cover Size Cover Finish Duct Size" Heater Wattage L" W" H" L" W" Amps 161** 9412D** 36 n/a n/a 250W Infrared 81 8 83⁄8 6 101 4 101⁄4 White Polymeric 2.1 250 163** 9422P** 36 n/a n/a 500W Infrared 141 4 81⁄8 6 105 8 101⁄4 White Polymeric 4.3 500
BULB HEATER (NO FAN)
72
70 SPECIFICATIONS
ATTIC VENTILATORS—GABLE AND ROOF MOUNT Housing Size Broan Model NuTone Model Page CFM Sones Description L" W" H" Amps Dome Color Dome Material 353 65 1020 N/A PAV–Gable Mount 15 Dia 8 3.4 35316 65 1600 N/A PAV–Gable Mount 15 Dia 8 3.9 356BK 65 1600 N/A PAV–Roof Mount 221⁄4 Sq 231 4 Dia Dome 8 8.0 Black PVC
ATTIC VENTILATORS—SURFACE, CURB, REMOTE AND GABLE Model* Page Mount Color Housing Material* Solar Panel Power Output Pieces Dome/Panel Dimensions (inches) Height" Width" Length" 345SOBK 65 Curb Black ABS Plastic 28 Watts 1 pc 11 297⁄8 265 8 345SOWW** 65 Curb Weathered Wood ABS Plastic 28 Watts 1 pc 11 297⁄8 265 8 *All UV-enhanced ABS plastic housings may be painted to match roof color **While supplies last HEATER/FAN/LIGHTS Broan Model NuTone Model Page CFM Sones, HVICertified Baths up to ( ) Sq Ft Lighting Watts Main/ Night Light Housing Size Cover Size Cover Finish Duct Size" Amps Heater Wattage L" W" H" L" W" 162* 9417DN 36 70 4.0 Not Specified 250W Infrared 81⁄8 83 8 63 8 101⁄4 101⁄4 WP 4 2.5 250* 164* 9427P 36 70 4.0 Not Specified 500W Infrared 141⁄4 83 8 63 8 155⁄8 101⁄4 WP 4 4.5 500* QTX110HL 35 110 0.9 105 120W/7W 175⁄8 113⁄8 75 8 20 15 WP 6 14.6 1500 765H110L 35 110 2.0 105 100W 16 101⁄4 57 8 171⁄2 111⁄2 WP 4 14 1500 765H80L 34 80 2.0 75 14W LED 141⁄4 81 4 53⁄4 163⁄4 105⁄8 WP 4 11 1300 BHF80 33 80 1.5 75 141⁄4 81 4 53⁄4 161⁄4 93 4 Bright White 4 12 1300 BHF110 33 110 2.0 110 16 101⁄4 57 8 173⁄4 113⁄4 Bright White 4 14 1500 BHFLED80 33 80 1.5 75 11.5W LED 141⁄4 81 4 53⁄4 161⁄4 93 4 Bright White 4 12 1300 BHFLED110 33 110 2.0 105 11.5W LED 16 101⁄4 57 8 173⁄4 113⁄4 Bright White 4 14 1500 QT9093WH 34 110 4.0 105 100W/7W 13 1⁄4 181⁄8 71 2 153⁄8 diameter WP 4 14.3 1500 9093WH 34 70 3.5 65 100W/7W 13 1⁄4 181⁄8 71 2 153⁄8 diameter WP 4 14.3 1500 *Ventilation Fan/Bulb Heater versions UPGRADE KITS Broan Model NuTone Model Page CFM Sones Lighting Watts Main/ Night Light Speaker Housing Size Cover Size Cover Finish Install Time Total Connected BTU Duct Size" Amps Load In Watts Heater Wattage L" W" H" L" W" FG1000VV + FG1000VVS 43 N/A N/A SurfaceShield LED powered by Vital Vio® N/A N/A N/A N/A 121⁄4 121 4 Bright White < 5 min N/A N/A N/A N/A N/A FG110HBS 47 N/A N/A LED N/A N/A N/A N/A 173⁄4 113 4 Bright White < 10 min N/A N/A N/A 1300 N/A FG600 + FG600S FG500N + FG500NS 46 N/A N/A LED N/A N/A N/A N/A 101⁄4 93⁄4 Bright White < 5 min N/A N/A N/A N/A N/A FG600RGB, FG600RGBS 43 N/A N/A White and multi-colored lighting modes N/A N/A N/A N/A 101⁄4 93⁄4 Bright White < 5 min N/A N/A N/A N/A N/A FG701 + FG701S 46 N/A N/A N/A N/A N/A N/A N/A 131⁄4 131 4 Bright White < 5 min N/A N/A N/A N/A N/A FG800RGB, FG800RGBS 44 N/A N/A White and multi-colored lighting modes N/A N/A N/A N/A 101⁄4 93⁄4 Bright White < 5 min N/A N/A N/A N/A N/A FG800SPK + FG800SPKS** FG800SPKN + FG800SPKNS 44 N/A N/A LED Bluetooth® Speaker N/A N/A N/A 101⁄4 93⁄4 Bright White < 5 min N/A N/A N/A N/A N/A FG80HBS 47 N/A N/A LED N/A N/A N/A N/A 161⁄4 93⁄4 Bright White < 10 min N/A N/A N/A 1300 N/A FGR101 + FGR101S 47 N/A N/A N/A N/A N/A N/A N/A 91 4 93⁄4 Bright White < 5 min N/A N/A N/A N/A N/A FGR300 + FGR300S 47 N/A N/A N/A N/A N/A N/A N/A 111⁄2 12 Bright White < 5 min N/A N/A N/A N/A N/A QK60 + QK60S QKN60 + QKN60S 46 60 2.5 N/A N/A N/A N/A N/A 101⁄8 10 White < 10 min N/A N/A N/A N/A N/A VVLED 43 N/A N/A SurfaceShield LED powered by Vital Vio® N/A N/A N/A N/A N/A N/A N/A < 5 min N/A N/A N/A N/A N/A 73
POWERED
SOLAR-POWERED

**While supplies last

LIGHT COMMERCIAL

71 SPECIFICATIONS
FANS Housing Size Cover Size Broan Model NuTone Model Page CFM Sones Amps Duct Size L" W" H" L" W" 502** 55 300 9.0 163⁄4 137⁄8 31⁄4 131⁄2 Sq 1.7 31 4" x 10" 503 55 160 5.0 14 12 31⁄4 111⁄2 Sq 1.5 31 4" x 10" 504** 56 330 8.0 101⁄4 Rd 7 131⁄2 Sq 1.7 10" 505 56 200 8.5 81⁄4 Rd 7 111⁄2 Sq 1.5 8" 506 55 430 7.5 103⁄8 Rd 131⁄2 Sq 1.7 Direct Discharge 507** 55 250 7.0 83⁄8 Rd 111⁄2 Sq 1.5 Direct Discharge 508 55 290 7.5 103⁄8 Rd 131⁄2 Sq 1.7 Direct Discharge 509 55 200 8.5 83⁄8 Rd 131⁄2 Sq 1.5 Direct Discharge 509S 55 200 8.5 83⁄8 Rd 131⁄2 Sq 1.5 Direct Discharge 510** 55 370 8.5 111⁄2 Sq 131⁄2 Sq 1.7 Room to room wall fan 511 55 180 4.5 111⁄2 Sq 131⁄2 Sq 0.9 Room to room wall fan 512** 56 90 4.0 6 Rd 8 Dia 0.7 Room to room wall fan 512M 56 70 6.0 6 Rd 8 Dia 0.7 Direct Discharge 673** 56 60 4.5 61⁄4 Rd 51⁄4 8 Dia 1.0 6" 8210** 57 210 6.5 9 Dia 55⁄8 11 Dia 0.8 7" 8310** 57 160 5.0 14 12 31⁄4 11 Dia 1.5 31 4" x 10"
UTILITY
Housing Size Cover Size Broan Model Page CFM Sones L" W" H" L" W" Amps Duct Size L100 59 109 0.9 121⁄4 121⁄4 113 4 14 14 1.1 6" L100L 59 106 0.7 121⁄4 121⁄4 113 4 N/A N/A 1.1 6" L150 59 157 1.5 121⁄4 121⁄4 113 4 14 14 1.3 6" L150L 59 147 1.1 121⁄4 121⁄4 113 4 N/A N/A 1.3 6" L200 59 210 1.7 121⁄4 121⁄4 113 4 14 14 1.8 8" L200L 59 195 1.9 121⁄4 121⁄4 113 4 N/A N/A 1.8 8" L250 59 259 2.2 121⁄4 121⁄4 113 4 14 14 2.1 8" L250L 59 245 2.3 121⁄4 121⁄4 113 4 N/A N/A 1.8 8" L300 59 308 2.9 121⁄4 121⁄4 113 4 14 14 2.1 8" L300L 59 293 3.1 121⁄4 121⁄4 113 4 N/A N/A 2.6 8" L400 59 434 2.3 121⁄4 121⁄4 113 4 231⁄4 14 1.4 41 2" x 18 1⁄2 L400L 60 406 1.6 121⁄4 211⁄2 113 4 N/A N/A 1.4 41 2" x 18 1⁄2 L500 59 514 3.3 121⁄4 121⁄4 113 4 231⁄4 14 2.2 41 2" x 18 1⁄2" L500L 60 519 3.4 121⁄4 211⁄2 113 4 N/A N/A 2.2 41 2" x 18 1⁄2" L700 59 701 4.7 121⁄4 121⁄4 113 4 231⁄4 14 2.9 41 2" x 18 1⁄2" L700L 60 681 3.7 121⁄4 211⁄2 113 4 N/A N/A 2.9 41 2" x 18 1⁄2" L900 60 901 4.1 22 18 18 237⁄8 197⁄8 3.0 8" x 12" L900L 60 894 3.8 22 18 18 N/A N/A 3.0 8" x 12" L1500L 60 1214 6.7 22 18 18 N/A N/A 5.9 8" x 12" L2000L 60 1791 9.4 38 145⁄8 145 8 N/A N/A 5.8 73 4" x 333⁄4 " 74

AE50 (Ceiling Mount)

72
Flex SERIES™
1.00 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0 0 302010 6070 50 50 CFM 80 CFM110 CFM 40 8090100110120 AIRFLOW RATE (CFM) AE50110DC (Ceiling Mount) STATIC PRESSURE (IN. WG) 1.00 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0 0 302010 6070 5040 8090100110120 AIRFLOW RATE (CFM) AE110 (Ceiling Mount) STATIC PRESSURE (IN. WG) 1.00 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0 0 302010 6070 50 AE80 AE80B 40 8090100 AIRFLOW RATE (CFM)
STATIC PRESSURE (IN. WG) 1.00 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0 0 252015 4045 3530 505560 AIRFLOW RATE (CFM)
STATIC PRESSURE (IN. WG) 1.00 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0 0 302010 60 3" Duct4" Duct 70 5040 8090100 AIRFLOW RATE (CFM) LP80 (Ceiling Mount) STATIC PRESSURE (IN. WG) 1.00 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0 0 302010 6070 5040 8090100 AIRFLOW RATE (CFM)
STATIC PRESSURE (IN. WG) 1.00 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0 0 302010 6070 5040 8090100110120 AIRFLOW RATE (CFM)
Mount) STATIC PRESSURE (IN. WG) 1.00 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0 0 604020 120 130 CFM 110 CFM 150 CFM 140 10080 160 AIRFLOW RATE (CFM)
STATIC PRESSURE (IN. WG) 75
PERFORMANCE CURVES
AE80, AE80B (Ceiling Mount)
AE80BL (Ceiling Mount)
AE110L (Ceiling
QTXE110150DC (Ceiling Mount)
73 PERFORMANCE CURVES 1.00 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0 0 302010 6070 5040 50 CFM80 CFM100 CFM 8090100110120 AIRFLOW RATE (CFM)
STATIC PRESSURE (IN. WG) 1.00 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0 0 302010 6070 5040 8090100110120 AIRFLOW RATE (CFM)
STATIC PRESSURE (IN. WG) 1.00 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0 0 302010 60 6" Duct 4" Duct 70 5040 8090100 AIRFLOW RATE (CFM)
STATIC PRESSURE (IN. WG) 1.00 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0 0 302010 6070 5040 8090100110120 AIRFLOW RATE (CFM) XB110
Mount) STATIC PRESSURE (IN. WG) 1.00 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0 0 302010 60 Precise airflow rate adjustability allows fan to produce any CFM shown within this area. 6" Duct 4" Duct 70 5040 8090100 AIRFLOW RATE (CFM) ZB80
Mount) STATIC PRESSURE (IN. WG) 1.00 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0 0 302010 6070 5040 8090100110120 AIRFLOW RATE (CFM) ZB110
Mount) STATIC PRESSURE (IN. WG) Precise airflow rate adjustability allows fan to produce any CFM shown within this area. 1.00 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0 0 302010 6070 5040 8090100 AIRFLOW RATE (CFM)
Mount) STATIC PRESSURE (IN. WG) 76
LP50100DC
(Ceiling Mount)
LP110 (Ceiling Mount)
XB80 (Ceiling Mount)
(Ceiling
(Ceiling
(Ceiling
RB80 (Ceiling
74
1.00 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0 0 302010 6070 5040 8090100110120 AIRFLOW RATE (CFM) RB110 (Ceiling Mount) STATIC PRESSURE (IN. WG) 1.00 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0 0 302010 6070 5040 8090100110120 AIRFLOW RATE (CFM) QTXE080 (Ceiling Mount) STATIC PRESSURE (IN. WG) 1.00 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0 0 302010 6070 5040 8090100110120 AIRFLOW RATE (CFM) QTXE110 (Ceiling Mount) STATIC PRESSURE (IN. WG) 1.00 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0 0 302010 6070 5040 8090100110120 AIRFLOW RATE (CFM) AR110LKVV (Ceiling Mount) STATIC PRESSURE (IN. WG) 1.00 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0 0 302010 6070 5040 8090100 AIRFLOW RATE (CFM) SPK80 (Ceiling Mount) STATIC PRESSURE (IN. WG) 1.00 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0 0 302010 6070 5040 8090100110120 AIRFLOW RATE (CFM) AER110LTK (Ceiling Mount) STATIC PRESSURE (IN. WG) 1.00 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0 0 302010 6070 5040 8090100 AIRFLOW RATE (CFM) AER80LWH (Ceiling Mount) STATIC PRESSURE (IN. WG) 77
PERFORMANCE CURVES

LIGHT COMMERCIAL

L150 Series (Ceiling Mount)

For In-line models, performance listed is for straight-through ducting at .125" static pressure. For complete sones and CFM at other static pressures, see our Web site at www.Broan-NuTone.com.

75 PERFORMANCE CURVES
1.00 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0 0 604020 120140 10080 160180200 AIRFLOW RATE (CFM)
STATIC PRESSURE (IN. WG) L150Series L100Series 1.00 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0 0 600400200 12001400 1000800 1600 AIRFLOW RATE (CFM) L900, L1500
Mount) STATIC PRESSURE (IN. WG) L1500 Series L900 Series 1.00 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0 0 604020 120140 10080 160 AIRFLOW RATE (CFM) L100L, L150L (In-Line) STATIC PRESSURE (IN. WG) L150LSeries L100LSeries 1.00 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0 0 600400200 12001400 1000800 1600 AIRFLOW RATE (CFM) L900L, L1500L (In-Line) STATIC PRESSURE (IN. WG) L1500L Series L900L Series 1.00 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0 0 1208040 240280 200160 320 AIRFLOW RATE (CFM) L200, L250, L300 Series (Ceiling Mount) STATIC PRESSURE (IN. WG) L250 Series L300K Series L300 Series L200Series 1.00 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0 0 1800 1200 600 3600 3000 2400 AIRFLOW RATE (CFM) L2000L (In-Line) STATIC PRESSURE (IN. WG) L1500L Series L900L Series 1.00 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0 0 1208040 240280 200160 320 AIRFLOW RATE (CFM) L100L, L150L (In-Line) STATIC PRESSURE (IN. WG) L250L Series L300L Series L200L Series 1.00 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0 0 24016080 480560 400320 640720 AIRFLOW RATE (CFM)
STATIC PRESSURE (IN. WG) L500
L500K
L700
L400
L400K Series 1.00 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0 0 24016080 480560 400320 640720 AIRFLOW RATE (CFM) L400L, L400KL, L500L, L700L (Ceiling Mount) STATIC PRESSURE (IN. WG) L500L L500KL L700L L400LL400KL 78
L100,
Series (Ceiling
L400, L500, L700 Series (Ceiling Mount)
Series
Series
Series
Series

THE LEADER IN RESIDENTIAL INDOOR AIR QUALITY. COME HOME TO FRESH AIR.

Broan-NuTone® is America’s leading brand of residential ventilation products including range hoods, ventilation fans, fresh air systems, and automated whole home indoor air quality monitoring and ventilation system.

RANGE HOODS
FRESH AIR SYSTEMS ©2022 Broan-NuTone | Printed in USA | 99851098C | 08/22 The Bluetooth ® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Broan-NuTone LLC is under license. Other trademarks and trade names are those of their respective owners. BROAN-NUTONE.COM | 800-558-1711 | 926 WEST STATE STREET, HARTFORD, WISCONSIN 53027 OVERTURE SYSTEM tm 79
VENTILATION FANS

ULTRA PRO BATH FANS

80

ULTRA Pro Bath Fans

Moisture in the bath can damage a home’s structure, and unpleasant air can spoil a home’s environment. Enjoy peace of mind knowing bathroom moisture and unpleasant air is quietly being removed by ULTRA Pro. Engineered to provide efficient and quiet operation, ULTRA Pro fans protect a home and its occupants by removing unwanted air indoors, while

SEALINGTIGHTtoblockoutdoorairfromflowingin.

81

ULTRA PRO™ SERIES BATH FANS

Protection. Serenity. Delivered by ULTRA Pro.

QUIETLY IMPROVING INDOOR AIR QUALITY FOR A HEALTHIER, MORE RELAXING EXPERIENCE.

Moisture in the bath can damage a home’s structure, and unpleasant air can spoil a home’s environment. Enjoy peace of mind knowing bathroom moisture and unpleasant air is quietly being removed by ULTRA Pro. Engineered to provide efficient and quiet operation, ULTRA Pro fans protect a home and its occupants by removing unwanted air indoors, while SEALING TIGHT to block outdoor air from flowing in.

NEW LED 82

ULTRA PRO™ FEATURES

Available in both lighted and unlighted models, ULTRA Pro fans are designed to be efficient, quiet and easy to install. CLASSIC

RB80

RB110

RB80L1

RB110L1

ULTRA EFFICIENT

QFlow™

Damper

Technology delivers smoother airflow and superior backdraft seal

• W ith fan off, QFlow damper seals tightly to block outdoor air from flowing inside

• W ith fan on, QFlow damper lifts air out of path to reduce static pressure and noise, while maximizing airflow

Broan.com

ULTRA QUIET

QStream™ Sound Technology reduces sound levels and improves overall sound quality

• QStream uses a patented baffle system to smooth the flow of air, reducing noise from turbulence

• QStream Technology allows the blower to run more slowly and quietly

ULTRA QUICK INSTALLATION

ULTRA Pro fans are engineered to deliver the fastest, easiest and most universal installations

• Expandable mounting frame adjusts to fit any type of joist, I-joist or truss construction

• System works in new construction or room-side retrofit installations

ULTRALUCENT™ LED TECHNOLOGY

High-power, dual LEDs provide superior light intensity

• Dimmable LED can be adjusted to illuminate the room or provide a soft night light

• Long-life LEDs last up to 10,000 hours

ULTRA PROTECTION - Available premium radiation dampers

For multi-family applications, accessory radiation dampers RDFU and RDFUWT are available to fit any ULTRA models. Visit broan.com for application details.

Broan, 926 W. State Street Hartford, WI 53027 800-558-1711 In Canada call 877-896-1119

FANS
FANSLIGHTED
CLASSIC
Broan | ENERGY STAR is a registered mark owned by the U.S. government | BRVF0418CTOD-02
©2018
83

KITCHEN VENTILATION

84

Kitchen Ventilation

Not all homeowners recognize what contributes to poor indoor air quality, the potential effects and harm, and how to address these problems. Broan-NuTone® is here to help. For nearly 90 years, Broan-NuTone has led the industry with residential ventilation solutions that improve indoor air qualityandprovidehealthierhomeenvironments

85
86
Kitchen Ventilation

When your home breathes, you breathe easier too.

Kitchen Ventilation

removes cooking effluents during food preparation to eliminate airborne pollutants from spreading through the entire house.

Fresh Air Systems

efficiently exchange

inside air with fresh outside air, and remove airborne particulate with HEPA filtration.

Exhaust Ventilation

removes excess moisture and odor from any room in the home, and can also provide continuous, whole-house ventilation.

Broan-NuTone can improve indoor air quality in every room of the home. From clearing humidity in the bathroom to removing steam and other airborne effluents in the kitchen, no company knows residential and light commercial ventilation like Broan-NuTone. After countless innovations and a commitment to indoor air quality, trust Broan-NuTone to clear up every concern.

2 87

Why indoor air quality is important to you.

Not all homeowners recognize what contributes to poor indoor air quality, the potential effects and harm, and how to address these problems. Broan-NuTone ® is here to help. For nearly 90 years, Broan-NuTone has led the industry with residential ventilation solutions that improve indoor air quality and provide healthier home environments.

Moisture that is not properly ventilated can cause mildew and mold formation, potentially leading to structural and health problems.

Exhaust ventilation solutions from Broan-NuTone remove humidity at the source to help maintain the optimal humidity balance of 40–60%.

Off-gassing from construction materials, carpeting, adhesives and synthetic materials—as well as solvents from common household cleaners—can accumulate in tightly built homes. Look to Broan-NuTone for continuous ventilation solutions that meet ASHRAE 62.2.

Particulates from dust, allergens, pet dander, and more can contribute to poor indoor air quality up to 100

Cooking

America’s most used and trusted residential ventilation company. Broan-NuTone is proud to have our American-made ventilation and home comfort and convenience products installed in 90 million homes across the country.

aromas
effluents can infiltrate the whole house in minutes. Grease, oils and
settle permanently
2 Ventilation Overview 4 Why Kitchens Need Ventilation 8 Chimney & Island Hoods 22 High Performance Hoods 28 Power Pack Inserts 40 Built-in Downdrafts 42 ENERGY STAR® Hoods 48 Under Cabinet Hoods 70 Accessories 74 Blowers/Installation Guidelines 76 Specifications 3 88

Every kitchen needs ventilation. Here’s why.

The fact is, the kitchen is a primary source of poor indoor air quality. Excessive moisture, smoke, and air-borne particulate quickly infiltrates every room in your home. Indoor air can be up to 100 times more polluted than outside air, which means adequate ventilation is critical to a more comfortable and healthier environment. Broan has performance matched ventilation solutions for every cooking style and the type of appliance beneath it. Whether it’s a focal point in your kitchen, or concealed in custom cabinetry, trust Broan—the leader in residential ventilation—to provide the optimal solution.

4 89

Broan range hoods.

The best solution for faster smoke and odor removal.

A microwave oven has its purpose. And so does a range hood. While it may seem like you’re tackling two problems with one appliance, there’s always give and take. The ventilating capability of an over-the-range microwave simply doesn’t compare to Broan kitchen ventilation. The purposeful design of Broan range hoods allows faster, more effective removal of smoke, odors and particulates for improved indoor air quality, and a cleaner kitchen.

The Broan Captur™ Ventilation System ensures unsurpassed performance. When we set out to improve every aspect of kitchen ventilation, removing heat, smoke and moisture was key. After all, according to the EPA, the kitchen is one of the primary sources of indoor air quality problems—capturing and removing cooking effluents at the source is critical. So we looked at everything, inside and out. The blower wheel and motor assembly are designed to move more air with greater efficiency, unique filters capture effectively without restricting airflow, and new hood shapes provide effective coverage over all burners. All of which mean better performance, quieter operation and less energy use.

Shown: Sahale range hood featuring the Captur™ system with three pots boiling, versus a microwave with two pots boiling.
5 90
For faster smoke and odor removal.

The right range hood and accessories for your cooking style, design sense, and easy installation.

6 91

Chimney Hoods. Do you have an open-concept kitchen?

Consider a chimney style range hood to create a stunning focal point. Choose wall-mounted designs or a suspended range hood over an island cooktop. Be sure the blower you select matches the BTU output of your range.

Under Cabinet Hoods. In need of power while preserving cabinet space?

The under cabinet range hood is the most popular type. You’ll also find great styles in appliance-matching finishes, different performance levels and attractive price points.

Downdrafts. Looking for a range hood that’s there when you need it and hidden when you don’t?

Downdraft range hoods are perfect for island or peninsula installations. You receive the right amount of ventilation literally at the push of a button.

High Performance Hoods. Looking for convenience in a high performance range hood?

Style, power and modern convenience are possible with high-performance hoods. Highly effective filtration and stainless steel bottoms make cleaning easy. Just match your blower to the BTU output of your range.

Power Pack Inserts. Thinking of designing custom cabinetry?

Power pack inserts allow you to conceal your range hood inside a cabinet for a clean look. Insert a power pack and achieve all the benefits of great ventilation.

7 92

Chimney & Island

Every room deserves a focal point. In the kitchen, achieve it with Broan Chimney & Island range hoods. Strong angles, gentle curves, glass accents, striking lighting. Details make all the difference, and that says something about you.

Shown: EW54 on page 17
93

This beautiful, traditional European design brings an exciting new look to your kitchen. Quiet operation and bright LED lighting enhances your cooking experience, while the sleek 3-speed capacitive touch control makes operation and clean-up easy.

• Quiet 460 MAX Blower CFM operates at a best-in-class 1.5 sones at normal speed.

• Bright 2-level LED module (included).

• Tap-touch, three-speed capacitive control features a smooth, easy-to-clean surface.

• Dishwasher-safe deluxe filters feature quick-release latch for easy removal.

• CRT provides the ability to meet codes and reduce airflow to 300 CFM.

• 10 minute delay-off function keeps hood running after cooking to ensure smoke and odors have cleared the environment.

• O ptional non-duct recirculation kit and filters available.

• Ducted/non-ducted telescopic flue extension accommodates 8' to 9' ceiling heights. Flue extensions available to accommodate ceiling heights from 9' to 10'.

• Installation brackets are included for easy installation.

* M AX Blower CFM indicates hood blower performance in open air. Find HVI rated performance for this model in the product specification sheet at Broan-NuTone.com

† Sones at normal (or working) speed.

Install the hood so that the bottom of the unit is 24" to 30" above the cooking surface. Mounting height may be affected by ceiling height.

& ISLAND 9
CHIMNEY
EW4836BLS EW4836SS
SPECIFICATIONS OPTIONAL ACCESSORIES Width MAX Blower CFM* Blower Sones † Volts Amps Duct 10' Flue Extension Non-duct Kit Non-duct Replacement Filter 24" 30" 36" 460 Internal 1.5 120 1.53 6" RD AEEW48SS AEEW48WH AEEW48BLS ARKEW48 S99010473; 24", 30" S99010474; 36"
94
EW48

Elegant, curved glass design provides a stunning focal point for any kitchen. Quiet operation and bright LED lighting enhances your cooking experience, while the sleek 3-speed capacitive touch control makes operation and clean-up easy.

• Quiet 460 MAX Blower CFM operates at a best-in-class 1.5 sones at normal speed.

• Bright 2-level LED module (included).

• Tap-touch, three-speed capacitive control features a smooth, easy-to-clean surface.

• Dishwasher-safe deluxe filters feature quick-release latch for easy removal.

• CRT provides the ability to meet codes and reduce airflow to 300 CFM.

• 10 minute delay-off function keeps hood running after cooking to ensure smoke and odors have cleared the environment.

• O ptional non-duct recirculation kit and filters available.

• Ducted/non-ducted telescopic flue extension accommodates 8' to 9' ceiling heights. Flue extensions available to accommodate ceiling heights from 9' to 10'.

• Installation brackets are included for easy installation.

CHIMNEY & ISLAND 10
EW4636SS
SPECIFICATIONS OPTIONAL ACCESSORIES Width MAX Blower CFM* Blower Sones † Volts Amps Duct 10' Flue Extension Non-duct Kit Non-duct Replacement Filter 30" 36"460 Internal 1.5 120 1.53 6" RD AEEW46SSARKEW46 S99010475
M AX Blower CFM indicates hood blower performance in open air. Find HVI rated performance for this model in the product specification sheet at Broan-NuTone.com
Sones at normal (or working) speed. Install the hood so that the bottom of the unit is 24" to 30" above the cooking surface. Mounting height may be affected by ceiling height. EW46 95
*

EW4330SS EW4336SS EW4336BLS

Elegant, clean lines form to create a sophisticated contemporary design that’s perfect for today’s modern kitchens. Quiet operation and bright LED lighting enhances your cooking experience, while the sleek 3-speed capacitive touch control makes operation and clean-up easy.

• Quiet 460 MAX Blower CFM operates at a best-in-class 1.5 sones at normal speed.

• Bright 2-level LED module (included).

• Tap-touch, three-speed capacitive control features a smooth, easy-to-clean surface.

• Dishwasher-safe deluxe filters feature quick-release latch for easy removal.

• CRT provides the ability to meet codes and reduce airflow to 300 CFM.

• 10 minute delay-off function keeps hood running after cooking to ensure smoke and odors have cleared the environment.

• O ptional non-duct recirculation kit and filters available.

• Ducted/non-ducted telescopic flue extension accommodates 8' to 9' ceiling heights. Flue extensions available to accommodate ceiling heights from 9' to 10'.

• Installation brackets are included for easy installation.

* M AX Blower CFM indicates hood blower performance in open air. Find HVI rated performance for this model in the product specification sheet at Broan-NuTone.com

† Sones at normal (or working) speed.

Install the hood so that the bottom of the unit is 24" to 30" above the cooking surface. Mounting height may be affected by ceiling height.

CHIMNEY & ISLAND 11
OPTIONAL ACCESSORIES Width MAX Blower CFM* Blower Sones † Volts Amps Duct 10' Flue Extension Non-duct Kit Non-duct Replacement Filter 24" 30" 36" 460 Internal 1.5 120 1.53 6" RD AEEW43SS AEEW43BLS ARKEW43
24", 30"
36"
SPECIFICATIONS
S99010473;
S99010474;
96
EW43

BWP2

This hood offers traditional design with modern features. Bright LED lighting enhances your cooking experience, while the 3-speed back-lit soft touch control makes operation easy.

• Choose a powerful 450 CFM or 630 CFM blower to match cooking surface output, or cooking style needs.

• 450 MAX Blower CFM operates at a quiet 3 sones at normal speed.

• 6 30 MAX Blower CFM operates at a quiet 1.5 sones at normal speed (BWP2306SS and BWP2366SS models only).

• Bright 1-level LED modules (included) enhance your cooking experience.

• 3 -speed back-lit soft touch control for easy operation.

• Dishwasher-safe hybrid baffle filters feature quick-release latch for easy removal.

• 5 minute delay-off function keeps hood running after cooking to ensure smoke and odors have cleared the environment.

• O ptional non-duct recirculation kit and filters are available for indoor exhaust recirculation to suit your needs.

• Ducted/non-ducted telescopic flue extension accommodates 8' to 9' ceiling heights. Flue extensions are available to accommodate ceiling heights from 9' to 10'.

Backlit mode when active.

CHIMNEY & ISLAND 12 BLOWER CFM BWP2244SS BWP2304SS BWP2364SS BLOWER CFM BWP2306SS BWP2366SS Install the hood so the bottom of the hood is 24" to 36" above the cook-top surface. Ceiling heights may impact the final installation distance. 1-3/8 9-11/16 Min. 25-3/8 Max. 40-3/8 SPECIFICATIONS (450 MAX Blower CFM) OPTIONAL ACCESSORIES Width MAX Blower CFM* Blower Sones † Volts Amps Duct 10' Flue Extension Non-duct Kit Non-duct Replacement Filter 24" 30" 36" 450 Internal 3.0 120 2.6 6" RD FXN58SS ARKBWP FILTERBWPTS SPECIFICATIONS (630 MAX Blower CFM) 30" 36" 630 Internal 1.5 120 3.5 6" RD
M AX Blower CFM indicates hood blower
air.
in the
at Broan-NuTone.com † Sones at normal (or working)
*
performance in open
Find HVI rated performance for this model
product specification sheet
speed.
97

BWS2

This sleek low-profile design is the perfect statement for today’s kitchens. Bright LED lighting enhances your cooking experience, while the 3-speed back-lit soft touch control makes operation easy.

• Powerful 450 MAX Blower CFM operates at a quiet 3 sones at normal speed.

• Bright 1-level LED modules (included) enhance your cooking experience.

• 3 -speed back-lit soft touch control for easy operation.

• Dishwasher-safe hybrid baffle filters feature quick-release latch for easy removal.

• 5 minute delay-off function keeps hood running after cooking to ensure smoke and odors have cleared the environment.

• O ptional non-duct recirculation kit and filters are available for indoor exhaust recirculation to suit your needs.

• Ducted/non-ducted telescopic flue extension accommodates 8' to 9' ceiling heights. Flue extensions are available to accommodate ceiling heights from 9' to 10'.

CHIMNEY & ISLAND 13 1-3/8 3-3/4 23-3/4 6-3/4 Min. 23-3/4 Max. 43 Install the hood so the bottom of the hood is 24" to 36" above the cook-top surface. Ceiling heights may impact the final installation distance. SPECIFICATIONS OPTIONAL ACCESSORIES Width MAX Blower CFM* Blower Sones † Volts Amps Duct 10' Flue Extension Non-duct Kit Non-duct Replacement Filter 30" 450 Internal 3.0 120 2.6 6" RD AEBWS AEBWSBLS ARKBWTSFILTERBWPTS * M AX Blower CFM indicates hood blower performance in open air. Find HVI rated performance for this model in the product specification sheet at Broan-NuTone.com † Sones at normal (or working) speed.
Backlit mode when active.
98

Clean lines form to create a slim contemporary design that’s perfect for today’s modern kitchens. Bright LED lighting enhances your cooking experience, while the 3-speed back-lit soft touch control makes operation easy.

• Powerful 450 MAX Blower CFM operates at a quiet 3 sones at normal speed.

• Bright 1-level LED modules (included) enhance your cooking experience.

• 3 -speed back-lit soft touch control for easy operation.

• Dishwasher-safe hybrid baffle filters feature quick-release latch for easy removal.

• 5 minute delay-off function keeps hood running after cooking to ensure smoke and odors have cleared the environment.

• O ptional non-duct recirculation kit and filters are available for indoor exhaust recirculation to suit your needs.

• Ducted/non-ducted telescopic flue extension accommodates 8' to 9' ceiling heights. Flue extensions are available to accommodate ceiling heights from 9' to 10'.

CHIMNEY & ISLAND 14
Min. 22-1/16 Max. 41-3/4 1-9/16 Install the hood so the bottom of the hood is 24" to 36" above the cook-top surface. Ceiling heights may impact the final installation distance. SPECIFICATIONS OPTIONAL ACCESSORIES Width MAX Blower CFM* Blower Sones † Volts Amps Duct 10' Flue Extension Non-duct Kit Non-duct Replacement Filter 30" 450 Internal 3.0 120 2.6 6" RD FXN53SS ARKBWTSFILTERBWPTS
BWT2304SS 99
* M AX Blower CFM indicates hood blower performance in open air. Find HVI rated performance for this model in the product specification sheet at Broan-NuTone.com † Sones at normal (or working) speed. Backlit mode when active.

Clean lines form to create a slim contemporary design surrounded by black glass that’s perfect for today’s modern kitchens. Bright LED lighting enhances your cooking experience, while the sleek 3-speed capacitive touch control makes operation and clean up easy.

• Powerful 450 MAX Blower CFM operates at a quiet 3 sones at normal speed.

• Bright 1-level LED modules (included) enhance your cooking experience.

• 3 -speed capacitive touch control features a smooth, easy-to-clean surface.

• Dishwasher-safe hybrid baffle filters feature quick release latch for easy removal.

• 5 minute delay-off function keeps hood running after cooking to ensure smoke and odors have cleared the environment.

• O ptional non-duct recirculation kit and filters are available for indoor exhaust recirculation to suit your needs.

• Ducted/non-ducted telescopic flue extension accommodates 8' to 9' ceiling heights. Flue extensions are available to accommodate ceiling heights from 9' to 10'.

CHIMNEY & ISLAND 15
Min. 22-7/16 Max. 42-1/8 1-15/16 Install the hood so the bottom of the hood is 24" to 36" above the cook-top surface. Ceiling heights may impact the final installation distance. SPECIFICATIONS OPTIONAL ACCESSORIES Width MAX Blower CFM* Blower Sones † Volts Amps Duct 10' Flue Extension Non-duct Kit Non-duct Replacement Filter 30" 450 Internal 3.0 120 2.6 6" RD FXN53SS ARKBWTSFILTERBWPTS * M AX Blower CFM indicates hood blower performance in open air. Find HVI rated performance for this model in the product specification sheet at Broan-NuTone.com † Sones at normal (or working) speed. BWT2304SSB 100

Featuring a traditional design, this chimney hood offers bright LED lighting that illuminates the cooktop.

• 3 80 MAX Blower CFM operates at a quiet 1.5 sones at normal speed.

• Bright 1-level LED modules (included) enhance your cooking experience.

• 3 -speed push button controls make operation easy.

• Dishwasher-safe aluminum mesh filters feature quick-release latch for easy removal.

• O ptional non-duct recirculation kit and filters are available for indoor exhaust recirculation to suit your needs.

• Ducted/non-ducted telescopic flue extension accommodates 8' to 9' ceiling heights. Flue extensions are available to accommodate ceiling heights from 9' to 10'.

*

AX Blower CFM indicates hood blower performance in open air. Find HVI rated performance for this model in the product specification sheet at Broan-NuTone.com

Sones at normal (or working) speed.

Install the hood so that the bottom of the unit is 30" above the cooking surface. Mounting height may be affected by ceiling height.

16
BW5036SSL
BW50SSL CHIMNEY & ISLAND
29-1/2”, 35-7/16” 19-3/4” 8-3/4” 6-3/4” 9-7/8” 1-3/8” Min. 25-1/2” (Ducted) Min. 28-1/4” (Non-Ducted) Max. 40-1/4” (Ducted) Max. 40-1/4” (Non-Ducted) SPECIFICATIONS OPTIONAL ACCESSORIES Width MAX Blower CFM* Blower Sones † Volts Amps Duct 10' Flue Extension Nonduct Kit Non-duct Replacement Filter 30" 36" 380 Internal 1.5 120 2.6 6" RD FXN58SSRK58 ROUNDFILTER
101
M

EW5436BLS

A sleek, low-profile design enhanced by a dazzling new finish. Create a signature look and focal point in any kitchen with this stunning black stainless chimney hood.

• Compact chimney with contemporary flair.

• Black stainless steel finish.

• Two widths 30" & 36"; in a 20" depth.

• Powerful internal 600 MAX Blower CFM operates at 1.5 sones at normal speed.

• Bright dual halogen lighting; 2-intensity settings (lamps included).

• Tap-touch, three-speed capacitive control features a smooth, easy-to-clean surface.

• Dishwasher-safe micro-mesh filters provide highly efficient grease removal. The electronic filter clean reminder ensures they will always maintain peak efficiency.

• O ptional non-duct recirculation kit available.

• Install hood so that the bottom of the unit is 24" to 30" above the cooking surface. Mounting height may be affected by ceiling height.

• Ducted telescopic flue accommodates ceiling heights from 8' to 9'. Flue extension for higher ceilings is also available.1

CHIMNEY & ISLAND 17
SPECIFICATIONS OPTIONAL ACCESSORIES Width MAX Blower CFM* Blower Sones† Volts Amps Duct Non-duct Kit Non-ducted Filter Ducted Flue Extension1 Make-Up Air Damper+ 30", 36" 600** Internal 1.5 120 4.8 6" RD 3-1/4" x 10" HRKMBLS FILTERECM FXE54BLS MD6TU, MD8TU, MD10TU
Optional flue extension for 10' ceiling.
299 CFM max with ARP6 reducer plate option.
Requires Fresh Air Inlet.
M AX Blower CFM indicates hood blower performance in open air. Find HVI rated performance for this model in the product specification sheet at Broan-NuTone.com † Sones at normal (or working) speed. 11- 5/8“ 19-5/8 25 -1/16“ 43-1/2“ Ducted 24-3/4 “ 10 - 3/4“ 29-7/8“ - 35-7/8” 20“ 102
1
**
+
*

Inspiring traditional European design. This wonderful design is executed to meet todays needs so that everyone can achieve their dream.

• Traditional Italian design with high-performance features.

• Available in brushed stainless steel.

• Two widths 30" & 36"; in a 19-3/4" depth.

• Powerful internal 520 MAX Blower CFM.

• Bright dual halogen lighting; 3-intensity settings (35-watt lamps included).

• 3 -Speed electronic push button control with blue speed selection indication.

• Control features include Delay-off and Filter clean reminder.

• O ptional Remote Control Operation—BCR1.

• Quick release aluminum mesh filters.

• Designed to work with Broan Automatic Make-up air dampers.

• Heat Sentry™ detects excessive heat and adjusts blower speed automatically.

• Telescopic flue accommodates ceiling heights 8' to 9'. Flue extensions for higher ceilings are also available.1

SPECIFICATIONS

OPTIONAL ACCESSORIES

* M AX Blower CFM indicates hood blower performance in open air. Find HVI rated performance for this model in the product specification sheet at Broan-NuTone.com

† Sones at normal (or working) speed.

CHIMNEY & ISLAND 18
Width MAX Blower CFM* Blower Sones† Volts Amps Duct Flue Extension1 FXNE58SS 29-15/16", 35-15/16" 520 Internal 2.5 120 3.05 6" RD Non-Ducted Kit** RKE58 Non-ducted Filter FILTERE56 Remote Control BCR1 Make-Up Air Damper MD6T, MD8T, MD10T
non-ducted
ceilings.
1 Optional flue extension for either ducted or
10'
** Includes non-ducted filter & flex duct.
+ 299 CFM max with ARP6 reducer plate option.
Optional BCR1 Remote Control 19-3/4" 8-3/4" 6-7/8" 29-15/16", 35-15/16" 29-1/2 " –39 " Ducted 29-3/4 " –42-3/8 " Non-Ducted 25-3/8 " 18 "
103
EW5836SS

Elegant European curved glass design that is both beautiful and functional. The airy design is a stunning focal point that complements its surrounding perfectly.

• Contemporary Italian Glass Canopy design.

• Available in brushed stainless steel.

• Two widths 30" & 35-1/4"; in a 19-3/4" depth.

• Powerful internal 650 MAX Blower CFM.

• Bright dual halogen lighting; 3-intensity settings (35-watt lamps included).

• 3 -Speed electronic push button control with blue speed selection indication.

• Control features include Delay-off and Filter clean reminder.

• O ptional Remote Control Operation—BCR1.

• Quick release aluminum mesh filters.

• Designed to work with Broan Automatic Make-up air dampers.

• Heat Sentry™ detects excessive heat and adjusts blower speed automatically.

• Telescopic flue accommodates ceiling heights 8' to 9'. Flue extensions for higher ceilings are also available.1

1 Optional flue extension for either ducted or non-ducted 10' ceilings.

** Includes non-ducted filter & flex duct.

+ 299 CFM max with ARP6 reducer plate option.

* M AX Blower CFM indicates hood blower performance in open air. Find HVI rated performance for this model in the product specification sheet at Broan-NuTone.com

† Sones at normal (or working) speed.

CHIMNEY & ISLAND 19
Optional BCR1 Remote Control 19-3/4" 10-1/2" 10-5/8" 29-7/8", 35-1/4" 22-1/2 " –38-3/8 " Ducted 26-7/8 " –41-1/4 " Non-Ducted 20-1/4 " 22-1/2 "
Width MAX Blower CFM* Blower Sones† Volts Amps Duct Flue Extension1 FXNE56SS 30", 35-1/4" 650Internal 2.5 120 2.88 6" RD Non-Ducted Kit** RKE56 Non-ducted Filter FILTERE56FL Remote Control BCR1 Make-Up Air Damper MD6T, MD8T,
SPECIFICATIONS OPTIONAL ACCESSORIES
MD10T
104
EW5636SS

Elegant symmetry from every angle. Graceful curves and a low-profile design make this island hood at home in any décor.

• Brushed stainless steel finish.

• 35-7/16" x 27-9/16" dimension.

• Multi-speed slide control.

• Four 20-watt halogen lamps included (one level).

• Dishwasher-safe aluminum filters.

• Telescopic flue accommodates 8' to 9' ceilings—flue extension available for 10' ducted and non-ducted applications.*

• Internal blower delivers 550 CFM (<300 CFM with ARP6 ).

• Non-ducted kit for indoor recirculation (purchase separately).

• Heat Sentry™ detects excessive heat and adjusts blower speed to high automatically.

SPECIFICATIONS

OPTIONAL ACCESSORIES

1 Includes non-ducted filter.

** 299 CFM max with ARP6 reducer plate option.

* M AX Blower CFM indicates hood blower performance in open air. Find HVI rated performance for this model in the product specification sheet at Broan-NuTone.com

† Sones at normal (or working) speed.

20 CHIMNEY & ISLAND
Width MAX Blower CFM* Blower Sones† Volts Amps Duct Flue Extension FX54SS 35-7/16" 550 Internal 3.0 120 3.56 6" RD Non-ducted FXN54SS Non-Ducted Kit1 RK54 Non-ducted Filter FILTERSQUARE Make-Up Air Damper MD6TU, MD8TU, MD10TU
10-7/16 11-5/8 23 27-9/16 35-7/16 13/1 6 37/ 8 20 -1/ 4 34 mi n46 m ax 105

Beautiful contemporary European glass island design. The curved glass canopy provides a stunning focal point without blocking the view of your surroundings.

• Contemporary Italian Glass Canopy design.

• Available in brushed stainless steel.

• 35-3/8" x 25-5/8" dimension.

• Powerful internal 520 MAX Blower CFM.

• Bright quad halogen lighting; 3-intensity settings (lamps included).

• 3 -Speed electronic push button control with blue speed selection indication.

• Control features include Delay-off and Filter clean reminder.

• O ptional Remote Control Operation—BCR1.

• Quick release aluminum mesh filters.

• Designed to work with Broan Automatic Make-up air dampers.

• Heat Sentry™ detects excessive heat and adjusts blower speed automatically.

• Telescopic flue accommodates ceiling heights 8' to 9'. SPECIFICATIONS OPTIONAL ACCESSORIES

1 Optional flue extension for either ducted or non-ducted 9' to 10' ceilings.

† Sones at normal (or working) speed.

** Includes non-ducted filter & flex duct.

* M AX Blower CFM indicates hood blower performance in open air. Find HVI rated performance for this model in the product specification sheet at Broan-NuTone.com Optional BCR1 Remote Control Controls

25-5/8" 10-3/8" 10-7/8" 35-3/8" 30-1/2"
30-1/2"
21-1/16 18-3/4
21 CHIMNEY & ISLAND
–35-1/4" Ducted
–39-1/4" Non-Ducted
"
Width MAX Blower CFM* Blower Sones† Volts Amps Duct Flue Extension1 FXNE59SS 35-3/8" 520 Internal 2.5 120 3.55 6" RD Non-Ducted
RKE59 Non-Ducted
FILTERE56 Remote Control BCR1 Make-Up Air Damper
Kit**
Filter
MD6T, MD8T, MD10T
106

Professional style that fits under any cabinet.

• Brushed stainless steel finish.

• Bright halogen lighting; Two 50-watt bulbs in 30" and 36" widths, Three 50-watt bulbs in 42" and 48" widths (purchase bulbs separately).

• Pro-style, dishwasher-safe baffle filters with removable grease drip rail.

• Designed to duct out of the hood shell in either horizontal or vertical direction with internal blowers. External blowers duct vertically.

• Designed to work with Broan Automatic Make-Up Air Damper.

• Variable speed control remembers last setting—blue LED power-on indicator light.

• W hen venting to the exterior is not possible, an optional non-duct kit will filter air through charcoal filters and recirculate it back into the kitchen. E64000

• Heat Sentry™ detects excessive heat and adjusts blower speed automatically.

HIGH PERFORMANCE 22
E64000
shown with a custom backsplash.
36" E6436SS 42" E6442SS 48" E6448SS 1290 MAX Blower CFM 48" E6448TSS 36" E64E36SS 42" E64E42SS 48" E64E48SS 107

E64000 Specifications & Options

INTERNAL BLOWER SPECIFICATIONS (See page 74 for External blowers)

1 Duct adapter & damper is included with the Internal blowers.

◆ 120V 60Hz

* M AX Blower CFM indicates hood blower performance in open air. Find HVI rated performance for this model in the product specification sheet at Broan-NuTone.com

† Sones at normal (or working) speed.

EXTERNAL BLOWER SPECIFICATIONS

1 See pages 74–75 for Exterior (660–1620 MAX Blower CFM) and Inline (320–1540 MAX Blower CFM) blower specifications.

2 Sone levels are typically half of comparable CFM internal blowers.

3 External blower capable models include the 332KR rough-in kit, purchase blowers separately.

◆ 120V 60Hz

* M AX Blower CFM indicates hood blower performance in open air. Find HVI rated performance for this model in the product specification sheet at Broan-NuTone.com

Pro-style, dishwasher-safe baffle filters with removable grease drip rail. Filters feature handles for convenient removal.

Adapt to any installation.

Shown with non-duct recirculating kit.

Quality Broan Elite options let you create a custom look.

A non-duct kit may be used to recirculate filtered air back into the kitchen if ducting is not practical.

E64000 OPTIONS SELECTION TABLE

Restaurant-quality stainless steel backsplash with fold-down shelves completes the commercial look and is easy to clean.

† For models with internal blowers only.

* Includes non-ducted filters.

** Requires two packs for dual blower models.

HIGH PERFORMANCE 23
Width MAX Blower CFM*1 (See
74–75) Blower Sones2 Lamps Max Amps ◆ Ducting3 30" 320–1620 External See below 2–50W GU10 5.5 10" RD 36" 42" 3–50W GU10 6.0 48"
pages
Width MAX Blower CFM* Blower Sones † Lamps Max Amps ◆ Ducting1 30", 36", 42", 48" 650 Internal 1.5 2–50W GU10 5.5 3-1/4" x 10" 3–50W GU10 48" 1290 2.0 9.0 4-1/2" x 18-1/2"
WidthNon-Duct Kit † Backsplash Non-ducted Filter Make-up Air Damper 30" ANKE60302SS* RMP3004 ROUNDFILTER MD6T, MD8T, MD10T 36" ANKE60362SS* RMP3604 42" ANKE60422SS* RMP4204 48"** ANKE60482SS* RMP4804
108

Take professional style to new heights.

• Brushed stainless steel finish.

• Bright halogen lighting; Two 50-watt bulbs in 30" and 36" widths, Three 50-watt bulbs in 42" and 48" widths (purchase bulbs separately).

• Pro-style, dishwasher-safe baffle filters with removable grease drip rail.

• Variable speed control remembers last setting—blue LED power-on indicator light.

• Heat Sentry™ detects excessive heat and adjusts blower speed automatically.

• Designed to duct out of the hood shell in either horizontal or vertical direction with any blower configuration.

• Designed to work with Broan Automatic Make-Up Air Damper.

• W hen venting to the exterior is not possible, an optional non-duct kit will filter air through charcoal filters and recirculate it back into the kitchen.

HIGH PERFORMANCE 24
36" E6036SS 1290 MAX Blower CFM 42" E6042TSS 48" E6048TSS 36" E60E36SS 42" E60E42SS 48" E60E48SS
109
E60000 shown with optional 12" soffit flue.
E60000

E60000 Specifications & Options

INTERNAL BLOWER SPECIFICATIONS (See page 74 for External blowers)

1 Duct adapter & damper is included with the Internal blowers.

◆ 120V 60Hz

* M AX Blower CFM indicates hood blower performance in open air. Find HVI rated performance for this model in the product specification sheet at Broan-NuTone.com

† Sones at normal (or working) speed.

EXTERNAL BLOWER SPECIFICATIONS

1 S ee pages 74–75 for Exterior (660–1620 MAX Blower CFM) and Inline (320–1540 MAX Blower CFM) blower specifications.

2 Sone levels are typically half of comparable CFM internal blowers.

3 External blower capable models include the 332KR rough-in kit, purchase blowers separately.

◆ 120V 60Hz

* M AX Blower CFM indicates hood blower performance in open air. Find HVI rated performance for this model in the product specification sheet at Broan-NuTone.com

Pro-style, dishwasher-safe baffle filters with removable grease drip rail. Filters feature handles for convenient removal.

Shown with non-duct recirculating kit.

Adapt to any installation to a create a custom look.

A non-duct kit may be used to recirculate filtered air back into the kitchen if ducting is not practical.

E60000 OPTIONS SELECTION TABLE

Restaurant-quality stainless steel backsplash with fold-down shelves completes the commercial look and is easy to clean.

† For models with internal blowers only.

* Includes non-ducted filters.

** Requires two packs for 1200 CFM Blower.

HIGH PERFORMANCE 25
Width MAX Blower CFM*1 (See pages 74–75) Blower Sones2 Lamps Max Amps ◆ Ducting3 30" 320–1620 External See below 2–50W GU10 5.5 10" RD 36" 42" 3–50W GU10 6.0 48"
Width MAX Blower CFM* Blower Sones † Lamps Max Amps ◆ Ducting1 30", 36" 650 Internal 1.5 2–50W GU10 5.5 3-1/4" x 10" 42", 48" 1290 2.0 3–50W GU10 9.0 4-1/2" x 18-1/2"
10” ROUND DISCHARGE
Optional matching soffit chimney on the E60000 extends the commercial look in kitchens with ceilings up to 8 feet high.
E60000 12" soffit flue cover
Width Non-Duct Kit † 12" Soffit Flue Cover Backsplash Non-ducted Filter Make-up Air Damper 30" ANKE60302SS* AEE60302SS RMP3004 ROUNDFILTER MD6T, MD8T, MD10T 36" ANKE60362SS* AEE60362SS RMP3604 42" ANKE60422SS* AEE60422SS RMP4204 ROUNDFILTER** 48"** ANKE60482SS*AEE60482SS RMP4804
110

Pro Outdoor EPD61

Extra deep design and improved performance for best-in-class capture.

• Professional outdoor design.

• Deep 27" depth to handle heat and size of outdoor gas grills (optional 3" wall extension).

• Br ushed corrosion resistant stainless steel.

• Four widths: 36", 42", 48" and 60".

• Powerful 1290 MAX Blower CFM.

• Bright halogen lighting; two in 36" and 42", three in 48" and 60" models (bulbs not included).

• Three-speed rotary control designed to resist the effects of heat and moisture.

• Stainless steel baffle filters.

• Heat Sentry™ detects excessive heat and adjusts blower speed automatically.

• HVI certified performance.

EPD6148SS

EPD6160SS

HIGH PERFORMANCE 26
EPD61 shown with optional 3" wall extension and 16" flue cover.
111

EPD61 Specifications & Options

Accessories

Flue covers are available in corrosion resistant stainless steel and attach to the top of the range hood shell. Flue covers come in 6", 18" and 30" heights. Deeper flue covers are available for hoods using the 3" wall extension.

Optional

HIGH PERFORMANCE 27
INTERNAL BLOWER SPECIFICATIONS Width MAX Blower CFM* Blower Sones † Volts Max Amps Duct 36", 42", 48", 60" 1290 Internal 2.0 120 9.0 10" RD * M AX Blower CFM indicates hood blower performance in open air. Find HVI rated performance for this model 1290 Max CFM Internal Blower
to assure operation in corrosive environments. 5½ 36, 42, 48, 60 FLUE COVER SPECIFICATIONS Heights Flue Cover 13" (Standard Depth) Flue Cover 16" (Extended Depth) 6" for 8' ceiling AEEPD6SS AEEPD6SSE 18" for 9' ceiling AEEPD18SS AEEPD18SSE 30" for 10' ceiling AEEPD30SS AEEPD30SSE Corrosion resistant stainless steel. TELESCOPIC FLUE COVER SPECIFICATIONS Heights Flue Cover 13" (Standard Depth) Flue Cover 16" (Extended Depth) 24"–45" for 9-1/2'–11-1/2' ceiling AEEPD2445SSAEEPD2445SSE Corrosion resistant stainless steel. 3" WALL EXTENSION Width Model 36" AWEPD36SS 42" AWEPD42SS 48" AWEPD48SS 60" AWEPD60SS 13",16" 24"–45" 25" AEEPD2445SS AEEPD2445SSE
tested
3" wall
hood depth to 30" for even greater coverage; expensive custom wall bump-out is eliminated. 36, 42, 48, 60
extension extends
112

Built-in

There when needed—hidden when not. Enjoy powerful ventilation at the touch of a button. Add a downdraft to an island installation—raise it when cooking, lower it when entertaining. Hide a power pack insert in custom cabinetry for a completely hidden solution. You have a vision. Broan will help you see it through.

113
Shown: PM390 in custom cabinetry on page 32

This three-speed power pack insert delivers up to 440 CFM. The quick-release filter is dishwasher safe, and smooth surfaces clean easily. Achieve a custom look and protect cabinetry with stainless steel liners.

• 4 40 MAX Blower CFM, 2.5 sones at normal speed.

• Three-speed, push-button control includes a dedicated on/off.

• Bright LED strip-lighting modules illuminate evenly and are tested in cooking environments to ensure long life without dimming.

• Heat Sentry™ detects excessive heat and adjusts blower speed to high automatically.

• 6" round duct adapter with damper.

• Easy-to-clean, fully enclosed bottom with dishwasher-safe, aluminum-mesh filter.

• O ptional non-duct operation using 360NDK non-duct kit and charcoal filter, sold separately.

• Works with optional Universal Make-up Air Dampers.

• Works with optional stainless LB liners and painted LT liners.

SPECIFICATIONS

Width MAX Blower CFM* Blower Sones † Volts Amps Duct 20-1/2" 440 Internal 2.5 120 2.3 6" RD * M AX Blower CFM indicates hood blower performance in open air. Find HVI rated performance for this model in the product specification sheet at Broan-NuTone.com † Sones at normal (or working) speed.
Non-Duct Kit Non-Duct Charcoal Filter Replacement Aluminum Filter LED Make-Up Air Dampers Fresh Air Inlets Liners 360NDK S99010464 S99010400 Included MD6TU MD8TU MD10TU 641FA 643FA 610FA LB30SS LB36SS LT30 LT36 10-3/16 11-3/16 20-1/2 19-5/16 3-1/8 9-1/2 5-7/8 29 POWER PACK INSERTS
OPTIONAL ACCESSORIES
114
Shown with optional LB30SS liner

This dual-speed power pack insert delivers 300 MAX Blower CFM in a compact size. Smooth surfaces clean easily, and quickrelease filters are dishwasher safe. Get a custom appearance while protecting cabinetry with stainless steel liners.

• 3 00 MAX Blower CFM, 8.0 sones at high speed.

• Two-speed rocker controls.

• Bright LED strip-lighting modules illuminate evenly and are tested in cooking environments to ensure long life without dimming.

• 7" round duct adapter.

• Easy-to-clean, fully enclosed bottom with dishwasher-safe, aluminum-mesh filter.

• O ptional non-duct operation using 358NDK non-duct kit and charcoal filter, sold separately.

• Works with optional Universal Make-up Air Dampers.

• Works with optional stainless LB liners and painted LT liners.

11-3/16 20-1/2 10-3/16 19-7/16 2-1/2 7 SPECIFICATIONS Width MAX Blower CFM* Blower Sones Volts Amps Duct 20-1/2" 300 Internal 8.0 120 1.1 7" RD * M AX Blower CFM indicates hood blower performance in open air. Find HVI rated performance for this model in the product specification sheet at Broan-NuTone.com
Non-Duct Kit Non-Duct Charcoal Filter Replacement Aluminum Filter LED Make-Up Air Dampers Fresh Air Inlets Liners Backdraft Damper 358NDK S99010464 S99010400 Included MD6TU MD8TU MD10TU 641FA 643FA 610FA LB30SS LB36SS LT30 LT36 BP87Q 30 POWER PACK INSERTS 115
OPTIONAL ACCESSORIES
PM250SSP, see page 30 116

PM390/PM250

Power Pack Inserts and Modules are completely concealed in custom cabinetry.

High-performance ventilation solutions. These power pack inserts provide the ventilation and lighting you need for your custom application.

Model PM390

• Silver paint finish.

• Three speed, slide control.

• Heat Sentry™ detects excessive heat and adjusts speed automatically.

• Quiet centrifugal blower, 440 MAX Blower CFM (vertical discharge) (<300 CFM with ARP6).

• Dual 40-watt lamps (purchase separately).

• Dishwasher safe aluminum filter.

• For ducted installations, includes adapter and damper for 6" round duct.

• O ptional non-ducted filter kit (purchase 357NDK separately).

• Works with optional custom hood liners in 30", 36", “Box” or “T” design.

• ENERGY STAR® version on page 43.

Model PM250

• Silver paint finish.

• Two speed motor, rocker control.

• Efficient 300 MAX Blower CFM fan (vertical discharge).

• Dual 40-watt lighting (purchase lamps separately).

• Dishwasher safe aluminum filter.

• For ducted installations, built-in adapter for 7" round duct.

• O ptional non-ducted filter kit (purchase 356NDK separately).

• Works with optional custom hood liners in 30", 36", “Box” or “T” design.

20-1/2" PM250

32 POWER PACK INSERTS
117

PM390/PM250 Specifications & Options

SPECIFICATIONS

OPTIONAL ACCESSORIES

† Includes charcoal filter. Some duct work is required for non-ducted applications.

* 299 CFM max with ARP310 reducer plate option.

** M AX Blower CFM indicates hood blower performance in open air. Find HVI rated performance for this model in the product specification sheet at Broan-NuTone.com

Model PM390

PM390 & PM250 Liners

Model PM250

Broan “T” and “B” liners provide an elegant way to finish a traditional wood hood and protect cabinetry. They feature a durable silver painted finish and a 4" depth for good capture. Hemmed edges hide exposed edges, and pre-drilled mounting holes make installation easy.

Non-duct Kits

Depending on your installation of the non-duct system, you may need additional duct or duct components (e.g., elbows).

33 POWER PACK INSERTS
Width MAX Blower CFM** Sones Blower Volts Amps Duct Non-ducted Kit † Aluminum Filter Charcoal Filter 30" Liners 36" Liners Make-up Air Damper 20-1/2" 440* 6.5 Internal 120 2.9 6" RD 357NDK 99010370 B08999040 LT30 or LB30 LT36 or LB36 MD6TU, MD8TU, MD10TU 300 8.0 2.1 7" RD 356NDK
LT30 & 36 “T” liners work with wood hoods that are integrated with adjacent 12" deep cabinets. Model 356NDK Model 357NDK
118

Slides out of sight when not in use. This slimline design merges perfectly with the style of any kitchen. The unseen advantages include quiet, powerful ventilation performance.

• Compact, trim styling complements any kitchen.

• Fan and light automatically turn on when you slide out the clear glass visor; shut off when pushed in.

• Energy-efficient, 24" fluorescent light with prismatic glass lens provides bright, even cooktop lighting (bulb not included).

• Dual centrifugal blower, 490 MAX Blower CFM at a quiet 4.5 sones at high speed.

• Infinitely adjustable blower control conveniently located up front; features blower memory—when activated, unit automatically “remembers” the last setting you selected.

• Heat Sentry™ detects excessive heat and adjusts blower speed to high automatically.

• Includes 3-1/4" x 10" duct adapter with built-in damper.

SPECIFICATIONS

* Bulb not included.

† 299 CFM max with ARP310 reducer plate option.

** M AX Blower CFM indicates hood blower performance in open air. Find HVI rated performance for this model in the product specification sheet at Broan-NuTone.com

15000 Silhouette 153004 153604
Width MAX Blower CFM** Blower Sones Volts Amps Duct Bulb* 30", 36"490 † Internal 4.5 120 3.7 3-1⁄4" x 10" (vert.) F20T12
34 POWER PACK INSERTS 119

The PM500SS delivers the features you expect and the power you need. Serious cooks will appreciate the full surface coverage of the halogen lighting. Smooth surfaces and quickrelease filters clean easily.

• 550 MAX Blower CFM, 9.0 sones at high speed.

• Three-speed, push-button control includes a dedicated on/off.

• Dual halogen bulbs with single light level for bright cooktop lighting (Type JC, 12V, 20W, G4 base), included.

• 6" round duct.

• Easy-to-clean, fully enclosed bottom with dishwasher-safe, aluminum-mesh filters.

• O ptional non-duct operation using 359NDK non-duct kit and charcoal filter, sold separately.

• Works with optional Universal Make-up Air Dampers.

• Works with optional LT and LB liners.

35 POWER PACK INSERTS
SPECIFICATIONS Width MAX Blower CFM* Blower Sones Volts Amps Duct 20-1/2" 550 Internal 9.0 120 2.8 6" RD
M AX Blower CFM indicates hood blower performance in open air. Find HVI rated performance for this model in the product specification sheet at Broan-NuTone.com OPTIONAL ACCESSORIES Non-Duct Kit Non-Duct Charcoal Filter Aluminum Filter Halogen Bulb Fresh Air Inlets 30" Painted Liners 36" Painted Liners 30" Stainless Steel Liners Make-up Air Dampers 359NDK SB08999053 B08087039 Type JC 12V 20W G4 641FA, 643FA, 610FA LT30 or LB30 LT36 or LB36 RML5230S, RML5236S, RML5236L MD6TU, MD8TU, MD10TU
M AX Blower CFM indicates hood blower performance in open air. Find HVI rated performance for this model in the product specification sheet at Broan-NuTone.com 120
*
*

RMIP

The Broan Elite RMIP Pro-Style Power Pack Insert fits flush with the bottom of the cabinet or custom hoods. Centrifugal blower options from 530 to 1650 MAX Blower CFM with multi-speed control provide quiet and effective performance. Halogen lighting complements the beauty of its fully-enclosed, easy-to-clean bottom.

• Brushed stainless steel finish.

• Design allows use with custom liners or Broan Elite Pro-Style Insert liners (sold separately).

• Pro-Style Insert available in 33" and 45" widths.

• Variable speed control for quiet operation.

• O ptional remote wall control available.

• Heat Sentry™ detects excessive heat and adjusts blower speed to high automatically.

• Dishwasher-safe stainless steel/ aluminum filters, or optional baffle filters.

• Bright halogen lighting, two 50-watt lamps (RMIP33) or three 50-watt lamps (RMIP45), bulbs not included.

• Choose 530 or 930 MAX Blower CFM Internal, or choice of eight External blower options: four Exterior: 660, 880, 1280, or 1620 MAX Blower CFM, or four In-Line: 320 ,670, 890 or 1540 MAX Blower CFM. All blowers sold separately.

45-3/4"

RMIP45

• O ptional liners in 36", 42", 48" and 60" widths protect custom hoods.

36 POWER PACK INSERTS
RMIPWC Optional Wall Control.
Shown with optional baffle filters. Liner is 4" in depth.
121

RMIP Specifications

SPECIFICATIONS▲

ACCESSORIES

*

* All blowers must be purchased separately and are HVI Certified.

See blower specifications table on pages 74–75.

▲ All ratings for vertical duct only.

** M AX Blower CFM indicates hood blower performance in open air. Find HVI rated performance for this model in the product specification sheet at Broan-NuTone.com

† Sones at normal (or working) speed. 323/8"(RMIP33),443/8"(RMIP45)

Liners for RMIP Pro-Style Insert

Broan Elite Liners provide a beautiful way to finish your custom hood and protect your cabinetry. Designed to work with Broan Elite Pro-Style Power Pack Insert and Power Pack Inserts, liners feature a 3" adjustable nose to provide application flexibility, and a 4" depth for excellent capture.

• Brushed stainless steel finish.

• Liners are available for 36", 42", 48" and 60" widths.

• Liners allow depth adjustment from 22-1/2" to 25-1/2". Fits stock 24" cabinets.

• Liners are based on the outside width of the custom hood.

• All models compliant with CA Title 24.

3-Step Insert and Blower Selection Guide

1. Select the right size Pro-Style Insert

• RMIP33 (33" width) or RMIP45 (45" width)

• Both feature an 18-7/16" depth

• 530 or 930 MAX Blower CFM

Internal blower options

• 320–1500 MAX Blower CFM

External blower options

2. Select a Liner to fit your Cabinetry

For cabinet/hood inside depths of 23"–26" choose:

• RML3336S 36" width, use with RMIP33

• RML3342S 42" width, use with RMIP33

• RML4548S 48" width, use with RMIP45

• RML4560S 60" width, use with RMIP45

3. Select a blower for your Insert

Internal blowers:

• P5 (530 MAX Blower CFM)

• P8 (930 MAX Blower CFM)

Exterior blowers (outside, roof or wall):

• 331H (660 MAX Blower CFM)*

• 332H (880 MAX Blower CFM)*

• 335 (1280 MAX Blower CFM)*

• 336 (1620 MAX Blower CFM)* In-Line blowers (inside, attic or other space):

• HLB3 (320 MAX Blower CFM)

• HLB6 (670 MAX Blower CFM)*

• HLB9 (890 MAX Blower CFM)*

• HLB11 (1540 MAX Blower CFM)*

* 332KR Rough-In Kit is required when used with Exterior and In-Line blower options above (purchased separately).

RML3336S/RML3342S For RMIP33

RML4548S/RML4560S For RMIP45

37 POWER PACK INSERTS
930 (P8) Internal 0.8 (P5) 3.5 RBFIP33 RMIPWC MD6TU, MD8TU, MD10TU
External 45-3/4" 530 (P5), 930 (P8) Internal 0.8 (P5) RBFIP45
OPTIONAL
Width MAX Blower CFM** Blower* Sones† Amps Internal Baffle Filter Kit Wall Control Make-up Air Damper 33-3/4" 530 (P5),
*
External
11 1/ 2" 8" 18167/16" 125/8"
333/4"(RMIP33),453/4"(RMIP45)
122

RMP1/RMPE Custom Power Pack Insert

The Broan Elite Custom Power Pack Insert is designed to fit flush with the bottom of a cabinet or custom hood that’s 30" to 48" wide. The 400 CFM centrifugal blower is combined with a multi-speed control to provide quiet, effective performance. Halogen lighting complements the beauty of a fully enclosed bottom containing dishwasher-safe filters.

• Three-speed control.

• Heat Sentry™ detects excessive heat and adjusts blower speed to high automatically.

• Internal 550 MAX Blower CFM (<300 CFM with ARP6).

• E xternal blower model (RMPE) allows a choice of eight blower options: four Exterior: 600, 900, 1200 or 1500 CFM, or four In-Line: 280, 600, 800 or 1100 CFM.

• Two 50-watt halogen lamps included (one level).

• Dishwasher-safe aluminum filters feature a quick-release latch and professional-style appearance.

• O ptional non-ducted filters (FILTEREB40) for indoor exhaust recirculation, some ductwork required (RMP17004 only).

• Install power pack so that the bottom of the unit is 24" to 30" above the cooking surface.

EXTERNAL BLOWER 27-9/6" RMPE7004

• O ptional custom hood liners in 30", 36" and 48" widths.

38 POWER PACK INSERTS
RMP1 shown concealed in custom cabinetry. Liner is 4" in depth
123

RMP1/RMPE Specifications

SPECIFICATIONS OPTIONAL ACCESSORIES

blowers sold separately.

* All blowers are HVI Certified.

Some ductwork required for RMP1 non-ducted installations.

+ 299 CFM max with ARP6 reducer plate option.

* M AX Blower CFM indicates hood blower performance in open air. Find HVI rated performance for this model in the product specification sheet at Broan-NuTone.com

Liners for RMP1/RMPE Power Pack Insert

Broan Elite Liners provide a beautiful way to finish your custom hood and protect your cabinetry. Designed to work with Broan Elite Pro-Insert and Power Packs, liners feature a 3" adjustable nose to provide application flexibility, and a 4” depth for excellent capture.

• Brushed stainless steel finish.

• Liners protect custom hoods and are available for 30", 36" and 48" widths.

• Two versions for maximum flexibility in depth adjustment:

“S” version adjusts 17-1/8"–20-1/8".

“L” version adjusts 20-1/8"–23-1/8".

• Liners are based on the outside width of the custom hood.

3-Step Power Pack Insert and Blower Guide

1. Select a Power Pack system

RMP17004, 400 CFM Internal blower

• 27-9/16" width, 11-1⁄4" depth

RMPE7004, 320–1620 MAX Blower CFM External blower options

• 27-9⁄16" width, 11-1⁄4" depth

2. Select a Liner to fit your Cabinetry

If the cabinet/hood inside depth is 18"–21", choose model:

• RML7030S for 30" width

• RML7036S for 36" width

• RML7048S for 48" width

If the cabinet/hood inside depth is 21"–24", choose model:

• RML7030L for 30" width

• RML7036L for 36" width

• RML7048L for 48" width

3. Select an Internal or External Blower

RMP17004, Internal 400 CFM blower is included

RMPE7004, External blower options (choose one): Exterior blowers (outside, roof or wall):

• 331H (660 MAX Blower CFM)*

• 332H (880 MAX Blower CFM)*

• 335 (1280 MAX Blower CFM)*

• 336 (1620 MAX Blower CFM)*

In-Line blowers (inside, attic or other space):

• HLB3 (320 MAX Blower CFM)

• HLB6 (670 MAX Blower CFM)*

• HLB9 (890 MAX Blower CFM)*

• HLB11 (1540 MAX Blower CFM)*

* 8"–10" transition (model 414) is required for the Exterior or In-Line models.

RML7030S/RML7030L

RML7036S/RML7036L

RML7048S/RML7048L

For RMP17004 and RMPE7004 Packs

39 POWER PACK INSERTS
CUTOUT RMP1 RMPE
Width MAX Blower CFM* Blower Sones Volts Amps Duct Non-ducted Filter Make-up Air Damper 27-9/16" 400 Internal 9 120 3.5 6" RD FILTEREB40 MD6TU, MD8TU, MD10TU † External† 8" RD
External
124

Ready where and when you need it. Rises to new heights to meet the needs of high-end commercial style cooking.

• Compact design is installed directly behind the cooktop for an unobtrusive appearance. Thin profile saves precious space under the cabinet.

• Chimney rises over 9-1/2" when activated, ideal for large pots and pans.

• Infinitely adjustable control is designed to provide convenient access to govern the blower speed for effective and quiet operation.

• O ptional remote control will activate downdraft from an alternate location.

• Heat Sentry™ detects excessive heat and adjusts blower speed to high automatically.

• Dishwasher-safe filters are easy to remove and feature a stylish brushed stainless steel appearance for a professional look.

• These units are not for installations behind ovens.

• 6 00 MAX Blower CFM centrifugal blower or choice of eight External blower options: four Exterior blowers from 660 to 1540 MAX Blower CFM, or four In-Line blowers from 660 to 1620 MAX Blower CFM. See pages 74–75.

• Unique ducting capability allows the internal or remote blower connection to be ducted to the left, right or downward.

SPECIFICATIONS

† External and In-Line blowers sold separately.

OPTIONAL ACCESSORIES

* M AX Blower CFM indicates hood blower performance in open air. Find HVI rated performance for this model in the product specification sheet at Broan-NuTone.com

** 299 CFM max with ARP310 reducer plate option.

Install the hood so that the bottom of the unit is 24" to 30" above the cooking surface. Mounting height may be affected by ceiling height.
RMDD3004 RMDD3604 RMDD4804
RMDD3004EX RMDD3604EX
Width Blower MAX Blower CFM* Sones Volts Amps Duct Remote Button Kit Make-Up Air Damper 30", 36", 48" Internal 600** 120 43-1/4" x 10" RMDDRBK MD6TU, MD8TU, MD10TU External† 6 3-1/4" x 14"
40 BUILT-IN 125

273023C 273003 273603 EXTERNAL 30" 283003

Convenient options help assure a custom fit. For the unique demands of cooktops in islands and peninsulas.

• Innovative downdraft system is compatible with virtually all selfcontained cooktops.

• Sleek, trim styling complements any cooktop style or color.

• Automatically rises 7" with the touch of a button. Disappears flush with cooktop surface.

• Space-saving design lets you make the most of precious, under-counter cabinet space.

• Infinitely adjustable speed control is flush with the side of the unit; inconspicuous, yet easy to reach and simple to use.

• Model 27000 Blower discharges right, left or down and slides side-to-side to ease installation.

• These units are not for installations behind ovens.

• Stainless Steel cover standard. White or Black optional.

SPECIFICATIONS

1 M AX Blower CFM indicates hood blower performance in open air. Find HVI rated performance for this model in the product specification sheet at Broan-NuTone.com

+ 299 CFM max with ARP310 reducer plate option.

* E xternal unit utilizes model 332H Exterior-mounted blower. InLine blower sold separately.

** Cooktops, countertops and cabinets vary in dimension and support systems depending upon manufacturer. These factors may impact the ability to fit with every worktop/cabinet combination. Specifications subject to change without notice.

† M odel 28000 requires transitioning from 3-1/4" x 10" to 10" round for connection to the External blower.

Model 28000

Use with 880 MAX Blower CFM Exterior blower (Model 332H) or In-Line blower.

Model 27000

Includes 600 MAX Blower CFM Internal blower (<300 CFM with ARP310).

Width MAX Blower CFM1 Blower Volts Amps Duct 30", 36" 600+ Internal 120 43-1/4" x 10"
External 6.0 max3-1/4" x 10"†
*
41 BUILT-IN 126

Shown: BCSEK130BL on page 46

ENERGY STAR®

Broan makes it easy to go green with a variety of ENERGY STAR® certified range hoods. With efficient motor designs as well as LED and compact fluorescent lighting options, these range hoods meet the program requirements of USGBC,® LEED® and NAHB.

127

ENERGY STAR® efficiency, for custom applications provides the ventilation and lighting you need in one integrated package.

• Silver paint finish.

• Three speed, slide control.

• Heat Sentry™ detects excessive heat and adjusts speed automatically.

• Quiet centrifugal blower, 350 MAX Blower CFM (vertical discharge).

• 0.5 Sones at normal speed (130 CFM).

• Dual 13-watt fluorescent lamps included.

• Dishwasher safe aluminum filter.

• For ducted installations, includes adapter and damper for 6” round duct.

• Works with optional custom hood liners in 30", 36", “Box” or “T” design.

SPECIFICATIONS OPTIONAL ACCESSORIES

* M AX Blower CFM indicates hood blower performance in open air. Find HVI rated performance for this model in the product specification sheet at Broan-NuTone.com † Sones at normal (or working) speed.

43 ENERGY STAR ®
Width MAX Blower CFM* Blower Sones† Volts Amps Duct Aluminum Filter 30" Liners 36" Liners 20-1/2" 350 Internal 0.5 1202.9 6" RD B08087694
LT30 or LB30 LT36 or LB36
128

Broan Elite brings you Spire, an exciting new shape in a pro-style hood. Its high efficiency ensures energy savings while you enjoy pro-style performance.

• The Captur™ system’s advanced blower design features a forward positioned centric inlet to remove smoke and odor faster. Three-speed blower control exhausts at a powerful 650 MAX Blower CFM.

• Forward placement and smooth-flow blower wheel design ensure quiet, <0.3 sone operation at normal speed.

• Bright, two-level LED modules— supported by a 3-year warranty— illuminate evenly and are tested in cooking environments to ensure long life without dimming. ENERGY STAR® qualified LEDs maximize savings.

• Tap-touch, 3-speed capacitive control features a smooth, easy-to-clean surface.

• Dishwasher-safe, hybrid baffle filters provide ultra-efficient grease removal with superior air flow. The filter clean reminder ensures they will always maintain a high level of capture.

• E Z1 brackets enable single-person installation in less than half the time of traditional methods.

• ADA compliant, remote operation is possible using a standard UL approved wall switch (kit sold separately).

• Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry.

• Non-duct installation does not meet ENERGY STAR® requirements.

SPECIFICATIONS

* Kit sold separately.

† Sones at normal (or working) speed.

OPTIONAL ACCESSORIES

SPE136SS
44 ENERGY STAR ®
For faster smoke and odor removal.
Width MAX Blower CFM Sones† Volts Amps Duct Non-Ducted Charcoal Filter ADA Electronic Adapter Kit* Make-Up Air Dampers 30" 650 <0.3 1201.9 3-1/4" x 14" or 7" RD Optional 3-1/4" x 10" HPF24 (Type Xb) HAWRK3 MD6TU, MD8TU, MD10TU 36" HPF30 (Type Xc)
129

The slim and refined lines of Sahale bring a refreshing change to today’s kitchens. Bright ENERGY STAR® certified LED lighting complements your cooking experience and three fan speeds make cooking more enjoyable.

• The Captur™ system’s advanced blower design features a forward positioned centric inlet to remove smoke and odor faster. A smooth-flow blower wheel and high flow filters ensure quiet operation.

• 375 MAX Blower CFM operates at 1.5 sones at normal speed; as low as 1.2 sones in some duct configurations

• Bright, two-level LED modules— supported by a 3-year warranty— illuminate evenly and are tested in cooking environments to ensure long life without dimming. ENERGY STAR® certification saves energy expense.

• Tap-touch, three-speed capacitive control features a smooth, easy-to-clean surface.

• Dishwasher-safe, deluxe micro-mesh filters provide highly efficient grease removal and patterned cover provides a decorative design. The filter clean reminder ensures a high level of capture.

• E Z1 brackets make it easy for singleperson installation in less than half the time of traditional methods.

• ADA compliant, remote operation is possible using a standard UL approved wall switch. Requires ADA Adapter Kit.

• Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry.

• Non-duct installation does not meet ENERGY STAR® requirements.

* M AX Blower CFM indicates hood blower performance in open air. Find HVI rated performance for this model in the product specification sheet at Broan-NuTone.com

† Sones at normal (or working) speed. For faster smoke and odor removal.

45 ENERGY STAR ®
BKDEG130WW
Width MAX Blower CFM* Blower Sones† Volts Amps Duct Non-ducted Charcoal Filter ADA Electronic Adapter Kit 30" 375 Internal 1.2 120 .65 3-1/4 x 10" (V, H) 7" RD HPF30 (Type Xc) HAWRK3
SPECIFICATIONS OPTIONAL ACCESSORIES
130

• The Captur™ system’s advanced blower design features a forward positioned centric inlet to remove smoke and odor faster. A smooth-flow blower wheel and high flow filters ensure quiet operation.

• 3 00 MAX Blower CFM operates at 1.5 sones at normal speed.

• Bright, single intensity LED modules— supported by a 3-year warranty— illuminate evenly and are tested in cooking environments to ensure long life without dimming. ENERGY STAR® certification saves energy expense.

• Hidden two-speed on/off rocker switch.

• Dual dishwasher-safe, open-mesh filters provide efficient grease removal.

• E Z1 brackets make it easy for singleperson installation in less than half the time of traditional methods.

• ADA compliant, remote operation is possible using a standard UL approved wall switch.

• Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry.

• Non-duct installation does not meet ENERGY STAR® requirements.

® The clean, contemporary shape of Glacier complements any kitchen design. Impressive ENERGY STAR® certified LED lighting and superior smoke and odor removal are a mere introduction to everything this hood has to offer.

46 ENERGY STAR
BCSEK130WW BCSEK130SL
Width MAX Blower CFM* Blower Sones† Volts Amps Duct Non-ducted Charcoal Filter 30" 300 Internal 1.5 120 .65 3-1/4 x 10" (V, H) 7" RD (V only) HPF30 (Type Xc)
Sones at normal (or working) speed.
SPECIFICATIONS OPTIONAL ACCESSORIES
131
For faster smoke and odor removal.
SPE1, see page 44. 132

Under Cabinets

Every kitchen needs adequate ventilation matched to your cooking style, and your unique sense of style. That’s why Broan redesigned nearly every hood in our popular under cabinet category. For style, LED lighting, control options and more—start here.

133
Shown: BCDF1 on page 57

The sculpted lines of Alta® bring an exciting, new choice to typical range hood shapes. Sophisticated curves and perimeter aspiration enable new design possibilities while you experience the ultimate in capture efficiency.

• The Captur™ system’s advanced blower design features a forward positioned centric inlet to remove smoke and odor faster. Three-speed control operates a powerful blower with 650 MAX Blower CFM.

• Smooth-flow blower wheel design and high flow filters ensure quiet, <0.3 sone operation at normal speed.

• Bright, three-level LED modules— supported by a 3-year warranty— illuminate evenly and are tested in cooking environments to ensure long life without dimming.

• Three-speed, whisper touch infrared control is a pleasure to use and admire. Delay off feature runs the blower for 10 minutes after cooking to clear the air.

• Broan Heat Sentry™ detects excessive heat and adjusts the blower speed to prolong the life of the product and provide proper ventilation.

• Dishwasher-safe, open-mesh filters enhance grease removal behind a peripheral panel that increases capture of cooking effluents. The filter clean reminder ensures they will always maintain a high level of capture.

• E Z1 brackets make it easy for singleperson installation in less than half the time of traditional methods.

• ADA compliant, remote operation is possible using a standard UL approved wall switch (kit sold separately).

• Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry.

• O ptional HCR3 handheld remote enables control from anywhere in the kitchen.

HCR3 Optional Handheld Remote 49 UNDER CABINETS
SPECIFICATIONS OPTIONAL ACCESSORIES Width MAX Blower CFM Sones† Volts Amps Duct NonDucted Charcoal Filter ADA Electronic Adapter Kit* Handheld Remote Make-Up Air Dampers 30" 650 <0.3 1201.9 3-1/4" x 14" or 7" RD Optional 3-1/4" x 10" HPF52 (Type Xh2) HAWRK3 HCR3 MD6TU, MD8TU, MD10TU 36"
Kit sold separately.
Sones at normal (or working) speed.
*
134
ALT436SS

The sculpted lines of Alta® bring an exciting, new choice to typical range hood shapes. Sophisticated curves, infrared controls and hybrid baffle filters lend a pro-style edge to your kitchen.

• The Captur™ system’s advanced blower design features a forward positioned centric inlet to remove smoke and odor faster. Three-speed blower control exhausts at a strong 450 MAX Blower CFM.

• Smooth-flow blower wheel design and high flow filters ensure quiet, <0.5 sone operation at normal speed.

• Bright, three-level LED modules— supported by a 3-year warranty— illuminate evenly and are tested in cooking environments to ensure long life without dimming.

• Three-speed, whisper touch infrared control is a pleasure to use and admire. Delay off feature runs the blower for 10 minutes after cooking to clear the air.

• Broan Heat Sentry™ detects excessive heat and adjusts the blower speed to prolong the life of the product and provide proper ventilation.

• Dishwasher-safe, hybrid baffle filters provide ultra-efficient grease removal with superior air flow. The filter clean reminder ensures they will always maintain a high level of capture.

• E Z1 brackets make it easy for singleperson installation in less than half the time of traditional methods.

• ADA compliant, remote operation is possible using a standard UL approved wall switch (kit sold separately).

• Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry.

• O ptional HCR3 handheld remote enables control from anywhere in the kitchen.

*

UNDER CABINETS 50
HCR3 Optional Handheld Remote
ALT336SS
SPECIFICATIONS OPTIONAL ACCESSORIES Width MAX Blower CFM Sones† Volts Amps Duct NonDucted Charcoal Filter ADA Electronic Adapter Kit* Handheld Remote Make-Up Air Dampers 30" 450 <0.5 120 1.4 3-1/4" x 10" or 7" RD HPF30 (Type Xc) HAWRK3 HCR3 MD6TU, MD8TU, MD10TU 36" HPF36 (Type Xd)
Kit sold separately.
Sones at normal (or working) speed. 135

The sculpted lines of Alta® bring an exciting, new choice to typical range hood shapes. Wide curves and tap touch controls present a clean, striking design.

• The Captur™ system’s advanced blower design features a forward positioned centric inlet to remove smoke and odor faster. Three-speed blower control exhausts at 375 MAX Blower CFM.

• Smooth-flow blower wheel design and high flow filters ensure quiet, 1.5 sone operation at normal speed.

• Bright, two-level LED modules— supported by a 3-year warranty— illuminate evenly and are tested in cooking environments to ensure long life without dimming.

• Tap-touch, 3-speed capacitive control features a smooth, easy-to-clean surface.

• Dishwasher-safe, deluxe micro-mesh filters provide highly efficient grease removal and patterned cover provides a decorative complement to the hood design. The filter clean reminder ensures they will always maintain a high level of capture.

• E Z1 brackets make it easy for singleperson installation in less than half the time of traditional methods.

SPECIFICATIONS

• ADA compliant, remote operation is possible using a standard UL approved wall switch (kit sold separately).

• Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry.

OPTIONAL ACCESSORIES

UNDER CABINETS 51
ALT236SS ALT236BLS
Width MAX Blower CFM Sones† Volts Amps Duct Non-Ducted Charcoal Filter ADA Electronic Adapter Kit* 30" 375 1.5 120 .65 3-1/4" x 10" or 7" RD HPF30 (Type Xc) HAWRK3 36" HPF36 (Type Xd)
Kit sold separately. † Sones at normal (or working) speed.
*
136
ALT230BL ALT236BL ALT236WW

The sculpted lines of Alta® bring an exciting, new option to typical range hood shapes. Brilliant halogen lighting and hidden controls offer a beautiful alternative to traditional designs.

• The Captur™ system’s advanced blower design features a forward positioned centric inlet to remove smoke and odor faster. Three-speed blower control exhausts at 300 MAX Blower CFM.

• Forward placement and smooth-flow blower wheel design ensure quiet, 1.5 sone operation at normal speed.

• Two-level, halogen bulbs illuminate the cooktop and counter area (bulbs included).

• Hidden on/off rocker switches control blower speeds and light levels.

• Dishwasher-safe, micro-mesh filters provide efficient grease removal.

• E Z1 brackets enable single-person installation in less than half the time of traditional methods.

• ADA compliant, remote operation is possible using a standard UL approved wall switch.

• Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry.

SPECIFICATIONS

OPTIONAL ACCESSORIES

52 UNDER CABINETS
ALT136SS For faster smoke and odor removal.
Width MAX Blower CFM Sones† Volts Amps Duct Non-Ducted Charcoal Filter 30" 300 1.5 120 1.4 3-1/4" x 10" or 7" RD HPF30 (Type Xc) 36" HPF36 (Type Xd)
Sones at normal (or working) speed.
ALT136BL ALT130WW
137
ALT136WW

Tenaya is a slim, transitional design with gentle radius features that make it perfect for today’s contemporary kitchens. This beautiful design includes features that make it a pleasure to use and easy to maintain.

• The Captur™ system’s advanced blower design features a forward positioned centric inlet to remove smoke and odor faster. Three-speed blower control exhausts at 375 MAX Blower CFM.

• Smooth-flow blower wheel design and high flow filters ensure quiet, 1.5 sone operation at normal speed.

• Bright, two-level LED modules— supported by a 3-year warranty— illuminate evenly and are tested in cooking environments to ensure long life without dimming.

• Tap-touch, 3-speed capacitive control features a smooth, easy-to-clean surface.

• Dishwasher-safe, micro-mesh filters provide efficient grease removal. The filter clean reminder ensures they will always maintain a high level of capture.

• E Z1 brackets make it easy for singleperson installation in less than half the time of traditional methods.

• ADA compliant, remote operation is possible using a standard UL approved wall switch (kit sold separately).

• Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry. SPECIFICATIONS OPTIONAL ACCESSORIES

UNDER CABINETS 53
For faster smoke and odor removal.
Width MAX Blower CFM Sones† Volts Amps Duct Non-Ducted Charcoal Filter ADA Electronic Adapter Kit* 30" 375 1.5 120 .65 3-1/4" x 10" or 7" RD HPF30 (Type Xc) HAWRK3 36" HPF36 (Type Xd) 42" HPF42 (Type Xe)
HK0255 TEN230WW TEN236WW TEN236BL TEN236SS TEN242SS 138
* Kit sold separately. † Sones at normal (or working) speed.

Slim lines and graceful radiuses combine to make Tenaya the perfect companion to today’s contemporary kitchens. This beautiful design includes halogen lighting to light the cooktop and make cooking a pleasure.

• The Captur™ system’s advanced blower design features a forward positioned centric inlet to remove smoke and odor faster. Two-speed blower control exhausts at 300 MAX Blower CFM.

• Smooth-flow blower wheel design and high flow filters ensure quiet, 1.5 sone operation at normal speed.

• Two-level, halogen bulbs flood the cooktop and surrounding area with generous illumination. (50W bulbs sold separately)

• Hidden on/off rocker switches controls two blower speeds and light levels.

• L arge dishwasher-safe, single open-mesh filter provides efficient grease removal.

• ADA compliant, remote operation is possible using a standard UL approved wall switch.

• Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry.

UNDER CABINETS 54
For faster smoke and odor removal.
SPECIFICATIONS OPTIONAL ACCESSORIES Width MAX Blower CFM Sones† Volts Amps Duct Non-Ducted Charcoal Filter 30" 300 1.5 120 1.4 3-1/4" x 10" or 7" RD HPF1 (Type Xa) 36" † Sones at normal (or working) speed. TEN130WW TEN136WW TEN136BL TEN136SS 139

BPDP136SS

BPDP142SS

BPDP148SS

Broan brings you Spire, an exciting new shape in a pro-style hood. The new design incorporates modern features like the quiet Captur™ system and LED lighting.

• The Captur™ system’s advanced blower design features a forward positioned centric inlet to remove smoke and odor faster. Two-speed blower control exhausts at a strong 450 MAX Blower CFM.

• Smooth-flow blower wheel design and high flow filters ensure quiet operation; as low as 0.4 sones in some duct configurations.

• Bright, single intensity LED modules—supported by a 3-year warranty—illuminate evenly and are tested in cooking environments to ensure long life without dimming.

• Streamlined, deluxe 2-speed rocker control operates light and fan speeds.

• Pro-style, dishwasher-safe, hybrid baffle filters provide ultra-efficient grease removal with superior air flow.

• E Z1 brackets make it easy for singleperson installation in less than half the time of traditional methods.

• ADA compliant, remote operation is possible using a standard UL approved wall switch.

• Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry.

For faster smoke and odor removal. SPECIFICATIONS OPTIONAL ACCESSORIES

* M AX Blower CFM indicates hood blower performance in open air. Find HVI rated performance for this model in the product specification sheet at Broan-NuTone.com

† Sones at normal (or working) speed.

UNDER CABINETS 55
Width MAX Blower CFM* Blower Sones† Volts Amps Duct Non-Ducted Charcoal Filter Make-up Air Damper 30", 36", 42", 48" 450 Internal 0.4 120 1.4 3-1/4" x 10" (V, H) 7" RD
(Type Xb) MD6TU, MD8TU, MD10TU
Xc)
HPF24
HPF30 (Type
HPF36 (Type Xd) HPF42 (Type Xe)
140

The luxury of an LCD display and deluxe micro-mesh filters will make any meal preparation delightful. And, the Glacier range hood’s contemporary shape complements any kitchen design.

• The Captur™ system’s advanced blower design features a forward positioned centric inlet to remove smoke and odor faster. A smooth-flow blower wheel and high flow filters ensure quiet operation.

• A s trong 450 MAX Blower CFM operates as quietly as 0.4 sones at normal speed.

• Bright, three-level LED modules— supported by a 3-year warranty— illuminate evenly and are tested in cooking environments to ensure long life without dimming.

• Three-speed electronic pushbutton control incorporates an LCD display to show hood status for fan and light setting, filter clean reminder, Heat Sentry™ and delay off.

• Broan Heat Sentry™ detects excessive heat and adjusts the blower speed to prolong the life of the product and provide proper ventilation.

• Dishwasher-safe, deluxe micro-mesh filters provide highly efficient grease removal and patterned cover provides a decorative complement to the hood design. The filter clean reminder ensures they will always maintain a high level of efficiency.

• E Z1 brackets make it easy for singleperson installation in less than half the time of traditional methods.

• ADA compliant, remote operation.

• Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry.

* M AX Blower CFM indicates hood blower performance in open air. Find HVI rated performance for this model in the product specification sheet at Broan-NuTone.com † Sones at normal (or working) speed.

UNDER CABINETS 56
BCDJ130WH BCDJ136WH BCDJ136BL BCDJ136SS BCDJ142SS
Width MAX Blower CFM* Blower Sones† Volts Amps Duct Non-Ducted Charcoal Filter ADA Electronic Adapter Kit 30", 36", 42" 450 Internal 0.4 120 1.4 3-1/4"x10" or 7" RD HPF30 (Type Xc) HAWRK3 HPF36 (Type Xd) HPF42 (Type Xe)
For faster smoke and odor removal. SPECIFICATIONS OPTIONAL ACCESSORIES
141

The clean, contemporary shape of Glacier complements any kitchen design. Impressive LED lighting and superior smoke and odor removal are a mere introduction to everything this hood has to offer.

• The Captur™ system’s advanced blower design features a forward positioned centric inlet to remove smoke and odor faster. A smooth-flow blower wheel and high flow filters ensure quiet operation.

• 375 MAX Blower CFM operates at 2.0 sones at normal speed; as low as 1.5 sones in some duct configurations.

• Bright, two-level LED modules— supported by a 3-year warranty— illuminate evenly and are tested in cooking environments to ensure long life without dimming.

• Tap-touch, three-speed capacitive control features a smooth, easy-to-clean surface.

• Dishwasher-safe, micro-mesh filters provide efficient grease removal. The filter clean reminder ensures they will always maintain a high level of capture.

• E Z1 brackets make it easy for singleperson installation in less than half the time of traditional methods.

• ADA compliant, remote operation.

• Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry.

SPECIFICATIONS OPTIONAL ACCESSORIES

* M AX Blower CFM indicates hood blower performance in open air. Find HVI rated performance for this model in the product specification sheet at Broan-NuTone.com † Sones at normal (or working) speed.

UNDER CABINETS 57
BCDF136SS BCDF142SS BCDF136BLS
Width MAX Blower CFM* Blower Sones† Volts Amps Duct Non-ducted Charcoal Filter ADA Electronic Adapter Kit 30", 36", 42" 375 Internal 2.0 120 .65 3-1/4" x 10" (V, H) 7" RD HPF30 (Type Xc) HAWRK3 HPF36 (Type Xd) HPF42 (Type Xe)
For faster smoke and odor removal.
142

The clean, contemporary shape of Glacier complements any kitchen design. This new design has features like the quiet Captur™ system and brilliant halogen lighting. BCSD130BC

• The Captur™ system’s advanced blower design features a forward positioned centric inlet to remove smoke and odor faster. A smooth-flow blower wheel and high flow filters ensure quiet operation.

• 3 00 MAX Blower CFM operates at 1.5 sones at normal speed.

• Two-level, halogen bulbs flood the cooktop and surrounding area with generous illumination (50W bulbs not included).

• Hidden two-speed on/off rocker switch.

• Dual dishwasher-safe, open-mesh filters provide efficient grease removal.

• E Z1 brackets make it easy for singleperson installation in less than half the time of traditional methods.

• ADA compliant, remote operation is possible using a standard UL approved wall switch.

• Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry.

For faster smoke and odor removal.

HPF24 (Type Xb)

HPF30 (Type Xc)

HPF36 (Type Xd)

HPF42 (Type Xe)

* M AX Blower CFM indicates hood blower performance in open air. Find HVI rated performance for this model in the product specification sheet at Broan-NuTone.com

† Sones at normal (or working) speed.

UNDER CABINETS 58
36"
BCSD142BL BCSD124WW 30" BCSD130WW 36" BCSD136WW 42" BCSD142WW
Width MAX Blower CFM* Blower Sones† Volts Amps Duct Non-Ducted Charcoal Filter 24", 30", 36", 42" 300 Internal 1.5 120 1.4 3-1/4" x 10" (V, H) 7" RD
BCSD136BC BCSD130BL BCSD136BL
SPECIFICATIONS OPTIONAL ACCESSORIES
143

The slim and refined lines of Sahale bring a refreshing change to today’s kitchens. Bright LED lighting complements your cooking experience and three fan speeds make cooking more enjoyable. BKDB130WW BKDB136WW BKDB136BL BKDB136SS

• The Captur™ system’s advanced blower design features a forward positioned centric inlet to remove smoke and odor faster. A smooth-flow blower wheel and high flow filters ensure quiet operation.

• 3 00 MAX Blower CFM operates at 1.5 sones at normal speed.

• Bright, two-level LED modules— supported by a 3-year warranty— illuminate evenly and are tested in cooking environments to ensure long life without dimming.

• Tap-touch, three-speed capacitive control features a smooth, easy-to-clean surface.

*

• Dishwasher-safe, micro-mesh filters provide efficient grease removal. The filter clean reminder ensures they will always maintain a high level of capture.

• E Z1 brackets make it easy for singleperson installation in less than half the time of traditional methods.

• ADA compliant, remote operation is possible using a standard UL approved wall switch. Requires ADA Adapter Kit.

• Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry.

Find HVI rated performance for this model in the product specification sheet at Broan-NuTone.com † Sones at normal (or working) speed.

UNDER CABINETS 59
OPTIONAL ACCESSORIES Width MAX Blower CFM* Blower Sones† Volts Amps Duct Non-ducted Charcoal Filter ADA Electronic Adapter Kit 30", 36" 300 Internal 1.5 120 .65 3-1/4" x 10" (V, H) 7" RD HPF30 (Type Xc) HAWRK3 HPF36 (Type Xd)
For faster smoke and odor removal.
SPECIFICATIONS
M
air.
144
AX Blower CFM indicates hood blower performance in open

The slim and refined lines of Sahale bring a refreshing change to today’s kitchens. Brilliant halogen lighting and a deluxe rocker control complements your cooking experience.

• The Captur™ system’s advanced blower design features a forward positioned centric inlet to remove smoke and odor faster. A smooth-flow blower wheel and high flow filters ensure quiet operation.

• 3 00 MAX Blower CFM operates at 1.5 sones at normal speed.

• Two-level, halogen bulbs flood the cooktop and surrounding area with generous illumination (bulbs included).

• Streamlined, deluxe rocker control operates two fan speeds.

• Dishwasher-safe, micro-mesh filters provide efficient grease removal.

• E Z1 brackets make it easy for singleperson installation in less than half the time of traditional methods.

• ADA compliant, remote operation is possible using a standard UL approved wall switch.

• Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry.

SPECIFICATIONS

OPTIONAL ACCESSORIES

* M AX Blower CFM indicates hood blower performance in open air. Find HVI rated performance for this model in the product specification sheet at Broan-NuTone.com

† Sones at normal (or working) speed.

UNDER CABINETS 60
BKSH130WW
Width MAX Blower CFM* Blower Sones† Volts Amps Duct Non-ducted Charcoal Filter 30" 300 Internal 1.5 120 1.4 3-1/4" x 10" (V, H) 7" RD HPF30 (Type Xc)
145
For faster smoke and odor removal.

The slim and refined lines of Sahale bring a refreshing change to today’s kitchens. Brilliant halogen lighting and hidden rocker controls complements your cooking experience.

• The Captur™ system’s advanced blower design features a forward positioned centric inlet to remove smoke and odor faster. A smooth-flow blower wheel and high flow filters ensure quiet operation.

• 3 00 MAX Blower CFM operates at 1.5 sones at normal speed.

• Two-level, halogen bulbs flood the cooktop and surrounding area with generous illumination (bulbs included)

• Hidden two-speed on/off rocker switch.

• L arge dishwasher-safe, single open-mesh filter provides efficient grease removal.

• ADA compliant, remote operation is possible using a standard UL approved wall switch.

• Non-duct capable with use of charcoal filter, sold separately. Hidden louvers on top of hood exhaust away from cabinetry.

SPECIFICATIONS

OPTIONAL ACCESSORIES

* M AX Blower CFM indicates hood blower performance in open air. Find HVI rated performance for this model in the product specification sheet at Broan-NuTone.com † Sones at normal (or working) speed.

UNDER CABINETS 61
BKSA130WW For faster smoke and odor removal.
Width MAX Blower CFM* Blower Sones† Volts Amps Duct Non-ducted Charcoal Filter 30" 300 Internal 1.5 120 1.4 3-1/4" x 10" (V, H) 7" RD HPF1 (Type Xa)
146

With gentle round surfaces this transitional hood design is a great choice for contemporary kitchens. Hidden rocker switches conveniently control blower operation and bright LED lighting. A dishwasher-safe filter, integrated light panel and top side recirculation louvers clean easily.

• 270 MAX Blower CFM provides adequate capture and operates at 2.0 sones at normal speed.

• One-level LED lighting illuminates the cooking surface.

• 4 -way convertibility enables flexible installation in ducted or non-ducted applications.

• Hidden two-speed on/off rocker switch.

• L arge dishwasher safe, single aluminum mesh filter provides efficient grease removal.

• ADA compliant, remote operation is possible using a standard UL approved wall switch.

• Non-duct capable with use of charcoal filter, sold separately. Hidden louvers on top of hood exhaust away from cabinetry.

SPECIFICATIONS

OPTIONAL ACCESSORIES

* M AX Blower CFM indicates hood blower performance in open air. Find HVI rated performance for this model in the product specification sheet at Broan-NuTone.com

† Sones at normal (or working) speed.

UNDER CABINETS 62
Width MAX Blower CFM* Blower Sones† Volts Amps Duct Non-duct Charcoal Filter 30" 270 Internal 2.0 120 1.3 3-1/4" x 10"(V,H) 7" RD HPFX1
147
BXT130WW

Deluxe, variable-speed performance in an economical package. The infinitely adjustable speed control allows you to set the hood speed for the perfect combination of ventilation and quiet.

• 260 MAX Blower CFM (7" round), 2.5 sones at normal speed.

• Easily installs as 7" round vertical discharge; 3-1/4" x 10" vertical discharge; 3-1/4" x 10" horizontal discharge or non-ducted (non-ducted filter sold separately).

• Rotary, infinitely adjustable fan-speed control.

• Up to 75-watt cooktop lighting with protective polymeric lens and twolevel light control (bulb not included).

• Includes 3-1/4" x 10" damper/adapter and 7" round adapter.

• 7" round damper optional.

• BP87Q damper sold separately.

• ADA compliant, remote operation is possible using a standard UL approved wall switch.

SPECIFICATIONS

OPTIONAL ACCESSORIES

UNDER CABINETS 63
463602 463001 463601 464201 30" 463011
36"
Width MAX Blower CFM** Blower Sones† Volts Amps Duct Non-ducted Filter 7" RD Damper 24", 30", 36", 42" 260 Internal 2.5 120 2.5 3-1/4" x 10" or 7" RD 41F BP87Q
* Special Order: Allow three weeks for delivery.
hood blower performance in open air. Find HVI rated performance for this
in
product specification sheet at Broan-NuTone.com
at normal (or working) speed. 148
**M AX Blower CFM indicates
model
the
† Sones

BUEZ2 / BUEZ0

Introducing our easy installation system to Broan’s economy range hood offering. Broan range hoods provide the high quality you expect and the value you demand.

BUEZ2

• Installs as 7" round ducted only; built-in 7" adapter included.

• E Z1 installation kit included.

• 190 CFM, 6.0 sone (vertical discharge) performance.

• Dishwasher-safe aluminum grease filter.

• Accepts up to 75-watt light (bulb sold separately).

• BP87Q damper sold separately.

• ADA compliant, remote operation using a standard UL approved wall switch.

BUEZ0

• Installs as 3-1/4" x 10" ducted only; built-in adapter/damper included.

• E Z1 installation kit included.

• 160 CFM, 6.5 sone (vertical or horizontal discharge) performance.

• Dishwasher-safe aluminum grease filter.

• Accepts up to 75-watt light (bulb sold separately).

• ADA compliant, remote operation using a standard UL approved wall switch.

BUEZ2 SPECIFICATIONS

OPTIONAL ACCESSORIES

Width CFM Blower Sones Volts Amps Duct 7" RD Damper 30", 36" 190 Internal 6 120 2.5 7" RD BP87Q
Width CFM Blower Sones Volts Amps Duct 24", 30", 36" 160 Internal 6.5 120 2.0 3-1/4" x 10"
BUEZ0 SPECIFICATIONS
BUEZ024WW 30" BUEZ230WW BUEZ030WW 36" BUEZ236WW BUEZ036WW
UNDER CABINETS 64 149

BUEZ3 / BUEZ1

BUEZ130BT

Introducing our easy installation system to Broan’s economy range hood offering. Broan range hoods provide the high quality you expect and the value you demand.

BUEZ3

• Features enclosed light and fan/filter assembly for easy clean-up.

• E Z1 installation kit included.

• Two-speed, rocker-type fan control.

• Powerful 190 CFM, 7.0 sone (3-1⁄4" x 10" vertical discharge) or 220 CFM, 8.0 sone (7" round discharge) performance.

• Accepts up to 75-watt light (bulb not included).

• Includes 3-1⁄4" x 10" damper/adapter and built-in 7" round adapter.

• 7" round damper optional.

• BP87Q dampers sold separately.

• ADA compliant, remote operation using a standard UL approved wall switch.

BUEZ1

• Installs as non-ducted only with charcoal filter.

• E Z1 installation kit included.

• Accepts up to 75-watt light (bulb sold separately).

• ADA compliant, remote operation using a standard UL approved wall switch.

BUEZ1 SPECIFICATIONS OPTIONAL ACCESSORIES Width CFM Sones Volts Amps Duct Charcoal Filter 21", 24", 30", 36" N/AN/A 120 2.0 Non-ducted 41F
BUEZ3 SPECIFICATIONS OPTIONAL ACCESSORIES Width CFM Blower Sones Volts Amps Duct Charcoal Filter 7" RD Damper 30" 190 Internal 7.0 120 1.8 3-1/4" x 10" BP58 BP87Q 220 8.0 7" RD
BUEZ121WW 24" BUEZ124WW 30" BUEZ330WW BUEZ130WW 36" BUEZ136WW
UNDER CABINETS 65 150

These four-way convertible range hoods will fit into most all applications. Enclosed light and fan/filter assemblies make for easy cleaning.

43000 SERIES

• Features enclosed light and fan/filter assembly for easy clean-up.

• Two-speed, rocker-type fan control.

• 260 MAX Blower CFM (7" round), 8.0 sones.

• Accepts up to 75-watt light (bulb not included).

• Includes 3-1⁄4" x 10" damper/adapter and built-in 7" round adapter.

• 7" round damper optional.

• BP87Q dampers sold separately.

• ADA compliant, remote operation using a standard UL approved wall switch.

43000 SPECIFICATIONS

43000 not available in 24 or 42" widths 43000/F40000

F40000 SERIES

• Four-way convertible; installs ducted 3-1⁄4" x 10" (vertical and horizontal), 7" round (vertical) and non-ducted (non-ducted filter sold separately).

• 230 MAX Blower CFM (7" round), 6.5 sones.

• Accepts up to 75-watt light (bulb sold separately)

• Dishwasher-safe aluminum grease filter.

• Includes 3-1⁄4" x 10" damper/adapter and 7" round adapter.

• 7" round damper optional.

• BP87Q dampers sold separately.

• ADA compliant, remote operation using a standard UL approved wall switch.

OPTIONAL ACCESSORIES

UNDER CABINETS 66
Width MAX Blower CFM* Blower Sones Volts Amps Duct Charcoal Filter 7" RD Damper 30", 36" 260 Internal 8.0 120 1.8 3-1/4" x 10" or 7" RD BP58 BP87Q *M AX Blower CFM indicates hood blower performance in open air.
for
at Broan-NuTone.com
Find HVI rated performance
this model in the product specification sheet
Width MAX Blower CFM* Blower Sones Volts Amps Duct Charcoal Filter 7" RD Damper 24", 30", 36", 42" 230 Internal 6.5 120 1.8 3-1/4" x 10" or 7" RD 41F BP87Q *M AX Blower CFM
hood blower
open air.
F40000 SPECIFICATIONS OPTIONAL ACCESSORIES
indicates
performance in
Find HVI rated performance for this model in the product specification sheet at Broan-NuTone.com
24" F402411 30" 433011 F403011 36" 433611 F403611 F403022 151

Broan range hoods provide the high quality you expect and the value you demand.

42000 SERIES

• Installs as 7" round ducted only.

• 230 MAX Blower CFM (7” round), 6.0 sones.

• Dishwasher-safe aluminum grease filter.

• Accepts up to 75-watt light (bulb sold separately).

• Built-in 7" adapter included.

• BP87Q damper sold separately.

• ADA compliant, remote operation using a standard UL approved wall switch.

40000 SERIES

• Installs as 3-1/4" x 10" ducted only.

• 210 MAX Blower CFM, 6.5 sones.

• Dishwasher-safe aluminum grease filter.

• Accepts up to 75-watt light (bulb sold separately).

• Duct connector with built-in damper included.

• ADA compliant, remote operation using a standard UL approved wall switch.

37000 SERIES— 6"SHELL ONLY

• The 37000 Series utilizes the 40000 Series, but contains no fan, light or switch knock-outs.

UNDER CABINETS 67 36" 423623, 403623 30" 423004 403004 36" 423604 21" 402101 24" 422401 402401 30" 423001 403001 36" 423601 403601 42" 424201 404201 6" SHELL ONLY 24" 372401 30" 373001 36" 373601 42000 SPECIFICATIONS OPTIONAL ACCESSORIES Width MAX Blower CFM* Blower Sones Volts Amps Duct 7" RD Damper 24", 30", 36", 42" 230 Internal 6 120 2.5 7" RD BP87Q *M AX Blower CFM indicates hood blower performance in open air. Find HVI rated performance for this model in the product specification sheet at Broan-NuTone.com 40000 SPECIFICATIONS Width MAX Blower CFM* Blower Sones Volts Amps Duct 21", 24", 30", 36", 42" 210 Internal 6.5 120 2.0 3-1/4" x 10"
AX Blower CFM indicates hood blower performance in open air. Find HVI rated performance for this model in the product specification sheet at Broan-NuTone.com
*M
152

Broan range hoods provide the high quality you expect and the value you demand.

• Installs as non-ducted only with charcoal filter.

• Accepts up to 75-watt light (bulb sold separately).

• ADA compliant, remote operation is possible using a standard UL approved wall switch. SPECIFICATIONS OPTIONAL ACCESSORIES

UNDER CABINETS 68 413623 21" 412101 24" 412401 30" 413001 36" 413601 42" 414201
Width CFM Sones Volts Amps Duct Charcoal Filter 21", 24", 30", 36", 42" N/AN/A 120 2.0 Non-ducted 41F
153
Shown: BPDP1 on page 55 154

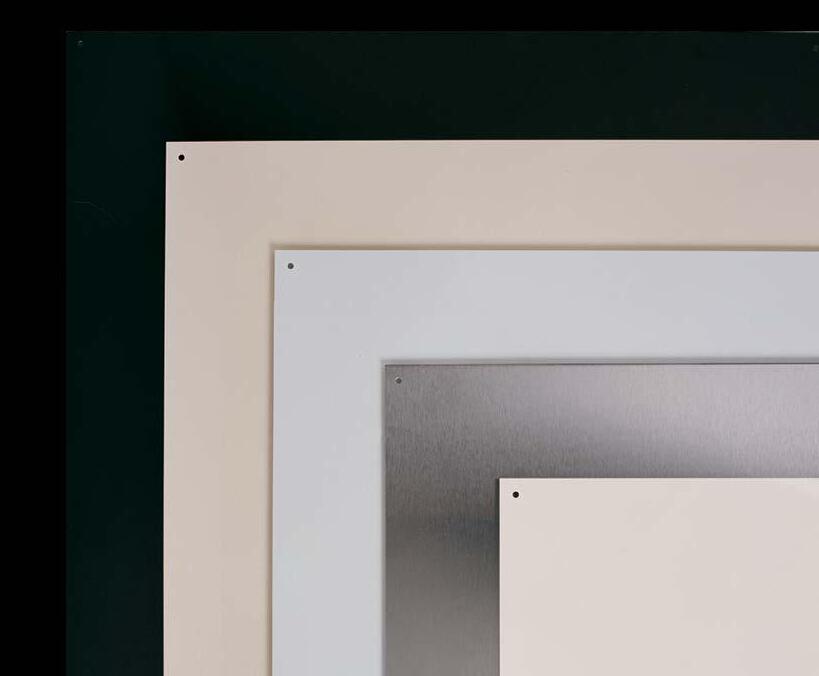

Metal Backsplashes

Help keep your kitchen looking like new.

STAINLESS STEEL

• Provides easy clean-up of cooking splatter.

REVERSIBLE BISQUE /BLACK

SP240223

SP300223

SP360223

REVERSIBLE WHITE/ALMOND

SP240108

SP300108

SP360108

• Durable, attractive appliance-matching finishes: Reversible White/Almond, Reversible Bisque/Black.

• Aluminum or 24-gauge stainless steel.

• Available in 24", 30", 36" or 42" widths; all are 24" high.

• Installs easily with four screws (not included).

155

Replacement Grease Filters and Charcoal Filters

Genuine Broan replacement grease filters and odor-capturing non-ducted charcoal filters are the key to removing cooking effluents from your kitchen. The table below will help you find the filter model matched to your Broan range hood. Select filters are interchangeable on select hoods.

FITS RANGE HOOD SERIES

RMIP33

RMIP45

RM50000, RMP17004

E54000

NON-DUCTED CHARCOAL FILTER

REPLACEMENT GREASE FILTER DESCRIPTION

RBFIP33

RBFIP45

FILTEREB40

FILTERSQUARE

41000, F40000, 46000, BUEZ1 41F

40000, F40000, 42000, 46000, BUEZ0, BUEZ2

43000, BUEZ3

43000, BUEZ3

BCDF, BKDB, BKSH*

BCDJ*

BCSD, BCSEK*, ALT1, BCSD, BCSEK, TEN2*

ALT2, BKDF*, BKDEG*

BKSA, TEN1*

ALT3, BPDP, SPE1*

ALT4

*Filter type shown in parentheses.

BP58

HPF30 (Type Xc), HPF36 (Type Xd), HPF42 (Type Xe)

HPF30 (Type Xc), HPF36 (Type Xd), HPF42 (Type Xe)

HPF30 (Type Xc), HPF36 (Type Xd), HPF42 (Type Xe)

BP29

Qty 3

BP57 w/charcoal pad w/light lens

HPFAMM30 (C2), HPFAMM36 (D2), HPFAMM42 (E2)

HPFA3B30 (C4), HPFA3B36 (D4), HPFA3B42 (E4)

Qty 2 for 30", 36", 42"

Qty 2 for 30", 36", 42"

HPFA130 (C1), HPFA136 (D1), HPFA142 (E1) Qty 2 for 30", 36", 42"

HPF30 (Type Xc), HPF36 (Type Xd)HPFA3A30 (C3), HPFA3A36 (D3)Qty 2 for 30", 36"

HPF1 (Type Xa)

HPF24 (Type Xb), HPF30 (Type Xc), HPF36 (Type Xd), HPF42 (Type Xe)

HPF52 (Type Xh2)

HPFA (A0)

HPF424 (B5), HPFA430 (C5), HPFA436 (D5), HPFA442 (E5)

Qty 1 for 30"

Qty 2 for 30", 36", 42", 48"

HPFA52 (H2) Qty 2 for 30", 36"

ACCESSORIES 71
156

Make-up Air Dampers

Broan® Automatic Make-Up Air Dampers are the first to provide synchronized operation for kitchen, bath and whole-house ventilation products. Installation is simple and requires no special wiring. Intelligent design options ensure optimum performance in a variety of installations and applications. Highly effective and affordable, Broan Automatic Make-Up Air Dampers strike the perfect balance to keep you and your home breathing easy.

• Economical, ruggedly constructed galvanized motorized damper.

• Can be controlled by more than one Broan ventilation product.

• Damper opens automatically to replace the air being exhausted by ventilation fans or range hoods, and then closes tightly when ventilation fans are turned off.

• Prevents excess air from entering the home during heating or cooling operation, reducing energy consumption.

• Interlocked systems meet IRC code requirements for make-up air with range hoods.

• Fresh air inlets are required—see the table below.

MD6TU/MD8TU/MD10TU

Universal Design

• Works with any Broan range hood over 300 CFM.

• Provides interlocked make-up air.

• No direct wire connection required.

• Requires use of Broan fresh air inlets.

MD6T/MD8T/MD10T

• Works with Broan range hood models: EI59, EW56, EW58, E64, E60.

• Requires direct wire to hood.

• Requires use of Broan fresh air inlets.

FRESH AIR INLETS (REQUIRED)

Damper Model Diameter Fresh Air Inlet Model

MD6TU/MD6T 6" 641FA

MD8TU/MD8T 8" 643FA

MD10TU/MD10T 10" 610FA

Online Range Hood Make-Up Air Specifying Tool guides the design of the right make-up air damper system for any home. Try it at broan-nutone.com/make-up-air.

MD6TU/8TU/10TU installation

Switched Voltage Sensor Low Voltage Transformer

Works with all Broan range hoods over 300 CFM

Fresh Air Inlet

Make-Up Air Damper (normally closed) optimally installed in air return duct of forced-air system

MD6T/8T/10T installation

Switched Voltage Low Voltage Transformer

For use with Broan range hood models: EI59, EW56, EW58, E64 and E60

Fresh Air Inlet

Make-Up Air Damper (normally closed) optimally installed in air return duct of forced-air system

ACCESSORIES 72
157

Ducting Installation Accessories

Stock No. Description

35

AC Cord Kit

Wall Hanging Kit—for mounting hoods to wall when not hung from overhead cabinets. Designed for use with 46000, 43000, 42000, 41000, F40000, 40000 series.

HCK44 HCK44 (10-pack) Electric cord connections kit.

SHCK44 (Single-pack) Electric cord connections kit.

634 Paintable roof cap with backdraft damper and bird screen; 3-1/4" x 10" or up to 8" round duct. Black finish.

644 Aluminum roof cap with backdraft damper and bird screen; 3-1/4" x 10" or up to 8" round duct. Natural finish.

437 High-capacity roof cap–up to 1200 CFM exhaust with spring-loaded damper and bird screen.

611 Aluminum roof cap for flat roofs, 8" round duct.

612 Aluminum roof cap for flat roofs, 10" round duct.

639 Paintable wall cap with backdraft damper and bird screen; 3-1/4" x 10" duct. Black finish.

WC638 Paintable wall cap with backdraft damper and bird screen; 3-1/4" x 14" duct. Black finish.

649 Aluminum wall cap with backdraft damper and bird screen; 3-1/4" x 10" duct. Natural finish.

641 Aluminum wall cap for 6" round duct, with backdraft damper and bird screen.

641FA Aluminum fresh air inlet wall cap for 6" round duct.

647 Aluminum wall cap for 7" round duct, with damper and bird screen.

610FA 10" Aluminum Fresh air inlet.

643 Aluminum wall cap; 8" round duct with damper.

643FA Aluminum fresh air inlet wall cap for 8" round duct.

441 Wall cap with gravity damper; 13-1/8" sq. fits 10" round duct.

BP87Q 7" round discharge damper with sound dampening.

97 7" spring-loaded, In-Line damper.

438 8" round section with In-Line damper.

421 10" vertical discharge In-Line damper.

Stock No. Description

411 3-1/4" x 10" to 6" round transition.

412H 3-1/4" x 10" to 7" round transition.

T460 3-1/4" x 14" to 7" round transition.

413 3-1/4" x 10" to 8" round transition.

459 3-1/4" x 14" to 8" round transition.

T461 3-1/4" x 14" to 3-1/4" x 10" transition.

414 8" to 10" expander.

889 3-1/4" x 10" duct; 2' section.

430 Short eave elbow for 31⁄4" x 10" duct with backdraft damper and grill.

431 Long eave elbow for 31⁄4" x 10" duct with backdraft damper and grill.

419 6" adjustable elbow (individual).

415 7" adjustable elbow (carton of four).

432 8" adjustable elbow (individual).

418 10" adjustable elbow (individual).

MD6S 6" Slave Make-Up Air Damper.

MD8S 8" Slave Make-Up Air Damper.

MD10S 10" Slave Make-Up Air Damper.

MD6T 6" Broan Make-Up Air Damper.

MD8T 8" Broan Make-Up Air Damper.

MD10T 10" Broan Make-Up Air Damper.

MD6TU 6" Universal Make-Up Air Damper.

MD8TU 8" Universal Make-Up Air Damper.

MD10TU 10" Universal Make-Up Air Damper.

ACCESSORIES 73
406 6" round duct; 2' section. 407 7" round duct; 2' section. 408 8" round duct; 2' section. 410 10" round duct; 2' section. 428 3-1/4" x 10" vertical elbow. 429 3-1/4" x 10" horizontal elbow.
158

Blowers

External, Exterior Blowers*

Our Exterior blowers offer you powerful ventilation performance at its very quietest, and something you won’t find anywhere else—Broan quality.

All Exterior blowers can be installed on the roof or to an outside wall for the ultimate in quiet, high performance kitchen ventilation. Quietest sound level is achieved when the blower is mounted at least 10' from the hood location and incorporates a 90 degree elbow in the duct run.

External, In-Line Blowers*

HLB3 (320 MAX Blower CFM)

HLB6 (670 MAX Blower CFM)

HLB9 (890 MAX Blower CFM)

HLB11 (1540 MAX Blower CFM)

Internal Blowers*

P5 (530 MAX Blower CFM vertical)

P8 (930 MAX Blower CFM vertical)

This quiet performance solution is a perfect alternative to Internal or Exterior blowers. Works with all Broan range hoods designed for use with External blowers.

• Powerful and quiet, In-Line blowers are available in a rangeof CFM ratings to match your cooking preferences and ventilation requirements.

• Installs remotely in the interior of the home—not restricted by local exterior home codes or service concerns for roof-mounted exterior applications.

• Reduce kitchen noise by locating your range hood blower outdoors.

• For use with our professional style Broan Elite E64000, E60000, EX Series chimney hoods, downdrafts, RMPE Power Pack and RMIP Inserts.

• Ideal for custom hoods—use the 72W (6 amp variable speed) wall control for remote control of External blowers.

• The 332H is recommended for the Eclipse downdraft.

• Residential design fits unobtrusively on home exterior.

• Durable, weather-resistant, all-aluminum construction that mounts on the roof or outside wall.

• Safety screen keeps small animals and debris away from blower and motor.

Broan Elite Internal blowers provide high ventilation and durable construction to meet the needs of professional-style cooking appliances for the home.

• Eight-position mounting brackets, or suspends with special suspension chains (hanger kit included).

• Designed to work independently from Internal or Exterior blowers, this is not a boost blower—the HLB series needs no other blowers in the system.

• Specially designed resilient motor mounts and housing isolation mounts prevent vibration noise.

• Flexible duct design allows straight-through or right-angle connections with built-in damper.

• Includes 10" round ductwork transition(s).

• The P5 (530 MAX Blower CFM) and P8 (930 MAX Blower CFM) blowers are designed for use with RMIP Inserts.

• All blowers are designed for quiet operation using the finest motors and balance wheels.

• Rough-In Kits are included to make the installation clean and simple.

* Broan internal and external blowers are designed and UL Listed for use with Broan products only. Use with other manufacturers’ products cannot be recommended. Broan range hoods can be used to comply with California Title 24.

BLOWERS / INSTALLATION GUIDELINES 74
336 (1620 MAX Blower CFM) 335 (1280 MAX Blower CFM) 332H (880 MAX Blower CFM) 331H (660 MAX Blower CFM) Model 331H/332H
159

Installation and Blower Selection Guidelines

1. Distance from cooking surface:

For optimal performance, the distance from the cooking surface to the bottom of the range hood should be between 24" to 30", unless otherwise noted. DO NOT install a Broan Elite range hood less than 24" above cooking surface.

To maintain hood performance at heights greater than the recommended range, use the following guidelines:

• For every 3" increase in installation height, add 100 CFM to the minimum exhaust requirement and/or a minimum of 3" to the hood/liner width (may require going to the next hood width).

Installation Example:

2. Range hood width:

The hood should never be less than the width of the cooktop.

3. Required blower CFM based on cooktop BTU output.

For gas cooktops under 60,000 BTUs, or electric choose a blower with a minimum of 100 CFM per lineal foot of your cooktop width. For example, a 36" wide cooktop requires a blower with a minimum of 300 CFM.

• High heat cooking or aromatic foods may require additional CFM. Always check with the range manufacturer. NOTE: Increasing capture area by 3" on each side is also a recommended way to address this issue.

A consumer purchases a cooktop with these specifications:

• Four burner, 36" cooktop

• Burner output is 60,000 BTU

• The cooktop features a grill

• Installation requirements call for the range hood to be 33" over the range (3" above recommended maximum height)

Blower CFM Option 1:

• A s a means to estimate the approximate CFM requirement for cooktops OVER 60,000 BTUs, choose a blower with 1 CFM per 100 BTU of cooktop output. To quickly calculate this number, add the BTU output from all burners and drop the last two zeros. For example, if the total BTU output of the cooktop burners is 65,000 BTUs, choose a blower with at least 650 CFM.

4. Additional CFM needs for a Grill or Griddle:

If your cooktop has a grill or griddle, ADD 200 CFM to your estimated CFM needs as calculated in step 3. For example, if your cooktop BTU output requires a 650 CFM blower, add 200 CFM for a total of 850 CFM.

(Using the guidelines above) The blower must equal a minimum of 600 CFM (60,000 BTU) + 200 CFM (for Grill requirement) + 100 CFM (for 3" of installation height) = 900 CFM

Blower CFM Option 2:

(Using the guidelines above) Select a range hood that is a minimum of 3" WIDER than the cooktop, a minimum 600 CFM (60,000 BTU) + 200 CFM (for Grill requirement) = 800 CFM

Internal, In-Line and Exterior blower specifications table

†† Model 332KR Rough-In Kit required for installation with hood series RM60000, 64000 and RMIP (Model 421 10" In-Line damper recommended for Exterior blowers).

* Straight CFM/Right angled CFM (rated with transitions provided).

† Transitions provided with unit.

^ Not recommended for use with grill applications.

75 BLOWERS / INSTALLATION GUIDELINES
Model Mounting MAX Blower CFM HVI CFM Max Cooktop BTU HVI Volts Amps Rough-In Duct Inlet/Outlet † DirectionMotor Type P5 Internal 530 460V/500H 60,000 Y 120 1.8 3-1/4"x10" V or H P8 Internal 930 850V/900H 95,000 Y 120 3.4 3-1/4"x14" V or H 331H†† Exterior 660 600 60,000 Y 120 2.3 10" round Single-Speed 332H†† Exterior 880 900 90,000 Y 120 5.8 10" round Single-Speed 335†† Exterior 12801200 120,000 Y 120 3.0 10" round Single-Speed 336†† Exterior 1620 1500 120,000 Y 120 3.8 10" round Single-Speed HLB3††^ In-Line 320 280/260* 40,000 Y 120 2.6 8" or 10" roundV or H Single-Speed HLB6†† In-Line 670 600/600* 65,000 Y 120 2.9 10"/10" roundV or H Single-Speed HLB9 †† In-Line 890 800/700*85,000 Y 120 3.0 10"/10" roundV or H Single-Speed HLB11†† In-Line 1540 1100/1000*110,000 Y 120 5.0 10"/10" roundV or H Single-Speed
160

Range Hood Specifications

* Mounting Height is measured from the top of the cooktop to the bottom of the hood filter.

* * V isible height of Chimney when in the raised position.

* ** Minimum Height is 24" when using optional RMP series backsplash.

† SS=430 Stainless Steel, BL=Black on Black, WW=White with color-matched controls, WH=White with contrasting controls.

†† (Normal Setting).

SPECIFICATIONS 76 SERIES PAGE DESCRIPTION WIDTH (inches) FINISHES† (may not be in all widths) LIGHTING BULB INCL. CONTROL FEATURES CONTROL TYPE CHIMNEY & ISLAND BWP2 (450) 12 Chimney Hood 24, 30, 36 SS Dual LED yes 3 speed Soft Touch BWP2 (630) 12 Chimney Hood 30, 36 SS Dual LED yes 3 speed Soft Touch BWS2 13 Chimney Hood 30 SS, BLS Dual LED yes 3 speed Soft Touch BW50SSL 16 Chimney Hood 30, 36 SS Dual LED yes 3 speed Pushbutton BWT2304SS 14 Chimney Hood 30 SS Dual LED yes 3 speed Soft Touch BWT2304SSB 15 Chimney Hood 30 SS with Black GlassDual LED yes 3 speed Soft Touch E54000 20 Island Hood 35-7⁄16 x 27-9⁄16 SS Halogen Quad 20W JC/G4 yes Multi-speed Heat Sentry™ Slide EI59 21 Island Hood 35-3⁄16 x 25-9⁄16 SS Halogen Quad 35W MR16 GU10 yes 3-speed, Delay-off, Filter indicator, 3-setting light, Heat Sentry™ Electronic Push Optional Remote EW54 17 Chimney Hood 30, 36 BLS Halogen Dual 50W GU10 yes 3-speed, Filter indicator, 2-setting light Capacitive Touch EW56 19 Chimney Hood 30, 35-7⁄16 SS Halogen Dual 35W MR16 GU10 yes 3-speed, Delay-off, Filter indicator, 3-setting light, Heat Sentry™ Electronic Push Optional Remote EW58 18 Chimney Hood 30, 36 SS Halogen Dual 35W MR16 GU10 yes 3-speed, Delay-off, Filter indicator, 3-setting light, Heat Sentry™ Electronic Push Optional Remote EW43 11 Chimney Hood 24, 30, 36 SS, BLS Large LED Strip yes 3 speed Capacitive Touch EW46 10 Chimney Hood 30, 36 SS Large LED Strip yes 3 speed Capacitive Touch EW48 9 Chimney Hood 24, 30, 36WH, SS, BLS Large LED Strip yes 3 speed Capacitive Touch HIGH PERFORMANCE E60000 24, 25 Professional Style Hood Choice of Internal & External Blowers 30, 36, 42, 48 SS Halogen 50W Lamps 2/3 MR16 GU10 no Hi/Lo light Rotary E64000 22, 23 Professional Style Hood Choice of Internal & External Blowers 30, 36, 42, 48 SS Halogen 50W Lamps 2/3 MR16 GU10 no Hi/Lo light Rotary EPD61 26, 27 Professional Style Outdoor Chimney Hood 36, 48, 60 SS Halogen Dual or Tri 50W MR16 GU10 no 3 speed Rotary DOWNDRAFTS 27000 41 Downdraft 30, 36 SS, (WH, BL) na na Variable speed Rotary 28000 41 Downdraft External Blower 30, 36 SS, (WH, BL) na na Variable speed Rotary RMDD 40 Broan Elite Downdraft 30, 36, 48 SS na na Variable speed Rotary
161

CHIMNEY & ISLAND

HVI-2100 CERTIFICATION

Broan range hoods are tested and certified by the Home Ventilating Institute. This is your assurance that each Broan unit has been tested and found to consistently deliver the air and sound performance specified.

SPECIFICATIONS 77 SERIES AIR-MOVER TYPE MOUNT HEIGHT* VISIBLE SHELL HEIGHT (inches) CEILING HEIGHT MAX DUCTING SIZE FILTERS INCL. MAX Blower CFM CFM/ SONES VERT. RECT. CFM/ SONES HORIZ. RECT. CFM/ SONES VERT. ROUND HVI
BWP2 (450) Centrifugal Blower 24" to 36" 9-11/16 8'-9', Opt. 10' 6" round (V) Nonducted Hybrid Baffle 450 400/8.5 (220/3.0) †† Y BWP2 (630) Centrifugal Blower 24" to 36" 9-11/16 8'-9', Opt. 10' 6" round (V) Nonducted Hybrid Baffle 630 600/12 (110/1.5) †† Y BWS2 Centrifugal Blower 24" to 36" 3-3/4 8'-9', Opt. 10' 6" round (V) Nonducted Hybrid Baffle 450 400/8.5 (220/3.0) †† Y BW50SSL Centrifugal Blower 30" to 36" 9-7/8 8'-9', Opt. 10' 6" round (V) Non-ducted Aluminum 380 350/8.0 (130/1.5) †† Y BWT2304SS Centrifugal Blower 24" to 36" 1-9/16 8'-9', Opt. 10' 6" round (V) Nonducted Hybrid Baffle 450 400/8.5 (220/3.0) †† Y BWT2304SSB Centrifugal Blower 24" to 36" 1-15/16 8'-9', Opt. 10' 6" round (V) Nonducted Hybrid Baffle 450 400/8.5 (220/3.0) †† Y E54000 Centrifugal Blower 24"–30" 3-7/8 8'–9' Opt. 10' 6" round (V) Nonducted Aluminum 550 480/9.5 (230/3.0) †† Y EI59 Centrifugal Blower w/ Make-up Air Damper Interlock 24"–36" 8'–9' Opt. 10' 6" round (V) Nonducted Aluminum 520 500/10.5 (200/2.5) †† Y EW54 Centrifugal Blower 24"–30" 8'–9' Opt. 10' 6" round (V) Nonducted, 3-1/4" x 10" (V,H) Aluminum 650 500/12 (180/1.5) †† 500/10.5 (200/2.5) †† Y EW56 Centrifugal Blower w/ Make-up Air Damper Interlock 24"–36" 8'–9' Opt. 10' 6" round (V) Nonducted Aluminum 500 500/10.5 (200/2.5) †† Y EW58 Centrifugal Blower w/ Make-up Air Damper Interlock 24"–36" 8'–9' Opt. 10' 6" round (V) Nonducted Aluminum 520 500/10.5 (200/2.5) †† Y EW43 Centrifugal Blower 24" to 30" 2-3/4 8'-9', Opt. 10' 6" round (V) Nonducted Aluminum 460 400/7.5 (180/1.5) †† Y EW46 Centrifugal Blower 24" to 30" 8'-9', Opt. 10' 6" round (V) Nonducted Aluminum 460 400/7.5 (180/1.5) †† Y EW48 Centrifugal Blower 24" to 30" 10-7/16 8'-9', Opt. 10' 6" round (V) Nonducted Aluminum 460 400/7.5 (180/1.5) †† Y HIGH PERFORMANCE E60000 Centrifugal Blower 24"–30" 18 8' Internal 3-1/2" x 10" (V,H) or 4-1/2" x 181/2" (V,H) SS Baffle 1290 600/13 (150/1.5) †† 1200/14.5 (350/2) †† External 280-1500 600/13 (150/1.5) †† 1200/14.5 (350/2) †† External 280-1500 —Y E64000 Centrifugal Blower 20"–30" electric*** 24"–30" gas 10 na Internal 3-1/2" x 10" (V,H) or 4-1/2" x 181/2" (V,H) SS Baffle 1290 600/13 (150/1.5) †† 1200/14.5 (350/2) †† External 280-1500 600/13 (150/1.5) †† 1200/14.5 (350/2) †† External 280-1500 —Y EPD61 Dual Centrifugal Blower Minimum 36" 18 10' 10" round (V)SS Baffle 1290 1100/11.0 (430/2.0) †† Y BUILT-IN 27000 Centrifugal Blower na 7** na 3-1⁄4" x 10" (V, H) Aluminum 600 500/na500/na —Y 28000 Centrifugal Blower na 7** na 3-1⁄4" x 10" (V) Aluminum 600 280 to 1100: See Md# 332H, or In-Line Blowers Y RMDD Centrifugal Blower na 9.5 na 3-1⁄4" x 10" Stainless Steel 600 500/na ——Y 162

Range Hood Specifications

* Mounting Height is measured from the top of the cooktop to the bottom of the hood filter.

† SS=430 Stainless Steel, BL=Black on Black, BLS=Black Stainless Steel, SL=Slate, BT=Bisque w/Black controls, BC=Bisque on Bisque, WW=White with color-matched controls, WH=White with contrasting controls.

†† (Normal Setting).

†††

RMIP Series requires 332KR Rough-In Kit when used with Exterior or In-Line blowers.

SPECIFICATIONS 78
SERIES PAGE DESCRIPTION WIDTH (inches) FINISHES† (may not be in all widths) LIGHTING BULB INCL. CONTROL FEATURES CONTROL TYPE POWER PACK INSERTS PM390SSP 29 Power Pack 20-1/2 SS Dual LED yes 3 speed, Heat Sentry™ Pushbutton PM250SSP 30 Power Pack 20-1/2 SS Dual LED yes 2 speed Rocker PM250 32, 33 Power Pack 20-1/2 Silver Candelabra Dual 40W B10E12 no 2 speed Rocker PM390 32, 33 Power Module 20-1/2 Silver Candelabra Dual 40W B10E12 no 3 speed Slide PM500SS 35 Power Pack 20-1/2 SS Halogen Dual 20W JC/G4 yes 3 speed Pushbutton RMP1 38, 39 Power Pack 27-9/16 SS Halogen Dual 50W MR16 GU10 yes Variable speed Heat Sentry™ Slide RMPE 38, 39 Power Pack External Blower 27-9/16 SS Halogen Dual 50W MR16 GU10 yes Variable speed Heat Sentry™ Slide RMIP 36, 37 Pro-Style Insert 32-3/8, 44-3/8 SS Halogen Dual 50W PAR20 no Variable speed Heat Sentry™ Two-Level Lights Rotary ENERGY STAR SPE1 44 Spire Range Hood30, 36 SS Dual ENERGY STAR® LED yes 3 speed Capacitive Touch BCSEK1 46 Glacier Range Hood 30 WW, SL, SS, BLDual ENERGY STAR® LED yes 2 speed Rocker BKDEG1 45 Sahale Range Hood 30 WW, SS, BL Dual ENERGY STAR® LED yes 3 speed Capacitive Touch PME300 43 Power Module 20-1/2 Silver Dual compact 13W fluorescent bulbs G24Q-1 yes 3 speed Slide UNDER CABINET 15000 34 Slide Out Hood30, 36 WW, BL, SS 24" Fluorescent F20T12 no Variable speed Heat Sentry™ Slide 37000 67 Range Hood Shell24, 30, 36WW, BT, SS na nana na 40000/BUEZ0 64 Range Hood 21, 24, 30, 36, 42WW, BT, SS, BL Single 75W Incandescent no 2 speed Rocker 41000/BUEZ1 65 Range Hood 21, 24, 30, 36, 42WW, BT, SS, BL Single 75W Incandescent no 2 speed Rocker 42000/BUEZ2 64 Range Hood 24, 30, 36, 42WW, BT, SS, BL Single 75W Incandescent no 2 speed Rocker 43000/BUEZ3 65 Range Hood 30, 36 WW, BC, SS, BL Enclosed Single 75W Incandescent no 2 speed Rocker 46000 63 Range Hood 24, 30, 36, 42WH, BT, SS, BL, WW Single 75W Incandescent no Hi/Lo lightRotary dial BXT1 62 Range Hood 30 WW, BL, SS Single 4.5W LED GU10 yes 2 speed Rocker ALT4 49 Alta Range Hood30, 36 SS Dual LED yes 3-Speed Infrared Touch ALT3 50 Alta Range Hood30, 36 SS Dual LED yes 3-Speed Capacitive Touch ALT2 51 Alta Range Hood30, 36 BL, BLS, SS, WWDual LED yes 3-Speed Capacitive Touch 163

HVI-2100 CERTIFICATION

Broan range hoods are tested and certified by the Home Ventilating Institute. This is your assurance that each Broan unit has been tested and found to consistently deliver the air and sound performance specified.

79 SPECIFICATIONS SERIES AIR-MOVER TYPE MOUNT HEIGHT* VISIBLE SHELL HEIGHT (inches) CEILING HEIGHT MAX DUCTING SIZE FILTERS INCL. MAX Blower CFM CFM/ SONES VERT. RECT. CFM/ SONES HORIZ. RECT. CFM/ SONES VERT. ROUND HVI
PM390SSP Dual Centrifugal Blower 24"–30" 9.5 na 6" round (V) Aluminum 440 390/6.5 (250/2.5) †† Y PM250SSP Fan 24"–30" 2-1/2 na 6" round (V) Aluminum 300 250/8.0 Y PM250 Fan 24"–30" 3-5/8 na 7" round (V) Non-ducted kit 356NDK Aluminum w/ Light Lens 300 250/8.0 Y PM390 Centrifugal Blower 24"–30" 3-5/8 na 6" round (V) Non-ducted kit 357NDK Aluminum w/ Light Lens 440 390/6.5 (250/2.5)†† Y PM500SS Centrifugal Blower 22"–30" Flush na 6" round (V) Nonducted kit 359NDK Aluminum 550 500/9.0 Y RMP1 Centrifugal Blower 24"–30" Flush na 6" round (V) Aluminum 550 400/9.0 Y RMPE Centrifugal Blower 24" Flush na 8" round (V) Aluminum 400 280 to 1500 See Exterior or In-Line Blowers Y RMIP Centrifugal Blower 24"–30" Flush na See selected blower on pages 74–75††† SS & Aluminum 460 460 to 850 See Md# P5, P8 ——Y ENERGY STAR SPE1 Centrifugal Blower 24"–30" 9 na 3-1/4" x 10"or 14" (V,H) 7" round Hybrid Baffle 650 460/8.0 (130/<0.3)†† 510/7.5 (130/<0.3)†† 470/7.5 (140/<0.3)†† Y BCSEK1 Axial 18"–24" 6 na 3-1/4" x 10" (V, H) 7" round Open-mesh 300 220/5.0 (130/1.5)†† 210/5.0 (110/1.5)†† 240/5.0 (150/1.5)†† Y BKDEG1 Axial 18"–24" 5 na 3-1/4" x 10" (V, H) 7" round Deluxe Micro-mesh, elongated pattern 375 230/6.0 (120/1.5)†† 230/6.5 (110/1.5)†† 260/5.5 (130/1.5)†† Y PME300 Centrifugal Blower 24"–30" 3-5/8 na 6" round (V) Aluminum 350 290/5.0 (130/0.5 )†† Y UNDER CABINET 15000 Dual Centrifugal Blower 18"–24" 1 na 3-1/4" x 10" (V) MicroFoam 390 300/4.5 ——Y 37000 na 18"–24" 6 na Shell only na na 40000/BUEZ0 Fan 18"–24" 6 na 3-1/4" x 10" (V, H) Aluminum 210 160/6.5160/6.5 —Y 41000/BUEZ1 Fan 18"–24" 6 na Non-ducted Charcoal na 42000/BUEZ2 Fan 18"–24" 6 na 7" round (V) Aluminum 230 190/6.0 Y 43000/BUEZ3 Fan 18"–24" 6 na 3-1/4" x 10" (V, H) 7" round (V) Nonducted Aluminum w/ Light Lens 260 190/7.0160/7.0220/8.0 Y 46000 Fan 18"–24" 6 na 3-1/4" x 10", 7" round Non-ducted Aluminum 260 190/7.5 (100/2.5)†† 190/7.5 (100/3.0)†† 220/7.5 (100/2.0)†† Y BXT1 Fan 20"–25" 6 na 3-1/4" x 10" (V,H) 7" round Aluminum 270 200/7.0 (100/2.5)†† 170/7.5 (70/2.5)†† 250/7.0 (150/2.0)†† Y ALT4 Dual Centrifugal Blower 24"–30" 5 na 3-1/4" x 10"or 14" (V,H) 7" round Peripherial 650 380/7.0 (110/<0.3)†† 430/7.0 (110/<0.3)†† 390/7.0 (120/<0.3)†† Y ALT3 Dual Centrifugal Blower 18"–24" 5 na 3-1/4" x 10" (V,H) 7" round Hybrid Baffle 450 360/6.0 (140/0.4)†† 400/5.5 (150/0.4)†† 370/5.5 (140/0.4)†† Y ALT2 Axial 18"–24" 5 na 3-1/4" x 10" (V,H) 7" round Deluxe Micromesh, oval pattern 375 230/6.0 (120/1.5)†† 230/6.5 (110/1.5)†† 260/5.5 (130/1.5)†† Y 164
POWER PACKS

Range Hood Specifications

† SS=430 Stainless Steel, BL=Black on Black, BLS=Black Stainless Steel, SL=Slate, BT=Bisque w/Black controls, BC=Bisque on Bisque, WW=White with color-matched controls, WH=White with contrasting controls.

†† (Normal Setting).

††† External blower for E60000, E64000, 61000EX, 63000EX, RMPE, RMIP, RMDDEX and E66000 Series.

SPECIFICATIONS 80
SERIES PAGE DESCRIPTION WIDTH (inches) FINISHES† (may not be in all widths) LIGHTING BULB INCL. CONTROL FEATURES CONTROL TYPE ALT1 52 Alta Range Hood30, 36 BL, SS, WW Dual Halogen yes 2-Speed Rocker BCDF1 57 Glacier Range Hood 30, 36, 42 SS, BLS Dual LED yes 3 speed Capacitive Touch BCDJ1 56 Glacier Range Hood 30, 36, 42WH, SS, BL Dual LED yes 3 speed Electronic Pushbutton BCSD1 58 Glacier Range Hood 24, 30, 36, 42WW, BC, SS, BL Dual Halogen no 2 speed Rocker BKDB1 59 Sahale Range Hood 30, 36 WW, SS, BL Dual LED yes 3 speed Capacitive Touch BKSA1 61 Sahale Range Hood 30 WW, SS, BL Dual Halogen no 2 speed Rocker BKSH1 60 Sahale Range Hood 30 WW, SS, BL Dual Halogen yes 2 speed Deluxe Rocker BPDP1 55 Spire Range Hood 30, 36, 42,48 SS Dual LED yes 2 speed Deluxe Rocker TEN1 54 Tenaya Range Hood 30, 36 BL, SS, WW Dual Halogen yes 2-Speed Rocker TEN2 53 Tenaya Range Hood 30, 36, 42BL, SS, WW Dual LED yes 3 speed Capacitive Touch F40000 66 Range Hood 24, 30, 36, 42 WH, AL, SS, BL, WW, BC Single 75W Incandescent no 2 speed Rocker BLOWERS 335 74, 75 †††Exterior Blowerna na na nana na 336 74, 75 †††Exterior Blowerna na na nana na 331H 74, 75 †††Exterior Blowerna na na nana na 332H 74, 75 †††Exterior Blower including 28000 na na na nana na HLB3 74, 75 †††In-Line Blower na na na nana na HLB6 74, 75 †††In-Line Blower na na na nana na HLB9 74, 75 †††In-Line Blower na na na nana na HLB11 74, 75 †††In-Line Blower na na na nana na P5 74, 75 Internal Blower for RMIP na na na nana na P8 74, 75 Internal Blower for RMIP na na na nana na 165

HVI-2100 CERTIFICATION

Broan range hoods are tested and certified by the Home Ventilating Institute. This is your assurance that each Broan unit has been tested and found to consistently deliver the air and sound performance specified.

81 SPECIFICATIONS SERIES AIR-MOVER TYPE MOUNT HEIGHT* VISIBLE SHELL HEIGHT (inches) CEILING HEIGHT MAX DUCTING SIZE FILTERS INCL. MAX Blower CFM CFM/ SONES VERT. RECT. CFM/ SONES HORIZ. RECT. CFM/ SONES VERT. ROUND HVI ALT1 Axial 18"–24" 5 na 3-1/4" x 10" (V,H) 7" round Micro-mesh 300 220/5.0 (130/1.5)†† 210/5.0 (110/1.5)†† 240/5.0 (140/1.5)†† Y BCDF1 Axial 18"–24" 6 na 3-1/4" x 10" (V, H) 7" round Micro-mesh 375 240/6.0 (130/1.5)†† 240/6.0 (110/1.5 )†† 260/5.5 (140/2.0 )†† Y BCDJ1 Dual Centrifugal Blower 18"–24" 6 na 3-1/4" x 10" (V, H) 7" round Deluxe Micro-mesh, circle pattern 450 360/6.0 (140/0.4)†† 400/5.5 (150/0.4)†† 380/5.5 (150/0.4)†† Y BCSD1 Axial 18"–24" 6 na 3-1/4" x 10" (V, H) 7"round Open-mesh 300 220/5.0 (130/1.5 )†† 210/5.0 (110/1.5)†† 240/5.0 (150/1.5 )†† Y BKDB1 Axial 18"–24" 5 na 3-1/4" x 10" (V, H) 7" round Micro-mesh 300 220/5.0 (130/1.5 )†† 210/5.0 (110/1.5)†† 240/5.0 (140/1.5 )†† Y BKSA1 Axial 18"–24" 5 na 3-1/4" x 10" (V, H) 7" round Open-mesh 300 220/5.0 (130/1.5 )†† 210/5.0 (110/1.5)†† 240/5.0 (150/1.5 )†† Y BKSH1 Axial 18"–24" 5 na 3-1/4" x 10" (V, H) 7" round Micro-mesh 300 220/5.0 (130/1.5 )†† 210/5.0 (110/1.5)†† 240/5.0 (140/1.5 )†† Y BPDP1 Dual Centrifugal Blower 18"–24" 9 na 3-1/4" x 10" (V, H) 7" round Hybrid Baffle 450 360/6.0 (140/0.4)†† 400/5.5 (150/0.4)†† 370/5.5 (140/0.4)†† Y TEN1 Axial 18"–24" 5 na 3-1/4" x 10" (V,H) 7" round Open-mesh 300 220/5.0 (130/1.5)†† 210/5.0 (110/1.5)†† 240/5.0 (150/1.5)†† Y TEN2 Axial 18"–24" 5 na 3-1/4" x 10" (V,H) 7" round Micro-mesh 375 240/6.0 (130/1.5)†† 240/6.0 (110/1.5)†† 260/5.5 (140/2.0)†† Y F40000 Fan 18"–24" 6 na 3-1/4" x 10" (V, H) 7" round (V) Nonducted Aluminum 230 160/6.5160/6.5190/6.5 Y
335 Centrifugal Blower nanana 10" round na 1280 1200/na Y 336 Centrifugal Blower nanana 10" round na 1620 1500/na Y 331H Centrifugal Blower nanana 10" round na 660 600/na Y 332H Centrifugal Blower nanana 10" round na 880 900/na Y HLB3 Centrifugal Blower nanana Inlet 8" or 10" round Outlet 8" round na 320 S280(H)/ S260(V) Y HLB6 Centrifugal Blower nanana Inlet 10" round Outlet 10" round na 670 S600(H)/ S600(V) Y HLB9 Centrifugal Blower nanana Inlet 10" round Outlet 10" round na 890 S800(H)/ S700(V) Y HLB11 Centrifugal Blower nanana Inlet 10" round Outlet 10" round na 1540 S1100(H)/ S1000(V) Y P5 Centrifugal Blower nanana 3-1/4" x 10" (V, H) na 530 460/10.5500/10 —Y P8 Dual Centrifugal Blower nanana 3-1/4" x 14" (V, H) na 930 850/10.5900/10 —Y 166
BLOWERS

Now you can monitor, measure and manage the air quality in your home.

Overture™ is a simple solution that automatically manages indoor air quality. Comprised of a wall switch, a room sensor and a smart plug, Overture™ monitors humidity, TVOCs, CO2 and temperature. When any of these factors exceed normal levels, Overture™ devices automatically start your compatible range hood and ventilation fans to exhaust bad air. And with the Smart Plug controlling your air supply unit, fresh air is introduced concurrently.

The Overture™ app enables you to monitor air quality from anywhere, anytime. Monitor any room—even in different homes.

Overture™.
82 167

Fresh, clean air is essential to life.

In fact, we take around 25,000 breaths each day with most of those breaths taken at home. They are taken around the kitchen table, during bath time, and while we are asleep. Going about daily life at home creates things like humidity, dust, chemicals, smoke, and carbon dioxide, which reduces the quality of the air in the home. The buildup of these pollutants inside homes can reach levels that are up to five times more polluted than the air outside. At Broan-NuTone, we believe every one of our breaths taken at home should be a healthy one, so we have created the first, fully integrated and cloud-connected whole home indoor air quality monitoring and ventilation system, that we are calling Overture, to provide homes with clean, healthy air without the need for remembering to turn on and off your home’s ventilation systems. Overture is here to help you make sure your home is safer, cleaner, and more comfortable.

Scan this code to learn more about Overture™ and the complete range of compatible ventilation solutions.

Smart Room Sensor Model BIAQRS1 Smart Wall Control Model BIAQWC1 Smart Plug Model BIAQSP1
83 168

THE LEADER IN RESIDENTIAL INDOOR AIR QUALITY. COME HOME TO FRESH AIR.

Broan-NuTone® is America’s leading brand of residential ventilation products including range hoods, ventilation fans, fresh air systems, electric and solar-powered attic ventilators.

FRESH AIR SYSTEMS ©2021 Broan-NuTone | Printed in USA | 99850987C | 04/21 BROAN-NUTONE.COM | 800-558-1711 | 926 WEST STATE STREET, HARTFORD, WISCONSIN 53027 169
RANGE HOODS SOLAR-POWERED ATTIC VENTILATORS VENTILATION FANS

HEAT RECOVERY VENTILATORS

170

Heat Recovery Ventilators

For today’s tightly constructed, energy efficient homes, Broan Heat Recovery Ventilators (HRVs) continuously supply fresh air to improve indoor air quality in every season. These fresh air systems exchange stale indoor air and pollutants with fresh, filtered outside air. Our core technology tempers incoming air to help maintain optimal indoor temperature levels.Theresult—freshairinyourhome,allyearlong.

171
Air Systems
172
Fresh
Better Air. Better Life. Heat Recovery Ventilators

Broan® Heat Recovery Ventilators

Fresh air wherever you live.™

For today’s tightly constructed, energy efficient homes, Broan Heat Recovery Ventilators (HRVs) continuously supply fresh air to improve indoor air quality in every season. These fresh air systems exchange stale indoor air and pollutants with fresh, filtered outside air. Our core technology tempers incoming air to help maintain optimal indoor temperature levels. The result—fresh air in your home, all year long.

low speed.

3 This product earned the ENERGY STAR® rating by meeting strict energy efficiency guidelines set by Natural Resources Canada and the U.S. EPA.

It meets ENERGY STAR® requirements only when used in Canada.

HE SERIES ADVANCED SERIES Model Name HRV160 ECM HRV200 ECMHRV250 ECM HRVH100 HRV150 HRV130FL Model Number HRV160TE HRV200TEHRV250TE HRVH100S HRV150S HRV130FLS Min/Max Continuous Airflow (CFM At 0.2 In. w.g.) 53–177 50–245 50–271 50–112 66–174 Min/Max Continuous Airflow (CFM At 0.4 In. w.g.) 53–156 50–226 50–250 50–104 66–150 66–129 Fan Efficacy At 32°F (CFM/Watt) 2.0 3.4 3.6 1.2 1.2 1.0 Apparent Sensible Efficiency at 32°F 1 83% 85% 81% 75% 79% 83% Sensible Recovery Efficiency at 32°F1 75% 80% 75% 65% 67% 75% Sensible Recovery Efficiency at –13°F1 64% 73% 66% 60% 60% 60% Total Recovery Efficiency at 95°F1 Filtration Level MERV 9 MERV 6 / HEPA option MERV 6 / HEPA option HEPA 15 PPI MERV 6 / MERV 8 option Filter Model Number SV18205 SV63426 / 21996 SV63426 / 21996 ACCHEPARF + ACCHEPAPFK SV60800 V65683 ENERGY STAR® Certified3 Yes Yes Yes Yes No Yes Ports Location Top Top Top Side Side Side Ports Size (in.) 6 6 6 5 6 5 Dimensions (in.) H x W x D Side Port —17 x 39 x 1217 x 35 x 17 1⁄4 229⁄16 x 221⁄16 x 137⁄8 Top Port 24 9⁄16 x 23 9⁄16 x 1415 ⁄16 31 x 32 x 20 Weight (lbs) 52 82 81 46.5 65 47 Warranty on Parts 5 Years5 Years5 Years5 Years5 Years5 Years Warranty on Core Limited Lifetime Limited Lifetime Limited Lifetime Limited Lifetime Limited Lifetime Limited Lifetime 1 Performance
at
173

Manage temperature in every season

Heating Season Minneapolis, Minnesota Cooling Season Phoenix, Arizona

Outside air to house –13°F

7°F Stale air to outside

Stale air from building 75°F

Pretreated air to house 61°F2

Outside air to house 110°F Stale air from building 75°F

105°F Stale air to outside Pretreated air to house 83°F

ADVANCED SERIES COMPACT FLEX SERIES™ HRV190 HRV160 HRV80 HRV90 HRV120 HRV190S HRV160T HRV80S / HRV80T HRV90S / HRV90T HRV120S / HRV120T 82–215 65–183 37–79 47–95 64–126 82–192 65–155 37–71 47–90 64–115 1.2 1.3 1.2 1.2 1.2 75% 83% 80% 75% 74% 65% 75% 68% 66% 65% 60% 72% 60% 60% 60% 15 PPI MERV 7 30 PPI 30 PPI 30 PPI SV60800 SV18204 SV18883 SV18883 SV16032 No Yes No Yes Yes Side Top Side / Top Side / Top Side / Top 6 6 4 4 5 17 x 35 x 17 1⁄4 16 5⁄16 x 1913⁄16 x 15 5 ⁄8 213⁄16 x 271⁄16 x 1913⁄16 24 9⁄16 x 24 9⁄16 x 1415 ⁄16 18 5 ⁄8 x 157⁄16 x 15 5 ⁄8 161 ⁄4 x 23 5 ⁄8 x 1913⁄16 65 52 30 30 42 5 Years 5 Years 5 Years 5 Years 5 Years Limited Lifetime Limited Lifetime Limited Lifetime Limited Lifetime Limited Lifetime
174

Wall Controls & Accessories

Residential Main Wall Controls Broan® offers simple to more advanced wall controls to customize your fresh air system.

VT4W

Select the wall control best suited to your needs

Auxiliary Wall Controls can provide additional control to homeowners.

VB60W

Wall control features

Accessories*

WHISPER REGISTERS

Model V01269

• 4" intake and exhaust

Model V02863

• 5" intake and exhaust

Model V01271

• 6" intake and exhaust

Model V03585

• 8" intake and exhaust

EXTERIOR VENTS

Model VTYIK1

• Tandem transition kit for units at 110 CFM and under

Model V1607100

• IN2000 hood kit (set 2)

Model V12570

• Anti-gust intake 6"

Model 634M

• Roof cap up to 6"

GRILLES AND PLASTIC REGISTERS

Model V04790

• Duct connector baffle 8" x 12"

Model V04400

• Duct connector 8" x 12"

AIRFLOW BALANCING KITS

Model V18222

• Balancing kit 0.5" and 1" H20

Model V11001

• Air flow collar 6"d

Model V11246

• Air flow collar 8"d

Model V11247

• Air flow collar 7"d

BROAN-NUTONE.COM | 800-558-1711 | 926 WEST STATE STREET, HARTFORD, WISCONSIN 53027 ©2020 Broan-NuTone | Printed in USA | 99850969C | 08/20 Model VT4W VVT6W VT7W VT8W VT9W Continuous minimum speed ••••• Continuous maximum speed ••••• Dehumidistat
Intermittent:
•••
Recirculation
Smart •• Program
Electronic
• Model VT4W VT6W VT7W VT8W VT9W VB20W VB60W Residential Main Wall Controls Auxiliary HRV80 •••• •• HRV90 •••• •• HRVH100 •••• •• HRV120 • ••• • HRV150 ••• • HRV160 •••• ••
•• ••
••• •
•• •
20 minutes/hour •
Turbo: Maximum speed for 4 hours •
•••
balancing
HRV160 ECM
HRV190
HRV200 ECM ••• HRV250 ECM •••
VT6W VT7W VT8W VT9W
VB20W
Bathroom
Bathroom override 20/40/60-minute timer
override 20-minute timer
175

CARRO SMART FANS AND LIGHTING

176

SMART FANS

177

Smart Fans

At Carro USA Inc., we live and breathe with one focus: create smart technology to improve the quality and comfort of the home. For nearly 2 decades we’ve been dedicated to building exceptionally engineered and magnificently designed smart ceiling fans, smart switches, lighting products, and other home goods all devoted to improving home life. Our motto is that a “Smart Life Stays in Motion”, life is busy and with smart technologywecanaddconveniencesthatgrantusmoretime tokeeplifemoving.

178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
INDUSTRIAL

Industrial

CarroUSA Inc. is a well-known global supplier that produce ceiling fans, smartswitches, lighting and other home goods. We supply to hundreds of local,online, and international distributors.

For nearly 2 decades we’ve been dedicating in building exceptionally engineered and magnificently designed smart ceiling fans, lighting products, smart switches and other homegoodsalldedicatedtoimprovinghomelife.

287
288
289
290
291
292
293
294
295

Turn static files into dynamic content formats.

Create a flipbook
Issuu converts static files into: digital portfolios, online yearbooks, online catalogs, digital photo albums and more. Sign up and create your flipbook.
