Index LOW-VOLTAGE POWER DISTRIBUTION & CONTROLS SYSTEMS

Switchboards

1

Panelboards

4

LOW-VOLTAGE POWER DISTRIBUTION & CONTROLS SYSTEMS

SWITCHBOARDS

1

Eaton Panelboards and switchboards

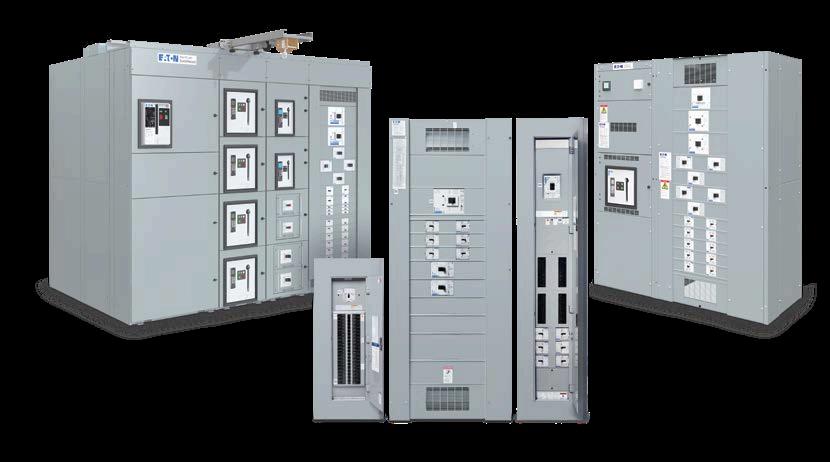

The Pow-R-Line Xpert family Built at the intersection of experience and intelligence

PRLXD switchboard

PRLX switchboard

Pow-R-Line Xpert panelboards

What do you get when you combine over 90 years of experience with industryfirst power innovations?

Intelligent circuit protection for panelboards and switchboards that can provide accurate, actionable data to increase efficiency. Built on a foundation of excellence, the feature-rich Pow-R-Line XpertE family with Eaton’s new Power DefenseE circuit breakers includes built-in communications, energy metering and breaker health diagnostics for safer, more reliable systems.

Features and benefits

PREDICTIVE

CLEAR VISION

INSIGHTFUL

PREPARED

Breaker health diagnostics Monitors and communicates breaker health status, enabling predictive maintenance to avoid costly, unscheduled downtime

Re-engineered deadfront covers Offers full visibility to breaker faceplate as well as accessibility to trip units without having to remove deadfront cover

Integrated metering capabilities Simplifies installation by current and voltage metering internal to trip unit with no need for external modules

Standardizing Arcflash Reduction Maintenance SystemE (ARMS) functionality Enhanced and consistent functionality of industry-leading solution to reduce arc flash energy released during maintenance operations

CONNECTED

ADAPTABLE

EFFICIENT

Embedded communications Helps to reduce cost by eliminating the need for separate communication components and associated wiring

Thru-cover accessories Easily removable secondary covers designed to install a wide range of accessories in field without voiding factory warranty

PXPM testing and configuration PXR trip units equipped with micro-USB connection for secondary injection testing through your PC, saving you labor hours and the cost of expensive test kits

2

Pow-R-Line Xpert family classification PRL1X Maximum voltage 240 Vac Maximum amperage 600 A main 100 A branch 400 A subfeed

Standard provisions Yes—specified by number of circuits

Features • Power Defense molded case circuit breakers • EZE Box and EZE Trim standard • Surge options are available up to 200 kA • Chassis accepts miniature circuit breaker types BAB and QB • Integral customer metering options are available

Product type Panelboard

The bottom line: The PRL1X is designed for 240 Vac and below lighting and appliance applications.

PRL2X Maximum voltage 480Y/277 Vac 125/250 Vdc 3 W

Standard provisions Yes—specified by number of circuits

Maximum amperage 600 A main 100 A branch 400 A subfeed

Product type Panelboard

Features • Power Defense molded case circuit breakers • EZ Box and EZ Trim standard • Surge options are available up to 200 kA • Chassis accepts miniature circuit breaker types BAB and QB • Integral customer metering options are available

The bottom line: The PRL2X is designed for low AIC 480Y/277 Vac, lighting and appliance applications or high AIC 120/208 Vac applications.

PRL3X Maximum voltage 600 Vac 250 Vdc 2 W Maximum amperage 600 A main, 800 A MLO 225 A branch 400 A subfeed

Standard provisions No—must be manually added Product type Panelboard

Features • Standard chassis accepts Power Defense molded case circuit breakers • Can include 1X or 2X sub-chassis for miniature circuit breakers • EZ Box and EZ Trim standard • Surge options are available up to 200 kA • Integral customer metering options are available

The bottom line: The PRL3X is a hybrid lighting and power panel for lighting/appliance and small power distribution and motor applications.

PRL4X Maximum voltage 600 Vac 600 Vdc 2 W Maximum amperage 1200 A main 1200 A branch

Standard provisions No—must be manually added Product type Panelboard

Features • Standard chassis accepts Power Defense molded case circuit breakers • Can include 1X or 2X sub-chassis for miniature circuit breakers • BX type can, DFC only standard • Complete line of Power Xpert metering options are available • GFCI on the main circuit breaker is available • Surge options are available up to 400 kA with integral breaker

The bottom line: The PRL4X is designed for 1200 A and below, service entrance, power distribution and motor applications.

PRLX Maximum voltage 600 Vac 600 Vdc 2 W Maximum amperage 6000 A main bus

Standard provisions No—must be manually added Product type Switchboard

Features • Includes Power Defense molded case circuit breakers • Front or rear accessible • Utility metering provisions available • Complete line of Power Xpert metering options are available • Surge options are available up to 400 kA with integral breaker • 65 kAIC standard bus bracing; optional 100 or 200 kAIC

The bottom line: The PRLX combines a space-saving design with modular construction and increased systems ratings.

PRLXD Maximum voltage 480 Vac

Standard provisions No—must be manually added

Maximum amperage 2000–6000 A rated bus

Product type Switchboard

Features • Can accommodate the following in a single ULT 891 assembly: – 400–4000 A drawout insulated case circuit breakers – 70–600 A drawout molded case circuit breakers – 20–1200 A fixed group-mounted molded case circuit breakers • Includes Eaton’s Power Defense circuit breaker offering

The bottom line: The PRLXD is a reliable solution that integrates both drawout insulated case and molded case circuit breakers into a single UL 891 assembly.

Eaton.com/PRLXpert

Eaton 1000 Eaton Boulevard Cleveland, OH 44122 United States Eaton.com © 2021 Eaton All Rights Reserved Printed in USA Publication No. PA014015EN / Z25303 July 2021

Eaton is a registered trademark.

All other trademarks are property of their respective owners.

3

Follow us on social media to get the latest product and support information.

PANELBOARDS

4

Pow-R-Line 1X and 2X 600 A panelboards

Designed to meet the modern needs of electricians and contractors Eaton’s Pow-R-LineE XpertE panelboard family with integrated Power DefenseE breakers—the broadest in the industry—is consistently expanded to benefit the electricians and contractors who support today’s commercial and industrial facilities. Now, this family has been enhanced with 600 A lighting and branch appliance panelboards.

Building on the proven design of the Pow-R-Line 1X and 2X panelboards, our engineers worked closely with the industry to provide the features you need to better support your customer base.

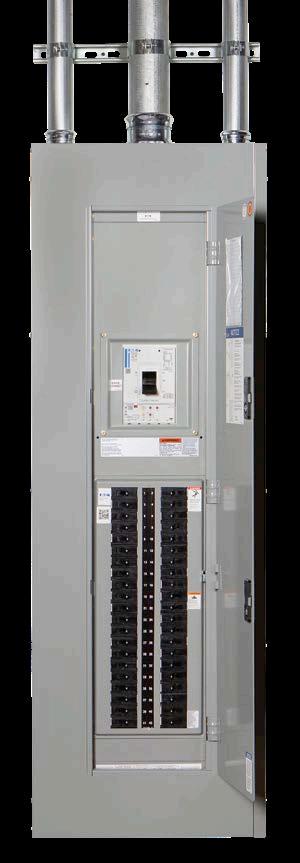

Eaton’s PRL1X 600 A panelboard

5

Custom assembly for rapid customization Each Eaton panelboard is individually assembled and tested by highly skilled technicians.

Rugged construction prevents flexing to help prevent damage during shipment or after installation. Our dedicated approach means customer configurations, and a wide range of options and modifications can easily be incorporated for quicker shipment of both standard and special panelboards.

Features and benefits •

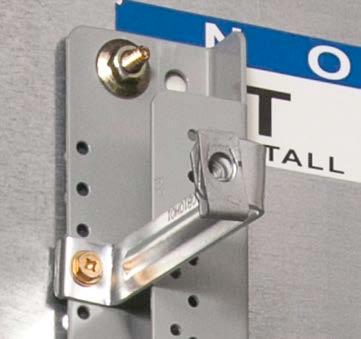

Unique deadfront bracket design—Reinforced deadfront bracket provides structural integrity and reduces the potential for accidental damage during shipment and at job sites

•

A safer chassis— All chassis parts are painted to smooth edges and corners, reducing the potential danger of sharp edges for contractors during installation

•

Laser-cut trims— Panelboard trims are laser cut to eliminate sharp edges and burs, and to provide a consistently accurate fit

•

QuaDrive screws— For easier installation, QuaDrive screws allow installers to use preferred installation tools

•

•

Reduced installation time—Deadfront cover is held in place with just four QuaDrive screws for easier access to wireways and reduced installation time Bright insulation—White branch breaker insulation reflects more light and facilitates installation in dimly lit work areas

•

Industry compliance— ULT 67 and UL 50 listed meets all application requirements of NEMAT, NECT and federal specification WP-115c.

The Canadian CSAT label is available upon request

•

Seismic qualification— Tested and qualified to meet the requirements of the International Building Code (IBC), the California Building Code (CBC) and California Office of Statewide Health Planning and Development (OSHPD)

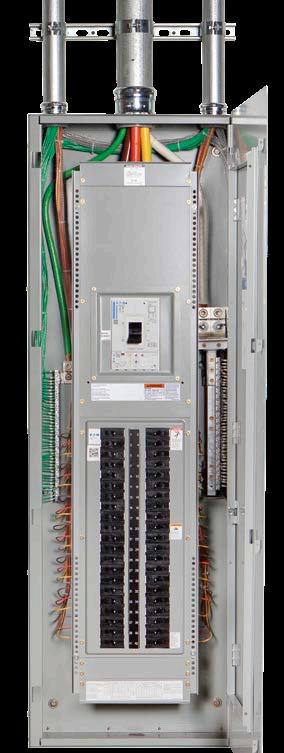

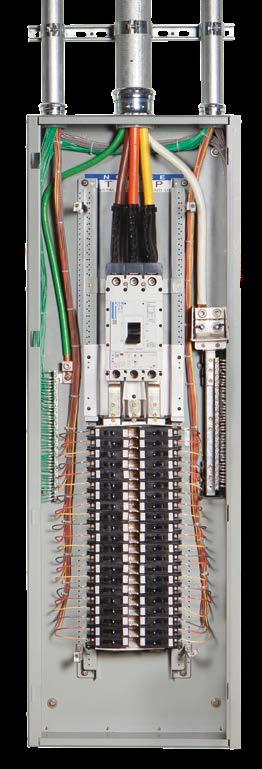

Featuring installed PRL1X and PRL2X 600 A panelboards

Unique deadfront bracket design

2

Laser-cut trims

EATON Pow-R-Line 1X and 2X 600 A panelboards

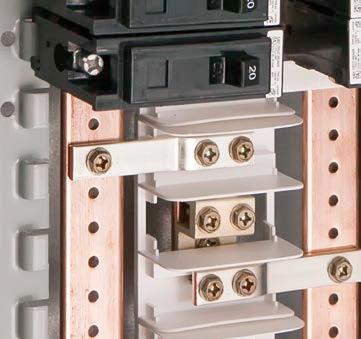

Bright insulation

6

Eaton’s EZ BoxE and EZ TrimE— a revolutionized panelboard design •

Virtually eliminates sharp edges

Pow-R-Line 1X and 2X specifications

•

Trim installs in seconds rather than minutes

Description

•

Door-in-door standard

•

Ability to adjust flush applications to wall irregularities

•

Trim installs without the need for tools

•

No exposed hardware (because there is none)

•

Robust locks and latches to secure the trim

NEMA enclosure options A variety of NEMAT enclosures are available as options: NEMA Type 2, 3R, 4, 4X and 12. Optional 28-inchwide boxes are available for applications that require additional gutter space for cable bending.

Dimensions in inches (mm) Heights 36 (914.4) 42 (1066.8) 48 (1219.2) 60 (1524.0) 72 (1828.8) 90 (2286.0) 20 (508.0) standard 28 (711.2) optional Depth 5.75 (146.1) A

Because each Pow-R-Line 1X and 2X panelboard is assembled by an experienced technician, we can easily and efficiently incorporate any combination of modifications and accessories, including: •

Breaker lock-off devices

•

Compression type lugs (mains only)

•

Ground fault breakers

•

Arc fault breakers

•

Increased dimensions

•

Trim to fix existing boxes

•

Main breakers with solid-state trip units

•

Permanent circuit numbering

•

Service entrance

•

Special doors and locks

•

Sub-feed and through-feed lugs

•

Surge protection devices

A Dimensions for NEMA Type 1 enclosure.

For dimensions of optional NEMA enclosure, contact your Eaton distributor or sales engineer.

Branch circuit breaker Branch breaker connector Branch circuit breaker types

Factory-installed modifications and accessories

Widths A

Rating

PRL1X ratings Voltage Main breaker Main lug Maximum kAIC

PRL2X ratings Voltage Main breaker Main lug Maximum kAIC

Branch circuit breaker Branch breaker connector Branch circuit breaker types

240 Vac maximum 100–600 A 100–600 A 10–22 kA fully rated 22–200 kA series rated 15–100 A 140 A BA (BAB, BAB-H), QBH (QBHW, QBHW-H), QBGFT, QBGFEP, QBHGFT, QBHGFEP, HQP, QPHW, QHPX, QPGF, QPHGF, QPGEP, QPHGFEP, BABR, QBAF, QBAG, QBHAF, QBCAF and QBHCAF 240 Vac, 480Y/277 Vac and 125/250 Vdc maximum 100–600 A 100–600 A 240 Vac: 65 kA fully rated 65–200 kA series rated 480Y/277 Vac: 14 kA fully rated 22–150 kA series rated 125/250 Vdc: 10–14 kA fully rated 15–100 A 140 A GB, GHB, GHBGFEP, GHBS, HGHB, GQ, GHQ, GHQRS and GHQRSP

Note: Contact your local Eaton distributor or sales engineer for additional information on these and other modifications and accessories.

7

EATON Pow-R-Line 1X and 2X 600 A panelboards

3

Seattle

San Francisco

Hartford Chicago

Westampton Cleveland

Los Angeles

Baltimore

Denver St. Louis Phoenix

Dallas Juarez, MX

Raleigh

Nashville

Atlanta

Sumter

Houston

Eaton Pow-R-Line Xpert panelboards and switchboards are built to your requirements at our world-class manufacturing plants in Sumter, SC and Juarez, MX. In addition, Eaton has 16 regional Satellite facilities located across the country to meet your panelboard and switchboard service needs.

For an unparalleled commitment to your specific needs, please visit your local Satellite facility.

Atlanta

Denver

Nashville

Sumter

7000 Highlands Parkway SE Suite 102 Smryna, GA 30082 678.309.4260

2450 Airport Road Suite C Aurora, CO 80011 303.366.2080

1421 Gould Boulevard Suite C La Vergne, TN 37086 615.287.3200

Main Manufacturing Plant 845 Corporate Circle Sumter, SC 29154 803.481.3131

Baltimore

Hartford

Phoenix

7451 Coca Cola Drive Suite C Hanover, MD 21076 410.796.7777

40A International Drive Windsor, CT 06095 860.298.1305

560 N 54th Street Suite 1 Chandler, AZ 85226 480.449.4222

San Francisco

Chicago 230 Windy Point Drive Glendale Heights, IL 60139 630.260.6303

14825 Northwest Freeway Suite 100 Houston, TX 77040 713.744.7530

Cleveland

Juarez

12875 Corporate Drive Unit E Parma, OH 44130 216.265.3284

Prolongacion Hermanos Escobar #7014, Parque Industrial Omega Adicion Oriental Cd. Juarez, Chichauha Mexico 32648

Dallas

Los Angeles

631 Westport Parkway Suite 100 Grapevine, TX 76051 817.251.6733

13201 Dahlia Street Suite 300 Fontana, CA 92337 919.428.8903

Houston

Raleigh 9400 Globe Center Drive Suite 121 Morrisville, NC 27560 919.544.7074

St. Louis 56 Soccer Park Road Fenton, MO 63026 636.717.3500

20923 Cabot Boulevard Hayward, CA 94545 510.784.8981

Seattle 1604 15th Street SW Suite 114 Auburn, WA 98001 253.833.5021

Westampton 96 Stemmers Lane Westampton, NJ 08060 609.835.4230
