Single Room Solutions

0–10V is a common control protocol that you can find across the lighting industry. Originally developed for fluorescent ballast control, 0-10V has become one of the most common control protocols in the growing LED market. Lutron offers a variety of 0-10V control options to give you both high-quality dimming capabilities and additional opportunities to save energy. These control options allow you to take advantage of multiple energy saving strategies

3

0 –10 V Single room solutions Standalone

Diva 0 –10 V dimmer

Nova T* 0 –10 V dimmer

Maestro 0 –10 V dimmer sensor

Wireless

PowPak wireless fixture controller and PowPak fixture sensor

PowPak dimming module with 0 –10 V control

4

Maestro Wireless 0-10 V dimmer sensor

Radio Powr Savr occupancy and daylight sensors, and Pico wireless remote

0 –10V Single room solutions

Table of contents

0 –10 V is a common control protocol that you can find across the lighting industry.

Originally developed for fluorescent ballast control, 0-10 V has become one of the most common control protocols in the growing LED market.

Dimming

Lutron offers a variety of 0-10 V control options to give you both high-quality dimming capabilities and additional opportunities to save energy.

Diva 0 –10 V dimmer

Nova T* 0 –10 V dimmer

page 4

page 6

These control options allow you to take advantage of multiple energysaving strategies.

Dimming and sensing Lutron energy-saving strategies

Full On

Occupied: On

Dim

Vacant: Off

Full On

Dim

Full On

Dim

80%

Max: 100%

Max: 80%

Maestro 0 –10 V dimmer sensor page 8

Dimming Gives occupants the ability to set the light levels.

Occupancy/vacancy sensing Turns lights on when occupants are in a space and dims lights to a low level or turns lights off when they vacate the space.

Dimming, sensing, personal control, and daylight harvesting

Personal dimming control Gives occupants the ability to set the light levels.

PowPak dimming module with 0 –10 V control

Maestro Wireless 0-10 V dimmer sensor

page 10

page 12

Daylight harvesting Dims electric light when daylight is available to light the space.

High-end trim Sets the maximum light level based on customer requirements in each space.

Individual fixture dimming, sensing, personal control, and daylight harvesting PowPak wireless fixture controller with 0-10 V control and PowPak fixture sensor page 14

2 | Lutron

5

Lutron | 3

Dimming Application examples: Conference room

Diva 0 –10 V dimmer •

0 –10 V dimmer for LED and fluorescent fixtures

Without power pack (DVSTV Only)

Two models available: •

DVSTV - Controls 120 – 277 V without a power pack - Provides 3-way preset switching functionality

•

DVTV - Requires a power pack - Use with a power pack for Class 2 installations, with wired occupancy sensors, for 347 V operation, and for loads greater than 8 A Models/Price DVSTV (gloss): $97 List DVSCSTV (Satin Colors): $107 List DVTV (gloss): $105 List DVSCTV (Satin Colors): $115 List

•

•

Voltage DVSTV/DVSCSTV - 8 A, 120 – 277 V

Line-voltage wiring Low-voltage wiring

DVTV/DVSCTV - 16 A with PP-DV, 120 – 277 V - 16 A with PP-347, 347 V

With power pack (DVTV Only)

Ideal for private offices and conference rooms

•

The Lutron Advantage Patented technology extends relay life to 10 years

•

Low-end and high-end trim in one product

•

No derating for 277 V installations

•

No neutral required

•

Energy-saving strategies Dimming

•

High-end trim

•

Codes met Automatic shut-off with wired occupancy sensors through a power pack

•

Area control

•

Multi-level lighting control

Line-voltage wiring Low-voltage wiring

4 | Lutron

6

Occupancy signal

Lutron | 5

Dimming

•

• •

•

Nova T* 0 –10 V dimmer

Application examples: Conference room

0 –10 V spec grade dimmer that can switch line voltage for fluorescent ballasts and LED drivers

Without power pack

Controls 120 – 277 V without a power pack Power pack required for Class 2 installations, for 347 V operation (Canada), and for loads greater than 8 Works with wired occupancy/vacancy sensors with the addition of the respective power pack Models/Price NTSTV-DV: $145 List

•

Voltage 8 A, 120 – 277 V; up to 16A with the addition of a power pack (PP-DV)

•

16 A, 347 V (with power pack PP –347H) Ideal for private offices, conference rooms, and hospitals Line-voltage wiring Low-voltage wiring

With power pack

•

The Lutron Advantage Spec grade with heavy-duty components for surge protection and long life

•

Low-end and high-end trim in one product

•

No derating for 277 V installations

•

No neutral required

•

Energy-saving strategies Dimming

•

High-end trim

•

Occupancy sensing

•

Codes met Automatic shut-off with wired occupancy sensors through a power pack

•

Area control

•

Multi-level lighting control Line-voltage wiring Low-voltage wiring

6 | Lutron

7

Occupancy signal

Lutron | 7

Dimming and sensing Application example: Private office

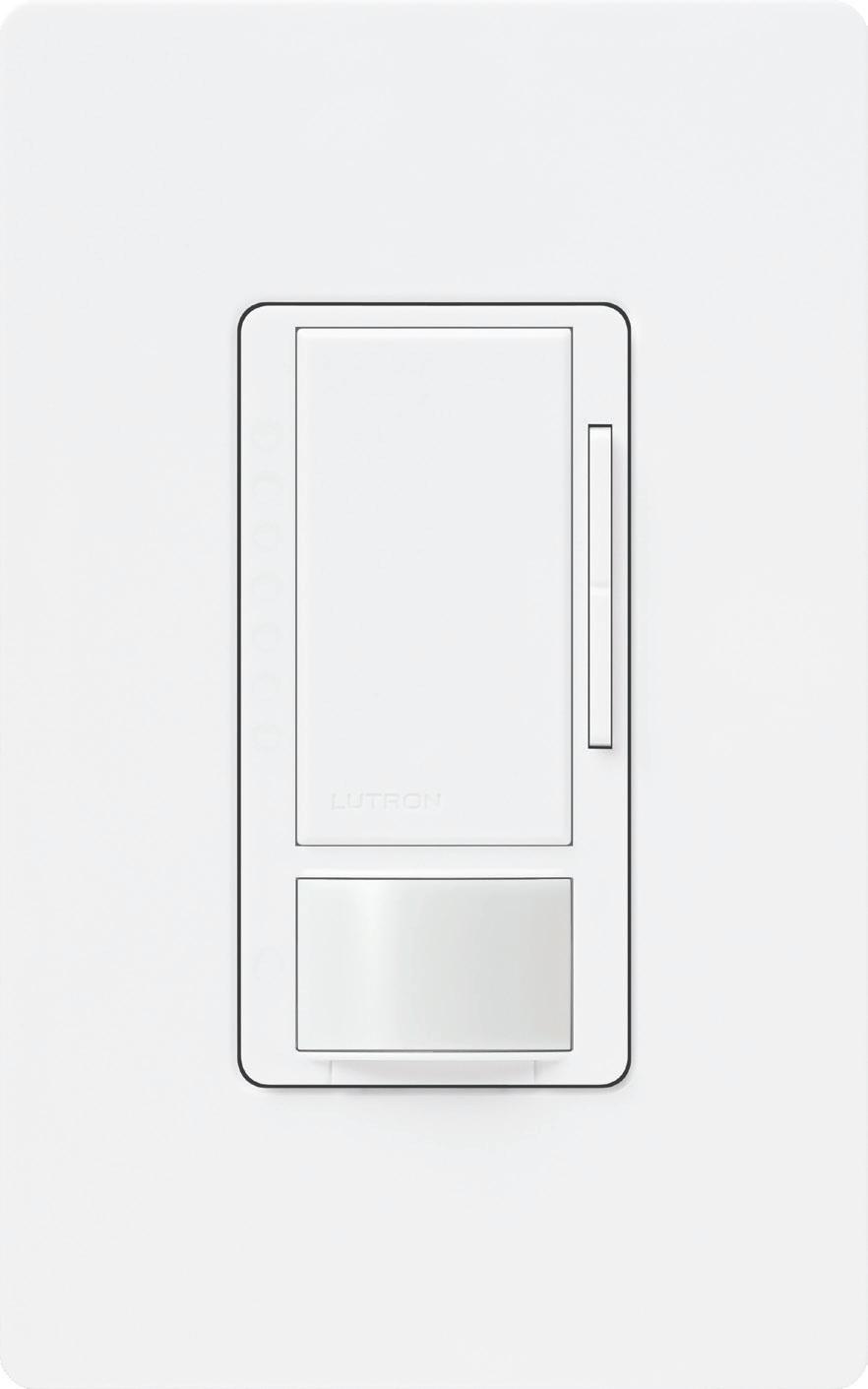

Maestro 0 –10 V dimmer sensor •

• •

Dims 0 –10 V LED drivers or electronic fluorescent ballasts XCT PIR sensing Single pole or 3-way with Maestro companion or mechanical switch

•

Neutral connection optional

•

Sinking control for sourcing fixtures

•

High- and low-end trim Models/Price MS -Z101 (occupancy/vacancy): $114 List MS -Z101-V (vacancy only): $114 List Voltage 8 A, 120 – 277 V Ideal for small spaces such as private offices, small classrooms, and equipment rooms

Line-voltage wiring Low-voltage wiring

Coverage patterns The Lutron Advantage • Miswire and load incompatibility alert — lens will flash red if control is miswired or connected to an incompatible fixture Optimized dimming performance with selectable dimming curve and smooth fade to on and fade to off

•

Lutron’s XCT sensing technology

•

Smart ambient light detection learns users preferred light level and keeps lights off when sufficient daylight is available

•

•

Horizontal Beam Diagram

Energy-saving strategies • Occupancy/vacancy sensing •

Dimming

•

High-end trim

•

4 ft (1.2 m) 0

Codes met Automatic shut-off

•

Multi-level lighting control

•

Area control

10 ft (3 m)

20 ft (6 m)

30 ft (9 m)

Major motion coverage (900 sq ft) Minor motion coverage (400 sq ft)

30 ft 25 ft 20 ft 15 ft 10 ft 5 ft (9 m) (7.5 m) (6 m) (4.5 m) (3 m) (1.5 m)

Lutron’s Adaptive Zero-Cross Switching extends relay lifetime 8 | Lutron

Vertical Beam Diagram

8

0

5 ft 10 ft 15 ft 20 ft 25 ft 30 ft (1.5 m) (3 m) (4.5 m) (6 m) (7.5 m) (9 m)

Lutron | 9

Dimming, sensing, personal control, and daylight harvesting (j-box) Application example: Classroom

PowPak dimming module with 0 –10 V control •

•

Junction-box mounted dimming module that controls 0 –10 V fixtures

Line-voltage wiring

Auto adapts to sink/source fixtures Models/Price RMJS-8T-DV-B (connector): $152 List

DZ 1

DZ 1

DZ 1

2

2

2

RMJS-8TN-DV-B (flying leads): $152 List

•

•

Voltage 8 A,120 – 277 V

1

Ideal for larger conference rooms, larger classrooms, and training rooms

1

The PowPak dimming module with 0 –10 V control is a part of the Vive wireless solution, which includes:

1

•

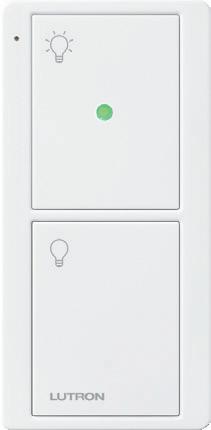

Pico wireless remotes

•

Maestro Wireless dimmers, switches, and sensors

•

PowPak dimming and switching modules

•

PowPak receptacle control modules

•

Individual wireless fixture controllers

The Lutron Advantage •

•

•

Push-button setup —utilizes simple buttonpress programming to select and associate wireless devices Proven technology means no callbacks — uses Lutron's XCT sensing technology (Radio Powr Savr sensors) and Clear Connect RF wireless communication Add/relocate wireless remotes and sensors at any time with no new wiring

10 | Lutron

1

•

DZ 2

DZ 2

DZ 2

2

2

2

2

2

2 Line-voltage wiring

2

Low-voltage wiring Clear Connect RF Communication DZ 1 & DZ 2 - Daylight Zones

Vive wireless components (work with PowPak dimming module and Maestro Wireless dimmer sensor)

Energy-saving strategies Occupancy sensing

•

Dimming

•

Personal control

•

Daylight harvesting

•

High-end trim

•

Clear Connect RF Communication DZ 1 & DZ 2 = Daylight Zones

Radio Powr Savr wireless occupancy/vacancy sensors Radio Powr Savr daylight sensors

Low-voltage wiring

Codes met Automatic shut-off

•

Multi-level daylight control

•

Multi-level lighting control

•

Area control

Radio Powr Savr occupancy/ vacancy sensors

9

Radio Powr Savr daylight sensor

Pico wireless remote

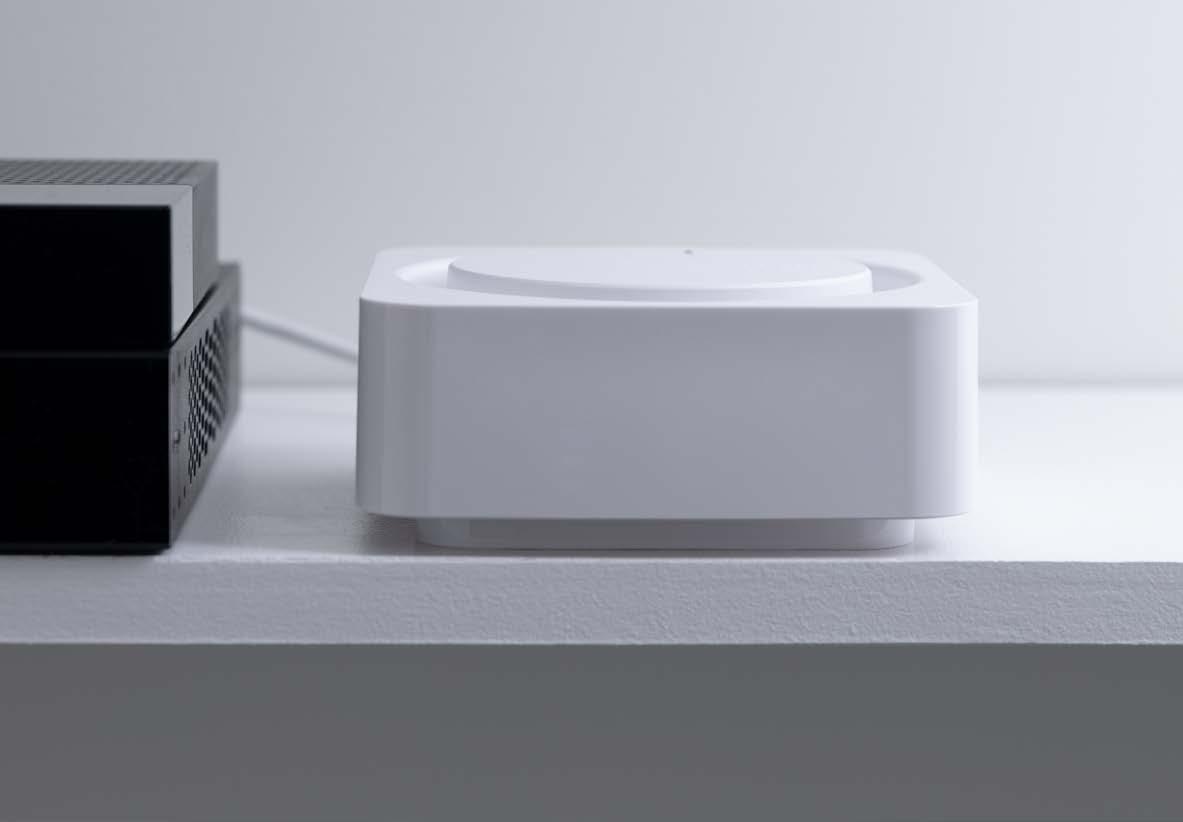

Vive hub

Lutron | 11

Dimming, sensing, personal control, and daylight harvesting (in-wall) Application example: Breakroom

Maestro Wireless 0-10 V dimmer sensor •

• •

Line-voltage wiring

Dims 0-10 V LED drivers or electronic fluorescent ballasts XCT PIR sensing Single pole or multi-location with a Pico wireless remote

•

Neutral required

•

High-end and low-end trim Models/Price MRF2S-8SD010 (occupancy/vacancy): $180 List MRF2S-8SDV010 (vacancy only): $180 List Voltage 8 A, 120/277 V Line-voltage wiring

Ideal for private offices, classrooms, conference rooms, and equipment rooms Maestro Wireless 0-10 V dimmer sensor is a part of the Vive solution. See pages 10-11 for more information.

Coverage patterns The Lutron Advantage •

• •

Combines the simplicity of an in-wall sensor with the scalability of a Vive system. You can easily add wireless devices, for another point of control, additional occupancy coverage, or daylight sensing when needed Lutron’s XCT sensing technology Smart ambient light detection learns users preferred light level and keeps lights off when sufficient daylight is available

12 | Lutron

Horizontal Beam Diagram

Energy-saving strategies • Occupancy/vacancy sensing •

Dimming

•

Personal control

•

Daylight harvesting

•

High-end trim

•

Vertical Beam Diagram 4 ft (1.2 m) 0

Multi-level daylight control

•

Multi-level lighting control

•

Area control

20 ft (6 m)

30 ft (9 m)

Major motion coverage (900 sq ft)

Codes met Automatic shut-off

•

10 ft (3 m)

Minor motion coverage (400 sq ft)

30 ft 25 ft 20 ft 15 ft 10 ft 5 ft (9 m) (7.5 m) (6 m) (4.5 m) (3 m) (1.5 m)

10

0

5 ft 10 ft 15 ft 20 ft 25 ft 30 ft (1.5 m) (3 m) (4.5 m) (6 m) (7.5 m) (9 m)

Lutron | 13

Individual fixture dimming, sensing, personal control, and daylight harvesting Application example: Open offices

PowPak wireless fixture controller with 0-10 V control •

•

Individual Fixture Control

Adds wireless control to each individual 0 –10 V LED or fluorescent fixture in a space Enables combined occupancy detection and daylight harvesting at the individual fixture level Models/Price window

FCJS-010: $79 List FCJS-010-BULK8: $610 List (contractor 8-pack, $76.25 List per unit) FC-SENSOR: $35 List FC-VSENSOR: $35 List Voltage 1 A,120 – 277 V Ideal for open offices and cafeterias PowPak wireless fixture controller is a part of the Vive solution. See pages 10 – 11 for more information.

•

•

•

•

Simple to design and estimate — just count the fixtures No additional wiring required — works with existing high-voltage wiring; add more wireless remotes and sensors at any time, and reconfigure zones with no new wiring Works out of the box — no complex computer programming; associate Pico wireless remotes with just a button press or green laser Proven technology means no callbacks —uses Lutron's XCT sensing technology (fixture sensor) and Clear Connect RF wireless communication 14 | Lutron

•

Energy-saving strategies Occupancy sensing

•

Dimming

•

Personal control

•

Daylight harvesting

•

High-end trim

•

window

The Lutron Advantage

Area Control

Codes met Automatic shut-off

•

Multi-level daylight control

•

Multi-level lighting control

•

Area control

11

Lutron | 15

Leader in LED dimming technology Lutron dimmers with LED+ technology

In addition to 0 –10 V solutions, look to Lutron as your leader in LED dimming technology. We offer superior technology for standalone, as well as system-based dimming, for both analog and digital control.

Dimmers

We also provide the highest quality products across these LED control types, for LED solutions you can count on.

Lutron dimmers with LED+ technology (formerly C•L) fix the issues with lamp compatibility •

Provides superior dimming of LEDs and incandescent/halogen bulbs

•

Works with dimmable screw-in LEDs and incandescent/halogen bulbs — even mixed on the same circuit

•

Helps future-proof dimmer installations as the bulb landscape changes from incandescent bulbs to LEDs

Ariadni

Skylark

Skylark Contour

Nova T*

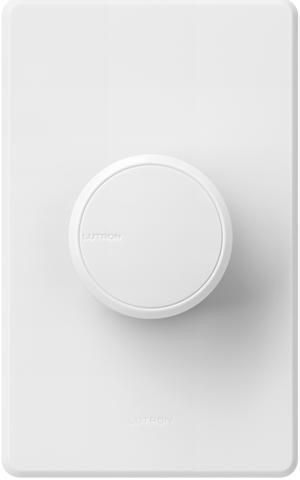

Diva

Dimmer/Sensor

High-performance dimming minimizes problems seen with other dimmers, including flicker, shimmer, and pop-on

•

Light bulb compatibility

UL Listed to control over 800 different LED bulbs. Easily find the right LED bulb for your dimmer at lutron.com/LEDfinder.

•

Dalia

Maestro

Sunnata

Maestro dimmer sensor

= unique LED bulb model type Wireless controls Lutron over 800 bulbs

Other companies 100 bulbs (on average)

16 | Lutron

Maestro Wireless with Radio Powr Savr wireless occupancy sensor and Pico wireless remote

12

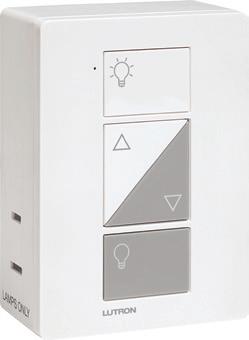

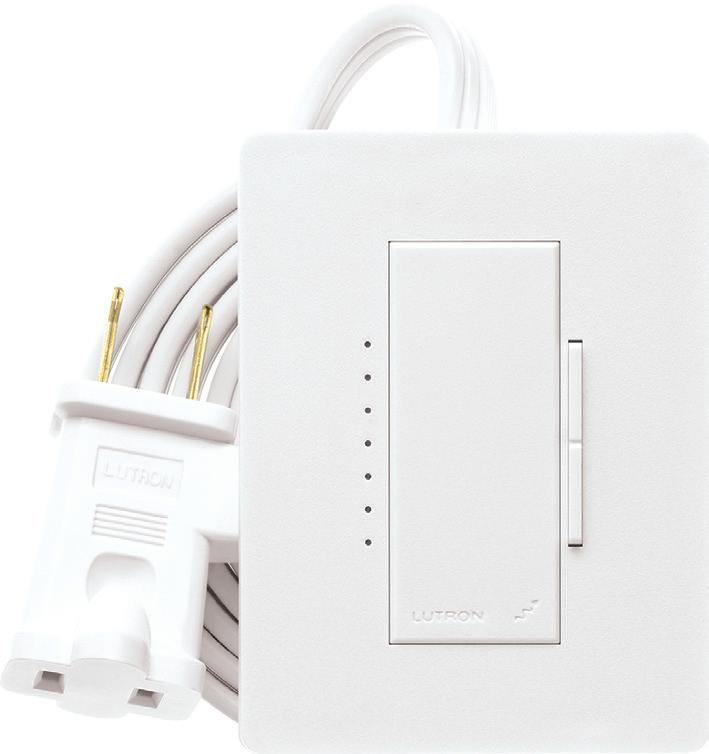

Caséta Wireless with Pico wireless remote

Caséta Wireless lamp dimmer with Pico wireless remote Lutron | 17

Ordering Information

Leader in LED dimming technology

Model number

Scaling from a single room to a whole building

Description

List Price (US)*

Diva dimmers

GRAFIK Eye QS

þ Phase control

Perfect for conference rooms, GRAFIK Eye QS is a customizable preset lighting control system that allows you to adjust lights and shades for any task.

þ 0 -10 V*

DVSTV DVSCSTV

þ EcoSystem

Vive

þ Phase control

Vive is a simple, scalable, wireless control solution that can be installed in a single space or throughout an entire campus. Designed to be used in new construction or retrofit applications, Vive offers a wide variety of products—including sensors, remotes, load controls, and a software management suite.

þ 0 -10 V

8 A lighting, 120 – 277 V, 3-way/single pole, no neutral or power pack required (gloss)

97.00

8 A lighting, 120 – 277 V, 3-way/single pole, no neutral or power pack required (Satin Colors)

107.00

DVTV

16 A lighting, 120 – 277 V, single pole, power pack required (gloss) 105.00

DVSCTV

16 A lighting, 120 – 277 V, single pole, power pack required (Satin Colors)

115.00

8 A lighting, 120 – 277 V, no neutral or power pack required

145.00

Nova T* dimmer NTSTV-DV

þ EcoSystem

Maestro dimmer sensors MS-Z101 MS-Z101-V

8 A lighting, 120 – 277 V, occupancy/vacancy, multi‑location/3‑way/single pole

114.00

8 A lighting, 120 – 277 V, vacancy only, multi‑location/3‑way/single pole

114.00

Energi Savr Node Solutions

þ Phase control*

PowPak dimming module

For open office spaces, Energi Savr Node provides a flexible lighting control system comprised of digital fluorescent dimming ballasts, LED drivers, controls, and sensors.

þ 0 -10 V

RMJS-8T-DV-B RMJS-8TN-DV-B

þ EcoSystem

5 A lighting, 120 – 277 V, connector 5 A lighting, 120 – 277 V, flying leads

152.00 152.00

Maestro Wireless dimmer sensors MRF2S-8SD010 MRF2S-8SDV010

8 A lighting, 120/277 V, occupancy/vacancy, multi‑location/single pole

180.00

8 A lighting, 120 /277 V, vacancy only, multi‑location/single pole

180.00

Panel Solutions

þ Phase control

PowPak wireless fixture controllers and fixture sensors

Traditional panel-based systems offer a simple, easy-to-maintain solution for areas with higher wattage lighting zones.

þ 0 -10 V

FCJS-010

0 –10 V control module

79.00

o EcoSystem

FCJS-010-BULK8

0 –10 V control module, 8-pack

610.00

FC-SENSOR

Occupancy/daylight sensor

35.00

FC-VSENSOR

Vacancy/daylight sensor

35.00

Radio Powr Savr sensors and Pico wireless remotes

Quantum

þ Phase control

Quantum is a lighting control and energy management system for an entire floor, building, or campus.

þ 0 -10 V þ EcoSystem

LRF2-OCR2B-P-WH

Ceiling-mount, 360° field-of-view, occupancy/vacancy sensor

89.00

LRF2-OWLB-P-WH

Wall-mount, 180° field-of-view, occupancy/vacancy sensor

89.00

LRF2-OKLB-P-WH

Corner-mount, 90° field-of-view, occupancy/vacancy sensor

89.00

LRF2-OHLB-P-WH

Hallway, occupancy/vacancy sensor

89.00

LRF2-DCRB-WH

Ceiling-mount daylight sensor

125.00

PJ2-3BRL-GWH-L01

Pico wireless remote with on/off, raise/lower, and favorite button

21.00

*Requires interface

18 | Lutron

13

* Price indicated for gloss finish (White)

Lutron | 19

World Headquarters 1.610.282.3800 Technical Support 1.800.523.9466 (Available 24/7) Customer Service 1.888.LUTRON1 (1.888.588.7661)

lutron.com © 2020 Lutron Electronics, Inc. | P/N 367-2532 REV I

The Lutron Logo, Lutron, Ariadni, C·L, Caséta, Clear Connect, Dalia, Diva, EcoSystem, Energi Savr Node, GRAFIK Eye, LED+, Maestro, Maestro Wireless, NovaT*, Pico, PowPak, Quantum, Radio Powr Savr, Satin Colors, Skylark, Skylark Contour, Sunnata, Vive, and XCT are trademarks or registered trademarks of Lutron Electronics Co., Inc., in the U.S. and/or other countries.

14

RESIDENTIAL SYSTEMS

15

Caséta

With a wide range of smart dimmers, switches, and plugs for indoors and out, Caséta offers a complete smart lighting control system that is also easy to use. Add a smart hub for enhanced control of your lights plus thermostats, window shades, Sonos and much more. Because it’s flexible, Caséta allows you to have as little or as much of a smart home as you want.

16

Discover the power of smart lighting

Outdoor Plug

Remote

Dimmer

Sensor

Smart Hub

Lutron App

(formerly Smart Bridge)

and more.

17

i

What’s New with the Caséta System?

Why Choose Caséta?

Lutron’s Most Popular Design — Now in a Remote

Introduction

You can offer your customers a classic paddle design with built-in smart technology for switching, dimming, and remote control. The addition of the Pico paddle remote to the Caséta family provides homeowners more flexibility and choice in home aesthetics as demand for smart lighting control grows.

Give your customers the smart home they desire — and enjoy simple, flexible installation. Caséta allows homeowners to control their lights from anywhere — at home or away — with a touch, voice command, or features that adjust lighting automatically. Lutron’s nine Caséta kits provide everything you need to get started in a space. Then, easily add on control whenever your customers are ready to expand their smart home.

Convenient control in a familiar aesthetic • •

•

Caséta Kits Smart Switch & Remote Kit ������������������������������������������������������������������������������������������������������������������������������� 2

Intuitive paddle design complements any decor Use to complete new projects or coordinate with existing paddle switches

3-Way Smart Dimmer Kit with Remote ��������������������������������������������������������������������������������������������������������������� 4

Matches the style and feel of the Diva smart dimmer and Claro smart switch

Smart Switch Starter Kit with Smart Hub ����������������������������������������������������������������������������������������������������������� 8

Lamp Dimmer & Remote Kit ������������������������������������������������������������������������������������������������������������������������������ 6

Smart Dimmer Starter Kit with Smart Hub ������������������������������������������������������������������������������������������������������� 10 Smart Lamp Timer Kit ������������������������������������������������������������������������������������������������������������������������������������� 12 Dimmers ���������������������������������������������������������������������������������������������������������������������������������������������������������������� 14

Easy, flexible installation • •

•

Plug-in Lamp Dimmer ��������������������������������������������������������������������������������������������������������������������������������������������� 17

Simple button-press pairing to wired smart control

Switches ���������������������������������������������������������������������������������������������������������������������������������������������������������������� 18

Install a second “switch” anywhere — no need to cut walls or pull wires

Smart Outdoor Plug Weatherproof+ ������������������������������������������������������������������������������������������������������������������������ 20

Mount to a wall — looks and feels like a wired control

Fan Control ������������������������������������������������������������������������������������������������������������������������������������������������������������ 21 3-Way and Multi-Location Control Options �������������������������������������������������������������������������������������������������������������� 22 Accessory Switch ��������������������������������������������������������������������������������������������������������������������������������������������������� 23 Pico Remotes ��������������������������������������������������������������������������������������������������������������������������������������������������������� 24

The Caséta Advantage

Pico Scene Keypads ���������������������������������������������������������������������������������������������������������������������������������������������� 26

•

Ultra-reliable wireless communication and 10-year typical battery life

Wireless Sensor ����������������������������������������������������������������������������������������������������������������������������������������������������� 27

•

Control up to ten Caséta smart devices per Pico remote

Smart Hub (formerly Smart Bridge) ������������������������������������������������������������������������������������������������������������������������� 28

•

Add up to ten additional points of control per Caséta smart device

Repeater ���������������������������������������������������������������������������������������������������������������������������������������������������������������� 29 Lutron App ������������������������������������������������������������������������������������������������������������������������������������������������������������� 30 Shades ������������������������������������������������������������������������������������������������������������������������������������������������������������������ 31 Thermostats and Ceiling Fans ��������������������������������������������������������������������������������������������������������������������������������� 32 Smart Home Technology ���������������������������������������������������������������������������������������������������������������������������������������� 34 Ordering Information ���������������������������������������������������������������������������������������������������������������������������������������������� 35

ii

18

1

Smart Switch & Remote Kit

Homeowner benefits •

•

•

Safe, hassle-free home entry — no more fumbling around in the dark, trying to find the light switch Control exactly where they want it — add a “switch” anywhere Smart home functionality — add a smart hub anytime Ideal for garages, hallways, and kitchens

24%

SAVINGS

Original smart dimmer and Pico original remote ­­— premier Caséta aesthetic offering a contemporary design

21%

SAVINGS

Add a point of control anywhere

Claro smart switch and Pico paddle remote ­­ — classic aesthetic to match paddle switches already in the home

•

•

•

•

P-PKG1WS-WH List price $93

DVRF-PKG1S-WH List price: $102

$122.50 if purchased individually

$129.50 if purchased individually

2

•

19

Wirelessly install the Pico remote almost anywhere — no need to pull wire or cut a hole in the wall Mount the Pico remote flat on a wall or over an existing wallbox

Potential add-ons • •

•

Caséta smart motion sensor Additional Pico remotes for control from anywhere A smart hub for more functionality/system expansion

Control multiple switches from one Pico remote (Caséta has a 75-device limit) Pair each switch with up to 10 Pico remotes Minimize ongoing maintenance — Pico remotes have a 10-year battery life

3

3-Way Smart Dimmer Kit with Remote

Homeowner benefits •

•

•

Safe, hassle-free home entry — no more fumbling around in the dark, trying to find the light switch Control, exactly where they want it — add a “switch” anywhere Smart home functionality — add a smart hub anytime Ideal for hallways, family rooms, and kitchens

16%

SAVINGS

Original smart dimmer and Pico original remote ­­ — premier Caséta aesthetic offering a contemporary design

21%

SAVINGS

Add a point of control anywhere

Diva smart dimmer and Pico paddle remote ­­ — classic aesthetic to match paddle switches already in the home

•

•

•

•

P-DIM-3WAY-WH List price $98.50

DVRF-PKG1D-WH List price $102

$117.50 if purchased individually

$129.50 if purchased individually

4

Wirelessly install the Pico remote almost anywhere — no need to pull wire or cut a hole in the wall Mount the Pico remote flat on a wall or over an existing wallbox

Features to highlight •

•

•

Control multiple switches from one Pico remote (Caséta has a 75-device limit) Pair each switch with up to 10 Pico remotes

15 minutes – time needed for you to add another point of control No neutral required — ideal for older homes

Potential add-ons • •

•

20

Minimize ongoing maintenance — Pico remotes have a 10-year battery life

Caséta smart motion sensor Additional Pico remotes for control from anywhere A smart hub for more functionality/system expansion

5

Lamp Dimmer & Remote Kit

Homeowner benefits •

•

•

Convenience — adjust lights on either side of the bed Simplicity — no need to install a voice control device in bedrooms Range — control multiple lamps with one remote Ideal for bedrooms, living rooms, studies, and home offices

23%

SAVINGS

Easily add dimming control

Lamp dimmer and Pico original remote ­­ — premier Caséta aesthetic offering a contemporary design

• •

Just plug dimmer into a standard outlet Connect up to two lamps per plug-in dimmer (both will be controlled together)

Potential add-ons •

Tabletop pedestal

•

Additional Pico remotes for greater control

Features to highlight •

•

P-PKG1P-WH List price $70

Minimize ongoing maintenance — Pico remotes have a 10-year battery life 15 minutes – time needed for you to add another point of control

$91.00 if purchased individually

6

21

7

Smart Switch Starter Kit with Smart Hub

Homeowner benefits •

•

•

•

Greater comfort — always come back to a well-lit home Peace of mind — check which lights are on or off, using the Lutron App Seamless integrations — pair with Siri, Alexa, or Google Assistant Set schedules — have outdoor lights automatically turn on at dusk and off at sunrise Take advantage of the geofencing feature to turn lights on when arriving home Ideal for outdoor lighting

34%

SAVINGS

Hassle-free scheduling

Original smart switch— premier Caséta aesthetic offering a contemporary design

•

•

Schedule outdoor light changes by sunrise/ sunset or time of day No need to come back and adjust the schedule for daylight saving time

Features to highlight •

P-BDG-PKG1WS List price $130 $196.00 if purchased individually

8

•

The smart hub connects to the Wi-Fi router via the Ethernet connection. Setup is easy — follow the step-by-step instructions in the Lutron App.

•

22

Once you add the smart hub, it’s easy to add devices to the system

Potential add-ons •

•

Additional switches or dimmers throughout the home Pico remotes for additional points of control You can also set up Smart Away, geofencing, and other app features, for added value for the homeowner.

Outdoor plug for controlling landscape lighting The smart hub doesn’t depend on the home’s Wi-Fi (if the Wi-Fi goes down, Caséta still works)

9

Smart Dimmer Starter Kit with Smart Hub

Homeowner benefits •

•

•

More personalization — create the right light for any occasion Peace of mind — check which lights are on or off, using the Lutron App Seamless integrations — pair with Siri, Alexa, or Google Assistant Ideal for the kitchen and living, family, and dining rooms

36%

SAVINGS

Original smart dimmer* ­­— premier Caséta aesthetic offering a contemporary design

30%

SAVINGS

Add more smarts — without stress

Diva smart dimmer* ­­ — classic aesthetic to match paddle switches already in the home

•

•

•

P-BDG-PKG1W List price: $140 $217.50 if purchased individually

The smart hub connects to the Wi-Fi router via the Ethernet connection. Setup is easy — follow the step-by-step instructions in the Lutron App.

DVRF-BDG-1D List price $168 $239.50 if purchased individually

The smart hub connects to the Wi-Fi router via the Ethernet

•

connection. Setup is easy — follow the step-by-step instructions in the Lutron App.

•

Easily add on to projects when you’re adding retrofit light kits Simply plug the smart hub into the router, download the Lutron App, and follow the instructions

•

•

No neutral required — ideal for older homes

The smart hub doesn’t depend on the home’s Wi-Fi (if the Wi-Fi goes down, Caséta still works) Dim or brighten lights to create the perfect atmosphere for any activity

Potential add-ons

Features to highlight

•

Once you add the smart hub, it’s easy to add devices to the system

•

Additional switches or dimmers throughout the home Pico remotes for additional points of control

Can integrate with the homeowner’s favorite voice assistant

* Package includes a 3-button with raise/lower Pico original remote with light icon engraving.

10

23

11

Smart Lamp Timer Kit

Homeowner benefits •

•

One device for multiple lamps — perfect for rooms with no overhead lighting Flexible control — use voice integration, the Lutron App, or a Pico remote Ideal for living rooms and bedrooms

30%

SAVINGS

Easily add dimming control

Lamp dimmer and Pico original remote — premier Caséta aesthetic

•

offering a contemporary design

•

Just plug dimmer into a standard outlet Connect up to two lamps per plug-in dimmer (both will be controlled together)

Potential add-ons •

Tabletop pedestal

•

Pico remotes for greater control

•

Additional dimmers and switches

Features to highlight • •

P-BDG-PKG1P List price $140 $196.00 if purchased individually

12

Plug-in dimmer can control up to two lamps Minimize ongoing maintenance — Pico remotes have a 10-year battery life

The smart hub connects to the Wi-Fi router via the Ethernet connection. Setup is easy — follow the step-by-step instructions in the Lutron App.

24

13

Dimmers

Controls wall and ceiling lights

Controls wall and ceiling lights

The Caséta systems provides superior dimming for dimmable LEDs •

Easily adjust the low-end trim for flicker-free dimming

•

Mix different bulb types on the same circuit

•

UL Listed to dim 100s of LED light bulbs

•

Find the list at CasetaWireless.com/support

Diva Smart Dimmer •

•

•

Doesn’t require a neutral wire — works with existing wiring Works with compatible, dimmable LEDs (up to 150 W), halogen and incandescent bulbs (up to 600 W)

Original Smart Dimmer •

Use existing toggle switches for 3-way applications or replace existing switches with wireless Pico remotes or wired Claro smart accessory switches in 3-way or multi-location applications

•

•

Easy, precise dimming control with soft-glow light bar

14

•

25

Doesn’t require a neutral wire — works with existing wiring Works with compatible, dimmable LEDs (up to 150 W), halogen and incandescent bulbs (up to 600 W for 3-way applications) Replace existing toggle switches with wireless Pico remotes in 3-way or multilocation applications

Original Smart Dimmer PRO •

•

•

•

Works with dimmable LEDs (up to 250 W), halogen/incandescent (up to 1000 W) and MLV (up to 1000 VA) Compatible with Lutron LTE LED drivers, PHPM, and GRX-TVI interfaces Neutral wire optional (required for MLV and drivers/interfaces) Use existing toggle switches or replace existing additional switches with wireless Pico remotes in 3-way or multi-location applications 15

Dimmers

Plug-in dimmer

Controls ELV, LED, and more

Controls table and floor lamps

Original Smart Dimmer ELV+ •

Plug-in Lamp Dimmer

Neutral wire required — works with all load types (10 W minimum) — dimmer is phase selectable

•

Features two receptacles for simultaneous control of two lamps

•

500 W ELV/HAL/INC

•

Simply plugs into a standard wall receptacle

•

400 W MLV

•

Works with dimmable LEDs (up to 100 W)

•

250 W LED

•

Matches the Pico remote with favorite button for preset level on dimmer

•

•

•

Replace existing toggle switches with wireless Pico remotes in 3-way or multi-location applications

16

26

Also works with halogen and incandescent bulbs (up to 300 W) First lamp dimmer added to smart hub acts as a Clear Connect range extender — provides 30 ft. of additional range (limit one per system)

17

Switches

Controls wall and ceiling lights, as well as general purpose fans

Controls wall and ceiling lights, as well as general purpose fans

Claro Smart Neutral Switch •

•

• •

Original Smart Neutral Switch

Neutral wire required — provides higher capacity and 10 W minimum load or one LED bulb

•

Controls 6 A lighting load (LED, HAL, INC, CFL) or 3.6 A fan load

•

Coordinates with existing paddle switches •

Use existing toggle switches for 3-way applications or replace existing additional switches with wireless Pico remotes or wired Claro smart accessory switches in 3-way or multi-location applications

•

18

27

Requires neutral wire — provides higher capacity and 10 W minimum load or one LED bulb Controls 6 A lighting load (LED, HAL, INC, CFL) or 3.6 A fan load Use existing toggle switches for 3-way applications or replace additional switches with wireless Pico remotes in 3-way or multilocation switching applications 5 A model also available

Original Smart Switch PRO •

•

•

•

Doesn’t require a neutral wire — works with existing wiring Dual voltage — works in 120 V and 277 V applications Minimum load cap included (for switching LED, CFL, and ELV loads) Use existing toggle switches or replace additional switches with wireless Pico remotes in 3-way or multi-location switching applications

19

Smart Outdoor Plug Weatherproof+

Fan Control

Controls ceiling fans

Switching control for String lights • Holiday lights • Landscape lights • Pumps • Motors •

Smart Outdoor Plug •

•

Switches 15A lighting load, ½ HP motor load, 1200 VA (8A) lighting transformer/magnetic ballast loads Pair with Pico remote for control from within the home. Plugs into a GFCI outlet

Smart Fan Speed Control •

•

Set up a schedule in the Lutron App* once and the timer functionality will adjust with the seasons

•

•

Integrates with Alexa, Apple HomeKit, Google Assistant, and Ring*

•

•

Requires neutral wire — can control one AC ceiling fan

Pico Smart Remote for Fan Control • •

4-speed fan control and off Favorite button to recall preferred fan speed setting

Provides convenient remote control Add an additional point of fan control without having to wire anything

•

Battery powered — features a 10-year battery life

•

Works with Caséta smart fan speed control

Replace existing additional switches with wireless Pico fan remotes in 3-way or multi-location control applications

* F or app functionality and all integrations, smart hub or smart hub PRO is required

20

28

21

3-Way and Multi-Location Control Options

Wired 3-way application with existing mechanical switch

Caséta in-wall control

Mechanical switch

Compatible Caséta in-wall controls: Diva smart dimmer • Original smart dimmer PRO • Claro smart neutral switch • Original smart neutral switch • Original smart switch PRO •

Existing Mechanical Switch •

Wired, 3-way on/off control

•

Use existing wires and products

Wired 3-way/multi-location application with Claro smart accessory switch

Wireless 3-way/multilocation application with Pico remotes

Caséta in-wall control

Caséta in-wall control

Claro smart accessory switch

Compatible Caséta in-wall controls: Diva smart dimmer • Claro smart neutral switch •

Smart Accessory Switch •

•

Accessory Switch

Wired, 3-way and multi-location control Use existing control locations or add new ones virtually anywhere in up to 10 locations

Pico remote

C ompatible Caséta in-wall controls: Diva smart dimmer Original smart dimmer • Original smart dimmer PRO • Original smart dimmer ELV+ • Claro smart neutral switch • Original smart switch PRO • •

Pico Remote •

• •

Claro Smart Accessory Switch

Simple, wireless installation — no need to cut holes or pull wires

•

3-way and multi-location control •

Use existing control locations or add new ones virtually anywhere in up to 10 locations

•

22

29

Coordinates with the design and extends the capabilities of Diva smart dimmer, Claro smart switch, and Pico paddle remote Tap on to preset favorite level, double tap for full brightness, or hold for gradual fade off when paired with Diva smart dimmers Use with a Diva smart dimmer or Claro smart switch for 3-way or multi-location applications

23

Pico Remotes

Add an additional point of control without needing to cut a hole in the wall or run additional wires. Mount a Pico remote to a tabletop pedestal, clip it to a car visor, or mount it to a wall for convenient control where you want it.

Pico smart remote

Tabletop pedestal

Wall-mounting kit

Pico Original Remote •

•

•

•

Coordinates with Original smart dimmers and switches Models available for use with Caséta dimmers (on/off, raise/lower, and favorite button) and with Caséta switches (on/off) Battery powered — features a 10-year battery life Works with Caséta dimmers and switches and Lutron wireless shades

24

3-scene control

Pico Paddle Remote •

• •

•

Choose from three options: 3-scene control — create three different scenes, as well as turn all lights off

–

Offers preset double-tap control when paired with Diva smart dimmers

–

•

Works with Caséta dimmers and switch

B attery powered — features a 10-year battery life

•

–

Intuitive on and off control

Battery powered — features a 10-year battery life

Dimming control

Pico Remote with 4 Buttons

Coordinates with Diva smart dimmers, Claro smart switches, Claro smart accessory switch, and existing paddle switches

•

2-group switch control

30

•

Works with Caséta dimmers and switches

2-group switch control — control two groups of lights independently from one another

Note: light/shade and shade-only 4-button remotes also available

Dimming control — same functionality (full on/off and raise/lower) as a standard Pico remote control, but in a 4-button aesthetic

Visit lutron.com/pico for information on model numbers and engraving options

25

Pico Scene Keypads

Wireless Sensor

Turn lights on and off automatically

NEW! Dusk Mode Feature •

•

Entry

Kitchen

Family room

Any room

Bedside

•

Adjust the time periods when the sensor is active (sunset to sunrise, or a fixed time) Adjust the time out periods and sensitivity settings

Select the lights/fans to be controlled by the sensor

Pico Scene Keypad •

•

•

•

Provides access to scene control with the touch of a button Keypad automatically programs when added to room in app

Wireless Sensor •

2- or 4-button options available

•

Mount on a wall, corner, or a horizontal surface

•

Battery powered — features a 10-year battery life

•

180º field of view

•

Ideal for hallways, closets, bathrooms, etc.

•

Occupancy and vacancy versions are available

•

Battery powered — features a 10-year battery life

•

Works with Caséta dimmers and switches

•

Works with Caséta dimmers and switches and Lutron wireless shades

Each button is individually configurable for multiple lights and shades, as well as for audio Pre-engraved buttons for typical scenes/activities

26

31

27

Smart Hub (formerly Smart Bridge)

Repeater

Get started in 3 simple steps

1 Connect the Ethernet cable and power cord to the smart hub

Extend the system’s wireless range

2 Download the FREE Lutron App

3 Launch the app and walk through setup

Pico remote

Caséta dimmer Smart hub

30 ft. (9 m) maximum

Repeater 30 ft. (9 m) maximum

Shade

Caséta dimmer

60 ft. (18 m) maximum

Smart Hub •

•

• •

Enables control of lights, shades, and temperature using the Lutron App Compatible with Caséta dimmers and switches, Serena shades, Honeywell Wi-Fi thermostats, Sonos speakers, and the major voice assistants (Amazon Alexa, Google Assistant, and Siri)

Smart Hub PRO •

Repeater

Also compatible with Lutron Triathlon batterypowered shades and select styles of Sivoia QS Wireless shades

•

Extend the system range up to 60 ft.

•

Repeater must be within 60 ft. of the smart hub

• •

Adds integration with third-party A/V remote controls and security systems •

Only one repeater per smart hub (needs to be within range of the hub) Plug it in anywhere, does not require an Ethernet connection

Easy to install; just plugs into a Wi-Fi router Uses Clear Connect wireless technology — no customer callbacks

28

32

29

Lutron App

Shades

Caséta expands beyond lighting control. It works with other connected home solutions, such as shades, thermostats, ceiling fans, and even other manufacturers’ apps.

Shading solutions Eliminate glare, create privacy, and help keep a room cool, all with one touch.

Roller

Lutron App •

•

•

Control individual lights, shades, thermostats, and speakers — even when away from home

Wood blind

Lutron Automated Shades •

Homeowners can:

•

Battery-powered; batteries last 3-5 years

- receive notifications on their smart device if

•

Wireless, easy to install

they’ve left lights on when they leave home

•

Cordless design

Intuitive interface makes adding and scheduling scenes to adjust lights and shades easy

- use the geofencing feature to automatically

Set up the system in contractor mode — bypass the homeowner registration process and quickly configure the system

- create a lived-in look with the “Smart Away”

30

Standard and Architectural honeycomb

•

turn lights on as they arrive home/turn them off as they leave •

feature, which allows them to pick several lights that will randomly turn on/off in the evening when they’re away

33

Available in roller, insulating honeycomb, and wood blind styles Additional styles compatible with the smart hub PRO (Triathlon shades and select styles of Sivoia QS Wireless shades)

31

Thermostats and Ceiling Fans

View the full list of integration partners at CasetaWireless.com/integration

The Lutron App is also compatible with the following: Wireless Thermostats Control heating and cooling from anywhere using the Lutron App and a wide range of compatible thermostats.

Additional smart home technology

Lutron-Honeywell Wireless Thermostat •

Amazon Alexa Create just the right light using Alexa voice control. Ask Alexa to turn lights on, off, or dim them to a favorite level.

Remotely control a home’s temperature from the Lutron App

•

7-day programmable schedule

•

Large touchscreen display with backlight

•

Precise comfort control of temperature and humidity

Apple HomeKit The smart hub contains Apple HomeKit technology, so the homeowner can use Siri to control the lights and shades.

The Google Assistant Get the lights with just a voice command. Smart lighting control is now available through any Google Assistant-enabled device.

T he Lutron App is also compatible with the following:

IFTTT (If This Then That) Create IFTTT recipes: a sequence of conditions that when triggered (If This) cause the Caséta system to turn on the lights or open the shades (Then That).

Ring The Lutron smart hub gives Ring doorbells and cameras a way to connect seamlessly with Caséta smart lighting. Set entryway lights to turn on any time someone rings the doorbell.

(available from Lutron)

HomeKit-enabled Ceiling Fans Conveniently adjust ceiling fans from the Lutron App or by using Siri. Turn them on and off, and change speeds. And if the fan has a light attached to it, homeowners can even adjust that, too — right from their phone.

Hunter Symphony and Signal Ceiling Fans •

• •

•

Samsung SmartThings Control lights and shades from the Samsung SmartThings app, and create new routines to tie in other smart devices like locks, sensors, cameras, and more.

54" ceiling fans with either plastic (Symphony) or wooden (Signal and Apache) blades Both fans include an integrated light kit

Sonos Control the Sonos Home Sound System from a Pico remote control for audio or from scenes in the Lutron App. The homeowner can also control their lights using their voice via the Sonos One with Amazon Alexa & Google Assistant.

Whisperwind motor delivers quiet, ultra-powerful air movement For additional product information visit hunterfan.com

XFINITY Home Control the lights from anywhere using the XFINITY Home app.

32

34

33

Smart Home Technology

Ordering Information

Pro-Level Integration*

Product

Name

Model Number

Specifications/Descriptions

Voltage

List Price

Smart Dimmers and Switches Security Automatically turn off lights and close shades when arming the security system before leaving for the day.

Turn lights on and open shades when disarming the system, when arriving home, or in the event of an alarm.

Diva Smart Dimmer

DVRF-6L-XX

1

Original Smart PD-6WCL-XX 2 Dimmer Original Smart PD-10NXD-XX 2 Dimmer PRO A/V Combine all connected home solutions into one app.

Original Smart PD-5NE-XX 2 Dimmer ELV+ Smart Fan 2 Speed Control PD-FSQN-XX Claro Smart Neutral Switch DVRF-5NS-XX1 5A Original Neutral Switch PD-6ANS-XX 2 6A

P

R

O

C

O

N

T

R

O

L

Original Neutral Switch PD-5ANS-XX 2 5A

* Smart hub PRO required for pro-level integration

34

35

Original Switch PRO

PD-5WS-DV-XX 2

Claro Accessory Switch

DVRF-AS-XX1

Single pole/ 3-way/ multi-location3 150 W dimmable LED 600 W HAL/INC Single pole/3-way/multi-location4 150 W dimmable LED 600 W HAL/INC Single pole/3-way/multi-location5 250 W dimmable LED 1000 W HAL/INC 1000 VA MLV Single pole/3-way/multi-location4 500 W ELV/HAL/INC 400 W MLV 250 W dimmable LED Single pole/3-way/multi-location4 1.5 A single ceiling fan Single pole/3-way/multi-location3 600 W HAL/INC/ELV 600 VA MLV 5 A LED/CFL 3 A general purpose fan Single pole/3-way/multi-location5 720 W HAL/INC/ELV6 720 VA MLV 6 A LED/CFL6 3.6 A general purpose fan Single pole/3-way/multi-location5 600 W HAL/INC/ELV 600 VA MLV 5 A LED/CFL 3 A general purpose fan Single pole/3-way/multi-location5 600 W HAL/INC/ELV6 600 VA MLV 5 A LED/CFL6 3 A general purpose fan Use with Diva smart dimmer or Claro smart neutral switch for 3-way/multi-location control

120 V~ No neutral

$88.00

120 V~ No neutral

$75.50

120 V~ Neutral optional

$120.00

120 V~ Neutral required

$157.00

120 V~ Neutral required

$86.00

120 V~ Neutral required

$88.00

120 V~ Neutral required

$85.00

120 V~ Neutral required

$81.00

120/277 V~ No neutral

$110.00

120 V~ No neutral

$40.00

1. XX denotes Gloss color suffix: WH White, IV Ivory, LA Light Almond, GR Gray, BL Black, BR Brown 2. XX denotes Gloss color suffix: WH White, IV Ivory, LA Light Almond, BL Black BL 3. U se existing toggle switches for 3-way applications or replace existing switches with wireless Pico remotes or wired Claro smart accessory switches in 3-way or multi-location applications.

4. Replace existing switches with wireless Pico remotes in 3-way or multi-location applications.

5. U se existing toggle switches for 3-way applications or replace existing switches with wireless Pico remotes in 3-way or multi-location applications.

6. Switching ELV, LED, CFL requires minimum load cap LUT-MLC (included).

Note: Pricing accurate as of 09/07/2023. For up to date pricing, contact your Lutron sales representative.

35

Ordering Information

Product

Name

Model Number

Specifications/Descriptions

Voltage

List Price

Product

Use with one or two lamps 100 W dimmable LED 300 W HAL/INC

Lamp Dimmer PD-3PCL-WH

Switches 15 A lighting load ½ HP motor load 1200 VA (8 A) lighting transformer/ magnetic ballast loads

PD-15OUT-BL

120 V~ Plugs into a standard receptacle

Pico Paddle Remote

$64.00

120 V~ Plugs into a GFCI protected outlet

Pico Original Remote

$100.00

Pico Scene Keypad 2-Button Pico Smart Remote

Specifications/Descriptions

Voltage

List Price

PJ2-P2B-GWH (White)

Tap control

3 V- 10 mA2

$27.00

PJ23BRL‑WH‑L01R (White)

3-button with raise/lower and light icon engraving 3 V- 10 mA2

$27.00

PJ2-3BRL‑LA‑L01R (Light Almond)

Please visit lutron.com/pico to view the full selection.

PJ2-2B-GWH-L01 (White)

2-button with light icon engraving

3 V- 10 mA2

$27.00

PJ2-2B-GBL-L01 (Black)

2-button with light icon engraving

3 V- 10 mA2

$62.00

Additional Pico styles available.

PJ2-2B-GXX-P011

2-button pre-engraved keypad with Home and Away scenes

3 V- 10 mA2

$62.00

PJ2-2B-GXX-P021

2-button pre-engraved keypad with Alert and Goodnight scenes

3 V- 10 mA2

$62.00

PJ2-4B-XX-L01P1

Dimming control 4-button with raise/lower and light icon engraving

3 V- 10 mA2

$27.00

1

PJ2-4B-GXX-P01

4-button pre-engraved keypad with Bright, Entertain, Movie, and Off scenes

3 V- 10 mA

2

$62.00

Pico Remote PJ2-4B-XX-L21P1 with 4 Buttons

2-group switch control 4-button with dual group light icon engraving

3 V- 10 mA2

$45.00

4-Button Pico PJ2-4B-GXX-P021 Scene Keypad

4-button pre-engraved keypad with Bright, Cooking, Dining, and Off scenes

3 V- 10 mA

2

PJ2-4B-XX-L31P1

3-scene control 3 V- 10 mA2 4-button with light icon scene engraving

$45.00

PJ23BRL‑GXX‑F011

3-button with raise/lower and fan icon engraving

3 V- 10 mA2

$45.00

3-button with raise/lower and audio icon engraving

3 V- 10 mA2

$49.00

2-Button Pico Scene Keypad

PJ2-4B-GXX-P031

4-button pre-engraved keypad with Bright, Entertain, Relax, and Off scenes

3 V- 10 mA2

$62.00 Pico Smart Remote for Fan Control

$62.00

Pico Smart Remote for Audio

1. XX denotes Gloss color suffix: WH White, IV Ivory, LA Light Almond, BL Black 2. Uses single CR 2032 battery (included).

Note: Pricing accurate as of 09/07/2023. For up to date pricing, contact your Lutron sales representative.

36

Model Number

Pico Remotes

Smart Dimmers and Switches

Outdoor Plug

Name

PJ23BRL‑GWH‑A02 (White) PJ2-3BRL‑GBL‑A02 (Black)

1. XX denotes Gloss color suffix: WH White, IV Ivory, LA Light Almond, BL Black 2. Uses single CR 2032 battery (included).

Note: Pricing accurate as of 09/07/2023. For up to date pricing, contact your Lutron sales representative.

36

37

Ordering Information

Product

Name

Model Number

Specifications/Descriptions

Voltage

List Price

Product

Smart Plug-in Controls

$9.50

PICO-CAR-CLIP

Provides an easy way to attach a Pico remote/keypad to your car’s sun visor

$10.50

L-PED1-WH (White)

Single pedestal

$16.20

L-PED1-BL (Black)

Single pedestal

$25.00

PICO-WBX-ADAPT

Car Visor Clip

Tabletop Pedestals

Model Number

Specifications/Descriptions

Voltage

List Price

Smart Hub and Smart Hub PRO Wallplate bracket allows for easy installation of a Pico remote/keypad over an existing wallbox or directly on any wall surface

Wallplate Bracket

Name

L-PED2-WH (White)

Double pedestal

$30.00

L-PED2-BL (Black)

Double pedestal

$40.00

L-PED3-WH (White)

Triple pedestal

L-PED3-BL (Black)

Triple pedestal

PD-OSENS-WH

Wireless occupancy/vacancy sensor with wall- and corner- mount brackets

3 V- 14 mA1

$68.00

PD-VSENS-WH

Wireless vacancy only sensor with wall- and corner- mount brackets

3 V- 14 mA1

$68.00

Smart Hub with HomeKit Technology

L-BDG2-WH

120 V~ Smart Hub allows control via the Lutron 5 V- 300 mA App and integration with leading smart (power supply home brands

$110.00

$150.00

included)

Smart Hub PRO with HomeKit Technology

L-BDGPRO2-WH

Smart Hub PRO allows third-party pro level integration, control via the Lutron App and integration with leading smart home brands

Repeater

PD-REP-WH

Extends wireless range up to 60 ft.

L-HWLV2-WIFI

Up to 3 heat/2 cool heat pump or up to 2 heat/2 cool conventional 24 V~

120 V~ 5 V- 300 mA (power supply included)

Repeater 5 V- 100 mA (power supply included)

$100.00

Thermostat LutronHoneywell Wireless Thermostat

$100.00

$100.00

$405.00

Requires common wire connection

Automated Shades

Pico Scene Keypad

Wireless Sensor

Please visit lutron.com/triathlon

1. Uses single CR 123 battery (included).

Note: Pricing accurate as of 09/07/2023. For up to date pricing, contact your Lutron sales representative.

38

Note: Pricing accurate as of 09/07/2023. For up to date pricing, contact your Lutron sales representative.

37

39

Ordering Information

Product

Name

Model Number

Specifications/Descriptions

List Price

Product

Kits

Model Number

Specifications/Descriptions

List Price

1 Smart Hub PRO 1 Original Smart Dimmer 1 Pico Original Remote 1 Wallplate

P-BDGPRO-PKG1W (White only)

(1) L-BDGPRO2-WH (1) PD-6WCL-WH (1) PJ2-3BRL-WH-L01R (1) CW-1-WH (Claro wallplate)

$200.00

P-BDGPRO-PKG3AW (White only)

(1) L-BDGPRO2-WH (3) PJ2-3BRL-GWH-A02 (2) L-PED1-WH (1) PICO-WBX-ADAPT (1) CW-1-WH (Claro wallplate)

$340.00

PRO Kits 1 C laro Smart Neutral Switch 1 Pico Paddle Remote 1 Wallplate Bracket 1 Wallplate

(1) DVRF-5NS-WH DVRF-PKG1S-WH (1) PJ2-P2B-GWH (White only) (1) PICO-WBX-ADAPT (1) CW-1-WH

1 Diva Smart Dimmer 1 Pico Paddle Remote 1 Wallplate Bracket 1 Wallplate

(1) DVRF-6L-WH DVRF-PKG1D-WH (1) PJ2-P2B-GWH (White only) (1) PICO-WBX-ADAPT (1) CW-1-WH

$102.00

1 Original Smart Switch 1 Pico Original Remote 1 Wallplate Bracket 1 Wallplate

P-PKG1WS-WH (White only)

(1) PD-5ANS-WH (1) PJ2-2B-WH-L01 (1) PICO-WBX-ADAPT (1) CW-1-WH

$93.00

1 Original Smart Dimmer 1 Pico Original Remote P-DIM-3WAY-WH 1 Wallplate Bracket (White only) 1 Wallplate

(1) PD-6WCL-WH (1) PJ2-3BRL-WH-L01R (1) PICO-WBX-ADAPT (1) CW-1-WH

$98.50

1 Lamp Dimmer 1 Pico Original Remote

P-PKG1P-WH (White only)

(1) PD-3PCL-WH (1) PJ2-3BRL-WH-L01R

$70.00

1 Original Smart Switch 1 Wallplate 1 Smart Hub

P-BDG-PKG1WS (White only)

(1) PD-5ANS-WH (1) CW-1-WH (1) L-BDG2-WH

$130.00

DVRF-BDG-1D (White only)

(1) DVRF-6L-WH (1) PJ2-3BRL-WH-L01R (1) PICO-WBX-ADAPT (1) CW-1-WH (1) L-BDG2-WH

$168.00

1 Original Smart Dimmer 1 Pico Original Remote P-BDG-PKG1W 1 Wallplate (White only) 1 Smart Hub

(1) PD-6WCL-WH (1) PJ2-3BRL-WH-L01R (1) CW-1-WH (1) L-BDG2-WH

$140.00

1 Lamp Dimmer 1 Pico Original Remote 1 Smart Hub

(1) PD-3PCL-WH (1) PJ2-3BRL-WH-L01R (1) L-BDG2-WH

$140.00

1 Diva Smart Dimmer 1 Pico Original Remote 1 Wallplate Bracket 1 Wallplate 1 Smart Hub

P-BDG-PKG1P (White only)

$102.00

1 Smart Hub PRO 3P ico Smart Remotes for Audio 2 Pedestals 1 Wallplate Bracket 1 Wallplate

Note: Pricing accurate as of 09/07/2023. For up to date pricing, contact your Lutron sales representative.

40

Name

Note: Pricing accurate as of 09/07/2023. For up to date pricing, contact your Lutron sales representative.

38

41

The Lutron logo, Lutron, the Caséta logo, Caséta, Claro, Clear Connect, Diva, Pico, Serena, Sivoia QS, and Triathlon are trademarks or registered trademarks of Lutron Electronics Co., Inc., in the U.S. and other countries.

All other product names, logos, and brands are property of their respective owners.

CasetaWireless.com Lutron Electronics Co., Inc., 7200 Suter Road, Coopersburg, PA 18036-1299 Customer Assistance Online: lutron.com/help | Email: support@lutron.com | Phone: 1.844.LUTRON1 (588.7661) — includes 24/7 technical support

I

© 09/2023 Lutron Electronics Co., Inc. P/N 367-2499 REV U

39

RadioRA 3

From contemporary Sunnata to traditional Maestro, RadioRA 3 systems offer a range of design aesthetics across switches, dimmers, keypads, and remotes.

It's an easy choice to complement any home decor - and an easier "yes" for your clients to add lighting control to their project.

Minimize installation time. Maximize RF coverage. The PoEpowered, receptacle-free, backwards-compatible RadioRA 3 processor makes it easier to efficiently and effectively deliver connected solutions—especially for large and remodel projects.

40

Introducing Lutron raises the bar once again. 10 years in the making, RadioRA 3 is a new, game-changing system that promises to transform the way your residential clients look at connected lighting control.

WHAT’S NEW

Simply Beautiful

RadioRA 3 brings the contemporary light bar design to a full range of connected residential products — dimmers with capacitive touch technology, switches and keypads.

The enhanced functionality and new aesthetic of RA3 make it easier for your clients to say “yes” to adding lighting control to their home projects.

41

Delight your clients. Streamline your projects.

WHAT’S NEW

Wide Array of Colors Available in 24 color options: ∙ 20 colors in Satin Finish (with 14 NEW colors in the palette) ∙ 4 colors in Gloss Finish

WHAT’S NEW

New Processor. Easier Installation.

All-in-one Processor that combines functionality of the main repeater and connect bridge of RadioRA 2 Backwards Compatible with RadioRA 2 & RA2 Select QuickFind Technology that makes locating the processor on the network during set up much easier.

Powered by PoE via cat5e ( or better) cable from the network router WHAT’S NEW

Streamlined Integration

Lutron works with more connected brands than any other dedicated lighting control or motorized shading system.

RA3 now comes with Lutron’s LEAP API which embeds system programming directly in the top control brands’ design software, eliminating the need to do the programming twice and saving you hours to days of programming time.

works with

Hey Google

LARGE OPTICAL SIZE The large optical size is for use in applications over 10” wide such as tradeshow booths, exterior signage or similar.

Visit RadioRA3.Lutron.com to learn more, view compatible devices, and to access training.

I

© 12/2021 Lutron Electronics Co., Inc. P/N 367-2897 REV A

Lutron.com Lutron Electronics Co., Inc., 7200 Suter Road, Coopersburg, PA 18036-1299

42

Customer Assistance Online: lutron.com/help Email: support@lutron.com Phone: 1.844.LUTRON1 (588.7661) includes 24/7 technical support

RadioRA 3 | Product Reference Guide RadioRA 3 was developed to work in any residence, new or existing. Easily install keypads, sensors, light, fan, temperature, and appliance controls, as well as shades to create a system that will best suit your needs. And you don’t have to worry about the type of lighting in the home, either. Whether you have LED, halogen, incandescent, electronic low-voltage, magnetic low-voltage, or fluorescent lights, RadioRA 3 will provide the control you need.

Behind the scenes Wireless repeater L-REPPRO-BL

Processor

Shelf mount

RR-PROC3-KIT (includes PoE injector, shelf mount, and ethernet cables)

L-SMNT-WH

RR-PROC3-CW (includes ceiling and wall mounts)

Auxiliary repeater RR-AUX-REP-WH

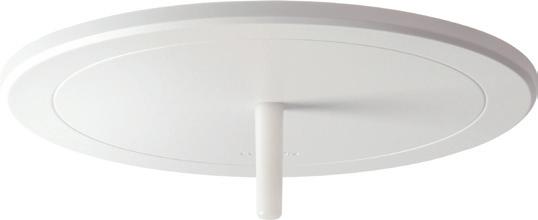

Ceiling mount L-CMNT-WH

PoE injector L-POEI-BL (120V)

J-box mount

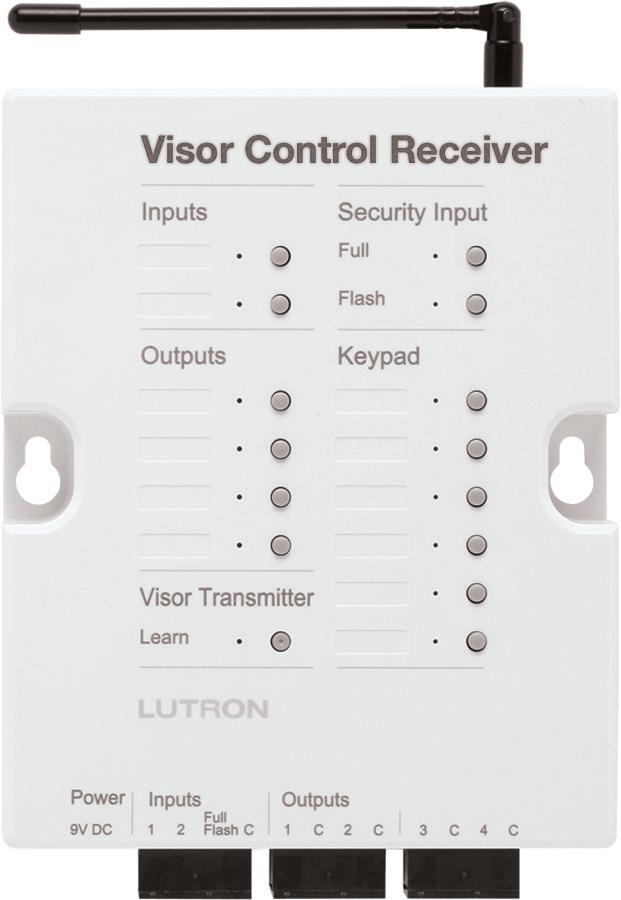

Visor control receiver

L-JMNT-WH

RR-VCRX-WH

43

RadioRA 3 | Product Reference Guide

RadioRA 3 | Product Reference Guide

Keypads

seeTouch tabletop keypads* RR-T5RL-XX (5-button) RR-T10RL-XX (10-button) RR-T15RL-XX (15-button)

Sunnata RF keypads*†

seeTouch wall-mounted keypads*†

RRST-W4B-XX (4-button) RRST-W3RL-XX (3-button with raise/lower) RRST-W2B-XX (2-button) STBK-W-XX (replacement button kit, orderable through myProjects)

RRD-W1RLD-XX (3-button, 2-button with raise/lower, dual group) RRD-W2RLD-XX ( 2-button with raise/lower, dual group) RRD-W3BD-XX (3-button, dual group) RRD-W3BRL-XX (3-button group with raise/lower) RRD-W3S-XX (3-button favorite scene with raise/lower) RRD-W3BSRL-XX (3-button spaced with raise/lower) RRD-W4S-XX (4-button favorite scene with raise/lower) RRD-W5BRL-XX (5-button with raise/lower) RRD-W5BRLIR-XX (5-button with raise/lower and IR) RRD-W6BRL-XX (6-button with raise/lower) RRD-W7B-XX (7-button)

Sunnata RF hybrid keypads*† RRST-HN4B-XX (4-button) RRST-HN3RL-XX (3-button with raise/lower) RRST-HN2B-XX (2-button) STBK-H-XX (replacement button kit, orderable through myProjects)

* Includes one personalized button kit that is redeemed through the Lutron Designer software †

* Includes one personalized button kit that is redeemed through the Lutron Designer software

Wallplate sold separately Note: XX denotes color suffix

†

Visit lutron.com for up-to-date gloss and satin finish color information

44

Wallplate sold separately Note: XX denotes color suffix

Visit lutron.com for up-to-date gloss and satin finish color information

RadioRA 3 | Product Reference Guide

RadioRA 3 | Product Reference Guide

Light and fan controls

Hybrid keypads seeTouch C•L Neutral*† RRD-HN1RLD-XX (3-button, 2-button with raise/lower, dual group) RRD-HN2RLD-XX (2-button with raise/lower, dual group) RRD-HN3BSRL-XX (3-button spaced with raise/lower) RRD-HN3S-XX (3-button favorite scene with raise/lower) RRD-HN4S-XX (4-button favorite scene with raise/lower) RRD-HN5BRL-XX (5-button with raise/lower) RRD-HN6BRL-XX (6-button with raise/lower)

Fan control† RRD-2ANF-XX (2 A RF ceiling fan control, 4 speeds plus off, multi-location)

Dimmers and switches

†

Sunnata†

Maestro†

RRST-PRO-N-XX (RF Dimmer with PRO LED+) RRST-RD-XX (RF Companion Dimmer) RRST-8ANS-XX (RF Switch) RRST-RS-XX (RF Companion Switch)

RRD-PRO-XX (250 W LED, 500 W INC/HAL/ELV, 400 VA MLV phase selectable, neutral optional dimmer) RRD-6ND-XX ( 150 W LED, 600 W/VA INC/HAL/MLV neutral dimmer) RRD-10ND-XX (150 W LED, 1000 W/VA INC/HAL/MLV neutral dimmer) RRD-8ANS-XX (8 A neutral switch) RRD-8S-DV-XX (dual-voltage 8 A switch) RRD-F6AN-DV-XX (dual-voltage 3-wire control dimmer) RD-RD-XX (remote dimmer) RD-RS-XX (remote switch) RD-RD-277-XX (277 V remote dimmer) RD-RS-277-XX (277 V remote switch) RRD-3LD-XX (300 W lamp dimmer)

Wallplate sold separately Note: XX denotes color suffix

Visit lutron.com for up-to-date gloss and satin finish color information

RF modules LMJ-16R-DV-B (Softswitch relay) LMJ-5T-DV-B (0 –10 V dimming) LMJ-CCO1-24-B (contact closure output)

* Includes one personalized button kit that is redeemed through the Lutron Designer software

45

†

Wallplate sold separately Note: XX denotes color suffix

Visit lutron.com for up-to-date gloss and satin finish color information

RadioRA 3 | Product Reference Guide

RadioRA 3 | Product Reference Guide

Wireless controls

Pico wireless controls

Pico scene keypads

Pico wireless controls with nightlight

Pico remote for audio

PJ2-2B-YXX-L01 (light icons) PJ2-2B-YXX-S08 (screen text) PJ2-2B-YXX-L02 (power icons) PJ2-2BRL-YXX-L01 (light icons) PJ2-3B-YXX-L01 (light icons) PJ2-3BRL-YXX-L01 (light icons) PJ2-3BRL-YXX-S01 (shade icons) PJ2-3BRL-YXX-S02 (shade text) PJ2-3BRL-YXX-S03 (blackout text) PJ2-3BRL-YXX-S04 (sheer text) PJ2-3BRL-YXX-S05 (blind text) PJ2-3BRL-YXX-S06 (skylight text) PJ2-3BRL-YXX-S07 (drapery text) PJ2-3BRL-YXX-S09 (horizontal sheer blind text) PJ2-3BRL-YXX-S10 (tilt blind icons)

PJ2-2B-YXX-P01 (2-button keypad with Home and Away scenes) PJ2-2B-YXX-P02 (2-button keypad with Alert and Goodnight scenes) PJ2-4B-YXX-P01 ( 4-button keypad with Bright, Entertain, Movie, and Off scenes) PJ2-4B-YXX-P02 ( 4-button keypad with Bright, Cooking, Dining and Off scenes) PJ2-4B-YXX-P03 ( 4-button keypad with Bright, Entertain, Relax, and Off scenes)

PJN-2B-GXX-L01 (light icons) PJN-3BRL-GXX-L01 (light icons)

PJ2-3BRL-YXX-A02 (audio text/icons)

Pedestals for Pico wireless controls

Car visor transmitter

L-PED1-XX (single pedestal) L-PED2-XX (double pedestal) L-PED3-XX (triple pedestal)

LR-3B-H-SW

Pico 4-button wireless controls

Custom-printed 4-button Pico wireless controls

PJ2-4B-YXX-L01 (zone control, light icons) PJ2-4B-YXX-S01 (zone control, shade icons) PJ2-4B-YXX-L31 (scene keypad, light icons) PJ2-4B-YXX-S31 (scene keypad, shade icons) PJ2-4B-YXX-L21 (2-group control, light icons) PJ2-4B-YXX-S21 (2-group control, shade icons) PJ2-4B-YXX-LS21 (2-group control, shade/light icons)

PJ2-4B-YXX-EL1 (light control with raise/lower, zone/ standalone keypad) PJ2-4B-YXX-ES1 (shade control with raise/lower, zone/ standalone keypad) PJ2-4B-YXX-EL2 (light control scene keypad only) PJ2-4B-YXX-ES2 ( shade control scene keypad only)

Note: Y denotes finish: “G” for Gloss or “T” for Satin Finish XX denotes color suffix

Visit lutron.com for up-to-date gloss and satin finish color information

46

Note: Y denotes finish: “G” for Gloss or “T” for Satin Finish XX denotes color suffix

Visit lutron.com for up-to-date gloss and satin finish color information

RadioRA 3 | Product Reference Guide

RadioRA 3 | Product Reference Guide

Plug-in modules

Sensors

Plug-in dimming module

Plug-in appliance module

RR-3PD-1-SW (Snow White) RR-3PD-1-MN (Midnight)

RR-15APS-1-SW (Snow White) RR-15APS-1-MN (Midnight)

Ceiling-mount Radio Powr Savr wireless occupancy/vacancy sensors

Corner-mount, wall-mount, hallway Radio Powr Savr wireless occupancy/vacancy sensors

LRF2-OCR2B-P-WH LRF2-VCR2B-P-WH

LRF2-OKLB-P-WH (corner-mount) LRF2-VKLB-P-WH (corner-mount) LRF2-OWLB-P-WH (wall-mount) LRF2-VWLB-P-WH (wall-mount) LRF2-OHLB-P-WH (hallway) LRF2-VHLB-P-WH (hallway)

Temperature controls

Outdoor plug-in switch RR-15OUT-BL

Lutron wireless thermostat L-HWLV2-WIFI Visit lutron.com for up-to-date gloss and satin finish color information

47

Visit lutron.com for up-to-date gloss and satin finish color information

RadioRA 3 | Product Reference Guide

RadioRA 3 | Product Reference Guide

Wallplates

Accessories

Claro wallplates

Satin wallplates

Designer accessories (Gloss)†

Designer accessories (Satin)†

CW-1-XX CW-2-XX CW-3-XX CW-4-XX

SC-1-XX SC-2-XX SC-3-XX SC-4-XX

CA-6PF-XX (field customizable multi-port frame) CA-CJ-XX (single cable jack) CA-PJ-XX (single telephone jack) CAR-15-GFST-XX ( 15 A GFCI tamper-resistent, self-testing receptacle) CAR-15-XX (15 A receptacle) CAR-15-DDTR-XX (15 A dual dimmable tamperresistant receptacle) CAR-15-HDTR-XX (15 A half dimmable tamperresistant receptacle) CAR-20-DDTR-XX ( 20 A dual dimmable tamperresistant receptacle) CAR-20-HDTR-XX (20 A half dimmable tamperresistant receptacle) CARS-15-TR-XX (15 A tamper-resistant receptacle) CAR-15-UBTR-XX ( 15 A dual USB tamper-resistant receptacle)

SC-6PF-XX ( field customizable multi-port frame) SC-CJ-XX (single cable jack) SC-PJ-XX (single telephone jack) SCR-15-GFST-XX (15 A duplex tamper-resistant, self-testing GFCI receptacle) SCR-15-XX (15 A receptacle) SCR-20-XX (20 A receptacle) SCR-20-GFST-XX (20 A duplex tamper-resistant self-testing GFCI receptacle) SCRS-15-TR-XX ( 20 A duplex tamper-resistant self-testing GFCI receptacle) SCRS-20-TR-XX (20 A duplex tamperresistant receptacle) SCR-15-DDTR-XX ( 15 A dual dimmable tamperresistant receptacle) SCR-15-HDTR-XX ( 15 A half dimmable tamperresistant receptacle) SCR-20-DDTR-XX (20 A dual dimmable tamperresistant receptacle) SCR-20-HDTR-XX ( 20 A half dimmable tamperresistant receptalce) SCR-15-UBTR-XX (15 A dual USB tamperresistant receptacle)

New Architectural accessories† LTR-F15-TR-XX (15 A duplex tamper-resistant receptacle) LTR-F20-TR-XX (20 A duplex tamper-resistant receptacle) LTR-F15-UBTR-XX (15 A USB tamper-resistant receptacle) Note: XX denotes color suffix

Visit lutron.com for up-to-date gloss and satin finish color information

48

†

Wallplate sold separately Note: XX denotes color suffix

Visit lutron.com for up-to-date gloss and satin finish color information

RadioRA 3 | Product Reference Guide

RadioRA 3 | Product Reference Guide

Shades

Roller shades*

Honeycomb shades*

Horizontal sheer blinds

Drapery track systems

Roman shade systems

Wood blinds*

Kirbé vertical drapery system

Tensioned shades

* Battery-powered option available

49

For shades ordering information, call 1.800.446.1503

RadioRA 3 | Product Reference Guide

RadioRA 3 | Product Reference Guide

Notes

50

Lutron is a trademark of Lutron Electronics Co., Inc., registered in the U.S. and other countries.

For a complete list of all Lutron trademarks, please visit lutron.com/trademarks.

I

I

I

© 02/2023 Lutron Electronics Co., Inc. P/N 367-2892 REV C lutron.com/radiora3 1.844.LUTRON1

51

Sunnata RF Controls

Sunnata RF 4-button keypad

The new RA3 lighting control system brings the contemporary lightbar design to a full range of beautifully designed products—dimmers with capacitive touch technology, switches and keypads.

The light bar also acts as a locator light to help homeowners find the switch in the dark, and the light level can be customized, including to off if clients prefer no light in places like the bedroom.

Sunnata RF dimmer and companion dimmer

Sunnata RF switch and companion switch

Sunnata RF 2-button keypad

52

Sunnata RF 3-button keypad with raise/lower

Sunnata RF 4-button keypad

Sunnata RF Controls

Simply Beautiful Controls One dimmer for any job with PRO LED+ advanced technology for superior dimming of LED, halogen, incandescent, MLV and ELV lighting

Touch or swipe the light bar to set the lights.

Sunnata RF dimmer

Multi-Location Companion dimmers and switches are available with a matching look and identical control from up to 5 locations using existing wiring (e.g. 3-way, 4-way, etc)

Sunnata RF switch

53

Sunnata RF Controls Colors Available in a range of new contemporary colors with an understated satin finish

Brilliant White (BW)

Glacier White (GL)

Snow White (SW)

Architectural White (RW)

Lunar Gray (LG)

Mist (MI)

Pebble (PB)

Cobblestone (CS)

Slate (SL)

Midnight (MN)

Biscuit (BI)

Sand (SD)

Taupe (TP)

Pumice (PM)

Clay (CY)

Sage (SA)

Espresso (EP)

Truffle (TF)

Deep Sea (DE)

Signal Red (SR)

Also available in a range of traditional colors in a crisp, reflective, gloss finish

White (WH)

Ivory (IV)

Light Almond (LA)

Black (BK)

Item

Model #

Sunnata RF Dimmers 250W (LED/CFL) or 500W Incandescent/Halogen/ELV or 400 VA MLV Phase Selectable, Neutral Dimmer

RRST-PRO-N

Companion Dimmer (120V~)

RRST-RD

Sunnata RF Switches 8 A Light, ¼ HP 5.8 A Motor Neutral Wire Electronic Switch

RRST-8ANS

Companion Switch (120V~)

RRST-RS

RadioRA 3 Keypads 2-button keypad

RRST-W2B

3-button keypad with raise/lower

RRST-W3RL

4-button keypad

RRST-W4B

2-button hybrid keypad

RRST-HN2B

3-button hybrid keypad with raise/lower

RRST-HN3RL

4-button hyrbid keypad

RRST-HN4B

54

Sunnata RF Keypads The first keypads with the elegance of the SUNNATA light bar.

Keypad and hybrid keypad (dimmer + keypad) models available in 2-,3-, and 4-button configurations.

One keypad can control groups of devices such as dimmers, light switches, ceiling fans, automated shades and other integrated devices like audio systems Hybrid Keypad Model (Dimmer + Keypad)

Bright

Entertain

Movie

Lutron.com Lutron Electronics Co., Inc., 7200 Suter Road, Coopersburg, PA 18036-1299 Customer Assistance Online: lutron.com/help Email: support@lutron.com Phone: 1.844.LUTRON1 (588.7661) includes 24/7 technical support

I

© 09/2022 Lutron Electronics Co., Inc. P/N 368-6146 REV B

55

All-in-One Processor

RA3 is the perfect solution for today’s high-tech homes, and its new All-in-One Processor delivers both great performance and ease of installation.

56

All-in-One Processor Controls

FEATURES: •

•

•

The Processor combines the functionality of RA2 main repeater and connect bridge and can be shelf, wall or ceiling-mounted to help keep it protected Powered by PoE via cat5e (or better) cable from the network router, so you can now install the processor centrally in home for optimal RF coverage—no need for a power supply at its location. No PoE enabled router?

The processor kit (RR-PROC3-KIT), is sold with PoE injector included.

Comes with proprietary QuickFind technology that makes locating the processor during set up much easier

Has reliable, lightning fast ClearConnect® RF performance

•

Plus, it is backwards compatible with RA2 and RA2 Select systems so you can easily upgrade systems and add new RA3 devices with the lightbar design to existing installations

•

Programmed via the Lutron Designer PC tool (The PC tool requires a 32 or 64 bit processor running Windows® 10, with a recommended minimum of 8 GB of RAM, 4 GB disk space, and a 2.67 GHz Core i5 processor).

•

•

Supports remote service and programming updates from anywhere in the world using the Lutron Designer PC tool and Lutron App.

All-in-one Processors

Model #

Processor Kit Includes PoE injector, shelf mount and Ethernet cables

RR-PROC3-KIT

Shelf Mount L-SMNT-WH

Processor for ceiling or wall installation Includes ceiling and wall mounts

PoE injector L-POEI-BL (120V)

RR-PROC3-CW Ceiling Mount L-CMNT-WH

J-Box Wall Mount L-JMNT-WH

Lutron.com Lutron Electronics Co., Inc., 7200 Suter Road, Coopersburg, PA 18036-1299

I

© 10/2021 Lutron Electronics Co., Inc. P/N 368-6147 REV A

57

Customer Assistance Online: lutron.com/help Email: support@lutron.com Phone: 1.844.LUTRON1 (588.7661) includes 24/7 technical support

COMMERCIAL SYSTEMS

58

Athena

Connected lighting control for smart buildings and humancentric experiences.

Athena is a dynamic, all-in-one lighting control system that combines the magic of light with intelligent shades and connected lighting apps to enhance any space—and optimize operations at any property.

59

Athena The dynamic lighting control system for smart buildings and human-centric experiences •

Flexible, simple, all-in-one solution to control any light source with intelligent blinds

•

Design without compromise — use any fixture you like and all load types in a single system

•

Cloud connectivity keeps your system updated, and adds new features and value over time

Athena 1

60

Athena From architectural offices and hotels, to galleries and museums, curate lighting scenes that bring your visions to life.

Workplace

Hotels

Support workplace well-being with comfortable, natural light.

Stay flexible with agile solutions that evolve with changing business needs.

Create a luxurious space where guests want to spend time – and money.

With the easy-to-use app, it’s simple for staff to create memorable experiences on property and quickly adjust lighting for events. © Eric Laignel

Retail

Restaurant

Show merchandise in its best light with dynamic light control of both intensity and colour temperature.

Create visual interest by utilising the fixture selection of your choice, all controlled by one system.

Nurture a mood with deep dimming and dynamic colour temperature. Enhance the appearance of food and décor, as menus and seasons change.

© Bruce Damontel

© Amelinda B. Lee

Galleries and museums

Self care

Show art in historically accurate light, or enhance with colour temperature.

Easily change zones and scenes as exhibits rotate.

Support an immersive sensory experience with dynamic light. Customisable studios and treatment rooms for a client, a service, or your brand.

© Christian Horan

Athena 2

61

Athena All-in-one solution with a range of options and aesthetics.

SOFTWARE

Athena dashboard • Visualise data and take advantage of operational insights with advanced space utilisation, energy reporting, and more

•

LIGHTS. BLINDS. CONTROLS.

BACK OF HOUSE

Range of controls – touchscreen, keypads, personal, and touchless

Right-sized hub

Touchscreen, keypads and wireless remotes, flexible sensors, I/O and A/V interfaces

Athena app • A simple, intuitive mobile app for scene setting, scheduling, and more •

•

Small and large spaces Built for the cloud • Automatic software upgrades • •

Easily design and refine – precision fine-tuning of colour temperature, intensity, and more Quickly change lighting scenes, timeclock events, and blind positions

Any source, fixture, load type, and protocol

Lights and blinds work together seamlessly •

Preserve view, mitigate glare, ultra-quiet operation, hembar alignment, broad fabric selection

ESN Pro LED+ Phase Adaptive, 0-10V, DALI-2 • Universal DALI (DALI-2, Type-8 Tc) • DIN mounted options in pre-assembled panels or mountable modules •

Athena 3

62

Athena Sophisticated simplicity in the palm of your hands.

Athena app •

Change scenes and zones – including dimming and colour temperature – from a simple app

•

Complete aim and focus visits on your own, from your phone, as you walk the space

•

Adapt your space over time for short-term events and long-term updates

•

Available on Apple and Android devices

Manage access

Control lighting dimming

Control lighting colour temperature

Enable load shed

Set schedules

Edit scenes

Manage access to define who can change lighting.

Update the light level with a simple-to-use slider.

Change the colour temperature of DALI Type 8 Tc fixtures.

Easily activate load shed to save energy.

Schedule lighting to turn on, off, or dim at certain times on specific days for customisable time ranges.

As the space changes, adjust the light levels and names of the scenes and zones.

Athena 4

63

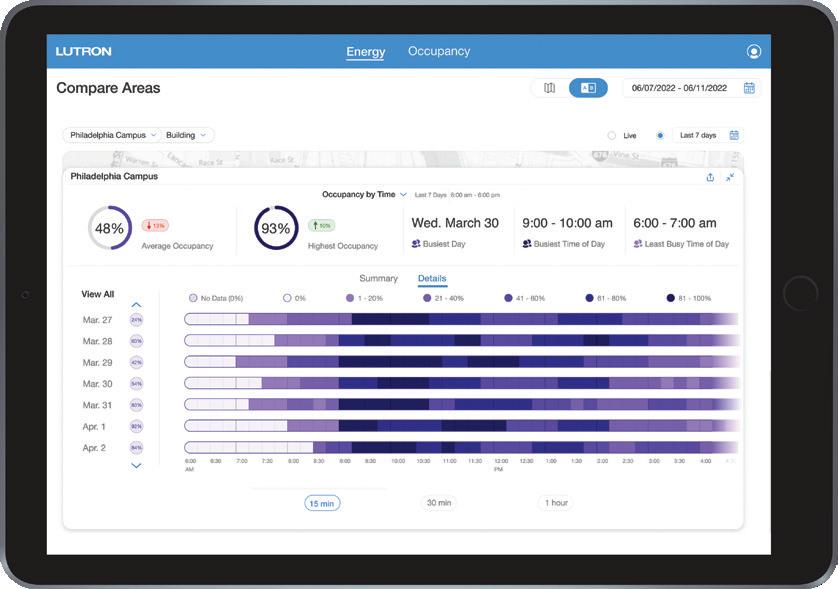

Athena Manage your system at scale with actionable insights from data in the cloud.

Athena dashboard •

Review energy usage and space utilisation reports for customisable time ranges

•

Monitor multiple buildings, or individual spaces, and everything in between

•

Intuitive floor-plan view helps you quickly navigate spaces

•

Export data to use for custom reporting

•

Available on any major browser

Save energy

Maximise space usage

Compare space performance

See how much energy spaces are consuming over time to find new opportunities for savings.

Manage your real estate and make spaceplanning decisions with space utilisation reports.

Evaluate energy usage of multiple spaces over time to see how they perform comparatively.

Athena 5

64

Athena System architecture QS wired link •

QP5-2L and QP5-4L: 99 QS devices per link 512 switchlegs* per link

•

QP6-1L and QP5-1L: 25 QS devices per link 256 switchlegs* per link

Interfaces - AV & contact closure

•

610 m maximum wire length (consult technical specs for other applicable rules)

•

Free-wire topology (star, daisy chain, home run, etc.)

•

Standard Lutron 4 conductor cable† Keypads

Distributed load control

1 3

Pro LED+ Phase Adaptive

Partition sensor

2

Software

No local server or PC required

Athena Dashboard

Blinds

1 Universal DALI (Type-8 Tc)

2

2

NWK

Internet or local network

Touchscreen

CCO/CCI

1 QSPS 10-output power panel

2 Wallbox CCI Sensors

4

1

Radio Powr Savr occupancy sensor

0-10V/Switching

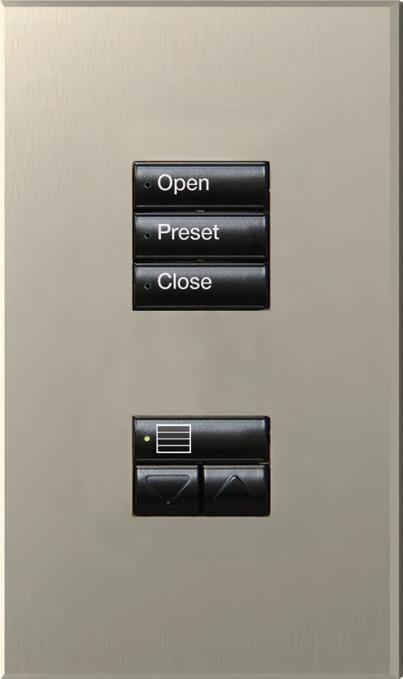

2 Palladiom

2 1

seeTouch

Lutron App

Flush-mounted power supply

Athena processor hub - QP5-1L-POE 1

Occupancy/ Vacancy sensor

4 QSM

Radio Powr Savr daylight sensor

2

2

2

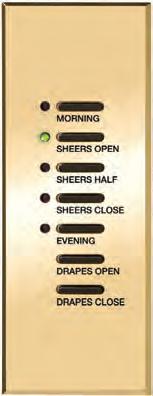

Signature Series

Architrave

1 Motor module

Lutron Field Service, connection needed for system startup

2

Daylight sensor

Sivoia QS blinds

4 Pico wireless control

Athena Dashboard and Lutron App communicate with the Athena processor hub via the cloud

2 DMX (32 channels)

Athena system capacities

Wiring

Power

Pin-out: pin 1 - common, pin 2 - VDC, pin 3 - MUX, pin 4 - MUX

†

•

16 Athena Edge processors (max per database)

QS wired link*

QS-CBL-LSZH (runs up to 153 m) one pair: 1.0 mm2, one pair: 0.5 mm2 twisted/shielded

1 220-240VAC

•

320 Athena Edge processors (max per building)

QSM Wired Sensor link

GRX-CBL-346S-500 (runs up to 153 m) one pair: 1.0 mm2, one pair: 0.5 mm2 twisted/shielded

2 Low voltage 24-35 VDC

Clear Connect link

GRX-CBL-46L (runs up to 610 m) one pair: 4.0 mm , one pair: 0.5 mm twisted shielded

3 Plug-in transformer

RS 485, 24 - 35 VDC powered

4 Battery powered

* A switchleg is the smallest controllable point on any product - a single CCO, a zone of 0-10V, or a single DALI address for a fixture.

© 08/2022 Lutron Electronics Co., Inc. P/N 368-5770 /EA REV D

2

System Ethernet link Ethernet connection between processors gateways required for system startup and function

2

The wire gauge required for blind power conductors is dependent on blind size and number, wire run length, and power supply type being used. Consult technical specifications of blind equipment for details.

The Lutron logo, Lutron, Architrave, Clear Connect, Athena, EcoSystem, Palladiom, Pico, Radio Powr Savr, seeTouch, and Sivoia QS, are trademarks or registered trademarks of Lutron Electronics Co., Inc., in the U.S. and/or other countries.

65

Vive

Wireless lighting control helps make both new and existing commercial buildings efficient, comfortable and productive.

Vive is easy to specify, install, and update -- meaning you can meet the needs of your building faster, within budget, and in the future.

Quick installation time – up to 70% faster than wired control solutions - means shorter timelines and lower cost. And with stocked product at distribution, your projects go faster.

66

Simple, scalable, wireless

lighting control

Flexible control every step of the way A simple wireless lighting control solution for new and existing commercial buildings.

67

Vive wireless lighting control

Load Controllers

How can you make every office, school, or university campus an efficient, comfortable and productive place to work or learn?

In-wall controls

Vive is the answer.

Vive by Lutron is a simple, scalable, wireless control that can be installed in a single space or throughout an entire campus. It's designed to meet today's energy codes, be used in new construction or retrofit situations, and meet your budgetary needs.

Wireless remotes

And with a wide family of products – including sensors, remotes, load controllers, and an available software management suite – Vive provides the flexibility to select the products you want and handle any on-site challenges with ease.

Wireless Sensors

Integration

Vive Installation Madison College — Madison, Wisconsin

2 | Lutron

68

Lutron | 3

Scalable solutions — start small and grow

Energy-saving control strategies

Vive wireless solutions offer a multi-strategy approach that accommodates your budget and performance needs now, and for the future of your building.

Combine lighting control strategies to maximize efficiency

1

2

3

hat is the savings opportunity?

W Lutron solutions can save 60%3 or more lighting energy.

Potential savings

4

Occupied: On

Vacant: Off

Occupancy/vacancy sensing turns lights on when occupants are in a space and off when they vacate the space.

Daylight harvesting dims electric lights when daylight is available to light the space.

Full On

Dim

Scheduling provides pre-programmed changes in light levels based on time of day.

7am: Dim

7pm: Off

Demand response automatically reduces lighting loads during peak electricity usage times.

Full On

Single office space

Single floor

Multiple floors

Entire building

Start by adding control in a single space and expand as budgets and occupant schedules allow.

Expand to new areas or an entire floor at any time without reprogramming or replacing existing equipment.

Duplicate the success of one floor across other floors as your business expands or tenants change. Control can be independent on each floor, or linked via Vive wireless hubs.

Vive offers seamless integration to other building management systems to control every light in your building.

Plug load control automatically turns off loads after occupants leave a space.

Appliance On Appliance Off

80%

Max: 100%

Full On

69

High-end trim sets the maximum light level based on customer requirements in each space.

Max: 80%

Personal dimming control gives occupants the ability to adjust the light level.

Dim

Heating

Cooling

Saving

Saving

%

70

Before

After

60

4 | Lutron

Dim

%

HVAC integration controls heating, ventilation, and air conditioning systems through contact closure, or BACnet protocol.

System Optimization Service from Lutron identifies important lighting control adjustments to save additional energy and create a more productive work environment on an ongoing basis.

For a list of sources please visit lutron.com/references.

20 – 60% Lighting4

25 – 60% Lighting5

10 – 20% Lighting6

30 – 50% Peak Period7

15 – 50% Controlled Load8

10 – 30% Lighting9

10 – 20% Lighting10

5 – 15% HVAC11

Variable

Lutron | 5

Transform existing buildings with wireless lighting controls Flexible, wireless controls and sensors for simple, code-compliant design

Simple-to-use software

Add wireless hubs for centralized control and integration (optional)

Remotes

Occupancy and daylight sensors

Or

Vive wireless hub

Wireless Load controllers Wired/ Ethernet

Plug load controllers Demand response

BACnet integration

API integration

Vive software

Communication protocols Communicate via RF to control components

Communicate via WiFi to smart devices

Communicate via wired Ethernet to Vive hub

Integrated fixture control and sensing

6 | Lutron

70

Lutron | 7

Selecting and installing wireless controls is easy Area Control Step

1

Switching

Control your loads Select the controller appropriate for the loads on your job

or

•

•

Dimming

Options available for: - switching, 0-10 V, phase dimming, Ecosystem, contact closure

•

Simply wire one load controller for each group of lights you want to control together

Step

•

•

Wireless Load Controllers

2

Control your lights where you need to •

Contact Closure

Switching

Wireless devices can be mounted to any surface with no wiring needed Controls communicate wirelessly to the controls in the ceiling

Dimming

10-year battery life

Pico wireless remotes Scene

Step

3

Add sensors to your job •

•

•

•

Corner

Occupancy/vacancy sensors turn lights on and/or off for convenience and energy savings Wireless devices can be mounted to any surface with no wiring needed

Wall

Controls communicate wirelessly to the controls in the ceiling

Wireless occupancy/ vacancy sensors

10-year battery life Ceiling

8 | Lutron

71

Lutron | 9

Selecting and installing wireless controls is easy Area Control Step

4

Add daylight harvesting to meet code and save energy •

•

•

Daylight sensor

ave energy by dimming the lights S when natural light is available Wireless devices can be mounted to any surface with no wiring needed 10-year battery life

Step

5

(optional)

System software and control Timeclock

•

Demand response

•

BACnet & API integration

•

Energy and Occupancy information

•

Proactive maintenance alerts

•

See easy programming setup

Vive Software

pages 16 – 17

10 | Lutron

72

Lutron | 11

Selecting and installing wireless controls is easy Individual Fixture Control Step

1

Simply count the fixtures— the technology is built in •

•

Visit lutron.com/hpfl for a list of fixtures that come with Vive wireless technology built in Fixture are shipped with occupancy, vacancy and daylight sensing already installed Occupancy/vacancy sensors

Step

2

Pico wireless remotes

Control your lights where you need to •

•

•

Wireless devices can be mounted to any surface with no wiring needed Controls communicate wirelessly to the controls in the ceiling

Switching

Dimming

10-year battery life Scene

Step

3

(optional)

System software and control Timeclock

•

Demand response

•

BACnet & API integration

See easy system programming on pages 16 & 17

•

Energy and Occupancy information

•

Proactive maintenance alerts

•

Vive Software

12 | Lutron

73

Lutron | 13

Simple to design

Easily meet code

Access to tools and resources is at your fingertips.

Summary of code requirements for lighting control

Get access and quick answers keep your project moving.

Vive wireless solutions ensure you can meet new construction and retrofit (lighting alterations12) code requirements for three major energy codes: ASHRAE, IECC, and Title 2413.

For specific commercial building code lighting requirements in your state, please visit lutron.com/energycodes.

Free online estimating tool Lutron QuEst-D is an easy-to-use software tool that gives you an estimate for your project based on a few simple questions. The result is an instant bill of materials that highlights details and ensures a code-compliant solution. Discover QuEst-D online at questd.lutron.com.

Vive Solutions

App guides to help you meet codes

Code Comp

liance | Lightin

g Controls

ions

Vive Solut

Commercial Application Guide

Vive So

Title 24-2 lutions 019

Code Compliance | Lighting Controls

ANSI/ASHRAE/IES 90.1– 2016

n Guide ial Applicatio Controls Commerc | Lighting pliance Code Com

Commerc

3

1 201 E/IES 90.

RA

ANSI/ASH

Commerc

ial Applicatio

g Controls

Commerc

n Guide

Wireless sensors

Wireless remotes

In-wall controls

load Wireless controls

Codes can often be complicated and difficult to navigate. We have commercial application guides that include examples of different spaces and corresponding Lutron products for those spaces. Guides show you how you can use Lutron solutions to meet or exceed major energy code requirements.

liance | Lightin

Vive So

IECC 201 lutions 8

ons

IECC 201

n Guide

Code Comp

g Controls

liance | Lightin

Code Comp

Vive So5luti

ial Applicatio

n Integratio Wireless load controls

ial Applicatio

In-wall controls

Wireless n Guid controls eload

Wireless remotes

In-wall controls

Wireless sensors

Wireless remotes

Wireless Sensors

Integratio n

Integratio n

Available online at lutron.com/appguides

Easy-to-use design software Lutron Designer+ for Vive is an intuitive, easy-to-use software tool that allows you to design a Lutron Vive lighting control system with visual “drag and drop” layout and connections. It also allows you to generate comprehensive system design documentation, including bills of materials, one-line diagrams, and sequence of operations.

For access please contact myLutronsupport@lutron.com.

Vive wireless specification typicals

LUTRON NOTES: ALL DIMMING BALLASTS TO BE LUTRON ECOSYSTEM, ECOSYSTEM H-SERIES, OR HI-LUME 3D TYPE UNLESS OTHERWISE NOTED. ALL DIMMING DRIVERS TO BE LUTRON ECOSYSTEM DRIVERS: HI-LUME 1%; HI-LUME 1% WITH SOFT-ON, FADE-TO-BLACK; 5-SERIES; OR HI-LUME PREMIER 0.1% UNLESS OTHERWISE NOTED. E.E. TO CONFIRM ALL CIRCUITING REQUIREMENTS. ARCHITECT TO VERIFY QUANTITY, LOCATION & FINISH OF ALL CONTROLS. LUTRON FIELD SERVICE COMMISSIONING INCLUDED IN ALL SYSTEMS INITIATES AN 2 YEAR LIMITED WARRANTY. THE ELECTRICAL CONTRACTOR MUST CONTACT LUTRON (1-844-588-7661) TO SET UP VISIT WITH 10 DAYS NOTICE.

TYPICAL PRIVATE OFFICE - 0-10V DIMMING TYPICAL 0-10V (1 PER FIXTURE REQUIRED)

TYPICAL FOR RECEPTACLE CONTROL (SEE CODE COMPLIANCE TABLE FOR APPLICABILITY)

TYPICAL MANUAL OVERRIDE

)

P

)

TYPICAL BREAKROOM - 0-10V DIMMING TYPICAL VACANCY SENSOR (REFER TO PLANS FOR LOCATIONS & QUANTITIES)

TYPICAL DAYLIGHT SENSOR (REFER TO PLANS FOR LOCATIONS & QUANTITIES)

(

(

)

VAC

RF

TYPICAL FOR RECEPTACLE CONTROL (SEE CODE COMPLIANCE TABLE FOR APPLICABILITY)

TYPICAL 0-10V POWPAK(S) (1 PER ZONE REQUIRED)

(

ZONE X SWITCHED POWER (8A MAX)

)

)

0-10V DIM (60 mA MAX)

On/Off

0-10V DIM (6 mA MAX)

LUTRON

PJ2-3BRL-GWH-XXX 3 BUTTON CONTROL WITH RAISE/LOWER SHOWN WITH CW-1-WH CLARO WALLPLATE

CAR2S-20-STR-WH 20A TAMPER RESISTANT, SPLIT DUPLEX RECEPTACLE HALF SWITCHING

LRF2-VCR2B-P-WH VACANCY SENSOR

LRF2-DCRB-WH DAYLIGHT SENSOR

(

)

TYPICAL OCCUPANCY SENSOR (REFER TO PLANS FOR LOCATIONS & QUANTITIES)

(

)

TYPICAL MANUAL OVERRIDE @ EACH ENTRY

)

(

P

)

TYPICAL OCCUPANCY SENSOR (REFER TO PLANS FOR LOCATIONS & QUANTITIES)

TYPICAL DAYLIGHT SENSOR (REFER TO PLANS FOR LOCATIONS & QUANTITIES)

LUTRON

PJ2-3BRL-GWH-XXX 3 BUTTON CONTROL WITH RAISE/LOWER SHOWN WITH CW-1-WH CLARO WALLPLATE

CAR2S-20-STR-WH 20A TAMPER RESISTANT, SPLIT DUPLEX RECEPTACLE HALF SWITCHING

LRF2-OKLB-P-WH CORNER MOUNTED OCCUPANCY SENSOR 90° COVERAGE

Specifying wireless lighting control reduces design time and allows flexibility for changes during the project without the need to redesign. Vive Wireless Specification Typicals allow for quick and easy design of many applications. Simply copy and paste the typicals into drawing packages for complete design, layout, and BOM information.

TYPICAL MULTI-STALL BATHROOM - 0-10V DIMMING

(

(

)

RF

TYPICAL MANUAL OVERRIDE (AS REQUIRED - REFER TO PLANS FOR LOCATIONS)

TYPICAL 0-10V POWPAK(S) (1 PER ZONE REQUIRED) ZONE X SWITCHED POWER (8A MAX)

)

(

P

TYPICAL OCCUPANCY SENSOR (REFER TO PLANS FOR LOCATIONS & QUANTITIES)

)

(

)

Controlled

ZONE X SWITCHED POWER (8A MAX)

P

On/Off

RMJS-8TN-DV-B POWPAK DIMMING MODULE 120/277V~, 50/60 Hz W/ 0-10 V CONTROL DIMENSIONS: 3.42"(H) X 2.82"(W) X 1.25"(D) (87mm X 72mm X 32mm)

TYPICAL OPEN OFFICE - 0-10V DIMMING TYPICAL FOR RECEPTACLE CONTROL (SEE CODE COMPLIANCE TABLE FOR APPLICABILITY)

TYPICAL 0-10V POWPAK(S) (1 PER ZONE REQUIRED)

TYPICAL MANUAL OVERRIDE @ EACH ENTRY

(

Controlled

(

Controlled

(

ZONE X SWITCHED POWER (1A MAX)

FCJS-010 POWPAK WIRELESS FIXTURE CONTROL FOR 0-10 V CONTROL

0-10V DIM (60 mA MAX)

0-10V DIM (60 mA MAX)

On/Off

LUTRON

RMJS-8TN-DV-B POWPAK DIMMING MODULE 120/277V~, 50/60 Hz W/ 0-10 V CONTROL DIMENSIONS: 3.42"(H) X 2.82"(W) X 1.25"(D) (87mm X 72mm X 32mm)

PJ2-3BRL-GWH-XXX 3 BUTTON CONTROL WITH RAISE/LOWER SHOWN WITH CW-1-WH CLARO WALLPLATE

CAR2S-20-STR-WH 20A TAMPER RESISTANT, SPLIT DUPLEX RECEPTACLE HALF SWITCHING

LRF2-OCR2B-P-WH OCCUPANCY/VACANCY SENSOR

LRF2-DCRB-WH DAYLIGHT SENSOR

TYPICAL VACANCY SENSOR (REFER TO PLANS FOR LOCATIONS & QUANTITIES)

TYPICAL DAYLIGHT SENSOR (REFER TO PLANS FOR LOCATIONS & QUANTITIES)

(

(

LUTRON

PJ2-3BRL-GWH-XXX 3 BUTTON CONTROL WITH RAISE/LOWER SHOWN WITH CW-1-WH CLARO WALLPLATE

RMJS-8TN-DV-B POWPAK DIMMING MODULE 120/277V~, 50/60 Hz W/ 0-10 V CONTROL DIMENSIONS: 3.42"(H) X 2.82"(W) X 1.25"(D) (87mm X 72mm X 32mm)

LRF2-OCR2B-P-WH OCCUPANCY/VACANCY SENSOR

LUTRON SERVICES COUNT OF EACH SERVICE SPECIFIED

SERVICE TITLE

SERVICE DESCRIPTION

(MODEL NUMBER)

THE COUNTS OF SERVICES BELOW ARE TO BE INCLUDED AS PART OF THIS PROJECT'S SCOPE OF WORK AND SPECIFIED INTO THE WRITTEN SPEC DOCUMENTS

STARTUP SUPPORT SERVICES

TYPICAL CORRIDOR (EGRESS) - 0-10V DIMMING

TYPICAL CONFERNCE ROOM - 0-10V DIMMING TYPICAL FOR RECEPTACLE CONTROL (SEE CODE COMPLIANCE TABLE FOR APPLICABILITY)

TYPICAL 0-10V POWPAK(S) (1 PER ZONE REQUIRED)

(

)

TYPICAL MANUAL OVERRIDE @ EACH ENTRY

(

P

)

)

VAC

RF

TYPICAL 0-10V POWPAK(S) (1 PER ZONE REQUIRED) ZONE X SWITCHED POWER (8A MAX)

)

TYPICAL MANUAL OVERRIDE (AS REQUIRED - REFER TO PLANS FOR LOCATIONS)

TYPICAL OCCUPANCY SENSOR (REFER TO PLANS FOR LOCATIONS & QUANTITIES)

(

(

P

)

)

Controlled

ZONE X SWITCHED POWER (8A MAX)

0-10V DIM (60 mA MAX)

0-10V DIM (60 mA MAX)

On/Off

LUTRON

RMJS-8TN-DV-B POWPAK DIMMING MODULE 120/277V~, 50/60 Hz W/ 0-10 V CONTROL DIMENSIONS: 3.42"(H) X 2.82"(W) X 1.25"(D) (87mm X 72mm X 32mm)

PJ2-3BRL-GWH-XXX 3 BUTTON CONTROL WITH RAISE/LOWER SHOWN WITH CW-1-WH CLARO WALLPLATE

CAR2S-20-STR-WH 20A TAMPER RESISTANT, SPLIT DUPLEX RECEPTACLE HALF SWITCHING

LRF2-VKLB-P-WH CORNER MOUNTED VACANCY SENSOR 90° COVERAGE

LRF2-DCRB-WH DAYLIGHT SENSOR

TYPICAL OCCUPANCY SENSOR (REFER TO PLANS FOR LOCATIONS & QUANTITIES)

TYPICAL DAYLIGHT SENSOR (REFER TO PLANS FOR LOCATIONS & QUANTITIES)

(

(

LUTRON

PJ2-3BRL-GWH-XXX 3 BUTTON CONTROL WITH RAISE/LOWER SHOWN WITH CW-1-WH CLARO WALLPLATE

RMJS-8TN-DV-B POWPAK DIMMING MODULE 120/277V~, 50/60 Hz W/ 0-10 V CONTROL DIMENSIONS: 3.42"(H) X 2.82"(W) X 1.25"(D) (87mm X 72mm X 32mm)

ONSITE PROGRAMMING - 8 HOUR BLOCK (LSC-OS-PROG8-SP)

ONSITE SYSTEM PROGRAMMING VISIT – UP TO 8 CONTIGUOUS HOURS OF SYSTEM PROGRAMMING DELIVERED BY A LUTRON SERVICES REPRESENTATIVE. THE SYSTEM WILL BE PROGRAMMED PER AN APPROVED SEQUENCE OF OPERATION. QUANTITY DICTATES THE NUMBER OF 8-HOUR VISITS PURCHASED.

ONSITE PROGRAMMING - 4 HOUR BLOCK (LSC-OS-PROG4-SP)

ONSITE SYSTEM PROGRAMMING VISIT – UP TO 4 CONTIGUOUS HOURS OF SYSTEM PROGRAMMING DELIVERED BY A LUTRON SERVICES REPRESENTATIVE. THE SYSTEM WILL BE PROGRAMMED PER AN APPROVED SEQUENCE OF OPERATION. QUANTITY DICTATES THE NUMBER OF 4-HOUR VISITS PURCHASED.

REMOTE PROGRAMMING - 4 HOUR BLOCK (LSC-RMT-PROG4-SP)

REMOTE SYSTEM PROGRAMMING VISIT – UP TO 4 CONTIGUOUS HOURS OF SYSTEM PROGRAMMING DELIVERED BY A DEDICATED FACTORY CERTIFIED REMOTE TECHNICIAN EITHER VIA A REMOTE NETWORK CONNECTION OR WITH THE ASSISTANCE OF AN ELECTRICAL CONTRACTOR OVER THE PHONE. THE SYSTEM WILL BE PROGRAMMED PER AN APPROVED SEQUENCE OF OPERATION. QUANTITY DICTATES THE NUMBER OF 4-HOUR SESSIONS PURCHASED.

LRF2-OHLB-P-WH HALL MOUNTED OCCUPANCY/VACANCY SENSOR PLEASE GO TO WWW.LUTRON.COM/SERVICES FOR FURTHER INFORMATION.

TYPICAL CLASSROOM - 0-10V DIMMING TYPICAL FOR RECEPTACLE CONTROL (SEE CODE COMPLIANCE TABLE FOR APPLICABILITY)

TYPICAL 0-10V POWPAK(S) (1 PER ZONE REQUIRED)

(

)

TYPICAL MANUAL OVERRIDE @ EACH ENTRY

(

P

)

)

RF

)

0-10V DIM (60 mA MAX)

On/Off

LUTRON

PJ2-3BRL-GWH-XXX 3 BUTTON CONTROL WITH RAISE/LOWER SHOWN WITH CW-1-WH CLARO WALLPLATE

CAR2S-20-STR-WH 20A TAMPER RESISTANT, SPLIT DUPLEX RECEPTACLE HALF SWITCHING

LRF2-OKLB-P-WH CORNER MOUNTED OCCUPANCY SENSOR 90° COVERAGE

TYPICAL VIVE HUB FOR SYSTEM PROGRAMMING, BMS INTEGRATION, DEMAND RESPONSE, AND TIMECLOCK (OTHER OPTIONS AVAILABLE)

TYPICAL VIVE HUB FOR SYSTEM PROGRAMMING, DEMAND RESPONSE, AND TIMECLOCK (OTHER OPTIONS AVAILABLE)

Controlled

ZONE X SWITCHED POWER (8A MAX)

RMJS-8TN-DV-B POWPAK DIMMING MODULE 120/277V~, 50/60 Hz W/ 0-10 V CONTROL DIMENSIONS: 3.42"(H) X 2.82"(W) X 1.25"(D) (87mm X 72mm X 32mm)

LRF2-DCRB-WH DAYLIGHT SENSOR

Egress Corridor | New Construction ASHRAE 90.1-2010

VIVE HUB EXTERNAL POWER SUPPLY MAX 100FT AWAY FROM HUB (MOUNTS TO 4X4 SQ JUNCTION BOX)

OR

WIRING LEGEND: REGULAR UTILITY POWER EMERGENCY POWER SOURCE

UL 1008 TRANSFER SWITCH OR EQUAL

INPUT POWER (NORMAL)

Neutral

20A CIRCUIT

Normal/Emergency Power

2 #12AWG (4 mm2) 0-10V SIGNAL: 2 #18AWG (1.0 mm2)

Line/Hot (Blue)

NORMAL/EMERGENCY CIRCUIT PANEL

2-WAY RF COMMUNICATION

WIRELESS RECEPTACLE

WIRELESS DAYLIGHT SENSOR RF

4 Blue/White

1

White

3 Control State Sense

Red

2

5 Yellow - Switched Hot EMERGENCY POWER

UTILITY POWER TEST

Violet (+) Violet (+)

LUT-ALCR-D LVS CONTROLS ALCR DEVICE FOR USE WITH 0-10V LOADS

Quick help videos

Normal Hot

P

VAC

Switched Hot Violet (+)

WIRELESS OCCUPANCY SENSOR

Gray (-)

EMERGENCY LOAD Switched Hot

WIRELESS SCENE KEYPAD

P4

WIRELESS NETWORK: A. RF FREQUENCY: 434 MHZ; OPERATE IN FCC GOVERNED FREQUENCY SPECTRUM FOR PERIODIC OPERATION; CONTINUOUS TRANSMISSION SPECTRUM IS NOT PERMITTED. 1. WIRELESS SENSORS, WIRELESS KEYPADS AND WIRELESS LOAD CONTROL DEVICES DO NOT OPERATE IN THE NOISY 2.4 GHZ FREQUENCY BAND WHERE HIGH POTENTIAL FOR RF INTERFERENCE EXISTS. B. LOCAL ROOM DEVICES COMMUNICATE DIRECTLY WITH EACH OTHER (AND NOT Line-voltage wiring THROUGH A CENTRAL HUB OR PROCESSOR) TO ENSURE: 1. RELIABILITY OF SYSTEM PERFORMANCE. 2. FAST RESPONSE TIME TO EVENTS IN THE SPACE (E.G. BUTTON PRESSES OR SENSOR SIGNALS).

3. INDEPENDENT OPERATION IN THE EVENT OF THE WIRELESS HUB BEING REMOVED OR DAMAGED.

NORMAL LOAD

Low-voltage wiring

RECEPTACLES * (SEE CODE COMPLIANCE TABLE FOR APPLICABILITY) A. COMMUNICATES VIA RADIO FREQUENCY WITH UP TO TEN COMPATIBLE OCCUPANCY/VACANCY SENSORS AND TEN WIRELESS KEYPADS. B. RELAY: 1. LOAD SWITCHED IN MANNER THAT PREVENTS ARCING AT MECHANICAL CONTACTS WHEN POWER IS APPLIED TO AND REMOVED FROM LOAD CIRCUITS. 2. RATED FOR SWITCHING OF GENERAL PURPOSE LOADS. 3. MOTOR RATING OF 0.5 HP AT 120 V FOR 15 A RECEPTACLES, AND 1 HP AT 120 V FOR 20 A RECEPTACLES.

Symbol

IECC 2018 VIVE TYPICAL

To emergency power

Clear Connect RF Communication

LOCATION

CONCEPT DRAWING NOT FOR CONSTRUCTION

Model Number

WIRELESS KEYPADS A. DOES NOT REQUIRE EXTERNAL POWER PACKS, POWER OR COMMUNICATION WIRING. B. ALLOWS FOR EASY REPROGRAMMING WITHOUT REPLACING UNIT. C. INCLUDES LED TO INDICATE BUTTON PRESS OR PROGRAMMING MODE STATUS. D. MOUNTING: 1. CAPABLE OF BEING MOUNTED WITH A TABLE STAND OR DIRECTLY TO A WALL UNDER A FACEPLATE, BACKBOX OPTIONAL. E. 10 YEAR BATTERY LIFE

RMJS-8T-DV-B

Violet (+) Gray (-)

Normal Neutral

WIRELESS ZONE KEYPAD

WIRELESS VACANCY SENSOR

Neutral

Neutral 20A CIRCUIT NORMAL CIRCUIT PANEL

HJS-2-FM PREMIUM VIVE HUB W/ CLEAR CONNECT, TIMECLOCK, & BACNET 24V POWER SUPPLY& ADAPTER INCLUDED SEE SPEC SHEET FOR MOUNTING REQUIREMENTS COMMUNICATES W/ CLEAR CONNECT DEVICES WITHIN 71'[22m] RADIUS

SPEC: 1-WAY RF COMMUNICATION

SYMBOL LEGEND:

6 Black

Normal Voltage Sense

REGULAR UTILITY POWER

VIVE HUB EXTERNAL POWER SUPPLY MAX 100FT AWAY FROM HUB (MOUNTS TO 4X4 SQ JUNCTION BOX)

HJS-0-FM VIVE HUB W/ CLEAR CONNECT & TIMECLOCK 24V POWER SUPPLY & ADAPTER INCLUDED SEE SPEC SHEET FOR MOUNTING REQUIREMENTS COMMUNICATES W/ CLEAR CONNECT DEVICES WITHIN 71'[22m] RADIUS

ALCR DEVICE FOR CONTROL OF BOTH NORMAL AND EMERGENCY 0-10V LOADS

by

120V/277V

120V/277V

Description

Qty

Project Number:

N/A

PowPak dimming module with 0-10 V Drawn By:

1

ER

LRF2-OHLB-P-WH

Radio Powr Savr wireless hallway Drawing Revision: occupancy sensor

PJ2-3BRL-GWH-L01

Pico wireless 3-button with raise/lower control Sheet: 1 OF 1

2

PICO-WBX-ADAPT

Pico wallbox adapter

2

Drawing Date:

RMJS-8TN-DV-B POWPAK DIMMING MODULE WITH 8A, 0-10 V CONTROL

Control Functionality

0

1

05.28.2020

Lutron Electronics Co., Inc. 7200 Suter Road | Coopersburg, PA 18036 | USA (610) 282-3800 | fax: (610) 282-1146

I

© 03/2017 Lutron Electronics Co., Inc. P/N 368-4603 REV A

Occupant Enters: All lights automatically turn on to maximum light level. Maximum light level is set to 80%.

Get access to Lutron Vive videos 24/7. Step-by-step setup, installation, and programming help whenever you need it. lutron.com/viveresources.

When Occupied: Manual: Occupant uses wall switch to turn on, adjust, or dim all lights to low end. Manual control cannot fully shut off the lights. Minimum light level is set to 10%.

Occupant Exits: All lights automatically go to minimum light level 15 minutes after all occupants exit.

Emergency Mode: Lighting connected to emergency power turns on to full output.

Available online at lutron.com/viveresources

Code Notes: Verify that the egress fixtures go to full output upon loss of control signal. For projects that require UL 924 compliance, provide an automatic load control relay (ALCR) per load controller connected to emergency fixtures. Add a daylight sensor for corridors with daylight zones.

Want to add a Vive wireless hub for more features? Go to lutron.com/vive for complete compatibility and design details.

This solution requires 0-10 V enabled ballasts and drivers by others.

Energy code quick reference guides Get the lighting and receptacle control requirements along with suggested functionality to meet the latest versions of ASHRAE 90.1, IECC, and Title 24 all on one page.

Online training Visit lutron.com/LCIOnline — Sign up for free, online training modules with practice exercises that walk you through the Vive system.

14 | Lutron

Available online at lutron.com/viveresources

74

Lutron | 15

Easy system programming Simple setup and programming options with the Vive wireless hub

For systems without a Vive wireless hub

Mobile phone setup Using Vive software on any smart device you can wirelessly connect system controls and program system settings—no ladder required.

Lutron’s patent-pending RF signal strength detection automatically finds nearby devices, making job setup faster.

1

2

Press and hold on wireless device

Automatic fixture identification

Push-button set up

Lutron patent-pending technology automatically finds and sorts the wireless devices closest to the control.

Use simple button-press programming to select and associate wireless devices—it’s as easy as setting a station on your car radio.

Wireless dimmer

Press and hold for 6 seconds

Occupancy sensor

Press and hold for 6 seconds It works! Sensor now talks to the wireless dimmer

16 | Lutron

75

Lutron | 17

Save energy and improve building performance

Energy savings and space utilization

Load shed Open ADR Compatible

Schedules

Scene Control

Light Control

Alerts

Quickly view and display energyusage information to drive decision making and demonstrate savings.

Easily set lighting reduction levels that automatically respond during peak electricity usage times.

Use a 365-day calendar to automatically adjust lights based on time of day, including single day and holiday events.

Create and configure scenes to control individual devices, areas, or groups of areas on demand.

Directly adjust the light levels remotely from any smart device. Easily respond to occupant requests without needing to be in the physical space.

View proactive alerts that show issues such as low batteries or inactive devices to help improve building maintenance efficiency.

Seamlessly integrate with your building system The BACnet/IP protocol is the primary means of integration. BACnet is embedded or native in the Vive wireless hub, which means no external interfaces or gateways are required in order to communicate with other systems.

API integration, native on the Vive hub, enables integration with third party devices, systems, and software. RESTful APIs are available over the ethernet.

18 | Lutron

76

Building/Energy Management Systems (BMS/EMS)

Energy Dashboards and Analytics Packages

API

HVAC

Audio & Video

IT

Lutron | 19

A smart building is now simple Vive Vue software Intuitive control

Vive Vue software now provides the ability to tie multiple Vive hubs together in one software interface. Built with the simple, scalable, wireless building blocks of the Vive Wireless system, Vive Vue software now delivers the advanced intelligence necessary for today’s smart buildings and the IoT. A smart building is now easier than ever to achieve.

View status, control lights, and optimize your building quickly and efficiently with a graphical floorplan.

Optimize your space Improve building layout based on actual occupancy and usage information. With space utilization reports, you can quickly identify over-used and under-used spaces to improve building efficiency without expanding the building footprint.

Save energy purposefully Energy reports allow you to view and monitor your energy savings. With trending energy information over time, and easily customizable reports, Vive Vue software helps you demonstrate the energy-saving advantages of wireless lighting control.

20 | Lutron

77

Lutron | 21

Enterprise Vue – Connected campus Manage data and operations for multiple Lutron lighting and shade control solutions •

A single data and management platform for your connected buildings

•

The system interface delivers a simple, consistent user experience from any PC or tablet

•

Open, easy integration with BACnet and web APIs leverages the IoT to enhance smart-building performance

Enterprise Vue home screen

22 | Lutron

78

Lutron | 23

Lutron system security

Lutron reliability Clear Connect wireless technology All Lutron wireless products utilize Lutron patented Clear Connect wireless technology, which operates in an uncongested radio frequency band. The result is ultra-reliable communication and smooth dimming performance with no flicker or delay. Other devices will not interfere with the Lutron lighting control system.

e build security into the product and the process from conception W to installation, and through the lifetime of the system.

Everything we do is backed by Lutron’s first, and guiding, principle — Take Care of the Customer with Superior Goods and Services. Every product, every system, and every solution is designed, manufactured and tested to work as expected.

Clear Connect

Security by design

When building any new system, Lutron utilizes a dedicated security team to ensure best practices are implemented. Security is built in.

It is not an afterthought or add-on.

Examples of security features designed into Vive include: 1. Isolated wired and wireless architecture which strictly limits the possibility of the Vive Wi-Fi or Clear Connect being used to access the corporate network to gain confidential information 2. A distributed security architecture — each hub has its own unique keys 3. NIST-recommended best practices for securing passwords, including salting and use of SCrypt

Third-party validation Security is complicated. Lutron has a dedicated team of internal experts, but we also leverage external experts to double- and triple-check our work.

434 MHz: Lutron Clear Connect wireless technology

1. Multiple external experts engaged during design process

Lutron devices operate in an uncongested frequency band, providing ultra-reliable operation.

2. Third-party penetration testing to identify and fix potential vulnerabilities before they reach the field

Continuous monitoring and improvements

Other frequency bands

Security is a constantly moving target. Lutron uses a dedicated security team to continuously monitor the market for potential threats and, when needed, send out security patches to update installed systems.

4. AES 128-bit encryption for network communications 5. HTTPS (TLS 1.2) protocol for securing connections to the hub over the wired network 6. WPA2 technology for securing connections to the hub over the Wi-Fi network

Ongoing support Lutron has the resources you need to answer questions about security when they arise.

1. IT deployment guides 2. Guidance from our world class 24/7 technical support organization with IT expertise throughout the product lifecycle

24 | Lutron

2.4 GHz: Cordless phones | Bluetooth devices | Wireless security cameras Other devices operate in congested frequency bands, creating a high potential for wireless interference.

79

Lutron | 25

Vive product catalog

Wireless hub page 28

Load Controllers page 30

In-wall controls page 44

Wireless remotes page 48

Wireless Sensors page 52

Vive Installation Suncrest Bank — Visalia, California

26 | Lutron

80

Lutron | 27

•

•

Features and benefits

How it works

Communicates with controls on a floor using Lutron wireless Clear Connect technology (range radius of 71 ft [22 m])

All wireless devices to be associated to the Vive wireless hub must be within 71 ft (22 m) of the Vive wireless hub and must be on the same floor as the Vive wireless hub.

Distributed system architecture - Pico remote controls and sensors communicate directly with the load devices they control and must be located within 30 ft (9 m) of the device with which they are associated

•

•

Vive wireless hub Dimensions W: 6.5" H: 1.5" D: 2.8"

(165 mm) (38 mm) (71 mm)

•

•

•

•

•

wireless hub

Vive Wireless hub

Conference Room

PowPak Dimming Module

Vive hub RF coverage

Supports timeclock events based on both sunrise and sunset or fixed time-of-day Private Office

Two contact closure inputs to enable load shed from other devices for Title 24 compliance and utility integration

Maestro Wireless Dimmer

Open ADR 2.0b compatible for integration with utilities for demand response/loadshed and code compliance Each hub provides an individual dashboard for its coverage area and allows you to link to other hub dashboards from the mobile application

30 ft (9 m) Maximum

30 ft (9 m) Maximum

Note: A minimum distance of 10 ft (3 m) between Vive wireless hubs on the same floor is required.

Note: Vive wireless hub must be mounted a minimum of 10 ft (3 m) from a Wi-Fi router or access point.

71 ft (22 m) Maximum

API integration, native on the Vive hub, to enable integration with third party devices, systems, and software. RESTful APIs are available over the ethernet.

Proactive alerts to inform batteries are low or devices may not be working to ensure system operates as expected.

30 ft (9 m) Maximum

Override and lockout support for emergency devices to send the emergency lights to defined levels and lockout controls in the case of a fire alarm, power loss, or security incident. This may be activated manually or with an integration.

Setup, Monitor and Control

30 ft (9 m) Maximum

100 ft (30 m)

Vive Hub

Product options Vive hub power supply Dimensions W: 4.0" H: 1.7" D: 2.8"

(102 mm) (43 mm) (71 mm)

Vive wireless hub models Range with multiple Vive hubs

Starter (up to 75 devices) HJS-0-FM

Flush mount 71 ft (22 m) Maximum

Standard HJS-1-FM

Flush mount

HJS-1-SM

Surface mount

H-MOUNT-SM

Surface-mount installation adapter

28 | Lutron

Flush mount

HJS-2-SM

Surface mount

HJS-UPDATE

Software upgrade license to add BACnet and API

HJS-DEVICES Software upgrade license expands device limit to 700 devices

71 ft (22 m) Maximum

Open Office PowPak Fixture Control 100 ft (30 m)

Premium (with BACnet and API) HJS-2-FM

100 ft (30 m)

Note: Pico remote controls and sensors must be within 30 ft (9 m) of the load device they are controlling

Note: A corporate Wi-Fi network can interfere with the Wi-Fi on the Vive wireless hub. Where a corporate Wi-Fi network exists, it is recommended to do the following: Connect the Vive wireless hub to the corporate network using the Ethernet connection on the hub, and disable the hub’s Wi-Fi.

81

Lutron | 29

Wireless Load Controllers: J-box mounted switches and dimmers

How to design and specify

How to design and specify

One relay module For each controlled lighting zone in the space

One single zone controller For each EcoSystem/DALI lighting zone in the space

•

•

Control Select appropriate model based on the size of the connected load

Control EcoSystem/DALI: up to 32 drivers per controller

•

1920 W 4432 W

or or

1/2 HP @ 120 V 1 1/2 HP @ 277 V

or

5 A:

600 W 1385 W

or or

1/6 HP @ 120 V 1/3 HP @ 277 V

or

PowPak relay module Dimensions W: 2.89" H: 3.44" D: 1.25"

(48 mm) (87 mm) (32 mm)

Multiple drivers/balasts connected to control module will aways work together as single zone

•

PowPak single zone EcoSystem/DALI

Contact closure output For sending occupancy information to third-party equipment such as HVAC systems

•

Input 120/277 V

•

Input 120/277 V

•

Dimensions

Product options

W: 2.89" H: 3.44" D: 1.25"

EcoSystem single zone

(48 mm) (87 mm) (32 mm)

Load controllers

16 A:

•

RMJS-ECO32-SZ

Product options 16 A models RMJS-16R-DV-B RMJS-16RCCO1-DV-B

One contact closure output

5 A models RMJS-5R-DV-B RMJS-5RCCO1-DV-B

30 | Lutron

One contact closure output

82

Lutron | 31

Wireless Load Controllers: J-box mounted switches and dimmers

One dimming module with 0-10 V control For each controlled 0-10 V lighting zone in the space

How it works

Control 8 A: 0-10 V controlled fixtures and switches compatible with third-party 0-10 V fluorescent ballasts, LED drivers, and fixtures

Two versions of the PowPak 0-10 V are available that optimize for different wiring practices. The -8T model has a connector on the back of the box which is optimized for Class 2 wiring outside of the standard conduit. The -8TN model has the 0-10 V wires coming out of the threaded end, optimized for wiring inside a junction box and used for when the 0-10 V wires are run in the cable or conduit with the Class 1 wiring. Both versions can have the 0-10 V control wires be installed using NEC® Class 1 or Class 2 wiring methods.

•

•

PowPak dimming module with 0-10 V control Dimensions W: 2.89" H: 3.44" D: 1.25"

(48 mm) (87 mm) (32 mm)

Input

•

•

120/277 V

0-10 V Link: Communicates with up to 60 mA of fixtures

Product options 8 A models with 0-10 V control RMJS-8T-DV-B

Wiring Schematic

RMJS-8TN-DV-B

Junction Box* Line / Hot

Junction Box* Switched Line / Hot

Neutral

Neutral

Line / Hot To Fluorescent Ballasts / LED Drivers

Switched Line / Hot Neutral

Neutral

−

To Fluorescent Ballasts / LED Drivers 0–10 V- to Fluorescent Ballasts / LED Drivers

+

FCJS-ECO

FCJS-ECO

120 – 277 V~ 50 / 60 Hz 1 A

120 – 277 V~ 50 / 60 Hz 1 A

PowPak®

PowPak®

UL 2043 Plenum Rated

lutron.com

®

1.844.LUTRON1 México: 1.888.235.2910 lutron.com

UL 2043 Plenum Rated

12 V-- 25 mA IEC SELV / NEC® Class 2 Sensor | Détecteur

lutron.com

®

1.844.LUTRON1 México: 1.888.235.2910 lutron.com

RMJS-8T-DV-B

12 V-- 25 mA IEC SELV / NEC® Class 2 Sensor | Détecteur

RMJS-8TN-DV-B

− +

0–10 V- to Fluorescent Ballasts / LED Drivers

* NOTE: The control module mounts to the exterior of a U.S.-style junction box.

32 | Lutron

Load controllers

How to design and specify

83

Lutron | 33

Wireless Load Controllers: 4x4 box mounted switches and dimmers

How to design and specify

How to design and specify •

Control 5 A: 0-10 V controlled fixtures and switches compatible with third-party 0-10 V fluorescent ballasts, LED drivers, and fixtures

•

347 V Dimming Module

•

with 0-10 V control Dimensions are shown as: in (mm)

•

Input

Dimensions

Dimensions

347 V

450W/VA PowPak Phase Select dimming module

0-10 V Link: Communicates with up to 60 mA of fixtures

Dimensions

Product options

W: 4.53" (114.90 mm) H: 4.53" (114.90 mm) D: 1.80" (45.60 mm)

W: 4.53" (114.90 mm) H: 4.53" (114.90 mm) D: 1.80" (45.60 mm)

5 A model with 0-10 V control RMJS-5T-347

Mounting: Mounts in a standard 4 in 4.53 x(114.90) 4 in (101.6 mm x 101.6 mm) junction box. NOTE: Must use metal junction box, minimum depth 2.125 in (53.975 mm). Adding an extension ring is recommended for junction box depth extension. See Installation guide 048781 for additional information.

4.53

3.37 (85.75)

Mounting: Mounts in a standard 4 in x 4 in (101.6 mm x 101.6 mm) junction box. NOTE: Must use metal junction box, minimum depth 2.125 in (53.975 mm). Adding an extension ring is recommended for junction box depth extension. See Installation guide 048781 for additional information.

Divider for Class 1 & Class 2 Separation 5T-347-DIVIDER

1.80 (45.60) 1.90 (48.20)

(114.90)

One dimming module for Phase Control For each controlled phase dimmable lighting zone in the space.

•

Control

•

LED drivers (reverse-phase) 450 VA

•

Lutron Hi-lume 1% 2-wire LED driver A 3 A (13 drivers max)

•

LED bulbs, self-ballasted lamps (reverse-phase) 450 VA

•

LED NEMA SSL 7A-2015 (forward-phase) B, H 200 W

•

Incandescent / halogen 450 W

•

ELV (reverse-phase) 450 W

•

Fluorescent (forward-phase) 400 VAF

•

Neon / Cold Cathode, MLV C, D 400 VAF (320 W)

•

Input

Load controllers

One dimming module with 0-10V control For each controlled 0-10 V lighting zone in the space

•

120V/277V

Product options 450W/VA PowPak Phase Select dimming module RMJS-PNE-DV

3.37 (85.75)

Dimensions

Range Diagram PowPak Module

Dimensions are shown as: in (mm)

Contact Lutron first for applications using foil-backed or metallic ceiling tiles.

60 ft (18 m) maximum line of sight Radio Powr Savr Occupancy Sensor

PowPak module

50 ft (15.2 m)

NOTE: Wireless sensors and controls must be located within 60 ft (18 m) line of sight, or 30 ft (9 m), through walls, of the associated control module. The 60 ft (18 m) range is not reduced by a ceiling tile obstruction.

30 ft (9 m) maximum through walls

3.37 (85.75)

4.53 (114.90)

Pico Remote Control

60 ft (18 m) 4.53 (114.90)

34 | Lutron

84

1.80 (45.60) 1.90 (48.20)

3.37 (85.75)

Lutron | 35

Wireless Load Controllers: J-box mounted switches and dimmers

How to design and specify

How it works

One contact closure output module For each additional contact closure output you require

In response to information received from a Radio Powr Savr occupancy/vacancy sensor, the PowPak contact closure output module communicates room occupancy to the VAV terminal unit. By not heating or cooling an unoccupied room, the electricity consumed by the HVAC system can be reduced.

•

Product options PowPak contact closure output module

RMJS-CCO1-24-B

Filter

Cooling Supply coil fan

Load controllers

Standard

C

Contact closure output

Dimensions W: 2.89" H: 3.44" D: 1.25"

(48 mm) (87 mm) (32 mm)

C

Note: If using a relay module with the contact closure output, you do not need to add a contact closure output module unless a second contact closure output is needed

VAV

Occupied

85

VAV

Damper closed

Unoccupied

Radio Powr Savr occupancy/vacancy sensor (ceiling mount)

36 | Lutron

Damper open

PowPak contact closure output module

Lutron | 37

Wireless Load Controllers: Plug load control

How to design and specify

How it works

One relay module For each 20 A receptacle circuit you want to control

Plug loads, such as task lighting, computer monitors, and printers, account for greater than 5% of commercial electricity usage3. Many energy codes now require control of receptacles for compliance.

Input 120/277 V

The occupancy/vacancy sensor wirelessly communicates room occupancy to the relay module.

Based on the occupancy status received, the relay module switches the power to the receptacles on or off, reducing the amount of energy consumed.

•

•

PowPak relay module Dimensions W: 2.89" H: 3.44" D: 1.25"

(48 mm) (87 mm) (32 mm)

Load controllers

Product options 20 A models RMJS-20R-DV-B General purpose switch 120-277 V receptacles RMJS-20RCCO1-DV-B General purpose switch 20 A, 120-277 V receptacles with one contact closure output

20 A

Occupied

Unoccupied

Radio Powr Savr occupancy/vacancy sensor (ceiling mount)

38 | Lutron

86

20 A

For a list of sources please visit lutron.com/references.

Pico control with wallplate

PowPak 20 A relay receptacle module

Lutron | 39

Wireless Load Controllers: Plug load control

•

How to design and specify

How it works

One wireless receptacle For each receptacle circuit you want to control

Plug loads, such as task lighting, computer monitors, and printers, account for greater than 5% of commercial electricity usage3. Many energy codes now require control of receptacles for compliance.

One wireless receptacle can also control standard receptacles wired downstream

The occupancy/vacancy sensor wirelessly communicates room occupancy to the wireless receptacle.

Based on the occupancy status received, the wireless receptacle switches the power on or off, reducing the amount of energy consumed. The wireless receptacle will control normal receptacles downstream.

Input 120 V

RF receptacle with top controlled Dimensions W: 2.94" (75 mm) H: 4.69" (119 mm) D: 1.4" (36 mm)

Load controllers

•

Product options 15 A models CAR2S-15-STR - 15 A Split (half switching; single pole/downstream) CAR2S-15-DTR - 15A

Duplex (dual switching; single pole/downstream)

20 A models CAR2S-20-STR - 20A Split (half switching; single pole/downstream) CAR2S-20-DTR - 20A Duplex (dual switching; single pole/downstream)

20 A

Occupied

Unoccupied

Radio Powr Savr occupancy/vacancy sensor (ceiling mount)

40 | Lutron

87

20 A

For a list of sources please visit lutron.com/references.

Pico control with wallplate

RF receptacle with top control

Lutron | 41

Wireless Load Controllers: Wireless individual fixture control

How to design and specify

How to design and specify

Vive integral fixture control For each fixture in the space

Digitally controls up to three drivers/ballasts per fixture

Controls 1A of lead or up to three drivers/ballasts/per fixture

• •

Vive Integral Fixture Control Dimensions

Dimensions with Occupancy/Daylight Sensor W: .927" (23.5 mm) H: 2.577" (65.4 mm)

•

Select either Clear Connect (RF) only or Clear Connect (RF) & XCT Sensing

•

Select either Area sensing or individual fixture sensing

•

PowPak fixture sensor Combined occupancy/daylight sensor

Product options

Vive Wireless fixture controller

Product options

Wireless individual in-fixture control

Sensor Dimensions

0-10 V control models

DFCSJ-OEM-RF

W: .827" (21 mm) H: 2.477" (62.9 mm)

One PowPak wireless fixture contol For each fixture in the space

•

W: 2.89" H: 3.44" D: 1.25"

Clear Connect (RF) only

Clear Connect (RF) and Occupancy/ DFCSJ-OEM-OCC Daylight Sensing ontact your local fixture representative and ask for a Vive-enabled C fixture or visit lutron.com/findafixture

(48 mm) (87 mm) (32 mm)

FCJS-010 FCJS-010-BULK8

line of sight, or 30 ft (9 m) through walls of each other.

FCJS-ECO

Install the fixture control directly to a fixture or on a junction box nearest to the fixture. Install the sensor on the ceiling near the fixture to optimize coverage in the desired area.

Clear Connect (RF) + Sensing

8-pack

EcoSystem control models

How it works

Note: Wireless sensors and controls must be located within 60 ft (18 m)

Load controllers

•

FCJS-ECO-BULK8

8-pack

Sensor models

Note: Avoid mounting the fixture sensor

Clear Connect (RF) Only

in direct sunlight or in the light which is cast from the fixture.

Fixture sensor coverage diagrams

XCT Occupancy/Vacancy sensing

FC-SENSOR

Occupancy/Daylight sensor

FC-VSENSOR

Vacancy/Daylight sensor

Applies to both products Clear Connect Wireless Fixture Controller

Clear Connect (RF)

Range Diagrams 12.0 ft (3.65 m)

Ceiling Fixture Controller

9 ft (2.7 m)

30 ft (9 m) Maximum Link Test

Pico remote control (up to 10)

Radio Powr Savr occupancy sensor (up to 10)

Radio Powr Savr daylight sensor (1 maximum)

Pico Remote Control

Floor 15 ft (4.6 m)

9 ft (2.7 m)

3 ft (0.9 m)

0

3 ft (0.9 m)

9 ft (2.7 m)

15 ft (4.6 m)

12.0 ft (3.65 m)

12.0 ft (3.65 m)

42 | Lutron

88

Lutron | 43

How to design and specify

How it works

One UL 924 PowPak module per ighting zone or fixture, depending on model

During normal power conditions, the UL 924 rated PowPak modules can dim loads and respond to local button presses, Pico wireless controls, and occupancy/daylight sensors.

Relay module control:

If utility power fails and the emergency PowPak loses power for greater than 250 msec, the emergency generator backup source activates and the automatic transfer switch senses loss of normal power and switches to emergency power.

•

16 A: 1920 W or 1/2 HP @ 120 V

•

4432 W or 1/2 HP @ 277 0-10 V module control:

PowPak UL 924 emergency lighting modules Dimensions W: 2.89" H: 3.44" D: 1.25"

8 A: 0-10 V controlled fixtures and switches compatible with third-party 0-10 V fluorescent ballasts, LED drivers, and fixtures

•

When normal power is restored to the Vive hub and emergency PowPak, the emergency PowPak will return to the previous light level within 2 minutes of normal power being restored. It will again accept local button control, input from Pico wireless controls, and occupancy/daylight sensors.

0-10 V link: Communicates with up to 60 mA of fixtures

•

(48 mm) (87 mm) (32 mm)

Fixture control: •

1 A of load or up to 3 drivers and ballasts

Input (all models)

•

UL 924 listed

The emergency PowPak regains power and automatically goes into emergency mode (full output, relay closed and 0-10 V signal goes to 10.0 V) for 90 minutes. All local buttons, Pico wireless controls and occupancy/daylight sensors will not respond.

System Wiring Diagram (Vive Hub with Emergency PowPak) 120 / 277 V~ Normal Feed Neutral (N)

120/277 V

Product options

Junction Box

Line/Hot (L)

Relay

RMJS-8T-DV-B-EM

Fixtures

FCJS-010-EM FCJS-ECO-EM

Junction Box

To additional RMJS-8T-DV-B PowPaks

Neutral (N)

RMJS-16R-DV-B-EM

0-10 V

24 VCommon

Switched Line/Hot (+) (–)

Switched Line/Hot (+)

Normal 0– 10 VDriver / Ballast

FCJS-ECO

(–)

FCJS-ECO

120 – 277 V~ 50 / 60 Hz 1 A

120 – 277 V~ 50 / 60 Hz 1 A

PowPak®

PowPak®

UL 2043 Plenum Rated

lutron.com

®

1.844.LUTRON1 México: 1.888.235.2910 lutron.com

Normal 0–10 VDriver / Ballast

UL 2043 Plenum Rated

- 25 mA 12 VIEC SELV / NEC® Class 2 Sensor | Détecteur

lutron.com

®

1.844.LUTRON1 México: 1.888.235.2910 lutron.com

RMJS-8TN-DV-B (Normal)

- 25 mA 12 VIEC SELV / NEC® Class 2 Sensor | Détecteur

RMJS-8TN-DV-B (Normal)

120 / 277 V~ Normal Feed Neutral (N)

* NOTE: Solution is not applicable for

Uninterruptible Power Supply (UPS) backup system. RMJS-8T-DV-B-EM must see a complete change-over of power from normal to emergency for the unit to go into emergency mode.

120 / 277 V~ Generator/ Emergency Feed Neutral (N)

Emergency Backup Generator *

Automatic Transfer Switch

120 / 277 V~ Emergency Feed

Junction Box

To additional RMJS-8T-DV-B-EM PowPaks

Neutral (N) Switched Line/Hot (+)

Not Provided by Lutron

(–)

Normal / Emergency 0-10 VDriver / Ballast

FCJS-ECO

120 – 277 V~ 50 / 60 Hz 1 A

PowPak® UL 2043 Plenum Rated

lutron.com

®

1.844.LUTRON1 México: 1.888.235.2910 lutron.com

44 | Lutron

89

- 25 mA 12 VIEC SELV / NEC® Class 2 Sensor | Détecteur

RMJS-8T-DV-B-EM (Emergency)

Lutron | 45

Load controllers

Wireless Load Controllers: UL 924 rated emergency wireless controllers

Wireless Load Controllers: UL 924 rated emergency wireless controllers

How to design and specify

How to design and specify

One dimming module for Phase Control For each controlled phase dimmable lighting zone in the space.

One CSA C22.2 No. 141-15 Listed dimming module with 0-10 V control per lighting zone

•

•

0-10 V module control:

Control

•

5A: 0-10 V controlled fixtures and switches compatible with third-party 0-10 V fluorescent ballasts, LED drivers, and fixtures

LED drivers (reverse-phase) 450 VA

•

347 V emergency lighting module Dimensions W: 4.53" (114.90 mm) H: 4.53" (114.90 mm) D: 1.80" (45.60 mm)

•

0-10V Link

Communicates with up to 60 mA of fixtures

Input

347 V

•

•

Lutron Hi-lume 1% 2-wire LED driver A 3 A (13 drivers max)

•

Product options 5 A model with 0-10 V control

•

Dimensions

•

W: 4.53" (114.90 mm) H: 4.53" (114.90 mm) D: 1.80" (45.60 mm)

•

RMJS-5T-347-EM

LED NEMA SSL 7A-2015 (forward-phase) B, H 200 W

•

Incandescent / halogen 450 W

ELV (reverse-phase) 450 W

Fluorescent (forward-phase) 400 VAF

•

Neon / Cold Cathode, MLV C, D 400 VAF (320 W)

•

Input

•

Mounting: Mounts in a standard 4 in x 4 in (101.6 mm x 101.6 mm) junction box. NOTE: Must use metal junction box, minimum depth 2.125 in (53.975 mm). Adding an extension ring is recommended for junction box depth extension. See Installation guide 048781 for additional information.

46 | Lutron

LED bulbs, self-ballasted lamps (reverse-phase) 450 VA

450W/VA Emergency PowPak Phase Select dimming module

Mounting: Mounts in a standard 4 in x 4 in (101.6 mm x 101.6 mm) junction box. NOTE: Must use metal junction box, minimum depth 2.125 in (53.975 mm). Adding an extension ring is recommended for junction box depth extension. See Installation guide 048781 for additional information.

90

120V/277V

Product options 450W/VA Emergency PowPak Phase Select dimming module RMJS-PNE-DV-EM

Lutron | 47

Wireless Load Controllers: UL 924 rated emergency wireless controllers

How it works* During normal power conditions, the rated modules can dim loads and respond to local button presses, Pico wireless controls, and occupancy/daylight sensors.

If utility power fails and the emergency module loses power for greater than 1 sec, the emergency generator backup source activates and the automatic transfer switch senses loss of normal power and switches to emergency power.

The emergency module regains power and automatically goes into emergency mode (full output, relay closed and 0-10 V signal goes to 10.0 V) for 120 minutes. All local buttons, Pico wireless controls and occupancy/daylight sensors will not respond.

When normal power is restored to the Vive hub and emergency module, the emergency module will return to the previous light level within 3-10 minutes of normal power being restored. It will again accept local button control, input from Pico wireless controls, and occupancy/daylight sensors.

System Wiring Diagram (Vive Hub with 347V Emergency Dimming Module) 347 V~ Normal Feed Neutral (N)

120/277 V~ Normal Feed

Wiring Schematic * NOTE: Solution is not applicable for an

Neutral (N)

120/277 V~ Normal Feed Neutral (N)

24 VCommon

Regular Utility Power

Regular Utility Power Junction Box

Line/Hot (L)

To additional RMJS-5T-347-EM units

Junction Box

Neutral (N) Switched Line/Hot

Switched Line/Hot

Normal 0 – 10 VDriver

Neutral (N)

Uninterruptable Power Supply (UPS) backup system. RMJS-PNE-DV-EM must see a complete change-over of power from normal to emergency for the unit to go into emergency mode.

24 VCommon

Junction Box

Junction Box

Line / Hot (L) Neutral (N)

Dimmed Line / Hot

Dimmed Line / Hot

Normal 0 – 10 VDriver

Normal Load

Normal Load 50019164a

RMJS-5T-347

RMJS-PNE-DV

RMJS-5T-347

* NOTE: Solution is not applicable for an

347 V~ Normal Feed

347 V~ Generator/ Emergency Feed

120/277 V~ Generator / Emergency Feed Neutral (N)

Automatic Transfer Switch 347 V~ Emergency Feed

Emergency Power Junction Box

To additional RMJS-5T-347-EM units

Neutral (N)

Automatic Transfer Switch

120/277 V~ Emergency Feed

Junction Box

Neutral (N) Dimmed Line / Hot

Switched Line/Hot

* For all applicable emergency Vive models and wiring diagrams (see Lutron App Note 628 Emergency Lighting with a Vive System)

50019164a

RMJS-5T-347-EM

To additional RMJS-PNE-DV-EM units

Not Provided by Lutron

Normal / Emergency 0 – 10 V- Driver

Not Provided by Lutron

48 | Lutron

RMJS-PNE-DV

Neutral (N)

Neutral (N)

Emergency Power

lutron.com

120/277 V~ Normal Feed

Uninterruptable Power Supply (UPS) backup system. RMJS-5T-347-EM must see a complete change-over of power from normal to emergency for the unit to go into emergency mode.

Neutral (N)

To additional RMJS-PNE-DV units

91

lutron.com

RMJS-PNE-DV-EM

Normal / Emergency Load

Lutron Lutron||49 49

Load controllers: In-wall switches and dimmers

How to design and specify

How to design and specify

Select one switch per lighting zone

Select one wireless dimmer per lighting zone

•

Select appropriate model based on the size of the connected load

Select appropriate model based on the size and type of existing load

•

Maestro wireless switches

W: 2.94" (75 mm) H: 4.69" (119 mm) D: 1.44" (38 mm)

- 6 A: 600 W lighting @ 120 V

•

Most models do not require a neutral

- 8 A: 960 W lighting @ 120 V or 2216 W @ 277 V

•

Select from up to 27 colors to complement the décor*

If existing switch does not have a neutral, choose the model available for 120/277 V with no neutral required

•

Maestro wireless dimmers

Select from up to 27 colors to complement the décor*

•

Dimensions

•

Add an additional Pico remote for rooms with multiple switches for a single zone

Product options

Gray models (-GR) are plenum rated for mounting in ceiling applications

W: 2.94" (75 mm) H: 4.69" (119 mm) D: 1.44" (38 mm)

Product options Maestro Wireless dimmers

Dual Voltage No Neutral switches

MRF2S-6CL-XX 150 W dimmable CFL/LED, 600 W incandescent/halogen

MRF2S-8S-DV-XX 8 A lighting, 1/10 HP fan @ 120 V only, 120-277 V, no neutral

MRF2S-6ELV120-XX 600 W ELV, 120 V MRF2S-6ND-120-XX 600 W/VA incandescent/halogen/ MLV, 120 V 1-8 Lutron LTE drivers, 350 W max

120 V Neutral required switches

MRF2S-8ANS-120-XX

Dimensions

•

•

MRF2S-6ANS-XX

Add an accessory dimmer or a Pico wireless remote for rooms with multiple switches for a single zone

•

Switch/Dimmers

•

6 A lighting, 1/10 HP fan, 120 V only

MA-R-XX Accessory dimmer for multi-location lighting controls, 120 V

8 A lighting, 1/4 HP fan, 120 V only

* (XX in the model number represents color/finish code; use WH for White; please visit lutron.com for other color choices.)

50 | Lutron

92

Lutron | 51

Load controllers: In-wall switches and dimmers

Features and benefits Easy to install; directly replaces an existing control in a wallbox

•

Combines occupancy sensing, manual control, and system connectivity in one piece of hardware

•

NEMA WD7 Test Grid Coverage (High Sensitivity Setting)

Easily add additional wall controls and sensors without running any new wires

•

Horizontal Beam Diagram (For Reference Only)

Major motion coverage: 900 ft2 (81 m2) Minor motion coverage: 400 ft2 (36 m2)

Connect to a Vive wireless hub for system features such as timeclock, energy reporting, and demand response/load shed

•

Maestro Wireless 0-10 V Dimmer Sensor

Sensor coverage diagrams

)

Lutron XCT technology for superior sensitivity prevents false ons and false offs

•

Dimensions W: 2.94" (75 mm) H: 4.69" (119 mm) D: 1.44" (38 mm)

How to design and specify )

Select one dimmer or switch per lighting zone

Switch/Dimmers

•

Select appropriate model based on type of load:

•

- 120 – 277 V~ 8 A Electronic fluorescent ballast or LED drivers -C ontrols up to 50mA of 0-10 V fixtures, sink only (0-10 V Dimmer version)

)

- Neutral required Add additional Pico remotes for rooms with multiple switches for a single zone

•

Add additional wireless occupancy and/or daylight sensors for additional coverage area and functionality

•

)

Product options Vertical Beam Diagram (For Reference Only)

Standard MRF2S-8SD010-XX 0-10 V Wallbox Occupancy/Vacancy Sensor Dimmer MRF2S-8SS-XX

Wallbox Occupancy/Vacancy Sensor Switch

MRF2S-8SDV010-XX 0-10 V Wallbox Vacancy Sensor Dimmer MRF2S-8SSV-XX

52 | Lutron

Wallbox Vacancy Sensor Switch

(XX in the model number represents color/finish code)

93

Lutron | 53

Remotes: Pico wireless remotes

How to design and specify

How it works

Select one 2-button Pico wireless remote to add a location with ON/OFF control

•

Select one 3-button Pico wireless remote to add a location with ON/OFF control and one preset

•

No wires—put it where it’s most accessible

•

Pedestal mount for tabletop use

•

Surface mount anywhere with Claro wallplate

•

10-year battery life

•

Pico wireless remotes 3-button

3-button with raise/ lower

3-button nightlight with raise/ lower

Select one 2-button with raise/lower Pico wireless remote to add a location with ON/OFF and BRIGHTEN/DIM control

•

Select one 3-button with raise/lower Pico wireless remote to add a location with ON/OFF, BRIGHTEN/DIM control and one preset

•

Select whether a nightlight is needed (2-button and 3-button with raise/lower only)

•

Note: Spaces with a PowPak relay or dimming module will not have a local control in the room unless a Pico is added

2-button with raise/ lower

2-button

Product options 2-button remotes

(33 mm) (66 mm) (8 mm)

PJ2-2BRL-XXX-L01 2-button with raise/lower wireless remote PJ2-2B-XXX-L01

2-button wireless remote

Pico remote

Dimensions W: 1.28" H: 2.60" D: 0.33"

2-button nightlight

PJN-2B-GXX-L01 Nightlight 2-button wireless remote

Dim lights to reduce glare on screen

3-button remotes PJ2-3BRL-XXX-L01 3-button with raise/lower wireless remote PJ2-3B-XXX-L01

3-button wireless remote

PJN-3BRL-GXX-L01 Nightlight 3-button with raise/lower wireless remote

54 | Lutron

(XX in the model number represents color/finish code)

Pico wall mounted (in a wallplate) — Add a new point of control anywhere with absolutely no wires

94

Raise lights for reading visibility

Individual fixture control

Lutron | 55

Remotes: Pico wireless remotes and accessories

How to design and specify

How to design and specify

The Pico wireless remote is a flexible and easy-to-use device that allows the user to control Lutron wireless load-control devices from anywhere in the space. This battery-operated control requires no external power or communication wiring.

•

Pico wireless remotes 4-button 2-group control

4-button zone control

4-button scene control

Select one Pico pedestal for each tabletop location based on the number of Pico remotes at each location

•

Tabletop accessories

Product options

Product options

Tabletop accessories

4-button remotes Dimensions

PJ2-4B-GWH-L21P

2-group control

W: 1.28" H: 2.60" D: 0.33"

PJ2-4B-GWH-L01

Zone control

PJ2-4B-GWH-L31

Scene control

(33 mm) (66 mm) (8 mm)

L-PED1-WH

pedestal for one Pico remote

L-PED2-WH

pedestal for two Pico remotes

L-PED3-WH

pedestal for three Pico remotes

L-PED4-WH

pedestal for four Pico remotes

Custom-engraved models for Zone control keypads (-L01, -S01) and Scene control keypads (-L31, -S31) are available but require a different set of button marking codes when ordering

•

How to design and specify

Note: 2-Group (-L21, -S21, -LS21) controls are not offered with the custom engraving option).

Select one Pico wallbox adapter for each Pico that you would like wall mounted with a Claro-style wallplate

•

Select one Claro wallplate (up to 4-gang) for all Pico and Maestro Wireless wall-mounted control locations where Claro style is desired

Standard Engraving

Custom Engraving

Lights

-L01

-EL1

Product options

Shades

-S01

-ES1

Wall-mount accessories

Lights

-L31

-EL2

Shades

-S31

-ES2

Button Marking Codes

Zone Control

Scene Control

PICO-WBX-ADAPT

Pico wallbox adapter

CW-1-WH

Claro 1-gang wallplate

CW-2-WH

Claro 2-gang wallplate

CW-3-WH

Claro 3-gang wallplate

CW-4-WH

Claro 4-gang wallplate

Pico remote

•

Wall-mount accessories Pico wallplate adapter and Claro wallplate Dimensions

56 | Lutron

95

W: 2.94" (75 mm) H: 4.69" (119 mm) D: 1.44" (38 mm)

Lutron | 57

Sensors: Ceiling occupancy/vacancy sensors

How to design and specify

Sensor coverage diagrams

A single occupancy sensor can communicate to all control devices in the room • Use in small rooms or areas with medium to high partitions • For 8 ft ceilings: 484 ft2 • For 12 ft ceilings: 676 ft2 •

Wireless occupancy/ vacancy sensors Dimensions W: 3.57" H: 3.57" D: 1.13"

(91 mm) (91 mm) (29 mm)

Ceiling mount, 360°

Floor view Ceiling

Ceiling-mount sensors

LRF2-VCR2B-P-WH

Key:

8 ft Ceiling (2.4 m) Ceiling 8 ft height (2.4 m) Ceiling height Floor

Product options LRF2-OCR2B-P-WH

Coverage varies by ceiling height

Minor motion Major motion

15 ft 12 ft 9 ft 6 ft 3 ft 0 ft 3 ft 6 ft 9 ft 12 ft 15 ft Floor (4.6 m) (3.7 m) (2.7 m) (1.8 m) (0.9 m) (0 m) (0.9 m) (1.8 m) (2.7 m) (3.7 m) (4.6 m)

Occupancy/vacancy

15 ft 12 ft 9 ft 6 ft 3 ft 0 ft 3 ft 6 ft 9 ft 12 ft 15 ft (4.6 m) (3.7 m) (2.7 m) (1.8 m) (0.9 m) (0 m) (0.9 m) (1.8 m) (2.7 m) (3.7 m) (4.6 m)

Vacancy only

Top view

Accessories L-CMDPIRKIT

Ceiling-mount sensor lens masking kit

L-CRMK-WH Ceiling-mount sensor recessmounting bracket Wire cage guard

L-WIRECAGE-C

Sensor Sensor

Wire guard for ceiling-mount sensor

Dimensions W: 7.0" D: 3.25"

Occupant

(178 mm) (83 mm)

Occupant

9 ft 6 ft 3 ft 0 ft 3 ft 6 ft 9 ft (2.7 m) (1.8 m) (0.9 m) (0 m) (0.9 m) (1.8 m) (2.7 m)

Ceiling-mount sensor coverage chart (for sensor mounted in center of room) Ceiling height

Maximum room dimensions for complete floor coverage

Radius of coverage at floor

8 ft (2.4 m)

18 x 18 ft (5.5 x 5.5 m)

324 ft2 (30.2 m2)

13 ft

(4.0 m)

9 ft (2.7 m)

20 x 20 ft (6.1 x 6.1 m)

400 ft2 (37.2 m2)

14.5 ft

(4.4 m)

10 ft (3.0 m)

22 x 22 ft (6.7 x 6.7 m)

484 ft2 (44.9 m2)

16 ft

(4.9 m)

12 ft (3.7 m)**

26 x 26 ft (7.9 x 7.9 m)

676 ft2 (62.4 m2)

19 ft

(5.8 m)

* Sensor mounting shown at 7 ft (2.1 m). Mounting height should be between 6 and 8 ft (1.6 and 2.4 m). ** 12 ft (3.7 m) is the maximum mounting height allowed.

58 | Lutron

96

Lutron | 59

Sensors

9 ft 6 ft 3 ft 0 ft 3 ft 6 ft 9 ft (2.7 m) (1.8 m) (0.9 m) (0 m) (0.9 m) (1.8 m) (2.7 m)

Sensors: Wall-/Hall-/Corner-mount occupancy/vacancy sensors

How to design and specify

Sensor coverage diagrams

A single occupancy sensor can communicate to all control devices in the room

Wall mount*, 180°

Corner mount*, 90°

1,500 ft2—minor motion

1,225 ft2—minor motion

3,000 ft2—major motion

2,500 ft2—major motion

Top view

Top view

25 ft (7.6 m)

50 ft (15.2 m)

•

Product options Radio Powr Savr wireless sensors Dimensions W: 1.8" H: 4.35" D: 1.35"

(46 mm) (110 mm) (34 mm)

Wall-mount sensors Use in large open rooms with few tall obstructions

Coverage: 3,000 ft2

Key: Minor motion Major motion

•

15 ft (4.6 m)

•

LRF2-OWLB-P-WH LRF2-VWLB-P-WH

Occupancy/vacancy

35 ft (10.7 m) 0 ft (0 m)

Vacancy only

Corner-mount sensors

15 ft (4.6 m)

Use in medium to large open rooms with few tall obstructions

Coverage: 2,500 ft2

•

25 ft (7.6 m)

•

LRF2-OKLB-P-WH LRF2-VKLB-P-WH

50 ft (15.2 m)

0 ft (0 m)

60 ft (18.3 m)

0 ft (0 m)

Occupancy/vacancy

Hallway*, long narrow field of view

Vacancy only

0 ft (0 m)

35 ft (10.7 m)

50 ft (15.2 m)

Coverage varies by hallway width and length

Hallway sensors

Dimensions W: 3.62" H: 2.18"

(92 mm) (55 mm)

Top view

For a 6 ft wide hallway: 50 ft coverage • For a 10 ft wide hallway: 150 ft coverage

10 ft (3.0 m)

•

LRF2-OHLB-P-WH LRF2-VHLB-P-WH

5 ft (1.5 m) 0 ft (0 m)

Occupancy/vacancy

5 ft (1.5 m)

Vacancy only

10 ft (3.0 m)

0 ft (0 m)

Accessories LRF-ARM-WH Flexible armature mounting kit for Radio Powr Savr wall, hall, corner sensors Wire cage guard

L-WIRECAGE-C

Wire guard for ceiling-mount sensor

Dimensions

L-WIRECAGE-W

Wire guard for in-wall sensor

W: 7.0" H: 5.75" D: 4.5"

150 ft (45.7 m)

Sensors

Flexible armature mounting kit

Hallway sensor maximum recommended length chart (sensor centered within hallway)

(178 mm) (146 mm) (114 mm)

Width of hallway

Length of hallway

6 ft

(1.6 m) or less

50 ft

(15.2 m)

8 ft

(2.4 m)

100 ft

(30.5 m)

10 ft (3.0 m) or more

150 ft

(45.7 m)

* Sensor mounting shown at 7 ft (2.1 m). Mounting height should be between 6 and 8 ft (1.6 and 2.4 m). ** 12 ft (3.7 m) is the maximum mounting height allowed.

60 | Lutron

97

Lutron | 61

Sensors: Daylight sensors

How to design and specify

Sensor coverage diagrams

A single daylight sensor is capable of controlling: - All Maestro switching and dimming zones - All PowPak switching zones - All PowPak dimming modules with 0-10 V control

Bottom of sensor

•

Wireless daylight sensors Dimensions W: 1.6" H: 1.6" D: 0.7"

(41 mm) (41 mm) (17 mm)

Loc Bottom of sensor

Arro by t Loc (tow Arro by t (tow

1-2 H

Product options

1-2 H

Daylight sensor

Location for average size areas

LRF2-DCRB-WH

Arrow points towards the area viewed by the sensor (towards windows).

Daylight sensor

H 3 ft (1 m)

H

H = Effective Window Height

3 ft (1 m)

* Sensor mounting shown at 7 ft (2.1 m). Mounting height should be between 6 and 8 ft (1.6 and 2.4 m).

H = Effective Window Height

** 12 ft (3.7 m) is the maximum mounting height allowed.

Bottom of sensor

Loc (cor

Bottom of sensor

Loc Arro by th (cor (awa Arro

Location for narrow areas (corridors, private offices)

Sensors

Arrow points towards the area viewed by the sensor (away from window).

by th (awa

62 | Lutron

98

Lutron | 63

Lutron service solutions

Available setup support services

Available startup services

Blocks of setup support time

Onsite full-scope startup

Lutron Services Representative — either onsite or remotely — supports the installation team in setting up the system • Utilize the technician’s time in the way that best suits your needs: training, punch list items, or complete programming independently • Mix and match remote and onsite blocks of time and use them when you need them during the construction timeline • Choose the amount of time you need •

Setup support services

Full-scope startup

4- & 8-Hour onsite blocks

Product options

4-Hour remote blocks

Blocks of setup support time

Additional setup support services

Lutron Service Representative onsite to ensure proper system startup and configuration • Train facilities staff to best utilize and maintain the lighting control assets • Reduce risk and keep your Installation team small by having us do the setup for you.

• Includes a Commercial System Limited Warranty • Onsite startup enhancements available •

Onsite

LSC-OS-PROG8-SP

8 hours of onsite setup support

LSC-OS-PROG4-SP

4 hours of onsite setup support

LSC-RMT-PROG4-SP

4 hours of remote setup support

Remote full-scope startup

Remote

Dedicated Lutron Remote Technician works with your installation team to ensure proper system startup and configuration • Introduce end-user facilities staff to system components and resources available • Less lead time to schedule than onsite startup • Lower cost than onsite startup • Commercial system limited warranty available •

Additional setup support services available with blocks and startup

LSC-PREWIRE

Prewire visit

Product options

LSC-TRAINING

Customer-site solution training

Setup service models

LSC-AF-VISIT

Onsite scene and level tuning

LSC-WALK

Onsite performance— verification walk-through

Full scope startup LSC-OS-SU-VIVE

Onsite full-scope startup

LSC-RMT-SU-VIVE

Remote full-scope startup

Startup enhancements (Available with onsite full-scope startup) LSC-AH-SU

Startup performed at night or weekends

64 | Lutron

99

LSC-SENS-LT

Sensor layout & tuning

LSC-SPV-DOC

System performance— verification documentation

LSC-SPV-DOC-T24

Title 24 acceptance test visit

Service Solutions

(weekend work available in certain locations)

Lutron | 65

Lutron service solutions

Vive warranty & technology support

Available Operational Services

Commercial system limited warranty

Support the facilities team to maximize system potential Reprogram the system as space needs change over time • Support retro-commissioning requirements • Pre-purchase with the system to capture costs in capital budget • •

The commercial system limited warranty offers 5 years of parts coverage, 2 years of first-available onsite/remote response time for system issues, and 24/7 technical support. Warranty included with onsite full-scope startup & available with remote full-scope startup

Product options Operational service models Operational services Operational services Solution training System optimization Onsite reconfiguration Remote reconfiguration

Technology Support Plans (TSPs) All Lutron Technology Support Plans provide 100% parts and diagnostic labor coverage for up to 10 years. Optional response-time guarantees and preventive maintenance visits enable the coverage to be customized to meet the facility’s needs. TSPs are available for any Vive system; a warranty audit visit will be included with the purchase of a TSP when full-scope startup is not purchased.

Product options

Product options Vive Technology Support Plans

LSC-TRAINING

Customer-site solution training

Vive limited warranty

LSC-SYSOPT

System optimization service

LSC-B2

LSC-OS-PROG8-EN

8 hours of onsite reconfiguration support

LSC-OS-PROG4-EN

4 hours of onsite reconfiguration support

LSC-RMT-PROG4-EN

4 hours of remote reconfiguration support

Commercial System 2-Year Limited

Remote and onsite services are also available for purchase after the system is in operation at hourly, half-day and full-day rates; contact Lutron at lscwarranty@lutron.com for more information.

LSC-SILV-IW Silver Level Technology Support Plan LSC-GOLD-IW

Gold Level Technology Support Plan

LSC-PLAT-IW

Platinum Level Technology Support Plan

LSC-WARR-AUD Warranty Audit Visit

Note: For detailed warranty and technology support plan descriptions see lutron.com/services

Vive warranty information

Support Options

Commercial System Limited Warranty

Duration up to 10 years of coverage

Silver (TSP)

Gold (TSP)

Platinum (TSP)

•

•

•

•

•

100% Replacement Parts

• (5 yrs)

•

Diagnostic Labor— First Available Response

• (2 yrs)

•

Diagnostic Labor— 72-Hour Response

•

Diagnostic Labor — 24-Hour Response Annual Preventive Maintenance Visit

66 | Lutron

100

• •

•

Lutron | 67

Service Solutions

Vive wireless solutions are all covered by a 5-year parts warranty with registration of the product. Additional technology support options are available to meet your project needs. See the options below.

Ordering information

Model Number

Description

List Price (US)

Model Number

Vive wireless hub Surface-mount installation adapter

80.00

HJS-0-FM

Starter Vive wireless hub, flush mount

1,700.00

HJS-1-FM

Standard Vive wireless hub, flush mount

HJS-1-SM

Standard Vive wireless hub, surface mount

HJS-2-FM

Premium Vive wireless hub, flush mount

HJS-2-SM

Premium Vive wireless hub, surface mount

VIVE-VUE

Vive Vue Software Dashboard License

HJS-UPDATE

Software upgrade license to add BACnet and API

HJS-DEVICES

Software upgrade license expands device limit to 700 devices

Contact Lutron sales for a quote

5 A relay

111.00

RMJS-5RCCO1-DV-B

5 A relay with one contact closure output

126.00

RMJS-16R-DV-B

16 A relay

131.00

RMJS-16RCCO1DV-B

16 A relay with one contact closure output

146.00

PowPak dimming module

141.00

RMJS-20RCCO1DV-B

20 A Receptacle Control Relay Module with contact closure output

156.00

CAR2S-15-STR

15 A Split (half switching; single pole/downstream, 120 V

173.00

CAR2S-15-DTR

15 A Duplex (dual switching; single pole/downstream, 120 V

173.00

CAR2S-20-STR

20 A Split (half switching; single pole/downstream, 120 V

193.00

CAR2S-20-DTR

20 A Duplex (dual switching; single pole/downstream, 120

193.00

FCJS-010

0-10 V Control Module

79.00

FCJS-ECO

EcoSystem Control Module

79.00

FCJS-010-BULK8

0-10 V Control Module 8-pack

610.00

FCJS-ECO-BULK8

EcoSystem Control Module 8-pack

610.00

FC-SENSOR

Occupancy/Daylight Sensor

35.00

FC-VSENSOR

Vacancy/Daylight Sensor

35.00

DFCSJ-OEM-RF*

Vive Integral Fixture Control (RF Only)

60.00

DFCSJ-OEM-OCC*

Vive Integral Fixture Control (with Sensing)

70.00

UL 924 rated emergency wireless load controllers

RMJS-8T-DV-B

8 A 0-10 V controller-connector

152.00

RMJS-8TN-DV-B

8 A 0-10 V controller-flying leads

152.00

RMJS-ECO32-SZ

Single zone EcoSystem/DALI controller

152.00

RMJS-PNE-DV

Phase Select dimming module

240.00

RMJS-5T-347

5A 0-10V dimmer for 347V

180.00

5T-347-DIVIDER

Divider for class 1 & class 2 separation

9.00

PowPak contact closure output module one contact closure output

20 A Receptacle Control Relay Module

Individual fixture control

PowPak relay module RMJS-5R-DV-B

RMJS-20R-DV-B

Wireless Receptacle

Contact Lutron sales for a quote

Vive Vue Dashboard Software

68 | Lutron

List Price (US)

PowPak relay module

H-MOUNT-SM

RMJS-CCO1-24-B

Description

RMJS-16R-DV-B-EM

Emergency rated 16 A relay

182.00

RMJS-8T-DV-B-EM

Emergency rated 8 A, 0-10 V dimmer

203.00

FCJS-ECO-EM

Emergency rated EcoSystem control module

128.00

FCJS-010-EM

Emergency rated 0-10 V control module

130.00

RMJS-PNE-DV-EM

Emergency rated Phase Select dimming module

280.00

RMJS-5T-347-EM

Emergency rated 5A, 0-10 V controller for 347 V

235.00

* Contact your local fixture representative and ask for a Vive-enabled fixture or visit lutron.com/findafixture Fixture adders may vary.

111.00

101

Lutron | 69

Ordering information

Model Number

Description

List Price (US)

Model Number

Maestro Wireless switches*

Description

List Price (US)

Pico wireless remotes*

MRF2S-6ANS-XX

6 A lighting, 3 A fan (1/10 HP motor), 120 V

110.00

MRF2S-8S-DV-XX

8 A lighting, 3 A fan (1/10 HP motor, 120 V only), spec grade

173.00

MRF2S-8ANS-120-XX

8 A lighting, 5.8 A fan (1/4 HP motor), spec grade, 120 V

142.00

Maestro Wireless dimmers*

PJ2-2BRL-XXX-L01

2-button with raise/lower

25.00

PJ2-2B-XXX-L01

2-button

25.00

PJN-2B-GXX-L01

Nightlight 2-button

58.00

PJ2-3BRL-XXX-L01

3-button with raise/lower

21.00

PJ2-3B-XXX-L01

3-button

25.00

MRF2S-6CL-XX

150 W dimmable CFL/LED, 600 W incandescent, halogen

110.00

PJN-3BRL-GXX-L01

Nightlight 3-button with raise/lower

58.00

MRF2S-6ELV120-XX

600 W ELV, 120 V

212.00

PJ2-4B-XXX-L21

4-button with 2 group control

39.00

MRF2S-6ND-120-XX

600 W/VA incandescent/halogen/MLV, 120 V

152.00

PJ2-4B-XXX-L01

4-button with zone control

25.00

MRF2S-8SD010-XX

0-10 V Wallbox Dimmer Sensor

180.00

PJ2-4B-XXX-L31

4-button with scene control

39.00

MRF2S-8SS-XX

Wallbox Sensor Switch

160.00

* (XX in the model number represents color/finish code; price shown is for white (WH) models only.)

Price for other colors varies.

Maestro Wireless/Maestro occupancy sensing control companion devices* MA-AS-XX

Multi-location companion switch, 120 V

39.70

MA-R-XX

Multi-location companion dimmer, 120 V

31.50

Pico accessories*

* (XX in the model number represents color/finish code; use WH for White; please visit lutron.com for other color choices.) Price indicated for gloss finish products.

Maestro Colors Gloss Colors White (WH)

Hot (HT)

Terracotta (TC)

Palladium (PD)

S

Ivory (IV)

Merlot (MR)

Greenbriar (GB)

Mocha Stone (MS)

S

Almond (AL)

Plum (PL)

Bluestone (BG)

Goldstone (GS)

S

Light Almond (LA)

Midnight (MN)

Taupe (TP)

Desert Stone (DS)

S

Gray (GR)

Sienna (SI)

Eggshell (ES)

Stone (ST)

S

Brown (BR)

Biscuit (BI)

Limestone (LS)

S

Black (BL)

Snow (SW)

Pico wireless remote wallbox adapter

8.90

PICO-347WBX-ADAP

Pico wireless remote wallbox adapter for 347V

9.00

CW-1-XX

Claro 1-gang wallplate

5.00

CW-2-XX

Claro 2-gang wallplate

10.00

CW-3-XX

Claro 3-gang wallplate

15.20

CW-4-XX

Claro 4-gang wallplate

21.00

L-PED1-XX**

Pico wireless remote single pedestal

15.00

L-PED2-XX**

Pico wireless remote double pedestal

30.00

L-PED3-XX**

Pico wireless remote triple pedestal

100.00

* (XX in the model number represents color/finish code; use WH for White; please visit lutron.com for other color choices.) Price indicated for gloss finish products.

Satin Colors (Prices vary from Gloss Colors)

S

PICO-WBX-ADAPT

** (XX in the model number represents color/finish code; use WH for White; please visit lutron.com for other color choices.) Price indicated for White finish products.

Pico Colors Gloss Colors

Satin Colors

White (WH)

White/Gray (WG)

Snow (SW)

Ivory (IV)

Black (BL)

Biscuit (BI)

Light Almond (LA)

Midnight (MN)

* $56 not in white

70 | Lutron

102

Lutron | 71

Ordering Information

Model Number

Description

Model number

List Price (US)

Radio Powr Savr occupancy/vacancy sensors*

Description

Vive Startup Services

LRF2-OCR2B-P-WH

Ceiling-mount, 360° field-of-view, occupancy/vacancy sensor

89.00

LRF2-OWLB-P-WH

Wall-mount, 180° field-of-view, occupancy/vacancy sensor

89.00

LRF2-OKLB-P-WH

Corner-mount, 90° field-of-view, occupancy/vacancy sensor

89.00

LRF2-OHLB-P-WH

Hallway, occupancy/vacancy sensor

89.00

LSC-OS-SU-VIVE Onsite full-scope startup LSC-RMT-SU-VIVE Remote full-scope startup LSC-AH-SU After hours startup LSC-SENS-LT Sensor layout & tuning

Occupancy/vacancy sensor accessories L-CMDPIRKIT

Sensor lens masking kit for Radio Powr Savr ceiling sensor

12.50

L-CRMK-WH

Recess-mounting bracket for Radio Powr Savr ceiling sensor

18.00

LRF-ARM-WH Flexible armature mounting kit for Radio Powr Savr wall, hall, corner sensors

62.00

L-WIRECAGE-WBX Wire guard for in-wall sensor, White

68.00

LSC-SPV-DOC

System performance-verification documentation

LSC-SPV-DOC-T24

Title 24 acceptance test visit

LSC-OS-PROG8-SP

Onsite programming — 8-hour block Onsite programming —4-hour block

Wire guard for ceiling-mount sensor, White

68.00

LSC-OS-PROG4-SP

L-WIRECAGE-W

Wire guard for wall-mount and hallway sensors, White

68.00

LSC-RMT-PROG8-SP Remote programming —8-hour block

Radio Powr Savr daylight sensor Ceiling-mount daylight sensor

Contact Lutron sales for a quote

Vive Setup Support Services

L-WIRECAGE-C

LRF2-DCRB-WH

List Price (US)

125.00

Wallplates*

LSC-PREWIRE

Prewire visit

LSC-TRAINING

Customer-site solution training

LSC-AF-VISIT

Onsite scene and level tuning

LSC-WALK

Onsite performance-verification walkthrough

CW-1-XX

Claro 1-gang wallplate

5.00

CW-2-XX

Claro 2-gang wallplate

10.00

CW-3-XX

Claro 3-gang wallplate

15.20

LSC-TRAINING

Customer-site solution training

CW-4-XX

Claro 4-gang wallplate

21.00

LSC-SYSOPT

System optimization service

LSC-OS-PROG8-EN

8 hours of onsite reconfiguration support

LSC-OS-PROG4-EN

4 hours of onsite reconfiguration support

Contact Lutron sales for a quote

Vive Operational Services

* (XX in the model number represents color/finish code; use WH for White; please visit lutron.com for other color choices.) Price indicated for gloss finish products.

Contact Lutron sales for a quote

LSC-RMT-PROG4-EN 4 hours of remote reconfiguration support

Vive Limited Warranty and Technology Support Plans

72 | Lutron

103

LSC-B2

Commercial system limited warranty

LSC-SILV-IW

Silver level technology support plan

LSC-GOLD-IW

Gold level technology support plan

LSC-PLAT-IW

Platinum level technology support plan

LSC-WARR-AUD

Warranty audit visit

Contact Lutron sales for a quote

Lutron | 73

Standalone Solutions

In-wall: Occupancy/vacancy switches

•

Standalone solutions are not compatible with the Vive hub

Lutron XCT technology for superior sensitivity prevents false ons and false offs

•

Maestro sensor Dimensions W: 2.94" (75 mm) H: 4.69" (119 mm) D: 1.44" (38 mm)

•

Automatically turns lights off when space is unoccupied

•

Easy to install; directly replaces an existing control

Lutron's Smart Ambient Light Detection learns your preferences over time and adapts accordingly

•

Lutron’s Adaptive Zero-Cross Switching extends relay lifetime

•

180° sensor field-of-view; must have unobstructed view

•

Up to 900 ft2 major motion coverage and 400 ft2 minor motion coverage

•

Adjustable timeout—1, 5, 15, 30 minutes

•

Other energy saving devices by Lutron

Vacancy/partial-on models available to meet CA Title 24 requirements

•

Dual-circuit sensors provide bi-level control of two circuits, as required by specific energy codes

•

•

Select from up to 27 colors to complement the décor*

Product options

These devices do not integrate with the Vive system

Maestro dual-circuit sensor switch

Maestro sensor switch†

Dimensions

MS-OPS2-XX 2 A lighting, 120 V PIR occupancy/ vacancy; single pole, no neutral

W: 2.94" (75 mm) H: 4.69" (119 mm) D: 1.44" (38 mm)

MS-OPS5M-XX 5 A lighting, 120 V PIR occupancy/ vacancy; 3 A fan, multi-location/3-way/ single pole, no neutral MS-OPS6M2-DV-XX 6 A lighting, 120-277 V PIR occupancy/ vacancy, 3 A fan (120 V only); no neutral MS-OPS6M2N-DV-XX 6 A lighting, 120-277 V PIR occupancy/ vacancy, 3 A fan (120 V only); neutral required

* (XX in the model number represents color/ finish code; use WH for White; please visit lutron.com for other color choices.) See Maestro colors on page 51. †

74 | Lutron

104

Vacancy-only models available. Replace the "O" in the model number with a "V".

Maestro dual-circuit sensor switch MS-OPS6-DDV-XX 6 A lighting per circuit, 120-277 V PIR dual-circuit occupancy/vacancy; 4.4 A fan (120 V only) per circuit; single pole

Lutron | 75

Standalone

Features and benefits

Standalone Solutions

In-wall: Occupancy/vacancy switches

• •

• •

Maestro dual-technology sensor switch

•

Dimensions

•

W: 2.94" (75 mm) H: 4.69" (119 mm) D: 1.44" (38 mm)

• •

Features and benefits

Standalone solutions are not compatible with the Vive hub

•

Lutron XCT technology greatly enhances the performance of dual-technology sensors, enabling them to detect very fine motion like typing

Standalone solutions are not compatible with the Vive hub

Lutron XCT technology for superior sensitivity prevents false ons and false offs

•

Automatically turns lights off when space is unoccupied Easy to install; directly replaces an existing control Lutron's Smart Ambient Light Detection learns your preferences over time and adapts accordingly

In-wall PIR occupancy/ vacancy sensor switches

Lutron’s Adaptive Zero-Cross Switching extends relay lifetime

Dimensions

180° sensor field-of-view; must have unobstructed view

W: 2.94" (75 mm) H: 4.69" (119 mm) D: 1.44" (38 mm)

•

Automatically turns lights off when space is unoccupied

•

Easy to install; directly replaces an existing control

Lutron's Smart Ambient Light Detection learns your preferences over time and adapts accordingly

•

180° sensor field-of-view; must have unobstructed view

•

Up to 900 ft2 major motion coverage and 400 ft2 minor motion coverage

Up to 900 ft2 major motion coverage and 400 ft2 minor motion coverage

•

Adjustable timeout—1, 5, 15, 30 minutes

•

Vacancy models available to meet CA Title 24 requirements

•

•

Adjustable timeout—1, 5, 15, 30 minutes

•

Vacancy models available to meet CA Title 24 requirements

•

•

Dual-circuit sensors provide bi-level control of two circuits, as required by specific energy codes Select from up to 27 colors to complement the décor*

0-10 V dimmer sensor‡

Maestro sensor switch†

MS-Z101-XX 8 A lighting 120-277 V; occupancy/ vacancy; multi-location/3-way/single pole

Vacancy only models available. Add "-V-" before the color code (XX).

†

76 | Lutron

Controls electronic LED drivers and fluorescent ballasts Miswire and load incompatibility alert —lens will flash red if control is miswired or connected to an incompatible fixture

6 A lighting, 120-277 V dual-tech occupancy/vacancy sensor, 4.4 A fan (120 V only); multi-location/3-way, neutral required

Selectable dimming curve optimizes performance of 0-10 V LED drivers

•

Lutron’s Adaptive Zero-Cross Switching extends relay lifetime

•

Maestro dual-circuit sensor switch

MS-A202-XX

* (XX in the model number represents color/ finish code; use WH for White; please visit lutron.com for other color choices.)

See Maestro colors on page 51.

A lighting, 120-277 V dual-tech 6 occupancy/vacancy sensor, 4.4 A fan (120 V only); single pole, no neutral •

MS-B102-XX

Dimensions W: 2.94" (75 mm) H: 4.69" (119 mm) D: 1.44" (38 mm)

Product options

Product options MS-A102-XX

Maestro dual-technology, dual-circuit sensor switch

Select from up to 27 colors to complement the décor*

•

6 A lighting per circuit, 120-277 V dual-tech occupancy/vacancy, 4.4 A fan (120 V only) per circuit; single pole, no neutral * (XX in the model number represents color/ finish code; use WH for White; please visit lutron.com for other color choices.) See Maestro colors on page 51.

MS-B202-XX 6 A lighting per circuit, 120-277 V dual-tech occupancy/vacancy sensor, 4.4 A fan (120 V only) per circuit; 3-way, neutral required

†

105

Vacancy-only models available. Replace the "O" in the model number with a "V".

Lutron | 77

Standalone

Features and benefits

In-wall: Occupancy/vacancy switches

Features and benefits

Model number

•

Standalone solutions are not compatible with the Vive hub

•

C•L dimmer for control of screw-based CFLs and LEDs

Product options

2 A lighting, 120 V PIR occupancy/vacancy; single pole, no neutral

29.90

5 A lighting, 120 V PIR occupancy/vacancy; 3 A fan, multi-location/3-way/single pole, no neutral

42.80

6 A lighting, 120-277 V PIR occupancy/vacancy, 3 A fan (120 V only); no neutral

55.00

MS-OPS6M2N-DV-XX 6 A lighting, 120-277 V PIR occupancy/vacancy, 3 A fan (120 V only); neutral required

53.00

MS-OPS6M2U-DV-XX 6 A lighting, 120-277 V PIR occupancy/vacancy, 3 A fan (120 V only); configurable ground or neutral wire

54.00

MS-OPS5M-XX

C•L dimmer sensor† MSCL-OP153M-XX

Dimensions W: 2.94" (75 mm) H: 4.69" (119 mm) D: 1.44" (38 mm)

List Price (US)

Sensor switches * MS-OPS2-XX

C•L dimmer sensor†

Description

MS-OPS6M2-DV-XX L dimmer with PIR sensor; C occupancy/vacancy; multi-location/3-way/single pole; 150 W CFL/LED, 600 W incandescent/halogen •

* (XX in the model number represents color/finish code; use WH for White; please visit lutron.com for other color choices.) See Maestro colors on page 49.

Dual-circuit sensor switches * MS-OPS6-DDV-XX

Vacancy-only models available.

Replace the “O” in the model number with a “V”.

†

MS-PPS6-DDV-XX

For dual-tech or 0-10 V vacancy models, Add “-V-” before the color code (XX).

‡

6 A lighting per circuit, 120-277 V PIR dual-circuit occupancy/ vacancy; 4.4 A fan (120 V only) per circuit; single pole

92.00

6 A lighting per circuit, 120-277 V PIR dual-circuit partial-on occupancy/vacancy, 4.4 A fan (120 V only) per circuit; single pole

92.00

Dual-technology sensor switches * *

Sensor coverage diagrams

MS-A102-XX MS-B102-XX

In-wall PIR beam diagram (for reference only)

6 A lighting, 120-277 V dual-tech occupancy/vacancy sensor, 4.4 A fan (120 V only); single pole, no neutral

103.00

6 A lighting, 120-277 V dual-tech occupancy/vacancy sensor, 4.4 A fan (120 V only); multi-location/3-way, neutral required

103.00

Dual-technology dual-circuit sensor switches * * 6 A lighting per circuit, 120-277 V dual-tech occupancy/vacancy, 4.4 A fan (120 V only) per circuit; single pole, no neutral

129.00

6 A lighting per circuit, 120-277 V dual-tech occupancy/ vacancy sensor, 4.4 A fan (120 V only) per circuit; 3-way, neutral required

129.00

MS-Z101-XX

8 A lighting 120-277 V; occupancy/vacancy; multi-location/ 3-way/single pole

114.00

MSCL-OP153M-XX

C L dimmer with PIR sensor; occupancy/vacancy; single pole/3-way/multi-location; 150 W CFL/LED, 600 W incandescent/halogen

56.00

MS-A202-XX MS-B202-XX

20 ft (6 m)

10 ft (3 m)

5 ft (1.5 m)

0

5 ft (1.5 m)

10 ft (3 m)

20 ft (6 m)

30 ft (9 m)

20 ft (6 m)

10 ft (3 m)

0

10 ft (3 m)

20 ft (6 m)

30 ft (9 m)

Sensor dimmers * *

* Sensor mounting shown at 7 ft (2.1 m). Mounting height should be between 6 and 8 ft (1.6 and 2.4 m).

•

* Vacancy models available to meet California Title 24 section 119(j) requirements. ** For dual-tech or 0-10 V vacancy models, add "-V-" before the color code (XX).

78 | Lutron

106

Lutron | 79

For a list of all Vive wireless solutions product model numbers and pricing see lutron.com/vive

Questions?

call us

1.844.588.7661

lutron.com Lutron Electronics Co., Inc., 7200 Suter Road, Coopersburg, PA 18036-1299 Customer Assistance Online: lutron.com/help Email: support@lutron.com Phone: 1.844.LUTRON1 (588.7661) — includes 24/7 technical support

I

© 03/2021 Lutron Electronics Co., Inc. P/N 367-2597 REV R

107

SHADING SYSTEMS

108

Automated Shading Systems

Precision design. Peerless technology. Lutron shades fuse refined aesthetics and human-centered innovation to deliver a set of experiences only Lutron can.

109

Automated Shades Solutions that put you in control of your light

110

The transformative power of light Think about how your mood changes when a drab, cloudy morning turns into a sun-kissed day, and then that bright afternoon sun softens into a dusky evening.

You go from feeling lackluster to energized and then relaxed.

Light energizes life.

Light not only changes the look of the day but also affects the way you feel.

Wouldn’t it be nice to adjust the amount of daylight in your home to complement your mood and even help transform it?

With Lutron Shading Solutions, you have the power to do that. The press of one button can shape the lighting in a space to create the perfect atmosphere for any activity.

Contents 2–3

The Lutron difference

4–9

Roller shades

10 – 15

Palladiom roller shades

16 – 17

Roller shade fabrics

18 – 21

Drapery track system

22 – 23

Horizontal sheer blinds

24 – 27

Wood blinds

28 – 33

Honeycomb shades

34 – 35

Roman shades

36 – 37

Custom fabric programs

38 – 39

Control styles

40 – 41

Lutron fabric collections

111

1

The Lutron difference •

•

•

•

•

•

•

•

Over 20 years of experience and knowledge in the automated shading industry, Lutron is the world leader in precision-controlled, automated shades Provides the entire shading solution — the shade itself, electronic drives, controls, power supplies, and hardware — ensuring the highest-quality products and a satisfying customer experience Broad breadth of line, with eight shade styles and over 1,000 materials and fabrics for any budget or application Collaboration with world-leading textile manufacturers to offer only the highest quality fabrics and materials on our shades Exceptional attention to detail for functional — and beautiful — controls, and a wide selection of styles, colors, and finishes Seamless integration of daylight, electric light, security systems, and HVAC systems for total home control solutions that allow for a more curated environment Works with best-in-class home solutions to provide ultra-reliable shade (and light) integration with your favorite brands Global 24/7 customer support

2

112

3

R O L L ER S H A D ES

Roller shades Sivoia QS roller shades complement both traditional and contemporary designs and are available in different sizes to accommodate the needs of any room. Sivoia QS shades are hard-wired solutions.

Precision control All Lutron shades feature intelligent hembar alignment, which was designed to synchronize all automated shades in a single room or an entire home.

Pocket (recessed into the ceiling) — offers blackout capability for the window and a protective enclosure for the entire shade system.

Fascia (decorative cover) — conceals the roller and is ideal for more conventional spaces as a square profile.

4

113

5

R O L L ER S H A D ES

Battery-powered roller shades Battery-powered shades are simple to install, easy to maintain, and ideal for areas that require a wire-free solution.

Battery basics Triathlon battery-powered roller shades feature industry-leading battery life and use replaceable, store-bought batteries. Innovative headrail design makes batteries easy to access and change.

Shade sizes Available in configurations up to 12 feet wide by 12 feet tall.

6

114

7

R O L L ER S H A D ES

Fascia options for battery-powered shades Architectural — provides a clean and contemporary aesthetic for spaces that require a modern finish.

Fabric-wrapped — ideal for applications with a more traditional design aesthetic, fabric-wrapped fascia provides a finished look with fabric to match your shades.

Exposed standard — this slim profile can be hidden with custom top treatments.

Exposed WIDR — this profile can be concealed with a custom top treatment or left uncovered for an industrial aesthetic.

8

115

9

PA L L A D I O M R O L L ER S H A D ES

Palladiom roller shades The Palladiom Shading System redefines the beauty of daylight control.

Available as a wired or wire-free, battery-operated system, these shades look beautiful from every angle and are designed to be installed without a fascia, pocket, or recess in exposed applications.

Palladiom bottom rail

10

116

11

PA L L A D I O M R O L L ER S H A D ES

Designed to fit anywhere Palladiom wired shades seamlessly blend into any architectural style.

Mount on or above the window frame to highlight the handsome end bracket, or tuck jamb brackets elegantly inside the frame.

End bracket

Center bracket

Jamb bracket

12

117

13

PA L L A D I O M R O L L ER S H A D ES

Wire-free flexibility The Palladiom Wire-Free Shading System brings batterypowered flexibility to the performance and craftsmanship of the Palladiom Shading System.

Lutron’s industry-best battery performance delivers 3 – 5 years of battery life on six, D-cell batteries.

14

118

15

R O L L ER S H A D E FA B R I C S

Fabrics for roller shades Choose from the highest quality fabrics and materials from world-leading textile manufacturers.

Sheer •

Open weaves preserve views to the outside and filter sunlight

Translucent •

Tighter weaves transform harsh daylight into a soft, filtered glow

Blackout •

Opaque fabrics block light from entering a space

16

119

17

D R A PERY T R AC K SYST EM S

Drapery track systems Drapery track systems electronically operate pinch pleat or ripplefold curtains to provide elegant, quiet, and convenient daylight control. All Lutron drapery is made with Customer’s Own Material (COM) to allow your window treatments to coordinate with the interior’s other textiles and furnishings.

Drapery sizes Lutron drapery track systems provide a wide range of options to suit your needs. Our systems allow for tracks up to 30 feet long, single or multi-bend curved tracks, manual-open override, track splicing, 90° curves, and more.

Straight-track system The straight track system is available in the following configurations: Single or dual track

•

Standard single track with lengths up to 18 feet; with up to 30 feet spliced

•

Curved track Lutron drapery track can be custom-curved to fit a curved wall, bay window, and many other special applications.

•

Standard arc: 90° bend with a 20-inch minimum radius

•

Custom arcs are also available (can accommodate center and single draw)

18

120

19

D R A PERY T R AC K SYST EM S

Pleat styles Pinch pleat — named for the pleated look created by pinched gatherings of the fabric at the top of the drapery. When installed, pins on the back of the drapery are simply looped through the carriers on the track.

Ripplefold — named for the soft, consistent ripples created by the drapery as it hangs from the track. Fullness of the drapery is determined by the carrier spacing. Lutron ripplefold tracks are available in three fullness factors: 80%, 100%, and 120%.

Mounting options Choose from wall or ceiling mount. Tracks can be mounted in a cove or recessed into the ceiling.

20

121

21

H O R IZO N TA L S H EER B L I N DS

Horizontal sheer blinds Horizontal sheer blinds pair the soft elegance of a sheer with the precise control of a blind.

Fabric vanes tilt in precise increments between open and closed positions, aligning perfectly across adjacent blinds.

22

122

23

WO O D B L I N DS

Wood blinds Wood blinds are an attractive and effective way to ensure privacy while still allowing sunlight to filter into a space. Only Lutron wood blinds offer independent lift and tilt for precision alignment of both height and angle positions between multiple blinds.

Preset

Open tilt

Closed

Note: Wood blinds are not available in Canada.

24

123

25

WO O D B L I N DS

Battery-powered wood blinds Triathlon battery-powered wood blinds feature Natural Light Optimization*, an advanced technology that allows blinds to automatically tilt to strategic angles throughout the day based on the sun’s position in the sky. The result is diffuse, direct sunlight that maximizes comfortable daylight. Schedules will adjust as the seasons change. These blinds feature a customized bottom rail so you can easily, manually lift or lower the blinds when necessary.

Finishes Handcrafted, 2-inch wood slats are made from genuine North American Basswood.

Available in 12 stained and 6 painted finishes to complement any interior.

Battery basics Triathlon battery-powered wood blinds feature industry-leading battery life and use store-bought batteries. Innovative headrail design makes batteries easy to access and change.

Note: Triathlon battery-powered wood blinds are not available in Canada. *Works with Caséta, RA2 Select, RadioRA 3, and HomeWorks systems with QSX processors

26

124

27

H O N E YC O M B S H A D ES

Honeycomb shades Triathlon battery-powered honeycomb shades are a traditional shade style, easy to maintain, and ideal for areas that require a wire-free solution.

Honeycomb shades come in varying opacities, from light-filtering to room darkening, allowing you to achieve the optimal level of light control and privacy for your space. In addition, all insulated honeycomb shade fabrics have a white backing that acts as a reflector to help keep your space cool and comfortable.

With these dual-sided fabrics, you can give each room a signature look while maintaining a uniform appearance from the outside.

Battery basics Triathlon battery-powered honeycomb shades feature industry-leading battery life and use store-bought batteries. Innovative headrail design makes batteries easy to access and change.

Cable-guided options Cable-guided honeycomb shades move smoothly and quietly along vertical cables that are mounted to the outside of a door or window frame. These cables prevent shades from swaying, making this solution ideal for doors or areas of heavy airflow.

28

125

29

H O N E YC O M B S H A D ES

Architectural honeycomb shades Triathlon Architectural Honeycomb Shades modernize headrail and hembar design and update fabric options.

Modernized headrail and hembar Crafted from the same premium metals, the reimagined headrail and hembar produce a polished, uniform appearance. A precision-fit back cover, integrated into the headrail design, reduces light leakage to improve natural light control.

Updated fabric options Larger cell size gives an updated look to the classic honeycomb style. Fabrics available in collections of full-range neutrals, decorative prints, and rich textures.

30

126

31

H O N E YC O M B S H A D ES

Honeycomb fabrics Sheer** •

Daylight transmits through the fabric

•

Fabric allows views to the outside

Light-filtering* •

Daylight transmits through the fabric

•

Fabric limits views to the outside

Room-darkening** •

Completely blocks light through the fabric

•

Completely blocks view to the outside

Available in single- or double-cell options Available in single-cell style

*

32

**

127

33

R O M A N S H A D ES

Roman shading system Roman shades give you the advantage of using your own material while still reaping the benefits of Lutron technology. Work with your local Lutron shade specialist to achieve the ultimate design for your space — from the perfect fabric to the number of pleats.

Precision control Like the other styles of Lutron shades, Romans feature intelligent hembar alignment, which synchronizes all shades/window coverings in one room or throughout a home.

Note: Roman shade kits are not available in Canada.

34

128

35

Custom fabric programs Customer’s Own Material (COM) requests Drapery or Roman shading systems

Custom printing service Traditional or Kirbé drapery and roller shades

We recognize the unique nature of your projects and the need to match or coordinate window treatments with existing furnishings. Drapery and Roman shading systems work with nearly any fabric or textile, giving you the freedom to create your own design while still providing reliable Lutron automation.*

Give your space a personal touch by reproducing a favorite painting or custom design on a Lutron-approved fabric. You can choose to supply your own design or use one of our pre-designed patterns (below). In just four easy steps, you can select your print, email your request, approve your proof, and place your order.*

Roller Shades

36

* Prior to submitting Customer’s Own Material requests, it is important to align with a Lutron Qualified Shade Provider to assist with the quotation process. To find a Lutron Qualified Shade Provider, please contact Customer Service at 1.888.588.7661, contact your local Lutron Representative, or visit www.lutron.com for our `Where to Buy’ dealer locator.

129

37

Control styles Choose between keypad styles to coordinate with each room and any home.

Alisse wall control

Palladiom keypad

seeTouch keypad without insert

seeTouch keypad with insert

Sunnata RF keypad

RF seeTouch tabletop keypad

seeTouch keypad with insert

Please note that colors and finishes are representative and not exact matches.

To order a color sample, please contact your HomeWorks provider.

Signature Series keypad

38

Architrave keypad (door narrow)

Architrave keypad (door wide)

130

Shade Pico wireless control

4-button Pico wireless control for shades 39

Lutron fabric collections

Lutronfabrics.com

Our fabric offering is curated from leading fabric suppliers all over the world to provide high-quality, fashionable window treatments. With over 1,000 materials to choose from, there is a solution for every application and design aesthetic.

Browse through Lutron’s extensive collection of window shade fabrics using this comprehensive tool. Easily search for fabrics that meet specific shade parameters or find inspiration for your next project by looking through our fabric Photo Gallery. Professionals can stay up to date on all fabric announcements and changes by logging into lutronfabrics.com using your myLutron account — you can even sign up to receive automatic email notifications when changes occur.

The Classico Collection The Classico Collection of performance fabrics is available for roller, tensioned, and cableguided shades.

The Architectural Honeycomb Collection The Architectural Honeycomb Collection includes a palette of neutral colors in a variety of textures and range of opacities, all featuring a modern ¾ inch cell size.

40

The Gallery Collection The Gallery Collection is an extensive line of fashion fabrics for roller shades, horizontal sheer blinds, and wood blinds.

The Atelier Collection The Atelier Collection is a curated collection of roller shade fabrics that balances design and function. The collection is organized by color, and each deck includes select colors for the fabric family.

In this collection, each sheer fabric has a perfectly coordinating blackout option for simple specification.

131

41

The Lutron logo, Lutron, Alisse, Architrave, Caséta, Classico, HomeWorks, Kirbé, Palladiom, Pico, RA2 Select, RadioRA 3, seeTouch, Signature Series, Sivoia QS, Sunnata, and Triathlon are trademarks or registered trademarks of Lutron Electronics Co., Inc., in the U.S. and/or other countries.

Amazon, Alexa, and all related logos are trademarks of Amazon.com, Inc. or its affiliates. Apple HomeKit is a trademark of Apple, Inc., registered in the U.S. and other countries. Works with the Google Assistant is a trademark of Google LLC.

www.lutron.com Lutron Electronics Co., Inc., 7200 Suter Road, Coopersburg, PA 18036-1299

I

I

World Headquarters 1.610.282.3800 24/7 Technical Support 1.800.523.9466 Customer Service 1.888.LUTRON1 (1.888.588.7661)

I

© 02/2023 Lutron Electronics Co., Inc. P/N 367-1319 REV K

132
