FEATURED PRODUCTS
WEATHERGUARD SITE 6
IP65 Non Corrosive
Offering the very latest in high efficacy, IP65 non-corrosive site lighting.
BEST SELLER
FESTOONS 14
Multi-Head Festoon Lighting
Our popular range of festoons, available in 22m and 50m lengths.
JUPITER 34
Area Floodlights
Safe site illumination in the event of a power failure. Features a hinged gear tray for easy and rapid installation.
Grant & Stone - Site Lighting | 3
01277 281237
SITE LIGHTING
SECTION CONTENTS
The industry’s leading and most comprehensive range of 110V site lighting, available from stock for next day delivery.
WEATHERGUARD SITE With Flex & Junction Box
WEATHERGUARD TRIPOD Heads & Tripod
4 | Grant & Stone - Site Lighting grantandstone.co.uk
P12 P18 P8 P14 P20
A-FRAME Portable Lighting P10 P16 P22 UPLIGHT Workspace Light
PLASTERER’S
Festoons GLOBE LIGHT 360º Workspace Light ST20 Portable Task Light
CONNECTABLE FESTOON Extendable Kit FESTOON KITS Multi-Head
Non-Corrosive
WEATHERGUARD SITE IP65
Grant & Stone - Site Lighting | 5 01277 281237 SITE LIGHTING P32 P34 P36 P26 P28 P30 GARRISON Work Lights VANGUARD Emergency Site TAURUS SITE Dual Voltage Bulkheads JUNO 65 SITE Emergency Twin Spot

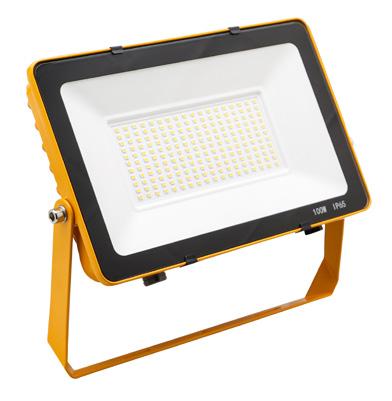

Multi Voltage COMET SITE Slim Floodlights JUPITER Area Floodlights KRYPTON Rechargeable Floodlights TRANSFORMERS Portable Site Transformers 110V ACCESSORIES Handy Essentials P38 P40 P42

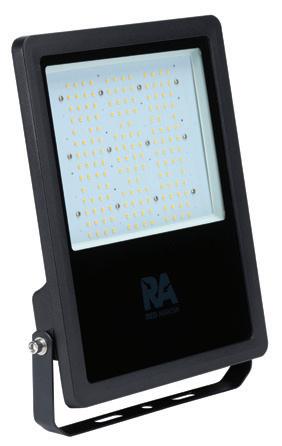

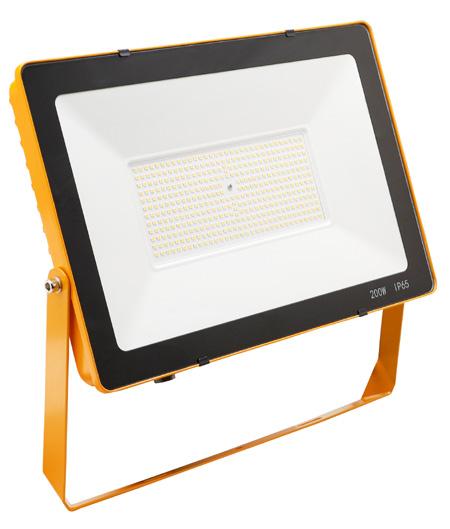

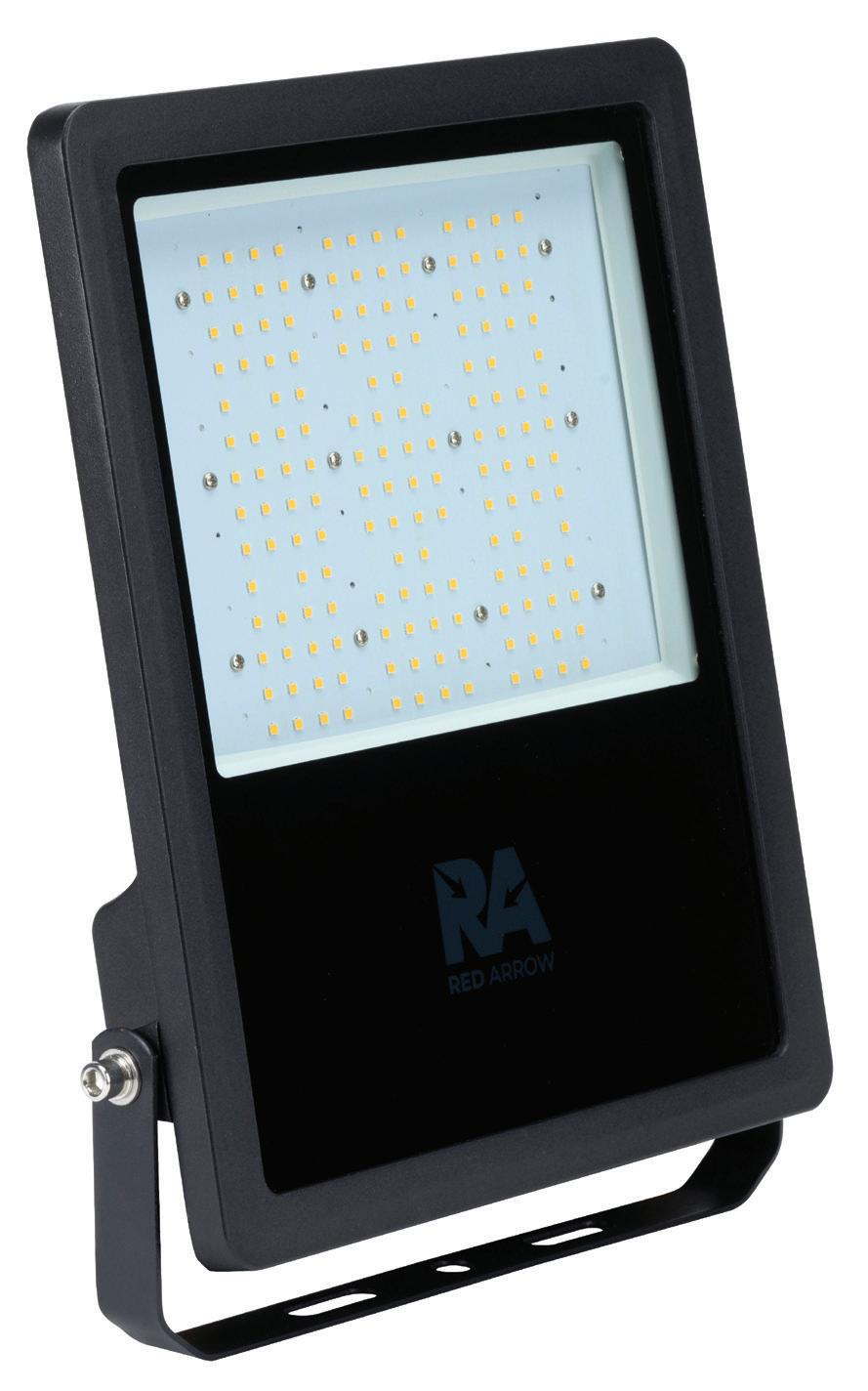

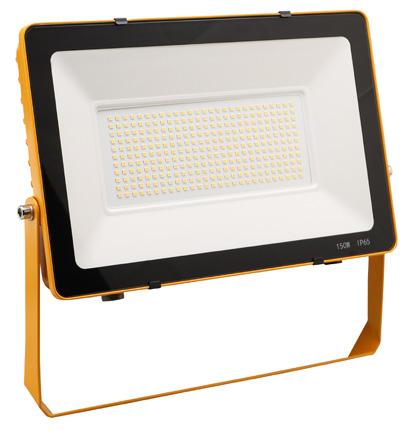

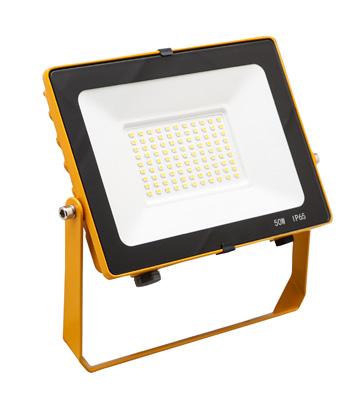

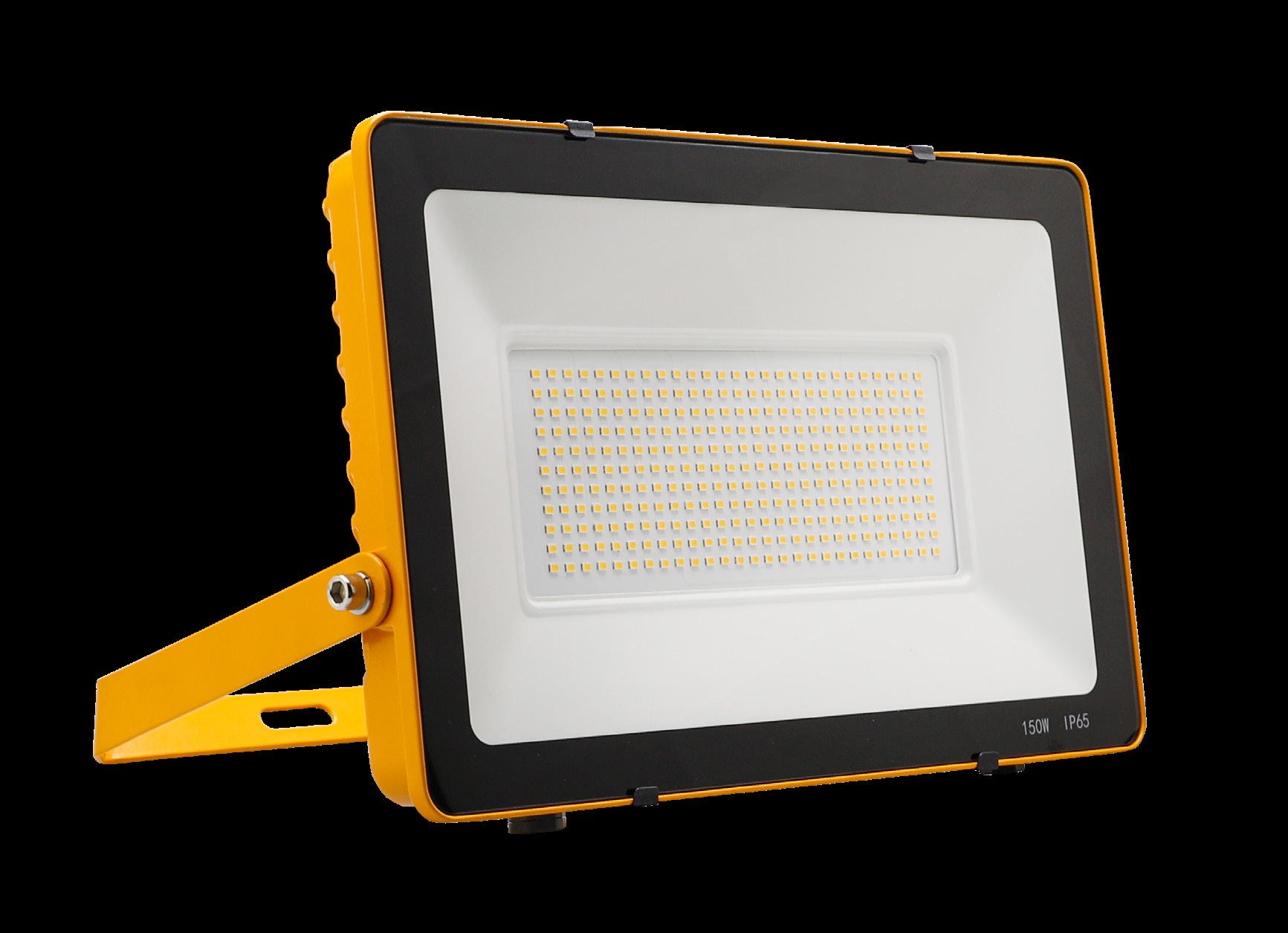

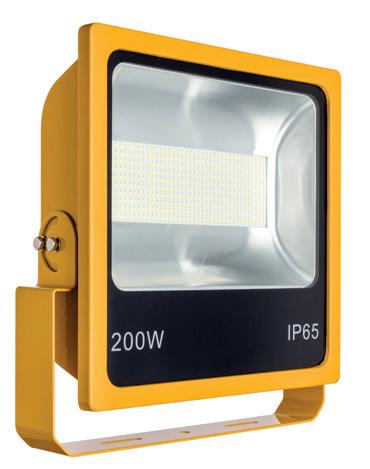

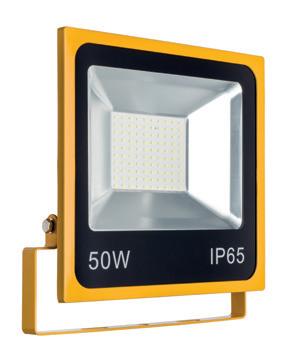

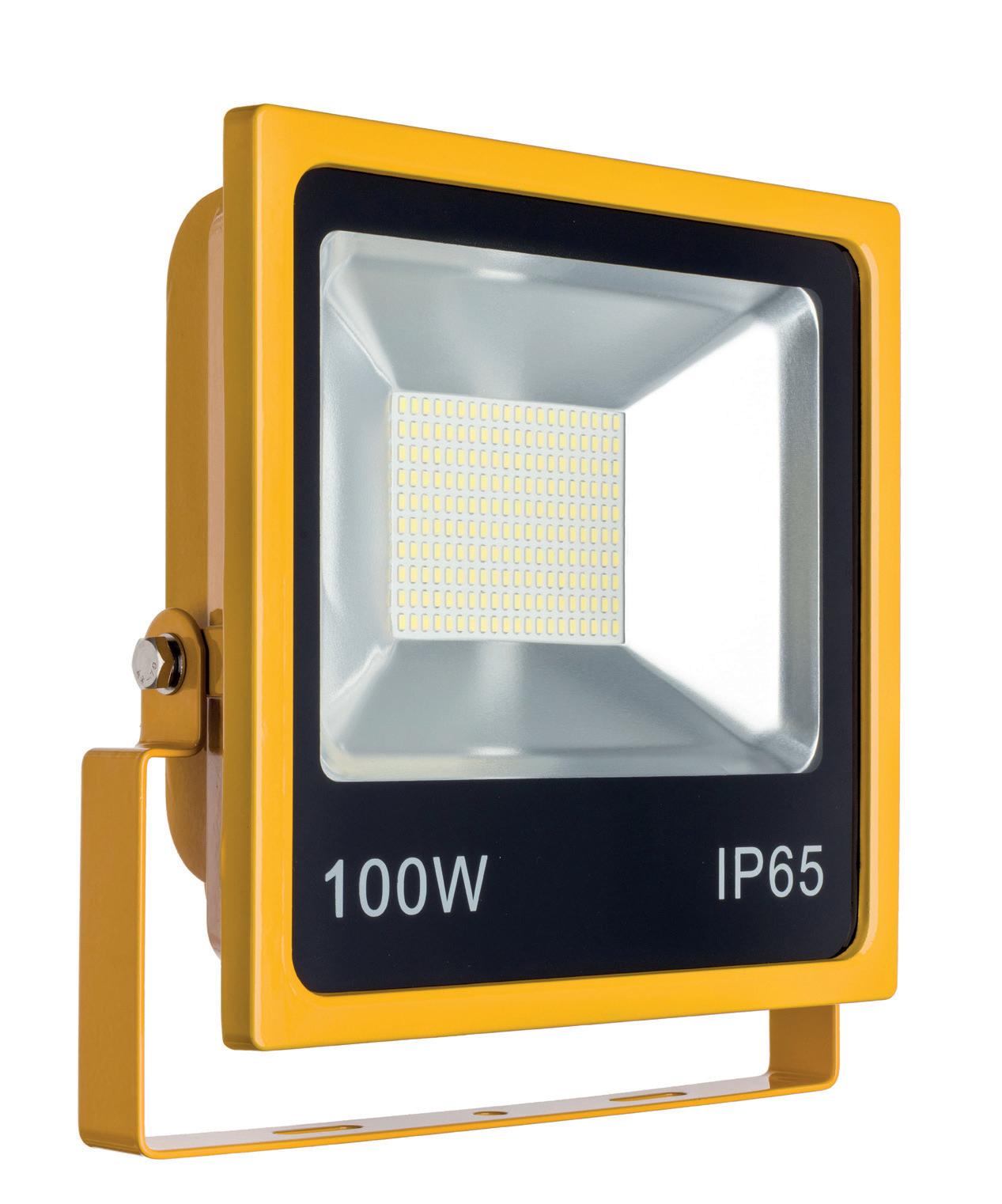

FLSMD FLOODLIGHTS

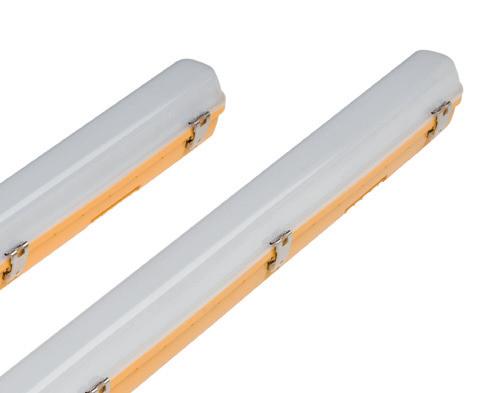

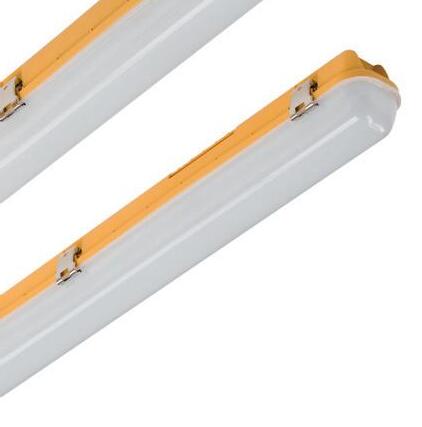

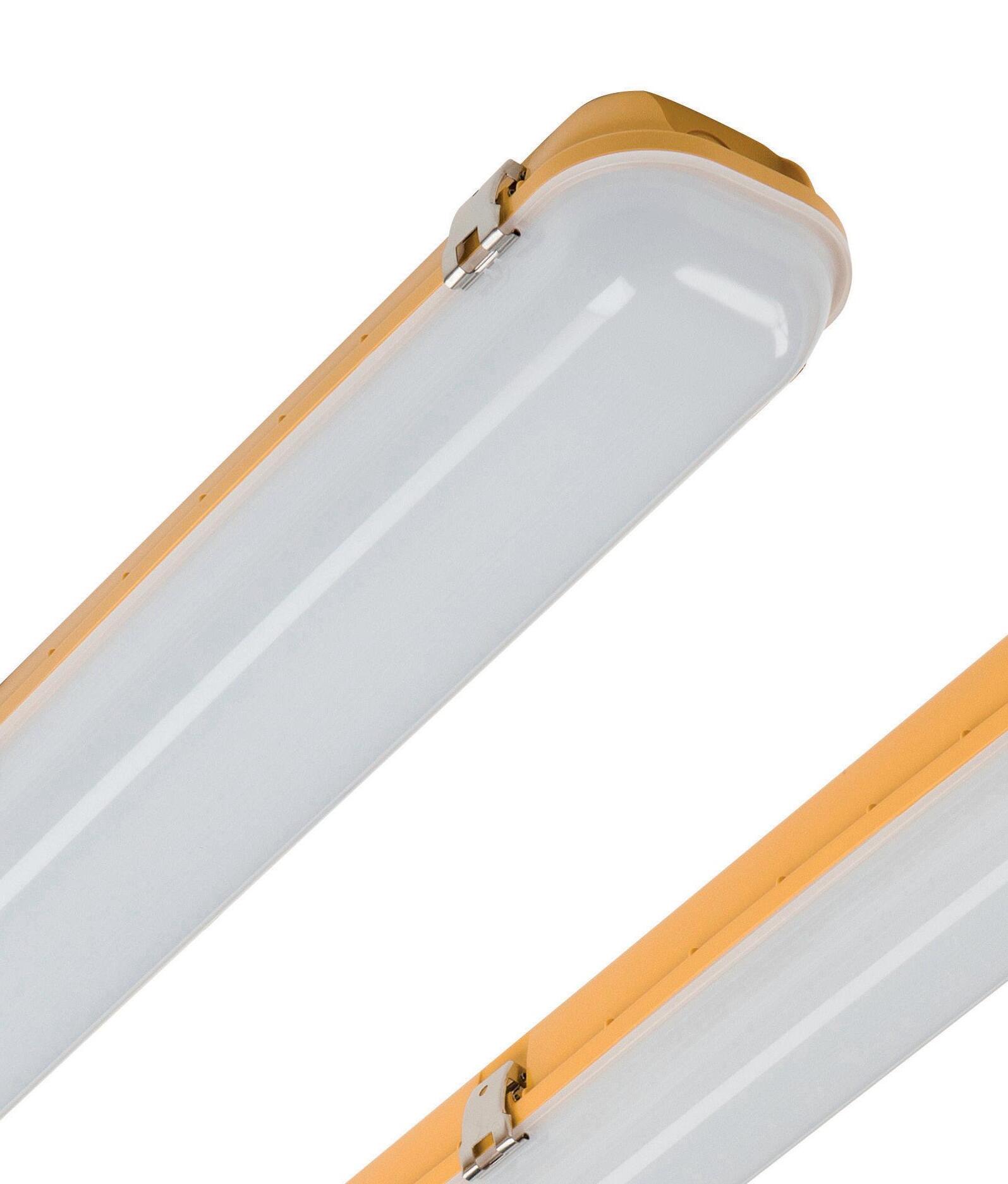

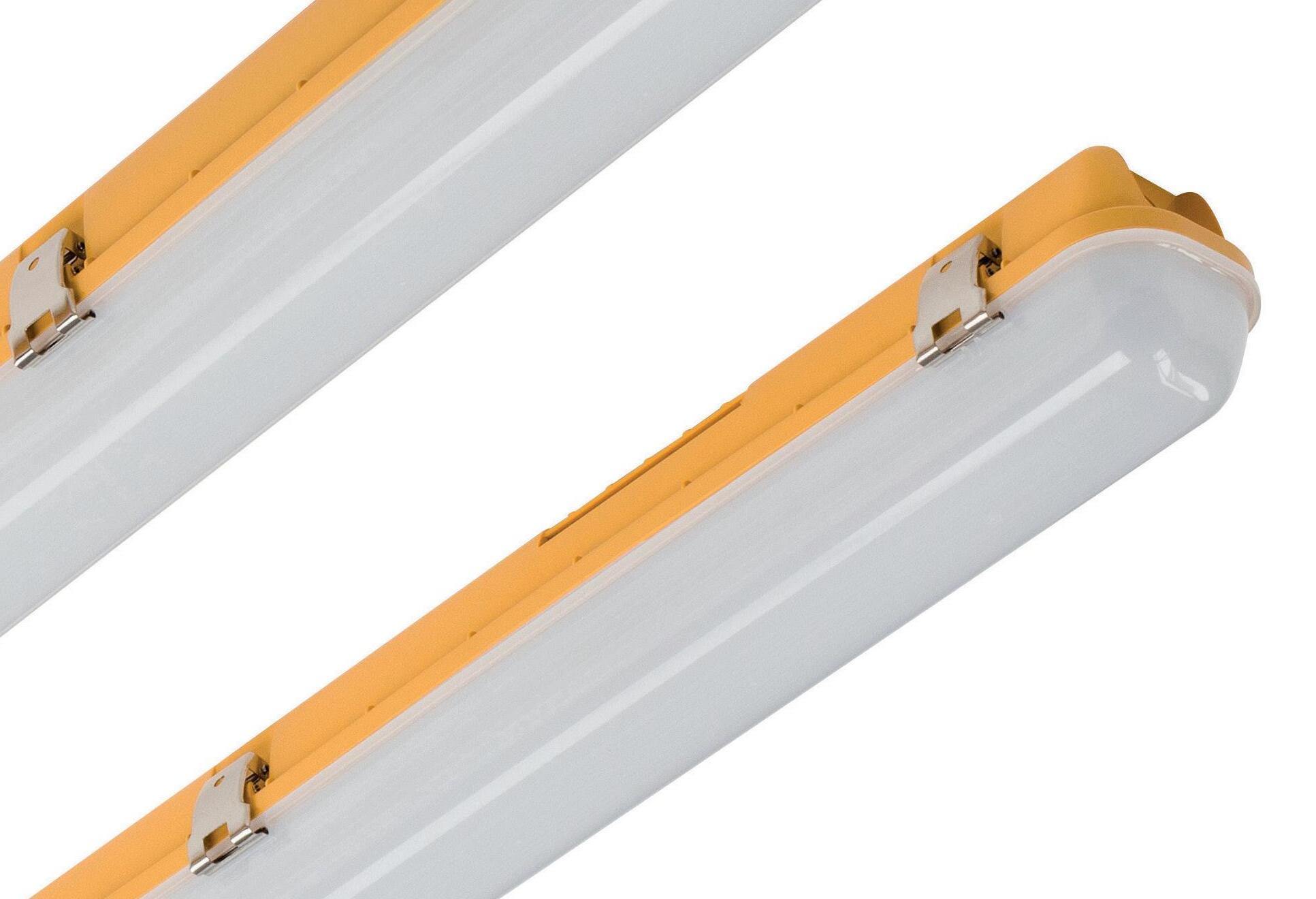

WEATHERGUARD SITE
IP65 NON-CORROSIVE FITTINGS
Weatherguard Site offers the very latest in IP65 non-corrosive site lighting. High efficiency 100 lm/W LEDs and stainless steel clips as standard, plus LEDs and drivers that can easily be replaced at the end of life, for minimum environmental impact.
Features

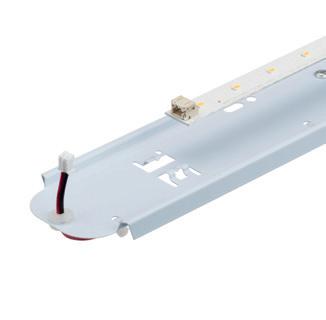

• Unique, future proof replaceable LED modules
• Durable IP65 & IK07 body and diffuser
• High efficacy - 100 lm/W
• Emergency versions available
LEDs
6 | Grant & Stone - Site Lighting grantandstone.co.uk
SITE LIGHTING IP65 20-50 WATT 4000K 3 YRS GUARANTEE REPLACEABLE
Ra>80
Lifetime: L80B50 30,000 Hrs
Rating: IP65
Rating: IK07
-25°C to 40°C
version 0°C to 40°C)
Grant & Stone - Site Lighting | 7 01277 281237 SITE LIGHTING Product Code Description Wattage Lumen Output Emergency Lumen Output Efficacy WGS220Y Weatherguard Site 600mm 20W 2000 lm - 100 lm/W WGS220Y-E Weatherguard Site 600mm with 3Hr Emergency 20W 2000 lm 180 lm 100 lm/W WGS420Y Weatherguard Site 1200mm 20W 2000 lm - 100 lm/W WGS420Y-E Weatherguard Site 1200mm with 3Hr Emergency 20W 2000 lm 180 lm 100 lm/W WGS525Y Weatherguard Site 1500mm 25W 2500 lm - 100 lm/W WGS525Y-E Weatherguard Site 1500mm with 3Hr Emergency 25W 2500 lm 225 lm 100 lm/W WGS550Y Weatherguard Site 1500mm 50W 5000 lm - 100 lm/W WGS550Y-E Weatherguard Site 1500mm with 3Hr Emergency 50W 5000 lm 450 lm 100 lm/W Specification Dimensions Material:
Colour
CRI:
LED
IP
IK
Working Temperature:
(Emergency
Power Factor: >0.9 Guarantee: 3 Years (Emergency batteries 1 year) Lmm FC W H Product Code Dimensions Fixing Centres FC WGS220Y / WGS220Y-E L: 664mm x W: 103mm x D: 78mm 400mm WGS420Y / WGS420Y-E L: 1262mm x W: 72mm x D: 78mm 900mm WGS525Y / WGS525Y-E L: 1562mm x W: 72mm x D: 78mm 1200mm WGS550Y / WGS550Y-E L: 1562mm x W: 103mm x D: 78mm 1200mm
Body & Diffuser: Polycarbonate Retaining Clips: Stainless Steel
Temperature: 4000K

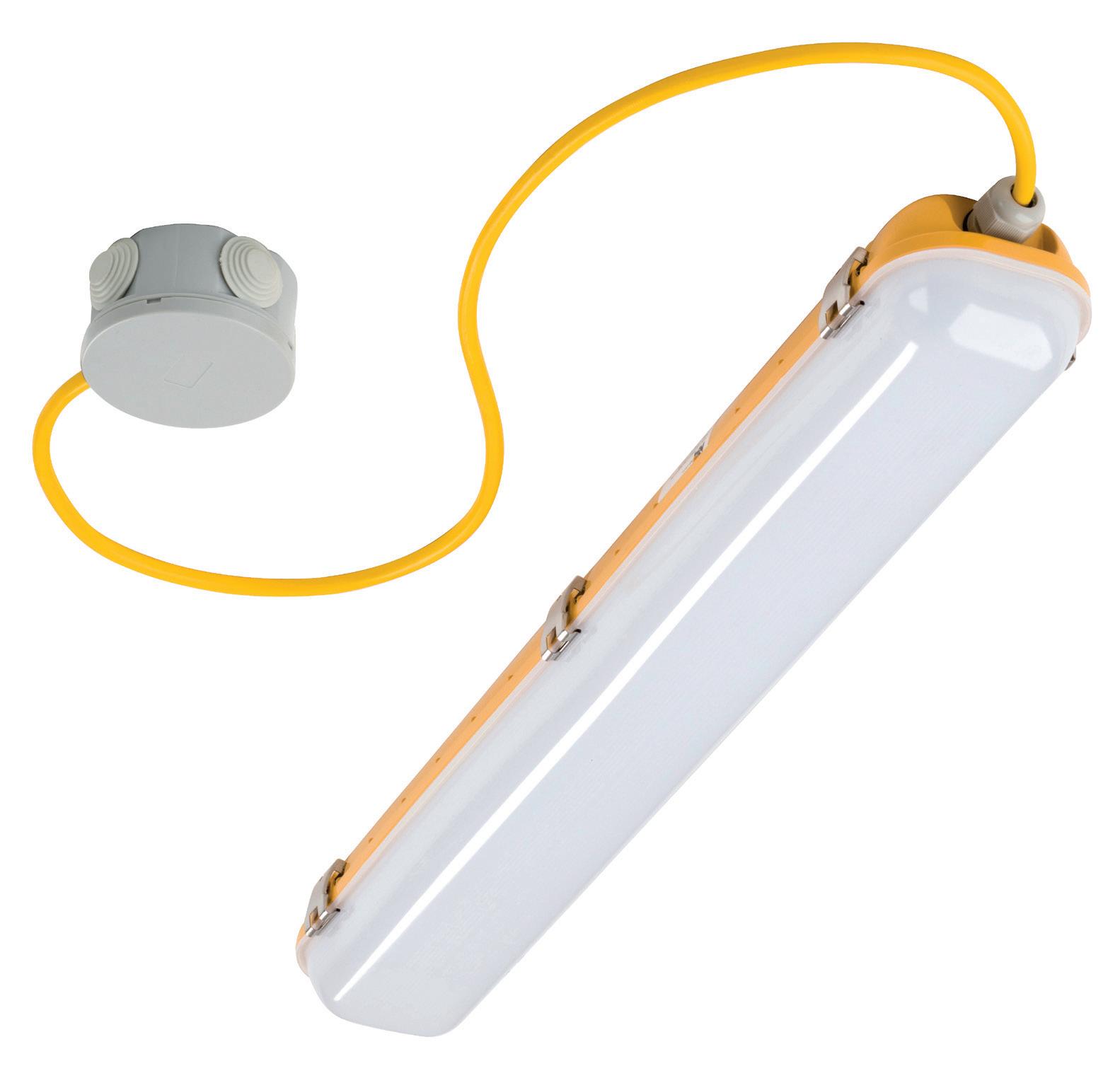

WEATHERGUARD SITE
WITH FLEX & JUNCTION BOX
For fast and efficient installation, Weatherguard Site is also available pre-wired with 1m of cable and junction box. Save time and money on site.
Features
• Pre-wired with 1m cable and junction box
• Fast and easy to install
• High efficacy - 100 lm/W
• Standard & emergency versions available
8 | Grant & Stone - Site Lighting grantandstone.co.uk
SITE LIGHTING LED IP65 110V IK07 4000K 3 YRS GUARANTEE 20/25 WATT
Specification Dimensions
Material: Body & Diffuser: Polycarbonate Retaining Clips: Stainless Steel
Colour Temperature: 4000K
CRI: Ra>80
LED Lifetime: L70B50 30,000 Hrs
IP Rating: IP65
IK Rating: IK07
Working Temperature: -25°C to 40°C (Emergency version 0°C to 40°C)
Power Factor: 0.5 / 0.9
Guarantee: 3 Years (1 year for emergency batteries)
Grant & Stone - Site Lighting | 9 01277 281237 SITE LIGHTING Product Code Description Wattage Lumen Output Emergency Lumen Output Efficacy WGS220Y/PC Weatherguard Site 600mm c/w Flex & Junction Box 20W 2000 lm - 100 lm/W WGS220Y-E/PC Weatherguard Site 600mm c/w Flex & Junction Box with 3Hr Emergency 20W 2000 lm 180 lm 100 lm/W WGS525Y/PC Weatherguard Site 1500mm c/w Flex & Junction Box 25W 2500 lm - 100 lm/W WGS525Y-E/PC Weatherguard Site 1500mm c/w Flex & Junction Box with 3Hr Emergency 25W 2500 lm 225 lm 100 lm/W
L664mm D78mm W103m m L1562mm D78mm W72mm

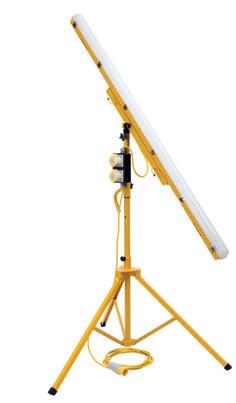

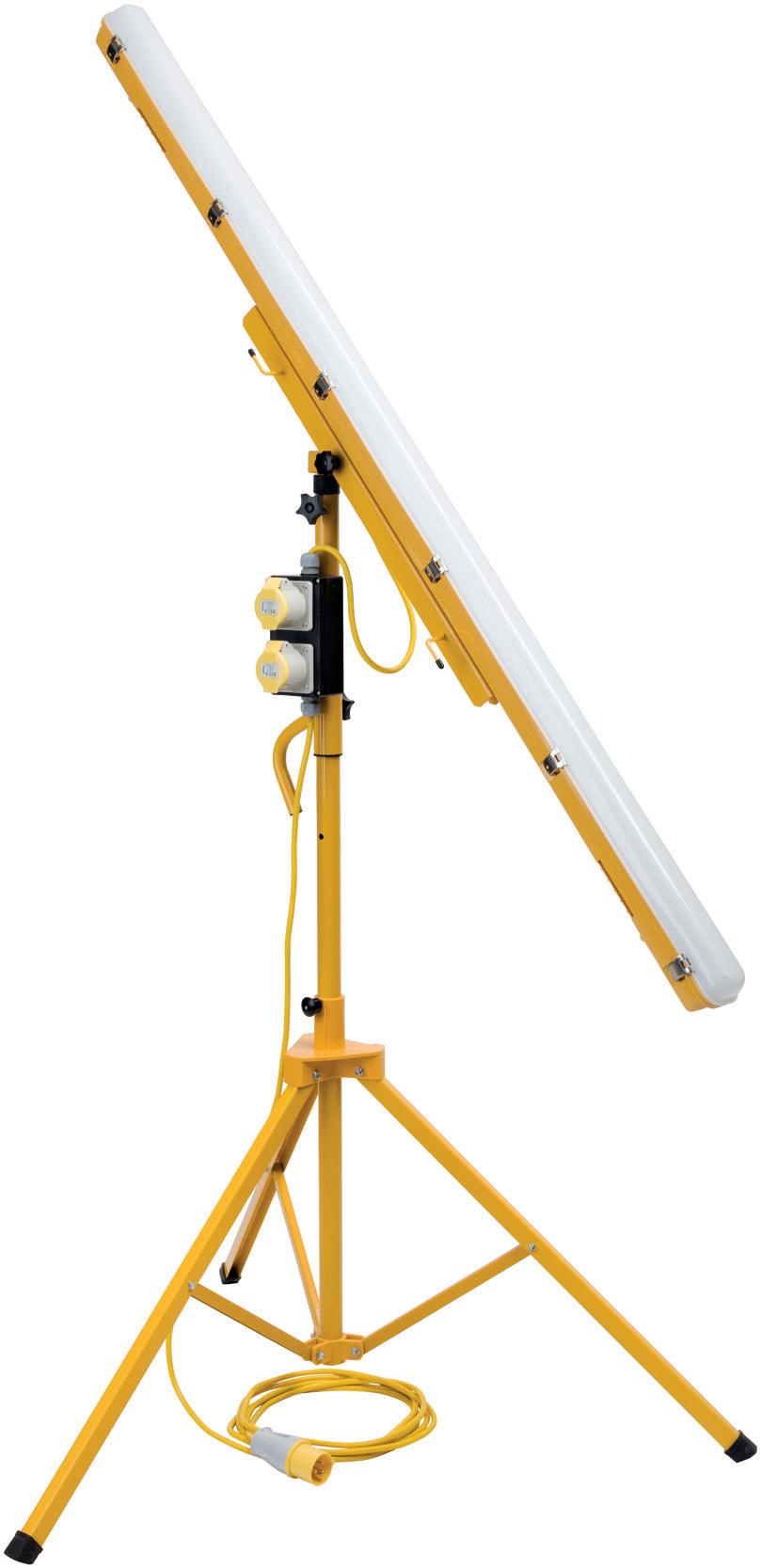

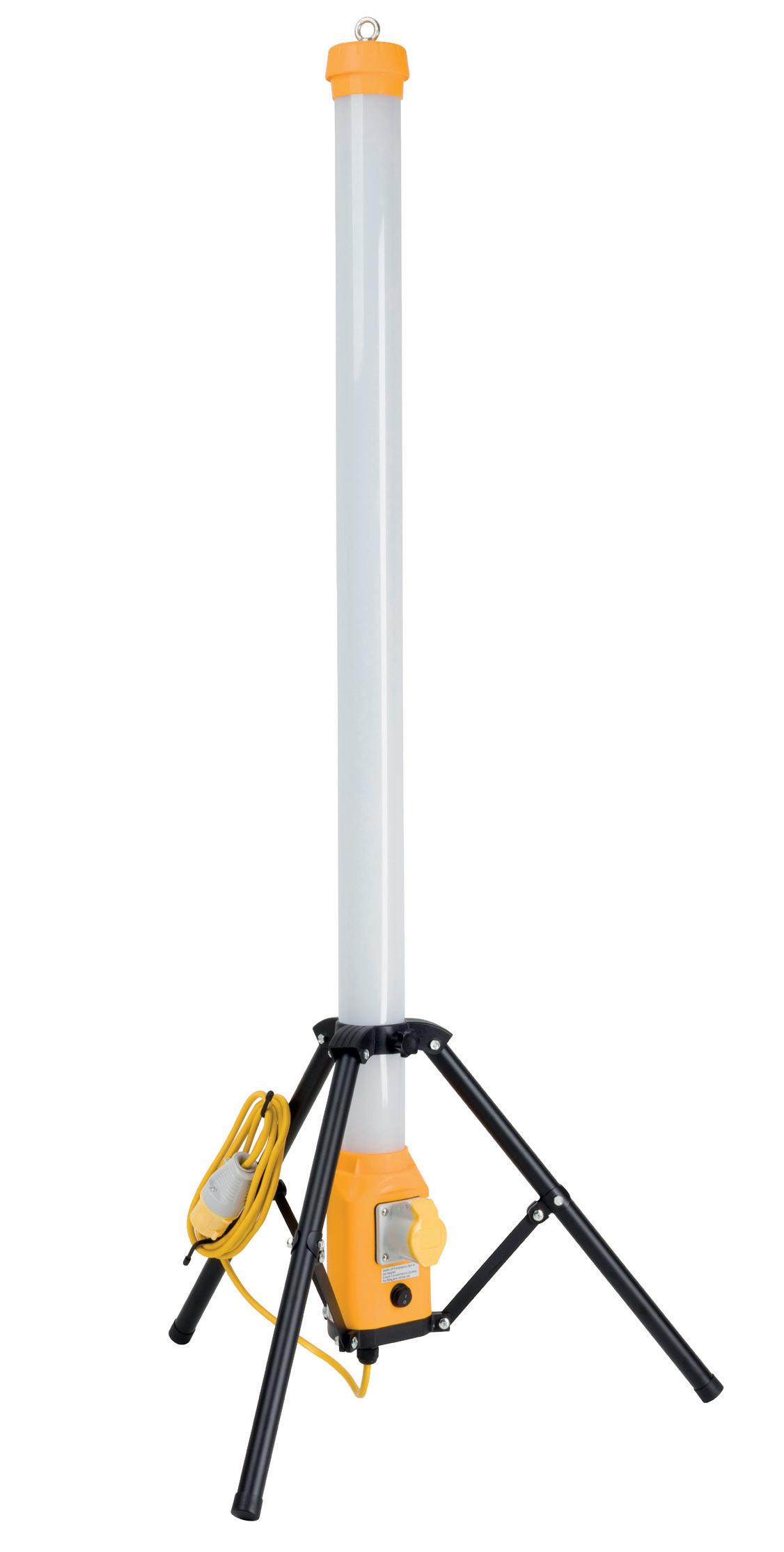

WEATHERGUARD TRIPOD
SITE TRIPOD HEADS & TRIPOD
Quick and easy to deploy, Weatherguard Site tripod mounted fittings offer ultimate flexibility on site. The heads are supplied ready to mount onto the tripod, complete with 2x110V power outlets and 5m of cable.
Features
• Fast and easy to set up on site
• Heads fitted with twin 110V sockets
• Pre-wired with 5m cable and plug
Separate, height adjustable tripod
10 | Grant & Stone - Site Lighting grantandstone.co.uk
SITE LIGHTING LED IP65 110V IK07 4000K 3 YRS GUARANTEE 20/25 WATT
REPLACEABLE LEDs
Specification Dimensions
Material: Body & Diffuser: Polycarbonate Tripod: Steel
Colour Temperature: 4000K
CRI: Ra>80
Led Lifetime: L80B50 30,000 Hrs
IP Rating: IP65
IK Rating: IK07
Working Temperature: -25°C to 40°C (Emergency version 0°C to 40°C)
Power Factor: 0.9
Guarantee: 3 Years (1 year for emergency batteries)
Grant & Stone - Site Lighting | 11 01277 281237 SITE LIGHTING Product Code Description Wattage Lumen Output Emergency Lumen Output Efficacy WGS220Y/TH Weatherguard Site Tripod Head 600mm 20W 2000 lm 100 lm/W WGS220Y-E/TH Weatherguard Site Tripod Head 600mm c/w 3Hr EM 20W 2000 lm 180 lm 100 lm/W WGS525Y/TH Weatherguard Site Tripod Head 1500mm 25W 2500 lm - 100 lm/W WGS525Y-E/TH Weatherguard Site Tripod
1500mm c/w 3Hr EM 25W 2500 lm 225 lm 100 lm/W WGS/TP Weatherguard
- - - -
Head
Site Adjustable Tripod
L1280mm W1050mm 664/1562mm 72/103mm 78mm 664/1562mm 72/103mm 78mm

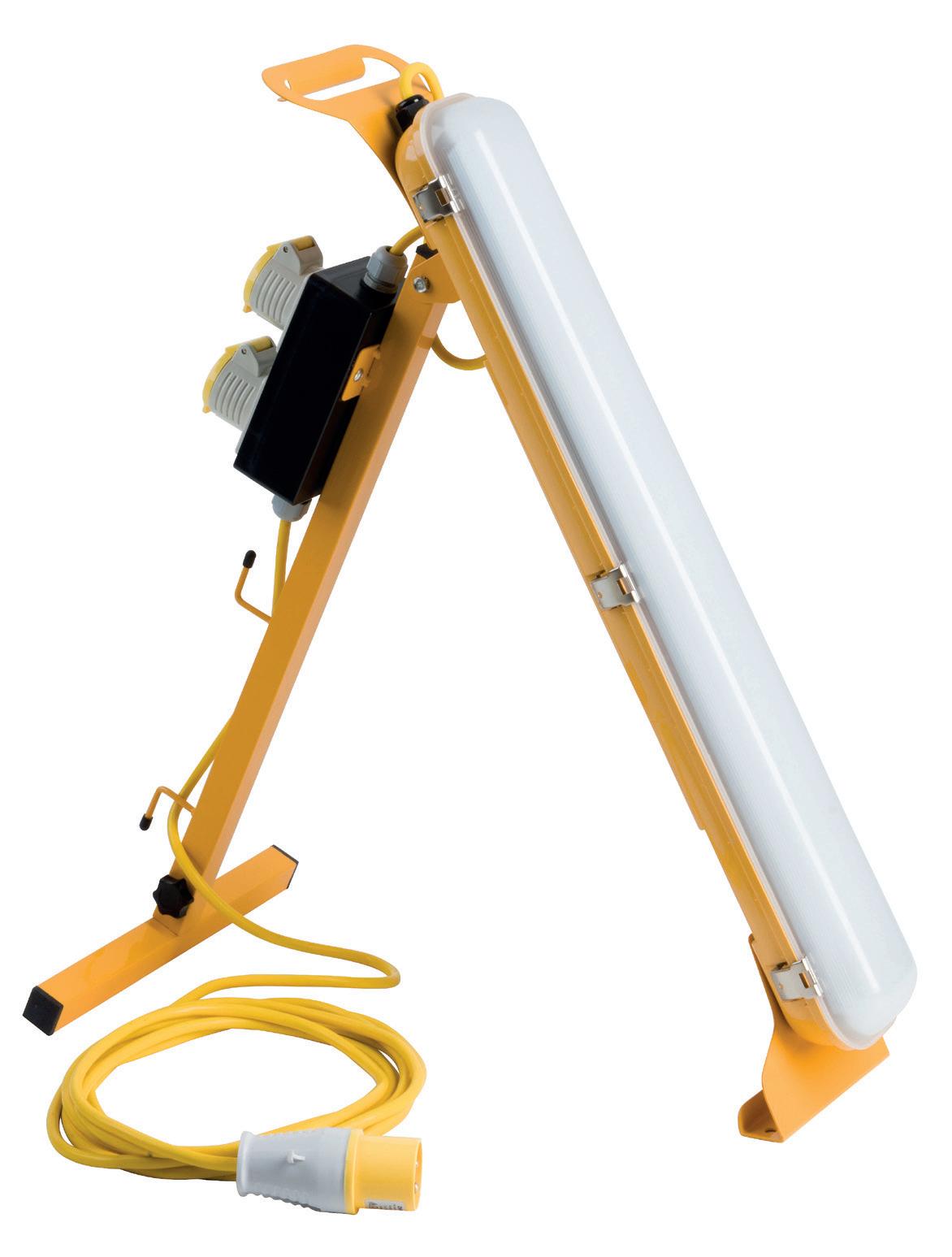

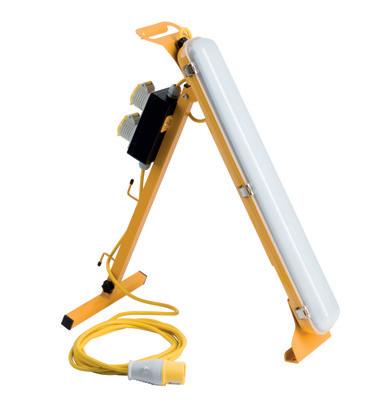

PLASTERER’S A-FRAME
PORTABLE SITE LIGHTING
Our Plasterer’s A-Frame is a handy addition to the Weatherguard Site range. This portable fitting is easy to relocate and features a useful cable storage facility.
Features
• Lightweight and easy to relocate on site
• Strong, stable frame
• Includes 2x110V power outlets for connecting more fittings or power tools
• Supplied with 5m cable and pre-wired plug
12 | Grant & Stone
Site Lighting grantandstone.co.uk
-
SITE LIGHTING IP65 LED 110V 20 WATT IK07 4000K 3 YRS GUARANTEE REPLACEABLE
LEDs
Specification
Material: Body & Diffuser: Polycarbonate Frame: Steel
Colour Temperature: 4000K
CRI: Ra>80
LED Lifetime: L80B50 30,000 Hrs
IP Rating: IP65
IK Rating: IK07
Working Temperature: -20°C to 40°C (Emergency version 0°C to 40°C)
Power Factor: 0.9
Dimensions
Guarantee: 3 Years (1 year for emergency batteries) W305mm
Grant & Stone - Site Lighting | 13 01277 281237 SITE LIGHTING Product Code Description Wattage Lumen Output Emergency Lumen Output Efficacy WGS220Y/AF Weatherguard Site A-Frame 20W 2000 lm - 100 lm/W WGS220Y-E/AF Weatherguard Site A-Frame c/w 3Hr EM 20W 2000 lm 180 lm 100 lm/W
L880mm

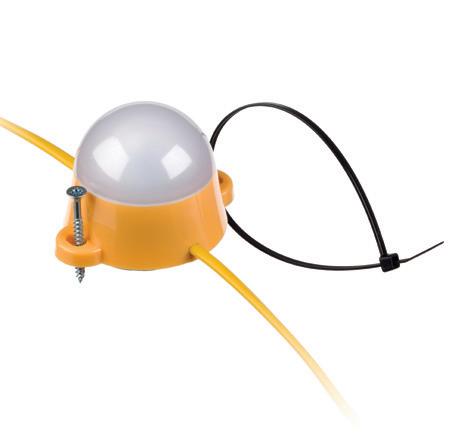

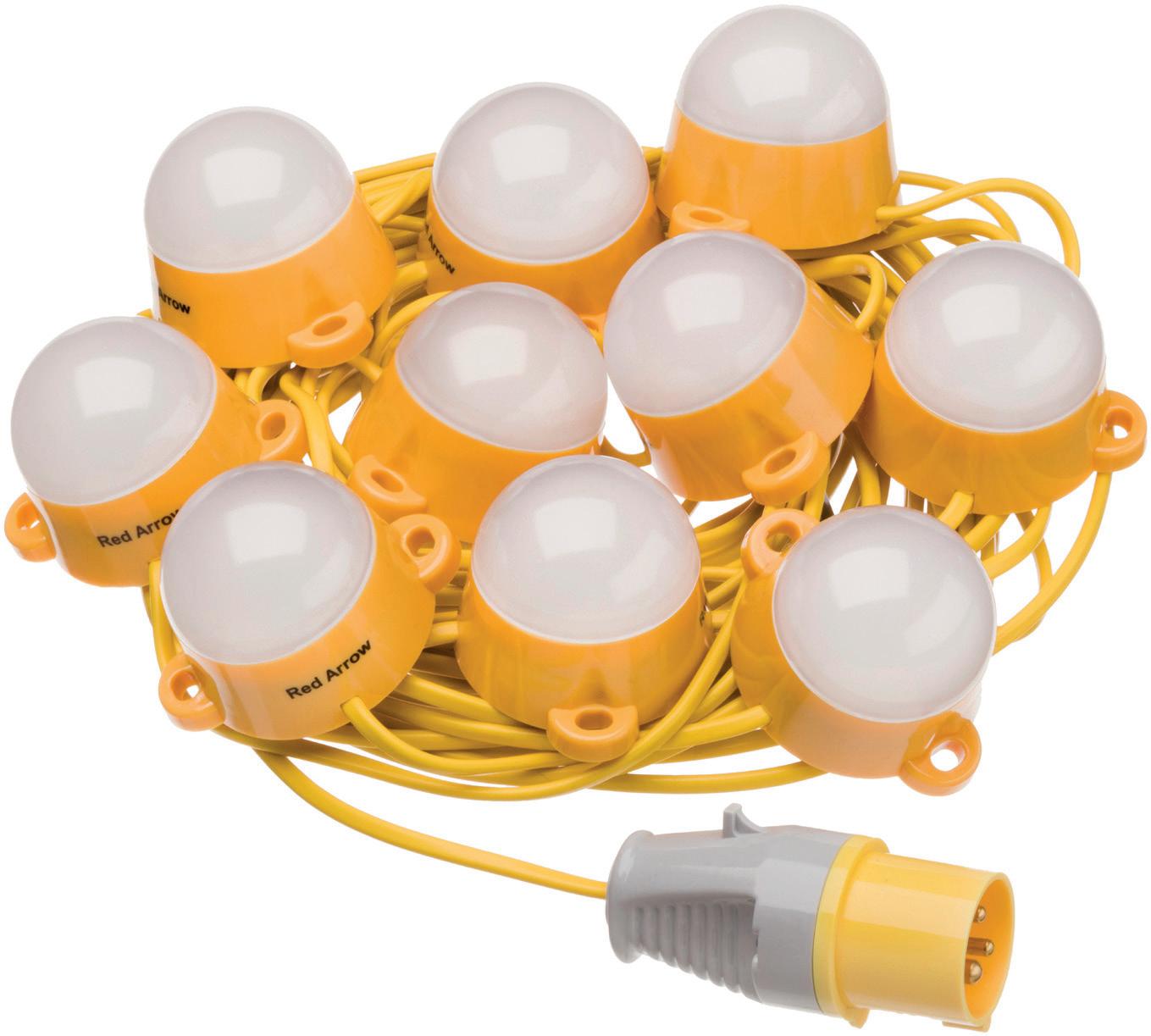

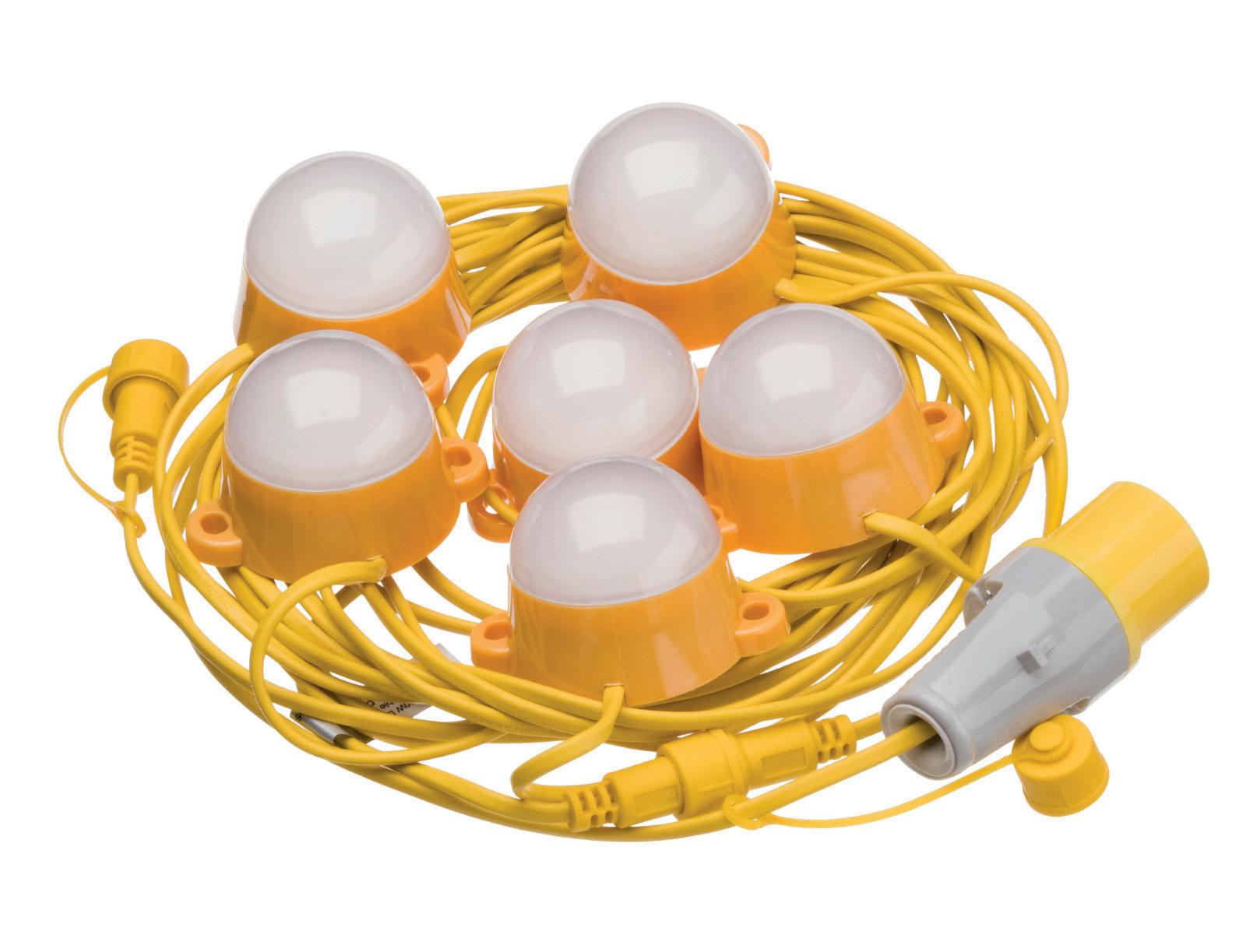

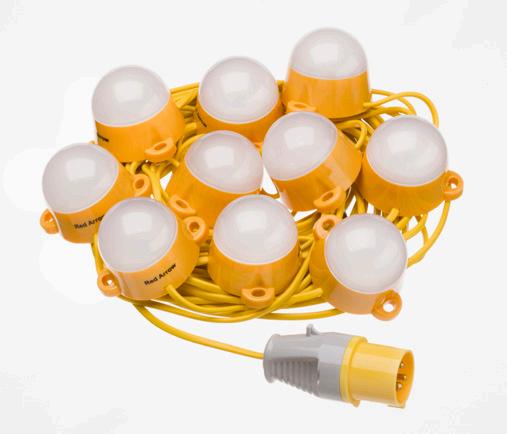

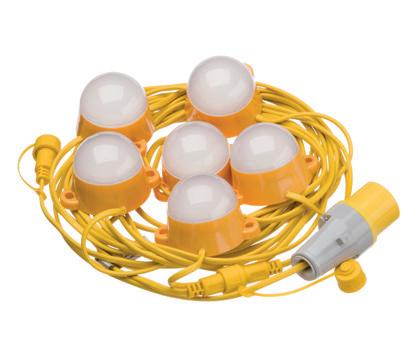

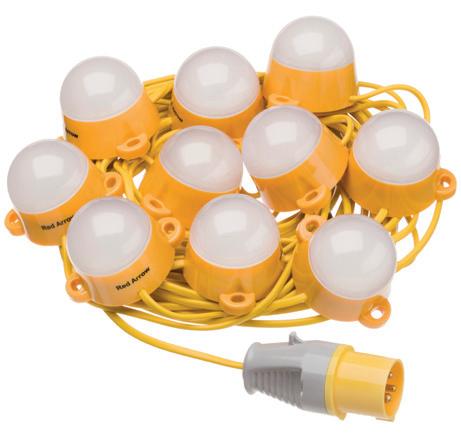

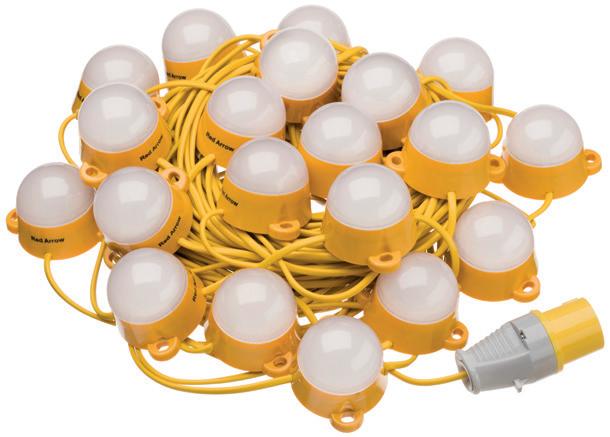

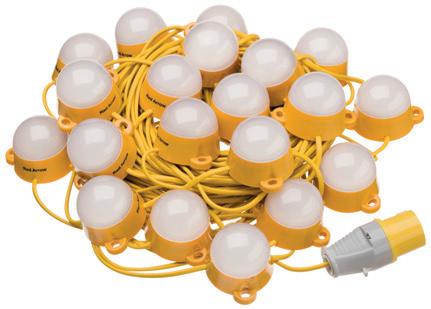

FESTOON KITS
110V MULTI-HEAD FESTOONS
Our popular range of Festoon Kits are available in 22m and 50m lengths. The tough, unique head design is perfect for the rigours of site use and feature fixing eyelets for safe, reliable installation.
Features
• Designed in the UK by Red Arrow
• Tough, IK08 light heads
• Unique fixing eyelets for screw or cable tie
• Supplied with handy, strong, storage & carry bag
14 | Grant & Stone - Site Lighting grantandstone.co.uk
SITE LIGHTING LED IP44 IK08 6500K 2 YRS GUARANTEE 50/100 WATT 110V
SELLER
BEST
Specification Dimensions
Material: Polycarbonate Heads
Colour Temperature: 6500K
CRI Ra>80
LED Lifetime: L70B50 35,000 Hrs
IP Rating: IP44
IK Rating: IK08
Working Temperature: -20°C to 40°C
Power Factor 0.85
Guarantee: 2 Years
Grant & Stone - Site Lighting | 15 01277 281237 SITE LIGHTING Product Code Description Wattage Lumen Output Efficacy FK2250W LED Festoon Kit 10-Way 22m 50W 3500 lm 70 lm/W FK50100W LED Festoon Kit 20-Way 50m 100W 7000 lm 70 lm/W
Full Length: 22m/50m D60m m Ø75mm Product Codes No. of Heads Overall Length FK2250W 10 22m FK50100W 20 50m

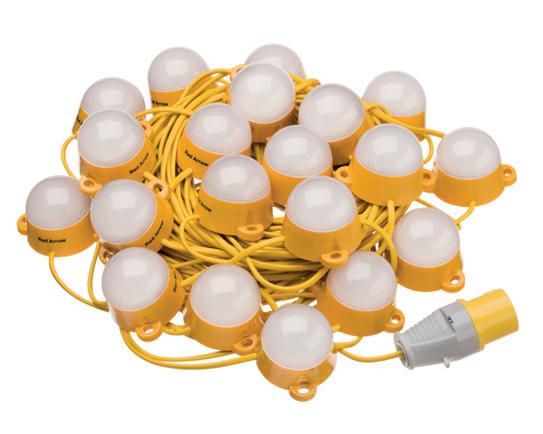

CONNECTABLE FESTOON KITS
110V EXTENDABLE FESTOONS
Our Connectable Festoon Kit range is now bigger and better, with the addition of 22m and 50m kits in addition to the original 12m kit. All feature our unique connector and can be joined together in any combination up to a maximum length of 200m. This makes extending the festoon on site simple and easy, saving time and money.
Features
• Extends festoons quickly and easily, up to a maximum combined length of 200m
• Avoids handling heavy, cumbersome festoonssimply link shorter and lighter kits together

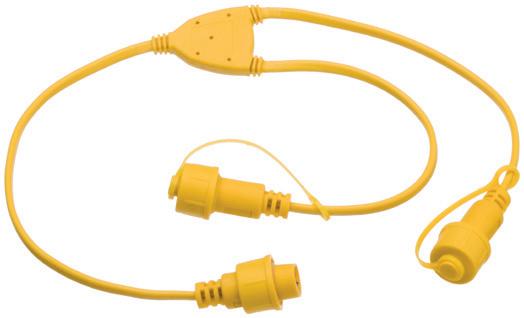

• Unique Y-splitter cable for easy configuration, available to order separately
• New, higher light output LED heads
• Starter cable with pre-wired 110V 16A plug
16 | Grant & Stone - Site Lighting grantandstone.co.uk
SITE LIGHTING
LED IP44 IK07 6500K 2 YRS GUARANTEE 110V 30-100 WATT BEST SELLER DESIGNED IN THE UK BY RED ARROW CONNECTABLE
Specification
Material: Polycarbonate Heads
Colour Temperature: 6000K
Colour Finish: Yellow
CRI Ra>80
LED Lifetime: L70B50 35,000 Hrs
IP Rating: IP44
IK Rating: IK07
Working Temperature: -20°C to 40°C
Power Factor >0.9
Electrical Class: Class I
Guarantee: 2 Years
Dimensions
Grant & Stone - Site Lighting | 17 01277 281237 SITE LIGHTING
FKS30YPW
Full Length: 12m D60m m Ø75mm Full Length: 12m/22m/50m Product Code No of Heads Overall Length Head Centres FKF1230YPW 6 12m 2m FKF2250W 10 22m 2.2m FKF50100W 20 50m 2.5m Product Code Description Wattage Lumen Output Efficacy FKF1230YPW 110V Connectable Festoon Kit 6 Way 12m 30W 3300 lm 110 lm/W FKF2250W 110V Connectable Festoon Kit 10 Way 22m 50W 5500 lm 110 lm/W FKF50100W 110V Connectable Festoon Kit 20 Way 50m 100W 11000 lm 110 lm/W FKS30YPW 60cm Y-Splitter Cable - -FKF50100W
UPLIGHT WORKSPACE LIGHTING
This innovative 110V Uplight features a high lumen output and 360º light distribution, making it an efficient solution for site lighting.
Features
• High light output, ideal for large spaces

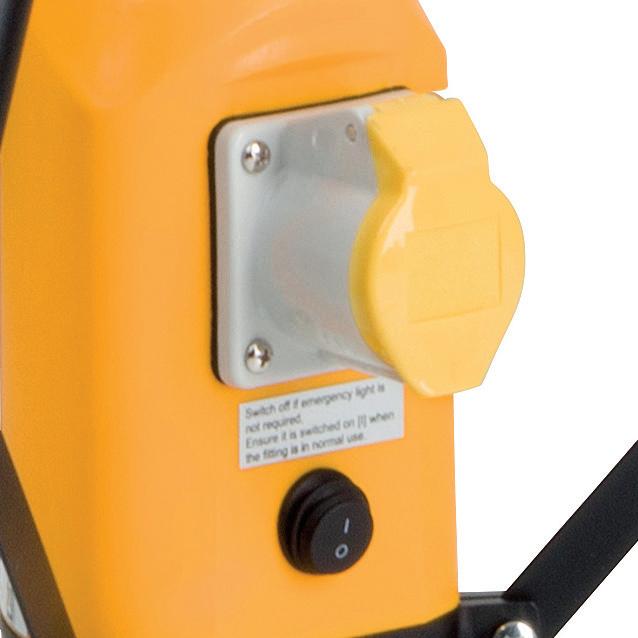

• Emergency version, switchable to prevent discharge during storage
• Aux socket for interlinking or power tools
• Convenient carry strap
18 | Grant & Stone - Site Lighting grantandstone.co.uk
SITE LIGHTING LED 110V IK07 6500K 2 YRS GUARANTEE 72 WATT
Specification Dimensions
Material: ABS + Polycarbonate
Colour Temperature: 6500K
CRI Ra>80
LED Lifetime: L70B50 35,000 Hrs
IP Rating: IP54
IK Rating: IK07
Working Temperature: -20°C to 40°C (Emergency version 0°C to 40°C)
Power Factor >0.9
Guarantee: 2 Years
Grant & Stone - Site Lighting | 19 01277 281237 SITE LIGHTING
Product Code Description Wattage Lumen output Emergency Lumen Output Efficacy ULS72YPW Uplight with 3m cable + 16A plug/socket 72W 7200 lm - 100 lm/W ULE72YPW Uplight Emergency with 3m cable + 16A plug/socket 72W 7200 lm 350 lm 100 lm/W W803mm L1435mm

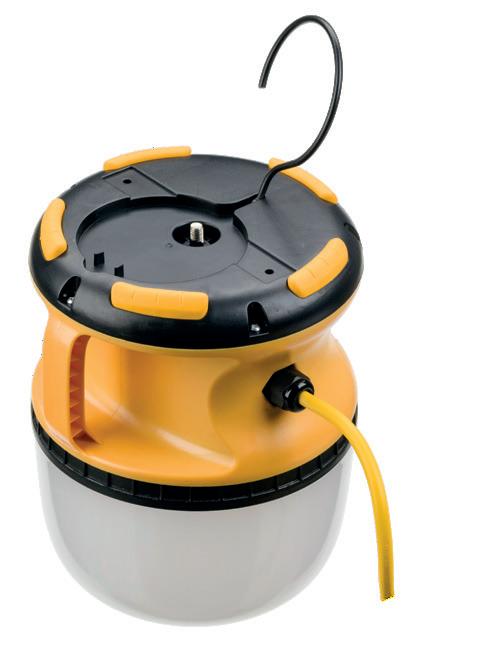

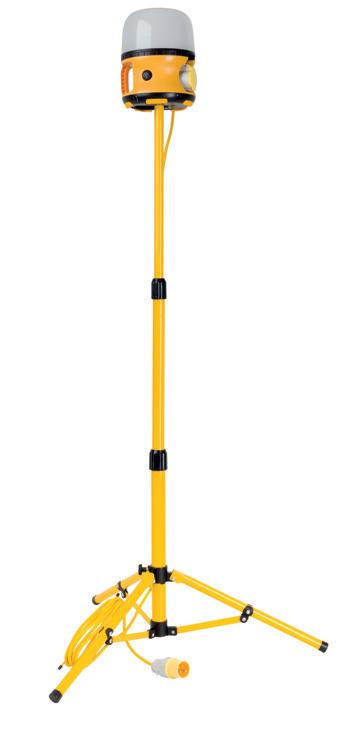

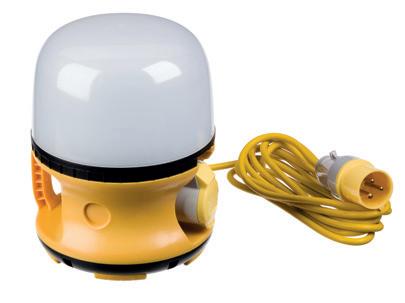

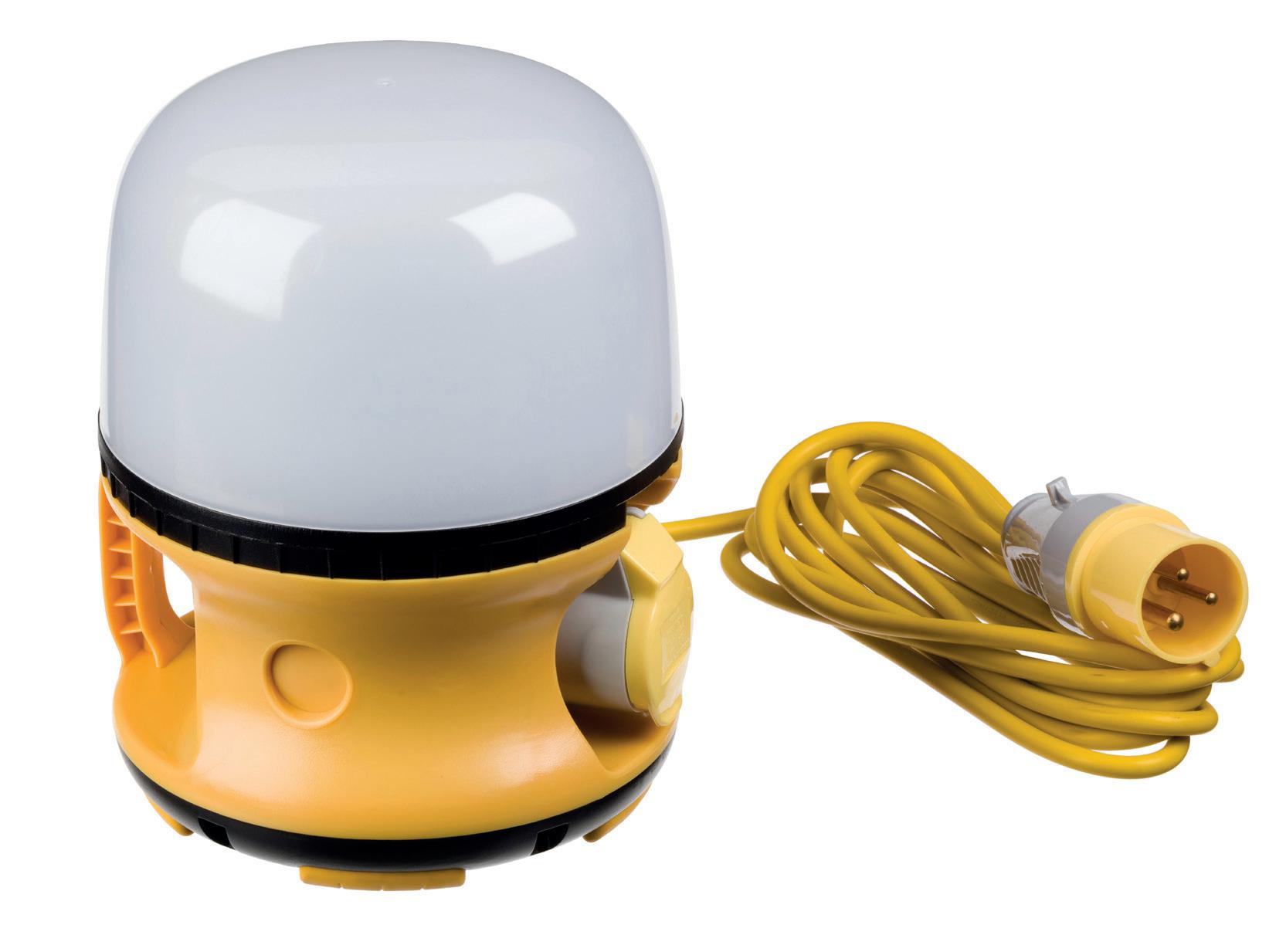

GLOBE LIGHT
360º WORKSPACE LIGHTING
For ultimate flexibility, our Globe Light is the number one choice. Featuring 360º light distribution, the unit can be free standing, tripod mounted or suspended using the built-in hook. An emergency version offers complete peace of mind.
Features
• Lightweight and portable
• Efficient 360° light distribution
• Emergency option, switchable to prevent discharge during storage
• Built-in hook for suspension mounting
• Adjustable tripod available to order separately
20 | Grant & Stone - Site Lighting grantandstone.co.uk
SITE LIGHTING LED IP54 110V IK07 6500K 2 YRS GUARANTEE 30 WATT
Specification Dimensions
Material: ABS + Polycarbonate
Colour Temperature: 6500K
CRI Ra>80
LED Lifetime: L70B50 35,000 Hrs
IP Rating: IP54
IK Rating: IK07
Working Temperature: -20°C to 40°C (Emergency version 0°C to 40°C)
Power Factor >0.9
Guarantee: 2 Years
GLTYPW Adjustable tripod for globe light
Grant & Stone - Site Lighting | 21 01277 281237 SITE LIGHTING
Wattage Lumen Output Emergency Lumen Output Efficacy
Product Code Description
30W 2600 lm - 86 lm/W
30W 2600
350
86 lm/W
GLS30YPW Globe Light c/w 5m cable + 16A plug/socket
GLE30YPW Globe Light Emergency c/w 5m cable + 16A plug/socket
lm
lm
Ø190mm L252mm

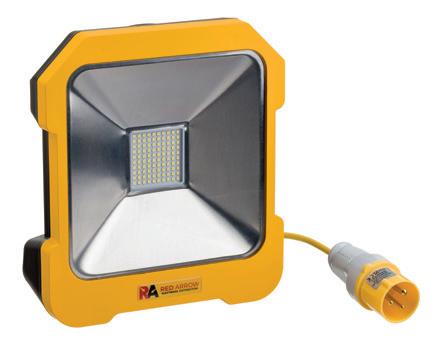

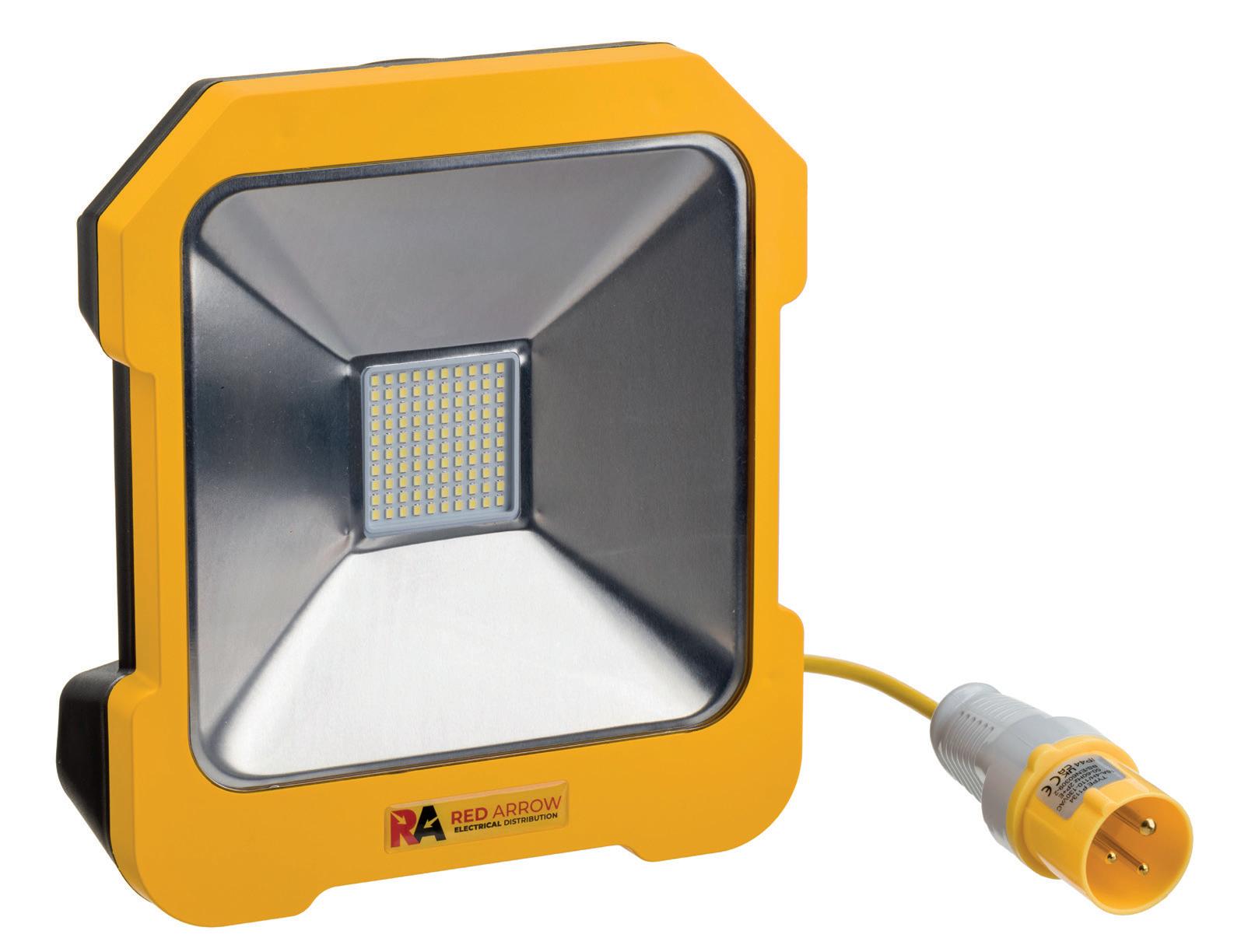

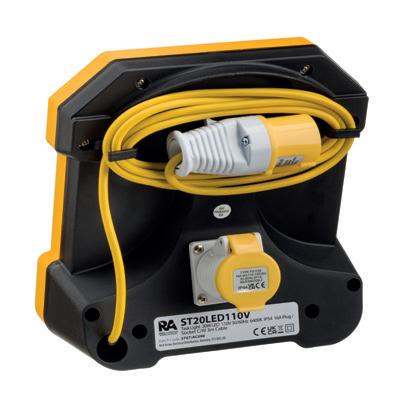

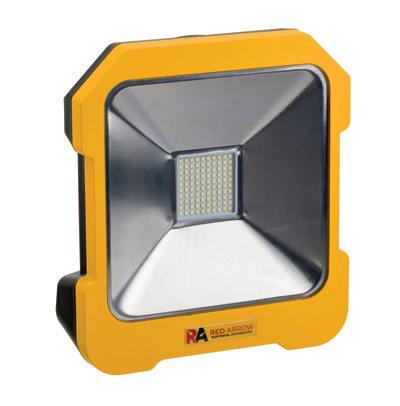

ST20
110V PORTABLE TASK LIGHT
The ST20 is a tough yet lightweight task light. Pre-wired with 3m of cable and plug, the unit also features cable storage and an auxiliary socket for interlinking or power tools.
Features
• Tough, lightweight construction
• Built-in cable storage and carry handle
• Handy auxiliary socket on rear
• Pre-wired with 3m cable and plug
22 | Grant & Stone - Site Lighting grantandstone.co.uk
SITE LIGHTING LED IP54 IK07 6400K 2 YRS GUARANTEE 20 WATT 110V
Specification Dimensions
Material: Body: Nylon Lens: Polycarbonate
Colour Temperature: 6400K
CRI Ra>80
LED Lifetime: L70B50 30,000 Hrs
IP Rating: IP54
IK Rating: IK07
Working Temperature: -20°C to 55°C
Power Factor 0.9
Aux Socket Max Load 1500W
Guarantee: 2 Years
Grant & Stone - Site Lighting | 23 01277 281237 SITE LIGHTING Product Code Description Wattage Lumen Output Efficacy ST20LED110V Portable Task Light 110V c/w 3m cable & plug 20W 2000 lm 100 lm/W
W242mm L273mm D136mm

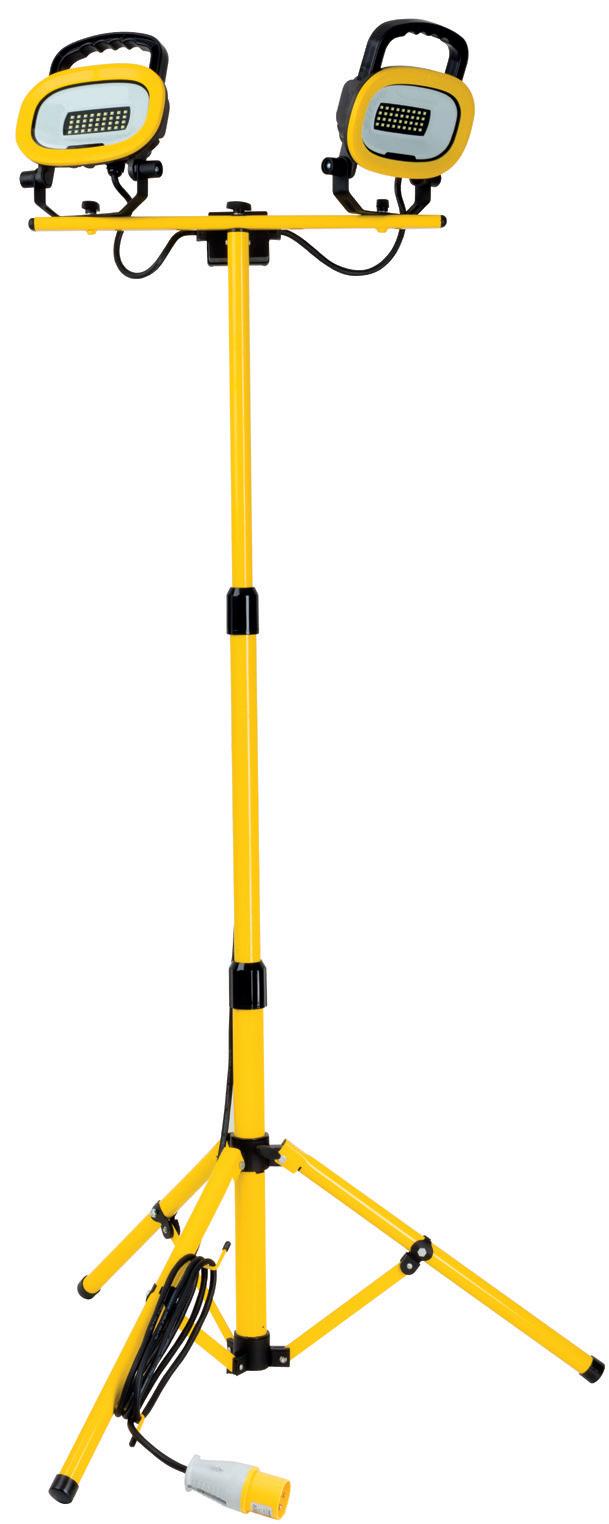

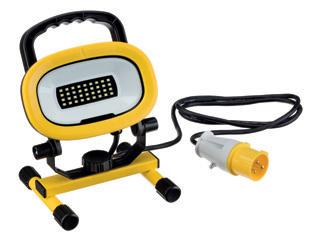

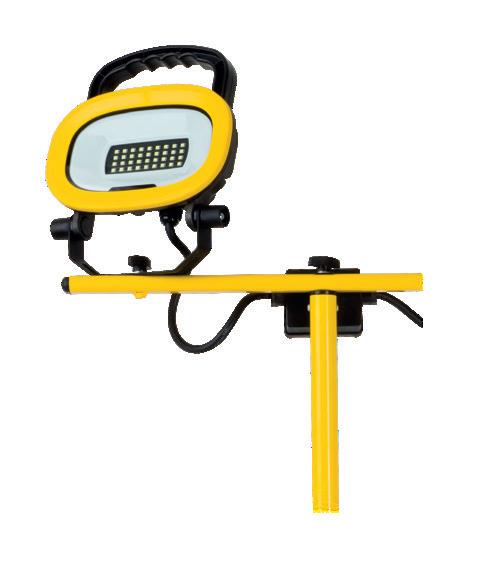

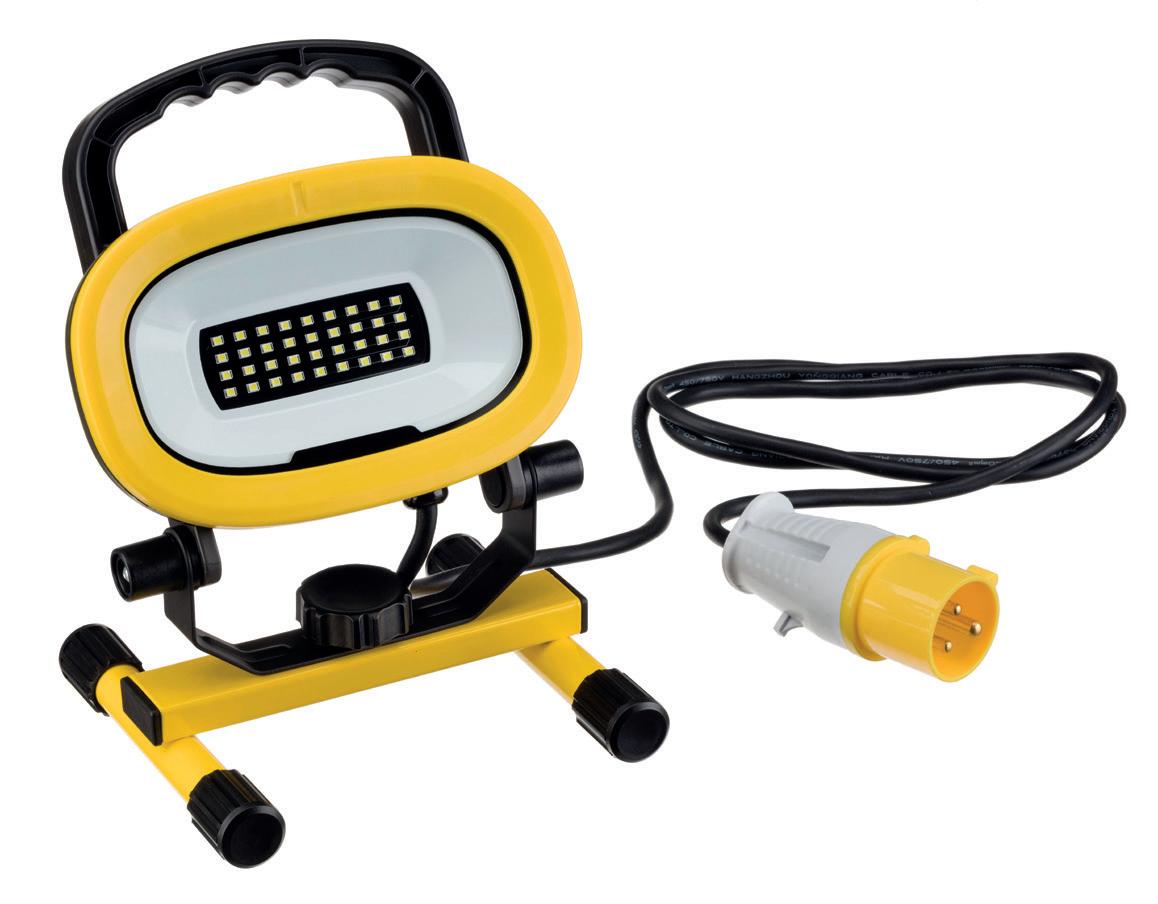

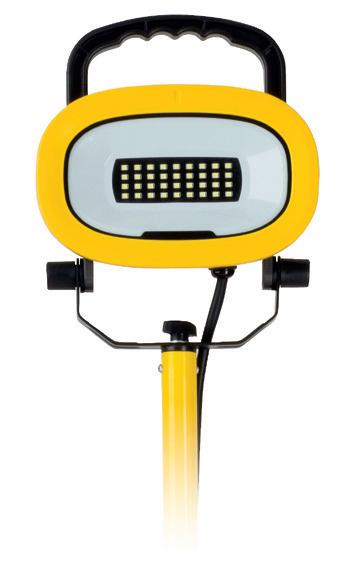

GARRISON
HAND HELD AND TRIPOD WORK LIGHTS
Garrison is a versitile range of worklights. Compact and lightweight, the efficient heads offer exceptional value for money.
Features
• Hand-held or single and twin tripod worklights
• Height adjustable tripod
• Tripods have adjustable heads to direct the light
• Pre-wired with 1.8m cable on GLH18 and 3m cable on GLW118 / GLW218 all with a 16A 110V plug
24 | Grant & Stone - Site Lighting grantandstone.co.uk
SITE LIGHTING LED IP54 IK05 6500K 3 YRS GUARANTEE 1x18/ 2x18 WATT 110V
Specification
Material:
Body: ABS Lens: Glass Tripod: Steel
Colour Temperature: 6500K
CRI Ra>75
LED Lifetime: L70B50 25,000 Hrs
IP Rating: IP54
IK Rating: IK05
Working Temperature: -20°C to 50°C
Power Factor 0.9
Guarantee: 3 Years
Dimensions
Grant & Stone - Site Lighting | 25 01277 281237 SITE LIGHTING
Code Description Wattage Lumen Output Efficacy
Hand Held Work Light 18W 1500 lm 83 lm/W
Tripod Work Light - Single Head 1x18W 1500 lm 83 lm/W GLW218 Tripod Work Light - Twin Head 2x18W 3000 lm 83 lm/W
Product
GLH18
GLW118
MA X L1740/1755mm W: 870mm D: 60mm 1510mm 230mm MA X L1740/1755mm W: 870mm D: 60mm 1510mm 230mm W200mm L270mm D160mm W200mm L270mm D160mm

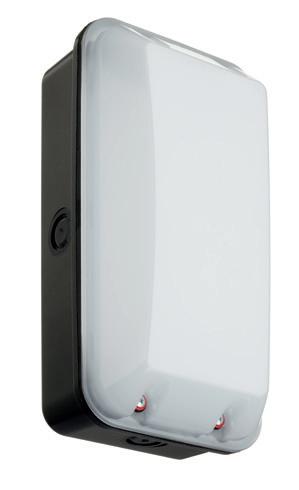

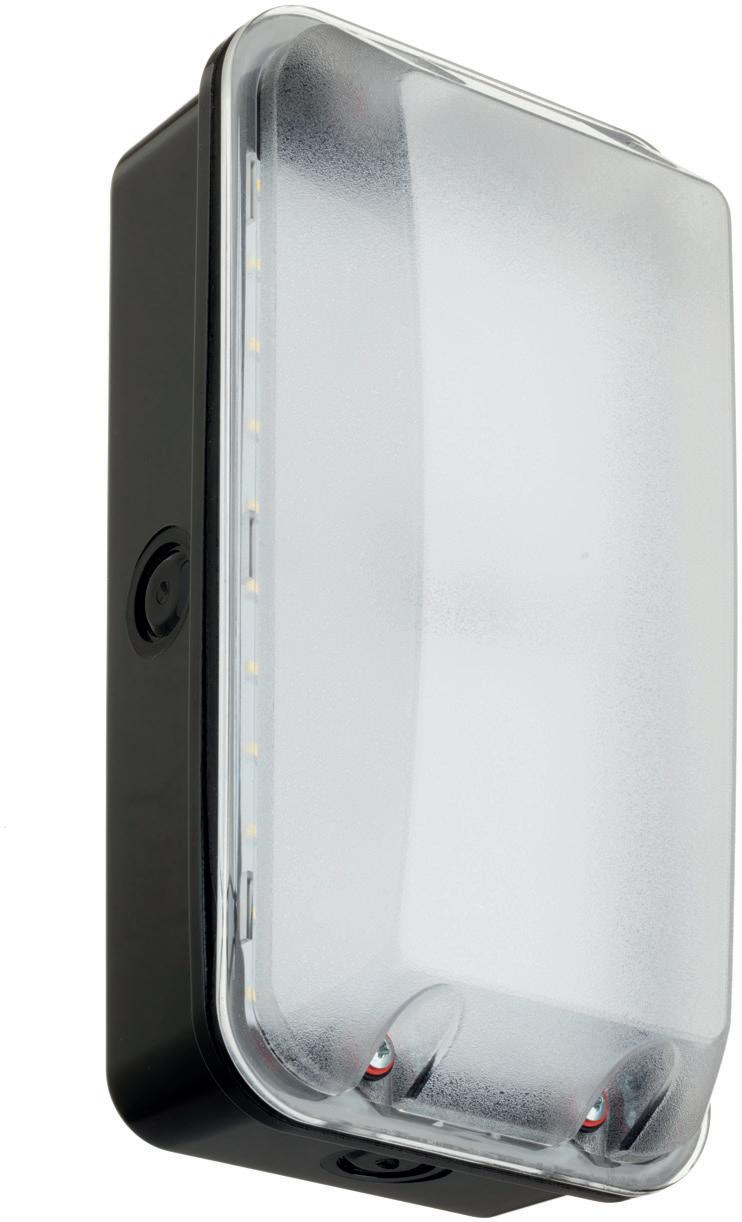

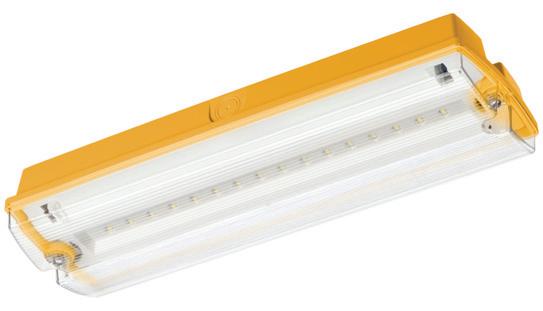

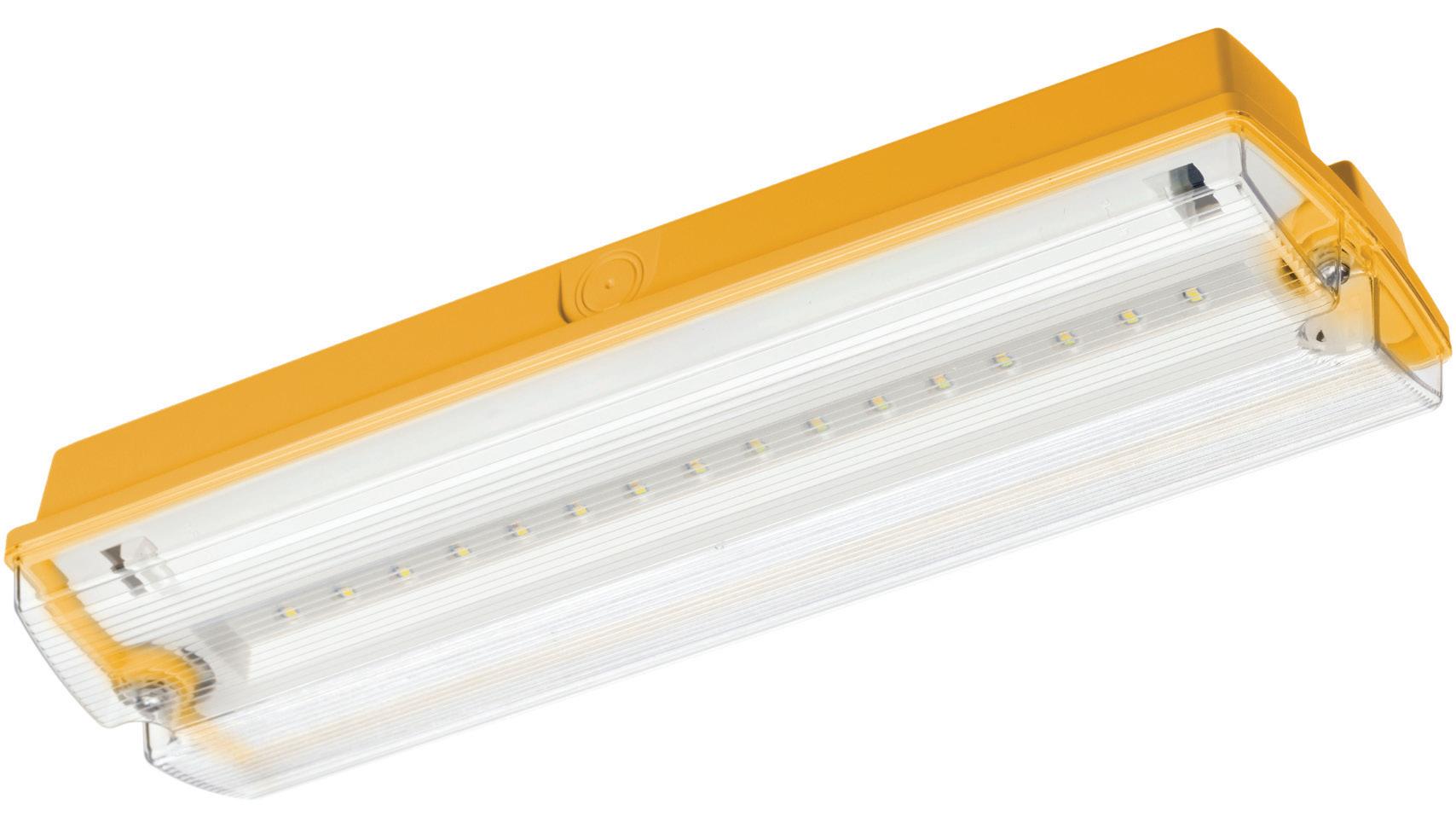

TAURUS SITE
DUAL VOLTAGE SITE BULKHEADS
Taurus Site is a range of sleek profile dual voltage bulkheads. Designed for use on construction site hoardings and general lighting, the range features opal and frosted clear or red diffusers. Extra deep prismatic clear or red diffusers, plus a smart black trim offer additional choice.
Features
• New sleek profile design
• Dual supply voltage - 110/240V for versatility
• Optional prismatic red or clear diffusers
• Smart optional trim to cover diffuser fixings
26 | Grant & Stone - Site Lighting grantandstone.co.uk
SITE LIGHTING LED IP65 110240V IK08 5700K 3 YRS GUARANTEE 8 WATT
Specification
Material: Polycarbonate
Colour Temperature: 5700K (N/A to Red)
LED Lifetime: L80B50 30,000 Hrs
IP Rating: IP65
IK Rating: IK08
Working Temperature: -10°C to 40°C
Guarantee: 3 Years

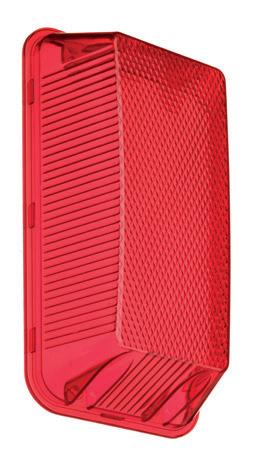

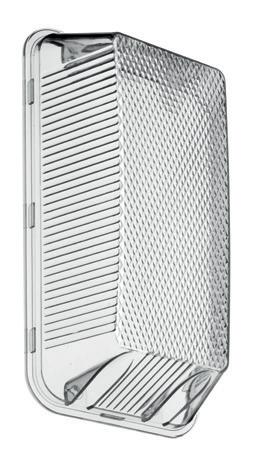

TA/CLEAR Taurus Site Extra Deep Clear Prismatic Diffuser Only TA/RED Taurus Site Extra Deep Red Prismatic Diffuser Only
Taurus Site Optional Trim Only
Grant & Stone - Site Lighting | 27 01277 281237 SITE LIGHTING
Product Code Description Wattage Lumen Output Efficacy TAO8Y Taurus Site Bulkhead with
Diffuser 8W 800 lm 100 lm/W TAC8Y Taurus Site Bulkhead with Clear Diffuser 8W 900 lm 110 lm/W TAR8Y Taurus Site Bulkhead with
Diffuser 8W 190 lm N/A
TA/TRIM
Dimensions 97mm 245mm 97mm 125mm 245mm TAO8Y
TA/RED TA/CLEAR
Opal
Red
TAO8Y WITH TA/TRIM
VANGUARD SITE
110V EMERGENCY BULKHEAD
Vanguard Site delivers safe site illumination in the event of a power failure. Featuring a sleek, shallow profile and carefully designed lens for improved spacings, Vanguard Site also has configurable maintained or non-maintained operation and features a hinged gear tray for easy and rapid installation.
Features
• Hinged gear tray for quick and easy installation
• Selectable maintained or non-maintained operation

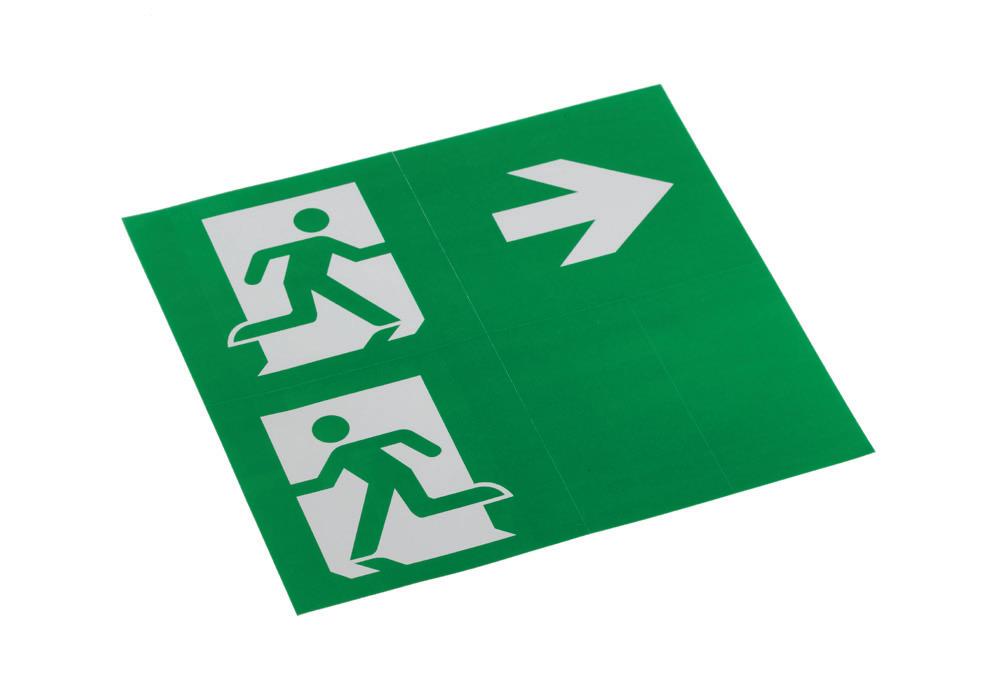

• Supplied with self adhesive exit legend kit
28 | Grant & Stone - Site Lighting grantandstone.co.uk
SITE LIGHTING
6500K 5 YRS GUARANTEE 3 WATT IP65 LED IK06 110V
Specification
Material: Body: ABS Lens: Polycarbonate
Colour Temperature: 6500K
Colour Finish: Yellow 1355C
LED Lifetime: L70B50 54,000 Hrs
IP Rating: IP65
IK Rating: IK06
Working Temperature: 0°C to 45°C
Electrical Class: Class II
Emergency Battery Type: LiFePO4 Guarantee: 5 Years (Batteries 2 Years)
Spacing Tables
Grant & Stone - Site Lighting | 29 01277 281237 SITE LIGHTING
EXIT LEGEND KIT Dimensions L351mm W111mm D63mm
Open Area Mount Height (m) Open Area 0.5 Lux min (m) Self Contained 2.5 4.3 10.6 2.5 6.7 2.8 4.4 11.1 2.3 6.9 3.0 4.5 11.6 2.3 7.0 4.0 4.8 12.6 2.1 6.7 5.0 4.9 13.4 1.0 6.4
Escape Route Mount Height (m) Escape Route 1 Lux min (m) Self Contained 2.5 3.3 8.7 2.8 3.3 8.89 3.0 3.5 9.1 4.0 -S S Product Code Description Wattage Lumen Output Emergency Lumen Output VANS/3Y Vanguard Site 110V M/NM Bulkhead 3W 150 lm 150 lm
S S

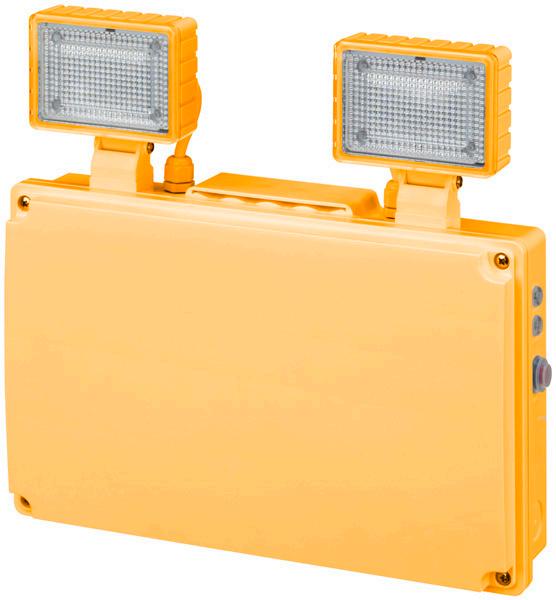

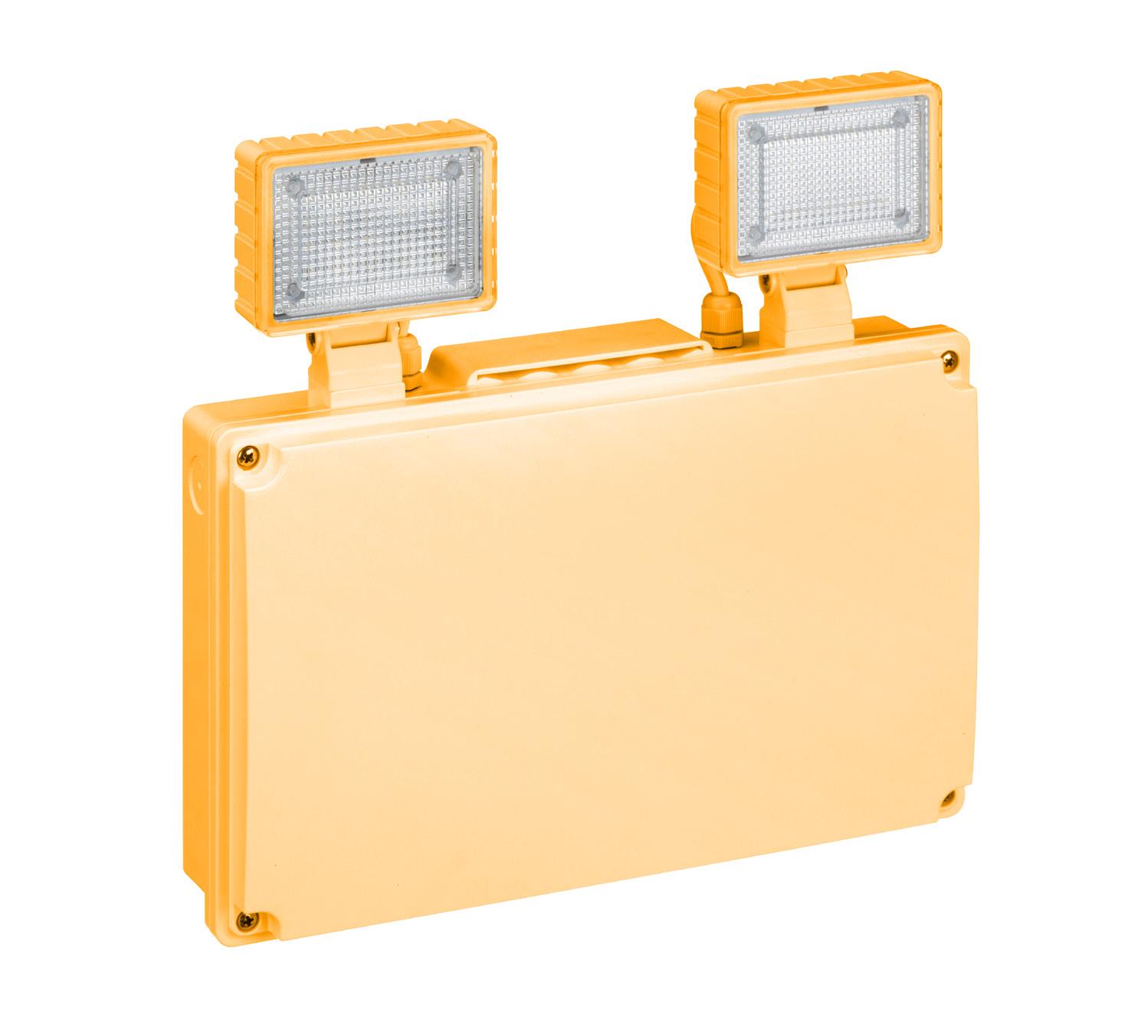

JUNO 65 SITE
110V IP65 EMERGENCY NW TWIN SPOT
JUNO 65 SITE is the ideal solution for adjustable, non-maintained emergency site lighting in any wet or dusty environment. The high light output suits higher mounting applications and where flexibility is a prime consideration.
Features
• Tough IP65 & IK08 construction, ideal for wet or dusty environments
• Fully adjustable LED projector flood heads
• High output, suited to higher mounting positions
• Fast and easy to install
30 | Grant & Stone - Site Lighting grantandstone.co.uk
SITE LIGHTING
110V 4 WATT 5 YRS GUARANTEE 6500K IK08 IP65 LED
Specification
Material: Polycarbonate
Colour Temperature: 6500K
Colour Finish: Yellow 1355C
CRI Ra>80
LED Lifetime: L70B50 36,000 Hrs
IP Rating: IP65
IK Rating: IK08
Working Temperature: 0°C to 45°C
Emergency Battery Type: LiFePO4
Electrical Class: Class: II
Guarantee: 5 Years (batteries 2 years)
Dimensions
Grant & Stone - Site Lighting | 31 01277 281237 SITE LIGHTING
H190mm W300mm H66mm W90mm H288mm D35mm D69mm Product Code Description Wattage Lumen Output Net Weight (kg) JUNS/500Y Juno 65 Site IP65 3 Hour NM Emergency Twin Spot 4W (Charge 2.5W) 500 lm 1.21
FLSMD SITE FLOODS
FLSMD
Features
• Symmetrical 120° distribution
• Convenient multi-voltage drivers
• Tough die-cast construction
• Pre-wired with 1m cable
32 | Grant & Stone - Site Lighting grantandstone.co.uk
SITE LIGHTING
MULTI-VOLTAGE
LED IP65 50-200 WATT 3 YRS GUARANTEE 6500K
is a range of tough and robust floodlights designed for site applications. Featuring a multi-voltage supply driver, FLSMD can be used in virtually any project.
Specification Dimensions
Material:
Body: Die-Cast Aluminium Lens: Tempered Glass
Colour Temperature: 6500K
CRI Ra70
LED Lifetime: 35,000 Hours
Beam Angle: 120° Symmetrical IP Rating: IP65
IK Rating: IK07
Working Temperature: -20°C to 40°C
Power Factor 0.9 Guarantee: 3 Years
Grant & Stone - Site Lighting | 33 01277 281237 SITE LIGHTING Product Code Description Wattage Lumen Output Efficacy FLSMD50Y-1 FLSMD Site Floodlight 50W 4000 lm 80 lm/W FLSMD100Y-1 FLSMD Site Floodlight 100W 8000 lm 80 lm/W FLSMD150Y-1 FLSMD Site Floodlight 150W 12000 lm 80 lm/W
Product Code Dimensions FLSMD50Y-1 L: 310mm, W: 310mm, D: 65mm FLSMD100Y-1 L: 330mm, W: 320mm, D: 90mm FLSMD150Y-1 L: 365mm, W: 370mm, D: 94mm FLSMD200Y-1 L: 425mm, W: 410mm, D: 110mm W mm L mm D mm FLSMD50Y-1 FLSMD100Y-1 FLSMD150Y-1 FLSMD200Y-1
JUPITER
HIGH EFFICIENCY AREA FLOODLIGHTS
Jupiter is a new generation of area floodlights that offers exceptional energy savings and outstanding performance, with an efficacy of 140lm/W as standard. This delivers savings of up to 40% compared with many other LED floodlights. The ultra-sleek die cast body is fitted with a multi-voltage driver, allowing Jupiter to be used for site lighting as well as 230V supply applications.
Features
• Ultra-sleek yet robust design
• High efficiency 140lm/W – saves energy
• Multi-voltage driver, suitable for 110V & 230V supply
• Photocell option for every version
• Pre-wired with 1m cable for convenient installation
34 | Grant & Stone - Site Lighting grantandstone.co.uk SITE LIGHTING
110V277V 2 YEAR ON-SITE WARRANTY 30-320 WATT 4000K 5 YRS GUARANTEE IK07 IP65 LED
Specification
Material: Body: Die-cast Aluminium Lens: Tempered Glass
Colour Temperature: 4000K
Colour Finish: Black
Beam Angle 110° Symmetric
CRI Ra>70
LED Lifetime: L70B50 50,000 Hrs
IP Rating: IP65
IK Rating: IK07
Working Temperature: -30°C to 45°C
Power Factor 0.95
Electrical Class: Class: I
HIGH EFFICACY
Grant & Stone - Site Lighting | 35 01277 281237 SITE LIGHTING
Dimensions Lmm Dmm Wmm Lmm Dmm Wmm
Guarantee: 5 Years Product Code Description Wattage Lumen Output Efficacy Dimensions JUPS30-40 Jupiter Flood 30W 4200 lm 140 lm/W L: 257 x W: 247 x D: 50mm JUPS50-40 Jupiter Flood 50W 7000 lm 140 lm/W L: 257 x W: 247 x D: 50mm JUPS100-40 Jupiter Flood 100W 14000 lm 140 lm/W L: 325 x W: 236 x D: 48mm JUPS135-40 Jupiter Flood 135W 18900 lm 140 lm/W LL: 345 x W: 285 x D: 55mm JUPS180-40 Jupiter Flood 180W 25200 lm 140 lm/W L: 395 x W: 320 x D: 78mm JUPS240-40 Jupiter Flood 240W 33600 lm 140 lm/W L: 480 x W: 374 x D: 78mm JUPS320-40 Jupiter Flood 320W 44800 lm 140 lm/W L: 555 x W: 425 x D: 78mm JUPS30PC-40 Jupiter Flood c/w Photocell 30W 4200 lm 140 lm/W L: 257 x W: 247 x D: 50mm JUPS50PC-40 Jupiter Flood c/w Photocell 50W 7000 lm 140 lm/W L: 257 x W: 247 x D: 50mm JUPS100PC-40 Jupiter Flood c/w Photocell 100W 14000 lm 140 lm/W L: 325 x W: 236 x D: 48mm JUPS135PC-40 Jupiter Flood c/w Photocell 135W 18900 lm 140 lm/W L: 345 x W: 285 x D: 55mm JUPS180PC-40 Jupiter Flood c/w Photocell 180W 25200 lm 140 lm/W L: 395 x W: 320 x D: 78mm JUPS240PC-40 Jupiter Flood c/w Photocell 240W 33600 lm 140 lm/W L: 480 x W: 374 x D: 78mm JUPS320PC-40 Jupiter Flood c/w Photocell 320W 44800 lm 140 lm/W L: 555 x W: 425 x D: 78mm
COMET SITE
SLIM FLOODLIGHTS
The Comet Site floodlight offers a wide range of outputs. Product supplied with 1m prewired rubber cable and U shaped mounting bracket, making Comet Site an extremely cost effective solution.
Features
• Prewired 1m rubber cable
• U shaped mounting bracket
36 | Grant & Stone - Site Lighting grantandstone.co.uk
SITE LIGHTING 50-200 WATT 110V 3 YRS GUARANTEE 4000K IK06 IP65 LED
Specification
Material: Body: Die-Cast Aluminium Lens: Glass
Colour Temperature: 4000K
Colour Finish: Yellow (RAL1007)
CRI Ra>80
LED Lifetime: L70B50 50,000 hrs
IP Rating: IP65
IK Rating: IK06
Working Temperature: -30°C to 45°C
Beam Angle: 110°
Electrical Class: Class: I
Guarantee: 3 Years
Dimensions
Grant & Stone - Site Lighting | 37 01277 281237 SITE LIGHTING
CMT50Y
CMT150Y
CMT200Y
CMT100Y
Lmm Wmm Dmm Product Code Description Wattage Lumen Output Colour Temp Efficacy Dimensions Weight (Kg) CMT50Y COMET SITE 50W 5000 lm 4000K 100 lm/W L: 216 x W: 212 x D: 32mm 0.846 CMT100Y COMET SITE 100W 10000 lm 4000K 100 lm/W L: 251 x W: 290 x D: 37mm 1.445 CMT150Y COMET SITE 150W 15000 lm 4000K 100 lm/W L: 311 x W: 348 x D: 40mm 2.12 CMT200Y COMET SITE 200W 20000 lm 4000K 100 lm/W L: 374 x W: 414 x D: 41mm 3.09

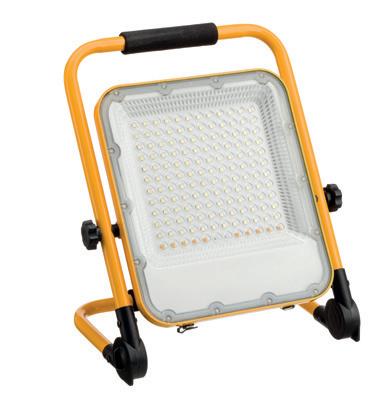

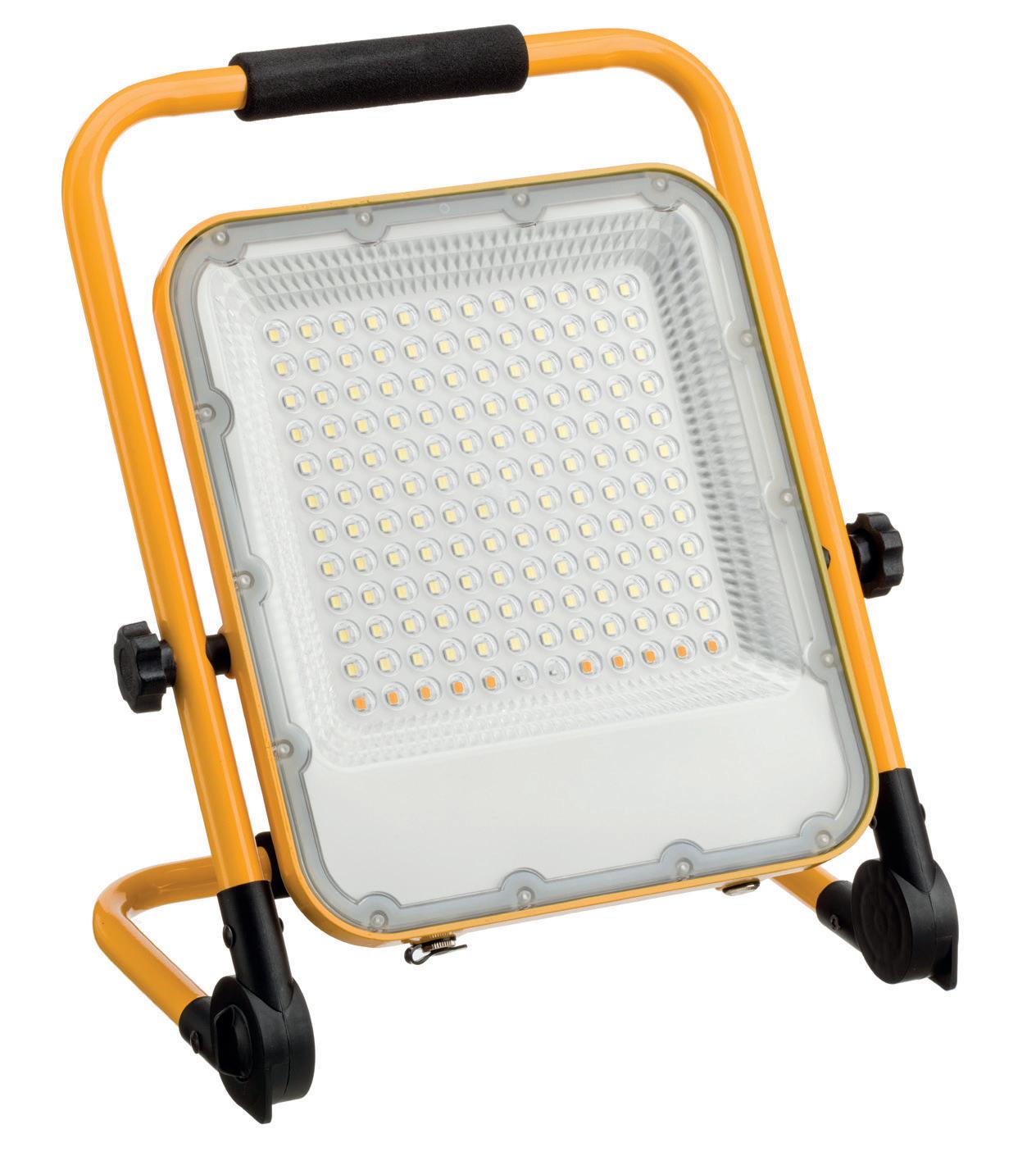

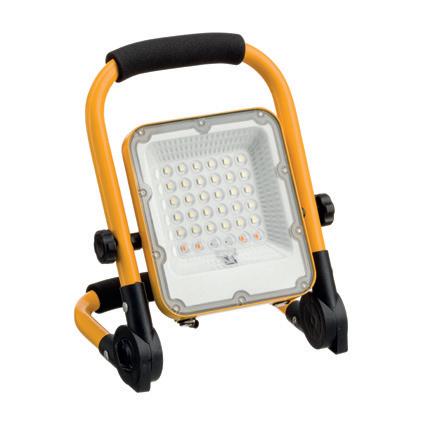

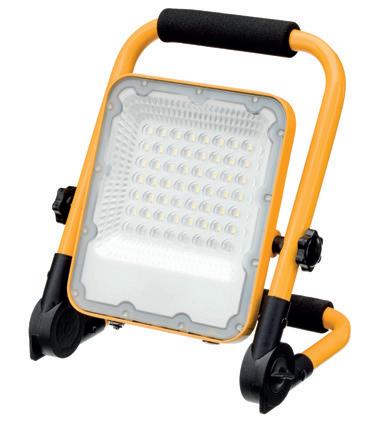

KRYPTON RECHARGEABLE FLOODLIGHTS
Krypton is a lightweight, portable, rechargeable floodlight with a sleek design. Push button operation features 3 light levels and amber SOS flashing sequence, plus last level memory on/off function.
Features
• Up to 12 hours of light when fully charged
• Choice of 3 light levels - 100%/60%/20%
• Handy amber SOS flashing function
• Folds flat - fully adjustable bracket
38 | Grant & Stone - Site Lighting grantandstone.co.uk
SITE LIGHTING LED IP65 IK08 6000K 2 YRS GUARANTEE 10-50 WATT
Specification Dimensions
Material: Body: Die-cast Aluminium Lens: Polycarbonate
Colour Temperature: 6000K
LED Lifetime: L70B50 30,000 Hrs
Charge Time: 5-6 Hours
Operation Time: (From full charge) 100% - 4 Hrs 60% - 9 Hrs 20% - 12 Hrs
Charge Cable: USB Charging cable included
IP Rating: IP65
IK Rating: IK08
Working Temperature: -20°C to 45°C
Guarantee: 2 Years
Grant & Stone - Site Lighting | 39 01277 281237 SITE LIGHTING
Product Code Description Wattage Lumen Output KRY10 Krypton Rechargeable Floodlight 10W 600 / 360 / 120 lm KRY20 Krypton Rechargeable
20W 1000 / 600 / 200 lm
Rechargeable
50W 2400 / 1440 / 480 lm KRY/USB
-Wmm Dmm Lmm Product Code Dimensions KRY10 L: 269mm, W: 204mm, D: 183mm KRY20 L: 280mm, W: 218mm, D: 183mm KRY50 L: 382mm, W: 292mm, D: 215mm KRY10 KRY20
Floodlight
KRY50 Krypton
Floodlight
Krypton USB Charging Cable

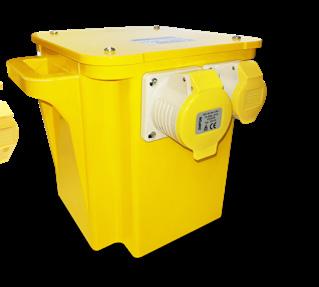

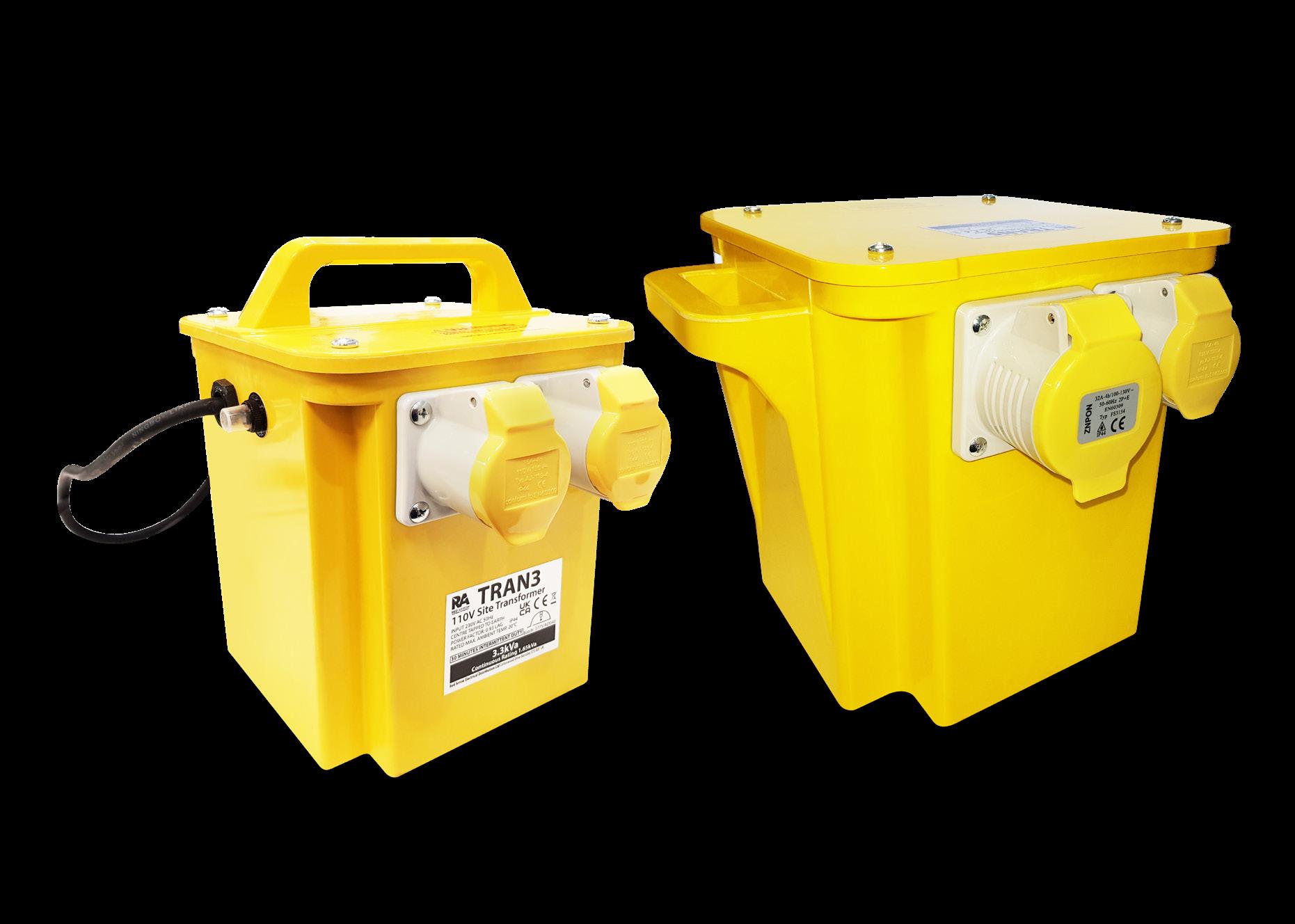

TRANSFORMERS
PORTABLE SITE TRANSFORMERS
Designed for use on work sites, providing power to power tools or lighting, our portable site transformers are tough, IP44 rated against splashing and include built in safety features.
Features
• Tough GRP housing with carry handle
• Ideal for intermittent power tool use or lower loads such as lighting
• 30 Minute intermittent duty
• Includes re-settable thermal overload protection
• Pre-wired with heavy duty rubber cable fitted with BS 13A Plug
Centre tapped to earth
40 | Grant & Stone - Site Lighting grantandstone.co.uk
SITE LIGHTING IP44 110V 1 YR GUARANTEE
Specification
Material: GRP
Colour Finish: Yellow
IP Rating: IP44
IK Rating: IK07
Input: 230V AC 50Hz
Output: 3.3kVa - 2x110V 16A 5kVa - 2x110V 16A & 1x110V 32A
Electrical Class: Class I
Guarantee: 1 Year
Grant & Stone - Site Lighting | 41 01277 281237 SITE LIGHTING
Dimensions 216mm 244mm 265mm TRAN3 257mm 349mm 340mm TRAN5 257mm 349mm 340mm

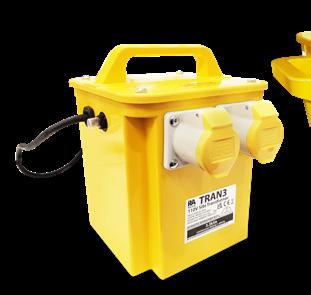

Product Code Description Rating Continuous Rating Net Weight TRAN3 3.3kVa Transformer with 2x16A Sockets 3.3kVa 1.65kVa 16kg TRAN5 5kVa Transformer with 2x16A & 1x32A Sockets 5kVa 3kVa 30kg

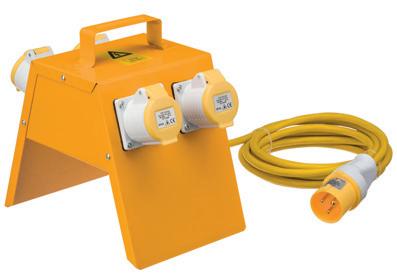

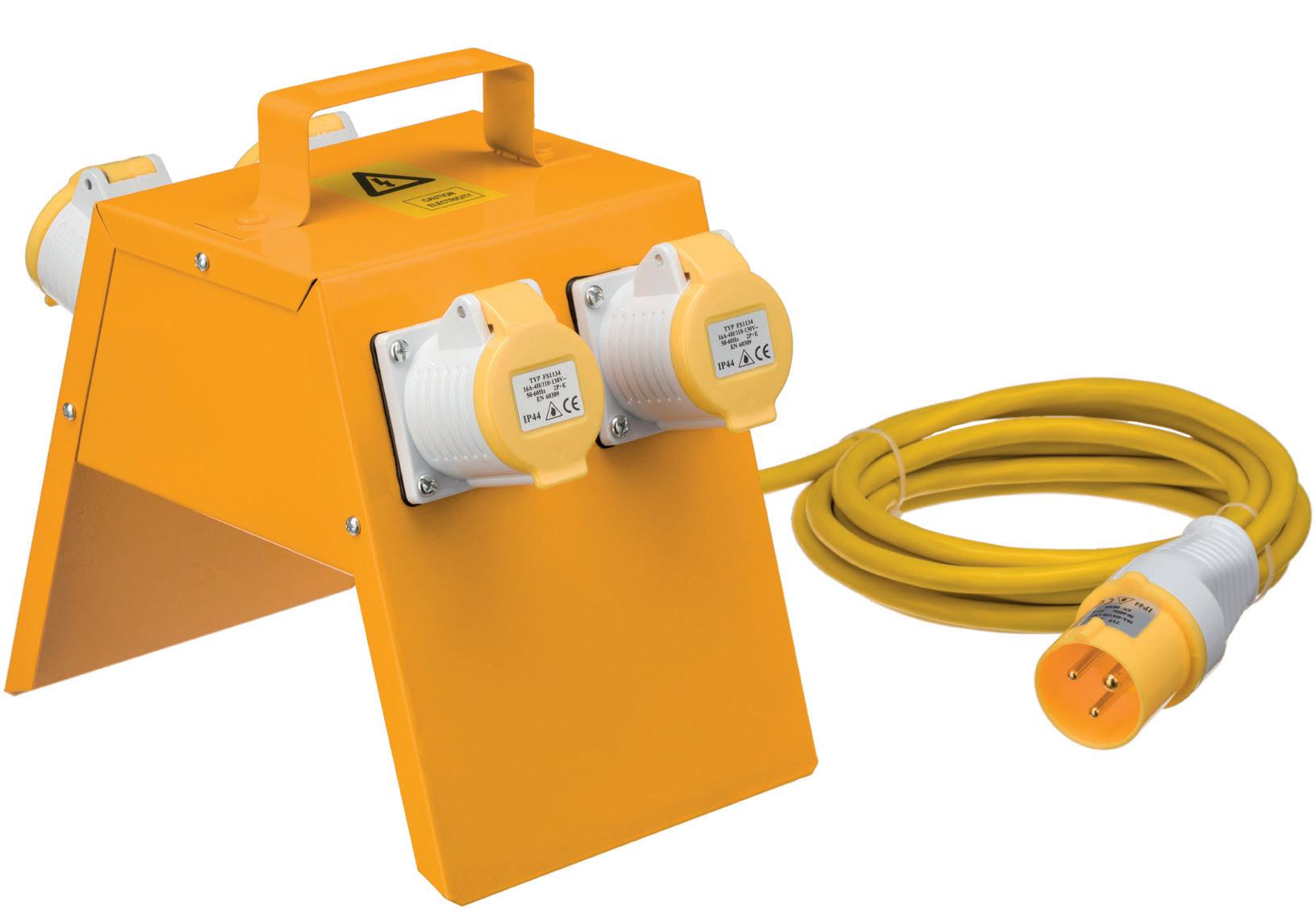

110V ACCESSORIES
SPLITTER BOX & COUPLERS
Our site lighting range includes useful accessories to complete any project. The range includes a splitter box, plug, coupler and a handy extension cable.
Features
• Splitter box with 4 outputs and pre-wired 5m supply cable
• Handy pre-wired extension cable
• Seperate plug and couplers for versatility
42 | Grant & Stone - Site Lighting grantandstone.co.uk
SITE LIGHTING IP44 110V 1 YR GUARANTEE
Specification
Material: Plug & Couplers: Polypropylene Splitter Box: Steel Cable: HOVV-F 3G 1.5mm2 IP Rating: IP44 Guarantee: 1 Year
Dimensions
Grant & Stone - Site Lighting | 43 01277 281237 SITE LIGHTING
Code Description Rating LFUK4S Splitter Box - 4 x 16A-110V 16A IP16A Industrial Plug 110V 16A IC16A Industrial Coupler 110V 16A SE15 14m - 3 x 1.5mm Extension Cable 110V c/w plug & coupler 16A
Product
L110mm L131mm W55mm W70mm Ø6mm Ø50mm W175mm D260mm L241mm
SE15

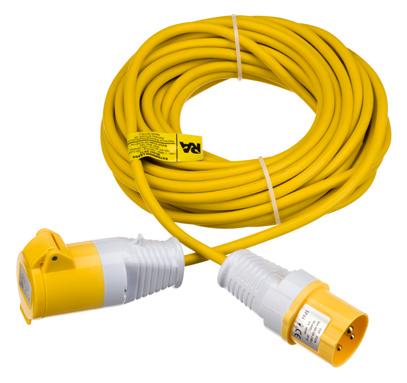

EXTENSION CABLE IP16A INDUSTRIAL PLUG IC16A INDUSTRIAL COUPLER
Grant and Stone Limited
Unit 10, Brentwood Trade Park, Tallon Road, Brentwood, Essex, CM13 1TF, United Kingdom
www.grantandstone.co.uk
Tel: 01277 281237
Email: brelectrical@grantandstone.co.uk
ISO 9001 : 2015 ISO 14001 : 2015 CERTIFICATE NO: 329832020 CERTIFICATE NO: 391312022 CERTIFICATE NO: 391312022 CERTIFICATE NO: 329832020
