REXALL
MARKING PAINT
PEINTURE DE MARQUAGE
MARKING PAINT RED
PPG# REX415769/EA
SAP# 693678
MARKING PAINT ORANGE
PPG# REX415771/EA
SAP# 693676
MARKING PAINT BLUE
PPG# REX415773/EA
SAP# 693674
MARKING PAINT GREEN
PPG# REX415772/EA
SAP# 693675
MARKING PAINT WHITE
PPG# REX415767/EA
SAP# 693679
MARKING PAINT PINK
PPG# REX415770/EA
SAP# 693677
MARKING PAINT YELLOW
PPG# REX415768/EA
SAP# 693680
TESTED IN EXTREME TEMPERATURES (-40°C)
ZERO PRODUCT WASTE: 100% UTILIZATION
COVERS UP TO 550 LINEAR FEET
DURABLE IN ALL WEATHER CONDITIONS
COMPLETE SURFACE COVERAGE IN ONE PASS
SEE IN ACTION
*
Product information PRODUCT INFORMATION

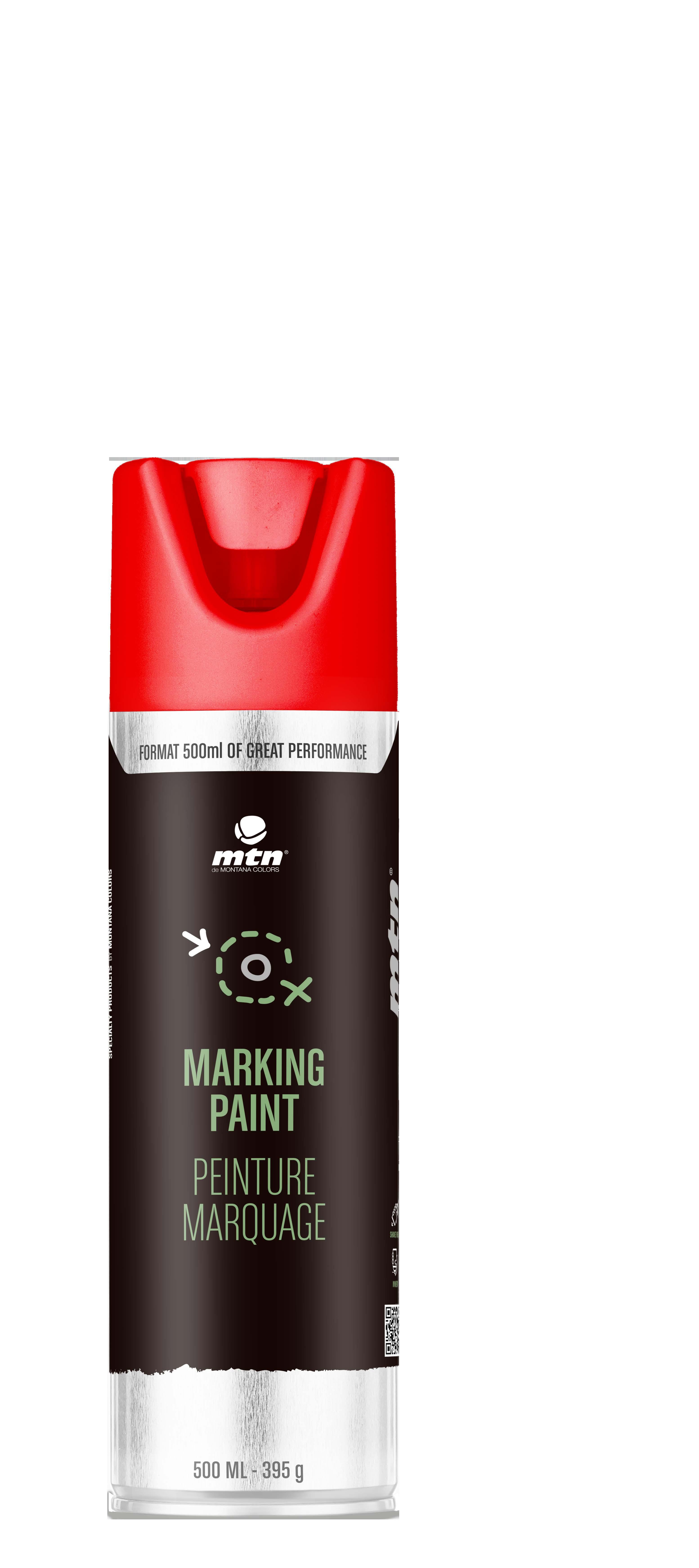

MARKING PAINT
500 ml, 13 Oz, 360 g.
GENERAL DESCRIPTION
Paint composed if acrylic resins and high quality copolymers of a thermoplastic nature, specially designed for temporary marking.
FEATURES
- Fast drying.
- Very bright colors.
- Easy to apply
- Resists freezing temperatures.
- Does not contain lead nor other heavy metals.
- Can be used on numerous materials.
- Good adhesion.
- Can be removed easily with acetone or hot water.
- Its exible valve allows for application with one nger.
APPLICATIONS
Due to the characteristics of the product, we recommend its use for construction and road work marking in the following applications:
- Road work - Topograhical Signals - Mining
- Industry - Geological studies - Construction
- In general where temporary, highly visible signage is necessary
INSTRUCTIONS FOR USE
- Shake the aerosol well before using, approximately for one minute after hearin the sound of the mixer.
- Never apply to equipment that is plugged in and use in well ventilated areas.
- Request safety datasheets
PHYSICAL PROPERTIES
Binder type: Thermoplastic Acrylic
Color: See chart
Shine: <10%
Dry to the touch (ASTM D-1640 ISO 1517): 5’
Completely dry (ASTM D-1640 ISO 1517): 10’
Thickness of
Thinner:
Heat
PACKAGING
Nominal capacity 500 ml.
Heat resistanve of packaging: <50ºC Propellant:
DME LABEL 240 mm. 65 mm
dry
(ASTM D-3359
2B
yield (continuous painting): 2,3 m²
layer (ASTM D-823 ISO 2808): 40 micras/layer Adherence
ISO 2409):
Theorical
Butyl
life:
Acetate Product
(Well Stored) 5 Years
resistance of paint:
150ºC
Minimum
Condition for application:
room temperature 8ºC Surface temperature 5-50ºC Max humidity 85% R.H.P
COD. BARRAS/BAR CODE Nombre del color Color name Serial number Route number Expiration Date REF. N# Fucsia / Fuchsia EX015PR0405 Rojo / Red EX015PR0404 Naranja / Orange EX015PR0433 Amarillo / Yellow EX015PR 0402 Blanco/ White EX015PR0400 Verde / Green EX015PR0436 Azul / Blue EX015PR0437
All of the adherence tests have been carried out on steel plates.
PRO ROAD SIGNAGE PAINT
PPG# REX25765/EA
SAP# 696738
PRO ROAD SIGNAGE PAINT
PPG# REX25766/EA
SAP# 696737

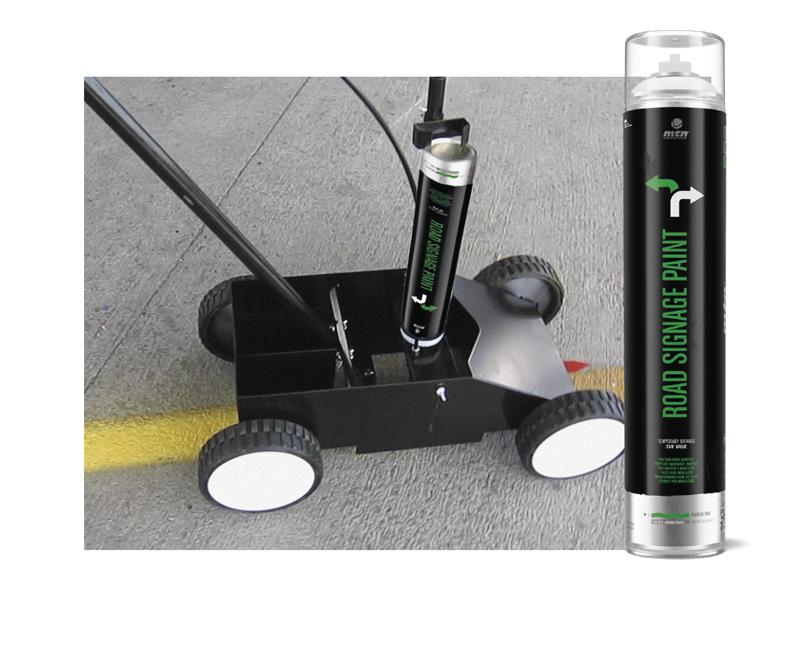

MTN PRO MARKING MACHINE
PPG# REX20860/EA
SAP# 696731
SEE IN ACTION
Product information
PRODUCT INFORMATION

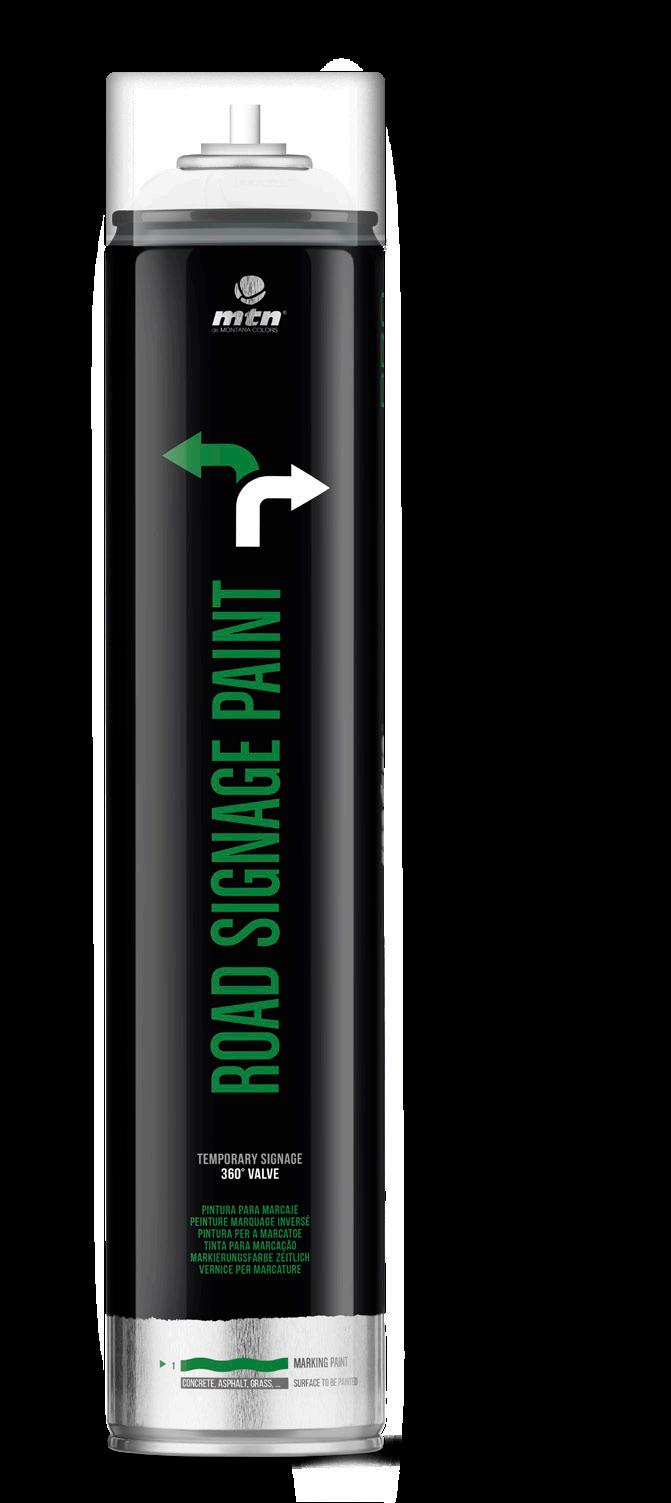

ROAD SIGNAGE PAINT
750 ml, 21.3 Oz, 604 g.
GENERAL DESCRIPTION
Very fast-drying alkyd enamel paint, ideal for long-lasting exterior color and for obtaining the perfect nish for painting road markings.
FEATURES
- Fast drying.
- Very vibrant colors.
- Easy to apply
- Does not contain lead nor other heavy metals.
- May be used on a multitude of materials.
- Excellent adherence on concrete and asphalt.
- Great durability of the pigments.
- Strong resistance to the sun and rain.
- Good covering capability
- Width: 6-12 cm. Length. Between 35-55 m, depending on the speed of application and the porosity of the surface.
- May be used with machines or road marking machines.
- Allows for posterior application of re ective glass beads.
APPLICATIONS
Due to its characterístics, this product is ideal for road markings:
- Industry - Boundar y markings - Road work
- Construction - Road signage, parking lots
- In general where permanent, horizontal marking is required
INSTRUCTIONS FOR USE
- Shake the aerosol well before using, approximately for one minute after hearing the sound of the mixer.
- Road marking machines allow for easy, simple painting of straight lines, and make it possible to modify the width and length of the line.
- May be used for interior and exterior application.
- Apply to clean, dry surfaces.
- May be repainted between 30 minutes to 2 hours afterwards. May be repainted after 24-48 h.
- If working manually, paint with the can in an upright, inverted position.
- Never apply to equipment that is plugged in and use in well ventilated areas.
- Request safety datasheets.
PHYSICAL PROPERTIES
Shine:
Theorical yield (continuous painting):
Thinner: Butyl acetate
Product life: (Well Stored) >5 years
Repainted: After 30’ and before 2h after 24-48h
Heat resistance: 150ºC
Condition for application:
* All
DONUT Indicates the paint color.
LID Protects the valve and the nozzle.
LABEL 340 mm.
65 mm
of liant: Alkyd Color: See chart
Type
<10%
to the touch
D-1640
1517): 30’
dry
D-1640
2h
of dry layer (ASTM D-823
40 µ/layer (2 coats)
D-3359
2B
Dry
(ASTM
ISO
Completely
(ASTM
ISO 1517):
Thickness
ISO 2808):
Adherence (ASTM
ISO 2409):
50-80
m
Max humidity
Minimum room temperature 8ºC Surface temperature 5ºC a 50ºC
85% R.H.P
of the adherence tests have been carried out on steel plates. COD. BARRAS/BAR CODE Nombre del color Color name Serial number Route number Expiration Date REF. N# Blanco / White EX017PR0426 Amarillo / Yellow EX017PR0425
