Waste Blind Corner Sink Tall
WITHIN REACH
Drawer
TALL/PANTRY SOLUTIONS
Base
EVERYTHING Wall
Organizing your pantry is easier than ever with our innovative line of accessories. Whether you prefer the beautiful look of wood, the luxurious style of chrome or the more practical polymer, you are sure to find the perfect answer to your walk-in or in-cabinet pantry needs. Designed to increase functionality and enhance the look and performance of your kitchen, our ground-breaking accessories provide easy access and organization for everyday items.
Vanity
PROP 65 WARNING FOR CALIFORNIA RESIDENTS
!
WARNING: These products can expose you to chemicals such as formaldehyde, lead or styrene, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Closet Lazy Susan Lighting
183

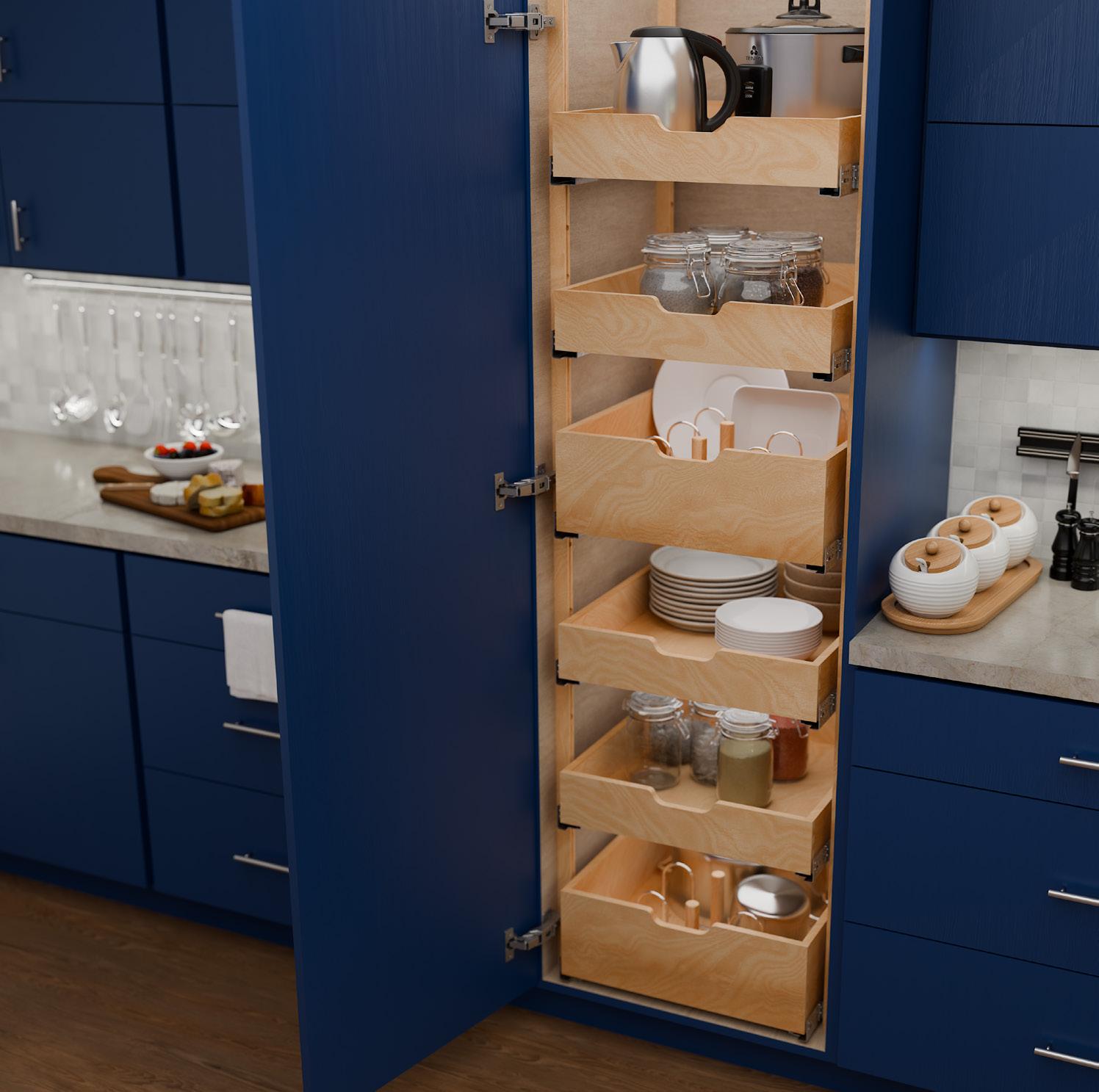

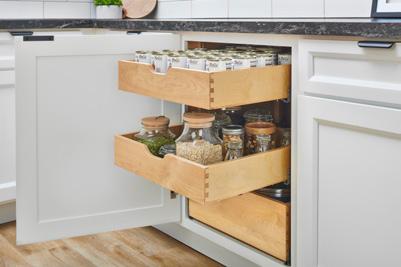

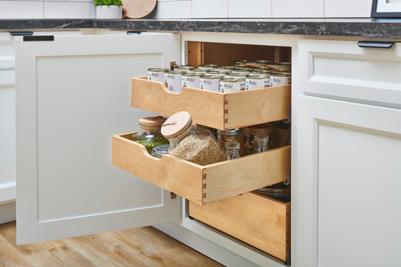

Wood Pilaster System
Base
Sink
Blind Corner
Waste
4PIL Series
Tall
NEW!
Perfecting motion
Patent-pending
4PILU-58-238-20
Wooden template for easy installation
Lighting
Lazy Susan
Closet
Vanity
Wall
Drawer
• Available in (3) upright heights: - 49-5/16” - 54-13/32” - 57-5/16” (3) rail widths: - 7/8“ - 1-1/8” - 2-3/8” • Slide bracket adds 1/4” width to each side (1/2” overall) • All uprights can be trimmed to a minimum width of 7/8” • Drawer boxes are easy to adjust with no tools required • No visible system holes • Slide brackets install easily with (4) screws per drawer box • Drawer boxes included with Pilaster System Kits only • Kits can be stacked for tall pantry application • TSCA Title VI compliant
Slide brackets install easily with (4) screws per drawer box
Brackets rest on hidden dowels allowing for effortless adjustment while maintaining stability (Adds 1/4” width per side)
NOTE: See page 156 to see the Pilaster System in a base application.
184
rev-a-shelf.com | 800-626-1126 | info@rev-a-shelf.com
Waste Blind Corner Sink

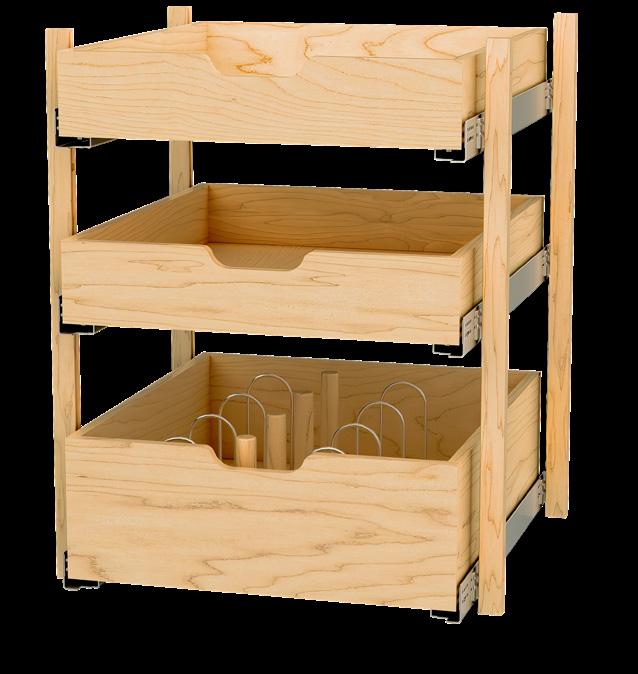

4PIL27-24SC-3 Pilaster System Kit
Ball-Bearing Slide Brackets now available!
((2) Standard, (1) Tall shown)
Base
4PILU-58-238--20 Pilaster Kit (Upright Only) Pilaster System Kits w/ BLUM Soft-Close - Slides, Uprights and Drawers DESCRIPTION
DIMS
CAB
FINISH
SLP
4PIL20-18SC-2
(1) Standard, (1) Tall w/ Dividers
16-1/2” (420 mm) W x 21-17/32” (548 mm) D x 19-5/8 - 21-9/32” (499 - 541 mm) H
B18
Maple
$562.99
4PIL20-24SC-2
(1) Standard, (1) Tall w/ Dividers
22-1/2” (572 mm) W x 21-17/32” (548 mm) D x 19-5/8 - 21-9/32” (499 - 541 mm) H
B24
Maple
$598.99
4PIL27-18SC-3
(2) Standard, (1) Tall w/ Dividers
16-1/2” (420 mm) W x 21-17/32” (548 mm) D x 27-3/16 - 28-13/16” (691 - 732 mm) H
FHB18
Maple
$672.99
4PIL27-24SC-3
(2) Standard, (1) Tall w/ Dividers
22-1/2” (572 mm) W x 21-17/32” (548 mm) D x 27-3/16 - 28-27/32” (691 - 733 mm) H
FHB24
Maple
$735.99
Tall
PRODUCT
Pilaster Kits - Uprights, Slide Brackets & Wood Pilaster Template Only - Single Pack DESCRIPTION
DIMS
FINISH
SLP
4PIL-54-088-1
Pilaster Upright Kit
7/8” (23 mm) W x 3/4” (20 mm) D x 54-13/32” (1382 mm) H
Maple
$213.99
4PIL-54-113-1
Pilaster Upright Kit
1-1/8” (29 mm) W x 3/4” (20 mm) D x 54-13/32” (1382 mm) H
Maple
$245.99
4PIL-54-238-1
Pilaster Upright Kit
2-3/8” (61 mm) W x 3/4” (20 mm) D x 54-13/32” (1382 mm) H
Maple
$314.99

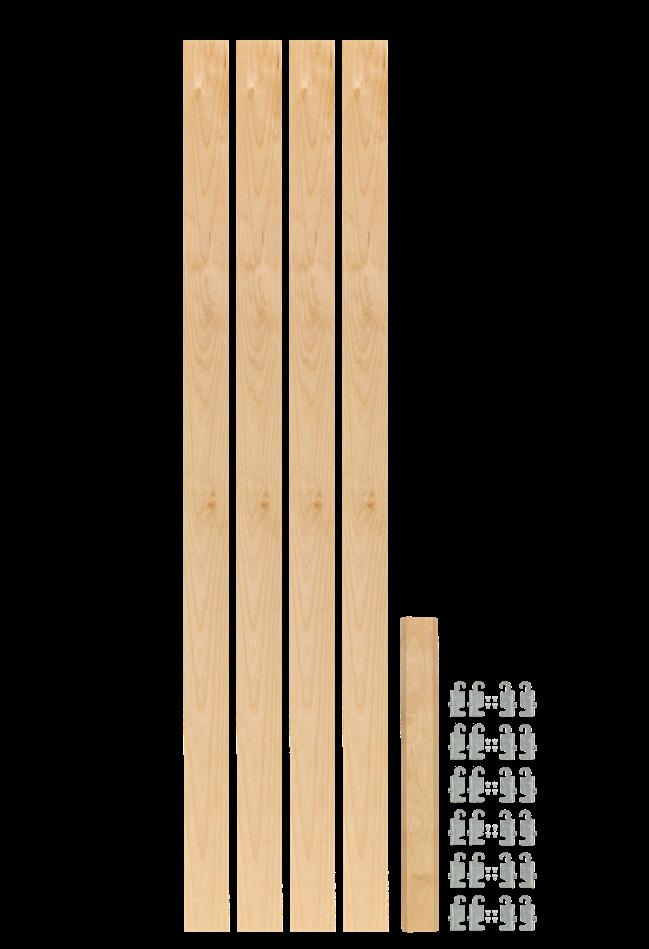

Uprights, Slide Brackets & (1) Pilaster Template Only - Bulk Pack
Pilaster Template
4PIL-54-088-10
(10) Pilaster Upright Kits
Maple
$202.99 ea.
4PIL-T-1
4PIL-54-113-10
(10) Pilaster Upright Kits
Maple
$236.99 ea.
4PIL-54-238-10
(10) Pilaster Upright Kits
Maple
$302.99 ea.
Pilaster Installation Template
Maple
Drawer
PRODUCT
$24.99
(20) Individual Uprights
7/8” (23 mm) W x 3/4” (20 mm) D x 42-5/16” (1078 mm) H
Maple
$36.99 ea.
4PILU-43-113-20
(20) Individual Uprights
1-1/8” (29 mm) W x 3/4” (20 mm) D x 42-5/16” (1078 mm) H
Maple
$39.99 ea.
4PILU-43-238-20
(20) Individual Uprights
2-3/8” (61 mm) W x 3/4” (20 mm) D x 42-5/16” (1078 mm) H
Maple
$57.99 ea.
4PILU-50-088-20
(20) Individual Uprights
7/8” (23 mm) W x 3/4” (20 mm) D x 49-5/16” (1267 mm) H
Maple
$40.99 ea.
4PILU-50-113-20
(20) Individual Uprights
1-1/8” (29 mm) W x 3/4” (20 mm) D x 49-5/16” (1267 mm) H
Maple
$43.99 ea.
4PILU-50-238-20
(20) Individual Uprights
2-3/8” (61 mm) W x 3/4” (20 mm) D x 49-5/16” (1267 mm) H
Maple
$64.99 ea.
4PILU-58-088-20
(20) Individual Uprights
7/8” (23 mm) W x 3/4” (20 mm) D x 57-5/16” (1459 mm) H
Maple
$44.99 ea.
4PILU-58-113-20
(20) Individual Uprights
1-1/8” (29 mm) W x 3/4” (20 mm) D x 57-5/16” (1459 mm) H
Maple
$48.99 ea.
4PILU-58-238-20
(20) Individual Uprights
2-3/8” (61 mm) W x 3/4” (20 mm) D x 57-5/16” (1459 mm) H
Maple
$71.99 ea.
4PIL-BB-HDW-10
Pilaster Upright Hardware Kit (10 sets of 4 brackets)
3/4” (20 mm) W x 19/32” (15 mm) D x 1-15/16” (50 mm) H
$9.99 ea.
4PIL-BB-HDW-160
Pilaster Upright Hardware Kit (160 sets of 4 brackets)
3/4” (20 mm) W x 19/32” (15 mm) D x 1-15/16” (50 mm) H
$8.99 ea.
Closet

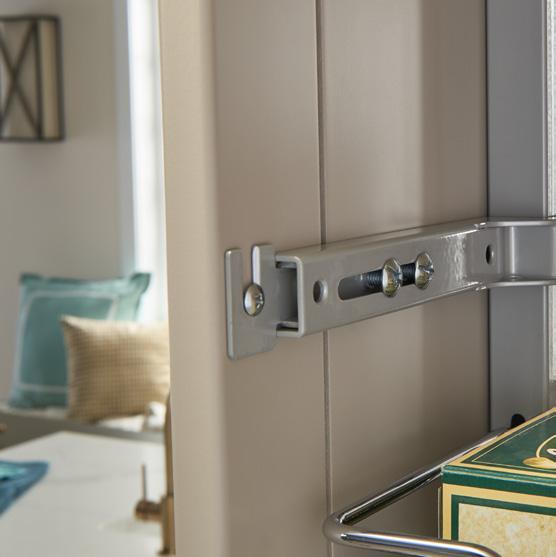

Ball-Bearing Slide Bracket
Vanity
4PILU-43-088-20
Wall
Uprights Only - Bulk Pack
Undermount Slide Brackets Pilaster Upright Hardware Kit for Slide Attach (1 set of 4 brackets)
Silver
$12.99
4PIL-HDW-10
Pilaster Upright Hardware Kit for Slide Attach (10 sets of 4 brackets)
Silver
$11.99 ea.
4PIL-HDW-160
Pilaster upright hardware kit for slide attach (160 sets of 4 brackets)
Silver
$7.99 ea.
Drawer Box w/ BLUM Soft-Close (1) Standard Drawer
13-11/32” (339 mm) W x 21” (534 mm) D x 4” (102 mm) H (drawers only)
B18
Maple
$211.99
4WDB7-PIL-18SC-1
(1) Tall Drawer w/ Dividers
13-11/32” (339 mm) W x 21” (534 mm) D x 7” (178 mm) H (drawers only)
B18
Maple
$272.99
4WDB4-PIL-24SC-1
(1) Standard Drawer for 24”
19-11/32” (492 mm) W x 21” (534 mm) D x 4” (102 mm) H (drawers only)
B24
Maple
$232.99
4WDB7-PIL-24SC-1
(1) Tall Drawer w/ Dividers
19-11/32” (492 mm) W x 21” (534 mm) D x 7” (178 mm) H (drawers only)
B24
Maple
$322.99
rev-a-shelf.com | 800-626-1126 | info@rev-a-shelf.com
185
Lighting
4WDB4-PIL-18SC-1
Lazy Susan
4PIL-HDW-1

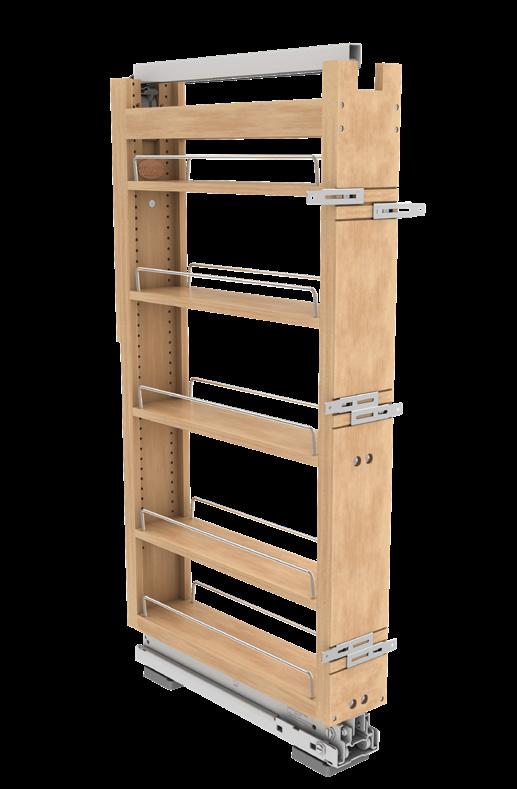

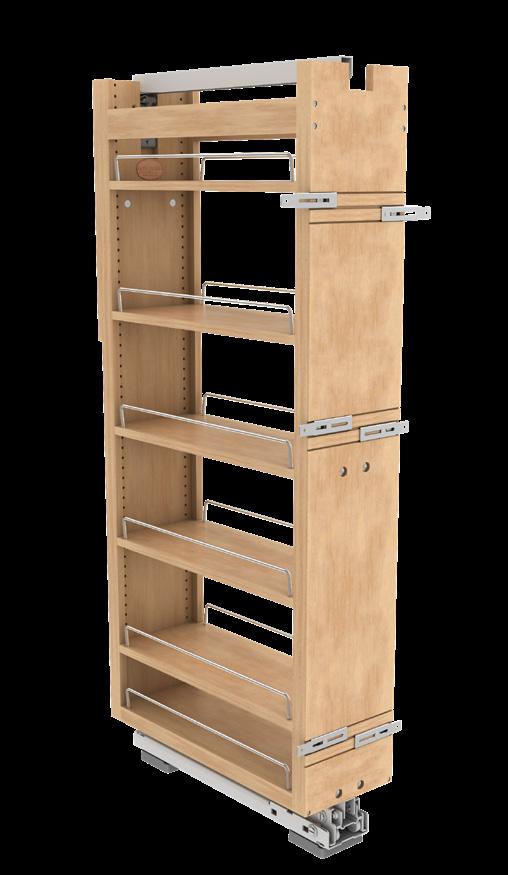

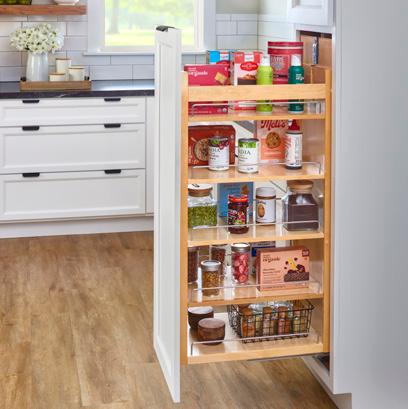

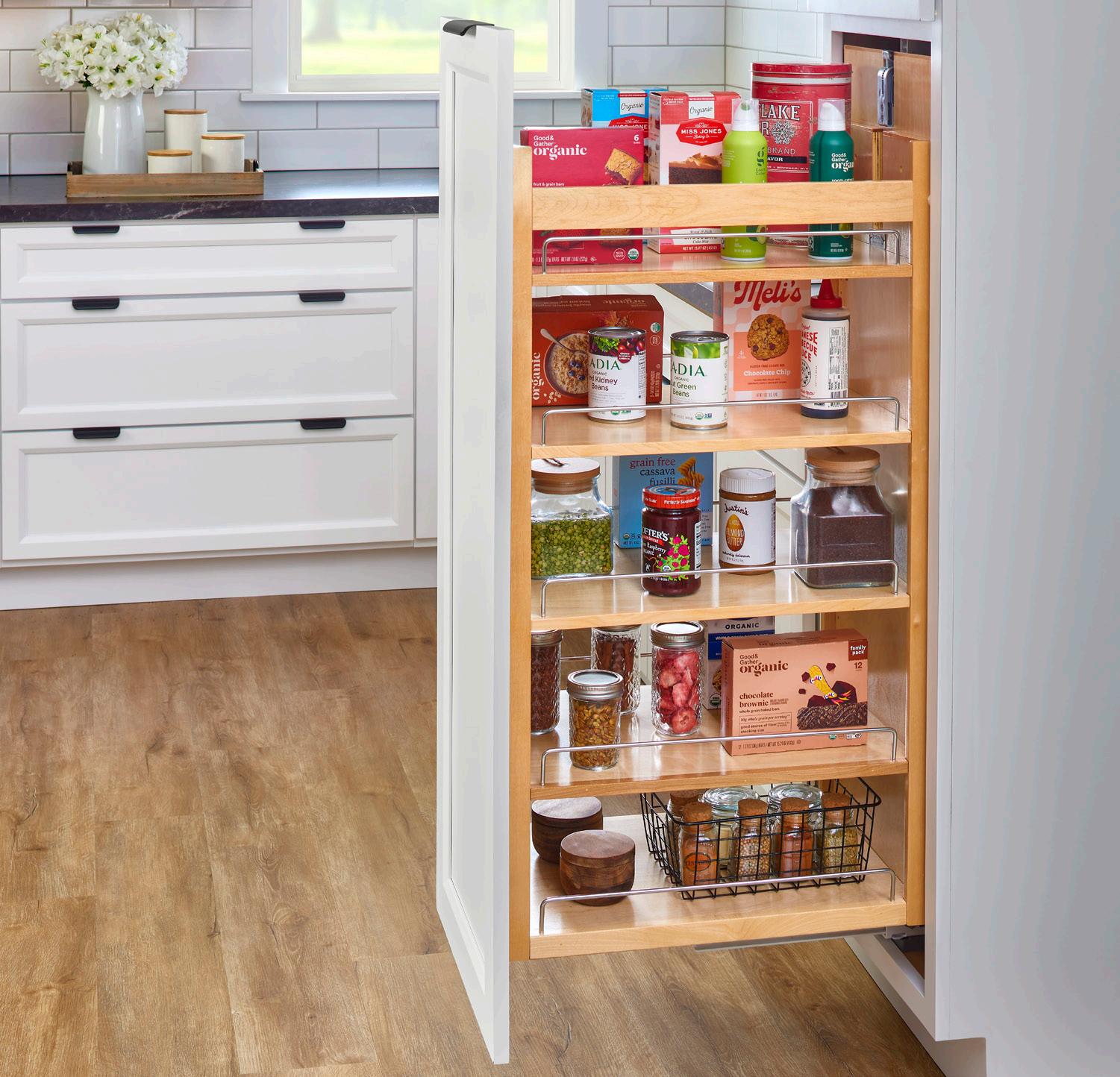

Wood Pantry Pullout
• Designed for tall cabinet applications • Available in (3) heights 43”, 51” and 58” and (4) widths 5”, 8”, 11” and 14” • Natural maple construction with a semi-gloss finish • Shipped ready to assemble • Fulterer EZ-close slide features 265 lb. recommended use with pantry • Patented door-mount brackets with 5” of adjustability and a micro-trim adjuster (US Patent No. 8,388,076) • Rub bushings included for 1-1/2”, 1-5/8”, 1-3/4” face frames • TSCA Title VI compliant
Lighting
Lazy Susan
Closet
Vanity
Wall
Drawer
Tall
Base
Sink
Blind Corner
Waste
448-TPF Series
186
rev-a-shelf.com | 800-626-1126 | info@rev-a-shelf.com
448-TP43-11-1
Waste Blind Corner

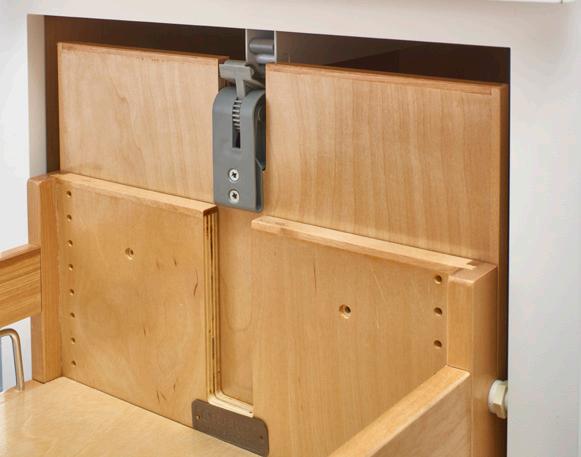

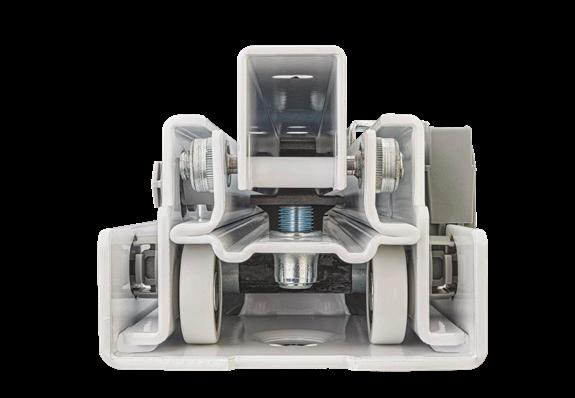

Heavy-duty bottom slide
Sink
Top glide for increased stability
For inset applications or for those who prefer to keep their cabinets flawless, we recommend our IDRB bushing. The discreet design prevents side-to-side movement and fits behind the frame, eliminating the need for surface drilling giving you a seamless look and unparalleled stability.
Base Tall Drawer

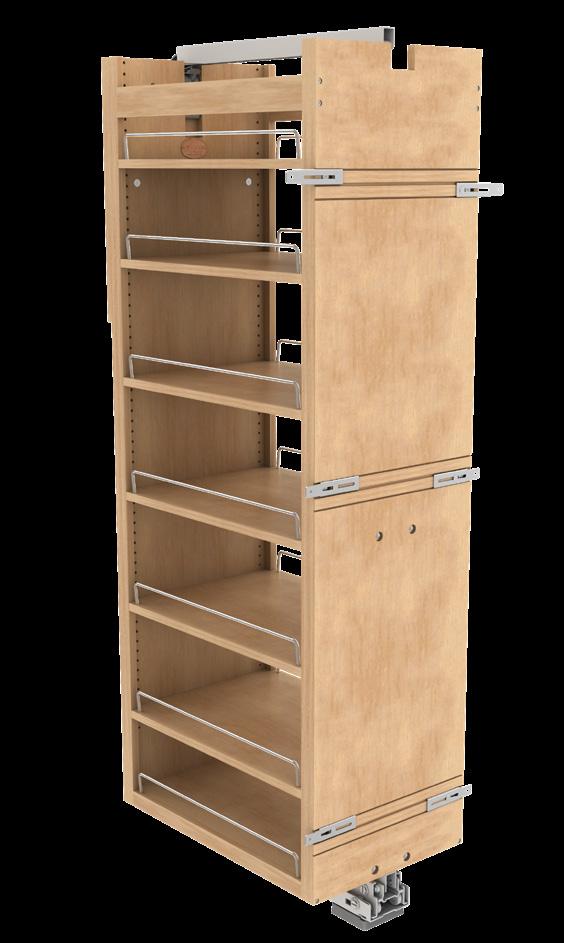

448-TPF51-8-1 Pullout Pantry
(5” version shown)
(8” version shown)

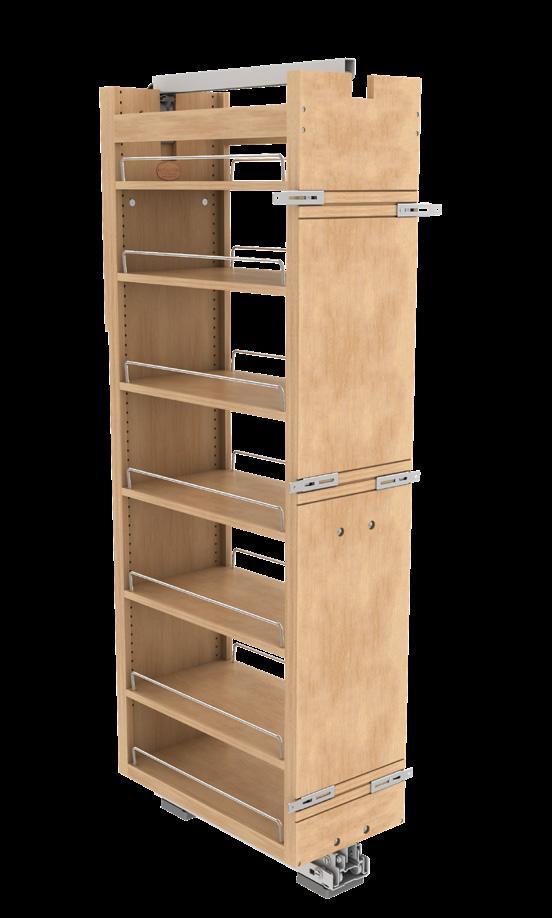

448-TPF58-11-1 Pullout Pantry
448-TPF58-14-1 Pullout Pantry
(11” version shown)
Wall
448-TPF43-5-1 Pullout Pantry
(14” version shown)
5” Wood Pantry Pullout w/ Fulterer Soft-Close DESCRIPTION
DIMS
MCO
CAB
FINISH
SLP
448-TPF43-5-1
Wood Pantry Pullout
5” (127 mm) W x 22-1/2” (572 mm) D x 43-21/32 - 52-21/32” (1109 - 1338 mm) H
5-1/2” (140 mm)
T9
Maple
$1018.99
448-TPF51-5-1
Wood Pantry Pullout
5” (127 mm) W x 22-1/2” (572 mm) D x 51-21/32 - 60-21/32” (1312 - 1541 mm) H
5-1/2” (140 mm)
T9
Maple
$1052.99
448-TPF58-5-1
Wood Pantry Pullout
5” (127 mm) W x 22-1/2” (572 mm) D x 58-21/32 - 67-21/32” (1490 - 1719 mm) H
5-1/2” (140 mm)
T9
Maple
$1100.99
8” Wood Pantry Pullout w/ Fulterer Soft-Close Wood Pantry Pullout
8” (204 mm) W x 22-1/2” (572 mm) D x 43-21/32 - 52-21/32” (1109 - 1338 mm) H
8-1/2” (216 mm)
T12
Maple
$1054.99
448-TPF51-8-1
Wood Pantry Pullout
8” (204 mm) W x 22-1/2” (572 mm) D x 51-21/32 - 60-21/32” (1312 - 1541 mm) H
8-1/2” (216 mm)
T12
Maple
$1089.99
448-TPF58-8-1
Wood Pantry Pullout
8” (204 mm) W x 22-1/2” (572 mm) D x 58-21/32 - 67-21/32” (1490 - 1719 mm) H
8-1/2” (216 mm)
T12
Maple
$1189.99
11” Wood Pantry Pullout w/ Fulterer Soft-Close 448-TPF43-11-1
Wood Pantry Pullout
11” (280 mm) W x 22-1/2” (572 mm) D x 43-21/32 - 52-21/32” (1109 - 1338 mm) H
11-1/2” (292 mm) T15
Maple
$1152.99
448-TPF51-11-1
Wood Pantry Pullout
11” (280 mm) W x 22-1/2” (572 mm) D x 51-21/32 - 60-21/32” (1312 - 1541 mm) H
11-1/2” (292 mm) T15
Maple
$1248.99
448-TPF58-11-1
Wood Pantry Pullout
11” (280 mm) W x 22-1/2” (572 mm) D x 58-21/32 - 67-21/32” (1490 - 1719 mm) H
11-1/2” (292 mm) T15
Maple
$1282.99
448-TPF43-14-1
Wood Pantry Pullout
14” (356 mm) W x 22-1/2” (572 mm) D x 43-21/32 - 52-21/32” (1109 - 1338 mm) H
14-1/2” (368 mm)
T18
Maple
$1248.99
448-TPF51-14-1
Wood Pantry Pullout
14” (356 mm) W x 22-1/2” (572 mm) D x 51-21/32 - 60-21/32” (1312 - 1541 mm) H
14-1/2” (368 mm)
T18
Maple
$1352.99
448-TPF58-14-1
Wood Pantry Pullout
14” (356 mm) W x 22-1/2” (572 mm) D x 58-21/32 - 67-21/32” (1490 - 1719 mm) H
14-1/2” (368 mm)
T18
Maple
$1427.99
Metal
$14.99
Lazy Susan
14” Wood Pantry Pullout w/ Fulterer Soft-Close
Closet
448-TPF43-8-1
Vanity
PRODUCT

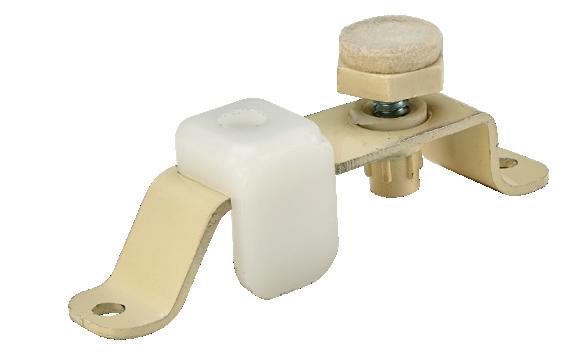

Accessories IDRB-1
Adjustable Rub Bushing for Inset Application
187
Lighting
rev-a-shelf.com | 800-626-1126 | info@rev-a-shelf.com

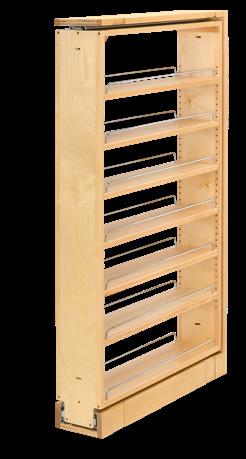

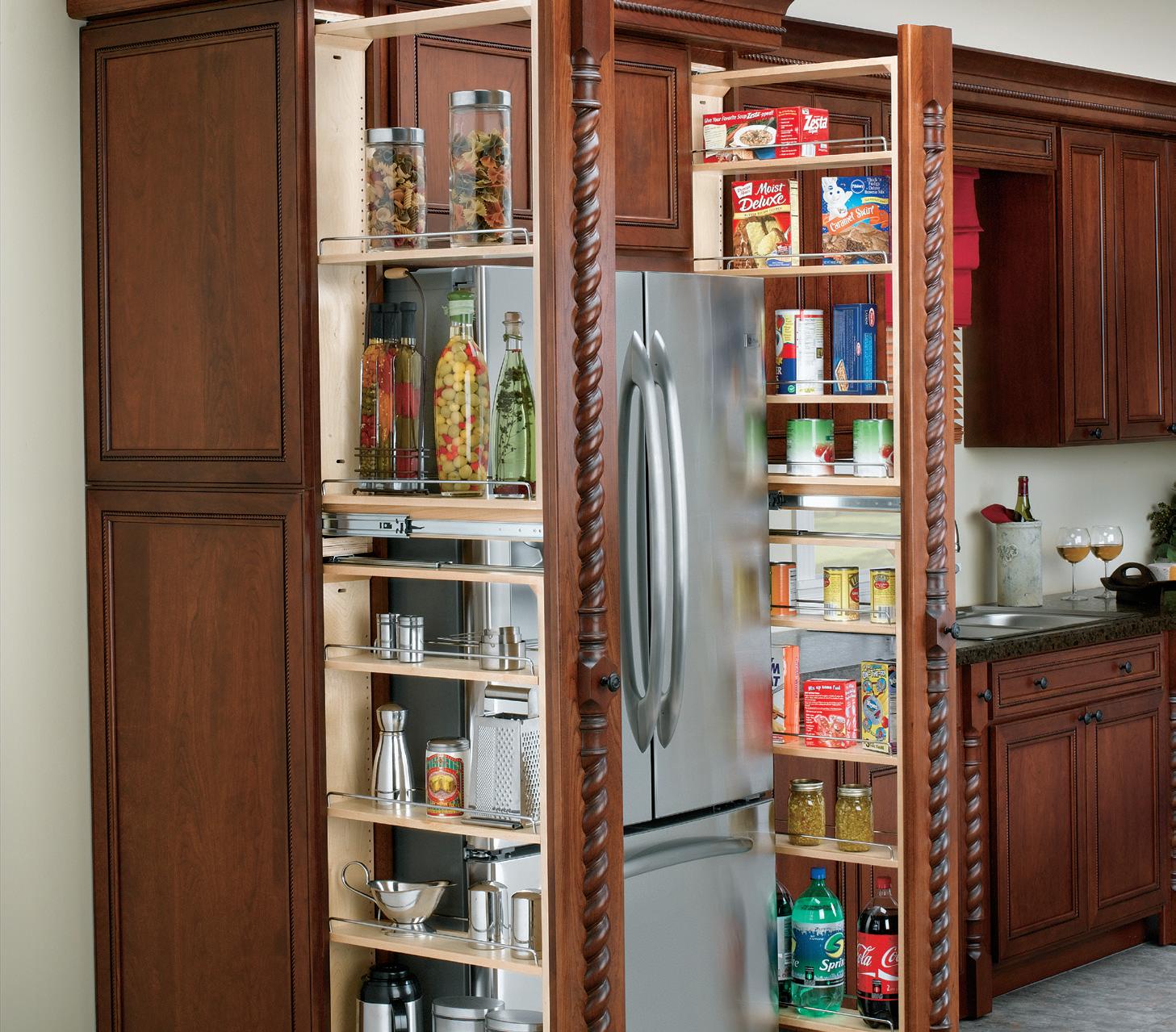

Wood Tall Filler Pullout
Drawer
Tall
Base
Sink
Blind Corner
Waste
432 Series
• Available for 6” applications in 39” and 45” heights • Use alone or in conjunction with others to reach 84”, 90” or 96” heights • Adjustable shelves: - (5) for the 39” model - (6) for the 45” model • Natural maple construction with a semi-gloss finish • Full-extension, ball‑bearing slides • Features three-slide design that provides the most stable function on the market • TSCA Title VI compliant
Vanity
Wall
432-TF45-6C

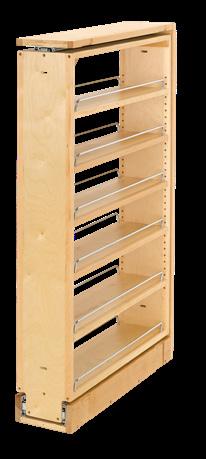

432-TF39-6C Wood Tall Filler Pullout
432-TF45-6C Wood Tall Filler Pullout

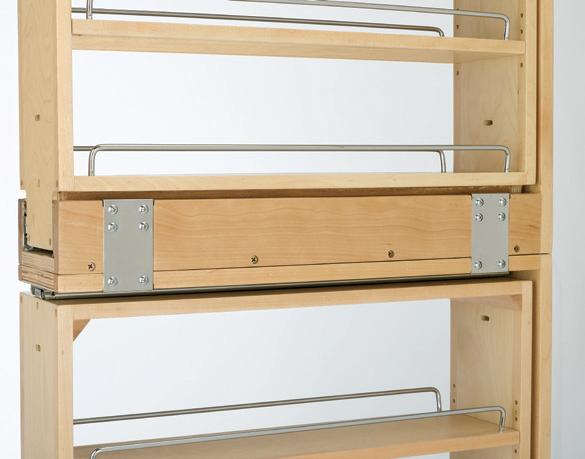

Included mending plates securely fastens both frames together
Lighting
Lazy Susan
Closet
(39” version shown)
(45” version shown)
Wood Tall Filler Pullout PRODUCT
DESCRIPTION
DIMS
FINISH
SLP
432-TF39-6C
39" Tall Filler Organizer
6” (153 mm) W x 23” (585 mm) D x 38-1/2” (978 mm) H
Maple
$518.99
432-TF45-6C
45" Tall Filler Organizer
6” (153 mm) W x 23” (585 mm) D x 44-1/2” (1131 mm) H
Maple
$551.99
188
rev-a-shelf.com | 800-626-1126 | info@rev-a-shelf.com

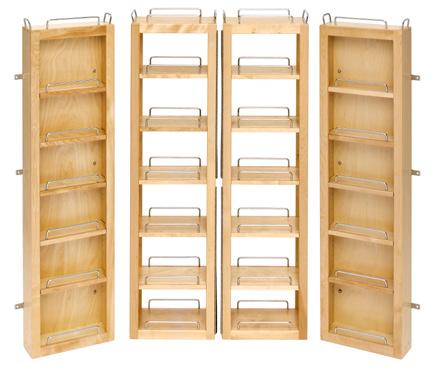

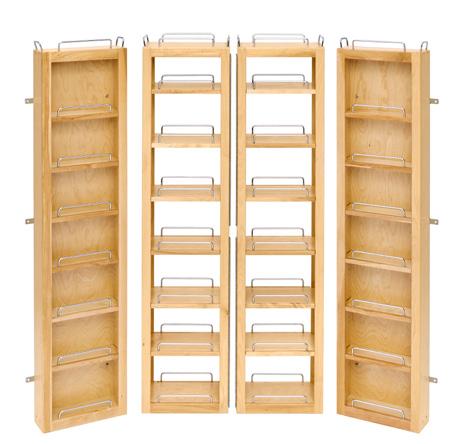

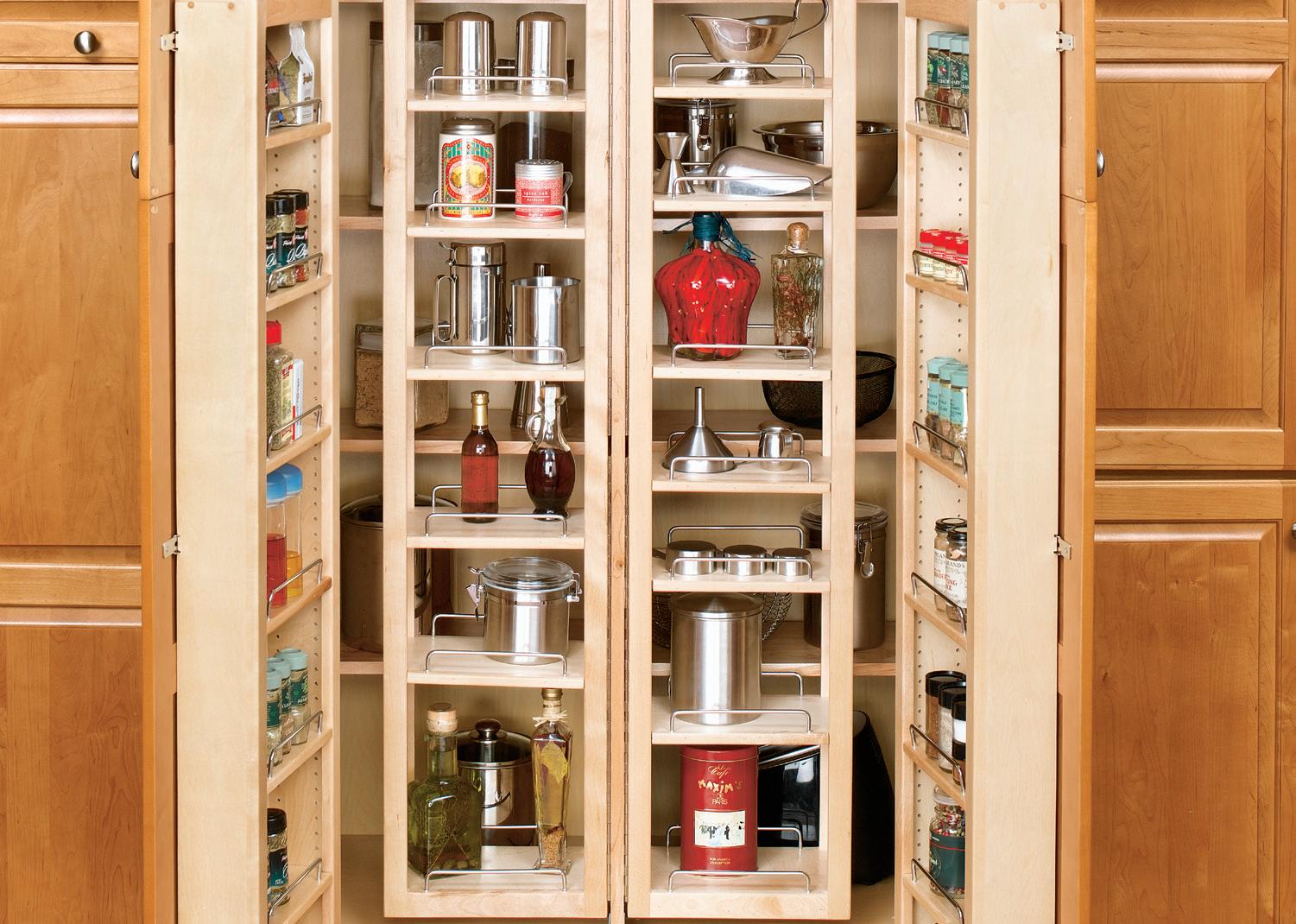

Wood Swing Out Pantry
Waste
4W Series
Blind Corner Sink
• Designed for 36” pantry cabinets • Natural maple construction with a semi-gloss finish • Removable chrome accents • Swings out on an industrial piano hinge • Adjustable interior door and pantry shelves • Adjustable mounting brackets with 5” of adjustability (US Patent No: 7,204,569) • Complete kit: (2) swing out units and (2) door storage units • Center divider not included • TSCA Title VI compliant
Base Tall Drawer
(4WSP18-45)
(4WSP18-45)
(4WDP18-45)
(4WDP18-45)
10”
Wall
12” 17-1/2”
7-1/2”
14-5/16”
12” 4”
(45” version shown)

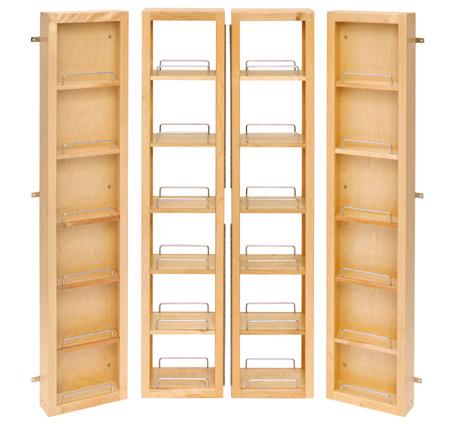

4WP18-51-KIT Wood Swing Out Pantry (51” version shown)
4WP18-57-KIT Wood Swing Out Pantry
15-1/4”
Vanity
4WP18-45-KIT Wood Swing Out Pantry
(57” version shown) Top rails not included
Wood Swing Out Pantry DESCRIPTION
MCO
CAB
FINISH
SLP
4WP18-45-KIT
45" Swing Out Pantry Kit - Includes (2) 4WDP18-45 and (2) 4WSP18-45
DIMS
33” (838 mm)
T36
Maple
$1271.99
4WP18-51-KIT
51” Swing Out Pantry Kit - Includes (2) 4WSP18-51 and (2) 4WDP18-51
33” (838 mm)
T36
Maple
$1334.99
4WP18-57-KIT
57" Swing Out Pantry Kit - Includes (2) 4WDP18-57 and (2) 4WSP18-57
33” (838 mm)
T36
Maple
$1369.99
4WSP18-45
45" Swing Out Pantry (w/Hardware)
12” (305 mm) W x 7-1/2” (191 mm) D x 45” (1143 mm) H
33” (838 mm)
T36
Maple
$380.99
4WDP18-45
45" Pantry Door Unit (w/Hardware)
12” (305 mm) W x 4” (102 mm) D x 45” (1143 mm) H
15-1/4” (387 mm)
T36
Maple
$272.99
4WSP18-51
51” Swing Out Pantry (w/Hardware)
12” (305 mm) W x 7-1/2” (191 mm) D x 51-1/4” (1302 mm) H
33” (838 mm)
T36
Maple
$399.99
4WDP18-51
51” Pantry Door Unit (w/Hardware)
12” (305 mm) W x 4” (102 mm) D x 51-1/4” (1302 mm) H
15-1/4” (387 mm)
T36
Maple
$285.99
4WSP18-57*
57" Swing Out Pantry (w/Hardware)
12" (305 mm) W x 7-1/2" (191 mm) D x 57" (1448 mm) H
33” (838 mm)
T36
Maple
$409.99
4WDP18-57*
57" Pantry Door Unit (w/Hardware)
12" (305 mm) W x 4" (102 mm) D x 57" (1448 mm) H
15-1/4” (387 mm)
T36
Maple
$298.99
Closet
PRODUCT
Components
Lighting
189
Lazy Susan
rev-a-shelf.com | 800-626-1126 | info@rev-a-shelf.com

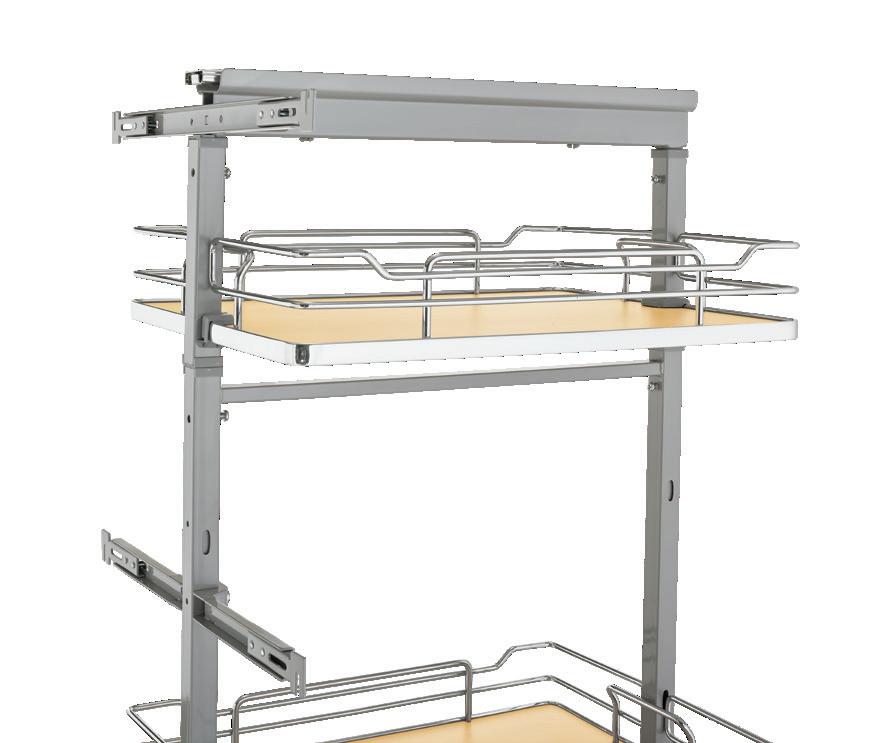

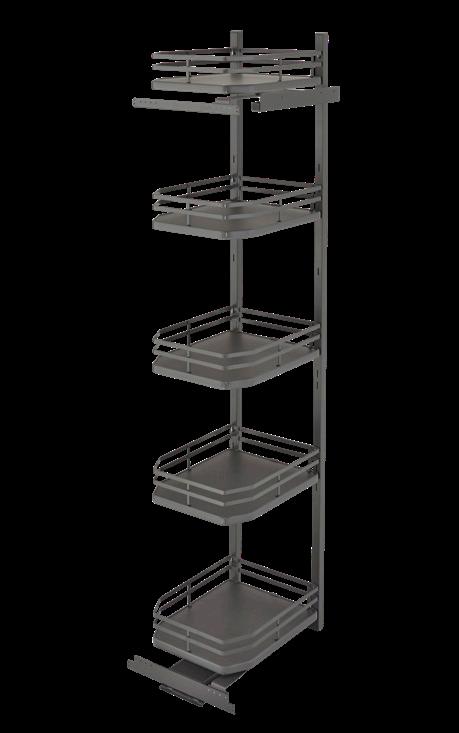

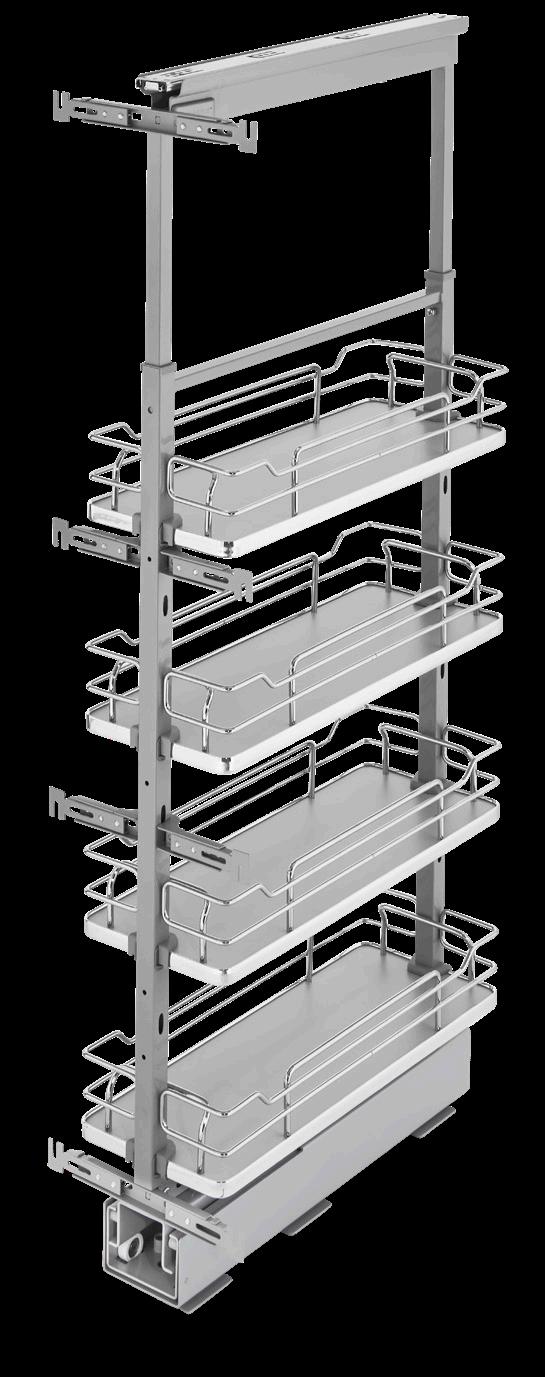

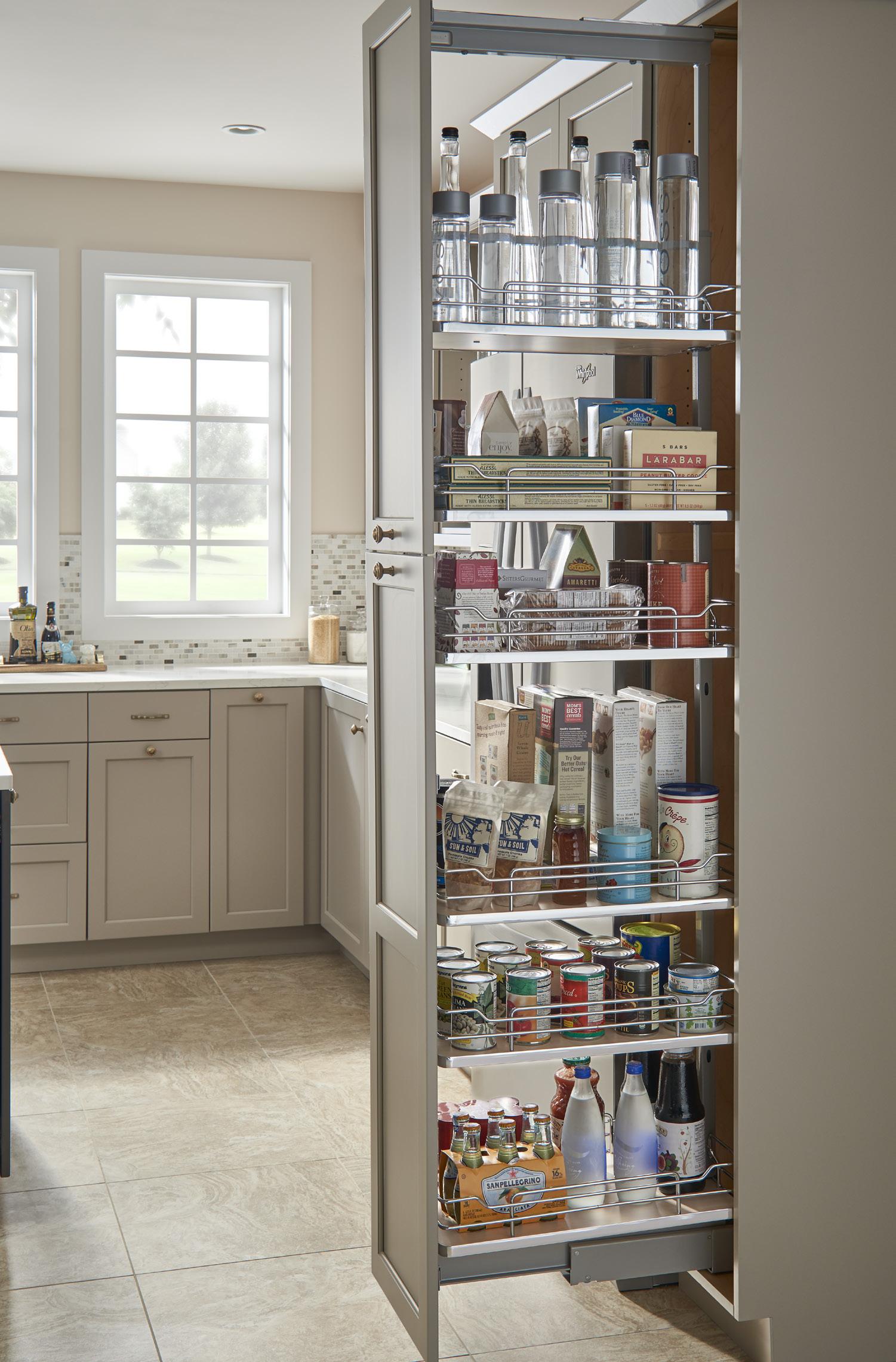

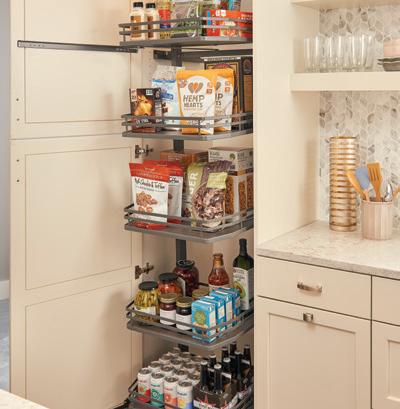

Flat Wire Swing Out Pantry
• Designed for frameless 18” and 24” width pantry cabinets • Overall height 74” • Orion gray finish and flat wire construction • Solid bottom shelves with textured linen finish • Swing out hardware allows complete access to pantry • (2) door mounting brackets • (5) easy-to-adjust shelves • TSCA Title VI compliant
Wall
Drawer
Tall
Base
Sink
Blind Corner
Waste
5374 Series
Lighting
Lazy Susan
Closet
Vanity
5374-24FL-FOG
Scan for video Designed in cooperation with
PRODUCT # 5374-18FL-FOG Swing Out Pantry (18” version shown)
MCO FF
MCO FL
5374-18FL-FOG
14-1/4” (362 mm)
16-1/2” (419 mm)
5374-24FL-FOG
22-1/4” (565 mm)
22-1/2” (572 mm)
Frameless Flat Wire Swing Out Pantry PRODUCT
DESCRIPTION
DIMS
MCO
CAB
FINISH
SLP
5374-18FL-FOG
Pantry for 18”
14-3/16” (361 mm) W x 18-1/2” (470 mm) D x 74-1/16” (1882 mm) H
16-1/2” (419 mm)
FLT18
Orion Gray
$1493.99
5374-24FL-FOG
Pantry for 24”
22-1/16” (561 mm) W x 18-1/2” (470 mm) D x 74-1/16” (1882 mm) H
22-1/2” (571 mm)
FLT24
Orion Gray
$1536.99
190
rev-a-shelf.com | 800-626-1126 | info@rev-a-shelf.com
GLD Series
Waste
Glideware™ Pullout
Blind Corner Sink
• Designed for 14” to 22” cabinet depths • Solid wood construction, natural maple or gray • Mounts to cabinet top and rear • (2) slide configurations: - Full-extension, ball-bearing slides - Full-extension, undermount slides with BLUM soft-close • Up to (7) nickel chrome hooks • US Patent No. 9,433,283 and 9,022,237 • TSCA Title VI compliant
Base Tall Drawer Wall
GLD-W22-BC-7
Vanity Closet
Scan for video
NOTE: Dimensions are without the optional rear mounting bracket. Rear mounting bracket is 6-1/4” (159 mm) wide and adds 3/4” (19 mm) to the depth, and Lazy Susan
13/16” (20 mm) to the height. MCO dimensions and CAB recommendations are dependent on what accessories you intend on hanging on the product. Glideware™ Pullout w/ (5 or 7) Short Hooks PRODUCT
DESCRIPTION
DIMS
CAB
FINISH
SLP
GLD-W22-SC-7
22” Glideware™
4” (102 mm) W x 22” (559 mm) D x 4-1/8” (105 mm) H
T18
Maple
$180.99
T18
Maple
$367.99
Glideware™ Pullout w/ BLUM Soft-Close and (5 or 7) Long Hooks GLD-W22-BC-7
22” Glideware™
6” (153 mm) W x 22” (559 mm) D x 5-1/16” (129 mm) H
191
Lighting
rev-a-shelf.com | 800-626-1126 | info@rev-a-shelf.com
Solid Bottom Pantry Pullout
• Available in (5) widths and (4) height ranges for frameless 24” deep cabinetry • Natural maple or gray solid bottom shelves • Full-extension slides with soft-close • Micro-adjustment door-mounting brackets • Kit packaged with frame, baskets, adjustable shelf extender bracket and hardware • TSCA Title VI compliant
Lighting
Lazy Susan
Closet
Vanity
Wall
Drawer
Tall
Base
Sink
Blind Corner
Waste
5300 Series
5373-13-MP
192
rev-a-shelf.com | 800-626-1126 | info@rev-a-shelf.com
Waste Blind Corner
BASKET WIDTH 8” (203 mm) 10” (254 mm) 13” (330 mm) 16” (406 mm) 19” (482 mm)
Sink
Adjustable door-mount bracket
Solid bottom shelves available in maple or gray
Base Tall
With the optional adjustable shelf extender bracket, you can move the top shelf on our 5300 Series pantries with ease. The slide-on design installs effortlessly when affixing to the fully-extended frame, letting you rearrange your shelves; maximize your storage space.
Drawer
5343-08-GR Pullout Pantry
(8” Gray version shown)
NOTE: ** Insert “MP” for Maple Shelf or “GR” for Gray Shelf Solid Bottom Pantry Pullout w/ Soft-Close — (4) Shelves/ (2) Door-Mount Brackets DIMS
MCO
CAB
SLP
5343-08-**
Pantry Pullout
8-1/4” (210 mm) W x 21-11/16” (550 mm) D x 43-13/32” — 50-3/4” (1102 mm - 1289 mm) H
8-1/2" (216 mm)
T12
$1388.99
5343-10-**
Pantry Pullout
10-1/4” (260 mm) W x 21-11/16” (550 mm) D x 43-13/32" — 50-3/4" (1102 mm - 1289 mm) H
10-1/2" (267 mm)
FLT12
$1456.99
5343-13-**
Pantry Pullout
13-1/4” (337 mm) W x 21-11/16” (550 mm) D x 43-13/32" — 50-3/4" (1102 mm - 1289 mm) H
13-1/2" (343 mm)
FLT15
$1465.99
5343-16-**
Pantry Pullout
16-1/4” (413 mm) W x 21-11/16” (550 mm) D x 43-13/32" — 50-3/4" (1102 mm - 1289 mm) H
16-1/2" (419 mm)
FLT18
$1580.99
5343-19-**
Pantry Pullout
19-1/4” (489 mm) W x 21-11/16” (550 mm) D x 43-13/32" — 50-3/4" (1102 mm - 1289 mm) H
19-1/2" (495 mm)
FLT21
$1593.99
5350-08-**
Pantry Pullout
8-1/4” (210 mm) W x 21-11/16” (550 mm) D x 50-3/4" — 58-9/32" (1289 mm - 1480 mm) H
8-1/2" (216 mm)
T12
$1416.99
5350-10-**
Pantry Pullout
10-1/4” (260 mm) W x 21-11/16” (550 mm) D x 50-3/4" — 58-9/32" (1289 mm - 1480 mm) H
10-1/2" (267 mm)
FLT12
$1446.99
5350-13-**
Pantry Pullout
13-1/4” (337 mm) W x 21-11/16” (550 mm) D x 50-3/4" — 58-9/32" (1289 mm - 1480 mm) H
13-1/2" (343 mm)
FLT15
$1461.99
5350-16-**
Pantry Pullout
16-1/4” (413 mm ) W x 21-11/16” (550 mm) D x 50-3/4" — 58-9/32" (1289 mm - 1480 mm) H
16-1/2” (419 mm)
FLT18
$1569.99
5350-19-**
Pantry Pullout
19-1/4” (489 mm) W x 21-11/16” (550 mm) D x 50-3/4" — 58-9/32" (1289 mm - 1480 mm) H
19-1/2" (495 mm)
FLT21
$1584.99
Vanity
DESCRIPTION
Wall
PRODUCT
Solid Bottom Pantry Pullout w/ Soft-Close — (5) Shelves/ (3) Door-Mount Brackets Pantry Pullout
8-1/4” (210 mm) W x 21-11/16” (550 mm) D x 58-1/4" — 65-3/4" (1479 mm - 1670 mm) H
8-1/2" (216 mm)
T12
$1569.99
5358-10-**
Pantry Pullout
10-1/4” (260 mm) W x 21-11/16” (550 mm) D x 58-1/4" — 65-3/4" (1479 mm - 1670 mm) H
10-1/2" (267 mm)
FLT12
$1614.99
5358-13-**
Pantry Pullout
13-1/4” (337 mm) W x 21-11/16” (550 mm) D x 58-1/4" — 65-3/4" (1479 mm - 1670 mm) H
13-1/2" (343 mm)
FLT15
$1630.99
5358-16-**
Pantry Pullout
16-1/4” (413 mm) W x 21-11/16” (550 mm) D x 58-1/4" — 65-3/4" (1479 mm - 1670 mm) H
16-1/2” (419 mm)
FLT18
$1784.99
5358-19-**
Pantry Pullout
19-1/4” (489 mm) W x 21-11/16” (550 mm) D x 58-1/4" — 65-3/4" (1479 mm - 1670 mm) H
19-1/2" (495 mm)
FLT21
$1800.99
Closet
5358-08-**
Solid Bottom Pantry Pullout w/ Soft-Close — (6) Shelves/ (4) Door-Mount Brackets Pantry Pullout
8-1/4” (210 mm) W x 21-11/16” (550 mm) D x 73-5/8" — 80-3/4" (1870 mm - 2051 mm) H
8-1/2" (216 mm)
T12
$1754.99
5373-10-**
Pantry Pullout
10-1/4” (260 mm) W x 21-11/16” (550 mm) D x 73-5/8" — 80-3/4" (1870 mm - 2051 mm) H
10-1/2" (267 mm)
FLT12
$1738.99
5373-13-**
Pantry Pullout
13-1/4” (337 mm) W x 21-11/16” (550 mm) D x 73-5/8" — 80-3/4" (1870 mm - 2051 mm) H
13-1/2" (343 mm)
FLT15
$1800.99
5373-16-**
Pantry Pullout
16-1/4” (413 mm) W x 21-11/16” (550 mm) D x 73-5/8" — 80-3/4" (1870 mm - 2051 mm) H
16-1/2” (419 mm)
FLT18
$1968.99
5373-19-**
Pantry Pullout
19-1/4” (489 mm) W x 21-11/16” (550 mm) D x 73-5/8" — 80-3/4" (1870 mm - 2051 mm) H
19-1/2" (495 mm)
FLT21
$2015.99
Lazy Susan
5373-08-**
Accessories 1-1/8” (28 mm) W x 1-1/8” (28 mm) D x 8” (203 mm) H
rev-a-shelf.com | 800-626-1126 | info@rev-a-shelf.com
$22.99
193
Lighting
57-EXTEND-1 Extender Bracket
Wire Pantry Pullout
• Available in (6) widths and (4) height ranges for 24” deep cabinetry • Full-extension slides with soft-close • Adjustable door-mount brackets • Kit packaged with frame, baskets, adjustable shelf extender bracket and hardware
Lighting
Lazy Susan
Closet
Vanity
Wall
Drawer
Tall
Base
Sink
Blind Corner
Waste
5700 Series
5743-20-CR-1
194
rev-a-shelf.com | 800-626-1126 | info@rev-a-shelf.com
Waste Blind Corner
BASKET WIDTH 4-1/8” (105 mm) 8” (203 mm) 10” (254 mm) 14” (356 mm)
Adjustable door-mount bracket
Frame height adjustment
Sink
16” (406 mm) 19” (482 mm)
Base
With the optional adjustable shelf extender bracket (sold separately), you can move the top shelf on our 5700 Series pantries with ease. The slide-on design installs effortlessly when affixing to the fully-extended frame, letting you rearrange your shelves; maximize your storage space.
Tall
5773-10-CR-1 Pullout Pantry (10” version shown)
Wire Pantry Pullout w/ Soft-Close — (4) Shelves/ (3) Door-Mount Brackets MCO
CAB
SLP
5743-04-CR-1
Pantry Pullout
4-13/32” (113 mm) W x 21-23/32” (552 mm) D x 43-13/32 - 50-3/4” (1103 - 1290 mm) H
4-1/2” (114 mm)
T9
$1133.99
5743-08-CR-1
Pantry Pullout
8” (204 mm) W x 21-23/32” (552 mm) D x 43-13/32 - 50-3/4” (1103 - 1290 mm) H
8-1/2” (216 mm)
T12
$1194.99
5743-10-CR-1
Pantry Pullout
10” (254 mm) W x 21-23/32” (552 mm) D x 43-13/32 - 50-3/4” (1103 - 1290 mm) H
10-1/2” (268 mm)
T15
$1285.99
5743-14-CR-1
Pantry Pullout
14” (356 mm) W x 21-23/32” (552 mm) D x 43-13/32 - 50-3/4” (1103 - 1290 mm) H
14-1/2” (368 mm)
T18
$1348.99
5743-16-CR-1
Pantry Pullout
16” (407 mm) W x 21-23/32” (552 mm) D x 43-13/32 - 50-3/4” (1103 - 1290 mm) H
16-1/2” (419 mm)
T21
$1394.99
5743-20-CR-1
Pantry Pullout
20” (508 mm) W x 21-23/32” (552 mm) D x 43-13/32 - 50-3/4” (1103 - 1290 mm) H
20-1/2” (521 mm)
T24
$1440.99
5750-04-CR-1
Pantry Pullout
4-13/32” (113 mm) W x 21-23/32” (552 mm) D x 50-3/4 - 58-9/32” (1290 - 1481 mm) H
4-1/2” (114 mm)
T9
$1087.99
5750-08-CR-1
Pantry Pullout
8” (204 mm) W x 21-23/32” (552 mm) D x 50-3/4 - 58-9/32” (1290 - 1481 mm) H
8-1/2” (216 mm)
T12
$1208.99
5750-10-CR-1
Pantry Pullout
10 ” (254 mm) W x 21-23/32” (552 mm) D x 50-3/4 - 58-9/32” (1290 - 1481 mm) H
10-1/2” (268 mm)
T15
$1271.99
5750-14-CR-1
Pantry Pullout
14” (356 mm) W x 21-23/32” (552 mm) D x 50-3/4 - 58-9/32” (1290 - 1481 mm) H
14-1/2” (368 mm)
T18
$1348.99
5750-16-CR-1
Pantry Pullout
16-1/4” (413 mm) W x 21-11/16” (550 mm) D x 50-3/4” — 58-9/32” (1290 mm - 1481 mm) H
16-1/2” (419 mm)
T21
$1392.99
5750-20-CR-1
Pantry Pullout
20” (508 mm) W x 21-23/32” (552 mm) D x 50-3/4 - 58-9/32” (1290 - 1481 mm) H
20-1/2” (521 mm)
T24
$1424.99
Vanity
DIMS
Wall
DESCRIPTION
Drawer
PRODUCT
Wire Pantry Pullout w/ Soft-Close — (5) Shelves/ (4) Door-Mount Brackets Pantry Pullout
4-13/32” (113 mm) W x 21-23/32” (552 mm) D x 58-1/4 - 65-3/4” (1480 - 1671 mm) H
4-1/2” (114 mm)
T9
$1255.99
5758-08-CR-1
Pantry Pullout
8” (204 mm) W x 21-23/32” (552 mm) D x 58-1/4 - 65-3/4” (1480 - 1671 mm) H
8-1/2” (216 mm)
T12
$1424.99
5758-10-CR-1
Pantry Pullout
10” (254 mm) W x 21-23/32” (552 mm) D x 58-1/4 - 65-3/4” (1480 - 1671 mm) H
10-1/2” (268 mm)
T15
$1410.99
5758-14-CR-1
Pantry Pullout
14” (356 mm) W x 21-23/32” (552 mm) D x 58-1/4 - 65-3/4” (1480 - 1671 mm) H
14-1/2” (368 mm)
T18
$1532.99
5758-16-CR-1
Pantry Pullout
16” (407 mm) W x 21-23/32” (552 mm) D x 58-1/4 - 65-3/4” (1480 - 1671 mm) H
16-1/2” (419 mm)
T21
$1546.99
5758-20-CR-1
Pantry Pullout
20” (508 mm) W x 21-23/32” (552 mm) D x 58-1/4 - 65-3/4” (1480 - 1671 mm) H
20-1/2” (521 mm)
T24
$1622.99
Closet
5758-04-CR-1
Wire Pantry Pullout w/ Soft-Close — (6) Shelves/ (4) Door-Mount Brackets Pantry Pullout
4-13/32” (113 mm) W x 21-23/32” (552 mm) D x 73-5/8 - 80-3/4” (1871 - 2052 mm) H
4-1/2” (114 mm)
T9
$1255.99
5773-08-CR-1
Pantry Pullout
8” (204 mm) W x 21-23/32” (552 mm) D x 73-5/8 - 80-3/4” (1871 - 2052 mm) H
8-1/2” (216 mm)
T12
$1469.99
5773-10-CR-1
Pantry Pullout
10” (254 mm) W x 21-23/32” (552 mm) D x 73-5/8 - 80-3/4” (1871 - 2052 mm) H
10-1/2” (268 mm)
T15
$1516.99
5773-14-CR-1
Pantry Pullout
14” (356 mm) W x 21-23/32” (552 mm) D x 73-5/8 - 80-3/4” (1871 - 2052 mm) H
14-1/2” (368 mm)
T18
$1638.99
5773-16-CR-1
Pantry Pullout
16” (407 mm) W x 21-23/32” (552 mm) D x 73-5/8 - 80-3/4” (1871 - 2052 mm) H
16-1/2” (419 mm)
T21
$1682.99
5773-20-CR-1
Pantry Pullout
20” (508 mm) W x 21-23/32” (552 mm) D x 73-5/8 - 80-3/4” (1871 - 2052 mm) H
20-1/2” (521 mm)
T24
$1743.99
Extender Bracket
1-1/8” (28 mm) W x 1-1/8” (28 mm) D x 8” (203 mm) H
Lazy Susan
5773-04-CR-1
Accessories
rev-a-shelf.com | 800-626-1126 | info@rev-a-shelf.com
$22.99
195
Lighting
57-EXTEND-1
