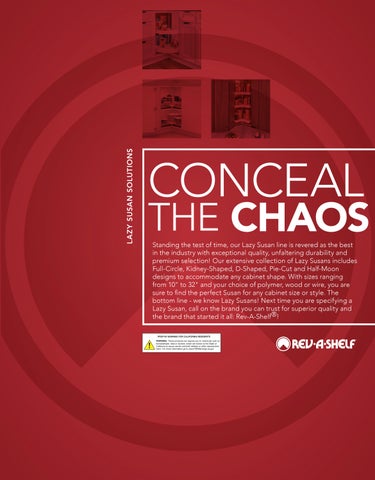

LAZY SUSAN SOLUTIONS
CONCEAL
THE CHAOS Standing the test of time, our Lazy Susan line is revered as the best in the industry with exceptional quality, unfaltering durability and premium selection! Our extensive collection of Lazy Susans includes Full-Circle, Kidney-Shaped, D-Shaped, Pie-Cut and Half-Moon designs to accommodate any cabinet shape. With sizes ranging from 10" to 32" and your choice of polymer, wood or wire, you are sure to find the perfect Susan for any cabinet size or style. The bottom line - we know Lazy Susans! Next time you are specifying a Lazy Susan, call on the brand you can trust for superior quality and the brand that started it all: Rev-A-Shelf ®! PROP 65 WARNING FOR CALIFORNIA RESIDENTS
!
WARNING: These products can expose you to chemicals such as formaldehyde, lead or styrene, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
(Not applicable on pie cut)
• Almond and white • Polypropylene material • US Patent No.'s 7,922,016 and 8,528,873 Our Polymer Lazy Daisy Lazy Susans are tested to exceed BHMA Class II Specs: 15 lbs per square foot at 50k cycles All of our Lazy Susans are manufactured using high quality materials and are backed by a limited Lifetime Warranty. We have developed a tiered category system (Good, Better, Best) that will allow you to quickly identify which configuration will give you the features you want, with the value you require.
IN MADE THE USA
Drawer
Tall
Polymer Lazy Daisy
• Unique patented snap pin design • Ribbed tray surface • Molded polymer hubs • Independently rotating
Base
Sink
Blind Corner
Waste
Lazy Susan
Vanity Solutions Vanity
Wall
Good
Tray Configurations
Lighting
Lazy Susan
Closet
Call for Bulk Pricing 800-626-1126
18", 24", 28", 32"
32"
18", 24", 28", 32"
18", 24", 28"
Full-Circle
D-Shaped
Kidney-Shaped
Pie-Cut
See Page 337 for Hardware 310
rev-a-shelf.com | 800-626-1126 | info@rev-a-shelf.com

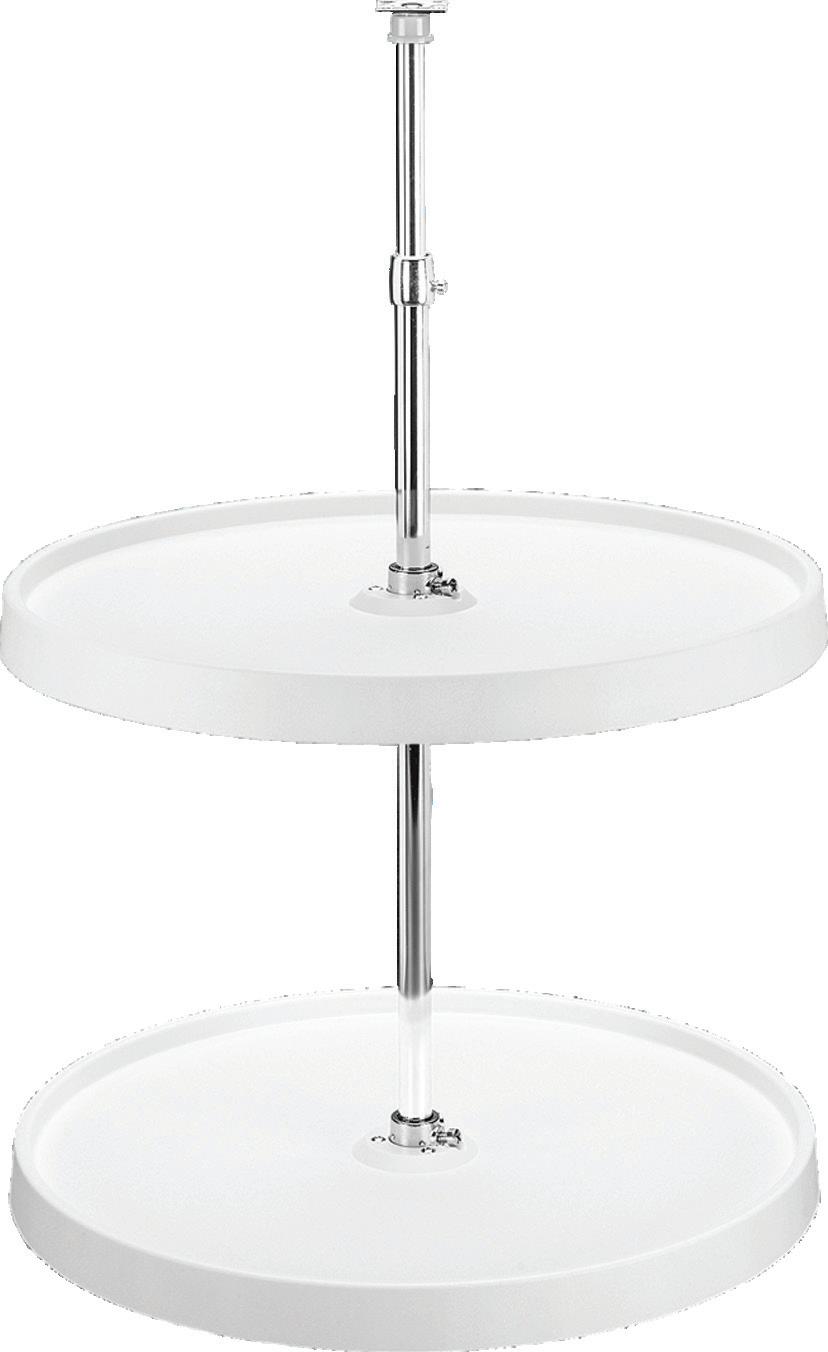

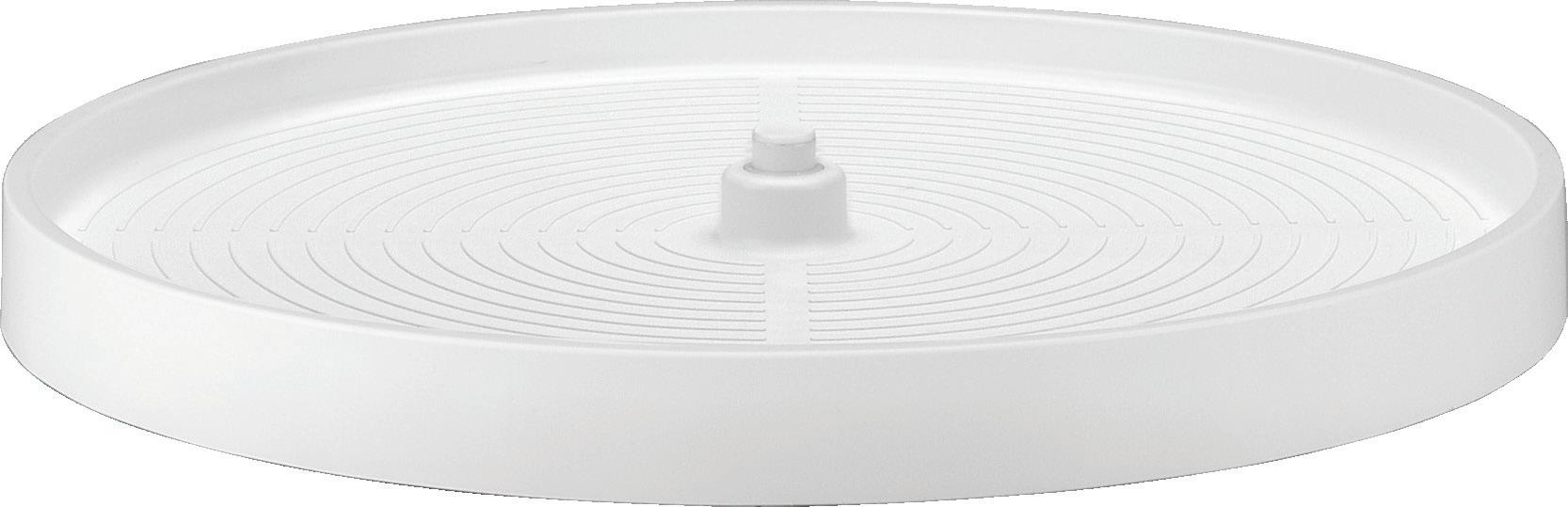

FULL-CIRCLE SHELF
Waste
** Insert “11” for White or “15” for Almond finish Bottom Mount Polymer Lazy Daisy w/ Hardware DESCRIPTION
DIMS
FINISH
SLP
LD-2061-18BM-**-1
Single Shelf
18" Diameter (457 mm)
Polymer
$48.99
LD-2061-24BM-**-1
Single Shelf
24" Diameter (610 mm)
Polymer
$53.99
LD-2061-28BM-**-1
Single Shelf
28" Diameter (711 mm)
Polymer
$59.99
LD-2061-32BM-**-1
Single Shelf
32" Diameter (813 mm)
Polymer
$80.99
Blind Corner
PRODUCT
(2) Shelf Bottom Mount Polymer Lazy Daisy w/ Hardware (2) Shelf Set
18" Diameter (457 mm)
Polymer
$74.99
LD-2062-24BM-**-1
(2) Shelf Set
24" Diameter (610 mm)
Polymer
$92.99
LD-2062-28BM-**-1
(2) Shelf Set
28" Diameter (711 mm)
Polymer
$95.99
LD-2062-32BM-**-1
(2) Shelf Set
32" Diameter (813 mm)
Polymer
$125.99
Sink
LD-2062-18BM-**-1
(2) Shelf Polymer Lazy Daisy w/ 26"-31" Telescoping Post (2) Shelf Set
18" Diameter (457 mm)
Polymer
$77.99
LD-2062-24-**-1
(2) Shelf Set
24" Diameter (610 mm)
Polymer
$95.99
LD-2062-28-**-1
(2) Shelf Set
28" Diameter (711 mm)
Polymer
$98.99
LD-2062-32-**-1
(2) Shelf Set
32" Diameter (813 mm)
Polymer
$132.99
Polymer
$106.99
Base
LD-2062-18-**-1

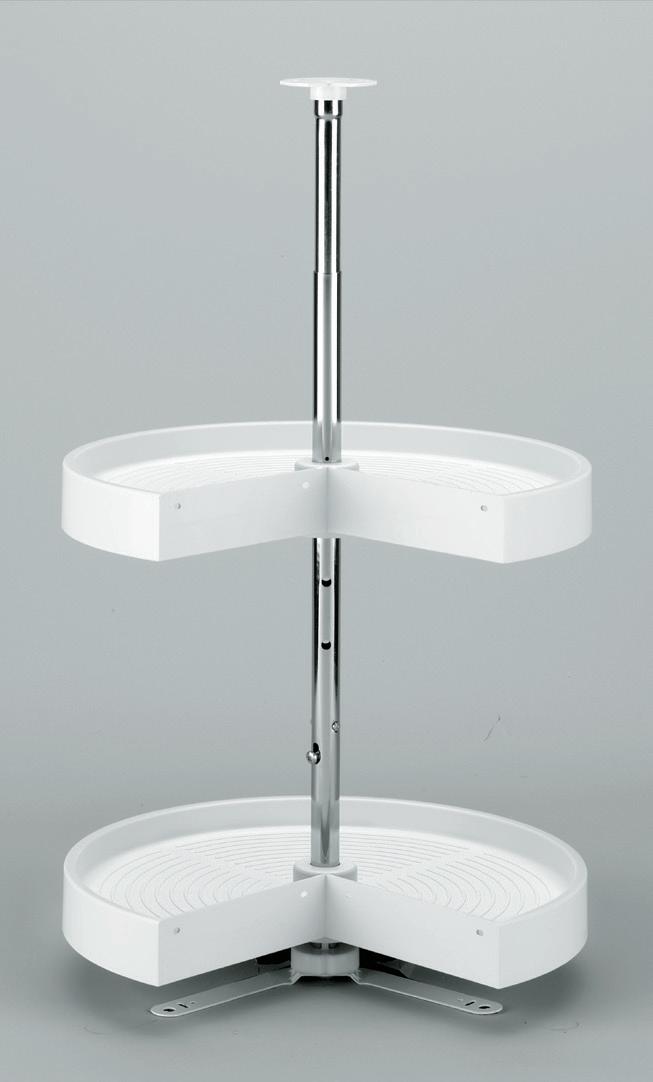

(3) Shelf Polymer Lazy Daisy w/ 34"-41" Telescoping Post LD-2063-1836-**-1
(3) Shelf Set
18" Diameter (457 mm)

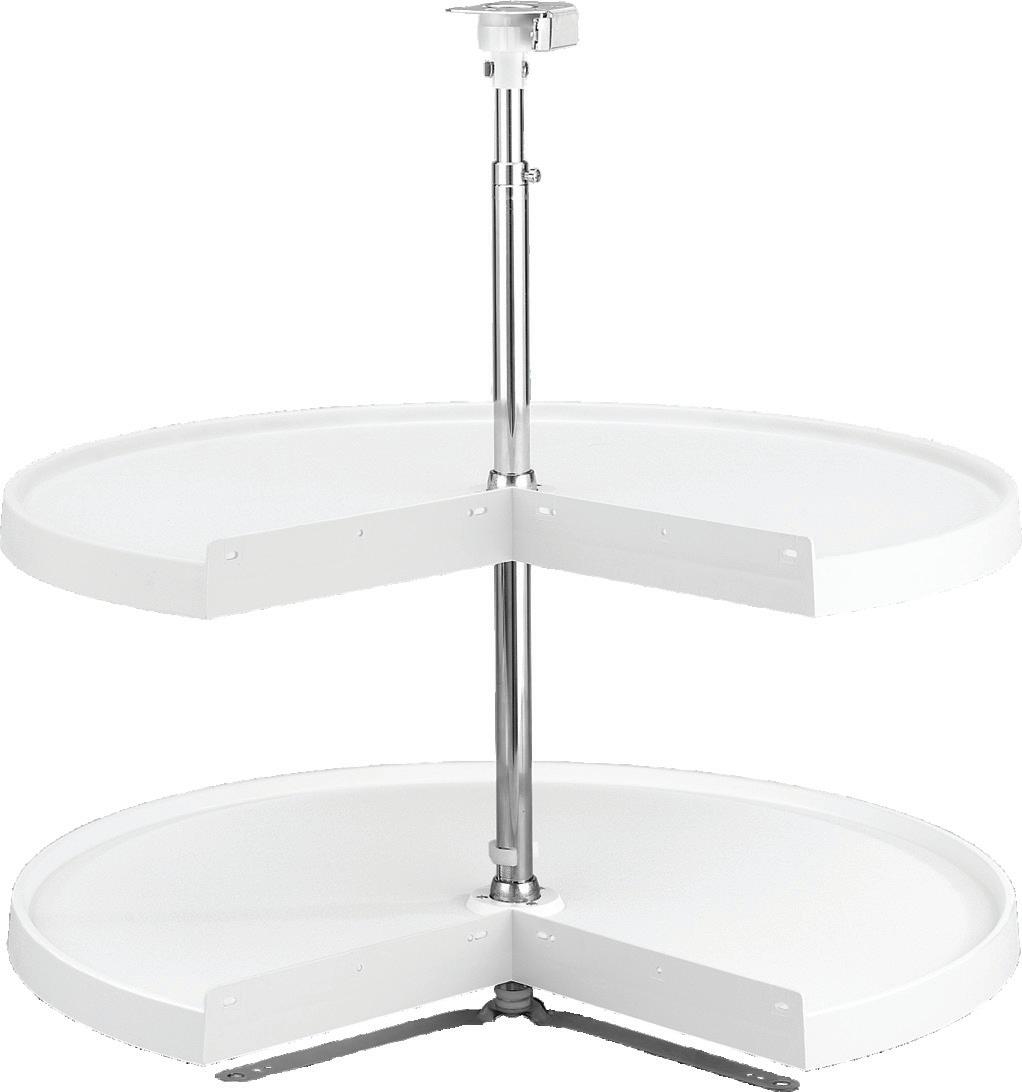

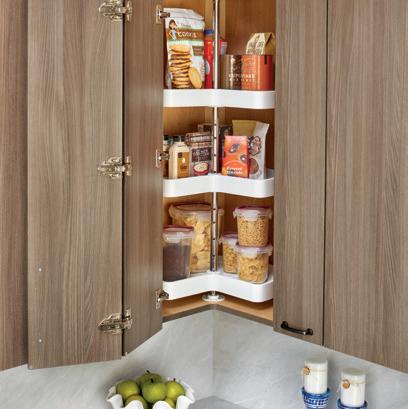

PIE-CUT SHELF
Tall
(Attaches to the cabinet door) (2) Shelf Polymer Lazy Daisy w/ 26"-31" Telescoping Post DESCRIPTION
DIMS
FINISH
SLP
LD-2942-18-**-1
(2) Shelf Set
18" Diameter (457 mm)
Polymer
$103.99
LD-2942-24-**-1
(2) Shelf Set
24" Diameter (610 mm)
Polymer
$129.99
LD-2942-28-**-1
(2) Shelf Set
28" Diameter (711 mm)
Polymer
$132.99
(Hinged door; not attached)
Drawer
PRODUCT

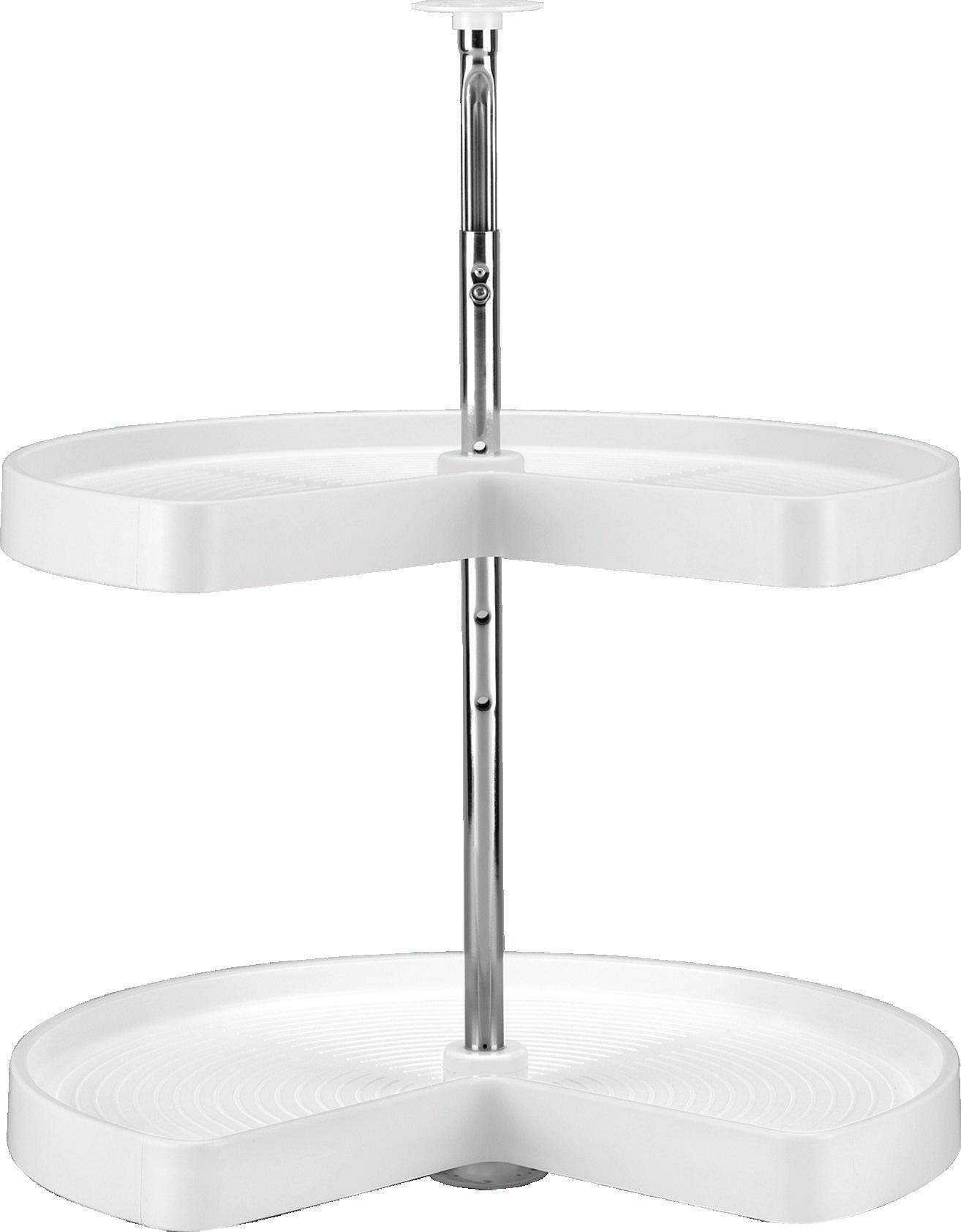

KIDNEY-SHAPED SHELF Wall

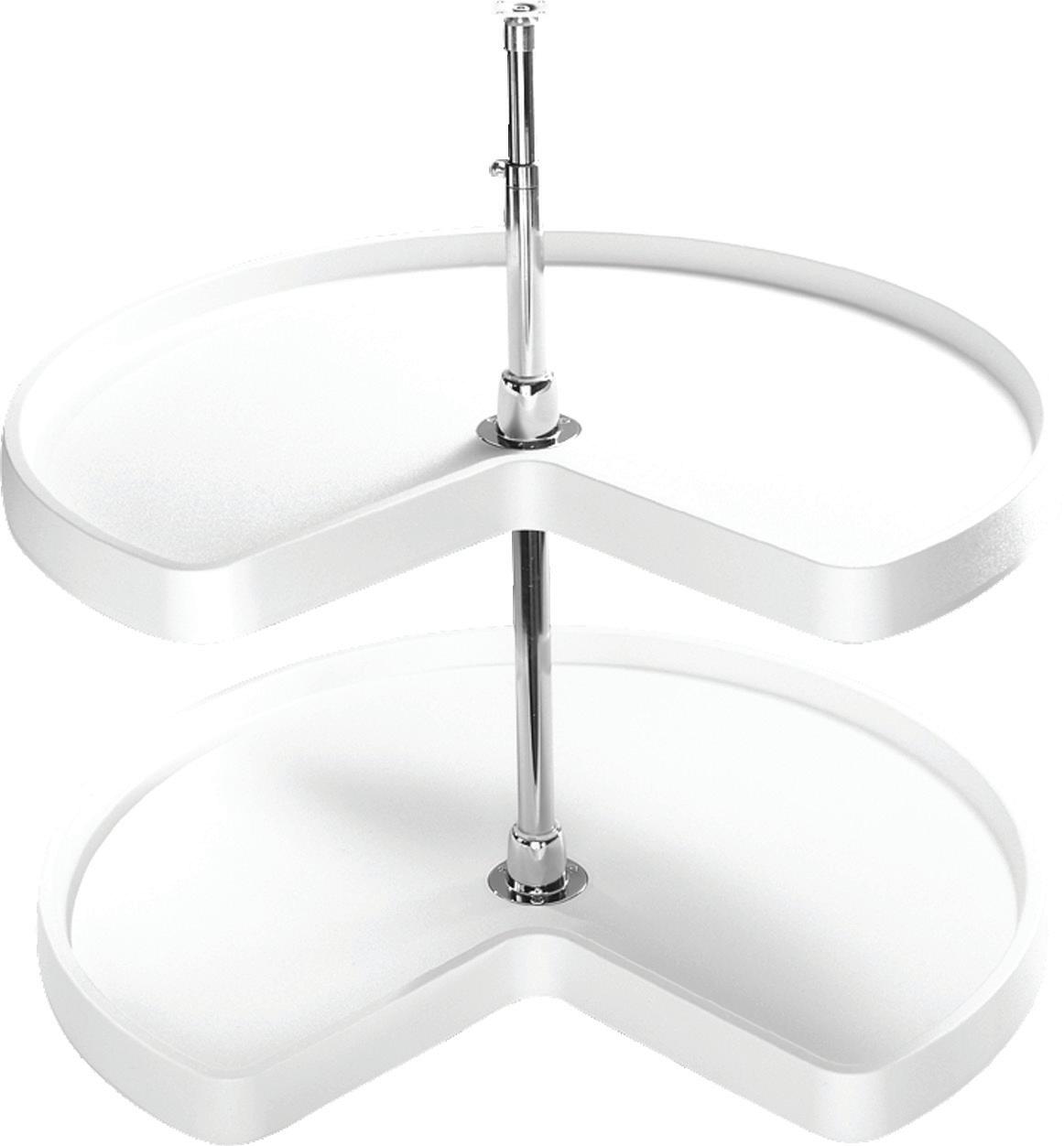

(2) Shelf Polymer Lazy Daisy w/ 26"-31" Telescoping Post DESCRIPTION
DIMS
FINISH
SLP
LD-2472-18-**-1
(2) Shelf Set
18" Diameter (457 mm)
Polymer
$72.99
LD-2472-24-**-1
(2) Shelf Set
24" Diameter (610 mm)
Polymer
$87.99
LD-2472-28-**-1
(2) Shelf Set
28" Diameter (711 mm)
Polymer
$103.99
LD-2472-32-**-1
(2) Shelf Set
32" Diameter (813 mm)
Polymer
$124.99
(2) Shelf Bottom Mount Polymer Lazy Daisy w/ Hardware (2) Shelf Set
18" Diameter (457 mm)
Polymer
$68.99
LD-2472-24BM-**-1
(2) Shelf Set
24" Diameter (610 mm)
Polymer
$83.99
LD-2472-28BM-**-1
(2) Shelf Set
28" Diameter (711 mm)
Polymer
$95.99
LD-2472-32BM-**-1
(2) Shelf Set
32" Diameter (813 mm)
Polymer
$124.99
Polymer
$108.99
(3) Shelf Bottom Mount Polymer Lazy Daisy w/ 34"-41" Telescoping Post LD-2473-1836-**-1
(3) Shelf Set
18" Diameter (457 mm)
Closet
LD-2472-18BM-**-1
Vanity
PRODUCT
D-SHAPED SHELF DESCRIPTION
DIMS
FINISH
SLP
LD-2261-32BM-**-1
Single Shelf
32" Diameter (813 mm)
Polymer
$83.99
32" Diameter (813 mm)
Polymer
$144.99
Polymer
$137.99
(2) Shelf Polymer Lazy Daisy w/ Hardware LD-2262-32-**-1
(2) Shelf Set
(2) Shelf Bottom Mount Polymer Lazy Daisy w/ Hardware LD-2262-32BM-**-1
(2) Shelf Set
32" Diameter (813 mm)
rev-a-shelf.com | 800-626-1126 | info@rev-a-shelf.com
311
Lighting
PRODUCT
Lazy Susan
Bottom Mount Polymer Lazy Daisy w/ Hardware
Shelf
Material
18" Kidney
LAZY DAISY POLYMER SHELVES
Series
A
B
C
D
Post System
Polymer
LD
1-1/8"
2"
11"
18"
25 mm IND./DEP.
24" Kidney
Polymer
LD
1-3/4"
2-3/4"
14-3/4"
24"
25 mm IND./DEP.
28" Kidney
Polymer
LD
3"
4-3/8"
18-3/8"
27-5/8"
25 mm IND./DEP.
32" Kidney
Polymer
LD
4"
6"
21-7/8"
31-3/4"
25 mm IND./DEP.
KIDNEY LAZY SUSAN
Tall
Base
Sink
Blind Corner
Waste
SPECIFICATIONS
D-SHAPED
Shelf
Material
Series
A
B
C
D
Post System
32" D-Shaped
Polymer
LD
14"
14-3/4"
29-7/8"
31-3/4"
25 mm IND./DEP.
Wall
Drawer
LAZY SUSAN
Vanity Solutions Vanity
(Attaches to the cabinet door)
PIE CUT
Lighting
Lazy Susan
Closet
LAZY SUSAN
Shelf
Material
Series
A
B
C
D
Z
18" Pie-Cut
Polymer
LD
1-1/8"
1-5/8"
10-5/8"
18"
8" + 1/8" GAP
24" Pie-Cut
Polymer
LD
1-5/8"
2-3/8"
14-3/8"
24"
10-3/8" + 1/8" GAP
28" Pie-Cut
Polymer
LD
3"
4-1/4"
18"
27-5/8"
10-7/8" + 1/8" GAP
For custom applications, a trial installation is recommended. Door edge profile, thickness and gaps all factor in installation.
312
rev-a-shelf.com | 800-626-1126 | info@rev-a-shelf.com
LAZY DAISY POLYMER SHELVES
Waste
LIP SPECIFICATIONS
35/64” (14 mm)
2-5/32” (55 mm)
Tray Shape
"H"
Full-Circle
1-19/32" (41 mm)
Kidney & D-Shaped
1-7/16" (37 mm)
Blind Corner
1-5/64” (27 mm)
Sink
LAZY
Custom Tray/Hardware Configurations
Drawer
SUSANS
Call your salesperson or 800-626-1126 if you would like more information on
Tall
WE HAVE EVEN MORE OPTIONS!
Base
TOP OF CABINET FLOOR
Wall

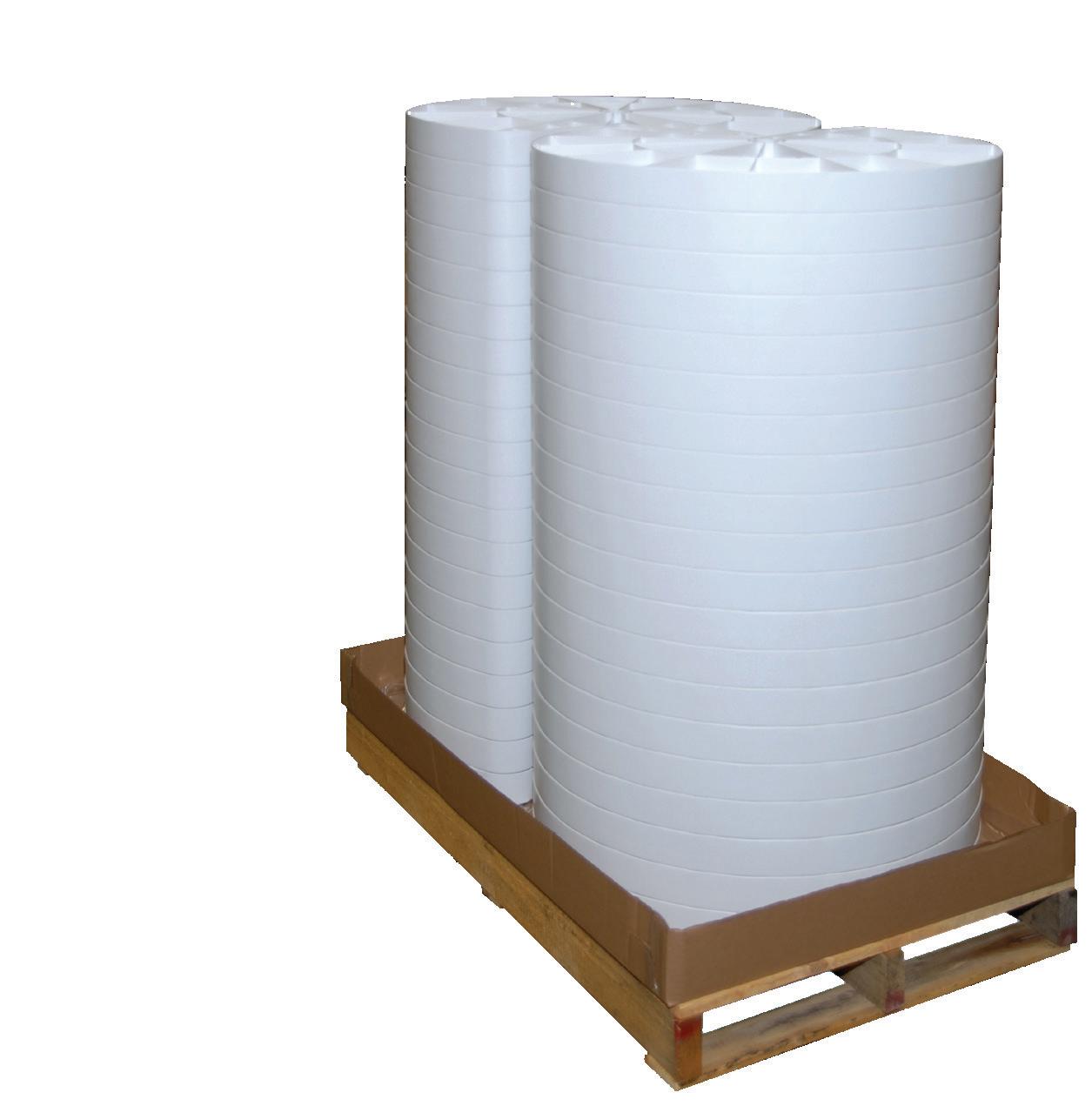

Pallet Program/Enviro Packaging:
Many of our Lazy Susans are available in pallet quantities:
Vanity
• Volume pricing • Reduced transportation cost • Minimal storage space • Environmentally conscious packaging
Closet Lazy Susan 313
Lighting
rev-a-shelf.com | 800-626-1126 | info@rev-a-shelf.com
Polymer Value Line
• Twist-n-Lock telescoping post • Molded polymer hubs • Independently rotating • Almond and white • Polystyrene material
Base
Our Lazy Susans are tested to exceed BHMA Class 1 Specs: 20 lbs. per square foot at 75K cycles.
Tall
Sink
Blind Corner
Waste
Lazy Susan
All of our Lazy Susans are manufactured using high quality materials and are backed by a limited Lifetime Warranty. We have developed a tiered category system (Good, Better, Best) that will allow you to quickly identify which configuration will give you the features you want, with the value you require.
Vanity Solutions Vanity
Wall
Drawer
IN MADE THE USA
Better
Shelf
Material
Series
A
B
C
D
Post System
24" Kidney
Polymer
3400
1-1/2"
2-5/16"
14-5/16"
24"
1" IND.
28" Kidney
Polymer
3400
3"
4-11/16"
18-5/8"
28"
1" IND.
32" Kidney
Polymer
3400
4-1/4"
6-7/16"
22-7/16"
32"
1" IND.
KIDNEY LAZY SUSAN
IND.=INDEPENDENTLY ROTATING SYSTEM
Call for Bulk Pricing 800-626-1126
Lighting
Lazy Susan
Closet
Tray Configurations
OPTIONAL: Ring cap included on 18” and 20" unit eliminates detent
18", 20", 24", 28"
24", 28", 32"
Full-Circle
Kidney-Shaped
See Page 337 for Hardware 314
rev-a-shelf.com | 800-626-1126 | info@rev-a-shelf.com

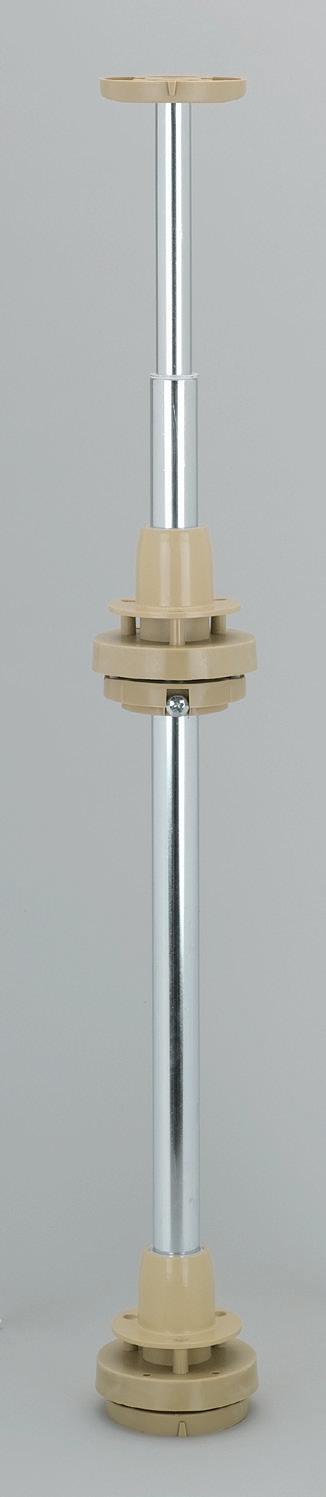

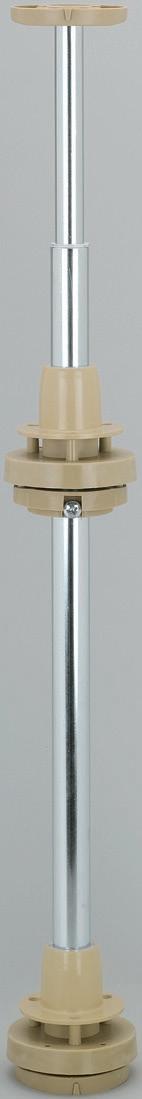

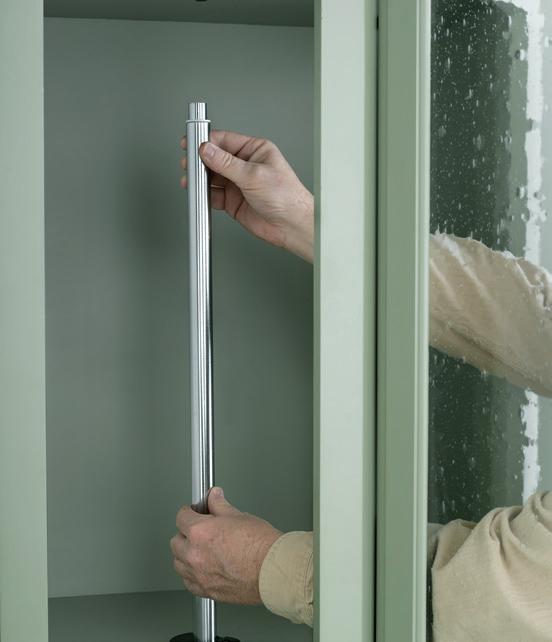

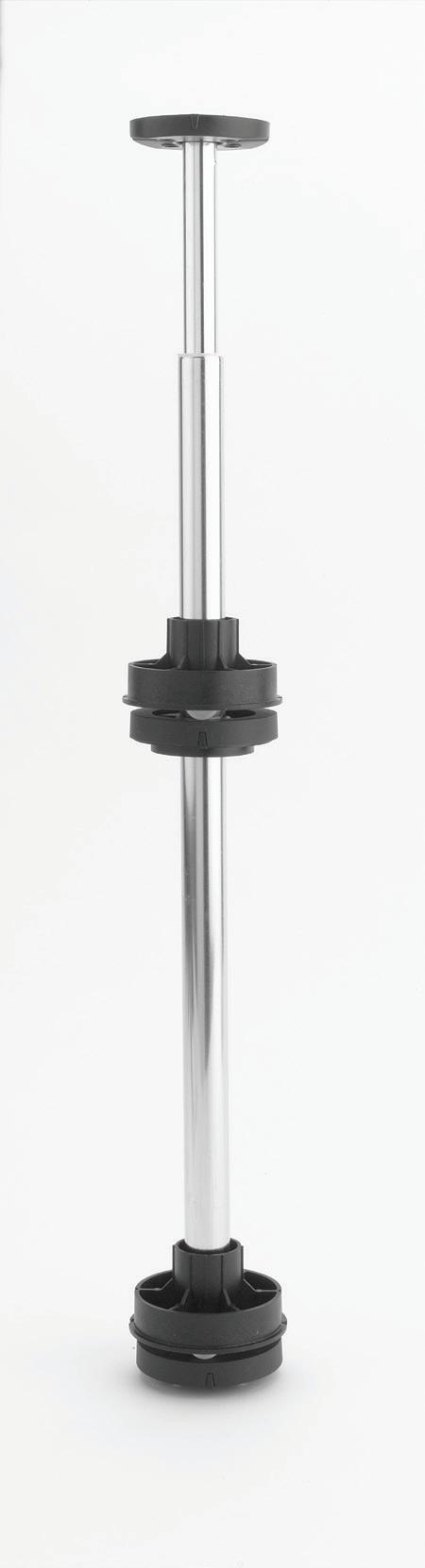

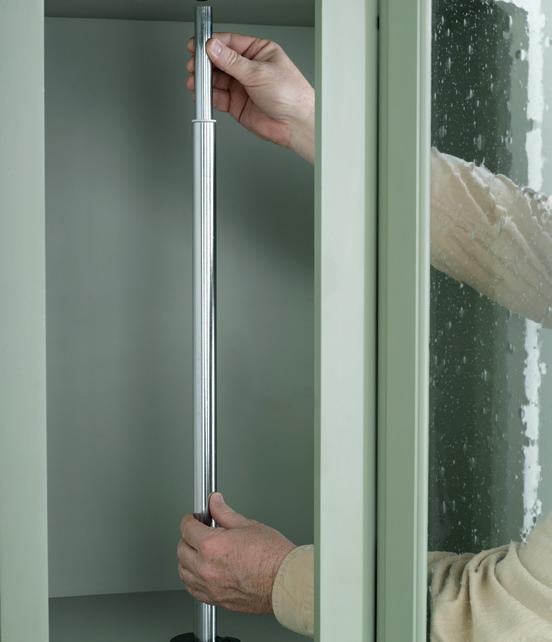

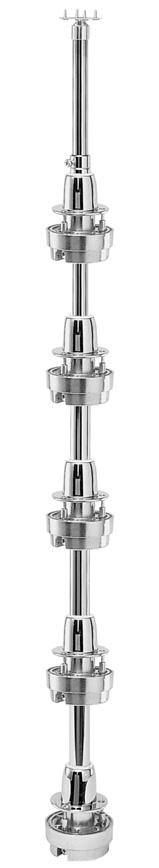

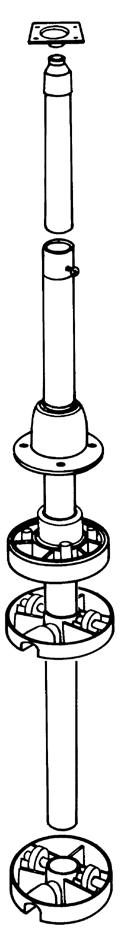

Twist-n-Lock Telescoping Post
Value Line Lazy Susan w/ Hub - Must purchase bottom mount hardware to attach to cabinet PRODUCT
DESCRIPTION
DIMS
FINISH
SLP
3071-18-**-52
Single Shelf
18" (457 mm) Diameter
Polymer
$36.99
3071-20-**-52
Single Shelf
20" (508 mm) Diameter
Polymer
$41.99
3071-24-**-52
Single Shelf
24" (610 mm) Diameter
Polymer
$45.99
3071-28-**-52
Single Shelf
28" (711 mm) Diameter
Polymer
$56.99
Hardware
4-1/4" (108 mm) H
Zinc
$27.99
Sink

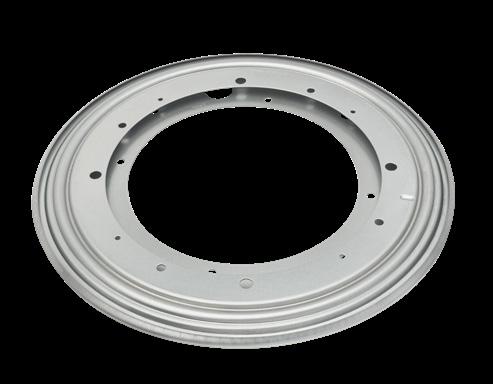

Bottom Mount Hardware BM1-VL-04-52

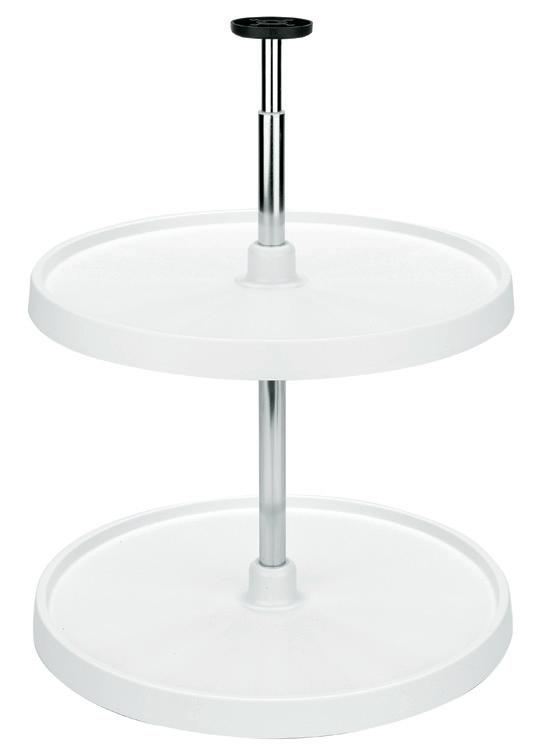

(2) Shelf Value Line Lazy Susan w/ 26"-31" (660–788 mm) Telescoping Post 3072-18-**-52
(2) Shelf Set
18" (457 mm) Diameter
Polymer
$79.99
3072-20-**-52
(2) Shelf Set
20" (508 mm) Diameter
Polymer
$88.99
3072-24-**-52
(2) Shelf Set
24" (610 mm) Diameter
Polymer
$99.99
3072-28-**-52
(2) Shelf Set
28" (711 mm) Diameter
Polymer
$112.99
Base

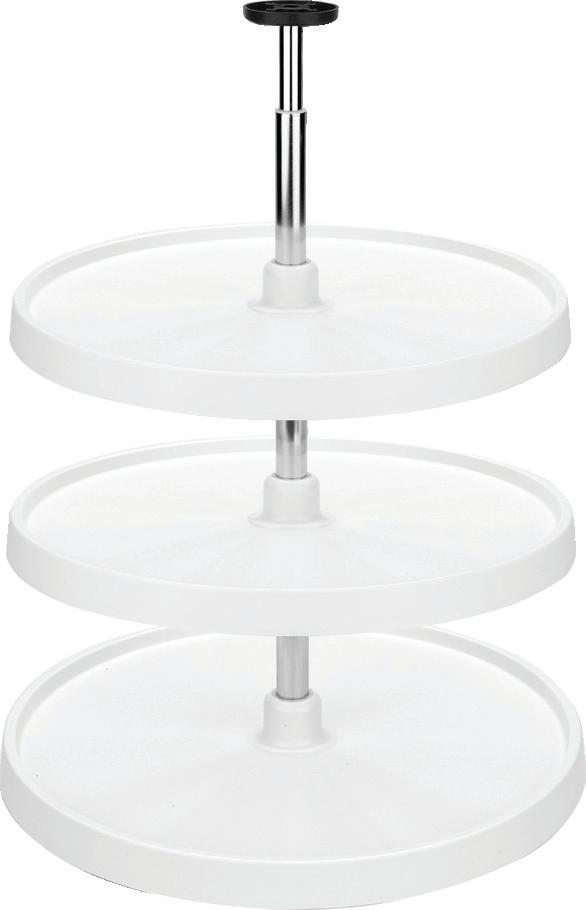

(3) Shelf Value Line Lazy Susan w/ 31"-38" (788–965 mm) Telescoping Post 3073-18-**-531
(3) Shelf Set
18" (457 mm) Diameter
Polymer
$123.99
3073-20-**-531
(3) Shelf Set
20" (508 mm) Diameter
Polymer
$130.99
(3) Shelf Value Line Lazy Susan w/ 38"- 46" (965–1169 mm) Telescoping Post 3073-18-**-536
(3) Shelf Set
18" (457 mm) Diameter
Polymer
$126.99
3073-20-**-536
(3) Shelf Set
20" (508 mm) Diameter
Polymer
$132.99
Drawer
KIDNEY-SHAPED SHELF
(Hinged door; not attached)
Value Line Lazy Susan w/ Hub - Must purchase bottom mount hardware to attach to cabinet DESCRIPTION
DIMS
FINISH
SLP
3471-24-**-52
Single Shelf
24" (610 mm) Diameter
Polymer
$40.99
3471-28-**-52
Single Shelf
28" (711 mm) Diameter
Polymer
$50.99
3471-32-**-52
Single Shelf
32" (813 mm) Diameter
Polymer
$59.99
Hardware
4-1/4" (108 mm) H
Zinc
$27.99
Wall
PRODUCT
Bottom Mount Hardware BM1-VL-04-52
Tall
(2) Shelf Value Line Lazy Susan w/ 26"-31" (660–788 mm) Telescoping Post 3472-24-**-52
(2) Shelf Set
24" (610 mm) Diameter
Polymer
$99.99
3472-28-**-52
(2) Shelf Set
28" (711 mm) Diameter
Polymer
$116.99
3472-32-**-52
(2) Shelf Set
32" (813 mm) Diameter
Polymer
$130.99
LIP SPECIFICATIONS
“H” 1-3/64” (27 mm)
6621-24, 28 and 32
1-15/64” (31 mm)
6072-24, 28 and 32
1-15/64” (31 mm)
Kidney Full-Circle
33/64” (13 mm)
3472-24, 28 and 32
3072-18
“H”
1-15/64” (31 mm) 5/16" (8 mm) 1-15/64” (31 mm)
BASE SHELVES Full-Circle 3072-24 & 28
1-53/64” (46 mm)
Kidney
1-3/64” (27 mm)
6421-24, 28 and 32 6472-24, 28 and 32
TOP OF CABINET FLOOR
"H"
51/64” (20 mm)
3472-24, 28 & 32
“H”
"H" 1-3/64" (27 mm)
Lazy Susan
Full Circle 3072-24 and 28
1-1/64” (26 mm)
Closet
25/64” (9 mm)
VALUE LINE POLYMER SHELVES
WALL SHELVES
33/64” (13 mm) 33/64” (13 mm)
Vanity
m) m) m)
NOTE: ** Insert “11” for White or “15” for Almond finish
Blind Corner
m) m)
Waste
m) m)
FULL-CIRCLE SHELF
"H" 1-3/64" (27 mm)
TOP OF CABINET FLOOR
315
Lighting
rev-a-shelf.com | 800-626-1126 | info@rev-a-shelf.com
RAS Polymer
• Chrome post and hubs • Independently and dependently rotating • Almond and white • Polystyrene material
Our Lazy Susans are tested to exceed BHMA Class 1 Specs: 20 lbs. per square foot at 75K cycles. All of our lazy susans are manufactured using high quality materials and are backed by a limited Lifetime Warranty. We have developed a tiered category system (Good, Better, Best) that will allow you to quickly identify which configuration will give you the features you want, with the value you require.
IN MADE THE USA
Drawer
Tall
Base
Sink
Blind Corner
Waste
Lazy Susan
Vanity Solutions Vanity
Wall
Best
Tray Configurations
Lighting
Lazy Susan
Closet
Call for Bulk Pricing 800-626-1126
16",18", 20", 24", 28", 32"
20", 22"
18", 24", 28", 32"
24", 28"
Full-Circle
D-Shaped
Kidney-Shaped
Pie-Cut
See Page 337 for Hardware 316
rev-a-shelf.com | 800-626-1126 | info@rev-a-shelf.com
31", 33", 39"
Half-Moon
Waste
D-SHAPED SHELF
DEPENDENTLY ROTATING
(2) Shelf RAS Polymer Lazy Susan w/ 24"–31" (610–788 mm) Telescoping Post DESCRIPTION
DIMS
FINISH
SLP
7012-20-**-52
(2) Shelf Set
20" (508 mm) Diameter
Polymer
$98.99
Polymer
$155.99
Blind Corner
PRODUCT
(3) Shelf RAS Polymer Lazy Susan w/ 38"–46" (965–1169 mm) Telescoping Post 7013-20-**-526
(3) Shelf Set
20" (508 mm) Diameter
NOTES: 3/4" (19 mm) diameter post system. 7012 - Telescoping post dimensions 12" (305 mm) upper & 21" (534 mm) lower post. 7013 - Telescoping post dimensions 12" (305 mm) upper & 36" (915 mm) lower post. ** Available colors: 11 White, 15 Almond Tested to exceed BHMA Class 1 Specifications. Sink
INDEPENDENTLY ROTATING
D-SHAPED SHELF RAS Polymer Lazy Susan w/ Hub - Must purchase bottom mount hardware to attach to cabinet DESCRIPTION
DIMS
FINISH
SLP
6271-20-**-52
Single Shelf
20" (508 mm) Diameter
Polymer
$54.99
6271-22-**-52
Single Shelf
22" (559 mm) Diameter
Polymer
$64.99
BM1-04-52
Hardware
4-11/16" (119 mm) H
Zinc
$34.99
BM1-18-52
Hardware for (2) Shelf Set
17-7/8" (454 mm) H
Zinc
$53.99
Base
PRODUCT
Bottom Mount Hardware
Tall
Bottom Mount RAS Polymer Lazy Susan w/ Hardware PRODUCT
DESCRIPTION
DIMS
FINISH
SLP
6221-20-**-52
Single Shelf
20" (508 mm) Diameter
Polymer
$72.99
6221-22-**-52
Single Shelf
22" (559 mm) Diameter
Polymer
$76.99
6272-20-**-52
(2) Shelf Set
20" (508 mm) Diameter
Polymer
$174.99
6272-22-**-52
(2) Shelf Set
22" (559 mm) Diameter
Polymer
$177.99
Drawer
(2) Shelf RAS Polymer Lazy Susan w/ 26"–32" (660-813 mm) Telescoping Post
(3) Shelf RAS Polymer Lazy Susan w/ 38"– 46" (965–1169 mm) Telescoping Post 6273-20-**-536
(3) Shelf Set
20" (508 mm) Diameter
Polymer
$253.99
6273-22-**-536
(3) Shelf Set
22" (559 mm) Diameter
Polymer
$259.99
Wall
KIDNEY-SHAPED SHELF
INDEPENDENTLY ROTATING
RAS Polymer Lazy Susan w/ Hub - Must purchase bottom mount hardware to attach to cabinet DESCRIPTION
DIMS
FINISH
SLP
6471-18-**-52
Single Shelf
18" (457 mm) Diameter
Polymer
$53.99
6471-24-**-52
Single Shelf
24" (610 mm) Diameter
Polymer
$66.99
6471-28-**-52
Single Shelf
28" (711 mm) Diameter
Polymer
$77.99
6471-32-**-52
Single Shelf
32" (813 mm) Diameter
Polymer
$83.99
BM1-04-52
Hardware
4-11/16" (119 mm) H
Zinc
$34.99
BM1-18-52
Hardware for (2) Shelf Set
17-7/8" (454 mm) H
Zinc
$53.99
Vanity
PRODUCT
Bottom Mount Hardware
Single Shelf
18" (457 mm) Diameter
Polymer
$72.99
6421-24-**-52
Single Shelf
24" (610 mm) Diameter
Polymer
$77.99
6421-28-**-52
Single Shelf
28" (711 mm) Diameter
Polymer
$88.99
6421-32-**-52
Single Shelf
32" (813 mm) Diameter
Polymer
$99.99
(2) Shelf RAS Polymer Lazy Susan w/ 26"–32" (660-813 mm) Telescoping Post (2) Shelf Set
18" (457 mm) Diameter
Polymer
$143.99
6472-24-**-52
(2) Shelf Set
24" (610 mm) Diameter
Polymer
$145.99
6472-28-**-52
(2) Shelf Set
28" (711 mm) Diameter
Polymer
$171.99
6472-32-**-52
(2) Shelf Set
32" (813 mm) Diameter
Polymer
$188.99
rev-a-shelf.com | 800-626-1126 | info@rev-a-shelf.com
317
Lighting
6472-18-**-52
Lazy Susan
6421-18-**-52
Closet
Bottom Mount RAS Polymer Lazy Susan w/ Hardware
Waste
FULL-CIRCLE SHELF
DEPENDENTLY ROTATING
Sink
Blind Corner
(2) Shelf RAS Polymer Lazy Susan w/ 24"–31" (610–788 mm) Telescoping Post PRODUCT
DESCRIPTION
DIMS
FINISH
SLP
6012-18-**-52
(2) Shelf Set
18" (457 mm) Diameter
Polymer
$86.99
6012-20-**-52
(2) Shelf Set
20" (508 mm) Diameter
Polymer
$93.99
6012-24-**-52
(2) Shelf Set
24" (610 mm) Diameter
Polymer
$106.99
6012-28-**-52
(2) Shelf Set
28" (711 mm) Diameter
Polymer
$127.99
(3) Shelf RAS Polymer Lazy Susan w/ 38"– 46" (965–1169 mm) Telescoping Post 6013-18-**-526
(3) Shelf Set
18" (457 mm) Diameter
Polymer
$130.99
6013-20-**-526
(3) Shelf Set
20" (508 mm) Diameter
Polymer
$141.99
NOTES: 3/4" (19 mm) diameter post system. 6012 - Telescoping post dimensions 12" (305 mm) upper & 21" (534 mm) lower post. 6013 - Telescoping post dimensions 12" (305 mm) upper & 36" (915 mm) lower post. Post length can be cut to accommodate inner cabinet heights of less than 38" (965 mm).
Tall
Base
FULL-CIRCLE SHELF
INDEPENDENTLY ROTATING
RAS Polymer Lazy Susan w/ Hub - Must purchase bottom mount hardware to attach to cabinet PRODUCT
DESCRIPTION
DIMS
FINISH
SLP
6071-16-**-52
Single Shelf
16" (406 mm) Diameter
Polymer
$52.99
6071-18-**-52
Single Shelf
18" (457 mm) Diameter
Polymer
$53.99
6071-20-**-52
Single Shelf
20" (508 mm) Diameter
Polymer
$56.99
6071-24-**-52
Single Shelf
24" (610 mm) Diameter
Polymer
$62.99
6071-28-**-52
Single Shelf
28" (711 mm) Diameter
Polymer
$72.99
6071-32-**-52
Single Shelf
32" (813 mm) Diameter
Polymer
$84.99
Hardware
4-1/4" (108 mm) H
Zinc
$34.99
Bottom Mount Hardware
Wall
Drawer
BM1-04-52
Bottom Mount RAS Polymer Lazy Susan w/ Hardware PRODUCT
DESCRIPTION
DIMS
FINISH
SLP
6621-16-**-52
Single Shelf
16" (406 mm) Diameter
Polymer
$69.99
6621-18-**-52
Single Shelf
18" (457 mm) Diameter
Polymer
$71.99
6621-20-**-52
Single Shelf
20" (508 mm) Diameter
Polymer
$72.99
6621-24-**-52
Single Shelf
24" (610 mm) Diameter
Polymer
$82.99
6621-28-**-52
Single Shelf
28" (711 mm) Diameter
Polymer
$98.99
6621-32-**-52
Single Shelf
32" (813 mm) Diameter
Polymer
$114.99
Vanity Solutions Vanity
(2) Shelf RAS Polymer Lazy Susan w/ 26"–32" (660-813 mm) Telescoping Post 6072-16-**-52
(2) Shelf Set
16" (406 mm) Diameter
Polymer
$156.99
6072-18-**-52
(2) Shelf Set
18" (457 mm) Diameter
Polymer
$159.99
6072-20-**-52
(2) Shelf Set
20" (508 mm) Diameter
Polymer
$174.99
6072-24-**-52
(2) Shelf Set
24" (610 mm) Diameter
Polymer
$209.99
6072-28-**-52
(2) Shelf Set
28" (711 mm) Diameter
Polymer
$224.99
6072-32-**-52
(2) Shelf Set
32" (813 mm) Diameter
Polymer
$235.99
Closet
(3) Shelf RAS Polymer Lazy Susan w/ 38"– 46" (965–1169 mm) Telescoping Post 6073-18-**-536
(3) Shelf Set
18" (457 mm) Diameter
Polymer
$235.99
6073-20-**-536
(3) Shelf Set
20" (508 mm) Diameter
Polymer
$241.99
Lighting
Lazy Susan
NOTES: 1" (26 mm) diameter post system. 6072 - Telescoping post dimensions 9-1/4" (235 mm) upper & 21" (534 mm) lower post 6073. - Telescoping post dimensions 9-1/4" (235 mm) upper & 36" (915 mm) lower post. Additional shelves and/or longer posts can be special ordered. Positioning base without wheels 6260-77-2-52 mounts on base of cabinet.
PIE-CUT SHELF
(Attaches to the cabinet door)
(2) Shelf RAS Polymer Lazy Susan w/ 26"–32" (660-813 mm) Telescoping Post PRODUCT
DESCRIPTION
DIMS
FINISH
SLP
6942-24-**-52
(2) Shelf Set
24" (610 mm) Diameter
Polymer
$125.99
6942-28-**-52
(2) Shelf Set
28" (711 mm) Diameter
Polymer
$159.99
318
rev-a-shelf.com | 800-626-1126 | info@rev-a-shelf.com
Waste
HALF-MOON SHELF (2) Shelf RAS Polymer Lazy Susan w/ Pivot DESCRIPTION
DIMS
MCO
CAB
FINISH
SLP
6842-31-**-570
(2) Shelf Set
31" (787 mm) Diameter
13-1/4” (337 mm) - FF 15” (381 mm) - FL
BC42
Polymer
$233.99
6842-33-**-570
(2) Shelf Set
33" (838 mm) Diameter
16-1/8” (410 mm) - FF 17-7/16” (443 mm) - FL
BC45
Polymer
$239.99
6842-39-**-570
(2) Shelf Set
39" (991 mm) Diameter
19-1/4” (489 mm) - FF 20-3/4” (527 mm) - FL
BC48
Polymer
$277.99
RAS Polymer Lazy Susan w/ Pivot and Slide Single Shelf
31" (787 mm) Diameter
13-1/4” (337 mm) - FF 15” (381 mm) - FL
BC42
Polymer
$192.99
6881-33-**-52
Single Shelf
33" (838 mm) Diameter
16-1/8” (410 mm) - FF 17-7/16” (443 mm) - FL
BC45
Polymer
$193.99
6881-39-**-52
Single Shelf
39" (991 mm) Diameter
19-1/4” (489 mm) - FF 20-3/4” (527 mm) - FL
BC48
Polymer
$212.99
Sink
6881-31-**-52
Blind Corner
PRODUCT
(2) Shelf RAS Polymer Lazy Susan w/ Pivot and Slides (2) Shelf Set
31" (787 mm) Diameter
13-1/4” (337 mm) - FF 15” (381 mm) - FL
BC42
Polymer
$329.99
6882-33-**-570
(2) Shelf Set
33" (838 mm) Diameter
16-1/8” (410 mm) - FF 17-7/16” (443 mm) - FL
BC45
Polymer
$335.99
6882-39-**-570
(2) Shelf Set
39" (991 mm) Diameter
19-1/4” (489 mm) - FF 20-3/4” (527 mm) - FL
BC48
Polymer
$378.99
Half-Moon Slide Kit (1 Pair)
10-1⁄2" (267 mm) Extension
Polymer
$66.99
Base
6882-31-**-570
Hardware 6882-1008-04-52
AA
A 10-1/4" (260 mm)
Tall
10-1/4" (260 mm)
10-1/4" (260 mm)
B
B B
Tray Size Inches
30
787
33-11/16
33
B (mm)
(mm)
856 NOM Tray size 21-1/2
546
33
Tray Size
838
34-5/16
872
39
991
40-11/16
1033
31" (787 mm)
13-1/4
344
24-1/16
611
21-13/16
Inches
554
B
19-1/4
491
27-3/8
695
33-11/16 Inches
856 (mm)
787 838
39" (991 mm) 872 856
33-11/16" (856 mm)
Inches
40-11/16
554
1033
21-13/16
554
B
13-1/4 Inches
21-1/16" (535 mm)
D (mm)
16-1/8" (410 mm)
21-1/16 Inches 535
24-1/16" (611 mm)
(mm) 31” Polymer Half Moon
“H”
21-13/16" (554 mm) 24-1/16 19-1/4" (491 mm) 27-3/8" (695 mm) 16-1/8 410 344 2-21/64” (59 mm) 13-1/4 21-1/16 611 535 6881-31 491
16-1/8 19-1/4
10-1/4" (260 mm)
27-3/8
410 491
24-1/16 695
611
27-3/8
695
6842-31
1-31/64” (39 mm)
6882-31
2-21/64” (59 mm)
31"
1/4” (6 mm)
3/32” (2 mm)
33"
21/32” (17 mm)
1-1/4” (32 mm) 33” Polymer Half Moon
“H”
6842-33
1-1/2” (38 mm)
6881-33
2-21/64” (38 mm)
6882-33
2-21/64” (38 mm)
2-1/4” (57 mm)
1-1/2” (38 mm)
2-7/16” (62 mm)
SERIES
"H"
SERIES
"H"
6842
1-1/2" (38 mm)
6842
1-1/2" (38 mm)
6881, 6882
2-5/16" (59 mm)
6881, 6882
2-5/16" (59 mm)
A 10-1/4" (260 mm)
OFFSET SHELF
Tray Size Inches
A
(mm) 787 838
39
991
B (mm)
33-3/16
843
33" (838 mm)
Inches
D
(mm)
Inches
39” Polymer Half Moon
(mm)
787
32-13/16
33
838
33-3/16
39
991
39-7/8
A
18-9/16
17-7/16
410
D611
24-1/16
A 554 B 27-3/8 21-13/16" 20-3/4 527 OFFSET SHELF 32-13/16" (833 mm) 21-1/2" (546 mm) SUPPORT BRACKET
39-7/8" (1013 mm) (mm) Inches
21-13/16" (554 mm) (mm) Inches (mm)
21-1/2
843
18-9/16
1013
21-13/16"
21-1/2
(mm)
Inches
(mm)
787
32-13/16
833
C
Inches
B
546
15
471
17-7/16
554
20-3/4
(mm) 546
Inches 15
2-21/64” (59 mm) 2-21/64” (59 mm)
2-19/32” (66 mm)
D
15" (381 mm)
21-1/16" (535 mm)
SERIES
"H"
17-7/16" (443 mm)
24-1/16" (611 mm)
6842
1.490" (37,8 mm)
6881, 6882
2.329" (59,1 mm)
20-3/4" (527 mm) Inches (mm)
27-3/8" (695 mm)
D
18-9/16" (471 mm)
B
1-5/8” (41 mm)
1-31/64” (38 mm)
C
695
33-3/16" (843 mm)
833
A
471
“H”
43/64” (17 mm)
D
344
21-1/16
410
24-1/16
611
527
27-3/8
695
C
(mm) 344
535
Inches
D (mm)
rev-a-shelf.com | 800-626-1126 | info@rev-a-shelf.com 21-1/16
535
319
Lighting
31
Tray Size Inches
C
39" (991 mm) (mm) Inches
Inches
FRAMELESS CABINET
C (mm)
6842-39 OFFSET SHELF 6881-39 32-13/16 833 21-1/2 344 21-1/16 535 SUPPORT 6882-39 DIMENSIONS A, BRACKET B, 546 AND C15ARE MINIMUMS. 39" TRAY SHOWN IN DIAGRAM.
NOMCTray size1013 39-7/8
Tray Size
Inches
39"
10-1/4" (260 mm)
Lazy Susan
31 33
Inches
31" (787 mm)
31
D
C
B
Closet
ASUPPORT BRACKET
B
13-1/4" (344 mm)
Inches
344(mm)
19-1/4
471
D
Vanity
991
21-13/16 18-9/16
C(mm)
C D
18-9/16" (471 mm)
546 (mm)
1033 872
C
21-1/2" (546 mm)
(mm)
40-11/16" mm) 18-9/16 (1033 471 21-1/2 546
21-1/2 Inches
34-5/16 33-11/16
A
535
410
34-5/16" (872 mm)
40-11/16 34-5/16
(mm)
B
16-1/8
33" (838 mm)
838 991
Inches
21-1/16
B
(mm) 787
39
(mm)
A
471
(mm)
39
Inches
18-9/16
A
InchesA
33
C
Inches
DIMENSIONS A, B, AND C ARE MINIMUMS. 31" D TRAY SHOWN IN DIAGRAM.
Wall
30
A
(mm)
Inches 30
Drawer
FRAMED CABINET
Inches
(mm)
DD
STANDARDSHELF SHELF STANDARD SUPPORTBRACKET BRACKET SUPPORT
CC
Tray Size Inches
D
STANDARD SHELF SUPPORT BRACKET
C
Blind Corner
Waste
SPECIFICATIONS
POLYMER SHELVES
D-SHAPED LAZY SUSAN
Shelf
Material
Series
A
B
C
D
Post System
20" D-Shaped
Polymer
6200
8-7/8"
9-1/4"
19"
20-1/8"
1" IND.
22" D-Shaped
Polymer
6200
7-3/16"
16-5/8"
18-3/16"
22"
1" IND.
IND. = Independently Rotating System
Sink
D”
Base
D-SHAPED Shelf
Material
Series
A
B
C
D
Post System
20" D-Shaped
Polymer
7000
8-7/8"
9-1/4"
18-7/8"
20"
3/4" DEP.
C
LAZY SUSAN
A
DEP. = Dependently Rotating System
Tall
B
KIDNEY
Material
Series
A
B
C
D
Post System
18" Kidney
Polymer
6471
1-3/4"
2-13/16"
11-13/16"
18"
1" IND.
24" Kidney
Polymer
6471
1-1/2"
2-5/16"
14-5/16"
24"
1" IND.
28" Kidney
Polymer
6471
3"
4-11/16"
18-5/8"
28"
1" IND.
32" Kidney
Polymer
6471
4-1/4"
6-7/16"
22-7/16"
32"
1" IND.
Drawer
LAZY SUSAN
Shelf
Wall
IND. = Independently Rotating System
Shelf
Material
Series
A
B
C
D
Z
Post System
24" Pie-Cut
Polymer
6942
1-3/8"
1-15/16"
13-15/16"
24"
10-9/16" + 1/8" gap
1" DEP.
28" Pie-Cut
Polymer
6942
3"
4-1/4"
18-1/4"
28"
11" + 1/8" gap
1" DEP.
PIE CUT LAZY SUSAN
Vanity Solutions Vanity
DEP. = Dependently Rotating System
For custom applications, a trial installation is recommended. Door edge profile, thickness and gaps all factor in installation
LIP SPECIFICATIONS
PIE-CUT POLYMER SHELVES 9/16” (15 mm)
Dimensions are for reference only, and may change based on hardware used, etc.
9/16” (15 mm)
1-59/64” (49 mm)
Closet
9/16” (15 mm)
1-59/64” (49 mm)
1-59/64” (49 mm)
24" 28" Shelves
35/64” (14 mm) I” Shaft Pie-Cut
“H”
6942-24
1/4” (6 mm) *
6942-28
1/4” (6 mm) *6942-24
Lazy Susan
I” Shaft Pie-Cut 6942-24
“H” I” Shaft Pie-Cut
6942-28
“H”
1/4” (6 mm) *
1/4” (6 mm) *
1/4” (6 mm) * 6942-28
1/4” (6 mm) *
*6942-24 and 6942-28 can sit flush on top of the cabinet floor. 1/4” (6 mm) is recommended for clearance.
Lighting
*6942-24 and 6942-28 can sit flush on top of
*6942-24 and 6942-28 can sit the flush on top of 1/4” (6 mm) is recommended cabinet floor. the cabinet floor. 1/4” (6 mm) for is recommended clearance. for clearance.
REV-A-SHELF® LAZY SUSANS ARE TESTED TO EXCEED BHMA CLASS 1 SPECIFICATIONS
320
rev-a-shelf.com | 800-626-1126 | info@rev-a-shelf.com
35/64” (14 mm)
35/64” (14 mm)
POLYMER SHELVES
Waste
SPECIFICATIONS
Dimensions are for reference only, and may change based on hardware used, etc. 33/64” (13 mm) 33/64” (13 mm)
Full Circle
Polymer Lazy Susan 3072-18 Full-Circle
"H" 18 and 20 6621-16,
3072-18
“H”
6072-16, 18 & 20
1-19/64" (33 mm) 6065-16 and 18
1-19/64” (33 mm) 2-9/32” (58 mm)
6073-18 & 20
1-19/64" (33 mm) 6012-18 and 20
1/4” (6 mm) *
6065-16 & 18
2-9/32" (58 mm) 6013-18 and 20
1/4” (6 mm) *
6012-18 & 20
1/4" (6 mm)*
6013-18 & 20
1/4" (6 Kidney mm)*
Kidney
6421-18 "H" 1-19/64"6472-18 (33 mm)
6472-18
1-19/64" (33 mm)
25/64” (9 mm)
Kidney 6472-18
33/64” (13 mm)
33/64” (13 mm) 1-19/64” (33 mm) 1-19/64” (33 mm)
Polymer Lazy Susan
1-15/64" (31 mm)
Kidney
"H"
3472-24, 28 & 32
1-3/64" (27 mm)
22” D-Shape
“H”
6221-22
1-15/64” (31 mm)
6272-22
1-15/64” (31 mm)
6421-24, 28 & 32
1-15/64" (31 mm)
6273-22
1-15/64” (31 mm)
6472-24, 28 & 32
1-15/64" (31 mm)
6265-22
2-13/64” (56 mm)
6272-22
1-15/64" (31 mm)
6273-22
1-15/64" (31 mm)
6265-22
2-13/64" (56 mm)
45/64” (18 mm)
15/32” (12 mm)
45/64” (18 mm) 1-1/64” (26 mm) 15/32” (12 mm) 1-13/16” (46 mm)
22” D-Shape
“H”
6221-22
1-15/64” (31 mm)
6272-22
1-15/64” (31 mm)
6273-22
1-15/64” (31 mm)
6265-22
2-13/64” (56 mm)
1-1/64” (26 mm)
Wall
1-1/64” (26 mm)
51/64” (20 mm)
1-15/64" (31 mm)
Drawer
1-15/64" (31 mm)
"H"
6221-22
Tall
"H"
6072-24, 28 & 32
33/64
PANTRY SHELVES
Polymer Lazy Susan
6621-24, 28 & 32
25/64
* 6012 and 6013 can sit flush on the top of the cabinet floor. 1/4” (6 mm) is recommended for clearance.
22" D-Shaped
1-3/64" (27 mm)
1/4” (6 mm) * 1/4” (6 mm) *
TOP OF CABINET FLOOR
BASE SHELVES 3072-24 & 28
1-19/64” (33 mm) 2-9/32” (58 mm)
33/64” (13 mm) 1-19/64” (33 mm) 1-19/64” (33 mm)
6421-18
* 6012 and 6013 can sit flush on the top of the cabinet floor. 1/4” (6 mm) is recommended for clearance.
Full-Circle
6072-16, 18 and 20 6073-18 and 20 6065-16 and 18 6012-18 and 20 6013-18 and 20
Base
6421-18
5/16” (8 mm) 1-19/64” (33 mm) 1-19/64” (33 mm)
Sink
6621-16, 18 & 20
3072-18 6621-16, 18 and 20
5/16” (8 mm) 1-19/64” (33 mm) 1-19/64” (33 mm)
5/16" (8 mm) 6072-16, 18 and 20 1-19/64" (33 mm) 6073-18 and 20
“H”
Blind Corner
WALL SHELVES
3
Full Circle
1-13/16” (46 mm) “H”
mm)
mm)
"H"
mm)
15/64” (6 mm)
1-53/64” (46 mm)
mm)
mm)
mm)
Vanity
TOP OF CABINET FLOOR “H”
5/64” (2 mm) 15/64” (6 mm)
“H”
Independent Rotation
TOP OF CABINET FLOOR
5/64” (2 mm)
TOP OF CABINET FLOOR
20” D-Shape
“H” 1-1/4” (32 mm)
1-1/2” (38 mm) Independent Rotation 6272-20 1-1/2” (38 mm) 20” D-Shape “H” 6273-20 1-1/2” (38 mm) 6221-20 1-1/2” Independently Rotation Dependent Rotation (38 mm)
WALL SHELVES 6272-20 "H" 20” D-Shape 6273-20 1-1/2" (38 mm)
6272-20
1-1/2" (38 mm) Dependent Rotation 1/4” (6 mm) *
6273-20
7012-20
7013-20 20” D-Shape 1-1/2" (38 mm)
2-1/4” (57 mm)
1-1/2” (38 mm) “H” 1-1/2” mm) 1/4” (6(38 mm) *
2-1/4” (57 mm)
“H”
1/4”top (6 mm) * 7012-20 Dependently * 7012-20Rotation and 7013-20 can sit flush on the of the
“H”
6221-20
1-1/2” (38 mm)
6272-20
1-1/2” (38 mm)
6273-20
1-1/4” (
1-1/2” (38 mm) Dependent Rotation
20” D-Shape
“H”
7012-20
1/4” (6 mm) *
7013-20
1/4” (6 mm) *
2-1/4” (57 mm)
Lazy Susan
20" D-Shaped 6221-20
1-1/4” (32 mm)
Independent Rotation 20” D-Shape
Closet
6221-20
* 7012-20 and 7013-20 can sit flush on the top of the cabinet floor. 1/4” (6 mm) is recommended for clearance.
cabinet floor. 1/4” (6 mm) is recommended clearance. 1/4” for (6 mm) * 7013-20 20" D-Shaped "H" 7012-20 7013-20
1/4" (6 mm)
“H”
“H”
rev-a-shelf.com | 800-626-1126 | info@rev-a-shelf.com
321
Lighting
* 7012-20 1/4" and(67013-20 can sit flush on the top of the mm) cabinet floor. 1/4” (6 mm) is recommended for clearance.
“H”
TOP
Waste Blind Corner Sink
Lazy Susan
Banded Wood
BANDED WOOD • 2" banded wood rim • Doweled (2) butt joint • 5/8" thick maple shelf bottom • Independently rotating • Almond hardware • Steel bearings
Base
All wood products are TSCA Title VI compliant. Our Lazy Susans are tested to exceed BHMA Class 1 Specs: 20 lbs. per square foot at 75K cycles.
Tall
All of our lazy susans are manufactured using high-quality materials and are backed by a limited lifetime warranty. We have developed a tiered category system (Good, Better, Best) that will allow you to quickly identify which configuration will give you the features you want, with the value you require.
Drawer
IN MADE THE USA
Vanity Solutions Vanity
Wall
Good
Tray Configurations
Lighting
Lazy Susan
Closet
Call for Bulk Pricing 800-626-1126
18", 20" 24", 28", 32"
20", 28", 32"
24", 28", 32"
28"
Full-Circle
D-Shaped
Kidney-Shaped
Pie-Cut
See Page 337 for Hardware 322
rev-a-shelf.com | 800-626-1126 | info@rev-a-shelf.com
Waste
FULL-CIRCLE SHELF Banded Wood Lazy Daisy w/ Steel Bearing DESCRIPTION
DIMS
FINISH
SLP
LD-4BW-001-18SB-1
Single Shelf w/ 7" Steel Bearing
18" (457 mm) Diameter
Maple
$131.99
LD-4BW-001-20SB-1
Single Shelf w/ 7" Steel Bearing
20" (508 mm) Diameter
Maple
$128.99
LD-4BW-001-24SB-1
Single Shelf w/ 10" Steel Bearing
24" (610 mm) Diameter
Maple
$167.99
LD-4BW-001-28SB-1
Single Shelf w/ 10" Steel Bearing
28" (711 mm) Diameter
Maple
$189.99
LD-4BW-001-32SB-1
Single Shelf w/ 10" Steel Bearing
32" (813 mm) Diameter
Maple
$219.99
Blind Corner
PRODUCT
(2) Shelf Banded Wood Lazy Daisy w/ 26"-31" (660–788 mm) Telescoping Post (2) Shelf Set
18" (457 mm) Diameter
Maple
$241.99
LD-4BW-062-20-1
(2) Shelf Set
20" (508 mm) Diameter
Maple
$243.99
LD-4BW-062-24-1
(2) Shelf Set
24" (610 mm) Diameter
Maple
$299.99
LD-4BW-062-28-1
(2) Shelf Set
28" (711 mm) Diameter
Maple
$348.99
LD-4BW-062-32-1
(2) Shelf Set
32" (813 mm) Diameter
Maple
$396.99
Sink
LD-4BW-062-18-1
(3) Shelf Banded Wood Lazy Daisy w/ 38"-46" (965–1169 mm) Telescoping Post (3) Shelf Set
18" (457 mm) Diameter
Maple
$363.99.
LD-4BW-063-2036-1
(3) Shelf Set
20" (508 mm) Diameter
Maple
$368.99
Base
LD-4BW-063-1836-1
*Note: Non-drilled trays without bearings are available, remove "SB" from product number.
PIE-CUT SHELF
(Attaches to the cabinet door)
PRODUCT
DESCRIPTION
DIMS
FINISH
SLP
LD-4BW-942-28-1
(2) Shelf Set
28" (711 mm) Diameter
Maple
$374.99
KIDNEY-SHAPED SHELF
Tall
(2) Shelf Banded Wood Lazy Daisy w/ Hardware
(Hinged door; not attached) Drawer
Banded Wood Lazy Daisy w/ Steel Bearing and Stop PRODUCT
DESCRIPTION
DIMS
FINISH
SLP
LD-4BW-401-28SBS-1
Single Shelf w/ 7" Steel Bearing
28" (711 mm) Diameter
Maple
$162.99
LD-4BW-401-32SBS-1
Single Shelf w/ 10" Steel Bearing
32" (813 mm) Diameter
Maple
$203.99
(2) Shelf Banded Wood Lazy Daisy w/ 26"-31" (660–788 mm) Telescoping Post (2) Shelf Set
24" (610 mm) Diameter
Maple
$278.99
LD-4BW-472-28-1
(2) Shelf Set
28" (711 mm) Diameter
Maple
$319.99
LD-4BW-472-32-1
(2) Shelf Set
32" (813 mm) Diameter
Maple
$356.99
Wall
LD-4BW-472-24-1
*Note: Non-drilled trays without bearings are available, remove "SBS" from product number. Vanity
D-SHAPED SHELF Banded Wood Lazy Daisy w/ Steel Bearing DESCRIPTION
DIMS
FINISH
SLP
LD-4BW-201-20SBS-1
Single Shelf w/ 7" Steel Bearing
20" (508 mm) Diameter
Maple
$132.99
LD-4BW-201-28SBS-1
Single Shelf w/ 7" Steel Bearing
28" (711 mm) Diameter
Maple
$186.99
LD-4BW-201-32SBS-1
Single Shelf w/ 10" Steel Bearing
32" (813 mm) Diameter
Maple
$220.99
Closet
PRODUCT
(2) Shelf Banded Wood Lazy Daisy w/ 26"-31" (660–788 mm) Telescoping Post (2) Shelf Set
20" (508 mm) Diameter
Maple
$226.99
LD-4BW-262-28-1
(2) Shelf Set
28" (711 mm) Diameter
Maple
$317.99
LD-4BW-262-32-1
(2) Shelf Set
32" (813 mm) Diameter
Maple
$371.99
Maple
$333.99
Lazy Susan
LD-4BW-262-20-1
(3) Shelf Banded Wood Lazy Daisy w/ 38"-46" (965–1169 mm) Telescoping Post LD-4BW-263-2036-1
(3) Shelf Set
20" (508 mm) Diameter
*Note: Non-drilled trays without bearings are available, remove "SBS" from product number.
323
Lighting
rev-a-shelf.com | 800-626-1126 | info@rev-a-shelf.com
BANDED WOOD SHELVES
Shelf
Material
Series
A
B
C
D
Post System
20" D-Shaped
Maple
LD-4BW
8-7/8"
6-7/8"
18-1/2"
19-1/2"
1" IND.
28" D-Shaped
Maple
LD-4BW
11-5/8"
13-1/4"
25-1/2"
27-3/4"
1" IND.
32" D-Shaped
Maple
LD-4BW
13-7/8"
13-7/8"
29-3/4"
31-3/4"
1" IND.
D-SHAPED LAZY SUSAN
IND. = Independently Rotating System
Sink
Blind Corner
Waste
SPECIFICATIONS
Shelf
Material
Series
A
B
C
D
Post System
24" Kidney
Maple
LD-4BW
1-1/2"
2-3/8"
14-3/8"
24"
1" IND.
28" Kidney
Maple
LD-4BW
2-7/8"
4-3/8"
18-1/4"
27-3/4"
1" IND.
32" Kidney
Maple
LD-4BW
4"
6"
21-7/8"
31-3/4"
1" IND.
KIDNEY Base
LAZY SUSAN
Tall
IND. = Independently Rotating System
Drawer
(Attaches to the cabinet door)
For custom applications a trial installation is recommended. Door edge profile, thickness, and gaps all factor in installation.
PIE CUT LAZY SUSAN
Shelf
Material
Series
A
B
C
D
Z
Post System
28" Pie-Cut
Maple
LD-4BW
3"
4-1/4"
18-1/8"
27-3/4"
10-7/8" + 1/8" gap
1" DEP.
Wall
DEP. = Dependently Rotating System Hardware Steel Bearing Telescopic Post Telescopic Post Telescopic Post
Vanity Solutions Vanity
LIP SPECIFICATIONS
Tray Shape
“H” 7/8” (23 mm) 1-13/32” (36 mm) Full Circle Kidney and D-Shaped 1-11/64” (30 mm) 1-57/64” (48 mm) Pie Cut FC, Kidney and D-Shaped
BANDED WOOD SHELVES 9/16” (14 mm)
Closet
Hardware Steel Bearing Telescopic Post Telescopic Post Telescopic Post
Tray Shape
“H” 7/8” (23 mm) 1-13/32” (36 mm) Full Circle Kidney and D-Shaped 1-11/64” (30 mm) 1-57/64” (48 mm) Pie Cut FC, Kidney and D-Shaped
2” (50 mm)
1-13/32” (36 mm)
“H” TOP OF CABINET FLOOR
Lazy Susan
9/16” (14 mm)
Lighting
2” (50 mm)
324
1-13/32” (36 mm)
“H” rev-a-shelf.com | 800-626-1126 | info@rev-a-shelf.com
Lazy Susan
Waste
Wood Classic
BANDED WOOD
Blind Corner Sink
• 1-5/8" solid wood frame • Finger joint • 5/8" thick natural maple shelf bottom • Chrome hardware • Aluminum bearings
All wood products are TSCA Title VI compliant.
Base
Our Lazy Susans are tested to exceed BHMA Class 1 Specs: 20 lbs. per square foot at 75K cycles.
Tall
All of our lazy susans are manufactured using high-quality materials and are backed by a limite lifetime warranty. We have developed a tiered category system (Good, Better, Best) that will allow you to quickly identify which configuration will give you the features you want, with the value you require.
Drawer
IN MADE THE USA
Better Wall Vanity
Tray Configurations
Call for Bulk Pricing 800-626-1126 Closet
20", 22", 31"
24", 28", 32"
24", 28", 31"
Full-Circle
D-Shaped
Kidney-Shaped
Pie-Cut
32", 35", 38" Lazy Susan
10",18", 20", 22", 28", 32"
Half-Moon
rev-a-shelf.com | 800-626-1126 | info@rev-a-shelf.com
325
Lighting
See Page 337 for Hardware
Waste Drawer
Tall
Base
Sink
Blind Corner
FULL-CIRCLE SHELF Wood Classic Lazy Susan - No Hardware PRODUCT
DESCRIPTION
DIMS
FINISH
SLP
4WLS001-18-52
Single Shelf
18" (457 mm) Diameter
Wood
$114.99
4WLS001-20-52
Single Shelf
20" (508 mm) Diameter
Wood
$136.99
4WLS001-28-52
Single Shelf
28" (711 mm) Diameter
Wood
$188.99
4WLS001-32-52
Single Shelf
32" (813 mm) Diameter
Wood
$211.99
Wood Classic Lazy Susan w/ Aluminum Bearing 4WLS001-10-B52
Single Shelf w/ 7" Aluminum Bearing
10" (254 mm) Diameter
Wood
$145.99
4WLS001-18-B52
Single Shelf w/ 7" Aluminum Bearing
18" (457 mm) Diameter
Wood
$158.99
4WLS001-20-B52
Single Shelf w/ 7" Aluminum Bearing
20" (508 mm) Diameter
Wood
$183.99
4WLS001-28-B52
Single Shelf w/ 10" Aluminum Bearing
28" (711 mm) Diameter
Wood
$259.99
4WLS001-32-B52
Single Shelf w/ 10" Aluminum Bearing
32" (813 mm) Diameter
Wood
$264.99
(2) Shelf Wood Classic Lazy Susan w/ 26"–31" (660–787 mm) Telescoping Post 4WLS072-18-52
(2) Shelf Set
18" (457 mm) Diameter
Wood
$286.99
4WLS072-20-52
(2) Shelf Set
20" (508 mm) Diameter
Wood
$315.99
4WLS072-22-52
(2) Shelf Set
22" (559 mm) Diameter
Wood
$371.99
4WLS072-28-52
(2) Shelf Set
28" (711 mm) Diameter
Wood
$457.99
4WLS072-32-52
(2) Shelf Set
32" (813 mm) Diameter
Wood
$462.99
(3) Shelf Wood Classic Lazy Susan w/ 38"-46" (965–1169 mm) Telescoping Post 4WLS073-18-536
(3) Shelf Set
18" (457 mm) Diameter
Wood
$401.99
4WLS073-20-536
(3) Shelf Set
20" (508 mm) Diameter
Wood
$475.99
NOTE: 4WLS073-536 denotes telescoping post 9-1/4" (235 mm) upper & 36" (915 mm) lower assembly for 38"–46" (889-1092 mm) inner cabinet height wall cabinets, (3) shelves, top & bottom pivots & fasteners. Positioning base without wheels 6260-77-2 mounts on base of cabinet.
Vanity Solutions Vanity
Wall
D-SHAPED SHELF Wood Classic Lazy Susan - No Hardware PRODUCT
DESCRIPTION
DIMS
FINISH
SLP
4WLS201-20-52
Single Shelf
20" (508 mm) Diameter
Wood
$143.99
4WLS201-31-52
Single Shelf
31" (787 mm) Diameter
Wood
$213.99
Wood Classic Lazy Susan w/ Aluminum Bearing 4WLS201-20-BS52
Single Shelf w/ 7" Aluminum Bearing
20" (508 mm) Diameter
Wood
$214.99
4WLS201-22-BS52
Single Shelf w/ 7" Aluminum Bearing
22" (559 mm) Diameter
Wood
$224.99
4WLS201-31-BS52
Single Shelf w/ 10" Aluminum Bearing
31" (787 mm) Diameter
Wood
$265.99
Closet
(2) Shelf Wood Classic Lazy Susan w/ 26"–32" (660–813 mm) Telescoping Post 4WLS272-20-52
(2) Shelf Set
20" (508 mm) Diameter
Wood
$359.99
4WLS272-22-52
(2) Shelf Set
22" (559 mm) Diameter
Wood
$380.99
4WLS272-31-52
(2) Shelf Set
31" (787 mm) Diameter
Wood
$510.99
Wood
$528.99
(3) Shelf Wood Classic Lazy Susan w/ 38"-46" (965–1169 mm) Telescoping Post (3) Shelf Set
20" (508 mm) Diameter
Lighting
Lazy Susan
4WLS273-20-536
326
rev-a-shelf.com | 800-626-1126 | info@rev-a-shelf.com
Waste
KIDNEY-SHAPED SHELF
(Hinged door; not attached) Blind Corner
Wood Classic Lazy Susan - No Hardware PRODUCT
DESCRIPTION
DIMS
FINISH
SLP
4WLS401-24-52
Single Shelf
24" (610 mm) Diameter
Wood
$201.99
4WLS401-28-52
Single Shelf
28" (711 mm) Diameter
Wood
$206.99
4WLS401-32-52
Single Shelf
32" (813 mm) Diameter
Wood
$222.99
Wood Classic Lazy Susan w/ Aluminum Bearing Single Shelf w/ 7" Aluminum Bearing
28" (711 mm) Diameter
Wood
$260.99
4WLS401-32-BS52
Single Shelf w/ 10" Aluminum Bearing
32" (813 mm) Diameter
Wood
$275.99
Sink
4WLS401-28-BS52
(2) Shelf Wood Classic Lazy Susan w/ 26"–32" (660–813 mm) Telescoping Post (2) Shelf Set
24" (610 mm) Diameter
Wood
$428.99
4WLS472-28-52
(2) Shelf Set
28" (711 mm) Diameter
Wood
$440.99
4WLS472-32-52
(2) Shelf Set
32" (813 mm) Diameter
Wood
$493.99
Base
4WLS472-24-52
NOTE: Positioning base with wheels 6260-95-2 mounts on base of cabinet. 24" Kidney is too small for swivel bearing w/stop hardware, therefore you must use post & pivot hardware. Bulk shelves (4WLS041) and hardware sold separately. Telescoping post assembly accommodates 26"–32" (660–813 mm) inner cabinet height, 1" (26 mm) diameter post system.
PIE-CUT SHELVES
Tall
(Attaches to the cabinet door)
Wood Classic Lazy Susan - No Hardware DESCRIPTION
DIMS
FINISH
SLP
4WLS901-24-52
Single Shelf Drilled
24" (610 mm) Diameter
Wood
$206.99
4WLS901-28-52
Single Shelf Drilled
28" (711 mm) Diameter
Wood
$215.99
4WLS901-31-52
Single Shelf Drilled
31" (788 mm) Diameter
Wood
$245.99
Drawer
PRODUCT
(2) Shelf Wood Classic Lazy Susan w/ 26"–32" (660–813 mm) Telescoping Post (2) Shelf Set for 33" Corner
24" (607 mm) Diameter
Wood
$440.99
4WLS942-24P-52
(2) Shelf Set
24" (607 mm) Diameter
Wood
$438.99
4WLS942-28P-52
(2) Shelf Set
28" (711 mm) Diameter
Wood
$450.99
4WLS942-31P-52
(2) Shelf Set
31" (788 mm) Diameter
Wood
$510.99
Wall
4WLS942-2433-52
NOTES: Upper shelf is adjustable, lower shelf is in fixed position and post cannot be altered (adjustment mechanism).
Vanity
HALF-MOON SHELVES (2) Shelf Wood Classic Half-Moon Lazy Susans w/ Pivot and Slide DESCRIPTION
DIMS
MCO
FINISH
SLP
4WLS882-32-570
(2) Shelf Set
32-1/4” (819 mm) W x 11-13/32” (290 mm) D x 15-15/16” (405 mm) H
12” (305 mm) - FF BC42 13-1/4” (337 mm) - FL
CAB
Maple
$493.99
4WLS882-35-570
(2) Shelf Set
35” (889 mm) W x 14-13/32” (366 mm) D x 15-15/16” (405 mm) H
15” (381 mm) - FF BC45 16-1/4” (413 mm) - FL
Maple
$579.99
4WLS882-38-570
(2) Shelf Set
37-3/4” (959 mm) W x 17-11/32” (443 mm) D x 15-15/16” (405 mm) H
18” (457 mm) - FF BC48 19-1/4” (489 mm) - FL
Maple
$665.99
Closet
PRODUCT
Lazy Susan 327
Lighting
rev-a-shelf.com | 800-626-1126 | info@rev-a-shelf.com
Waste
LIP SPECIFICATIONS
WOOD CLASSIC SHELVES Wood Lazy Susan
Blind Corner
9/16” (14 mm)
Full-Circle
1-63/64” (25 mm)
"H"
4WLS001
3/4" (19 mm)
4WLS072
1-19/64" (33 mm)
4WLS073
1-19/64" (33 mm)
D-Shaped
"H"
4WLS221
Sink
1-5/8” (41 mm)
1-19/64" (33 mm)
4WLS201
3/4" (19 mm)
4WLS272
1-19/64" (33 mm)
4WLS273
1-19/64" (33 mm)
Pie-Cut
"H"
4WLS942
1-29/64" (37 mm)
Kidney
“H”
"H"
4WLS401
3/4" (19 mm)
4WLS472
1-19/64" (33 mm)
Base
Half-Moon
"H"
4WLS882
Tall
Top of Cabinet Floor
Dimensions are for reference only, and may change based on hardware used, etc.
SPECIFICATIONS
Drawer
(Attaches to the cabinet door)
PIE CUT LAZY SUSAN
2-33/64" (64 mm)
WOOD CLASSIC SHELVES Shelf
Material
Series
A
B
C
D
Z
Post System
2433 Pie-Cut
Wood
4WLS
4-9/16"
6-7/16"
18-7/16"
24"
7-7/16" + 1/8" gap
1" DEP.
24" Pie-Cut
Wood
4WLS
1-3/8"
1-15/16"
13-15/16"
24"
10-9/16" + 1/8" gap
1" DEP.
28" Pie-Cut
Wood
4WLS
3"
4-1/4"
18-1/8"
28"
10-7/8" + 1/8" gap
1" DEP.
31" Pie-Cut
Wood
4WLS
5-1/16"
7-1/8"
22-7/16"
31"
10-5/16" + 1/8" gap
1" DEP.
Wall
DEP. = Dependently Rotating System
For custom applications, a trial installation is recommended. Door edge profile, thickness and gaps all factor in installation.
Vanity Solutions Vanity
Shelf
Material
Series
A
B
C
D
Post System
20" D-Shaped
Wood
4WLS
8-3/8"
10-5/8"
18-3/8"
20"
1" IND.
22" D-Shaped
Wood
4WLS
7-3/16"
16-5/8"
18-3/16"
22"
1" IND.
31" D-Shaped
Wood
4WLS
14"
13"
29-3/8"
31"
1" IND.
LAZY SUSAN
Closet
IND. = Independently Rotating System
KIDNEY
Lazy Susan Lighting
D-SHAPED
LAZY SUSAN
Shelf
Material
Series
A
B
C
D
Post System
24" Kidney
Wood
4WLS
1-7/16"
2-3/8"
14-3/8"
23-15/16"
1" IND.
28" Kidney
Wood
4WLS
2-7/8"
4-3/8"
18-1/4"
27-3/4"
1" IND.
32" Kidney
Wood
4WLS
4-1/16"
6"
21-15/16"
31-3/4"
1" IND.
IND. = Independently Rotating System
328
rev-a-shelf.com | 800-626-1126 | info@rev-a-shelf.com
A
32
34-1/4
870
889
37
940
965
39-1/2
1003
Sink
D
38
813
Blind Corner
B
35
INCHES (MM) HALF-MOON WOOD CLASSIC SHELVES
Waste
INCHES (MM) SPECIFICATIONS
2
2
2
Base
FRAMED CABINET
IN
DIMENSIONS A, B AND C ARE MINIMUMS. 32" TRAY SHOWN IN DIAGRAM. A
B
C
D
32" (813 mm)
34-1/4" (870 mm)
22-5/8" (575 mm)
12" (305 mm)
11-1/8" (283 mm)
35" (889 mm)
37" (940 mm)
22" (559 mm)
15" (381 mm)
14-1/8" (359 mm)
38" (965 mm)
39-1/2" (1003 mm)
22" (559 mm)
18" (457 mm)
17-1/8" (435 mm)
Tall
C
NOM Tray size
TRAY SIZE
A
(MM)
INCHES
(MM)
32
813
34-1/4
870
35
889
37
940
INC
2 Vanity
INCHES
Wall
B
Drawer
FRAMED CABINET DIMENSIONS (A, B, & C) ARE A
38
965
2
DIMENSIONS A, B, AND C ARE MINIMUMS. 38" TRAY SHOWN IN DIAGRAM. NOM Tray size
A
B
C
32" (813 mm)
34-1/8" (867 mm)
22-5/8" (575 mm)
13-1/4" (337 mm)
35" (889 mm)
35-3/16" (897 mm)
22" (559 mm)
16-1/4" (413 mm)
38" (965 mm)
38-9/16" (980 mm)
22" (559 mm)
19-1/4" (489 mm)
Lighting
FRAMELESS CABINET (EURO)
Lazy Susan
C
39-1/2 FRAMELESS 1003 CABINET
Closet
Smaller shelves have flat backs.
2
rev-a-shelf.com | 800-626-1126 | info@rev-a-shelf.com DIMENSIONS (A, B, & C) ARE MINIMUMS. 38" TRAY SHOWN 329
Sink
Blind Corner
Waste
Lazy Susan
Natural Wood
• 2-3/8" steam bent rim (3-1/4" for tall) • 5/8" thick natural maple shelf bottom • Chrome hardware • Doweled (2) butt joint • Aluminum bearings
Base
All wood products are TSCA Title VI compliant. Our Lazy Susans are tested to exceed BHMA Class 1 Specs: 20 lbs. per square foot at 75K cycles.
Tall
All of our lazy susans are manufactured using high-quality materials and are backed by a limited lifetime warranty. We have developed a tiered category system (Good, Better, Best) that will allow you to quickly identify which configuration will give you the features you want, with the value you require.
Drawer
IN MADE THE USA
Vanity Solutions Vanity
Wall
Best
Shelf Configurations Closet
Call for Bulk Pricing 800-626-1126
Lazy Susan
18", 24", 28", 32"
Lighting
Full-Circle
28"
(Available in Tall- except 28")
18", 28", 32"
(Available in Tall- except 18")
D-Shaped
Kidney-Shaped
Pie-Cut
20", 28", 32"
See Page 337 for Hardware 330
rev-a-shelf.com | 800-626-1126 | info@rev-a-shelf.com
32", 35", 38"
Half-Moon
Waste
FULL-CIRCLE SHELF Natural Wood Lazy Daisy w/ Aluminum Bearing DESCRIPTION
DIMS
FINISH
SLP
LD-4NW-001-18B-1
Single Shelf w/ 7" Aluminum Bearing
18” (457 mm) Diameter
Wood
$161.99
LD-4NW-001-24B-1
Single Shelf w/ 10" Aluminum Bearing
24” (610 mm) Diameter
Wood
$230.99
LD-4NW-001-28B-1
Single Shelf w/ 10" Aluminum Bearing
28” (711 mm) Diameter
Wood
$256.99
LD-4NW-001-32B-1
Single Shelf w/ 10" Aluminum Bearing
32” (813 mm) Diameter
Wood
$303.99
Blind Corner
PRODUCT
(2) Shelf Natural Wood Lazy Daisy w/ 26"–32" (660–813 mm) Telescoping Post (2) Shelf Set
18” (457 mm) Diameter
Wood
$281.99
LD-4NW-072-24-1
(2) Shelf Set
24” (610 mm) Diameter
Wood
$381.99
LD-4NW-072-28-1
(2) Shelf Set
28” (711 mm) Diameter
Wood
$446.99
LD-4NW-072-32-1
(2) Shelf Set
32” (813 mm) Diameter
Wood
$504.99
Wood
$402.99
Sink
LD-4NW-072-18-1
(3) Shelf Natural Wood Lazy Daisy w/ 38"-46" (965–1169 mm) Telescoping Post LD-4NW-073-1836-1
(3) Shelf Set
18" (457 mm) Diameter
Base
*Note: Non-drilled trays without bearings are available, remove "B" from product number.
PIE-CUT SHELF
(Attaches to the cabinet door) (2) Shelf Natural Wood Lazy Daisy w/ 26"–32" (660–813 mm) Telescoping Post DESCRIPTION
DIMS
FINISH
SLP
LD-4NW-942-28-1
(2) Shelf Set
28” (711 mm) Diameter
Wood
$512.99
Tall
PRODUCT
D-SHAPED SHELF Drawer
Natural Wood Lazy Daisy w/ Aluminum Bearing and Stop PRODUCT
DESCRIPTION
DIMS
FINISH
SLP
LD-4NW-201-20BS-1
Single Shelf w/ 7" Aluminum Bearing
20” (508 mm) Diameter
Wood
$209.99
LD-4NW-201-28BS-1
Single Shelf w/ 10" Aluminum Bearing
28” (711 mm) Diameter
Wood
$264.99
LD-4NW-201-32BS-1
Single Shelf w/ 10" Aluminum Bearing
32” (813 mm) Diameter
Wood
$303.99
LD-4NW-201-20TBS-1
Single Shelf w/ 7" Aluminum Bearing
20” (508 mm) Diameter
Wood
$224.99
LD-4NW-201-32TBS-1
Single Shelf w/ 10" Aluminum Bearing
32” (813 mm) Diameter
Wood
$321.99
Wall
Tall Natural Wood Lazy Daisy w/ Aluminum Bearing and Stop
(2) Shelf Natural Wood Lazy Daisy w/ 26"–32" (660–813 mm) Telescoping Post (2) Shelf Set
20” (508 mm) Diameter
Wood
$344.99
LD-4NW-272-28-1
(2) Shelf Set
28” (711 mm) Diameter
Wood
$453.99
LD-4NW-272-32-1
(2) Shelf Set
32” (813 mm) Diameter
Wood
$517.99
Vanity
LD-4NW-272-20-1
HALF-MOON SHELF Closet
Natural Wood Half Moon Lazy Susans DESCRIPTION
DIMS
MCO
LD-4NW-882-32-1
(2) Shelf Set
32-1/8” (817 mm) W x 11-1/8” (283 mm) D x 15-15/16” (405 mm) H
LD-4NW-882-35-1
(2) Shelf Set
LD-4NW-882-38-1
(2) Shelf Set
CAB
FINISH
SLP
12” (305 mm) - FF BC42 13-1/4” (337 mm) - FL
Wood
$549.99
34-7/8” (886 mm) W x 14-1/8” (359 mm) D x 15-15/16” (405 mm) H
15” (381 mm) - FF BC45 16-1/4” (413 mm) - FL
Wood
$598.99
38” (965 mm) W x 17-1/8” (435 mm) D x 15-15/16” (405 mm) H
18” (457 mm) - FF BC48 19-1/4” (489 mm) - FL
Wood
$678.99
331
Lighting
rev-a-shelf.com | 800-626-1126 | info@rev-a-shelf.com
Lazy Susan
PRODUCT
Waste
KIDNEY-SHAPED SHELF
(Hinged door; not attached)
Blind Corner
Natural Wood Lazy Daisy w/ Aluminum Bearing and Stop PRODUCT
DESCRIPTION
DIMS
FINISH
SLP
LD-4NW-401-28BS-1
Single Shelf w/ 7" Aluminum Bearing
28” (711 mm) Diameter
Wood
$282.99
LD-4NW-401-32BS-1
Single Shelf w/ 10" Aluminum Bearing
32” (813 mm) Diameter
Wood
$336.99
Tall Natural Wood Lazy Daisy w/ Aluminum Bearing and Stop LD-4NW-401-28TBS-1
Single Shelf w/ 7" Aluminum Bearing
28" (711 mm) Diameter
Wood
$292.99
LD-4NW-401-32TBS-1
Single Shelf w/ 10" Aluminum Bearing
32" (813 mm) Diameter
Wood
$346.99
Sink
(2) Shelf Natural Wood Lazy Daisy w/ 26"–32" (660–813 mm) Telescoping Post LD-4NW-472-18-1
(2) Shelf Set
18” (457 mm) Diameter
Wood
$319.99
LD-4NW-472-28-1
(2) Shelf Set
28” (711 mm) Diameter
Wood
$524.99
LD-4NW-472-32-1
(2) Shelf Set
32” (813 mm) Diameter
Wood
$588.99
Base
*Note: Non-drilled trays without bearings are available, remove "BS" from product number.
Tall
SPECIFICATIONS
NATURAL WOOD SHELVES
Drawer
KIDNEY LAZY SUSAN
Shelf
Material
Series
A
B
C
D
Post System
18" Kidney
Maple
LD-4NW
1-7/8"
2-9/16"
11-1/2"
18"
1" IND.
24" Kidney
Maple
LD-4NW
1-7/8"
2-1/2"
11-1/2"
24"
1" IND.
28" Kidney
Maple
LD-4NW
3"
4-1/4"
18-1/8"
27-3/4"
1" IND.
32" Kidney
Maple
LD-4NW
4"
5-3/4"
21-5/8"
31-3/4"
1" IND.
Wall
IND. = Independently Rotating System
Vanity Solutions Vanity
PIE CUT Shelf
Material
Series
A
B
C
D
Z
Post System
28" Pie-Cut
Maple
LD-4NW
3"
4-1/4"
18-1/8"
27-3/4"
10-7/8" + 1/8" gap
1" DEP.
LAZY SUSAN
DEP. = Dependently Rotating System
Lighting
Lazy Susan
Closet
For custom applications, a trial installation is recommended. Door edge profile, thickness and gaps all factor in installation.
D-SHAPED LAZY SUSAN
Shelf
Material
Series
A
B
C
D
Post System
20" D-Shaped
Maple
LD-4NW
8-3/8"
9-7/8"
18-1/8"
19-1/2"
1" IND.
28" D-Shaped
Maple
LD-4NW
11-7/8"
14-1/2"
25-3/4"
27-3/4"
1" IND.
32" D-Shaped
Maple
LD-4NW
13-1/2"
16-3/4"
29-3/8"
31-3/4"
1" IND.
IND. = Independently Rotating System 332
rev-a-shelf.com | 800-626-1126 | info@rev-a-shelf.com
Tray Shape FC, Kidney and D-Shape Full Circle Kidney and D-Shape Pie-Cut
LIP SPECIFICATIONS
B
D
“H”
1-13/32” (36 mm)
C
Tray Shape
"H"
FC, Kidney and D-Shaped
31/32" (24 mm)
Telescoping Post
Full-Circle
7/8" (22 mm)
Telescoping Post
Kidney & D-Shaped
31/32" (24 mm)
Telescoping Post
Pie-Cut
1-3/4" (45 mm)
Blind Corner
2-3/8” (60 mm)
Hardware Aluminum
1/2” (13 mm)
Tall rim is 3-1/4” (87 mm)
NATURAL WOOD SHELVES
31/32” (24 mm) 7/8” (22 mm) 31/32” (24 mm) 1-3/4” (45 mm)
Sink
3/8” (10 mm) Tray floor is recessed
“H”
Waste
Hardware Aluminum Telescopic Shaft Telescopic Shaft Telescopic Shaft
4WLS001
FRAMED CABINET DIMENSIONS (A, B, & C) ARE MINIMUMS. 32" TRAY SHO Top of Cabinet Floor
INCHES
(MM)
INCHES
(MM)
32
813
34-1/4
870
22
559
35
889
37
940
22
559
D
38
965
39-1/2
1
STANDARD AND 90-DEGREE BRACKETS COME WITH EACH UNIT
22
1003 A
B
C
D
32" (813 mm)
34-1/4" (870 mm)
22" (559 mm)
12" (305 mm)
11-1/8" (283 mm)
35" (889 mm)
37" (940 mm)
22" (559 mm)
15" (381 mm)
14-1/8" (359 mm)
38" (965 mm)
39-1/2" (1003 mm)
22" (559 mm)
18" (457 mm)
17-1/8" (435 mm)
Drawer
NOM Tray size
1
1
559
FRAMED CABINET
DIMENSIONS A, B AND C ARE MINIMUMS. 32" TRAY SHOWN IN DIAGRAM.
C
IN
Tall
B
A NATURAL WOOD SHELVES B HALF-MOON
Base
TRAY SIZE SPECIFICATIONS INCHES (MM) A
TRAY SIZE A
A
Wall
FRAMED CABINET DIMENSIONS (A, B, & C) ARE MINIMUMS. 32" TRAY SHOWN B
(MM)
INCHES
(MM)
INCHES
(MM)
INCHES
32
813
34-1/4
870
22
559
12
35
889
37
940
22
559
38
965
B
STANDARD AND 90-DEGREE BRACKETS COME WITH EACH UNIT
NOM Tray size
A
B
C
32" (813 mm)
34-1/8" (867 mm)
22" (559 mm)
13-1/4" (387 mm)
35" (889 mm)
35-3/16" (897 mm)
22" (559 mm)
16-1/4" (413 mm)
38" (965 mm)
38-9/16" (980 mm)
22" (559 mm)
19-1/4" (489 mm)
DIMENSIONS (A, B, & C) ARE MINIMUMS. 38" TRAY SHOWN IN DIAGRAM.
A
rev-a-shelf.com | 800-626-1126 | info@rev-a-shelf.com
333
Lighting
FRAMELESS CABINET (EURO)
18 Lazy Susan
FRAMELESS CABINET 39-1/2 22 559 1003 DIMENSIONS A, B AND C ARE MINIMUMS. 38" TRAY SHOWN IN DIAGRAM.
15
Closet
C
Vanity
INCHES
Waste
Solid Bottom Kidney
• Designed for 36” kidney corner base cabinets • Gray, maple or orion gray solid bottom shelves • Single shelf set features aluminum swivel bearing with stop • Double shelf set features independently rotating hardware and chrome-plated telescoping posts, which accommodates 26” to 32” inner cabinet heights • TSCA Title VI compliant
Lighting
Lazy Susan
Closet
Vanity Solutions Vanity
Wall
Drawer
Tall
Base
Sink
Blind Corner
LazySERIES Susan 53-4/533
334
rev-a-shelf.com | 800-626-1126 | info@rev-a-shelf.com
53-401-28BSMP-1 (two units shown)
Waste Blind Corner Sink Base
53472-32MP-1 (2) Shelf 36" Kidney-Shaped Lazy Susan
53-401-32BSFOG-1 (2) Shelf 36" Kidney-Shaped Lazy Susan
(Maple finish shown)
(Orion Gray finish shown)
Tall Drawer Wall
53472-32GR-1 (2) Shelf 36" Kidney-Shaped Lazy Susan (Gray finish shown)
Solid Bottom Kidney-Shaped Lazy Susans w/ 10" Aluminum Bearing for 36" Kidney Cabinets DESCRIPTION
DIMS
FINISH
SLP
53-401-28BSGR-1
Single Shelf
28" (711 mm) Diameter
Maple
$270.99
53-401-28BSMP-1
Single Shelf
28" (711 mm) Diameter
Gray
$270.99
53-401-28BSFOG-1
Single Shelf
28" (711 mm) Diameter
Orion Gray
$301.99
Vanity
PRODUCT
Solid Bottom Kidney-Shaped Lazy Susans w/ 10" Aluminum Bearing for 36" Kidney Cabinets Single Shelf
32” (813 mm) Diameter
Gray
$285.99
53-401-32BSMP-1
Single Shelf
32” (813 mm) Diameter
Maple
$285.99
53-401-32BSFOG-1
Single Shelf
32” (813 mm) Diameter
Orion Gray
$317.99
Closet
53-401-32BSGR-1
(2) Shelf Solid Bottom Kidney-Shaped Lazy Susans for 28" Kidney Cabinets (2) Shelf Set
28" (711 mm) Diameter
Gray
$446.99
53472-28MP-1
(2) Shelf Set
28" (711 mm) Diameter
Maple
$446.99
53472-28FOG-1
(2) Shelf Set
28" (711 mm) Diameter
Orion Gray
$473.99
(2) Shelf Solid Bottom Kidney-Shaped Lazy Susans for 36" Kidney Cabinets 53472-32GR-1
(2) Shelf Set
32” (813 mm) Diameter
Gray
$472.99
53472-32MP-1
(2) Shelf Set
32” (813 mm) Diameter
Maple
$472.99
53472-32FOG-1
(2) Shelf Set
32” (813 mm) Diameter
Orion Gray
$495.99
335
Lighting
rev-a-shelf.com | 800-626-1126 | info@rev-a-shelf.com
Lazy Susan
53472-28GR-1
Chrome Fence Railing
Wall
Drawer
Tall
Base
Sink
Blind Corner
Waste
5LSF Series
Closet
Vanity Solutions Vanity
Full-Circle Fence Rail PRODUCT
DESCRIPTION
DIMS
FINISH
SLP
5LSF018-CR
Fence Railing
18" (457 mm) Diameter
Chrome
$51.99
5LSF020-CR
Fence Railing
20" (508 mm) Diameter
Chrome
$55.99
5LSF028-CR
Fence Railing
28" (711 mm) Diameter
Chrome
$82.99
5LSF032-CR
Fence Railing
32" (813 mm) Diameter
Chrome
$90.99
Full-Circle Fence Rail 5LSF018-8CR
(8) Fence Railings
18" (457 mm) Diameter
Chrome
$50.99 ea.
5LSF020-8CR
(8) Fence Railings
20" (508 mm) Diameter
Chrome
$52.99 ea.
5LSF032-8CR
(8) Fence Railings
32" (813 mm) Diameter
Chrome
$84.99 ea.
Lighting
Lazy Susan
Kidney-Shaped Fence Rail 5LSF424-CR
Fence Railing
24" (310 mm) Diameter
Chrome
$85.99
5LSF428-CR
Fence Railing
28" (711 mm) Diameter
Chrome
$97.99
5LSF432-CR
Fence Railing
32" (813 mm) Diameter
Chrome
$102.99
Kidney-Shaped Fence Rail 5LSF428-8CR
(8) Fence Railings
28" (711 mm) Diameter
Chrome
$85.99 ea.
5LSF432-8CR
(8) Fence Railings
32" (813 mm) Diameter
Chrome
$93.99 ea.
336
rev-a-shelf.com | 800-626-1126 | info@rev-a-shelf.com
Waste
Not-So-Lazy Susan
LazySERIES Susan 53-4/533
Blind Corner Sink
• Designed for 33” and 36” kidney corner base cabinets • Solid wood construction, maple • Mounts to cabinet top and bottom • Upper kidney-shaped shelf with mid-level arrester • Lower kidney-shaped shelf • Up to (7) hooks • 154 lb. dynamic weight rating • TSCA Title VI compliant
Base Tall Drawer
NSLS-KM-28S-7
Wall Vanity
(7) Adjustable hooks
NSLS-KM-28S-7 Not-So-Lazy Susan
Built-in positioner stop
Closet
(28” version shown)
Lazy Susan
Not-So-Lazy-Susan w/ Hardware and Hooks PRODUCT
DESCRIPTION
DIMS
FINISH
SLP
NSLS-KM-28S-7
Single Shelf
28" (711 mm) Diameter
Wood
$492.99
NSLS-KM-32S-7
Single Shelf
32" (813 mm) Diameter
Wood
$530.99
337
Lighting
rev-a-shelf.com | 800-626-1126 | info@rev-a-shelf.com
Waste
Hardware
Blind Corner
Rev-A-Shelf® Hardware Kits for wood or melamine custom shelving are tested to meet and exceed BHMA Class-I specifications of 20 lbs. per square foot at 100,000 cycles. Our hardware and hardware components allow maximum flexibility, strength and aesthetic value for all custom applications.
6020P
6022
6072
Base
6000-37
6020-96-3600 6000-05-7200
Sink
6000-07P
Tall
Shelf Support for Full-Circle Shelves PRODUCT
DESCRIPTION
DIMS
FINISH
SLP
6000-07P-52
Shelf Support
18" (457 mm) Diameter
Polymer
$19.99
20" (508 mm) Diameter
Metal
$28.99
Center Post Adapter for Extending Post Adapter
Drawer
6000-37-52
3/4" Diameter Lower Post Assembly 6020-96-3100-2
31" Post (787 mm)
28" (711 mm) Diameter
Bright Zinc
$23.50
6020-96-3600-2
36" Post (915 mm)
32" (813 mm) Diameter
Bright Zinc
$29.85
6000-05-7200-2-52
72" Post (1829 mm)
18" (457 mm) Diameter
Bright Zinc
$74.99
20" (508 mm) Diameter
Polymer
$59.99
(2 Shelf) Full Circle Hardware Set for Custom Shelves Hardware
Wall
6020-04P-52
(2 Shelf) Full Circle Hardware Set for Custom Shelves 6020-04P-4
(6) Hardware Sets
3⁄4" Diameter Post (19 mm)
Polymer
$50.99 ea.
6020-04P-426
(6) Hardware Sets
38"–46" (914 mm–1168 mm) H — 3⁄4" (19 mm) Diameter Post
Polymer
$57.99 ea.
Full Circle Hardware Set for Rev-A-Shelf Polymer Shelves Hardware
3⁄4" Diameter Post (19 mm)
Bright Zinc
$47.99
6022-04-52-526
Hardware
38"–46" (914 mm–1168 mm) H — 3⁄4" (19 mm) Diameter Post
Bright Zinc
$50.99
Vanity
6022-04-52
Full Circle Hardware Set for Rev-A-Shelf Polymer Shelves 6022-04-4
(6) Hardware Sets
3⁄4" Diameter Post (19 mm)
Bright Zinc
$38.99 ea.
6022-04-426
(4) Hardware Sets
38"–46" (914 mm–1168 mm) H — 3⁄4" (19 mm) Diameter Post
Bright Zinc
$40.99 e.
6072-04-52
(2) Shelf Full Circle Hardware Set
1" Diameter Post (26 mm)
Chrome
$119.99
6073-04-536
(3) Shelf Full Circle Hardware Set
38"–46" (914 mm–1168 mm) H — 1" (26 mm) Diameter Post
Chrome
$185.99
Closet
Full Circle Hardware Set/Independently Rotating
339
Lighting
rev-a-shelf.com | 800-626-1126 | info@rev-a-shelf.com
Lazy Susan
NOTES: 6000-07/P 5" (127 mm) DIAMETER SHELF SUPPORT FOR WOOD SHELVES (USE 6020/6022 SERIES HARDWARE KITS.) 6000-37 For joining two or more center posts together. (3/4" (19 mm) post diameter only) (6000 Series) 6020-96-3600 / 6000-05-7200 For use with full circle dependently rotating sets. 36" post for use in 36" & 42" (915-1067 mm) wall cabinet applications. 72" post for use with custom applications. 6020P For use with wood or laminate custom shelves. 6072 For use with independently rotating non-centering wood shelves. CONTAINS: 6020 Top and bottom pivots 6000-90-2; post assembly 6020-97-2100-2; upper post assembly 6120-93-1200-2; collar assembly 6120-92-2; two full circle shelf supports 6000-07, and mounting screws. 6022 Top and bottom pivots 6000-90-2; 21" post assembly 6020-97-2100-2; 12" post assembly 6120-93-1200-2; collar assembly 6120-92-2; and mounting screws. 6072 (2) shelf hubs 6260-08-26; (2) shelf supports 6470-07-2; (1) collar 6260-92-26; (1) upper pivot 6000-91-2; (1) positioning base 6260-77-2; 22-1/2" (572 mm) lower post assembly 6470-96-2208-26; 9-1/4" (235 mm) upper post assembly (6470-93-0904-26) and mounting screws.
Blind Corner
Waste
Hardware
4HDBM2-04-52
4B-10-8
Sink
BM1-VL-4-SHUB-12
Base
4BS-7-8
Tall
BM1-VL-4-LHUB-12
Wall
Drawer
BM1-VL-04-52
BM1-04-52
BM1-18-52
4BM1-18-52
4BM1-04-52
Closet
Vanity Solutions Vanity
Single Tray Hardware PRODUCT
DESCRIPTION
DIMS
FINISH
SLP
BM1-VL-04-52
Value Line Single Tray Bottom Mount Post
4" (102 mm) Post
Zinc Coated
$27.99
BM1-VL-4-SHUB-12
(12) Bottom Mount Hardware Sets w/ Wall Hub
4" (102 mm) Post
Zinc Coated
$25.99 ea.
BM1-VL-4-LHUB-12
(12) Bottom Mount Hardware Sets w/ Base Hub
4" (102 mm) Post
Zinc Coated
$24.99 ea.
BM1-04-52
Single Tray Bottom Mount Post
4" (102 mm) Post
Zinc Coated
$34.99
4BM1-04-52
Wood Single Tray Bottom Mount Post
4" (102 mm) Post
Zinc Coated
$40.99
Aluminum Lazy Susan Swivel Bearing w/ Stop 4BS-7-8
(8) 7" Bearings
Aluminum
$57.99 ea.
4BS-10-8
(8) 10" Bearings
Aluminum
$64.99 ea.
Lighting
Lazy Susan
Aluminum Lazy Susan Bearing 4B-7-8
(8) 7" Bearings
Aluminum
$48.99 ea.
4B-10-8
(8) 10" Bearings
Aluminum
$54.99 ea.
(2) Shelf Lazy Susan Post Hardware BM1-18-52
Two Tray Bottom Mount Post
18" (457 mm) Post
Zinc Coated
$53.99
4BM1-18-52
Wood Two Tray Bottom Mount Post
18" (457 mm) Post
Zinc Coated
$87.99
4HDBM2-04-52
Heavy Duty Two Tray Bottom Mount Post
18" (457 mm) Post
Almond Powder Coated $85.99
340
rev-a-shelf.com | 800-626-1126 | info@rev-a-shelf.com
Waste
Hardware
Blind Corner
6950-07P
Sink
6940-04-28P-52
6942
6360/6370/6470
Tall
6265
Base
6272
Includes (5) each
PRODUCT
DESCRIPTION
DIMS
FINISH
SLP
6272-04-52
Hardware
26"–32" (661–813 mm) I.C.H. 1" (26 mm) Diameter Post
Chrome
$140.99
56"–62" (1423–1575 mm) I.C.H. 1" (26 mm) Diameter Post
Chrome
$282.99
Drawer
(2) Shelf Independently Rotating Centering Hardware for Wood Kidney/D-Shaped Trays
(5) Shelf Utility Cabinet Centering Hardware for RAS Polymer Kidney/D-Shaped Trays 6265-04-52
Hardware
Wall
1" Diameter Lower Post Assembly 6360-05-7008-26-52
Post Extension
70-1⁄2" (1791 mm) Post 1" (26 mm) Diameter
Chrome
$92.99
6370-96-7008-26-52
1" Center Post Extension
70-1⁄2" (1791 mm) Post 1" (26 mm) Diameter
Chrome
$95.99
6470-96-4008-26-52
1" Center Post Extension
1" (26 mm) x 40-1⁄2" (1029 mm) Post
Chrome
$56.99
Bright Zinc/Chrome
$95.99
Bright Zinc
$87.99 ea.
Bright Zinc
$84.99
Polymer
$16.99
Pie-Cut Hardware for Wood Shelves w/ Polymer Shelf Supports (24" or larger - custom trays) 6940-04-28P-52
Hardware Sets
3⁄4" (19 mm) Diameter Post
6940-04-28P-4
(6) Hardware Sets
3⁄4" (19 mm) Diameter Posts
Center Post & Pivot Hardware for RAS Polymer Shelves (Individual Pack) 6942-04-28-52
Hardware
Vanity
Pie-Cut Hardware for Wood Shelves w/ Polymer Shelf Supports (24" or larger)
Shelf Supports for Pie-Cut Hardware for Wood Shelves Shelf Support
1" (26 mm) Diameter Post
Closet
6950-07P-52
Lazy Susan
NOTES: 6272-04-52 For use with independently rotating centering shelves. 6265-04-52 For use with independently rotating centering shelves. 6360/6370 For use with independent rotating tray kits or hardware kits. Distributor post for use when needing longer post for pantry or kidney independently rotating hardware sets. Must be used with bushing supplied by factory or with extending collar 6260-38-26. 6940-04-28/P Replaces part number 6120-04 for 24", 28", (610, 711 mm) or larger wood shelves only. 6942-04-52 Replaces part number 6122-04-52 for 24" or 28" (610, 711 mm), shelves only. Not for use with 18", 20" or 22" shelves. (Contains large cam base) 1" (26 mm) dia. post. CONTAINS: 6272-04-52 2 Shelf support assemblies, mounting hardware and telescoping center post assembly to accommodate 26"-32" (661-813 mm) I.C.H. 1" (26 mm) dia. post. 6265-04-52 Hardware for 5 shelf set with 56"-62" (1423-1575mm) I.C.H. post system. 1" (26 mm) dia. post.
341
Lighting
rev-a-shelf.com | 800-626-1126 | info@rev-a-shelf.com
Waste
Hardware
Drawer
Tall
Base
Sink
Blind Corner
BY
LD-4BW-004
LD-24BM2
LD-24BM1
LD-24
Vanity Solutions Vanity
Wall
Lazy Daisy Banded Wood Hardware PRODUCT
DESCRIPTION
FINISH
SLP
LD-4BW-00436-4
(4) Hardware for Banded Wood Full-Circle 3 Tray Set w/ 38"– 46" (965 - 1168 mm) Telescoping Posts
DIMS
Zinc/Almond
$74.99 ea.
LD-4BW-004-4
(4) Hardware for Banded Wood Full-Circle w/ 26"– 31" (660 - 787 mm) Telescoping Posts
Zinc/Almond
$45.99 ea.
LD-4BW-20436-4
(4) Hardware for Banded Wood D-Shaped 3 Tray w/ 38"– 46" (965 - 1168 mm) Telescoping Posts
Zinc/Almond
$63.99 ea.
LD-4BW-204-4
(4) Hardware for Banded Wood D-Shaped w/ 26"– 31" (660 - 787 mm) Telescoping Posts
Zinc/Almond
$45.99 ea,
LD-4BW-404-4
(4) Hardware for Banded Wood Kidney w/ 26"– 31" (660 - 787 mm) Telescoping Posts
Zinc/Almond
$44.99 ea.
Closet
Lazy Daisy Banded Wood Hardware 4SB-7-1
7" Lazy Susan Steel Swivel Bearing
Steel
$19.99
4SB-7-10
(10) 7" Lazy Susan Steel Swivel Bearings
Steel
$14.99 ea.
4SB-10-1
10" Lazy Susan Steel Swivel Bearing
Steel
$26.99
4SB-10-10
(10) 10" Lazy Susan Steel Swivel Bearings
Steel
$16.99 ea.
4SBS-7-1
7" Lazy Susan Steel Swivel Bearing With Stop
Steel
$22.99
4SBS-7-10
(10) 7" Lazy Susan Steel Swivel Bearings w/ Stop
Steel
$17.99 ea.
4SBS-10-1
10" Lazy Susan Steel Swivel Bearing w/ Stop
Steel
$29.99
Lazy Daisy Polymer Hardware
Lazy Susan Lighting
4SBS
342
LD-20-0431-5
(5) Hardware for Polymer Full-Circle, Kidney, D-Shaped w/ 30-35" (762 - 889 mm) Telescoping Posts
Zinc/White
$38.99 ea.
LD-24-0436-5
(5) Hardware for Polymer Kidney 3 Tray w/ 34-41" (863 - 1041 mm) Telescoping Posts
Zinc/White
$43.99 ea.
LD-24-04-5
(5) Hardware for Polymer Kidney w/ 26-31" (660 - 787 mm) Telescoping Posts
Zinc/White
$25.99 ea.
LD-24BM1-04-10
(10) Hardware for Polymer Kidney Single Bottom-Mounts
Zinc/White
$17.99 ea.
LD-24BM2-04-5
(5) Hardware for Polymer Kidney Double Bottom-Mounts
Zinc/White
$21.99 ea.
rev-a-shelf.com | 800-626-1126 | info@rev-a-shelf.com
Waste
Hardware
6882-1008-04-52 Half-Moon Extension Slide Kit
Shaft Cap 6221-70-26
Blind Corner
.
Shelf Support 6820-07-**
Standard Bracket 6883-68-2 Wood Screws F1208-13-2 (7/set) Machine Screw w/out Slides M2412-28-2
Slide Assembly 6880-95-1008
Shaft Assembly 6882-96-1700-26
6841 Rev-A-Tray Half-Moon Hardware Kit
Sink
HM Positioner Base Assembly (2/set) 6820-95-2 Locking Screw (2/set) M2408-409-2
6842-04 Half-Moon (2) Shelf Hardware Kit
Half-Moon Hardware Kit (Individual Pack) DESCRIPTION
FINISH
SLP
6841-04-52
Single Rev-A-Tray Hardware Kit
DIMS
Metal
$95.99
6842-04-570
(2) Shelf Hardware Kit without Slides
Metal
$205.99
6882-1008-04-52
Extension Slide Kit
Metal
$66.99
6882-04-52
(2) Shelf Hardware Kit with Slides
Metal
$298.99
10-1⁄2" (267 mm) Extension
Base
PRODUCT
Tall
CONTAINS: 6842-04-570 Two (2) shelf supports 6820-02-**FR; (2) positioning bases (6820-95-2); 1 standard bracket (6883-68-2); 15-7/8" (404 mm) 680 post (6882-96-1514-26)—Also includes template and installation instructions. 6882-1008-04-52 Slide kit only. (1) pair with screws. Individually packaged. Note: ** denotes color choice 11 - white 13- for almond
Drawer
JPE SERIES POLYMER COMPONENT PARTS BULK Rev-A-Shelf® custom molds many component parts for the cabinet industry, furniture industry and many other industries. We utilize high-quality, engineering-grade polymer materials such as ABS for our shelf clips. Should you require any custom polymer component parts, please contact customer service.
Wall
2-1/4"
Vanity
DESCRIPTION
DIMS
FINISH
SLP
JPE 301-12-020-1
Shelf Locking Clip
1⁄2" (13 mm)
Clear
$.20 ea.
JPE 301-34-0**-1
Shelf Locking Clip
3⁄4" (19 mm)
White or Clear
$.20 ea.
JPE 301-58-0**-1
Shelf Locking Clip
5⁄8" (16 mm)
White or Clear
$.20 ea.
Closet
1/4" Boss Polymer Locking Shelf Clips (Bulk Pack) PRODUCT
Lazy Susan
RAS SERIES—5MM Boss Polymer Locking Shelf Clips (Bulk Pack) RAS 305-12-0**-1
Shelf Locking Clip
1⁄2" (13 mm)
White or Clear
$.20 ea.
RAS 305-34-0**-1
Shelf Locking Clip
3⁄4" (19 mm)
White or Clear
$.20 ea.
RAS 305-58-0**-1
Shelf Locking Clip
5⁄8" (16 mm)
White or Clear
$.20 ea.
rev-a-shelf.com | 800-626-1126 | info@rev-a-shelf.com
343
Lighting
NOTES: JPE 301/RAS 305 **Denotes: White - 010 or Clear - 020 clear polycarbonate
Waste
SPECIFICATIONS
HARDWARE PART IDENTIFICATION
Blind Corner
6940 SERIES PIE-CUT
FULL-CIRCLE - Dependent Rotating
3/4" (19 mm)
Assembly shown with height adjustment at minimum. (Total adjustment is 3/8” (10 mm). For maximum adjustment position, the max and min dimensions become 32-5/8” (829 mm) and 26-5/8” (676 mm), respectively.
Sink
Adjustable extension allows for 24"-31" (610- 788 mm) inside cabinet height.
Base
• Standard post for 6012, 2012 polymer lazy susans sets and 6022 hardware only sets.
21-7/16" (545 mm)
32-1/4” (819 mm) MAX 26-1/4” (667 mm) MIN
23-1/8” (587 mm)
• 6013-**-**-526 series sets have a 36" (915 mm) base shaft and adjust up to 46" (1169 mm). Shaft can be cut for shorter height requirements, but polymer bushing must be re-inserted in bottom of shaft.
24-1/16” (611 mm)
Height Adjustment
Tall
DIAMETER POST
Drawer
NOTE: Order part # 6000-05-7200-2 for 72" (1829 mm) cut-to-size post.
FULL-CIRCLE/KIDNEY
Hardware for Lazy Daisy Polymer
Independently Rotating
Wall
LD-TMB-11-TE
1" DIAMETER POST (26 mm)
LD-TA-3035-TELE-SP - for 30"-35" height
LD-TA-3441-TELE-SP - For 34"-41" height
Vanity Solutions Vanity
Adjustable extension allows for 26"-32" (661- 813 mm) inside cabinet height
Closet
23-1/8" 23-1/8" (588 mm)
LD-SP
• Standard post for 6472, 2472,4472, 4WLS Kidney, 2072, 6072 Full-Circle and 6272, 4272 D-Shaped Lazy Susan sets. • Shaft can be cut to shorter height requirements
Lazy Susan Lighting
LD-TA-2631-TELE-SP - for 26"-31" height
NOTE: Order part # 6370-96-7008-26 for 70-1/2" (1791 mm) cut-to-size post w/ bushings.
LD-T-590-TELE
rev-a-shelf.com | 800-626-1126 | info@rev-a-shelf.com
LD-SP-SRP-A LD-BPPC
LD-SP
LD-BMB-11-A 344
NOT SHOWN:
LD-BOOM WHT-4
HARDWARE KIT PARTS LIST
Hardware for Value Line Trays
Hardware for LD Banded Wood
Universal Bracket
UNIVERSAL BRACKET
34-91-4101-R
POST ASSEMBLY
3470-2210-2
3470-05-22-2 (Lower Post Only)
or 3470-3610-2 (3 Shelf Set)
HUB ASSEMBLY (24", 28" BASE)
HUB ASSEMBLY (24", 28" BASE)
3470-07
Sink
3470-08
Blind Corner
LD-34-91-4101
Shaft Assembly
HUB ASSEMBLY (18" WALL)
Waste
SPECIFICATIONS
6260-18S-15-A
RING CAP (ELIMINATES DETENT - FC) LD-3000VLR-15 SHELF SUPPORT LD-4470-08 POSITIONER BASE
RING CAP
3000 VLR POSITIONER BASE
34-77-4101-R
Base
LD-34-77-4101-R-15 POST ASSEMBLY
3470-2210-2 (Complete Post)
3470-08
Tall
HUB ASSEMBLY (18" WALL)
HUB ASSEMBLY (24", 28" BASE)
3470-07
RING CAP
UNIVERSAL BRACKET
Drawer
3000 VLR UNIVERSAL BRACKET
34-91-4101-R
LD-34-91-4101-R-15
18"/20” FULL CIRCLE HARDWARE
24”/28”/32" FULL CIRCLE/KIDNEY HARDWARE
Top Pivot 6000-91-2
Top Pivot 6000-91-2
Vanity
1/2" Wood Screw P0808-26-2 (4/Set)
Upper Shaft Assembly 6470-93-0904-26
Upper Shaft Assembly 6470-93-0904-26
(2) Bottom of Hub Assembly 6260-18-2
KIDNEY
B
(1) Positioner Base Assembly 6260-77-2 (1) Locking Screw M2408-409-2
A
Lower Shaft Assembly 22-1/2" 6470-96-2208-26 Wood Screw F1208-13-2 (4/Set)
Positioner Base Assembly 6260-95-2 (2/Set)
Locking Screw M2408-409-2 (2/Set)
rev-a-shelf.com | 800-626-1126 | info@rev-a-shelf.com
345
Lighting
IND = INDEPENDENT ROTATING
Lazy Susan
Collar Assembly (Positioner for second shelf!) 6260-92-26
C
Telescoping Shaft adjustment shaft M2405-409-2
Closet
(2) Top Hub Assembly 6260-18-2
D
6072-04-52 (Entire Assembly)
Telescoping Shaft Adjustment Screw M2405-409-2 Lower Shaft Assembly (22-1/2") 6470-96-2208-26
Wall
Hardware for 4WLS/LD-NATURAL
Hardware for RAS Polymer Trays
Waste Blind Corner
HARDWARE KIT PARTS LIST
SPECIFICATIONS
DEPENDENTLY ROTATING
6020-04P For Custom Shelves
INDEPENDENTLY ROTATING 6072-04 Full Circle Shelving
6022-04 For Polymer Shelves
6000-91-2-BTL
6000-90-2
6272-04 Centering Hardware
Upper Pivot
Top/Btm Pivot
6120-93-1200-2
6470-93-0904-26
12" Upper Post Assy.
9-1/4" Upper Post Assy.
Sink
6120-92-2 Collar Assy.
(2) Each 6260-18-2 Shelf Hub.
6000-07P
Base
Shelf Support
(2) Each 6470-17-2 6260-95-2-52 (w/wheels)
Collar Assy.
6020-97-2100-2
(Positioning for second self )
Tall
21" Lower Post Assy. 3/4" Diameter
6470-96-2208-26 22-1/2" Post 1" Diameter
(1) 6260-77-2
Drawer
Dependently Rotating Hardware Extension: 24"–31" (610–788 mm)
Wall
(2) 6260-63-2
Top/Bottom Mounting Flange
Vanity Solutions Vanity
6260-93-0904 9-1/4" (235 mm) Upper Post Assy. (5) Each 6260-18-2
Closet
Shelf Hub
6470-17-2
6940-92-2 Top Pivot
6940-93-1008-2 Upper Post
6940-95-2208-2 Lower Post Assy.
6950-07P
Shelf Supports
6940-58
Retaining Clip
6260-95-2
Large Cam Base
6470-96-5200-26 52-1/2" (1334 mm) Lower Post Assy.
Lazy Susan
PIE CUT
6940-04 6942-04 For Custom Shelves For Polymer Shelves
Shelf Support Positioning Base Assy.
6260-91-2 Jack Screw
Independently Rotating Hardware 1" (26 mm) diameter post system Std. Extension: 56"–62" (1423–1575 mm)
346
(w/wheels)
Independently Rotating Hardware Extension: 26"–32" (661 mm–813 mm)
UTILITY CABINET CENTERING
Includes 5 each
6260-95-2-52
(no wheels)
6265-04
Lighting
Shelf Supports
(1) 6260-92-26-52
rev-a-shelf.com | 800-626-1126 | info@rev-a-shelf.com
6940-49-2
Lower Post Adjustment Assy. Part #6940-91-52 Inserts into bottom end of 6940-95-2208-2 Lower Post Assy.
Note: For 24" (610 mm) or larger diameter shelves Extension: 26"–32" (661–813 mm) 1" (26 mm) diameter post system
