24V Easy Cabinet Lighting Kits

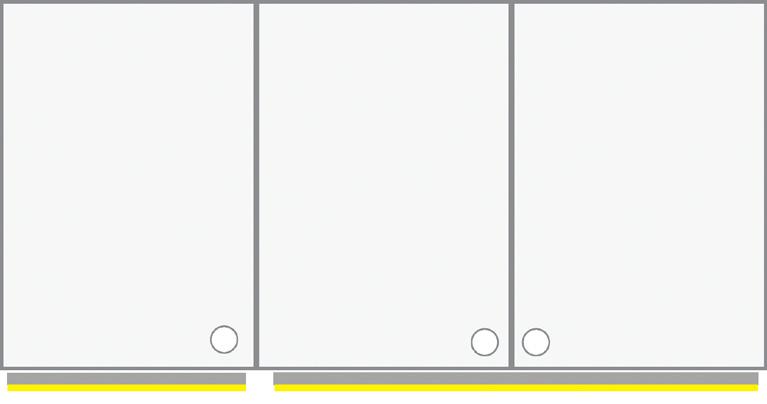

TRESCO’S CABINET SIZED LED LINEAR LIGHT KITS
Easy Sizes
ARE EASY!

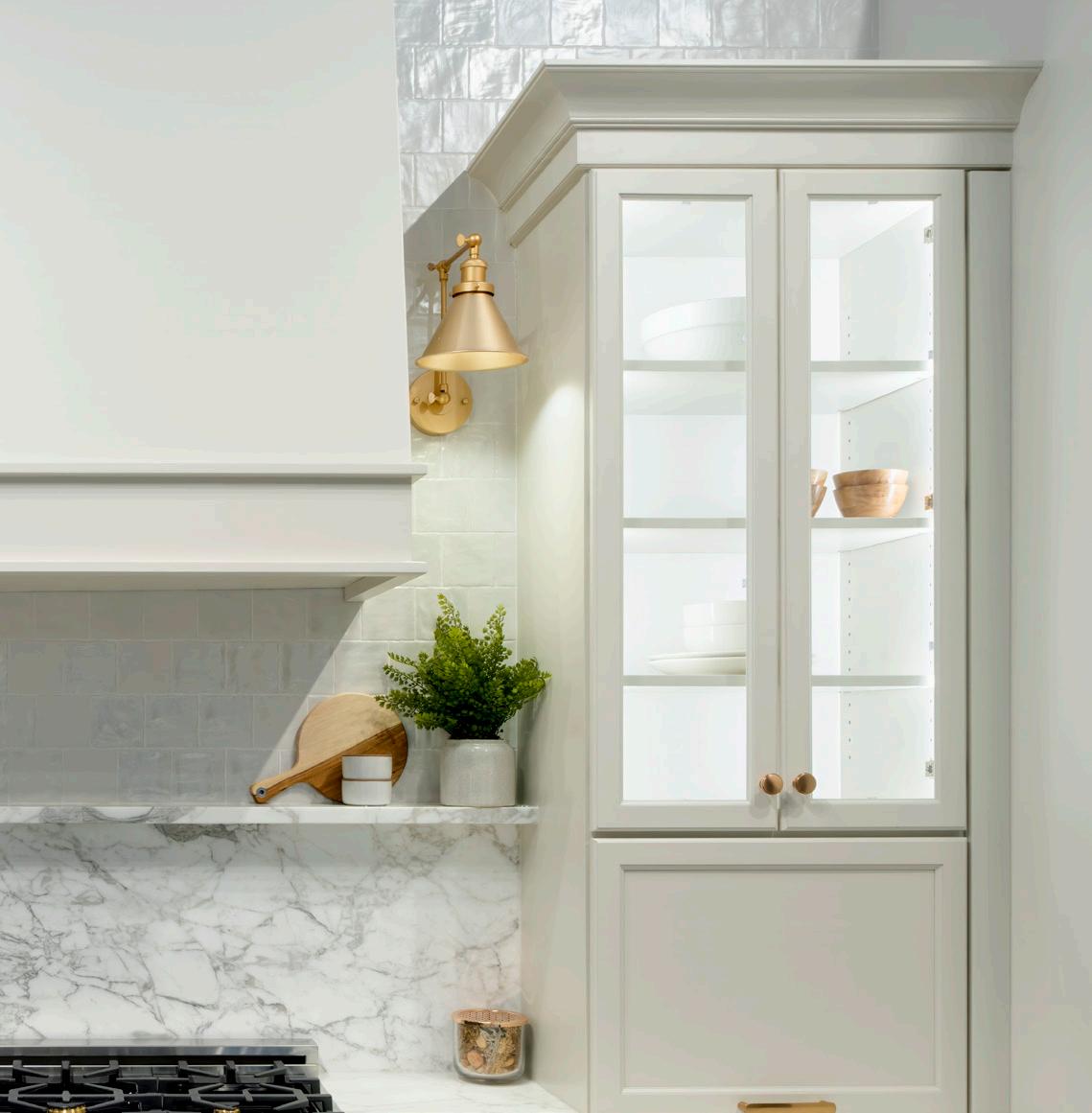

The lights are sized specifically to fit your cabinets. One light per cabinet, no more dark spots.
Easy Kits
The kits have all the components needed to install. Kits include: (1) Aluminum Satin Nickel LED Linear Light w/ 3” input & 3” output cords, (2) 72” Extension/Starter Cords, (2-4) Mounting Clips, (2-4) Magnets with quick install plates, and (1) Milk Diffuser.

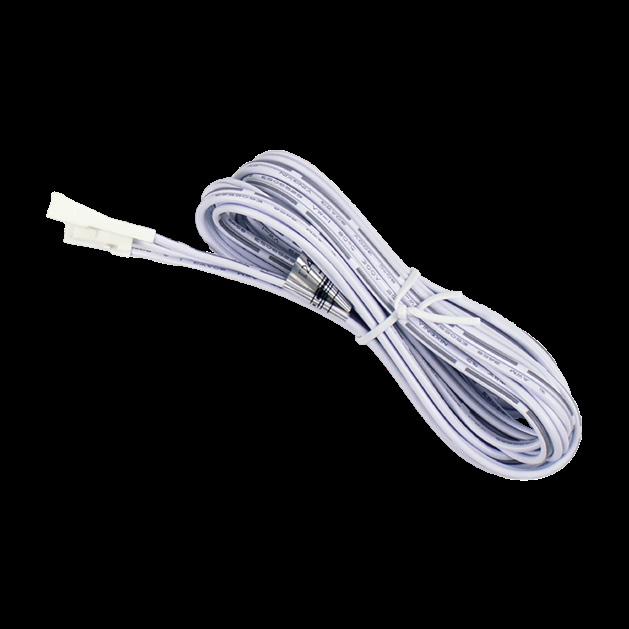

Extra 72” Extension/Starter Cords
Two extra wire extensions are included to extend the input or output leads. Installers will always have what they need, when they need it.

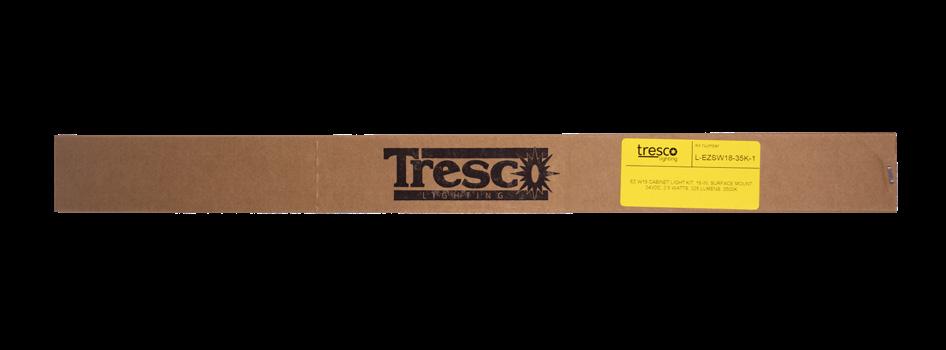

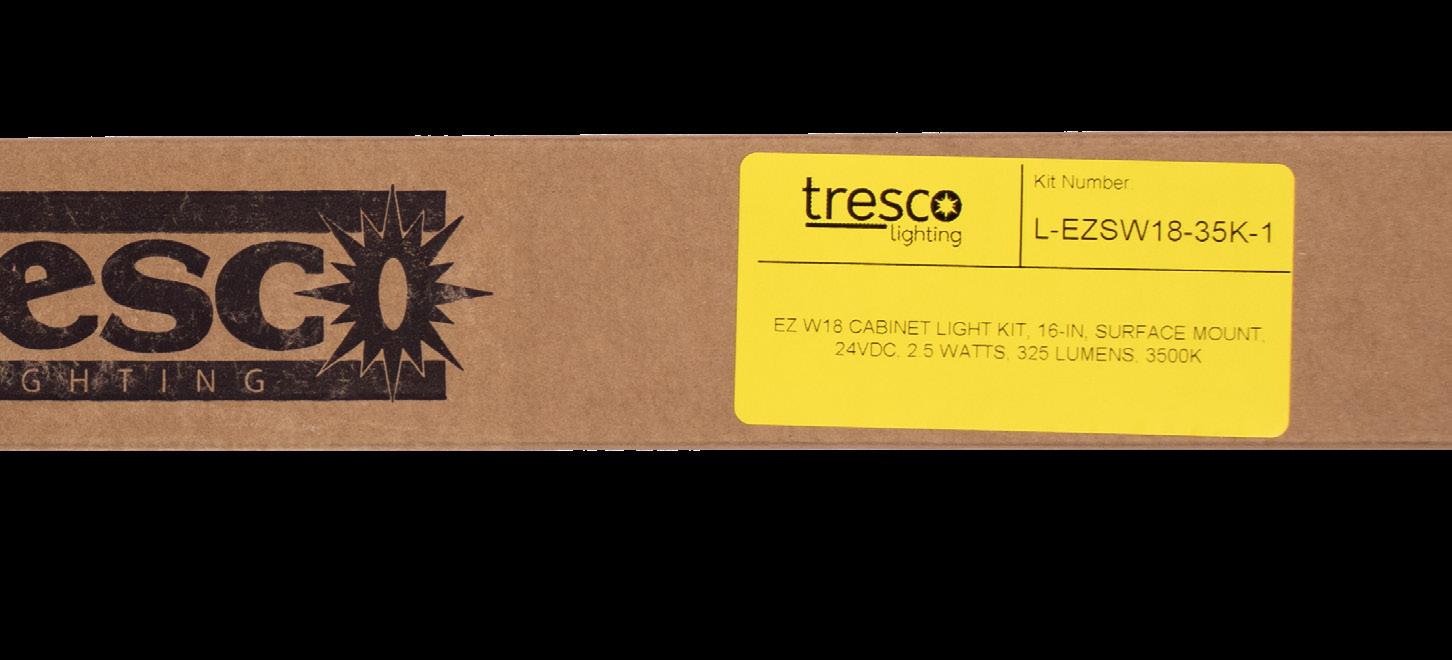

Easy Packaging
Installers can easily identify the appropriate kit for each cabinet with simple and clear labeling. Example: an 18” wall cabinet will use a kit marked “L-W18-XXXX”
Easy Mounting
The lights mount magnetically to metal mounting plates, which are adhered to the cabinet with 3M VHBTM tape for even greater ease and efficiency.
Easy Cabinet Lighting Kits
9”W - 18”W Face Frame Wall Cabinets
• Cabinet sized LED linear lights
• Package is labeled with the cabinet size the fixture is designed to fit
• Maximum continuous run: 16’ (192”)
• Dimmable
• 2.8W/ft.
• Beam spread: 110°
• Lumens per foot: 390
• CRI value: 90+
• Aluminum construction
(acts as a heat sink to extend the life of the LEDs)
• Satin nickel finish
• Surface mounted
• Commercial grade 5-year warranty

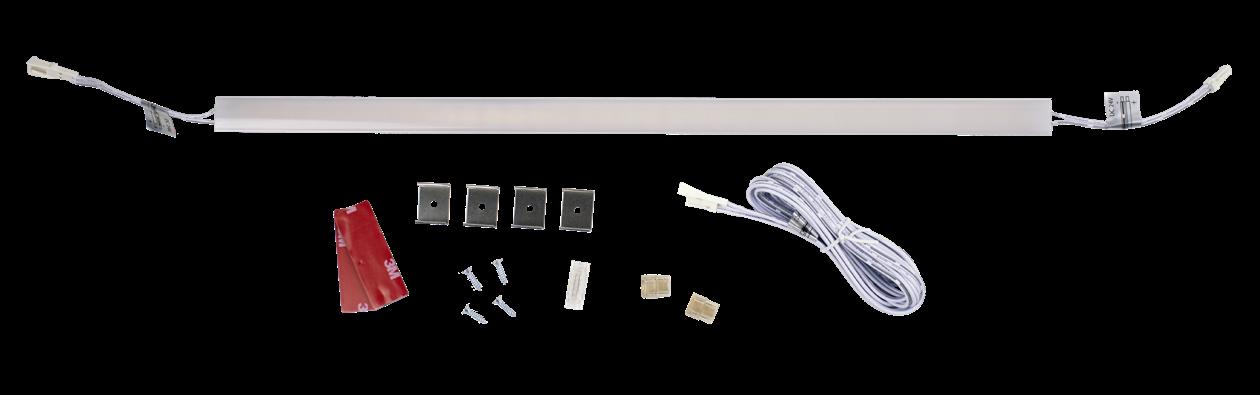

Kit Includes:
(1) Aluminum LED Linear Light w/3” Input & 3” Output Cords (Attached)
(2) 72” Extension/Starter Cords
(2-4) Mounting Clips
(2-4) Magnets with Mounting Plates
(1) Milk Diffuser
Easy Cabinet Lighting Kits
21”W - 48”W Face Frame Wall Cabinets
• Cabinet sized LED linear lights
• Package is labeled with the cabinet size the fixture is designed to fit
• Maximum continuous run: 16’ (192”)
• Dimmable
• 2.8W/ft.
• Beam spread: 110°
• Lumens per foot: 390
• CRI value: 90+
• Aluminum construction (acts as a heat sink to extend the life of the LEDs)
• Satin nickel finish
• Surface mounted
• Commercial grade 5-year warranty
(1) Aluminum LED Linear Light w/3” Input & 3” Output Cords (Attached) (2) 72” Extension/Starter Cords (2-4) Mounting Clips (2-4) Magnets with Mounting Plates (1) Milk Diffuser
24”W & 27”W Face Frame Wall Angled Corner Cabinets
• Cabinet sized LED linear lights
• Package is labeled with the cabinet size the fixture is designed to fit
• Maximum continuous run: 16’ (192”)
• Dimmable
• 2.8W/ft.
• Beam spread: 110°
• Lumens per foot: 390
• CRI value: 90+
• Aluminum construction (acts as a heat sink to extend the life of the LEDs)
• Satin nickel finish
• Surface mounted
• Commercial grade 5-year warranty
Kit Includes:
(1) Aluminum LED Linear Light w/3” Input & 3” Output Cords (Attached)
(2) 72” Extension/Starter Cords
(2-4) Mounting Clips
(2-4) Magnets with Mounting Plates
(1) Milk Diffuser
Easy Cabinet Lighting Kits
24”W Face Frame Wall Square Corner Cabinet
• Cabinet sized LED linear lights
• Package is labeled with the cabinet size the fixture is designed to fit
• Maximum continuous run: 16’ (192”)
• Dimmable
• 2.8W/ft.
• Beam spread: 110°
• Lumens per foot: 390
• CRI value: 90+
• Aluminum construction (acts as a heat sink to extend the life of the LEDs)
• Satin nickel finish
• Surface mounted
• Commercial grade 5-year warranty

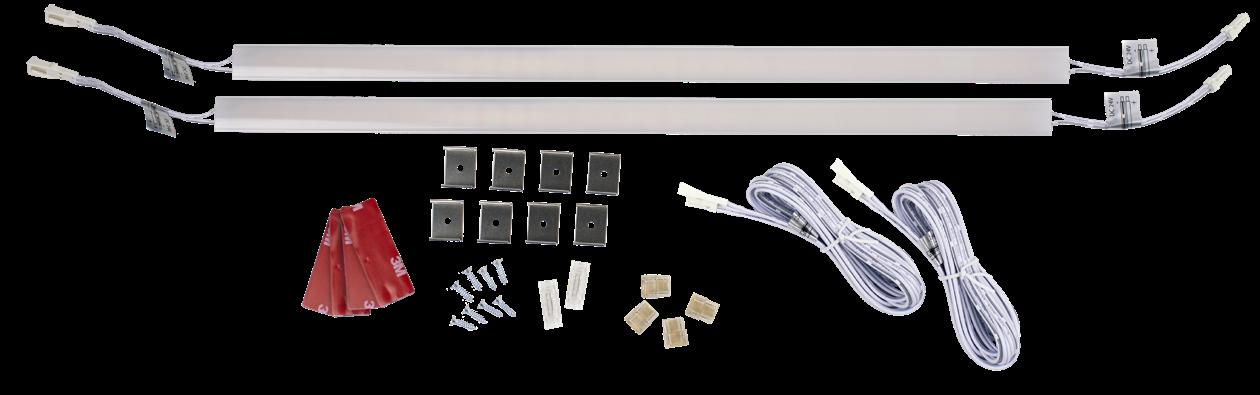

Kit Includes:
(2) Aluminum LED Linear Light w/3” Input & 3” Output Cords (Attached)
(4) 72” Extension/Starter Cords
(2-4) Mounting Clips
(2-4) Magnets with Mounting Plates
(2) Milk Diffuser
24”W - 30”W Face Frame Wall Blind Corner Cabinet
• Cabinet sized LED linear lights
• Package is labeled with the cabinet size the fixture is designed to fit
• Maximum continuous run: 16’ (192”)
• Dimmable
• 2.8W/ft.
• Beam spread: 110°
• Lumens per foot: 390
• CRI value: 90+
• Aluminum construction (acts as a heat sink to extend the life of the LEDs)
• Satin nickel finish
• Surface mounted
• Commercial grade 5-year warranty
Kit Includes:
(1) Aluminum LED Linear Light w/3” Input & 3” Output Cords (Attached)
(2) 72” Extension/Starter Cords (2-4) Mounting Clips (2-4) Magnets with Mounting Plates (1) Milk Diffuser
Puck Lights
9/16” (14.3 mm)
2-1/2” Diameter (64 mm)
2 1/4” Diameter
Recess Mount Hole (57 mm)

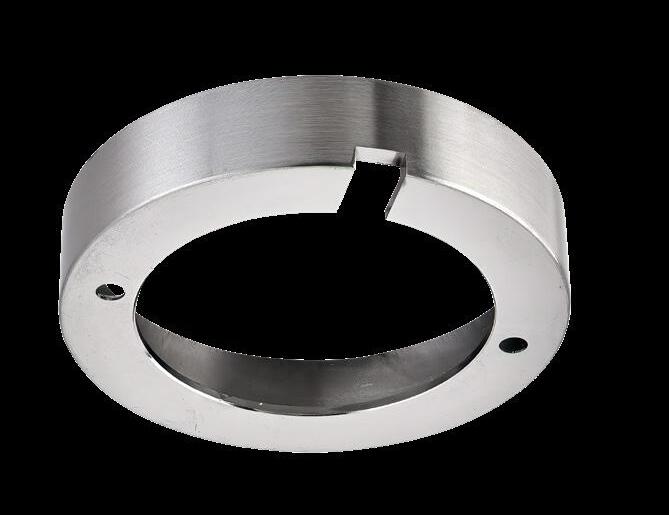

OptiPockit Surface Mount Accessories
79” Wire Lead (2 M)

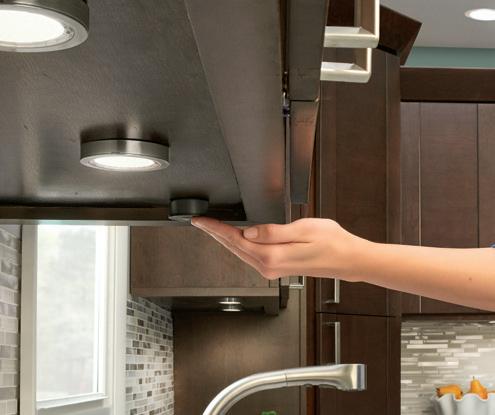

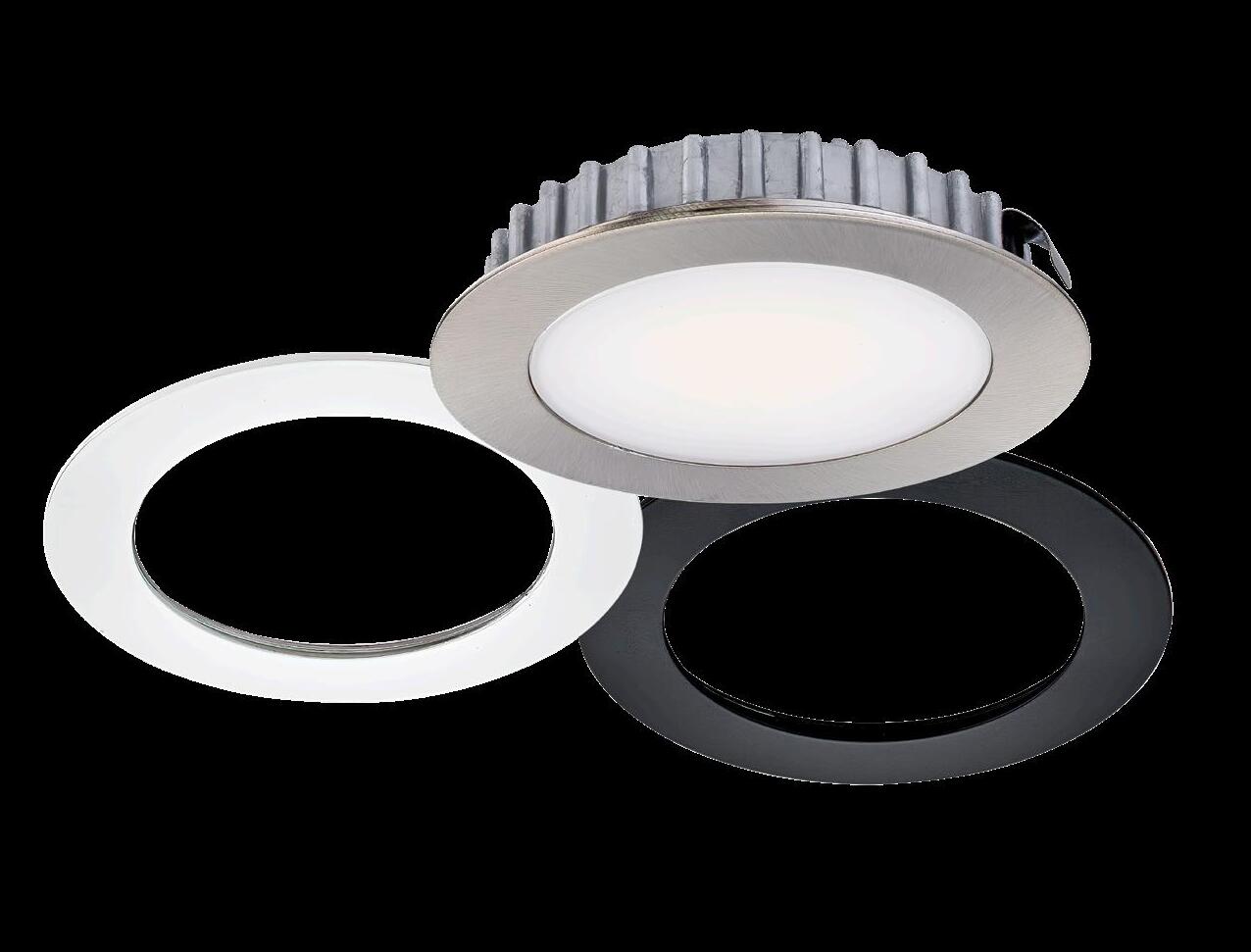

OptiPockit DM Recessed LED Puck Light
• Wide 110º beam spread
• Nickel , Black and White finishes
• Surface mount ring included
• Dimmable
• High output (279 lumens)
• CRI value: 90+
• Luniform output - no “dots”
• Commercial grade 5-year warranty
2-1/2” Diameter (64 mm)
9/16” (14.3 mm)
Power Supplies See page 12
See pages 10-11
OptiPockit Recessed LED Puck Light
Item #
L-OPDM-12R30K-NBW-1
L-OPDM-12R35K-NBW-1
L-OPDM-12R50K-NBW-1
L-OPDM-24R27K-NBW-1
L-OPDM-24R30K-NBW-1
L-OPDM-24R35K-NBW-1
L-OPDM-24R50K-NBW-1
Description
OptiPockit Dimmable, 12VDC Round, 3W, 3000K, NI/WH/BL Trims
OptiPockit Dimmable, 12VDC Round, 3W, 3500K, NI/WH/BL Trims
OptiPockit Dimmable, 12VDC Round, 3W, 5000K, NI/WH/BL Trims
OptiPockit Dimmable, 24VDC Round, 3W, 2700K, NI/WH/BL Trims
OptiPockit Dimmable, 24VDC Round, 3W, 3000K, NI/WH/BL Trims
OptiPockit Dimmable, 24VDC Round, 3W, 3500K, NI/WH/BL Trims
OptiPockit Dimmable, 24VDC Round, 3W, 5000K, NI/WH/BL Trims
Dimmer Switches
®
Dimmer Switches

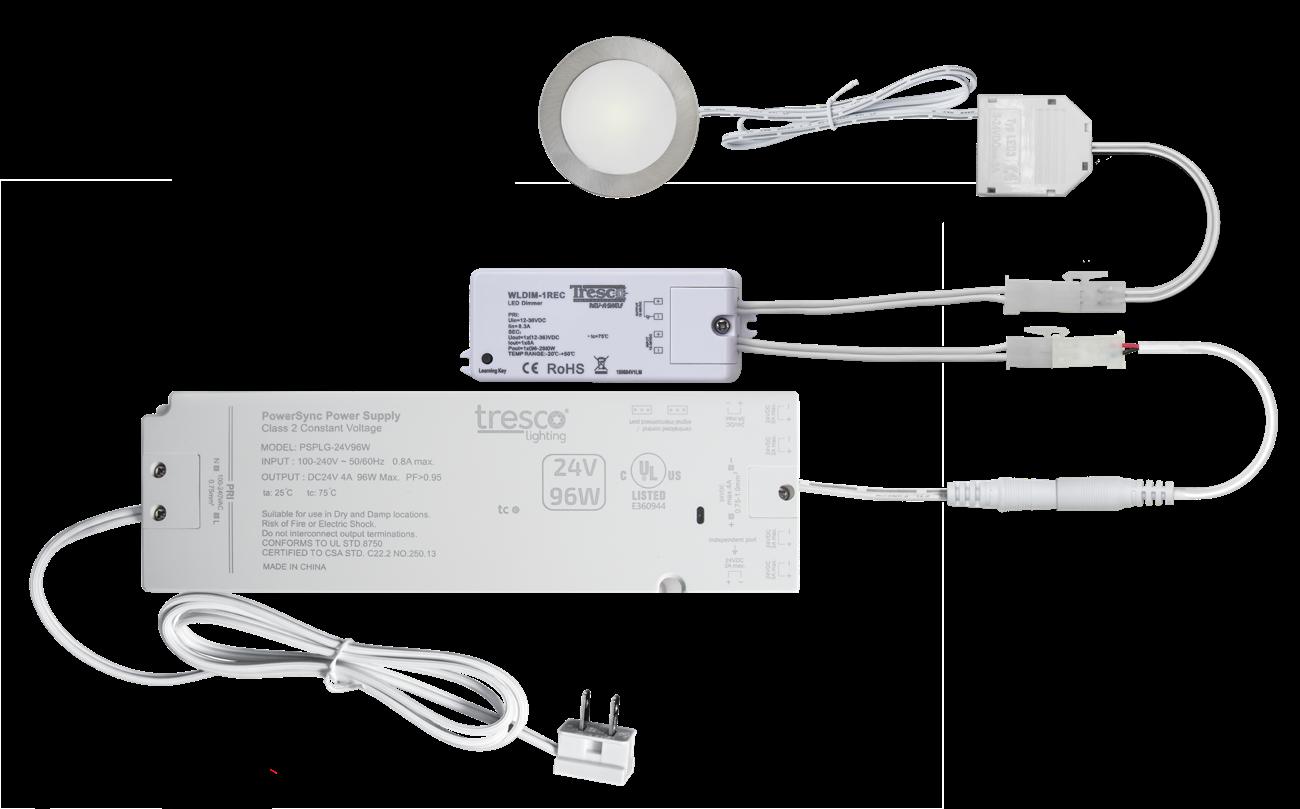

Installation Setup for FreeDim Wireless Controllers
(Micro Dimmer, Deco Wall Dimmer)

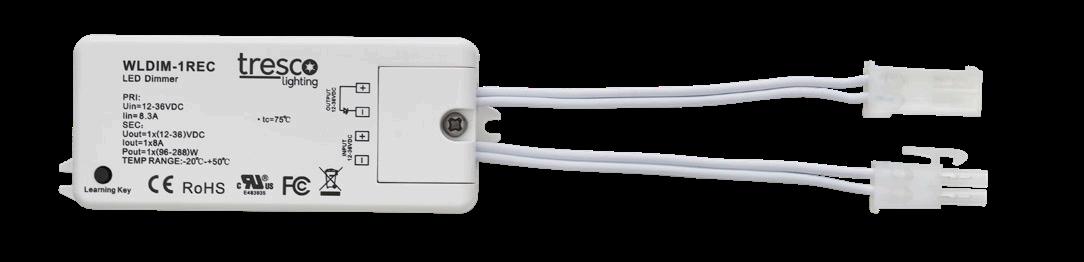

Dimmer Receiver

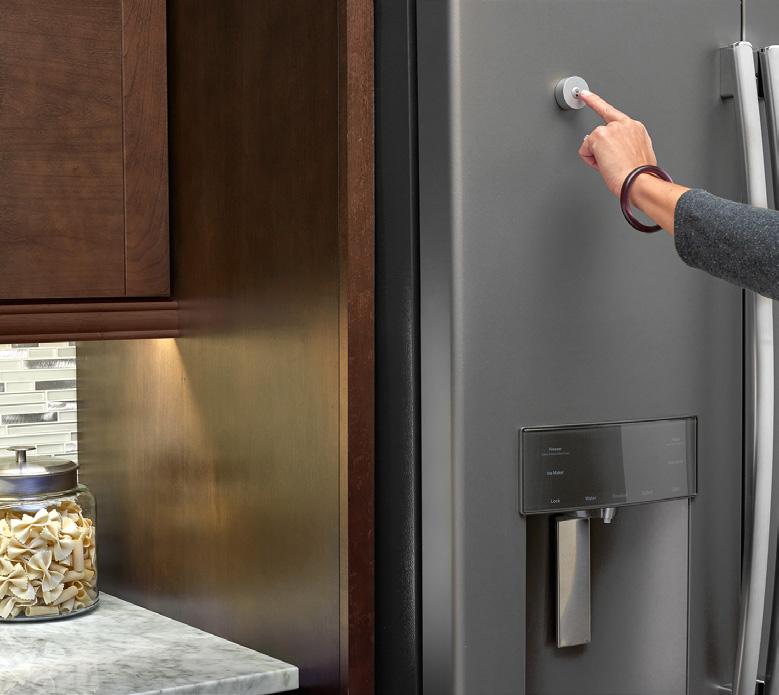

Micro Dimmer
• Single zone wireless dimmer
• Nickel finish
• Easy to replace, long life lithium battery
• 65’ range of control from dimmer to receiver
• Mounting case can be mounted with screws or onto a metallic surface using the integrated magnet
• A single dimmer can be programmed to up to 10 different receivers; a single receiver can be programmed to up to 8 different dimmers
• A Universal Receiver (sold separately) is required to operate Micro Dimmers
Series Micro Dimmer, Nickel
Must have at least one receiver (L-WLD-1REC-1) to operate
L-WLD-1REC-1 96 Watts, 24VDC, Universal Receiver
FREEDiM Receiver PowerSync Power Supply

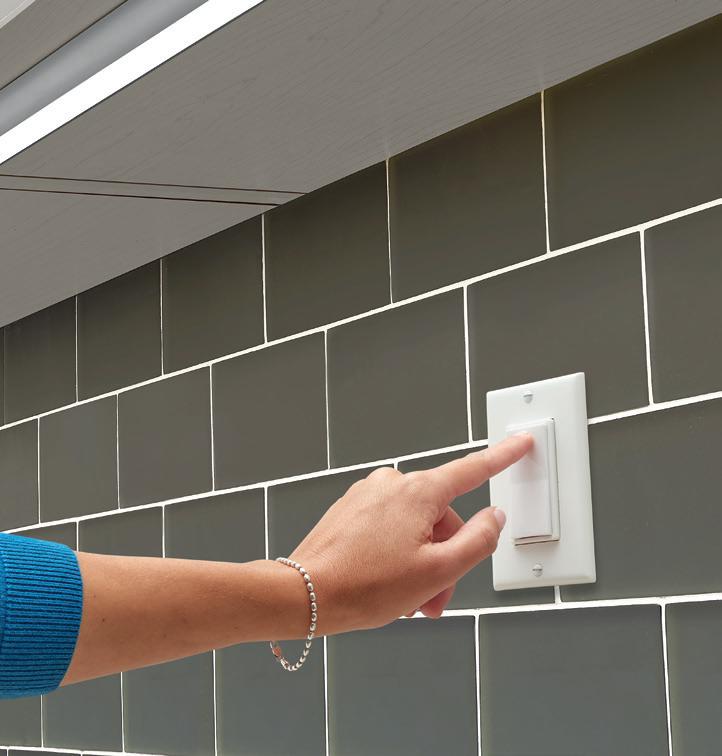

Deco Wall Dimmers
Micro Dimmers
Dimmer Switches

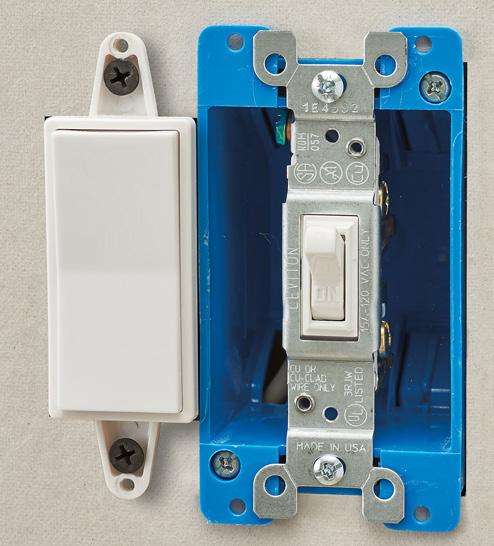

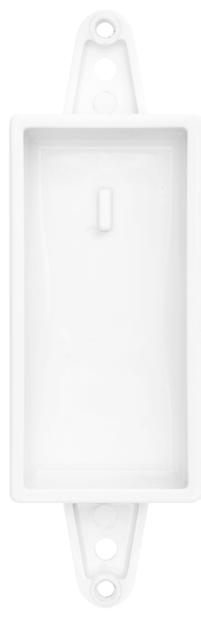

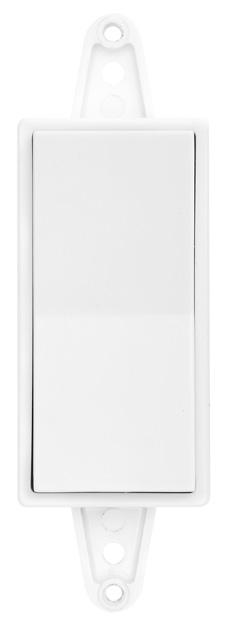

Deco Wall Dimmer
• Single & two zone wireless dimmers
• Black or white finish

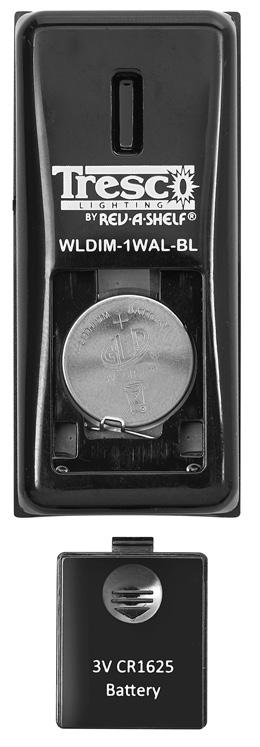

• Easy to replace, long life lithium battery
• 65’ range of control from dimmer to receiver

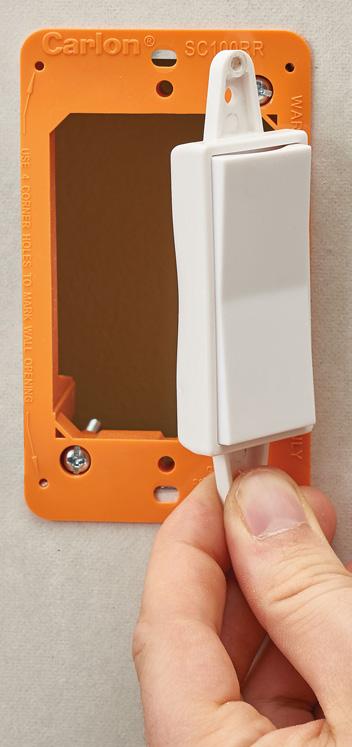

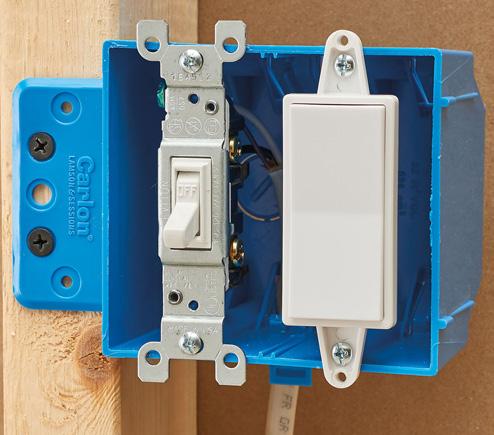

• Can be mounted to standard wall electrical boxes or directly to drywall
• A single dimmer can be programmed to up to 10 different receivers; a single receiver can be programmed to up to 8 different dimmers
• A Universal Receiver (sold separately) is required to operate Deco Wall Dimmers
Must have at least one receiver (L-WLD-1REC-1) to operate
L-WLD-1REC-1 96 Watts, 24VDC, Universal Receiver
L-WLD-1WAL-WH-1
FREEDiM Series Deco Wall Dimmer, White Finish
L-WLD-1WAL-BL-1

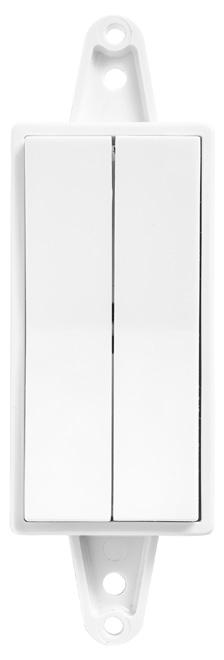

FREEDiM Series Deco Wall Dimmer, Black Finish Two Zone Deco Wall Dimmer

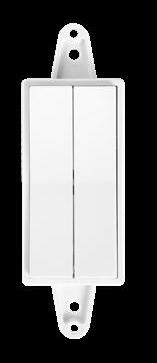

L-WLD-2WAL-WH-1
FREEDiM Series Two Zone Deco Wall Dimmer, White Finish
Single Zone Two Zone
No Wires!

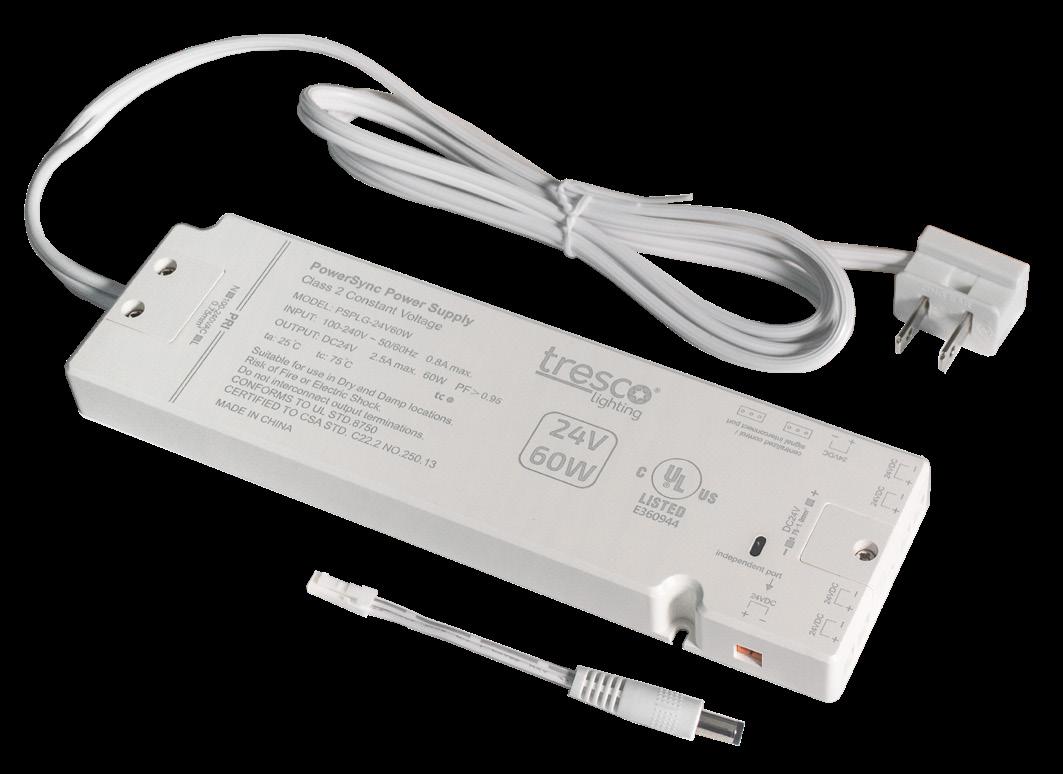

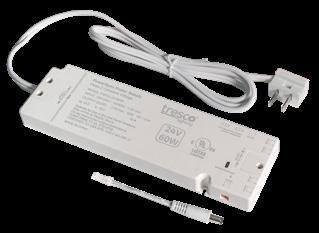

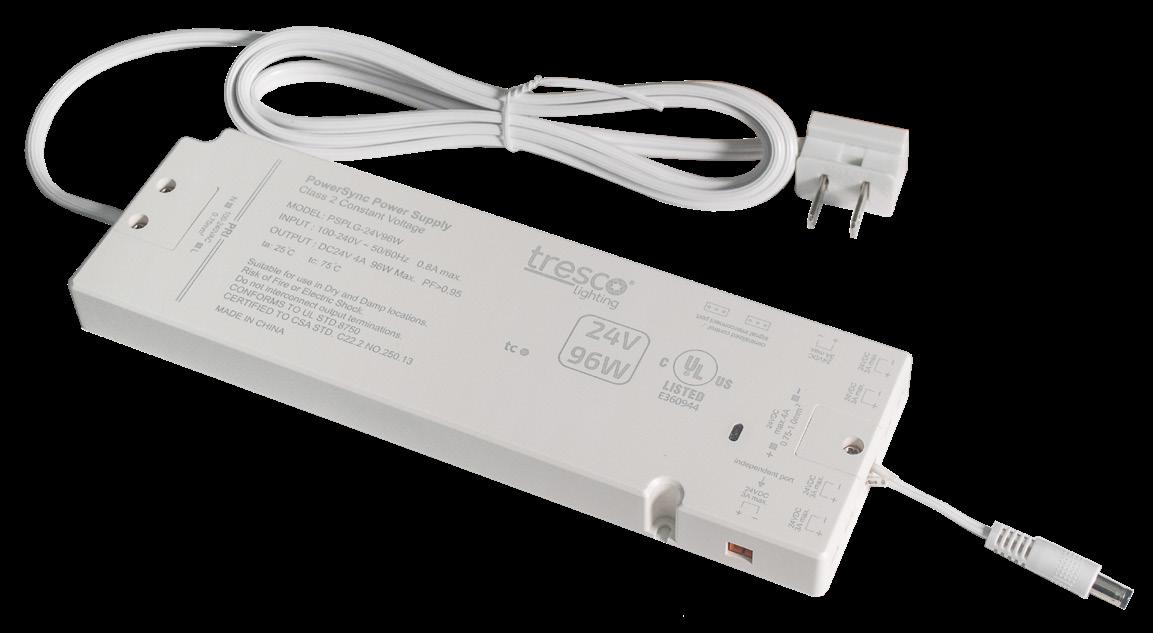

PowerSync Power Supplies
60W and 96W PowerSync Power Supplies feature a 5-AMP terminal block, supporting higher-wattage applications for enhanced reliability and performance.
Features:
• Short circuit protection*
• 24V DC output, constant voltage
• Overload protection
• Dimmable on trailing edge (12V side)
• Class 2
• Commercial grade 5-Year warranty
* Automatic reset (no fuses)
Six MINI Ports and a 5-AMP Terminal Block
Item # Description

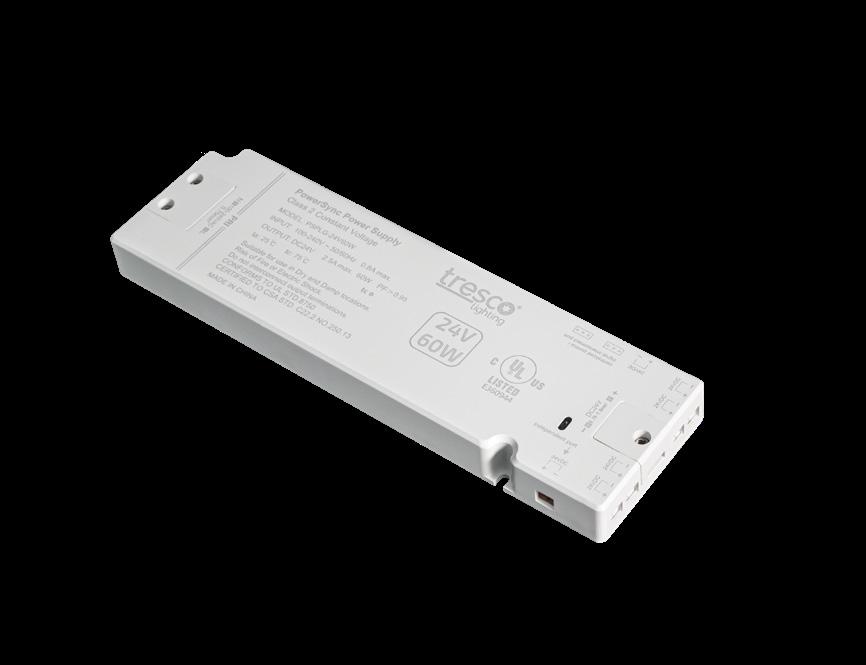

L-PSPLG-24V60W-1 24 Volt 60 Watt Power Supply with Six MINI Ports and a 5-AMP Terminal Block

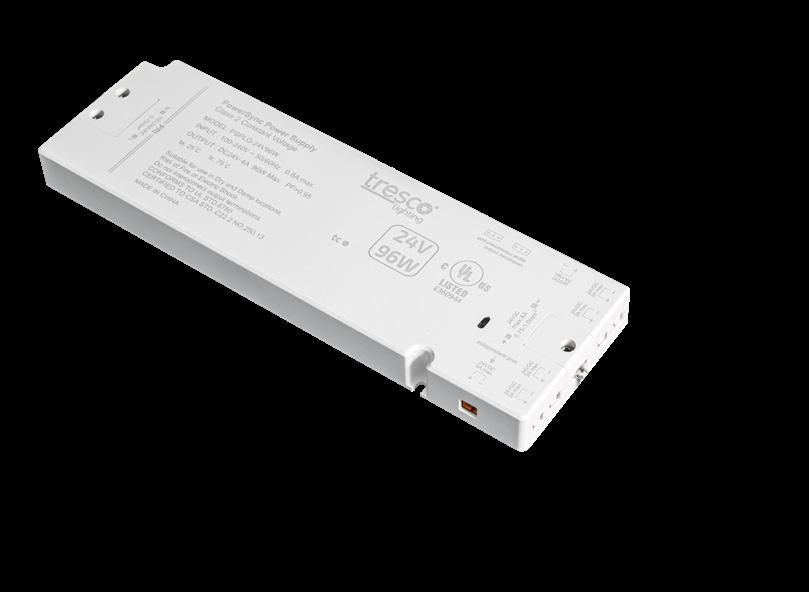

L-PSPLG-24V96W-1 24 Volt 96 Watt Power Supply with Six MINI Ports and a 5-AMP Terminal Block
Typical Installation
24VDC Power Supply
72” Extension/ Starter Cords
Visit
trescolighting.com/layout
Fill out the form and upload your drawings
Receive your professionally engineered schematic and matching parts list
