reach the tiller directly, without the need for a tiller extension.
The helmsman can either sit at the side of the cockpit for best view forward or sit close to the sprayhood for protection from the weather.
More space is freed up in the cockpit, and when the tiller is extended, less force is needed for steering.
The innovative design makes it possible to adjust and lock the sideways angle as well as
Specifications
Boat size ca 7.5 – 11 metres (25 – 36 ft)
Length 1 000 – 1 350 mm, expandable
Width 220 mm
Angle Adjustable horizontally while sailing, up to 50o port / starboard, in steps of 10o
Handle Adjustable 0 - 45o
Attachment Rudder stock 25 – 40 mm with a standard 60 mm wide rudder head
Weight 3.6 kgs (7.9 lbs)
Max load 400 N sideways and vertically
The product is designed and manufactured demanding marine conditions. With hightensile strength aluminium and marine grade stainless steel it is highly durable and maintains its functionality year after year.
Material High-tensile strength aluminium and marine grade stainless steel AISI 316L
Tested to ISO 13929:2017 by RISE Institute
Maintenance Yearly lubrication of joint Accessories
• Reecher Pilot arm for autopilot
• Handle leather cover (moose leather)
1 000 -1350 mm

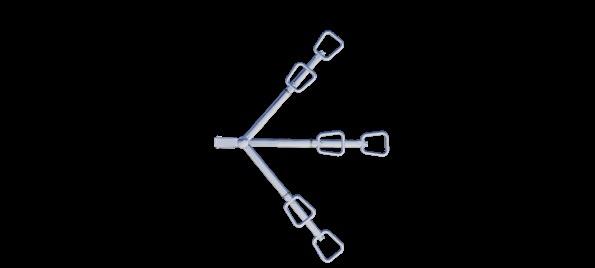

Adjustable up to +-50o sideways
