reecher®
needed for steering.

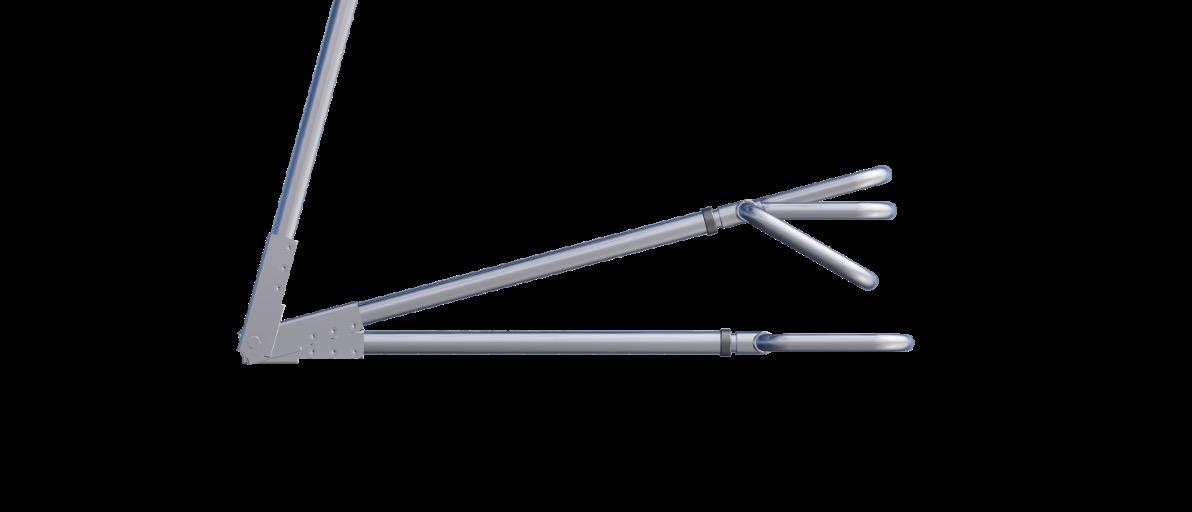

The handle can be tilted to provide optimum
Specifications
Boat size 7.5 – 11 metres (25 – 36 ft)
Length 980 – 1330 mm, expandable
Width 220 mm
Handle Adjustable 0 - 45o
Attachment Rudder stock 25 – 40 mm with a standard 60 mm wide rudder head
Weight 2.4 kgs (5.3 lbs)
Max load 400 N sideways and vertically
maintains its functionality year after year.
Material High-tensile strength aluminium and marine grade stainless steel AISI 316L
Tested to ISO 13929:2017 by RISE Institute
Accessories
• Reecher Pilot arm for autopilot
• Handle leather cover (moose leather)
• Bracket for tiller extension
Reecher Marine AB www.reechermarine.com Kontakt: info@reechermarine.com
