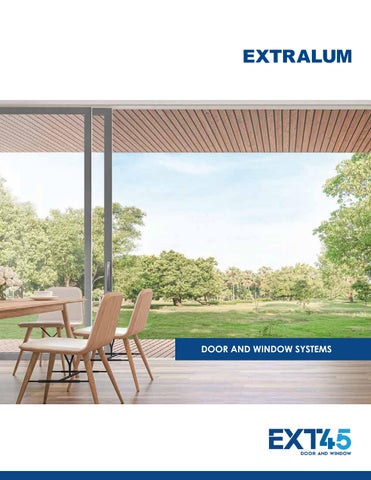

EXT45 system

DOOR AND WINDOW SYSTEMS

content.

-Sliding System

05

-Lift & Slide System

09

-Casement System

13

-Projecting System

17

-Tilt-and-Turn System

21

-Fixed System

25

-Finishes

29

-Glass Configurations

30

-Performance

31

-Applications

32

04 Simply Superior Ease of operation and high performance, maximum security, and a minimalist aesthetic form the perfect combination of functionality with superior thermal and acoustic insulation, delivering optimal comfort.

The EXT45 systems stand out for their high efficiency and user-friendly operation. Even at their maximum sizes, the panels open and close effortlessly, ensuring smooth sliding performance.

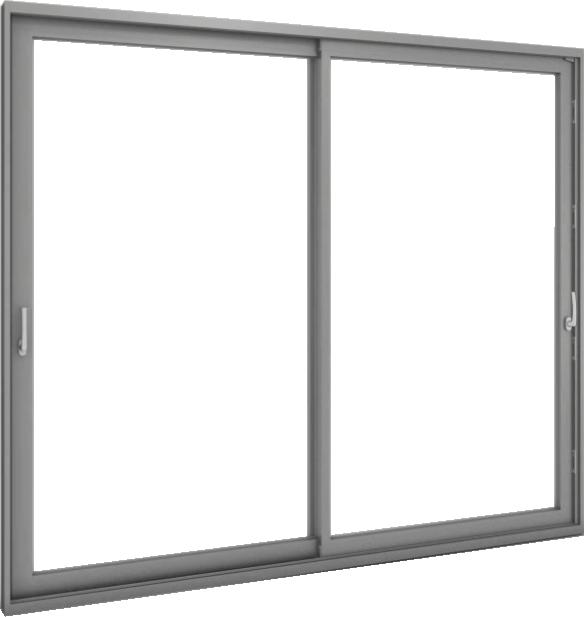

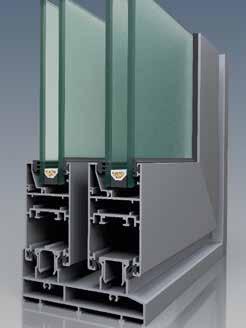

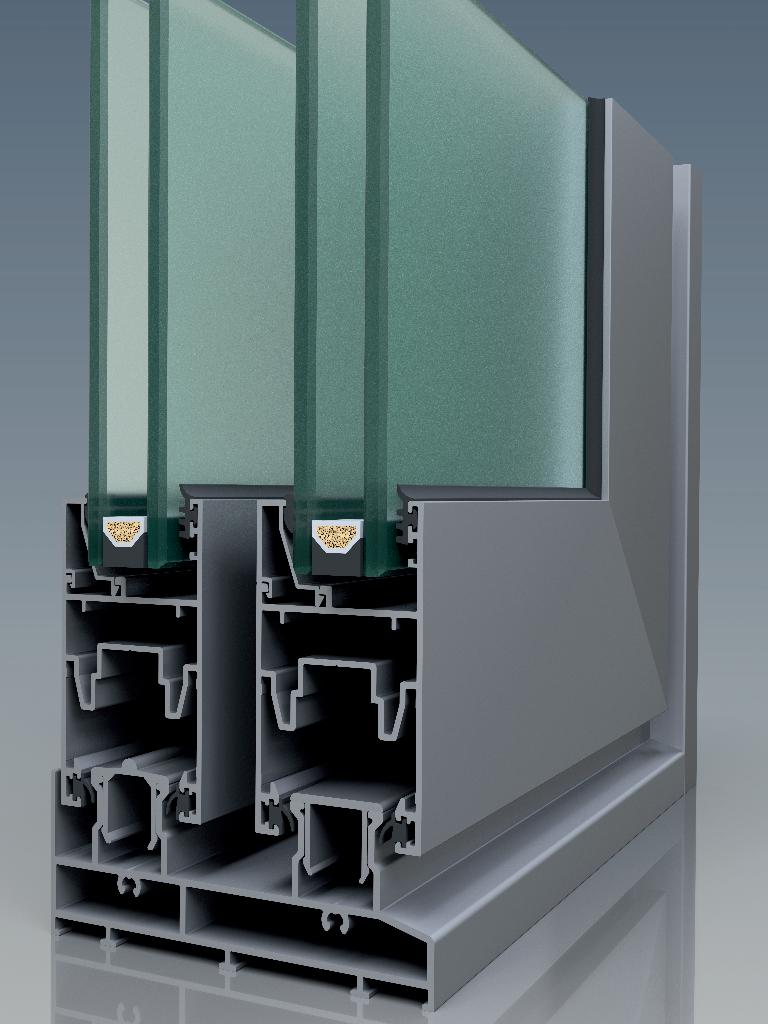

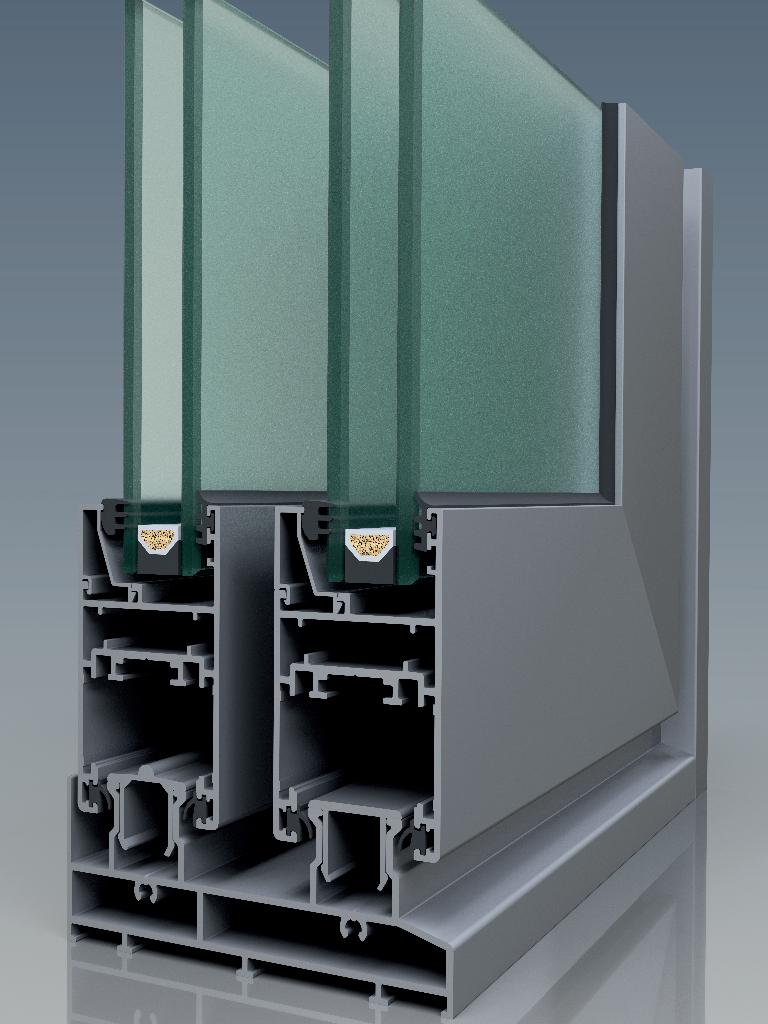

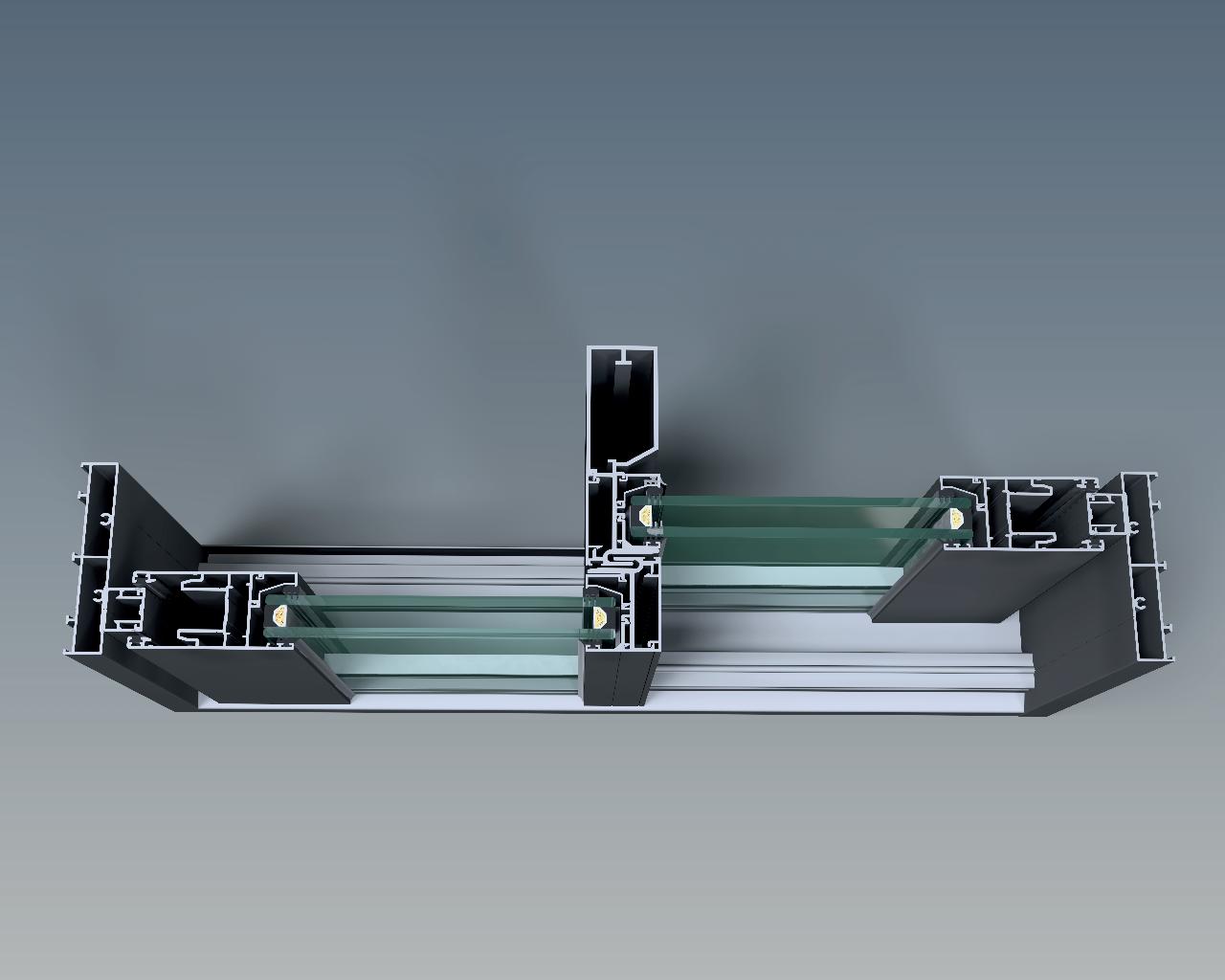

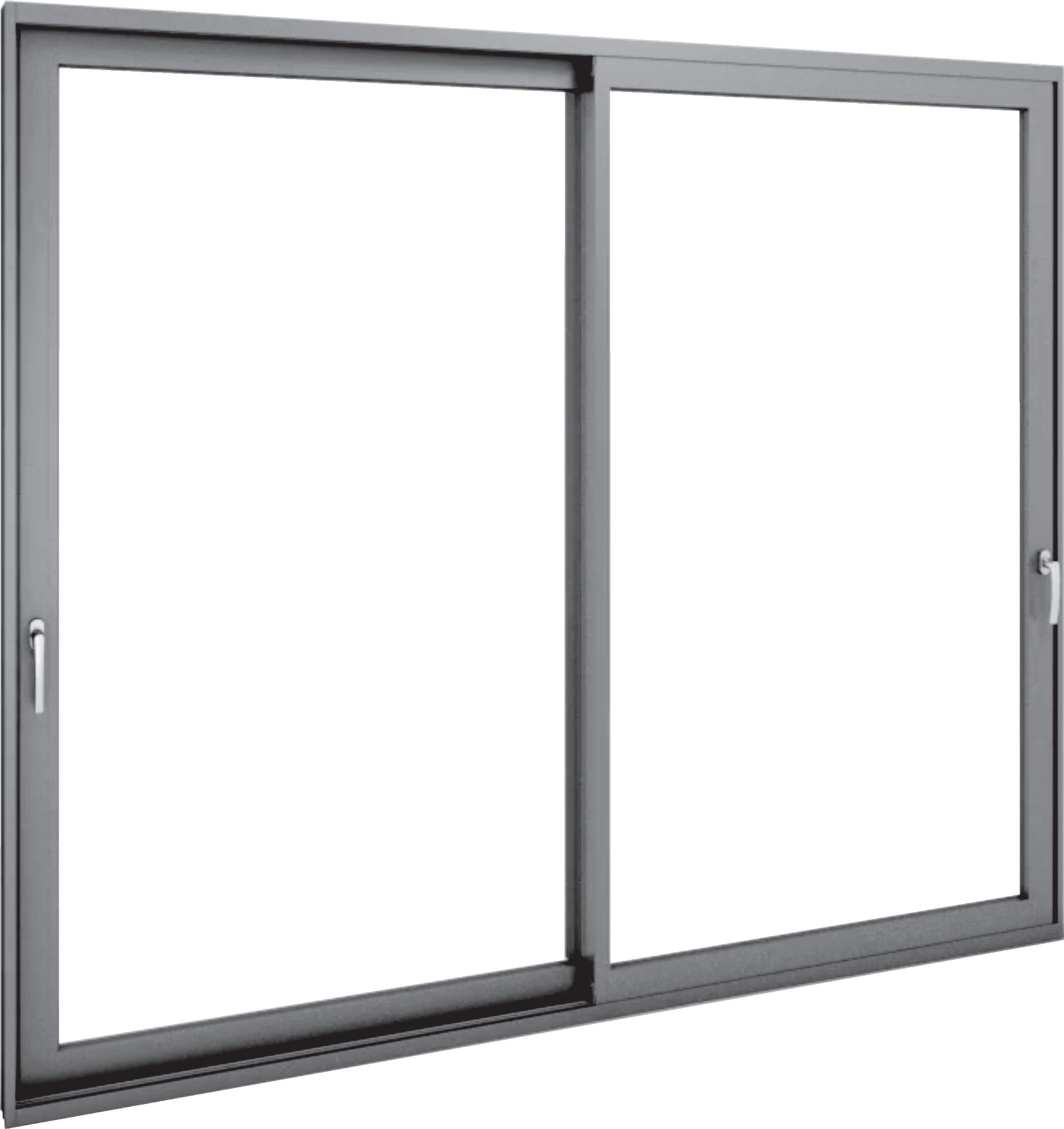

The EXT45 Sliding Series features a minimalist design characterized by clean, modern lines and an elegant, understated appearance.

06 Features.

Maximum sash weight: 200 kg (441 lb).

Central locking points.

All locking points operated via handle.

Easy opening even for heavy sashes through smooth handle operation.

Soft and comfortable closing of the sash into the frame.

Uniform closing motion guided by four-sided locking points.

Fully concealed hardware allows for sleek, straight profiles with a modern look.

Available in a Minimalist Style Option, featuring clean straight lines and an elegant, discreet design. This option enables large glazed areas with narrow vertical interlocks, achieving a visible section of only 40 mm (1.57 in).

Optional sash frame with perimeter reinforcement available.

Available configurations: from two up to a maximum of six tracks.

Glass types available: (Vilax – Laminated Safety Glass) (DVH – Insulated Glass Unit, IGU) (Fuertex – Tempered Safety Glass)

*For more information, see the Technical Data Sheet.

07 Configurations.

There are typical designs for the system, such as those indicated below:

CONFIGURATION: XO MINIMALIST

CONFIGURATION: XX MINIMALIST WITH REINFORCEMENT

V.F

CONFIGURATION: XXX MINIMALIST WITH OUTHERFRAME SUP/INF 1 TRACK

CONFIGURATION: OXXO MINIMALIST

V.F

V.F

08 Dimensions.

The following table lists the minimum and maximum dimensions that must be observed for proper system performance.

Oppening Width/ number of panels

Oppening Height

Minimum

Maximum

Minimum

Maximum

610 mm

2600 mm

550 mm

2600 mm

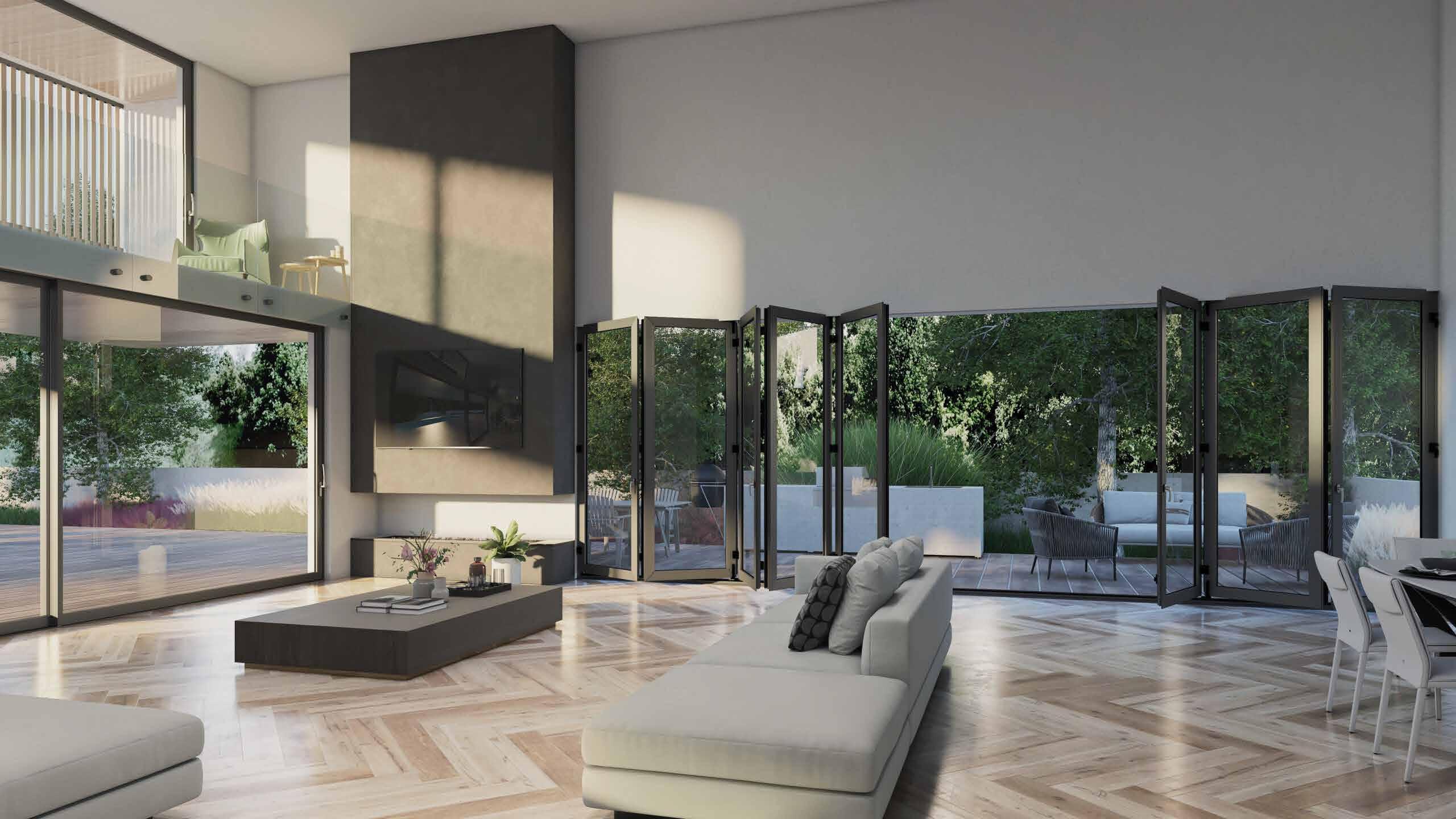

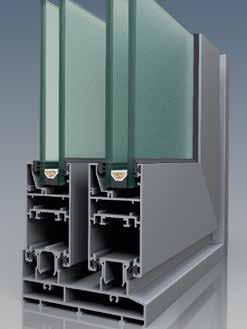

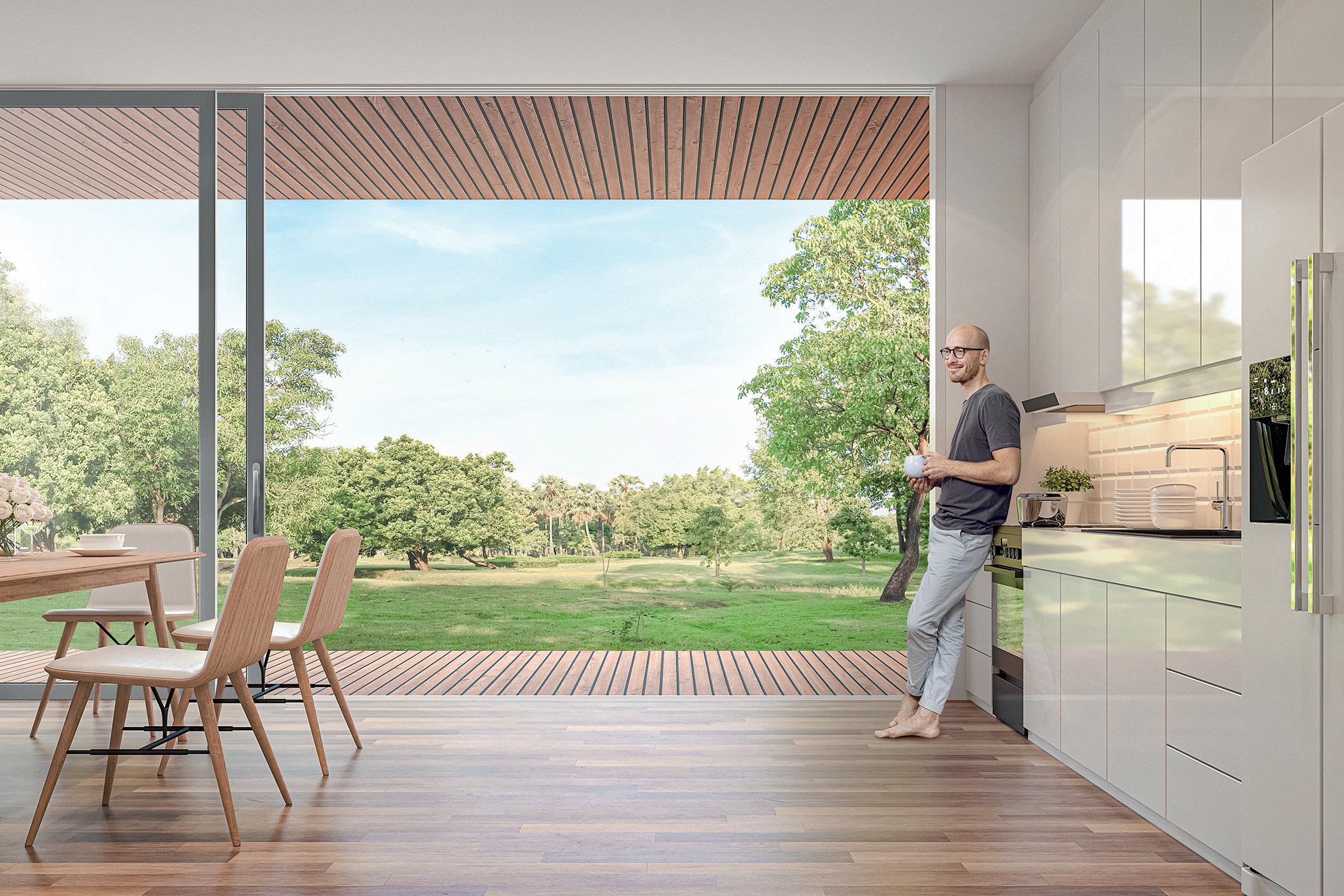

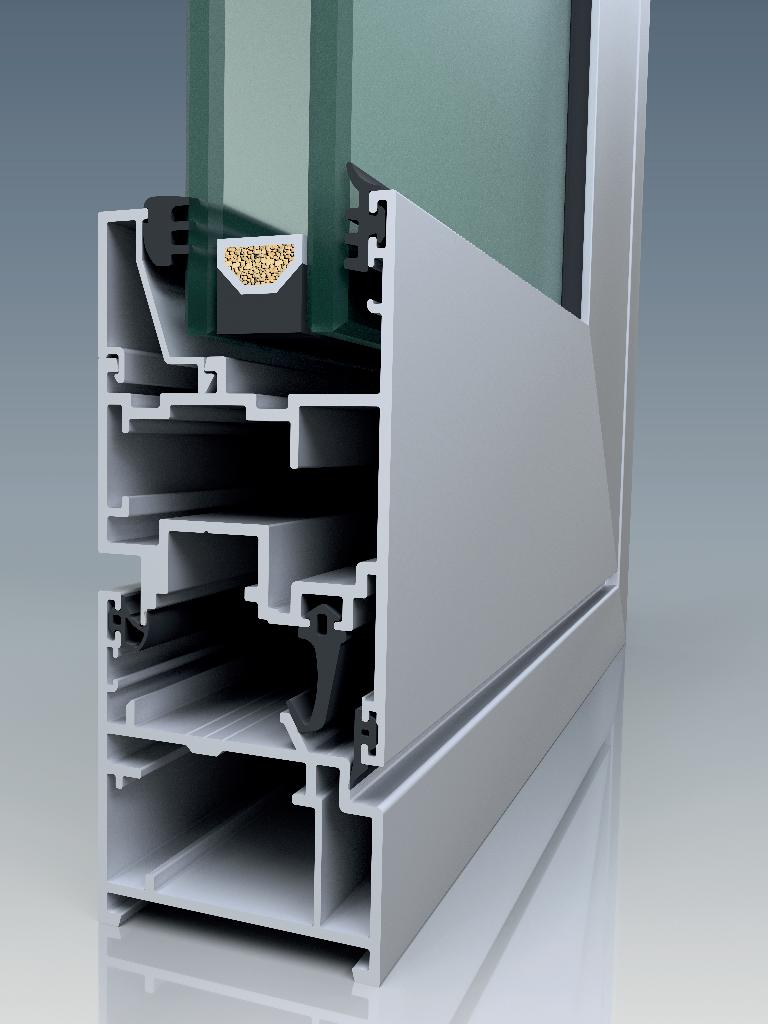

The EXT45 Lift & Slide Series allows for large dimensions and provides abundant natural light, creating a comfortable and pleasant indoor environment.

10 Features.

System available in two different versions: EXT45 Light Lift & Slide System EXT45 Classic Lift & Slide System Patented anti-lift system prevents sash lifting when closed, providing enhanced security.

Number of locking points configurable according to project requirements.

Adjustable locking points (+/- 6 mm / ±0.24 in) ensure optimal sealing.

All locking points operated by handle.

Full airtight seal thanks to sealing components preventing air, sound, and water infiltration.

Smooth and comfortable closing of the sash into the frame.

Uniform closing motion guided by four-sided locking points.

Fully concealed hardware allows narrow, straight profiles with a modern design.

Optional Minimalist Style configuration available.

Available in two to six-track versions.

Maximum sash weight for Lift & Slide Classic: 400 kg (882 lb).

Maximum sash weight for Lift & Slide Light: 90 kg (198 lb).

Hardware and accessories use nanoparticle coating technology for durability.

The EXT45 Light Lift & Slide System complies with key safety, durability, and quality standards. It has been tested under: ABNT NBR 15575 and NBR 10821 – Acoustic performance standard, result: Class III (high level).

NBR 15.575 – 2013 Performance Standard.

ISO 140-03E717-1 – Airborne sound insulation evaluation.

UNE-EN 13126-16: Class 4 – 15,000 operating cycles.

-Glass types available: (Vilax – Laminated Safety Glass) (DVH – Insulated Glass Unit) (FUERTEX – Tempered Safety Glass)

For more details, refer to the Technical Data Sheet.

11 Configurations.

There are typical designs for the system, such as those indicated below:

CONFIGURATION: OX MINIMALIST

CONFIGURATION: XO MINIMALIST WITH REINFORCEMENT

V.F

CONFIGURATION: XXX MINIMALIST

WITH OUTHERFRAME SUP/INF 1 TRACK

CONFIGURATION: OXXO MINIMALIST

V.F

V.F

12 Dimensions.

The following table lists the minimum and maximum dimensions that must be observed for proper system performance.

EXT45 Classic Lift & Slide System

Oppening Width/ number of panels

Oppening Height

Minimum

Maximum

Minimum

Maximum

720 mm

3000 mm

1800 mm

3100 mm

EXT45 Light Lift & Slide System

Oppening Width/ number of panels

Oppening Height

Minimum

Maximum

Minimum

Maximum

610 mm

1400 mm

850 mm

2600 mm

SISTEMA ELEVABLE LIVIANA EXT45

SISTEMA ELEVABLE CLÁSICA EXT45

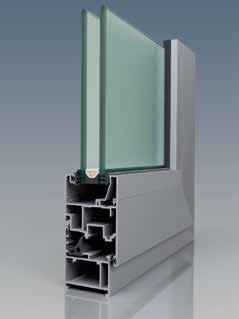

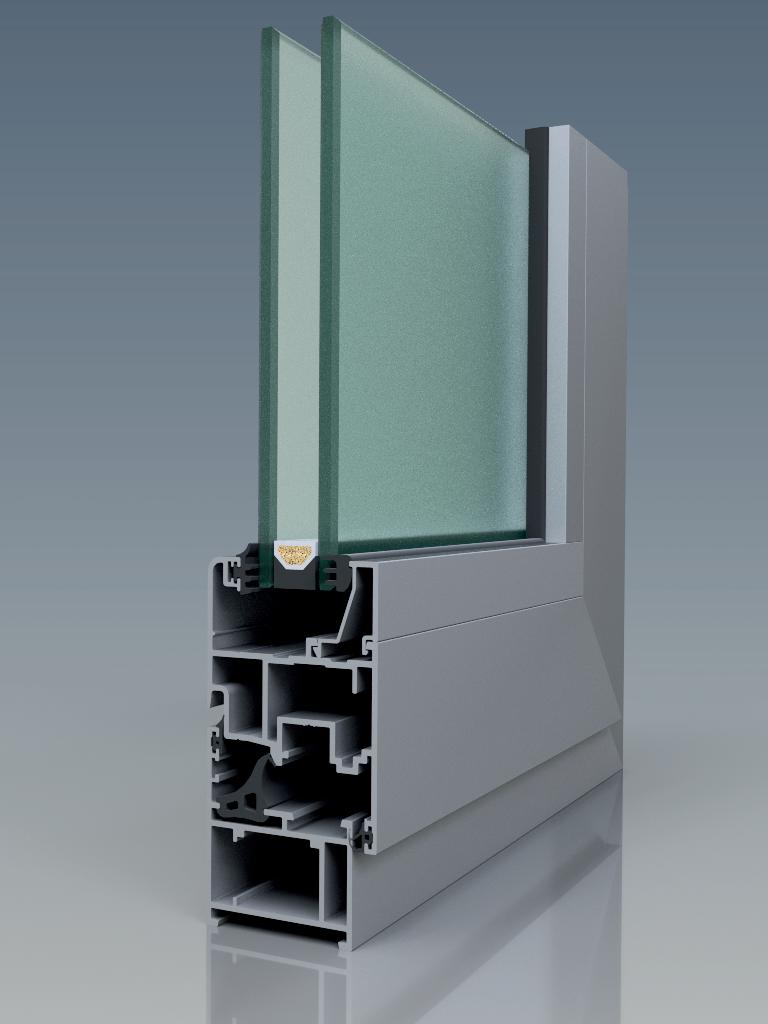

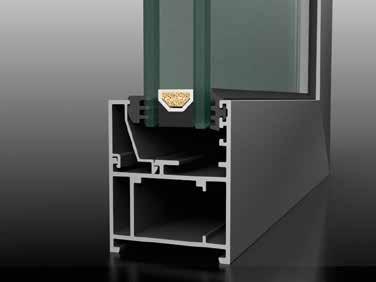

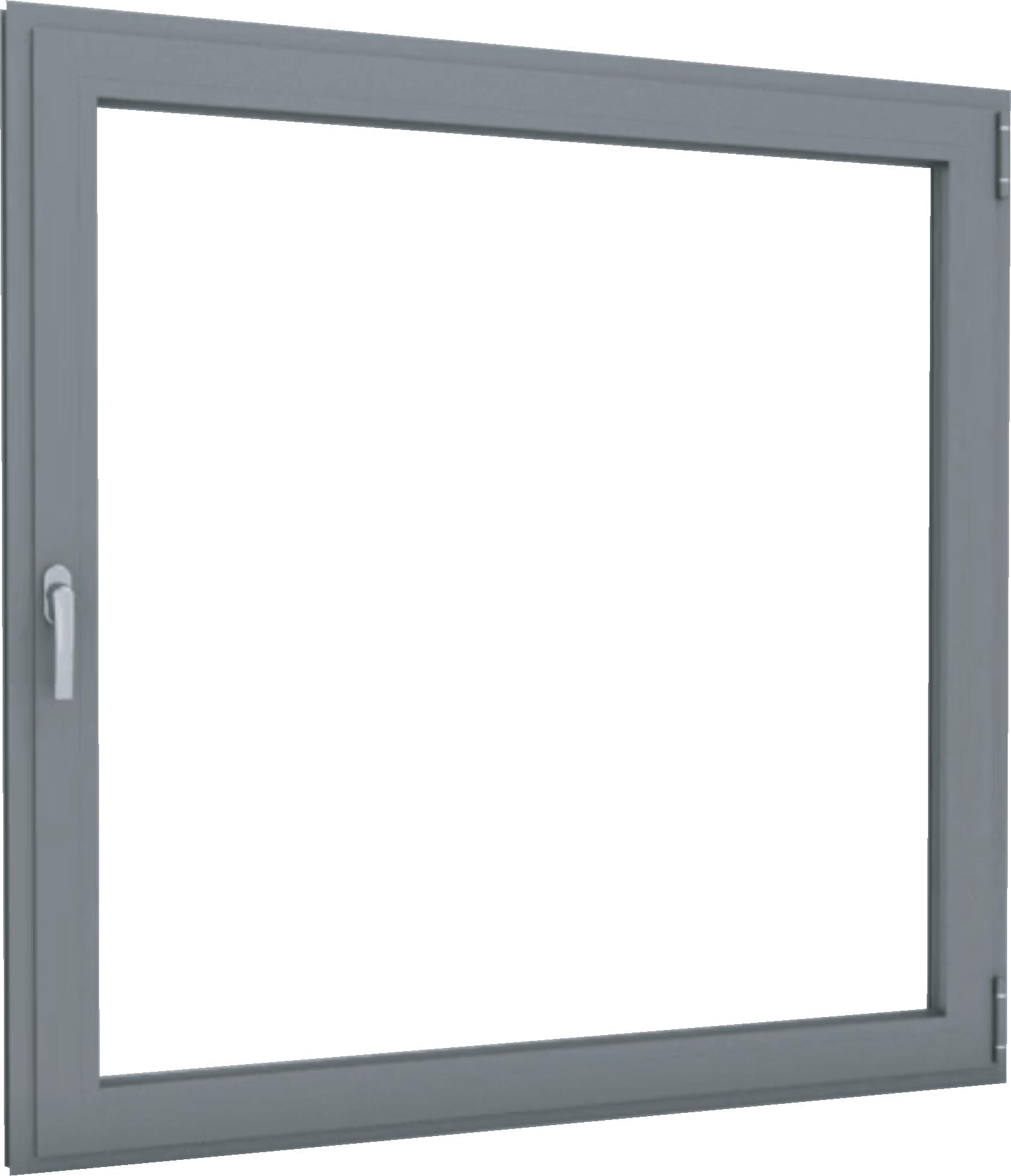

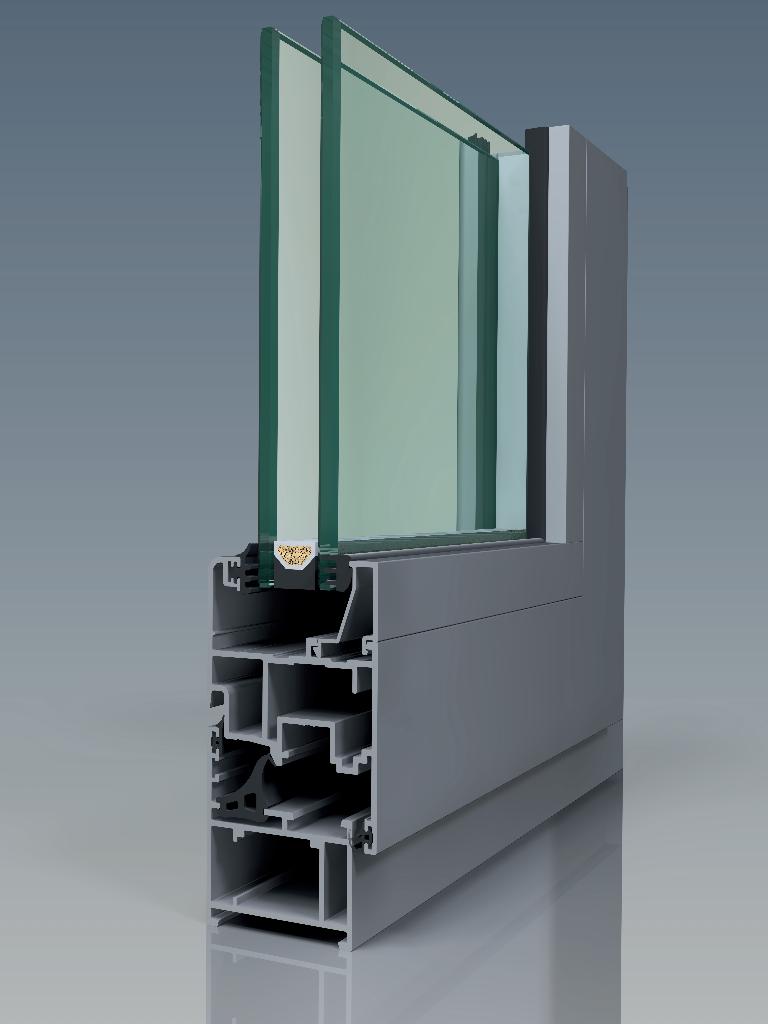

The EXT45 Casement Series allows for large dimensions and provides excellent natural light, creating a comfortable and pleasant indoor atmosphere.

14 Features.

Designed for large and heavy sashes.

Fewer components due to pre-assembled hinge pins with retention.

Aesthetic solutions featuring concealed hinges.

Time-saving installation thanks to the pre-mounted clip-on system.

Wide range of accessories available, such as security strikers and opening limiters.

Maximum sash weight: 130 kg (287 lb).

Hardware and accessories coated with nanoparticle surface technology.

Glass types available: (Vilax – Laminated Safety Glass) (DVH – Insulated Glass Unit) (FUERTEX – Tempered Safety Glass)

For more details, refer to the Technical Data Sheet.

15 Configurations.

There are typical designs for the system, such as those indicated below:

CONFIGURATION: X

CONFIGURATION: XX

22 16 Dimensiones.

Dimensions.

Thesiguiente La followingtabla tablecontiene lists the minimum las medidas andmínimas maximum y máximas dimensions porthat hojamust que deben be observed respetarse for proper para el system buenperformance. funcionamiento del sistema.

Oppening Width/ Ancho X (móvil) number of panels

Alto X (móvil) Oppening Height

Minimum Mínimo

Maximum Máximo

Minimum Mínimo

Maximum Máximo

200 405 mm

1600 mm

520 mm

2700 mm

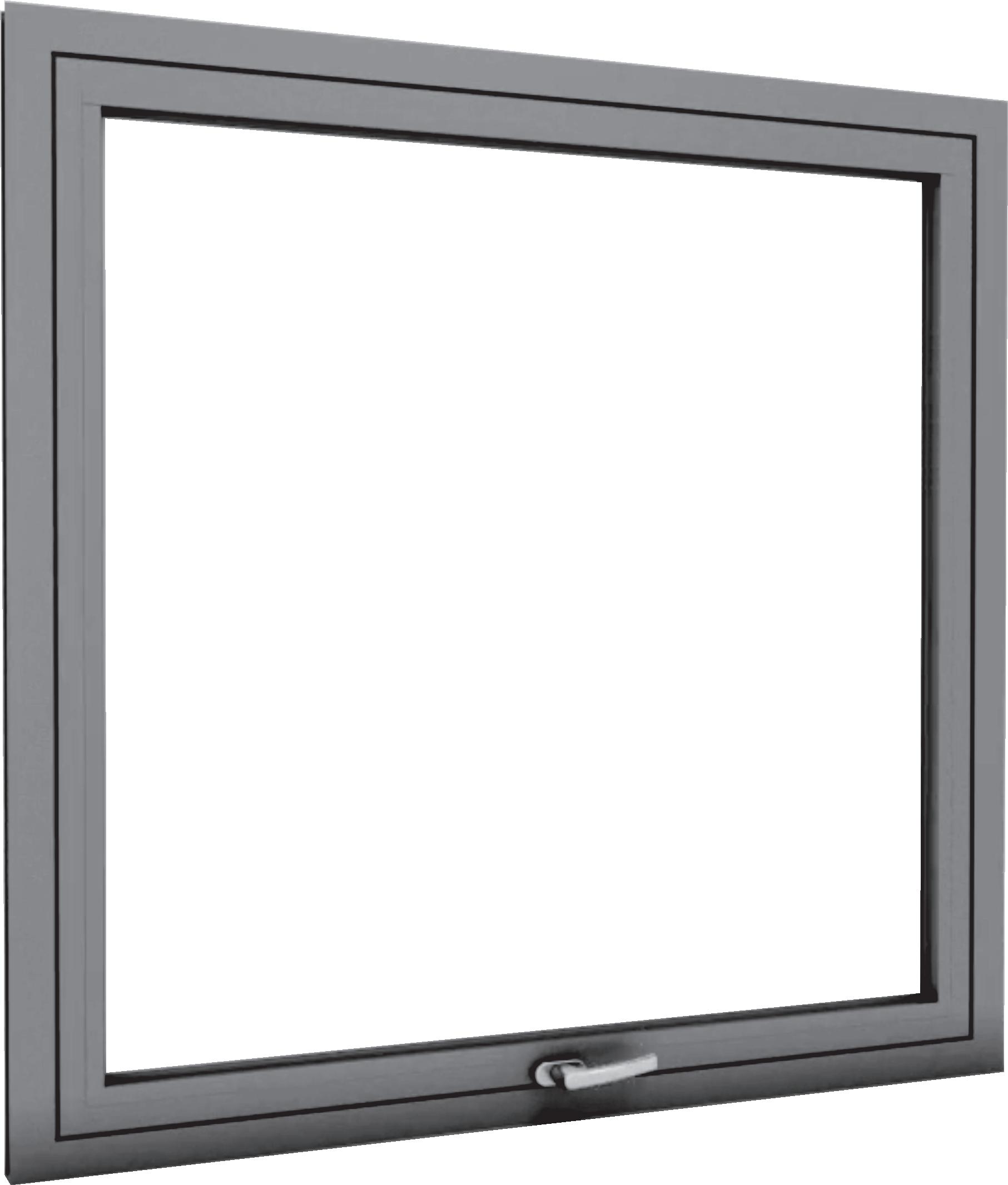

The EXT45 proyecting features a minimalist design with clean, modern lines and an elegant, understated appearance.

18 Features.

Equipped with multi-point locking system.

Available in various security levels.

Locking points include security locks and opening limiters.

Maximum sash weight: 180 kg (397 lb).

Hardware features nanoparticle coating technology for superior durability.

Glass types available: (Vilax – Laminated Safety Glass) (DVH – Insulated Glass Unit) (FUERTEX – Tempered Safety Glass)

For more information, refer to the Technical Data Sheet.

19 Configurations.

There are typical designs for the system, such as those indicated below:

CONFIGURATION: X

CONFIGURATION: O

V.F

CONFIGURATION: XO INWARD / OUTWARD OPENING

V.F

20 Dimensions.

The following table lists the minimum and maximum dimensions that must be observed for proper system performance.

Operable Panel

Oppening Width/ number of panels

Oppening Height/ number of panels

Minimum

Maximum

Minimum

Maximum

400 mm

2000 mm

450 mm

2500 mm

Fixed Panel

Fixed Width/ number of panels

Fixed Height/ number of panels

Minimum

Maximum

Minimum

Maximum

350mm

3000 mm

450 mm

3100 mm

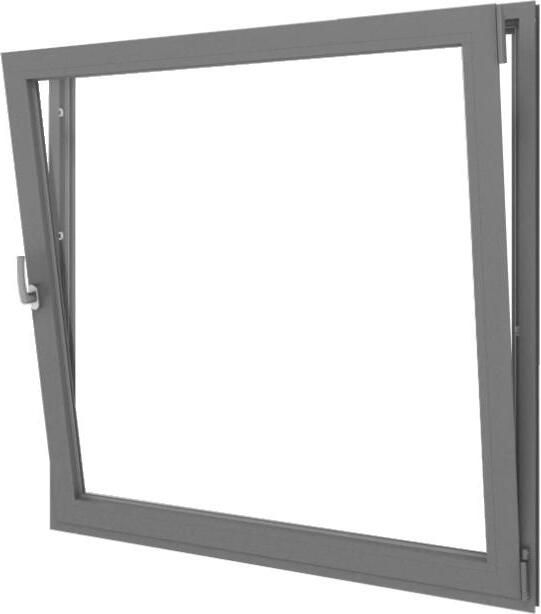

The EXT45 Tilt & Turn Series meets the highest requirements for safety, ease of operation, durability, and design.

22 Features.

Suitable for large and heavy sashes.

Fewer components thanks to pre-assembled hinge pins with pin retention system.

Aesthetic solutions with concealed hinges.

Wide range of accessories available, including security strikers and opening limiters.

Time-saving installation due to pre-mounted clip-on system.

Maximum sash weight: 100 kg (220 lb).

Hardware features nanoparticle coating technology for improved performance and longevity.

Glass configurations: •(Vilax – Laminated Safety Glass) • (DVH – Insulated Glass Unit) • (FUERTEX – Tempered Safety Glass)

For more information, refer to the Technical Data Sheet.

30 23 Configurations.

There are typical designs for the system, such as those indicated below:

CONFIGURATION: X

CONFIGURATION: XO

V.F

24 Dimensions.

The following table lists the minimum and maximum dimensions that must be observed for proper system performance.

Oppening Width/ number of panels

Oppening Height

Minimum

Maximum

Minimum

Maximum

290 mm

1600 mm

280 mm

2400 mm

FIXED

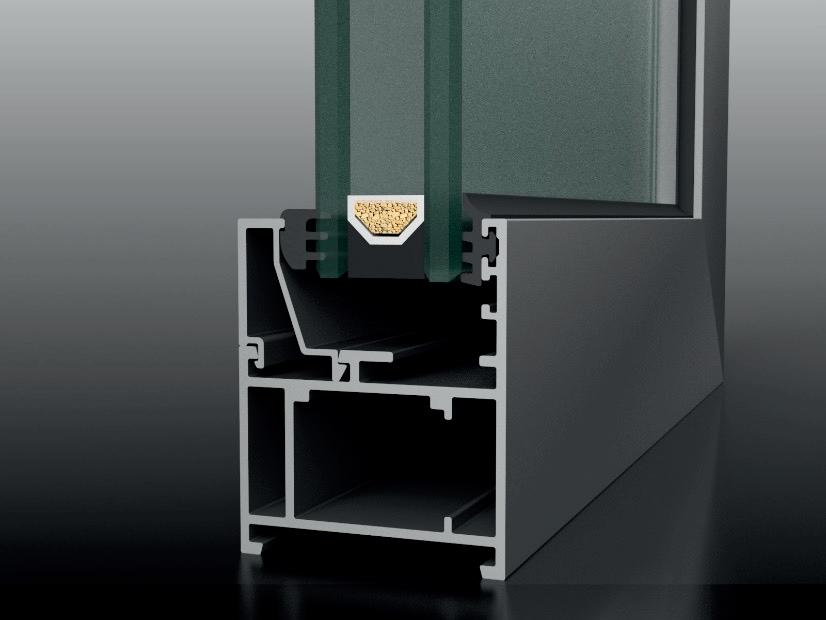

The EXT45 Fixed provides optimal sealing performance and can be adapted to a wide range of window formats.

26 Features.

Equipped with EPDM gaskets for optimal sealing and weather resistance.

Hardware and accessories feature nanoparticle coating technology for enhanced performance.

Glass configurations: (Vilax – Laminated Safety Glass) (DVH – Insulated Glass Unit) (FUERTEX – Tempered Safety Glass)

For more information, refer to the Technical Data Sheet.

27 30 Configurations.

There are typical designs for the system, such as those indicated below:

CONFIGURATION: O

CONFIGURATION: XO

V.F V.F

V.F

CONFIGURATION: OO/XX

V.F V.F

V.F V.F

V.F

V.F

28 Dimensions.

The following table lists the minimum and maximum dimensions that must be observed for proper system performance.

Oppening Width/ number of panels

Oppening Height/ number of panels

Minimum

Maximum

Minimum

Maximum

350 mm

3000 mm

450 mm

3100 mm

29 Finishes.

Choose the color you like Lacquered or anodized aluminum profiles available in a range of colors.

Choose the color that best fits your design:

Natural 10

White 51

Black 90

Black 81

Note: Other finishes available upon request, with delivery times subject to agreement.

30 Glass Configurations.

The system comes standard with Fuertex and Vilax glass configurations.

Available glass types and thicknesses include:

10 mm

46.2 mm 64.2 mm 66.2 mm 66.4 mm

12 mm

12.90 mm

6 mm 8 mm

Nominal thickness range: 24–30 mm with spacers of 11.5 mm and 16 mm.

SENTRYGLAS®

Incorporate Fuertex or Vilax safety glass into your project to protect the integrity of occupants and the safety of property.

Apply standard INTE C312:2019, which specifies the use of safety glass in glazed areas considered to present risk, namely: Section 7.2: Doors Section 7.3: Side panels adjacent to a door Section 7.4: Low-height glazed areas

31 Performance.

The EXT45 systems feature unique characteristics designed to integrate seamlessly into all types of architectural projects.

The system performs reliably even under adverse weather conditions, offering high airtightness and excellent thermal insulation.

It enhances overall comfort by providing superior acoustic insulation, ensuring peaceful and pleasant indoor environments.

32 Applications.

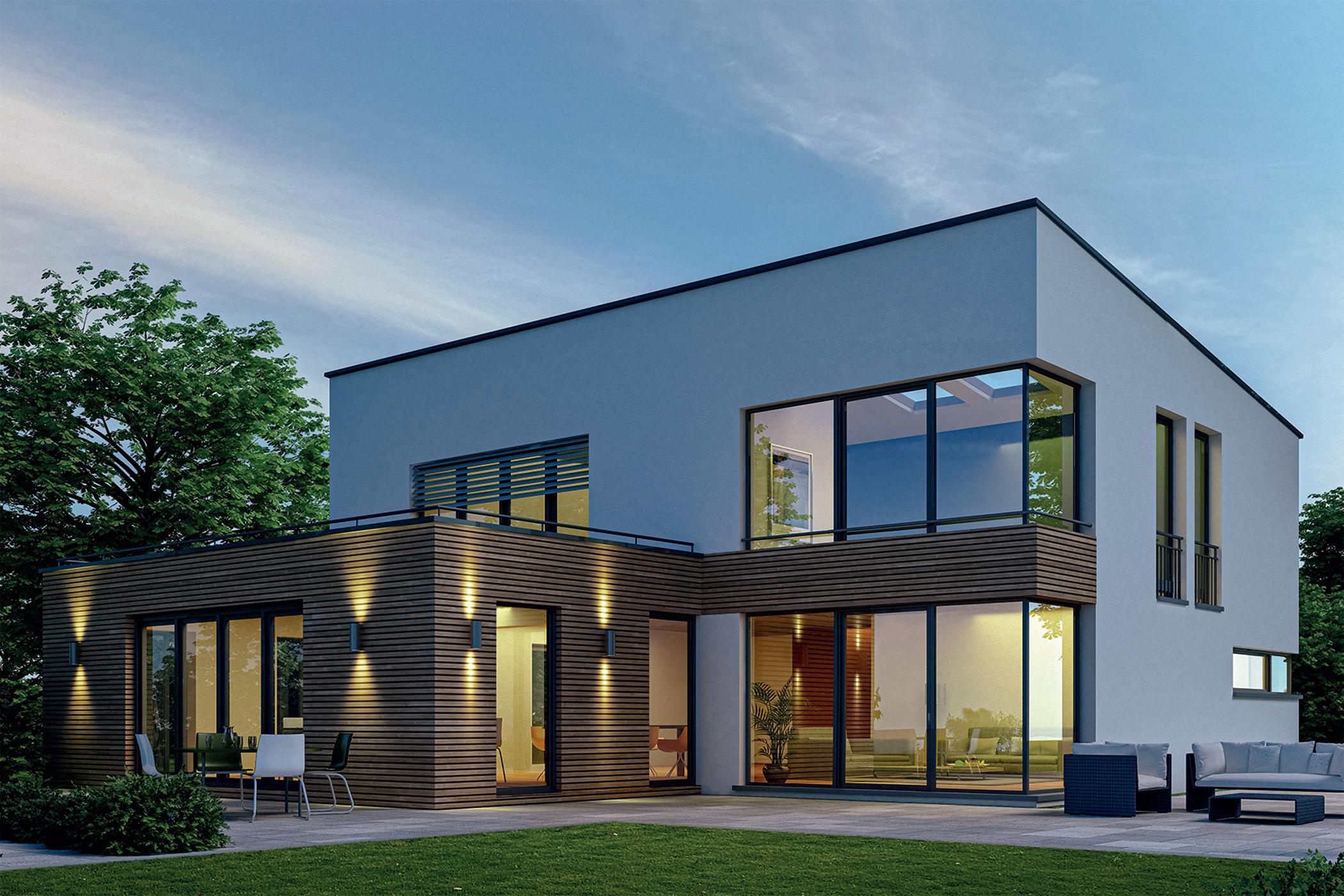

The EXT45 systems are suitable for a wide variety of applications, including residential buildings, commercial premises, restaurants, offices, hospitals, banks, retail stores, and supermarkets.

V2.2025
