September 2022 - December 2022
NAME: Rebecca Noronha | SEMESTER: IX B | USN: 4SN18ATO54
NAME: Rebecca Noronha | SEMESTER: IX B | USN: 4SN18ATO54
The Garage Aid is a firm that believes in a holistic approach, let it be the design or the services they provide. They do Architecture, landscape, and interior design. They have in the past done majorly small-scale projects that include redevelopment projects, Luxury Villas, commercial buildings, repurposing functionality, interiors, and landscape.
Principal architects: Ar.Ezra D'Souza and Ar. Giselle Ann Lobo
Senior architects: Ar Siddharth Malur, Ar Sonali Bahugini and Ar Shubham Nagarkar
Site engineer: Sunil Angadi
My main intention for the internship was to be able to develop a good skillset and to be able to understand how an architectural firm works I also wanted to work in a firm in which I could contribute to projects significantly and I had many such opportunities.
I also wanted to know the entire process of construction, from the conceptual stage to execution Along with that, I want to know how an architectural office functions, how things work on-site, and what is the architect’s role in the entire process.
Initially I was very worried as to how I would cope with the work environment, however when I started interning at the Garage AID, everyone in the team was very warm. There is no rigid hierarchy in the firm which allows everyone from senior architects to interns to contribute to projects
I also had great mentors who corrected me and helped me in my work with utmost patience. Of course, there were some days which were hard and pressurising and yet other days where I felt so motivated about architecture, but I also got a chance to understand my interests in architecture and found out my weaknesses and strengths.
Interning completely changed my perspective about architecture in the real world The amount of effort that went into even a small projects and how accuracy is key for proper execution is something I learnt through this experience.
I also had the opportunity to deal with selection and ordering of materials for interiors and coordinating with the site supervisor to make sure the work was being done as per drawings. Overall the experience gave me a reality check of how an architectural firm runs and what an architect should and should not do to make sure its smooth.

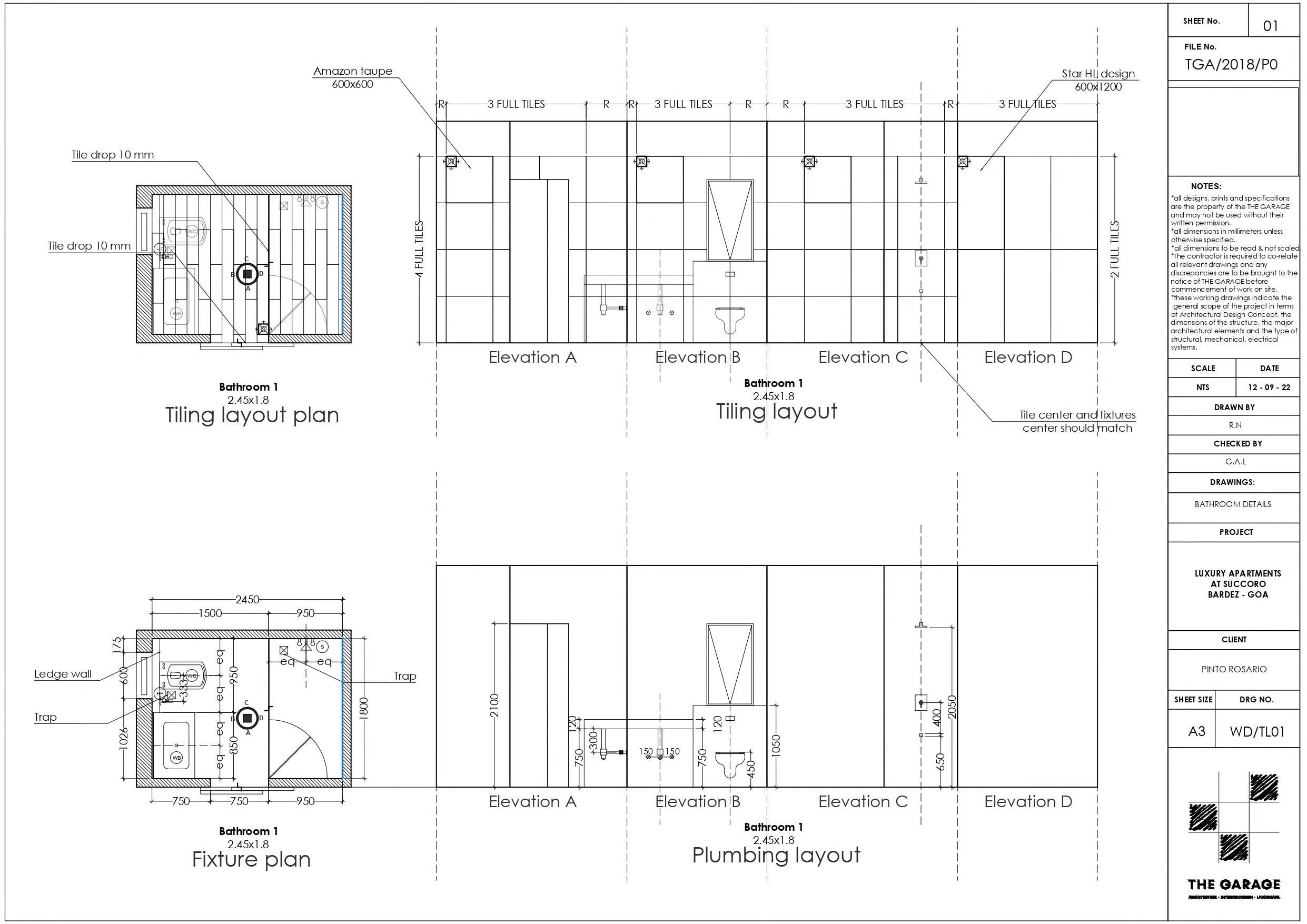

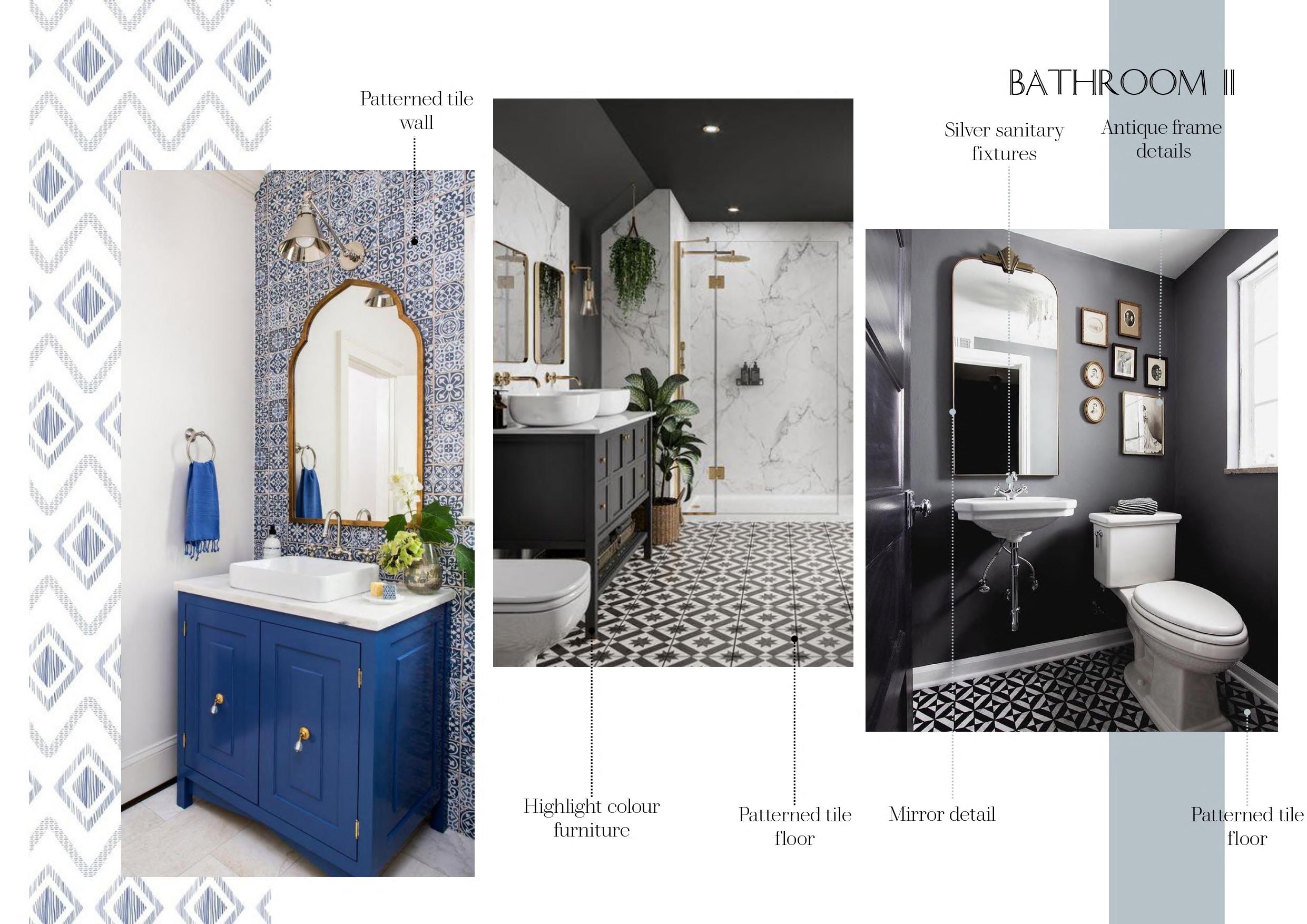

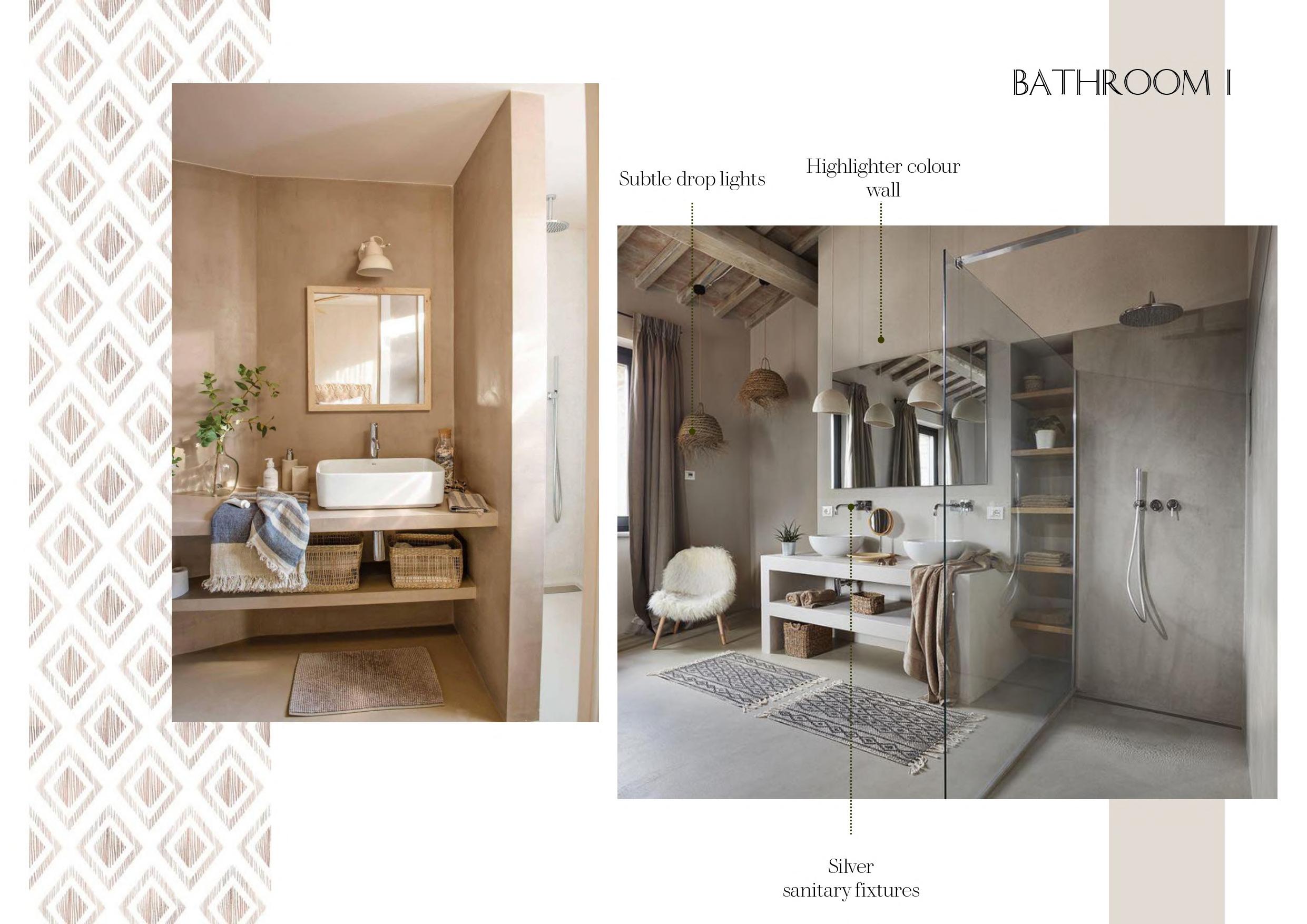

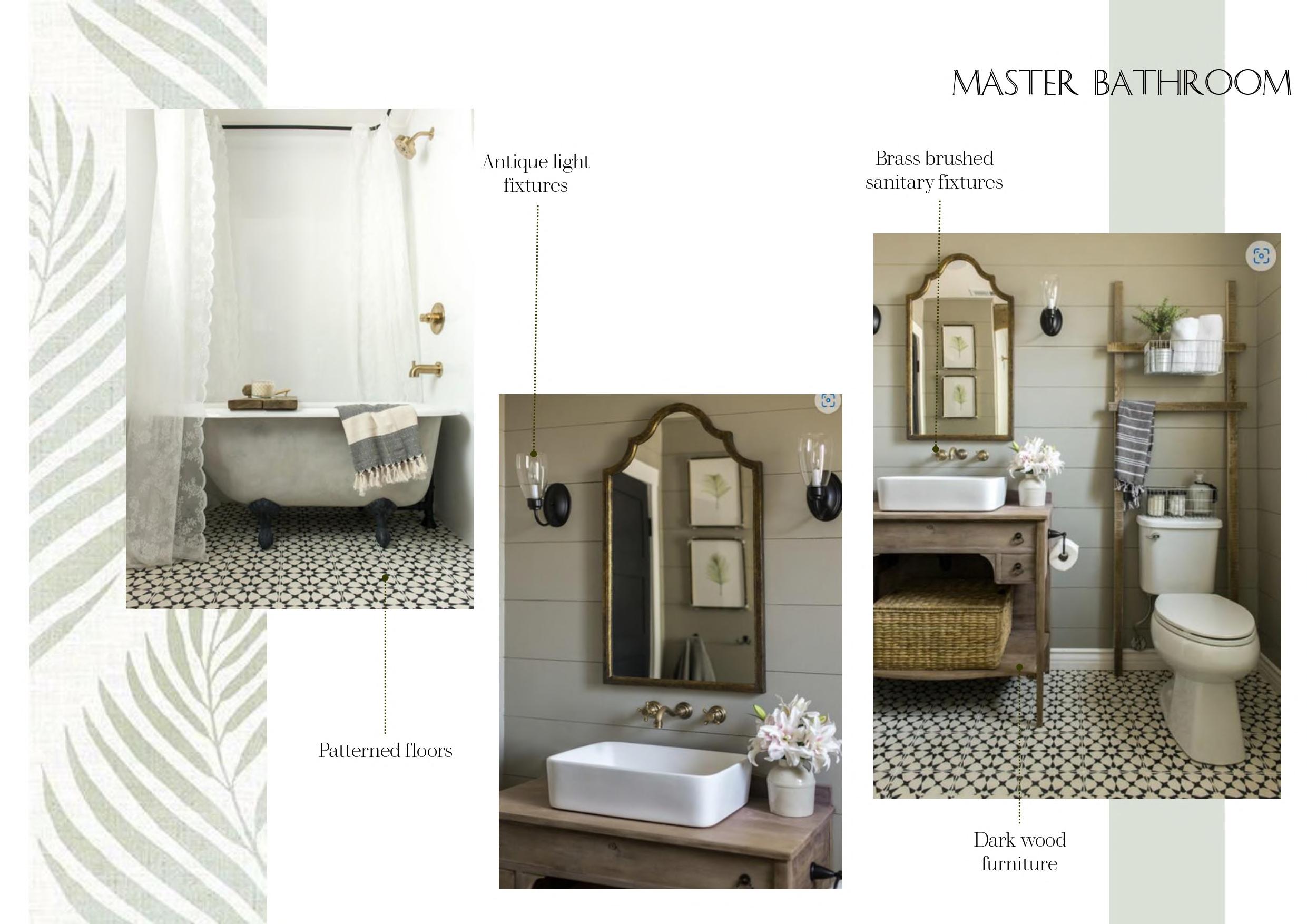

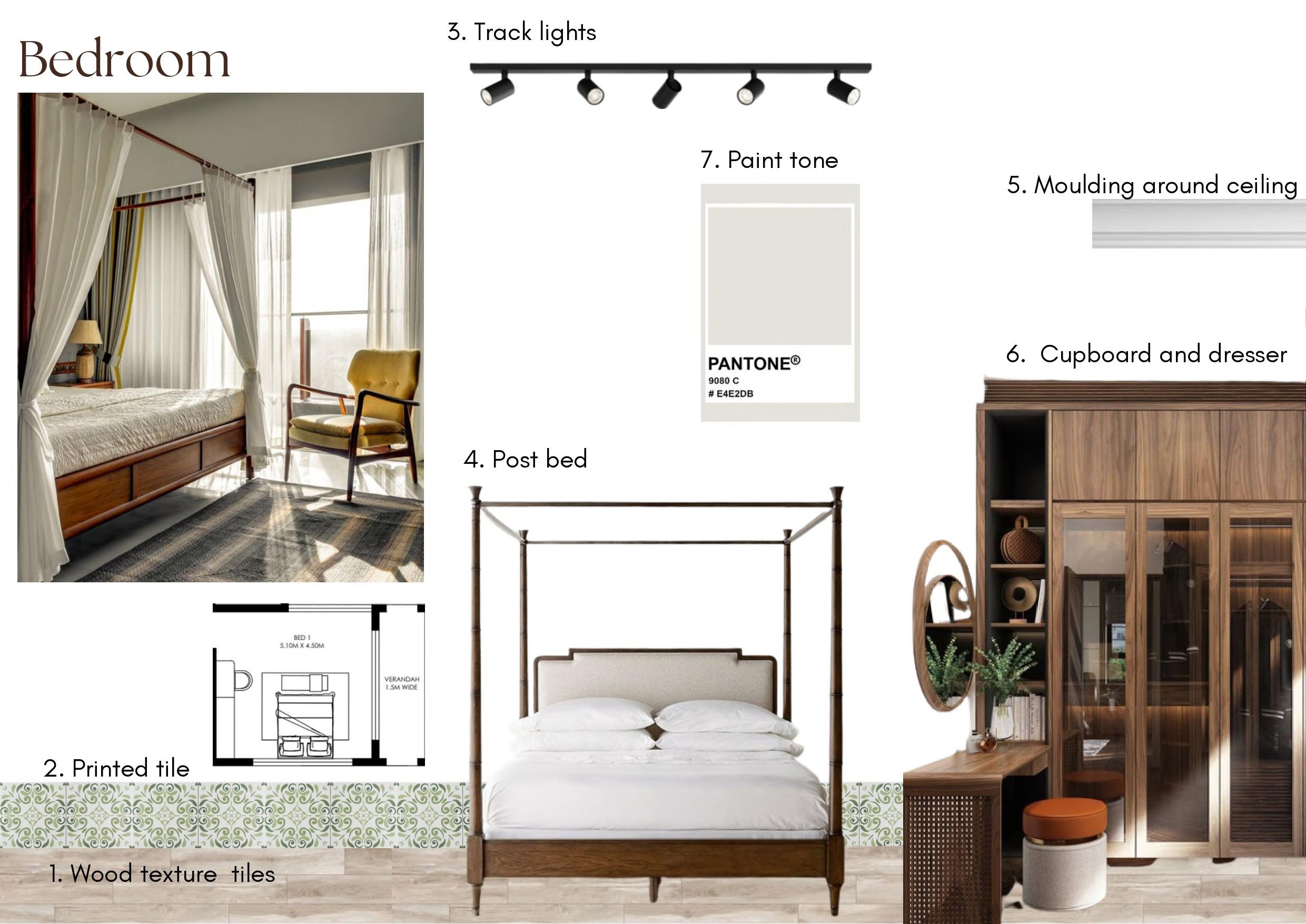

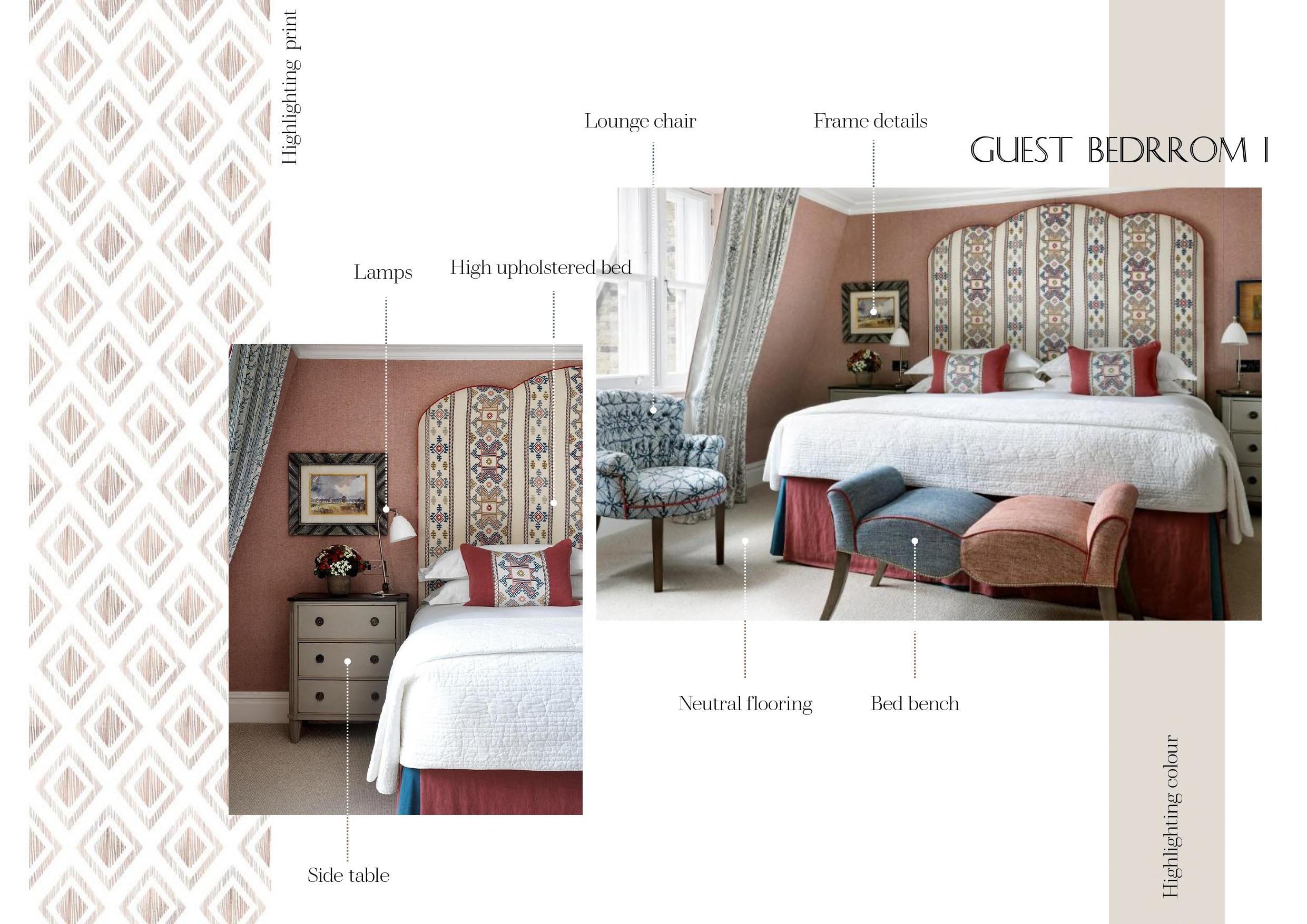

An interior project for a luxury apartment at Socorro, Bardez- Goa
NOTES:
1.all designs, prints and specifications are the property of the THE GARAGE and may not be used without their written permission.
2. all dimensions in millimeters unless otherwise specified.
3.All dimensions to be read & not scaled.
4.The contractor is required to co-relate all relevant drawings and any discrepancies are to be brought to the notice of THE GARAGE before commencement of work on site.
5.These working drawings indicate the general scope of the project in terms of Architectural Design Concept, the dimensions of the structure, the major architectural elements and the type of structural, mechanical, electrical systems.
DRAWN BY:
Rebecca Noronha
CHECKED BY:
Giselle Ann Lobo
DRAWINGS:

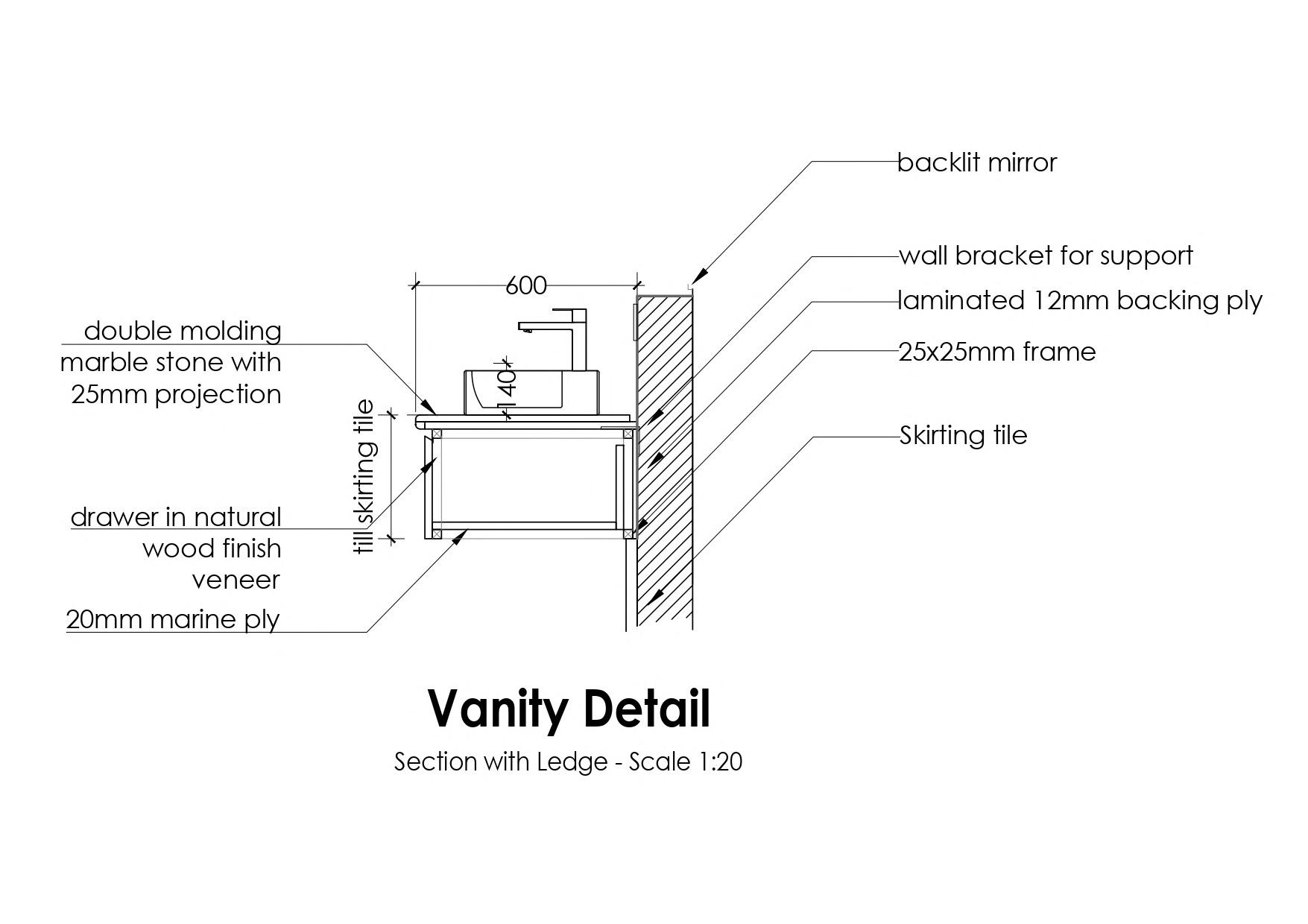

Plumbing and Tiling
PROJECT:
LUXURY APARTMENT AT SOCCORO BARDEZ - GOA
CLIENT:
DEEPTI PINTO ROSARIO
SHEET SIZE DRG NO. A3 WDTL/01
DATE: 12/09/2022
NOTES:
1.all designs, prints and specifications are the property of the THE GARAGE and may not be used without their written permission.
2. all dimensions in millimeters unless otherwise specified.
3.All dimensions to be read & not scaled.
4.The contractor is required to co-relate all relevant drawings and any discrepancies are to be brought to the notice of THE GARAGE before commencement of work on site.
5.These working drawings indicate the general scope of the project in terms of Architectural Design Concept, the dimensions of the structure, the major architectural elements and the type of structural, mechanical, electrical systems.
DRAWN BY:
Rebecca Noronha
CHECKED BY:
Giselle Ann Lobo
DRAWINGS:

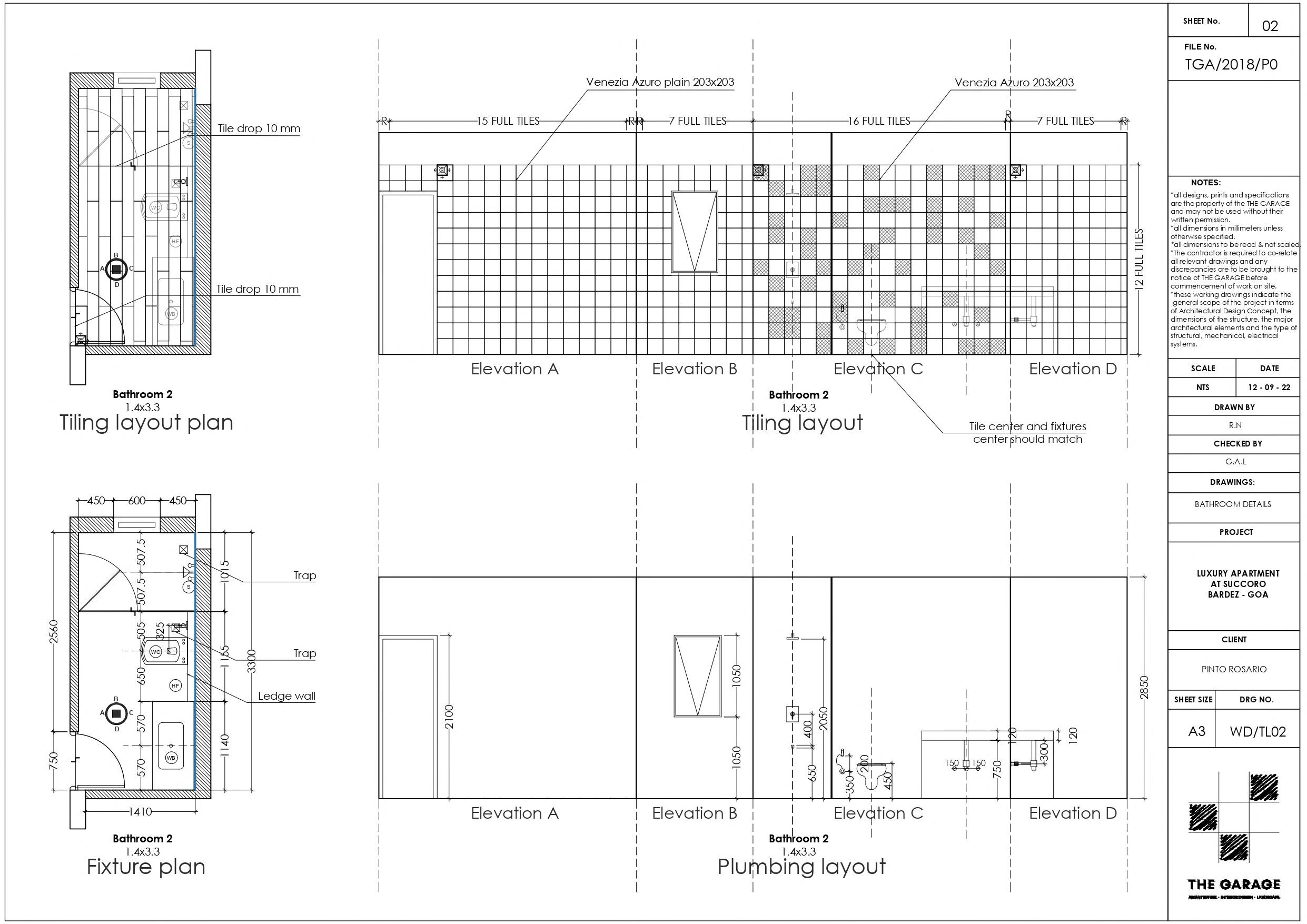

Plumbing and Tiling
PROJECT:
LUXURY APARTMENT AT SOCCORO BARDEZ - GOA
CLIENT:
DEEPTI PINTO ROSARIO
SHEET SIZE DRG NO. A3 WDTL/02
DATE: 12/09/2022
NOTES:
1.all designs, prints and specifications are the property of the THE GARAGE and may not be used without their written permission.
2. all dimensions in millimeters unless otherwise specified.
3.All dimensions to be read & not scaled.
4.The contractor is required to co-relate all relevant drawings and any discrepancies are to be brought to the notice of THE GARAGE before commencement of work on site.
5.These working drawings indicate the general scope of the project in terms of Architectural Design Concept, the dimensions of the structure, the major architectural elements and the type of structural, mechanical, electrical systems.
DRAWN BY:
Rebecca Noronha
CHECKED BY:
Giselle Ann Lobo
DRAWINGS:
Plumbing and Tiling
PROJECT:
LUXURY APARTMENT AT SOCCORO BARDEZ - GOA
CLIENT:
DEEPTI PINTO ROSARIO
SHEET SIZE DRG NO. A3 WDTL/03
DATE: 12/09/2022

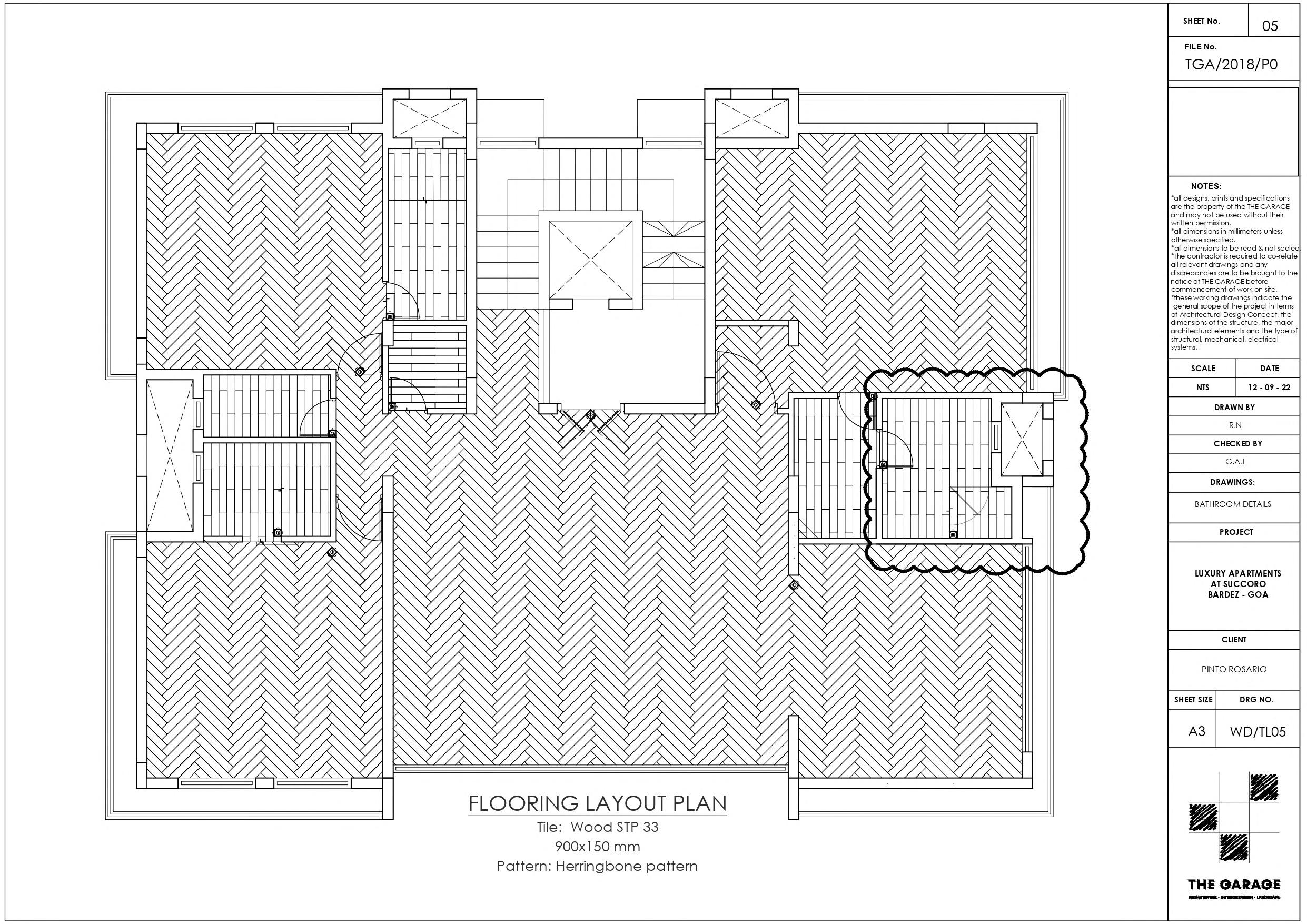

NOTES:
1.all designs, prints and specifications are the property of the THE GARAGE and may not be used without their written permission.
2. all dimensions in millimeters unless otherwise specified.
3.All dimensions to be read & not scaled.
4.The contractor is required to co-relate all relevant drawings and any discrepancies are to be brought to the notice of THE GARAGE before commencement of work on site.
5.These working drawings indicate the general scope of the project in terms of Architectural Design Concept, the dimensions of the structure, the major architectural elements and the type of structural, mechanical, electrical systems.
DRAWN BY:
Rebecca Noronha
CHECKED BY:
Giselle Ann Lobo
DRAWINGS:
Plumbing and Tiling
PROJECT:
LUXURY APARTMENT AT SOCCORO BARDEZ - GOA
CLIENT:
DEEPTI PINTO ROSARIO
SHEET SIZE DRG NO. A3 WDTL/05
DATE: 12/09/2022

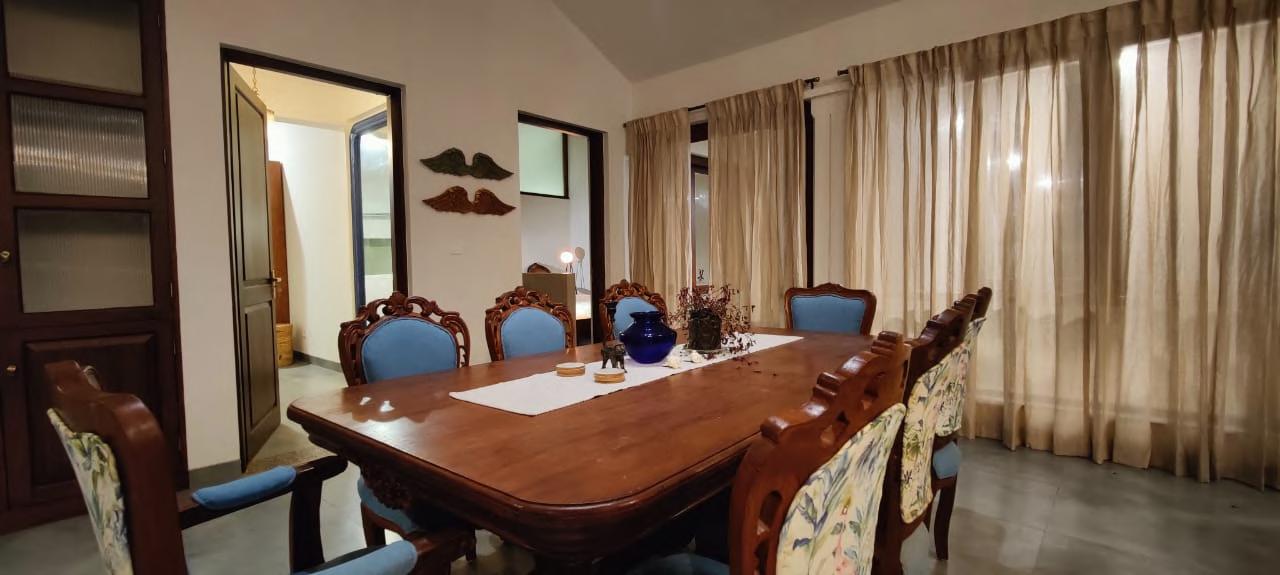

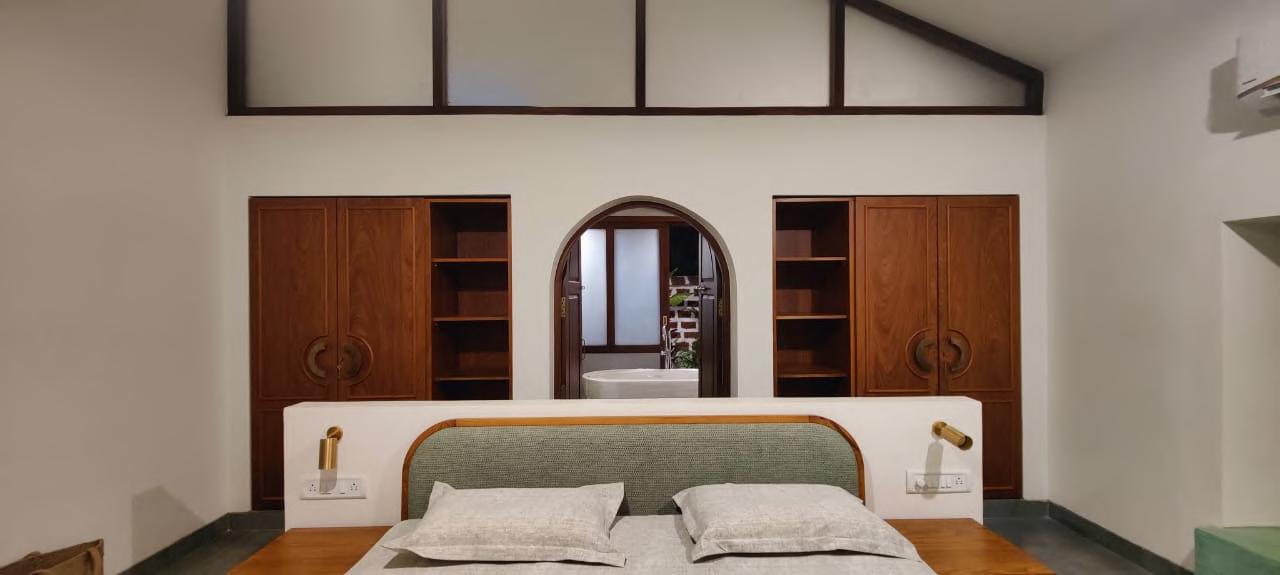

A seaside restaurant converted into a guesthouse with 12 spacious zen bedrooms. at Baga, Bardez- Goa
specifications are the and may not be used without their written permission. millimeters unless
3.All dimensions to be read & not scaled. to co-relate all discrepancies are of THE GARAGE before commencement of work on site. indicate the general of Architectural dimensions of the architectural elements structural, mechanical,
specifications are the GARAGE and may not be used without their written permission. millimeters unless
3.All dimensions to be read & not scaled. required to co-relate all any discrepancies are notice of THE GARAGE before commencement of work on site. indicate the general terms of Architectural dimensions of the architectural elements structural, mechanical,
specifications are the and may not be used without their written permission. millimeters unless
3.All dimensions to be read & not scaled. to co-relate all discrepancies are of THE GARAGE before commencement of work on site. indicate the general of Architectural dimensions of the architectural elements structural, mechanical,
BRITTO'S BED AND BREAKFAST TL/05
specifications are the GARAGE and may not be used without their written permission. millimeters unless
3.All dimensions to be read & not scaled. required to co-relate all any discrepancies are notice of THE GARAGE before commencement of work on site. drawings indicate the general terms of Architectural dimensions of the architectural elements structural, mechanical,

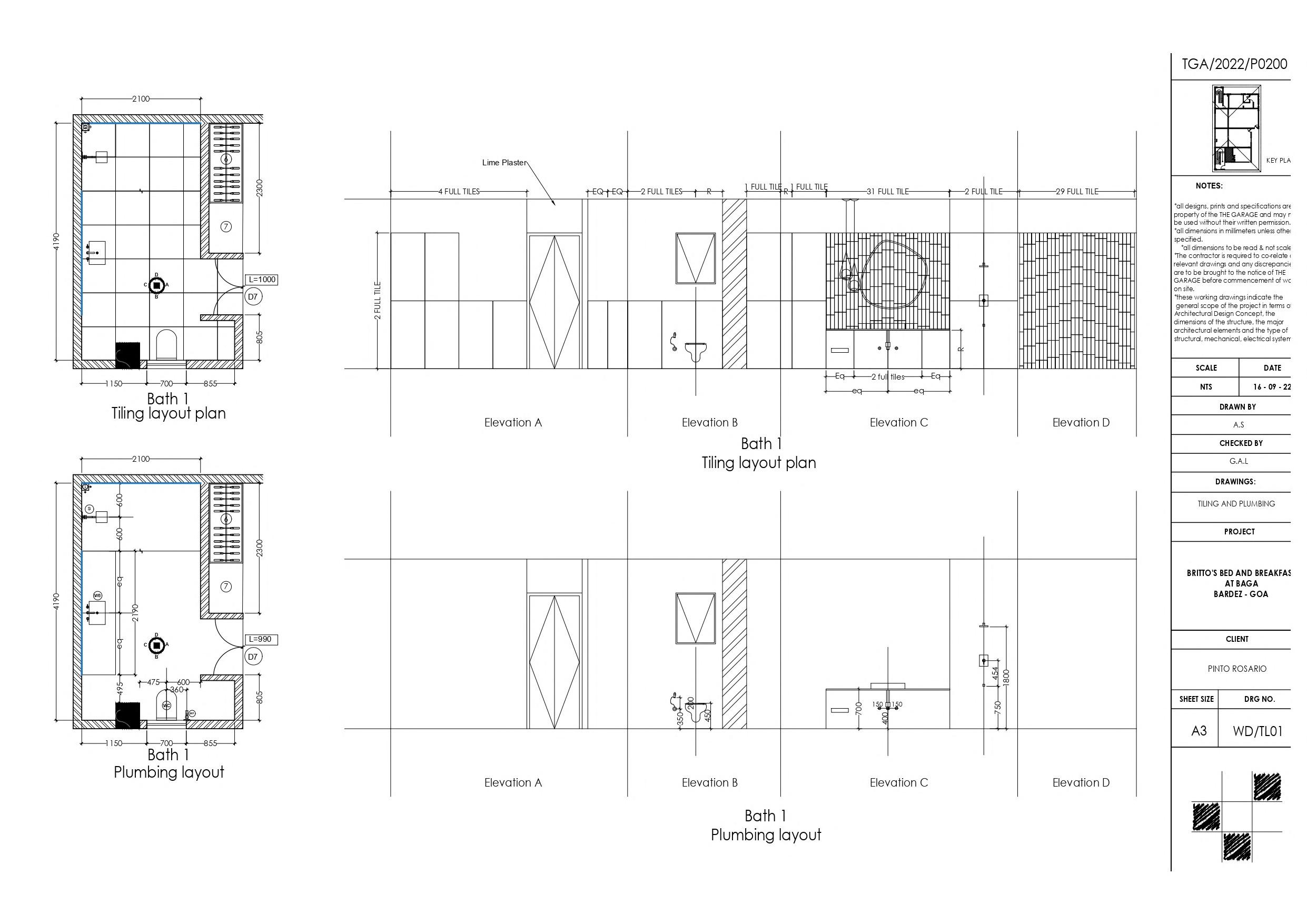

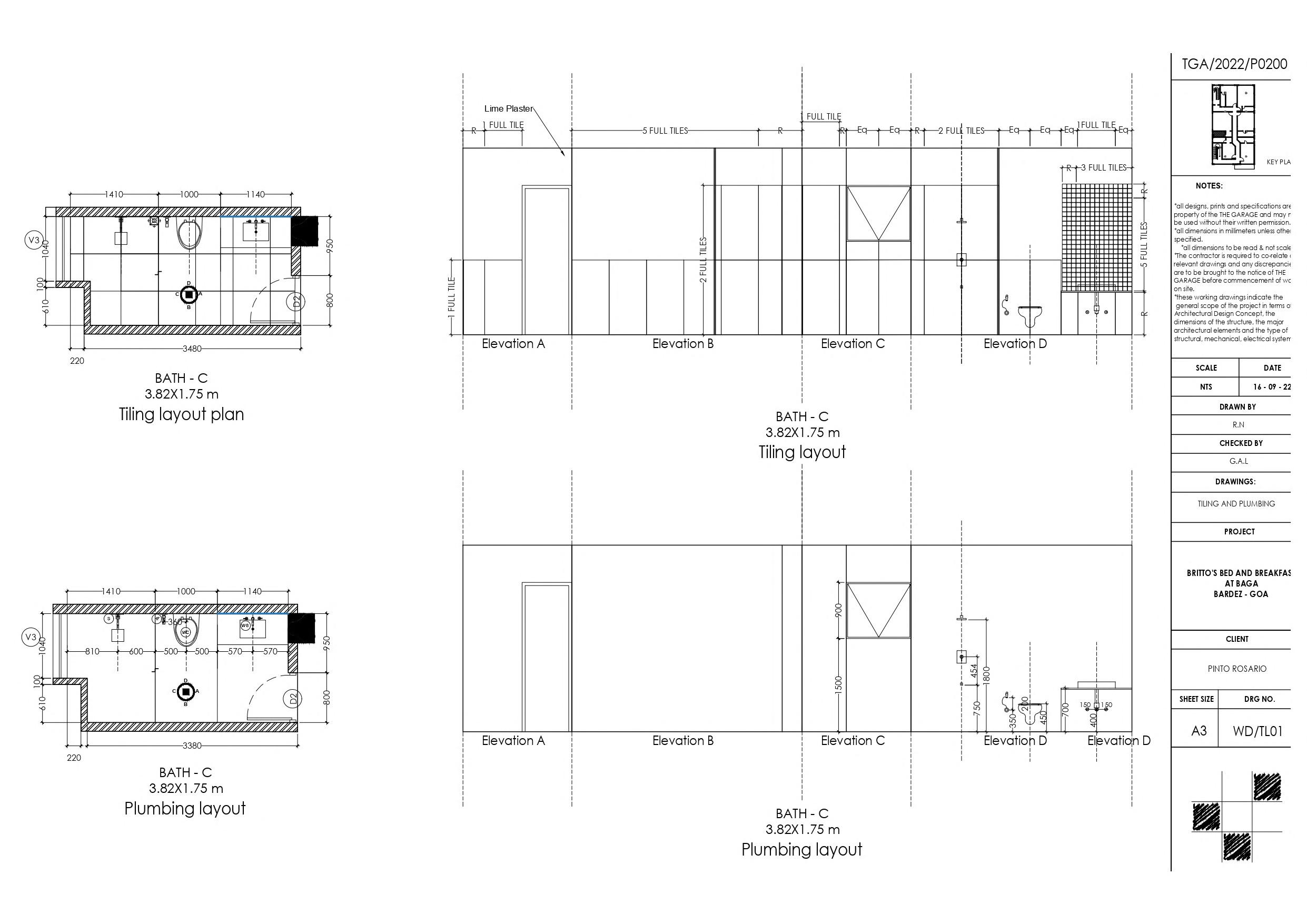

NOTES:
1.all designs, prints and specifications are the property of the THE GARAGE and may not be used without their written permission.
2. all dimensions in millimeters unless otherwise specified.
3.All dimensions to be read & not scaled.
4.The contractor is required to co-relate all relevant drawings and any discrepancies are to be brought to the notice of THE GARAGE before commencement of work on site.
5.These working drawings indicate the general scope of the project in terms of Architectural Design Concept, the dimensions of the structure, the major architectural elements and the type of structural, mechanical, electrical systems.
DRAWN BY:
Rebecca Noronha
CHECKED BY:
Giselle Ann Lobo
DRAWINGS:
Plumbing and tiling
PROJECT:
BRITTO'S BED AND BREAKFAST AT BAGA, BARDEZ - GOA
CLIENT:
CAJETAN BRITTO
SHEET SIZE DRG NO. A3 WD/EL/01
DATE: 24/09/2022
NOTES:
1.all designs, prints and specifications are the property of the THE GARAGE and may not be used without their written permission.
2. all dimensions in millimeters unless otherwise specified.
3.All dimensions to be read & not scaled.
4.The contractor is required to co-relate all relevant drawings and any discrepancies are to be brought to the notice of THE GARAGE before commencement of work on site.
5.These working drawings indicate the general scope of the project in terms of Architectural Design Concept, the dimensions of the structure, the major architectural elements and the type of structural, mechanical, electrical systems.
DRAWN BY:
Rebecca Noronha
CHECKED BY:
Giselle Ann Lobo
DRAWINGS:
Plumbing and tiling
PROJECT:
BRITTO'S BED AND BREAKFAST AT BAGA, BARDEZ - GOA
CLIENT:
CAJETAN BRITTO
SHEET SIZE DRG NO. A3 WD/EL/03
DATE: 24/09/2022
NOTES:
1.all designs, prints and specifications are the property of the THE GARAGE and may not be used without their written permission.
2. all dimensions in millimeters unless otherwise specified.
3.All dimensions to be read & not scaled.
4.The contractor is required to co-relate all relevant drawings and any discrepancies are to be brought to the notice of THE GARAGE before commencement of work on site.
5.These working drawings indicate the general scope of the project in terms of Architectural Design Concept, the dimensions of the structure, the major architectural elements and the type of structural, mechanical, electrical systems.
DRAWN BY:
Rebecca Noronha
CHECKED BY:
Giselle Ann Lobo
DRAWINGS:
Plumbing and tiling
PROJECT:
BRITTO'S BED AND BREAKFAST AT BAGA, BARDEZ - GOA
CLIENT:
CAJETAN BRITTO
SHEET SIZE DRG NO. A3 WD/EL/04
DATE: 24/09/2022
NOTES:
1.all designs, prints and specifications are the property of the THE GARAGE and may not be used without their written permission.
2. all dimensions in millimeters unless otherwise specified.
3.All dimensions to be read & not scaled.
4.The contractor is required to co-relate all relevant drawings and any discrepancies are to be brought to the notice of THE GARAGE before commencement of work on site.
5.These working drawings indicate the general scope of the project in terms of Architectural Design Concept, the dimensions of the structure, the major architectural elements and the type of structural, mechanical, electrical systems.
DRAWN BY:
Rebecca Noronha
CHECKED BY:
Giselle Ann Lobo
DRAWINGS:
Furniture drawings
PROJECT:
BRITTO'S BED AND BREAKFAST AT BAGA, BARDEZ - GOA
CLIENT:
CAJETAN BRITTO
SHEET SIZE DRG NO. A3 WD/FN/01
DATE: 24/09/2022
specifications are the and may not be used without their written permission. millimeters unless
3.All dimensions to be read & not scaled. to co-relate all discrepancies are THE GARAGE before commencement of work on site. indicate the general of Architectural dimensions of the architectural elements mechanical, D/01
NOTES:
1.all designs, prints and specifications are the property of the THE GARAGE and may not be used without their written permission.
2. all dimensions in millimeters unless otherwise specified.
3.All dimensions to be read & not scaled.
4.The contractor is required to co-relate all relevant drawings and any discrepancies are to be brought to the notice of THE GARAGE before commencement of work on site.
5.These working drawings indicate the general scope of the project in terms of Architectural Design Concept, the dimensions of the structure, the major architectural elements and the type of structural, mechanical, electrical systems.
DRAWN BY:
Rebecca Noronha
CHECKED BY:
Giselle Ann Lobo
DRAWINGS:

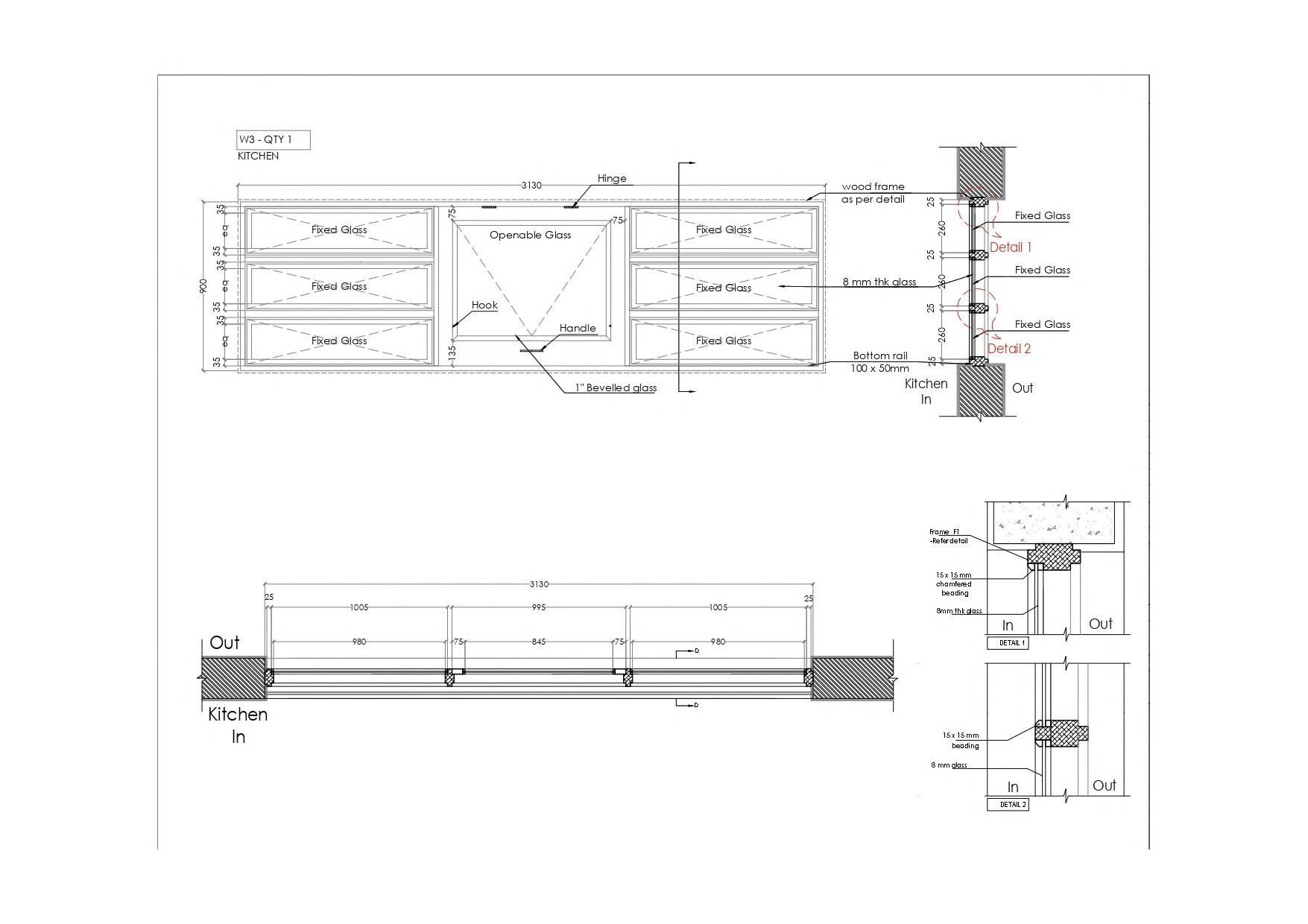

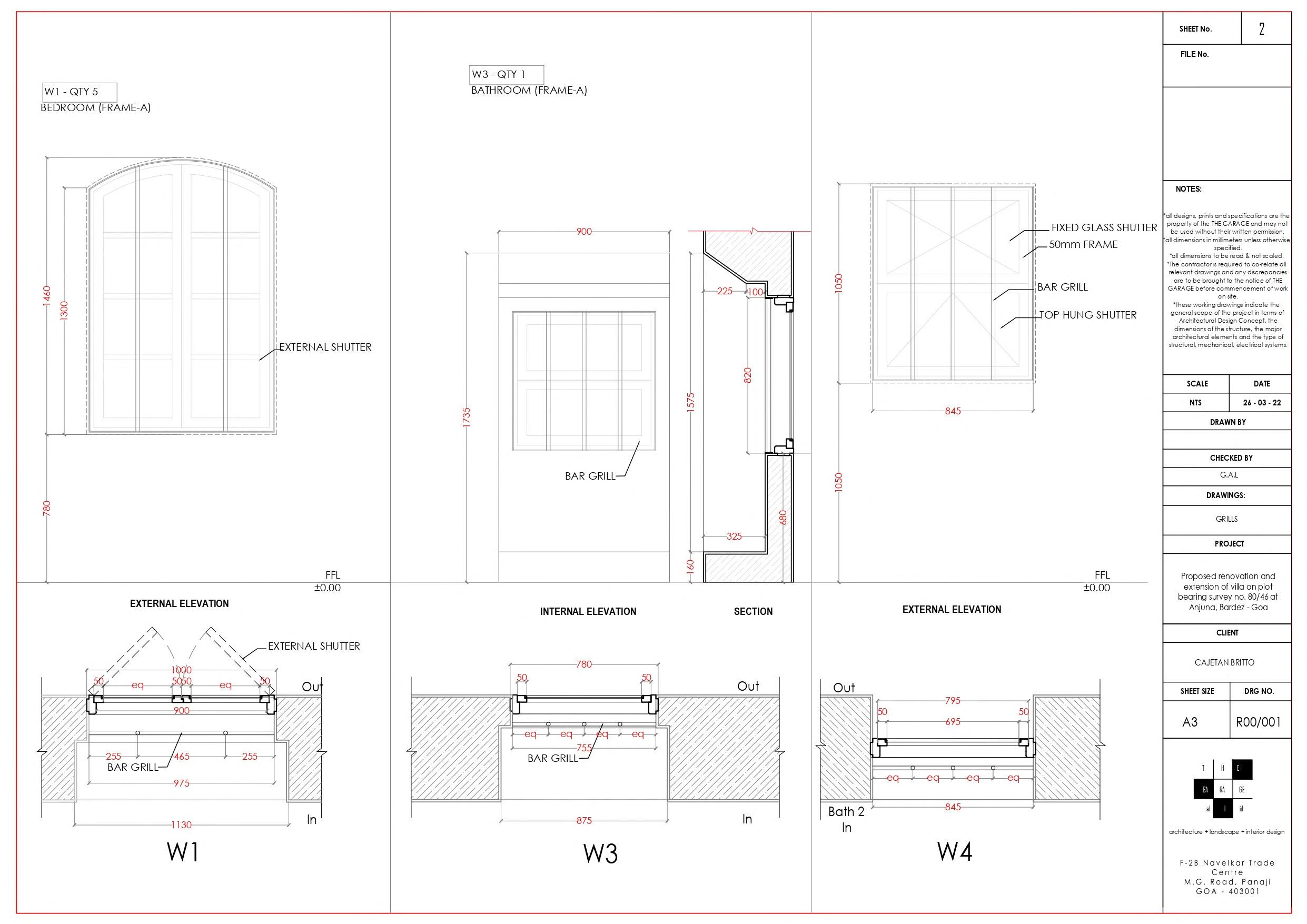

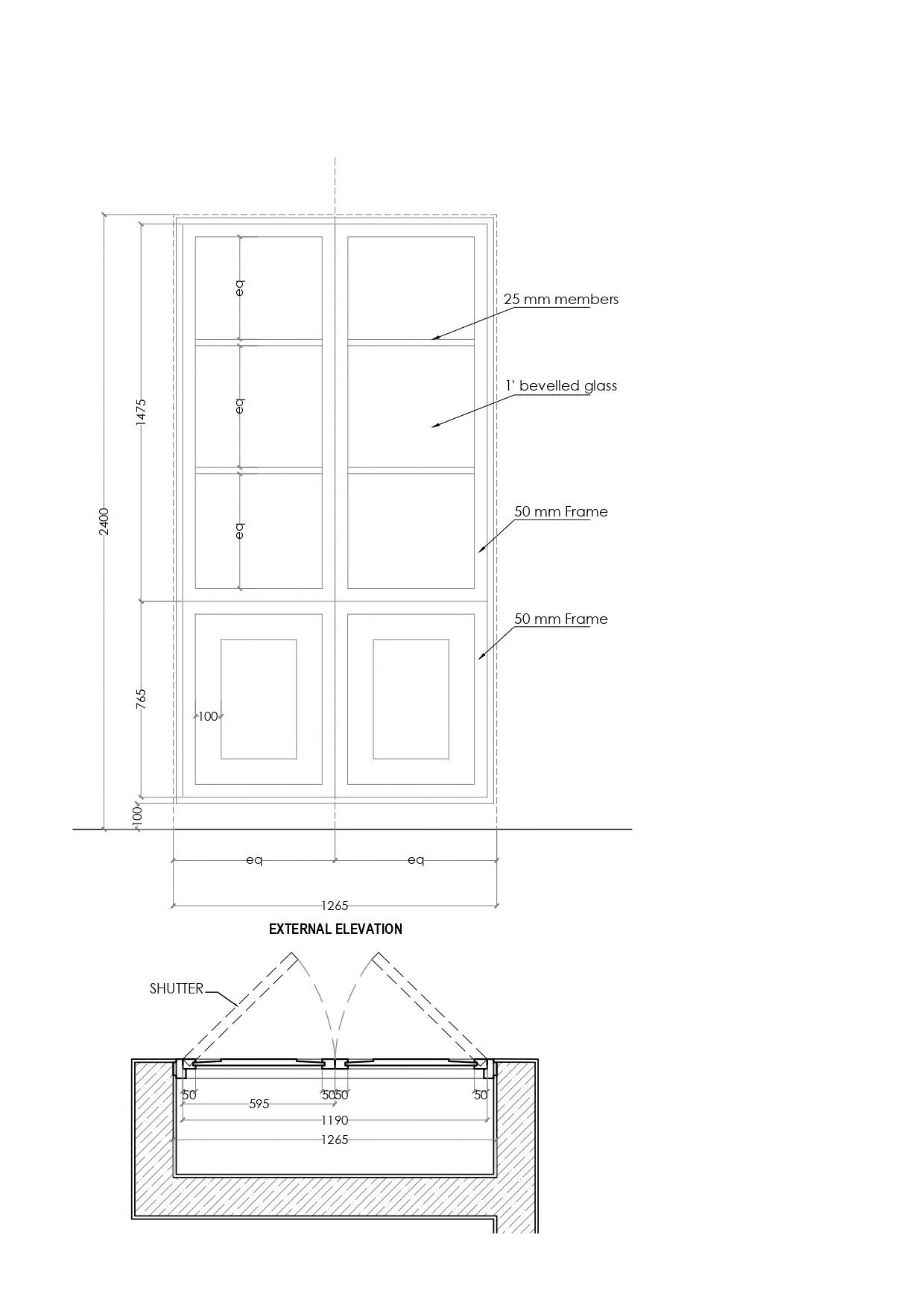

Door detailing
PROJECT:
BRITTO'S BED AND BREAKFAST AT BAGA, BARDEZ - GOA
CLIENT:
CAJETAN BRITTO
SHEET SIZE DRG NO. A3 WD/D/02
DATE: 13/10/2022
specifications are the GARAGE and may not be used without their written permission. millimeters unless
3.All dimensions to be read & not scaled. required to co-relate all any discrepancies are notice of THE GARAGE before commencement of work on site. drawings indicate the general terms of Architectural dimensions of the architectural elements structural, mechanical,
BRITTO'S BED AND BREAKFAST DRG NO. D/D/03
specifications are the GARAGE and may not be used without their written permission. millimeters unless
3.All dimensions to be read & not scaled. required to co-relate all any discrepancies are notice of THE GARAGE before commencement of work on site. indicate the general terms of Architectural dimensions of the architectural elements structural, mechanical,
BRITTO'S BED AND BREAKFAST DRG NO. D/D/04

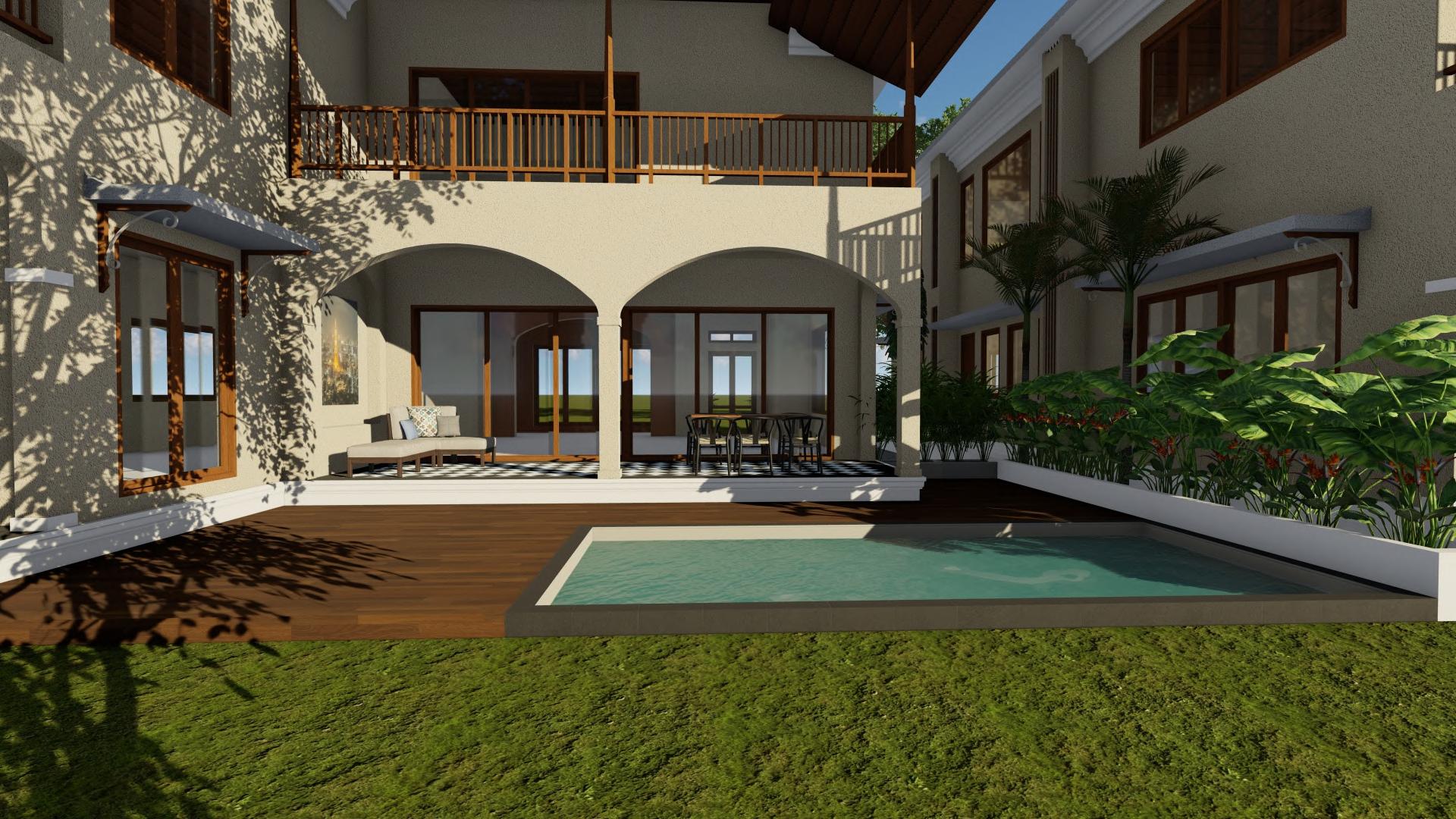

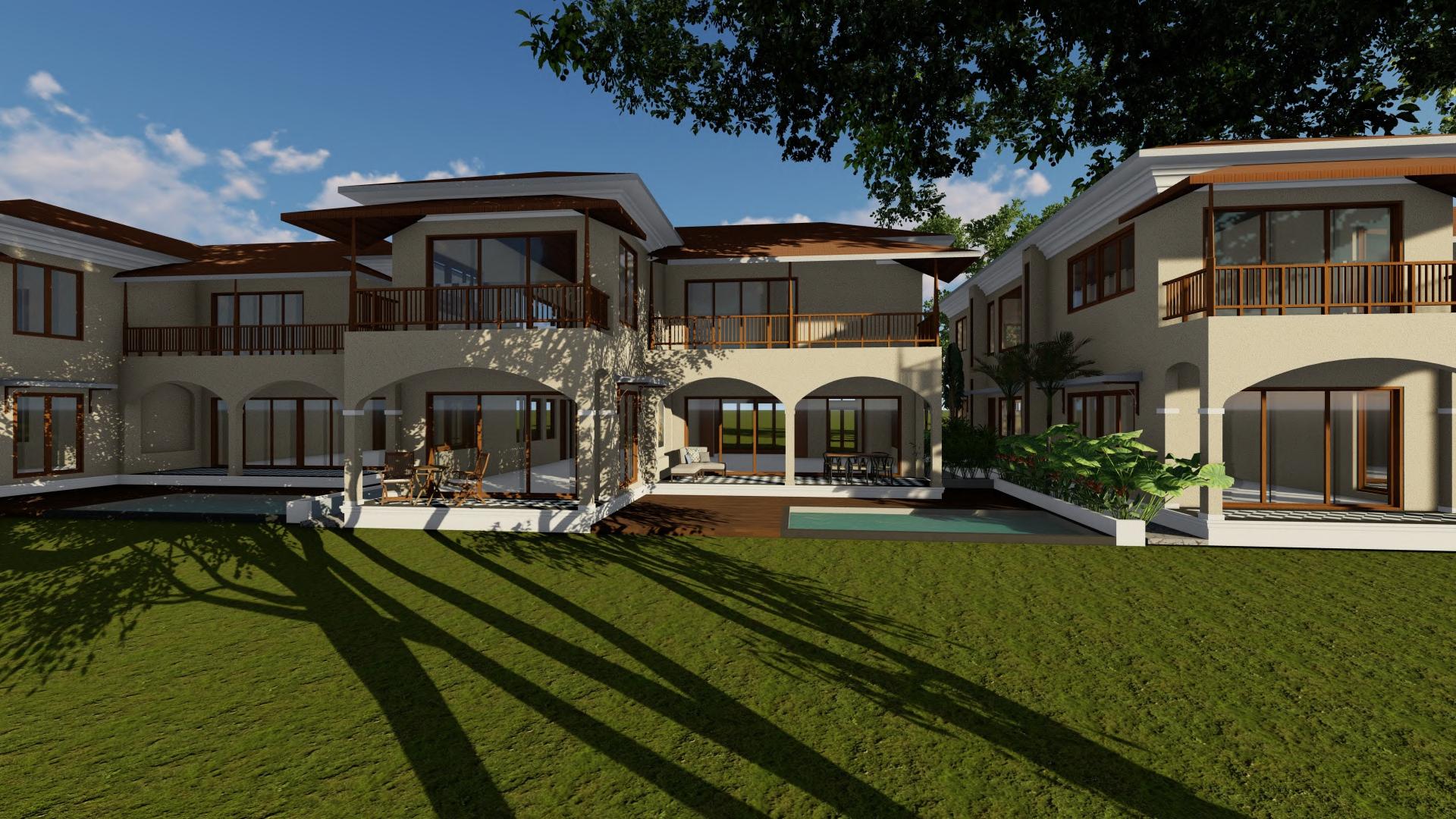

The essence of Goa meets modern Portuguese architecture in these uniquely designed 15 luxury Villas at Moira Bardez- Goa

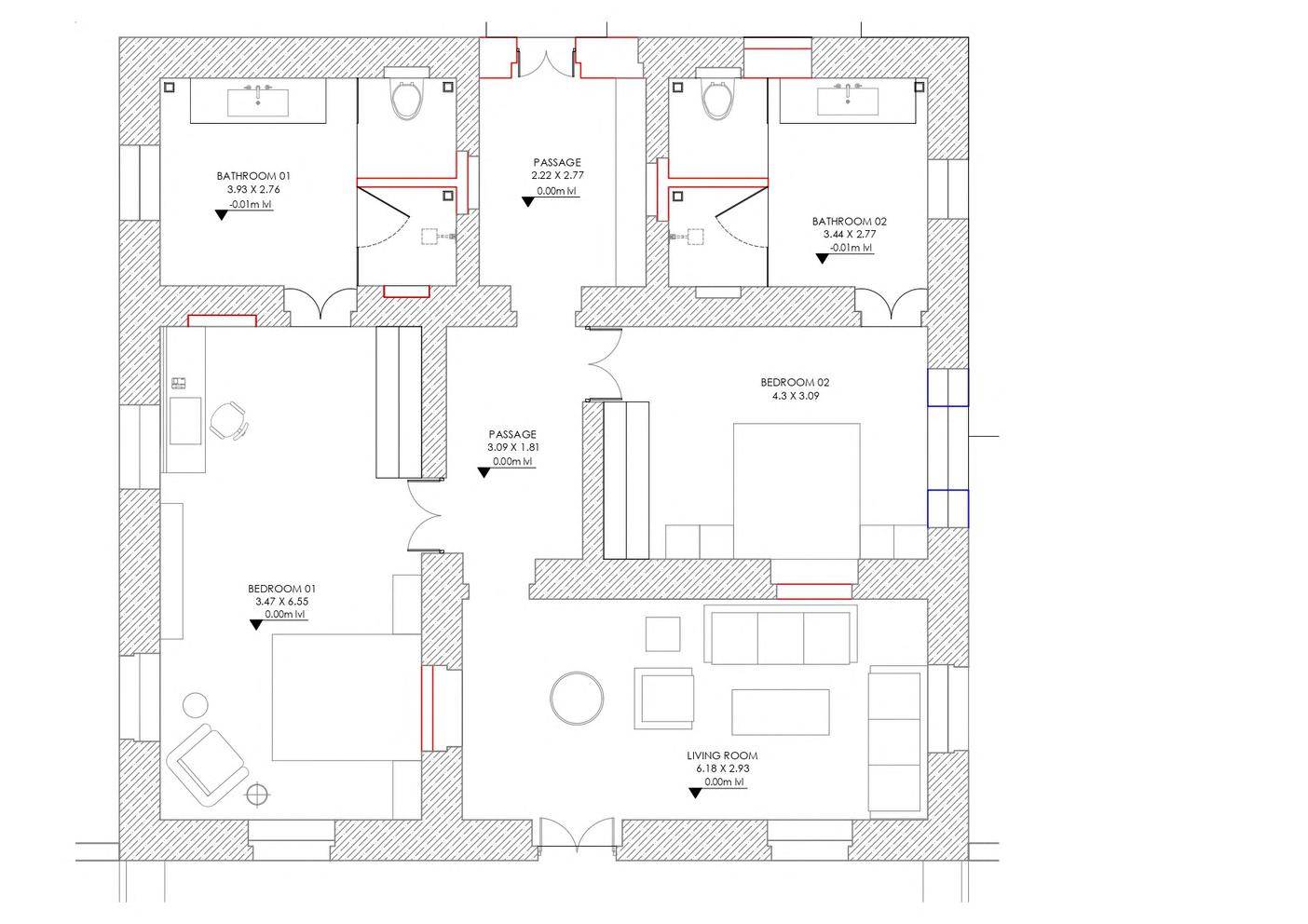

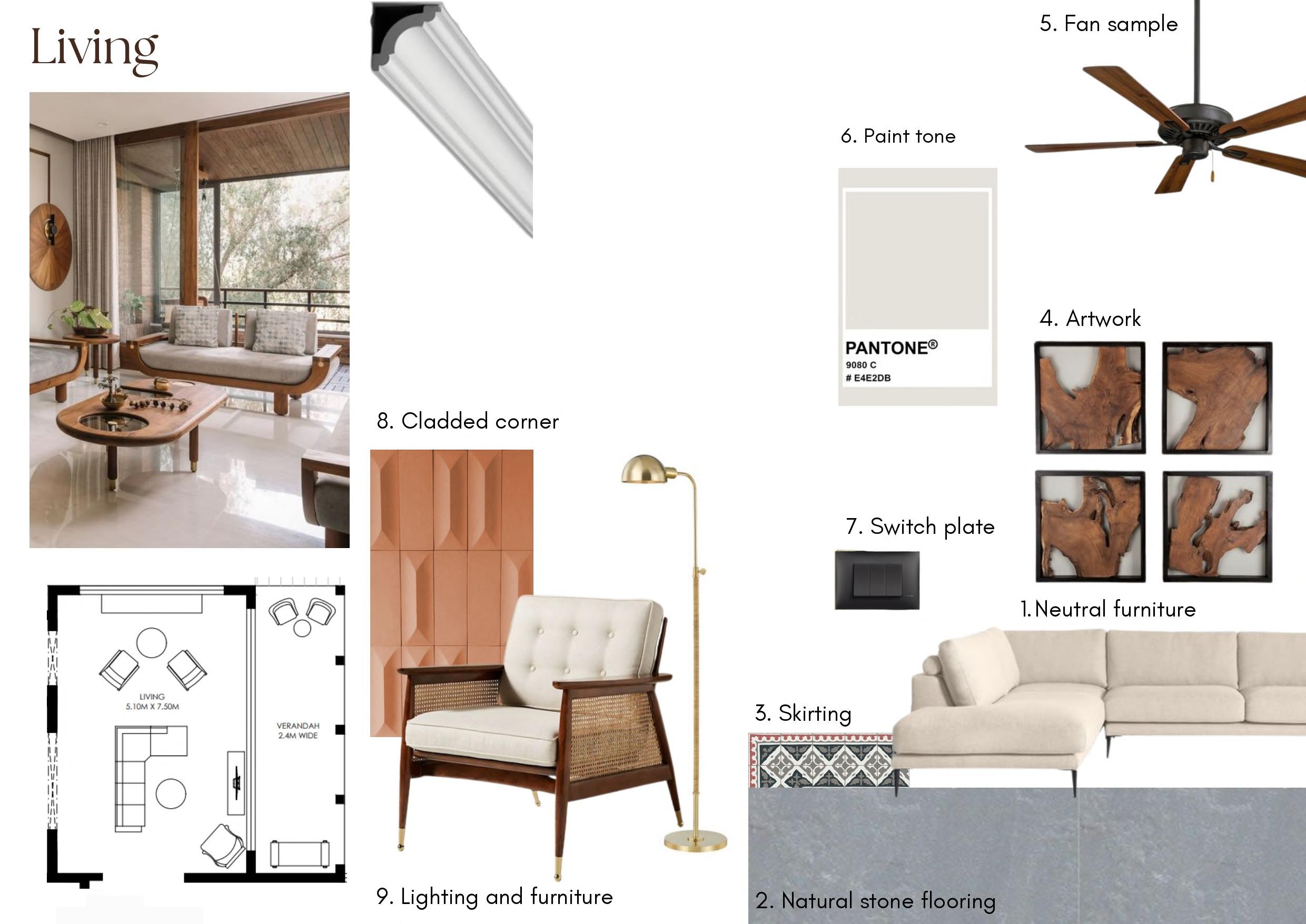

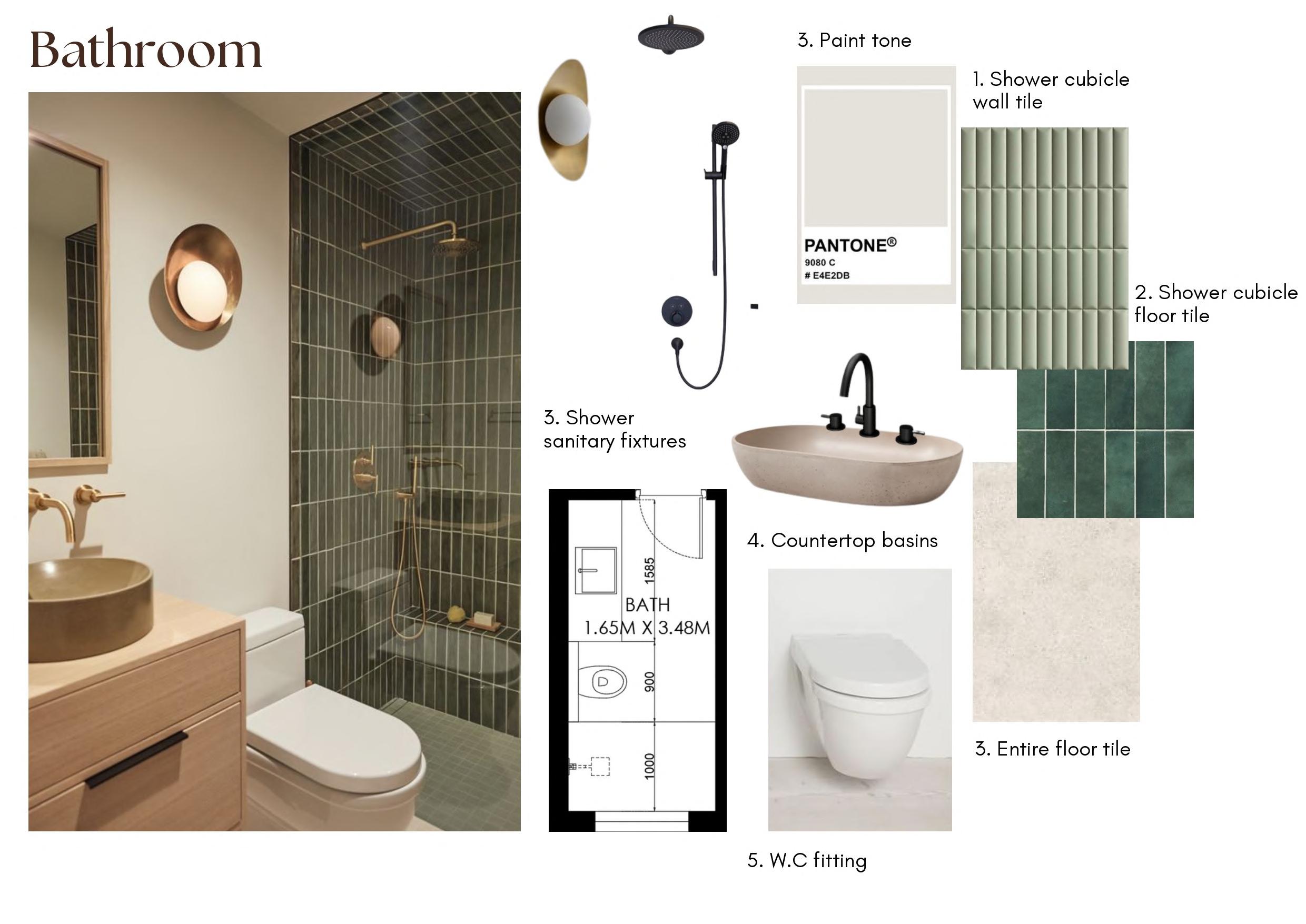

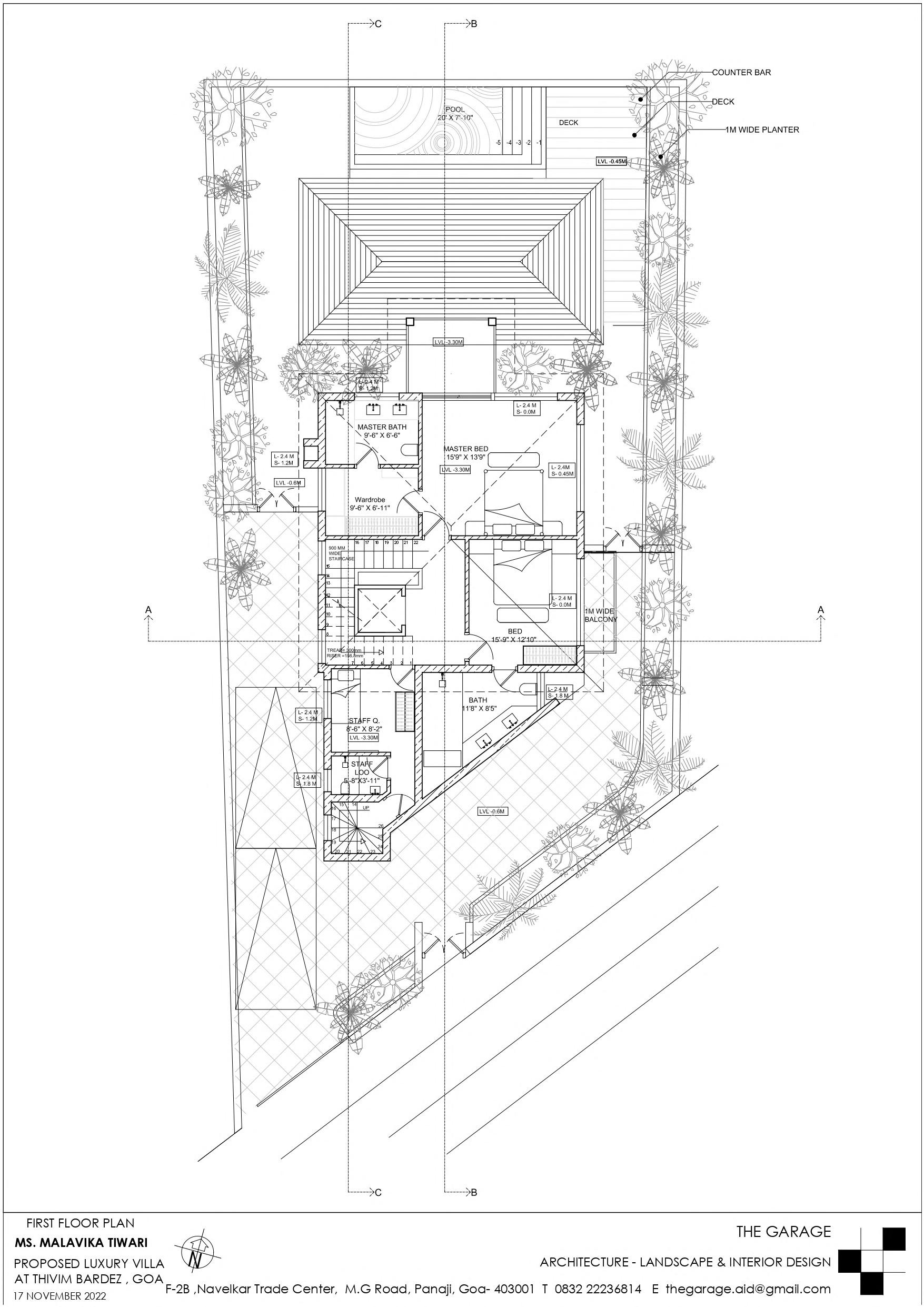

A chic and elegant luxury holiday home for a client with a film industry background. The house focuses on intricate details and finishes along with well planned facilities for staff at Thivim Bardez- Goa
NOTES:
1.all designs, prints and specifications are the property of the THE GARAGE and may not be used without their written permission.
2. all dimensions in millimeters unless otherwise specified.
3.All dimensions to be read & not scaled.
4.The contractor is required to co-relate all relevant drawings and any discrepancies are to be brought to the notice of THE GARAGE before commencement of work on site.
5.These working drawings indicate the general scope of the project in terms of Architectural Design Concept, the dimensions of the structure, the major architectural elements and the type of structural, mechanical, electrical systems.
DRAWN BY:
Rebecca Noronha
CHECKED BY:
Giselle Ann Lobo
DRAWINGS:

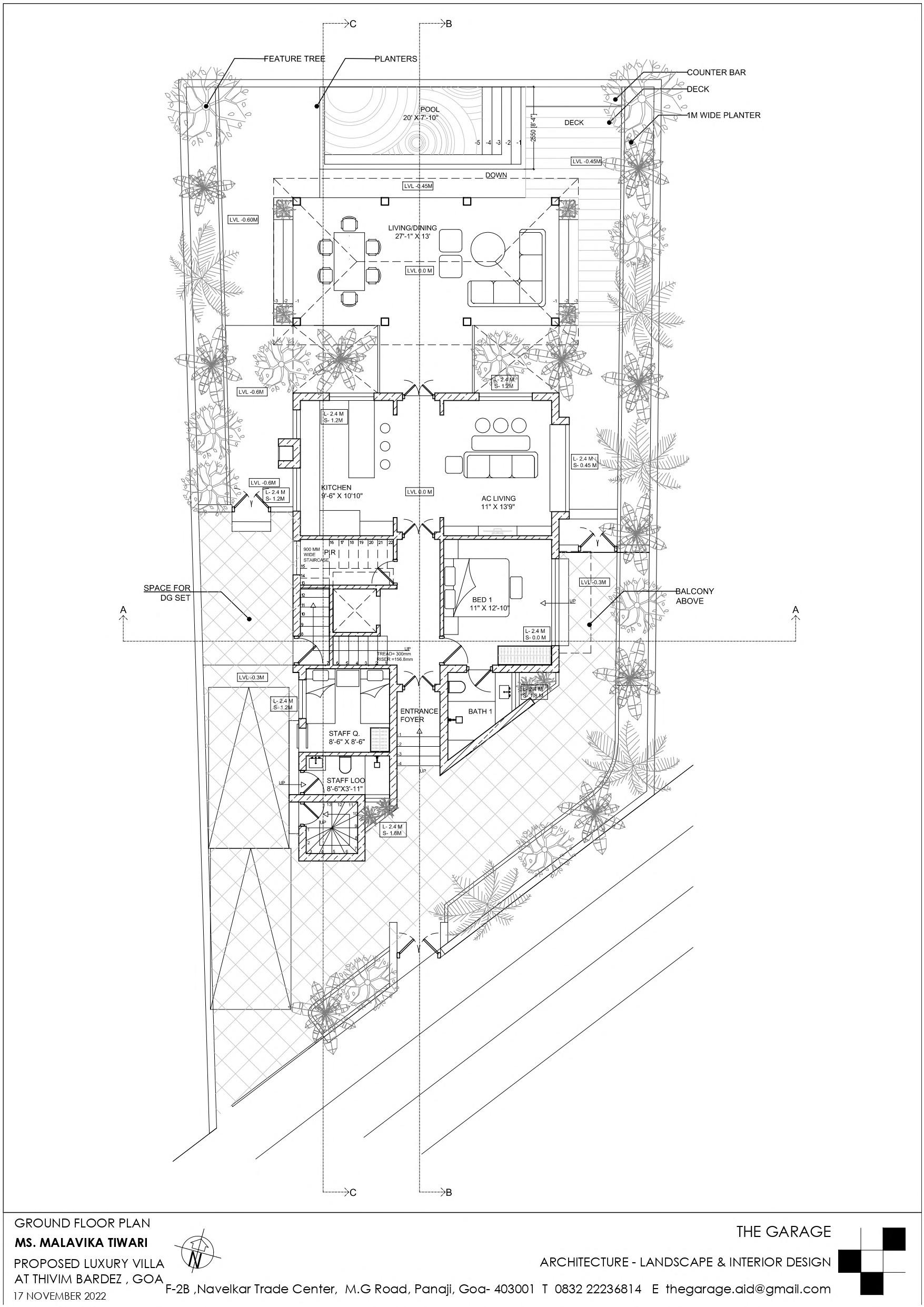

Furniture layout
PROJECT:
LUXURY VILLA
AT THIVIM, BARDEZ GOA
CLIENT:
MALAVIKA TIWARI
SHEET SIZE DRG NO. A3 WD/PL/01
DATE: 20/10/2022

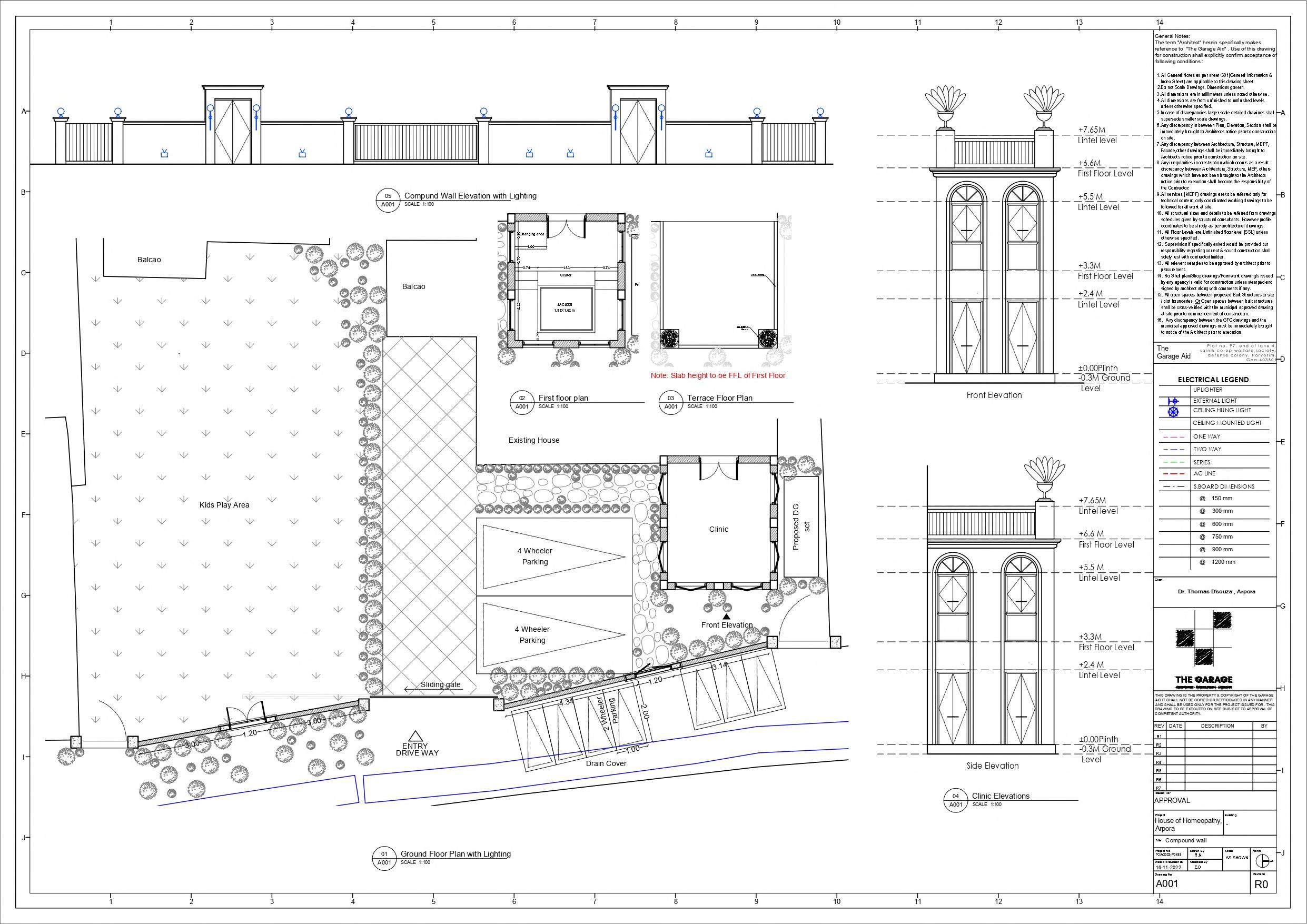

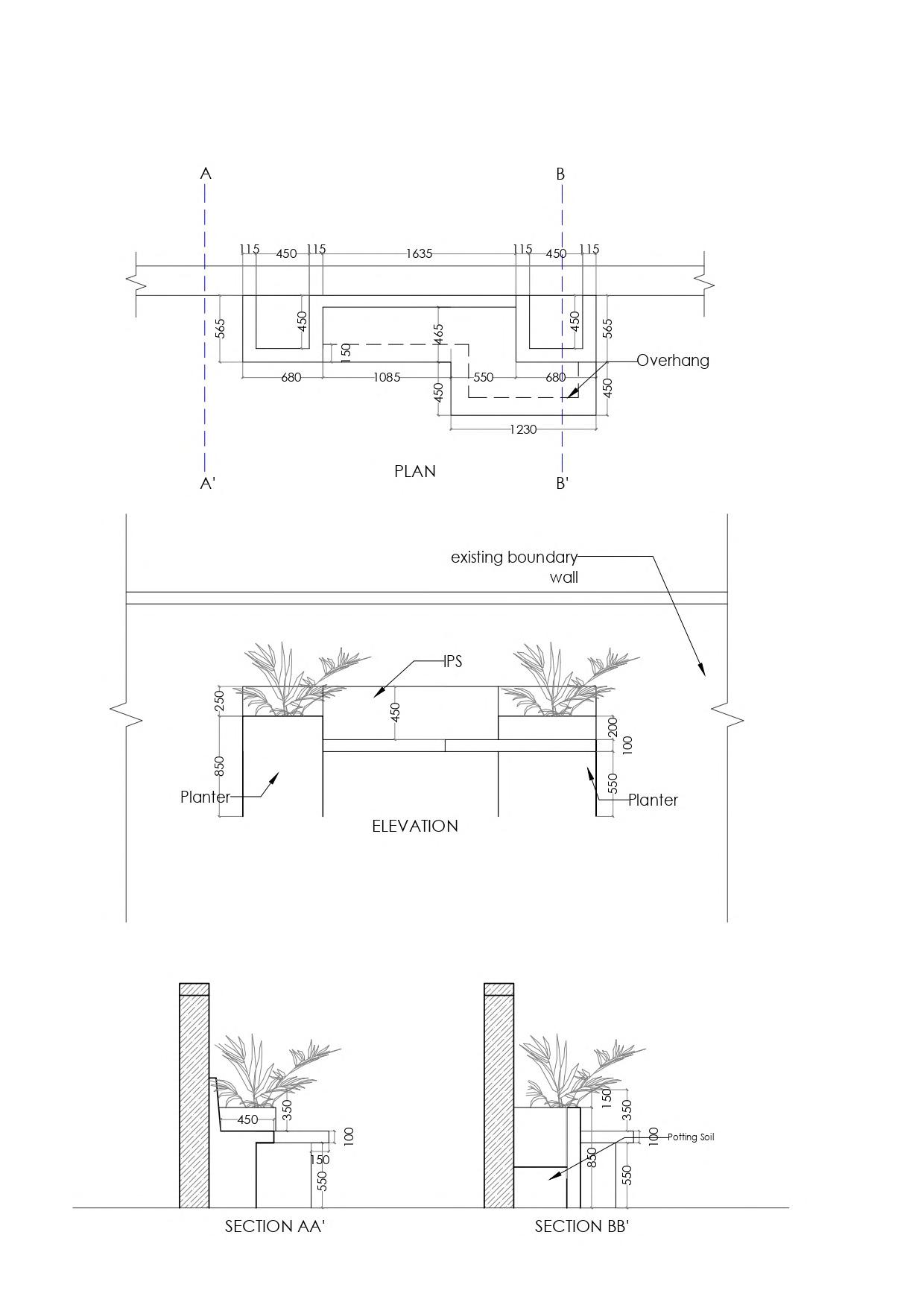

Extension of an already existing Old Portuguese house into a clinic maintaining the essence of the Indo Portuguese influence and enhancing it through landscape at Arpora Bardez-Goa
NOTES:
1.all designs, prints and specifications are the property of the THE GARAGE and may not be used without their written permission.
2. all dimensions in millimeters unless otherwise specified.
3.All dimensions to be read & not scaled.
4.The contractor is required to co-relate all relevant drawings and any discrepancies are to be brought to the notice of THE GARAGE before commencement of work on site.
5.These working drawings indicate the general scope of the project in terms of Architectural Design Concept, the dimensions of the structure, the major architectural elements and the type of structural, mechanical, electrical systems.
DRAWN BY:
Rebecca Noronha
CHECKED BY:
Ezra D'Souza
DRAWINGS:

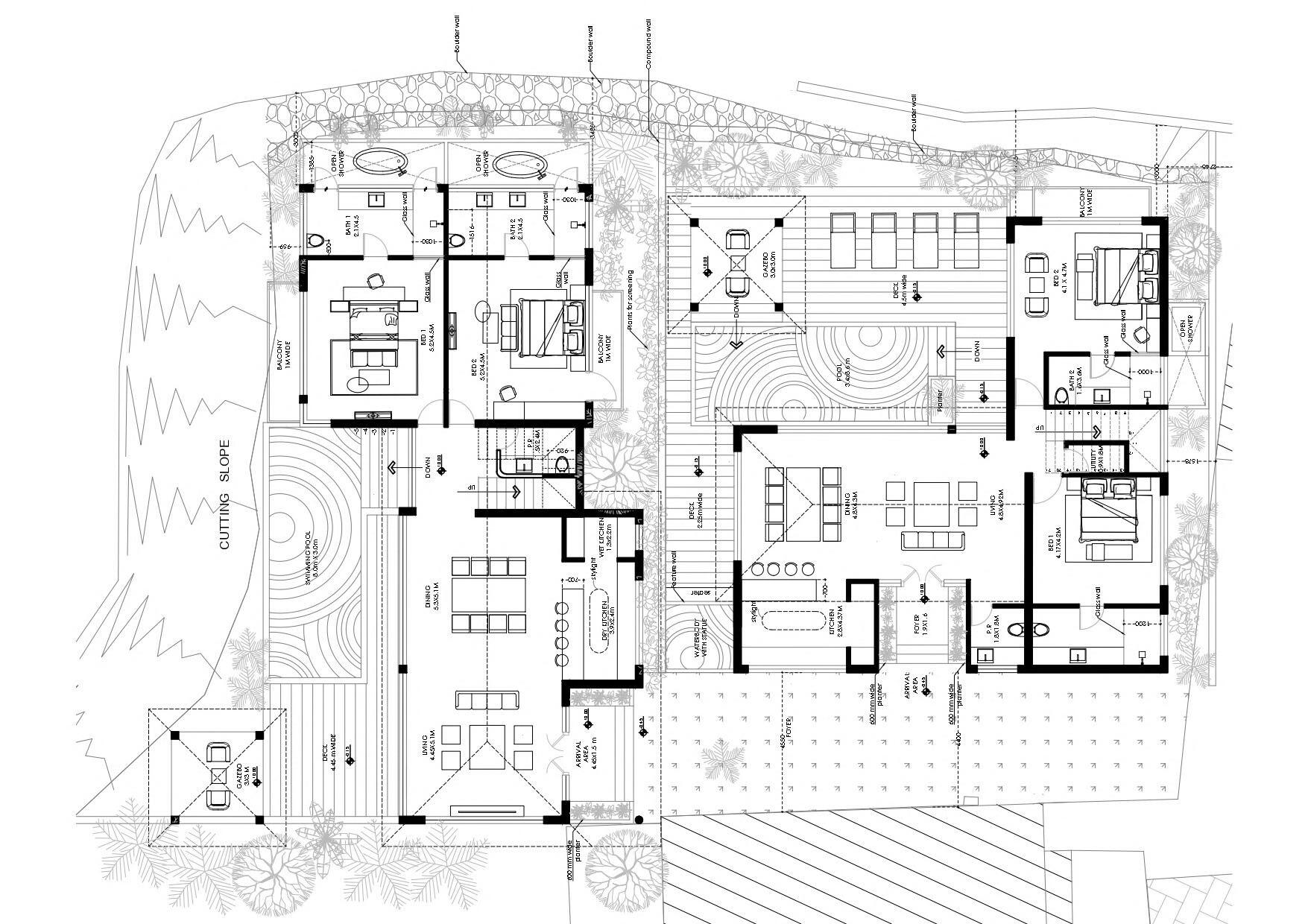

Plan and elevation
PROJECT:
PROPOSED EXTENSION AND LANDSCAPE AT ARPORA, BARDEZ - GOA
CLIENT:
DR. THOMAS
SHEET SIZE DRG NO. A3 WD/PL/01
DATE: 02/12/2022

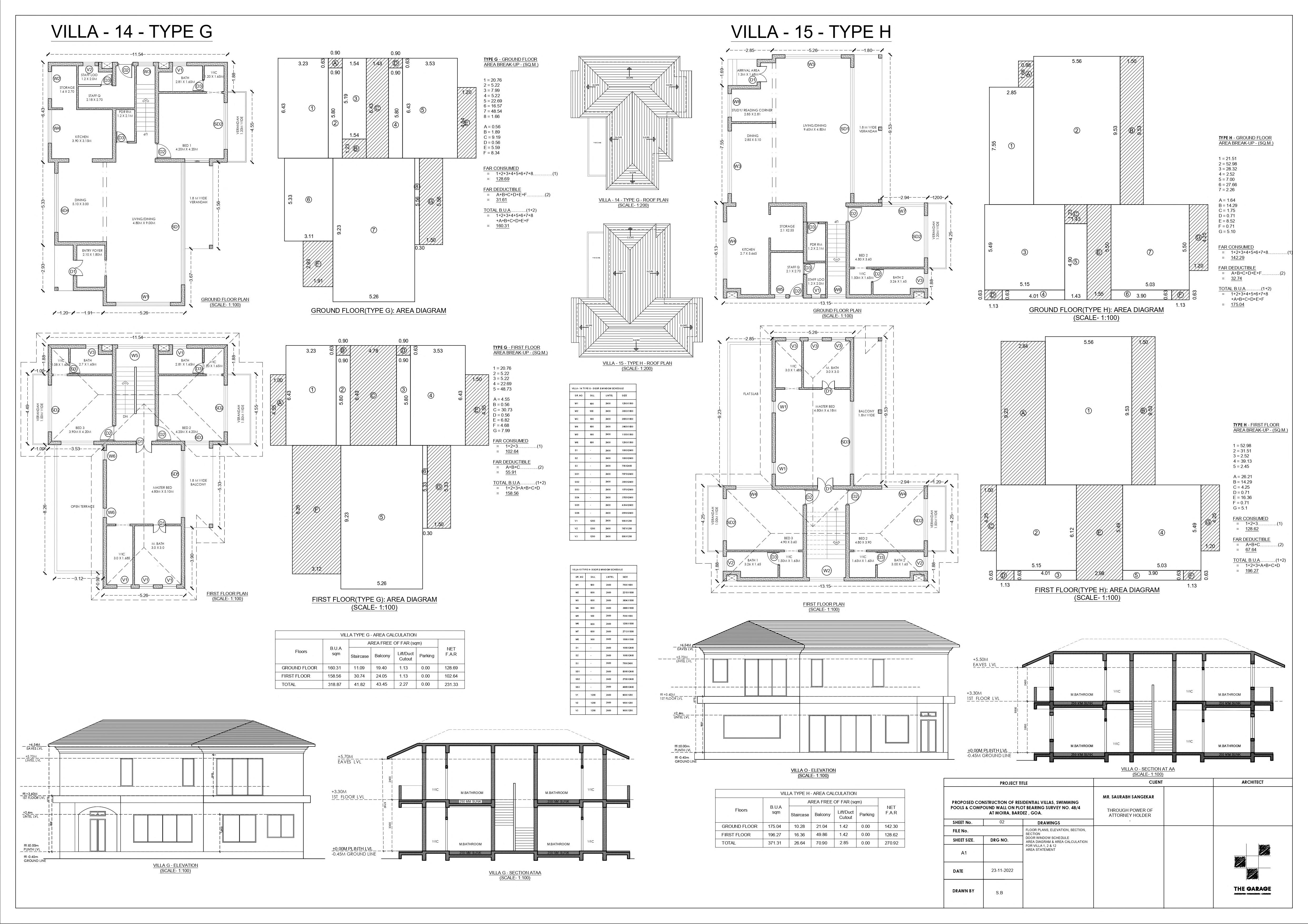

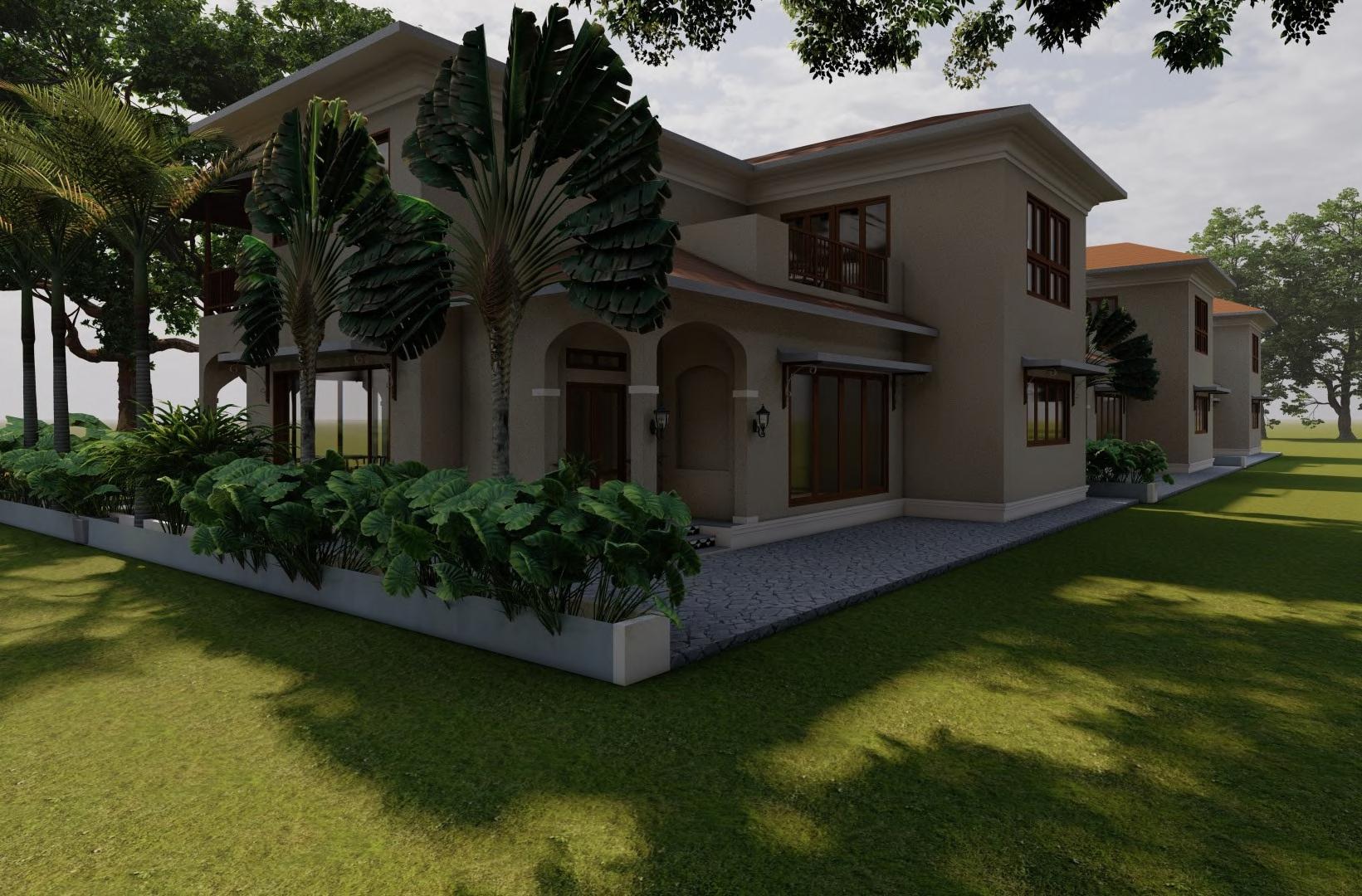

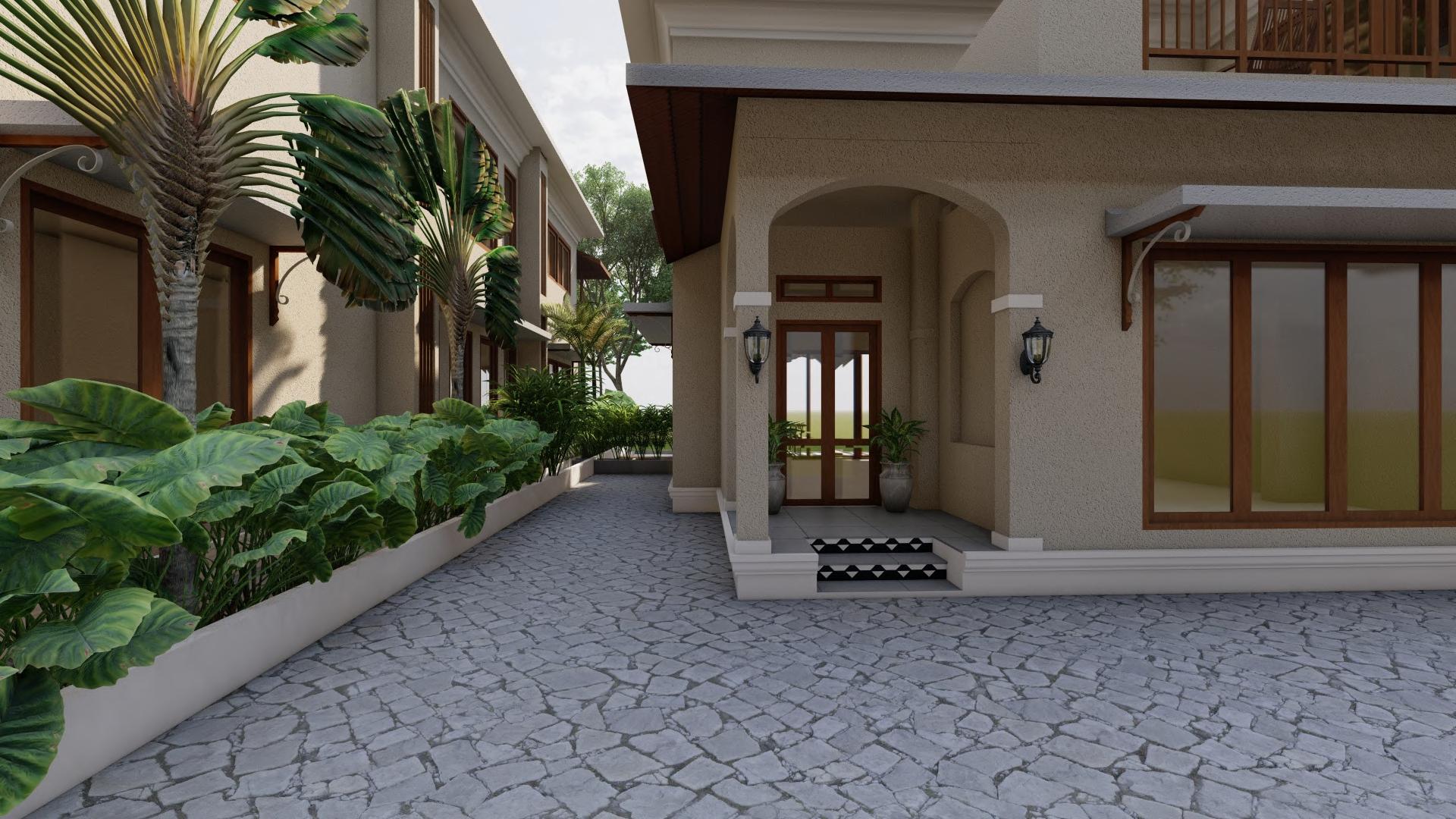

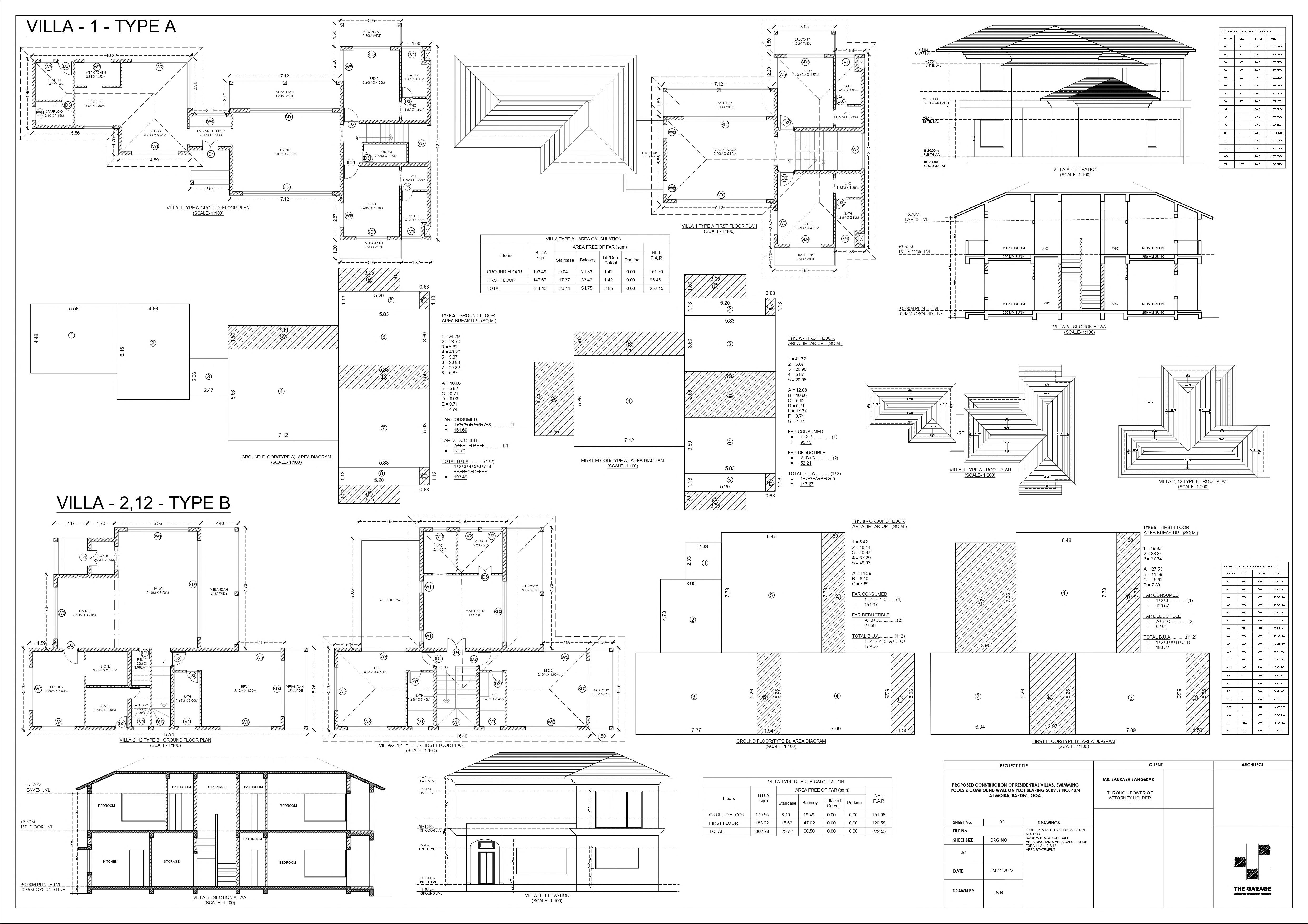

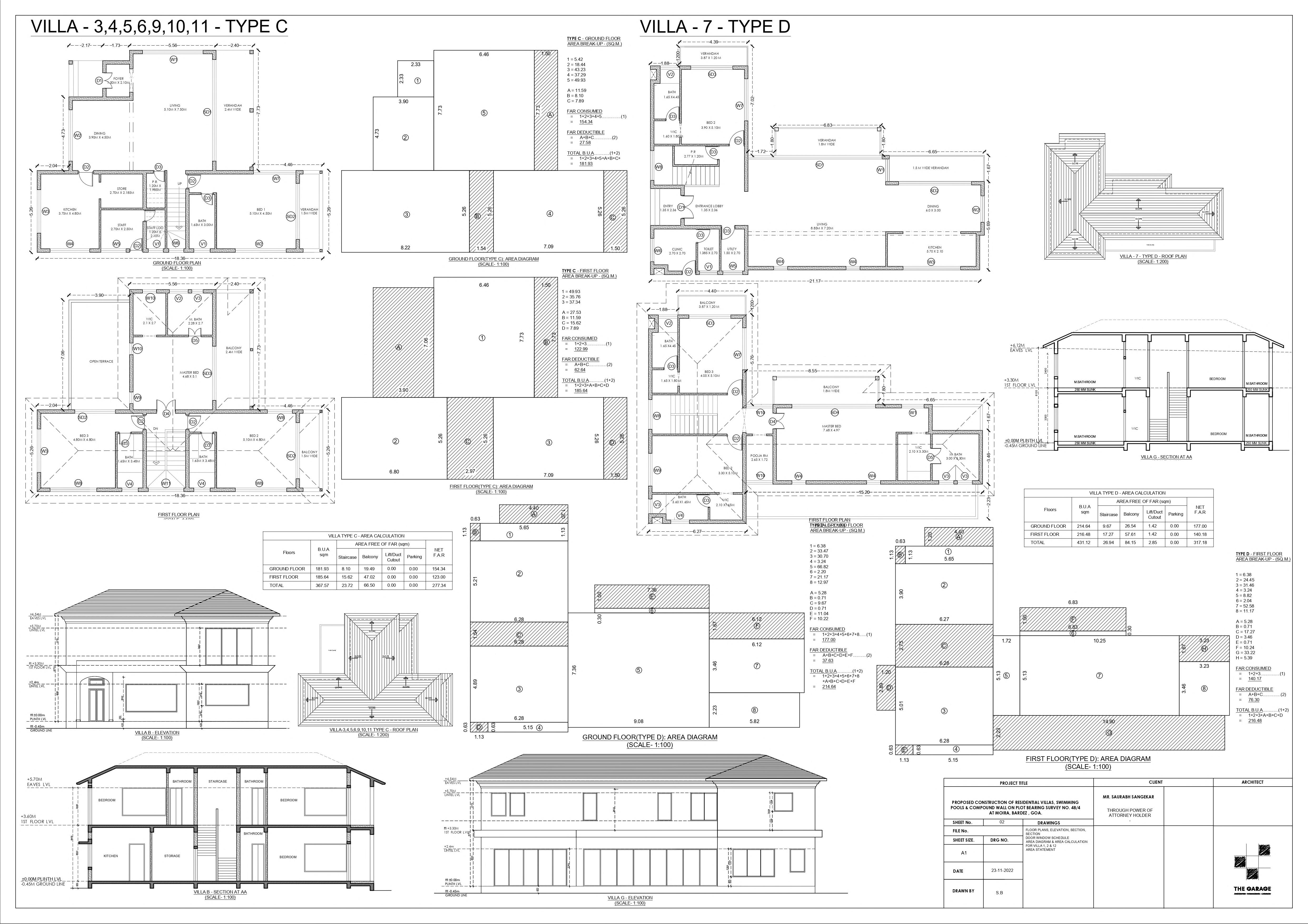

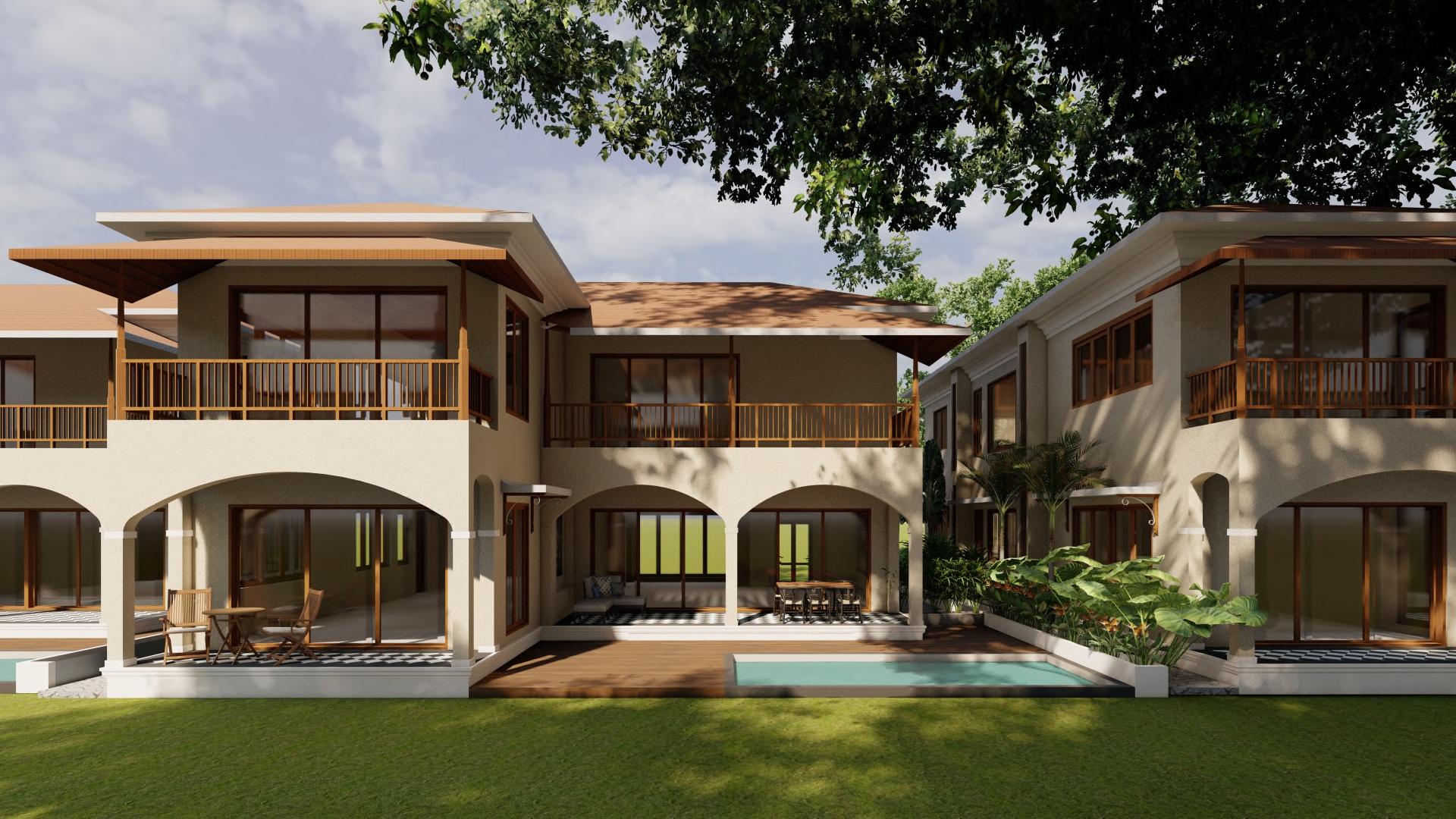

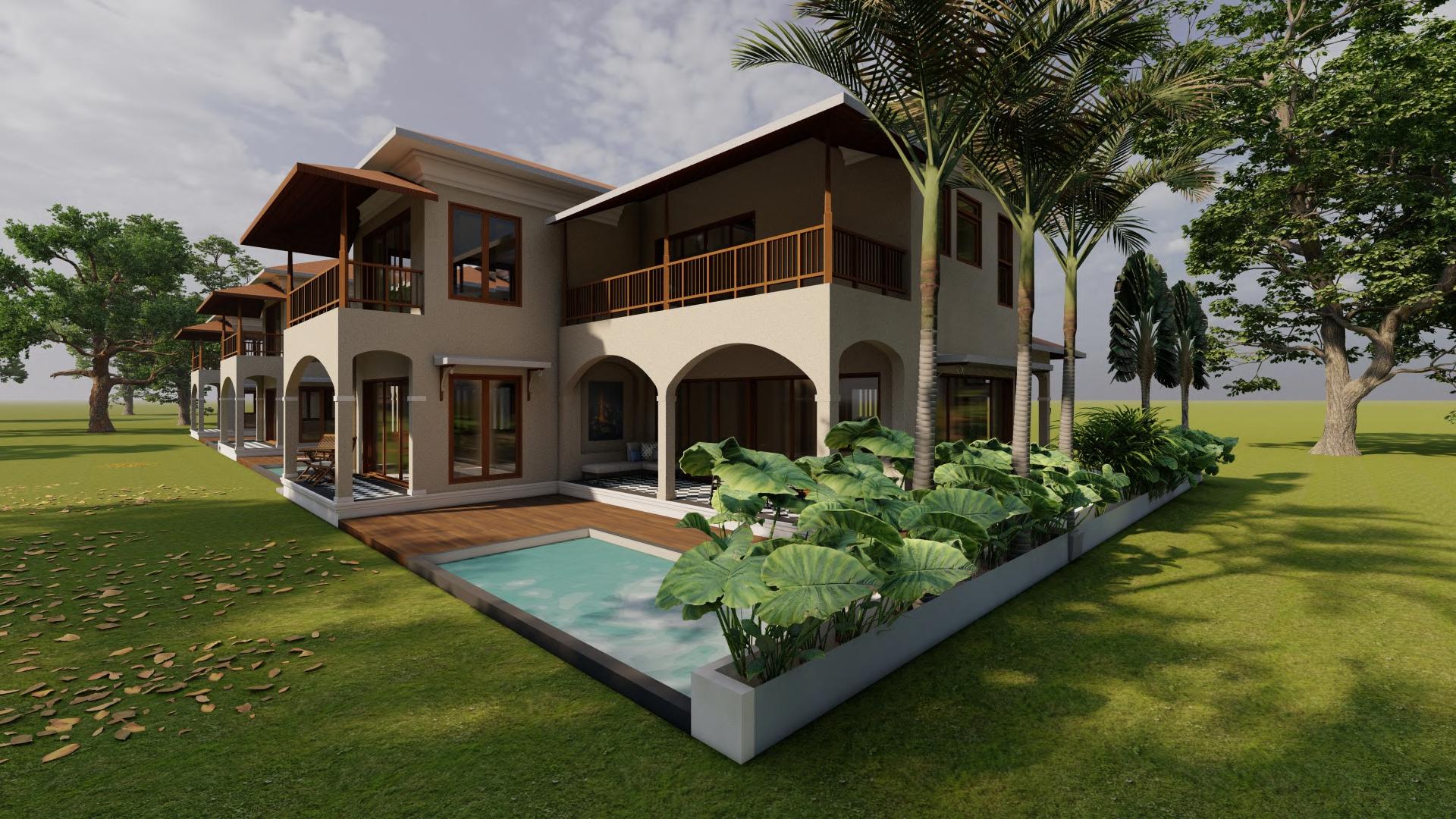

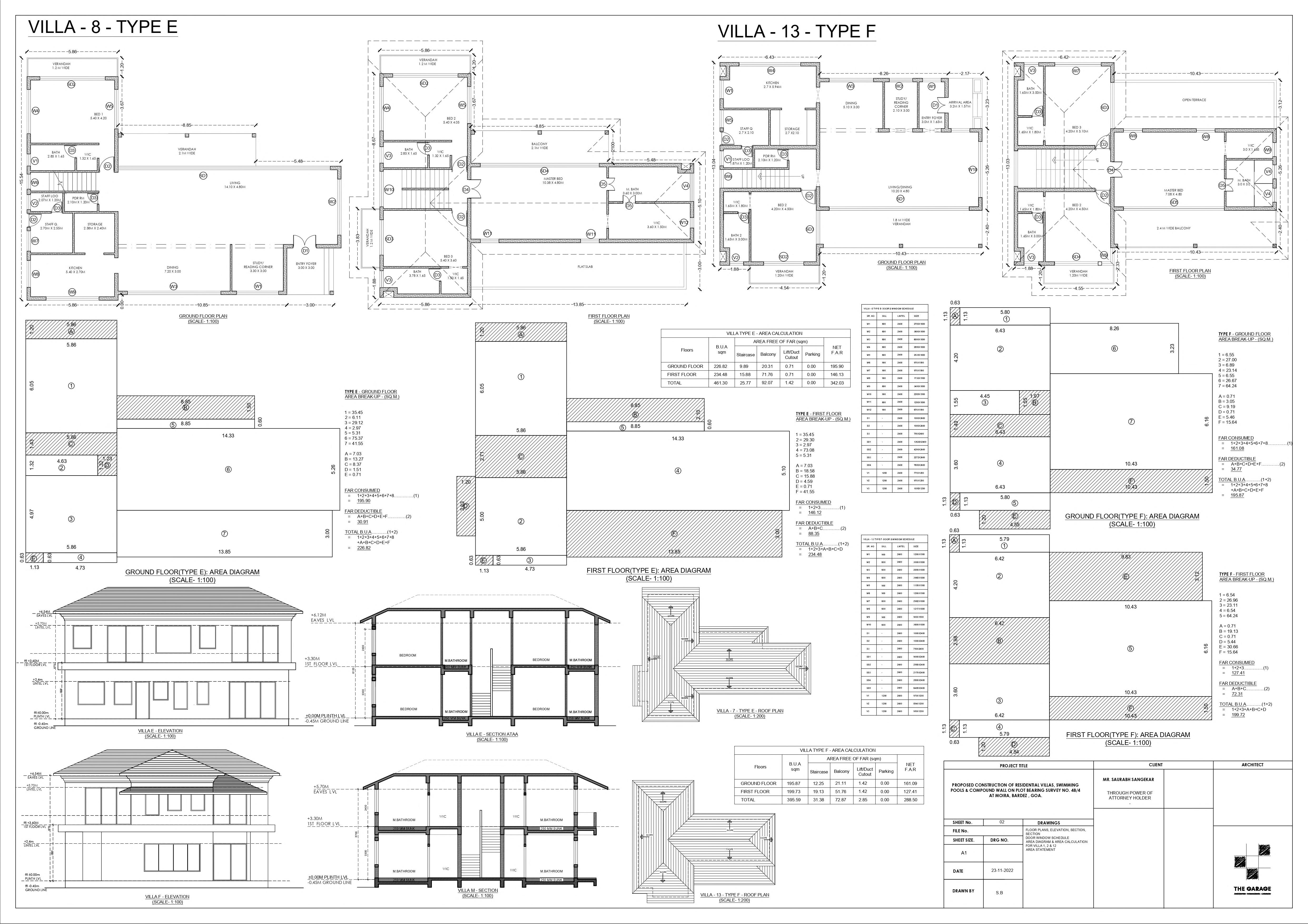

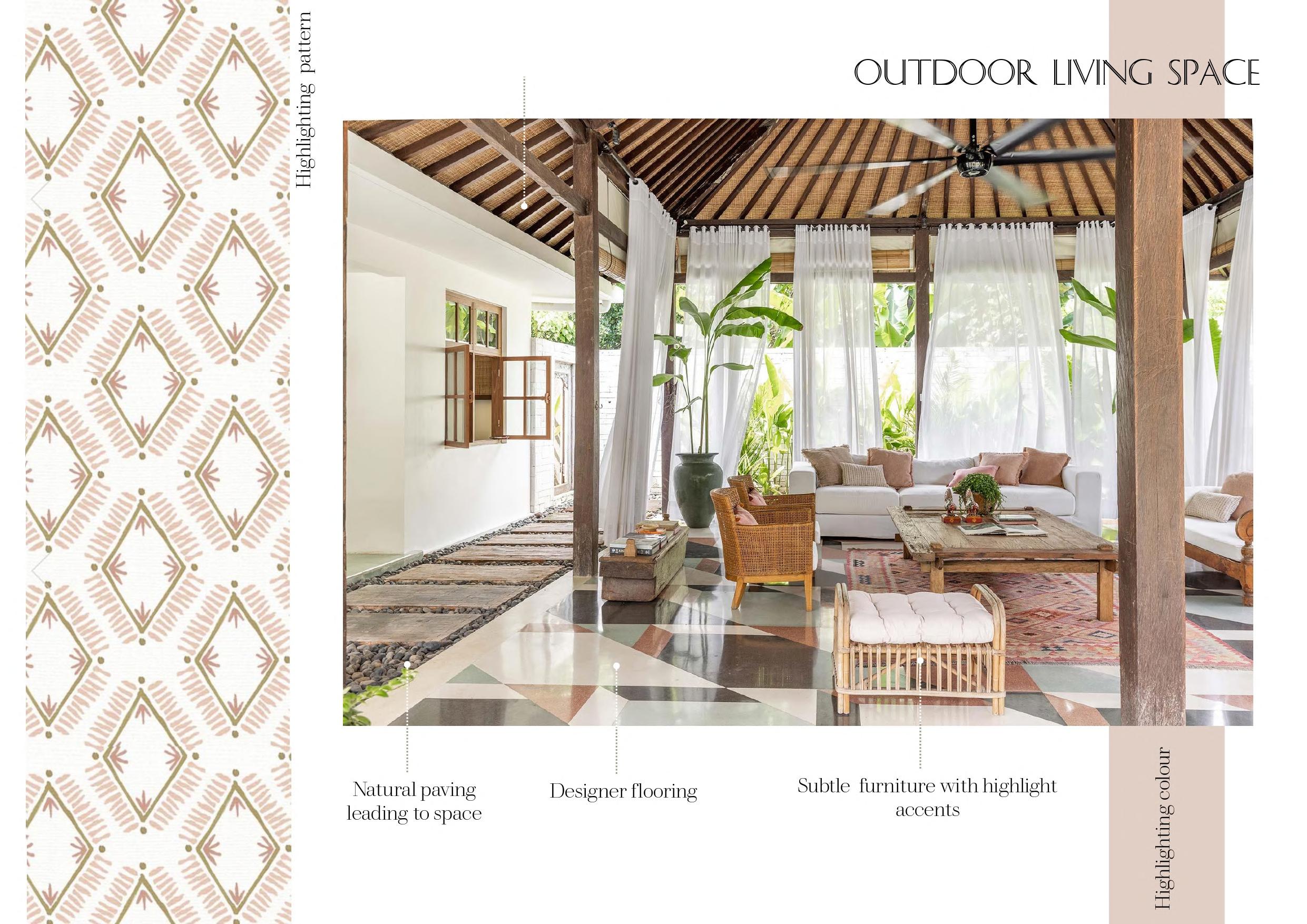

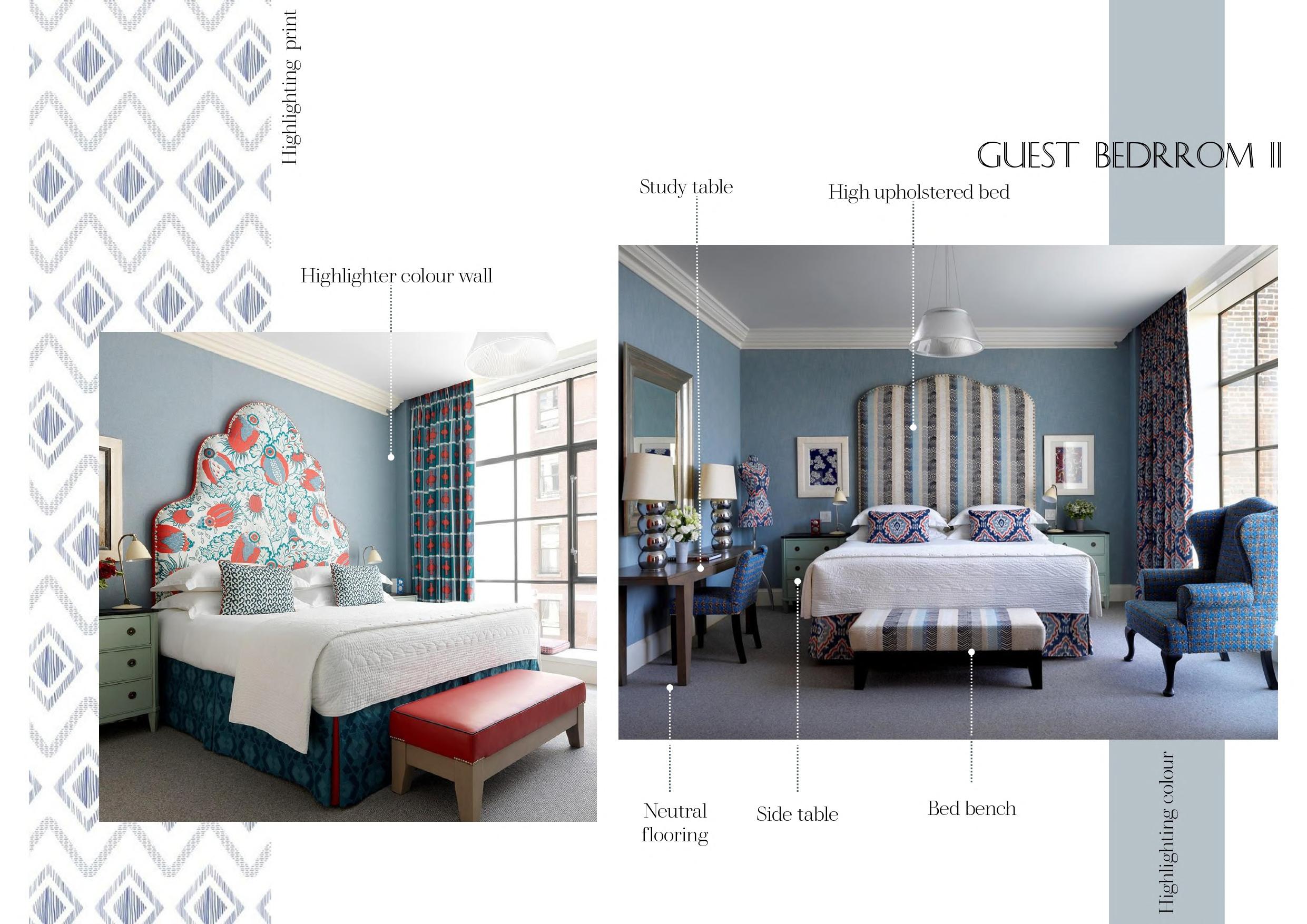

Open plans and Bali inspired architecture are complemented by outdoor spaces designed to provide a luxurious experience along with providing privacy indoors and outdoors at Arpora Bardez-Goa
NOTES:
1.all designs, prints and specifications are the property of the THE GARAGE and may not be used without their written permission.
2. all dimensions in millimeters unless otherwise specified.
3.All dimensions to be read & not scaled.
4.The contractor is required to co-relate all relevant drawings and any discrepancies are to be brought to the notice of THE GARAGE before commencement of work on site.
5.These working drawings indicate the general scope of the project in terms of Architectural Design Concept, the dimensions of the structure, the major architectural elements and the type of structural, mechanical, electrical systems.
DRAWN BY:
Rebecca Noronha
CHECKED BY:
Ezra D'Souza
DRAWINGS:
Plan revision
PROJECT:
PROPOSED LUXURY VILLAS AT ARPORA, BARDEZ - GOA
CLIENT:
PASCOAL D'SOUZA
SHEET SIZE DRG NO. A3 WD/PL/01
DATE: 10/11/2022

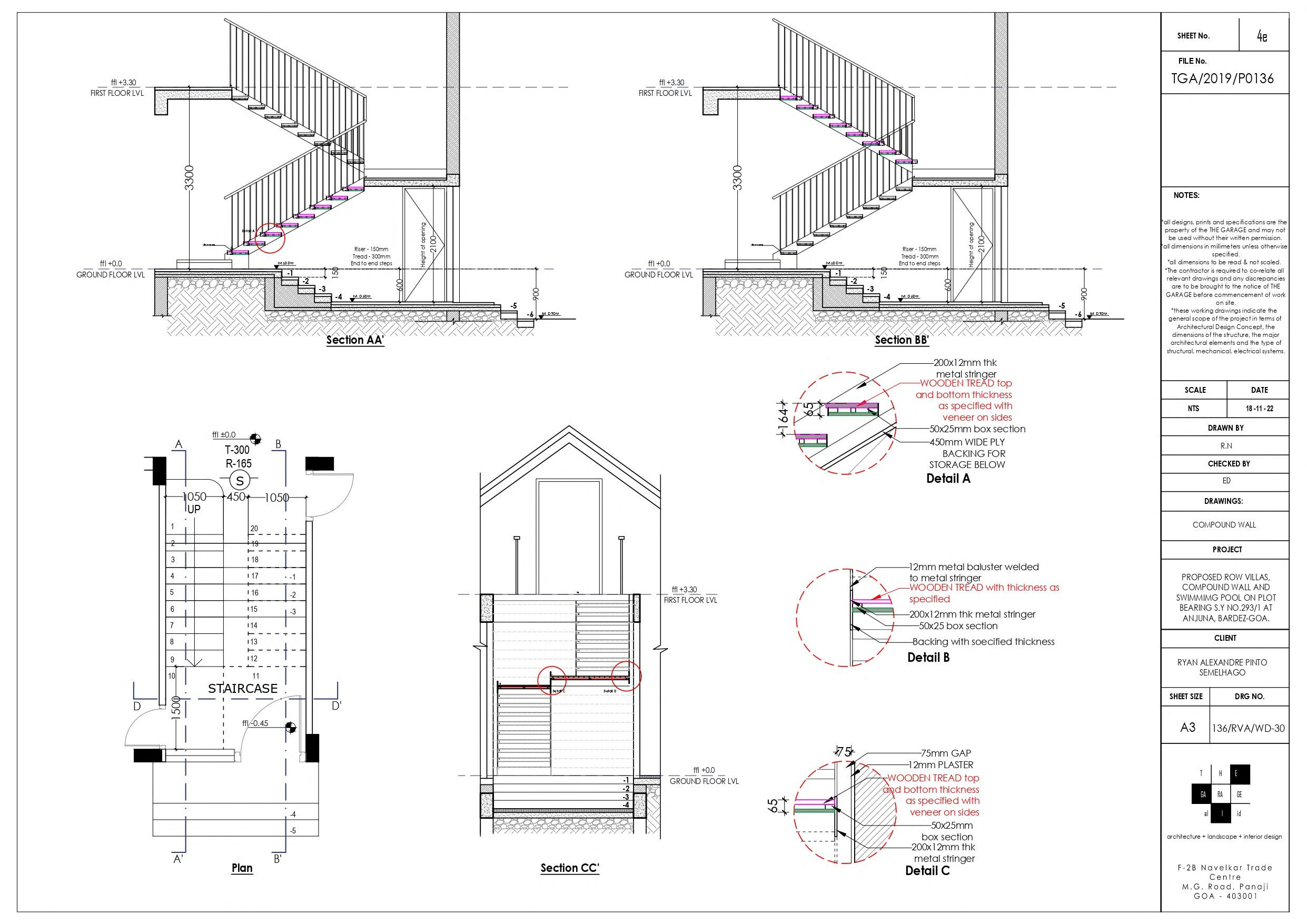

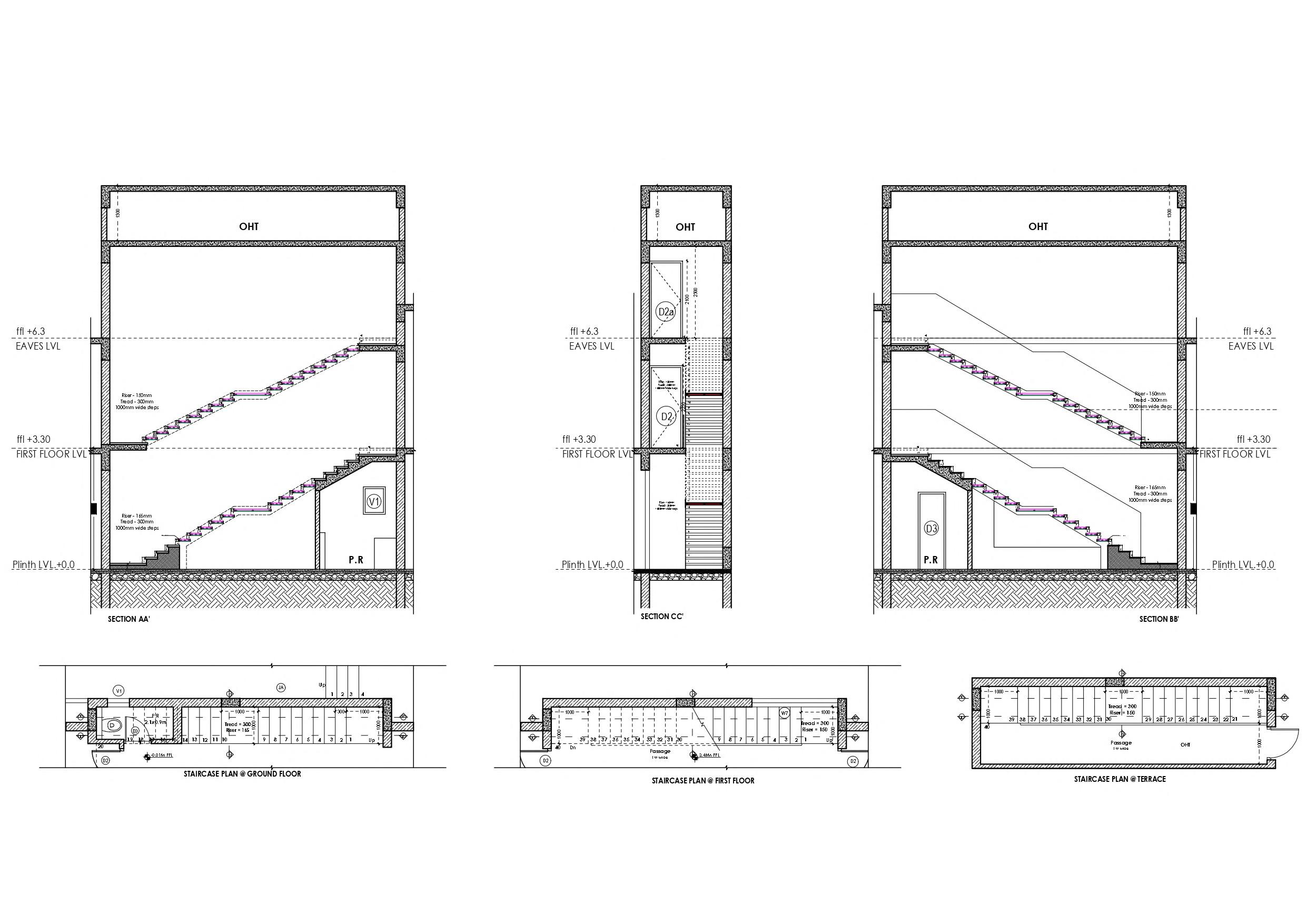

Fabricated Staircase detail drawings for luxury villas
NOTES:
1.all designs, prints and specifications are the property of the THE GARAGE and may not be used without their written permission.
2. all dimensions in millimeters unless otherwise specified.
3.All dimensions to be read & not scaled.
4.The contractor is required to co-relate all relevant drawings and any discrepancies are to be brought to the notice of THE GARAGE before commencement of work on site.
5.These working drawings indicate the general scope of the project in terms of Architectural Design Concept, the dimensions of the structure, the major architectural elements and the type of structural, mechanical, electrical systems.
DRAWN BY:
Rebecca Noronha
CHECKED BY:
Ezra D'Souza
DRAWINGS:
Staircase detail
PROJECT:
PROPOSED LUXURY VILLA AT ANJUNA, BARDEZ - GOA
CLIENT:
CAJETAN BRITTO
SHEET SIZE DRG NO. A3 WD/D/01
DATE: 18/11/2022
NOTES:
1.all designs, prints and specifications are the property of the THE GARAGE and may not be used without their written permission.
2. all dimensions in millimeters unless otherwise specified.
3.All dimensions to be read & not scaled.
4.The contractor is required to co-relate all relevant drawings and any discrepancies are to be brought to the notice of THE GARAGE before commencement of work on site.
5.These working drawings indicate the general scope of the project in terms of Architectural Design Concept, the dimensions of the structure, the major architectural elements and the type of structural, mechanical, electrical systems.
DRAWN BY:
Rebecca Noronha
CHECKED BY:
Ezra D'Souza
DRAWINGS:
Staircase detail
PROJECT:
PROPOSED LUXURY VILLA AT SOCORRO, BARDEZ - GOA
CLIENT:
KAMAT REALTY
SHEET SIZE DRG NO. A3 WD/D/01
DATE: 06/12/2022

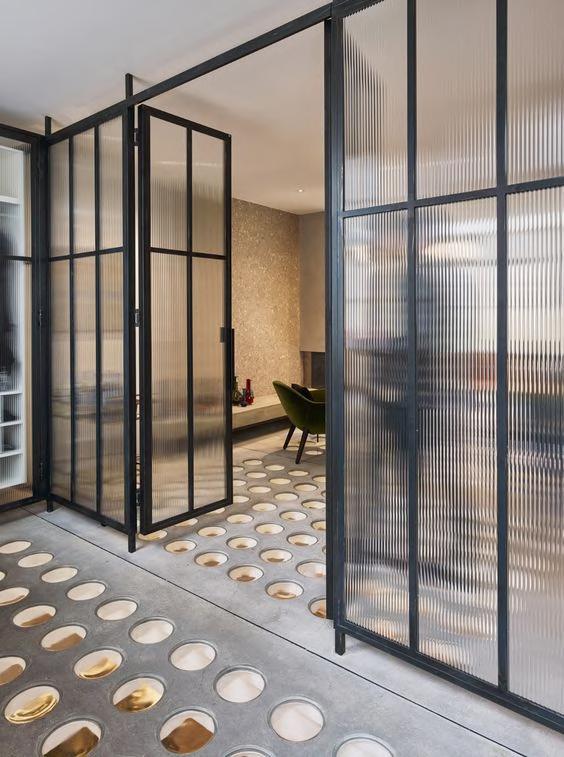

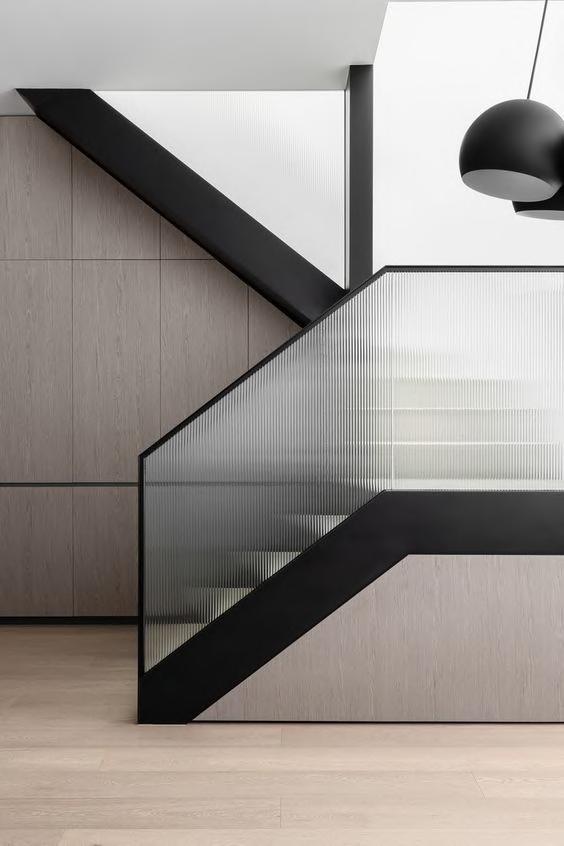

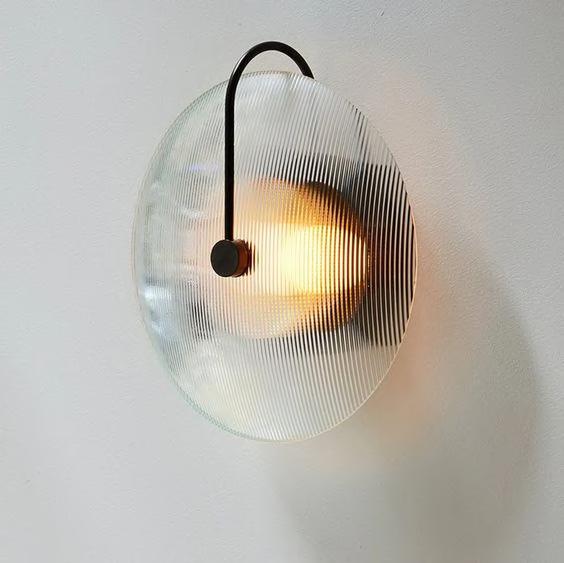

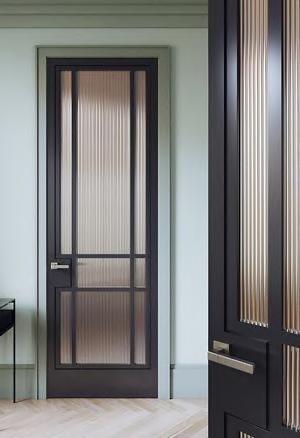

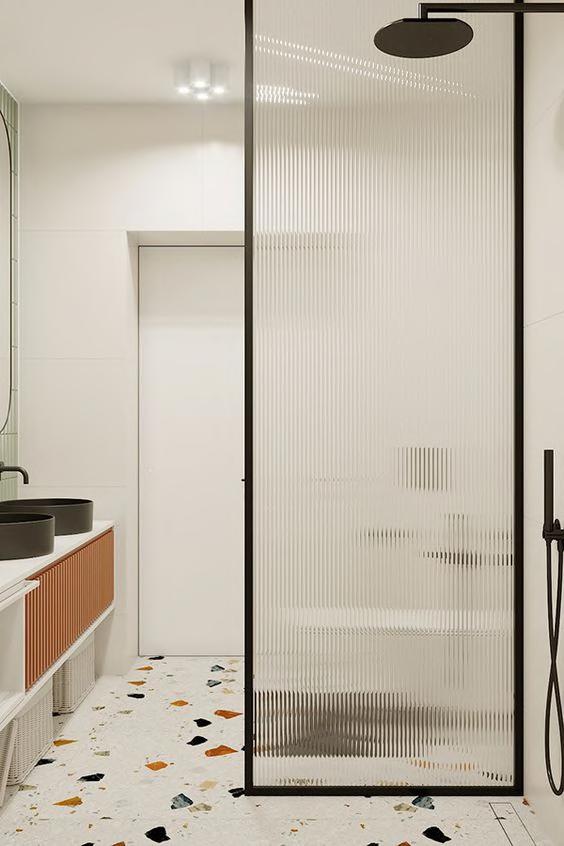

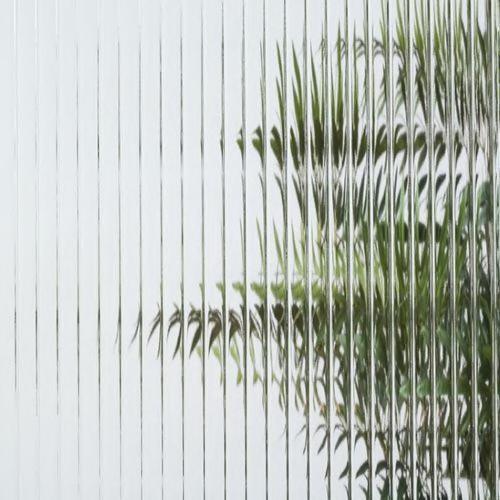

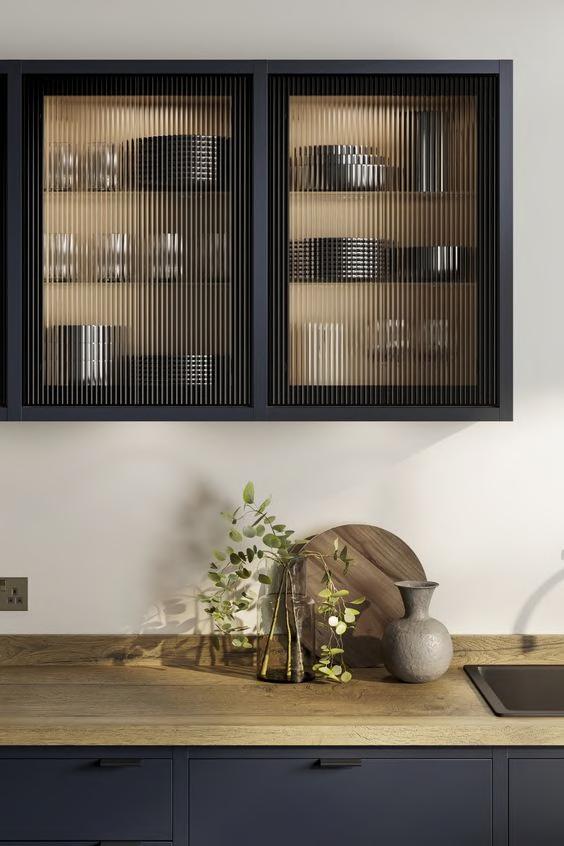

Fluted glass also known as ribbed glass is a vertical textured glass. The whole glass is made of vertical stripes, which are regular and concise.
Applications:
Fluted glass is a new trend both for architects and interior designers, it has a wide range of uses:
Material feature
Fluted glass has the ability to provide privacy while allowing light to shine through.
It also does not have an overly bearing strong attribute and can thus adapt to most design styles.
Physical characteristics
1.High intensity :
Because fluted glass is pressed it's strength is much greater than ordinary glass.
2. Low breakage rate:
Due to high strength and the ribbed texture the breakage rate is comparatively lower
3. 3-D texture:
Strong visual impact and creates a better decorative impact.
4.Translucent:
Allows light without compromising with privacy like flat glass.
Limitations of use
1.Maintenance:
Apart from the great strength the texture provides, the concave and convex surfaces are difficult to clean.
2.Cost:
The fluted glass price is 200-300% than the same thickness of glass.
Thickness and sizes:
Main thicknesses: 6mm, 8mm, 10mm. 12mm can be customized.
Size: 1830x2140mm, 1830x2440mm, 3300x2140mm, 3300x2440mm. Other size can be customized.
Pricing per square feet:
200-400 Rs/sq ft

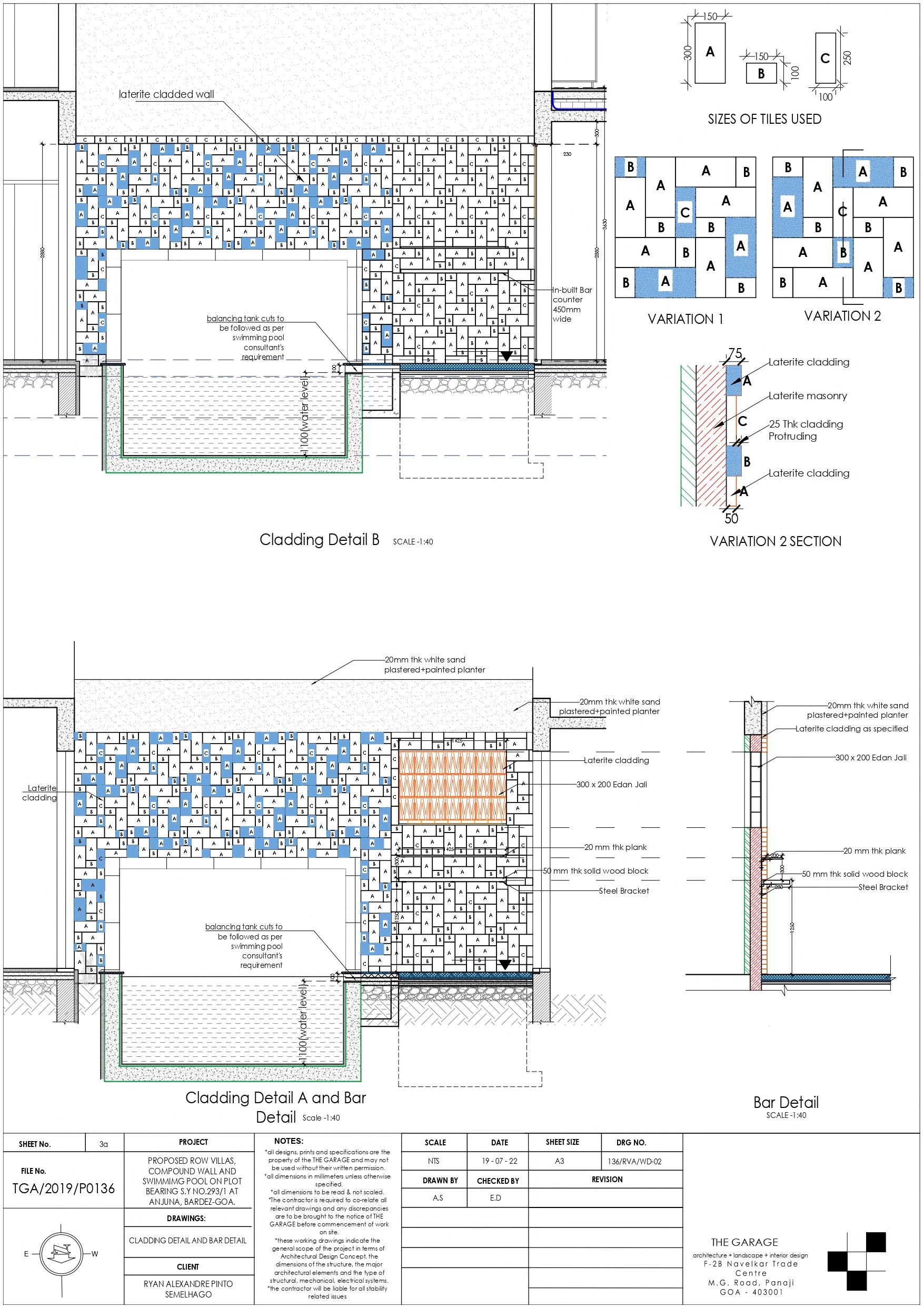

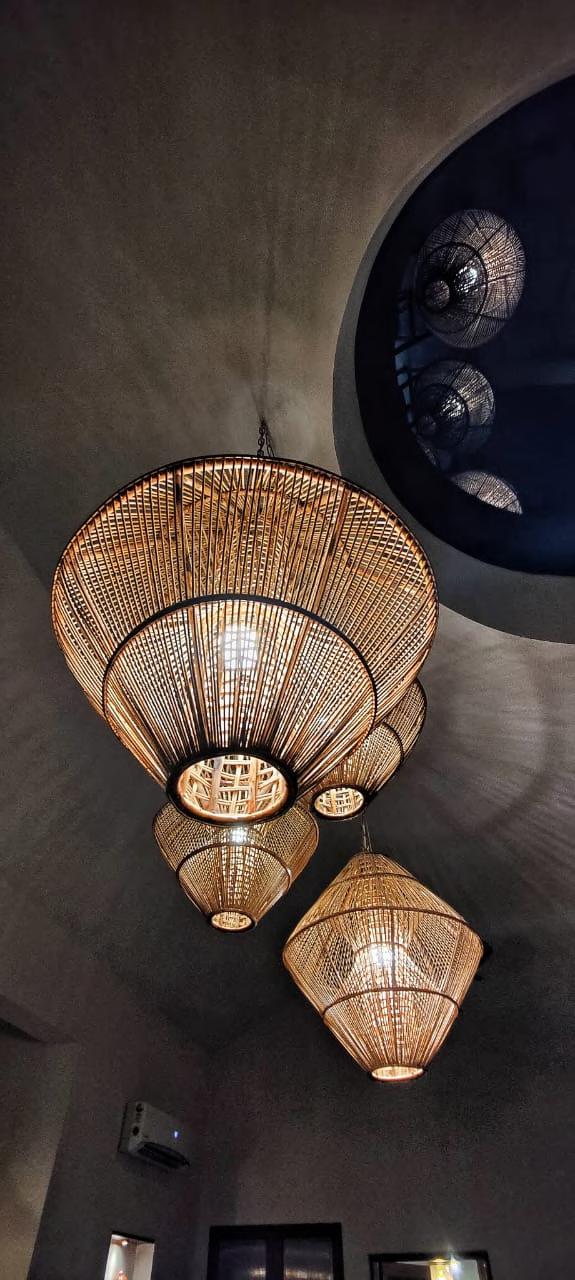

1.Door or window panels 2.Partition walls 3. Fluted glass balustrade 5. Kitchen cabinets 6. Light fixtures 5. Shower sscreensThe use of simple laterite cladding to make interesting patterns thus elevating the look of a basic wal

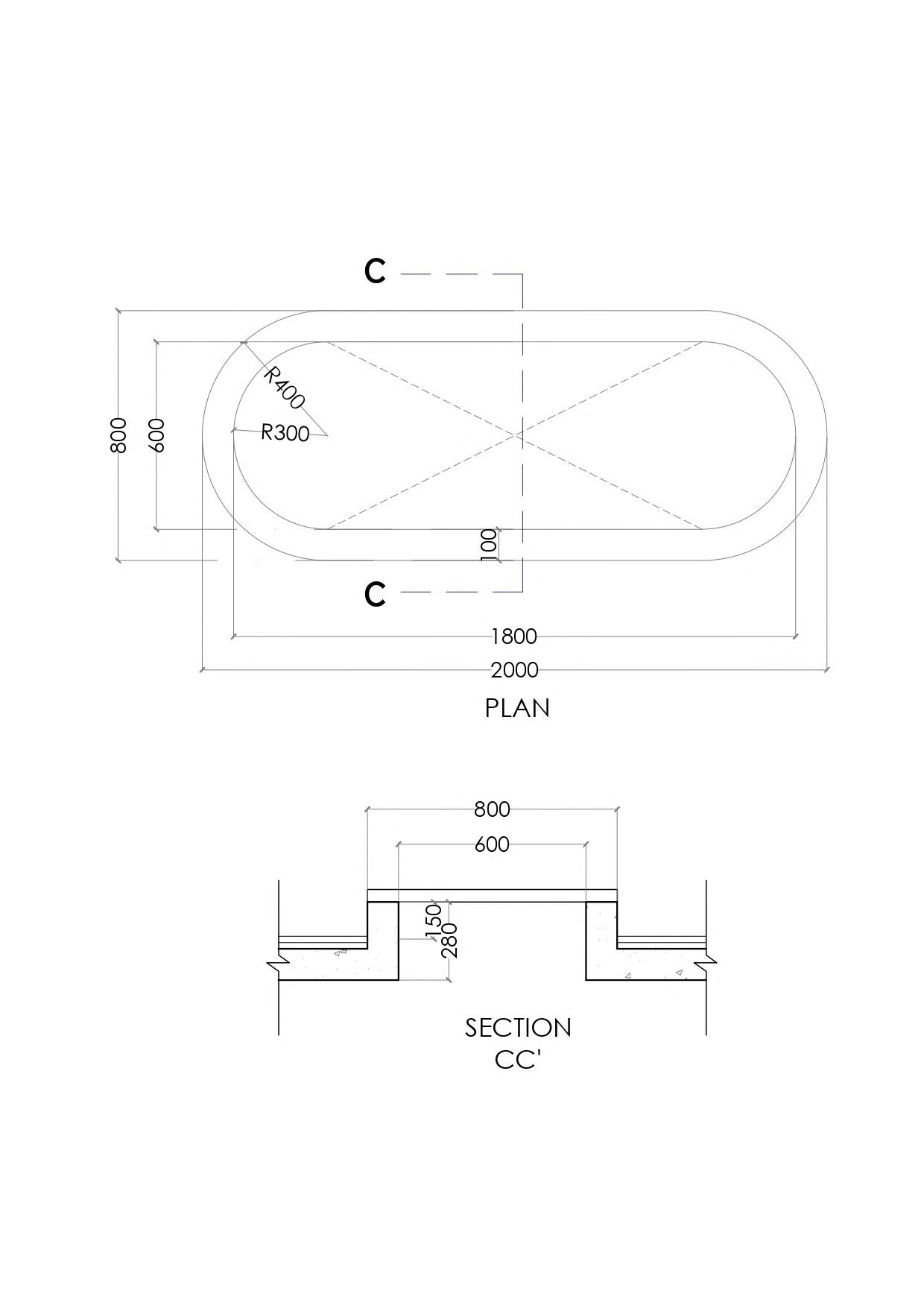

dark and a simple detail to executed skylight.
Apart from being a great landscape element the seater also serves as outdoor furniture.

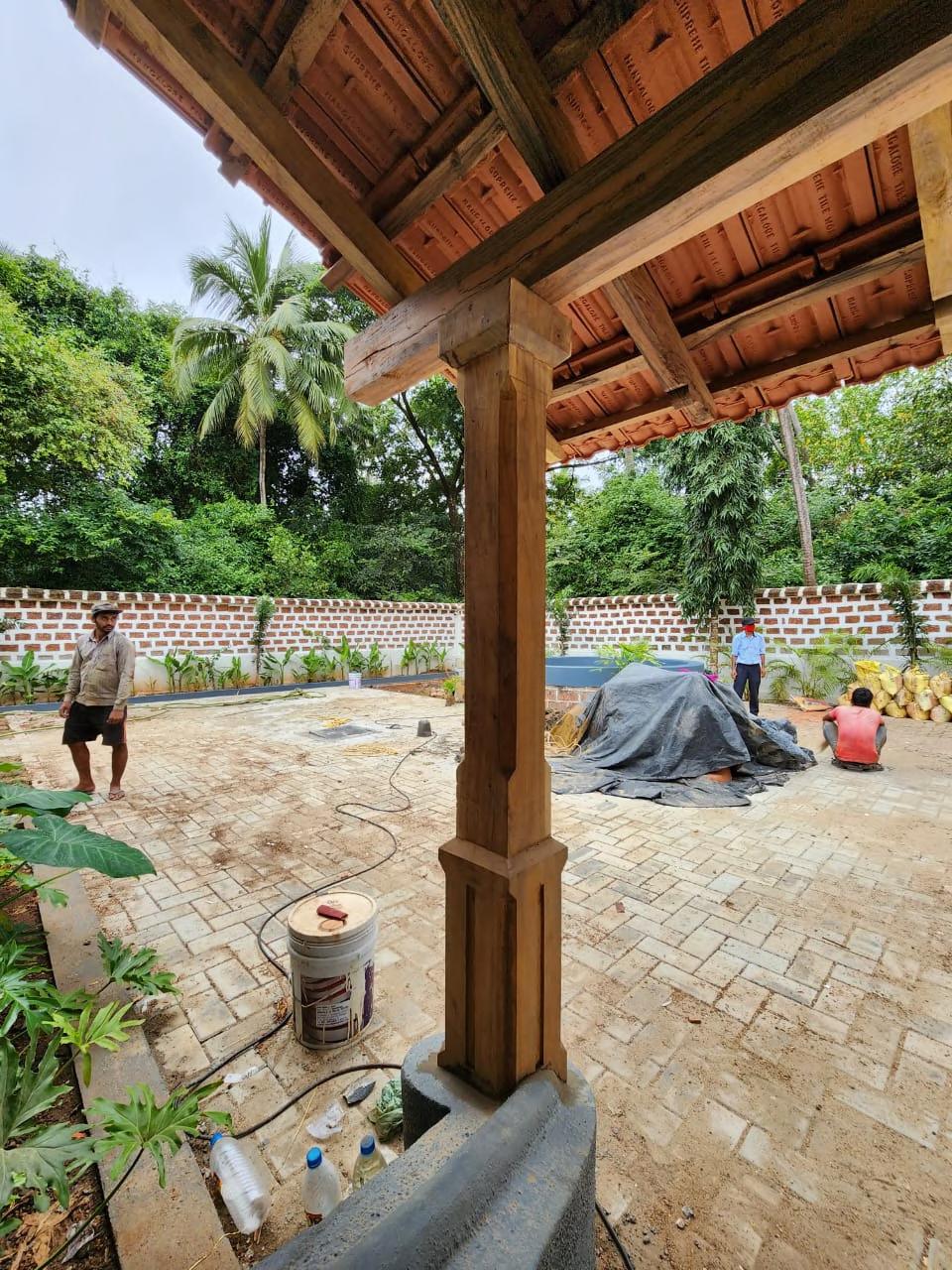

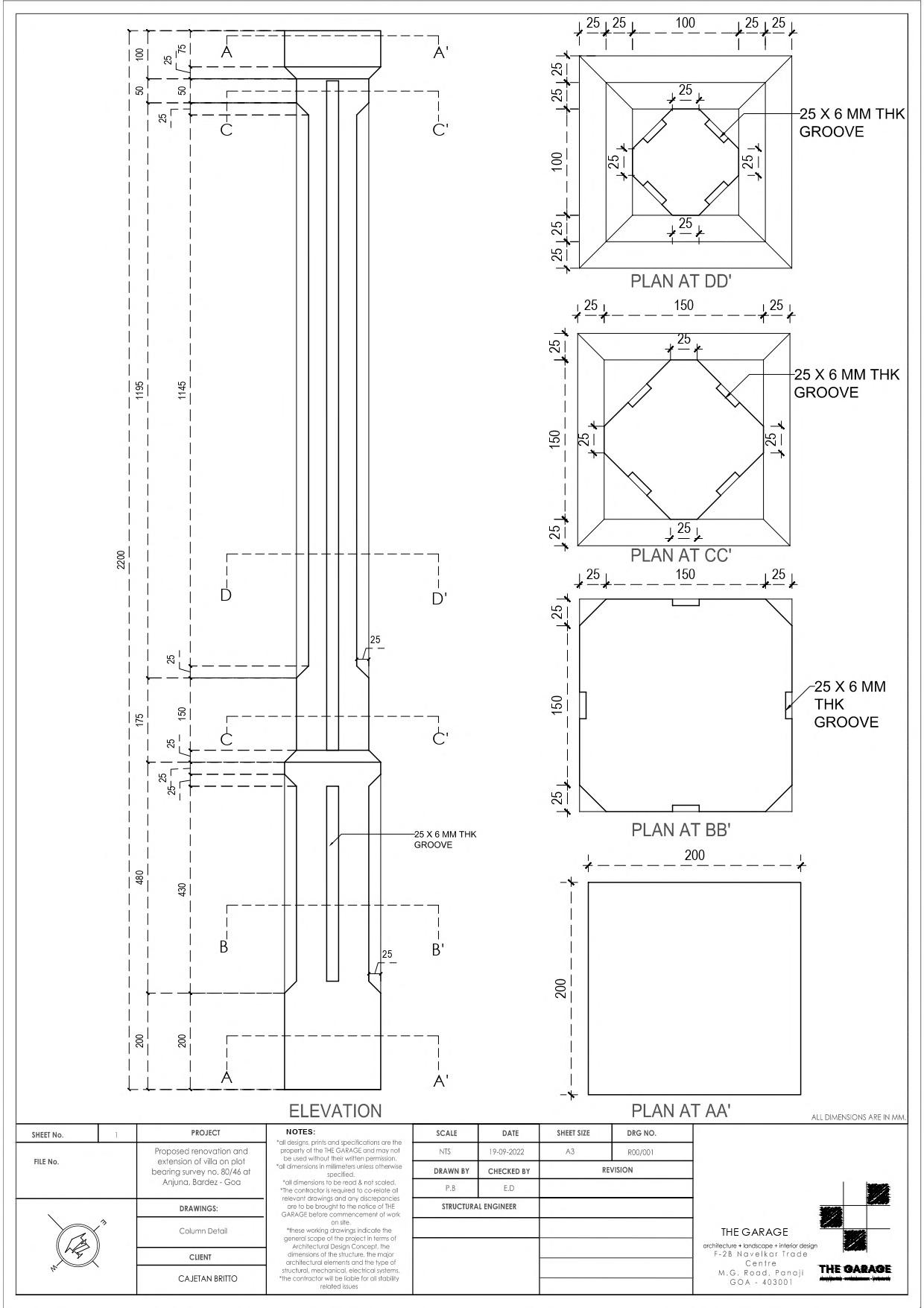

as functional to hold the eaves
Detail of In-built crockery unit
Adds a functiio
Detail of Vanity
Floating vanity gives a lightweight look

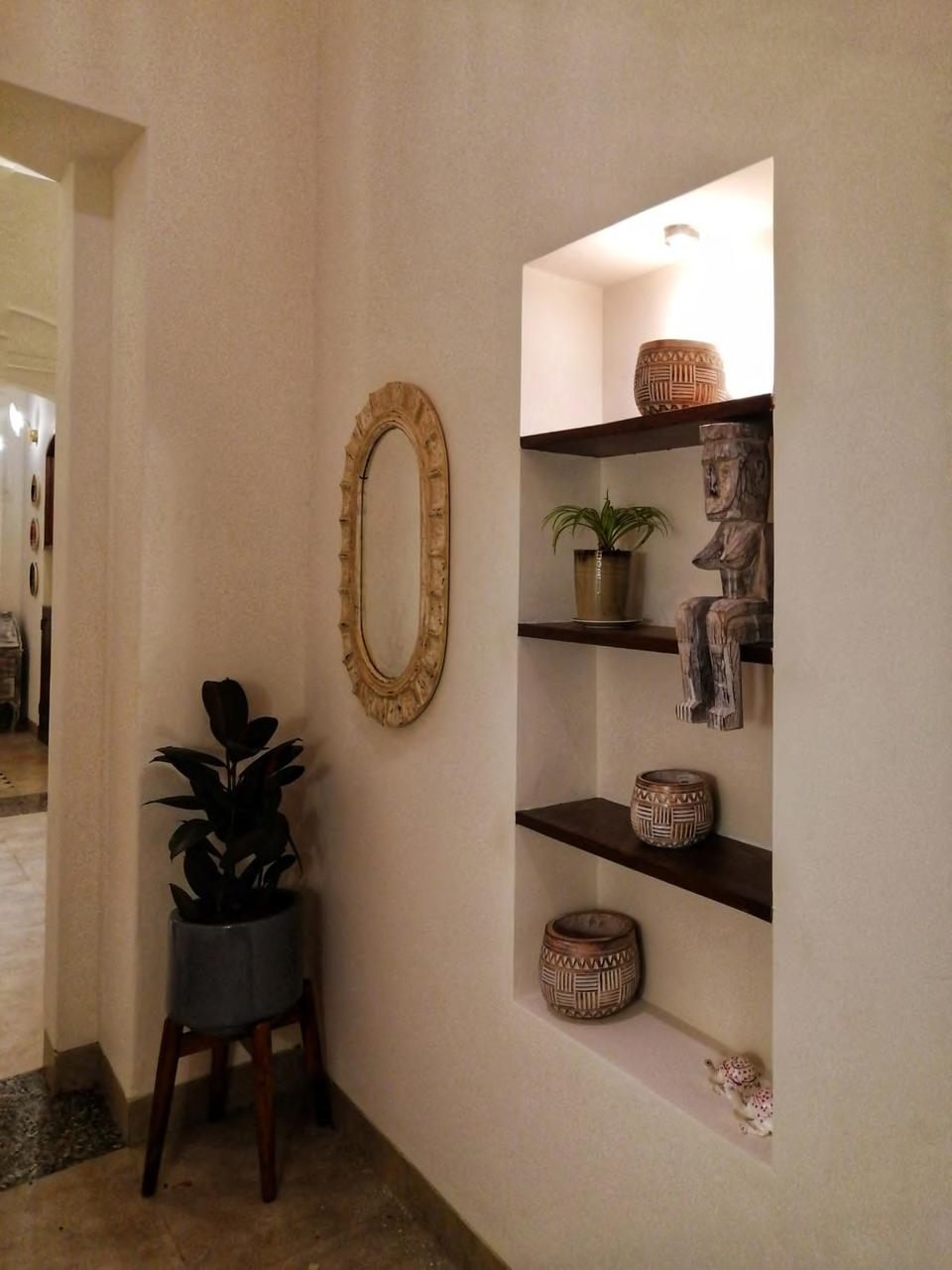

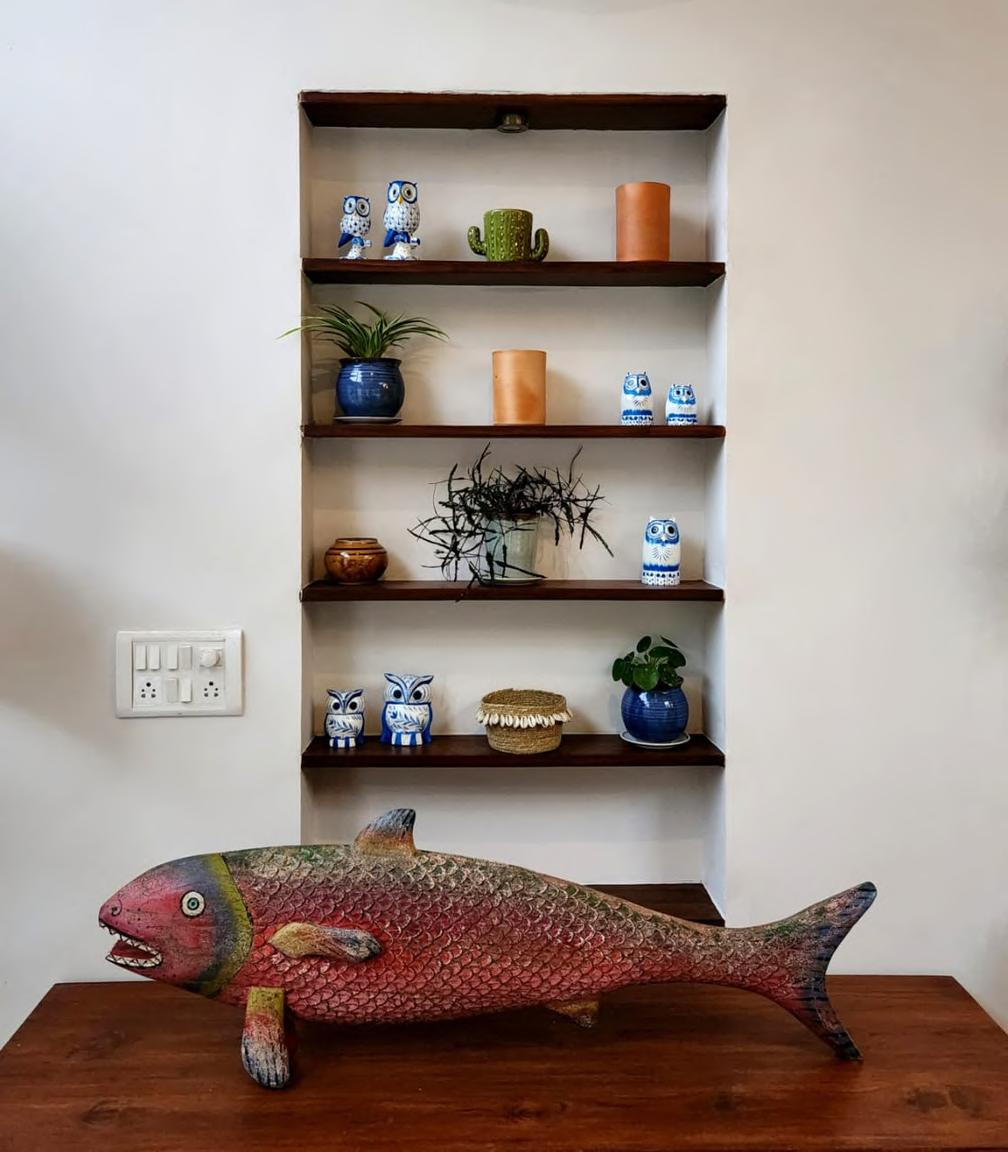

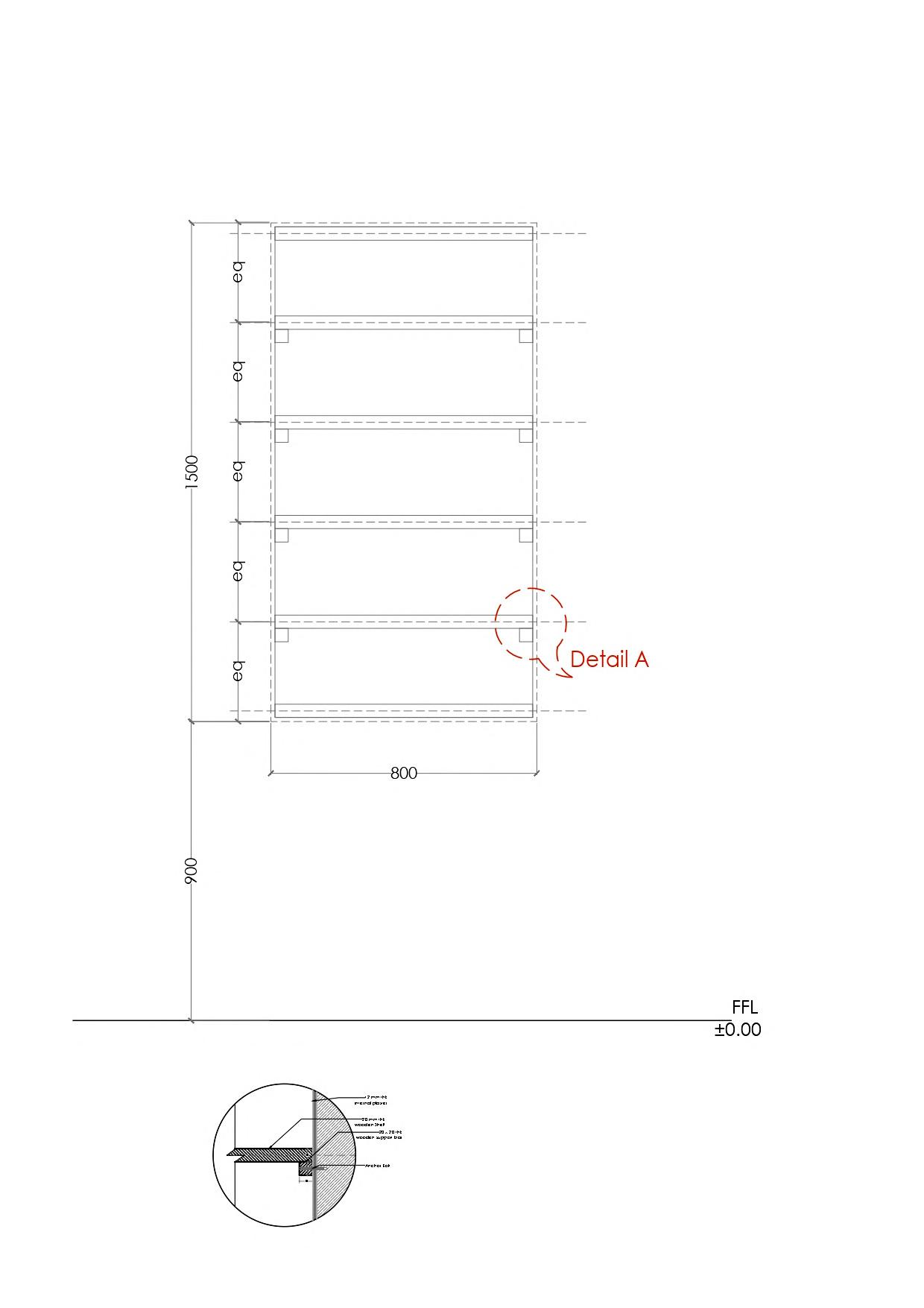

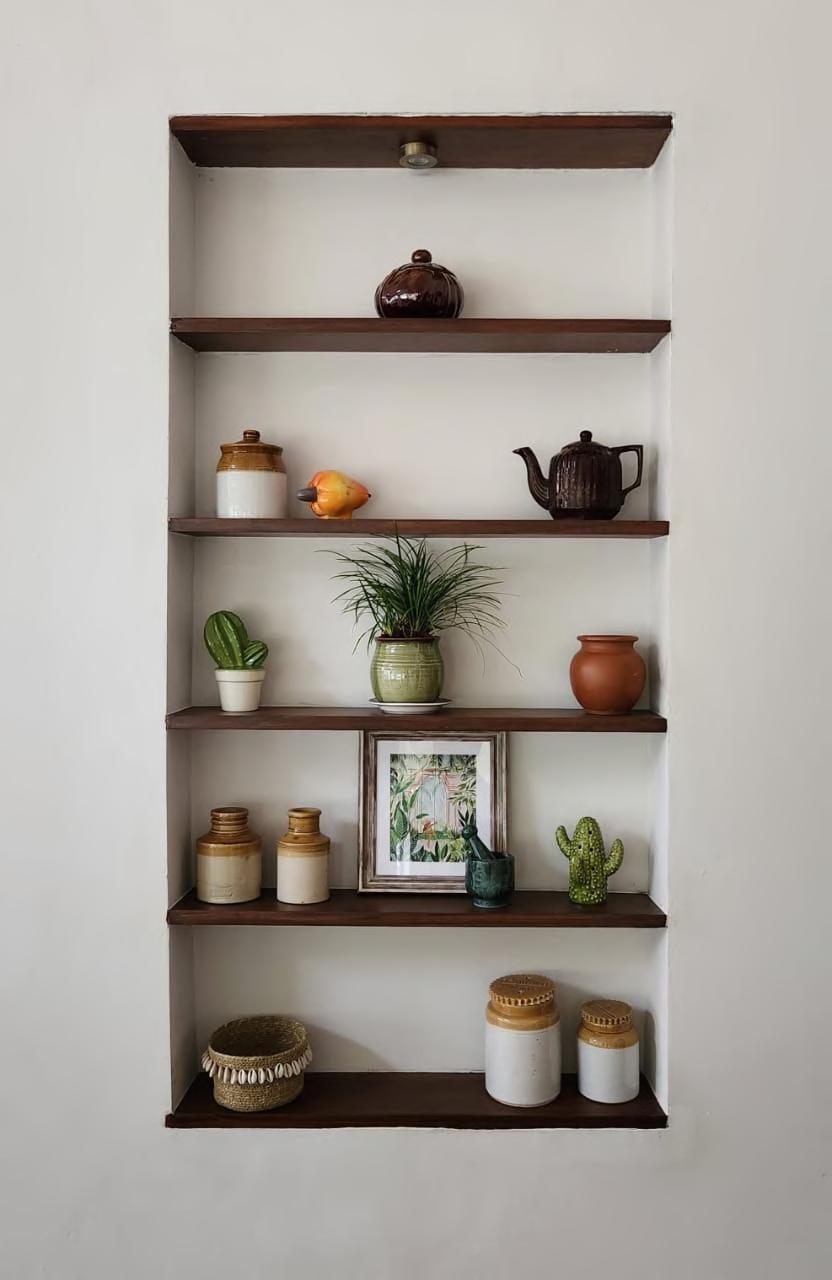

An aesthetic feature added to the interiors spaces to use for decorative elements

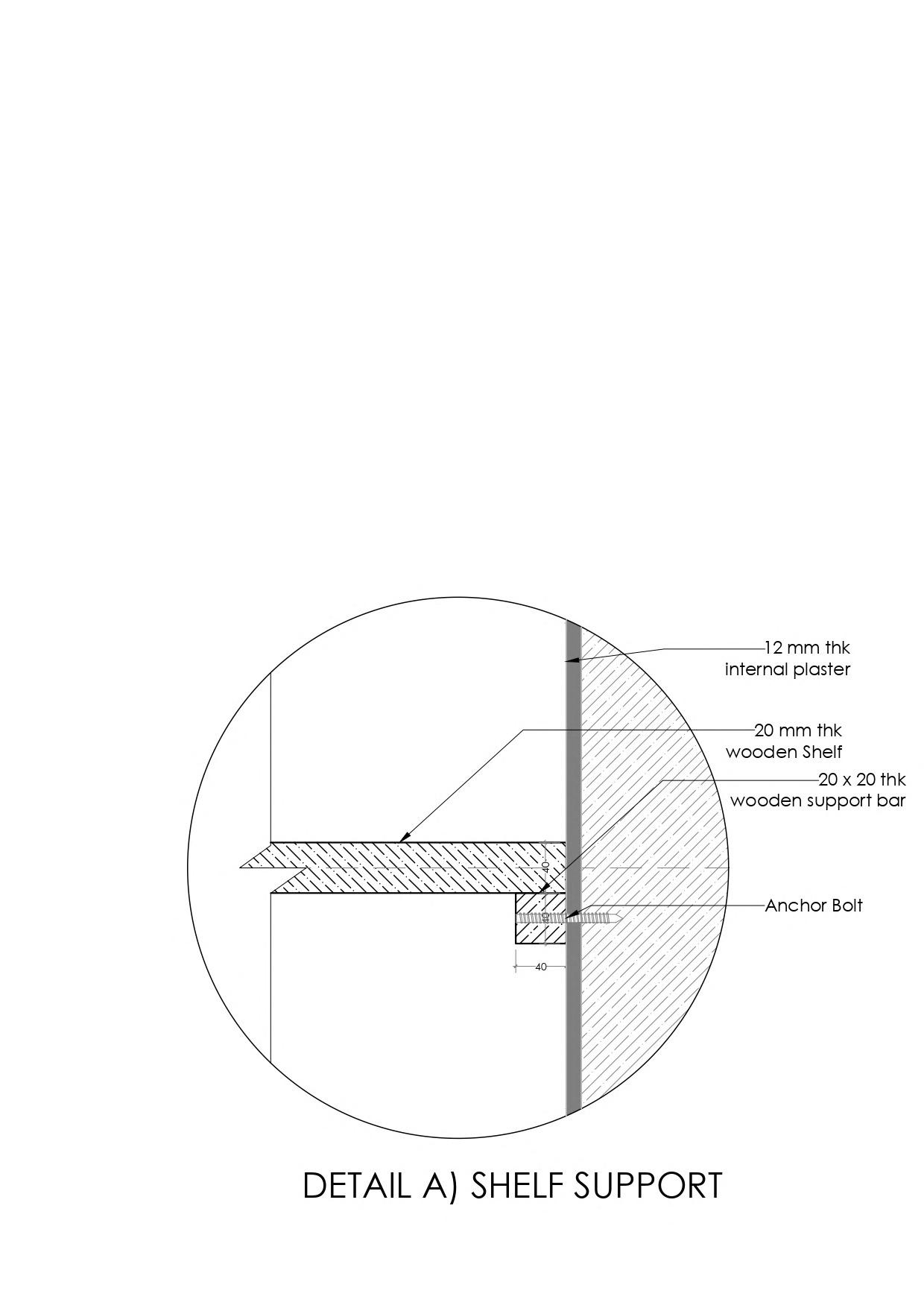

Detail

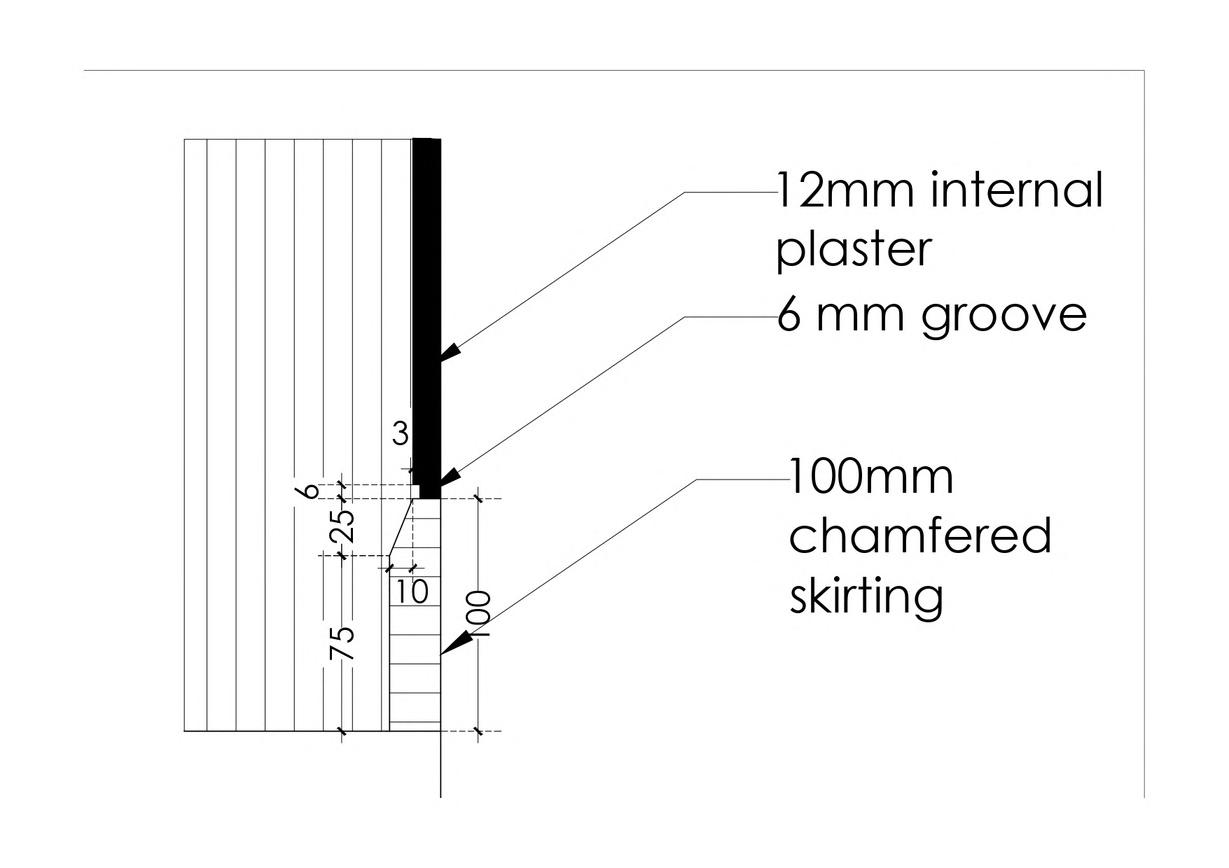

As important as tiling is skirting allows flooring to be hassle free in terms of maintenance

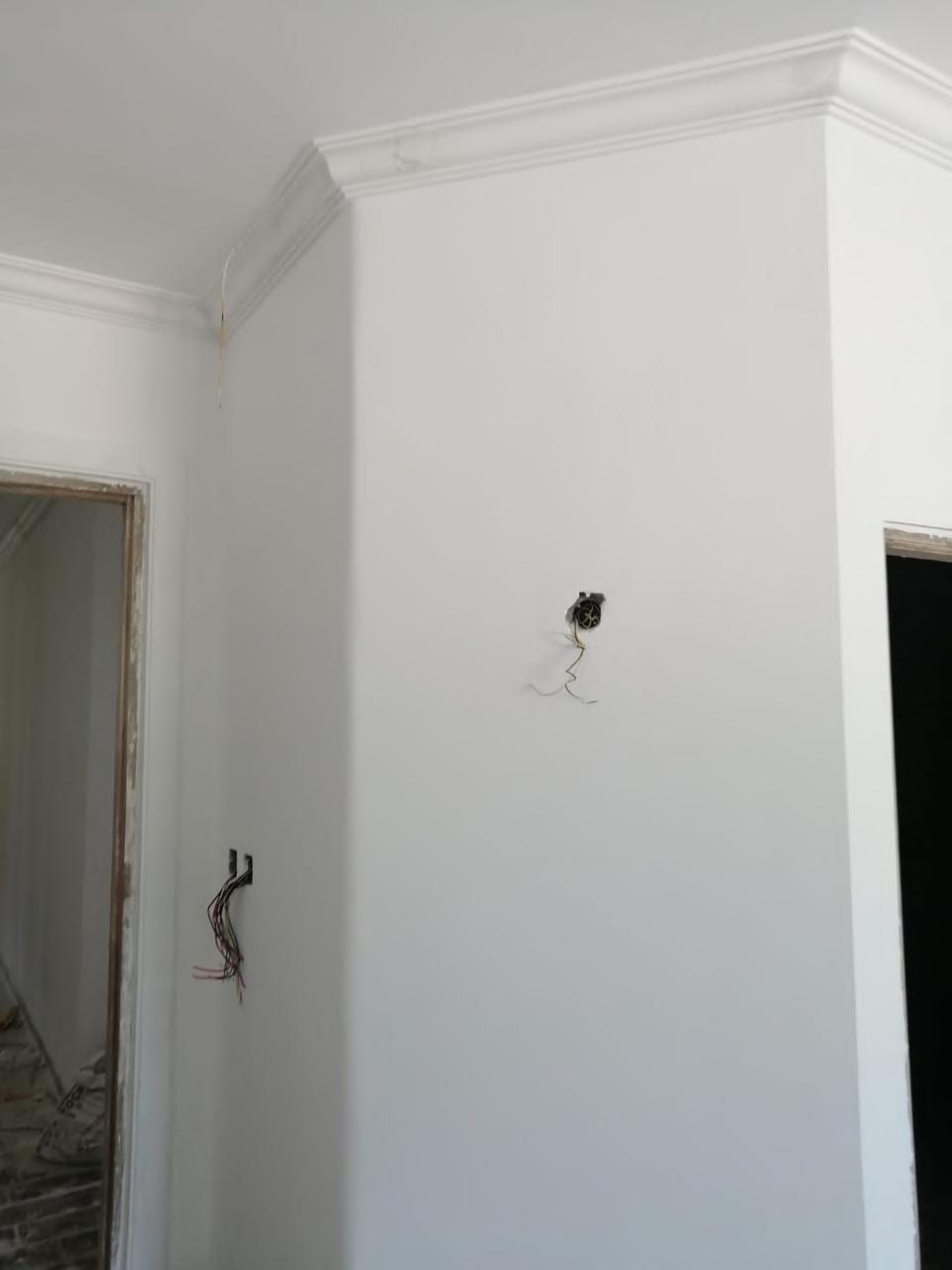

Detail of moulding
Adding a hint of character in interiors moulding can be either simple or exaggerated
Location: Anjuna, Bardez- Goa
Site area: 1155.05 Sq m
Total build up area: 470 Sq m ~ 40.70 %
Architect: Ezra D'Souza, Giselle Ann Lobo
The project is a luxury 5-bedroom guest the village of Anjuna.
Concept:
The aim of the architect was to give the space ability to be a part of its surroundings.
The main elements to bring in from the were 1. 2.
Visual connectivity
The aspect of light and visual connectivity achieved through multiple skylights as well length windows while the aspect of ventilation achieved through cross ventilation.
Space planning was done so as to achieve connectivity
Key design features:
The spaces are designed such that there is visual connectivity of the indoor and outdoor spaces Almost 60% of the site is left open for landscape. Being a renovation and extension project the aim was to reduce breakage and to maintain the essence of the old house. Use of skylights to avoid dark and dingy spaces like corridors.
Interiors:
The interiors are inspired by a modern Bali with hues inspired from the peacock feathers.
Roofing:
For the common spaces the traditional wooden frame with two layers of tiles - roof + ceiling will help with insulation.
The bedrooms have a layer of ply (along with a bitumen or aluminum sheet for waterproofing) and easier maintenance.

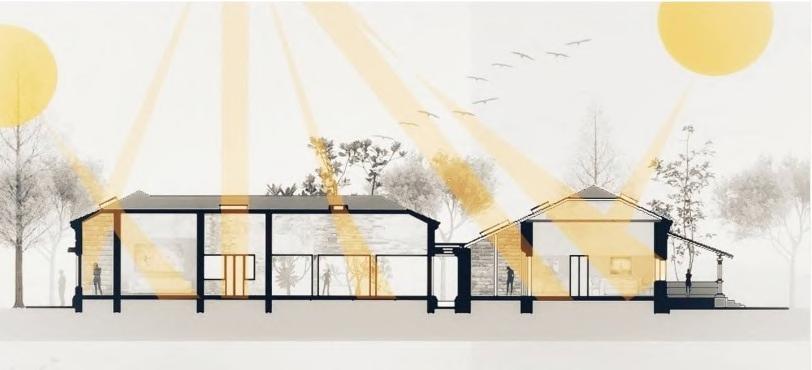

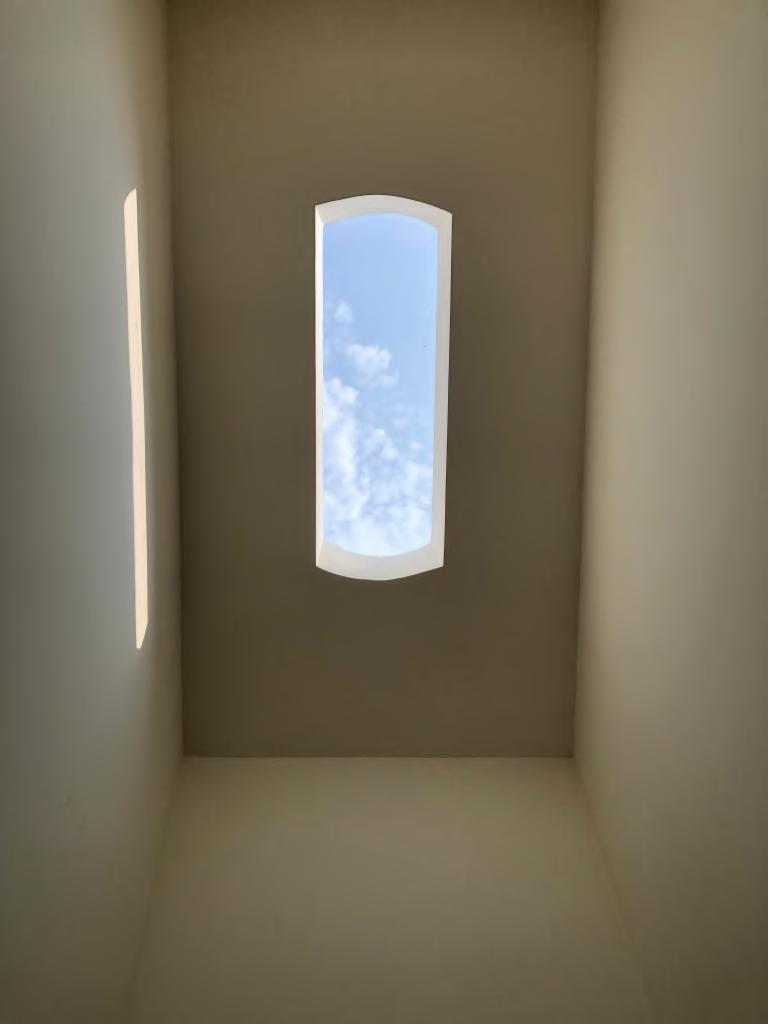

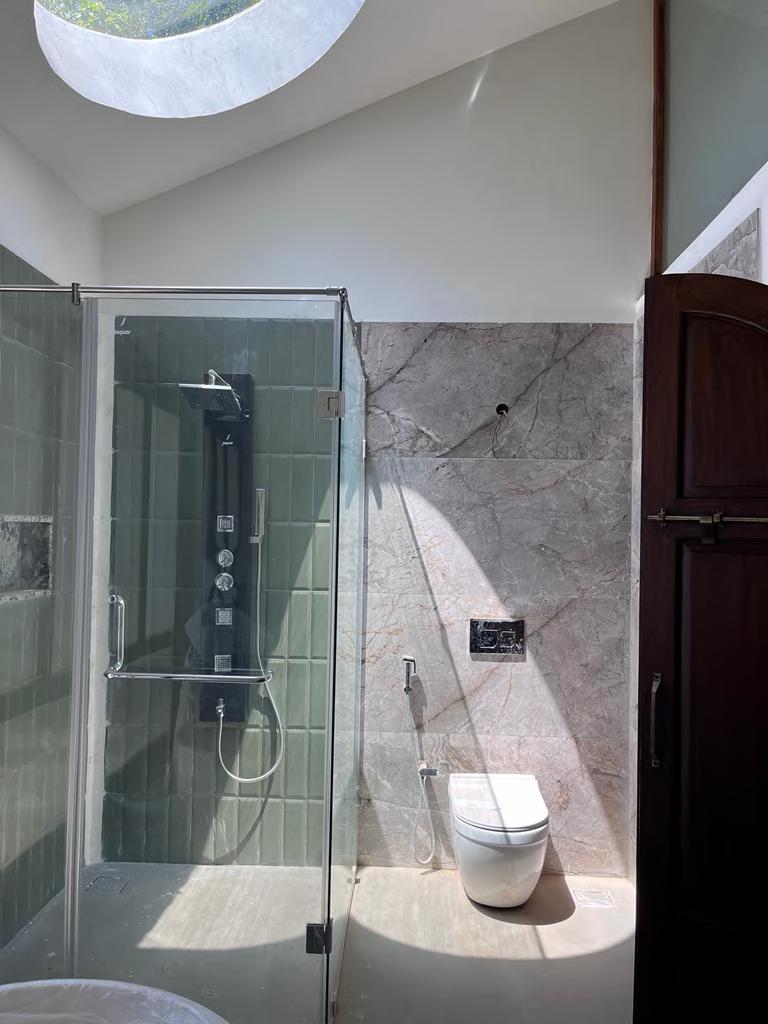

Old houses tend to get dark and gloomy; the introduction of skylights transforms these spaces; with the already high ceilings and thick walls bringing the spaces to life.
The extension roof matches the roof of the old house, to form a cohesive massing.
Structure:
The structure of the old house is retained as adding a few walls and creating niches in order reduce breakage.
The extension however is made of RCC incorporates mouldings like the old structure amalgamate the two.
Walls to be constructed
Walls to be demolished
Material palette:
Flooring: Granite/ Ceramic tiles
Walls: Lime plaster and paint
Windows: Wooden with fluted glass
Analysis:
Despite bringing in plenty of light, one drawback is excessive heat which is not ideal in a hot and humid environment. Some spaces are larger and not utilised to the fullest.
Considering it is a luxury guest house planning is done adequately.
Landscape:
A well thought of landscape throughout the site with tropical indigenous plants which adds to the beauty of the site.
The space between the two houses acts as a beautiful transition space. Very porous in terms of visual connectivity as well as circulative connectivity
