MODULAR ROOFLIGHTS
outstanding local service
CONTENTS

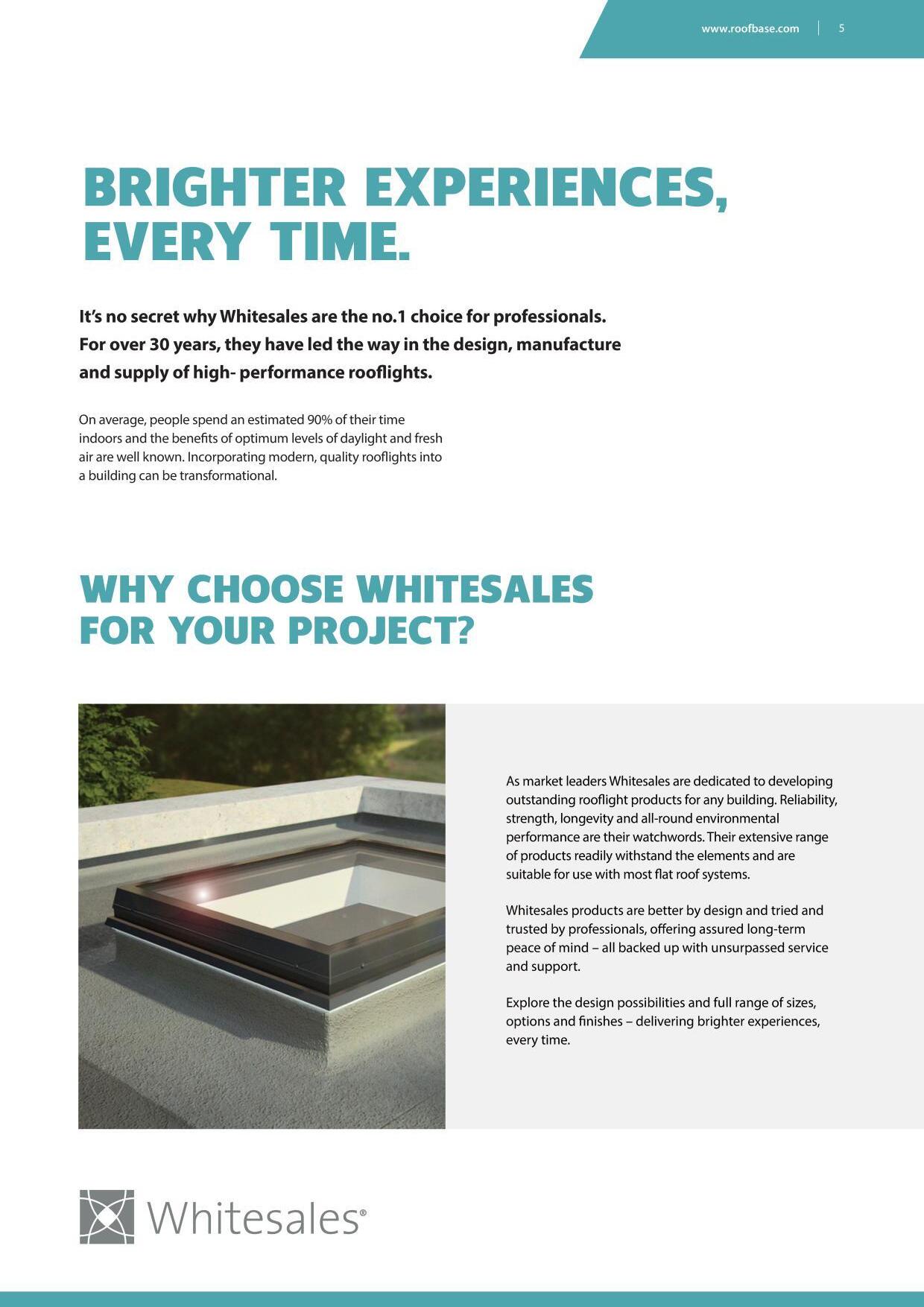

Introduction
Raylux flat glass rooflight
Em - Glaze flat glass rooflight
Em - Glaze Modular Ridgelight
Em - View self-cleaning rooflight
Em - Dome polycarbonate rooflight
Em - Tube flat and pitched roof tubular rooflights
RUFUS, the online configurator tool
Product combination availability
Controls and accessories
5 6 - 9 10 - 13 14 - 17 18 - 21 22 - 25 26 - 29 30 - 31 32 - 33 34 - 37
Save time. Visit whitesales.co.uk/RUFUS to generate a unique product part code to order the exact product you need.

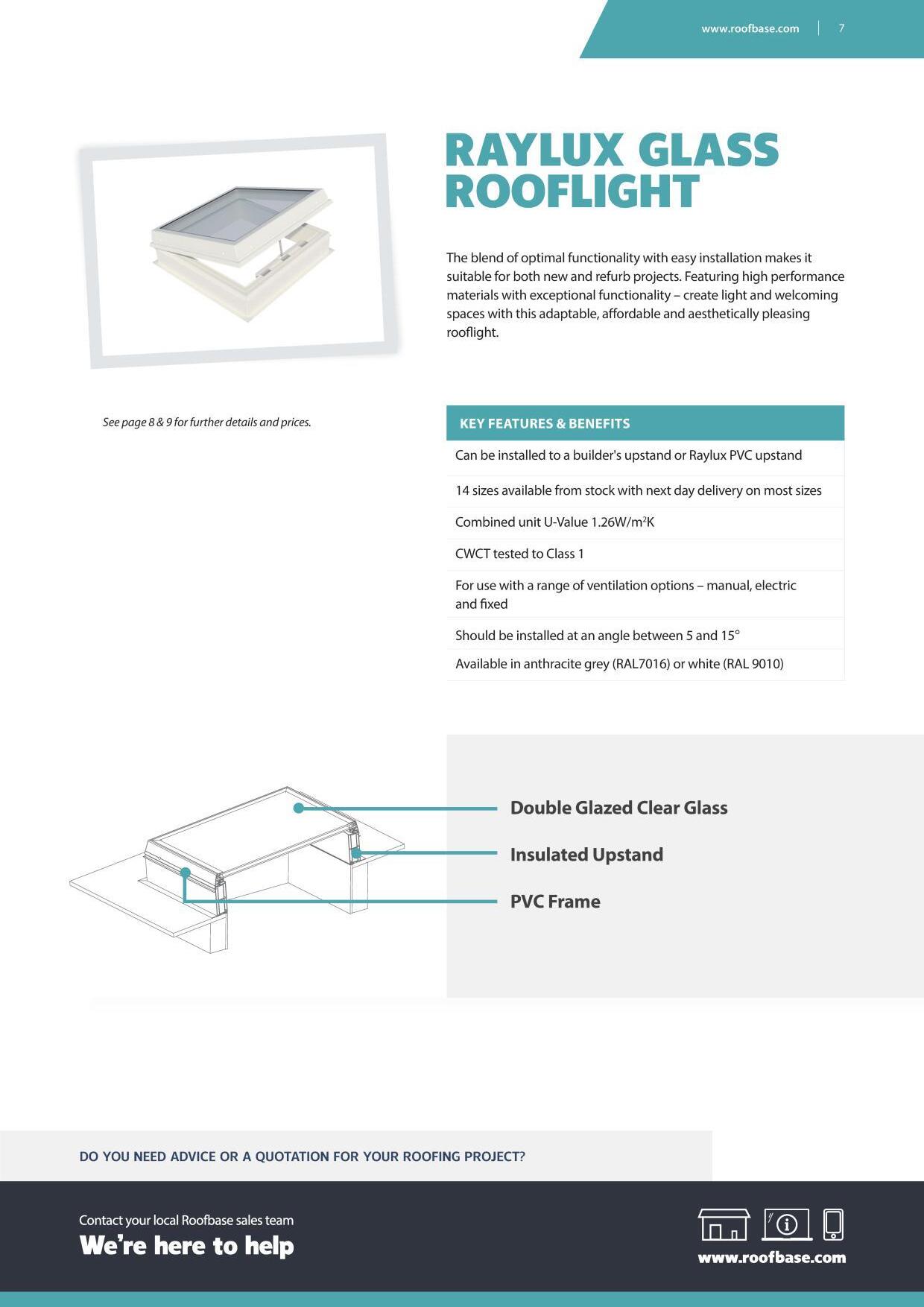

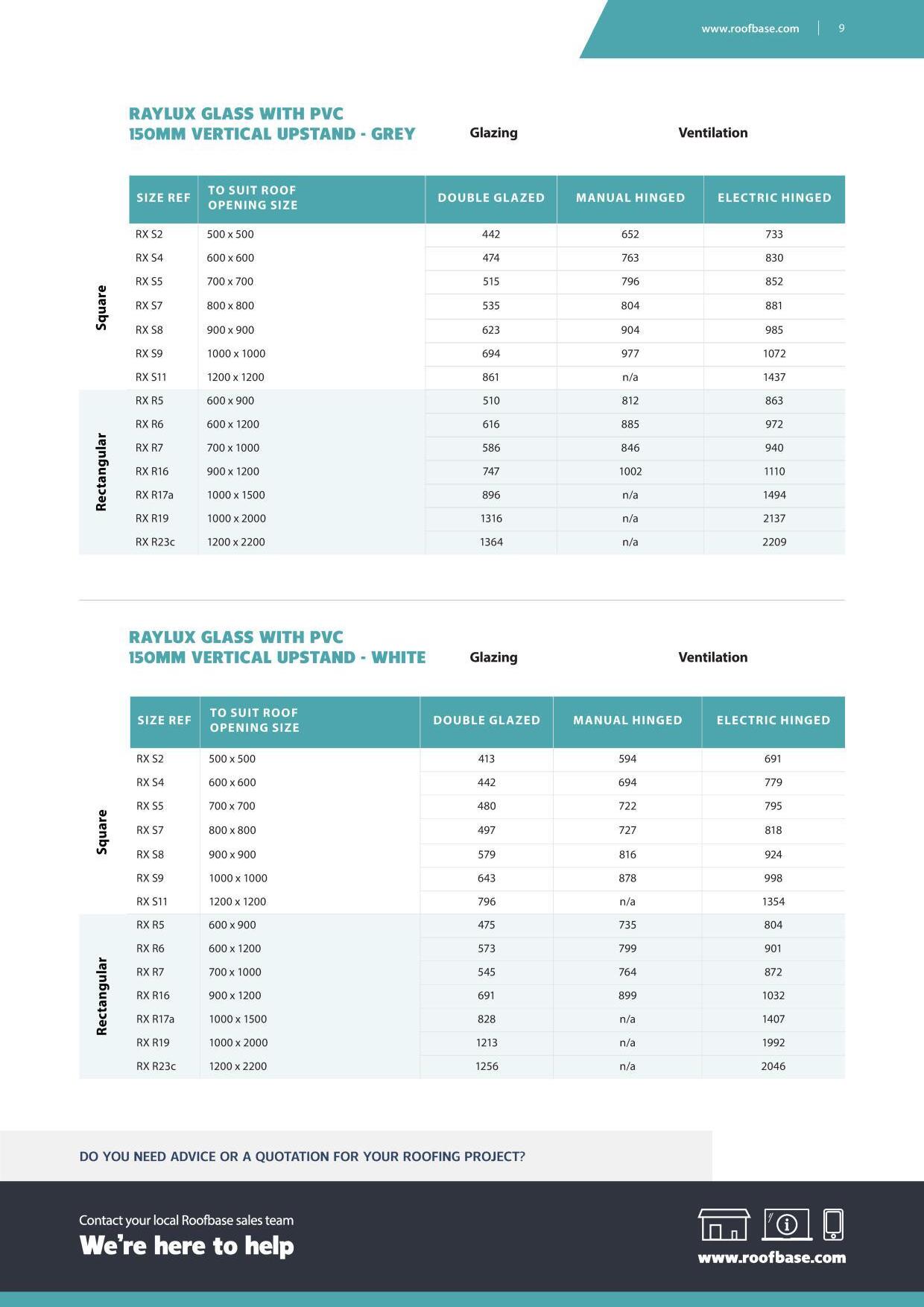

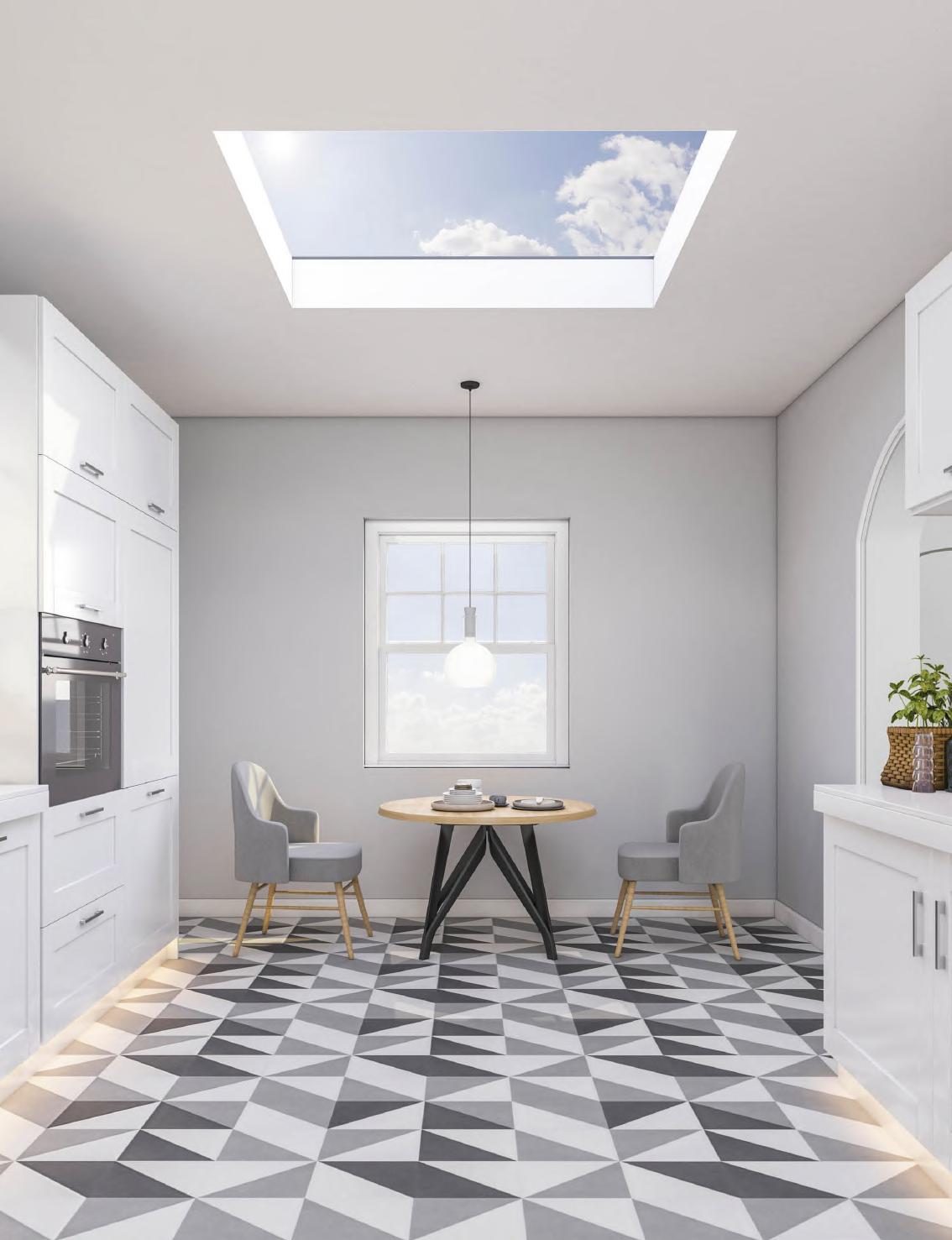

RAYLUX
Modern and precisely engineered, Raylux is the ideal solution for any project.
Builder's Upstand Vertical Upstand
RAYLUX GLASS TO SUIT BUILDER'S UPSTAND - WHITE
RAYLUX GLASS TO SUIT BUILDER'S
- GREY
SIZE REF TO SUIT EXTERNAL UPSTAND SIZE DOUBLE GLAZED MANUAL HINGED ELECTRIC HINGED Square RX S2 600 x 600 405 612 708 RX S4 700 x 700 425 708 791 RX S5 800 x 800 460 733 806 RX S7 900 x 900 479 740 831 RX S8 1000 x 1000 557 829 903 RX S9 1100 x 1100 598 871 982 RX S11 1300 x 1300 771 n/a 1371 Rectangular RX R5 700 x 1000 456 747 818 RX R6 700 x 1300 547 808 912 RX R7 800 x 1100 521 775 885 RX R16 1000 x 1300 644 894 1011 RX R17a 1100 x 1600 802 n/a 1452 RX R19 1100 x 2100 1176 n/a 2013 RX R23c 1300 x 2300 1327 n/a 2177 Ventilation Glazing
UPSTAND
SIZE REF TO SUIT EXTERNAL UPSTAND SIZE DOUBLE GLAZED MANUAL HINGED ELECTRIC HINGED Square RX S2 600 x 600 351 533 648 RX S4 700 x 700 371 615 721 RX S5 800 x 800 403 637 731 RX S7 900 x 900 420 642 751 RX S8 1000 x 1000 490 719 829 RX S9 1100 x 1100 529 755 895 RX S11 1300 x 1300 686 n/a 1274 Rectangular RX R5 700 x 1000 400 648 741 RX R6 700 x 1300 481 700 822 RX R7 800 x 1100 458 672 798 RX R16 1000 x 1300 571 775 921 RX R17a 1100 x 1600 714 n/a 1348 RX R19 1100 x 2100 1051 n/a 1850 RX R23c 1300 x 2300 1188 n/a 1988 Ventilation Glazing
DIAGRAMS

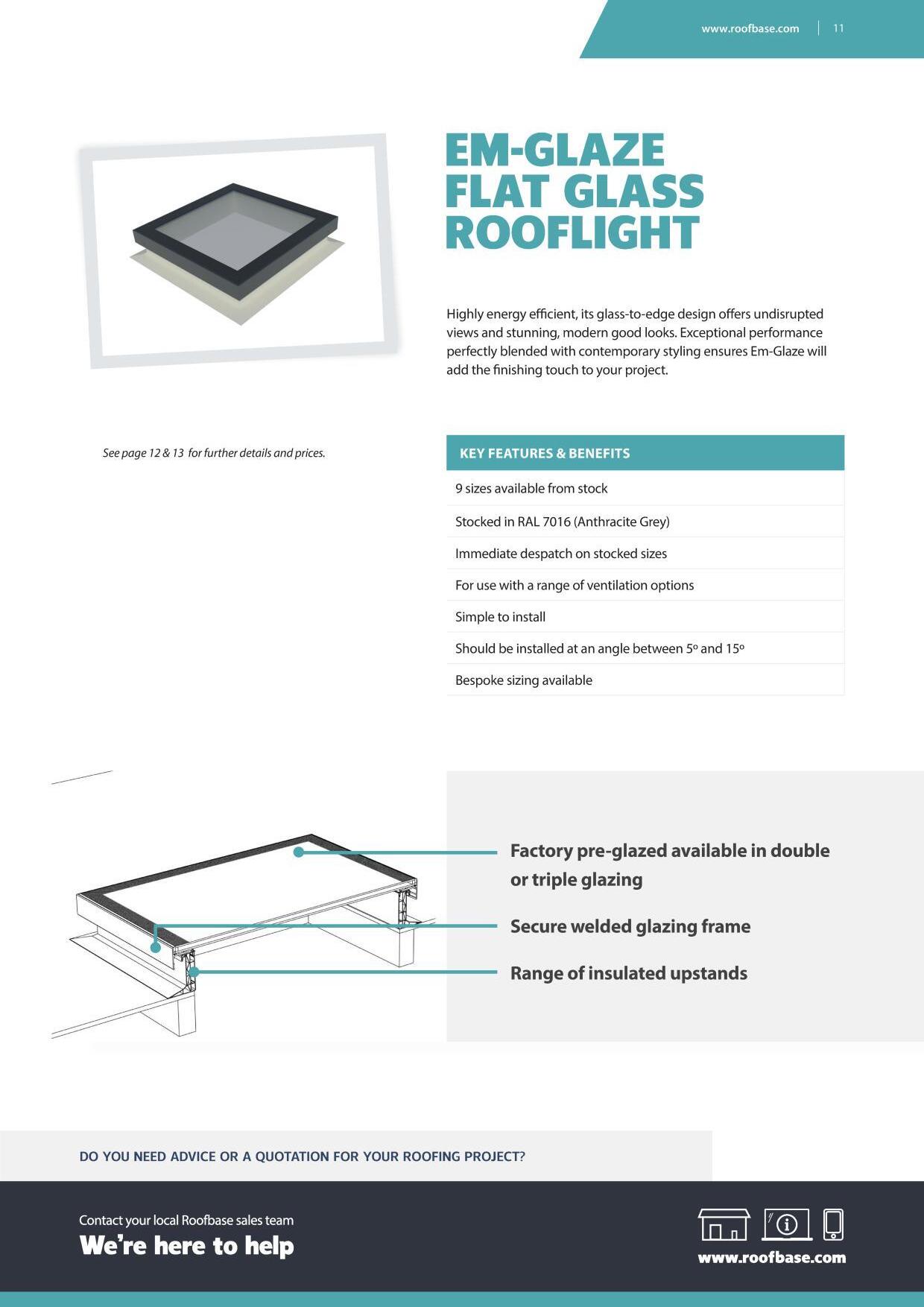

EM-GLAZE
With a clean, minimalistic finish both inside and out, Em-Glaze is an elegant solution for externally visible installations.
EM-GLAZE FLAT GLASS ROOFLIGHT TO SUIT BUILDERS CURB
EM-GLAZE FLAT GLASS ROOFLIGHT WITH PVC 150MM SPLAYED
SIZE REF TO SUIT ROOF OPENING SIZE DOUBLE GLAZED CONTROLLABLE TRICKLE VENTS MANUAL HINGED ELECTRIC HINGED Square S2 700 x 700 674 40 152 436 S4 800 x 800 755 40 164 460 S7 1000 x 1000 955 40 182 862 S8 1100 x 1100 1058 40 191 880 S9 1200 x 1200 1169 40 195 886 Rectangular R5 800 x 1100 890 40 174 480 R16 1100 x 1400 1224 40 198 893 R17a 1200 x 1700 1471 40 n/a 1207 R19 1200 x 2200 1766 40 n/a 1428

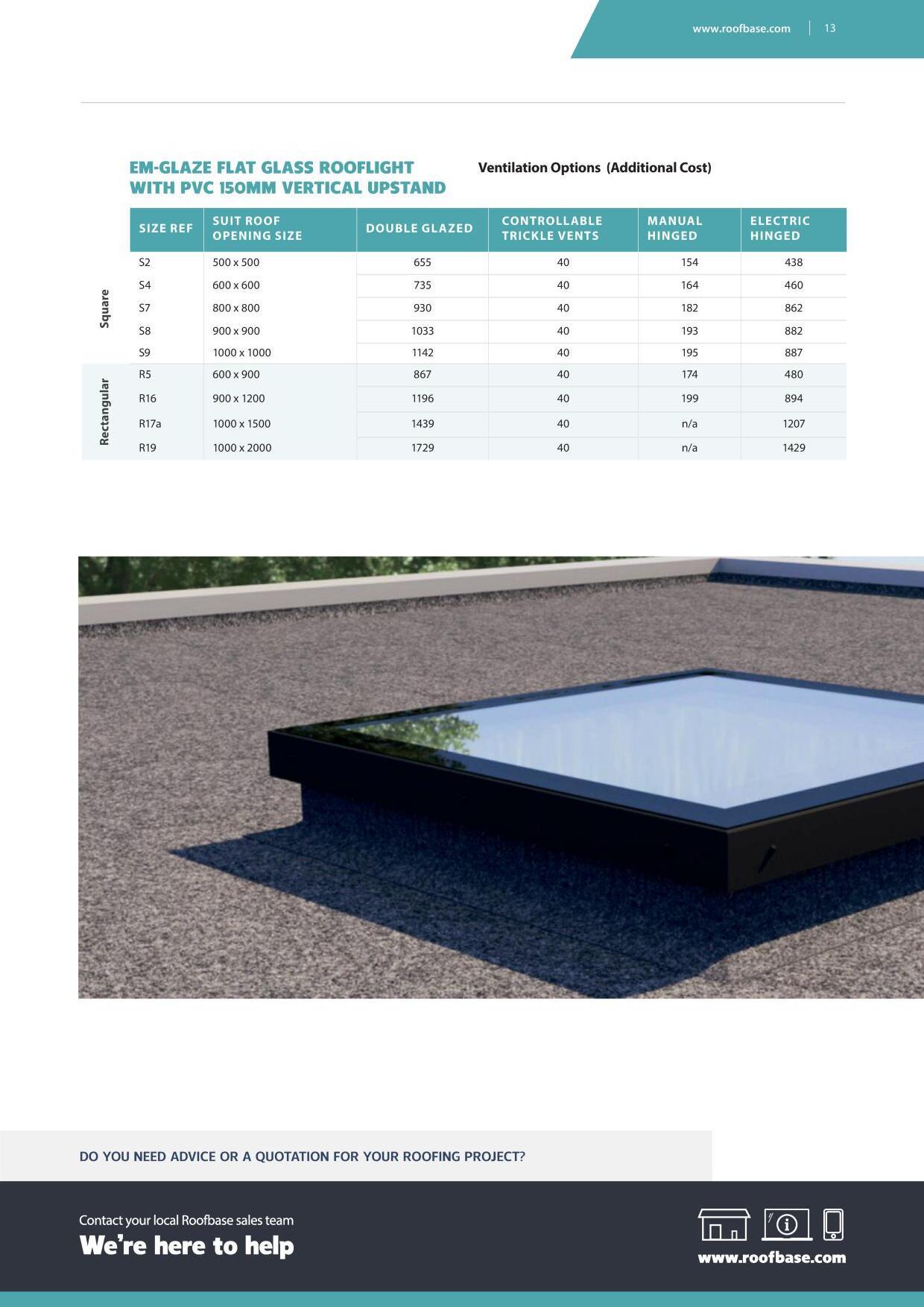

Ventilation Options (Additional Cost) SIZE REF TO SUIT EXTERNAL CURB SIZE DOUBLE GLAZED Square S2 600 x 600 540 S4 700 x 700 614 S7 900 x 900 779 S8 1000 x 1000 870 S9 1100 x 1100 971 Rectangular R5 700 x 1000 725 R16 1000 x 1300 1018 R17a 1100 x 1600 1232 R19 1100 x 2100 1492
UPSTAND
Builder's Upstand 150mm vertical upstand DIAGRAMS
150mm splayed upstand

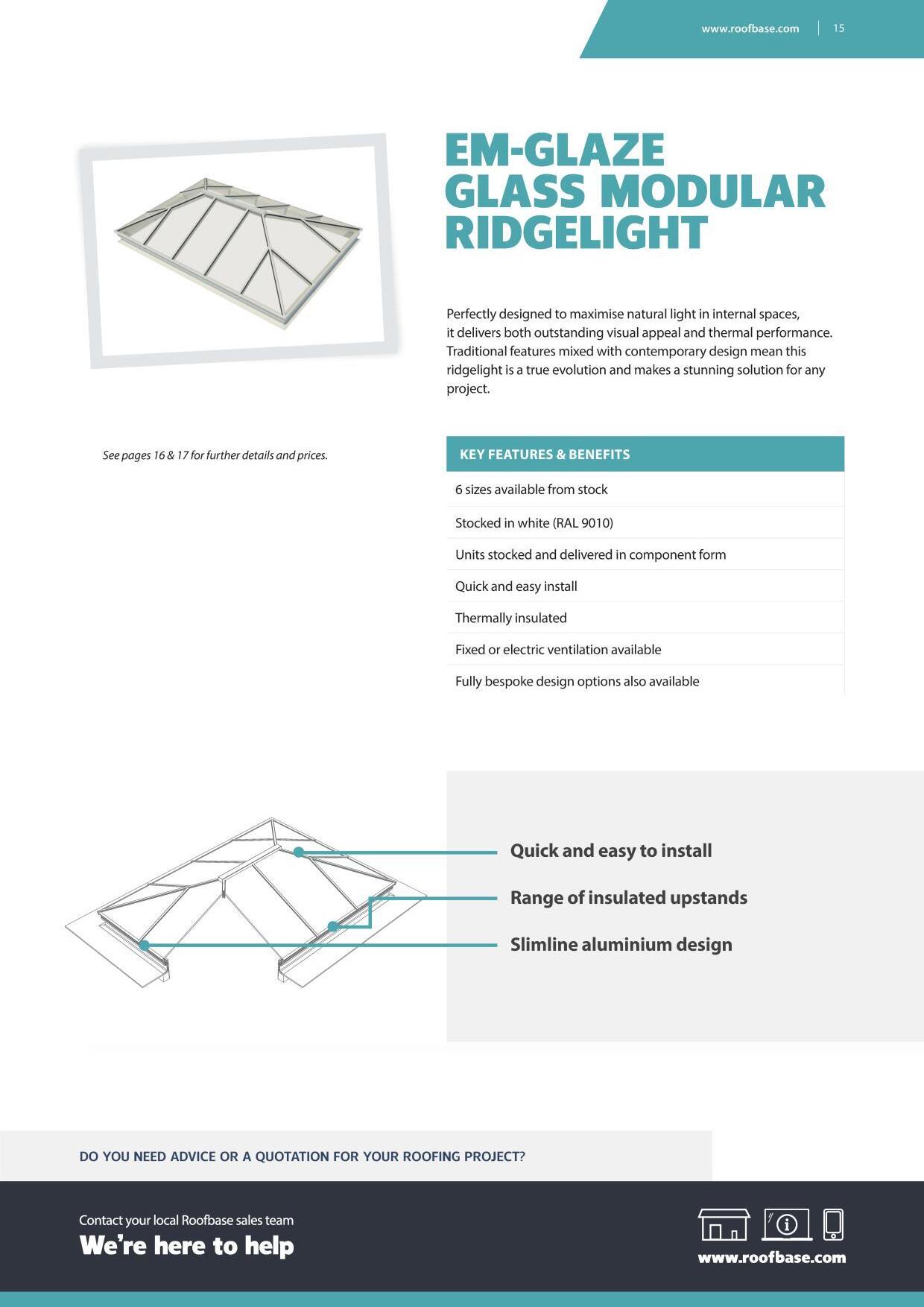

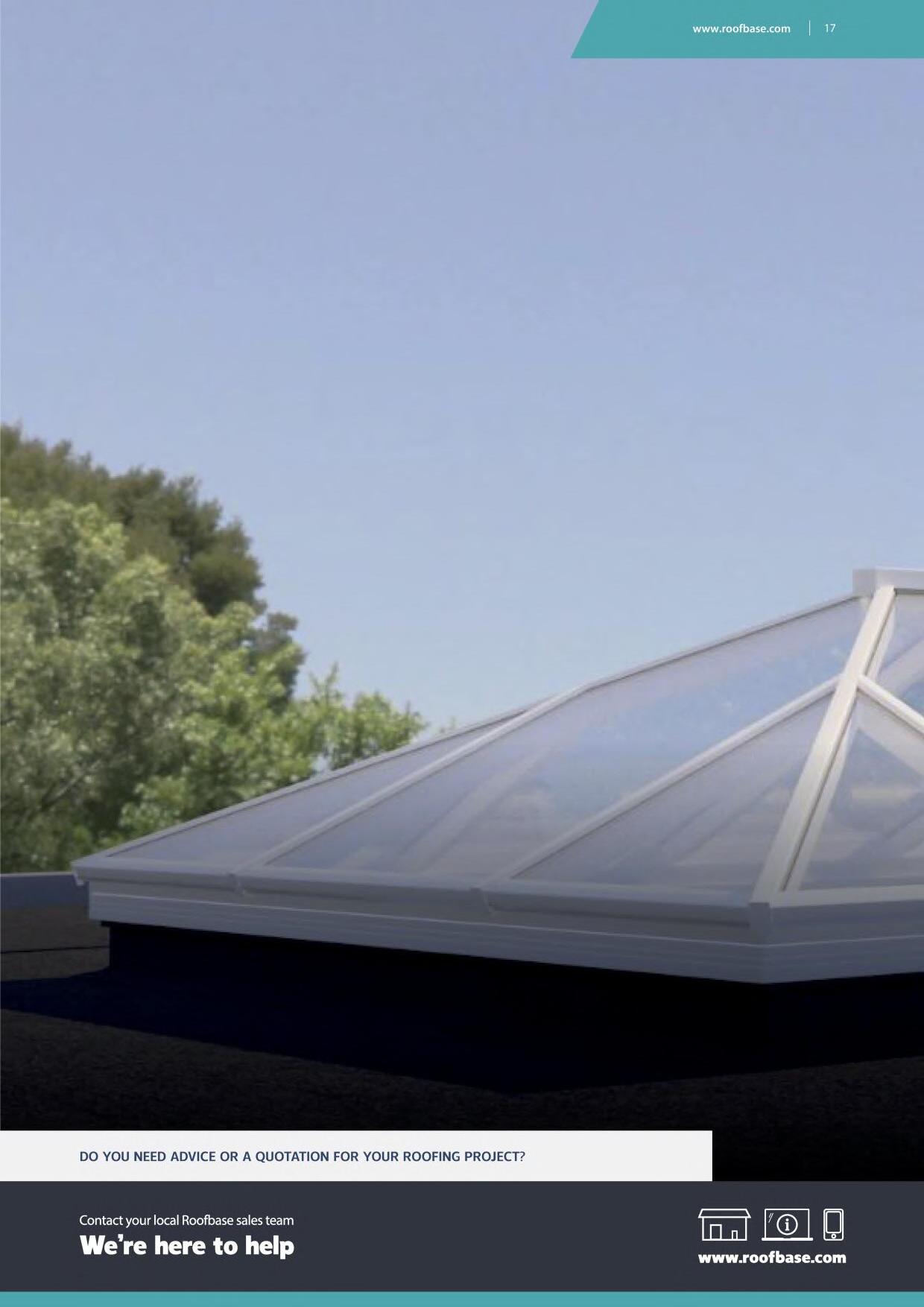

EM-GLAZE RIDGELIGHT
Beautiful sightlines and high-performance materials meet in the elegantly proportioned Em-Glaze modular ridgelight.
Builder's Upstand
150mm splayed upstand
150mm vertical upstand DIAGRAMS
EM-GLAZE MODULAR RIDGELIGHT TO SUIT BUILDER'S UPSTAND
EM-GLAZE MODULAR RIDGELIGHT WITH PVC 150MM SPLAYED UPSTAND
Ventilation Options (Additional Cost)
EM-GLAZE MODULAR RIDGELIGHT WITH PVC 150MM VERTICAL UPSTAND
Ventilation Options (Additional Cost)
SIZE REF TO SUIT EXTERNAL CURB SIZE DOUBLE GLAZED Square S9 1100 x 1100 1513 Rectangular R16 1000 x 1300 1567 R17a 1100 x 1600 1731 R19 1100 x 2100 2039 R22 1100 x 2600 2416 R30a 1600 x 3100 3319
SIZE REF TO SUIT ROOF OPENING SIZE DOUBLE GLAZED CONTROLLABLE TRICKLE VENTS Square S9 1200 x 1200 1697 40 Rectangular R16 1100 x 1400 1758 40 R17a 1200 x 1700 1953 40 R19 1200 x 2200 2294 40 R22 1200 x 2700 2707 40 R30a 1700 x 3200 3880 40
SIZE REF TO SUIT ROOF OPENING SIZE DOUBLE GLAZED CONTROLLABLE TRICKLE VENTS Square S9 1000 x 1000 1673 40 Rectangular R16 900 x 1200 1733 40 R17a 1000 x 1500 1923 40 R19 1000 x 2000 2260 40 R22 1000 x 2500 2669 40 R30a 1500 x 3000 3605 40

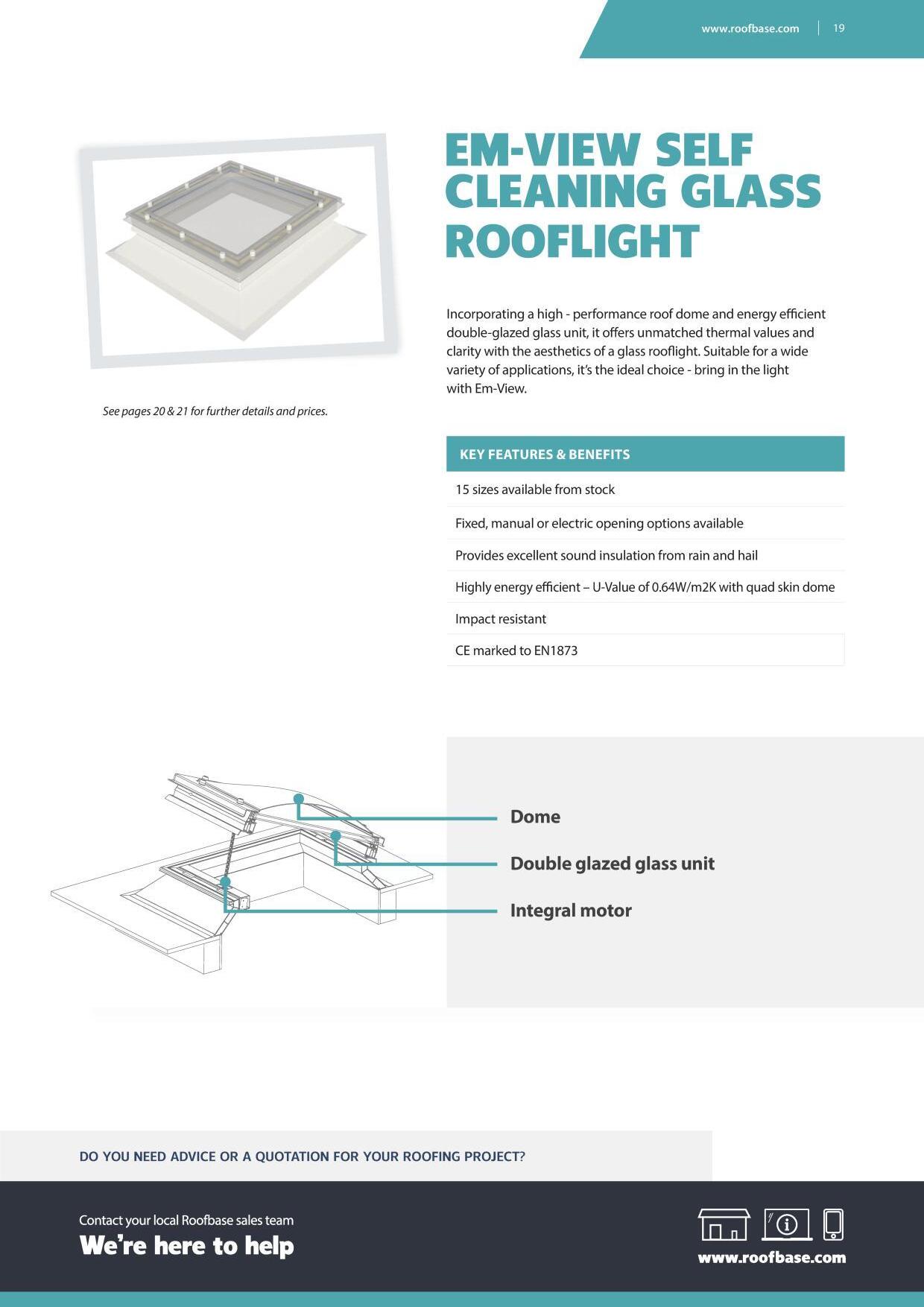

EM-VIEW
Highly versatile and providing exceptional sound insulation and thermal values, Em-View truly sets the standard.

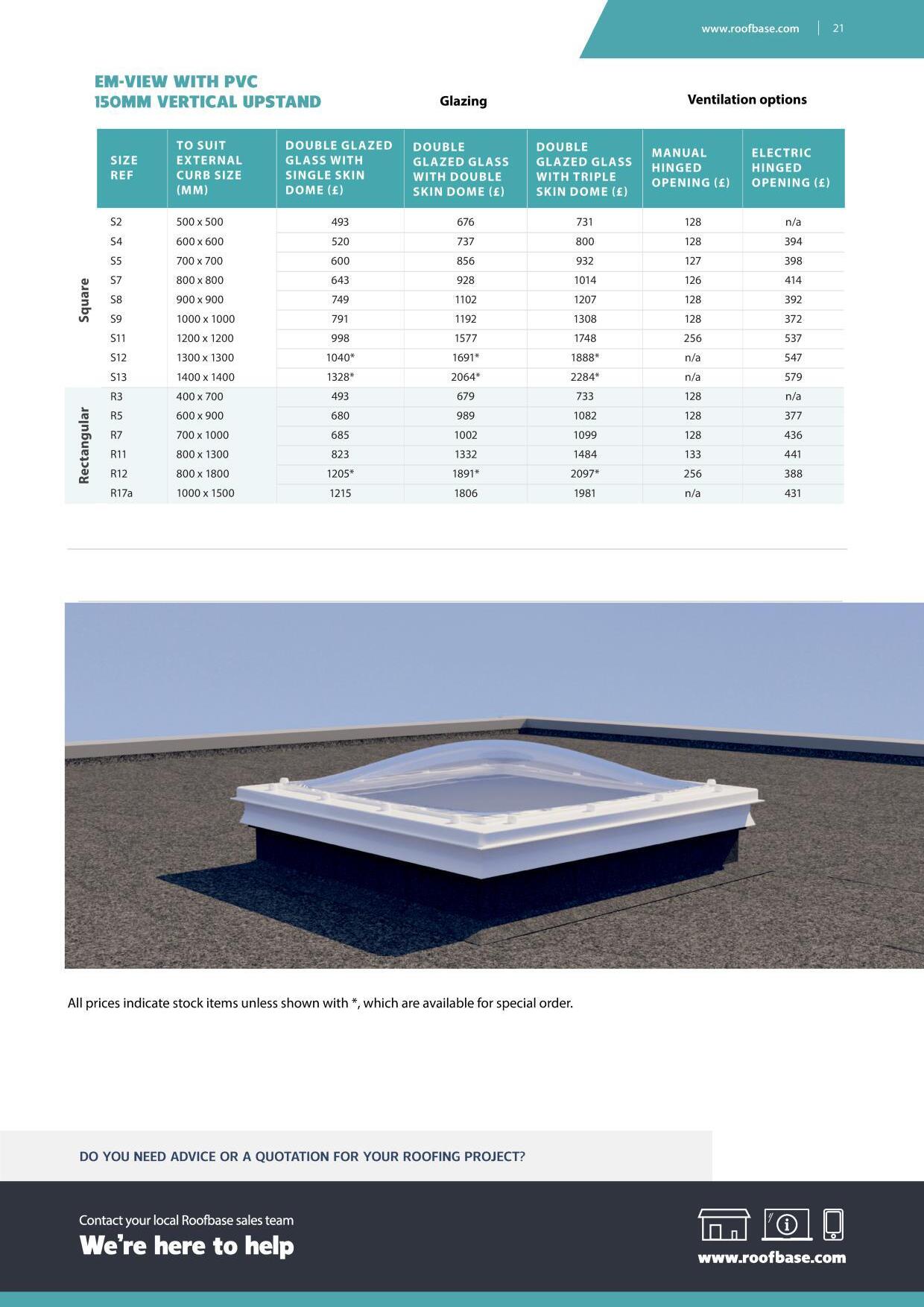

EM-VIEW TO SUIT
SIZE REF TO SUIT EXTERNAL CURB SIZE (MM) DOUBLE GLAZED GLASS WITH SINGLE SKIN DOME (£) DOUBLE GLAZED GLASS WITH DOUBLE SKIN DOME (£) DOUBLE GLAZED GLASS WITH TRIPLE SKIN DOME (£) MANUAL HINGED OPENING (£) ELECTRIC HINGED OPENING (£) Square S2 600 x 600 451 632 689 170 n/a S4 700 x 700 478 694 758 170 436 S5 800 x 800 547 802 880 180 451 S7 900 x 900 584 869 955 185 473 S8 1000 x 1000 685 1038 1143 192 456 S9 1100 x 1100 727 1128 1244 192 436 S11 1300 x 1300 924 1503 1674 330 611 S12 1400 x 1400 961* 1612* 1809* n/a 626 S13 1500 x 1500 1237* 1975* 2193* n/a 670 Rectangular R3 500 x 800 451 637 691 170 n/a R5 700 x 1000 626 935 1028 182 431 R7 800 x 1100 621 938 1035 192 500 R11 900 x 1400 749 1258 1410 207 515 R12 900 x 1900 1121* 1807* 2013* 340 472 R17a 1100 x 1600 1136 1725 1900 n/a 510
BUILDER'S UPSTAND Glazing Ventilation options SIZE REF TO SUIT EXTERNAL CURB SIZE (MM) DOUBLE GLAZED GLASS WITH SINGLE SKIN DOME (£) DOUBLE GLAZED GLASS WITH DOUBLE SKIN DOME (£) DOUBLE GLAZED GLASS WITH TRIPLE SKIN DOME (£) MANUAL HINGED OPENING (£) ELECTRIC HINGED OPENING (£) Square S2 700 x 700 511 692 749 128 n/a S4 800 x 800 539 755 819 126 392 S5 900 x 900 620 877 953 128 399 S7 1000 x 1000 664 951 1035 128 414 S8 1100 x 1100 773 1126 1231 126 392 S9 1200 x 1200 816 1215 1333 128 372 S11 1400 x 1400 1026 1605 1776 254 537 S12 1500 x 1500 1070* 1721* 1918* n/a 547 S13 1600 x 1600 1360* 2096* 2315* n/a 578 Rectangular R3 600 x 900 511 695 751 128 n/a R5 800 x 1100 699 1008 1101 128 377 R7 900 x 1200 708 1025 1122 126 434 R11 1000 x 1500 849 1358 1510 133 441 R12 1000 x 2000 1235* 1921* 2127* 254 387 R17a 1200 x 1700 1245 1835 2011 n/a 431 Glazing Ventilation options EM-VIEW WITH PVC 150MM SPLAYED UPSTAND 150mm splayed upstand Builder's Upstand 150mm vertical upstand DIAGRAMS

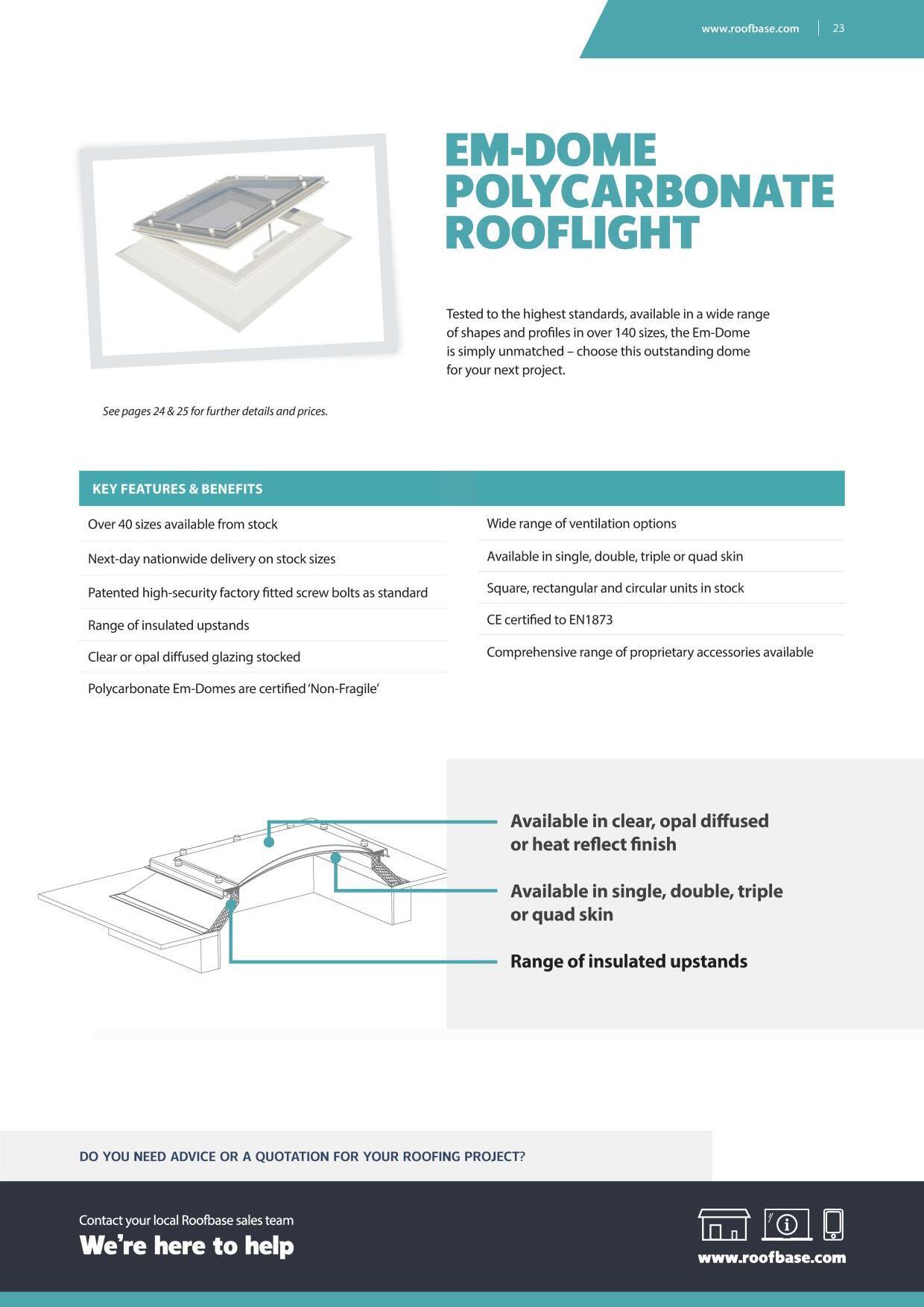

EM-DOME
Em-Dome - the no.1 choice for professionals.
Splayed
DIAGRAMS
EM-DOME TO SUIT BUILDER'S UPSTAND
Permanent ventilation spacer washers - £10
Ventilation options
Polycarbonate
SIZE REF TO SUIT EXTERNAL CURB SIZE (MIN 50MM THICKNESS) (MM) SINGLE SKIN (£) DOUBLE SKIN (£) TRIPLE SKIN (£) CONTROLLABLE ROTATING TRICKLE VENTS (£) MANUAL HINGED OPENING (£) ELECTRIC HINGED OPENING(£) Square S1 500 x 500 112 153 199 243 310 637 S2 600 x 600 139 196 255 255 325 650 S3 650 x 650 161 216 284 259 339 664 S4 700 x 700 168 233 302 266 346 672 S5 800 x 800 197 275 356 277 365 692 S6 850 x 850 212 301 390 283 376 703 S7 900 x 900 225 307 399 288 388 713 S8 1000 x 1000 270 380 492 301 409 734 S9 1100 x 1100 300 431 556 310 421 748 S10 1150 x 1150 323 468 606 318 432 759 S10a 1200 x 1200 347 499 644 323 446 773 S11 1300 x 1300 419* 622 806 334 468 793 S12 1400 x 1400 511* 699 912 345 490 817 S13 1500 x 1500 613* 792 1,028 355 704 1,685 S15a 1800 x 1800 665* 974 1,264 392 763 1,742 Rectangular R3 500 x 800 143 199 259 261 335 660 R3a 500 x 1100 183 258 332 270 359 684 R4 600 x 900 167 231 300 272 357 684 R4a 600 x 1200 215 303 396 290 390 715 R4b 600 x 1800 341* 475 637 321 446 771 R5 700 x 1000 232 333 432 283 374 699 R6 700 x 1300 316* 452 589 301 396 721 R7 800 x 1100 240 341 445 295 389 716 R7a 800 x 1400 321* 451 582 310 423 748 R7b 800 x 1700 394* 554 722 328 457 782 R10a 900 x 1200 276 417 543 306 416 743 R11 900 x 1400 431* 547 712 316 430 757 R11a 900 x 1800 432* 629 818 337 451 776 R16 1000 x 1300 417* 609 791 316 432 757 R16a 1000 x 1600 417* 617 802 334 468 793 R17 1100 x 1400 403* 596 777 327 456 783 R17a 1100 x 1600 431* 634 822 337 468 795 R18 1100 x 1700 423* 615 799 345 477 804 R20 1100 x 2300 740* 988 1,282 379 741 1,722 R22b 1200 x 1800 475* 695 902 355 665 1,646 R22c 1200 x 2400 726* 979 1,270 392 761 1,742 Circular C1 500 140* 180 234 n/a n/a n/a C2 600 196* 244 316 n/a n/a n/a C3 700 208* 290 378 n/a n/a n/a C4 800 235* 315 409 n/a n/a n/a C5 900 271* 366 475 n/a n/a n/a C6 1000 305* 417 543 n/a n/a n/a C7 1100 351* 513 663 n/a n/a n/a C8 1200 439* 592 767 n/a n/a n/a
All prices indicate stock items unless shown with *, which are available for special order Vertical
EM-DOME WITH 150MM VERTICAL UPSTAND
SplayedVerticalPolycarbonateVentilation options
DO YOU NEED ADVICE OR A QUOTATION FOR YOUR ROOFING PROJECT?
25 www.roofbase.com
Bristol 01172 034123
SIZE REF TO SUIT ROOF OPENING SIZE (MM) TO SUIT ROOF OPENING SIZE (MM) SINGLE SKIN (£) DOUBLE SKIN (£) TRIPLE SKIN (£) CONTROLLABLE ROTATING TRICKLE VENTS (£) MANUAL HINGED OPENING (£) ELECTRIC HINGED OPENING (£) Square S1600 x 600400 x 40021826132040151476 S2700 x 700500 x 50025531239040154479 S3750 x 750550 x 55027833542040162487 S4800 x 800600 x 60029035544440164491 S5900 x 900700 x 70034041852240172497 S6950 x 950750 x 75036244956140176501 S71000 x 1000800 x 80037745957640182509 S81100 x 1100900 x 90043354368040191518 S91200 x 12001000 x 100047160275440193520 S101250 x 12501050 x 105050464781340197524 S10a1300 x 13001100 x 110053168285640208533 S111400 x 14001200 x 1200614*8171,03040217544 S121500 x 15001300 x 1300721*9111,15440230555 S131600 x 16001400 x 1400837*1,0181,288404331,414 S15a1900 x 19001700 x 1700928*1,2371,567404541,435 Rectangular R3600 x 900400 x 70026131539240156483 R3a600 x 1200400 x 100032840149740172497 R4700 x 1000500 x 80030436845640170495 R4a700 x 1300500 x 110036545156740182507 R4b700 x 1900500 x 1700515*64983640207534 R5800 x 1100600 x 90037547659640174501 R6800 x 1400600 x 1200479*61577740178505 R7900 x 1200700 x 100039249362240180505 R7a900 x 1500700 x 1300493*62378140195522 R7b900 x 1800700 x 1600580*74193640212539 R10a1000 x 1300800 x 110044758874140194519 R111000 x 1500800 x 1300610*72691940199524 R11a1000 x 1900800 x 1700638*8351,05540194521 R161100 x 1400900 x 1200596*78899840199526 R16a1100 x 1700900 x 1500620*8201,03640217544 R171200 x 15001000 x 1300588*78399140212539 R17a1200 x 17001000 x 1500638*8421,06140213538 R181200 x 18001000 x 1600634*8251,04140216541 R201200 x 24001000 x 2200994*1,2421,576404471,428 R22b1300 x 19001100 x 1700703*9241,165403931,373 R22c1300 x 25001100 x 2300988*1,2391,572404541,435 Circular C1650286*328380n/a247572 C2750357*407479n/a270597 C3850384*468554n/a283610 C4950441*521615n/a307632 C51050488*583692n/a318644 C61150547*659785n/a324651 C71250607*767919n/a359686 C81350 721* 876 1,051 n/an/an/a

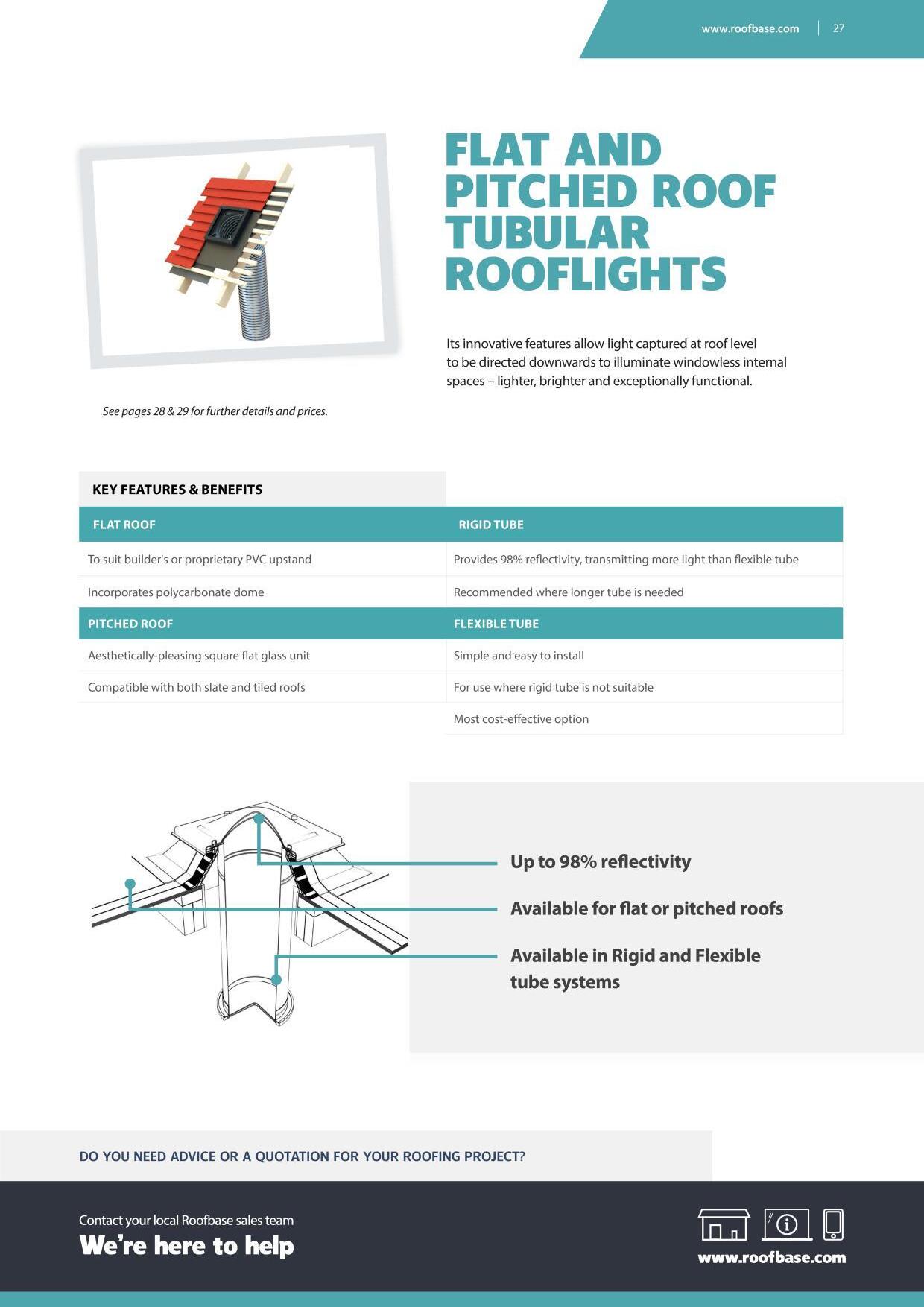

EM-TUBE
Bringing natural light to gloomy interiors is not a challenge with the highly adaptable Em-Tube.
EM-TUBE FOR FLAT ROOF
EM-TUBE FOR FLAT ROOF WITH UPSTAND

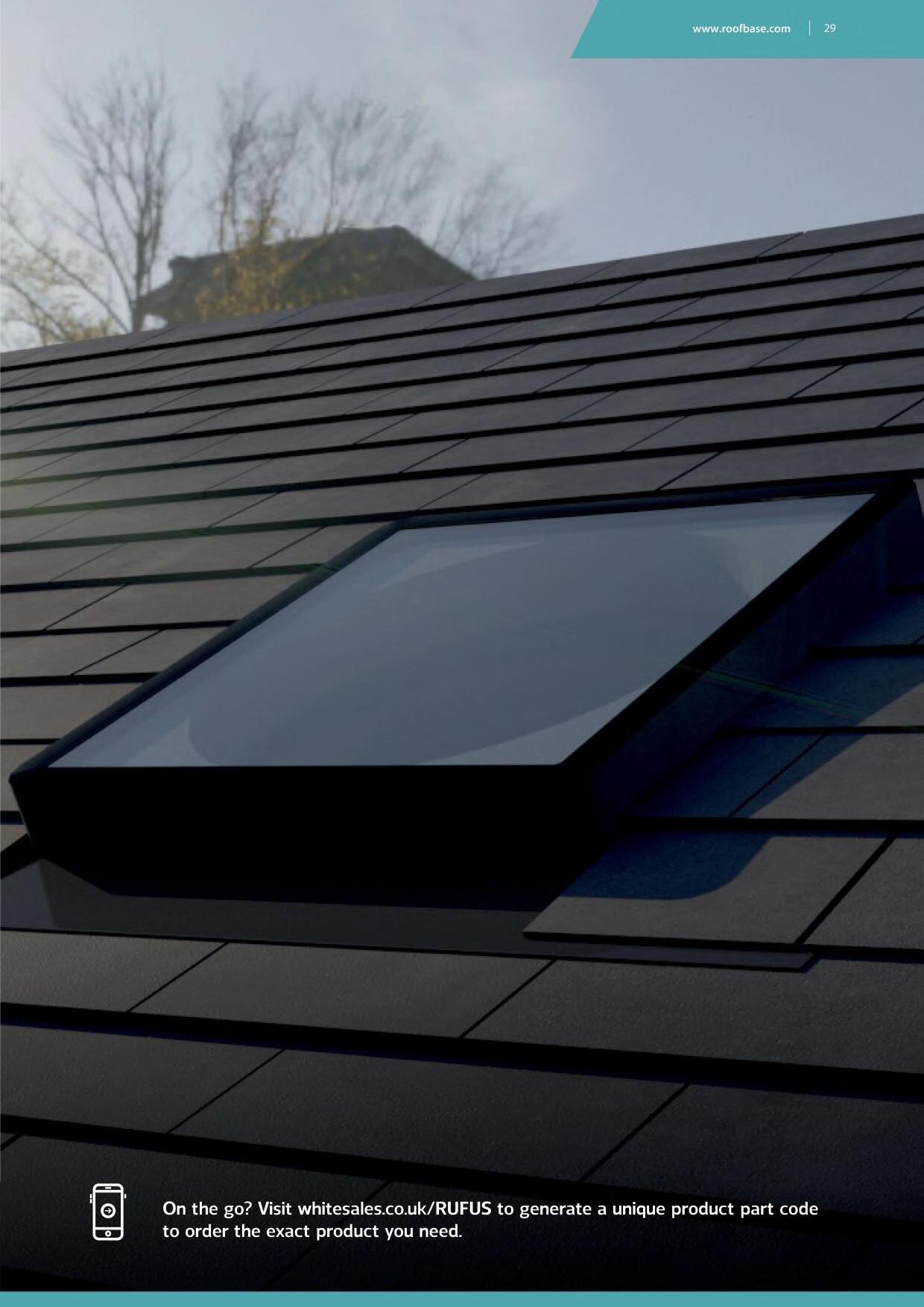

EM-TUBE FOR PITCHED ROOF (TILED OR SLATE)
All prices indicate stock items unless shown with *, which are available for special order
Ref No Nominal size Rigid Tube System - Includes 0.6m tube length (£) Flexible Tube System (£) ETF35 350mm 509* 295 ETF45 450mm 681* 394 ETF55 550mm 819* 448
Ref No Nominal size Rigid Tube System - Includes 0.6m tube length (£) Flexible Tube System (£) ETF35 350mm 615* 410 ETF45 450mm 797* 511 ETF55 550mm 936* 567
Ref No Nominal size Rigid Tube System - Includes 0.6m tube length (£) Flexible Tube System (£) ETF35 350mm 583* 249 ETF45 450mm 804* 394 ETF55 550mm 986* 448
Ref No Nominal size Description (£) ET35R-EXT625 350mm 625mm long Rigid pipe extension 91* ET35R-EXT1250 350mm 1250mm long Rigid pipe extension 180* ET35R-AA 350mm Angle adaptor 75* ET45R-EXT625 450mm 625mm long Rigid pipe extension 113* ET45R-EXT1250 450mm 1250mm long Rigid pipe extension 196* ET45R-AA 450mm Angle adaptor 127* ET55R-EXT625 550mm 625mm long Rigid pipe extension 138* ET55R-EXT1250 550mm 1250mm long Rigid pipe extension 234* ET55R-AA 550mm Angle adaptor 169* ETEL - Electric light unit 88 EM-TUBE ACCESSORIES
DIAGRAMS
Em-Tube for flat roof Em-Tube for pitched roof

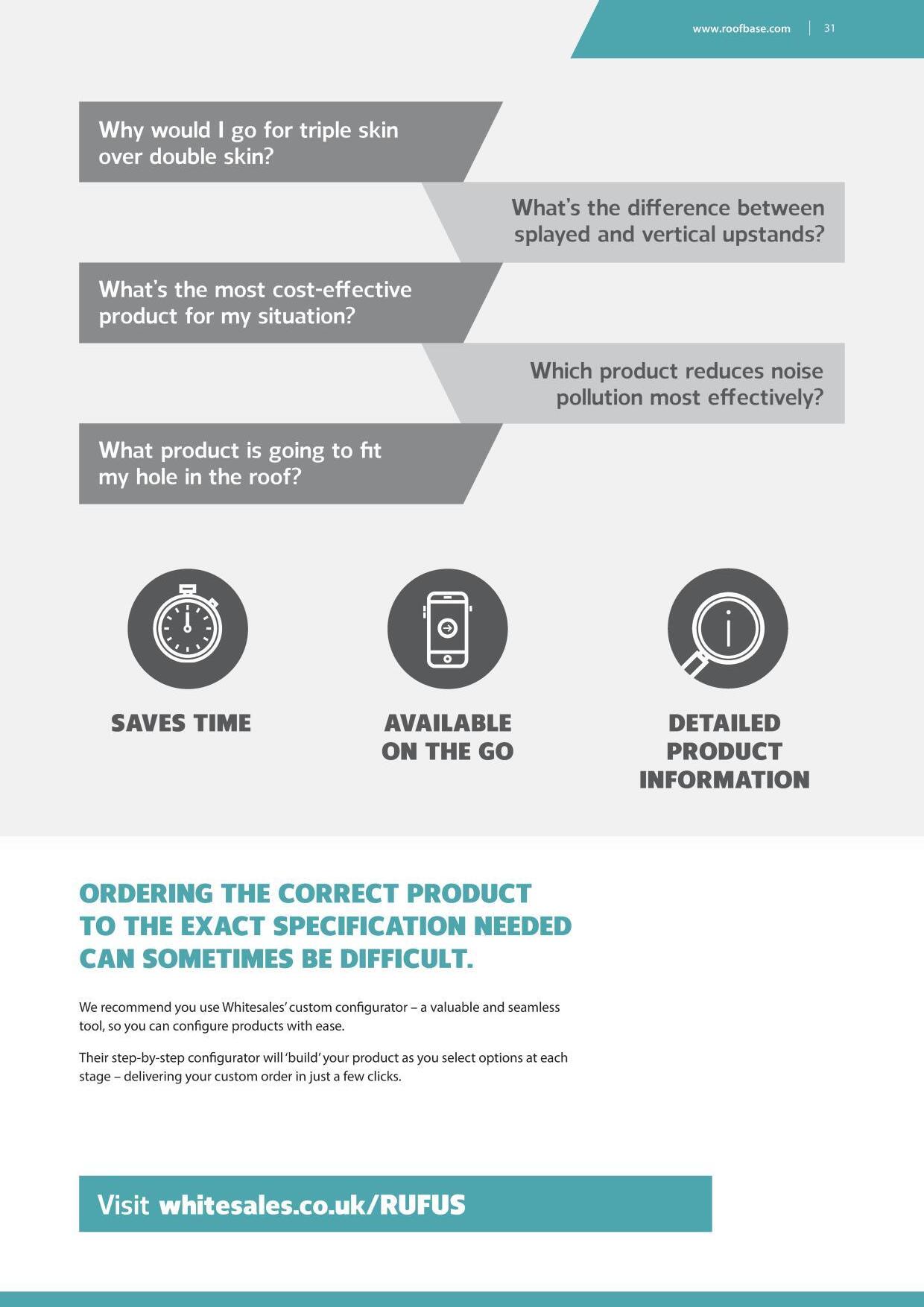

WANT TO BUILD YOUR PRODUCT AT THE CLICK OF A BUTTON?
RUFUS
Whitesales offer an online portal and configurator named Rufus. It’s your ‘one site’ to configure products, save quotes, place orders and more…
PRODUCT COMBINATION AVAILABILITY
IF THERE IS AN EXISTING UPSTAND, PLEASE PROVIDE:
External dimensions of the upstand (A)
The thickness of the upstand (B)
You will require a rooflight only.
IF A NEW UPSTAND IS REQUIRED, PLEASE PROVIDE:
Roof opening size (X)
Choice of upstand.
GLAZING RAYLUX EM-GLAZE EM-GLAZE MODULAR RIDGELIGHT EM-VIEW EM-DOME EM-TUBE Glazing Types Single glazed X X X X ✓ ✓ Double glazed ✓ ✓ ✓ ✓ ✓ ✓ * Flat roof only Triple glazed X S X ✓ * Poly dome only ✓ ✓ * Flat roof only Quad glazed X X X S Poly dome only S X Glazing Finish Clear ✓ ✓ ✓ ✓ ✓ ✓ Diffused X S X ✓ * Poly dome only ✓ X Heat Reflect X X X S Poly dome only S X Easy Clean Coating S S S X X X Glazing Shape Square ✓ ✓ ✓ ✓ ✓ X Rectangle ✓ ✓ ✓ ✓ ✓ X Circle X S X X ✓ X Glazing Profile Flat ✓ ✓ X ✓ Glass only X ✓ Pitched roof only Dome X X X ✓ Poly dome only ✓ ✓ Flat roof only Pyramid/Trapezoidal X X ✓ S Poly dome only S Certain sizes only X A X B X - NOT AVAILABLE S - SPECIAL ORDER STOCKED ✓ - MOST POPULAR, STANDARD OPTION ✓* - OPTIONAL KEY
DO
33 www.roofbase.com

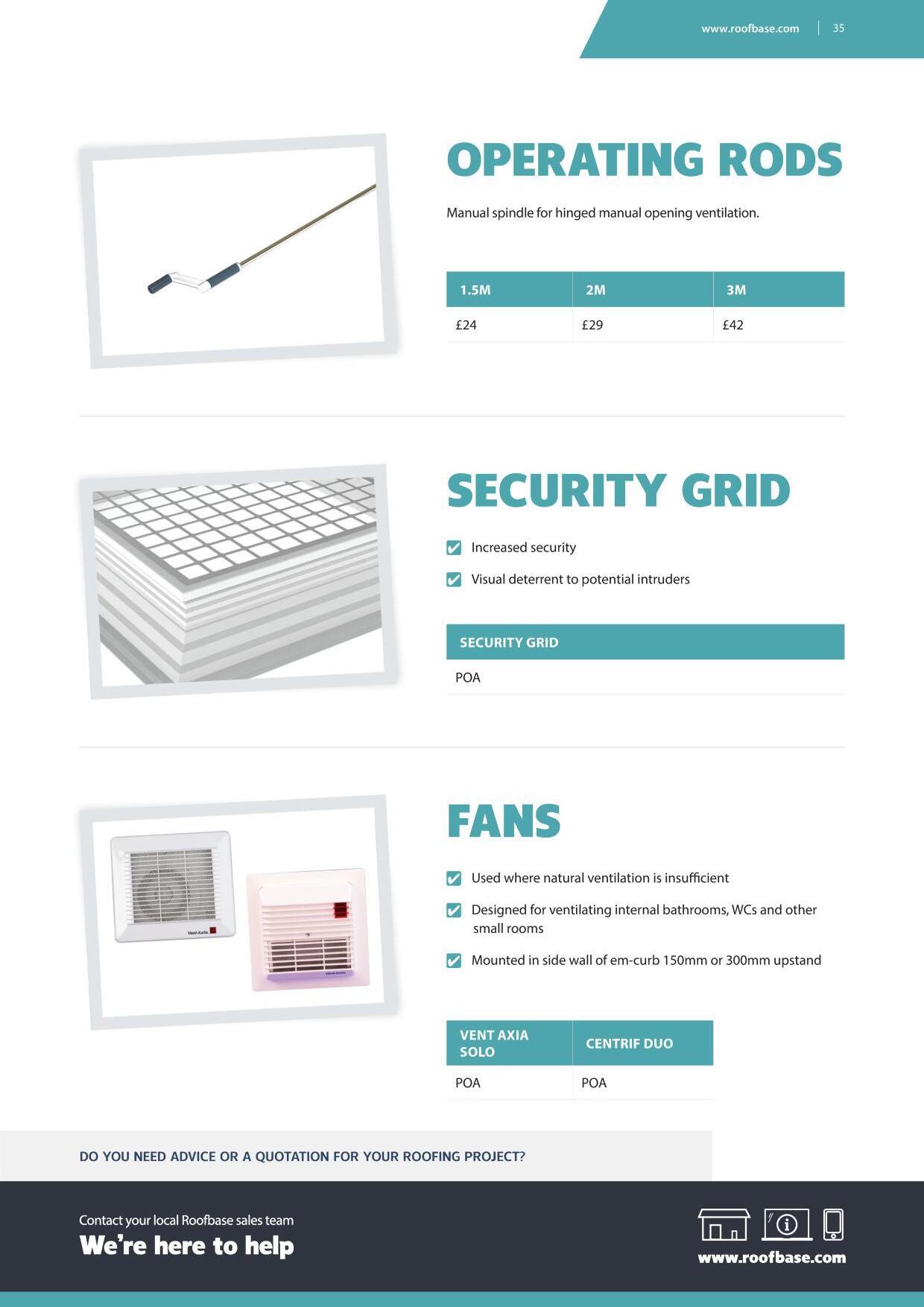

Bristol 01172 034123 ACCESSORIES RAYLUXEM-GLAZE EM-GLAZE MODULAR RIDGELIGHT EM-VIEWEM-DOMEEM-TUBE Winding rods (for manual hinged opening) ✓✓✓*✓✓X Security grid XSXSSX Powered extract fan X✓* XX✓*X Premium comfort kit (for electric hinged opening) ✓✓ X✓ ✓X Standard comfort kit (for electric hinged opening) ✓✓X✓✓X UPSTANDS RAYLUX EM-GLAZE EM-GLAZE MODULAR RIDGELIGHT EM-VIEWEM-DOMEEM-TUBE Builder’s Curb ✓✓✓✓✓ ✓ Flat roof option Proprietary PVC Options 150mm splayed X✓*X✓✓X 150mm vertical ✓✓ ✓ Only certain sizes ✓✓* ✓ Flat roof option 300mm splayed X✓*X✓✓*X 350mm splayed oversleeve X✓*X✓*✓*X VENTILATION RAYLUX EM-GLAZE EM-GLAZE MODULAR RIDGELIGHT EM-VIEWEM-DOMEEM-TUBE Permanent ventilation XXXX✓*X Trickle ventilation (only with PVC upstand) X✓✓✓✓X Manual hinged opening ✓ Limited sizes ✓ Limited sizes X ✓ Limited sizes ✓X Electric hinged opening ✓✓X✓✓X Builder’s curb 150mm splayed Standard with single and double skin Em-Dome only 150mm vertical 300mm splayed 350mm splayed oversleeve 60100100100125 150 10095 150150150 300 350
YOU NEED ADVICE OR A QUOTATION FOR YOUR ROOFING PROJECT?
CONTROLS & ACCESSORIES
STANDARD COMFORT CONTROLS
For electric opening
Option of retractive switch or comfort kit including a control panel, remote control and rain sensor
STANDARD COMFORT KIT
OPTIONAL CONTROL PANEL | REMOTE CONTROL | RAIN SENSOR RETRACTIVE SWITCH
£327 £37
PREMIUM COMFORT CONTROLS
For electric opening
Wireless controls which include open/close manual switch and internal and external temperature
Wireless weather station which includes wind and rain sensor
Option of handheld remote
STANDARD COMFORT KIT
WIRELESS CONTROLS / WEATHERSTATION | RAIN SENSOR
£776
