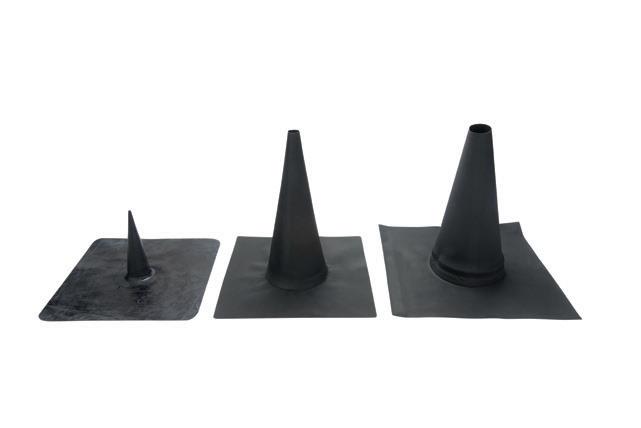

PIPE SLEEVES
HERTALAN® pipe sleeves complement the HERTALAN® roof systems and thus offer guaranteed optimum compatibility with other HERTALAN® products
DIMENSIONS
0 – 50 mm, 150 mm tall 300 x 300 mm
20 – 75 mm, 300 mm tall 300 x 300 mm
70 – 125 mm, 300 mm tall 300 x 300 mm
120 – 180 mm, 300 mm tall 400 x 400 mm
APPLICATION
Depending on the selected roof system, the HERTALAN® roof penetration is adhered or affixed to the HERTALAN® roof waterproofing solution with hot air.

Flashing
HERTALAN® FLASHING is a non-vulcanised chloroprene rubber lining that is deformable. This lining is used to create “difficult” details on a HERTALAN® roof. This lining can be simply moulded into shape using hot air and then bonded using HERTALAN® KS 137.

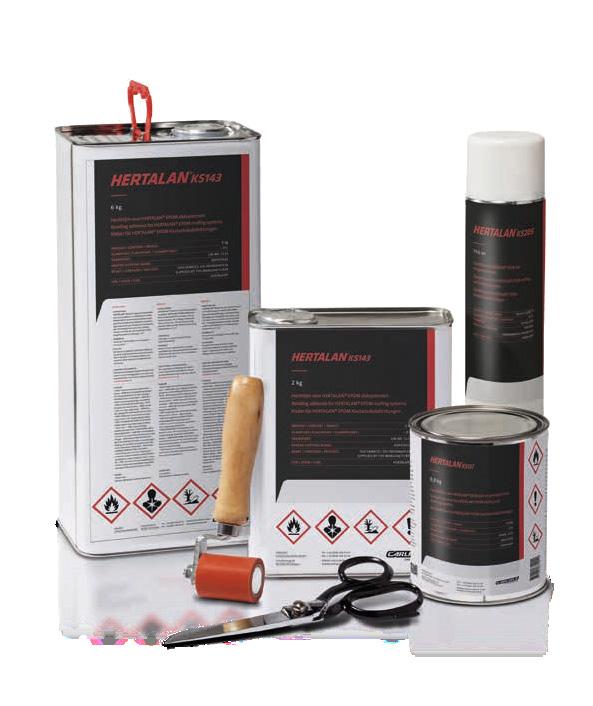

Cut a piece of HERTALAN® FLASHING to the right size to waterproof the detail on the HERTALAN® roof. Apply HERTALAN® KS 137 to the underside of the piece of HERTALAN® FLASHING and to the roof area. The contact adhesive must evaporate for 5 – 15 minutes, before HERTALAN® FLASHING is applied. Heat the HERTALAN® FLASHING with a hot-air gun during the application process and shape it so that it fits well. Under no circumstances should you heat it up directly on the HERTALAN® KS 137. The HERTALAN® FLASHING must be rolled out firmly with a silicone pressure roller. Also see the HERTALAN® KS 137 product specification. Finally, apply a bead of HERTALAN® KS 96 along the outside of the HERTALAN® FLASHING. Then carefully wipe off excess.
HERTALAN® FLASHING can be stored for three months at a temperature of 0°C to 8°C (in the refrigerator).

HERTALAN® FLASHING vulcanises slowly within six to 12 months, depending on the ambient temperature.
HAZARDOUS SUBSTANCES
This product contains > 5% – < 10% lead tetroxide (CAS no. 1314-41-6), which is included in the list of substances of very high concern (SVHC). You will find further information at: http://echa.europa.eu.
