An extensive range of roofing components Eaves Dry FIx Roof Vents GRP Roofline Wall Vents 4 - 5 6 - 9 10 - 13 14 - 17 18 - 19 20 - 21 22 - 25 CONTENTS
EAVES
SOFFIT VENTS
Available in White, Black or Brown to providing discreet eaves ventilation within the soffit boards. This easily installed unit provides eaves ventilation in new build or re-roofing applications, to allow conforming the BS5250 (Control of Condensation).

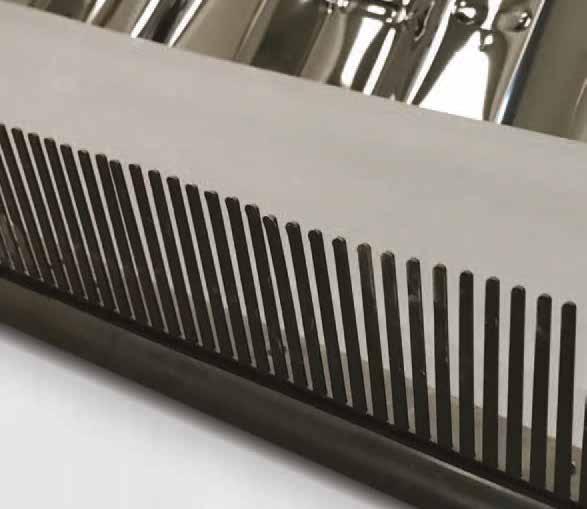

Eaves Filler Comb is to be used to prevent birds and vermin from entering the batten cavity, when profiled roofing coverings are installed.
Product Code Product PC/carton Weight/unit ULTI1CSVWH Circular Soffit Vent White 400 11g ULTI1CSVBR Circular Soffit Vent Brown 400 11g ULTI1CSVBL Circular Soffit Vent Black 400 11g
Product Code Product PC/carton Carton/pallet Weight/unit ULTI1EC Eaves Comb 1m 150 28 87g
EAVES
COMB
DRY FIX
HANDED VERGE

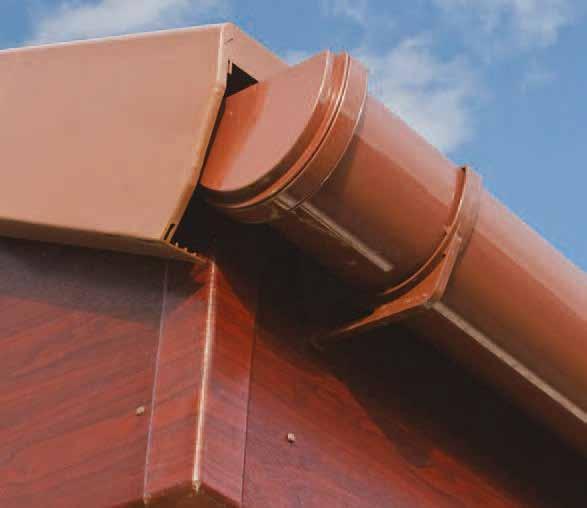

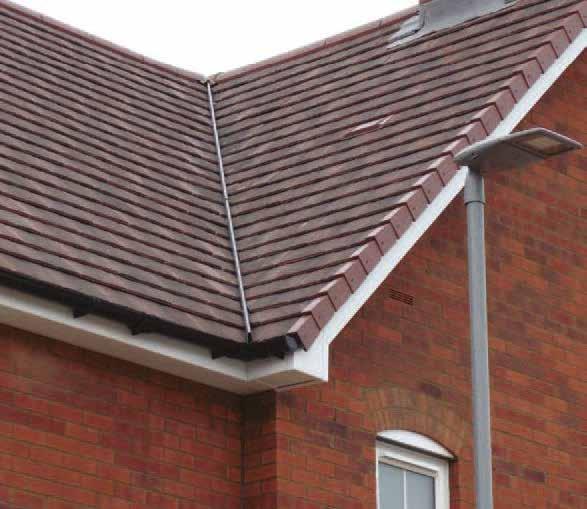

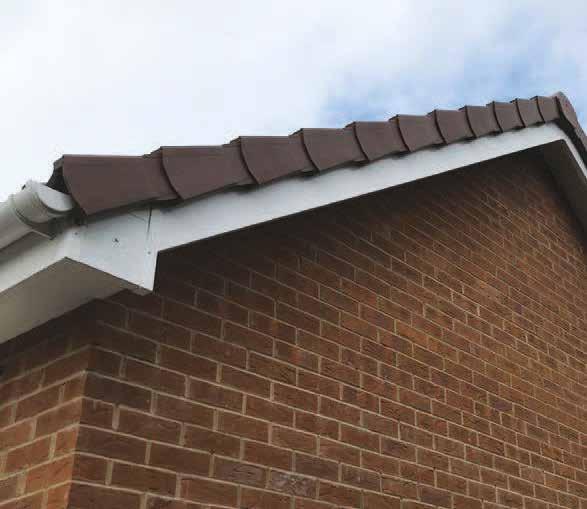

Our Handed Verge is designed to provide a mortar free and secure method of fixing concrete interlocking verge tiles that gives a cleaner line application.
It provides a consistent appearance that requires no maintenance. The product must use the Starter at the Eaves and also comes with compatible Half Round or Angles Block Ends.
The system is available in four colours to blend in with the roof line and fits concrete interlocking tiles, between 260 – 350mm batten gauge.
Product Code Product PC/carton Carton/pallet Weight/unit ULTI2DVRHGR Dry Verge Right Hand Grey 50 20ULTI2DVRHBR Dry Verge Right Hand Brown 50 20ULTI2DVRHTE Dry Verge Right Hand Terracotta 50 20ULTI2DVRHBL Dry Verge Right Hand Black 50 20ULTI2DVLHGR Dry Verge Left Hand Grey 50 20ULTI2DVLHBR Dry Verge Left Hand Brown 50 20ULTI2DVLHTE Dry Verge Left Hand Terracotta 50 20ULTI2DVLHBL Dry Verge Left Hand Black 50 20ULTI2ESRGR Dry Verge Starter Right Grey 25 40ULTI2ESRBR Dry Verge Starter Right Brown 25 40ULTI2ESRTE Dry Verge Starter Right Terracotta 25 40ULTI2ESRBL Dry Verge Starter Right Black 25 40ULTI2ESLGR Dry Verge Starter Left Grey 25 40ULTI2ESLBR Dry Verge Starter Left Brown 25 40ULTI2ESLTE Dry Verge Starter Left Terracotta 25 40ULTI2ESLBL Dry Verge Starter Left Black 25 40ULTI2ECRTE Dry Verge End Cap Round Grey 40 20 140 ULTI2ECRBR Dry Verge End Cap Round Brown 40 20 140 ULTI2ECRTE Dry Verge End Cap Round Terracotta 40 20 140 ULTI2ECRBL Dry Verge End Cap Round Black 40 20 140 ULTI2ECAGR Dry Verge End Cap Angled Grey 40 20 140 ULTI2ECABR Dry Verge End Cap Angled Brown 40 20 140 ULTI2ECATE Dry Verge End Cap Angled Terracotta 40 20 140 ULTI2ECABL Dry Verge End Cap Angled Black 40 20 140

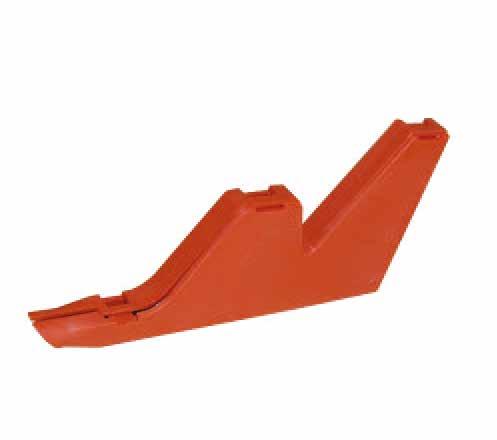

Starter End cap
ROOF VENTS
TLE Vent Flat Vent Double Pantile Vent Double Roman Vent Square Top Vent 15x9 Vents
ULTI-TILE VENT TILES
Ulti-Tile Vent Tiles are a neat, cleverly designed inline range suitable for the most popular concrete interlocking roof tiles, with a minimum pitch of 20˚.
Ulti-Tile Vent Tiles are available in 6 profiles: TLE, Flat, Double Pantile, Double Roman and Square Top
The built-in downpipe allows direct ventilation path into the roof space if required. It can also be used as a terminal for soil and ventilation pipes and mechanical extraction systems. When used for extraction with a Flexipipe no adapter is required.
It is available in up to 6 Colours to best match the main roof material.
ULTI3TLEVGR TLE Vent Grey10783g
ULTI3TLEVBL TLE Vent Black10783g
ULTI3FVGR Flat Vent Grey 10811g
ULTI3FVBR Flat Vent Brown10811g
ULTI3FVTE Flat Vent Terracotta10811g
ULTI3FVBL Flat Vent Black10811g
ULTI3DPVGR Double Pantile Vent Grey10909g
ULTI3DPVBR Double Pantile Vent Brown10909g
ULTI3DPVTE Double Pantile Vent Terracotta10909g
ULTI3DRVGR Double Roman Vent Grey10893g
ULTI3DRVBR Double Roman Vent Brown10893g
ULTI3DRVTE Double Roman Vent Terracotta10893g
ULTI3STLVGR Square Top Large Vent Grey10906g
ULTI3STLVBR Square Top Large Vent Brown10906g
ULTI3STLVRE Square Top Large Vent Red10906g
ULTI3STLVTE Square Top Large Vent Terracotta10906g
ULTI315x9VGR 15x9 Vents Grey10854g
ULTI315x9VBR 15x9 Vents Brown10854g
ULTI315x9VRE 15x9 Vents Red10854g
ULTI315x9VTE 15x9 Vents Terracotta10854g
ULTI3FP 110mm Flexipipe10225g
DO YOU NEED ADVICE OR A QUOTATION FOR YOUR ROOFING PROJECT?
15 www.roofbase.com
Product CodeProductPC/cartonWeight/unit

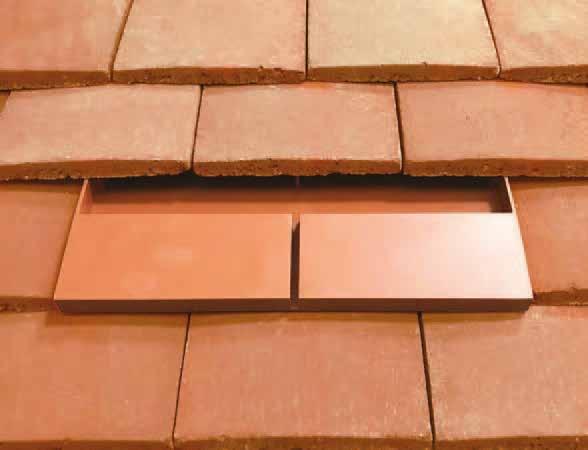

PLAIN TILE VENT
Our Plain Vent is a discreet ventilating tile suitable for clay and concrete plain tiles with a minimum pitch of 35˚.
The vent allows direct ventilation to the roof space, while it can also be used as a terminal for soil and ventilation pipes and mechanical extraction systems too when used with an adaptor and flexible pipe.
It is available in 4 Colours to best match the main roof material.
Product Code Product PC/carton Weight/unit ULTI3PTVGR Plain Tile Vent Grey 10 605g ULTI3PTVBR Plain Tile Vent Brown 10 605g ULTI3PTVRE Plain Tile Vent Red 10 605g ULTI3PTVTE Plain Tile Vent Terracotta 10 605g ULTI3PTVA Plain Tile Vent Adaptor 10 425g ULTI3FP 110mm Flexipipe 10 225g
GRP
ROOFLINE

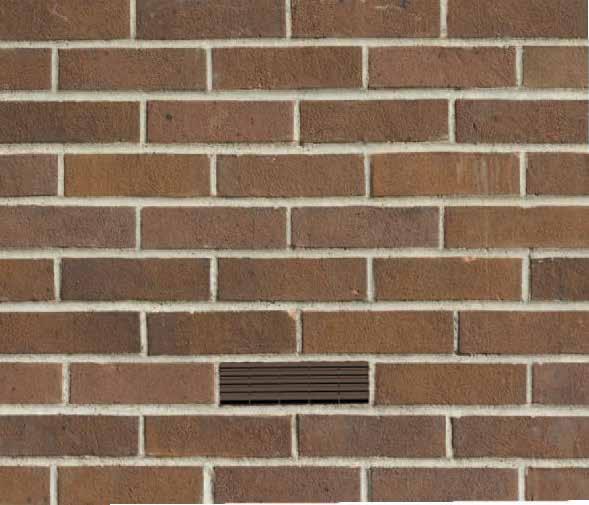

WALL VENTS
PEEP VENTS
Peep Vents are a designed solution to assist cavity wall drainage. The Weep has a mortar key manufactured in place to ensure adhesion to the brick work and an external rib to assist in its positioning.
The rib encircles 1 62mm high opening to stop mortar blockage from the cavity. The Weep’s hood when installed “peeps” out from the brick fascia and is designed to
protect against blockage when installed, this the stops any driven rain penetration.
The exit hole is large enough for water drainage but small enough to prevent entry of large insects.
The product is available in 5 Colours and its dimensions are 119mm x 60mm.
Product Code Product PC/carton ULTI6PVBU Peep Vent Buff 100 ULTI6PVBR Peep Vent Brown 100 ULTI6PVGR Peep Vent Grey 100 ULTI6PVGR Peep Vent Terracotta 100 ULTI6PVWH Peep Vent White 100 ULTI6PVBL Peep Vent Blue/Black 100
