IFI are the leading supplier and distribution partner of industry recognised brands such as Securistyle, Yale, Greenwood and Rapierstar. Also available is a range of high performing sealants and adhesives manufactured by some of the leading global companies. The core range is sold under the Rapidseal brand name and includes sealants, adhesives, cleaners and foam.

Our commitment to personal service means that IFI operate with one of the industry’s largest field sales operations.

Every region of the United Kingdom has its own dedicated area sales manager to provide on-site sales and technical support, product solutions, product demonstration and one-to-one discussion.

Supported by our Sales and Customer Service Centre, IFI will process your orders and answer any questions in a professional and efficient manner. Whether you contact us by PHONE, FAX or EMAIL we will attend to your needs in exactly the same way.

IFI - A trading division of Rapidrop Global Limited Rutland Business Park, Newark Road Peterborough, Cambridgeshire PE1 5WA United Kingdom

www.ifi.eu Email: sales@ifiltd.net Phone: 01733 847520

SUPPLIERS OF CONTENTS PAGE ABOUT US - PAGE 2 YALE WINDOW HANDLES - PAGE 3 FRICTION STAYS - PAGE 4 - 9 WINDOW RESTRICTOR - PAGE 10 - 11 WINDOW VENTS - PAGE 12 - 15 BI FOLD DOOR LOCKS - PAGE 16 - 17 DOOR HARDWARE - PAGE 18 ACCESSORIES - PAGE 19 RAPIDSEAL SEALANT - PAGE 20 FIRE RATED SEALANT - PAGE 21 FASTENERS - PAGE 22 - 23

@2UDIRECT

IFI.EU

TEL: 01733847520 EMAIL: SALES@IFILTD.NET

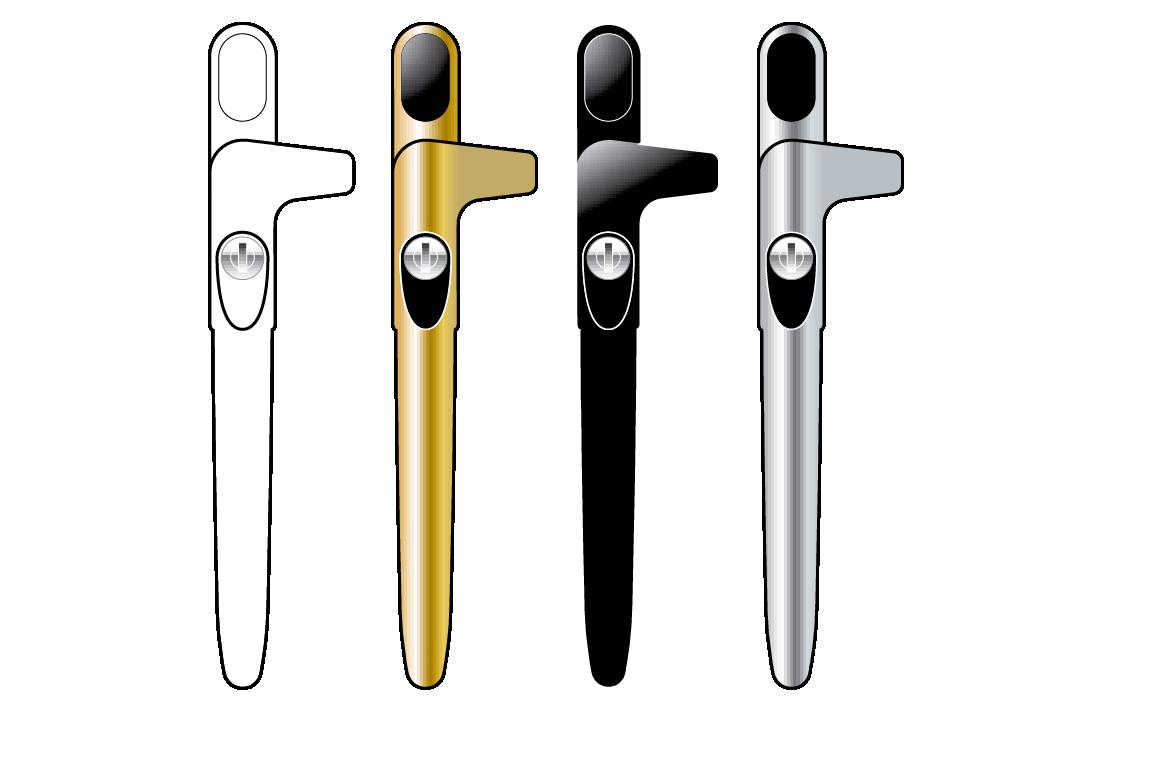

YALE WINDOW HANDLES 3 IFI.EU

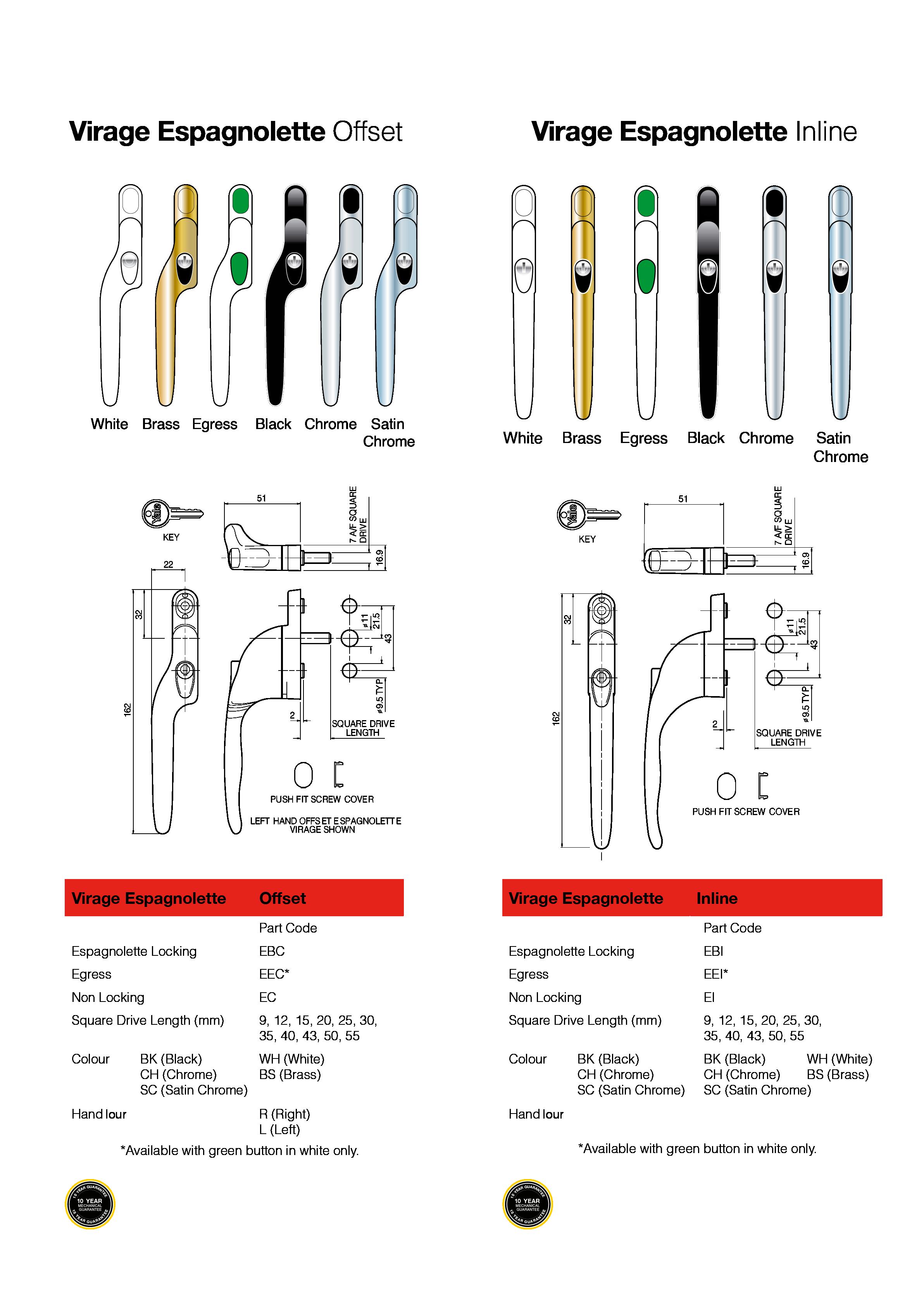

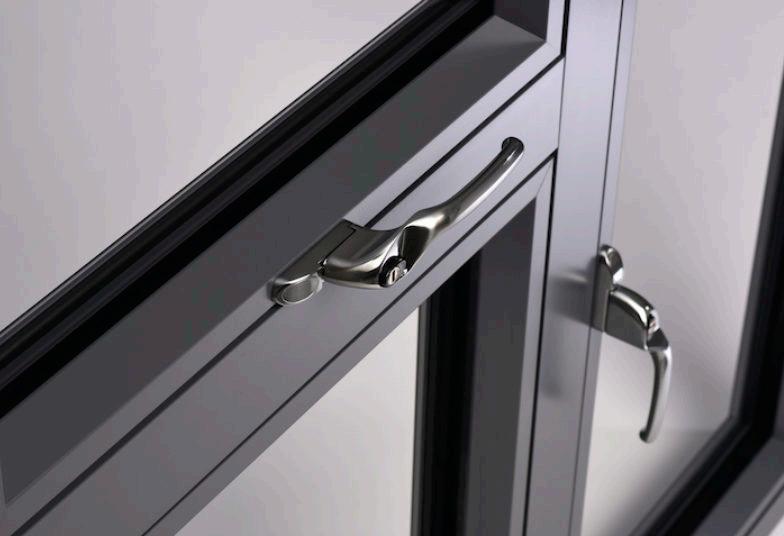

Available in offset and in-line Espagnolette and Cockspur, the Virage handle range offers: • Ergonomic design for comfort • Positive stop on offset Espagnolette and cockspur to ensure accurate in-line closure • In-line Espagnolette version for slimline profiles and non-handed applications • Push to unlatch mechanism • Key dead locking for added security • Non-locking push to unlatch version in black, white and in green for Egress applications available • Offset non-locking, non-latching version available in White • Locking Virage supplied with non-locking plugs in both button colour and green for Egress applications as standard • Suited look for Espagnolette and cockspur mixed applications • Up to 10 Year Mechanical Guarantee (details available upon request)

E.G: CB09WHR

IFI.EU

E.G: EB40WHR

E.G: EBI15WH

TEL: 01733847520 EMAIL: SALES@IFILTD.NET

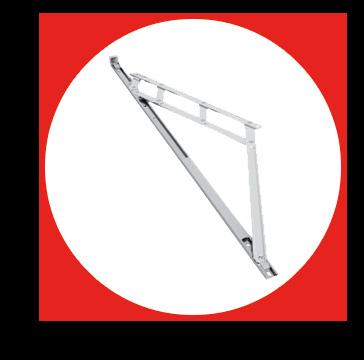

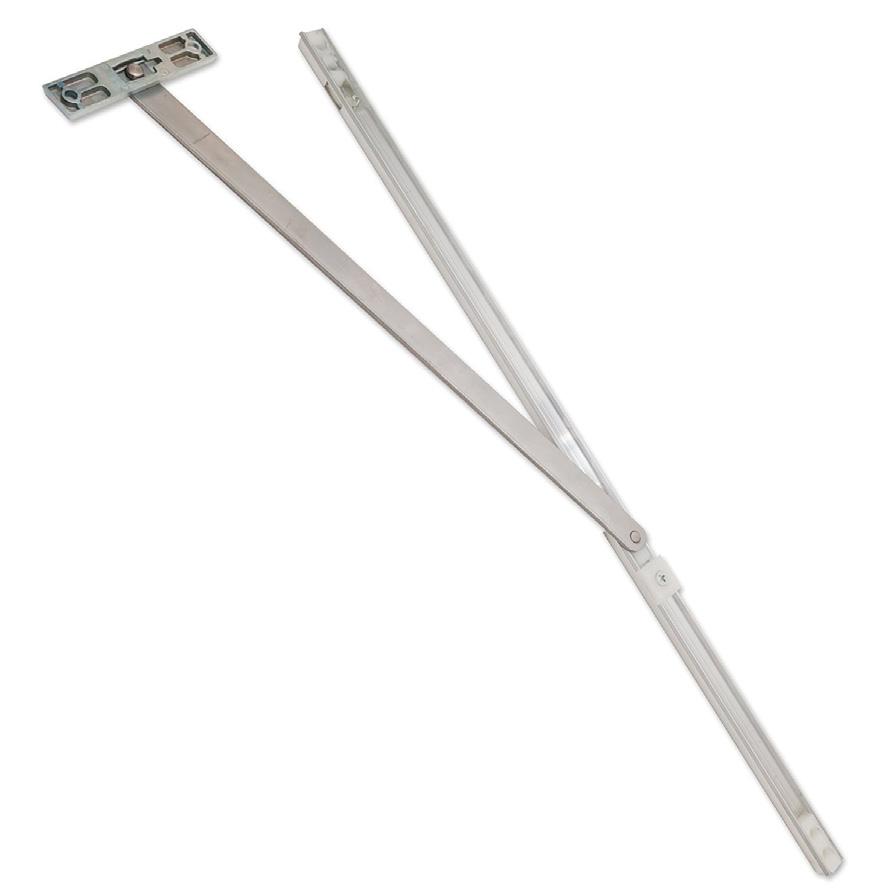

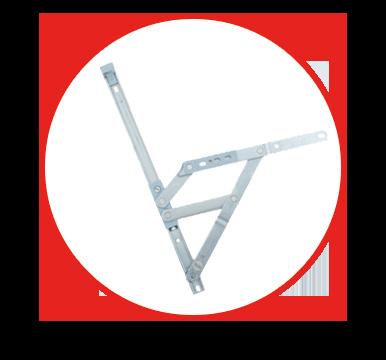

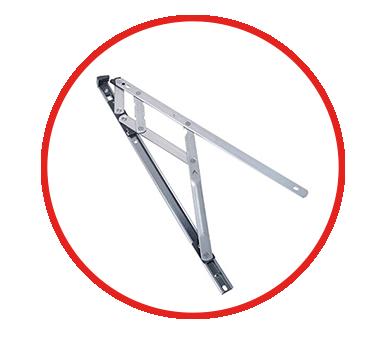

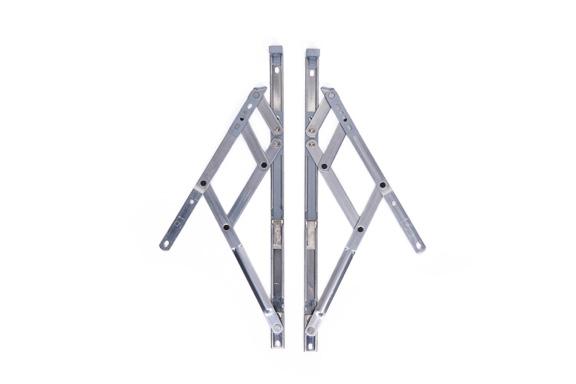

4 FRICTION STAYS - DEFENDER STANDARD IFI.EU

DEFENDER STANDARD FEATURES • Improved weather sealing and draught proofing performance from extended enclose end cap and asymmetrical vent arm form to BS 6375-1 • Lipped slider for enhanced smooth operation • Easy friction adjustment without metal to metal contact • Unique robust cam friction device eliminates the risk of screw misuse • Asymmetric location system for reliable and accurate closure • Enclosed end cap to prevent ingress of debris and provide increased cavity tolerance • Slot-hole-slot format allowing for easier vent adjustment • Highline variant available for deeper profiles with cavities between 16mm and 18mm • Available in ferritic 430* as standard or austenitic 304* stainless steel for enhanced corrosion resistance • Restricted variant available

SPECIFICATION • 10 or 12 year mechanical guarantee** • Endurance tested to 30,000 cycles • Corrosion tested to a minimum of 96 hours • Secured by Design approved • BBA certification

TOP HUNG PART CODE

HINGE SIZE (MM)

STACK HEIGHT (MM)

MAX VENT WEIGHT (KG)

MIN VENT HEIGHT (MM)

MAX VENT HEIGHT (MM)

OPENING ANGLE (+/-2.5 °)

EDT6

159

13

10

150

300

50 °

ED8

209

13

12

200

350

65 °

EDT10

259

13

16

275

400

80 °

EDT12

310

13

20

350

550

80 °

EDT16

412

13

21

500

780

80 °

EDT20

513

13

26

700

1100

50 °

EDT24

615

13

40

850

1300

37.5 °

PART CODE

HINGE SIZE (MM)

STACK HEIGHT (MM)

MAX VENT WEIGHT (KG)

MIN VENT HEIGHT (MM)

MAX VENT HEIGHT (MM)

OPENING ANGLE (+/-2.5 °)

ED8

209

13

18

200

400

65°

EDS12

310

13

22

300

600

60°

EDS16

412

13

24

400

700

60 °

SIDE HUNG

• Also available in 16” & 17” stack height • Add H6 for 16” • Add H7 for 17” • For austenitic variants add ‘A’ to end of part code (not including 6”) • For slimline variants add ‘S’ to end of part code (not including 6”, 13mm stack height only) • For timber variants add ‘-TV’ to end of part code (13mm stack height only) • Standard ferritic (was 430) to BS EN 10088-2 Grade 1.4016 or Austenitic (was 304) stainless steel to BS EN 10088-2 Grade 1.4301 for enhanced corrosion resistance • 10 Year Mechanical Guarantee for Standard Ferritic and 12 Year Mechanical Guarantee for Austenitic Stainless Steel • Note: As with all types of friction hinges, friction cannot be provided until the slider moves, therefore when opening top hung vents to angles of 10° or less a separate device may be required to prevent the window from closing.

@2UDIRECT

IFI.EU

TEL: 01733847520 EMAIL: SALES@IFILTD.NET

FRICTION STAYS - DEFENDER RESTRICTED 5 IFI.EU

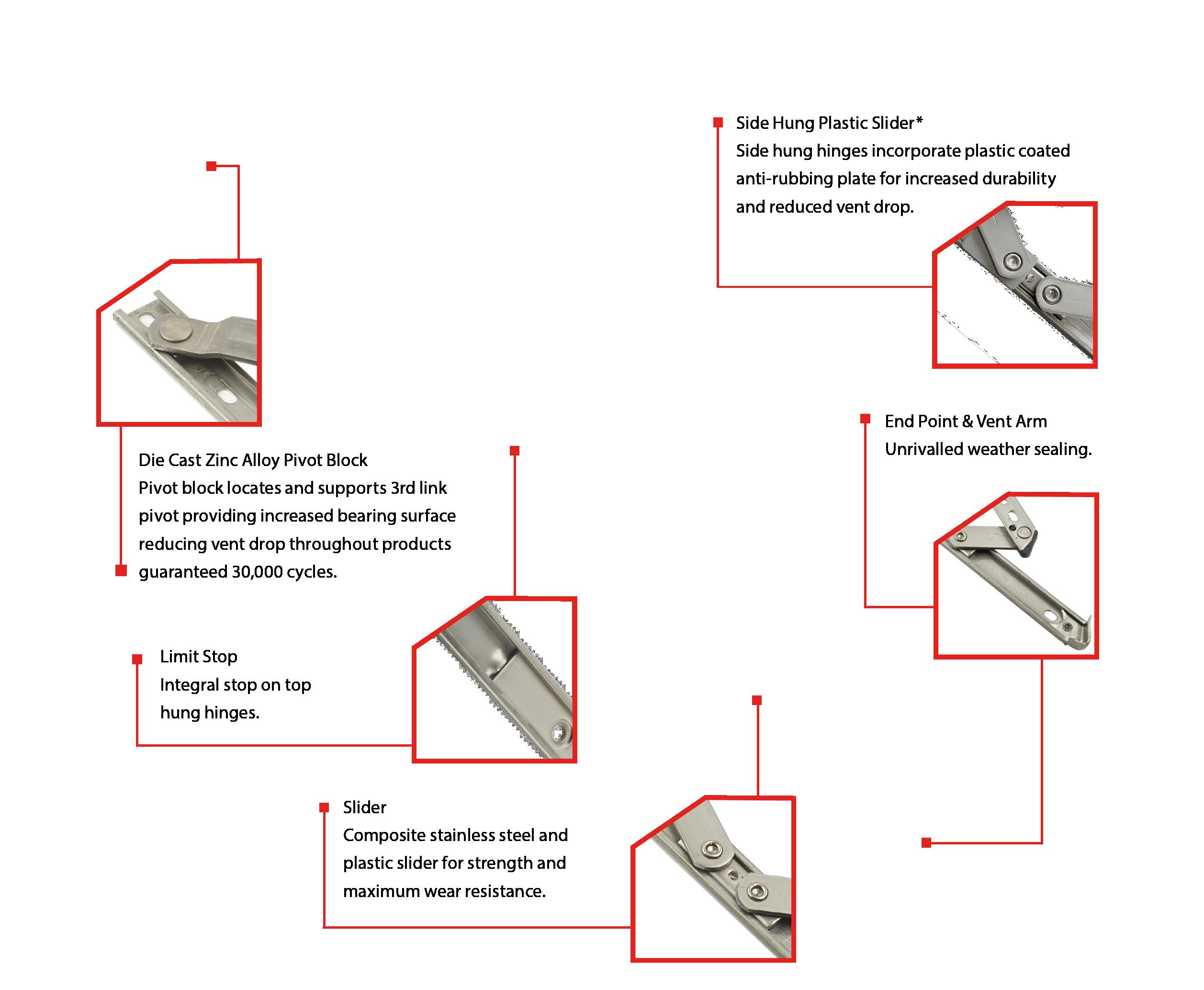

SMOOTH OPERATION • Thermoplastic components for long life

DEFENDER RESTRICTED FEATURES

• Improved weather sealing and draught proofing performance from extended enclosed end cap and asymmetrical vent arm form when tested to BS 6375-1 • Unique robust cam friction device eliminates any risk of friction screw misuse • Built-in quick release lever allows the window to be fully opened for easy cleaning and total ventilation • Asymmetric location system for reliable and accurate closure • Restrictor automatically relocates and resets when the window is closed • Slot-hole-slot vent fixing configuration for ease of adjustment and guaranteed fixing into reinforcement on PVC-u window frames • Available as highline variants for profiles with cavities between 16mm and 18mm • Available in ferritic 430* as standard or austenitic 304* stainless steel for enhanced corrosion resistance SPECIFICATION • 10 or 12 year mechanical guarantee** • Endurance tested to 30,000 cycles • Corrosion tested to a minimum of 96 hours • Secured by Design approved • BBA certification • Compliant with BS6375-2 and EN13126-5

QUICK RELEASE • Fully opening release lever relocates and resets automatically

• Standard ferritic (was 430) to BS EN 10088-2 Grade 1.4016 or Austenitic (was 304) stainless steel to BS EN 10088-2 Grade 1.4301 for enhanced corrosion resistance. ** 10 Year Mechanical Guarantee for Standard Ferritic and 12 Year Mechanical Guarantee for Austenitic Stainless Steel. *Add H6 for 16” *Add H7 for 17” *For austenitic variants add ‘A’ to end of part code *For timber variants add ‘-TV’ to end of part code (13mm stack height only) •Side hung restricted hinges are sold with an opposite hand standard non-restricted hinge; as only one side hung restricted hinge is required and must be fitted as a bottom hinge -PL = Left Hand hinge is restricted, -PR = Right Hand hinge is restricted •Top hung restricted hinges are sold and must be fitted in pairs

TOP HUNG PART CODE

HINGE SIZE (MM)

STACK HEIGHT (MM)

MAX VENT WEIGHT (KG)

MIN VENT HEIGHT (MM)

MAX VENT HEIGHT (MM)

OPENING ANGLE (+/2.5 °)

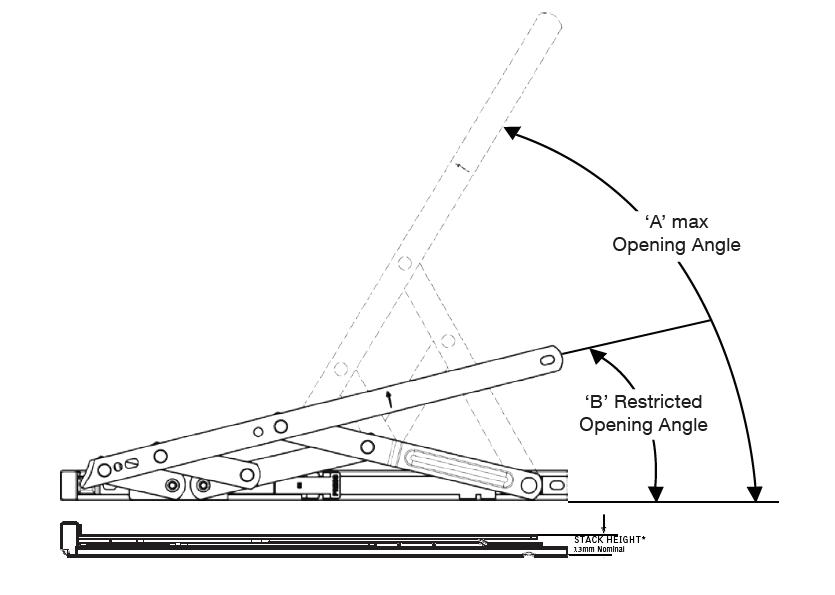

Restricted Opening Angle ‘B’ (+/2.5°)

EDTR12

310

13

20

350

550

65 °

14 °

EDTR16

413

13

21

500

780

59 °

10 °

EDTR20

513

13

26

700

1100

50 °

7°

EDTR24

613

13

40

850

1300

37.5 °

6°

OTHER SPECS AND SIZES AVAILABLE PLEASE CONTACT US FOR MORE INFORMATION

IFI.EU

TEL: 01733847520 EMAIL: SALES@IFILTD.NET

6 FRICTION STAYS - DEFENDER PLUS IFI.EU

DEFENDER PLUS FEATURES • Ability to carry a load of up to 50kg top-hung and 40kg side-hung • Asymmetric location system for reliable and accurate closure • Slot-hole-slot vent fixing configuration for ease of adjustment and guaranteed fixing into reinforcement on PVC window frames • Improved weather sealing and draught proofing performance from asymmetrical vent arm form • Enclosed end cap to prevent ingress of debris and provide increased cavity tolerance • Adjustable friction cam in slider • Available in a highline variant for deeper profiles with cavities between 16mm and 18mm • Top hung variant available in ferritic and austenitic stainless steel* • Side hung variant available in austenitic stainless steel as standard*

SPECIFICATION • 10 or 12 year mechanical guarantee** • Endurance tested to 30,000 cycles • Corrosion tested to minimum of 96 hours • BBA certification • Secured By Design approved

TOP HUNG PART CODE

HINGE SIZE (MM)

STACK HEIGHT (MM)

MAX VENT WEIGHT (KG)

MIN VENT HEIGHT (MM)

MAX VENT HEIGHT (MM)

OPENING ANGLE (+/-2.5 °)

EDTH24

615

13

50

850

1500

32 °

PART CODE

HINGE SIZE (MM)

STACK HEIGHT (MM)

MAX VENT WEIGHT (KG)

MIN VENT HEIGHT (MM)

MAX VENT HEIGHT (MM)

OPENING ANGLE (+/-2.5 °)

EDSH16A

412

13.5

40

400

1000

60°

EDSH16H6A

412

16.5

40

400

1000

60°

EDSH16H7A

412

17.5

40

400

1000

60 °

SIDE HUNG

• Also available in 16” & 17” stack height • Add H6 for 16” • Add H7 for 17” • For austenitic variants add ‘A’ to end of part code (not including 6”) • For timber variants add ‘-TV’ to end of part code (13mm stack height only) • Standard ferritic (was 430) to BS EN 10088-2 Grade 1.4016 or Austenitic (was 304) stainless steel to BS EN 10088-2 Grade 1.4301 for enhanced corrosion resistance ** 10 Year Mechanical Guarantee for Standard Ferritic and 12 Year Mechanical Guarantee for Austenitic Stainless Steel • Note: As with all types of friction hinges, friction cannot be provided until the slider moves, therefore when opening top hung vents to angles of 10° or less a separate device may be required to prevent the window from closing.

@2UDIRECT

IFI.EU

TEL: 01733847520 EMAIL: SALES@IFILTD.NET

FRICTION STAYS - DEFENDER EGRESS EASY CLEAN 7 IFI.EU

DEFENDER EGRESS EASY CLEAN FEATURES • 16” hinge opens to a full 90° for emergency exit • Self-lubricating PTFE based coating on the end cap to provide a smooth closing • Composite slider with stainless steel release lever mechanism allows cleaning access from the inside of the building • Automatically resets to the fire escape mode when the window is closed • Die cast support plate in the bottom slider ensures consistent performance • Available in 12” or 16” for side hung windows • Drilling jigs for all sizes are available to order • Screw fixing in the centre of the track to reduce vent drop • Compliant with Building Regulations approved document B1 • Casement to provide an unobstructed area that is at least 0.33m² with minimum size of 450mm in any one direction • Minimum clear opening of 450mm x 734mm at a maximum sill height of 1.1m

SPECIFICATION • 10 or 12 year mechanical guarantee** • BS 5588-1 Fire precautions in the design, construction and use of buildings • BS8213-1 Design for safety in use and during cleaning of windows • Endurance tested to 30,000 cycles • Corrosion tested to minimum of 96 hours • BBA certification • Secured By Design approved

SIDE HUNG PART CODE

HINGE SIZE (MM)

STACK HEIGHT (MM)

MAX VENT WEIGHT (KG)

MIN VENT HEIGHT (MM)

MAX VENT HEIGHT (MM)

OPENING ANGLE (+/-2.5 °)

EDSE12

311

13

22

300

600

80°

EDSE16

413

13

24

400

700

90°

• Also available in 16” & 17” stack height • Add H6 for 16” • Add H7 for 17” • For austenitic variants add ‘A’ to end of part code (not including 6”) • Standard ferritic (was 430) to BS EN 10088-2 Grade 1.4016 or Austenitic (was 304) stainless steel to BS EN 10088-2 Grade • 1.4301 for enhanced corrosion resistance ** 10 Year Mechanical Guarantee for Standard Ferritic and 12 Year Mechanical Guarantee for Austenitic Stainless Steel • Note: As with all types of friction hinges, friction cannot be provided until the slider moves, therefore when opening top hung vents to angles of 10° or less a separate device may be required to prevent the window from closing.

IFI.EU

TEL: 01733847520 EMAIL: SALES@IFILTD.NET

8 FRICTION STAYS - STERLING COMMERCIAL IFI.EU

STERLING HEAVY DUTY FRICTION STAY This high-quality hinge offers a range of features designed to provide increased durability, strength and load resistance. With standard and offset variants available, this product is as versatile as it is practical.

• Suitable for top hung vents up to 180kg and 2.5m high • Suitable for side hung vents up to 55kg and 0.84m wide • Suitable for bottom hung vents size and weight on request • Asymmetric stainless-steel end cap combined with plastic end point to eliminate metal to metal contact for superior durability and strength

• Coated pivot rivets for enhanced wear resistance and long-life expectancy • Optional cam adjustment device (S7280) to aid final on site alignment of heavy duty top hung vents • Self-balancing hinge • Product specific EPD available • Standard and offset variants available

SPECIFICATION • Tested to BS 6375-2 - Classification for operation and strength characteristics and guidance on selection and specification • Tested to BS EN 1670 - Grade 5 corrosion resistance 480 hours • Endurance tested to 30,000 cycles • AAMA 910 - Life Cycle Specifications and Test Methods for AW Class Architectural Windows and Doors • AAMA 904 - Voluntary Specification for Multi-Bar Hinges in Window Applications • SIS 212 - Singapore Standard: Specification for aluminium alloy windows • Q Mark Certified - 020/001 • Gust load resistance <135psf/6470pa • 12 Year Guarantee • Manufactured from Austenitic 304 stainless steel for high corrosion resistance, 316 MarineTek range available on request

@2UDIRECT

IFI.EU

TEL: 01733847520 EMAIL: SALES@IFILTD.NET

FRICTION STAYS - STERLING COMMERCIAL IFI.EU

STERLING STERLING TOP HUNG

MAX VENT WEIGHT (KG)

MIN VENT HEIGHT (MM)

MAX VENT HEIGHT (MM)

OPENING ANGLE (+/-2.5°)

STP10

40

270

640

50°

SPT12

50

640

800

50°

SPT16

65

800

1100

50°

SPTH16*

100

600

1100

30°

SPT22*

100

1100

1500

45°

SPT22W*

100

1500

2000

20°

SPT26*

180

2000

2500

20°

STERLING SIDE HUNG

MAX VENT WEIGHT (KG)

MIN VENT HEIGHT (MM)

MAX VENT HEIGHT (MM)

OPENING ANGLE (+/-2.5°)

SPS10

38

300

660

85°

SPSH16

55

450

840

60°

STERLING - OFFSET VENT ARM STERLING TOP HUNG

MAX VENT WEIGHT (KG)

MIN VENT HEIGHT (MM)

MAX VENT HEIGHT (MM)

OPENING ANGLE (+/-2.5°)

SPT10BX

40

270

640

50°

SPT12BX

50

640

800

50°

SPT16BX

65

800

1100

50°

SPTH16BX*

100

600

1100

30°

SPT22BX*

100

1100

1500

45°

SPT22WBX*

100

1500

2000

20°

SPT26BX*

180

2000

2500

20°

STERLING SIDE HUNG

MAX VENT WEIGHT (KG)

MIN VENT HEIGHT (MM)

MAX VENT HEIGHT (MM)

OPENING ANGLE (+/-2.5°)

SPS10BX

38

300

660

85°

SPSH16BX

55

450

840

60°

Vents of 100kg must be fitted with S7280 cam adjustment devices, which are optional on lighter vents.

Separate restrictors (SR8 or SR16BAC pair), vent holding devices (SOR type restrictors) or an operating mechanism may be required to hold large vents in a selected ventilation position against variable wind pressure.

Note: As with all types of friction hinges, friction can not be provided until the slider moves, therefore when limiting the opening of top hung vents to angles of 10° or less, additional device(s) will be required to enable them to remain in a selected ventilation position

IFI.EU

TEL: 01733847520 EMAIL: SALES@IFILTD.NET

9

10

WINDOW RESTRICTOR - COMMERCIAL IFI.EU

DETACHABLE RESTRICTOR TYPE - HEAVY DUTY KEY RELEASE RESTRICTOR BENEFIT KEY RELEASE RESTRICTOR STAY FOR USE WITH STERLING & STORM BALANCED HEAVY DUTY HINGES. Tested to BS6375-2 Can withstand a force in excess of 1000N when opened at the restricted position Austenitic 304* stainless steel for enhanced corrosion resistance Compatible with all Securistyle heavy duty hinges 12 year guarantee (details available on request)

HEAVY DUTY FRICTION SLIDER

RELEASE KEY

Stainless steel/ plastic composite slider to give maximum strength yet perform with the smoothest of action

Dedicated release key allowing the restrictor stay to be detached

PRODUCT SPECIFICATION LOCKING PIN

Tested to BS6375-2

Unique locking pin design allowing simple detachment / engagement of the restrictor stay

* Austenitic (was 304) stainless steel to BS EN 10088-2 Grade 1.4301 for enhanced corrosion resistance

Can withstand a force in excess of 1000N when opened at the restricted position Austenitic 304* stainless steel for enhanced corrosion resistance Compatible with all Securistyle heavy duty hinges 12 year guarantee (details available on request)

PART NUMBER

DESCRIPTION

ARM LENGTH

TRACK LENGTH

BOXED QTY

SDR4

4” DETACHABLE RESTRICTOR ASSEMBLY

4/101.6

5.9/150

50

SDR6

6” DETACHABLE RESTRICTOR ASSEMBLY

6/152.4

7.87/200

50

SDR8

8” DETACHABLE RESTRICTOR ASSEMBLY

8/203.2

7.87/200

50

SDR10

10” DETACHABLE RESTRICTOR ASSEMBLY

10/254

9.84/250

50

R7347

RELEASE KEY

10

NO ROUTING REQUIRED NON HANDED SUITABLE FOR 16 - 18MM CAVITY HEIGHT

@2UDIRECT

IFI.EU

TEL: 01733847520 EMAIL: SALES@IFILTD.NET

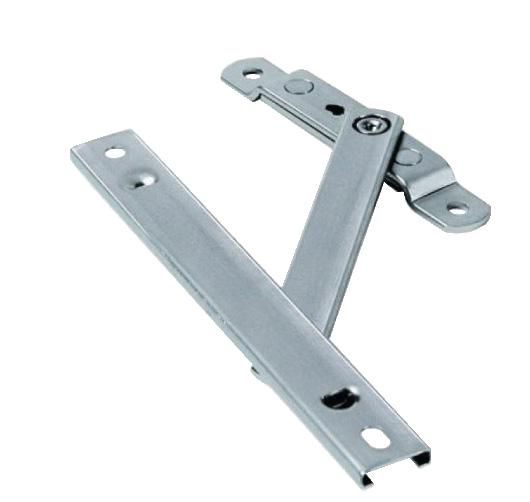

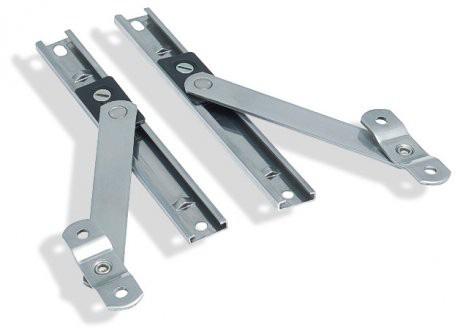

WINDOW RESTRICTOR - STANDARD DUTY IFI.EU

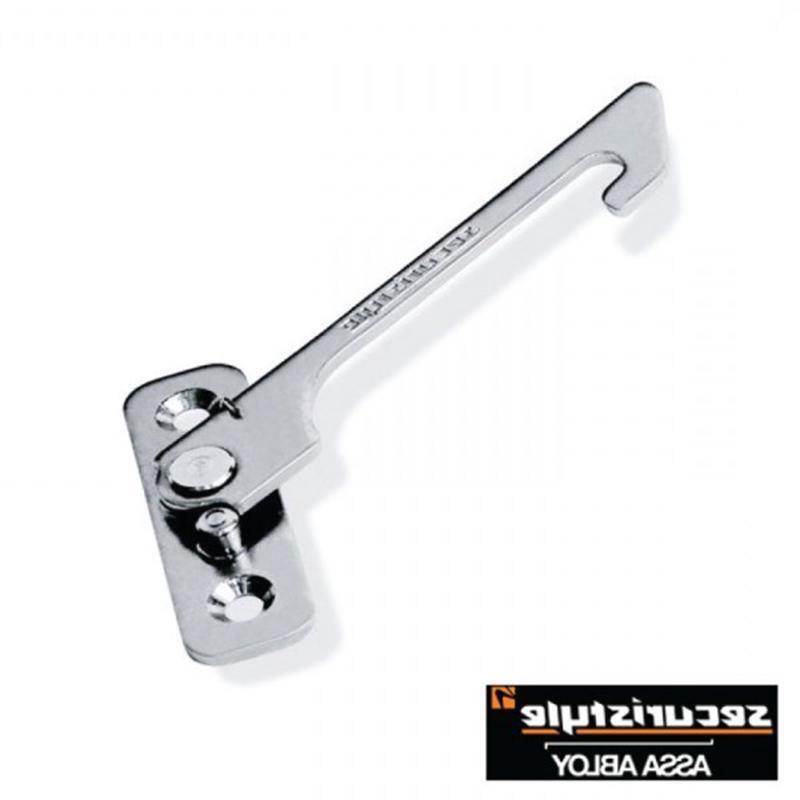

RESTRICTED STAYS TYPE - PERMANENT STANDARD DUTY RESTRICTOR BENEFIT PERMANENT RESTRICTION TESTED TO BS6375:2 The Standard Duty Restrictor Stays give an opportunity to permanently restrict opening vents, particularly useful in applications where resident safety is required or where windows open out onto corridors or gangways.

In normal operation the restrictor stay allows the vent to open until the slider engages against the opening stop in the track.

The Standard Duty Restrictor Stays are designed to be fitted between two flat and parallel rigid face.

Available in ferritic 430* stainless steel Tested to BS6375: 2 to withstand a force of 350N for one minute

PART NUMBER

DESCRIPTION

Device provides additional friction for windows

RS4

4” RESTRICTED STAY

10 year guarantee (details available upon request)

RSR6

6” RESTRICTED STAY

RSR9

9” RESTRICTED STAY

Suitable for 13” - 14” cavity height

RESTRICTED STAYS TYPE - STANDARD DUTY RESTRICTOR BENEFIT THE ULTIMATE SOLUTION TO RESIDENT SAFETY Tested to BS 6375-2 to load bearing capacity of safety devices Austenitic 304* stainless steel for enhanced corrosion resistance Compatible with all Securistyle standard duty Defender Egress Easy Clean 12 Year guarantee ( details available

PART NUMBER

DESCRIPTION

RCIL

CAVITY RESTRICTOR LEFT HAND

RCIR

CAVITY RESTRICTOR RIGHT HAND

SC1

13” CAVITY / 9.5” PIN

SC2

16” CAVITY / 13.5” PIN

SC3

17” CAVITY / 14.5” PIN

SC4

16” CAVITY / 11.5” PIN

IFI.EU

CAVITY LOCATOR PIN For each standard

RESTRICTOR Mechanism limits maximum opening

TEL: 01733847520 EMAIL: SALES@IFILTD.NET

11

1212 WINDOW SR & SDR RESTRICTORS VENTS - ACOUSTIC IFI.EU

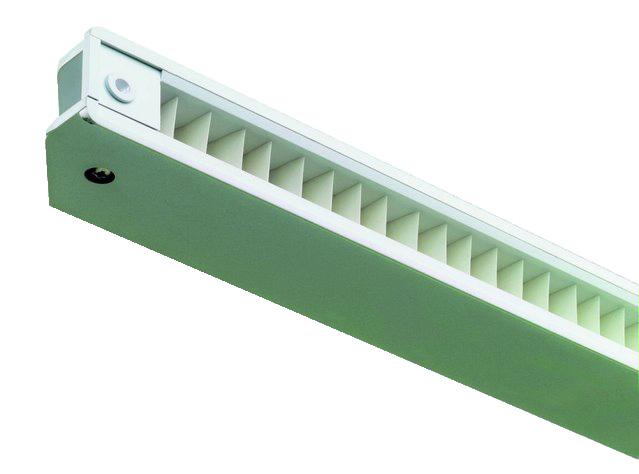

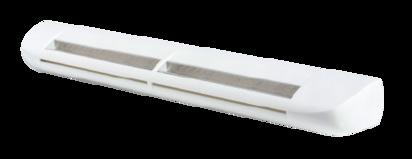

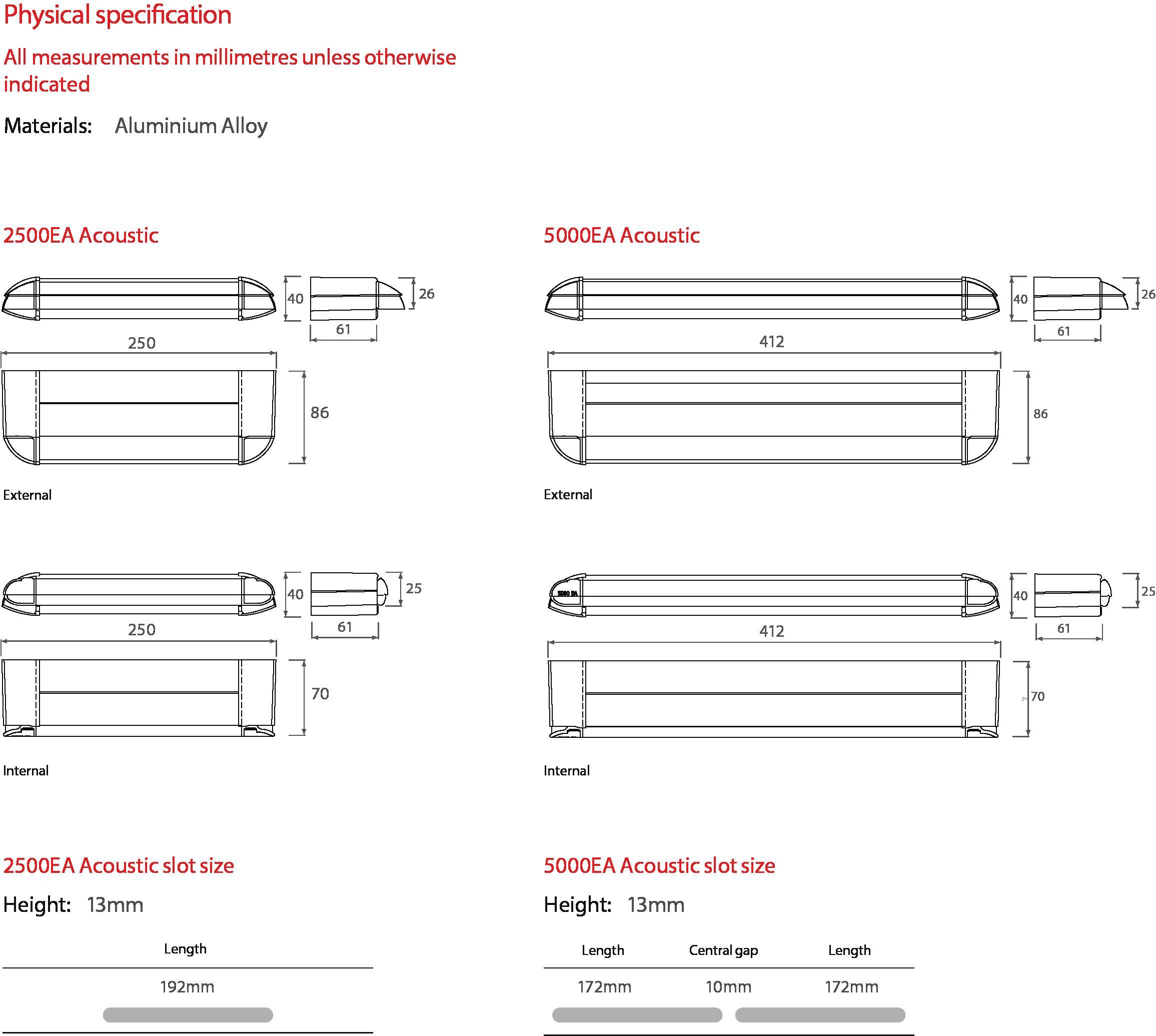

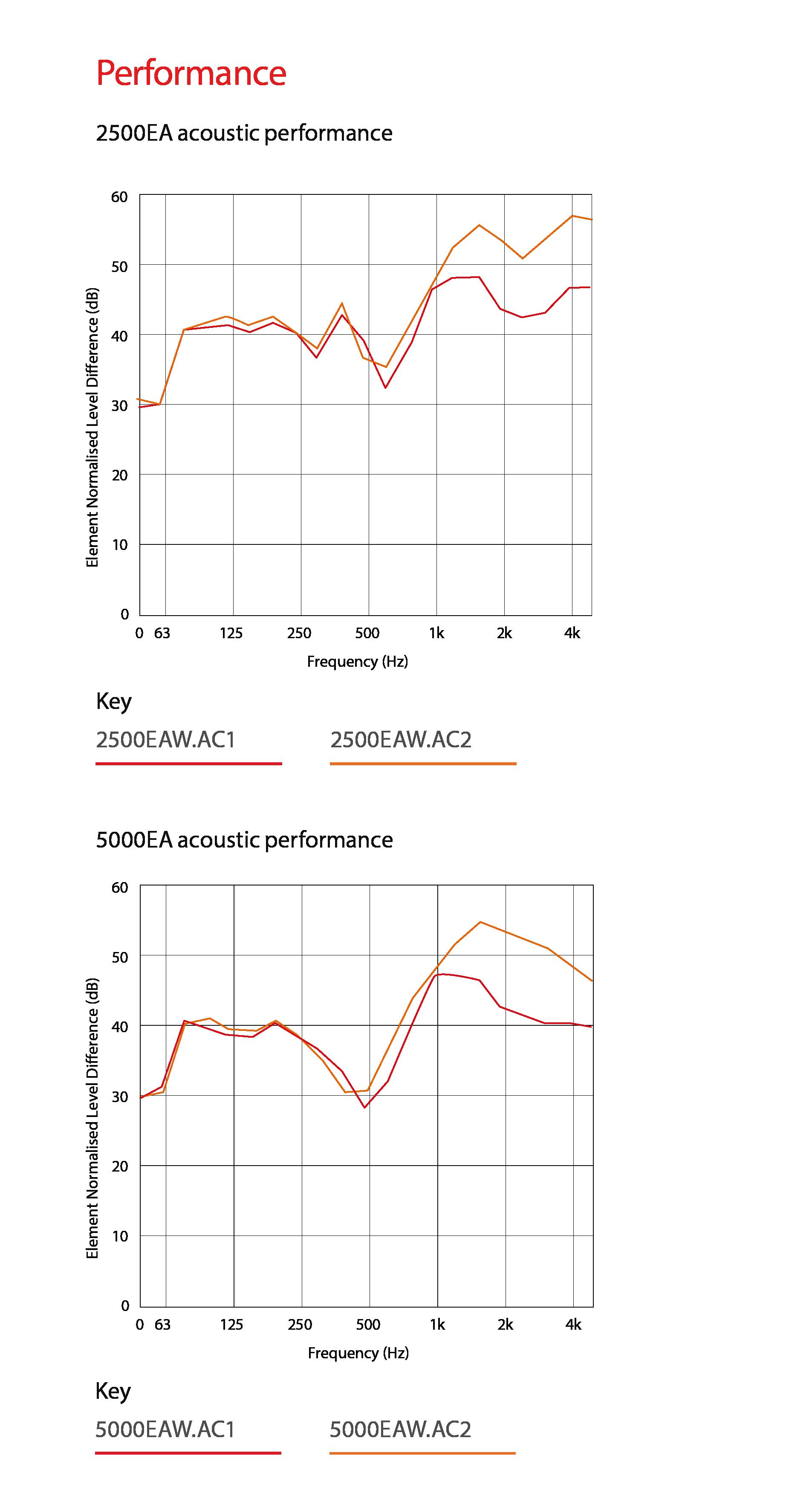

2500EA / 5000EA ACOUSTIC WINDOW VENTILATOR PHYSICAL SPECIFICATION All measurements in millimetres unless otherwise indicated Materials: Aluminium Alloy

PRODUCT CODE

DESCRIPTION

CONTROLS

DN,E,W

DN,E,W(C)

DN,E,W(CTRL)

EQUIVALENT AREA MM2

COLOUR

2500EAW.AC1*

VENT + 1 ACOUSTIC EXTERNAL MODULE

FRONT

42DB(A)

41DB

40DB

2670

WHITE

2500EAW.AC2 *

Vent + 2 Acoustic Modules

FRONT

45DB(A)

43DB

42DB

2670

WHITE

5000EAW.AC1 *

Vent + 1 Acoustic External Module

FRONT

39DB(A)

38DB

37DB

5350

WHITE

5000EAW.AC2 *

Vent + 2 Acoustic Modules

FRONT

42DB(A)

40DB

38DB

5350

WHITE

*BESPOKE RAL COLOUR OPTIONS ARE AVAILABLE. PLEASE CONTACT US FOR MORE DETAILS*

@2UDIRECT

IFI.EU

TEL: 01733847520 EMAIL: SALES@IFILTD.NET

WINDOW PARALLEL VENTSPLUS - ACOUSTIC HINGES IFI.EU

FEATURES & BENEFITS Smallest acoustic window vents providing 2500mm2 or 5000mm2 equivalent area ventilation on the market Achieves the best acoustic performance for window ventilators available within the UK – up to 45dB(A) A simple, yet adaptable, solution to meet required specification/ Building Regulation requirements incorporating both high levels of equivalent area ventilation and acoustic noise reduction Modularity of acoustic sets provides flexibility for installation and acoustic performance Aesthetically pleasing design which is easy to open and control by the homeowner Excellent airtightness performance with upward air deflection to reduce the risk of draughts May require add on section in some window installations Sets comprise of: 1 EA vent + 1 external acoustic module – providing noise reduction with discreet internal aesthetics.

1 EA vent + 2 acoustic modules (for internal and external install) – providing maximum noise reduction.

INSTALLATION 1. Prepare the window frame with the correct slot sizes.

2. Use the self tapping screws to install the acoustic parts.

3. Use standard pyramid vent screws to install the canopy and vent.

IFI.EU

TEL: 01733847520 EMAIL: SALES@IFILTD.NET

13

1214 WINDOW SR & SDR RESTRICTORS VENTS - ACOUSTIC IFI.EU

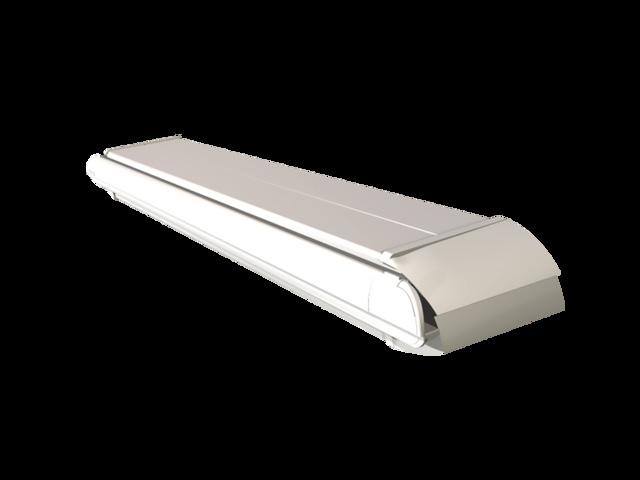

EAR42W ACOUSTIC WINDOW VENTILATOR

FEATURES AND BENEFITS One of the best performing acoustic window ventilators available in the UK Provides an outstanding Dn,e,w; 42dB(A) for areas with high external noise transmission Upward air deflection to eliminate replacement air causing draughts Humidity control to regulate supply of fresh air effectively throughout the day in response to changing indoor humidity levels

PRODUCT CODE

CONTROLS

DN,E,W

DN,E,W(C)

DN,E,W(CTRL)

EQUIVALENT AREA MM2

COLOUR

EAR42W*

BOTTOM

42DB(A)

42DB

42DB

3912

WHITE

@2UDIRECT

IFI.EU

TEL: 01733847520 EMAIL: SALES@IFILTD.NET

WINDOW PARALLEL VENTS PLUS - ACOUSTIC HINGES IFI.EU

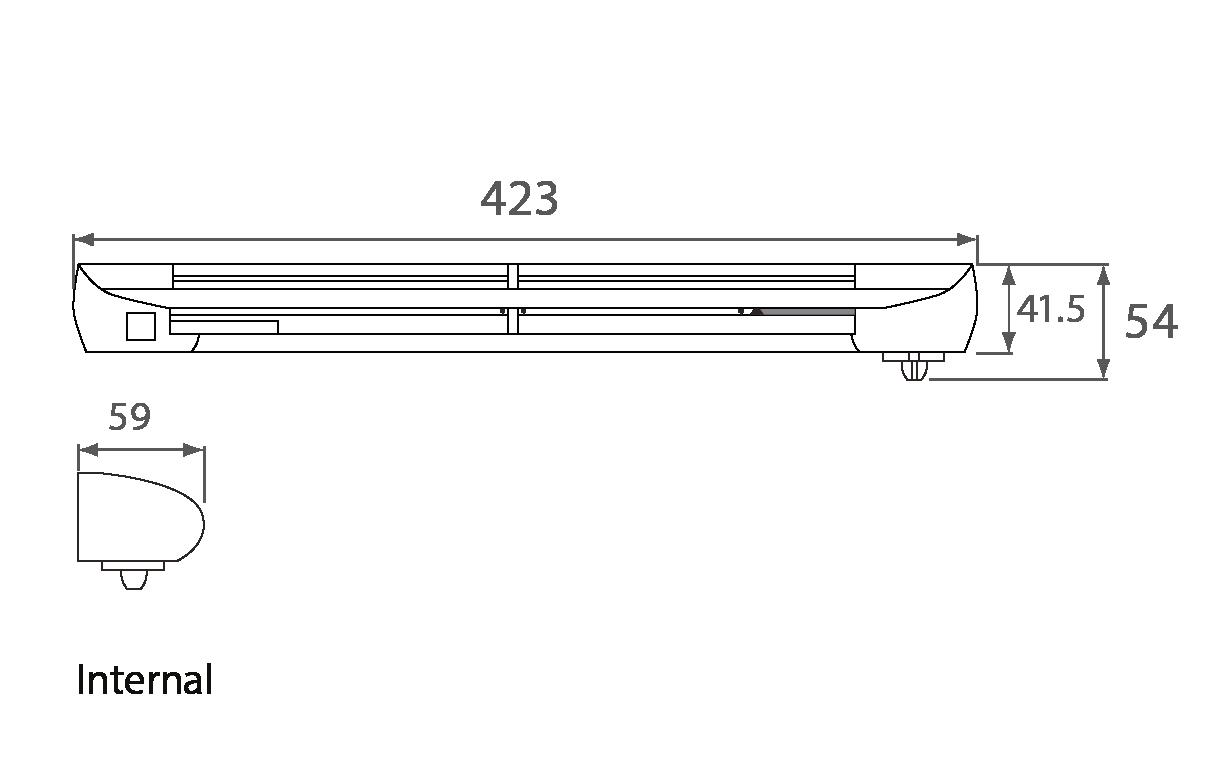

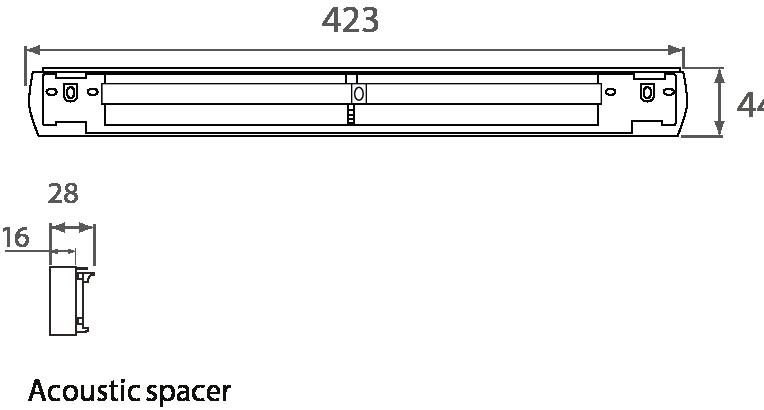

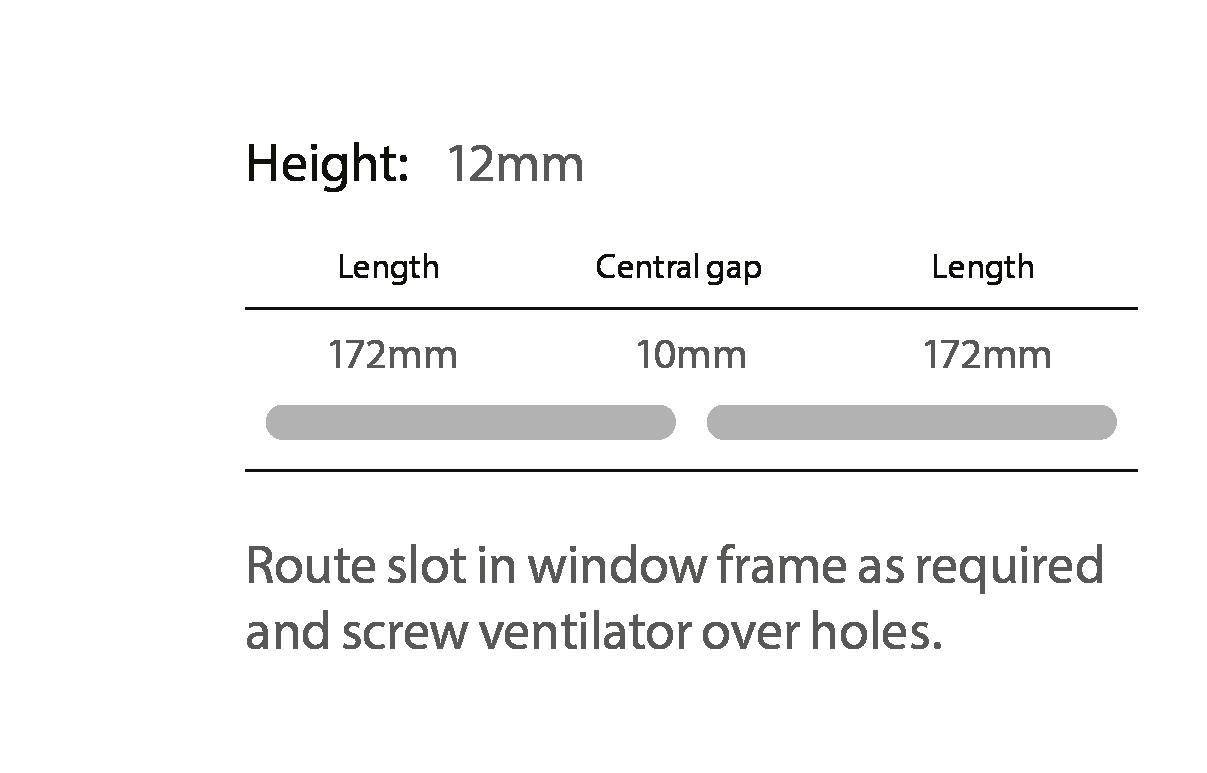

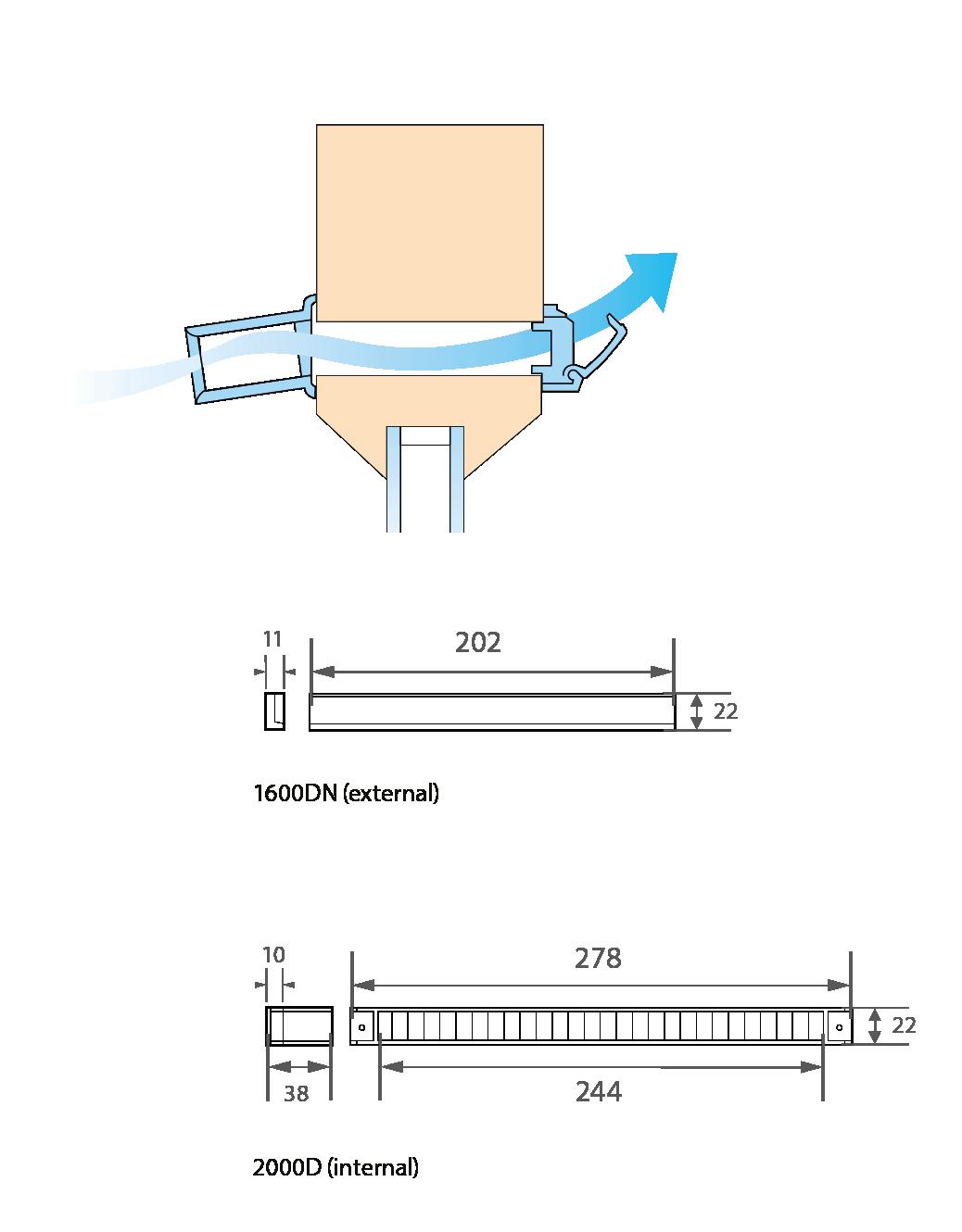

DN VENT ACOUSTIC WINDOW VENTILATOR PHYSICAL SPECIFICATION All measurements in millimetres unless otherwise indicated Materials: ABS

FEATURES AND BENEFITS 1400mm2 equivalent area Acoustic window vent providing attenuation up to Dn,e,w 37dB(A) Internal unit (D Vent) provides upward deflection Suitable for installation up to two floors only

PRODUCT CODE 1600DNFW*

IFI.EU

DESCRIPTION

CONTROLS

DN,E,W

DN,E,W(C)

DN,E,W(CTRL)

EQUIVALENT AREA MM2

COLOUR

COMPLETE UNIT WITH D VENT INTERNAL

FRONT

37DB(A)

36DB

34DB

1400

WHITE

TEL: 01733847520 EMAIL: SALES@IFILTD.NET

15

12 16

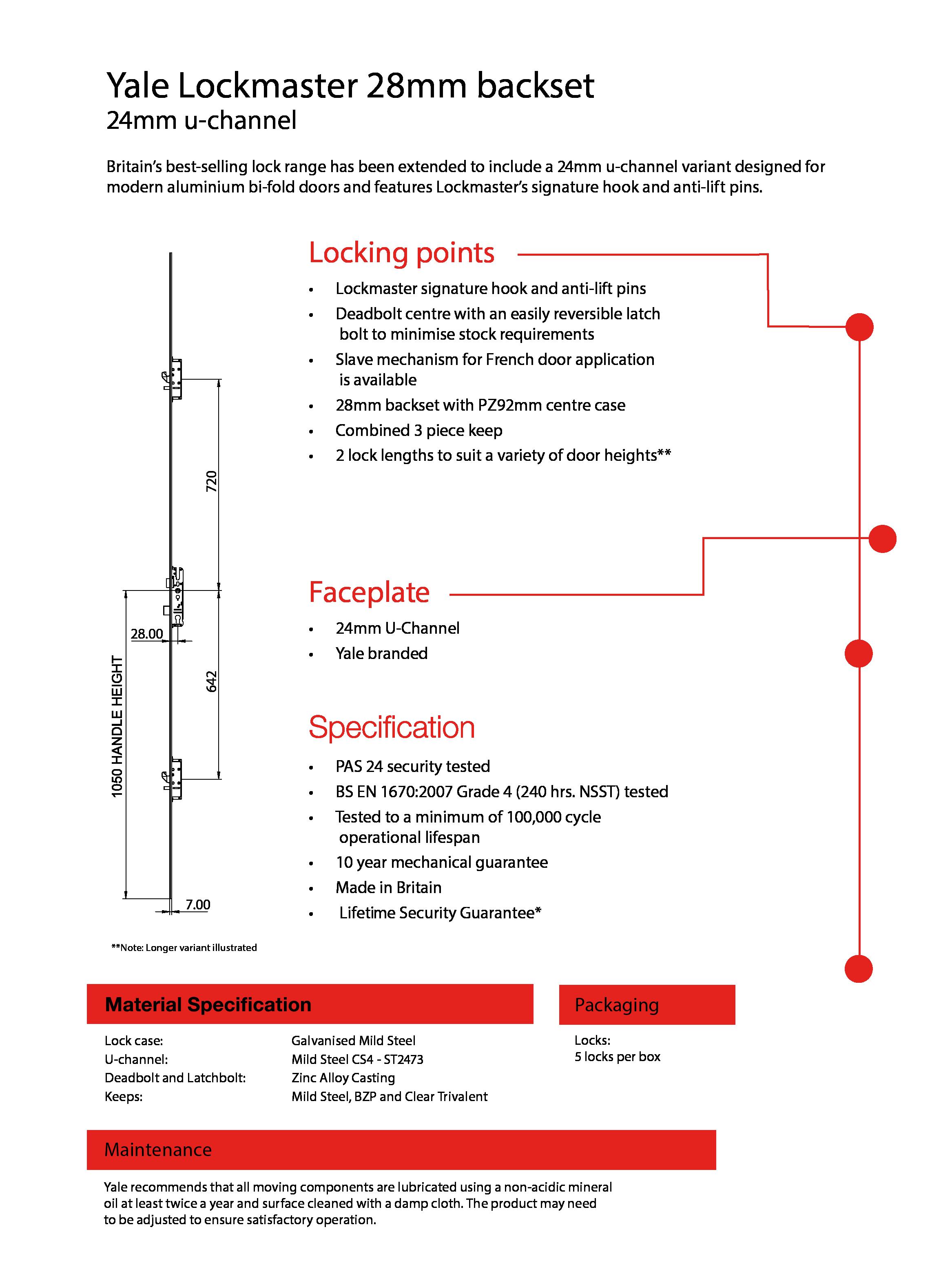

SR & SDRDOOR BI-FOLD RESTRICTORS LOCKS - EURO GROOVE FIT IFI.EU

SKU: YLBF00128-19

@2UDIRECT

IFI.EU

TEL: 01733847520 EMAIL: SALES@IFILTD.NET

BI-FOLD PARALLEL DOOR LOCKS PLUS - FACE HINGES FIT IFI.EU

SKU: YLBF004128-19

IFI.EU

TEL: 01733847520 EMAIL: SALES@IFILTD.NET

17

18

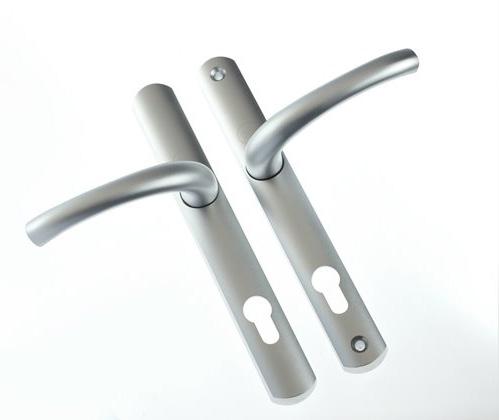

DOOR HARDWARE IFI.EU

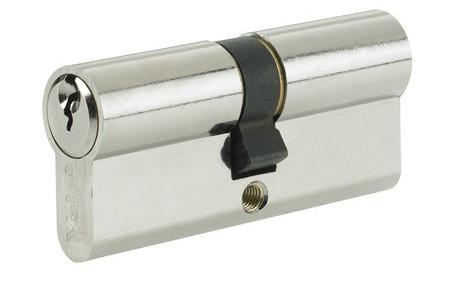

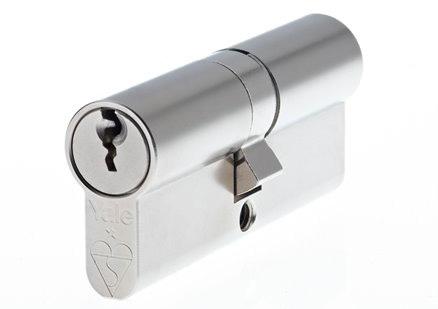

SECURITY 6 PIN EURO PROFILE CYLINDER

KM SUPERIOR 1 STAR EURO PROFILE CYLINDER

PLATINUM 3 STAR EURO PROFILE CYLINDER

Specifications:

Specifications:

Specification

Replacement 6 pin Euro Profile Cylinder Available in Euro Single, Euro Double and Euro Turn BSI Kitemark Approved - KM532920 TS007 1 Star Cylinder Secured by Design approved High security level 10 year guarantee

Replacement 6 pin Euro Profile Cylinder Available in Euro Single, Euro Double and Euro Turn Tested to the British Standard BS EN1303:2005 Standard Security Level 2 year guarantee

TS007 2014 3 star approved KM559658 BSEN1303:2005 approved Anti-Snap, sacrificial front section Anti-Pick, Anti-Bump, Anti-Screw, Anti-Pull and Anti-Drill Euro retrofit cylinder

YALE DOOR HANDLES PRODUCT CODE

DESCRIPTION

COLOUR

Y2G-SSLL-WH

Superior Door Handle - White - Bagged

WHITE

Y2G-SSLL-BL

Superior Door Handle - Black - Bagged

BLACK

Y2G-SSLL-SG

Superior Door Handle - Satin Gold - Bagged

SATIN GOLD

Y2G-SSLL-SS

Superior Door Handle - Satin Silver - Bagged

SATIN SILVER

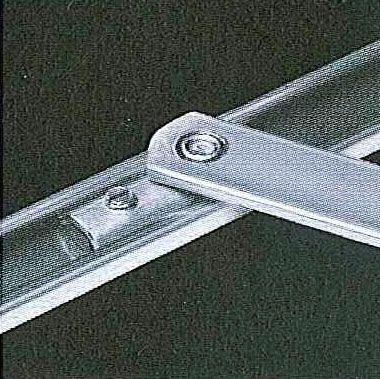

HOLD OPEN DOOR RESTRICTOR STANDARD STEEL ARM Stops Doors swinging shut! - when it’s breezy & Stops Doors swinging too far open - knocking sill end caps off Adjustable friction - the opening friction or resistance is adjustablewith new hold open design - new & enhanced 90° hold open pad Standard steel arm 335mm - Stainless steel arm 335mm Standard steel arm 500mm - Stainless steel arm 500mm SKU: SHO335PS

SKU: SHO335SS

SKU: SHO500PS

SKU: SHO500SS

@2UDIRECT

IFI.EU

TEL: 01733847520 EMAIL: SALES@IFILTD.NET

ACCESSORIES IFI.EU

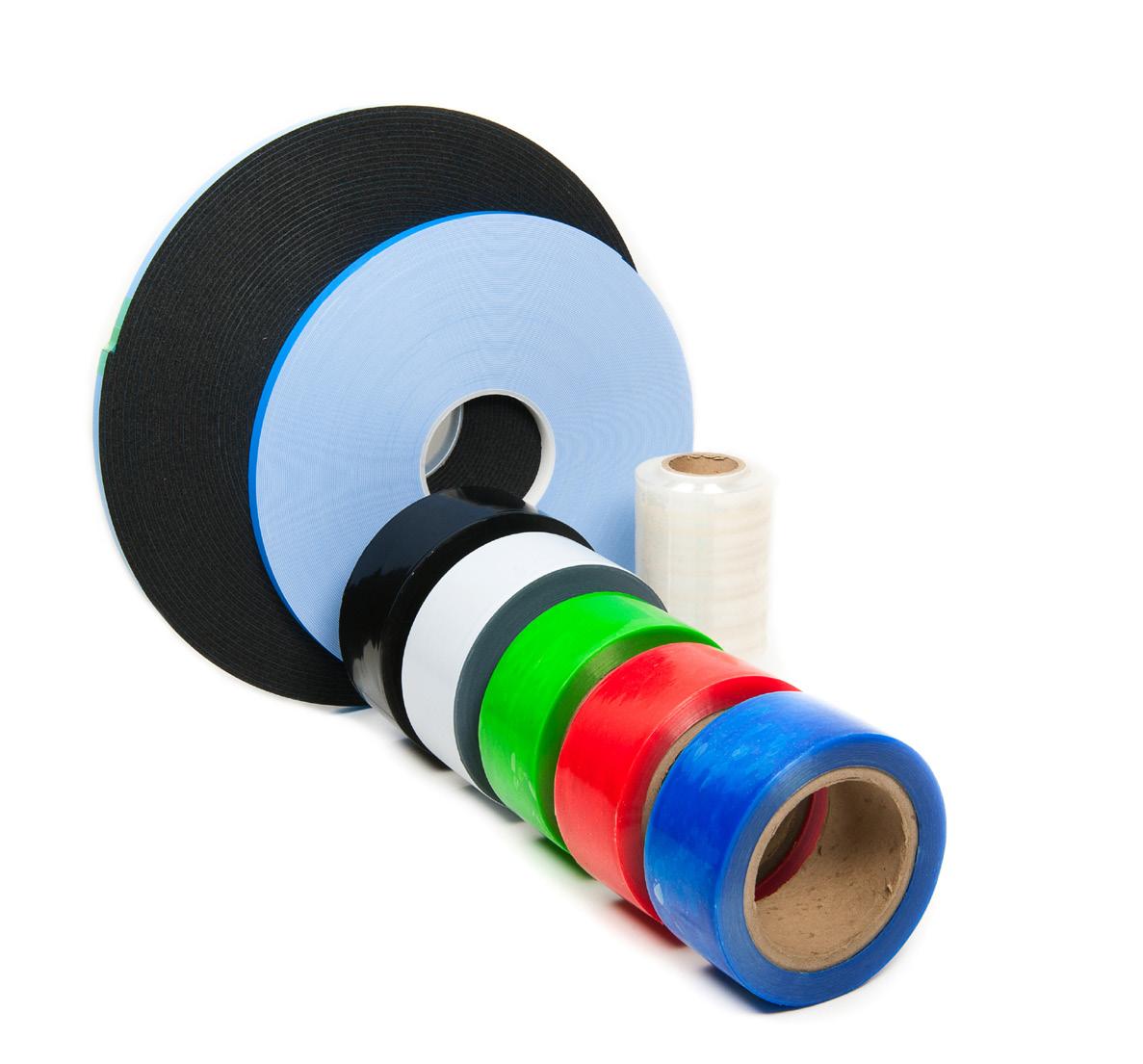

TAPES & WRAPS LOW TACK TAPES & HANDY WRAPS DESCRIPTION • Low tack tape available in colour options • Packaging tapes • Hard floor and carpet protection film • Handy wrap • Masking tapes • Double Sided Security Tape • Glass protection tape

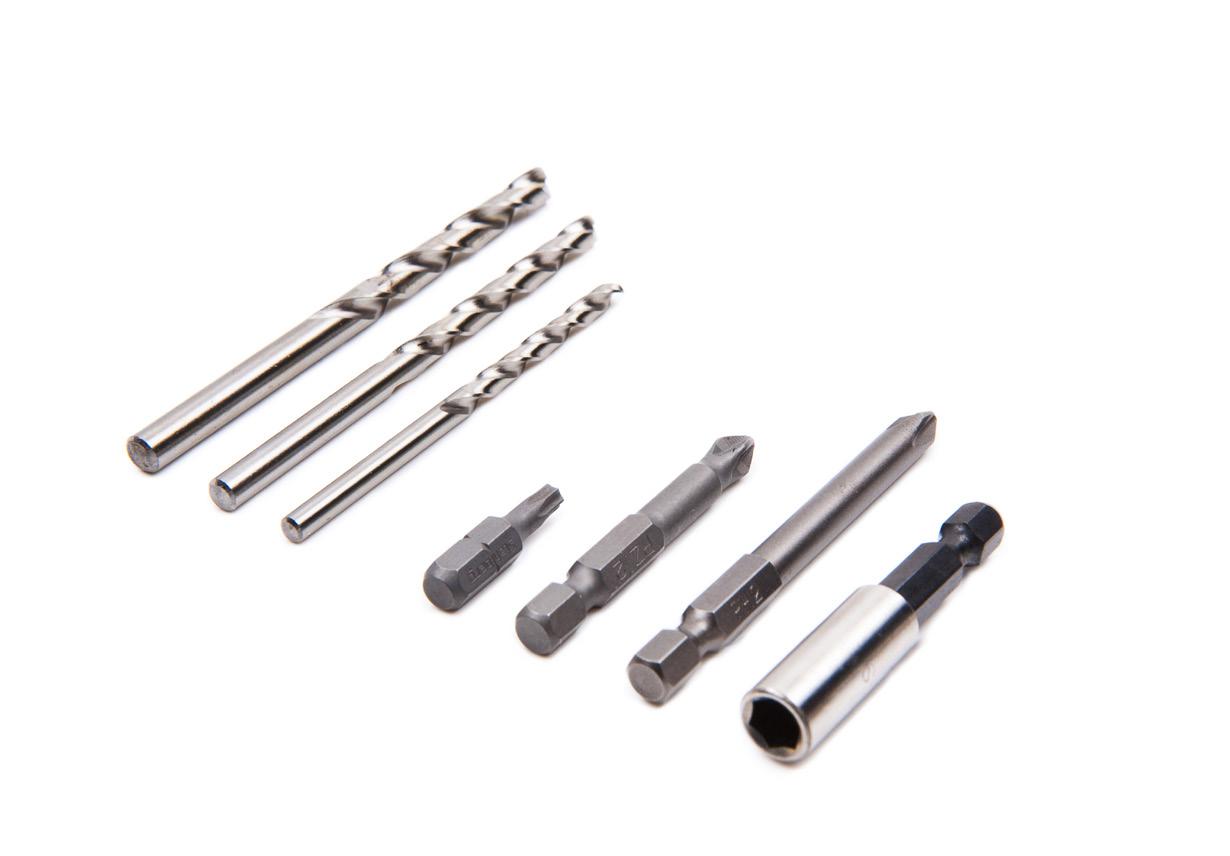

DRILL BITS & DRIVER INSERTS PH2 - PZ2 - TX30 & More DESCRIPTION Phillips, Pozi, Star turn, and Slotted driver bits • HSS twist drills • SDS masonry bits • Rotary masonry drills bits • Magnetic adaptors •

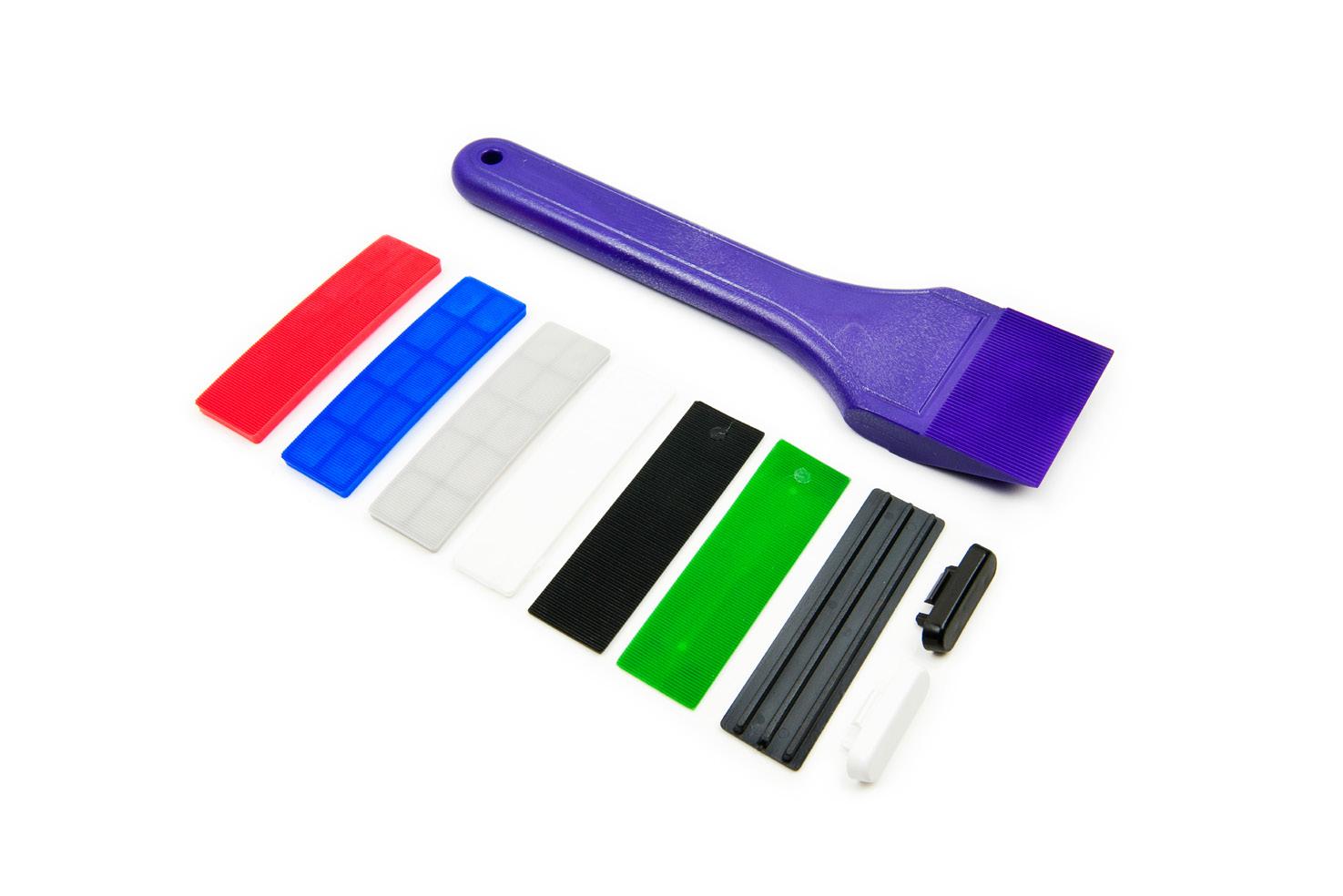

GLAZING PLASTICS WEDGE/BRIDGE PACKERS & SHOVELS DESCRIPTION • Flat Packers in a full range of sizes • Bridge packers & bespoke glazing plastics • Wedge packers • Run Up Blocks - Bespoke profile products available • Drain hole Covers • Cover caps • Glazing shovels • U shaped frame packers

IFI.EU

TEL: 01733847520 EMAIL: SALES@IFILTD.NET

19

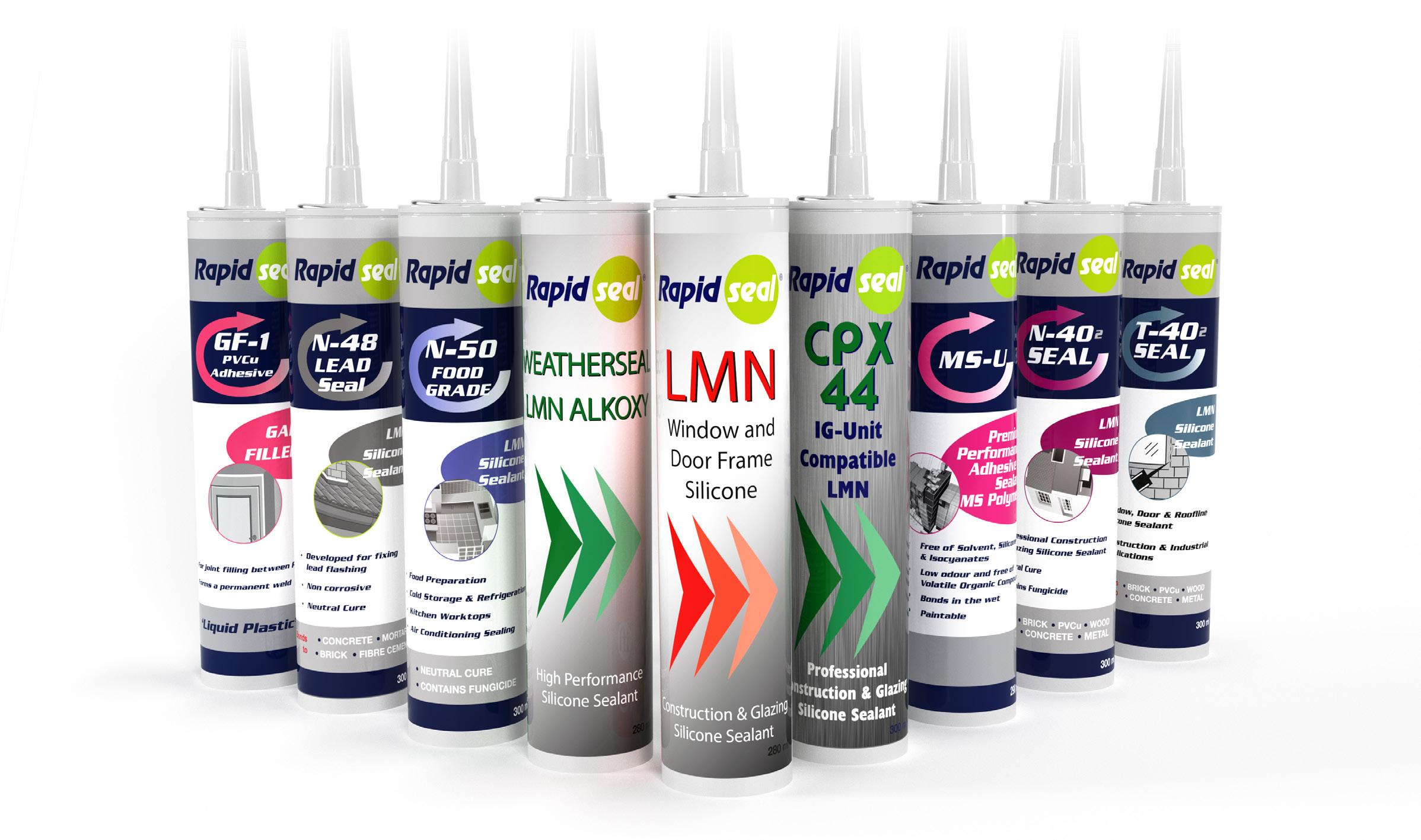

20 RAPIDSEAL SEALANT IFI.EU

@2UDIRECT

IFI.EU

TEL: 01733847520 EMAIL: SALES@IFILTD.NET

FIRE RATED SEALANT 21 IFI.EU

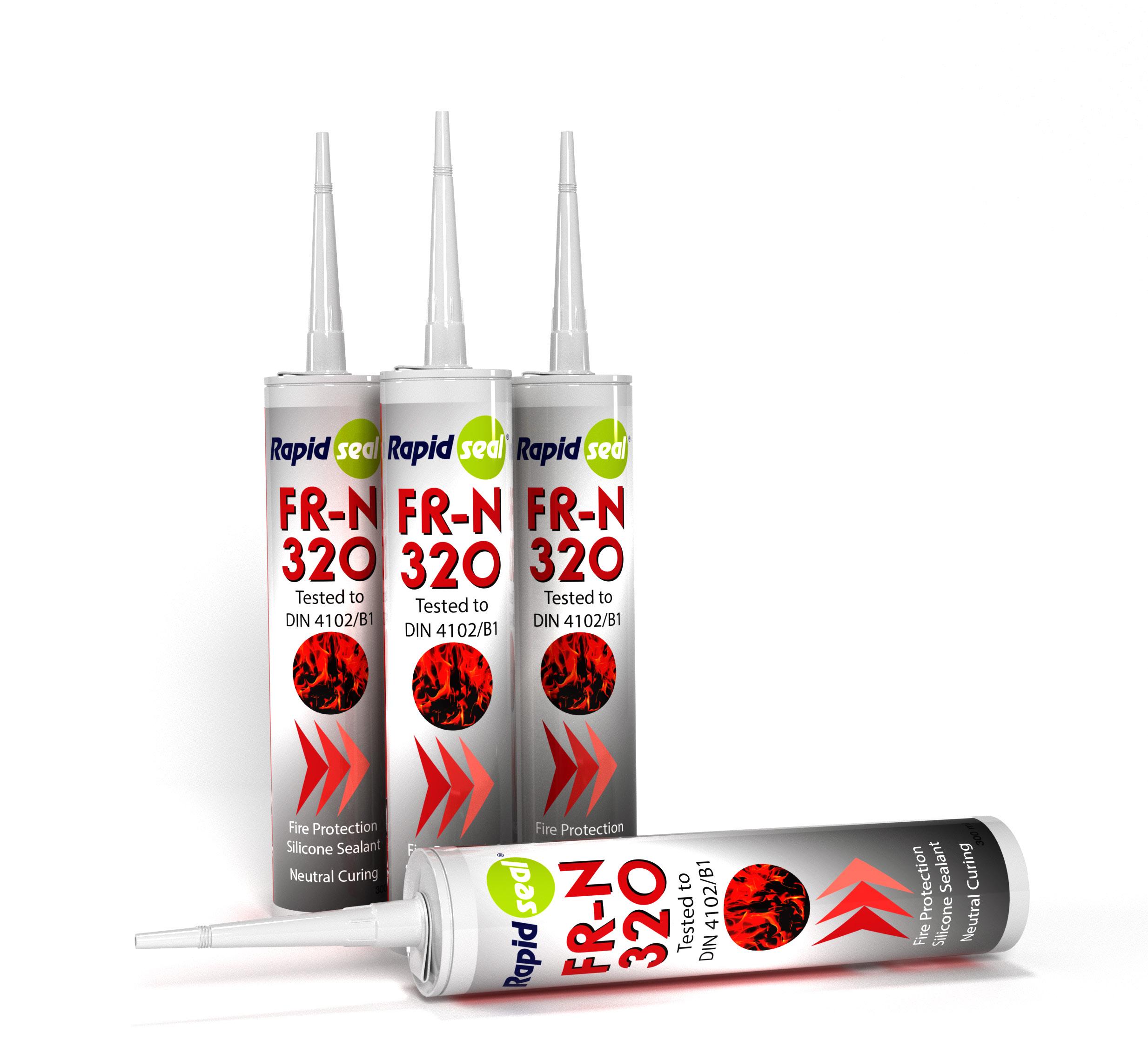

FIRE RATED SILICONE RAPIDSEAL FR-N 320 DESCRIPTION . One part low modulus neutral cure silicone sealant . Tested in accordance with Din 4102/B1 . Typical applications include sealing around door and window frames, cable ducts and expansion joints. . Boxed in 25’s . Available in white

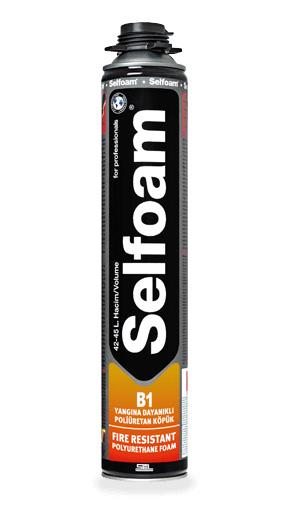

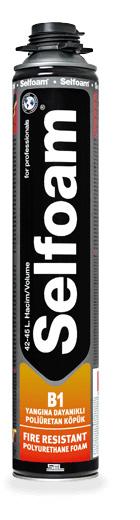

SELSIL FIRE RATED B1 PU FOAM RSFRGF DESCRIPTION One-component .

Moisture curing .

Excellent adhesion to most construction materials .

Fire resistant class B1 acc. acc.DIN4102 .

Thermal and acoustic insulation .

Does not contain CFC’s and H-CFC’s .

Cuttable and paintable after curing .

PU Gun application only .

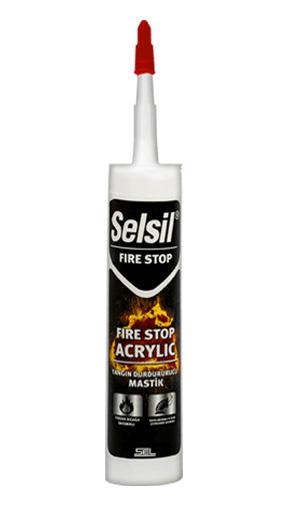

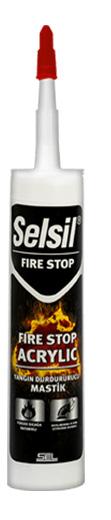

INTUMESCENT ACRYLIC CAULK SELSIL INTUMESCENT ACRYLIC CAULK Fire Stop Acrylic Selsil Fire resistant acrylic sealant is one component, acrylic emulsion based and specially formulated for being barrier against fire.

Properties . Water based, contains no asbestos or fibres . Easy application . Short surface curing . Paintable . Good adhesion to concrete and masonry substrates . Flexible

IFI.EU

TEL: 01733847520 EMAIL: SALES@IFILTD.NET

22 FASTENERS - COMMERCIAL / CURTAIN WALL IFI.EU

HEXAGON HEAD SET SCREW

HEXAGON HEAD BOLT

HEXAGON HEAD BOLT

DIN 933 - FULLY THREADED CODE: IF1HHS Carbon Steel Zinc Plated A2 - A4 Stainless Steel

DIN 931 - PARTIAL THREAD CODE: IF1HHB Carbon Steel Zinc Plated A2 - A4 Stainless Steel

DIN 6921 - SERRATED FLANGE CODE: IF1HHF A2 - A4 Stainless Steel

SOCKET CAP SCREW

SOCKET COUNTERSUNK SCREW SC

SOCKET BUTTON SCREW

DIN 912 - HEX KEY DRIVE CODE: IF1SCMB Carbon Steel Zinc Plated A2 - A4 Stainless Steel

DIN 7991 - HEX KEY DRIVE CODE: IF1SCSK Carbon Steel Zinc Plated A2 - A4 Stainless Steel

ISO 7380 - HEX KEY DRIVE CODE: IF1SBMB Carbon Steel Zinc Plated A2 - A4 Stainless Steel

SOCKET SET (GRUB) SCREW

SOCKET SET (GRUB) SCREW

SLOTTED SET (GRUB) SCREW

DIN 916 - HEX KEY DRIVE CODE: IF1SGSC - CUP POINT Carbon Steel Zinc Plated A2 - A4 Stainless Steel

DIN 914 - HEX KEY DRIVE CODE: IF1SGCP - CONE POINT Carbon Steel Zinc Plated

DIN 551 CODE: IF1SLGS A2 - A4 Stainless Steel

ALL BOLTS AND SCREWS WITH EXTERNAL DRIVING FEATURE AVAILABLE IN HEXALOBULAR TX DRIVE

@2UDIRECT

IFI.EU

TEL: 01733847520 EMAIL: SALES@IFILTD.NET

FASTENERS - COMMERCIAL / CURTAIN WALL 23 IFI.EU

PAN HEAD MACHINE SCREW

COUNTERSUNK MACHINE SCREW

CUP HEAD SQUARE BOLT

DIN 7985 - Z - CROSS RECESSED CODE: IF1PMB Carbon Steel Zinc Plated A2 - A4 Stainless Steel

DIN 965 - Z - CROSS RECESSED CODE: IF1CMB Carbon Steel Zinc Plated A2 - A4 Stainless Steel

DIN 603 - (COACH BOLTS) CODE: IF1CSX Carbon Steel Zinc Plated

HEXAGON FULL NUT

HEXAGON FLANGE NUT

DIN 934 CODE: IF1HFN Carbon Steel Zinc Plated A2 - A4 Stainless Steel

DIN 6923 - SERRATED CODE: IF1FLN Carbon Steel Zinc Plated A2 - A4 Stainless Steel

DIN 982 - NYLON INSERT CODE: IF1NYLP Carbon Steel Zinc Plated A2 - A4 Stainless Steel

HEXAGON HALF LOCK NUT

HEXAGON ACORN-DOME NUT

AMERICAN FORM WINGNUT

DIN 936 CODE: IF1HHN Carbon Steel Zinc Plated A2 - A4 Stainless Steel

DIN 1587 CODE: IF1HDN Carbon Steel Zinc Plated A2 - A4 Stainless Steel

DIN 315 AF CODE: IF1WN Carbon Steel Zinc Plated A2 - A4 Stainless Steel

HEXAGON P LOCK NUT

CONTACT THE SALES OFFICE NOW MANY OTHER TYPES AVAILABLE PLUS LIMITED RANGE OF BRASS

IFI.EU

TEL: 01733847520 EMAIL: SALES@IFILTD.NET

Contact Us IFI Rutland Business Park Newark Road Peterborough Cambridgeshire PE1 5WA United Kingdom Telephone: Fax: Email: Website:

+44 (0)1733 847520 +44 (0) 1733 343 465 sales@ifi.eu orders@ifi.eu www.ifi.eu

www.ifi.eu

New Covers.indd 2

27/01/2023 08:56:17
