THE STUDIO WORK ON AN EVOLUTIONARY IDEOLOGY TO EXPLORE THE NEW PROGRAMMATIC APPROACHES TO DESIGN, WHICH ARE FORMULATED TO BE IN SYNC WITH ITS CONTEXT.

PLAY DESIGN STUDIO COA NUMBER: CA/2009/46729

AURELEC, AUROVILLE, TN-605101 +0413 2622640 PROJECTS@PLAYDESIGNSTUDIO.IN

CONTENTS

TALIPOT RESIDENCE

TALIPOT RESIDENCE

ENTRY BLOCK (WEST)

GUEST COTTAGE

AUROVILLE.

· · · ·

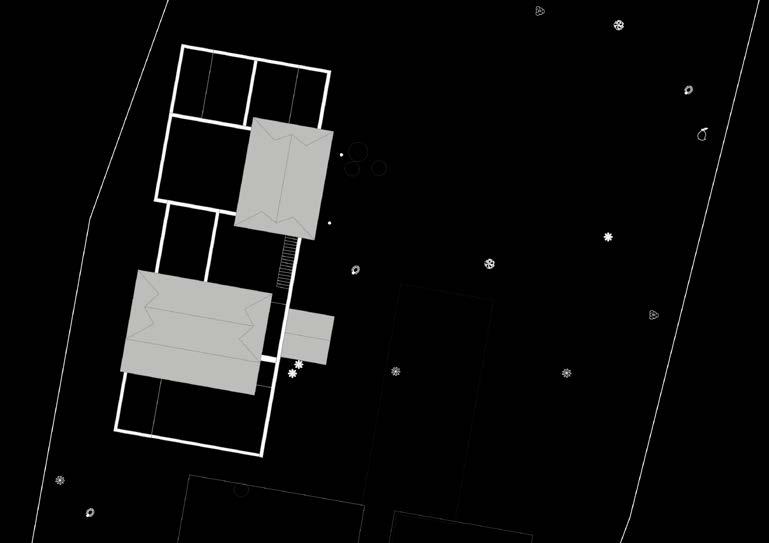

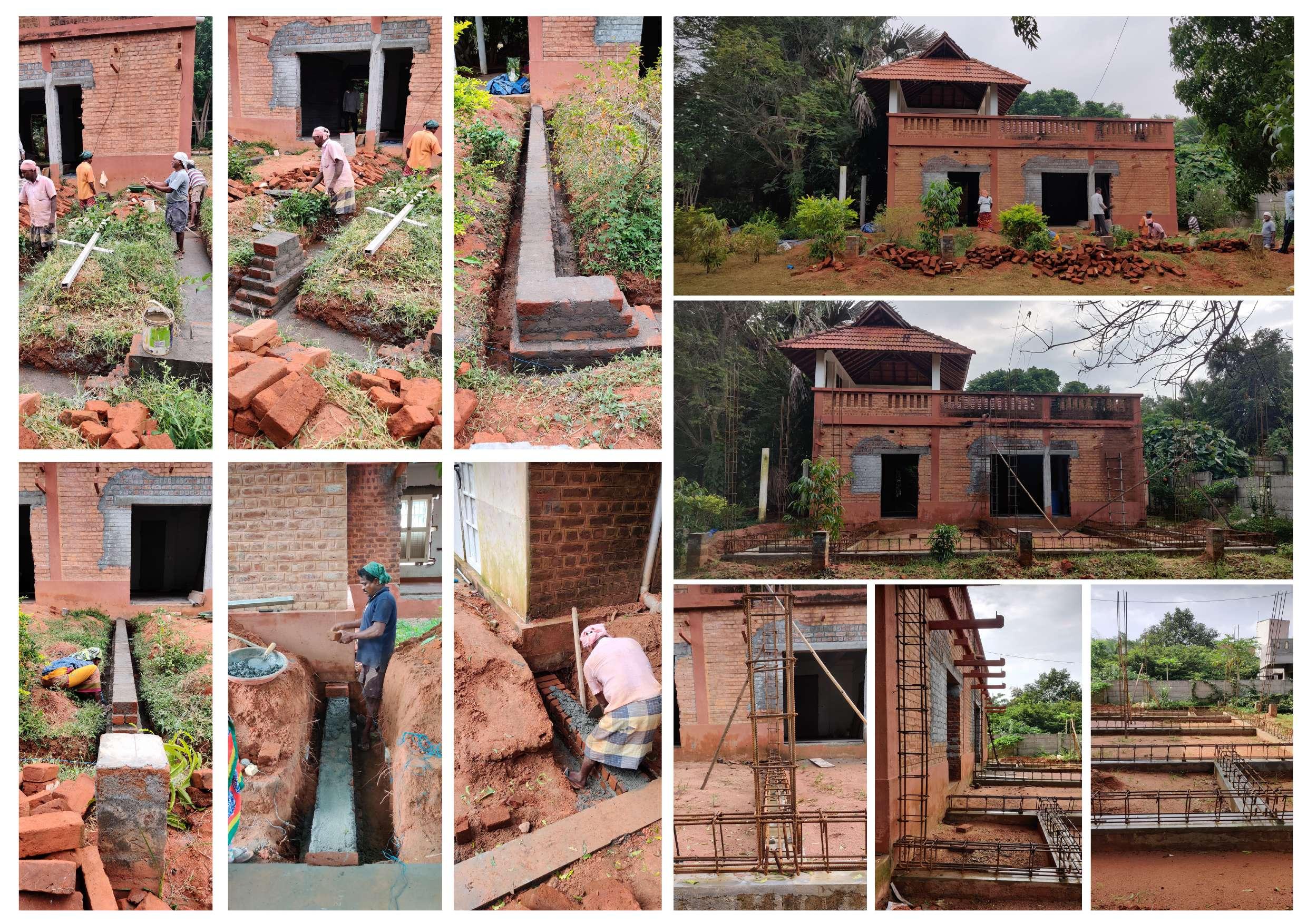

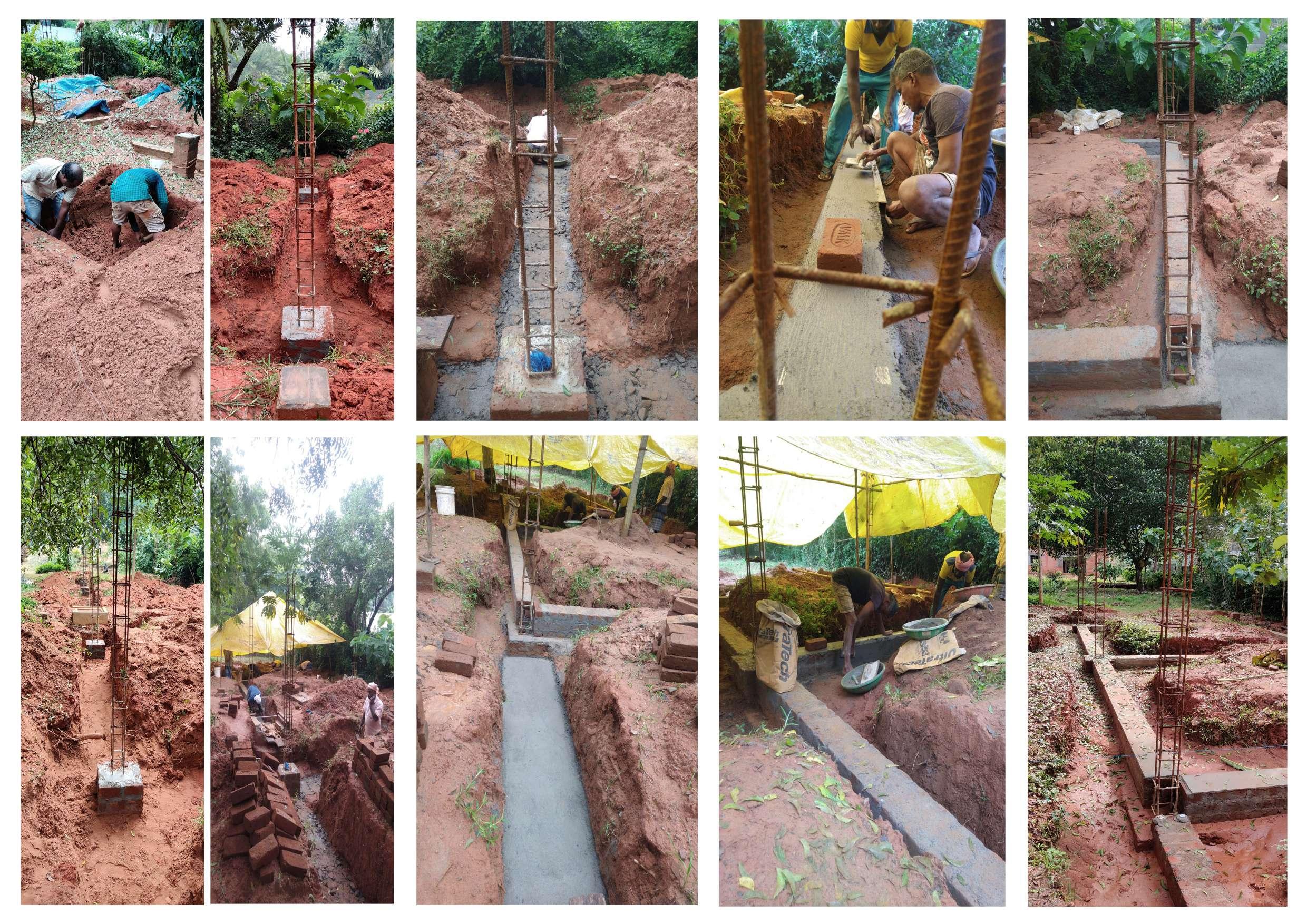

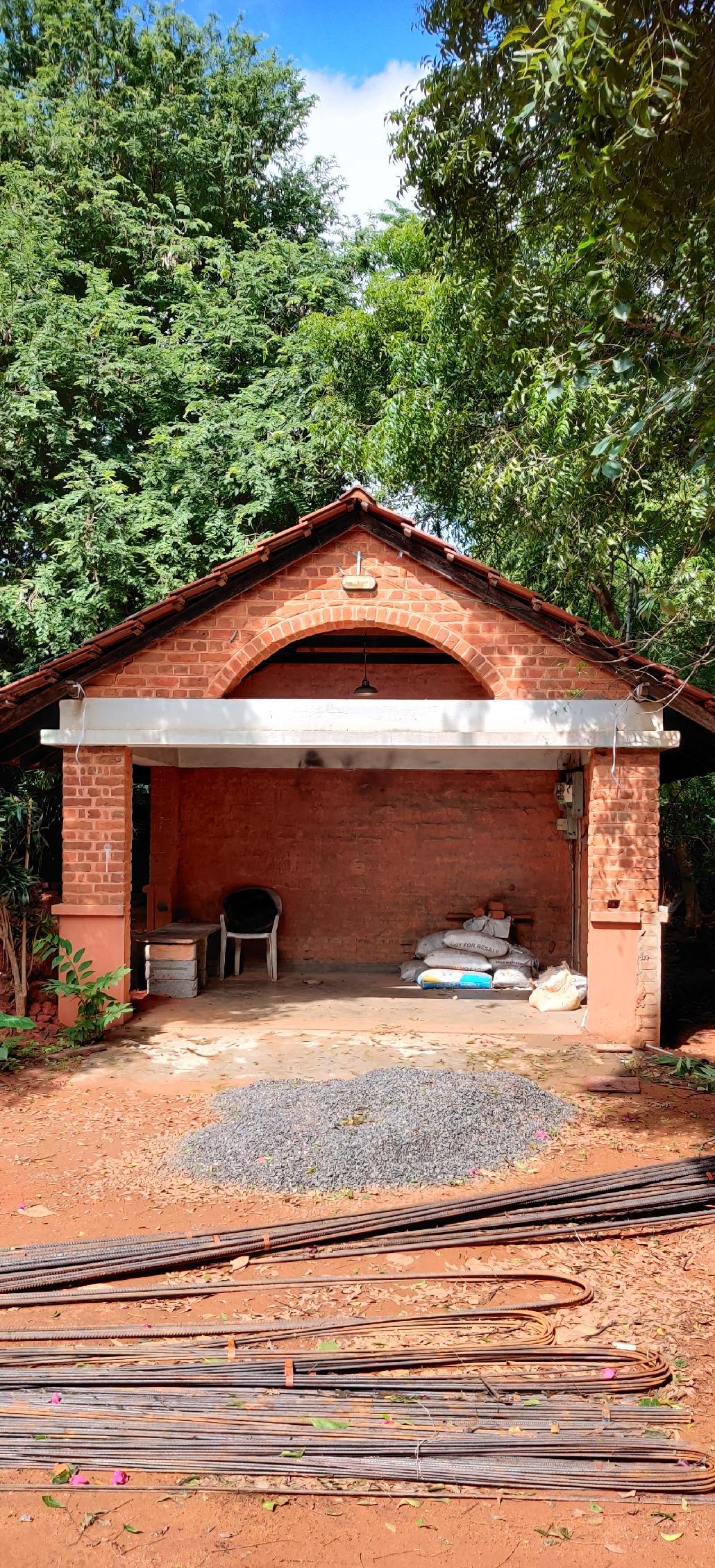

CONCEPT PLAN RENDER ELEVATION + SECTION WORKING DRAWINGS SITE PICTURES

AUROVILLE.

· · · ·

CONCEPT DRAWINGS RENDER ELEVATION + SECTION WORKING DRAWINGS SITE PICTURES

TALIPOT RESIDENCE D IRA ARORA A RO ILLE TN

ENTRY BLOCK(WEST)

GENERAL NOTES E/CIV

1.

S

2.

3.

4.

5.

Servants Room Door D10 Existing Solid Wood Door Size: 1085L x 2000H Finish: Thermo Oil Polish Boundary Wall Material: 150mm thk RCC Wall Finish: Exposed Concrete with Shuttering in Horizontal Plywood reapers varying between 3" to 5"

Windows W02 Size: 1085W x 1080H Material: Two Panels Fixed Wooden louver shutter with mesh Finish: Thermo Oil Polish

Servants Room Door D10 Double shutter old wooden doors with1085mm minimum width Size: 1085L x 2000H Finish: Thermo Oil Polish

Servants Entry Gate D04 Size: 900Lx2100H Reclaimed Wooden Louver Door Finish: Thermo Oil Polish

Main gate D01 Automated Door for Four Wheeler Entry Size: 5850L x 2100H

Main gate D02 Single Shutter Two wheeler and Pedestrian Entry with Cow Barrier Size: 1200L x 2100H

Service Entry Gate D04 Size: 900L x 2100H Reclaimed Wooden Louver Door Finish: Thermo Oil Polish

Office Entry Door D05 Size: 2685L x 2400H Material: Existing Four Shutters Solid Wood Door Finish: Thermo Oil Polish

Windows W01 Size: 900W x 1320H Internal layer: Two Glass Panel Shutters External Layer: Two Fixed louver Panel shutters with Mesh Finish: Thermo Oil Polish

D03 Retail Store (Main Entry Gate) Size: 2850L x 1975H Material: Four Shutters Wooden Louver Door Finish: Thermo Oil Polish Water Body To be designed near the Retail Store Main Entry

D03

D01

D10

D10

D04

D10

KITCHEN Area: 10.77 Sq.M Floor finish: Cement Oxide

SERVANTS ROOM Area: 10.47 Sq.M Floor finish: Cement Oxide

SERVANTS ROOM Area: 10.51 Sq.M Floor finish: Cement Oxide

SECURITY ROOM Area: 10.42 Sq.M Floor finish: Cement Oxide

Boundary Wall Material: 150mm thk RCC Wall Finish: Exposed Concrete with Shuttering in Horizontal Plywood reapers varying between 3" to 5"

D02 D04

D06 W01

VERANDA Area: 7.58Sq.M Floor Finish: Cement Grano

VERANDA Area: 7.57Sq.M Floor Finish: Cement Grano

W01

STUDIO Area: 21.92 Sq.M Floor finish: Cement Grano

D07

RECEPTION/BILLING Area: 10.49 Sq.M Floor finish: Cement Grano

Reception Doors D06 Size: 1200L x 2240H Double Shutters Wooden Louver Door Finish: Thermo Oil Polish Office - Reception Door D07 Size: 2685L x 2400H Material: Shutters with Bottom Solid Wood Panel and Top Louver Panel Finish: Thermo Oil Polish

W01 D05

Service Entry Door D11 Size: 1200L x 2100H Double Shutters Wooden Louver Door Finish: Thermo Oil Polish

BATHROOM (Area:3.04 Sq.M) & TOILET (Area: 1.80 Sq.M) Door D12 Size: 800L x 1975H Wooden Louver Door s Finish: Thermo Oil Polish Flooring: Cement Oxide RCC Column Size: 250L x 250B Finish: Exposed Concrete with Plywood Shuttering

W02

W02

W01

W01 D06

D11

PITCH ROOF LINE

PITCH ROOF LINE

RCC Column Size: 250L x 250B Finish: Exposed Concrete with Plywood Shuttering Retail Store Doors D08 Size: 3350L x 1925H Reclaimed Doubled Paneled Wooden Louvered Doors Finish: Thermo Oil Polish Tea Room Outdoors Floor Finish: Reclaimed Sleeper Wood + Brick Flooring

D12

D08

RETAIL STORE Area: 16.56 Sq.M Floor finish: Cement Grano

D08

D12

PARKING Area: 57.00 Sq.M Floor finish: Cement Grano

D13

PITCH ROOF LINE

SERVICE ROOM (Area: 5.86 Sq.M) Door D13 Size: 3350L x 1975H Fabricated MS Grill Door + Perforated Mesh Finish: Matt Black Painted Flooring: Cement Oxide

W02

PITCH ROOF LINE

RCC Column Size: 250L x 250B Finish: Exposed Concrete with Plywood Shuttering

D08

TEA ROOM Area: 34.70 Sq.M Floor finish: Cement Grano

RCC Column Size: 250L x 250B Finish: Exposed Concrete with Plywood Shuttering Tea Room Doors D08 Size: 3350L x 1925H Reclaimed Doubled Paneled Wooden Louvered Doors Finish: Thermo Oil Polish

D08

RCC Column Size: 250L x 250B Finish: Exposed Concrete with Plywood Shuttering GARAGE STORE (Area: 5.86 Sq.M) Door D14 Size: 3350L x 1925H Four Shutters Wooden Louver Door Finish: Thermo Oil Polish Flooring: Cement Grano

COMMENTS / NOTES:

RCC Columns Size: 250L x 250B Finish: Exposed Concrete with Plywood Shuttering Tea Room Doors D08 Size: 3350L x 1925H Reclaimed Doubled Paneled Wooden Louvered Doors Finish: Thermo Oil Polish

D14 D08

D08

REVISION: REVISION NO.

APPROVAL

SCALE:

RCC Columns Size: 250L x 250B Finish: Exposed Concrete with Plywood Shuttering Kitchen Pass Through Wall Size: 250 thick x 1200H Standard Country Brick Wall Finish:Plain Cement Oxide Plaster (Kalai Finish) D09 TOILET Area: 4.33 Sq.M Floor finish: Cement Oxide

KITCHEN + STORE

WASH AREA

Area: 14.21 Sq.M Area: 2.34 Sq.M Floor finish: Floor finish: Cement Grano Cement Oxide

Toilet Door D09 Door D09 Size: 800L x 1975H Wooden Louver Door s Finish: Thermo Oil PolisH

New Walls Material: Standard Country Bricks Finish: Plain Cement Oxide Plaster (Kalai Finish)

CONSULTANT

1:150

ISSUE DATE: DRAWN BY:

RCC Column Size: 250L x 250B Finish: Exposed Concrete with Plywood Shuttering

REMARKS

DATE

EXECUTION

AS BUILT

APPROVED BY:

Saketh

24:04:2021 Harsh Gupta

NORTH:

Arora_C.01_V3_2021_0423

DRAWING NO:

C_1.0_V.3/ENTRY_P_CIV_+01.

CLIENT:

DHIRAJ & PRITI ARORA

LOCATION:

OLD AUROVILLE ROAD

PROJECT: TITLE: ARCHITECTS:

TALIPOT HOUSE ENTRY BLOCK CONCEPTUAL PLAN AURELEC, PROYOGASHAL, AUROVILLE, TAMIL NADU PROJECTS@PLAYDESIGNSTUDIO.IN

+91 - 0413 - 2622640

PLAY DESIGN STUDIO COA NUMBER: CA/2009/46729

CIVIL CONTRACTOR :

N E/CIV/N

STRUCTURAL CONSULTANT:

C_1.0_V.2/ENTRY_+01 - ENTRY BLOCK CONCEPTUAL PLAN

PROPOSED RCC COLUMNS FINISH: EXPOSED CONCRETE WITH PLY SHUTTERING

PROPOSED WALLS IN STANDARD COUNTRY BRICKWORK FINISH: PLAIN CEMENT OXIDE PLASTER (KALAI FINISH)

EXISTING WALLS FINISH: PLAIN CEMENT OXIDE PLASTER (KALAI FINISH)

MEP CONSULTANT:

SIGNATURE

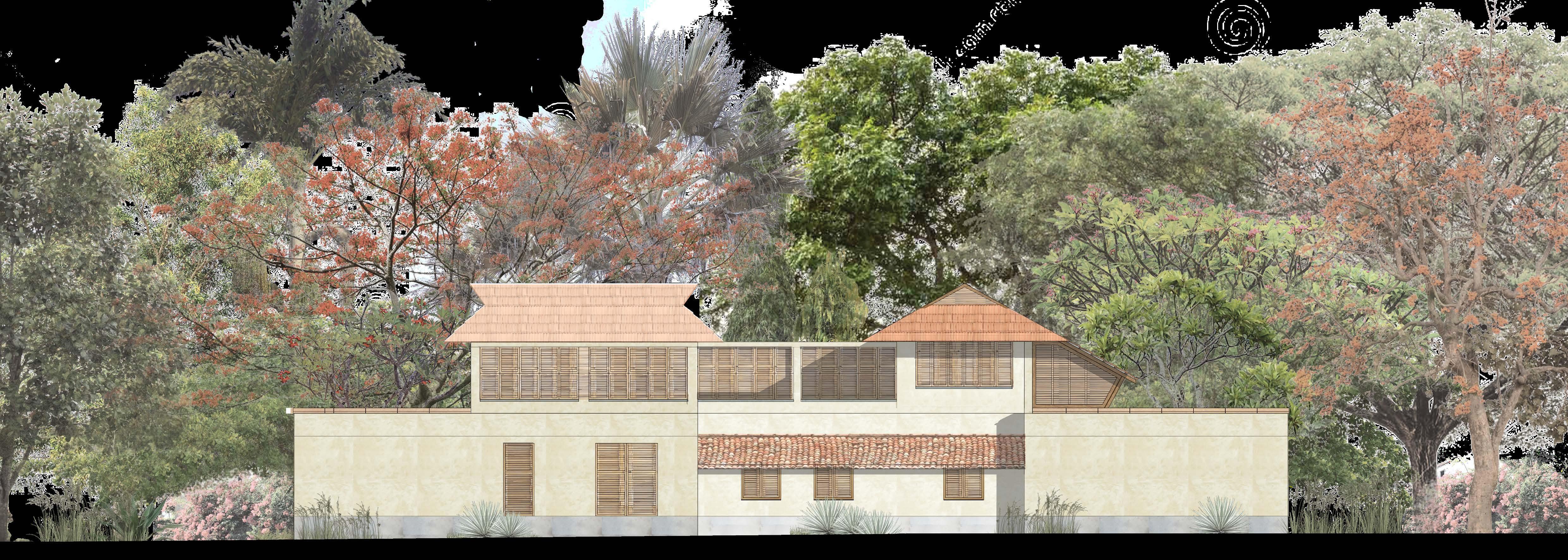

ELEVATION

Retail Entry

Main Entry Gate

South

TALIPOT, PY

Dhiraj & Priti Arora

ENTRY BLOCK

Concept 01_VER.03

0

1

5

ELEVATION

Parking

Staff Quarters

Entry Gate

West

TALIPOT, PY

Dhiraj & Priti Arora

ENTRY BLOCK

Concept 01_VER.03

0

1

5

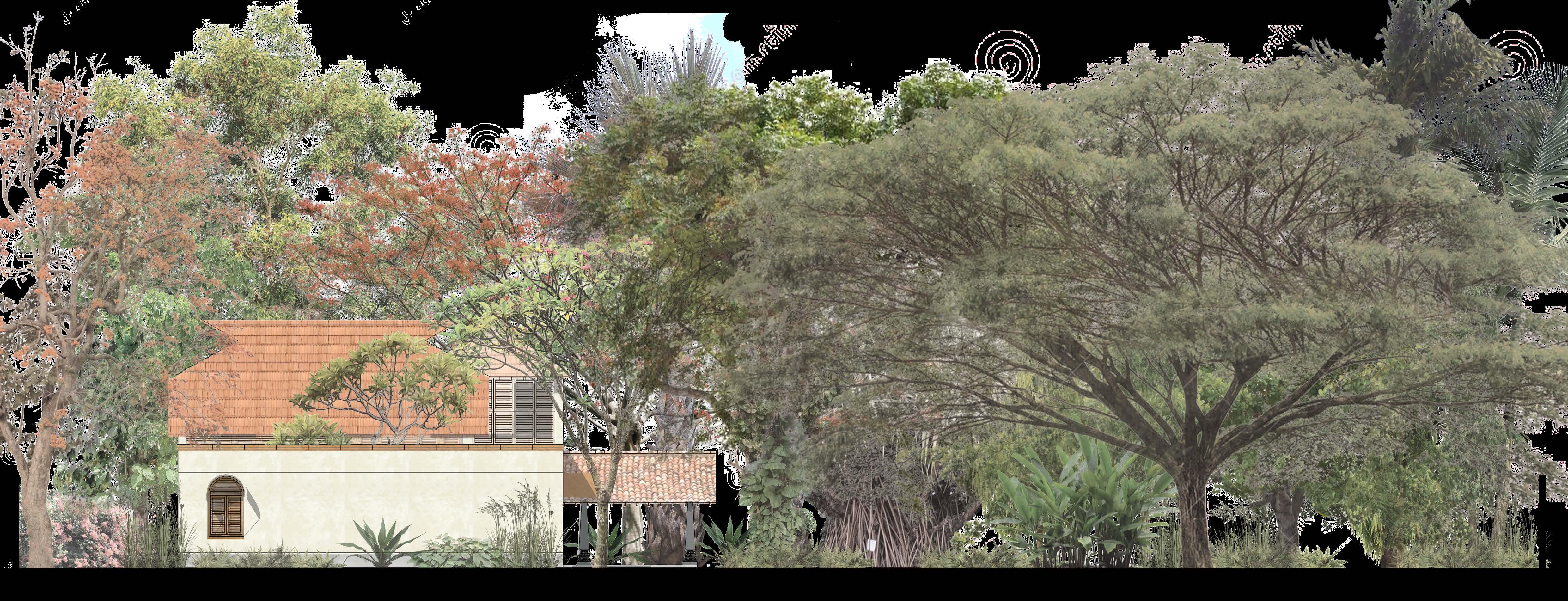

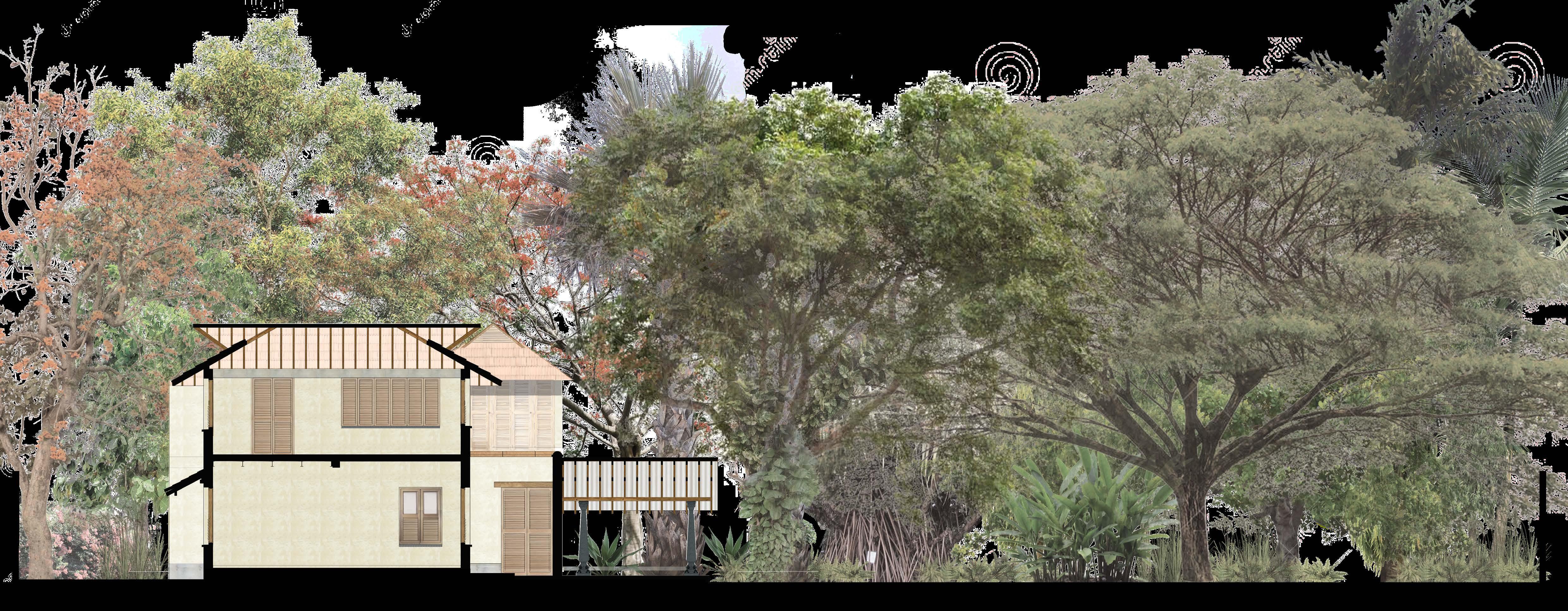

SECTIONAL ELEVATION

Parking

Staff Quarters

West

TALIPOT, PY

Dhiraj & Priti Arora

ENTRY BLOCK

Concept 01_VER.03

0

1

5

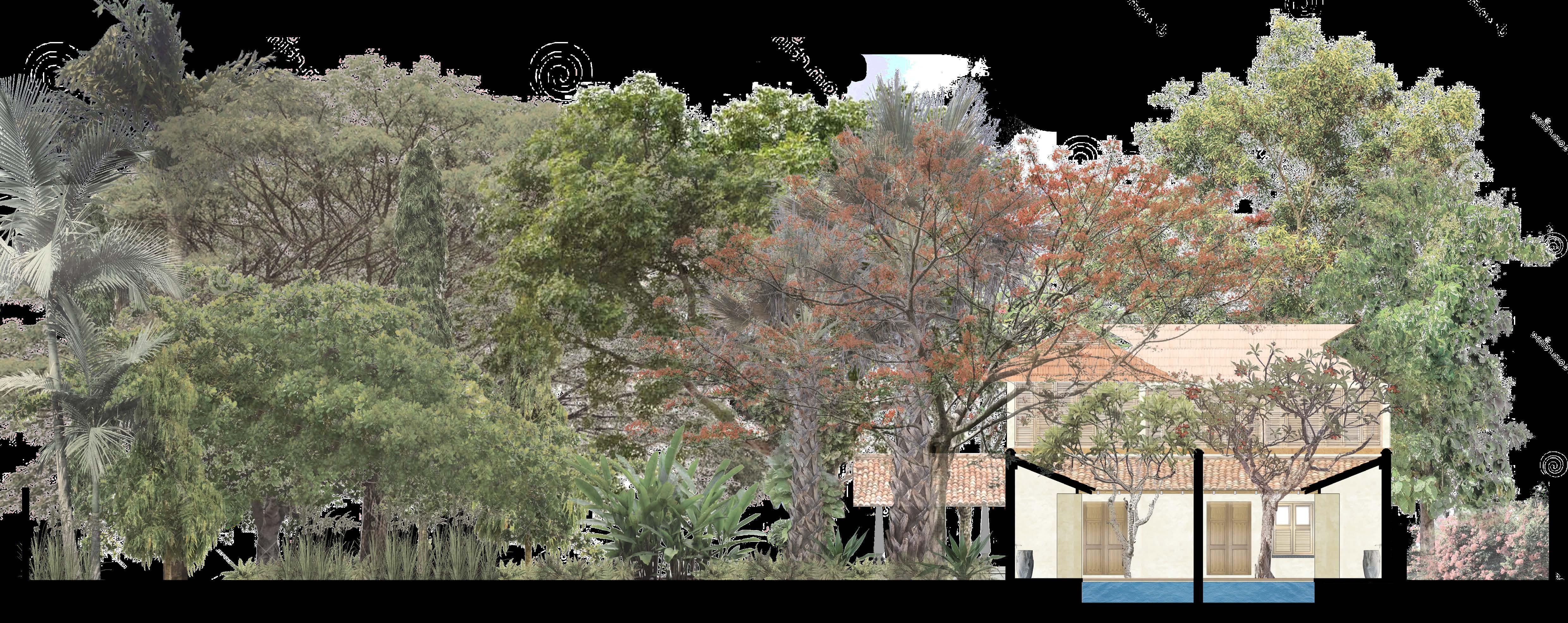

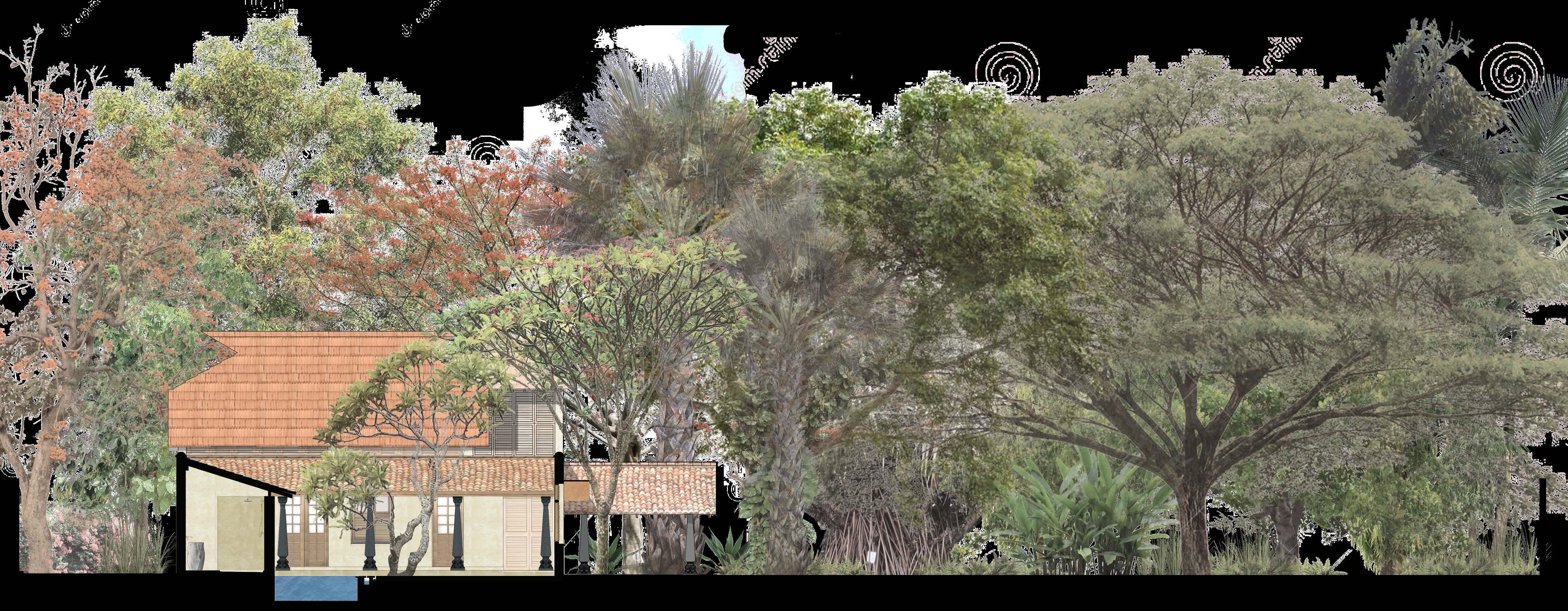

SECTIONAL ELEVATION

Retail Entry

Office

Retail Store / Tea Room / Kitchen

East

TALIPOT, PY

Dhiraj & Priti Arora

ENTRY BLOCK

Concept 01_VER.03

0

1

5

ELEVATION

Entry Gate

Office / Reception

Retail Store / Tea Room / Kitchen

East

TALIPOT, PY

Dhiraj & Priti Arora

ENTRY BLOCK

Concept 01_VER.03

0

1

5

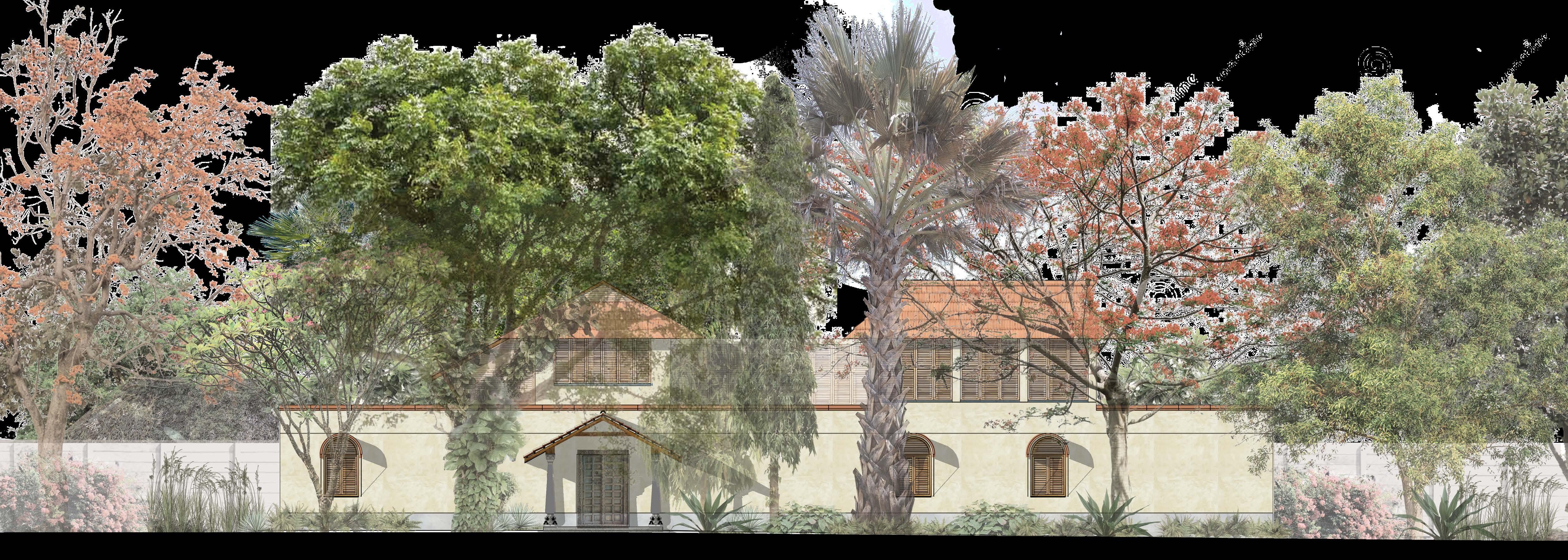

ELEVATION

Parking / Staff Quarters

Central Courtyard

Office / Retail Store / Tea Room

North

TALIPOT, PY

Dhiraj & Priti Arora

ENTRY BLOCK

Concept 01_VER.03

0

1

5

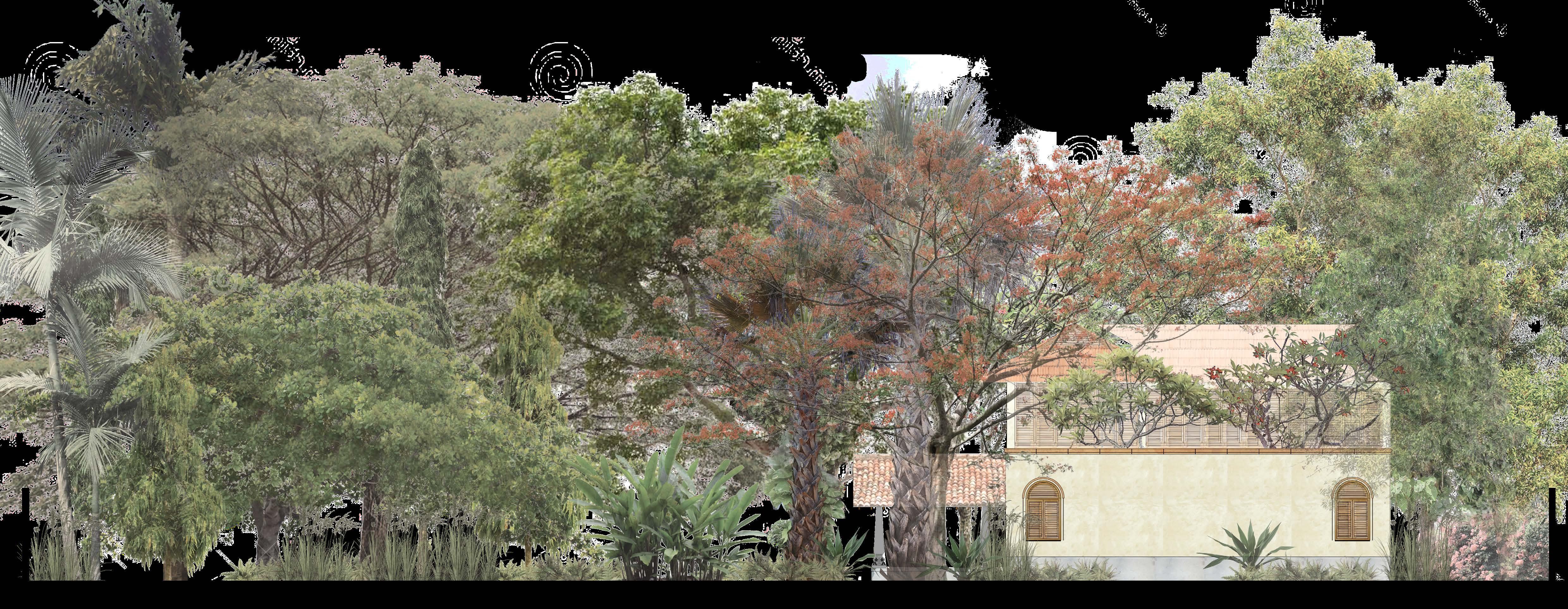

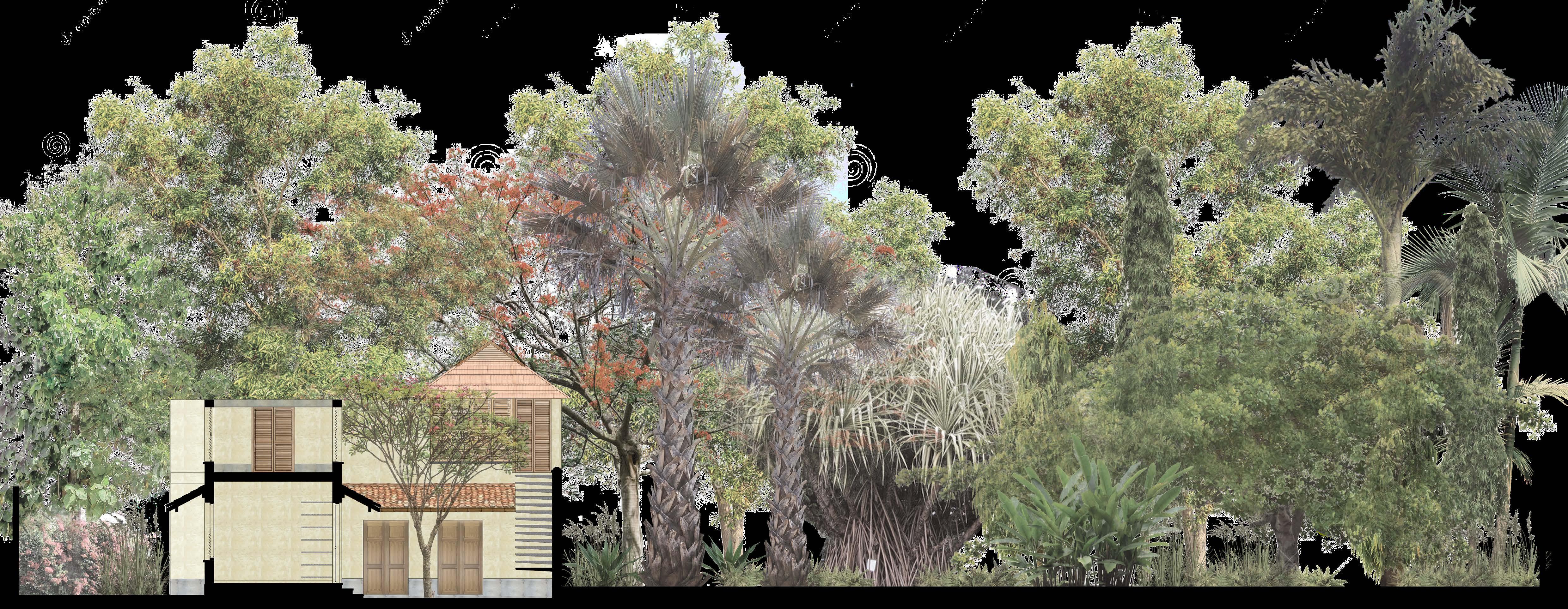

SECTIONAL ELEVATION
