R&D Solutions is a privately owned oil, gas, and renewable energies equipment and services provider.
Based in Perth Western Australia, R&D Solutions prides itself on providing a broad spectrum of equipment and technology solutions. From the remote outback of Australia to offshore Asia and Europe.
We are available around the clock to assist service and support your operations.
OUR PRODUCTS
We are the representative agents for a range of suppliers of proven drilling, completion and monitoring technology. Whether your requirements are for geothermal renewable energies, or traditional oil and gas, locally and internationally, our track record proves we will deliver on time and to budget.
In addition to product supply our locally based engineering group is well positioned to assist you with one off tool requirements that may arise during operations.
We also facilitate heavy industry machine repairs of damaged equipment or refurbishment.
R&D Solutions prides itself on being able to take on special build items and turn these round in a timely manner from concept to delivery.
TOOL DESIGN
TRAINING AND FACILITATION
In alliance with independent training providers, R&D Solutions provides industry training on all of the following:
• Slickline Operations
• Well Completion
• Basic Completions
• Overall production & exploration overviews
• Induction type courses for new hires
• Slickline course for supervisory personnel
OUR EXPERIENCE
Our customers engage us for our proven history of delivering responsive and cost competitive solutions. R&D Solutions’ Directors bring significant local and international experience. Russell Furner is formerly of BBL Bits and Doug Gillespie is exWeatherford Completions.
Our history of continued repeat business from our client base of major oil and gas companies is testament to our commitment to outstanding service, including Apache Energy, Chevron, Esso Exxon, Hess, Horizon Energy, Inpex, Santos, Shell, Vermilion Oil and Gas, Weatherford and Woodside.
Local highlights since establishment include the award of the Chevron Wheatstone contract for the supply of drill pipe protectors and service, the Shell prelude contract for the supply of Matrix Low Friction centralisers, drill pipe protectors and service and a Master Services agreement with Santos to provide Packers Plus technology and services.

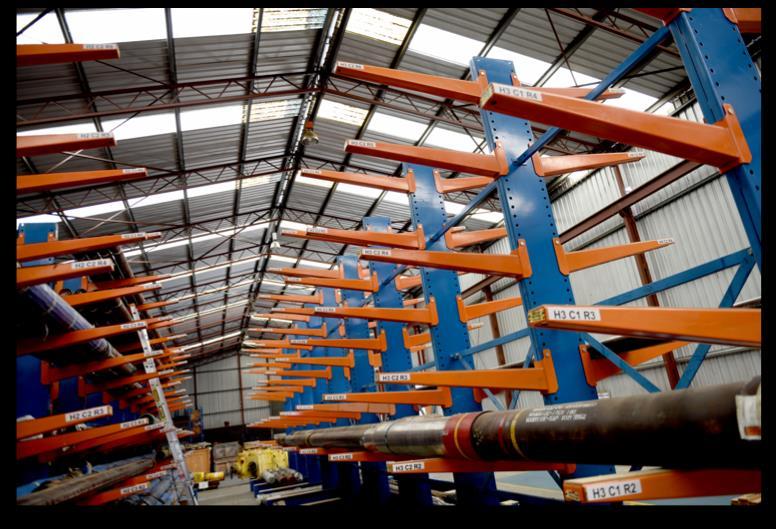

WAREHOUSE STORAGE

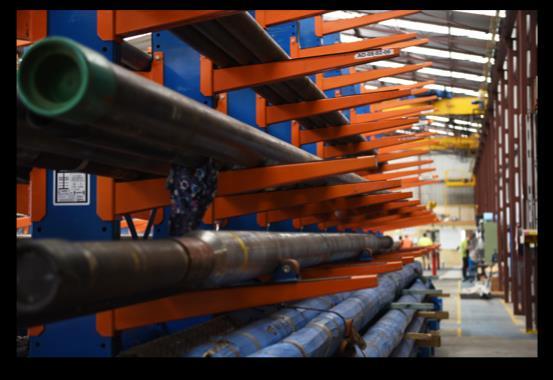

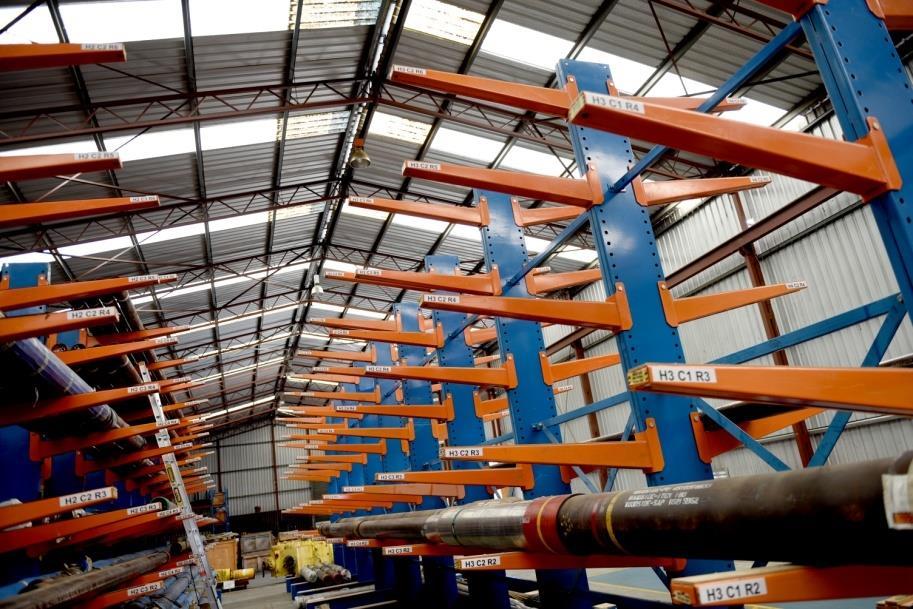

Inventory Management and Warehousing

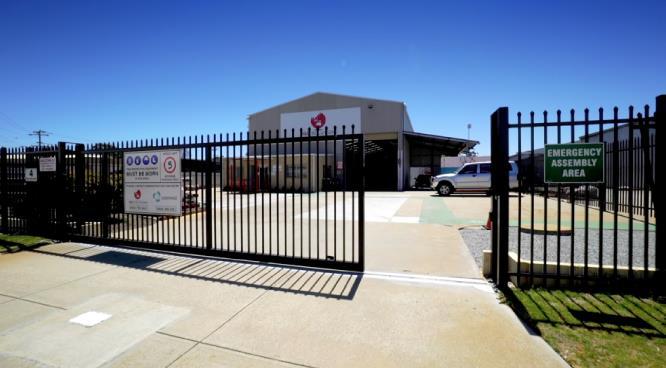

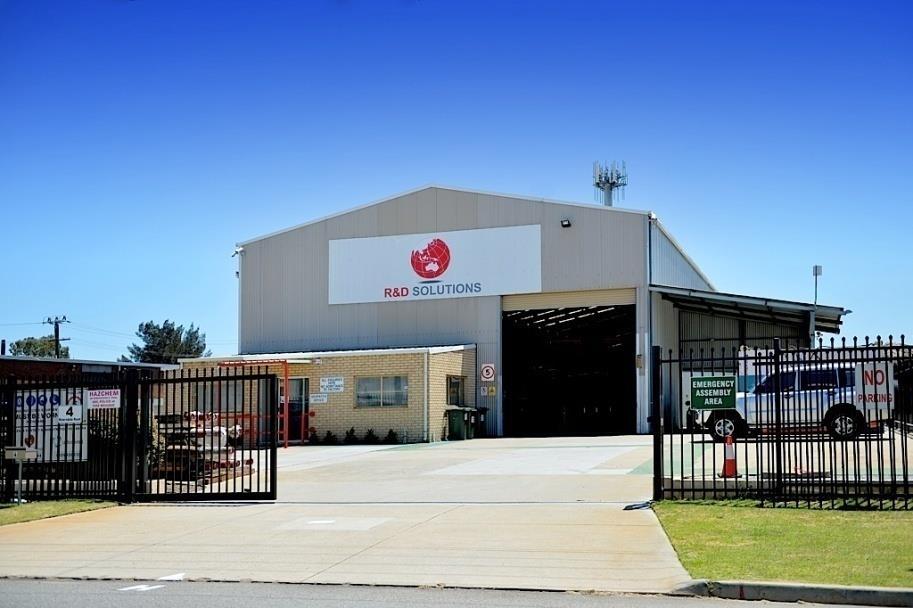

The bigger, new R&D Solutions warehouse is conveniently located at Welshpool near Perth City airport to provide accountable Equipment Storage and Inventory Management with prompt receipt and delivery to and from customer’s mobilisation point or workshop.
R&D WORKSHOP
4 Riversdale Road Welshpool Western Australia 6106
FEATURES INCLUDE:

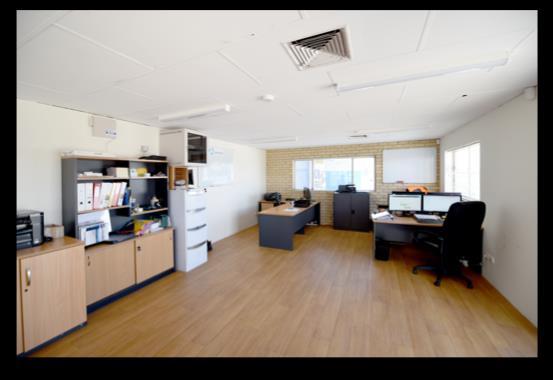

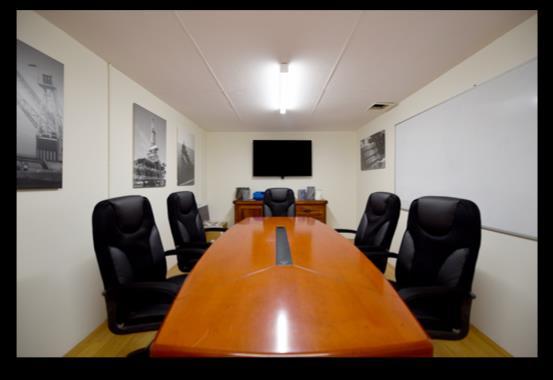

• Full service Office with access 24/7
• 2000m² fully enclosed, high truss, air conditioned warehouse and workshop

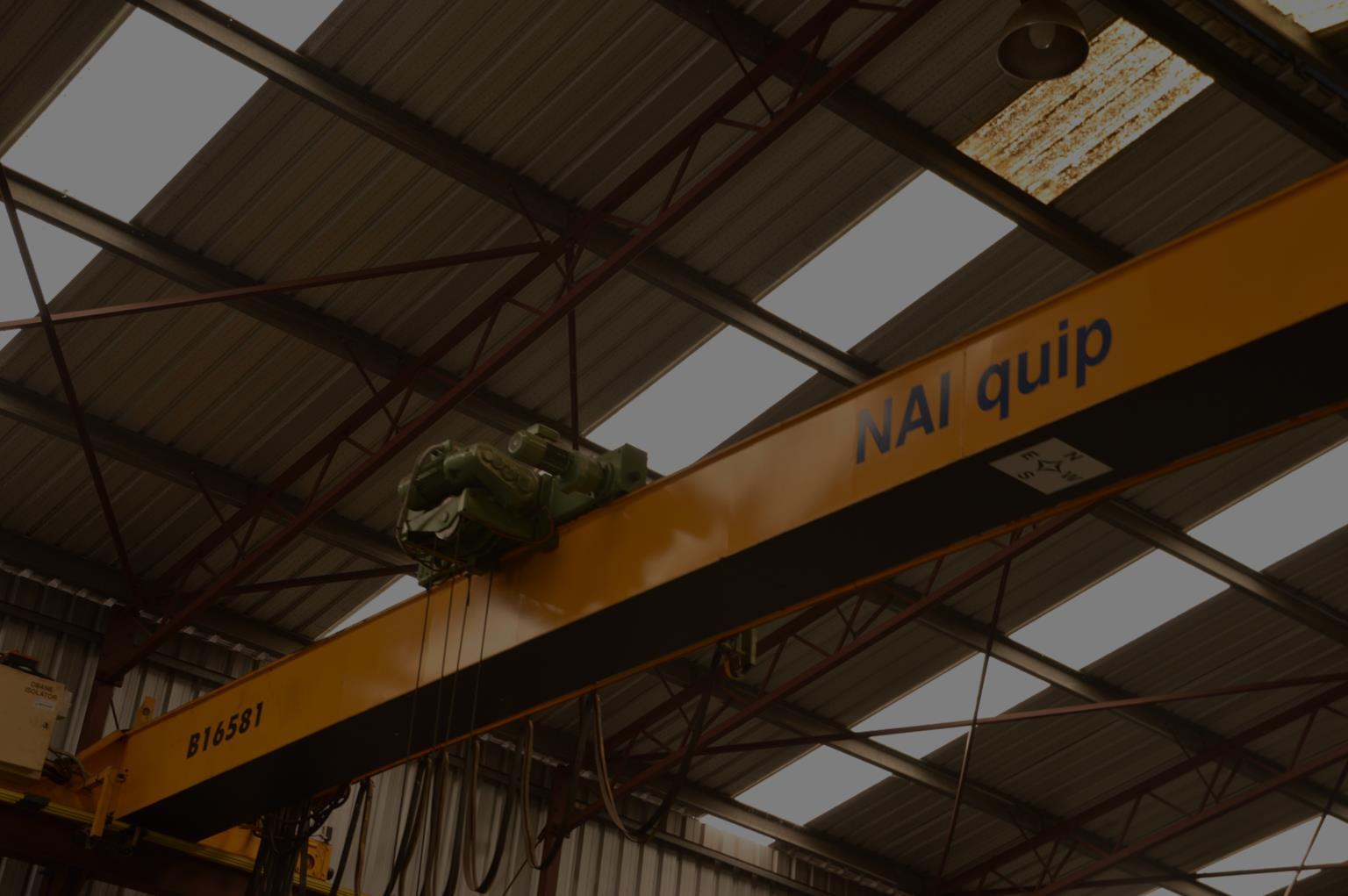

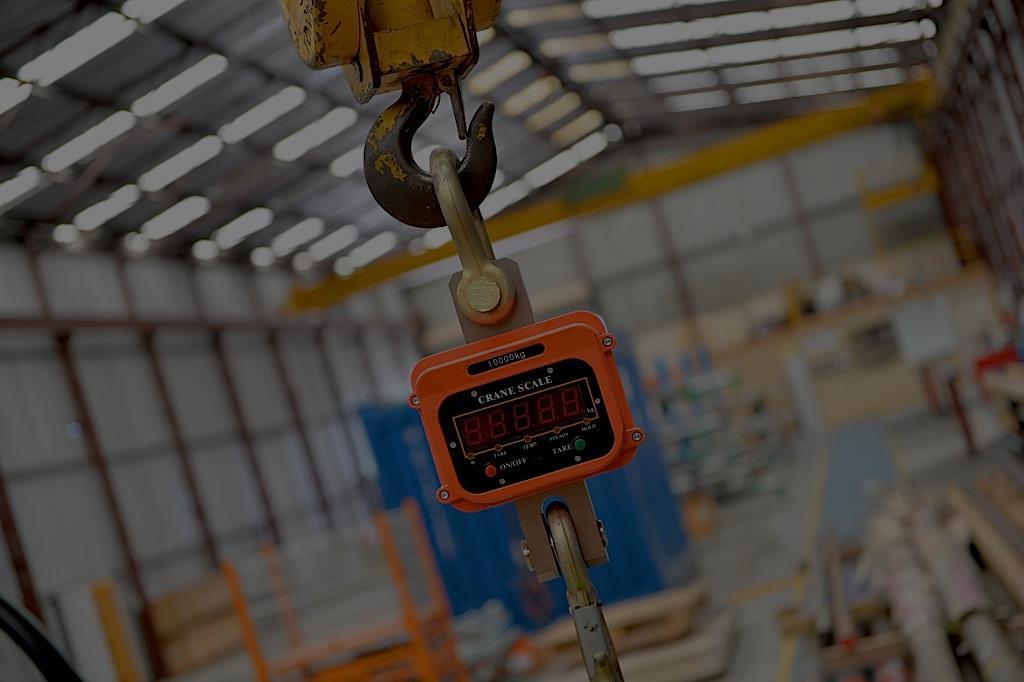

• Double overhead cranes
• 2000m² outside hardstand
• 30 minute drive from Perth CBD. 15 minutes from Perth airport.

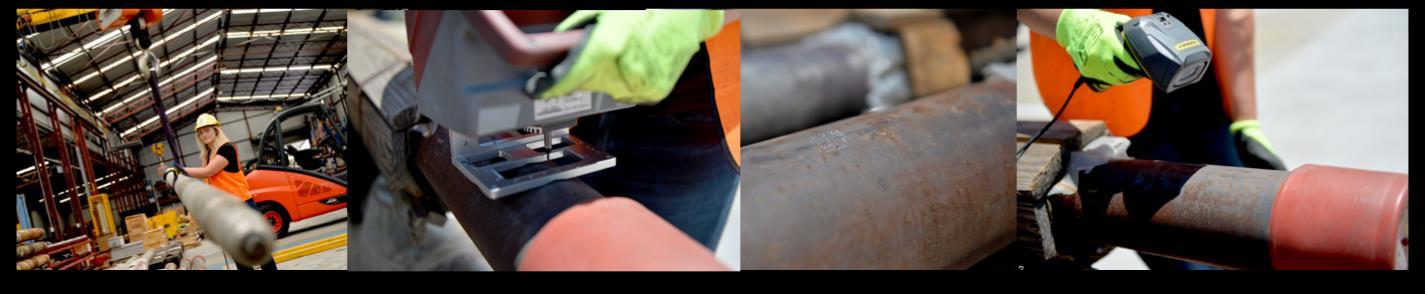

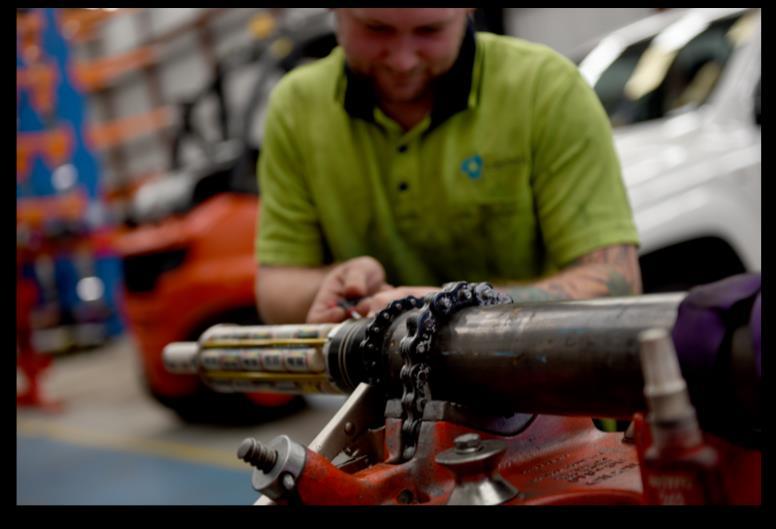

• Fully equipped workshop with hand tools
• Total Inventory management
• All good stored under cover
• Fully fenced, secure yard with parking and lay down area
• Monitored alarm and security cameras

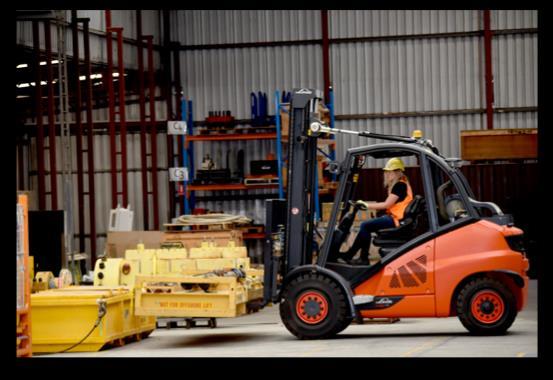

• Forklifts and qualified staff to conduct equipment load outs and receivals
SHIPPING & TRANSPORTATION
For small shipments R&D Solutions can deliver to customer’s facilities at short notice. For larger goods R&D Solutions use local transport and shipping specialists to ensure quality service at a competitive cost.
WAREHOUSE VIDEO
Welshpool Facility

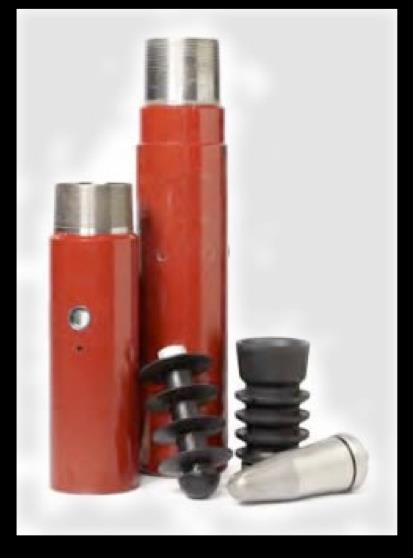

CEMENTING
R & D SOLUTIONS
DELTATEK
R & D SOLUTIONS
R and D Solutions can provide a full suite of solutions including:
• Float Equipment
• Casing Reamer Shoes
• Cementing Plugs
• Centralisers
• Staged Cementing Equipment
• Sponge Balls

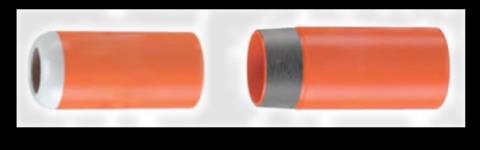

FLOAT EQUIPMENT

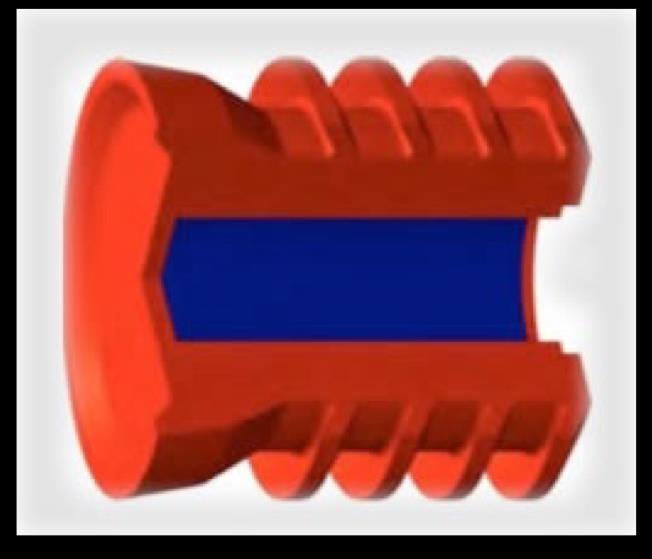

FLOAT SHOES
Description
Float shoes ensure positive sealing in vertical, horizontal and deviational wells.
Can be supplied in K-55, L-80, N80, C-95, T- 95, and P110 from 3
1⁄2” to 30”.

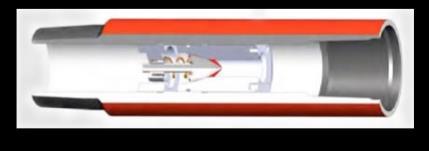

FLOAT COLLARS GUIDE SHOES
Description
Float Collars ensure maximum circulation rate in vertical, horizontal and deviational wells.
Can be supplied in K-55, L-80, N80, C-95, T-95, and P110 from 3
1⁄2” to 30”.
Description
Guide Shoes provide a simple and economical means to run casing in a well bore The design includes an internal taper to ensure trouble-free entry of drilling tools back into the casing string after drill out and during drilling operation
Eccentric cement noses can be provided for applications where sloughing and highly deviated well bores are encountered All Guide Shoes are PDC drillable and available from 3 1⁄2” to 30”

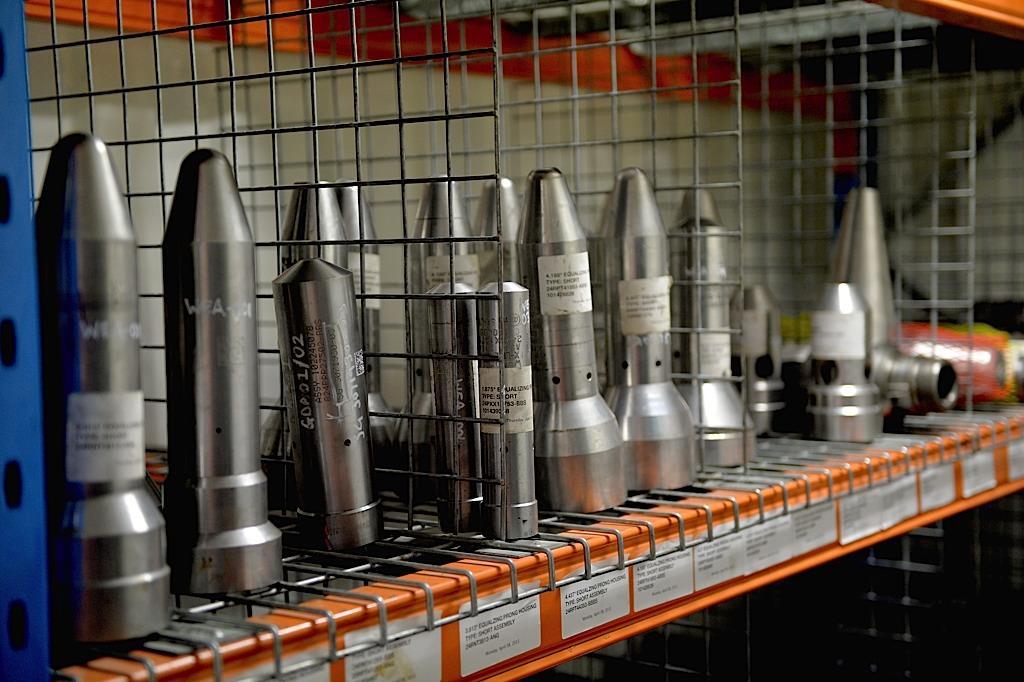

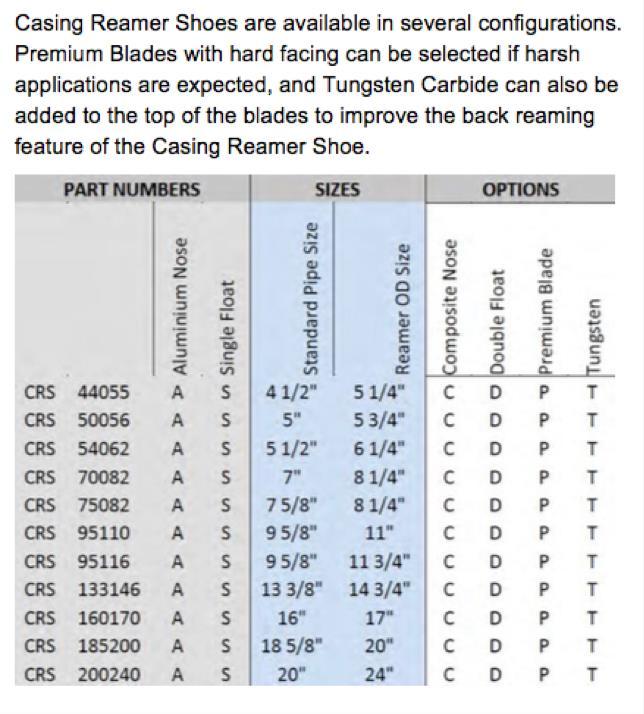

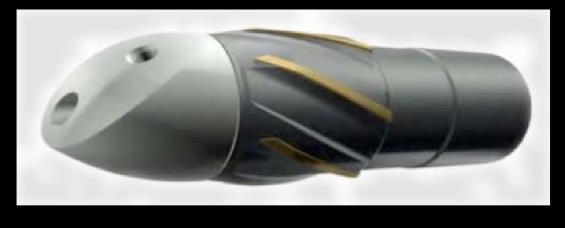

CASING REAMER SHOES
Description
Casing Reamer Shoes cost effectively overcome a number of problematic wellbore conditions that may occur when running casing strings or liners, including bridging, cutting beds in high angle wells, ledging & washouts, mobile formations, sloughing & swelling formations and wellbore tortuosity.
The use of Tungsten Carbide cutting structure on the blades gives a full 3600 coverage, for use when rotation or reciprocation may be required to limit torque issues. All Casing Reamer Shoes are designed with back reaming features and the blades provide stabilisation during reaming and centralisation during cementing.
R&D Solutions offer two fully drillable nose designs: a standard Eccentric Nose or a Concentric Nose, available in aluminium and high strength “Ezy Drill” composite. The Eccentric Nose is suitable for guiding the string through ledges, washouts and re- locating the wellbore. The Concentric Nose is ideal for clearing a passage through bridges and over-centre obstructions.
Flow-by areas have been maximised for circulation and cementation operations and the tools can be supplied with customer specific threads for the box connection. All tools available with either a single or double API approved Float Valve.
CASING REAMER SHOES
CEMENT PLUGS
TOP & BOTTOM CEMENTING PLUGS
Description
Cement plugs are used to cement casing in a wellbore while wiping casing surfaces clean of drilling mud, spacers and cement. Cementing plugs also prevent over displacement of the cement slurry and indicate when the cementing job is complete and a positive seal has been achieved.
R&D Solutions supplies a range of standard and non- rotating, top and bottom cementing plugs, designed for very high accuracy, reliability, ease of operation and drill ability.

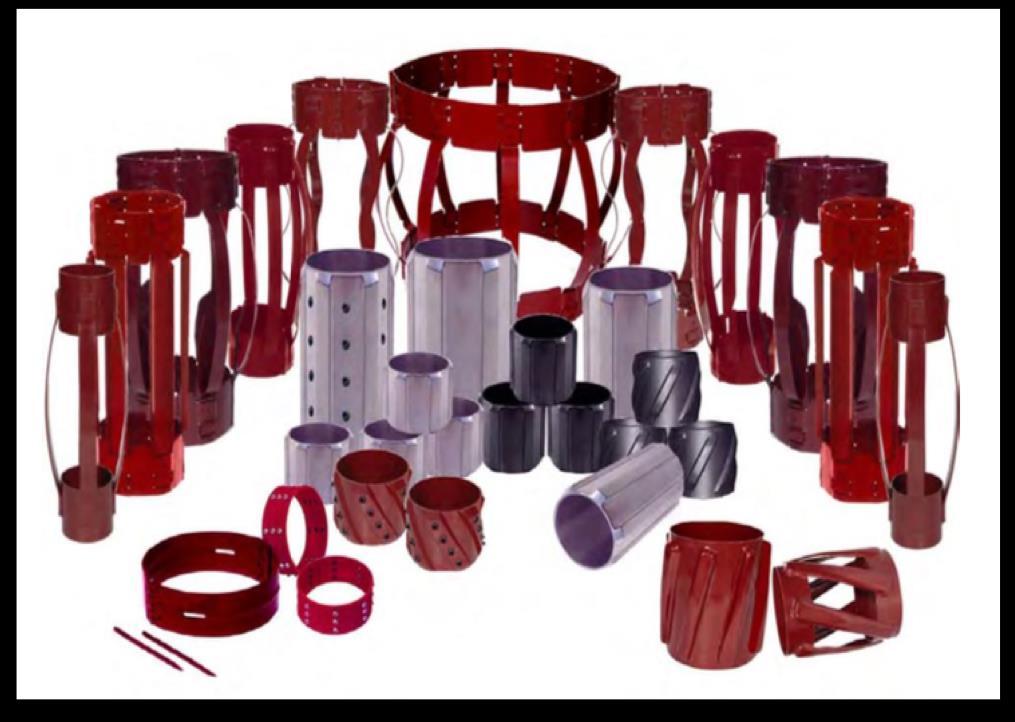

CENTRALISERS

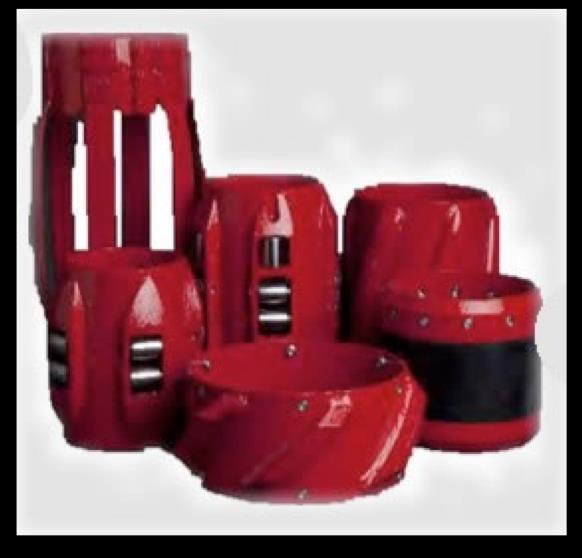

STEEL BODIED CENTRALISERS
Description
R&D Solutions supplies a range of steel bodied centralisers and accessories. All equipment is API Monogrammed.
Centralisers assist operators to place and support the casing string in the wellbore, enhancing mud removal and providing zone isolation.
Proper selection of primary cementing accessories reduces the need for secondary cementing, ensuring tubulars get to target depth, achieve optimum circulation and reducing risk of differential sticking.
STAGED CEMENTING EQUIPMENT
HYDRAULIC CEMENTING TOOL
Description
R&D Solutions’ hydraulic staged cementing tool meets the challenges of cementing holes at any angle with a hydraulically opened port system. The tool is specifically used for Primary cementing in deep vertical or high deviated horizontal-well conditions. It reduces total hydrostatic pressure on weak formations to prevent lost circulation during cementing.
It ensures success in multiple stage cementing applications, precisely positioning the cement slurry during stage cementing operations and ideal in the following situations:
• Horizontal wellbores where the bend radius requires cementing
• If different blends of cement require safe pumping into the wellbore
• Where there may be a breakdown of low pressure formations.

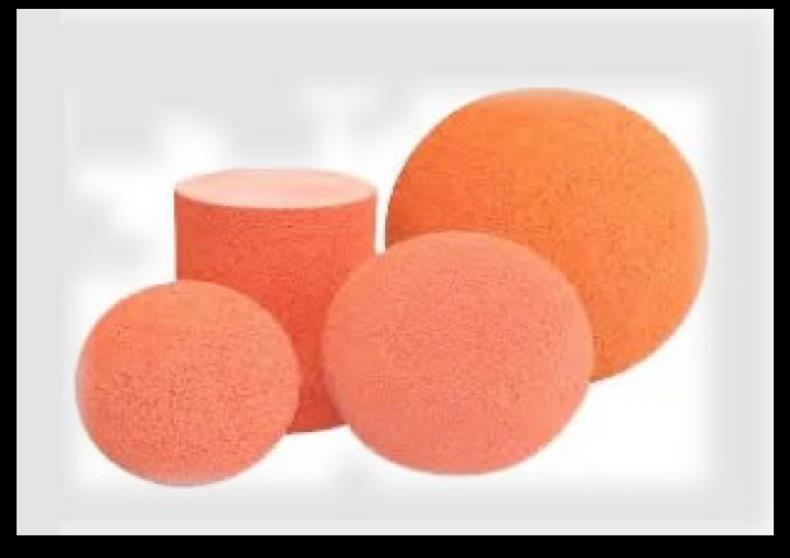

SPONGE BALLS
Description
R&D Solutions sponge balls are designed to pump down drillpipe and tubing to clean out or separate cement, fluids and debris.
• High density ball compressive strength - 300 Kg/m3
• Wipes clean the ID of DP / Tubulars
• Prevents cement stringers lining the ID of DP
• Can be pumped through small restrictions
• 6” Sponge Ball can pass through 2” restriction
• Often referred to as DP Foam Balls.

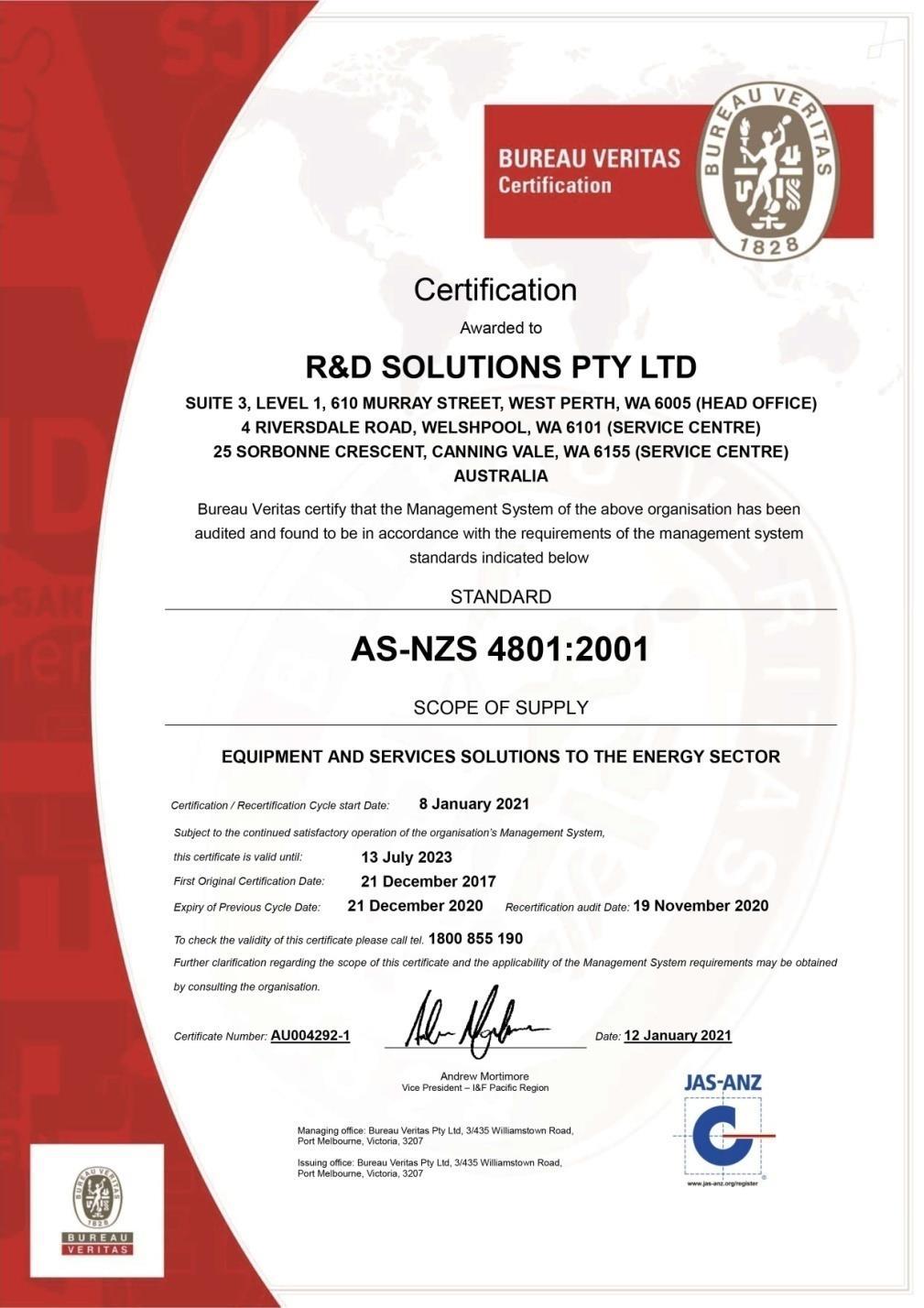

R & D SOLUTIONS CERTIFICATES
