(Em)Powering the Future

2022 - 2023

19 weeks

Waterhead Hollow, Lake DIstrict, Cumbria, UK Rhino, Grasshopper, Twinmotion, Photoshop, Illustrator, physical model making

This learning centre is aimed to help empower the local community of Cumbria through the Sloyd education system (learning through craft) to tackle the ongoing unemploymentrelated issues, utilising the rising trend in UK boat export and resources already available in the area—human resources (skilled people of Cumbria in the nuclear and boatbuilding manufacturing industry) and materials (wood sourced from Grizedale). Small Modular Nuclear Reactor (SMR) in the scheme produces clean energy used in the building and the surplus is given to the grid, contributing to the UK’s goal of net carbon zero by 2050. This scheme is hoped to be the first step to a future of an empowered generation, powered by sustainable nuclear energy.

Boatbuilding college with Sloyd education system (learning through craft)

Masterplan

Boats produced available for purchase

Boat parts are CNC-cut Boat and relevant equipment rental for use in Lake Windermere

SMR used to power building, give back to grid, and charge batteries for boat motors

Coach

Separation of boatbuilding and SMR

Boat hire for activities such as watersport, kayaking, etc with equipment rental also available here

View

Materials delivery by truck, unloaded at loading bay conveniently located next to storage

Port Workington - A

National and international delivery towed by pickup truck, then loaded onto ship

Associated British Port Barrow - B

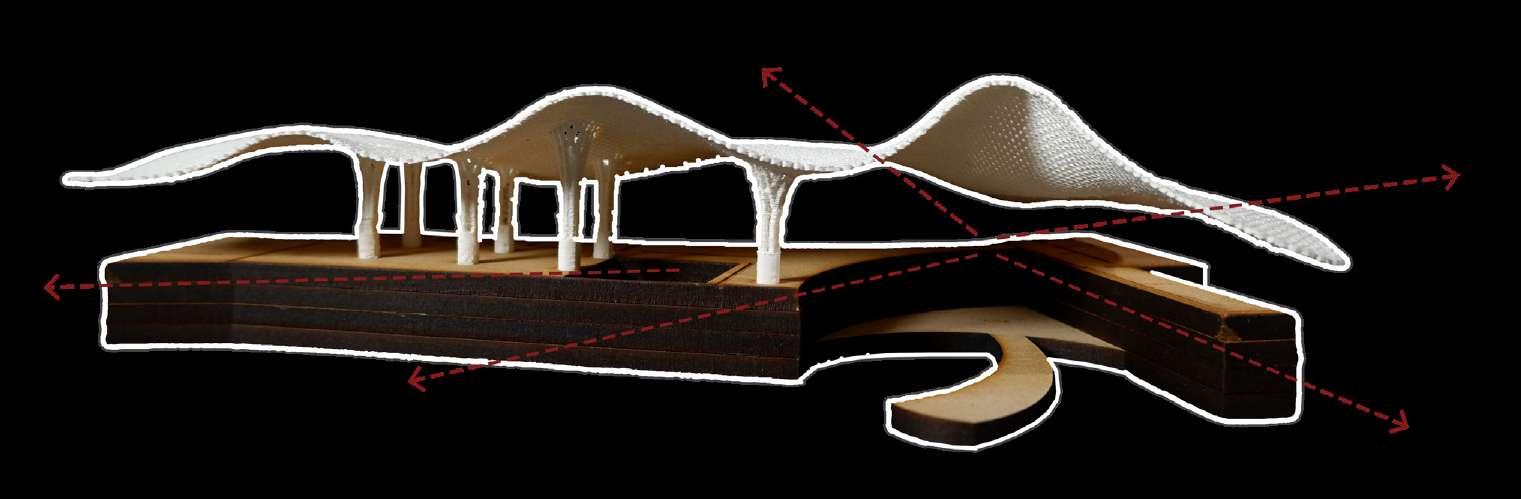

Hierarchy of spaces + inviting lake in

Students and visitors from all around UK and international (by car or coach)

Local delivery and pick-up (around Lake Windermere)

Grizedale forest - G source of wood for boatbuilding 30

Incorporating boat form

Staff from towns around site such as Ambleside and Bowness-on-Windermere as mapped in 3.1 recap (bicycle or bus recommended)

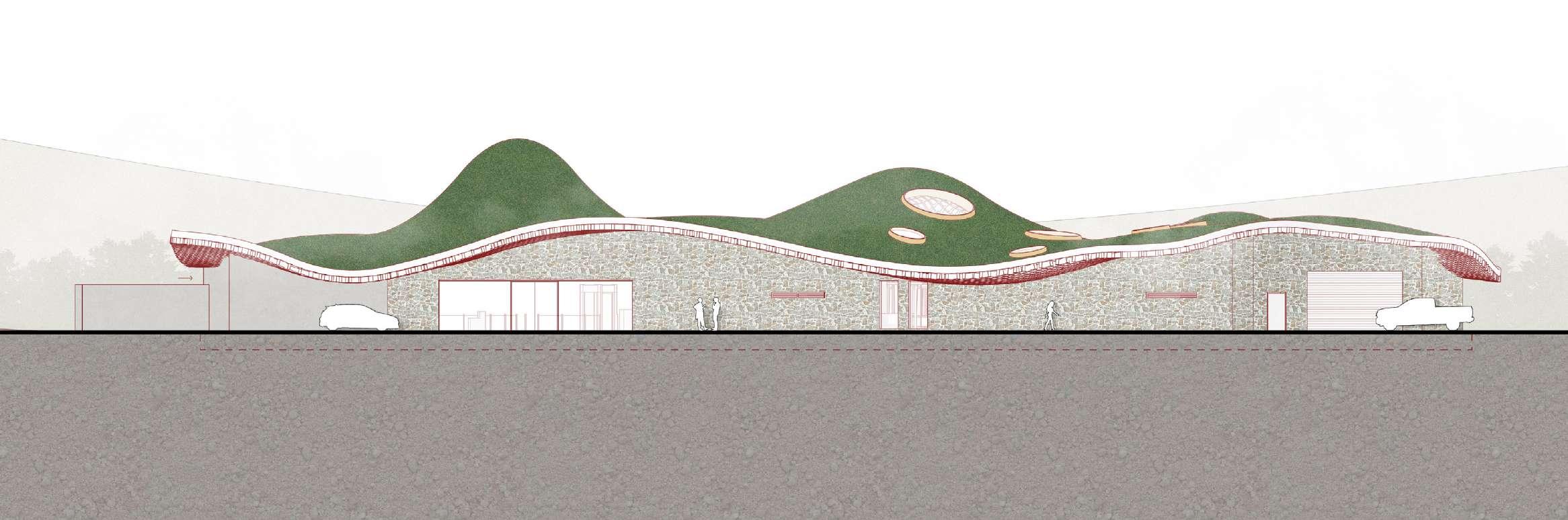

Lakeside elevation shows volume opening up, maximising the view of Lake Windermere whereas the roadside elevation mostly uses stone slips for cladding, sensitive to the neighbouring buildings and nature, creating a harmonious streetscape. Roof contour on the lakeside is also much more expressive than the roadside for this reason. Use of different cladding materials subtly distinguishes SMR and boat building wings.

Structural grid

KEY Edge of ground

A - Loading bay

B - Boat storage

C - Materials storage

D - Student lockers downstairs, mezzanine learning space upstairs

E - Staff office

F - Boatbuilding staff lockers + changing rooms

G - Boatbuilding workshop area

H - 2 x accessible toilets with additional sinks outside for workshop users, HSE + Part M compliant

J - Boat lift under workshop

K - Boat kit / parts production

L - Foyer with reception, exhibition area, and viewing deck

M - SMR staff toilet, HSE + Part M compliant

N - Additional security check

P - SMR staff lockers + changing rooms

Q - SMR control/monitoring room

R - SMR

S - SMR refuelling access with secure gate and fences

T - Plant room

U - Tiered seating

V - Exhibition space

W- Dock

X - Boat hire and equipment rental counter

Y - Storage for rental equipment

Scale 1:200 @A2

Roof above the foyer/dock upon entrance being the tallest (9.70 m) immediately welcomes visitors to a grand, scenic framed view of Lake Windermere. Second tallest space is the boat building workshop with a height of 8.30 m, indulging the students and staff also with an unobstructed view of the lake. Lowest points are above the toilets (3.20 m) to allow rainwater to flow naturally to these points, down the conventional drainpipes here, and used for flushing WCs. General downwards roof slope from the lakeside towards the road allows for rainwater to enter the feature vertical drainpipes in the centre of the columns.

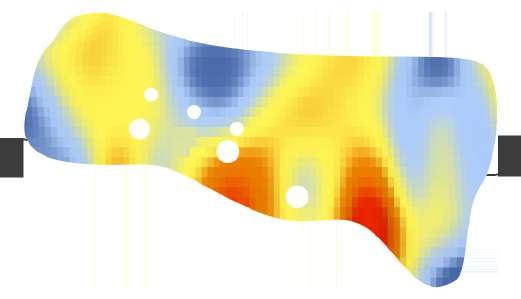

Roof height gradient analysis

Water naturally runs through skylights (and down through drainpipes) due to overall height difference between lakeside and roadside

Lowest Tallest

These are also end points of gutter for excess rainwater to run off to lake

Lakeside elevation shows roof heights corresponding to programmes Foyer Workshop Storage SMR

Energy cycle diagram

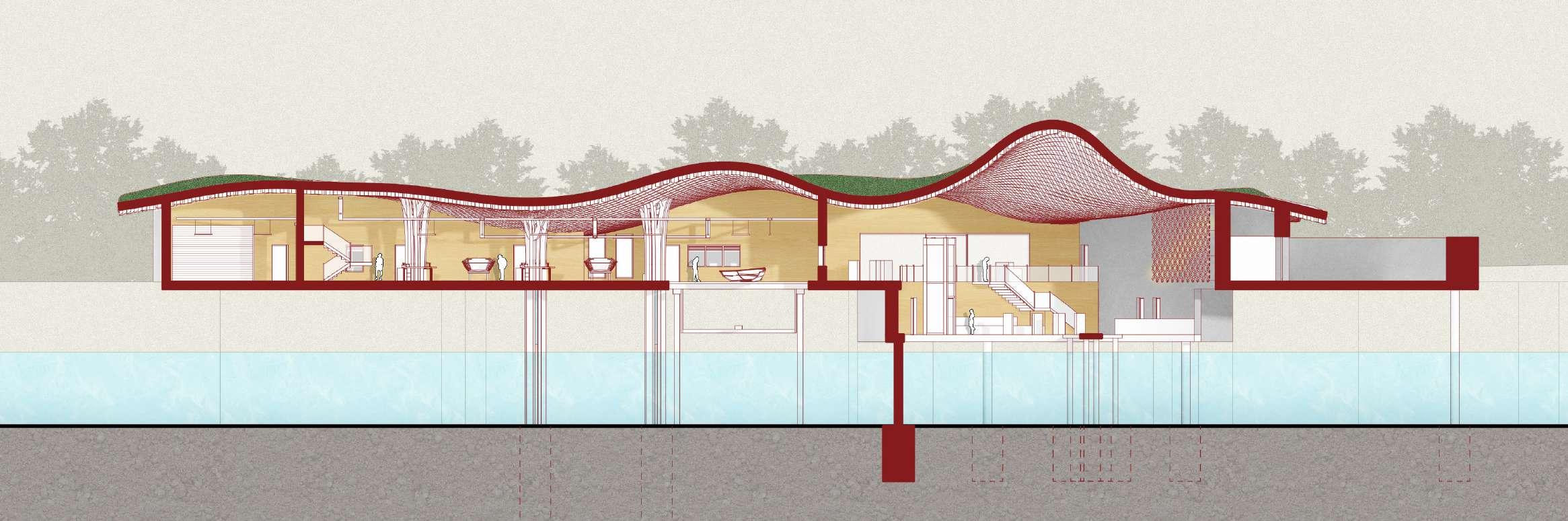

Environmental Strategies

With references to the RIBA Sustainable Outcomes Guide

Summer sun

Limited from entering space by the use of roof overhang

Stack ventilation

Hot air rises and escapes through mechanical louvres in between openings for drainpipe

Winter sun

Able to enter space due to fins being made out of glass

Skylights above columns allow daylight to reach deep into the workshop space

Acoustic

Noise from workshop entering inner rooms reduced by use of insulating interior wall material

Sedum green roof

View out

Due to the use of glass as cladding (inner curtain wall and outer fins)

Wind from lake Impact on interior reduced with fins

Glare bounced by water

Aluminium panel as part of outer skin modular panel to reduce glare from water

Underfloor heating

More energy efficient than conventional heating method

Cool air enters through mesh grating and ventilation flaps at the bottom of the curtain walling (also possible through windows when opened)

Internal windows allow for inner rooms to also get view of lake Glass vertical drainpipes in the centre of columns direct rainwater to lake below, users in the space are able to see water trickling down due to the choice of material

Rainwater

Suspended light strips for energy efficiency

Cross ventilation

Rainwater also runs off to hidden gutter along the perimeter of the roof excluding lakeside where it directly runs off the edge Scale

1:20 @A0 0

1:20 Bay Model

Connection between steel columns and CLT floor (A)

Scale 1:5 @A4

200 mm rockwool

252 mm CLT floor panel

Bolts

Base plate

RHS steel columns

Glass drainpipe

Exploded Isometric Tactile Detail

Roof

Supported by 200 x 300 mm CLT beams (LVL-covered)

Feature glass drainpipe running rainwater to lake underneath

Exposed CLT on both sides with rockwool in the middle

Double skin facade 3 mm silk screen ceramic fritted toughened glass with aluminium frames for afternoon solar shading (outer skin) Alu-clad timber stick curtain walling with ‘tilt-and-turn’ windows and ventilation flaps (inner skin)

External wall Floor (above lake)

CLT floor supported by 200 x 300 mm RHS steel columns (x4) under every point load/ column

Storage Desk Desk Desk

Flexi desk lamp

Spotlight towards column at various angles

Pop-up downdraft extractor

Power sockets Downdraft pipe partially flexible to follow adjusted desk height

Under desk ambient light

1,020 mm

Stool storage when not in use

750 mm

Jacks for adjusting height of desk

Service void for electricity and light cables for sockets and lights on desks

4 x galvanised steel RHS columns to allow drainpipe maintenance

Scale 1:5 @A1
