Torun™ City Barrier
High Performance Temporary City Barrier
Crash tested and compliant to the North American and European standards for traffic safety barriers.
Torun City Barrier – List of content
Welcome to the Torun barrier system, where road safety meets innovation. This brochure presents a range of barrier sections and project-specific accessories for optimized traffic management. Discover our products, learn about their installation for various applications, and find detailed assembly instructions for seamless project implementation.
Attention! You will find all the illustrations and images showing local installations. Reflectors, signs, and certain accessories may vary between countries and are available for each respective region.
Torun City Barrier – unmatched performance and quick installation
Are you ready to revolutionize city safety and infrastructure? Meet Torun, the cutting-edge city barrier system designed to exceed all expectations. Torun offers unparalleled performance and versatility, making it the ultimate solution for urban environments.
One-step installation without ground anchoring
One of Torun’s main features is its ability to link barriers seamlessly without the need of extra parts or having to position the barrier in a certain direction. The innovative design ensures quick and hassle-free installation, saving both time and resources. Furthermore, this avoids the risk of personal injury since the connection of barriers can be performed at a secure distance.
Redefining safety standards through unmatched crash-tested performance
Safety is paramount, which is why Torun is crash-tested according to AASHTO MASH TL-2 and EN 1317-2 in capacity classes T1, T2, T3, N1 with astonishing results. Trust Torun to withstand the toughest conditions and protect both workers and the public.
Seamless protection
But Torun doesn’t stop there. Its adaptable design allows it to follow the ground seamlessly, accommodating height differences and uneven terrain effortlessly. Whether you are navigating busy city streets or uneven landscapes, Torun ensures consistent protection and peace of mind.
SS 7750-1 for pedestrian and bicyclist safety
The Torun System is designed and tested according to the regulations in EN-1317 and the newly released Swedish standards SS 7750-1, covering pedestrian safety for temporary fencing and barriers. It is meticulously crafted and tested to ensure compliance with regulations, specifically addressing pedestrian and bicyclist safety.
Components for added functionality
But that is not all; Torun comes equipped with multiple extra components for added functionality. Need to display signs, attach nets, or enhance visibility with reflectors? Torun has you covered. With its versatile design and customizable options, Torun adapts to your specific needs with ease, including ADA compliance.
If needed you can replace all parts
Torun is flexible where it matters. You can choose reflectors that suit your region. If the barrier get damaged, you can replace all parts, such as the barrier railing.
Torun Barrier Hinge +/- 90o Regional reflexes
Torun Barrier
Two length options allowing quick one-step installation and customization for any project
• All barrier sections have the same simple connection for fast installation and removal.
• Torun comes in two distinct lengths for varied application needs.
• Barrier performance validated through EN 1317-2 and MASH testing.
• All steel components are hot-dip galvanized in compliance with ISO 1461, ensuring optimal durability.
• All components are replaceable with original spare parts.
• Complete and approved setup in 15 minutes
• ADA compliance - Americans with Disabilities Act Standards for Accessible Design.
› Components - Torun Barrier
8346000 - Torun 2.85
Highly versatile and particularly favoured in urban environments, where short set-ups are essential.
Minimum installed length:
T2: 37.2 m / 122 ft T3: 57.2 m / 187.6 ft N1: 57.2 m / 187.5 ft TL-2: 74.3 m / 244 ft
8345990 - Torun 1.425
The small Torun barrier, ideal for situations where space is limited. The shorter Torun also provides a better turn radius.
8346273 - Torun Barrier Hinge
Allows for a turning angle of up to 90° in both directions, perfect for navigating through challenging urban landscapes.
8346000 - Torun Barrier 2.85
Torun redefines urban safety with its outstanding performance and remarkably low weight. Crafted with precision, it offers robust protection while seamlessly blending into city landscapes. Torun sets the standard for modern urban security.
Compliance: EN 1317-2 T1/T2/T3/N1 , AASHTO MASH TL-2 & SS7750-1 Class 1, 2 & 3
Dimensions
Length: 2900 mm / 114 in
Height: 1400 mm / 55.1 in
Depth: 380 mm / 15 in
Material Concrete,
Sling Forks
Lifting Yoke
› T1 - Low Angle Containment › T2 - Low Angle Containment
› T3 - Low Angle Containment
› N1 - Normal Containment
› AASHTO MASH TL-2
› SS-7750
8345990 - Torun Barrier 1.425
305 kg / 672 lb Dimensions
mm/ 59 in
The 1.4 Torun offers top-tier urban safety with its lightweight design and durable construction. Sleek and secure, it’s built to adapt to any city environments effortlessly. Material Concrete, Steel & Rubber
mm / 55.1 in
380 mm / 15 in
Sling
Forks
Lifting Yoke
SS 7750-1
A newly developed Swedish standard that addresses pedestrian barriers for temporary use. During roadwork, pedestrian walkways and bike lanes are often blocked, posing risks to vulnerable road users. To improve safety and provide clear guidelines for work site equipment design, this new standard has been introduced.
Protection Class 1
The protective device is designed to resist wind loads and low dynamic loads and is intended:
• To prevent a pedestrian from walking or stumbling into the work area.
• To visually and physically separate pedestrians from the work area.
• The minimum height of the upper railing should be 1.1 m / 3.6 ft.
Protection Class 2
The protective device is designed to resist wind loads and high dynamic loads and is intended:
• To prevent an unprotected road users who hits the protective device at up to a 45° angle from falling over or through the protective device.
• To visually and physically separate unprotected pedestrians from the work area.
• The minimum height of the upper railing should be 1.4 m / 4.6 ft.
Protection Class 3
The protective device is designed to resist wind loads and very high dynamic loads and is intended:
• To prevent an unprotected road user who hits the protective device at up to a 90° angle from falling over or through the protective device.
• To visually and physically separate unprotected pedestrians from the work area.
• The minimum height of the upper railing should be 1.4 m / 4.6 ft.
Barrier Installation
With Torun, connecting barriers is quick and effortless – no need to be right beside them. Just one smooth motion and they're securely linked, no screws or additional joints required. Plus, with the unique design, you can easily disengage a barrier mid set-up without any hassle or disruption.
• No need to stand close to the barriers when installing.
• Disengage any barrier in the middle of a setup without hassle or disruptions.
• No need for screws or tools.
› Installation checklist
% Conduct a risk assesment before assembly.
% Inspect the barriers prior to every use to be sure that they are not damaged and that the rubber feet are in good condition.
% Make sure that all barriers are connected.
% Make sure that the surface behind the barrier is free from foreign objects, standing water, ice and snow.
% Stand clear of barriers when installing!
Crushing Hazard
› Installation
Remove any barrier in the middle of a setup
The coupling of Torun is easy and quick to use; with no need for screws or tools the Torun barrier can easily be disengaged and engaged in the middle of a setup. This is extra effective in emergency situations where barriers need to be removed to create a clear path for emergency vehicles.
Stand clear of barriers when engaging/disengaging! !
Height difference
The Torun Barrier is flexible and able to climb edges like sidewalks and other uneven surfaces without loosing the engagement of the coupling. The coupling can take approximately 250 mm / 9.8 in height difference.
Ground angle
The Torun coupling can take up to 1.5° change of angle, meaning it can scale light slopes without the need to disengage the coupling. If more adjustability is needed, the Torun Corner Angle is available, and takes up to 7.5° vertical angle change.
› Installation
The Torun barrier sections are dimensioned in increments of the length for a seamless interchangeability of different sections in installation, and efficient transportation and storage.
› Turn radius
The Torun barrier is ideal for urban tasks due to its low turn radius, enabling swift manoeuvrability in tight spaces. Its agility makes it perfect for navigating city streets efficiently, facilitating various urban operations. The Torun Barrier coupling allows for a 6.5° angle in each coupling. If more adjust ability is needed, the Torun Corner Angle is available, and takes up to 90° turns.
Torun 1.425: Turn radius 12.5 m / 41 ft
Torun 2.85: Turn radius 25 m / 82 ft
Lifting
To think about before lifting
• Use only designated lifting tools.
• Exerciser caution regarding the risk of crushing.
• Ensure the barrier is not stuck, frozen to the ground or blocked in any way to avoid overloading the lifting equipment.
• If using lifting forks, ensure that the forks and railing are free from snow and ice.
• Never lift multiple connected barriers.
• Ensure that the necessary documentation for the chosen lifting equipment is available and that instructions are followed.
Stand clear from moving barriers!
Never lift a barrier if a person is in its path of motion. Take caution to never lift a barrier above yourself or anyone else.
Never lift more than one barrier!
Doing so can pose significant risks, including strains on couplings and lifting tools.
Never drag barriers!
Dragging barriers will damage the barriers rubber feet and put excessive strain on the lifting tools.
› Recomended lifting tools
Lifting Yoke
The lifting hook is a specifically designed tool to move the Torun barriers in a quick and efficient way.
Lifting Forks
Lifting forks can be used to efficiently move barriers on-site or at the depot.
Lifting Chain/Sling
Lifting Chains/Slings are used for effectively adjusting barrier set-ups or occasionally for more simple barrier set-ups.
› Lifting Tools
833340
Storage & maintenance
The Torun barrier is designed to withstand tough conditions in both handling and operation, it is however wise and recommended to consider the following instructions to ensure a long, safe and unproblematic lifetime of the barrier. To further enhance the lifetime of the barrier, you can replace everything on the Torun barrier with spare parts and refurbish it to a fresh look and feel, only using common hand tools.
› Storage
When the barriers are in storage following safety precaution must be taken:
• To avoid compression of the rubber feet under prolonged heavy load, each stack must be separated by 70 mm / 2.8 inch. Place the separating blocks on the steel surface and not on the rubber feet.
• A maximum of 2 barriers may be stacked in height.
• Ensure that the ground has sufficient bearing capacity and that the setup surface is as horizontal and smooth as possible.
› Inspection checklist
Always inspect the barrier according to the checklist below before use. If any damage is detected, the product must be taken out of service for repair or recycling. Before each use, a simple check is recommended:
% Visual inspection of visible damage to the barrier components including the coupling.
% Signs of impact from dropped barrier or similar.
% Inspection of wear on the rubber feet. Ensure that the rubber have at least 3 mm/0.12 inch to the metal frame.
% Thighten any loose screws and make sure railing is correctly installed.
Annually check the Torun barrier for the following:
% Cracks/rust in or around welds.
% Cracks or deformations around railing and screw sockets.
% Damage in between and around each horizontal beam.
% Wear on rubber feet. New feet have a thickness of 9 mm/0.35 in to the metal frame. Replace the foot when 3 mm/0.12 in remain.
Serial number can be found next to the railing mounting point.

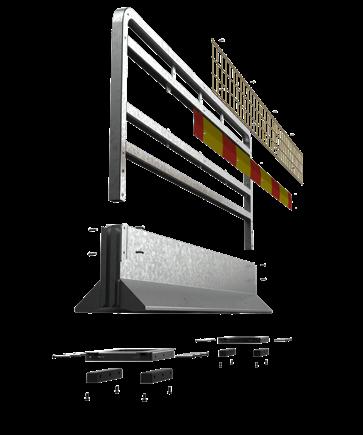

Replaceable Componets
Torun is flexible where it matters. If the barrier gets damaged, you can replace all parts, such as the barrier railing or the rubber feet. You can also exchange reflectors and mesh net. Choose the setup that suit your region or custom needs.
Railing
8344271 - Railing 2.8 m
Dimensions:
2790x1100x65 mm
109.8x43.3x2.6 in
Material: Steel Weight: 72 kg / 160 lb
Foot
8342452 - Foot Socket
Dimensions:
380x365x45 mm
15x14.4x0.2 in
Material: Steel Weight: 4 kg 9 lb
8345994 - Railing 1.4 m
Dimensions:
1390x1100x65 mm
54.7x43.3x2.6 in
Material: Steel Weight: 41 kg / 90 lb
300661 - Rubber Foot
Dimensions:
295x60x50 mm
11.6x2.4x2 in
Material: Rubber Weight: 1.1 kg / 2.5 lb
Top Section Mesh
8344281 - Mesh 2.85
Dimensions: 2650x290 mm
104.3x 11.4 in
Material: Steel Weight: 3.5 kg / 7.7 lb
Top Section Reflexes
Regional reflexes
8346791 - Torun 2.85 Top Reflector
Dimensions:
1340x300 mm (x2)
52.75x11.8 in
Material: Aluminium/DG3 Reflector Weight: 2.4 kg / 5.3 lb (x2)
8345998 - Mesh 1.4
Dimensions:
1240x290 mm
48.8x11.4 in
Material: Steel Weight: 1.6 kg / 3.5 lb
Regional reflexes
8349045 - Torun 1.45 Top Reflector
Dimensions:
1240x300 mm
48.8x11.8 in
Material: Aluminium/DG3 Reflector Weight: 2.2 kg / 4.9 lb
Bottom Section Reflexes
Regional reflexes
8344473 - Torun 2.85 Reflector
Dimensions:
1320x150 mm (x2)
52x5.9 in
Material: Aluminium / DG3 Reflector Weight: 1.2 kg / 2.6 lb (x2)
8345999 - Torun 1.45 Reflector
Dimensions:
1240x150 mm
48.8x5.9 in
Material: Aluminium / DG3 Reflector Weight: 1.1 kg / 2.5 lb
Regional reflexes
› Railing Installation / Replacement
If you have to replace a railing on the Torun barrier, it is a quick and easy job to do. It is recommended to use lifting equipment to lift the railing out and the replacement railing in place, the weight is 40 kg/90 lb for 8345994 and 72 kg/160 lb for 8344271. Torque the bolts so railing tube bulges out to become snug in the socket, approximately 100Nm.
› Rubber Foot Socket Installation / Replacement
To ensure a safe procedure when replacing the steel foot on Torun barriers, place the barrier onto something stable, for example two Torun Barrier Bases spaced apart. Never do this repair when the barrier is only supported by lifting equipment.
Rubber Foot Installation / Replacement
To ensure a safe procedure when replacing the rubber foot on Torun barriers, place the barrier onto something stable, for example two Torun Barrier Bases spaced apart. Never do this repair when the barrier is only supported by lifting equipment.
› Mesh Installation / Replacement
For replacing the Mesh on Torun Barriers, just remove the blind rivets and replace the mesh. Fasten with new stainless steel blind rivets.
Ø6.5 mm Rivet Pliers: Ø6.4 mm
› Reflector Installation / Replacement
For replacing a damaged reflector, remove the blind rivets and damaged reflector. Replace with new reflector and stainless steel blind rivets. You can replace only one side, but it is recommended to replace both sides at once.
Barrier Accessories
Accessories for all the needs of your worksite
Enhance the functionality of your Torun barriers by adding accessories such as extra fencing or crash cushions, allowing you to tailor the system to better suit the specific needs of your work-site. These customizable options provide added flexibility and safety, ensuring optimal protection for both workers and road users in any construction or roadwork environment.
› AT-Fence Set-ups
The AT-fence prevent unauthorized access to worksites and to provide additional safety measures for cyclists.
› Torun Corner
Torun Corner Angle for flexibility. Adjust +/- 90o horizontal or +/- 7o vertical.
› Barrier Adaptors
SMA Adaptor
Torun – SMA Adaptor allows you to connect the Torun barrier to the SMA Taurus 2 end terminal.
Allows for a seamless connection between a Torun barrier and the Svea barrier.
Fasten an object marker to the side of Torun Barriers.
Svea Connector
X3 Attachment
8346273 - Torun Corner Angle
Torun Corner Angle is for those really tricky situations where flexibility is crucial, without compromising safety or efficiency. It integrates perfectly with the Torun Barrier sections and makes a smooth transition over uneven surfaces or around tight corners, without breaking the chain of safety of the installation. The rugged design and galvanized finish makes it a problem solver you can depend upon in any situation.
mm / 53.1 in
320 mm / 12.6 in
mm / 3.5 in
Lifting options
› Installation
When faced with a complicated situation where the coupling of the barrier is difficult to engage, you can use the Torun Corner Angle to overcome the obstacle.
Adjustments
Lifting
Lifting point
Sling

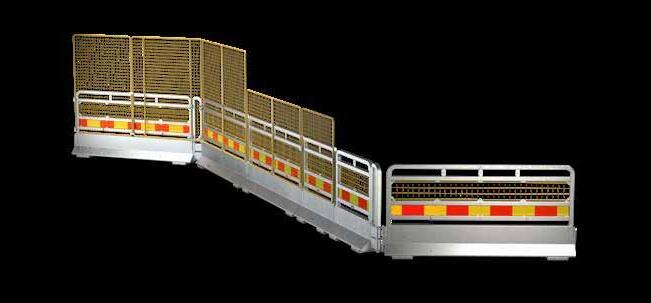

Torun - AT-Fence
The AT-fence is an ideal solution when a taller barrier is necessary to prevent unauthorized access to worksites and to provide additional safety measures for cyclists, minimizing the risk of accidents.
Tools
Torx: T50
› AT-Fence checklist
% Make sure you read and fully understand how to how setup barriers before installing anything on top of the barriers.
% Consider the wind situation in the area. The AT-Fence increases the wind load on the system.
› Two Height Options With Optional AT-Fence Sizes
Make the Torun Barrier system higher for perimeter protection. 1.9 m/6.2 feet height or 2.6 m/8.5 feet height is available.
AT-Fence Components
m 6 ft 2 in
Components for AT-Fence setup with Hinge to turn corners and Pin Lock to lock the fence in place.
› AT-Fences
AT-Fence is available in two mesh sizes: 40x40 mm and 60x60 mm.
Dimensions: 2100x1400x25
82.7x55.1x1 in
Material: Steel Weight: 12.5 kg / 27.5 lb
Material: Steel Weight: 0.16kg 2.6 m 8 ft 6 in
› Splicing & Locking
Dimensions: 1400x1400x25 mm
55.1x55.1x1 in
Material: Steel Weight: 9.0 kg / 20 lb
833367 - Round Holder
Dimensions: 110x57 mm
4.33x2.24 in
300327 - Side Mounted
Object Marker Attachment
An attachment to fasten an object marker to the side of Torun Barriers.
Dimensions Height:
150 mm / 5.9 in Width:
75 mm / 3 in
20 mm / 0.8 in
kg 0.5 lb
300233 - Cat Eye
The Cat Eye is attached to increase the visibility of the Torun barriers.
Dimensions
Height:
30 mm / 1.2 in
Width:
50 mm / 2 in
Depth:
30 mm / 1.2 in
10 g / 0.02 lb
Tools Fasteners
Rivet Pliers: Ø6.4 mm
› Installation
Rivet: 6.4 x 18
- 6.4 x 18 - A2
8346222 - Torun - Svea Connector
Dimensions
Height:
The Torun - Svea Connector allows for a seamless connection between a Torun barrier and the Svea barrier. The two barrier systems share many installation accessories, and with this connector the can be joined to create both a secure physical, as well a a visual link between the two systems. Material Steel, Hot-Dip
640 mm / 25.2 in
Width:
180 mm / 7 in
Depth:
105 mm / 4.1 in
Weight 7.6 kg / 16.75 lb
8346210 - Torun SMA Adaptor
Torun - SMA Adaptor allows you to connect the Torun barrier to the SMA Taurus 2 end terminal. The connection is secured and locked with bolts using standard tools, and can be lifted by hand. The rugged design and galvanized finish makes for a long service life, and matches the look of the Torun barrier.
lb Dimensions Height:
570 mm / 22.5 in Width:
355 mm / 14 in Depth:
210 mm / 8.3 in
Tools
Wrench: 21 mm
kg
Hex Screw: M16x40 (2x)
ISO 4162 M16x40 - HDG
Hex Screw: M16x60 (4x)
Technical Information
Data and technical information for Torun Barrier system
Crash tested according to EN 1317-2 in capacity class T1, T2, T3, N1, and MASH TL-2. The Torun Barrier System offers the outstanding performance for its flexibility and weight.
Details regarding collision angles are specified within the relevant standards.
Performance Data
› Torun 2.85 m
The performance figures relate to installation on an asphalt base in accordance with EN 1317-2.
Low angle containment
EN 1317-2 T1
Barrier length
Low angle containment
EN 1317-2 T2
kg / 1257 lb
m / 9 ft 2 in Barrier weight
Min Barriers
Min
Min
Tested
Low angle containment
EN 1317-2 T3
Barrier length
Min Barriers
Min
pcs
kg / 25,140 lb
Normal containment
EN 1317-2 N1
Barrier length
kg / 1257 lb
pcs
Performance Data
› Torun 2.85 m
The performance figures relate to installation on an asphalt base in accordance with AASHTO MASH and SS7750-1.
Low speed containment
ASHTO MASH TL-2
Barrier length 2.85 m / 9 ft 2 in
Barrier weight 570 kg / 1257 lb
Min installation weight 17,820 kg / 39,286 lb
Min Barriers 26 pcs
Min installation length
Working width
m / 244 ft
mm / 6 ft 3 in
Dynamic Deflection 1676 mm / 5 ft 6 in
OIV (Longitudinal/Lateral) 3.25/4.20 m/s / 10.5/13.8 ft/s
ORA (Longitudinal/Lateral) -2.85 / -7.22 g
Pedestrian & Bicyclist containment
SS 7750-1 Class 3
Barrier length
weight
/ 1257 lb Min installation weight
/ 2513 lb Min Barriers
Information
General
• Always read the manufacturer's instructions to ensure that the product is used correctly and safely.
• If anything is unclear, contact the manufacturer or your retailer.
• Never mix products from different manufacturers.
• Do never exceed the specified load limits.
Storage
• Store as far as possible in non-corrosive environment.
• Store the products according to the manufacturer's intended way for example when stacking to minimize the risk of personal injury.
Symbols description
www.ramuddenglobal.com
