RAM UK Vehicle Catalogue 2020

Page 17

Vehicle Mounting Solutions

www.ram-mount.co.uk


RAM Mounts RAM offer an extensive range of revolutionary mounting solutions for a variety of mobile electronics. Featuring truly rugged, patented, interchangeable, vibration resistant ball & socket systems, RAM provide an inventively simplistic solution to mounting and adjusting any mobile device in any environment.

Vehicle solutions for industry: OVERVIEW ................................................................................................................................................................. 1-2 BUILDING A MOUNT................................................................................................................................................. 3 COMPONENTS ........................................................................................................................................................... 4

PHONES & TABLETS ................................................................................................................................................ 5-6 INTELLISKIN ............................................................................................................................................................... 7-8 GPS MOUNTS ............................................................................................................................................................. 9-10 HEAVY DUTY MOUNTS ............................................................................................................................................ 11-13 VEHICLE / PRINTER MOUNTS ............................................................................................................................... 14 TOUGH-TRACK ........................................................................................................................................................... 15-16

www.ram-mount.co.uk


�Rugged. Interchangeable. Adjustable.� Overview

RAM offer custom and universal mounting solutions for a number of devices including:

Phones

Tablets

GPS

Cameras

laptops

Rugged, industrial strength mounting solutions

Patented, interchangeable ball & socket systems

Lifetime warranty**

Compatible with or without heavy-duty cases or skins

Suitable for low and high vibration environments **Lifetime warranty on mechanical parts 3 year warranty on electrical parts.

1


2


123: Building A Mount Building A Mount

>> Device Holder The device holder is the component that grips or attaches directly to your particular phone, tablet, GPS, action camera or any other device.

>> Double-Socket Arm The arm connects the holder to the base via the RAM ball & socket system and is what gives your mount its adjustability. Available in 3 lengths, 2 ball sizes (1â&#x20AC;? B size & 1.5â&#x20AC;? C size) and in 2 materials; the ideal choice of arm depends on the weight of your device and the environment / application in which the mount is being used. Base << The base is the component that hosts your mount and attaches it to the desired surface. The base and all other components are interchangeable, so depending on the application you can utilise suction, clamp, screw-on, adhesive bases and more.

3


Components

Part No: Material:

RAP-B-201-A

RAP-B-201

RAM-B-201-A

RAM-B-201

RAM-B-201-C

Composite

Composite

Aluminium

Aluminium

Aluminium

C-Size:

Part No: Material:

>> B-Size for 1â&#x20AC;? balls are available in both composite and aluminium. As aluminium arms are reinforced, this material offers an additional Long size as well as Medium and Short.

>> C-Size for 1.5â&#x20AC;? balls are also available in both composite and aluminium. As aluminium arms are reinforced, this material offers an additional Long size as well as Medium and Short.

RAP-201-B

RAP-201

RAM-201-B

RAM-201

RAM-201-D

Composite

Composite

Aluminium

Aluminium

Aluminium

Locking:

Part No: Material:

Components

B-Size:

(NOTE: for weight allowances, please refer to the technical information available on our website at www.ram-mount.co.uk)

B-Size:

C-Size:

RAM-B-201-SU

RAM-201-SU

Aluminium

Aluminium

4


Phones & Tablets

Phones & Tablets Used in a wide variety of commercial and fleet vehicles, our universal phone & tablet mounts can host a wide range of mobile electronics.

The Universal

X-Grip® For Phones & Tablets

The revolutionary X-Grip® is an extendable range of universal holders that can expand and contract to grip any phone or tablet with or without a case. Incorporating a smooth spring-loaded mechanism with rubber tipped arms, the X-Grip® offers a unique concept that provides a strong hold with quick & easy adjustment for mounting your devices.

The X-Grip® features: + Suitability for 99% of devices on the market + A universal fit for devices with or without cases + A high-strength rugged design + Easy access to all device ports + Powerful spring-loaded arms for a solid grip + Rubber tips to secure and protect your device + Rugged composites with stainless steel details + A lifetime warranty - Made In USA. + Security Tether included with UN7, UN8 & UN10

Part Number Specification

Width

RAM-HOL-UN7B

RAM-HOL-UN10B

Depth

MIN

MAX

X-Grip® Universal Phone Holder with 1” Ball

1.25”

3.25”

MAX 0.875”

Large X-Grip® Universal Phone Holder with 1” Ball

1.75”

4.5”

0.875”

RAM-HOL-UN8B

X-Grip® Universal 7” Tablet Holder with 1” Ball

2.25”

5.75”

0.875”

RAM-B-202-UN9

X-Grip® Universal 10” Tablet Holder with 1” Ball

6.25”

8.1”

0.875”

RAM-B-202-UN11

X-Grip® Universal 12” Tablet Holder with 1” Ball

7.25”

8.75”

0.875”

Action Cameras & Dash Cams With vibration absorbent materials and 360º adjustable components, RAM Mounts are the best available solutions for mounting your action camera in any location.

5

Part Number

Specification

Info

RAP-B-202-GOP1

GoPro Adapter with 1” Ball

Fits all GoPro Heros & any action camera using the GoPro footprint

RAP-B-366

1” Ball with 1/4”-20 Male Camera Thread

Connects to any standard female thread. Recommended for small cameras.


TAB ACTIVE MOUNTS Phones & Tablets

RAMÂŽ Mounts has partnered with Samsung to develop powered vehicle cradles for the Tab Active 2, 3 & Pro, including locking and non-locking versions. Designed to meet the demands of applications such as field services,logistics, manufacturing, transportation and more, these cradles both charge and protect the tablet.

Tab Active 2 & 3 Locking Holder RAM-HOL-SAM58PKL

Tab Active 2 & 3 Non-Locking Holder RAM-HOL-SAM60P

Tab Active 2 & 3 Power & Data Holder

Tab Active Pro Holder

RAM-HOL-SAM60PD

RAM-HOL-SAM52PD

Holders for the Tab Active 2, 3 & Pro are also availble with vehicle hard-wire kits and can connect to any RAM vehicle base (pages 11-12) while the rubber ball and socket system allows users to efficiently switch between portrait and landscape modes.

6


IntelliSkin

Not only do RAM offer a wide range of industry leading mounting brackets but we also provide a line of unique protective skins and charging docks for Samsung and Apple devices called the IntelliSkin速. From use at home or in the office to the warehouse or in-vehicle; with integrated charging pins the IntelliSkin速 works seamlessly with our GDS速 (Global Docking Systems) docking stations and can be mounted anywhere when paired with RAM Mounts.

For more information on our full range of IntelliSkin速 products, please visit www.ram-mount.co.uk

7 5


Part of our exclusive IntelliSkin® & GDS® range caters specifically for the Samsung Galaxy Tab Active tablets.

for the Samsung Galaxy Tab Active2

RAM-GDS-SKIN-SAM29

GDS® Dock for Samsung Tab Active2 RAM-GDS-DOCK-V2-SAM29

GDS® Desktop Dock Pro Charger

GDS® 6-Port Desktop Charger

RAM-GDS-DOCK-D1

RAM-GDS-DOCK-6G1P

IntelliSkin

IntelliSkin® for Samsung Tab Active2

This range includes custom form-fitting skins with integrated GDS® charging pins, locking / non-locking vehicle docks and desktop charging units.

GDS® Locking Dock for Samsung Tab Active2 RAM-GDS-DOCKL-V2-SAM29

For more information on our full range of IntelliSkin® products, please contact us via sales@ram-mount.co.uk, 020 8894 1234 or visit www.ram-mount.co.uk.

8


GPS Mounts

GPS Mounts RAM offer a wide variety of custom holders and mounts for the Garmin fleet, dezl, nuviCam, dezlCam series and more. For full details, prices and product specifications for all our our GPS holders and kits, please visit www.ram-mount.co.uk, or contact us via 0208 894 1234 or sales@ram-mount.co.uk

**For base options please refer to page 8 Product

Part Number

Locking Case for the Garmin dezl™ 760LMT, nuvi® 2797LMT & RV 760LMT

RAM-HOL-GA61L

Cradle for the Garmin dezl™ 760LMT, nuvi® 2797LMT & RV 760LMT

RAM-HOL-GA54

Locking Case for the Garmin Dezl 770LMTHD

RAM-HOL-GA70L

Locking Case for the Garmin Dezl 570LMT

RAM-HOL-GA71L

Locking EZ-Roll’r™ Cradle for the Garmin nuviCam and dezlCam

RAM-B-HOL-GA68L

Locking Case for the Garmin dezl™ 560LMT & 560LT

RAM-HOL-GA43L

Product

9

Part Number

Locking Case for the Garmin fleet 660/670

RAM-HOL-GA66L

Flat Surface Locking Mount for the Garmin Fleet 770, 780 & 790

RAM-B-138L-GA75L

EZ-Roll’r™ Locking Cradle for the Garmin Fleet 770, 780 & 790

RAM-HOL-GA75L

Pin-Lock™ Security/Key Knob & Locking Case for Garmin fleet 660/670

RAM-B-138B-GA66L

Pin-Lock™ Security Knob & Locking Case for Garmin fleet 660/670

RAM-B-138-S5-GA66L

Flat Surface Mount for the Garmin Fleet 770, 780 & 790

RAM-B-138-GA75L


GPS Mounts

For the TomTom Bridge we provide a selection of modular components to build custom mounts that attach to the adapter plate of the Bridge and can also be used to mount our other GPS holders

OR

2” X 1.7” Adapter Base

Double Socket Arm

Long Double Socket Arm

3.3” Suction Cup Base

2.5” Screw-Down Base

RAM-B-347U-TOM1

RAM-B-201

RAM-B-201-C

RAM-B-224-1

RAM-B-202

Tough-Track™ We also offer a comprehensive range of adjustable centre and end-loading track bases that can hold multiple devices on a single track via our patented Track Balls. For more information please see pages 13-14

**For our full range of custom GPS holders, please visit our website www.ram-mount.co.uk

10


POD HD™ Heavy Duty Mounts

Perfect for heavier devices, the Universal No-Drill™ RAM POD HD™ Vehicle Mount with Double Socket Arm & 2.5” Round Base AMPs Hole Pattern adapter is the perfect choice for safely and conveniently operating essential electronics inside your vehicle. The versatility of the RAM Pod HD™ makes it an ideal solution for mixed vehicle fleets, consumer vehicles of all types and other applications that require a robust mounting platform for your devices. Product Small POD HD™ Large POD HD™

Part Number RAM-316-HDR-202 RAM-316-HDR-18-202

Min-Max Pole Length 12” 24.75” - 31.75”

(NOTE: for more information on RAM POD HD™ compatibility for your vehicle, visit: www.ram-mount.co.uk)

11


RAM No-Drill™ Vehicle Base The RAM No-Drill Vehicle Bases build upon the same modular system that our regular mounting solutions utilise but on a larger and more robust scale.

The device holder can consist of either a Tab-Tite™ tablet holder or a Tough-Tray™. Both product lines come in multiple sizes to accommodate a variety of devices. Adjustable Swing-Arm

Heavy Duty Mounts

Tray / Holder

RAM Tele-Pole™ Tele-Pole (Upper) RAM Tele-Pole™ (Lower) Base Universal vehicle base expands from 9” to 19” seat bolt centre

Tab-Tite™ Tab-Tite™ features:

+ Interchangeable bumpers + Spring-loaded bumpers offer strong grip and quick & easy docking + Easy access to all device ports + Lifetime guarantee - Made In USA

(NOTE: for more information on the Tab-Tite™ range, please visit www.ram-mount.co.uk or email sales@ram-mount.co.uk

12


Heavy Duty Mounts

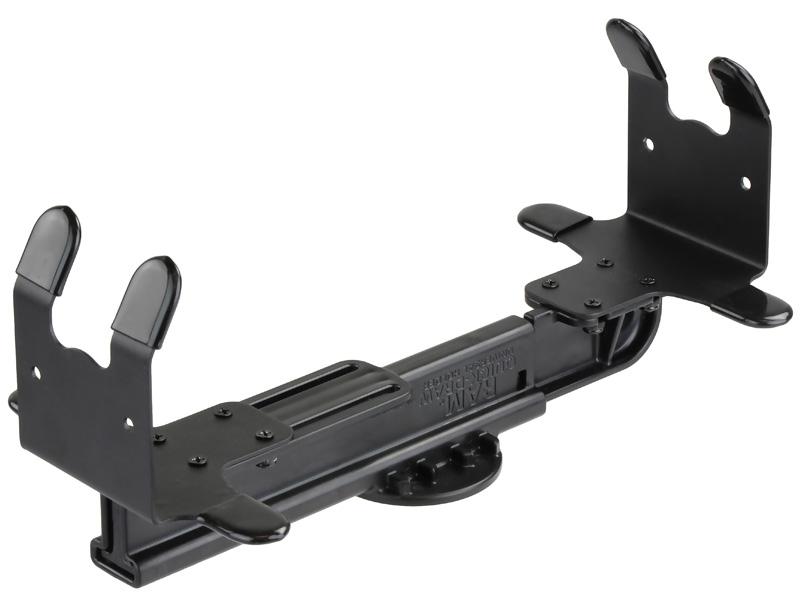

Tough-Tray™ The Tough-Tray™ range is pair of extendable universal tray systems for laptops, netbooks and tablets. The larger Tough-Tray™ can accommodate large heavy duty laptops whereas the smaller Tough-Tray™ II is designed for lightweight netbooks and tablets.

Laptop Tough-Tray™

MIN to MAX grip width: 8.56” to 11.12”

RAM-234-3FL

Swing-Arms

RAM-234-6

Tele-Pole™

The Swing-Arm range is pair of extendable universal tray systems for laptops, netbooks and tablets.

9” Long Lower Tele-Pole™ RAM-VP-TBF9

13

Tough-Tray™ II for Tablets & Netbooks

MIN to MAX grip width 10” to 16”

2” Long Top Tele-Pole™ RAM-VP-TTM12

12” Tele-Pole™ w/ Flange RAM-VP-TTMF12

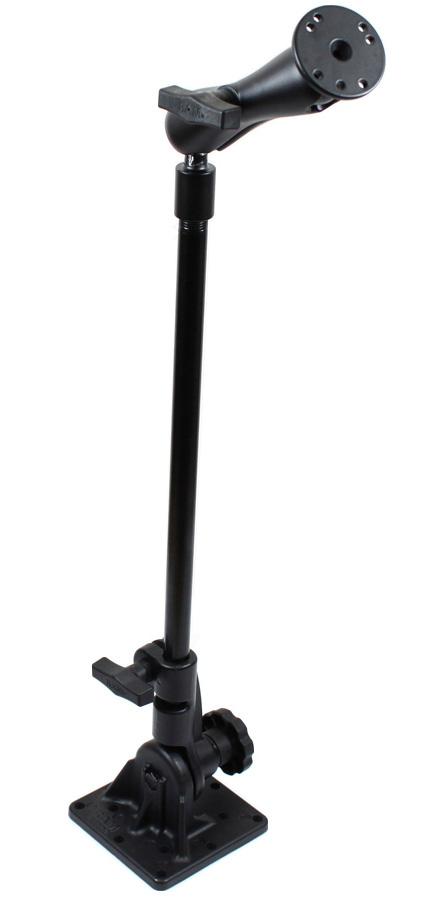

RAM Vehicle Pole Mount Vehicle / Printer Mounts

Blending the best of versatility, strength and installation ease, RAM vehicle pole mounts with adjustable ratchet bases are true workhorses for commercial van fleet operators. Suitable for vans where the seating arrangement has either a tubular or a closed panel seat frame configuration. The RAM pole mount is an ideal solution for mounting tablets, small laptops, printers and other similar electronic devices. Requiring minimal space in the vehicle cab, it can be removed quickly without the use of tools. (Available with a variety of pipe lengths and ball mounts with 75mm VESA or the AMPS base plates).

(NOTE: for technical specifications regarding our vehicle mount range, please contact us via: www.ram-mount.co.uk sales@ram-mount.co.uk or on 020 8894 1234

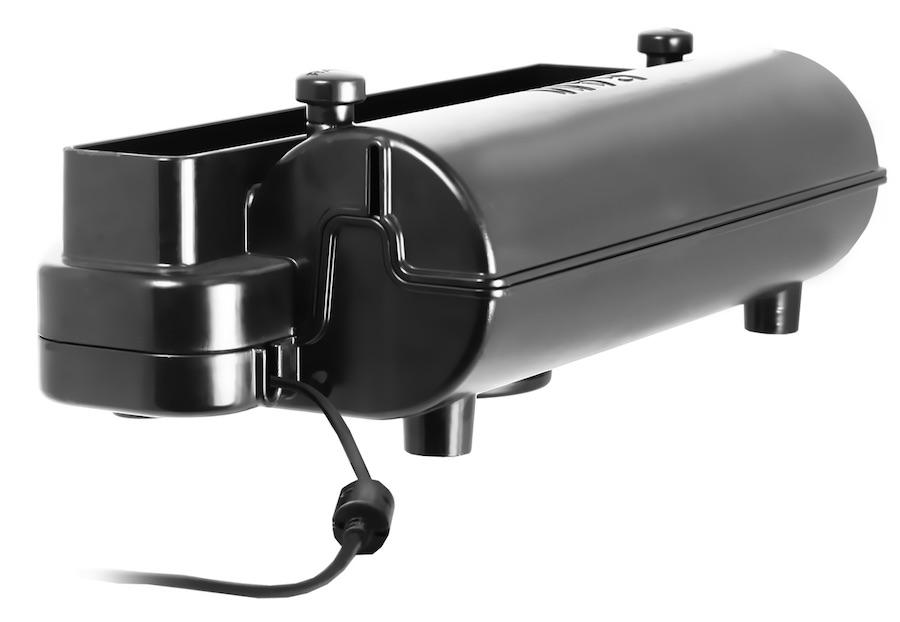

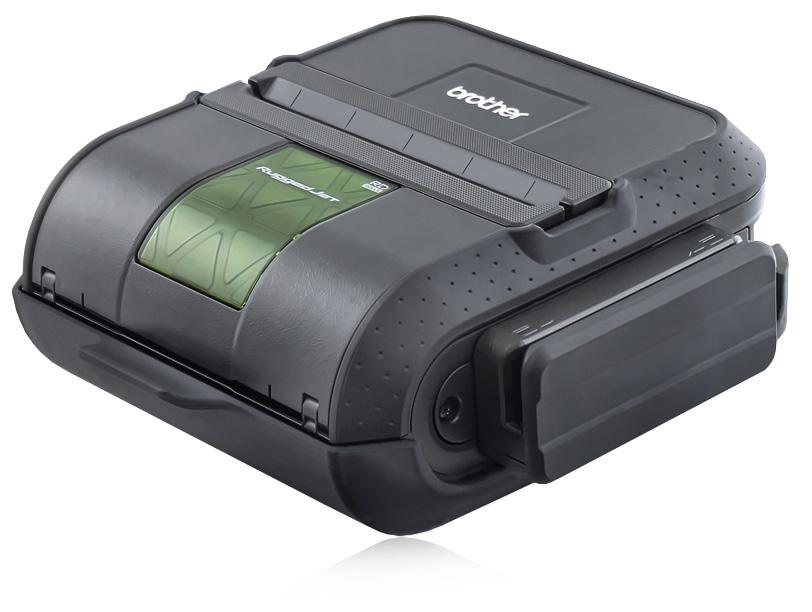

Printer Mounts Ease of use, rugged and reliable are words used to describe RAMÂŽ Printer Mounts. Ideally suited to help create the ideal mobile office environment, RAM is the perfect solution for mounting a portable wireless printer in your vehicle. We offer both universal and form fitting designs for a number of leading printer brands. For more information and technical specifications please visit: www.ram-mount.co.uk

14


Installation Solutions

Tough-Track™

Rugged. Interchangeable. Adjustable.” ” Tough-Track™ The Tough-Track™ is an innovative product line that allows multiple devices to be mounted and adjusted on a single track system in any vehicle or on any suitable surface. Using a RAM Track Ball™, any compatible RAM kits can then be configured to suit a wide array of applications. Available in 2 materials - Aluminium & Composite - and in multiple lengths, the Tough-Track™ features:

Composite: >> High-strength glass filled nylon construction >> Centre device loading capabilities >> Compatible with RAM 1” B & 1.5” C Size balls, Post/Spline and Flex Rod components >> Lifetime Warranty

Aluminium: >> High-strength aluminium construction >> Adaptable, modular designs with centre or end loading capabilities >> Straight & 90º add-ons for connecting and extending multiple tracks >> Compatible with RAM B & C Size balls, Post/Spline and Flex Rod components

15

>> Lifetime Warranty


Composite:

RAP-TRACK-A2 3.75”

RAP-TRACK-A3 4.75”

RAP-TRACK-A5 7”

RAP-TRACK-A9 10.75”

RAP-TRACK-A12 14.5”

RAP-TRACK-A16 18.5”

Tough-Track™

Part No: Length:

Aluminium:

Part No: Length:

Part No: Info:

RAP-TRACK-EXA-3 3”

RAP-B-354-TRA1 RAM 1” Track Ball™ w/ T-Bolt

RAP-TRACK-EXA-5 5”

RAP-TRACK-EXA-9 9”

RAP-354-TRA1 RAM 1.5” Track Ball™ w/ T-Bolt

RAP-TRACK-EXA-13 13”

RAP-TRACK-EXA-CC90 90 Degree Connector

RAP-TRACK-EXA-17 17”

RAP-TRACK-EXA-CC Centre Load Connector

16


Exclusive UK Distributor & International Partner

RAM Mount UK

Unit 5, The Lion Centre, Hanworth Trading Estate , TW13 6DS I 020 8894 1234 I sales@ram-mount.co.uk I www.ram-mount.co.uk
