Buyers Guide: RAM® Docks for Zebra MC3400/MC3450

RAM® Docks for Zebra MC3400/MC3450 OVERVIEW

AVAILABLE SKUS RAM-HOL-ZE33U Passive (non-powered)

RAM-HOL-ZE33PU Powered

RAM-HOL-ZE33PLU Powered, Key-Locking

Key-Locking

RAM-HOL-ZE33PDU Powered, Single USB-A

RAM-HOL-ZE33PDLU Powered, Single USB-A, Key-Locking

CLICK OR SCAN TO VIEW ALL PRODUCTS

USB Type-A Peripheral Support

Power

PRIMARY MARKETS WAREHOUSE

YARD & TERMINAL

AIRLINES Patented and Pats. Pending | rammount.com/ip

RAM® Docks for Zebra MC3400/MC3450 FEATURES & BENEFITS

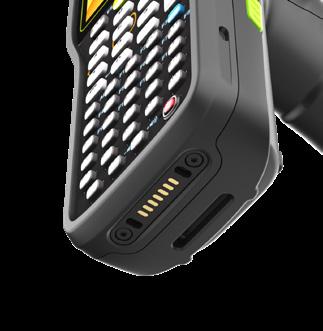

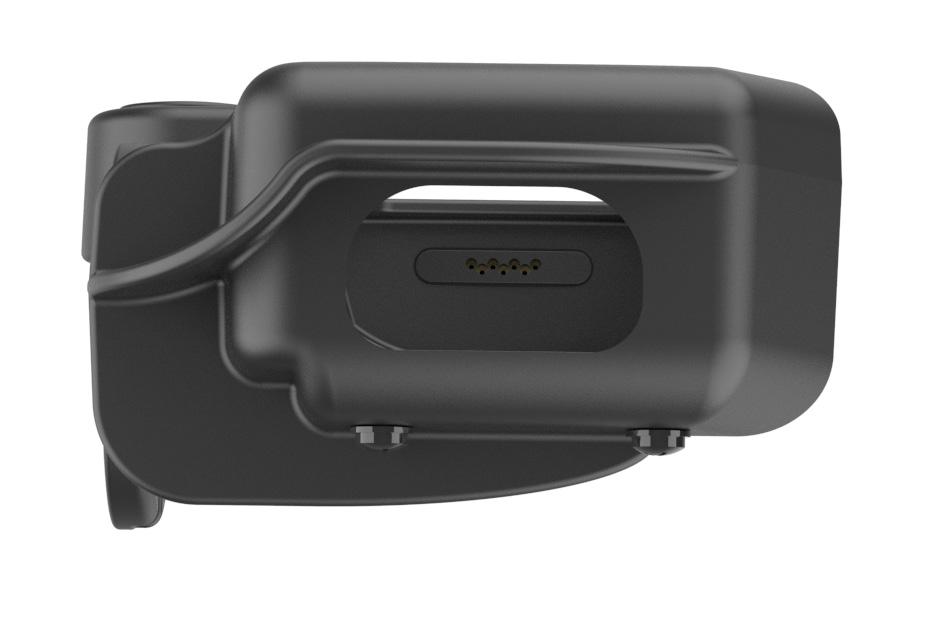

Pogo Pin Charging Increase efficiency and charge on-the-go by utilizing the device’s pogo pad docking contacts — simply dock the MC3400/MC3450 to keep the device charged and connected to an additional peripheral.

Each powered RAM® dock comes equipped with pogo pin technology for this seamless docking experience.

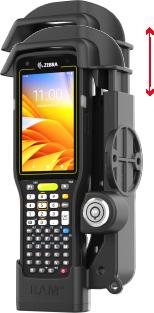

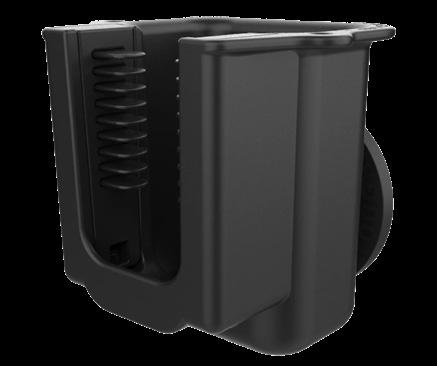

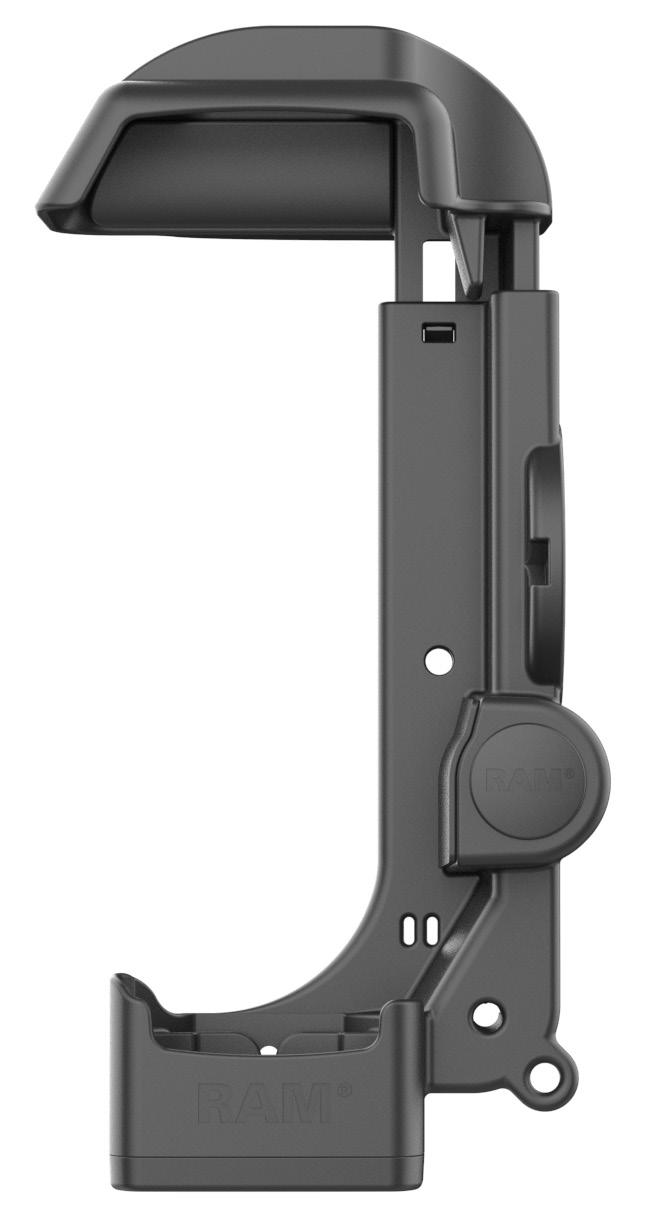

Form-Fit Docking This holder is spring-loaded, making it easy for one-handed docking and removal. Each dock also comes equipped with optional press-in inserts when docking the MC3400/MC3450 without the rubber protective boot. This holder is also compatible with the MC3300 barcode scanner.

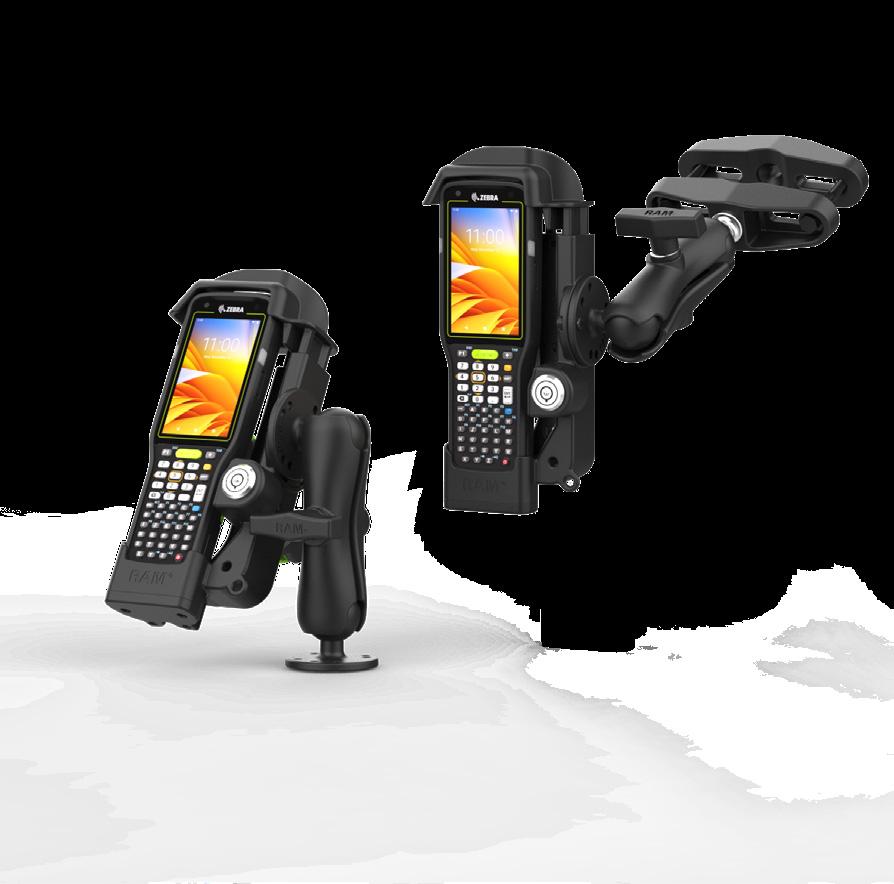

Mount It With RAM® Compatibility™, customize your mount specific to your environment.

RAM® recommends two unique mounting orientations depending on the intended application.

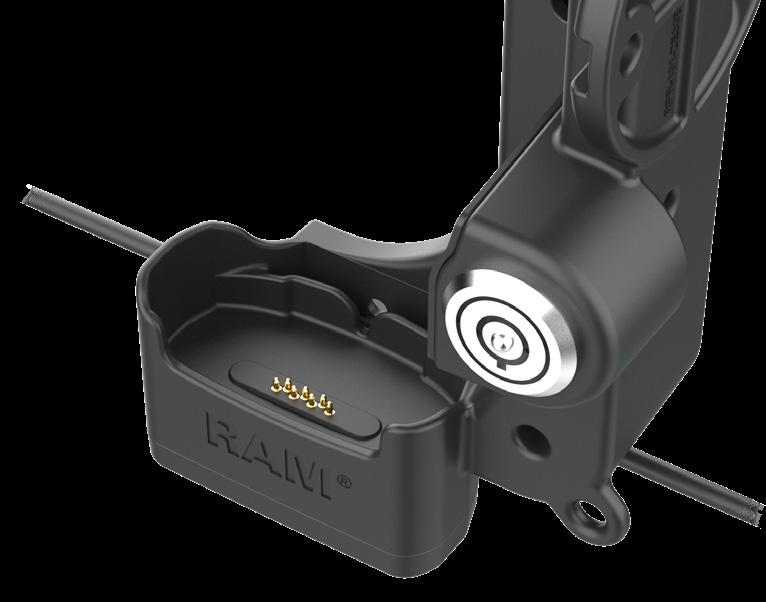

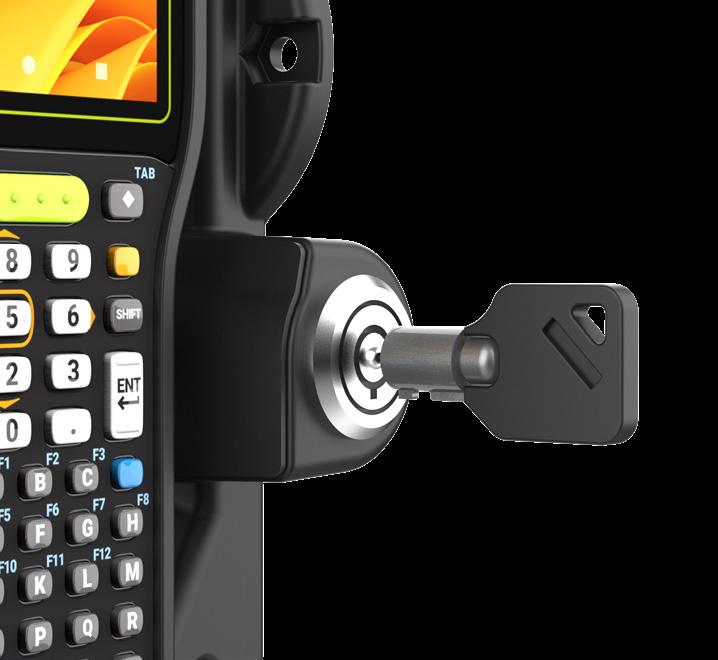

Key-Locking Option Keep your MC3400 locked in place with this optional keylocking insert.

Patented and Pats. Pending | rammount.com/ip

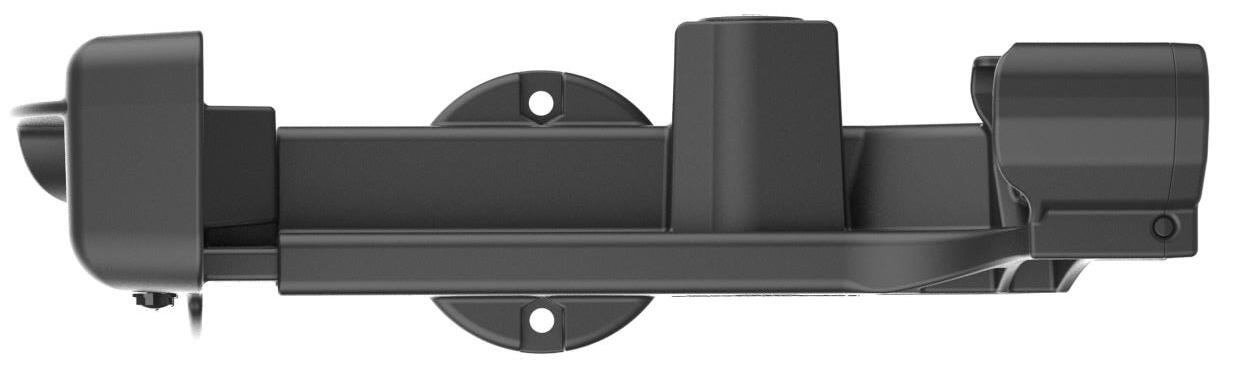

RAM® Docks for Zebra MC3400/MC3450 DIMENSIONS

Specifications HOLE PATTERN

3

YEAR

LIFETIME

WARRANTY

WARRANTY

Electronics

Mounting Components

2-Hole AMPS: 1.912”

MATERIAL High-strength composite

HOLDER TYPE Spring-loaded

CERTIFICATIONS FCC, CE, RoHS

9.21”

COMPATIBLE HARDWIRE CHARGERS RAM-GDS-CHARGE-V17U RAM-GDS-CHARGE-V178U

INPUT VOLTAGE 9VDCV

INPUT CONNECTOR 5.5mm DC Connector Female

INPUT CABLE LENGTH

4.87”

1m

SINGLE PERIPHERAL OUTPUT 500mA @ 5VDC

PERIPHERAL CONNECTOR TYPE

2.98”

USB-A Female

Patented and Pats. Pending | rammount.com/ip

RAM® Docks for Zebra MC3400/MC3450 ACCESSORIES & MORE

RAM-101U-247

RAM-101U

RAP-101-PV4-NK-MAG88U

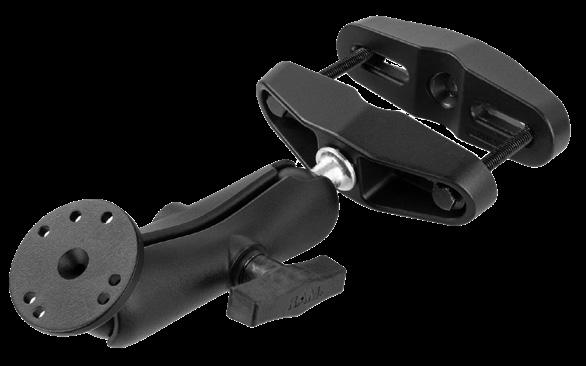

RAM Universal Post Clamp Mount with Round Plate - C Size Medium Arm

RAM Double Ball Mount with Two Round Plates C Size Medium

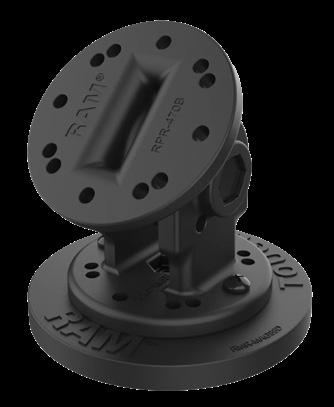

RAM® Single Pivot Magnetic Mount

RAP-101-PV4-2P-NK-MAG88U

RAP-403BPU

RAP-396-MAG88U

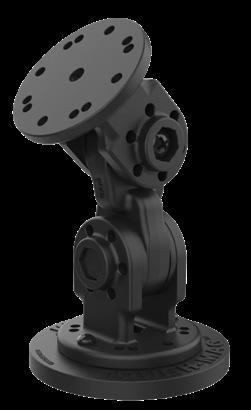

RAM® Dual 90-Degree Pivot Magnetic Mount

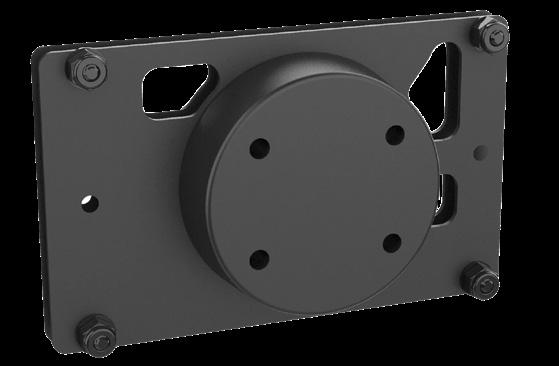

RAM® Low-Profile Cage Guard Mount with Backing Plate

RAM® Power-Grip™ Scanner Holder with Magnetic Tough-Mag™ Adapter

®

®
