GDS® Uni-Conn™ Vehicle Dock
FEATURES & BENEFITS
Seamless Device Upgrades
With the GDS® Uni-Conn™ Adapters, a new IntelliSkin® is all that is needed when upgrading devices in your fleet. Keep your existing mount and chargers— eliminating installation costs and the need for hardware replacements.
Easy to Dock
When docking, simply align the bottom of the IntelliSkin® to the bottom connector of the dock and gently push forward until you hear a click. When undocking, pinch the Uni-Conn™ lever and the lever stop* together to release the tablet.
*Warranty is void if lever stop is not installed.
Low Profile
With the device secured from the back and a small portion of the bottom, no additional component of the dock is obstructing the view of the operator.

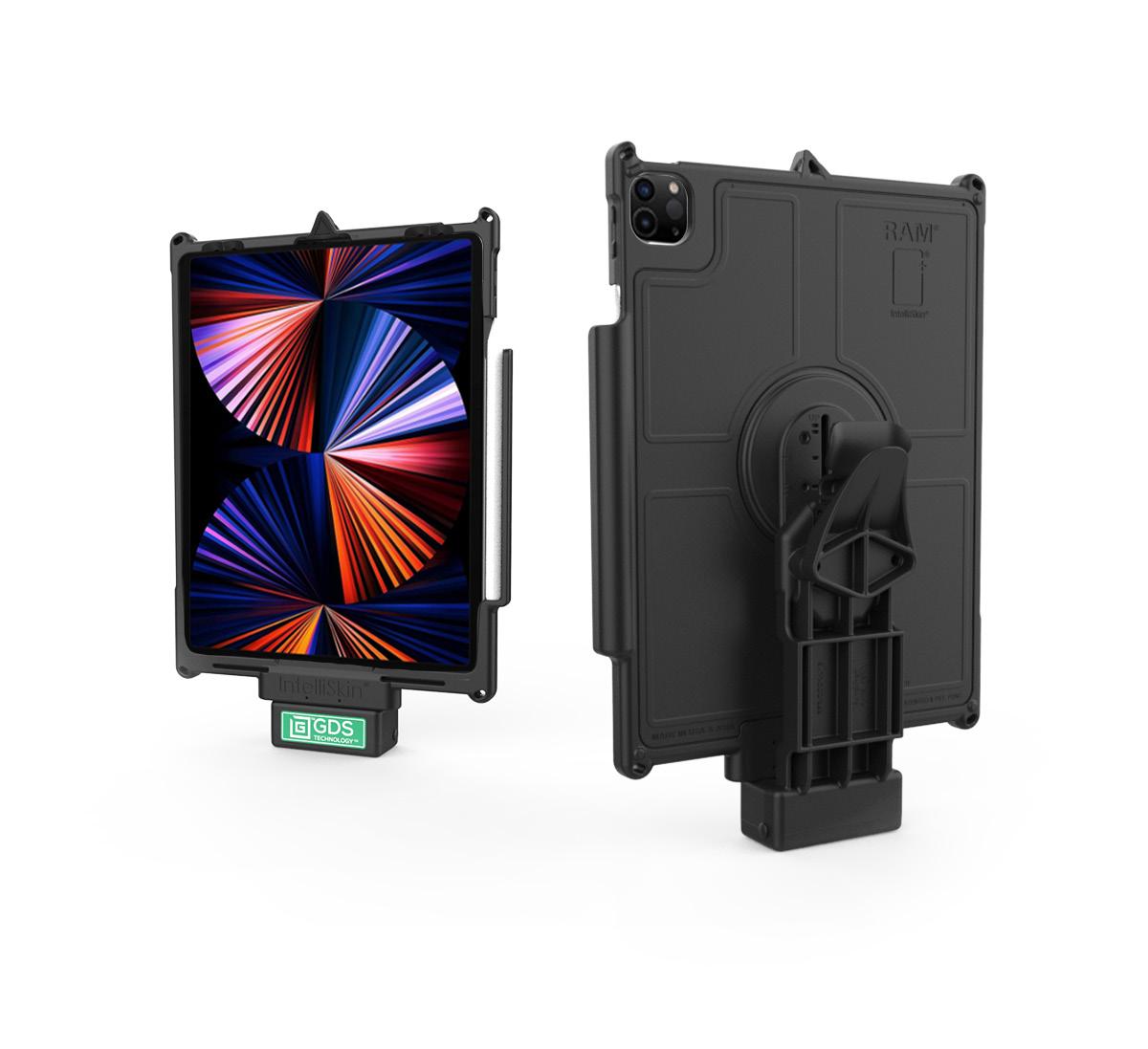

Next Gen Durability with GDS ® Tech™ & IntelliSkin®
The one-of-a-kind IntelliSkin® and GDS® Tech™ system is designed to not only protect the device but protect the device port by converting the connection point to ruggedized pogo pin contacts. This docking technology was designed to meet demanding industry standards in durability.
One Dock to Connect Them All™
Patented & Pats. Pend. rammount.com/ip

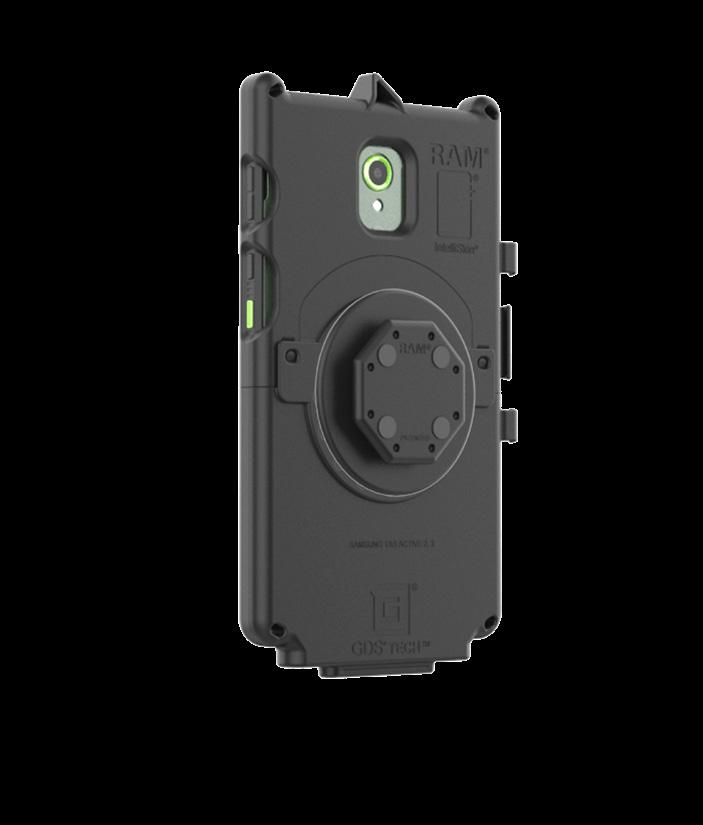

Required RAM-GDS-U1U GDS® Uni-Conn™ Adapter for IntelliSkin®
RAM-GDS-DOCK-U1CPU
GDS® Uni-Conn™ Powered Dock
Uni-Conn™ Docks Lock Position
RAM-GDS-DOCK-U1CPU
RAM-GDS-DOCK-U1CDU
RAM-GDS-DOCK-U1CD2U
RAM-GDS-DOCK-U1CP-CU
RAM-GDS-DOCKLL-U1CPU
RAM-GDS-DOCKLL-U1CDU
RAM-GDS-DOCKLL-U1CD2U
RAM-GDS-DOCKLL-U1CP-CU
Lock Power Peripheral Ports
•
• (1) USB-A
• (2) USB-A
• (1) USB-C
• • Left
• (1) USB-A • Left
• (2) USB-A • Left
• (1) USB-C • Left
RAM-GDS-DOCKLR-U1CPU • • Right
RAM-GDS-DOCKLR-U1CDU
RAM-GDS-DOCKLR-U1CD2U
RAM-GDS-DOCKLR-U1CP-CU
• (1) USB-A • Right
• (2) USB-A • Right
• (1) USB-C • Right
Patented & Pats. Pend. rammount.com/ip
One Dock to Connect Them All™ GDS® Uni-Conn™ Vehicle Dock
AVAILABLE SNAP-IN DOCK SKUS
AVAILABLE SPRING LOADED DOCK SKUS
Required RAM-GDS-U1U GDS® Uni-Conn™ Adapter for IntelliSkin®
RAM-GDS-DOCK-V12-U1CPU
GDS® Uni-Conn™ Spring Loaded Powered Dock
Uni-Conn™ Docks Heated Pins
RAM-GDS-DOCK-V12-U1CPU
RAM-GDS-DOCK-V12-U1CPDU
RAM-GDS-DOCK-V12-U1CP-CU
Lock Power Peripheral Ports
•
• (1) USB-A
• (1) USB-C
RAM-GDS-DOCK-V12-U1CPHU
RAM-GDS-DOCK-V12-U1CPDHU
• (1) USB-A •
RAM-GDS-DOCKL-V12-U1CPDU • (1) USB-A •
RAM-GDS-DOCKL-V12-U1CP-CU • (1) USB-C •
RAM-GDS-DOCKL-V12-U1CPDHU
• (1) USB-A
Patented & Pats. Pend. rammount.com/ip
One Dock to Connect Them All™ GDS® Uni-Conn™ Vehicle Dock
• •
RAM-GDS-DOCKL-V12-U1CPU • •
RAM-GDS-DOCKL-V12-U1CPHU • • •
• •
One Dock to Connect Them All™ GDS® Uni-Conn™ Vehicle Dock Patented & Pats. Pend. rammount.com/ip APPLE COMPATIBILITY CHART DEVICE INTELLISKIN ® STYLE INTELLISKIN ® PART NUMBER STANDARD GDS ® UNI-CONN ™ ADAPTER ADJUSTABLE ADAPTER SETTING POSITION | ARROW ORIENTATION NON-LOCKING SPRING LOADED LOCKING iPad Pro 11, Air 4 & 5 Next Gen RAM-GDS-SKIN-AP32-NG #5 | ↑ • •* Next Gen (LED) RAM-GDS-SKIN-AP32-NG-LED #5 | ↑ • •* iPad 10th Gen Next Gen RAM-GDS-SKIN-AP40-NG #5 | ↑ • Next Gen (LED) RAM-GDS-SKIN-AP40-NG-LED #5 | ↑ • iPad mini 6 Next Gen RAM-GDS-SKIN-AP36-NG #1 | ↑ •* iPad Pro 12.9 3rd - 6th Gen Next Gen RAM-GDS-SKIN-AP37-NG #8 | ↓ •* *Needs Adjustable Adapter Spring Loaded Vehicle Dock Snap-In Vehicle Dock
SAMSUNG COMPATIBILITY CHART
Spring Loaded Vehicle Dock Snap-In Vehicle Dock
Tab A7 Lite 8.7
Tab A8 10.5
Tab A9+
Tab Active Pro & Tab Active4 Pro
Tab Active2
Tab Active3
Tab Active5
Tab S7 11"
Tab S8+, S7+, S7 FE 12.4"
Tab S9 FE
Tab S9 FE+
Next Gen (LED)
Next Gen
Next Gen (LED)
Next Gen
Next Gen (LED)
Next Gen
Next Gen (LED)
Next Gen
Next Gen (LED)
Next Gen
Next Gen
Next Gen
Hard Case
Next Gen
Hard Case
Next Gen
Next Gen
Next Gen
Next Gen
RAM-GDS-SKIN-SAM75-NG-LED
RAM-GDS-SKIN-SAM80-NG
RAM-GDS-SKIN-SAM80-NG-LED
RAM-GDS-SKIN-SAM83-NG
RAM-GDS-SKIN-SAM83-NG-LED #6
RAM-GDS-SKIN-SAM88-NG
RAM-GDS-SKIN-SAM88-NG-LED
RAM-GDS-SKIN-SAM54-NG-1
RAM-GDS-SKIN-SAM89-HC
RAM-GDS-SKIN-SAM90-NG
RAM-GDS-SKIN-SAM89-HC •
•
•
RAM-GDS-SKIN-SAM86-NG
RAM-GDS-SKIN-SAM87-NG
•
•
*Needs Adjustable Adapter
One Dock to Connect Them All™ GDS® Uni-Conn™ Vehicle Dock Patented & Pats. Pend. rammount.com/ip DEVICE INTELLISKIN ® STYLE INTELLISKIN ® PART NUMBER STANDARD GDS ® UNI-CONN ™ ADAPTER ADJUSTABLE ADAPTER SETTING POSITION | ARROW ORIENTATION NON-LOCKING SPRING LOADED LOCKING
A 10.1 Next Gen RAM-GDS-SKIN-SAM65-NG #4 | ↓ •
A 10.5 Next Gen RAM-GDS-SKIN-SAM66-NG #7 | ↓ • •*
A 8.0
Next Gen RAM-GDS-SKIN-SAM63-NG #3 | ↓ • •
Gen
RAM-GDS-SKIN-SAM63-NG-LED #3 | ↓ • •
8.0
RAM-GDS-SKIN-SAM55-NG • •
Tab
Tab
Tab
(2018)
Next
(LED)
Tab A
(2019) Next Gen
Tab A 8.4
RAM-GDS-SKIN-SAM67-NG • •
Next Gen
RAM-GDS-SKIN-SAM67-NG-LED • •
Tab A7 10.4
RAM-GDS-SKIN-SAM75-NG #5 | ↑ • •*
#5 | ↑ • •*
• •
• •
↓ • •
#6 |
| ↓ • •
• • •
• • •
↓ • •*
#4 |
•
RAM-GDS-SKIN-SAM62-NG •
•
RAM-GDS-SKIN-SAM74-NG •
• •
RAM-GDS-SKIN-SAM76-NG #6 | ↓
• •
RAM-GDS-SKIN-SAM78-NG #6 | ↓
SPECIFICATIONS DIMENSIONS
8.44” (H) x 4.27”(W) x 3.03”(D) 21.4cm(H) x 10.8cm(W) x 7.69cm(D)
CERTIFICATIONS
RoHS, WEEE INPUT CONNECTOR OPTIONS
USB Type-C for Power
Optional USB Type-C for 1 Peripheral
Optional USB Type-A for 2 Peripherals
WARRANTY NOTE
The Lever Stop included with this dock is required in order to function properly. Warranty on dock is void if dock is used without Lever Stop. GDS® Uni-Conn™ docks are not recommended for high vibration applications such as forklifts.
Dock to
Them All™
One
Connect
OUTPUT CABLE LENGTH 215mm INPUT CABLE LENGTH 215mm HOLE PATTERN 2-Hole AMPS: 1.912" HARDWIRE POWER SUPPLIES RAM-GDS-CHARGE-V7CU OUTPUT VOLTAGE 5V-12V @ 3A POWER OUTPUT 15W
8.44" 4.27" 3.03" 21.4cm 10.8cm 7.69cm Patented & Pats. Pend. rammount.com/ip GDS® Uni-Conn™ Vehicle Dock SPECIFICATIONS 3 YEAR Electronics WARRANTY
RAM-138U
RAM® Double Ball Mount with Diamond Plate Adapter - Medium
RAM-101U-235-1
RAM® Double U-Bolt Rail Mount for Larger Rails
RAM-VB-196-SW2
RAM® No-Drill™ Universal Vehicle Floor Mount
RAM-101U
RAM® Double Ball Mount with Two Round Plates - C Size Medium
RAM-GDS-U1-SAM90-KIT4
GDS® Uni-Conn™ Klein VALOR PTT Vehicle Bundle for Samsung Tab Active5
RAM-101-B-225B2U
RAM® Drill-Down Dashboard Mount with Backing Plate - C Size Short
RAM-GDS-U1-SAM90-KIT3
GDS® Uni-Conn™ PTT Vehicle Bundle for Samsung Tab Active5
One
Connect Them All™ GDS®
Patented & Pats. Pend. rammount.com/ip
Dock to
Uni-Conn™ Vehicle Dock MOUNTS
ACCESSORIES
RAM-GDS-U1HSU
GDS® Uni-Conn™ Adapter with Hand Strap for IntelliSkin®
RAM-HOL-U1U
RAM® Holder for Tablets with GDS® Uni-Conn™ Button
RAM-LOCK-U1LLU
GDS® Uni-Conn™ Left Facing Lock Adapter for Snap-In Docks & Holders
RAM-LOCK-U1LRU
GDS® Uni-Conn™ Right Facing Lock Adapter for Snap-In Docks & Holders
RAM-HOL-U1LLU
RAM® Left Locking Holder for Tablets with GDS® Uni-Conn™ Button
RAM-HOL-U1LRU
RAM® Right Locking Holder for Tablets with GDS® Uni-Conn™ Button
