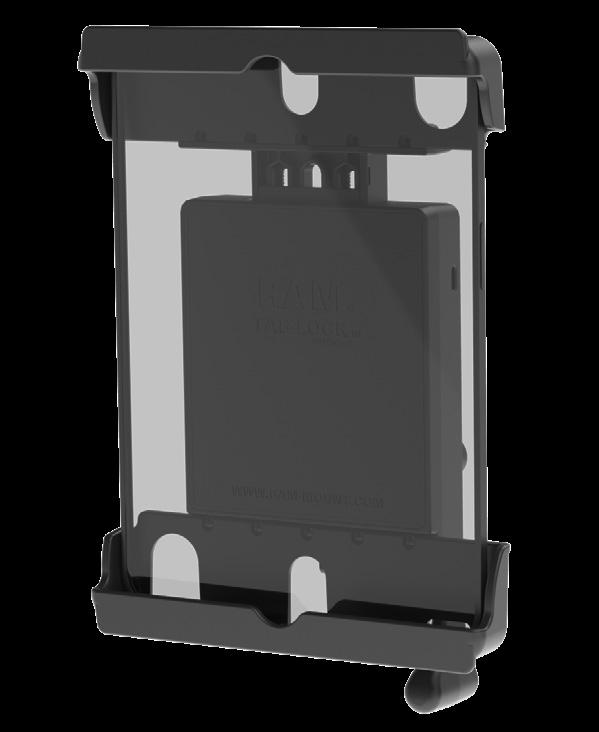

RAM® Tab-Lock™ Fitment Guide

RAM® Tab-Lock™ Fitment Guide

RAM® Tab-Lock™

*For non-locking tablet holder options, click here to see RAM® Tab-Tite™ & X-Grip® Fitment Guide

PART NUMBER

HEIGHT RANGE (INCHES)

MAX WIDTH (INCHES)

MAX DEPTH (INCHES)

RAM-HOL-TABL11U

6.8 - 8.675

5.31

0.3

RAM-HOL-TABL2U

7 - 8.875

5.31

0.56

RAM-HOL-TABL12U

7.125 - 9

5.68

1

RAM-HOL-TABL4U

7.375 - 9.25

5.31

1.06

RAM-HOL-TABL22U

7.38 - 9.255

4.25

0.4

RAM-HOL-TABL18U

7.5 - 9.375

4.7

0.43

RAM-HOL-TABL16U

7.5 - 9.375

5.05

0.82

RAM-HOL-TABL30U

7.82 - 9.695

5.375

0.3125

RAM-HOL-TABL27U

7.88 - 9.755

5.3

0.37

RAM-HOL-TABL24U

8.08 - 9.955

4.96

0.36

RAM-HOL-TABL29U

8.25 - 10.125

5.88

0.67

RAM-HOL-TABL23U

8.32 - 10.195

5.3

0.62

RAM-HOL-TABL-SAM29U

8.5 - 10.375

5.23

0.6

RAM-HOL-TABL3U*

8.5 - 10.375

7.75

0.56

RAM-HOL-TABL6U*

8.625 - 10.5

6.8

0.5

RAM-HOL-TABL8U

9 - 10.875

8.31

1.12

RAM-HOL-TABL28U

9 - 10.875

6.65

0.315

RAM-HOL-TABL31U

9.375 - 11.25

5.875

0.3125

RAM-HOL-TABL26U

9.38 - 11.255

7

0.34

RAM-HOL-TABL20U

9.25 - 11.125

8.25

1.1

RAM-HOL-TABL17U

9.5 - 11.375

7.43

0.875

RAM-HOL-TABL33U

9.55 - 11.425

6.95

0.66

RAM-HOL-TABL25U

9.5 - 11.375

7.4

0.7

RAM-HOL-TABL10U

9.75 - 11.625

8.62

1

RAM-HOL-TABL34U

10.5 - 12.375

7.88

1.25

RAM-HOL-TABL9U

10.625 - 12.5

9.25

2

RAM-HOL-TABL19U

10.625 - 12.5

7.75

0.93

RAM-HOL-TABL36U

11.5 - 13.375

8.125

0.79

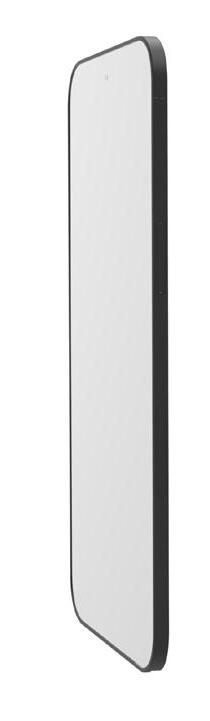

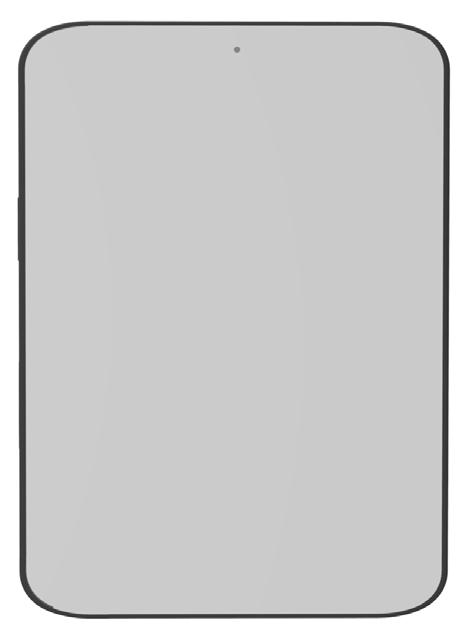

HEIGHT

WIDTH

DEPTH

*The RAM-HOL-TABL3U and RAM-HOL-TABL6U have cup designs that may technically support your device but do not wrap around the corners of the tablet as effectively as other cup designs. These holder options are only recommended for lighter duty applications.
