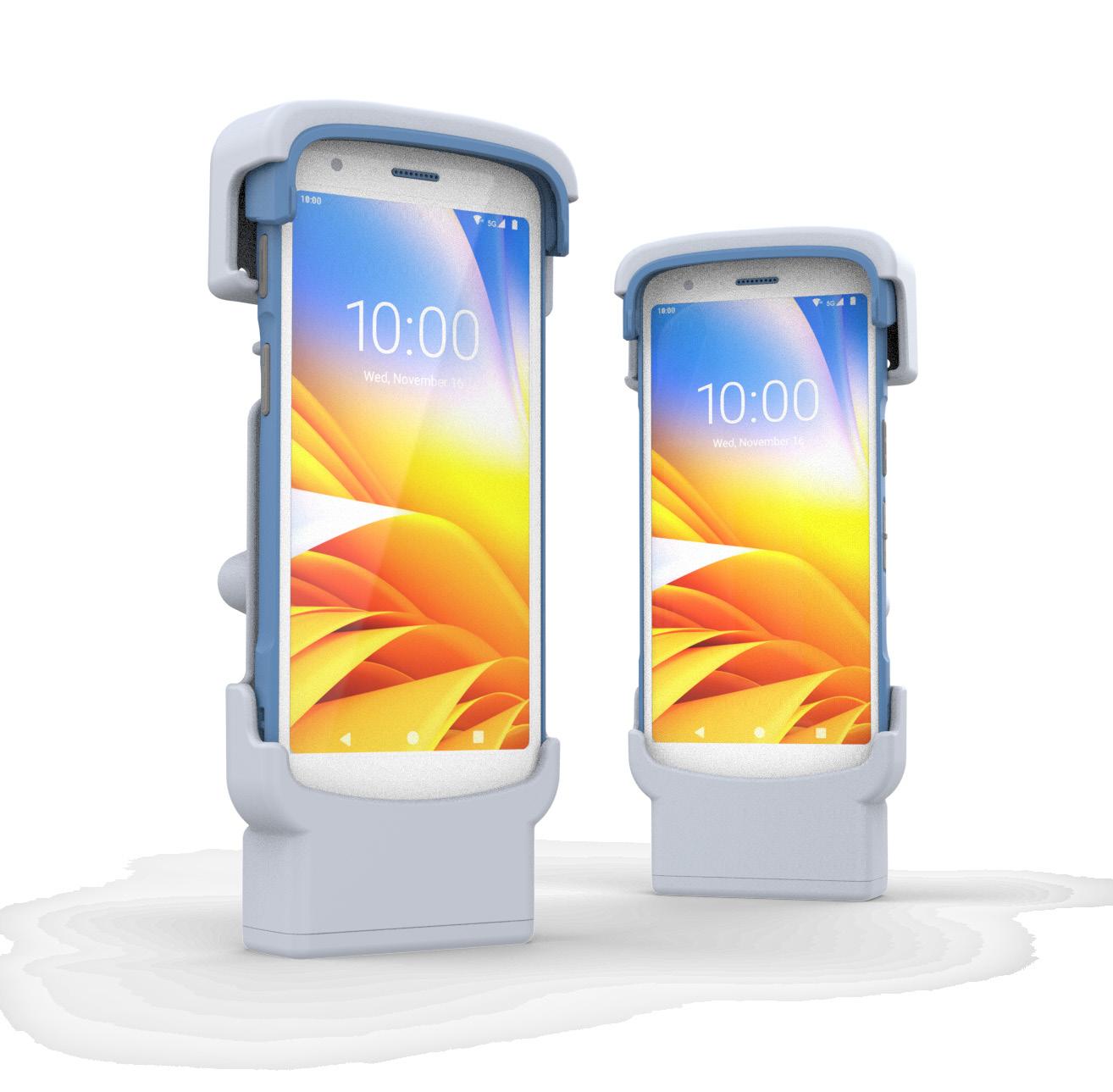

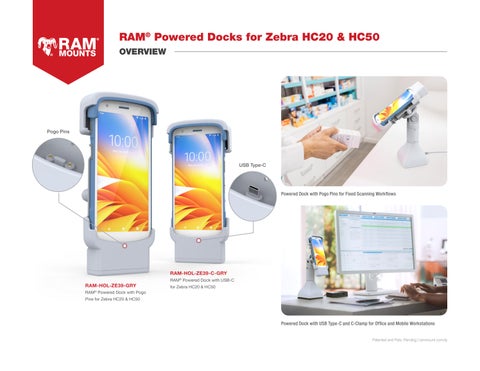

RAM® Powered Docks for Zebra HC20 & HC50
OVERVIEW
RAM-HOL-ZE39-GRY
RAM® Powered Dock with Pogo Pins for Zebra HC20 & HC50

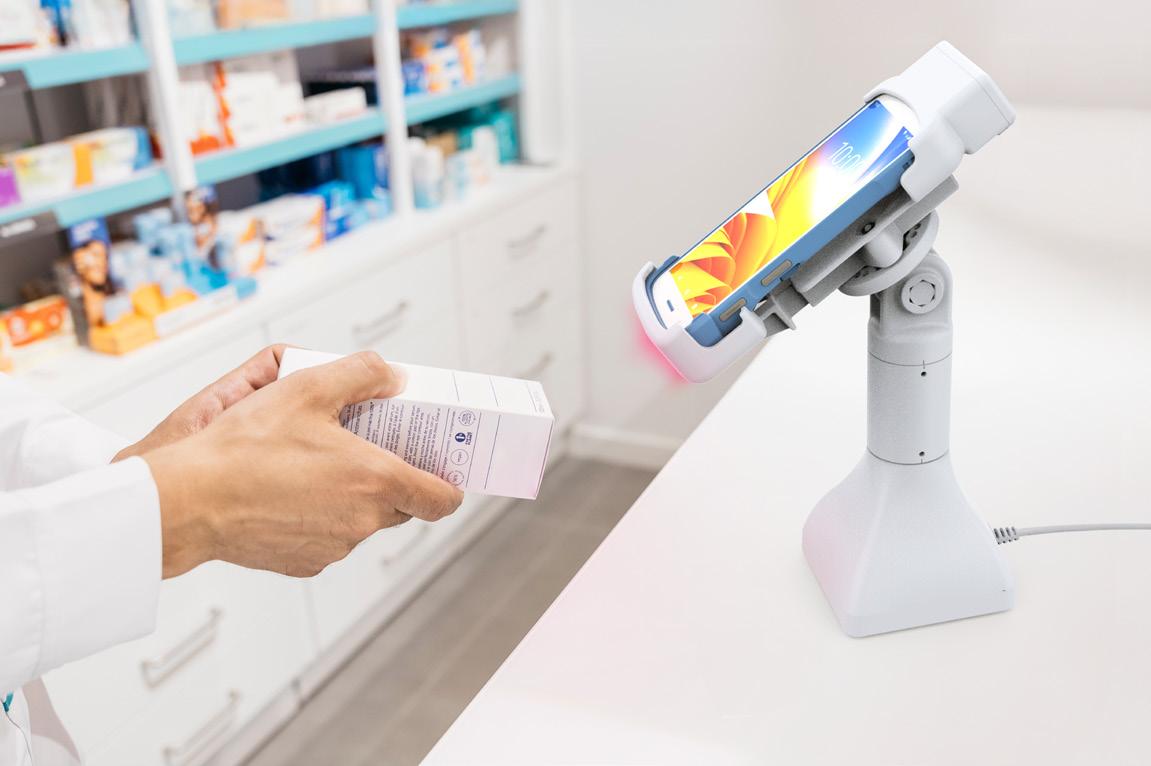

Powered Dock with Pogo Pins for Fixed Scanning Workflows
RAM-HOL-ZE39-C-GRY
RAM® Powered Dock with USB-C for Zebra HC20 & HC50
Powered Dock with USB Type-C and C-Clamp for Office and Mobile Workstations

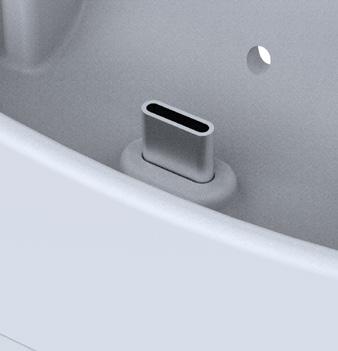

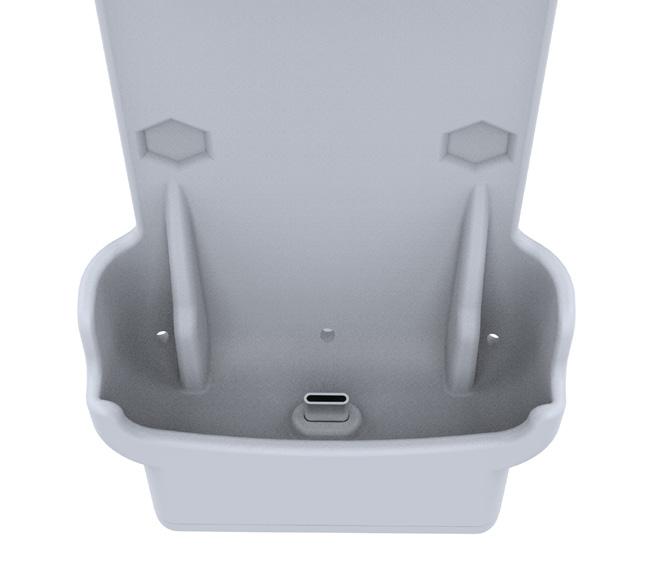

USB Type-C

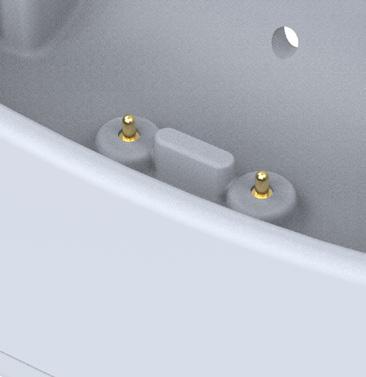

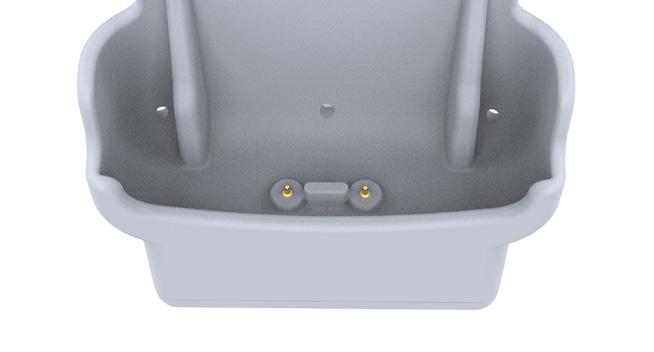

Pogo Pins
RAM® Powered Docks for Zebra HC20 & HC50
FEATURES & BENEFITS
Fast & Efficient Charging
Simply dock the device using either the pogo-pin contacts or a Type-C USB connection to keep it powered and connected to additional peripherals. Each powered RAM® dock delivers a seamless, reliable docking experience every time.

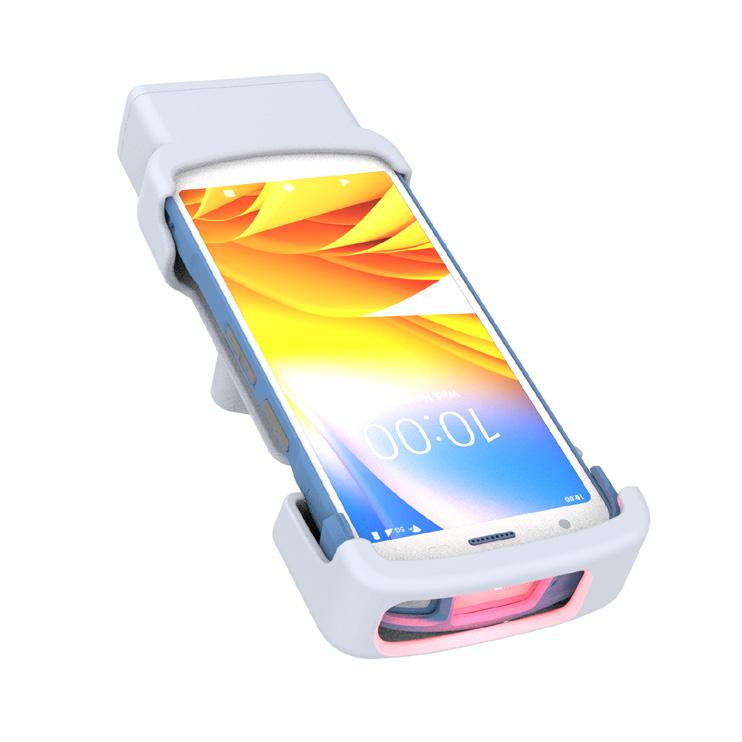

Cutout Access for Scanning
Stay productive without interruption. Cutouts in the dock let scanners function while your device stays securely in place.
Accomodates OEM Ergonomic Accessories
Keep your device’s ergonomic accessories attached while docked. The back cavity accommodates OEM straps, and other attachments for uninterrupted workflow.
Modular Mounting with RAM® Compatibility
2-hole AMPS hole pattern on back of dock for attaching any RAM® double ball mount.
RAM® Powered Docks for Zebra HC20 & HC50
DIMENSIONS & SPECIFICATIONS

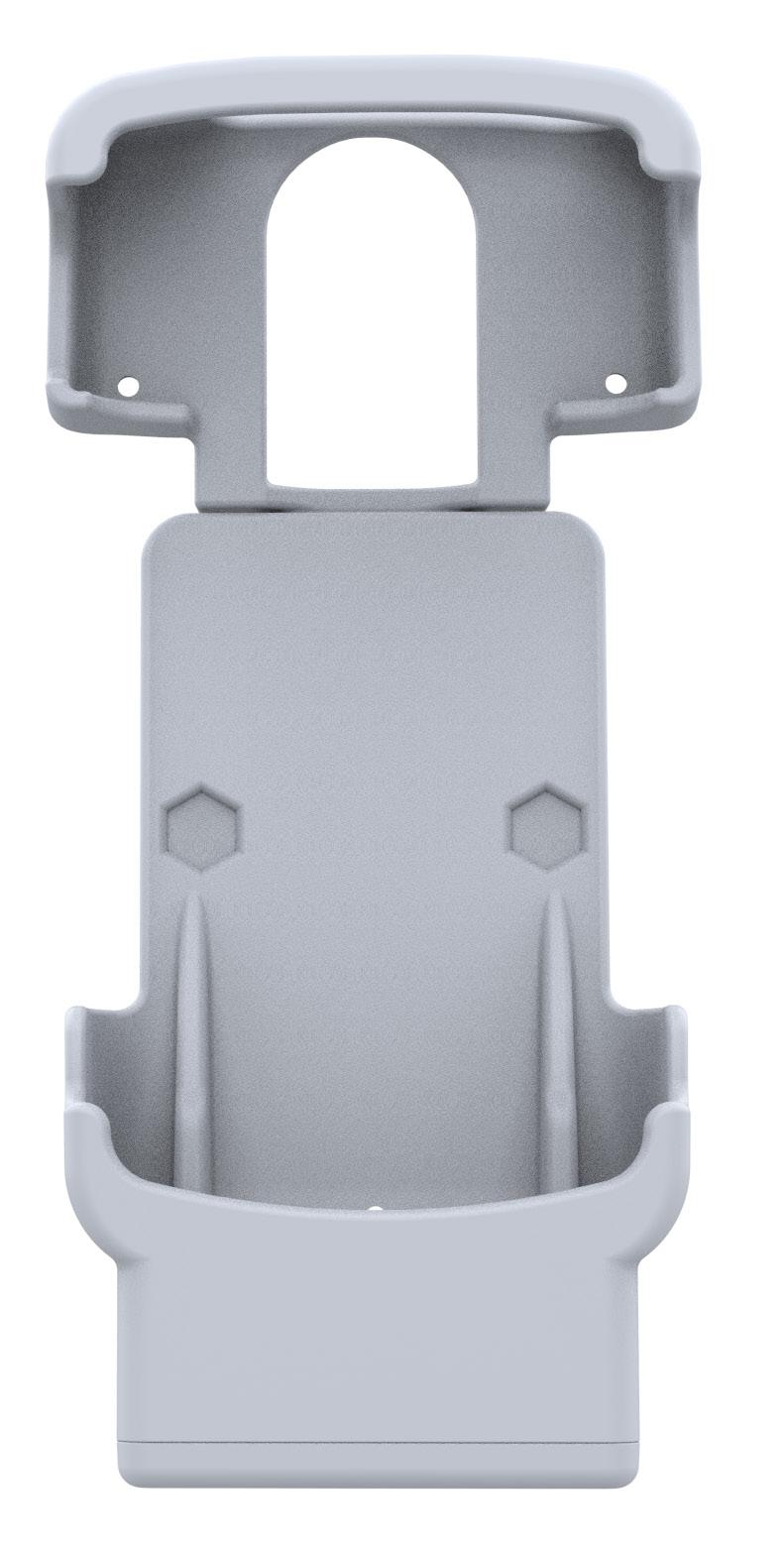

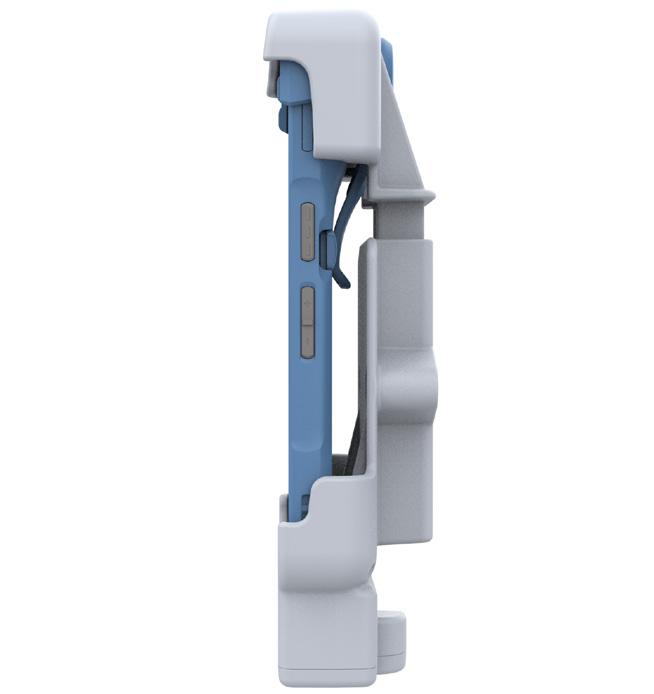

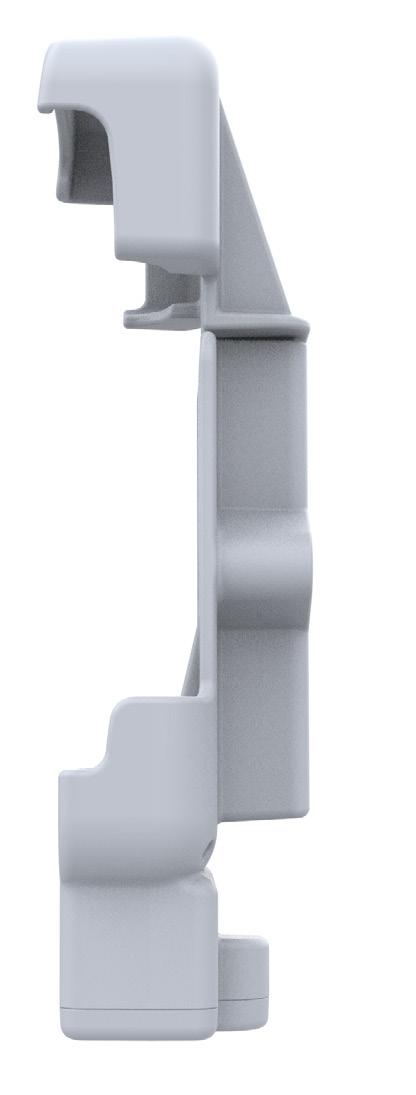

Cutout for Scanning Access
Cavity for OEM Accessories
Specifications
HOLE PATTERN
2-Hole AMPS: 1.912”
MATERIAL
High-strength composite
DOCKING TYPE
USB-C or Pogo Pins
INPUT CONNECTOR
USB Type-A
CERTIFICATIONS
RoHS, WEEE, CE, UKCA
POGO PIN VERSION INPUT VOLTAGE 5V @ 1.6A

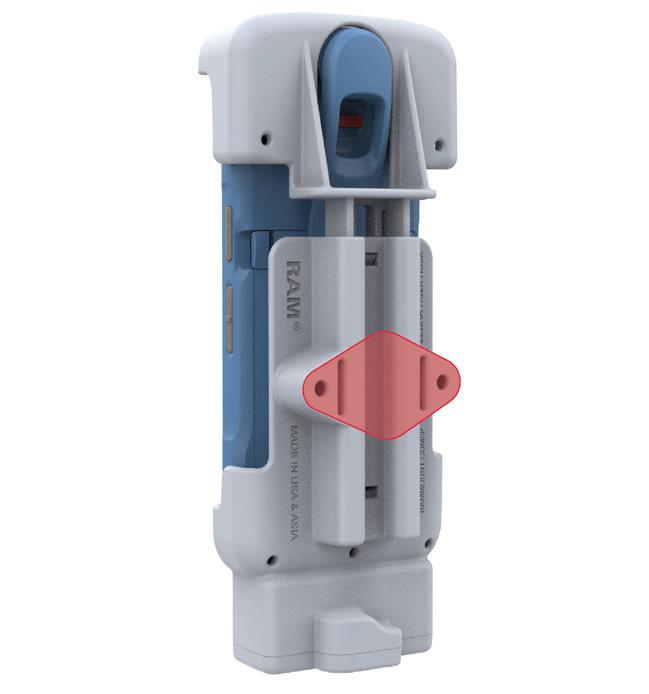

2-Hole AMPS Hole Pattern for Mounting Capability
POGO PIN VERSION OUTPUT VOLTAGE 9W
INPUT CABLE LENGTH
1.2m
3 YEAR
WARRANTY
Electronics
RAP-D11-7-SBA-GRY
RAM® 7” Pedestal Mount with AMPS Pattern
RAM® Powered Docks for Zebra HC20 & HC50
ACCESSORIES & MORE

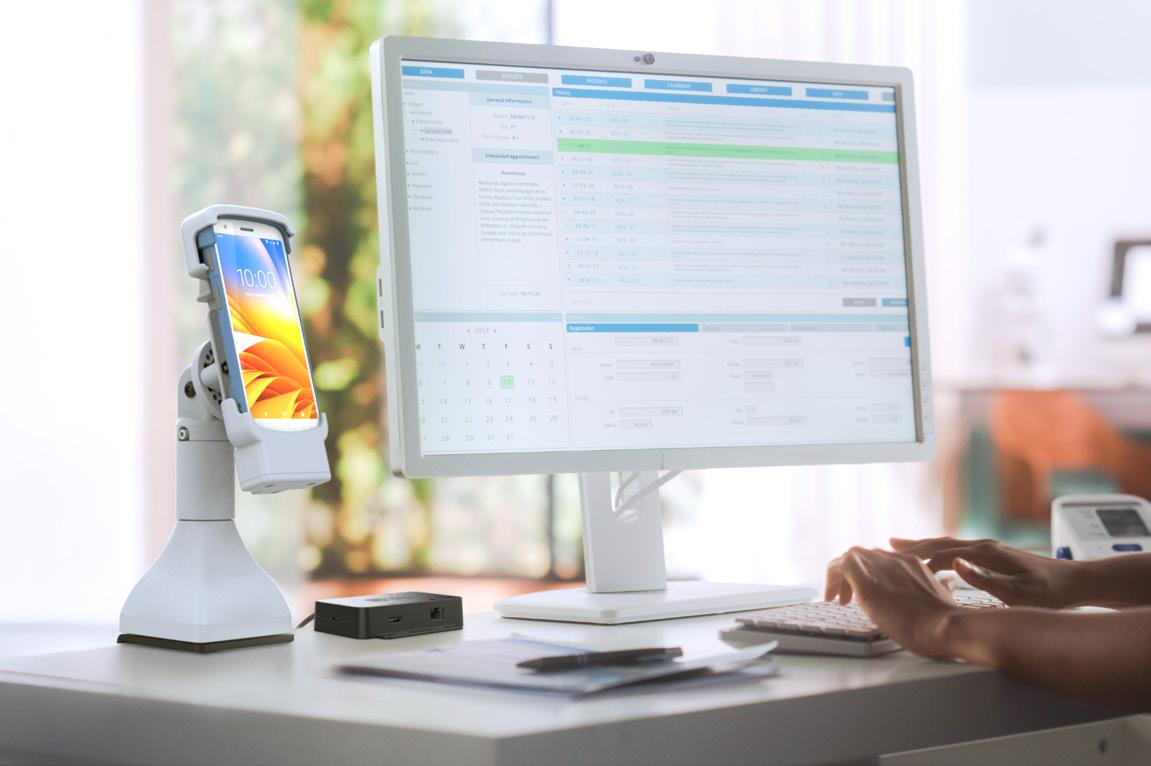

RAP-D11-7-SBA-GRY-CC1
RAM® 7” Pedestal Mount with AMPS Pattern and C-Clamp Base
RAM-GDS-HUB-TYPEC-DL1
GDS® Hub™ With USB Type-C for Zebra Workstation Connect
RAM-GDS-CHARGE-PPS-C2W

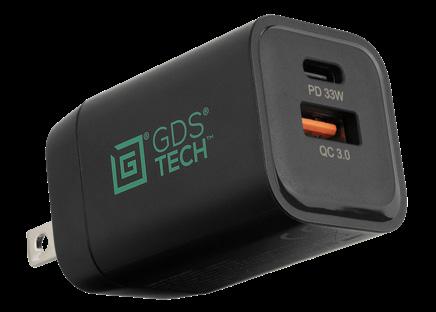

GDS® Type-C and Type-A 33W 2-Port Wall Charger - PD3.0 & PPS

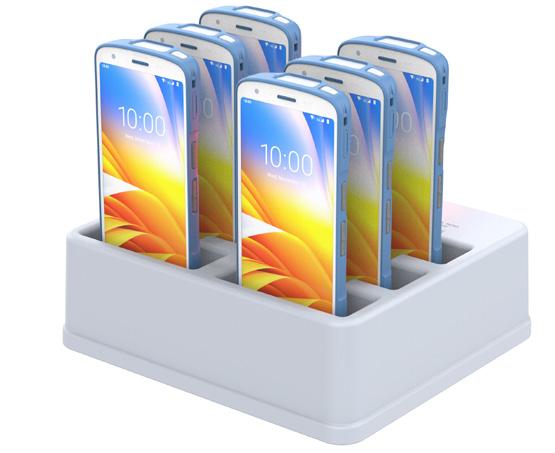

RAM-GDS-DOCK-6G15P

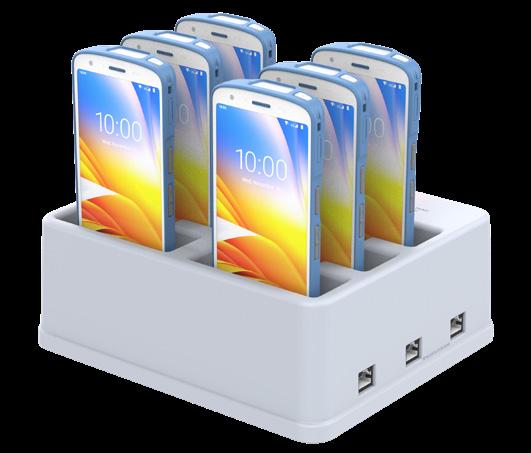

GDS® 6-Port Powered Dock for Handhelds with IntelliSkin®
For USB Type-C Dock Only

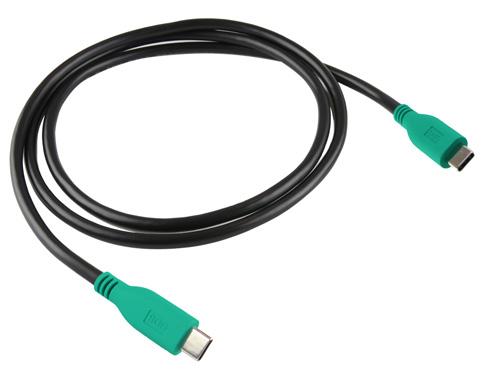

RAM-GDS-CAB-USBC-CMCM-20-10
GDS® Genuine USB Type-C 2.0 Male to Male 1M Cable
RAM-GDS-DOCK-6G15P-RJ45
GDS® 6-Port Power + RJ45 Dock for Handhelds with IntelliSkin®
For Pogo Pin Dock Only

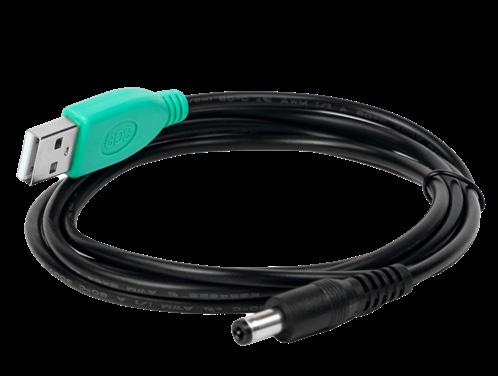

RAM-GDS-CAB-USBA-DC-1U
GDS® Genuine USB Type A with DC Cable
