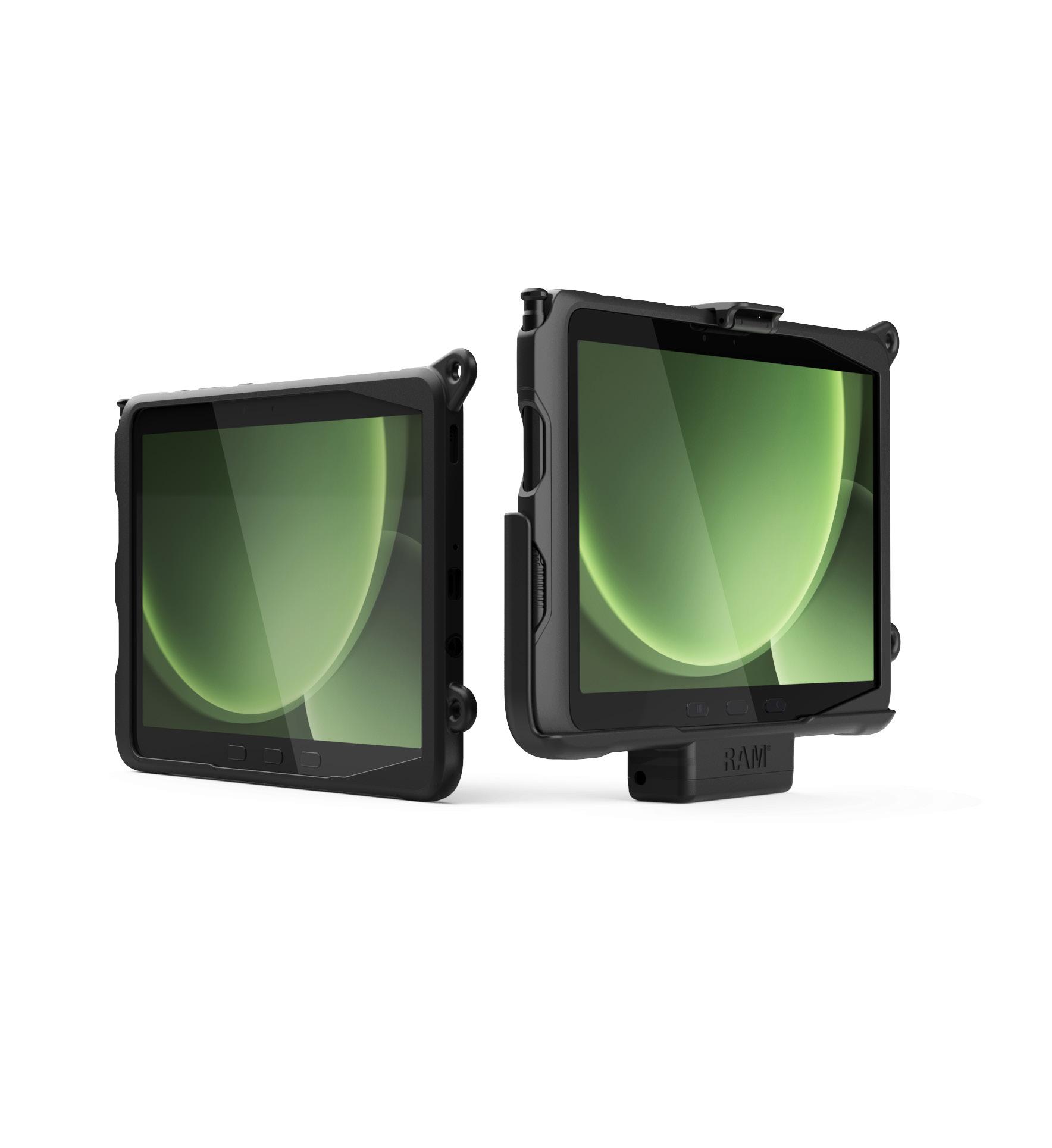

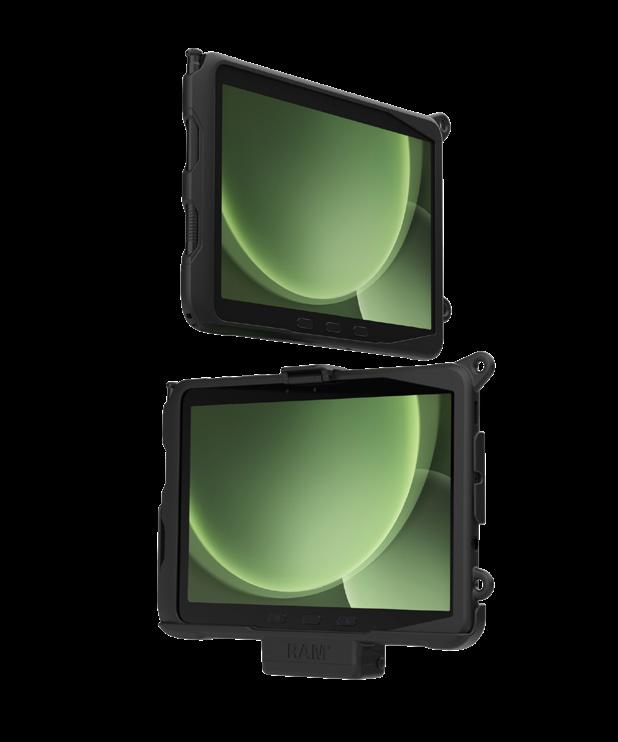

RAM® Skin™ and Powered Docks for Samsung Tab Active5 Pro OVERVIEW

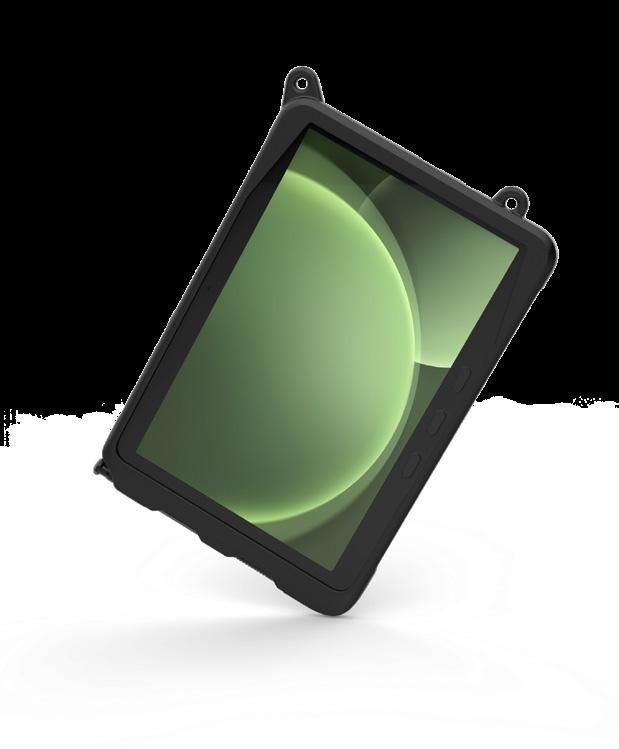

RAM-SKIN-SAM52-1*
RAM® Skin™ for Samsung Tab Active5 Pro & 4 Pro
*Backwards Compatible with Tab Active4 Pro
PRIMARY MARKETS
RAM-HOL-SAM52CP-1AU*
RAM® EZ-Roll’r™ Power & Data Dock for Tab Active5 Pro & 4 Pro
*Backwards Compatible with Tab Active4 Pro
RETAIL WAREHOUSE AND MANUFACTURING TRANSPORTATION FIELD SERVICE
Patented and Pats. Pending | rammount.com/ip
RAM® Skin™ and Powered Docks for Samsung Tab Active5 Pro
FEATURES & BENEFITS
Drop Protection
MIL-STD-810H drop test protected

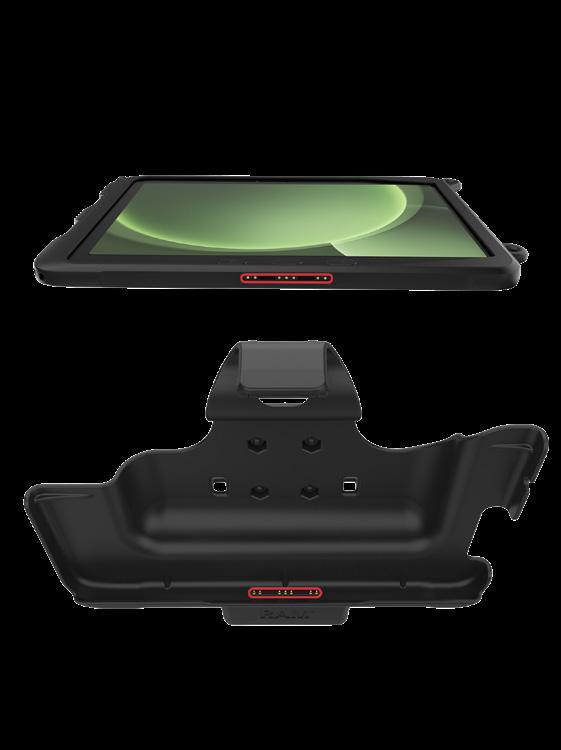

Pogo Pin Connection
RAM® powered docks feature pogo pin charging that utilize the device’s pogo pad docking contacts for an effortless, driver-centric experience.
GDS® Ergo™ Compatible
Customize your RAM® Skin™ with a range of ergonomic accessories including hand straps, shoulder straps, kickstands and grip handles.
Form-Fit
Docks are a custom form-fitting design compatible with the original device case, as well as the RAM® Skin™
RAM® Skin™ and Powered Docks for Samsung Tab Active5 Pro

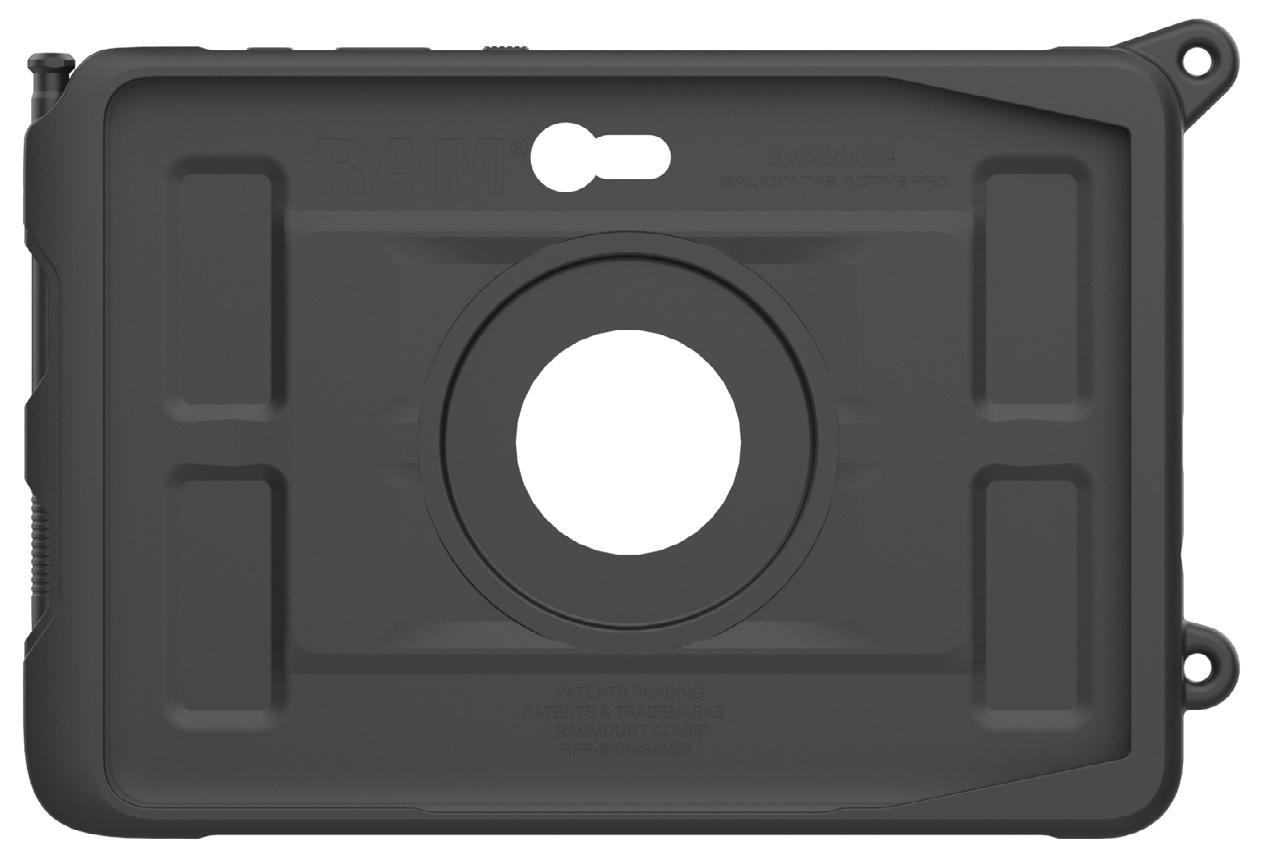

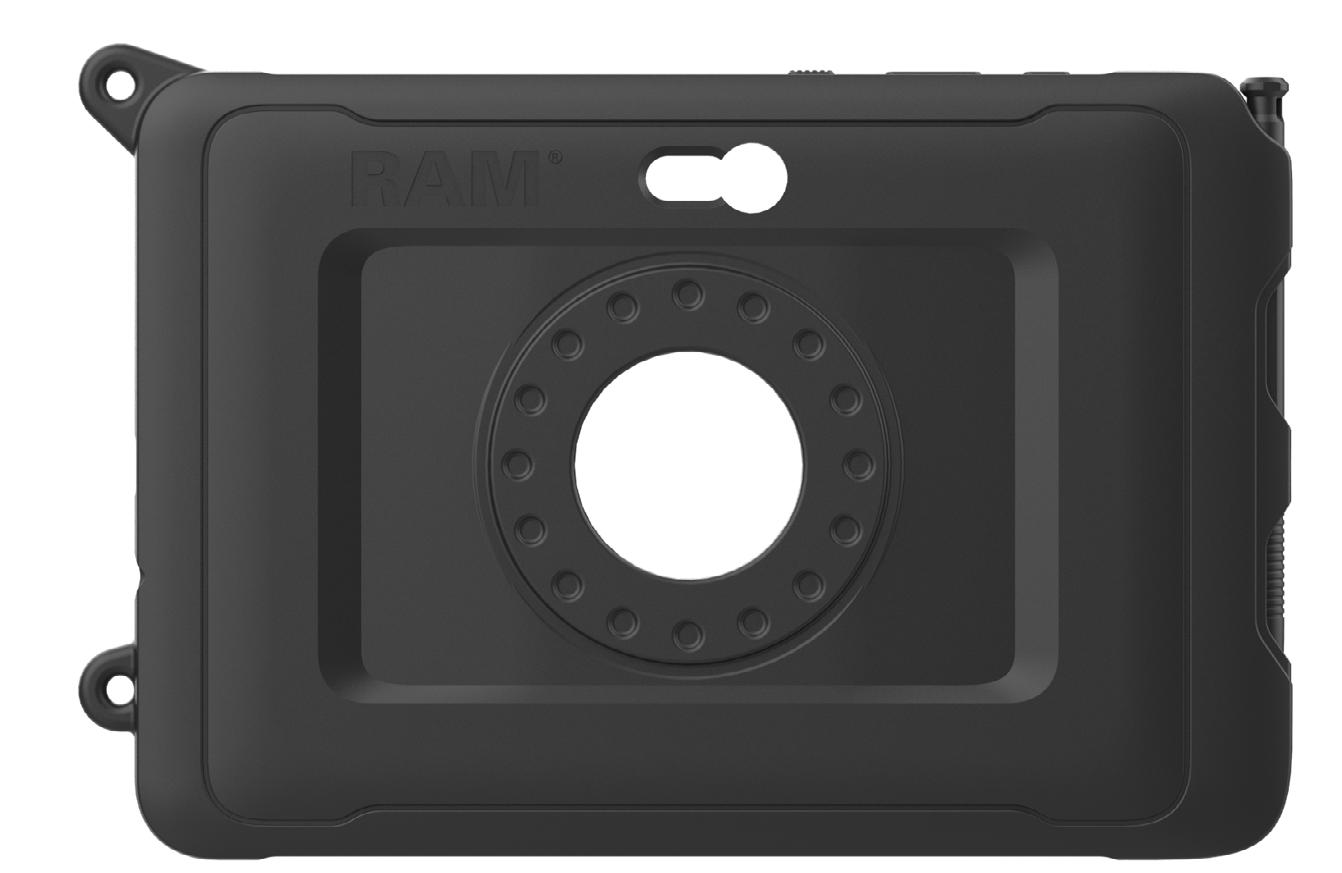

DIMENSIONS OF RAM® SKIN™
Attachment points for GDS® Shoulder Strap Hole for ergonomic accessories
Fully accessible buttons TOP BOTTOM
RAM® Skin™ and Powered Docks for Samsung Tab Active5 Pro

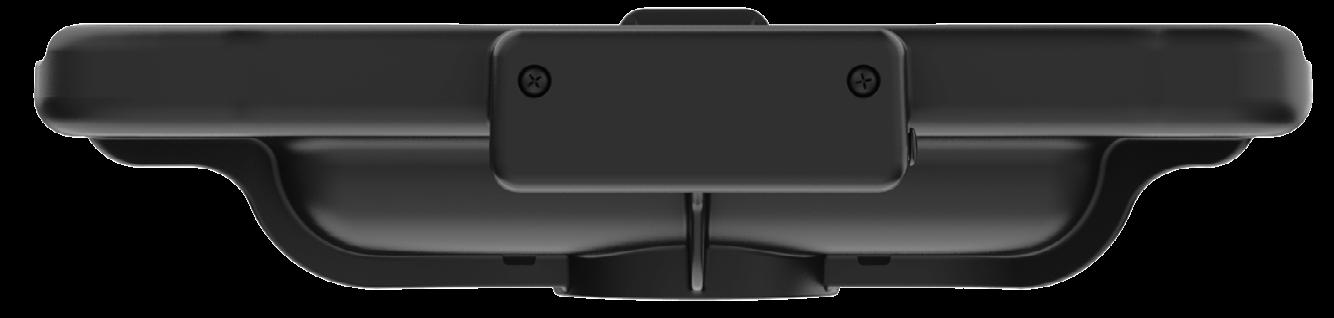

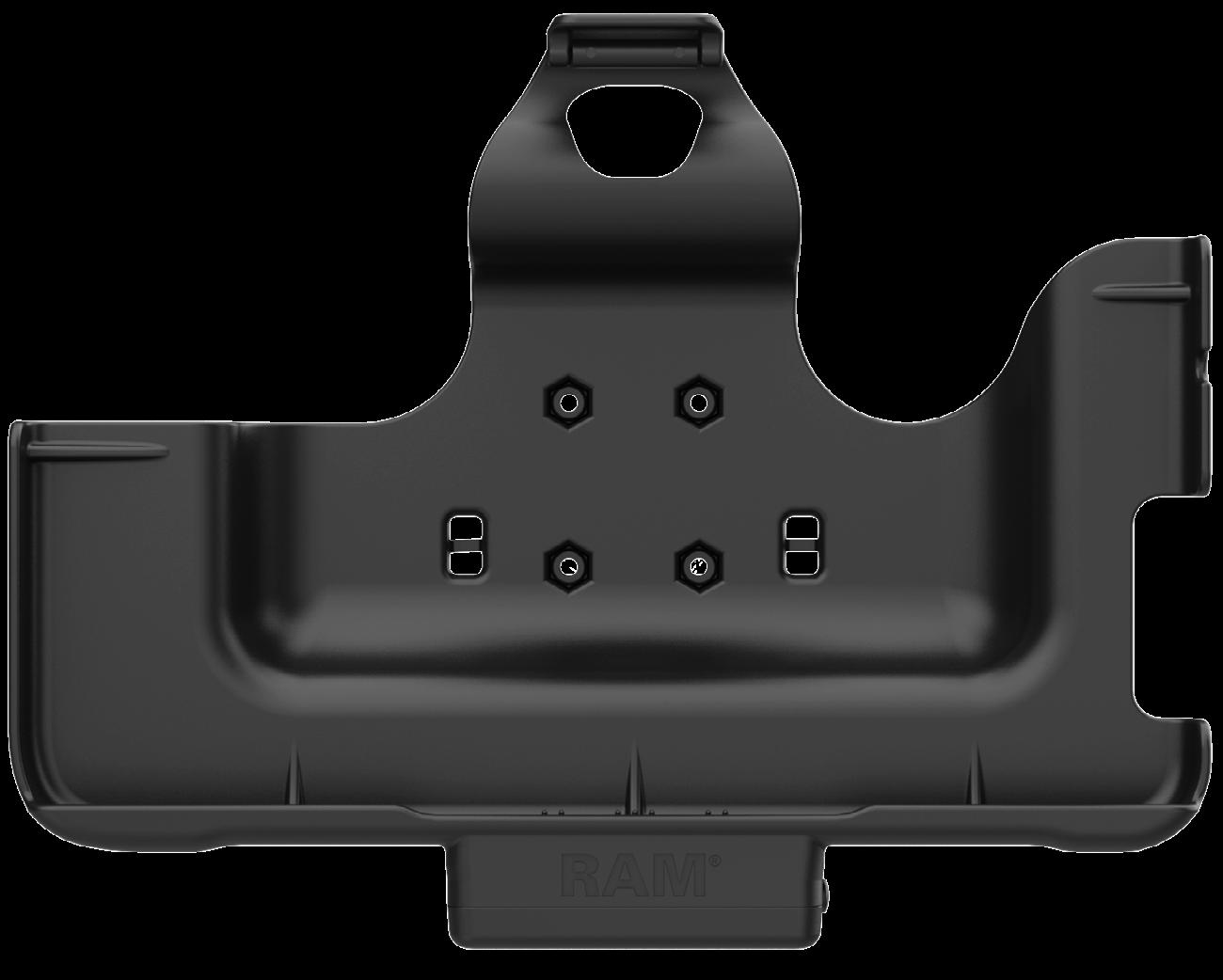

DIMENSIONS AND SPECS OF RAM® POWERED DOCK
INPUT VOLTAGE 5.3-5.4VDC
OUTPUT VOLTAGE 5VDC
TRANSFER SPEED 12Mbps POWER OUTPUT 500mA
PERIPHERAL OUTPUT
500mAh
OUTPUT CONNECTOR
USB 1.1 Type A
INPUT CABLE LENGTH 215mm
HOLE PATTERN
4-Hole AMPS: 1.181” x 1.496”
HARDWARE INCLUDED
(4) #8-32 x 5/8” Machine Screws
(4) #8-32 Nylock Nuts
(1) Cable Clamp
(2) Large Cable Ties
(5) Small Cable Ties
WARRANTY 3 years
RAM® Skin™ and Powered Docks for Samsung Tab Active5 Pro
DOCKING OPTIONS
Fixed Docks
RAM-HOL-SAM52CPU •
RAM-HOL-SAM52CP-1AU • (1) USB Type-A
RAM-HOL-SAM52PD2U • (2) USB Type-A
RAM-HOL-SAM57CPCLU • Combo
RAM-HOL-SAM57CPKLU • Key
RAM-HOL-SAM57CPKL-1AU • (1) USB Type-A Key
RAM-HOL-SAM57PD2KLU • (2) USB Type-A Key

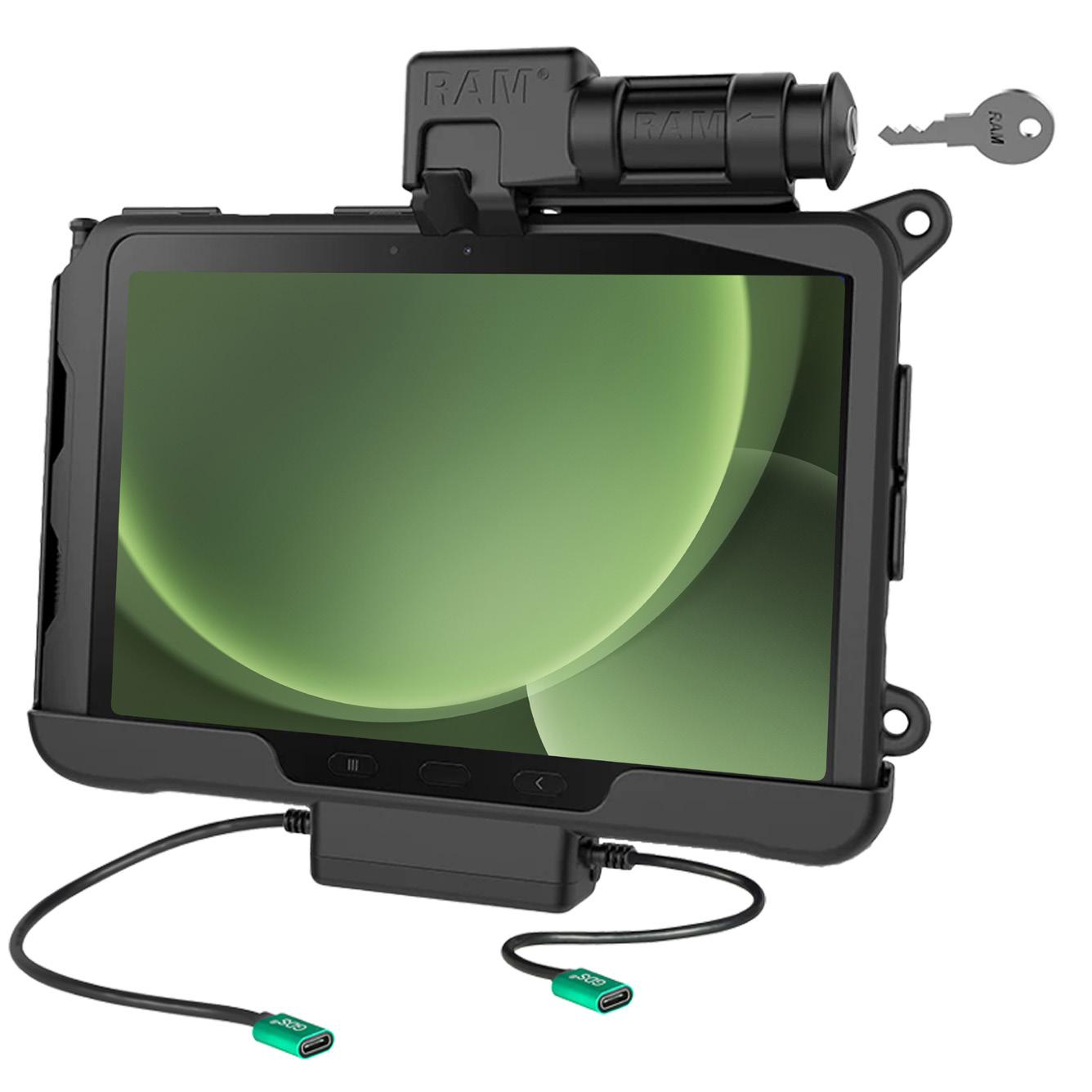

RAM-HOL-SAM57CPKL-CU • (1) USB Type-C Key
RAM-HOL-SAM57CPCL-1AU • (1) USB Type-A Combo
RAM-HOL-SAM57PD2CLU • (2) USB Type-A Combo
RAM-HOL-SAM57CPKL-CAU • (2) USB Type-A Lock
Patented and Pats. Pending | rammount.com/ip
RAM® Skin™ and Powered Docks for Samsung Tab Active5 Pro
COMPATIBLE ACCESSORIES
ERGONOMIC ACCESSORIES

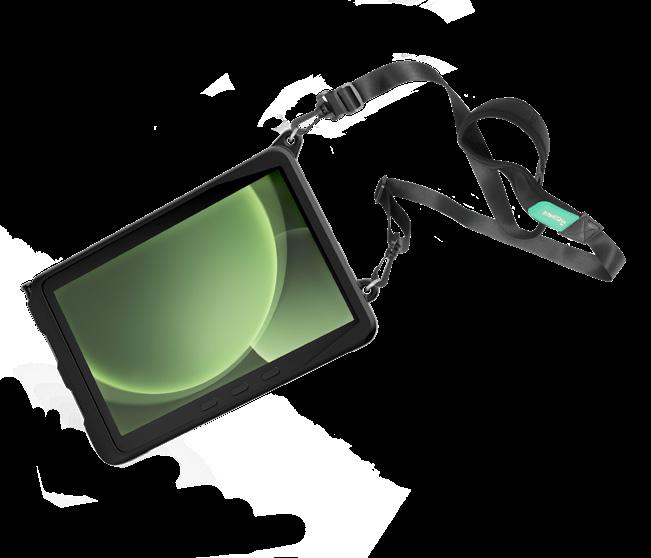

RAM-GDS-SS1U
GDS® Shoulder Strap Accessory

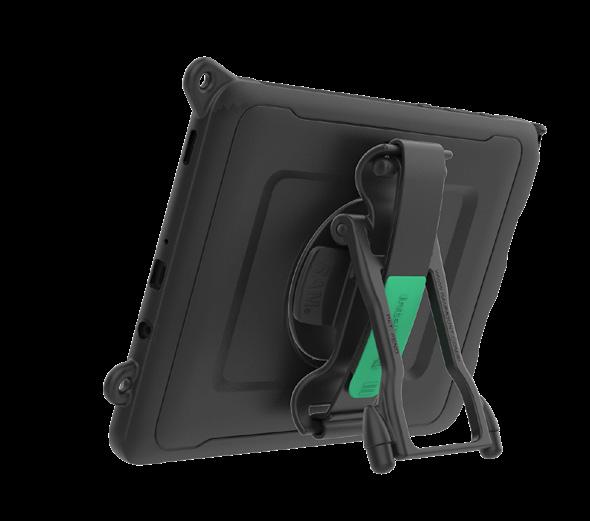

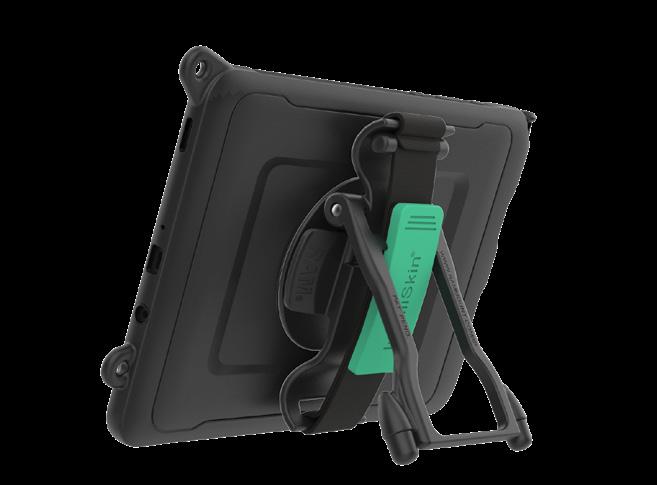

RAM-GDS-HS1U
GDS® Hand-Stand™ Hand Strap and Kickstand for Tablets

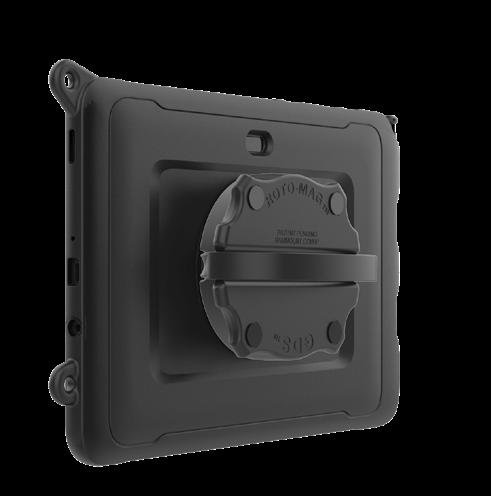

RAM-GDS-ROTO2U
GDS® Roto-Mag™ 3-in-1 Accessory with Grip Handle, Hand Strap & Magnets
6-PORT DOCK

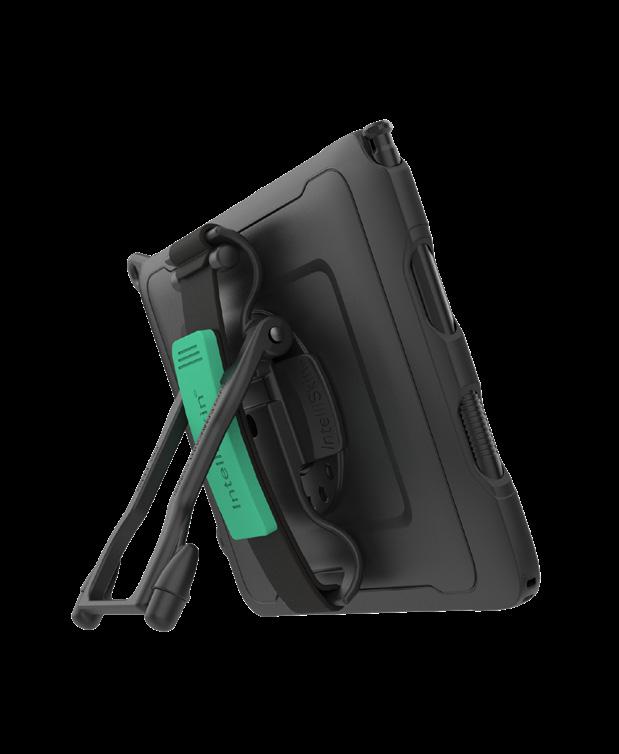

RAM-GDS-HS1MU
GDS® Hand-Stand™ Magnetic Hand Strap and Kickstand for Tablets

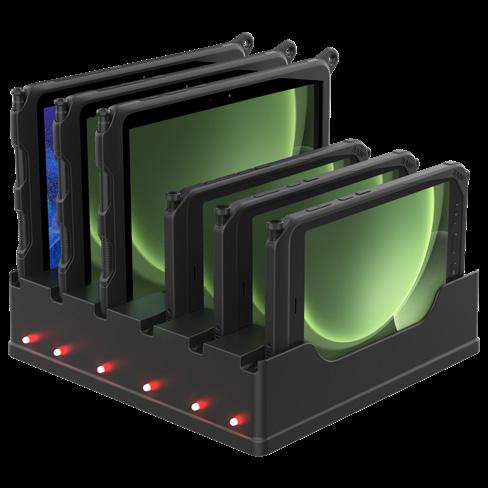

RAM-DOCK-6G8PU
RAM® 6-Port Dock for Samsung Tab Active5 Pro, 4 Pro, Tab Active5 & 3
Patented and Pats. Pending | rammount.com/ip
RAM® Skin™ and Powered Docks for Samsung Tab Active5 Pro
COMPATIBLE MOUNTS

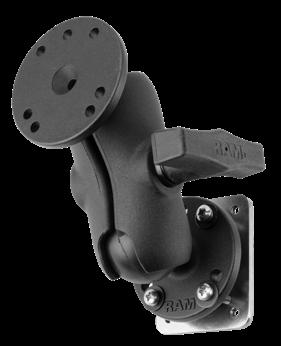

RAM-101U
RAM® Double Ball Mount with Two Round Plates
RAM-101-B-225B2U
RAM® Drill-Down Dashboard Mount with Backing Plate

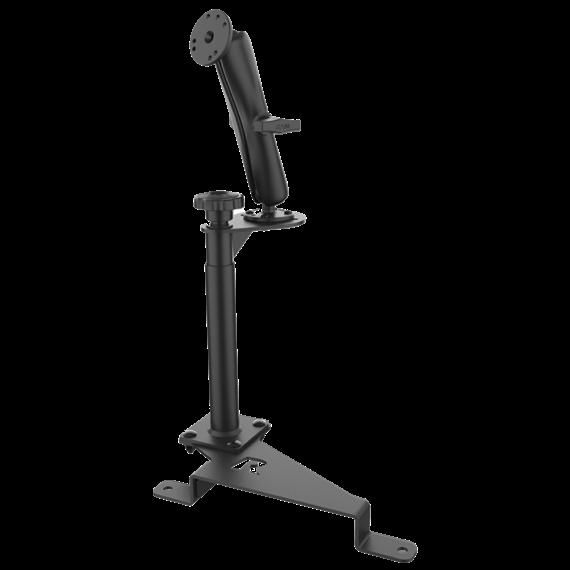

RAM-VB-196-SW2
RAM® No-Drill™ Universal Vehicle Floor Mount
RAM-VB-195-DB2
RAM® No-Drill™ Ball Mount for ‘15-25 Ford F-150, ’17-25 F-250 + More

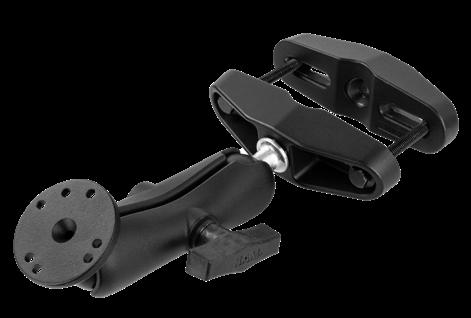

RAM-101U-247
RAM® Universal Post Clamp Mount with Round Plate

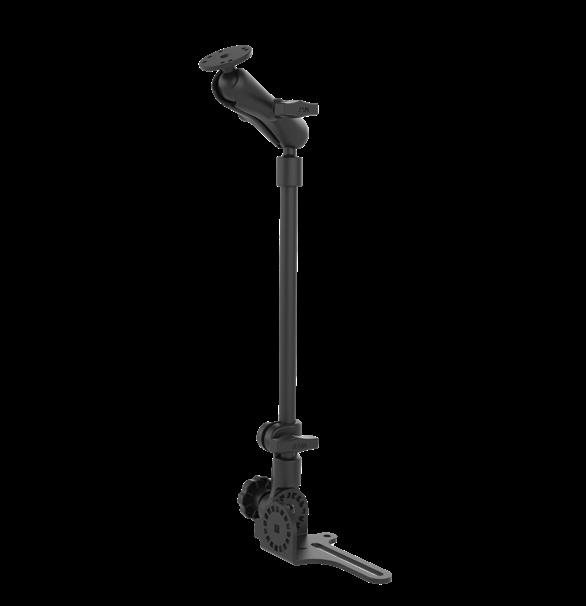

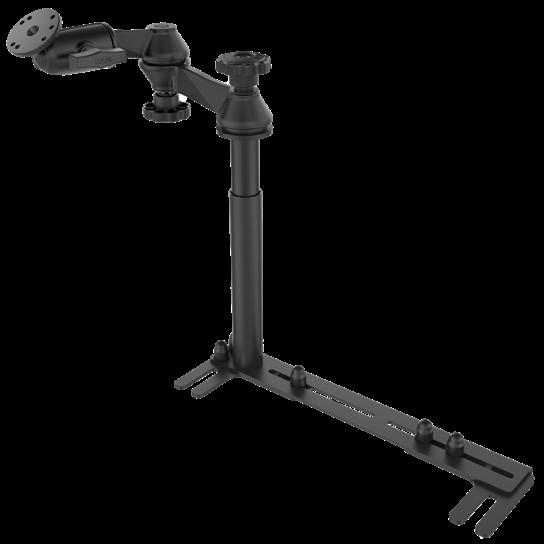

RAM-316-HD-18-202U
RAM® Pod HD™ 30” Vehicle Mount with Round Plate
