Buyer's Guide: RAM® EZ-Roll’r™ Dock for Sonim XP Pro

Page 1


AVAILABLE SKUS

RAM-HOL-SNM5U

Non-Powered Cradle

RAM-HOL-SNM5LU

Locking Non-Powered Cradle

RAM-HOL-SNM5PU

Powered Dock

RAM-HOL-SNM5PLU

Locking Powered Dock

RAM-138-S-SNM5PL-V7B1U

Speaker & Hardwire Bundle

PRIMARY MARKETS

RAM® EZ-Roll’r™ Dock for Sonim XP Pro & XP Pro Thermal

OVERVIEW

RAM® EZ-Roll’r™ Dock for Sonim XP Pro & XP Pro Thermal

FEATURES & BENEFITS

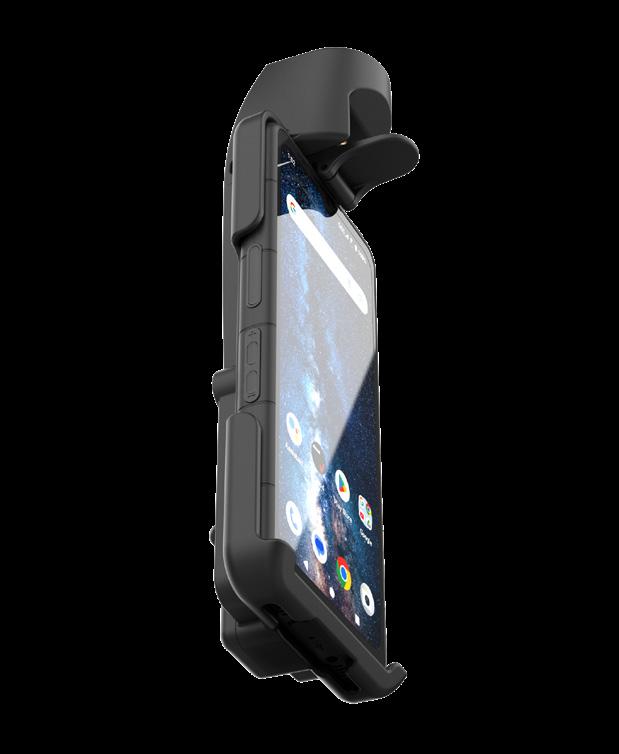

Form-fitting design

RAM® EZ-Roll’r™ style form-fit cradle allows for single-handed operation while perfectly securing the Sonim XP Pro.

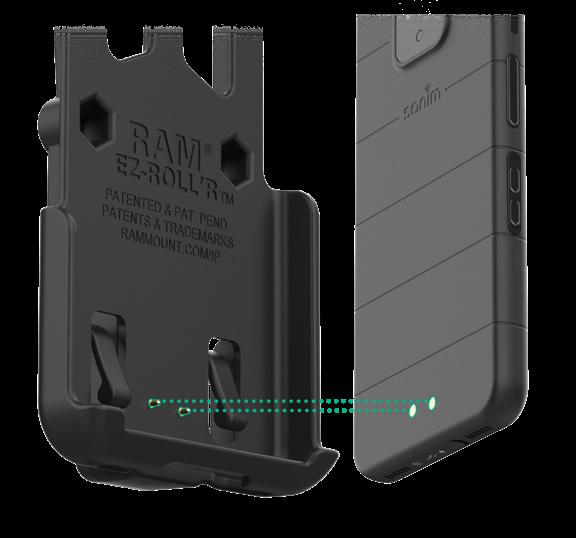

Seamless Charging Experience

Integrated docking contacts match Sonim’s charging pins for a fumble-free charging experience while protecting ports—simply dock the XP Pro to begin charging.

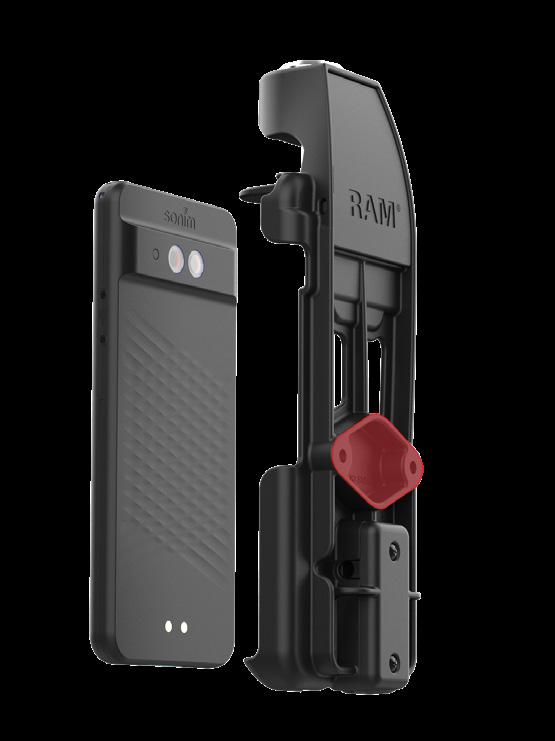

Key Locking

Keyed lock integrated into the top of the dock to secure the XP Pro.

Modular mounting with RAM® compatibility

2-hole AMPS hole pattern on back of dock for attaching any B or C size RAM® double ball.

RAM® EZ-Roll’r™ Dock for Sonim XP Pro

& XP Pro Thermal

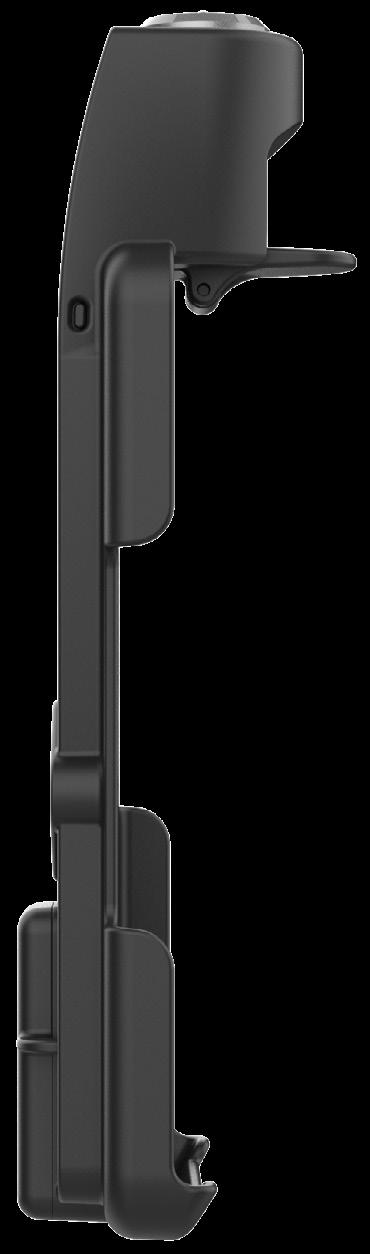

DIMENSIONS

COMPATIBLE CHARGERS

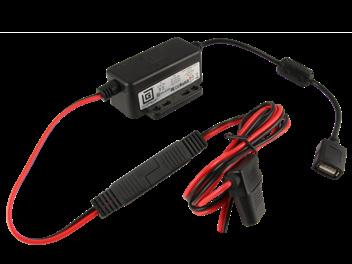

RAM-GDS-CHARGE-V7B1U

GDS® Modular Hardwire Charger with Female USB Type-A Connector

RAM-GDS-CHARGE-PPS-CIGC

GDS® 2-Port USB Car Charger

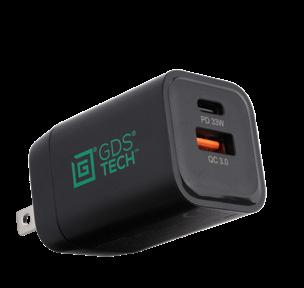

RAM-GDS-CHARGE-PPS-C2W

GDS® Dual Port Wall Charger

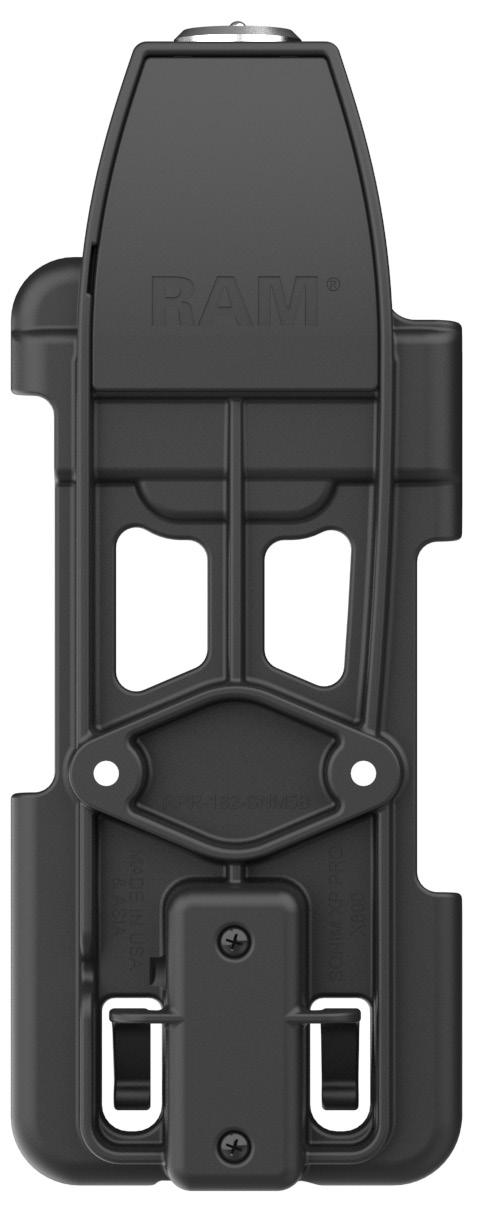

Dock

Hole Pattern

2-Hole AMPS: 1.912”

Material

High-strength composite

Holder Type

Spring-loaded

Input Connector

Powered Versions

USB-A Male; 1.25-meter cable length

Input Voltage

Powered Versions

5V @ 2A

Weight

Powered Locking Version

10.18 ounces (289 grams)

Hardware included

(2) #8-32 x ½” Machine Screws

(2) #8-32 x 5/8” Machine Screws

(2) #8-32 x ¾” Machine Screws

(2) #8-32 x Nylock Nuts

RAM® EZ-Roll’r™ Dock for Sonim XP Pro & XP Pro Thermal

DOUBLE BALL MOUNTS

STATIONARY

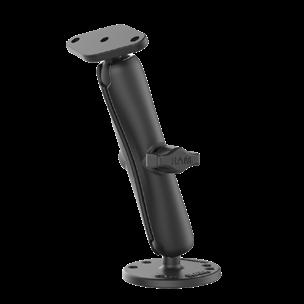

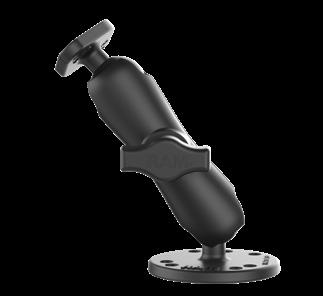

RAM-B-138U Drill-Down Mount – Medium Arm

IN-VEHICLE

RAM-B-166U Twist-Lock™ Suction Cup Mount

BASES & ACCESSORIES

RAM-202-225-2U

Drill-Down Ball Base with Backing Plate

RAM-B-138U-C Drill-Down Mount – Long Arm

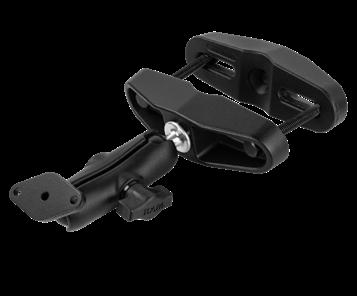

RAM-B-149ZU-A U-Bolt Mount

RAP-B-378-238U Flex Adhesive Mount

RAP-B-299-4-238U Stubby™ Cup Holder Mount

RAP-B-400-238U Tough-Claw™ Clamp Mount

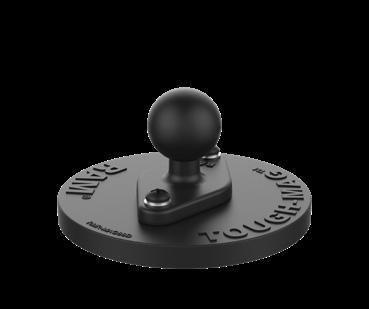

RAM-B-238-MAG88U Tough-Mag™ 88mm Magnetic Base

RAP-B-404U Tough-Claw™ Medium Clamp Base

RAM-B-102U-247U Forklift Post Mount

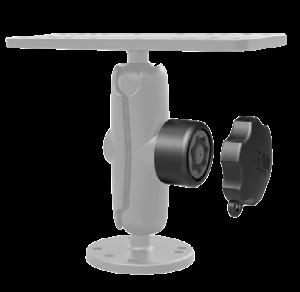

RAP-S-KNOB3U

Pin-Lock™ Security Knob

Patented and Pats. Pending | rammount.com/ip

RAM® EZ-Roll’r™ Dock for Sonim XP Pro & XP Pro Thermal

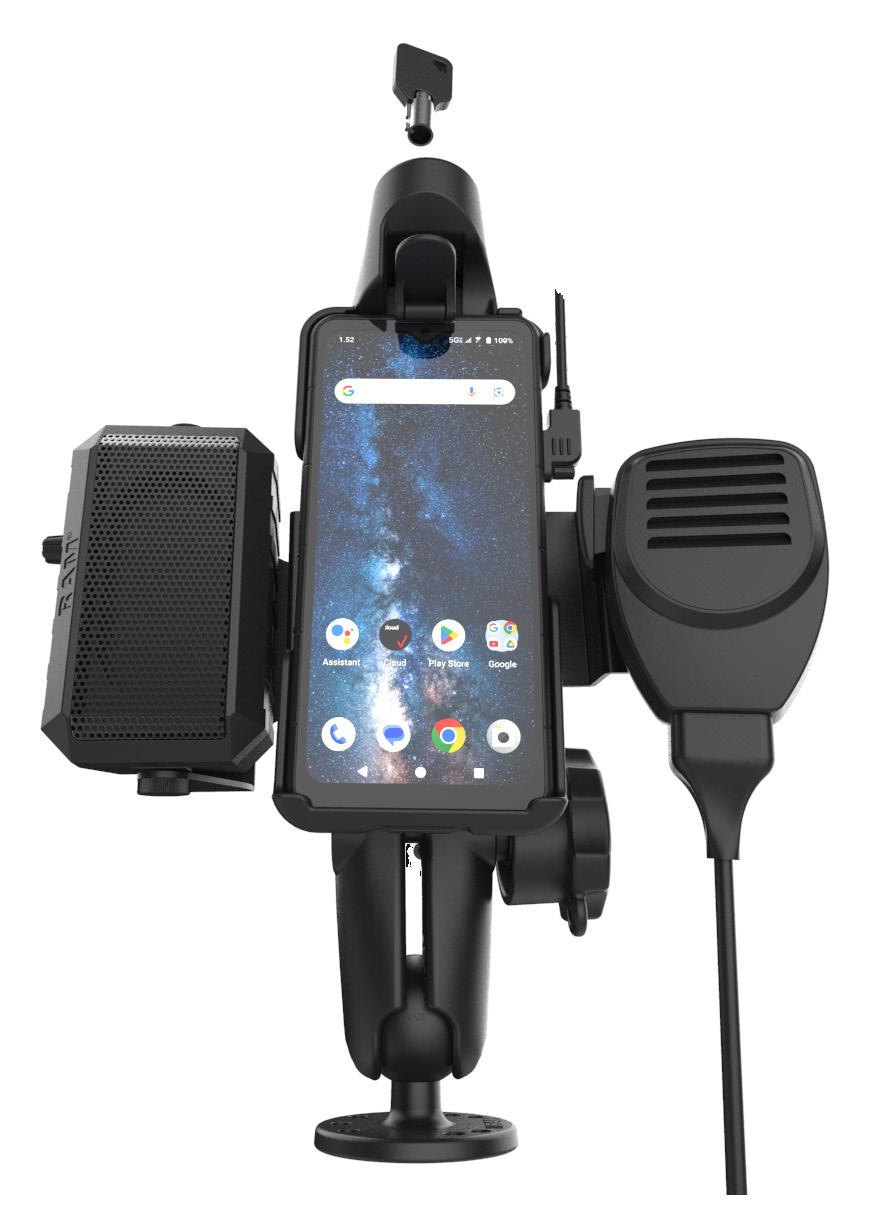

PUSH-TO-TALK BUNDLE

Theft Deterrence

Keyed lock integrated into the top of the dock to secure the XP Pro as well as a RAM® Pin-Lock™ knob securing the mount itself.

Amplified Audio

Bundle includes a 3.5mm audio connector for the XP Pro

SecureAudio platform amplifying audio and eliminating audio transmission through external GDS® Audio™ speaker.

Turnkey Push-To-Talk Bundle

Includes all-in-one PTT kit; powered locking dock, speaker, microphone, hardwire charger, and mounting bracket.

Dock

Specifications

Speaker Specs

Adjustable volume knob

Max volume level: 100dB

8Ω / 10W rated speaker

Socket-To-Socket Length

4.6”

Mounting Plate Size

2.5” Diameter

Materials Used

Marine-Grade Aluminum

High Strength Composite Powder-Coated Steel

Input Voltage

10V-30V DC

Output Voltage / Current

5-9VDC @ 2.5A Max

Operating Temperature

-10°C to +70°C

Storage Temperature

-40°C to +70°C

Hardware included

(2) Keys for Holder

(1) Key for Locking Knob (1) USB-C to 3.5

Audio Adapter Cable (1) Modular Hardwire Charger

Compliance

Over Voltage Protection

Short Circuit Protection

Reverse Polarity Protection

RoHS Compliance

WEEE Compliance

SAE J-1113-5 Load Dump (Transient Voltage)

Moisture Resistant

Warranty Status

Lifetime for RAM® Components Three-year for Powered Components

Patented and Pats. Pending | rammount.com/ip
