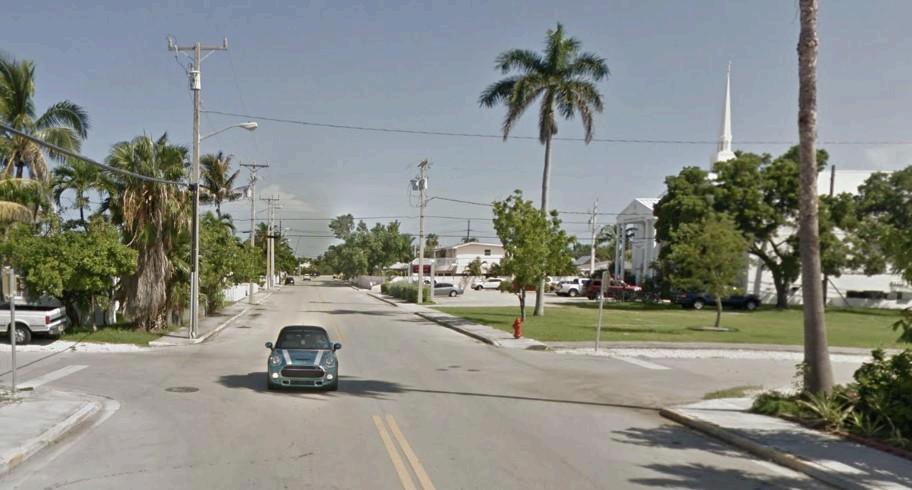

Presence of Sidewalks

● Sidewalks are present, promoting pedestrian access to the facility. This is crucial for accessibility, particularly of the new project.

● Bike paths are also accessible

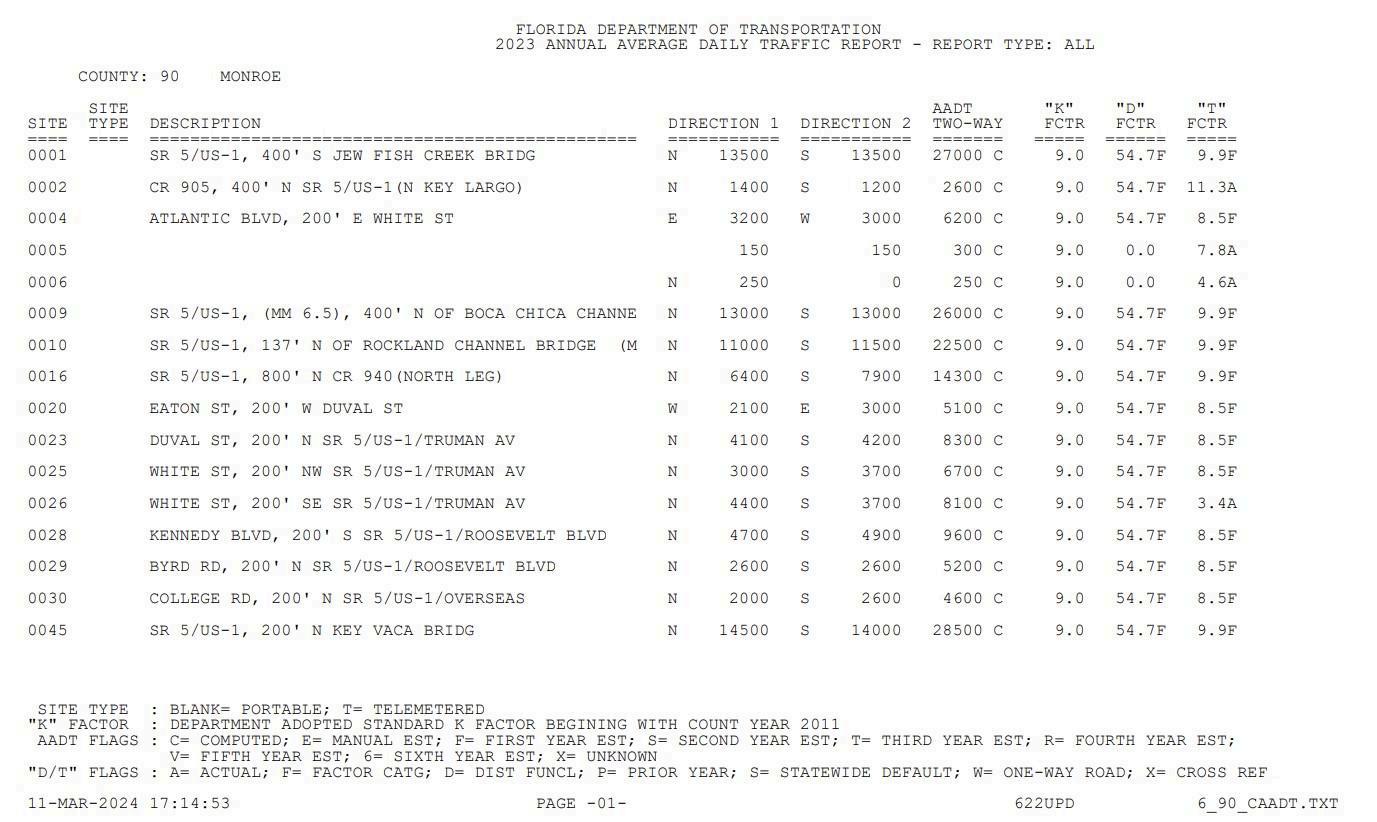

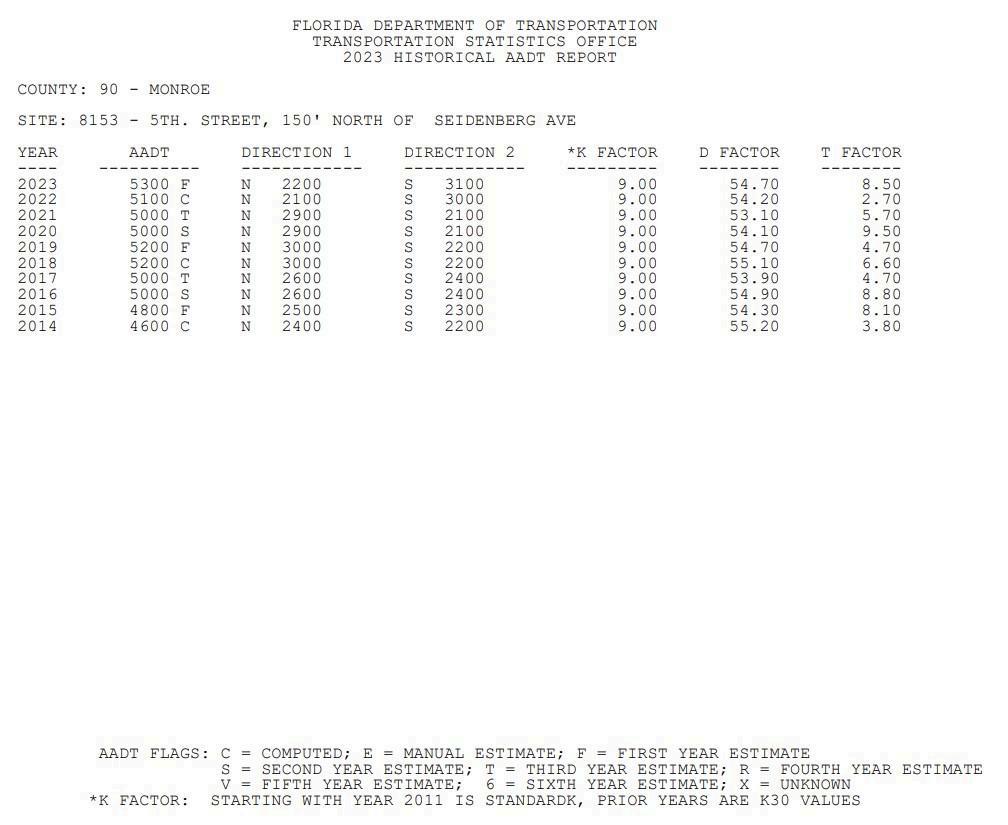

Traffic Counts

Traffic data from local transportation departments would be necessary to assess peak traffic times and potential congestion This data helps in planning access points and parking for the project.

Process for Zoning Classification Change

Zoning change is necessary in this site to support the new development since it is in a SF zone classification. Here are the steps:

● Step 1: Submit a zoning change application to the local planning department

● Step 2: Attend public hearings and gather community input.

● Step 3: Review by the planning commission, which will make recommendations.

● Step 4: City council approval, which may involve further public meetings

● Step 5: Implement zoning change, followed by site plan approval.

Design Brief for Proposed Development in Key West, FL

Project Name: Key West Health and Urgent Care Center

Location: 2301 Harris Ave, Key West, FL 33040

Project Type: Commercial Development

Justification for Location

1 Elderly Population: Key West has a significant population of snowbirds, retirees and elderly residents who may require more frequent medical attention A Health and urgent care facility can cater to their needs for minor injuries, illnesses, and routine health issues. Monroe County, Florida - Census Bureau Profile

2. Proximity to Residential Areas: The site's location near residential neighborhoods ensures easy access for the local population, making it convenient for community members to utilize the health and urgent care services.

3. Convenience and Accessibility: Providing a convenient healthcare option for residents and visitors enhances the overall quality of life and ensures that medical care is accessible when needed.

4. Adjacent Baptist Church: The proximity to a church enhances the community aspect of the development, potentially allowing for partnerships in community health initiatives and events.

5. Weather-Related Incidents: The region is prone to hurricanes and severe weather conditions An urgent care facility can provide necessary medical attention during and after such events when hospitals might be overwhelmed or inaccessible.

Key Features and Design Consideration

● Preventive Health Services

○ Health Screenings: Blood pressure, cholesterol, diabetes, and cancer screenings.

● Expanded urgent care facility and additional medical services

○ Services: General urgent care, minor emergency services, diagnostic imaging, and laboratory services.

○ Design Considerations: Modern medical equipment, efficient patient flow, and a welcoming environment

● Accessibility and Inclusivity

○ ADA Compliance: Ensuring the facility is accessible to individuals with disabilities.

○ Culturally Sensitive Care: Providing care that respects and accommodates cultural differences

● Green spaces and Garden

○ Features: Rain gardens, walking paths, and relaxation areas.

○ Design Considerations: Native vegetation for bioswales and shaded seating areas

Resilience and Sustainability Considerations

Flood-Resistant Design

● Elevated building structures above the base flood elevation (BFE)

● Flood barriers and waterproofing measures

Stormwater Management

● Green infrastructure (rain gardens, bioswales)

● Permeable pavements

Energy Efficiency

● Solar panels and renewable energy sources (optional)

● High-efficiency HVAC systems (ERV for rooms that have non operable windows)

● Passive solar design and natural ventilation

Heat Mitigation

● Reflective and cool roofing materials

● Shaded walkways and outdoor areas

● Increased green spaces and urban greening

Wind-Resistant Construction

● Reinforced concrete and steel framing

● Impact-resistant windows and doors

Backup Power Systems

● Generators and battery storage integrated with renewable energy systems

Conclusion

The Key West Health and Urgent Care Center at 2301 Harris Ave is a strategically justified and thoughtfully designed development that addresses critical community health needs while ensuring resilience against climate change impacts. By expanding healthcare services and incorporating additional medical services and green spaces, this project will significantly benefit the local population, enhance the area ' s sustainability, and contribute to the overall well-being of Key West residents.

References and Tools

For site and surrounding area analysis

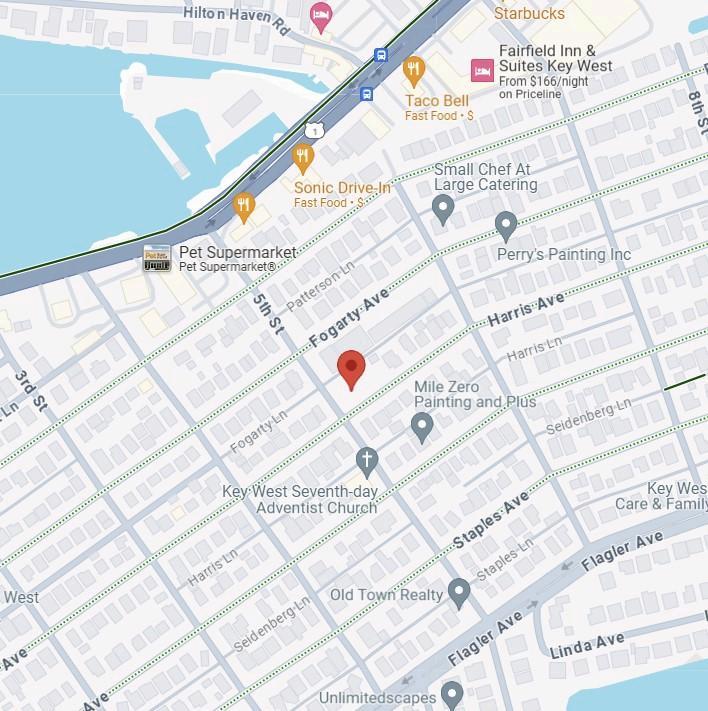

● Google Earth

● Google Maps and Street View

● Buses | Key West Travel Guide - Visitor Information for Key West, FL in the Florida Keys

● Florida Traffic Online (state.fl.us)

● Traffic Data (state.fl.us)

● Traffic Data (state.fl.us)

For zoning and topographic data

● Key West Land Use - Public (arcgis.com)

For zoning and development guidelines

● https://library municode com/fl/key west/codes/comprehensive plan

For demographic information.

● Monroe County, Florida - Census Bureau Profile

For climate impact projections.

● AirNow.gov

● FEMA Flood Map Service Center (MSC)

● CMRA - Climate Mapping For Resilience and Adaptation (arcgis.com)
