Driven by a passion for Architecture and Interior Design, an enthusiastic and creative individual, seeking new opportunities and experiences in unfolding spaces through design.
I believe great designs are the result of collaborative work combined with passionate, innovative and sensative values that transforms a place into a unique solution that responds to human needs.
I am looking forward to experience the work environment and gain practical knowledge to excel in a fruitful manner.
PROFILE G. RAKSHINI
EDUCATION
B. Arch (2018 - 2023)
RVS Padmavathy School of Architecture
No.490, GNT Rd, Kannappasamy Nagar, Puzhal, Chennai 600066
Cgpa - 8.42
High School (2016 - 2018)
Daniel Thomas Mat. Hr. Sec. School
State Board, 10+2 passed with 89%
Secondary School (2012 - 2016)
LM Dadha Sr. Sec. School
CBSE Board, 10th passed with 88%
CERTIFICATE
3 Days workshop on Revit
Bimlabs Engineering Services Private Limited
INSDAG Competition
Live Project - Vivartana
DESIGN COMPETITION
Vivartana School Design Competition, Billabong High School
School Campus Design Competition
Insdag
CO - CURRICULAR
Brick Workshop
Ar. Himanshu Patel, Ahmedabad
BIM Workshop
Bimlabs Engineering Services Pvt Ltd
Rapid Studio on Urban Design
Sushant University
Igbc Certification Course
ArcGIS Workshop
Design Live Project
Vivartana
Mud Workshop
Ar. Prabhakar, RVS Padmavathy
School of Architecture
Bamboo Workshop
Ar. Prabhakar, RVS Padmavathy
School of Architecture
TECHNICAL SKILLS
Autocad Sketchup Photoshop Indesign Lumion Enscape V-Ray Revit Microsoft Office
“As an architect, you design for the present, with an awareness of the past for a future which is essentially unknown”
- Norman Foster
01 02 03 04 Thesis 01 - 12 13 - 22 23 - 36 37 - 44 Architectural detail Drawing Internship Interior Design | CONTENTS

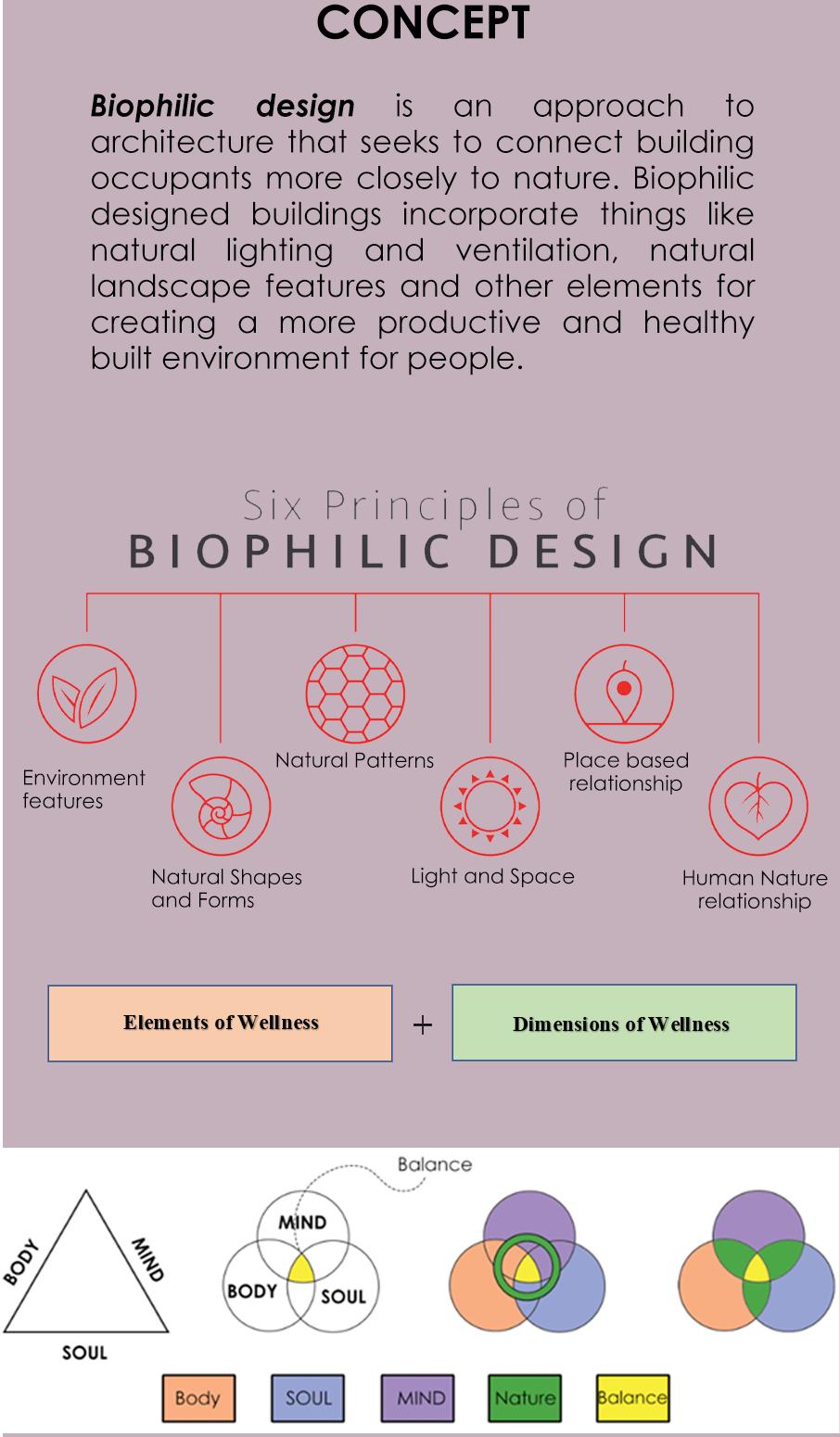

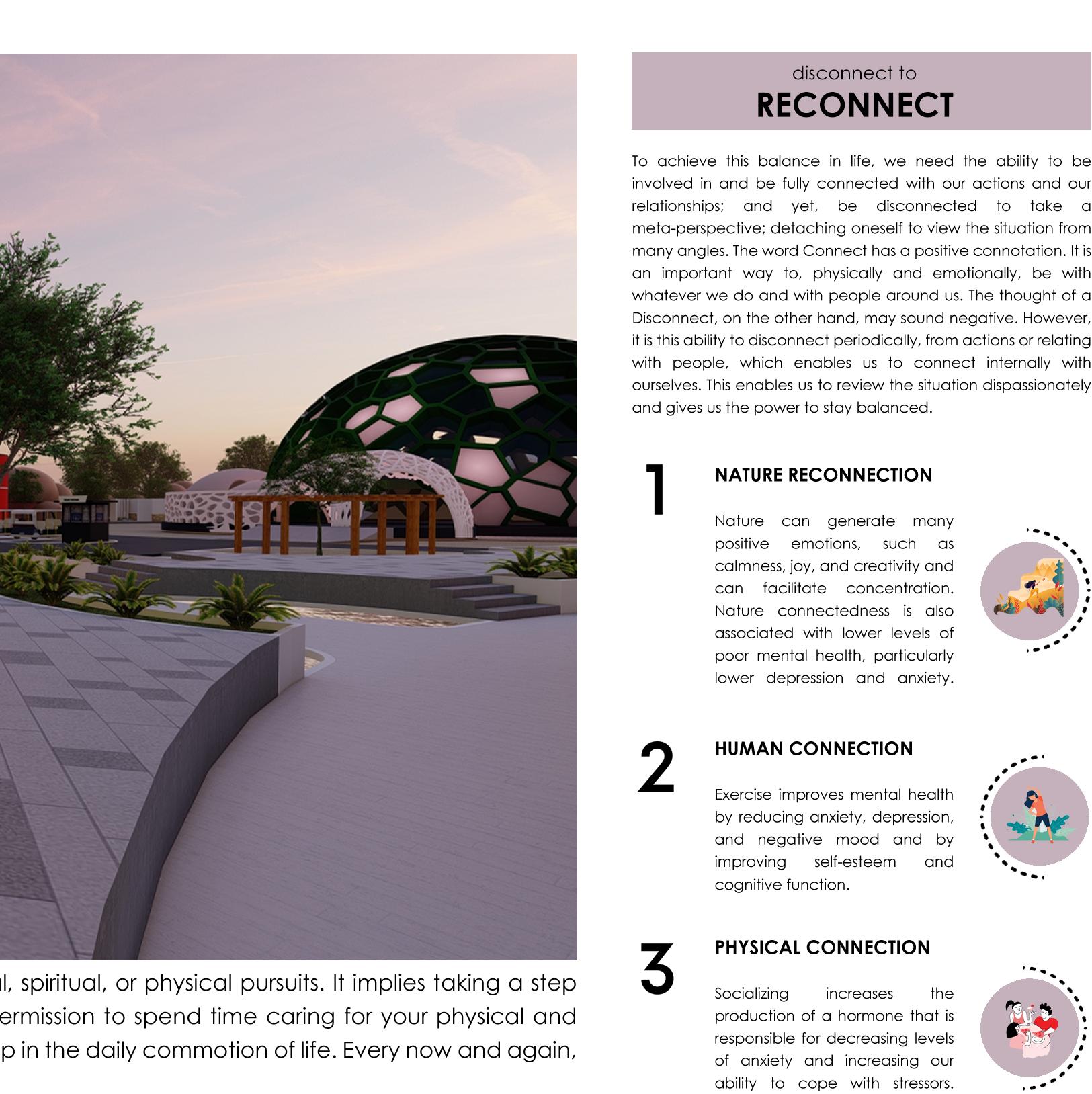

02
Ramp Ramp
6. Open Plaza
7. Restaurant
8. Panchatatva Garden
9. Children’s Park
10. Fitness Studio
11. Gym
12. Meditation Hall
13. Spa and Therapy
14. Coliving Space
15. Staff Residence
1. Reception
2. Coworking Space
3. Workshop
4. Library

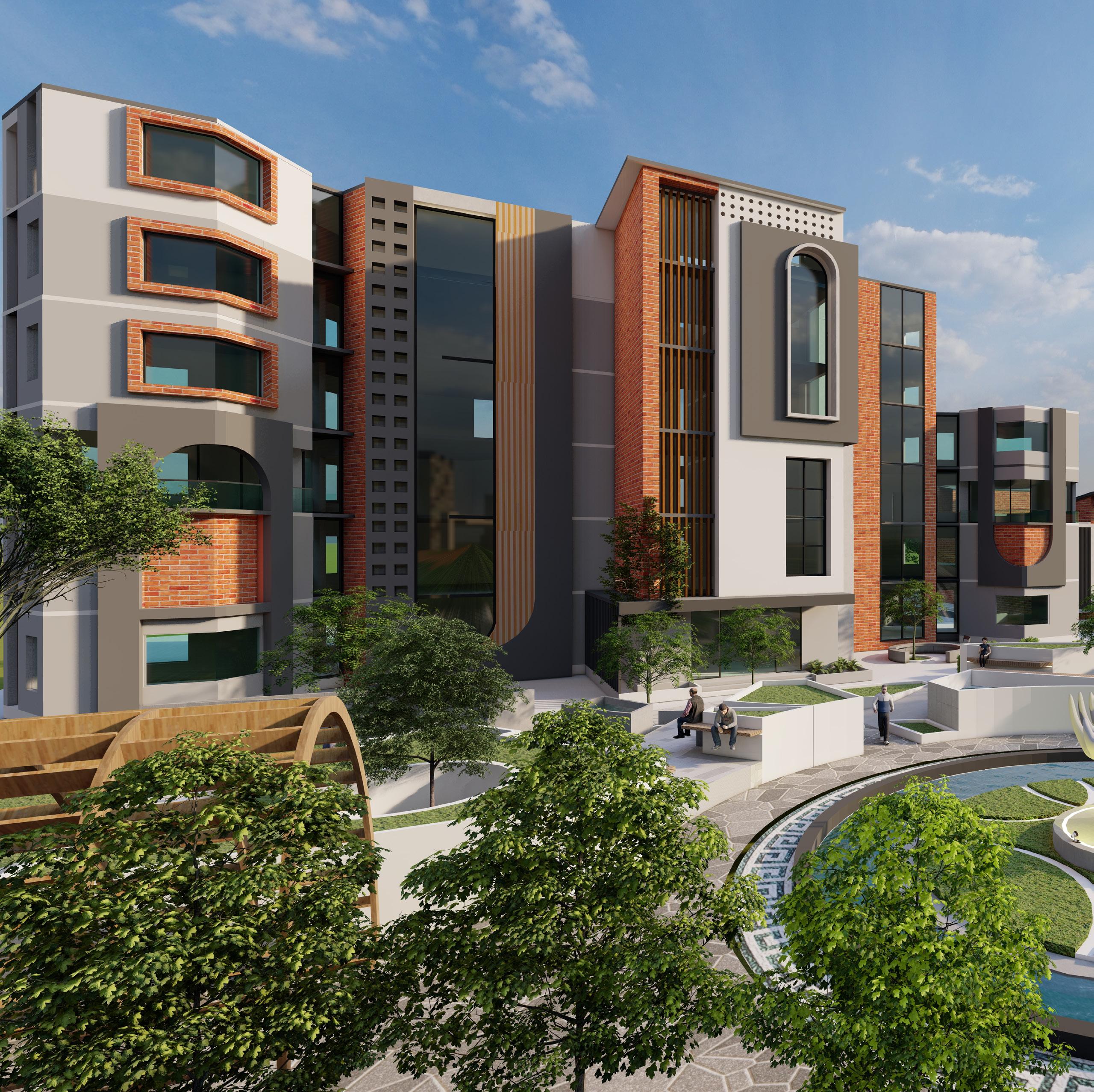

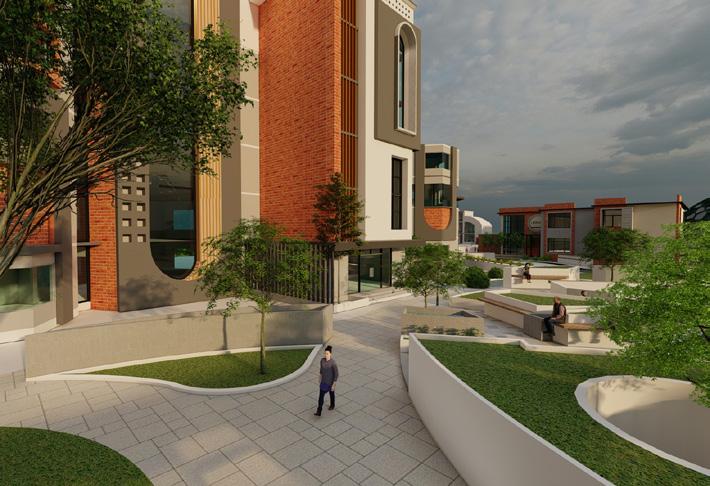

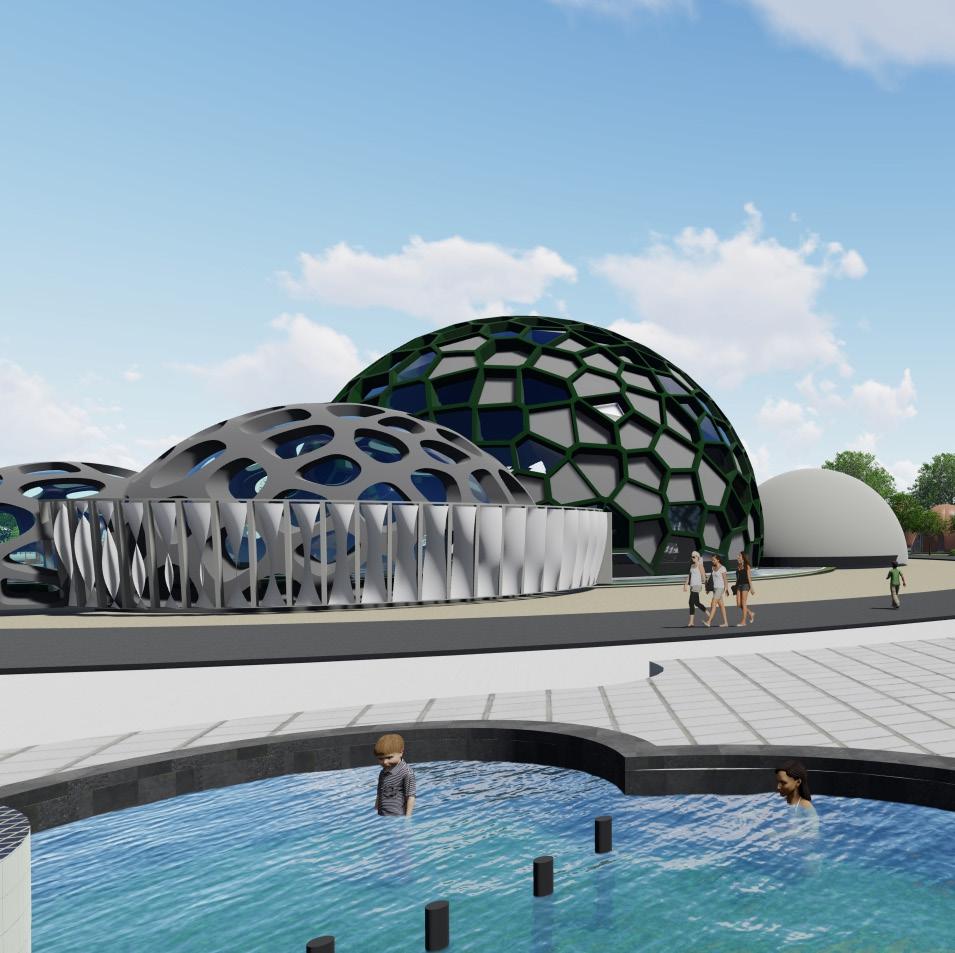

MASTERPLAN 04
5. Admin Block

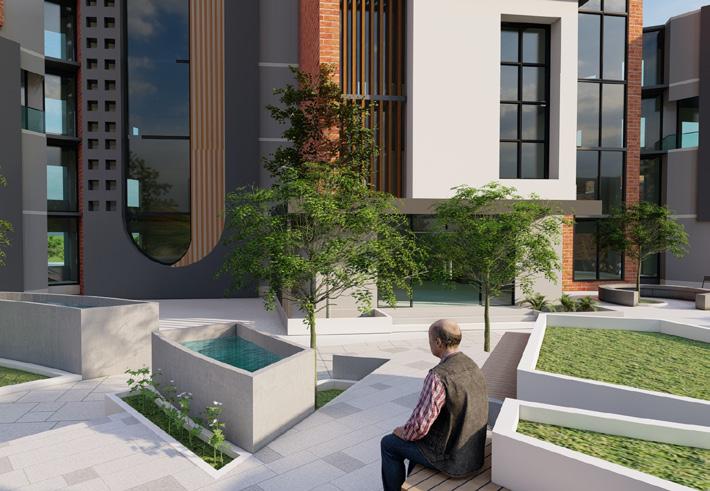

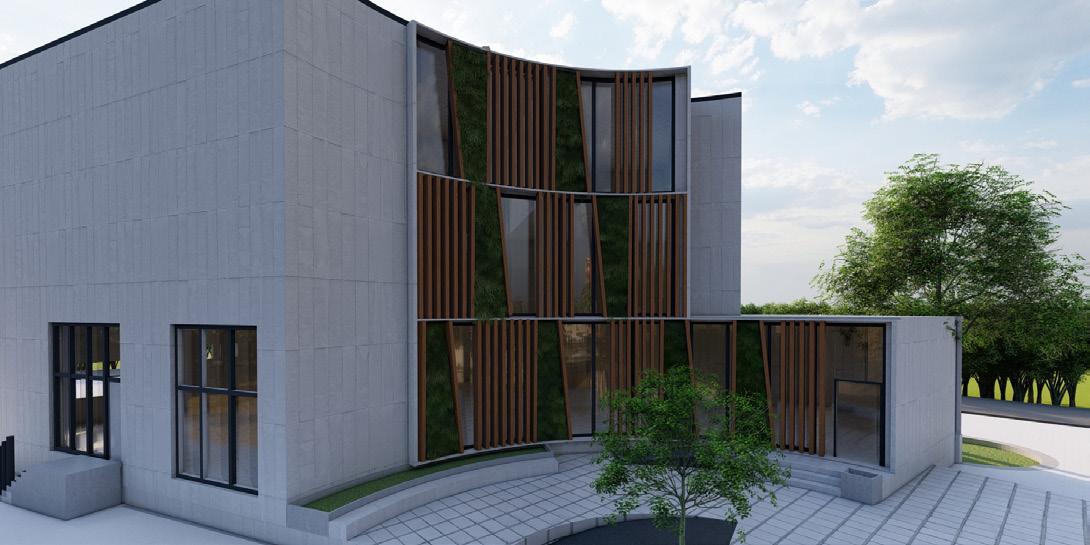

COWORKING SPACE
Coworking spaces are collaboration hubs, or social spaces where workers from different backgrounds can come together to share their expertise, work, and explore new ideas. Working in collaborative space with other ex-perts can lessen feelings of loneliness and foster social connection. This can have a good impact on mental health by offering a sense of community and lowering feelings of loneliness.
06

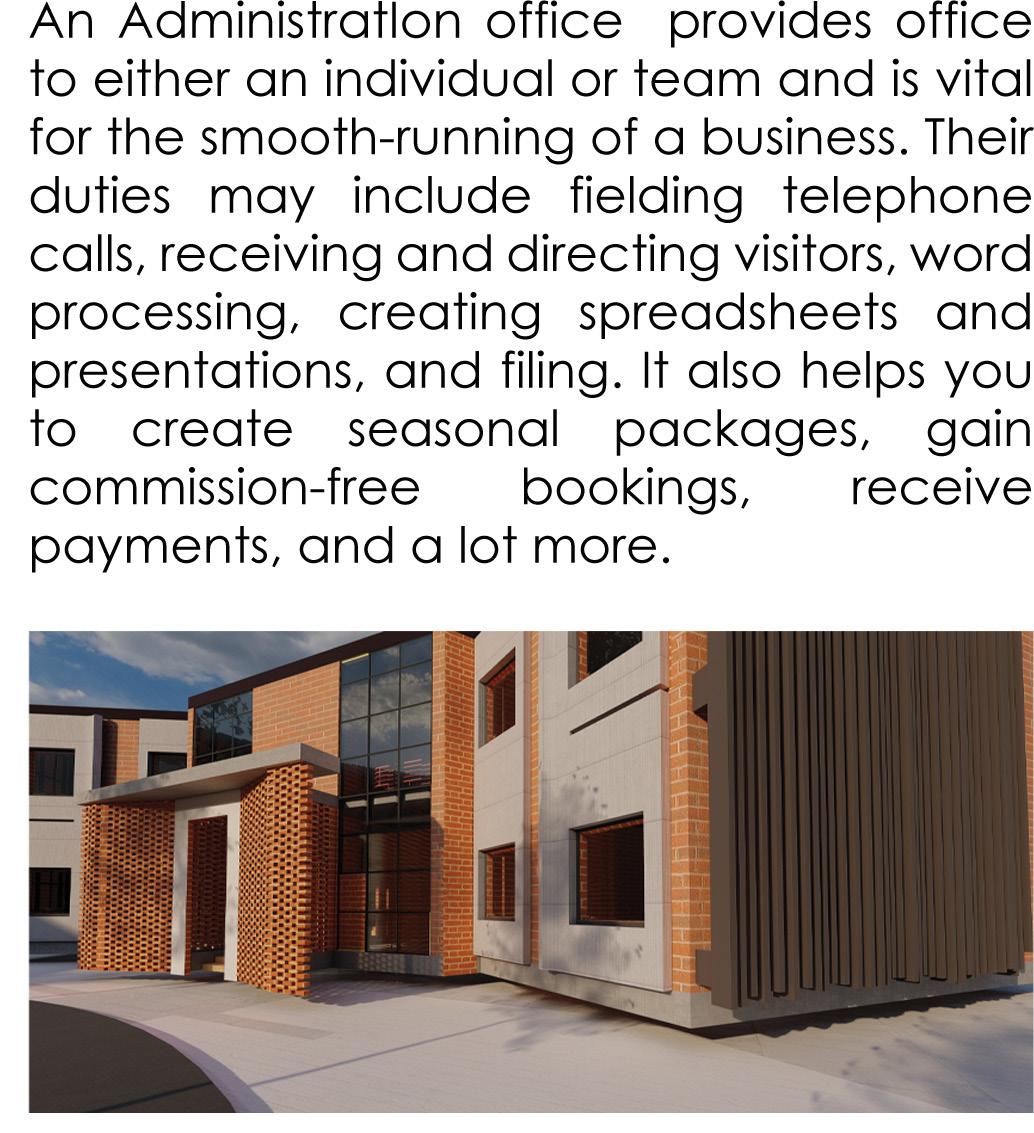

ADMIN
BLOCK
Studies have shown reading helps reduce stress, likely because it requires concentration and focus. Reading is great for your health. Reading can even relax your body by lowering your heart rate and easing the tension in your muscles. By lowering your stress hormone, you can also lower your blood pressure and heart rate, helping you feel calm and ready for sleep. Reading is a great way to keep your mind engaged and improve your cognitive ability as you get older.

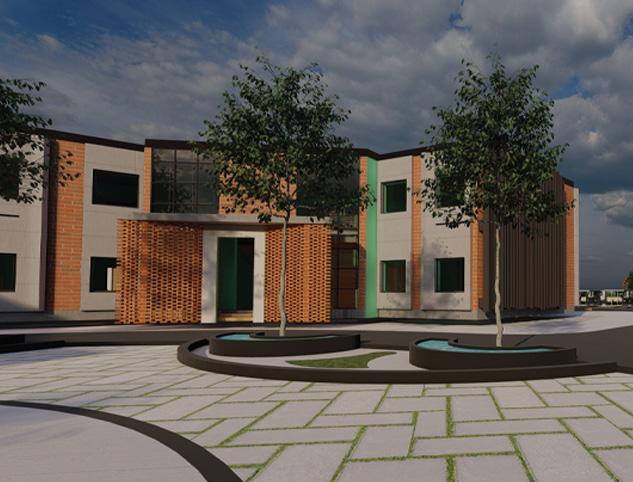

LIBRARY
08
10

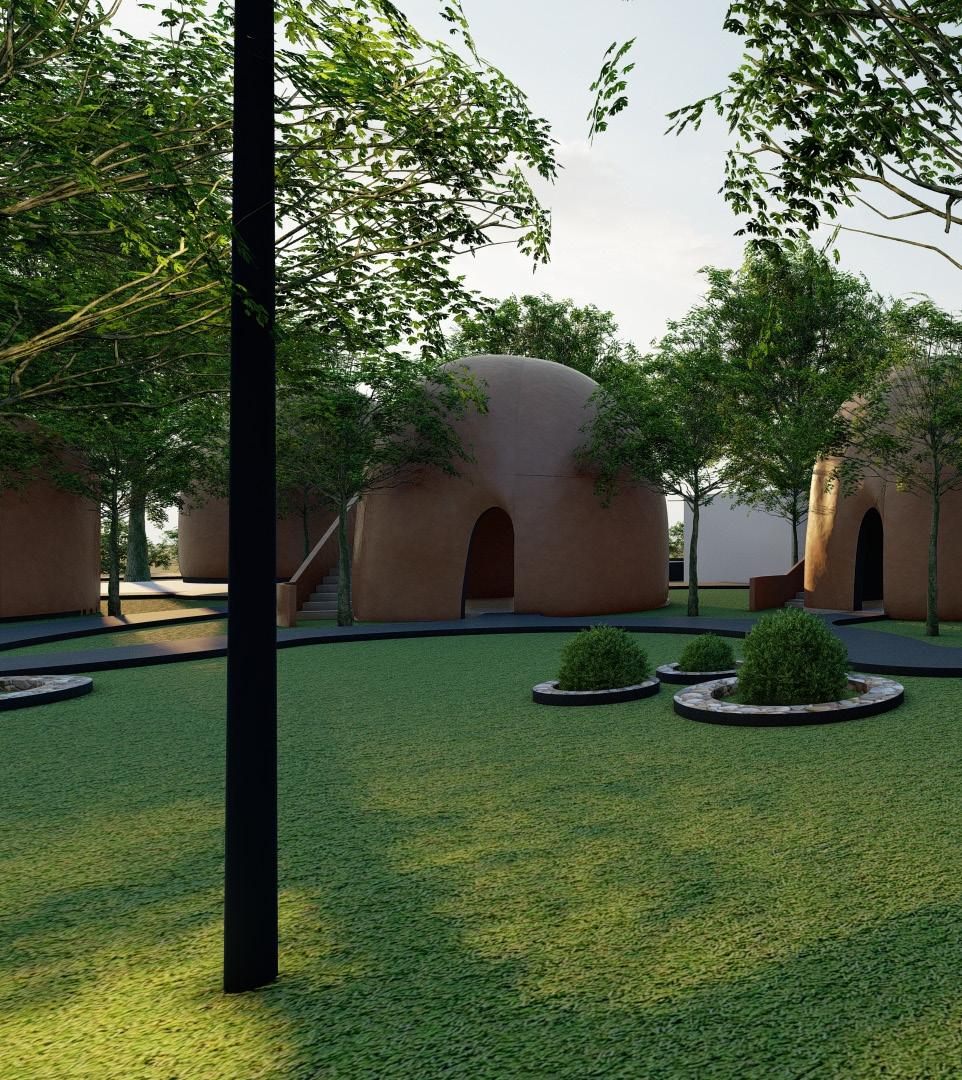

COLIVING AREA
A spa treatment not only gives you the time off your tasks but makes you feel good about being pampered, be it even for a few hours. There are different types of spa therapies and treatments available, each designed to benefit one’s body, skin, and hair, and overall well-being. Having time to relax in a tranquil spa environment will reduce stress, improve mental health and provide many psychological benefits.
4.65 8.40 12.15 Earth Filling P.C.C. Sand Filling 9" thk.Brick wall with Texture Plastering R.C.C Roof Beam R.C.C Roof Beam 0.88 9" thk.Brick wall with Texture Plastering 9" thk.Brick wall with Texture Plastering First Floor Level 4.65m lvl Ground Level 0.00m lvl Plinth Level 0.45m lvl Ground Floor Level 0.90m lvl Top Floor Level 12.15m lvl Second Floor Level 8.40m lvl
Water Feature -0.90 UFL -0.05 FFL Ramp Ramp Womens changing (17roomsqm) Kiosk(12 sqm) Mens changing(13room sqm) Kiosk(12sqm) Lift Entrance +0.45 UFL +0.50 FFL ReceptionLobby (42.5sqm)+0.95+0.90UFL FFL +0.90(18.2Pantrysqm) UFL +0.95FFL CCTVRoom(8sqm) +0.95+0.90UFL FFL Storeroom (7sqm) +0.90UFL +0.95FFL Spa Treatment Room (48.5 sqm) +1.05 UFL +1.10 FFL BodyWellnessShop (42sqm) +1.10+1.05UFL FFL StoreRoom (13.2sqm)+1.10+1.05UFL FFL Washroom (12.5sqm) +1.08+1.05UFL FFL Lif Ground Level +0.00 (18.2FootSpa sqm)+4.50UFL+4.55FFL WaitingArea+4.50(22sqm) UFL +4.55FFL HairSpa(30sqm) +4.70+4.65UFL FFL Facial Spa (12.5sqm) +4.65 UFL +4.70 FFL Saunaroom(Women's) (17.2sqm)+5.15+5.10UFL FFL ChangingRoom -Women's (10sqm) +5.10UFL +5.13FFL Sauna room (Men's) (17 sqm) +4.65 UFL +4.70 FFL Changing Room - Men's (10 sqm) +4.50 UFL +4.53 FFL JacuzziBath (20sqm) +4.50UFL +4.55FFL PrivateTreatment Room(15.8sqm) +8.15+8.10UFL FFL Toilet (4.5 sqm) +8.10 UFL +8.13 FFL Toilet (4.5 sqm) +8.10 UFL +8.13 FFL Private Treatment Room (15.8 sqm) +8.10 UFL +8.15 FFL PrivateTreatment Room(20sqm) +8.10UFL +8.15FFL Toilet (5.5 sqm) +8.10 UFL +8.13 FFL Lift Filtrationroom(10sqm) Ground floor First floor Second floor
SPA AND THERAPY CENTER

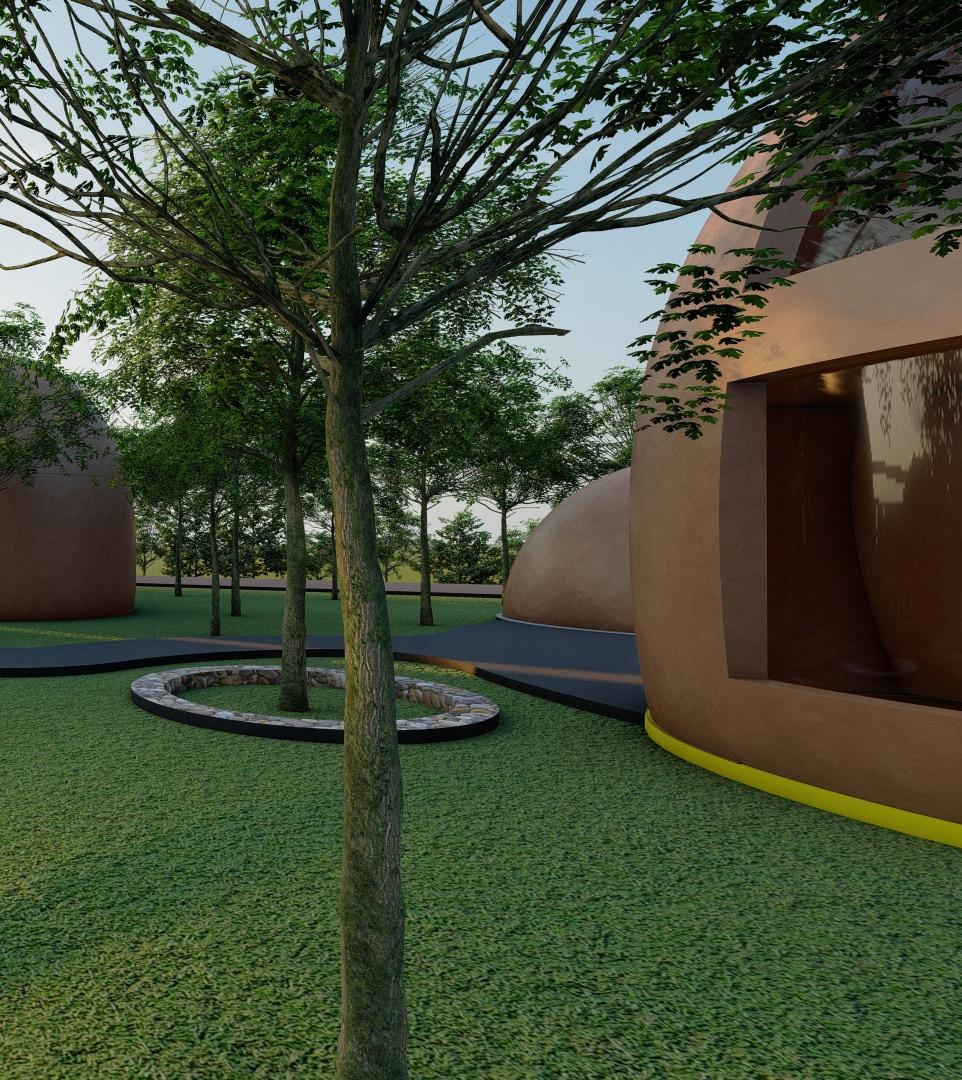

MEDITATION HALL 12
V

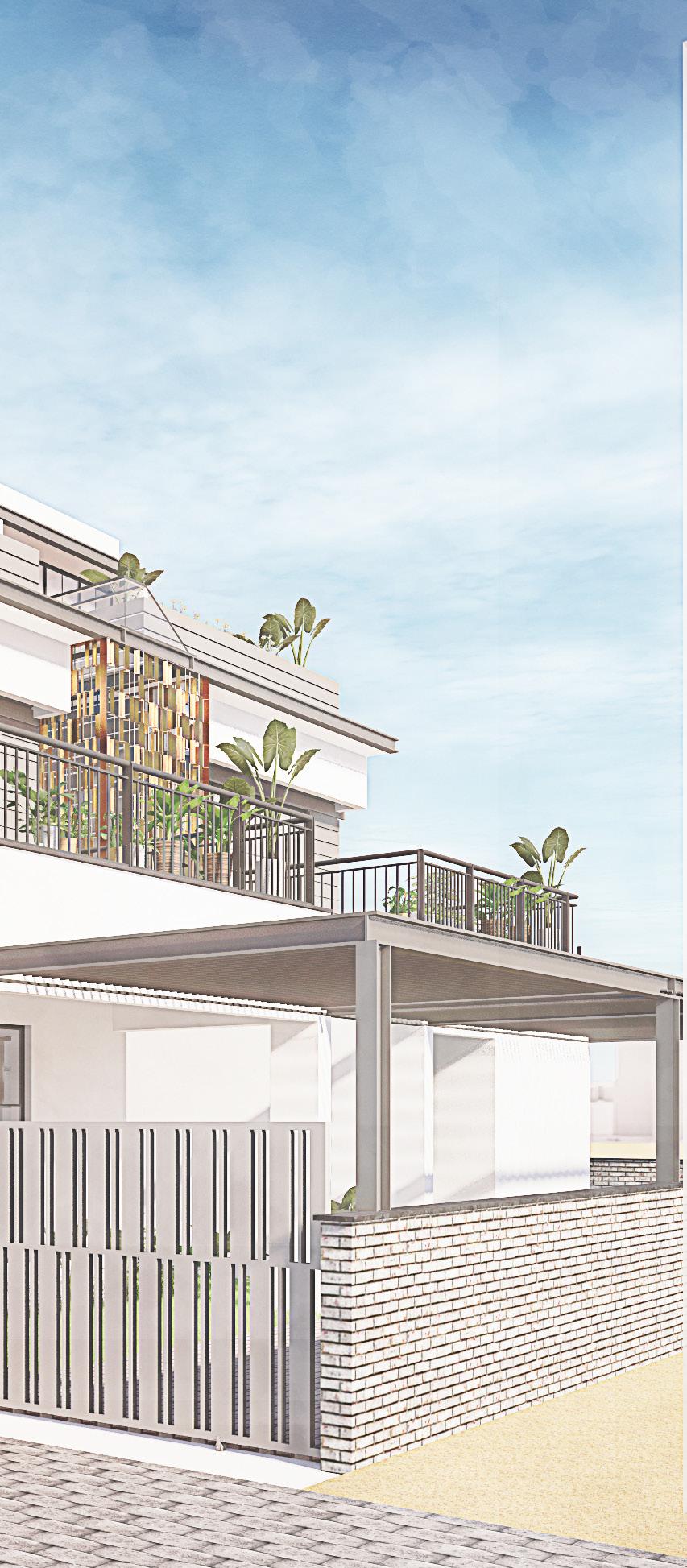

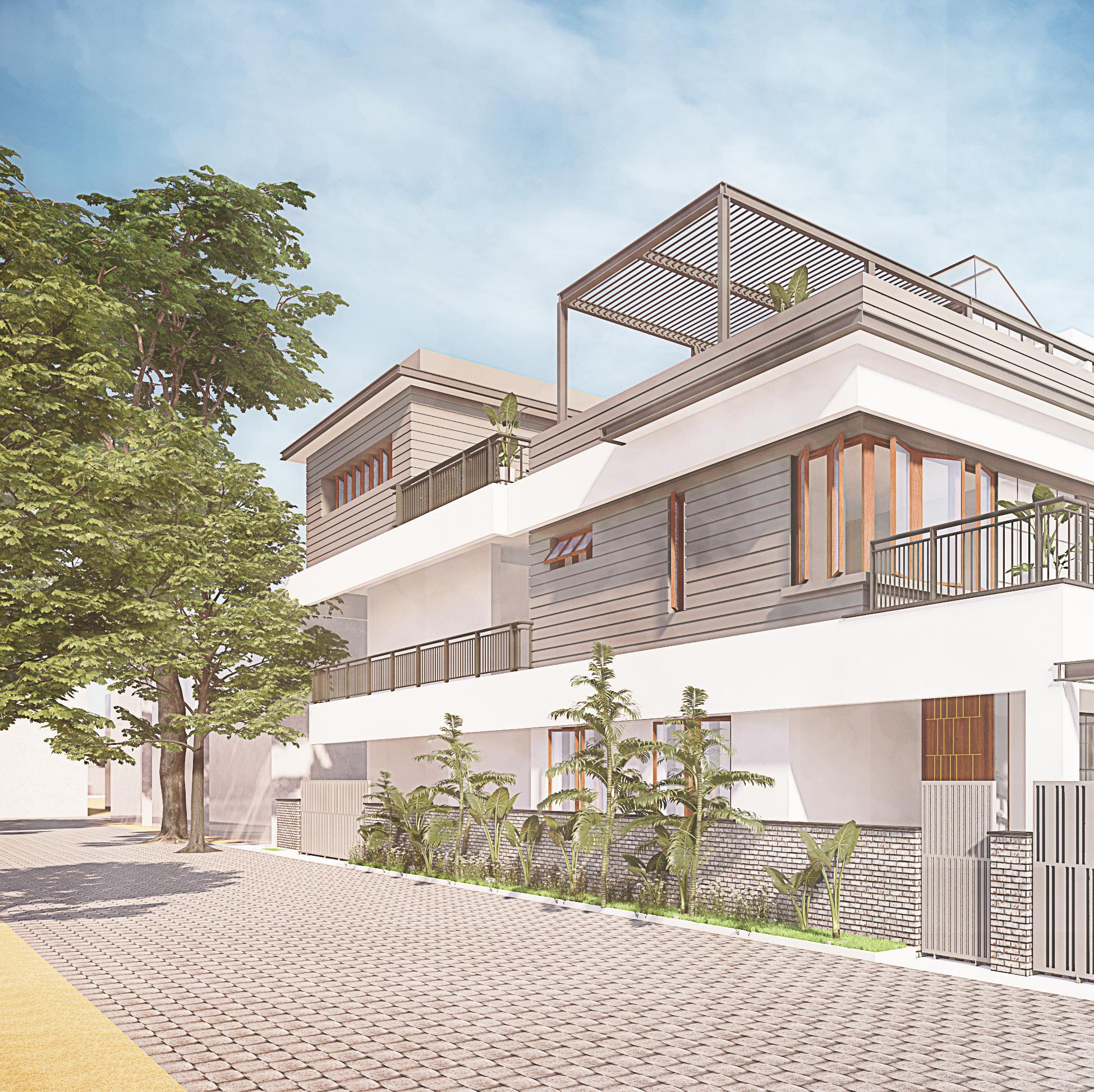

JASON RESIDENCE INTERNSHIP
PROJECT 1
This is a residencial Project at Thiruverkadu for Mr. Jason. This is extention project. The client wanted to extend this existing house with the near empty plot. The existing site area is 2230 sqft. We have tried to modify the existing plan with the proposed extended area plan. The existing house has a courtyard which we have extended to the Proposed plan creating double storey height with skylight dome above. In this project we have connected the exterior envirnment with indoor space by providing lawns, courtyard and terrace gardens.
14

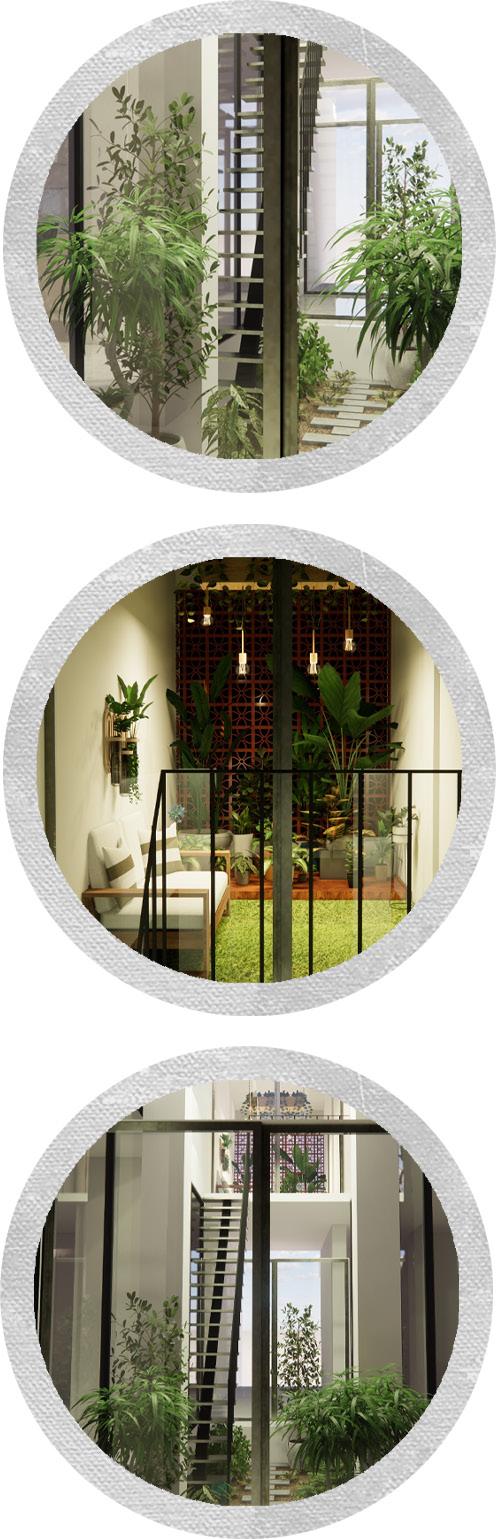

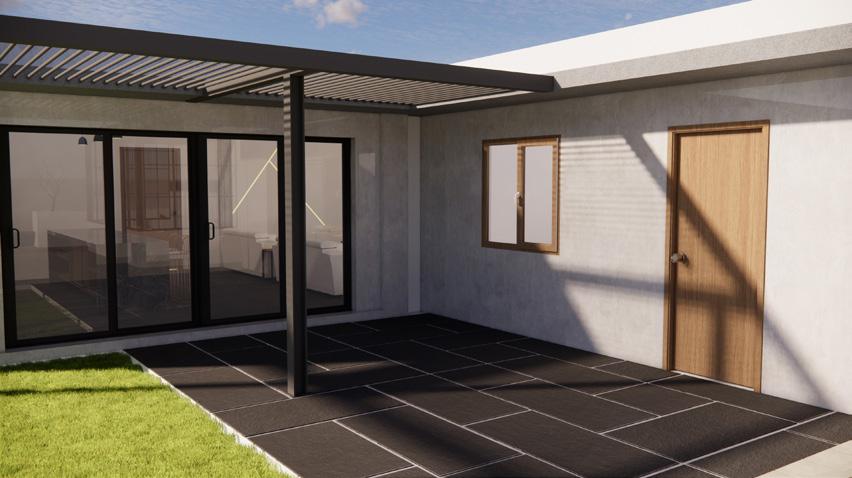

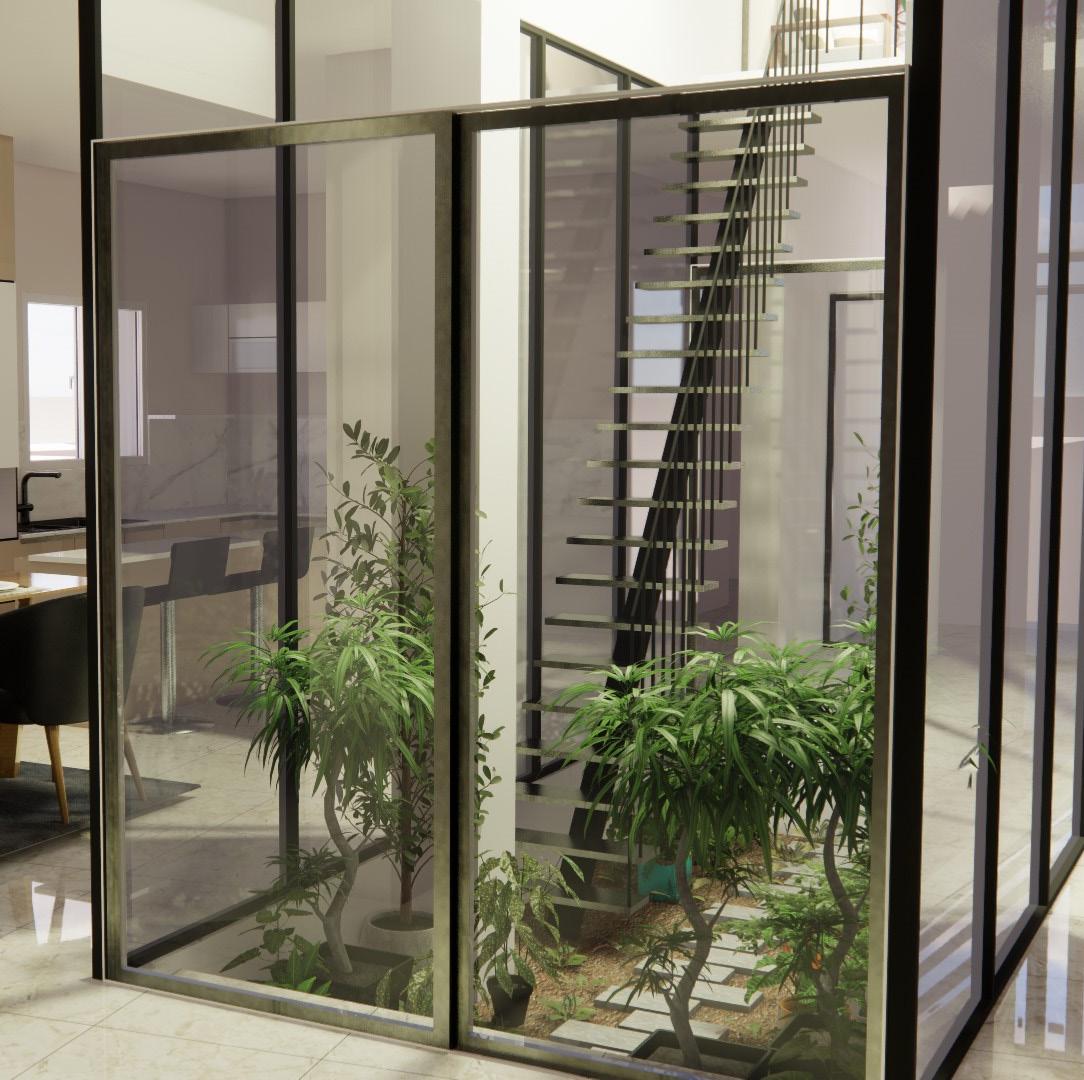

A courtyard can improve a home’s natural lighting and ventilation in the middle of the building. They are also excellent for bringing an outdoor space within your house. The courtyards become aesthetically pleasing areas that also serve as sheltered little gardens by adding trees and greenery. Family members could feel linked throughout the day because to the courtyard’s ability to create connections between rooms and floors of a home.
16

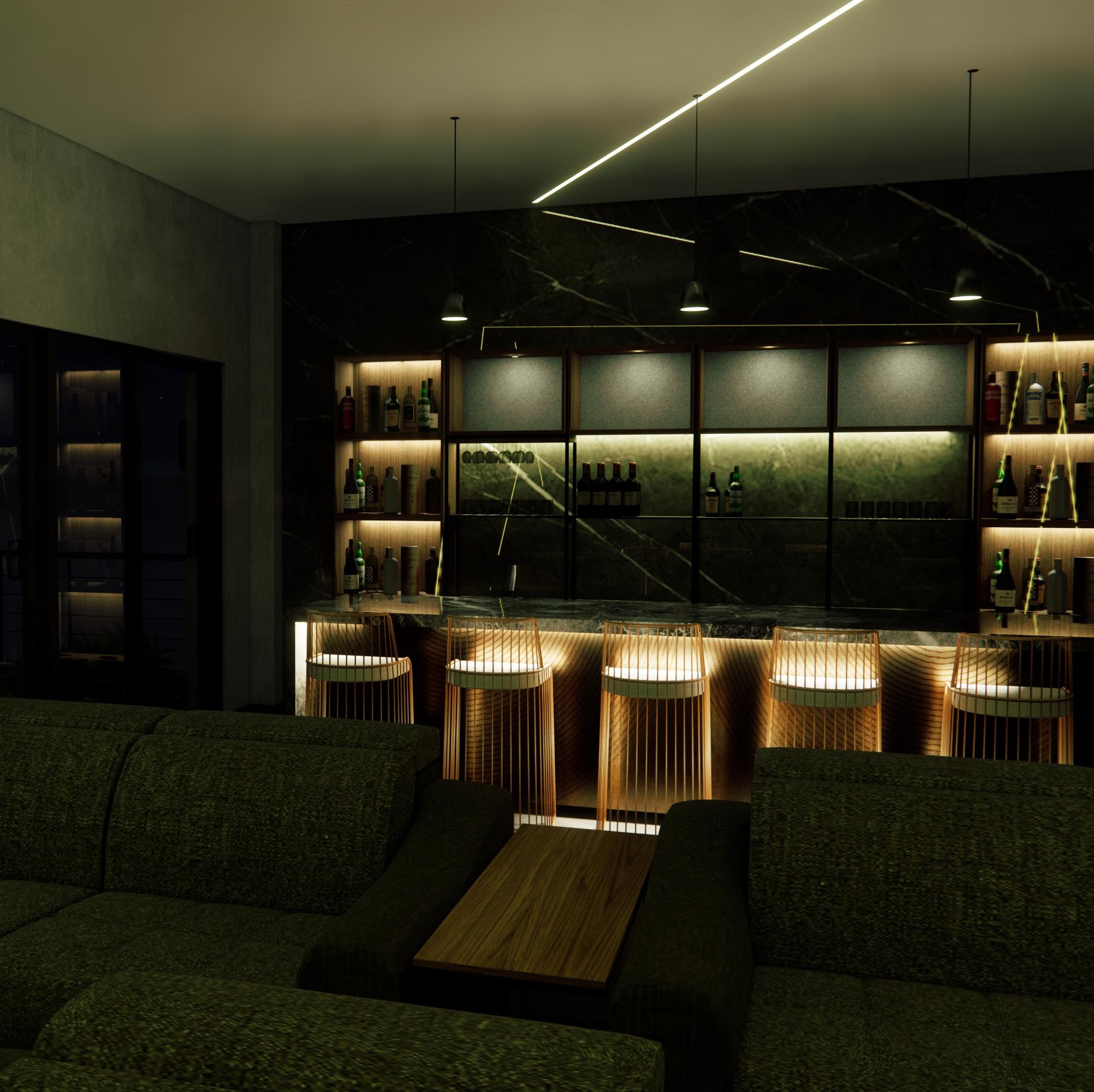

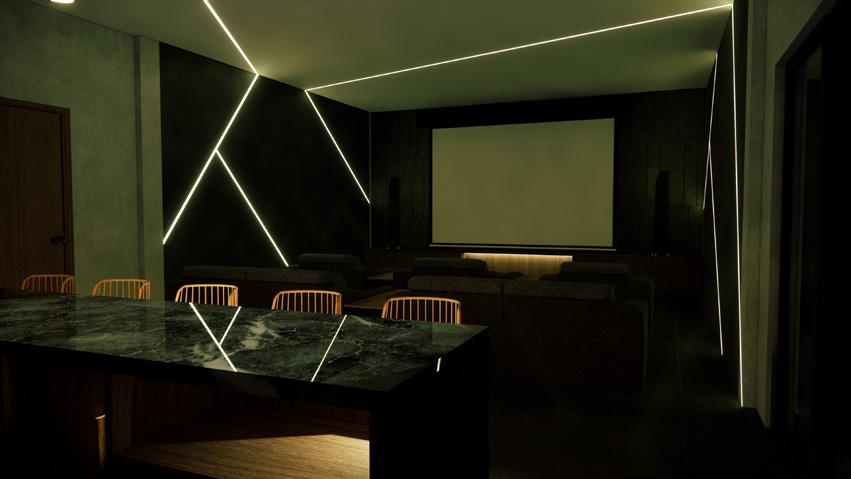

HOME THEATER
The client wanted to create a movie-theater-like experience in his home with a bar counter added to it. Home theater room ideas include using a themed room, hidden surround sound, custom cabinets for extra storage, media display, leveled seating, a functional snack/drink bar and cove lighting. In order to watch movies and television shows, we wanted to design a comfortable environment. This entails setting up a quiet, dark area where you can relax and take in the movie or program.
18

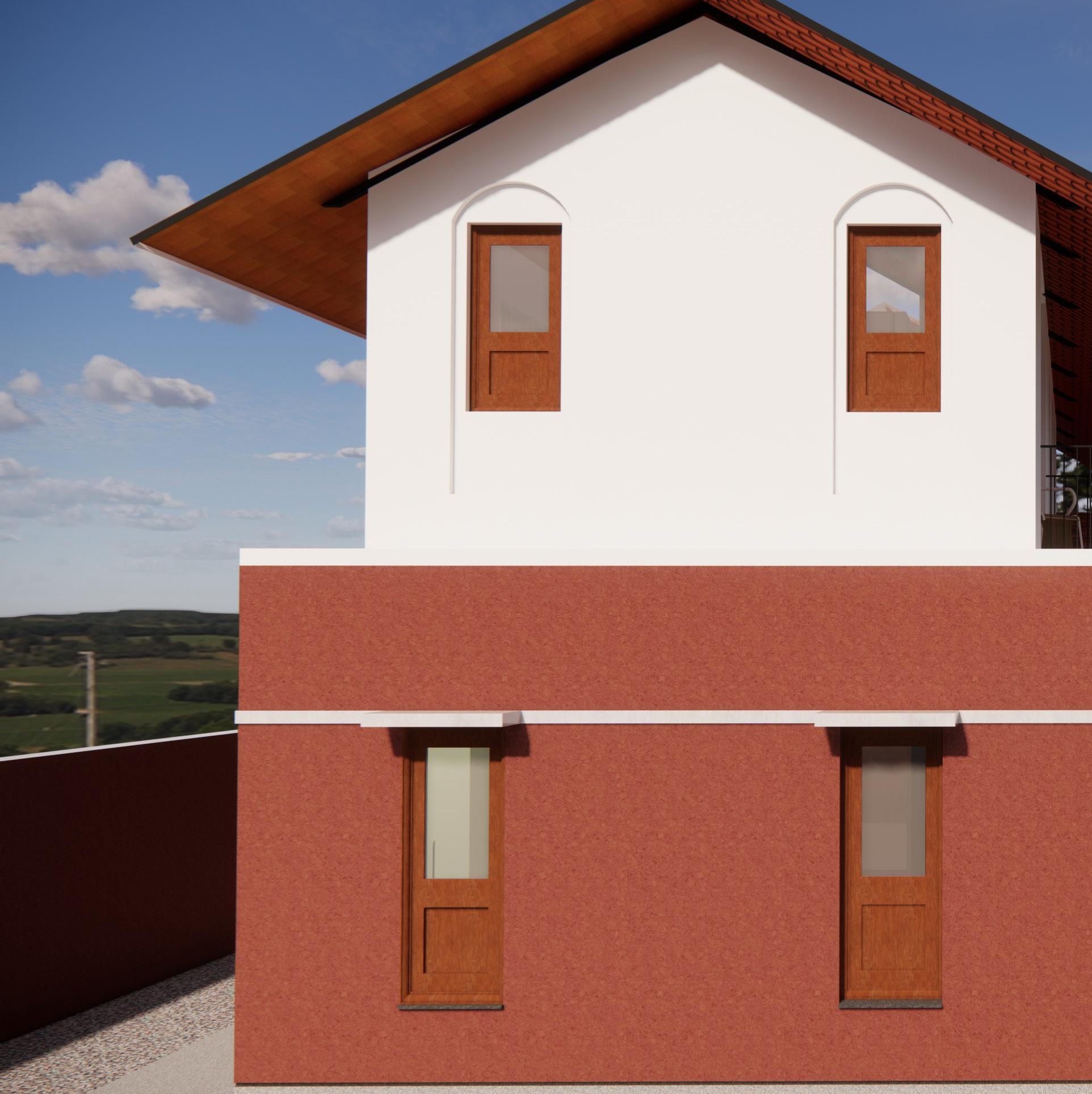

ARJAVAM
INTERNSHIP PROJECT 2
ARJAVAM (meaning simplicity) - A residencial project in Shiroda, Goa. The plot area of the site is 6426 sqft and the builtup area is 1500 sqft. This project is oriented towards the concept of efficiency in design, climate responsive and locally available materials (Laterite construction) resulting in development of spaces that are a collaboration between contemporary and traditional. This project aims in creating spaces which are in sync with the environment and its surroundings with discrete use of elements.
20

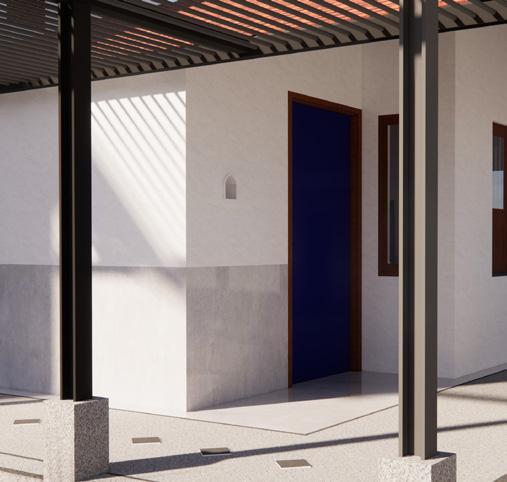

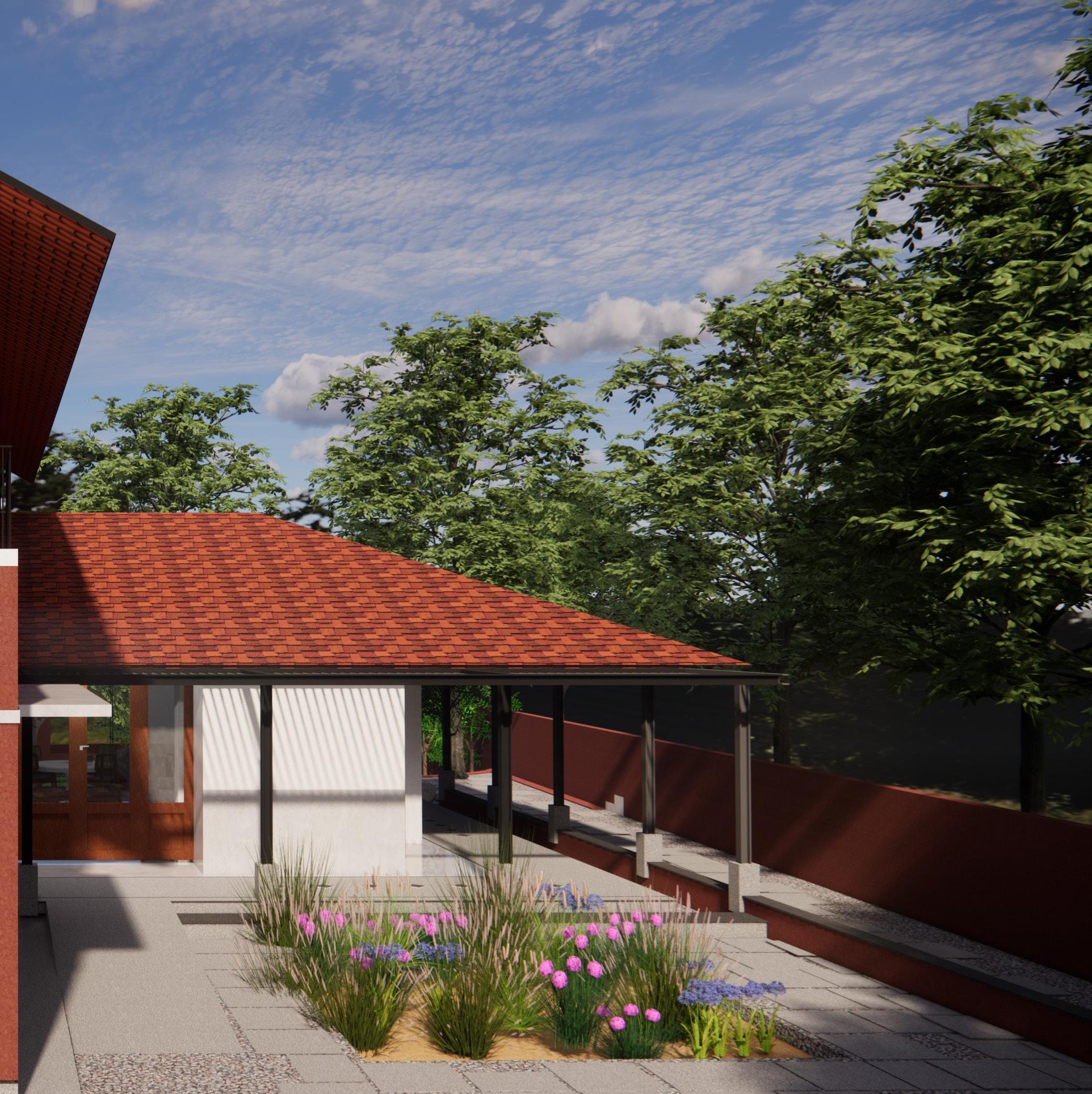

Making nature visible within a building elevates the spirit. It serves as a visual connection between the indoor, the outdoors, and the natural environment. Verandah around the house work as a buffer between indoor and outdoor spaces while it act as a centre for activities during rainy season. Providing gardens and flower beds to alter the microclimate of the site.
GROUND FG LVL GROUND FLOOR PLINTH FFL FIRST FLOOR FFL Mangalore tile roof with MS framework as per detail FOYER DINING MS Section to detail External plaster with lime (As per specifications) MS Section to detail Mangalore tile roof with MS framework as per detail Sunshade MS Railing to detail 300 1750 2100 375 2475 2150 100 VERANDAH RAMP 1500 830 450 4700 2390 2260 4050 3100 850 1250 75 370 1730 2100 2100 850 1035 Breakfast counter 4050 VERANDAH D04 2100 375 W1 W2 DW4 W11 W10 W9 TOP OF FIRST FLOOR ROOF 3990 800 GROUND FG LVL GROUND FLOOR PLINTH FFL STAIRCASE MID LANDING FFL FIRST FLOOR FFL TERRACE SLAB SSL 450 1800 1350 2225 2100 275 DINING FOYER VERANDAH STORAGE CORRIDOR Mangalore tile roof with MS framework to detail MS Section to detail 3025 2250 3340 2100 1650 Clay Jaali blocks as per selection with MS framework for support UTILITY 300 Terrace flooring finished with terracota tiles with required slope Mangalore tile roof with MS framework as per detail 2700 2730 4370 1625 1800 DW1 DW3 TOP OF FIRST FLOOR ROOF 1765 W8 847 1250
V1 DW2 DW1 W8 1350 BEDROOM (4510x4670) TOILET KITCHEN (3820X2700) VERANDAH FFL LVL 150 ENTRY WAY A A B FFL LVL 450 FFL LVL 150 ENTRY WAY chajja projection chajja projection above detail) A A B B 2700 9800 3100 4000 2490 5625 665 400 2125 FFL LVL 450 FFL LVL 150 ENTRY WAY sloping roof above. above (to detail) Water tank storage A A B Ground
First
Roof Plan
floor
floor
Pergola Details
22
03. INTERIOR DESIGN

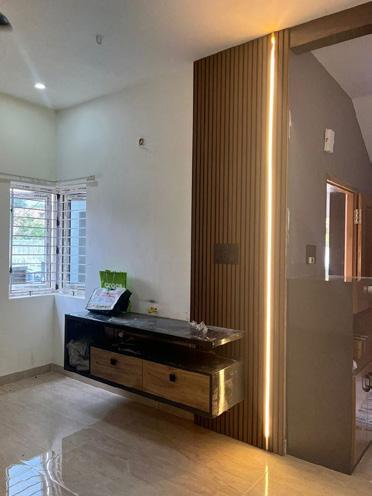

The art of interior design entails making beautiful, livable spaces. I’ve always been moved by exquisite design and how it can change a room. I also enjoy working with clients to help them make their home-design dreams come true. I have been doing few projects as a freelancer while studying. By doing projects i’ve learned to visualize and sketch design plans as per client goals, sourcing products and materials, determining costs and inspecting construction to ensure alignment with design specifications are met.
1. Project 1 - 3 BHK Apartment Interior Design
2. Project 2 - 3 BHK Home Interior Design
3. Project 3 - My Home
24

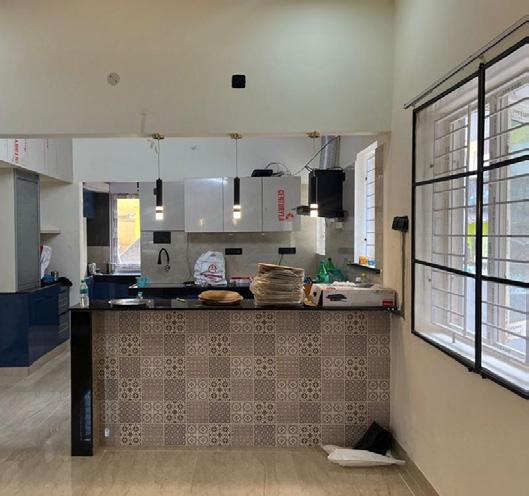

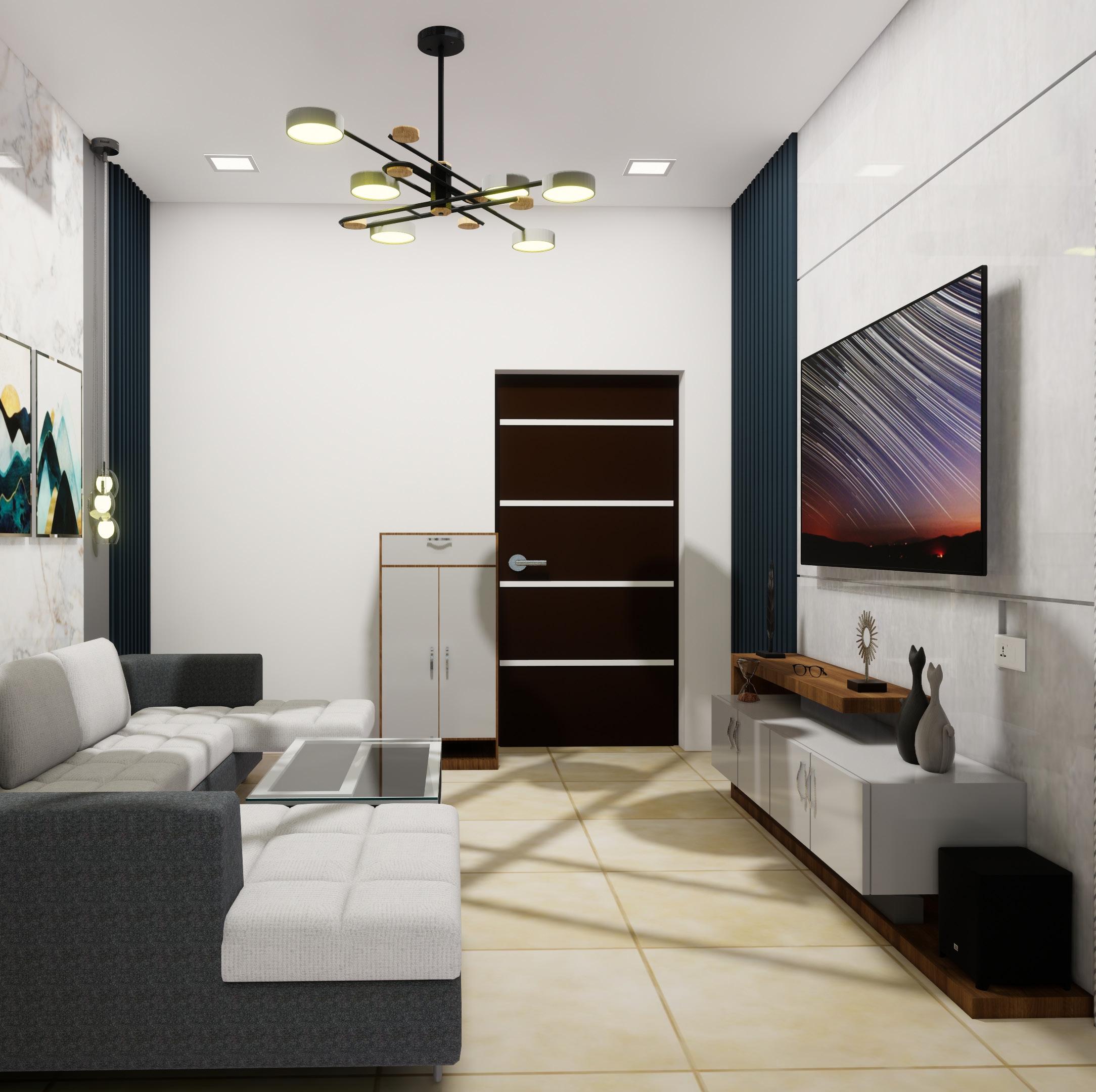

3 BHK Apartment Interior Design
26

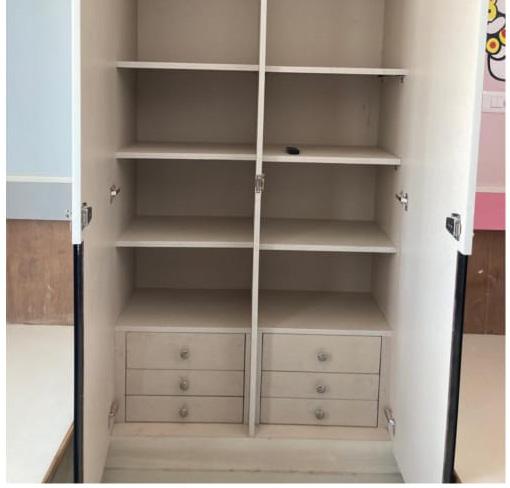

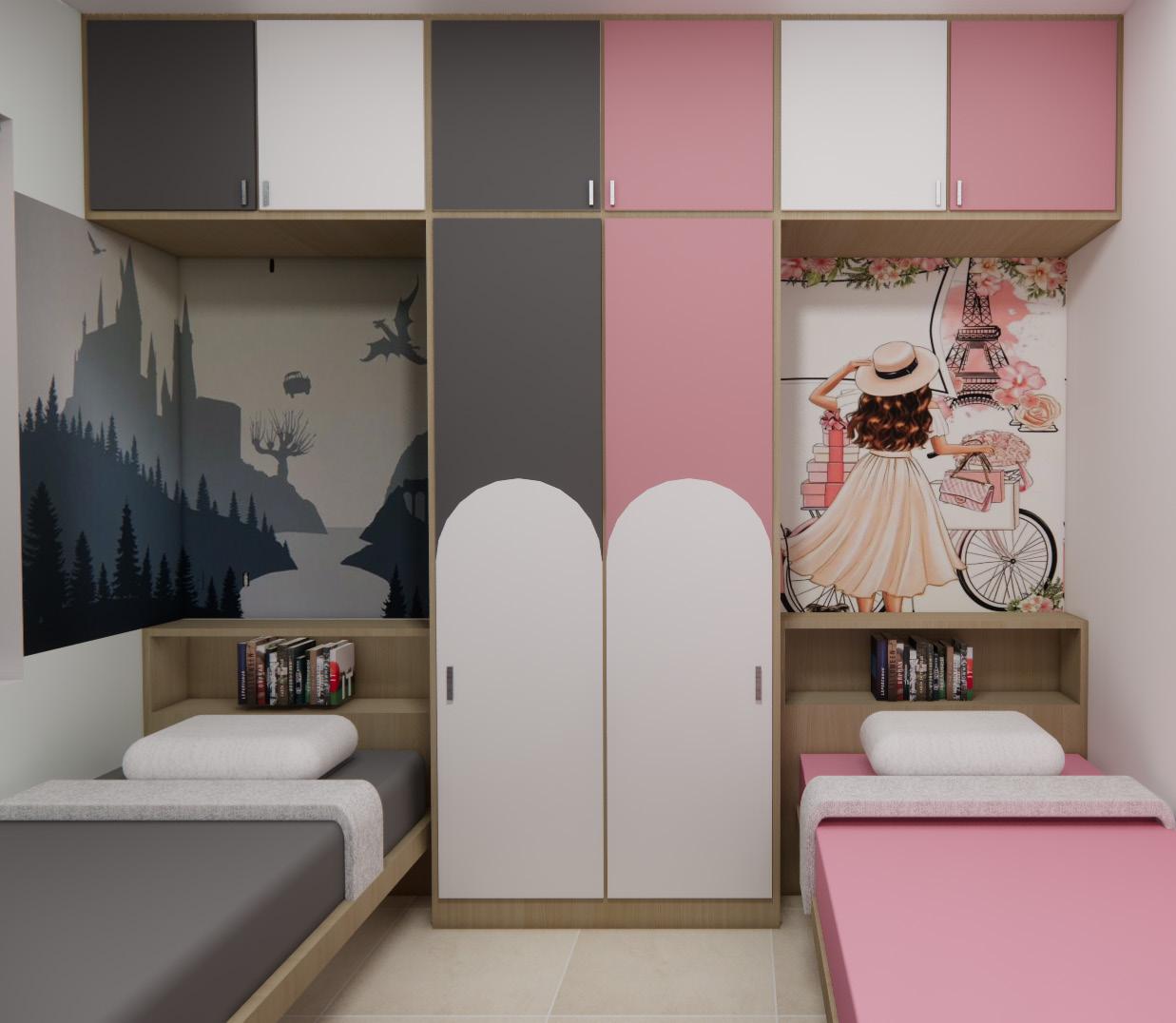

Kids Room

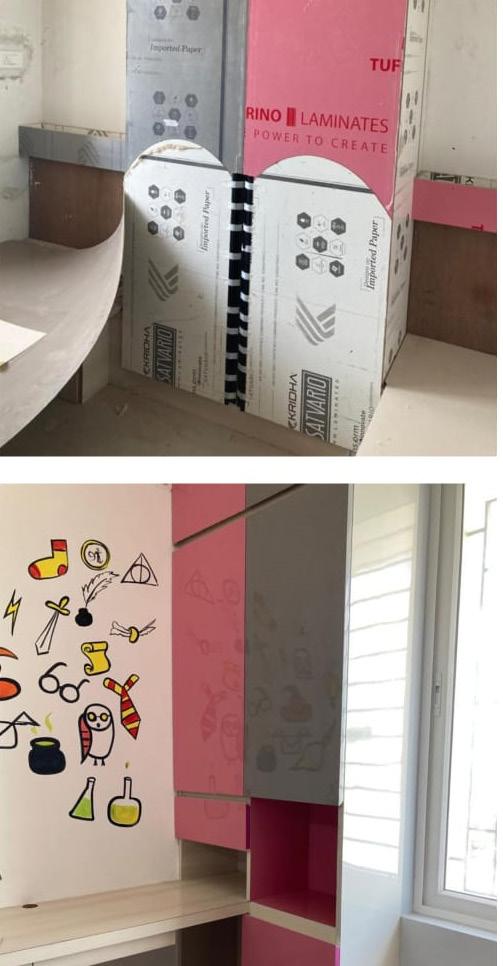

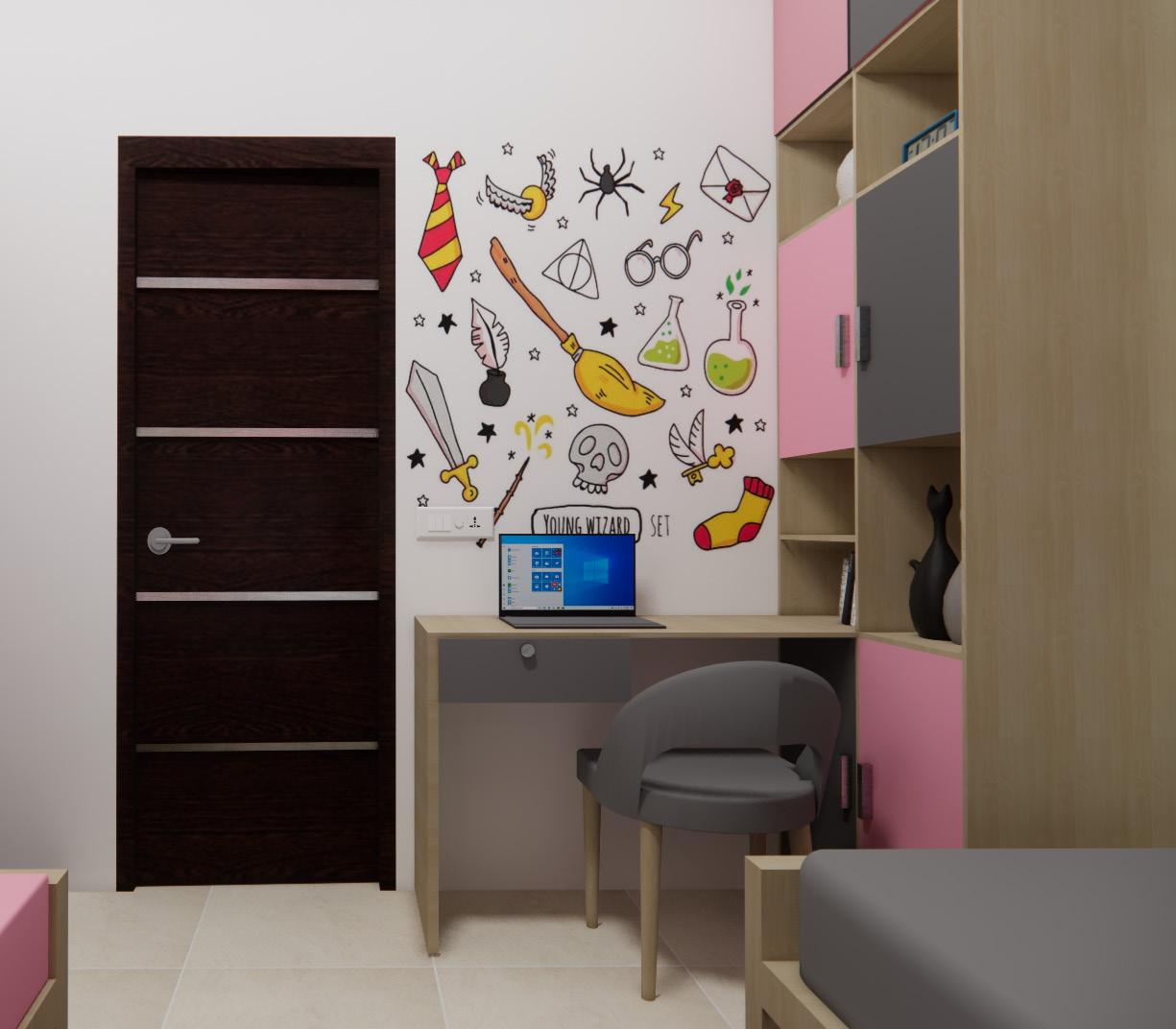

The client wanted the kids room in Harry Potter (for their son ) and Barbie ( for daughter) theme. They wanted the theme to be in the form of painting in their kids room. She wanted only one study table for their son in the room. To match the theme we chose pink and grey as the colour for the room.

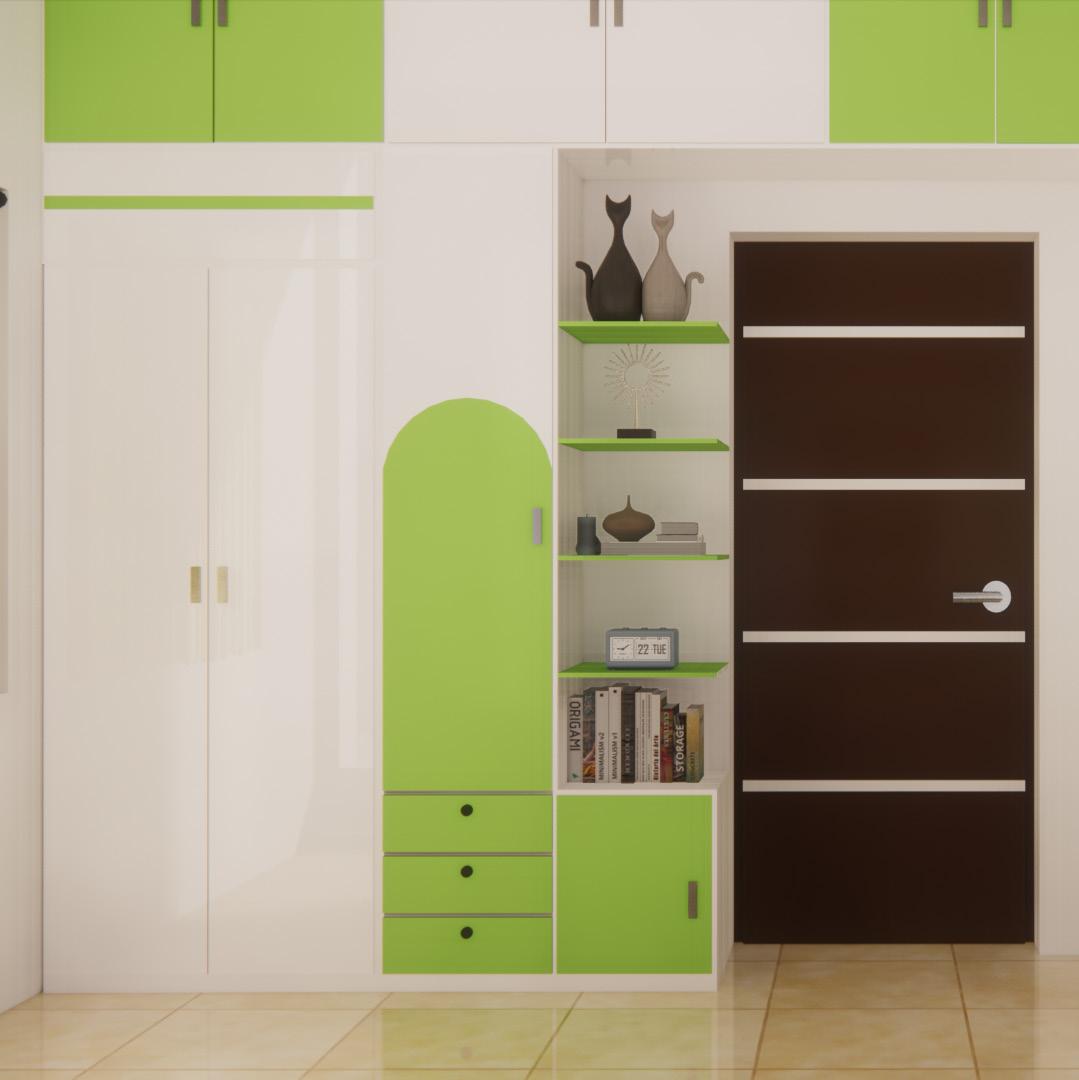

Guest Room

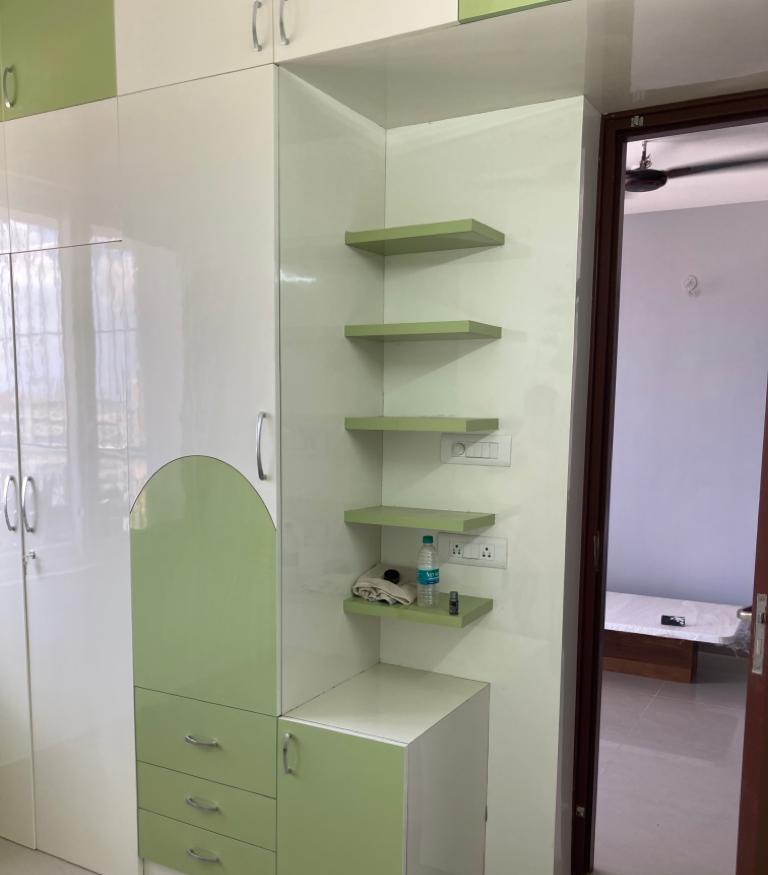

This room was for the guest. The client wanted only a wardrobe in this room and wanted to keep it very simple. We chose white with green colour to bring out feelings of cleanliness, freshness, and simplicity. The client also wanted to use this room as yoga room.
28

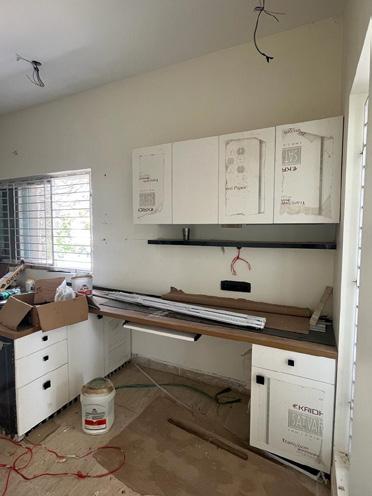

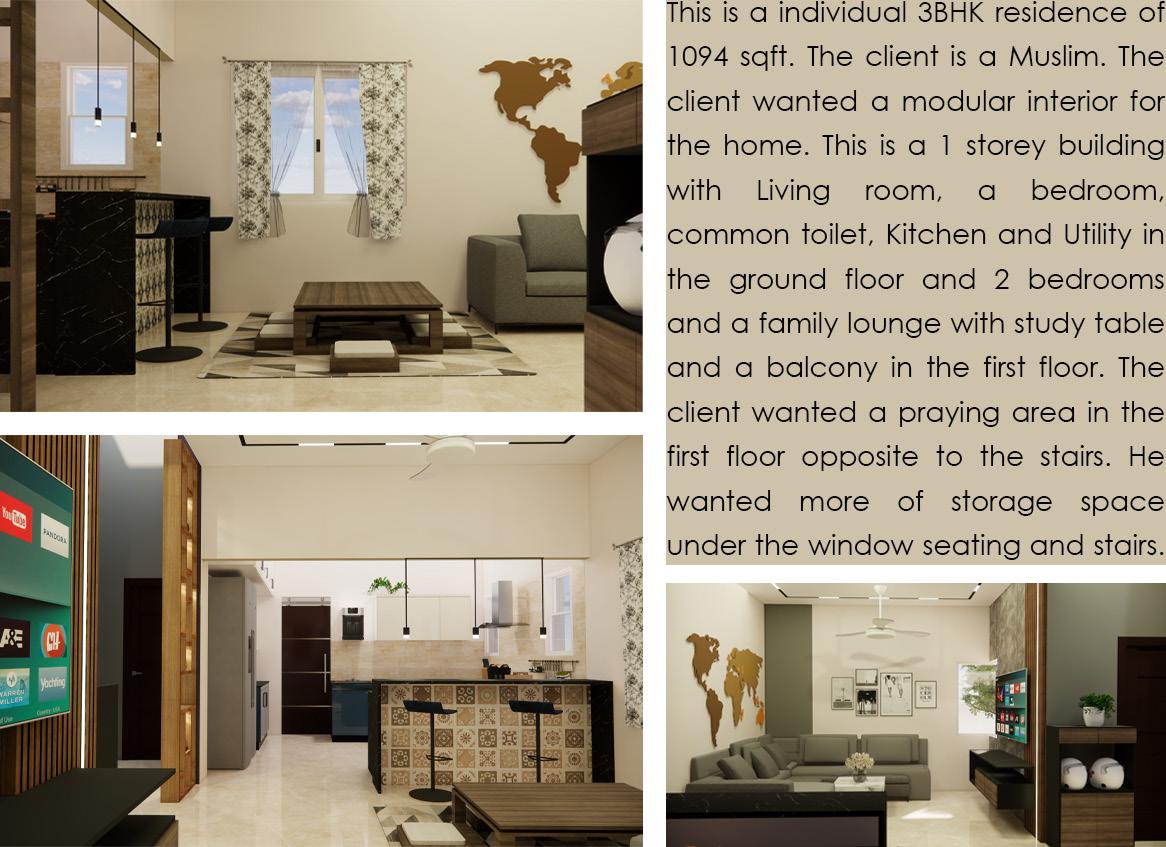

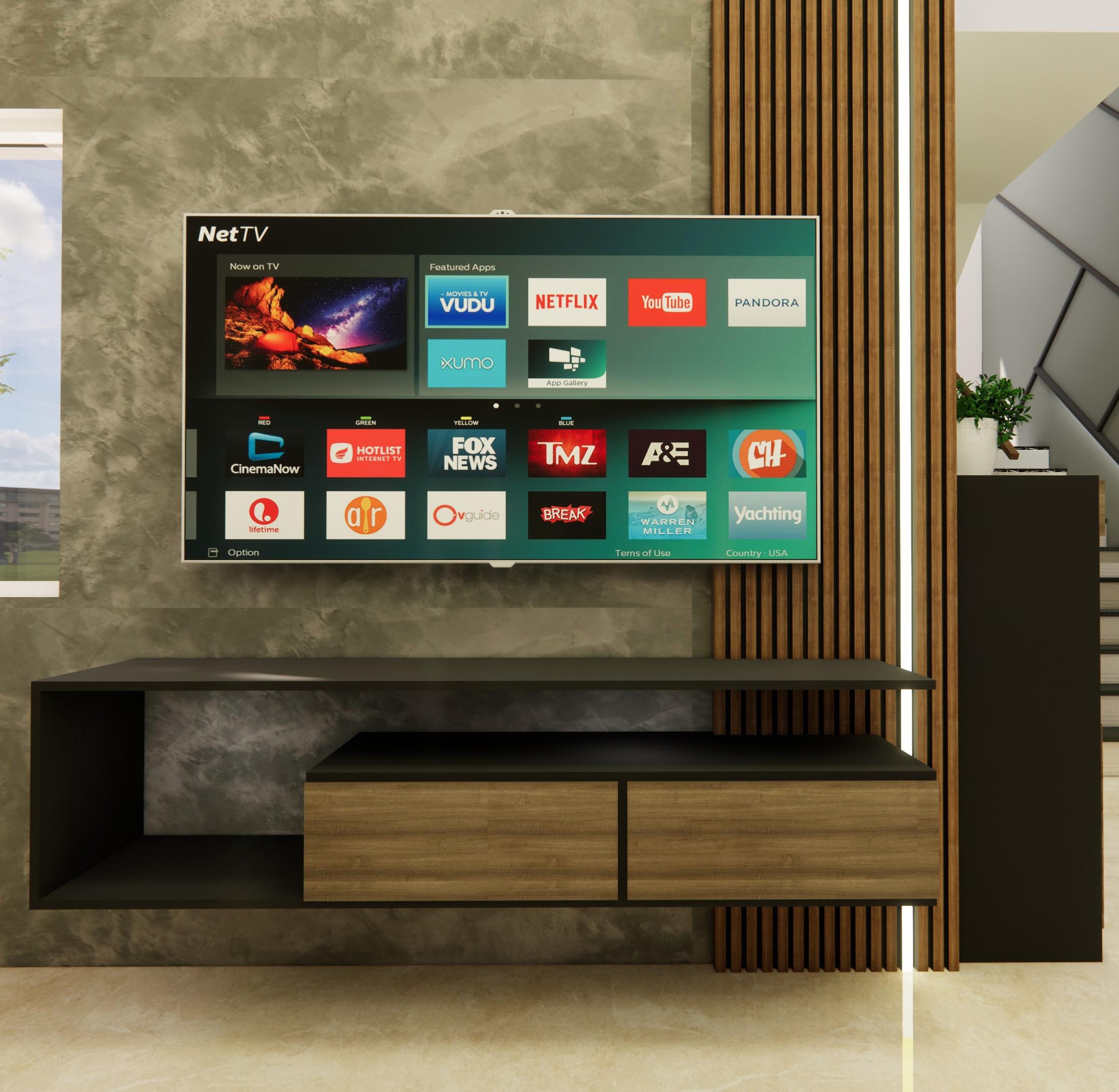

3 BHK Home Interior Design
30

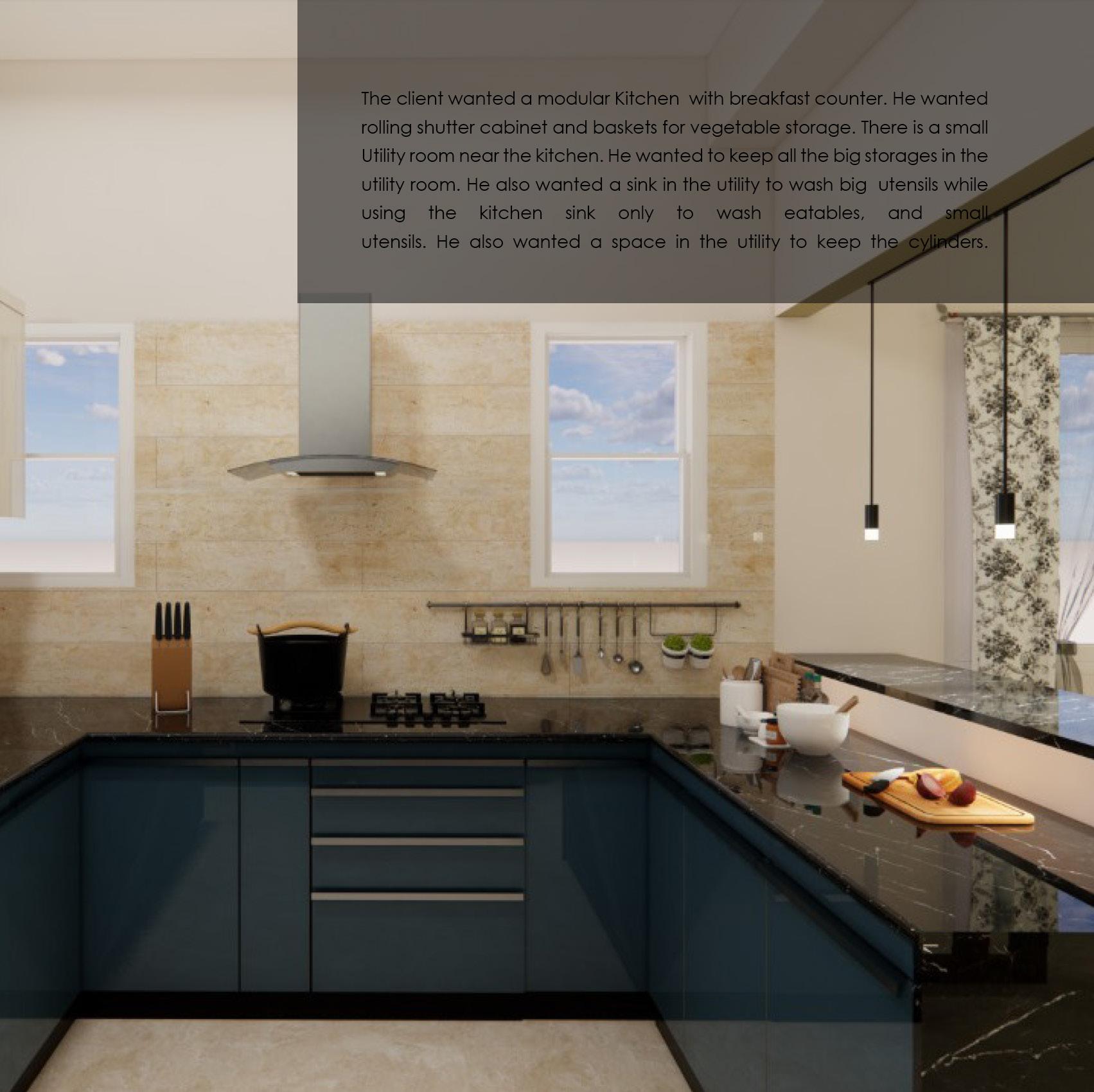

32

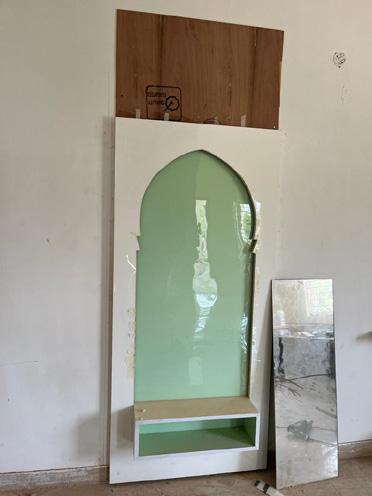

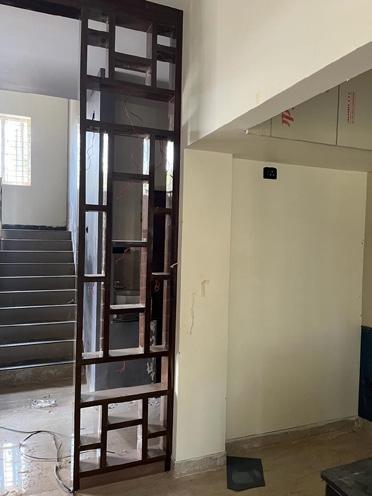

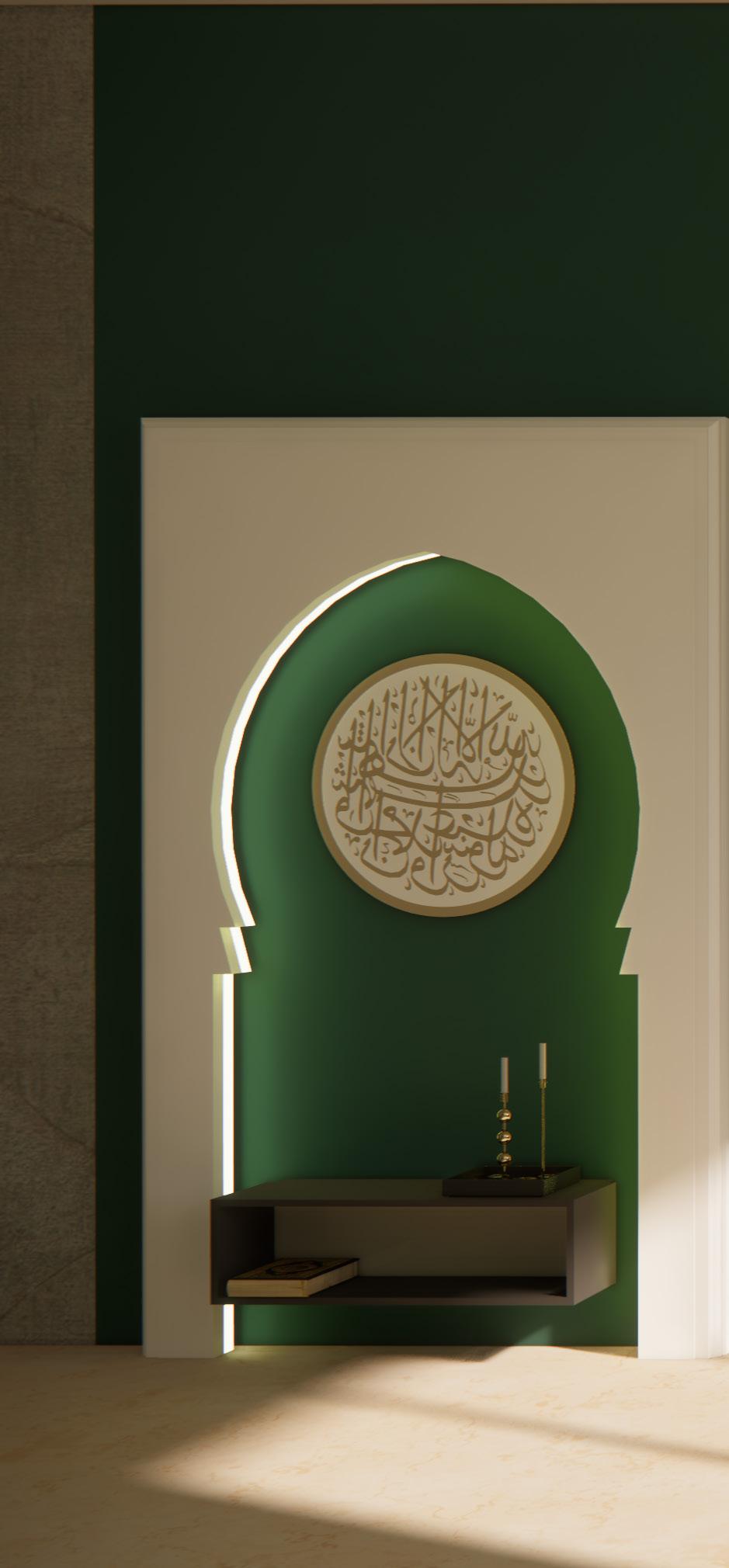

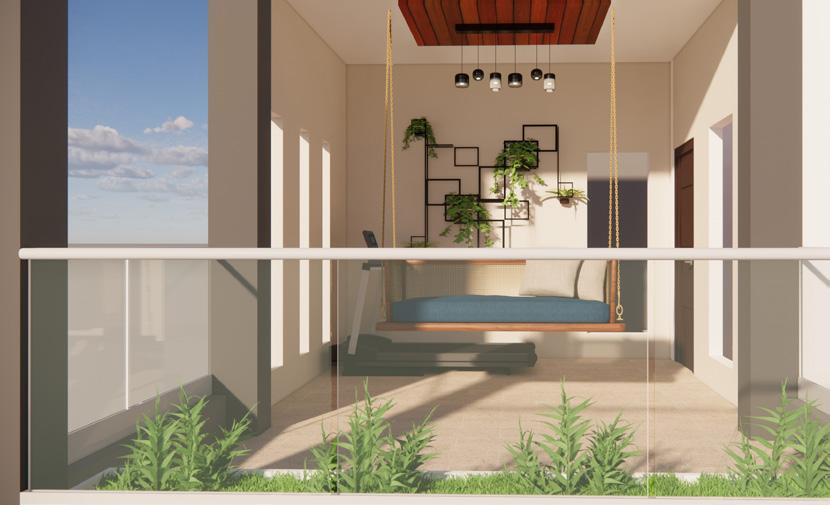

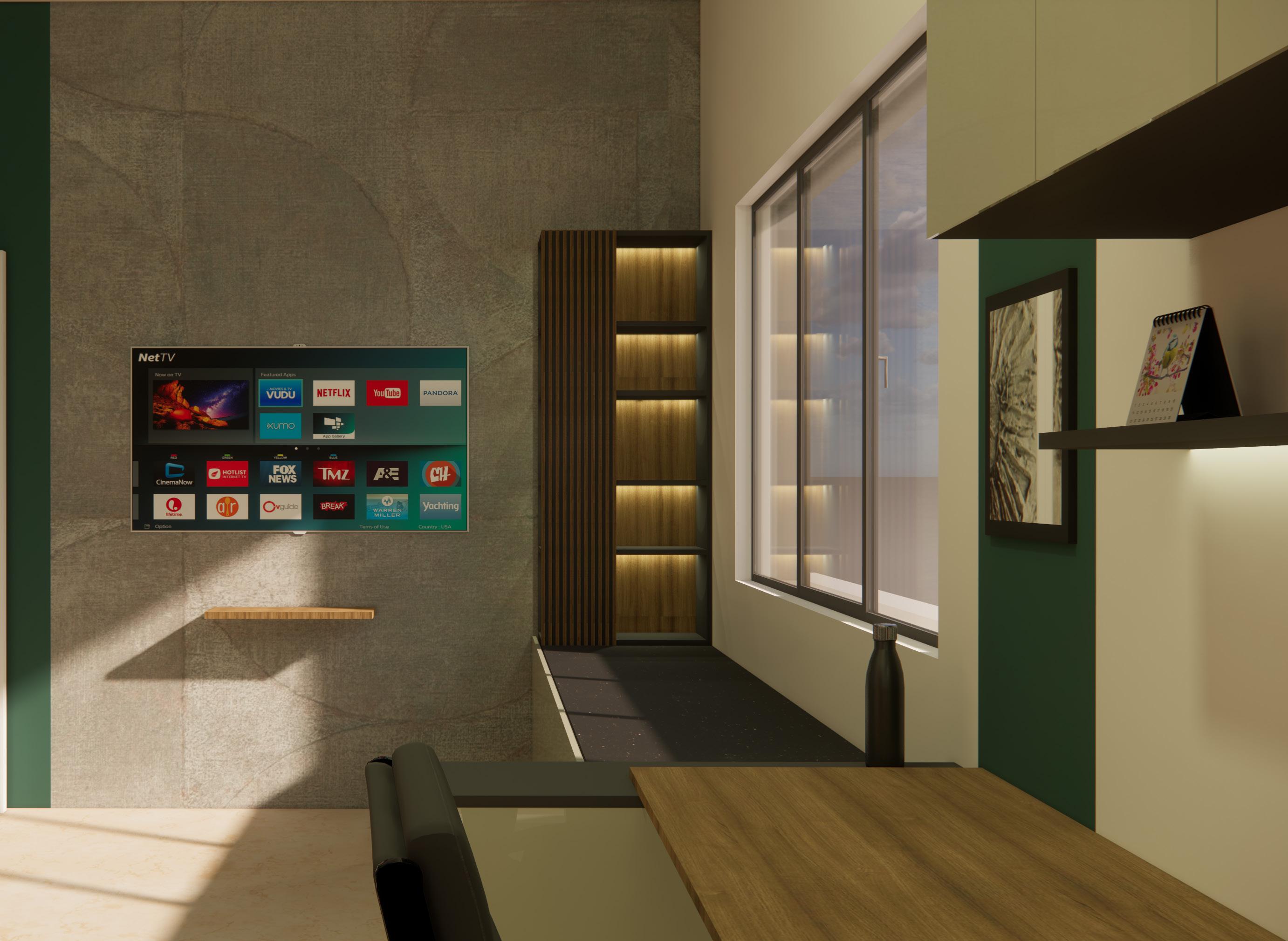

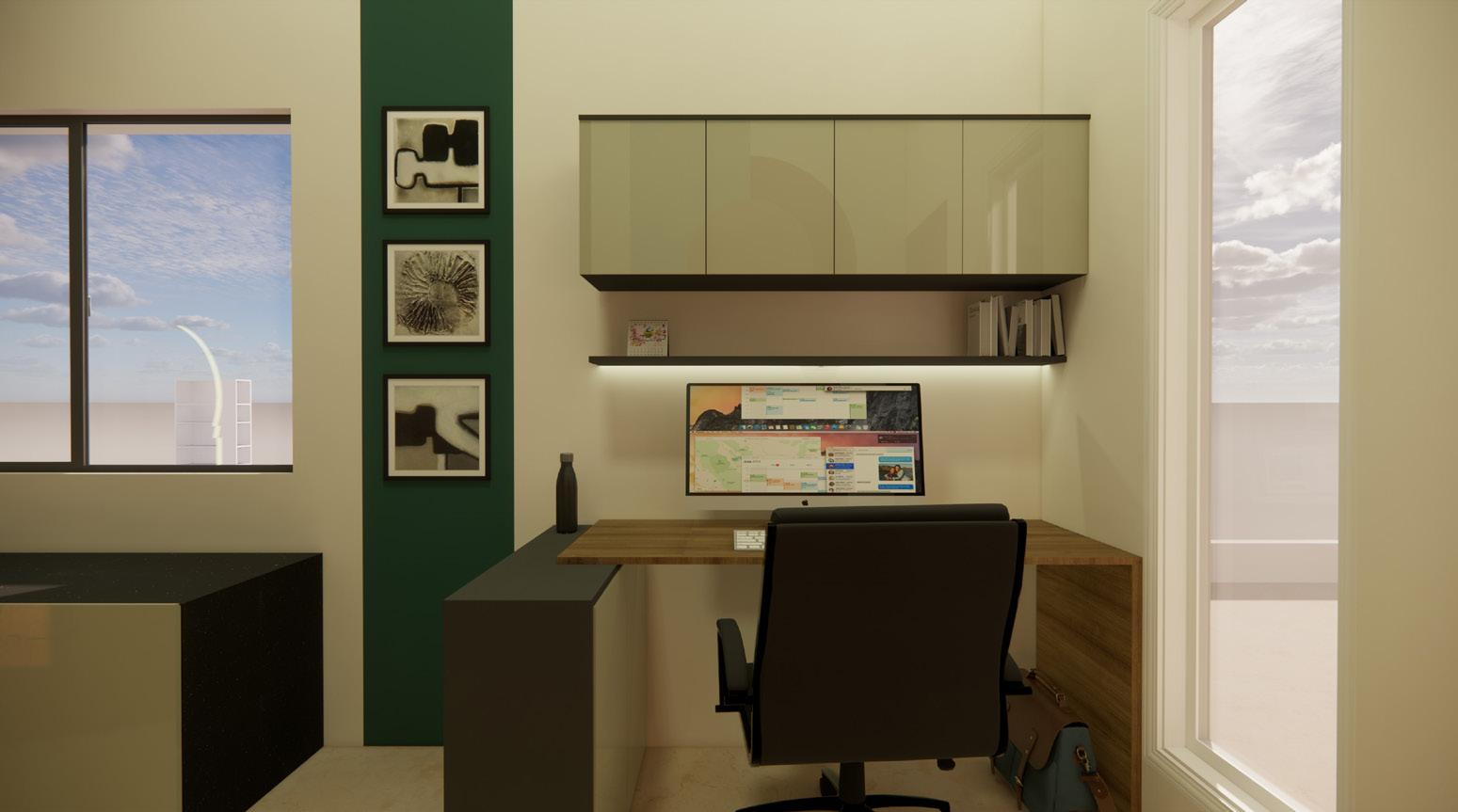

The family lounge in the first floor is used for praying and family get to gether. The Client also wanted a study table for this work from home schedule. He wanted the praying area to be little unique and focus point as soon as people climb the stairs to the first floor. He wanted a book shelf near the window and storage below the window seatings. The Client wanted a swing and a treadmill in the balcony . He also wanted to keep some plants in the balcony.
34

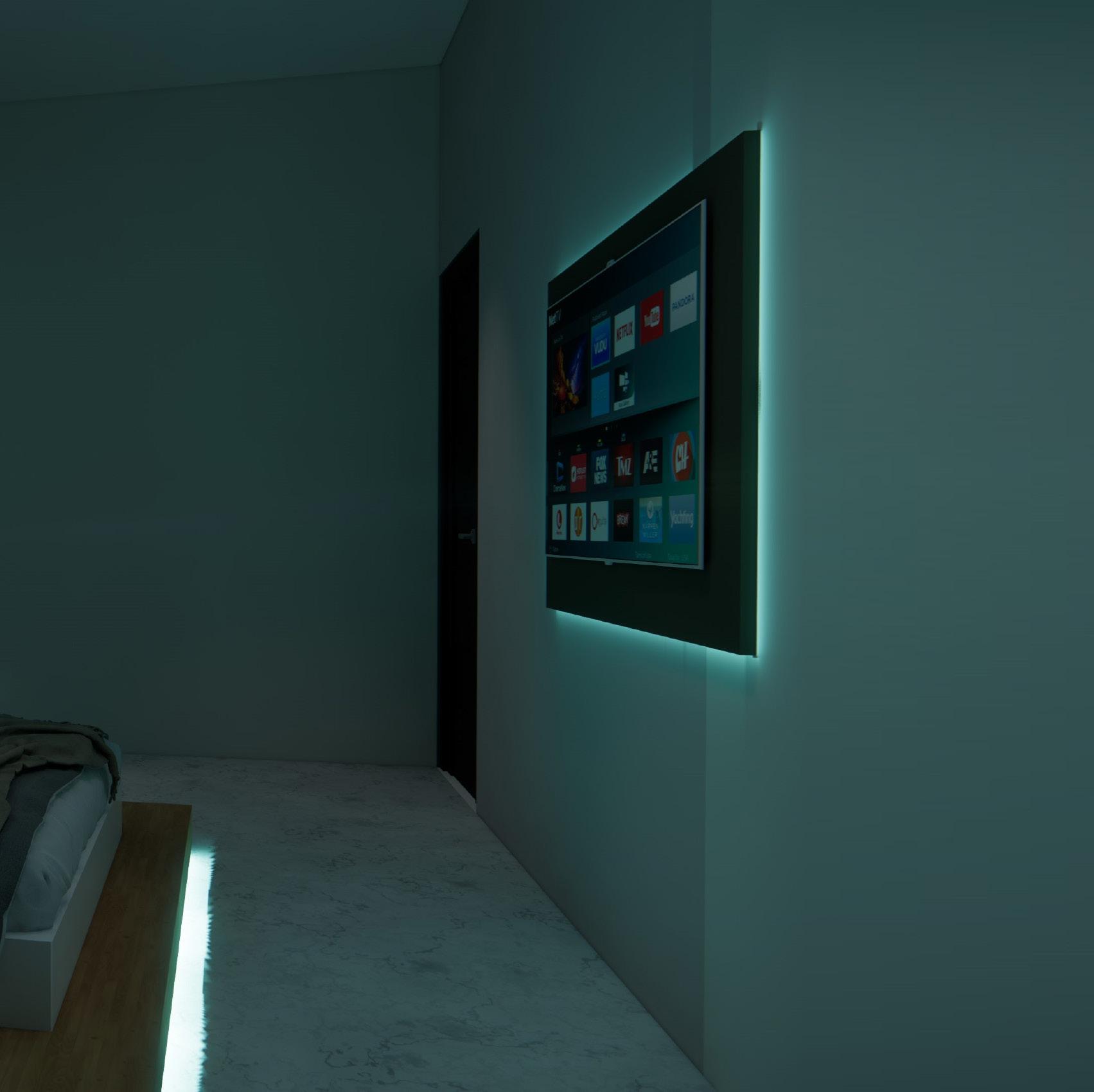

He wanted his bedroom to be designed with lights and should be a place where he can rest peacefully after a hectic day. He wanted a elegant, well-designed furnitures, with platform bed, and smart paintwork. He also wanted a to watch tv in his room while lying down. He was very much concerned about his bedroom design.
36

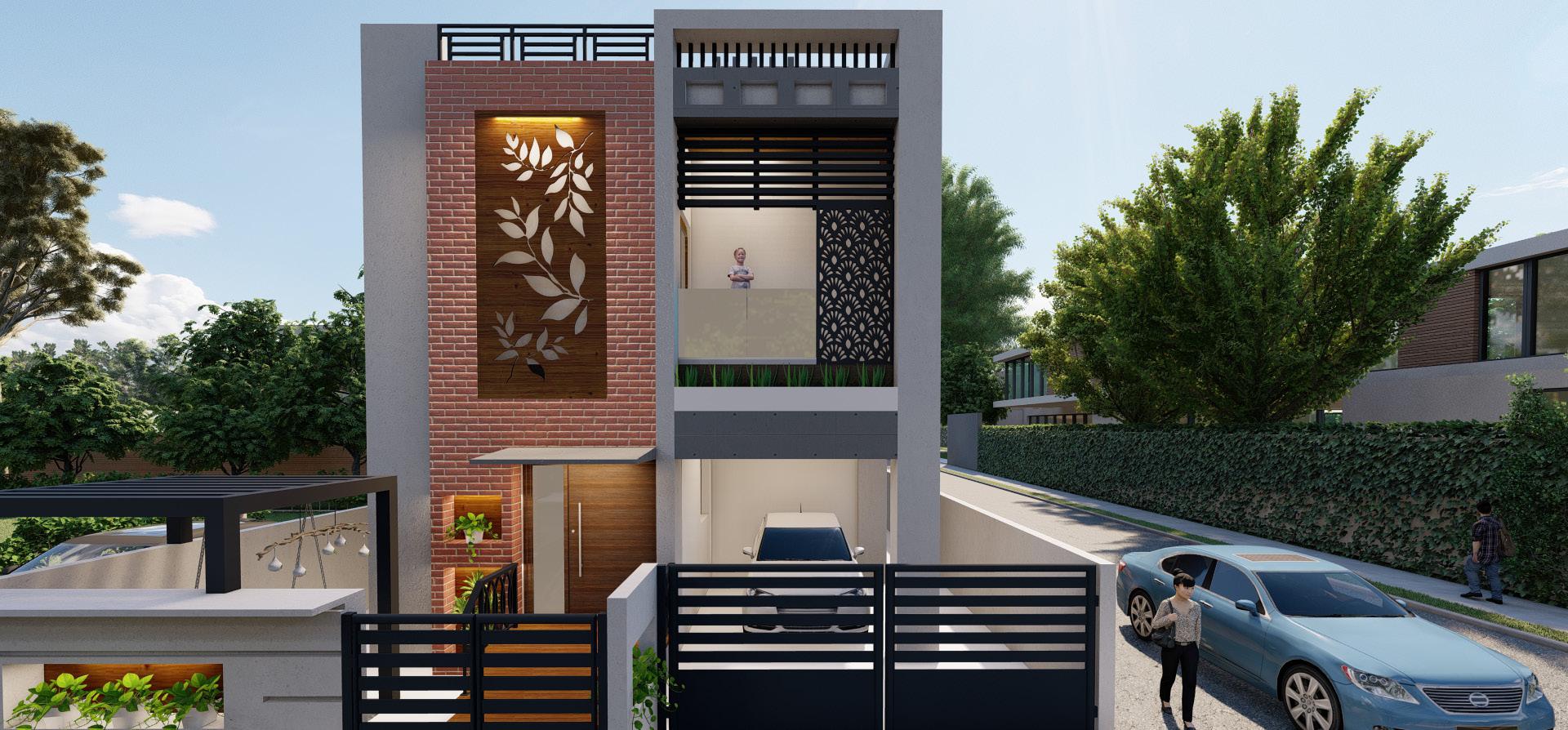

ARCHITECTURAL DESIGN DETAILING
1. Schematic Plan
3. Staircase Detail
5. Sections
4. Elevations
6. Electrical Layout
2. Gfc
04 38
Ground Floor

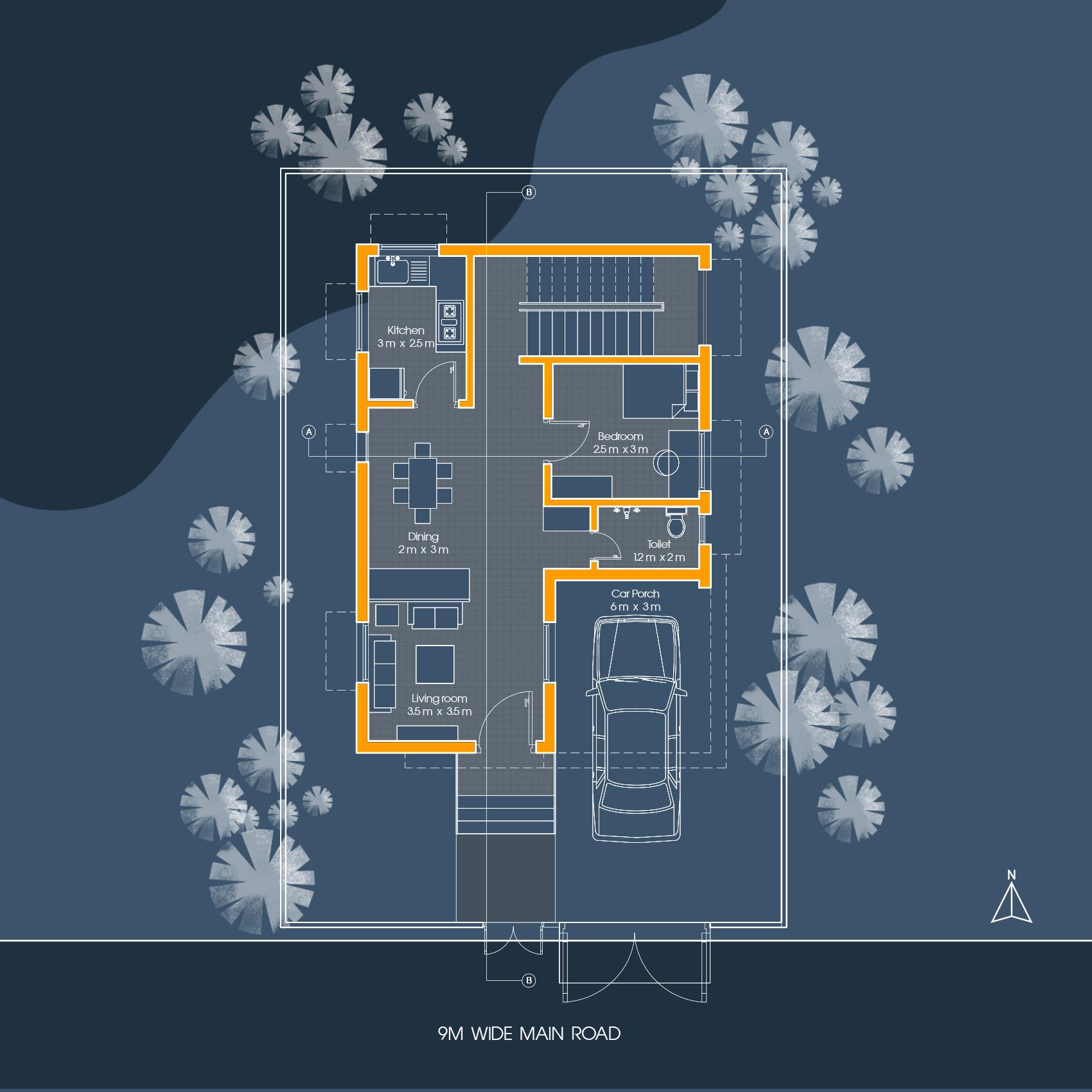

01. SCHEMATIC PLAN
First Floor Terrace TOILET 1.2m X 2m BEDROOM 2.4m X 3.1m +0.15 +0.0 BALCONY 1m X 2.8m CLOSET 1.6m X 1.3m BATH 1m X 1.4m W.C 0.9m X 1.4m WASH BASIN 0.9m X 1.4m +0.15 BALCONY 2m X 2.3m LOUNGE 3.5m X 3.2m BEDROOM 4m X 3.5m A A B B A A B B 40
Ground Floor
02. GFC
PLAN
LIVING 3.2m X 3.5m CAR PORCH 5m X 3m BEDROOM 2.7m X 3m +0.6 +0.0 +0.15 A A B B A B C 1 2 3 4 1 2 3 4 A B C 2.1 0.2 0.2 1.2 1.2 0.4 1.5 1.1 0.6 2.1 0.6 0.5 2 2.8 3.8 0.9 0.9 0.3 2.1 0.5 1.2 3 0.6 1.4 1.3 1.3 2 3.15 0.2 0.9 0.2 0.9 0.2 0.6 0.9 2 4.5 1.2 0.2 0.2 1.2 1.2 MD W1 TOILET 1.2m X 2m 1.2 0.3 0.9 0.2 0.6 V +0.65 FFL +0.6 SSL D2 0.9 1.6 3 1.3 1.2 0.2 2.7 KITCHEN 3m X 2m +0.65 FFL +0.6 UFL DINING AREA 2.1m X 3.5m +0.20 FFL +0.15 UFL 1.5 1.5 3.4 1.5 1.5 2 1.6 1.8 0.2 0.6 0.2 0.2 0.6 2.8 0.2 1.6 3.4 1.1 0.3 3.1 0.3 0.2 0.2 0.4 1 1.2 0.7 0.4 2.1 0.6 0.4 0.4 0.8 0.4 1.5 0.1 3.4 0.1 1.5 0.1 0.2 2 1.4 0.4 2.7 0.2 1.5 0.1 0.1 1.5 0.40.1 1.5 1 0.4 0.3 1.2 0.5 0.6 0.5 0.4 2.9 0.4 0.3 3.1 0.1 0.2 1.5 0.1 2.1 1.2 0.20.2 2.8 0.2 0.3 1.1 0.1 3.4 0.2 3.2 0.2 1 0.2 2.1 0.2 3 0.2 1.5 0.1 0.1 1.5 0.1 0.2 2 0.2 4.5 0.2 1.5 0.1 1.5 0.2 2 0.2 2.7 0.2 1.2 0.2 6.8 0.1 0.1 0.1 1.5 0.2 3.5 0.2 4.5 0.1 0.1 3.4 1.5 2.8 0.9 1.3 0.1 1.2 1.5 1.5 0.1 6.5 1.5 0.1 0.1 1.5 0.3 2 1.3 2.6 4.2 3.1 0.1 0.1 1.5 1 2.7 3.6 1.1 0.1 1.5 3.3 0.1 0.1 15 1.5 7 1.5 0.1 10 10 1.5 6.7 6.8 0.1 15 3.9 3.1 1.5 10 0.1 1.5 0.1 3.9 1.2 0.3 3 1.5 0.1 0.1 0.1 W1 W1 W2 0.2 0.2 0.2 W1 1.2 0.6 1.5 0.8 +0.65 FFL +0.6 UFL +0.65 FFL +0.6 UFL +0.65 FFL +0.6 UFL
First Floor Second Floor
BEDROOM 2.4m X 3m A A B TOILET 1.2m X 2m BALCONY 2m X 2.8m LOUNGE 3.5m X 3.2m BALCONY 1.2m X 3m TOILET 1.4m X 2m WALK IN CLOSET 1.4m X 2m BEDROOM 3.3m X 3.5m A B C 1 2 3 4 1 2 3 4 0.20.2 1.2 2.1 0.4 2.7 0.2 0.4 0.1 1.5 1 0.4 0.3 1.2 0.5 0.6 0.5 0.4 2.9 0.4 0.3 0.2 2 0.2 4.5 0.2 0.2 2 0.2 2.7 0.2 1.2 0.2 3.4 0.3 1.5 5.2 0.3 2 1.3 2.6 4.2 7 10.3 0.2 0.9 0.2 1.2 1.2 2.7 3.6 1.5 0.6 0.2 0.6 0.1 0.3 3.5 +3.80 FFL +3.75 UFL +3.80 FFL +3.75 UFL +3.80 FFL +3.75 UFL +3.80 FFL +3.75 UFL +3.80 FFL +3.75 UFL +3.80 FFL +3.75 UFL +3.80 FFL +3.75 UFL +3.95 FFL +3.90 UFL +3.80 FFL +3.75 UFL +3.95 FFL +3.90 UFL 0.30.5 0.7 0.9 0.5 0.6 1.4 0.3 0.6 0.7 2.4 0.6 2.4 2.8 2.5 0 2.2 1.2 0.7 0.2 3 1.3 1.2 0.2 2.7 1.4 0.6 0.9 0.5 0.2 0.9 0.2 0.9 0.9 2 5.1 0.3 0.9 1.6 1.3 0.2 0.6 1.1 0.2 1.2 0.9 1.7 1.1 0.4 1 1.2 0.7 0.4 2.8 0.2 0.4 0.8 1.2 0.6 0.4 0.2 3.3 0.2 2.8 0.2 3.2 0.2 1.2 1.5 0.8 1.2 1.5 0.7 3.4 0.3 0.3 0.2 0.3 0.6 0.2 0.3 0.6 10 B W1 W1 W1 V V W1 0.3 0.2 3.5 0.2 1.8 1 0.2 0.3 0.2 0.2 3.5 3 0.2 0.3 3.6 1 2.7 7.3 A B C 2.1 4.5 0.9 0.2 0.9 0.9 2 3.4 0.9 1.2 0.6 0.2 0.4 2.6 0.4 3.1 2.9 0.4 0.2 2.1 1.2 7.5 0.2 1.5 0.8 3.4 1 1.5 0.8 10.1 0.2 2.1 0.2 1.2 0.4 2.7 0.2 0.2 2.1 0.2 4.3 0.2 0.3 1.5 5.2 0.4 0.1 1.5 1 0.4 0.4 2.9 0.4 0.3 3.1 0.2 2 0.2 7.5 0.2 0.3 2 1.3 2.6 4.2 10.3 0.2 0.7 2.7 0.2 2.8 0.2 3.6 1 2.7 7.3 7.3 OPEN TERRACE 15.3 sqm +6.95 FFL +6.90 UFL 0.3 7 0.3 A A B A B C 1 2 3 4 1 2 3 4 B A B C 42

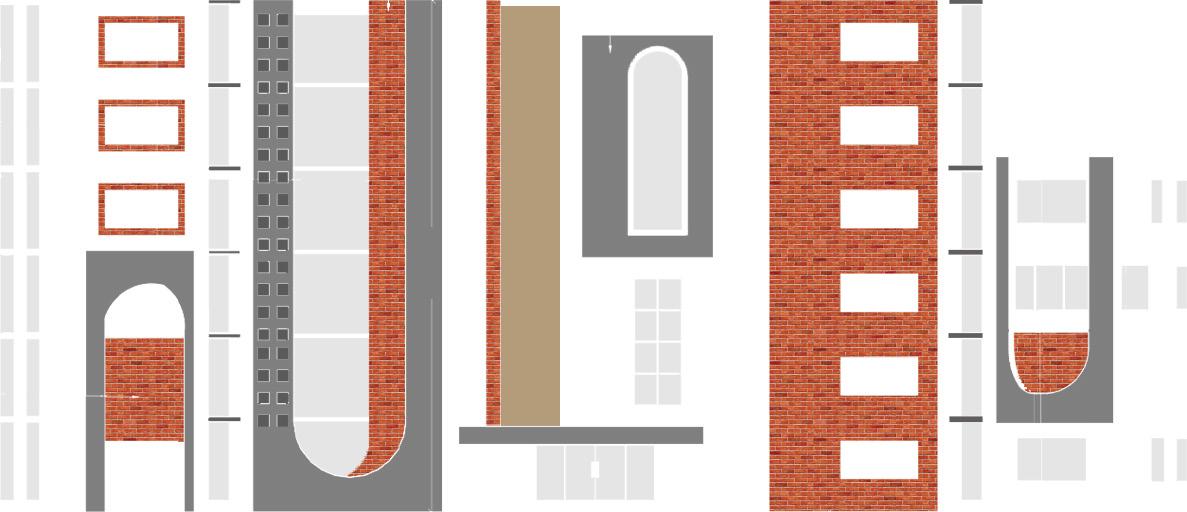

1 2 3 4 5 6 7 8 9 10 11 22 23 24 25 26 27 28 29 30 31 32 2.55 0.21 1.5 1.41 1.06 3.15 Level of Road Crown (±0'-0") Lvl Top of Ground Floor Roof Slab (+6m)Lvl Ground Floor Unfinished Lvl (1.2m) Lvl Top of First Floor Roof Slab (7.5m)Lvl Top of Headroom Roof Slab (10.12m)Lvl P.C.C Sand Filling Earth Filling Apvd.Marble Flooring 0.15m thk. Waist Slab Apvd.Marble Flooring 0.1 0.38 03. STAIRCASE DETAIL 04. ELEVATION West Elevation North Elevation 1.8 0.15 3.15 2.85 0.74 0.47 0.45 0.3 0.3 0.22 0.22 0.15 2.84 7.95 0.52 0.23 0.45 0.45 0.57 0.67 0.67 0.57 0.07 0.07 0.07 0.77 0.1 0.9 0.92 0.92 1.84 1 2.08 2.84 0.73 2.77 2.24 0.23 1.3 0.15 2.1 0.5 0.78 0.39 1.2 0.4 0.23 0.75 0.30.15 1.37 0.26 0.6 0.23 0.23 2.74 0.60 1.6 3.50 0.51 0.6 0.15 0.55 0.6 2.1 1.2 0.15 0.23 0.38 0.15 1.2 0.3 0.6 1.2 0.13 0.73 0.15 0.6 7.49 0.96 7 Level of Road Crown +0.00m) Lvl Level of unfinished Plinth (+0.60m) Lvl Top of Ground Floor Roof Slab (+3.75m) Lvl Top of First Floor Roof Slab (+6.90m) Lvl Top of Headroom Roof Slab (+9.45m) Lvl Top of Overhead tank Roof Slab (+11.55m) Lvl NORTH ELEVATION Level of Road Crown (+0.00m Lvl Level of unfinished Plinth (+0.60m) Lvl Top of Ground Floor Roof Slab (+3.75m) Lvl Top of First Floor Roof Slab (+6.90m) Lvl Top of Headroom Roof Slab (+9.45m) Lvl Top of Overhead tank Roof Slab (+11.55m) Lvl 3.93 0.46 0.45 0.3 0.3 0.22 0.74 0.77 0.16 0.22 0.6 0.3 0.16 2.22 0.98 1.12 2.81 0.6 3 0.15 0.3 0.3 1.2 0.6 0.6 0.58 0.15 0.15 0.15 0.15 1.5 3.89 0.6 1.70 2.6 3.91 0.24 0.15 1.2 0.15 0.3 1.82 5.82 0.88 0.3 2.63 1 0.15 2.55 0.9 1.2 0.3 2.03 0.3 0.15 0.75 0.15 0.3 WEST ELEVATION 1.2 1.74 0.15
Section A Section B
First Floor Ground Floor Terrace
ELECTRICAL
LEGEND LEGEND LIVING 3m X 3.5m CAR PORCH 5m X 3m TOILET 1.2m X 2m BEDROOM 2.7m X 3m +0.6 +0.15 +0.0 POOJA ROOM 1m X 2m KITCHEN 3m X 2m AC AC +0.15 TOILET 1.2m X 2m +0.0 BALCONY 2m X 2.8m LOUNGE 3.5m X 3.2m BALCONY 1.2m X 3m TOILET 1.4m X 2m WALK IN CLOSET 1.4m X 2m BEDROOM 3.3m X 3.5m BEDROOM 2.7m X 3m SB for upper deck (+1.8 lvl) SB for lower deck (+.9 lvl) AC AC LIVING 3m X 3.5m CAR PORCH 5m X 3m TOILET 1.2m X 2m BEDROOM 2.7m X 3m +0.6 +0.15 +0.0 POOJA ROOM 1m X 2m KITCHEN 3m X 2m AC AC +0.15 TOILET 1.2m X 2m +0.0 BALCONY 2m X 2.8m LOUNGE 3.5m X 3.2m BALCONY 1.2m X 3m TOILET 1.4m X 2m WALK IN CLOSET 1.4m X 2m BEDROOM 3.3m X 3.5m BEDROOM 2.7m X 3m SB for upper deck (+1.8 lvl) SB for lower deck (+.9 lvl) AC AC LIVING 3m X 3.5m CAR PORCH 5m X 3m TOILET 1.2m X 2m BEDROOM 2.7m X 3m +0.6 +0.15 +0.0 POOJA ROOM 1m X 2m KITCHEN 3m X 2m AC AC +0.15 TOILET 1.2m X 2m +0.0 BALCONY 2m X 2.8m LOUNGE 3.5m X 3.2m BALCONY 1.2m X 3m TOILET 1.4m X 2m WALK IN CLOSET 1.4m X 2m BEDROOM 3.3m X 3.5m BEDROOM 2.7m X 3m SB for upper deck (+1.8 lvl) SB for lower deck (+.9 lvl) AC AC
05. SECTION
06.
LAYOUT
0.6 0.9 1.5 0.3 0.9 1.5 0.3 1.2 0.28 0.28 0.6 Level of Road Crown +0.00m Lvl Level of unfinished Plinth (+0.60m) Lvl Top of Ground Floor Roof Slab (+3.75m) Lvl Top of First Floor Roof Slab (+6.90m) Lvl Top of Parapet wall (+8.10m) Lvl 0.23m Thick Brick Wall 0.01m Plastering 0.15m Thick Roof Slab 0.15m Thick Door Lintel Beam 0.60m Span Sunshade Skirting 0.15m Thick Roof Slab 0.60m Span Sunshade 1.2m High Balcony Railing 1 4 Door Door Door 1.2 0.3 2.89 0.3 0.6 0.15 0.60 2.05 Level of Road Crown +0.00m) Lvl Level of unfinished Plinth (+0.60m) Lvl Top of Ground Floor Roof Slab (+3.75m) Lvl Top of First Floor Roof Slab (+6.90m) Lvl Top of Parapet wall (+8.10m) Lvl P.C.C. Sand Filling Earth Filling Apvd.Marble Flooring 0.23m Thick Brick Wall 0.01m Plastering P.C.C. Sand Filling Earth Filling 44
