Commercial Hub at Gurugram, Haryana Thesis | 2021-2022 | Proposal

Area - 3.8 Ha ( 38,000 sqm)

Project Type - Mixed Use Commercial Location - Gurgaon, India

The commercial hub is designed as a one stop destination for all the commercial activities. The planning was done in a way which would accumulate the office and the retail spaces with the recreational areas. The prime focus was on breaking the voluminous built structure with landscaping elements.

The site had large no. of trees which were retained and used in site development. Access from all the four roads helped in dividing the building into blocks and each blocks could have different building characteristics. High rise buildings in the area obstructs the landscape view which resulted in providing lush green areas inside the hub.

My role in this project was to propose a building that would cater to all the needs of the people. I provided concept diagrams and zoning modules with different iterations along with schematic plans of the whole complex. Also, provided 3D renders and walkthrough for that helped the person to understand the space better

Location

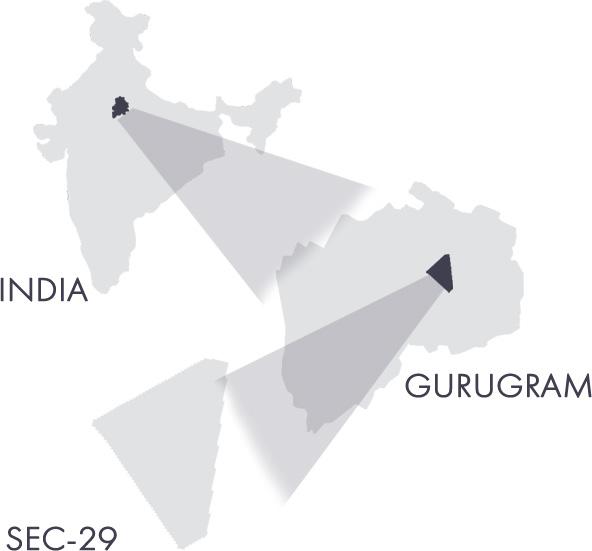

Site Location: Sector 29, Gurugram, Haryana

Proposed Project: Commercial Hub

Area: 3.8 Hactares (9,5 Acres)

Aim: To make a commercial hub including shopping complex with food and dining spaces and corporate offices.

Scope & Limitations: The project requirements areshops, food courts, open dining and cafes, kids zone, offices, meeting halls.

Services

DHBVN

4Km away

Petrol Pump 400m away

GMDA Boosting station

400m away

Sector 29 Police Station

800m away

Gurugram experiences a prominent monson season.

Driest month- November Wettest month- August

Hot and humid climate. The summers are very sultry and uncofortable. Winters are foggy and cold.

Increases water retention. Circulates the air better. The soil is very fertile. Ground water is 2030m below ground level.

The building should be designed along the longer axis. Divisions of blocks are recommended.

Site and Surroundings

Demographics

Levelled Landscape The Bridge

The landscape is designed in a levelled way which helps in a sense of continuity and allows the people to have a view of the surrounding.

The bridge is used to connect the two parts of the landscpae and acts as a focal point of the site from where the entire site is visible.

The Flea-market The Forest Trail

The flea market was designed to promote local shops and industries and also to enhance street shopping culture.

The existing trees on the site were used in making a walking path covered with trees with sitting spaces and gazebos in regular intervals which would act as a leisure space.

1- Entry

2- Open-Air Theatre

3- Stepped Landscape

4- Shopping mall

5- Office Complex

6- Atrium

7- The Forest Trail

Working Drawings

Various Projects | 2022-23

Behind every successful architectural project lies a foundation of meticulous planning and attention to detail. In the case of our project, I took great pride in creating comprehensive and precise detailed working drawings that served as the blueprint for the realization of the design vision.

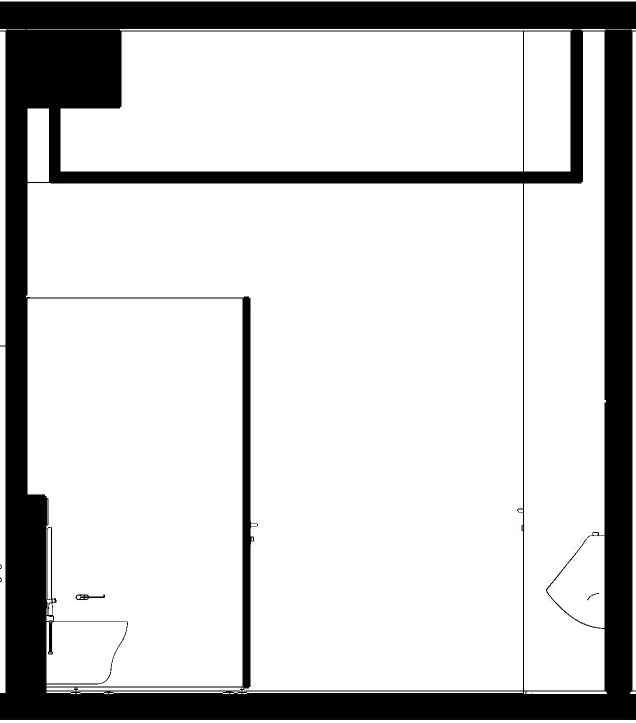

The detailed working drawings encompassed architectural plans, elevations, sections, and technical specifications. They provided a comprehensive guide for contractors, builders, and craftsmen to interpret and implement the design with precision and accuracy.

Through these drawings, I communicated critical information such as dimensions, materials, finishes, and construction techniques. Each element was carefully specified and documented, leaving no room for ambiguity and ensuring a smooth workflow throughout the construction phase.
