RFS - RADIAFLEX® Redeployable System

Dual-Band Ready: 430MHz & 870MHz

RADIAFLEX® Redeployable System Lifetime Connectivity

PORTABLE TETRA COVERAGE FOR TEMPORARY AND EMERGENCY OPERATIONS

Where Communication Cannot Fail Modern buildings and underground infrastructure create significant challenges for emergency communications.

Dense concrete cores and steel reinforcement in high-rise construction or in underground transport systems create a ‘Faraday cage’ effect that causes signal attenuation and unpredictable coverage.

Emergency services and infrastructure operators need a way to maintain reliable coverage across these environments, which is a considerable operational challenge.

02

Radio RadioFrequency FrequencySystems Systems - www.rfsworld.com

The Standard f Mission Critica Wireless

for al

About TETRA TETRA is the radio communications system used by emergency services for reliable operational communication in difficult environments. Specifically designed for emergency communication, it is effective in environments where standard coverage can be unreliable.

Operating within the 430 MHz and 870 MHz frequency bands, it offers multiple technical advantages: •

Superior penetration through concrete, steel and underground structures

•

Enhanced diffraction, allowing signals to bend around obstacles and into coverage shadow areas

•

•

Reduced infrastructure dependency during operational incidents

•

Reliable vertical and underground propagation in complex structures

•

Optimized for reliable, low latency, mission-critical voice services

Whether operating in reinforced high-rise buildings, below ground in transport infrastructure, or across difficult terrain, TETRA can deliver the stability and continuity required for tough operational conditions.

But what happens in buildings without existing TETRA coverage?

Predictable coverage footprint with fewer localized dead zones www.rfsworld.com - Radio Frequency Systems

03

RADIAFLEX® Redeployable (RD) System

System Characteristics

The RADIAFLEX RD System is a

• Continuous radiating cable for reliable coverage up to 600m

portable TETRA communications network for rapid deployment during emergencies, regardless of environment or existing infrastructure.

Developed initially for emergency services, RFS radiating cable is deployed from a portable drum and functions as a continuous distributed antenna. The result is consistent coverage without repeater infrastructure that can be redeployed as required.

04

• Portable drum for fast deployment

• Pre-connectorized components for rapid installation • Integrated band-pass filtering manages interference • Compatible with voice and telemetry integration • Global spectrum agility for deployments across both 430 MHz and 870 MHz The system is designed for temporary deployment conditions and maintains operational performance during rapid installation and repeated field use.

Radio Frequency Systems - www.rfsworld.com

Operational Kit Configurations

The Solution

Kit 1: Rapid Voice Deployment

Kit 2: Full Integration

Kit 3: Telemetry Monitoring

Designed for temporary voice communications deployment during emergency response operations.

Supports simultaneous voice and telemetry/data operation within multi-system deployments.

Configuration optimized for continuous telemetry and subsurface monitoring applications.

Includes

Includes

Includes

• Portable deployment drum

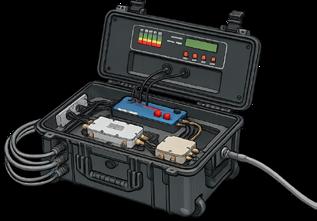

• Gateway control panel

• Snap-fit cable support clamps

• Pre-connectorized RSF radiating cable

• Integrated band-pass filters

• 600m radiating cable deployment

• Rapid-connect terminals • Vertical stairwell deployment capability

• Standardized power dividers • Multi-network integration capability

• Dedicated telemetry infrastructure • Data-only operational configuration

www.rfsworld.com - Radio Frequency Systems

05

Real-World Testing & Use Cases

Testing with UK Fire Services

Testing focused on:

RFS worked alongside a large UK fire service to fully assess the performance of the RADIAFLEX RD System, focusing on optimizing system performance and deployability within challenging operational environments.

•

High-rise stairwell deployments

•

Deep underground propagation

•

Rapid temporary infrastructure setup

06

•

Multi-system operational compatibility

•

Deployment under constrained access conditions

Radio Frequency Systems - www.rfsworld.com

Field testing included deployments within The Shard and Clapham underground shelters, allowing performance to be assessed in both high-rise and underground environments.

Operational feedback from response teams directly informed design iterations for a solution built for real-world deployments.

Additional Applications Although originally developed for the emergency services, the platform is also suited to temporary communications deployment in other operationally challenging environments.

Mining & Subsurface Mission-critical comms during tunnel expansion or deep extraction.

Heavy Construction Robust temporary networks in harsh, high-rise build environments.

Defense & Tactical Rapid field communications where standard infrastructure is nonexistent. www.rfsworld.com - Radio Frequency Systems

07

Lifetime Connectivity When it matters most Keep up to date on RFS’s rapid-deployment TETRA solutions for mission-critical coverage anywhere. Scan the QR code to learn more and connect with our experts.

https://info.rfsworld.com/radiaflex-redeployable-system
