Volcom Ray Surf Duta Mall Revamp Project 2017

1POLE=8POINTOFBOLT&NUT

3.00 HOLETO HOLE

280.00 TypeC

MAINPOLEDETAIL

scale1:15

TypeD SideView

FIN.HOTROLLEDSTEEL

1POLE=9POINTOFSCREWS PER30CMFROMTOPTOBOTTOM 2.00cm

HOLEd:0.5CM depth8cm

598mm

FRONTVIEW

plywood+6mm&15mm(perkuatanareascrew)

FIN.DUCOBLACKorwhitew/woodtexture

SCREWS"+"

UK.20mm

SHELVING40mmx598mmDETAIL

NOSCALE

HOLEd:05mm

CIRCLELOGOEMBLEM,d:25mm

hollowiron15mmx30mm, th=1,6mm

fin.hotrolledsteel

PLATDUDUKAN2MM

Note:

-Formenssectionusingfin.ducoblackw/woodtexture

-Forwomenssectionusingfin.ducowhitew/woodtexture

250mm

860mm

plywood,+6mm&15mm (perkuatanareascrew)

FIN.DUCOBLACKorwhite w/woodtexture

CIRCLELOGOEMBLEM, d:25mm

IRONPLATEBRACKETDETAIL

SCREWS"+" UK.s4,p=20mm

hollowiron15mmx3mm

th=1,6mm

fin.hotrolledsteel

ISOMETRICDETAIL

Note:

-Formenssectionusingfin.ducoblackw/woodtexture

-Forwomenssectionusingfin.ducowhitew/woodtexture

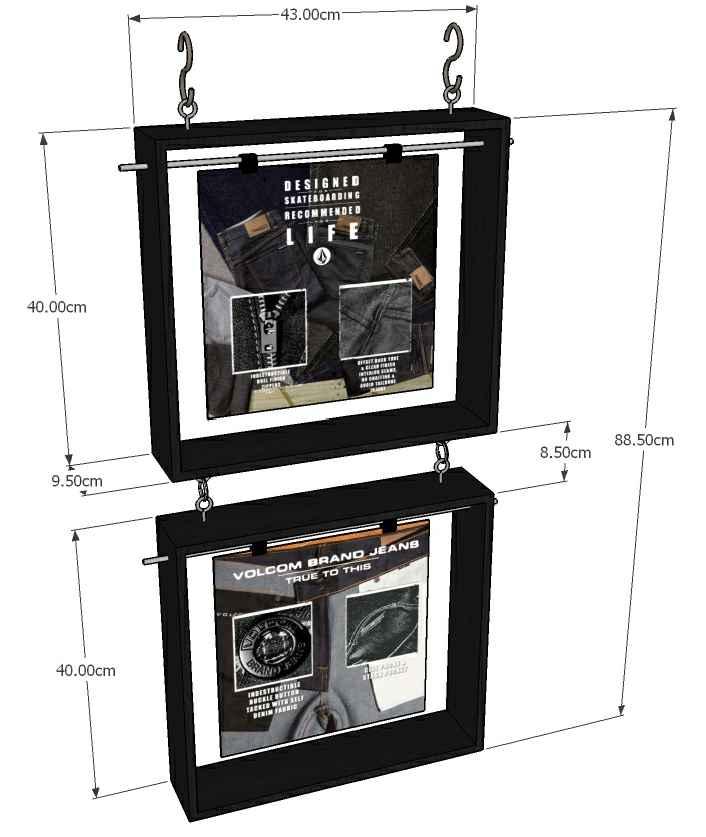

IRONPLATEBRACKETDETAIL

370mm335mm

ISOMETRICVIEW

SIDEHANGDETAIL

Plat3mm

besihollow1.6mm uk.15mmx30mm

ISOMETRICVIEW

FACEOUTDETAIL

BESIHOLLOW1,6mm UK.15mmX30mm

LASERCUTTINGACRYLIC CIRCLESTONELOGO D:40mm

BESIHolow1,6mm 15mmX30mm Plat3mm

BACKVIEW

IRONPLATEBRACKETDETAIL

lasercutacrylic circlestonelogo imageslider

platbesi2mm platbesi1mm besihollow1.5x3cm

impraboardblack

HI-ResSticker Laminateddoff

KPIVBJDETAILISOMETRICVIEW

BESIHOLLOW2X4CM, fIN.HOTROLLEDSTEEL

BESIPIPA, d:3 4INCH

BESIHOLLOW2X2CM, fIN.HOTROLLEDSTEEL

cIRCLELOGOEMBLEM, d:2.5CM PLASTICWHEEL

CASTERWHEELWITHSTOPPER BOLTINSIDETHHOLLOWIRON

FREESTANDTRIANGLEDETAIL

scale1:15

cIRCLELOGOEMBLEM, d:2.5CM

TOPTABLEPLYWOOD,

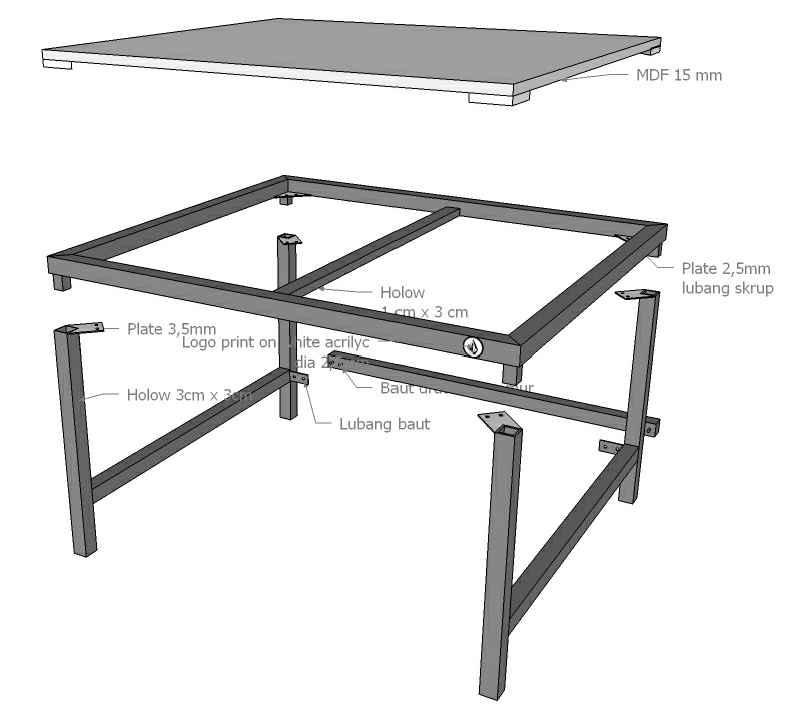

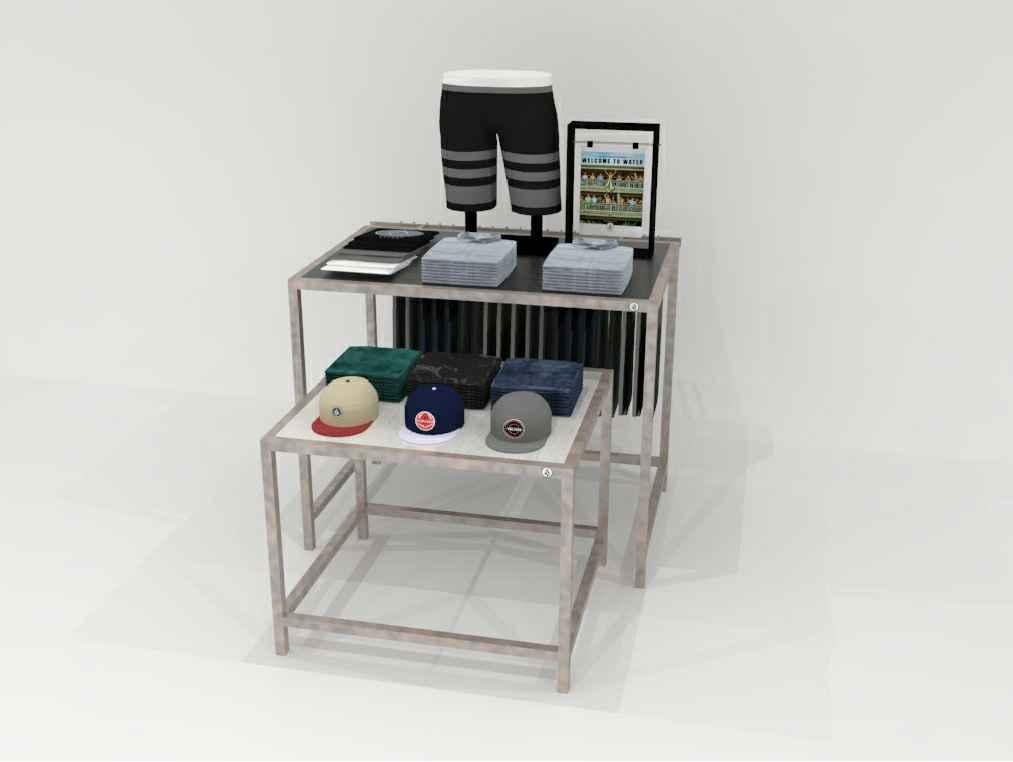

NESTINGTABLEDETAIL

WORKSHORTSHANGERHOLLOWIRON

TABLEFRAMEHOLLOWIRON

FIN.HOTROLLEDSTEELUK.3X3CM

TOPTABLEPLYWOOD,

FIN.DUCOBLACKW/WOODTEXTURE

CIRCLESTONEEMBLEM D:3CM

FIN.HOTROLLEDSTEELUK.1,5X3CM HOLLOWIRON

FIN.HOTROLLEDSTEEL UK.3X3CM

TOPTABLEPLYWOOD,

FIN.DUCOWHITEW/WOODTEXTURE

CIRCLESTONEEMBLEM D:3CM

T-NUTTABLEADJUSTER (8PCSFOR1SETOFNESTINGTABLE)

NESTINGTABLEJOINTDETAIL(KNOCK-DOWNSYSTEM)

CIRCLESTONEEMBLEM D:3CM

MDFTEBAL:12MM

screws2.4cm HoleD:5mM

NESTINGTABLEJOINTDETAIL(KNOCK-DOWNSYSTEM)

TOPVIEW

BOTTOMVIEW

155.00 140.00

BESIHOLLOW4X4CM, fIN.HOTROLLEDSTEEL

SLATWALLSOLIDWOOD TEBAL3.50CM SHOESFACEOUT

scale1:3

Note:

-Formenscreedlersusingfin.blackducoforallbracketsandfaceout

-Forwomenscreedlersusingfin.ducowhiteforallbracketsandfaceout

Note:

-Formensfreestandusingfin.ducoblackw/woodtexture

-Forwomensfreestandusingfin.ducowhitew/woodtexture

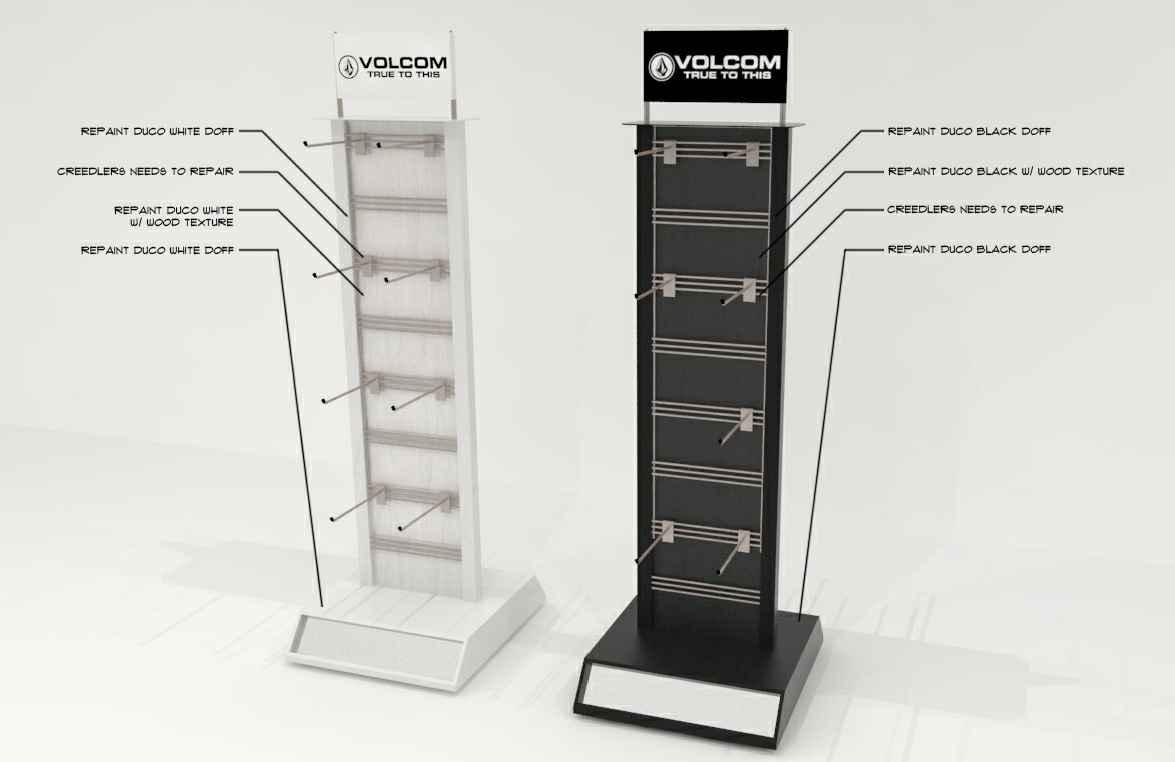

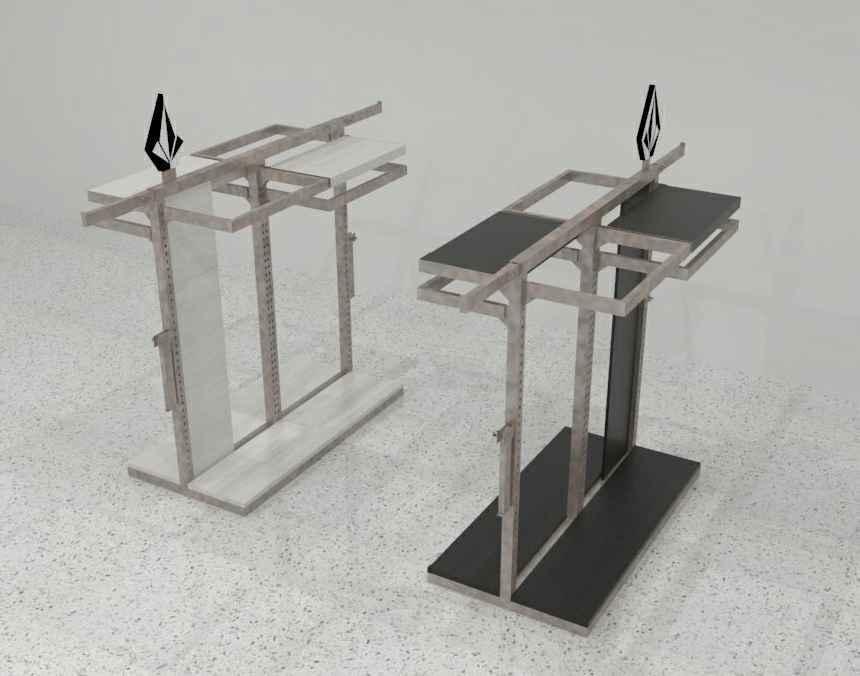

EXISTINGCREEDLERSDETAILANDFREESTAND
