PANEL SAW MACHINE (RK-3200-PRO) - BROCHURE

Page 1

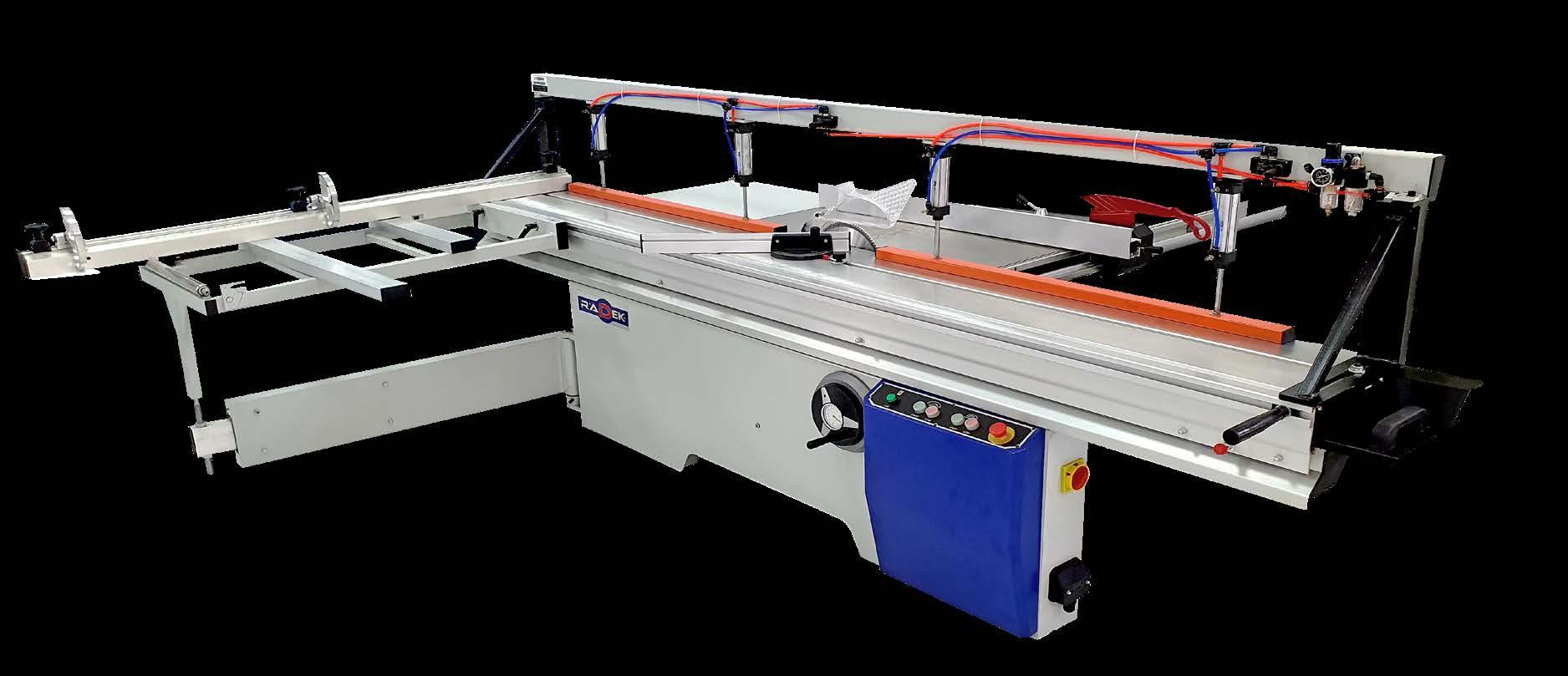

PANEL SAW MACHINE

A professional series panel saw machine with a scoring unit designed for longitudinal, cross and angular cutting of panel materials (MDF, particle board, plywood, plastics…) as well as solid wood. It is an essential machine in all small, medium and industrial productions. It is equipped with manual tilt and height adjustment, scoring unit adjustment, an extendable front fence, a dust cover and an auxiliary fence with a protractor.

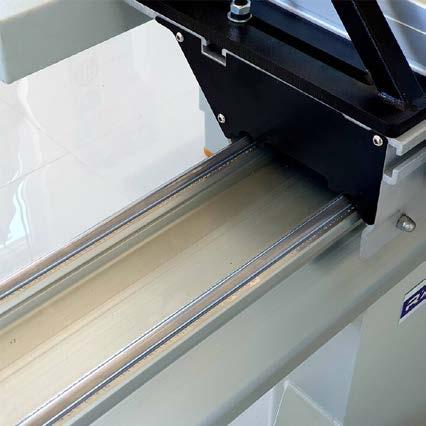

PREMIUM SLIDING SYSTEM

Premium sliding table system ensuring ultra-smooth movements with high precision, without lubrication or special maintenance. Widely recognized as the top choice for high-end format saws.

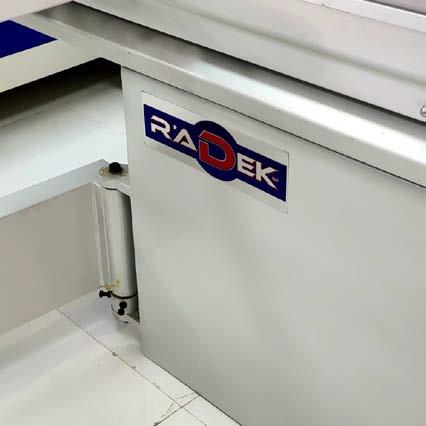

HEAVY-DUTY CONSTRUCTION

Heavy-duty design that eliminates vibrations and ensures stable operation and longevity, made to the highest standards of quality and durability.

Main motor power

Scoring saw power

Sliding table dimensions

Main blade diameter

Main motor speed

Scoring saw diameter

Scoring saw speed

Main blade shaft diameter

Scoring saw shaft diameter

Distance from blade to rear fence

Main blade and scoring saw tilt

Machine dimensions

Packing dimensions

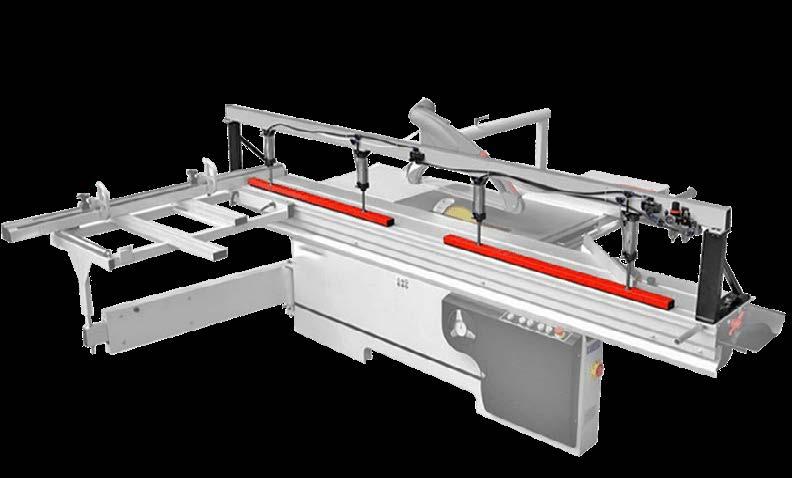

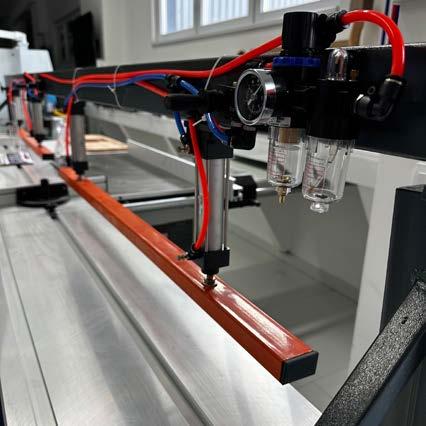

Optional pneumatic press with 4 clamps and two working zones, 3200mm in length. This system ensures secure clamping of panel materials during cutting, which significantly improves both precision and safety in operation.

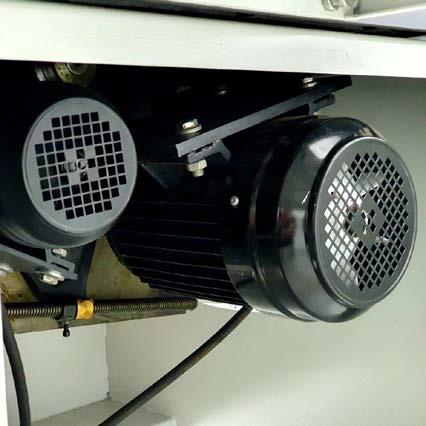

POWERFUL MOTORS

The powerful, high-quality motors with a working power of 5.5kW and 0.75kW, deliver exceptional performance. The motors provide precise and clean cuts even under heavy loads, enhancing both productivity and the machine’s durability.

Machine features height and tilt adjustment for precise angle cutting. The motors provide precise and clean cuts even under heavy loads, enhancing both productivity and the machine’s durability.

Number of pneumatic cylinders

Number of working zones

Operating pressure Machine dimensions

Packing dimensions

PNEUMATIC PRESS

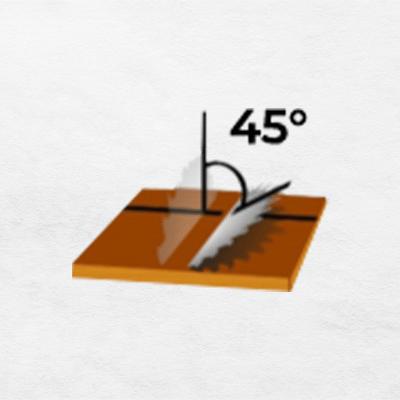

ANGLE CUTTING
