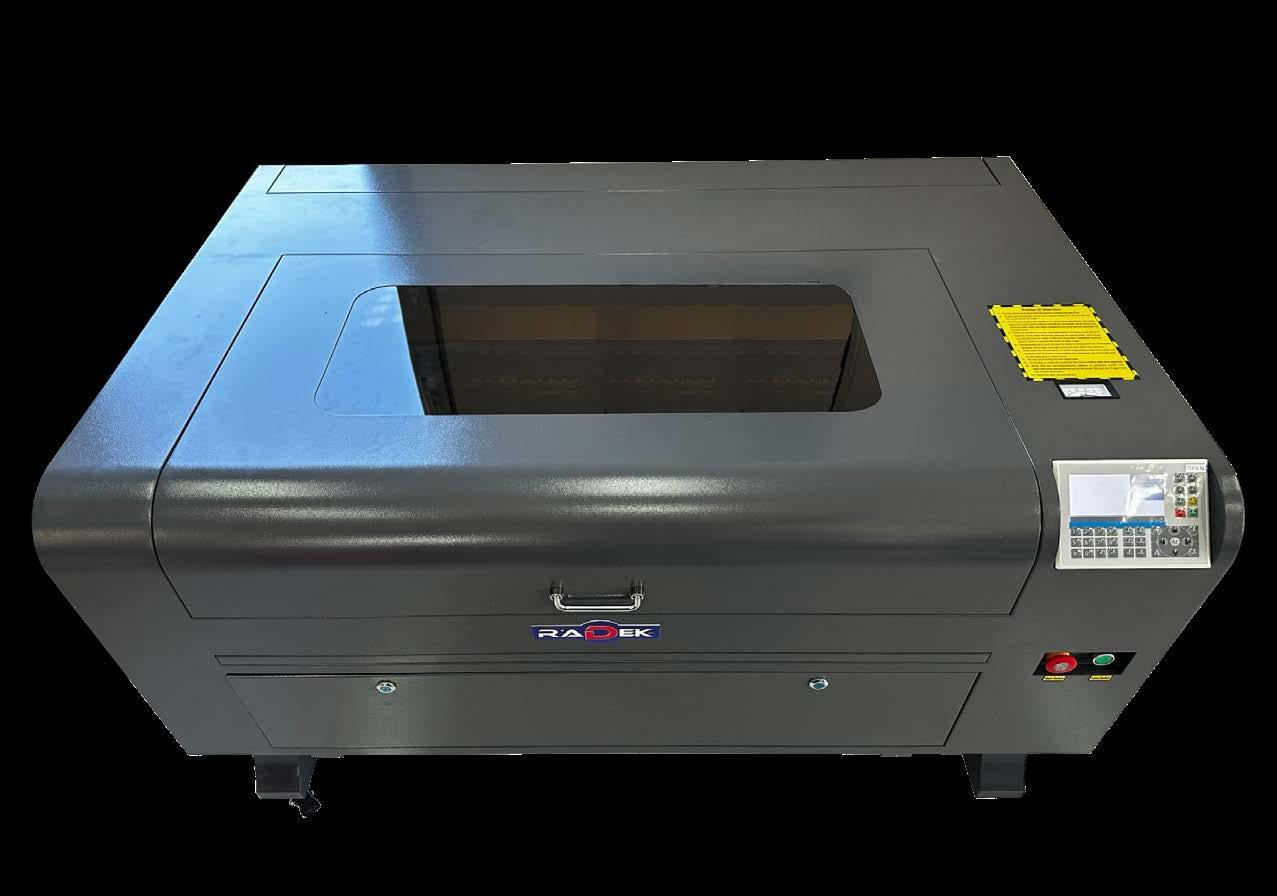

CO2 LASER
BUSINESS IDEA
CO2 lasers present an excellent opportunity for starting a new business or expanding an existing one, thanks to their versatility in processing numerous materials and their application in various industries and projects.
CO2 lasers are among the greatest technological advancements, offering superior quality in processing various materials. Due to their operational safety and extremely low maintenance costs, CO2 lasers positively impact business economics. The laser beam, guided by mirrors and lenses, efficiently transmits and focuses the beam for successful engraving and cutting of materials such as wood, MDF, plywood, HDF, acrylic, leather, cardboard, rubber, marble, mirrors, coated metals and more. They are widely used across various industries, including industrial manufacturing, small and large businesses, craftsmen, packaging industry, printing, leather processing, clothing, automotive, musical instruments, architecture, label production, medical industry and many others.
LINEAR SYSTEM

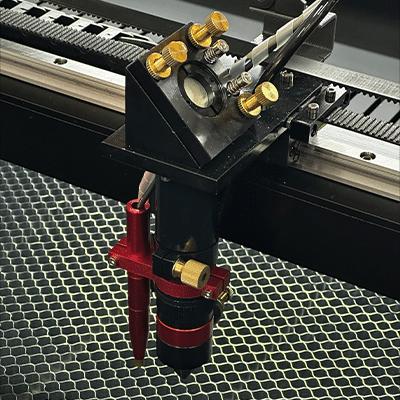

Highly precise linear guides guarantee stable and smooth movement during operation.
INDUSTRIAL CONTROLLER

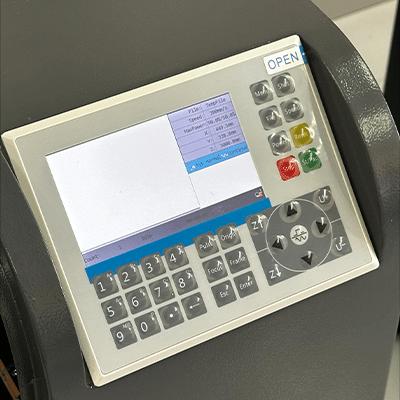

Industrial RUIDA 6445 controller with numerous options and a large display.
ACCESS DOORS

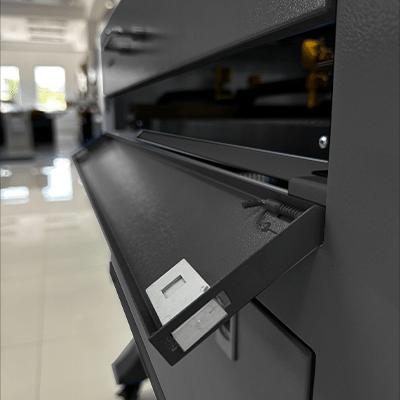

The laser includes doors that allow positioning of materials larger than the working area of the laser.
OPTIONAL
Rotary axis for engraving cylindrical products.
Working area (X and Y axis)
Working area (Z axis)
Laser power
Engraving speed
Cutting speed
Positioning
Cooling system
Worktable
Linear guides
Movement motor
Software Controller
Air compressor
Ventilation
Cutting thickness
Positioning accuracy
Rotary axis
Machine dimensions
Packing dimensions
Weight
600x900mm
250mm
80W / 100W / 130W
1-1000mm/s
1-500mm/s
Automatic focus + red dot
Industrial chiller CW5000
Movable platform with Honeycomb
15mmX (and Y axis)
Step motor 57
Rdworks
Ruida 6445
Included 550W
1-20mm (depending on material)
≤0.01mm
Optional
1400x980x980mm
1620x1100x850mm
190kg
COMPLETE EQUIPMENT

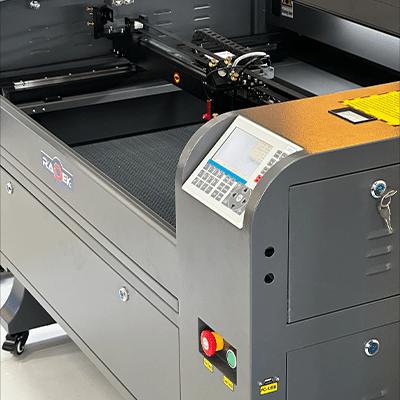

Unlike standard CO2 lasers, RADEK lasers are fully equipped at the highest level with features such as an industrial cooling chiller, motorized movable platform (Z-axis), automatic focus, red dot pointer for positioning, honeycomb working table, a powerful compressor and a fan with a flexible hose.

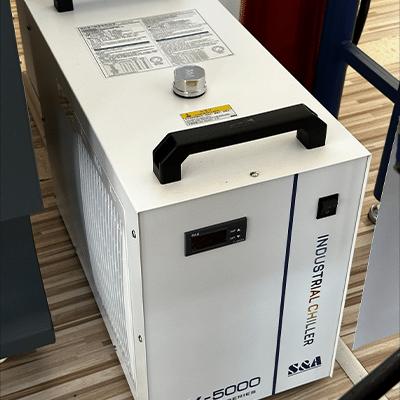

The industrial chiller functions to cool the liquid that heats up during laser operation. It maintains a constant liquid temperature, ensuring protection and smooth operation of the laser.

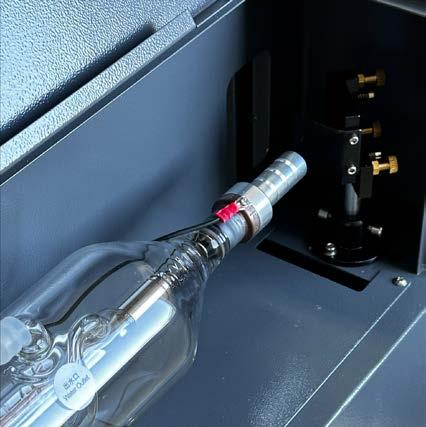

A high-quality 80W CO2 tube that allows processing materials up to 20mm thick. Optionally, a 100W or 130W tube can be installed. The tubes are from the renowned brand EFR, which has been on the market for many years and guarantees quality, durability and maximum efficiency in cutting and engraving.
CO2 TUBE
INDUSTRIAL CHILLER
